Ø13MM VARIABLE SPEED HAMMER DRILLS
850W/1050W
MODEL NO: SD800.V3/SD1000.V3
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and all
electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products. You may obtain an RCD by contacting your local Sealey stockist.
if the drill is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable Appliance
Test) tested.
Electrical safety information, it is important that the following information is read and understood.
1.1.1. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
1.1.3. Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the correct
fuse - see fuse rating in these instructions.
8 DO NOT pull or carry the appliance by the power cable.
8 DO NOT pull the plug from the socket by the cable. Remove the plug from the socket by maintaining a rm grip on the plug.
8 DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or replaced immediately by a
qualied electrician.

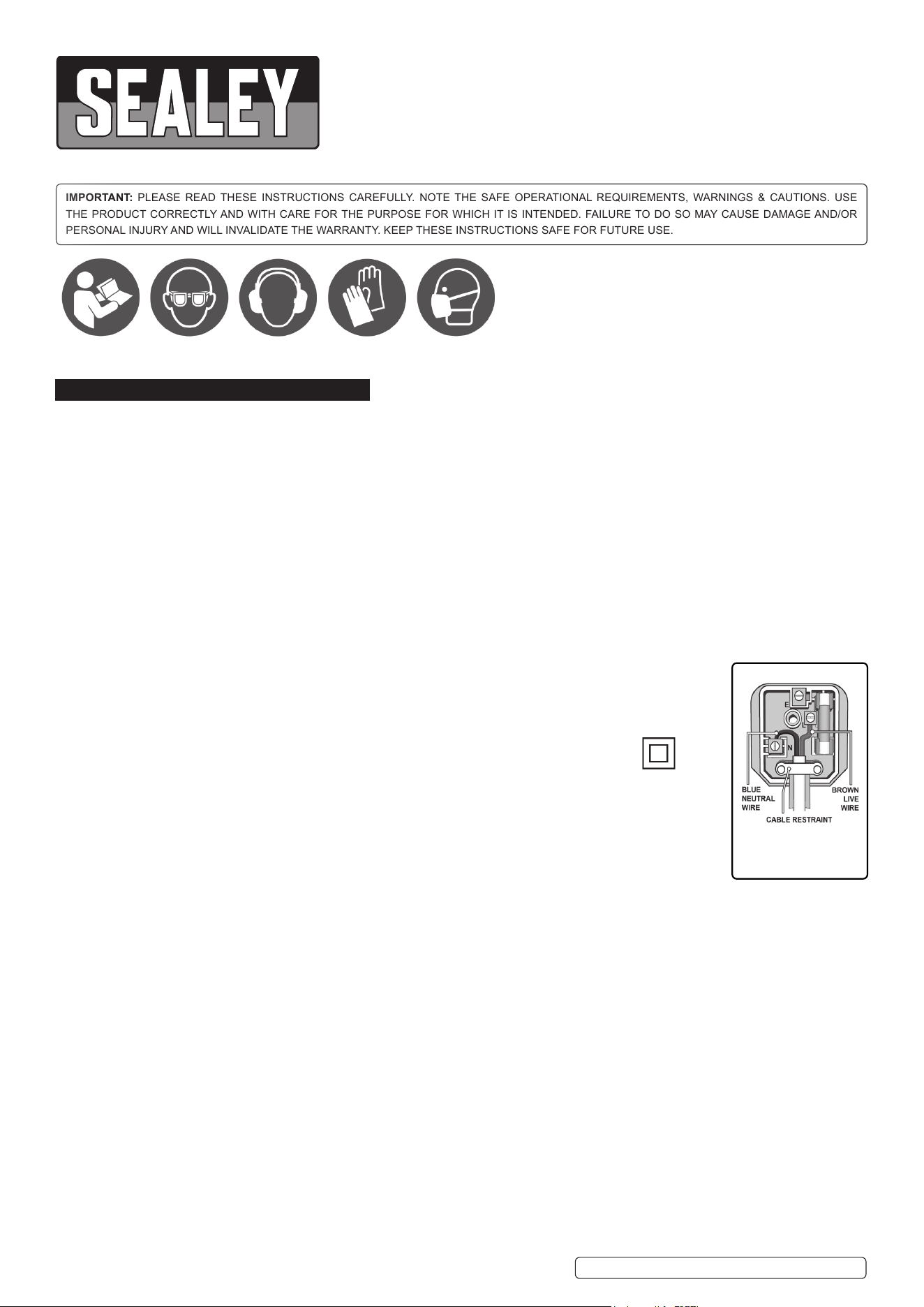

1.1.4. This product is tted with a BS1363/A 13 Amp 3 pin plug.
If the cable or plug is damaged during use, switch the electricity supply and remove from use.
Replace a damaged plug with a BS1363/A 13 Amp 3 pin plug. If in doubt contact a qualied electrician.
Class II products are wired with live (brown) and neutral (blue) only are marked with the Class II symbol;
A) Connect the BROWN live wire to the live terminal ‘L’.
B) Connect the BLUE neutral wire to the neutral terminal ‘N’.
C) After wiring, check that there are no bare wires and ensure that all wires have been correctly connected.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
DO NOT connect either wire to the earth terminal.
Sealey recommend that repairs are carried out by a qualied electrician.
1.2. GENERAL SAFETY
9 Disconnect the drill from the mains power before changing accessories, servicing or performing any
maintenance.
9 Maintain drill in good condition. Check moving parts and alignment and keep drill bits sharp. If necessary use an authorised service agent.
9 Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9 Wear approved safety eye protection with side shields and a dust mask if drilling generates dust. Rubber gloves are recommended when
using out doors and safety gloves when drilling items such as steel, brick work etc,
9 Remove ill fitting clothing. Remove ties, watches, rings, other loose jewellery and contain long hair.
9 Use drill in an adequate working area for its function, keep area clean, tidy and free from unrelated materials and ensure adequate
lighting.
9 Prevent body contact with grounded surfaces to avoid electric shock i.e. pipes, radiators, ranges, refrigerators etc.
9 Evaluate your working area before using the drill i.e. ceiling, floors and enclosures may contain hidden electrical wires or water piping.
9 Maintain correct balance and footing.
8 DO NOT over-reach and ensure the floor is not slippery and wear non skid shoes.
9 The supplementary handle grip should always be attached for use.
9 Keep children and unauthorised persons away from the working area.
8 DO NOT hold unsecured work in your hand.
9 Secure non stable work piece with a clamp, vice or other adequate holding device.
9 Avoid unintentional starting and ensure the lock on button is disengaged before use.
8 DO NOT force the drill to achieve a task it was not designed to perform.
8 DO NOT operate drill where there are flammable liquids or gasses.
8 DO NOT get the drill wet or use in damp or wet locations.
8 DO NOT operate the drill if any parts are missing or the drill is damaged as this may cause failure and/or possible personal injury.
8 DO NOT operate the drill when you are tired, under the influence of alcohol, drugs or intoxicating medication.
8 DO NOT carry the drill with your finger on the power switch, or carry by the power cord, or leave the drill running whilst unattended.
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Wear ear
protection
Wear protective
gloves
Wear a mask
Recommended fuse rating
13 Amp
SD800.V3, SD1000.V3 | Issue:3 (3) 18/03/20
9 When not in use switch drill off, remove plug from power supply, clean the drill and store in safe, dry, child proof area.
2. INTRODUCTIONn
SD800.V3
Professional 850W hammer drill with variable speed and reverse controls. Suitable for driving and removing screws. Hammer action allows up to
13mm capacity in masonry. Features high quality chuck with soft grip handle and body for added comfort. Supplied with adjustable side handle,
depth stop and 2mtr cable with BS approved plug.
SD1000.V3
Professional heavy-duty 1050W hammer drill with variable speed and reverse controls. Suitable for driving and removing screws. Two speed
mechanical gearbox gives added versatility and hammer action allows up to 16mm capacity in masonry. Features high quality chuck with soft
grip handle and body. Supplied with adjustable side handle, depth stop and 2mtr cable with BS approved plug, all in a carry-case with
accessories.
3. SPECIFICATIONS
Model no: ...............................................................SD800.V3
Supply: ...........................................................................230V
Motor power: .................................................................850W
No load speed: ...................................................... 0-3000rpm
Chuck size: .................................................................. 13mm
Hammer action: .................................................. 0-48000bpm
Drilling capacity steel: .................................................. 13mm
Drilling capacity wood: ................................................. 25mm
Drilling capacity masonry: ............................................ 13mm
Noise pressure: .........................................................77.6dBA
Noise power: .............................................................88.6dBA
Vibration: .................................................................. 2.73m/s²
Uncertainty: .............................................................. 1.36m/s²
4. OPERATION
4.1. PREPARATION FOR USE
4.1.1. Ensure the drill is switched off and unplugged from the mains power supply.
4.1.2. Fitting the side handle.
Fit supplementary handle grip by placing the handle assembly over chuck head and onto the machine neck. Secure by rotating the
handle clockwise until it is tight and the handle can no longer be moved. To ensure a good grip in all circumstances the angle
of the handle may be changed by rotating the handle grip anti-clockwise until the handle assembly is loose. Rotate the handle to
the desired angle and retighten.
4.1.3. Fitting the depth gauge.
To fit the depth gauge loosen the side handle and pass the gauge through the handle clamp to the required depth. Rotate the handle to
the required angle. As the handle is tightened the depth gauge will also be gripped firmly.
4.2. DRILL CONTROLS
4.2.1. ON/OFF Variable speed trigger.
Your drill has a variable speed control on/off trigger, which increases the speed the more the trigger is depressed.
4.2.2. Trigger lock.
To lock ‘ON’, depress the trigger, push in and hold the button then release the trigger. Release the lock on button and your drill will
continue running accordingly.
4.2.3. To release the lock depress the trigger and release it.
4.2.4. Power failure. If you have the lock on feature engaged during use and your drill becomes disconnected from the power supply,
disengage the lock on feature immediately.
Model no: .............................................................SD1000.V3
Supply: ................................................................. 230V 50Hz
Motor power: ...............................................................1050W
No load speed: ........................................ 0-1100 / 0-3000rpm
Chuck size: .................................................................. 13mm
Hammer action: .................................. 0-17600 / 0-48000bpm
Drilling capacity steel: .................................................. 13mm
Drilling capacity wood: ................................................. 25mm
Drilling capacity masonry: ............................................ 16mm
Noise pressure: .........................................................91.8dBA
Noise power: ...........................................................102.8dBA
Vibration: .................................................................... 2.7m/s²
Uncertainty: .............................................................. 1.35m/s²

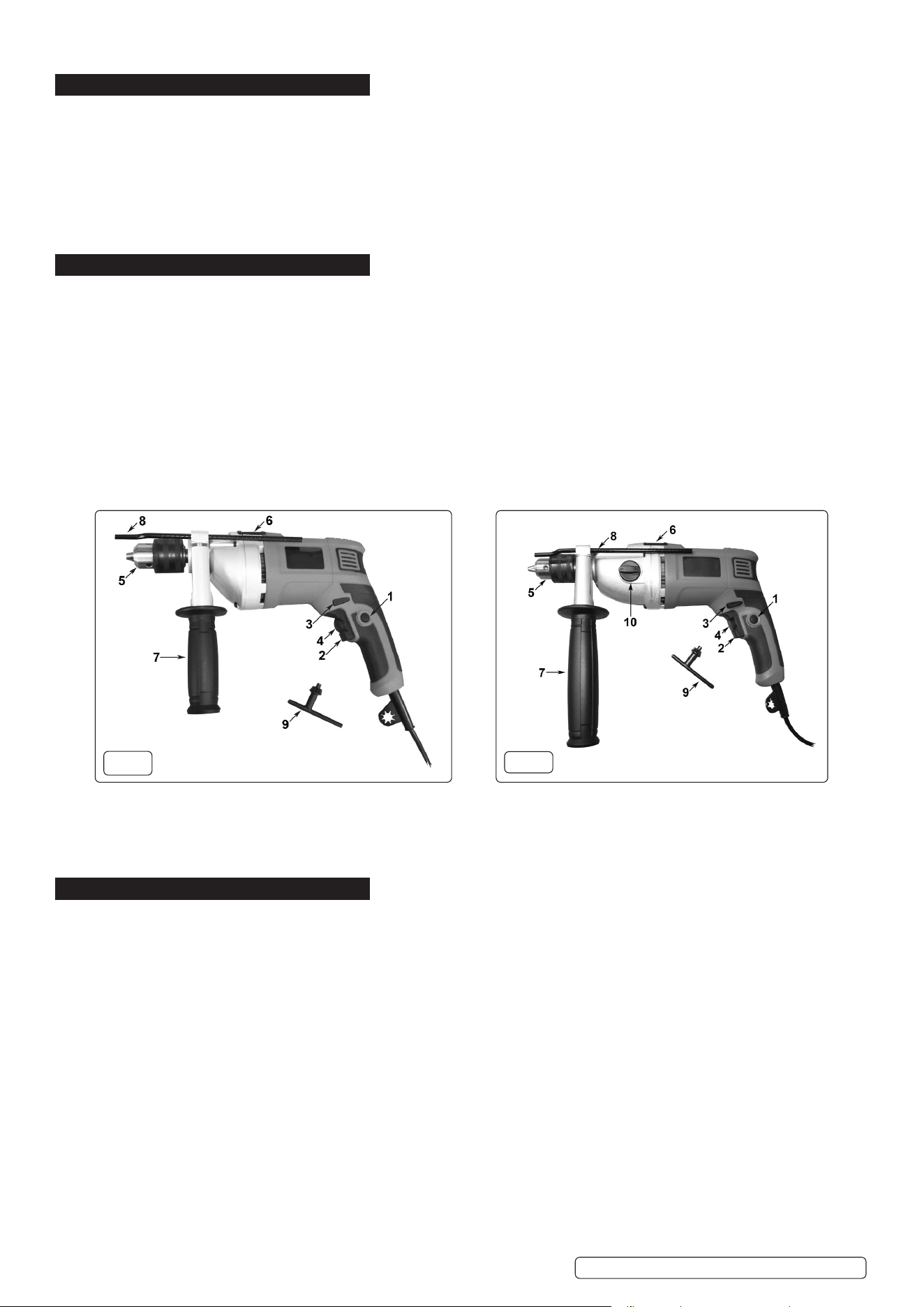

SD800.V3
SD1000.V3
g.1
g.2
1 . . . . . Trigger Lock Button
2 . . . . . On/Off Trigger
3 . . . . . Forward/Reverse Selector
4 . . . . . Variable Speed Control
5 . . . . . Chuck
6 . . . . . Drill/Impact Selector
7 . . . . . Side Handle
8 . . . . . Depth Gauge
9 . . . . . Chuck Key
10 . . . . High/Low Gear Selector
(SD1000.V3 only)
Original Language Version
© Jack Sealey Limited
SD800.V3, SD1000.V3 | Issue:3 (3) 18/03/20
WARNING! Before connecting your drill to power supply, ensure it is not in the lock on position as this may result in
damage and personal injury. Depress the trigger to ensure release. DO NOT use the lock on facility for jobs where your drill
may need to be stopped suddenly. ,
4.2.5. Maximum speed setting control.
The variable speed trigger has a small rotating knob incorporated into it, which can be used to control the maximum speed of the drill.
When the knob is set to the maximum or + setting the trigger can be fully depressed allowing the drill to turn at its maximum speed. As the
knob is turned towards the minimum or - setting the movement of the trigger is restricted so that the drill will turn at a lower pre-set speed
when the trigger is fully depressed. This facility is useful when working with materials that should be drilled at a constant, lower speed.
4.2.6. Two speed gearbox (SD1000 only).
The SD1000 also incorporates a 2 speed mechanical gearbox which used in conjunction with the other speed controls adds additional
versatility to this model. To select the lower speed turn the gear selector so that ‘1’ is adjacent to the arrow on the casing. To select the
higher speed turn the gear selector so that ‘2’ is adjacent to the arrow on the casing. It may be necessary to rotate the chuck by hand
slightly whilst using the gear selector in order to get the gears to mesh.
WARNING! Only change gear when the drill is not turning.
The required speed will depend on the material and task in hand. The following may be used as a general guide.
a) Low speeds are recommended for hard materials i.e. stone, ceramic, concrete, high tensile steel and tasks such as starting holes
without centre punch, driving screws, mixing paint etc.
b) Medium speeds are suitable for plastics and laminates.
c) High speeds recommended for soft materials such as wood, aluminium, copper, bronze and brass.
▲ CAUTION: DO NOT run your drill at low to medium speeds for extended periods of time as this may cause drill to overheat.
To cool drill run it without a load for approximately 3 minutes at full speed.
4.2.7. Direction of rotation. Select either forward or reverse rotation using the slide mounted above the trigger. (See fig.5) The slide moves
from left to right. Select reverse by moving the slide to the ►symbol. To select the forward direction move the slide to the other side to be
adjacent to the ◄ symbol.
▲ CAUTION: Do not change direction of rotation whilst the drill is running.
4.2.8. Selection of hammer action / drilling.
When using a masonry drill bit the hammer action can be used to assist penetration into concrete, stone and masonry.
The hammer action selector is a large sliding ‘switch’ situated on top of the drill (See g.4). To select hammer action slide the selector
to the left so that it is adjacent to the hammer symbol moulded on the side of the case. To disable the hammer action slide the switch
in the other direction to be adjacent to the drill symbol moulded on the other side of the casing.

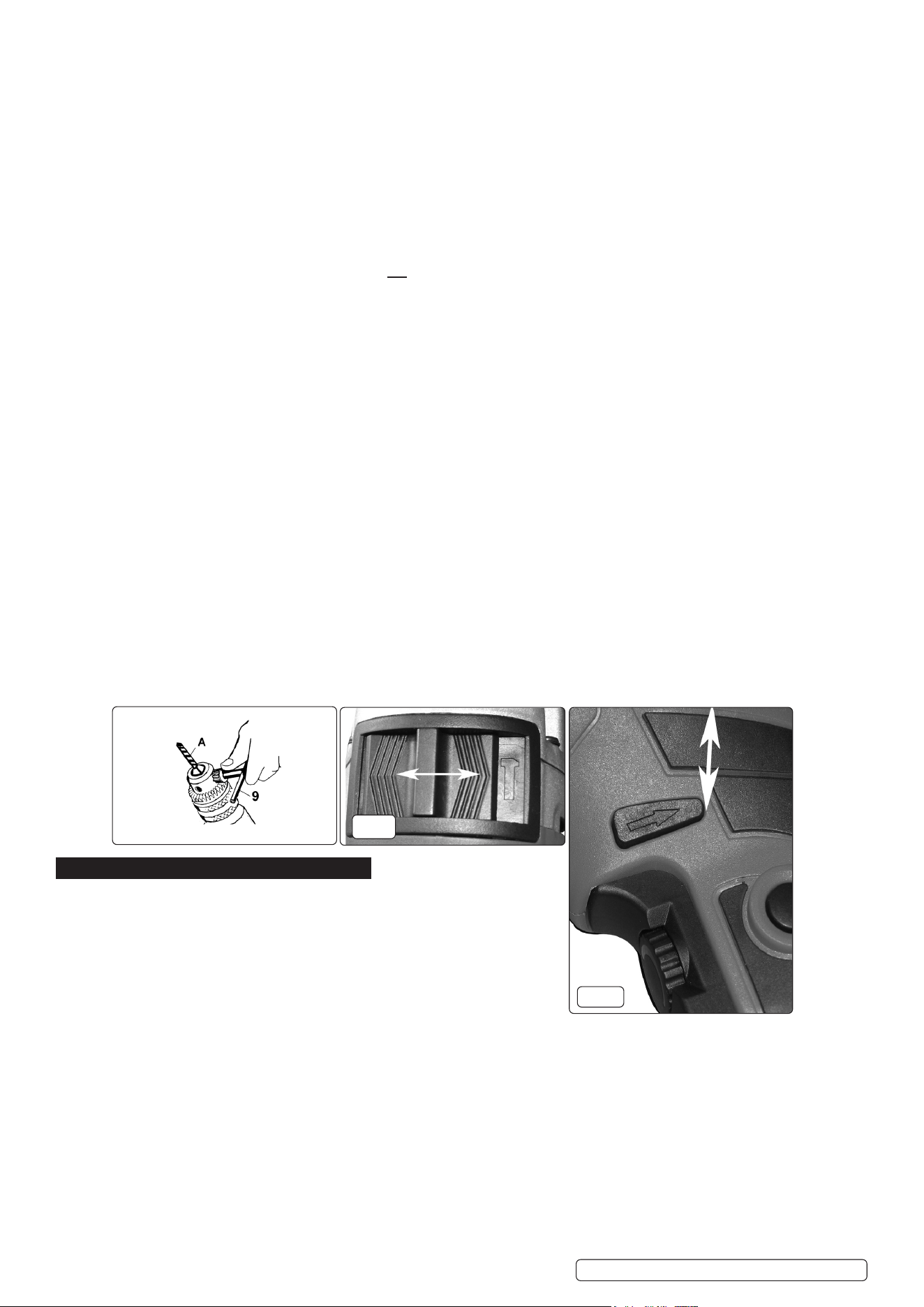

4.3. DRILL OR TOOL BIT FITTING
WARNING! Unplug from the mains power supply before placing bit into chuck.
4.3.1. Open or close the chuck jaws to a point where the opening is slightly larger than the drill or tool bit to be used. Raise the front of the
drill slightly to stop the bit from falling out of the chuck jaws. Insert the drill bit (A) into the chuck as far as it will go. Place the chuck key
(9) in one of the chuck holes and tighten the chuck securely (g 3).
4.4. DEPTH STOP GAUGE
4.4.1. Ensure the work piece has a flat surface and is wide enough for the gauge to butt up against when the required depth has been reached.
Measure back from tip of the drill bit to the point at which the drill must stop. Release clamp/handle and extend the depth gauge to the
point at which you wish to stop the drill penetrating further and retighten the handle/clamp. Once drill has reached the correct depth the
gauge will butt up against the work piece and stop further inward progress.
5. MAINTENANCE
5.1. CHANGING THE DRILL CHUCK
5.1.1. To remove the drill chuck open the chuck fully. Locate the internal screw
and undo turning the screw clockwise (left handed thread), to stop the chuck
from moving, grip the chuck, if tight the chuck key can be used to provide
additional leverage. On the SD1000 the chuck can be held in position
with a spanner. To replace the chuck reverse the above process.
5.2. CLEANING
5.2.1. Keep the drill ventilation slots clean and free from obstructions. If available blow
compressed air into the vents to clear any internal dust (safety goggles must
be warn when undertaking this process).
5.2.2. Keep the outer case of the drill clean and free from grease.
8 DO NOT wash with water or use solvents or abrasives.
5.3. BRUSHES
5.3.1. The brushes must be changed by an authorised Sealey service agent.
fig.5
fig.3
g.4
Original Language Version
© Jack Sealey Limited
SD800.V3, SD1000.V3 | Issue:3 (3) 18/03/20
SD800.V3, SD1000.V3 | Issue:3 (3) 18/03/20
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
