An iOS (version 12.0 or later) or Android (version 8.0 or
later) mobile device.
NOTE: Make sure that Wi-Fi and Bluetooth are enabled
on your mobile device.
A My Leviton cloud account
(set up through the My Leviton app).
A 2.4GHz Wi-Fi network with high-speed internet.
Installation requires electrical knowledge.
If you are unsure of any steps, consult an electrician.
Cat. No. D2SCS

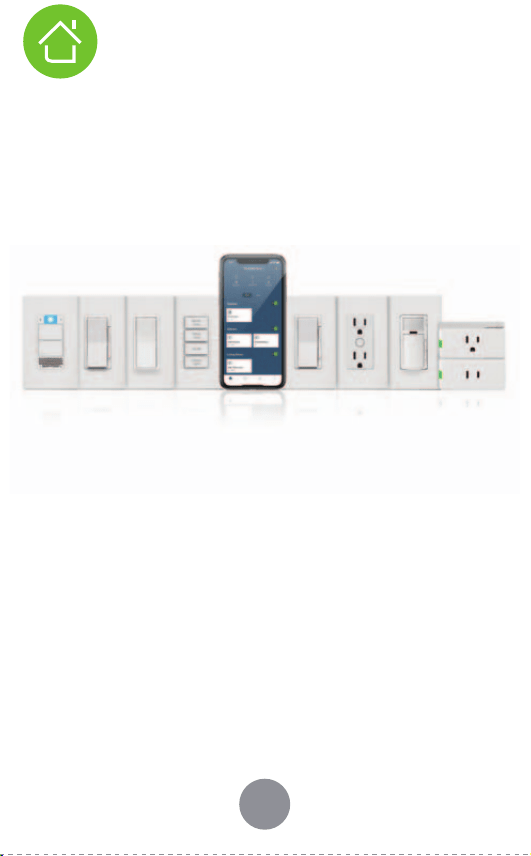

See the complete line of My Leviton
TM
app compatible
dimmers, switches, plug-ins, and controllers at:
leviton.com/decorasmart
At a Glance
Before You Install
What You Need to Make
Your Switch Work:
Your Scene Controller
Switch Works with:
Leviton’s Decora Smart Wi-Fi 2nd Gen
Scene Controller Switch makes it easier
than ever to control your lights and other
connected devices with the touch of
a button. Replace an existing switch
to provide in-wall control of multiple
Decora Smart Wi-Fi devices. You can
assign custom room scenes or activities,
such as “Movie Time” or “All Off” to the
buttons. Or, you can use with IFTTT for
expanded automation. Use with an
Apple Home Hub to control your HomeKit
scenes and accessories.
You can also use your voice with
Amazon Alexa, Google Assistant, or
Apple Siri — or use your smartphone or
tablet with the My Leviton app, even
when you are away from home. With
three Scene control buttons and a built-
in switch, the Decora Smart
Wi-Fi 2nd Gen Scene Controller Switch
offers an installed solution for flexible
smart home control.
•
General purpose loads up to 15 amps.
For specific ratings, see chart below.
• Not for use with aluminum wire.
• I nstallation in metal wall boxes or
with metal wallplates may result in
poor RF performance.
• For indoor use only.
Additional self-service support
options can be found in the
My Leviton app or at
leviton.com/support
RATINGS
General Use 15A, 120VAC, 60Hz
LED / CFL / Electronic Ballast 5A
Incandescent / Halogen 1500W
Magnetic Ballast 15A
Motor 3/4 HP
Operating Temperature 0°C - 40°C (32°F - 104°F)
Operating Humidity 10% - 90% non-condensing
Storage Temperature Range -10°C - 85°C (14°F - 185°F)
NETWORK
Wi-Fi 802.11 b/g/n networks - 2.4GHz only
Security
WPA, WPA2, or WPA3 security, or open
Bluetooth v5.0

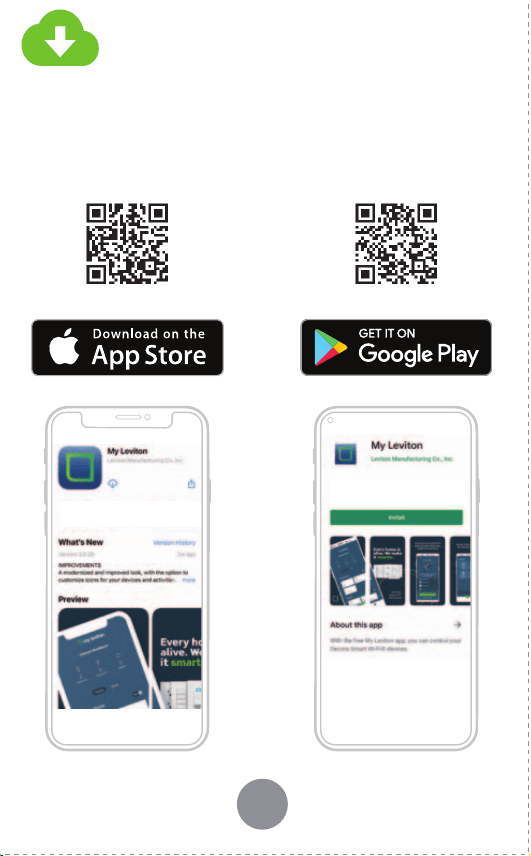

MY LEVITON APP
iOS version 12.0 or later
Andr
oid version 8.0 or later
WARNING: TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF
POWER AT THE CIRCUIT BREAKER!
1. Restore power. Status LED
should flash GREEN to
indicate that your Switch is
receiving power and ready
to be enrolled.
2. Press the bottom button
to turn the Switch ON and
confirm load control.
Identify Your Wires
Test and Install
Welcome
Things to Consider:
To control your Switch from more than one location
(e.g., 3-way or multi-way), you will need either a wired
DD0SR Companion device or a wire-free DAWSC Anywhere
Companion device (see page 13). Learn more about
Companion devices and find connection instructions at:
leviton.com/decorasmart
If your wall box looks different, consult
an electrician.
Check your wall box:
Easy Wi-Fi lighting
control for the
whole home.
CHAT
www.leviton.com/support
CALL
1-800-824-3005 (USA)
1-800-405-5320 (Canada)
ONLINE
decorasmartsupport.leviton.com
EMAIL
We are here to help:
DI-000-D2SCS-02B
Getting Started Guide
SCENE CONTROLLER SWITCH
2
ND
GEN
• The bottom button (Switch) provides ON/OFF control and
works with Alexa, Hey Google, and HomeKit/Apple Siri.
• Use the My Leviton app to configure Scene buttons to:
• Turn multiple Decora Smart Wi-Fi devices ON or OFF.
• Have ON/OFF toggle control of an individual Decora
Smart Wi-Fi device.
• Enable a My Leviton room lighting scene, such as
“Movie Time”.
•
Run a My Leviton whole-house activity, such as “All Off”
.
• Switch between My Leviton Home or Away mode.
• Trigger an IFTTT applet for expanded automation
use cases.
• Works with HomeKit; use the Apple Home app to set up
control of HomeKit scenes and devices (requires Apple
Home Hub and a compatible iOS device).
• Supports 3-way/multi-location with Wireless DAWSC
Anywhere Companion and Wired DD0SR Companion.
• Compatible with DS4KT color change kits in Ivory, Light
Almond, Grey, Black, and Brown.
Status LED
•
Provides connectivity and
device status feedback.
• All buttons are softly
illuminated so you can
find them in the dark
(can be disabled in the
My Leviton app).
Scene Buttons
•
Configure the top three
buttons via the My Leviton app
to control other Decora Smart
Wi-Fi devices, assign room
scenes, create whole-house
activities, and more.
• Use the Apple Home app to
set up control of HomeKit
scenes and devices
(requires Apple Home Hub
and a compatible iOS device).
• Each Scene button has LED
feedback. When pressed,
the LED will shine GREEN if a
command is successful and
AMBER if unsuccessful.
ON/OFF Switch
•
Press to toggle the lights ON
or OFF.
• Voice control works with Hey
Google, Amazon Alexa, or
Apple Siri.
• My Leviton app provides
scheduling, inclusion in
scenes/activities, and
custom settings of this load.
Features
1. Remove the wallplate and disconnect the existing switch.
2. Restore power. Carefully test wires with voltage tester to
find the Line (Hot) wire.
3. Turn OFF power at the circuit breaker.
4. Mark the wires as shown below. Please note that a Neutral
wire is required to operate this device.
Quick Tip: Neutral wires are typically white and will be
found bundled inside the electrical box.
GROUND
GROUND
NEUTRAL
LOAD
LOAD
LINE
LINE
To Light
To Light
From
From
Branch Circuit
Branch Circuit
3. Turn OFF power at the
circuit breaker before
screwing in your Switch.
4. Gently push wires
into wall box. Screw the
Switch to the box.
5. Snap on the Decora
®
wallplate and
restore power. Once power is restored,
the Status LED will blink GREEN,
indicating your Switch is in Setup mode.
NOTE: If it is not blinking GREEN, see
page 15 for instructions on how to put
Switch in Setup mode.
Congratulations!
Your Decora Smart Scene Controller
Switch is ready to be set up!
Quick Tip
The My Leviton app includes many additional features, such as
scheduling, remote control, Vacation mode, and Auto Shut-Off.
For more information about features, visit:
leviton.com/decorasmart
Wire Your Switch
Single Pole Installation:
1. Work on only one connection at a time.
2.
Connect wires as shown using the included wire connectors.
NOTES:
• Neutral connection is required.
• The YELLOW/RED Traveler wire is only used in hard-wired
3-way applications. Remember to put a wire connector on
the YELLOW/RED Traveler, even if not in use.
If your wall box contains a different wiring
configuration, contact Leviton’s Technical Support
team or consult an electrician.
TRAV
GND
NEUTRAL
LINE
LOAD
LOAD
LOAD
TRAVELER
TRAVELER
From
From
Branch Circuit
Branch Circuit
LINE
LINE
GROUND
GROUND
GROUND
GROUND
NEUTRAL
NEUTRAL
To Light
To Light
