Dehumidier
OWNER’S MANUAL & INSTALLATION MANUAL
1020_M516
Perfect Aire, LLC
5401 Dansher Road
Countryside, IL 60625
Model 1PDP60
Safety Precautions .....................................................................................................................

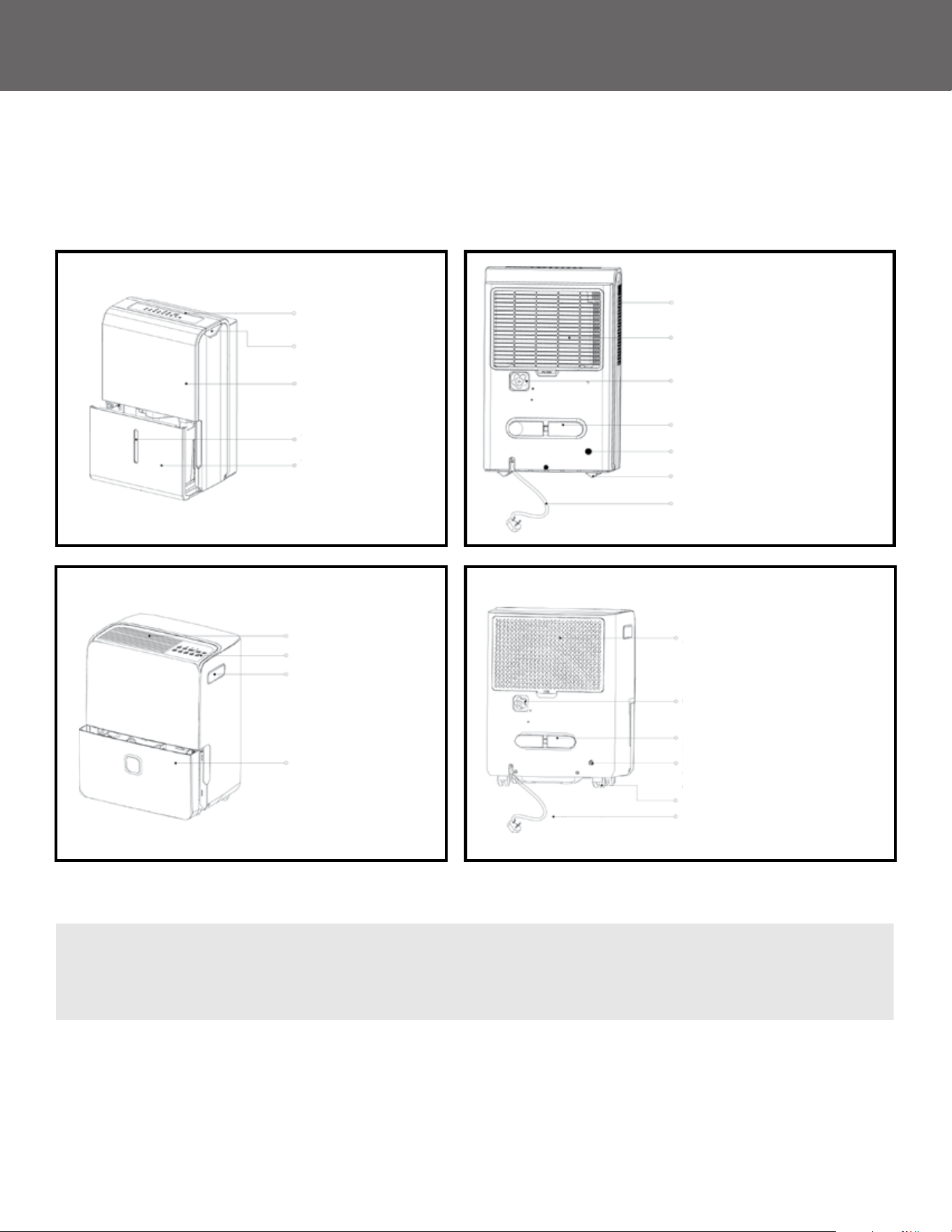

Part Identication .......................................................................................................................
Design Notice .............................................................................................................................

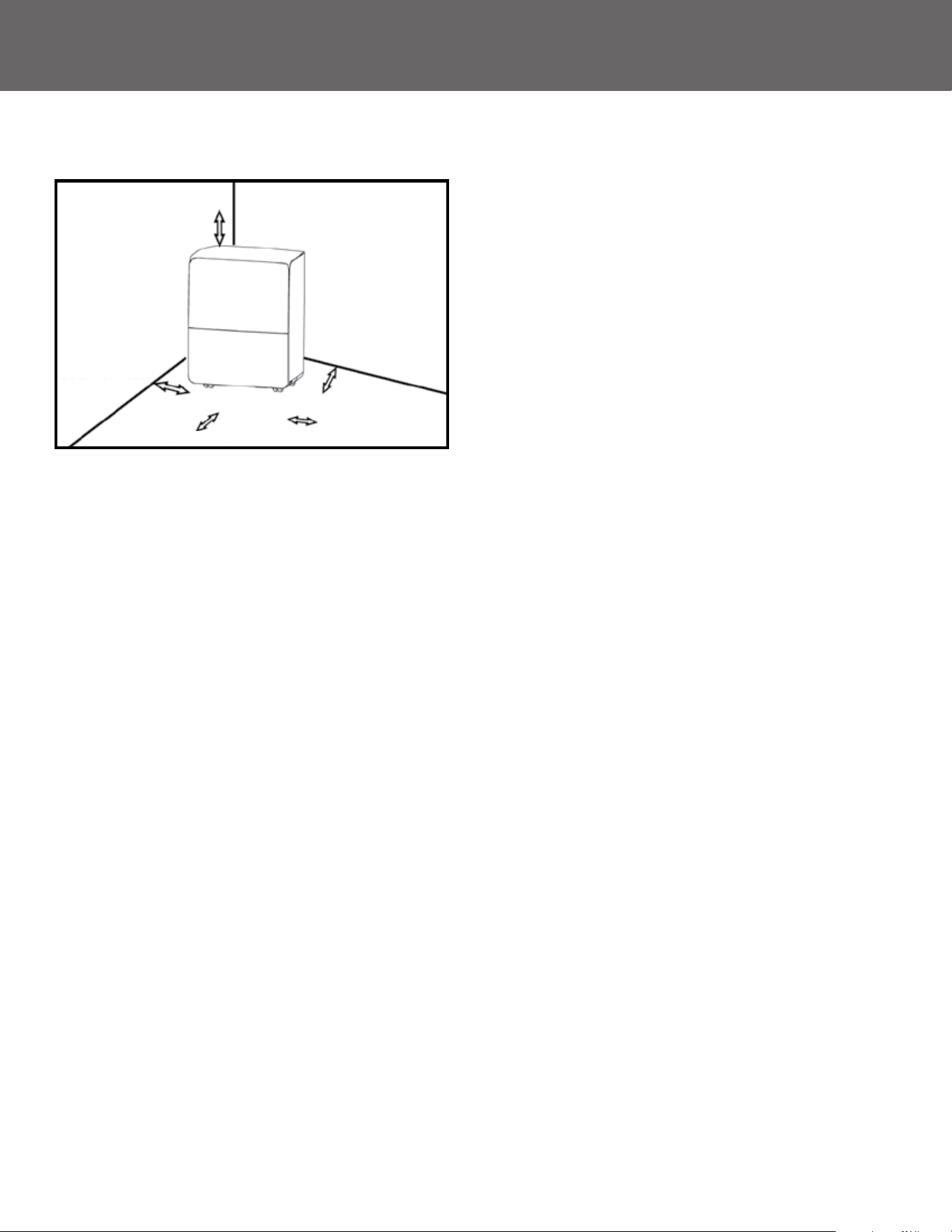

Positioning the Unit ....................................................................................................................
When Using the Unit ..................................................................................................................

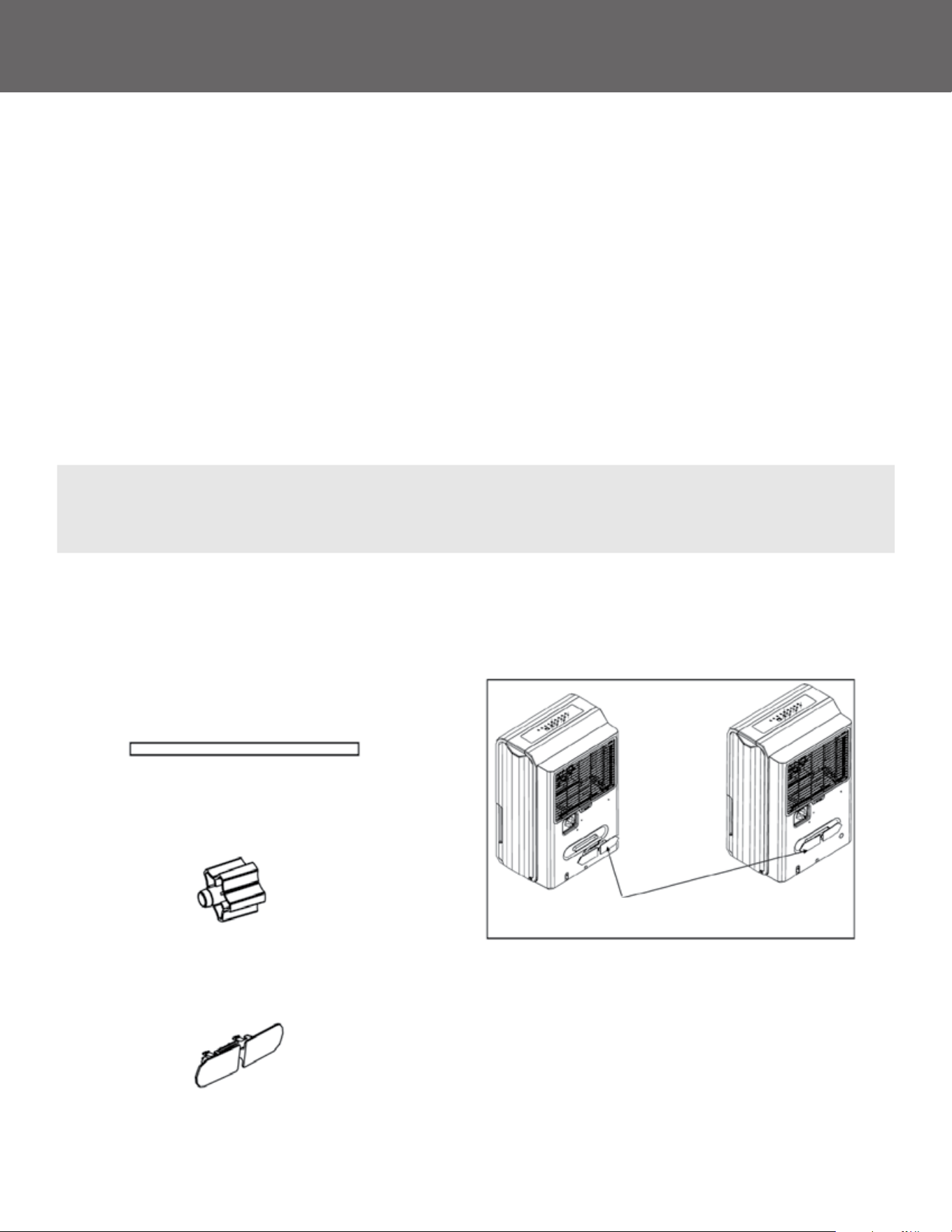

Accessories ...............................................................................................................................

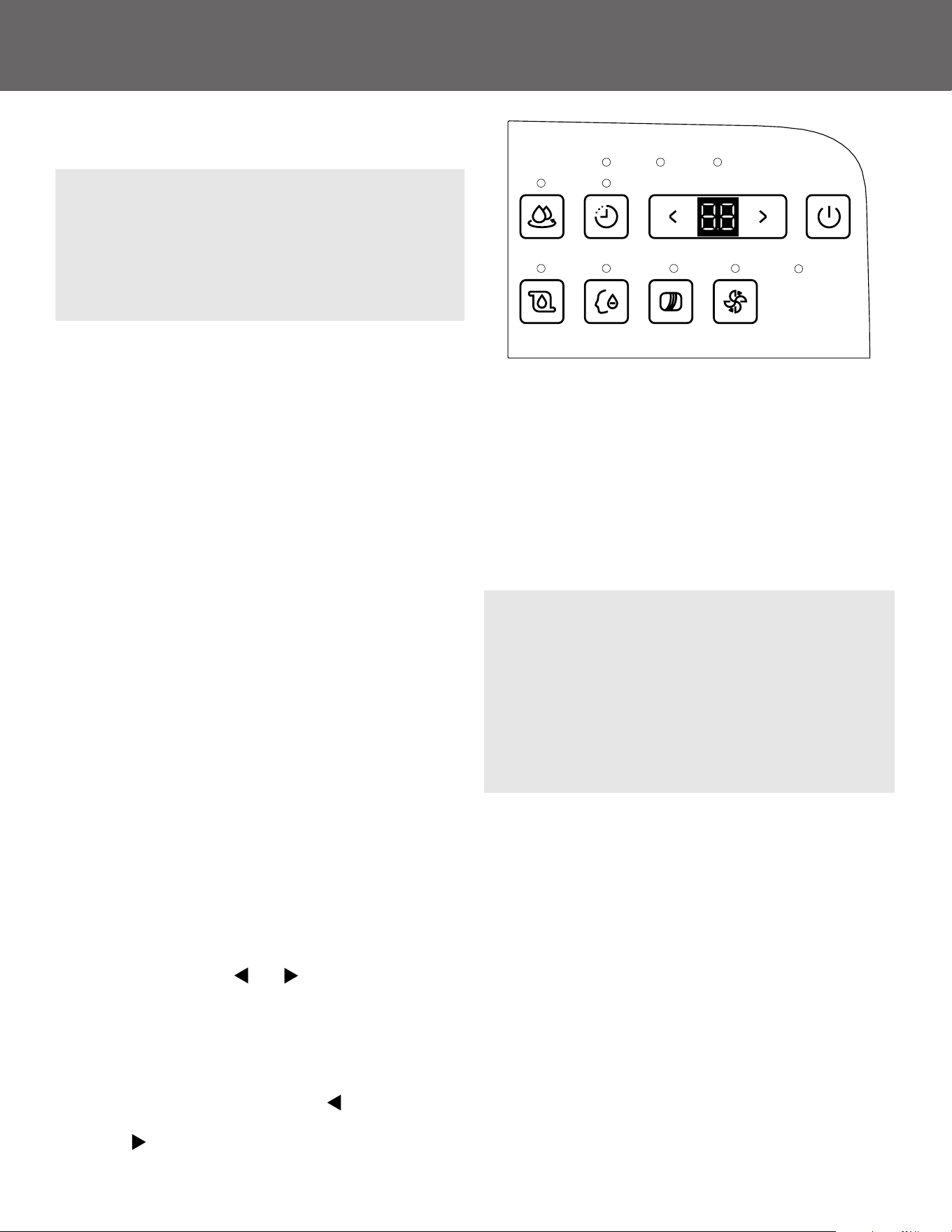

Control Panel Features ..............................................................................................................
Other Features ..........................................................................................................................

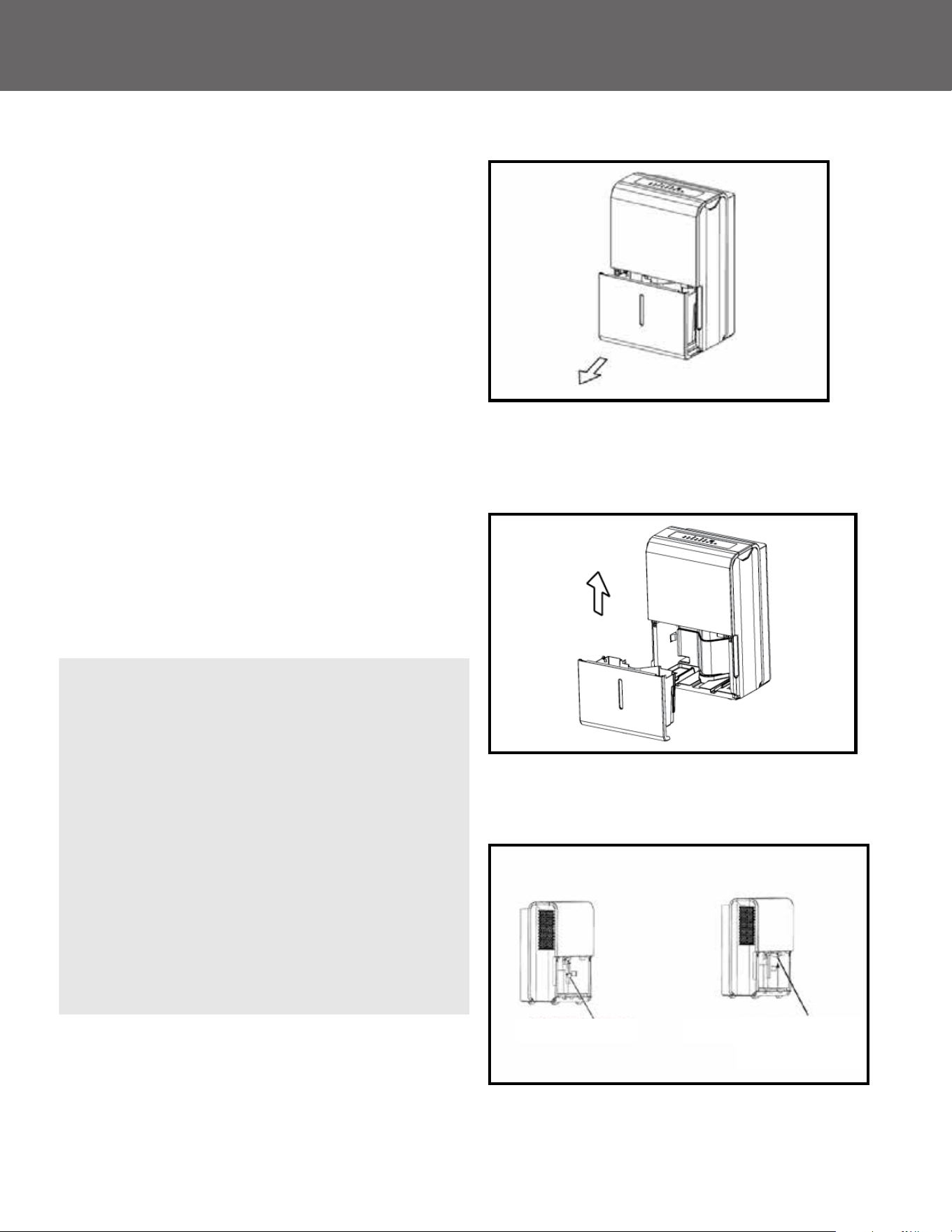

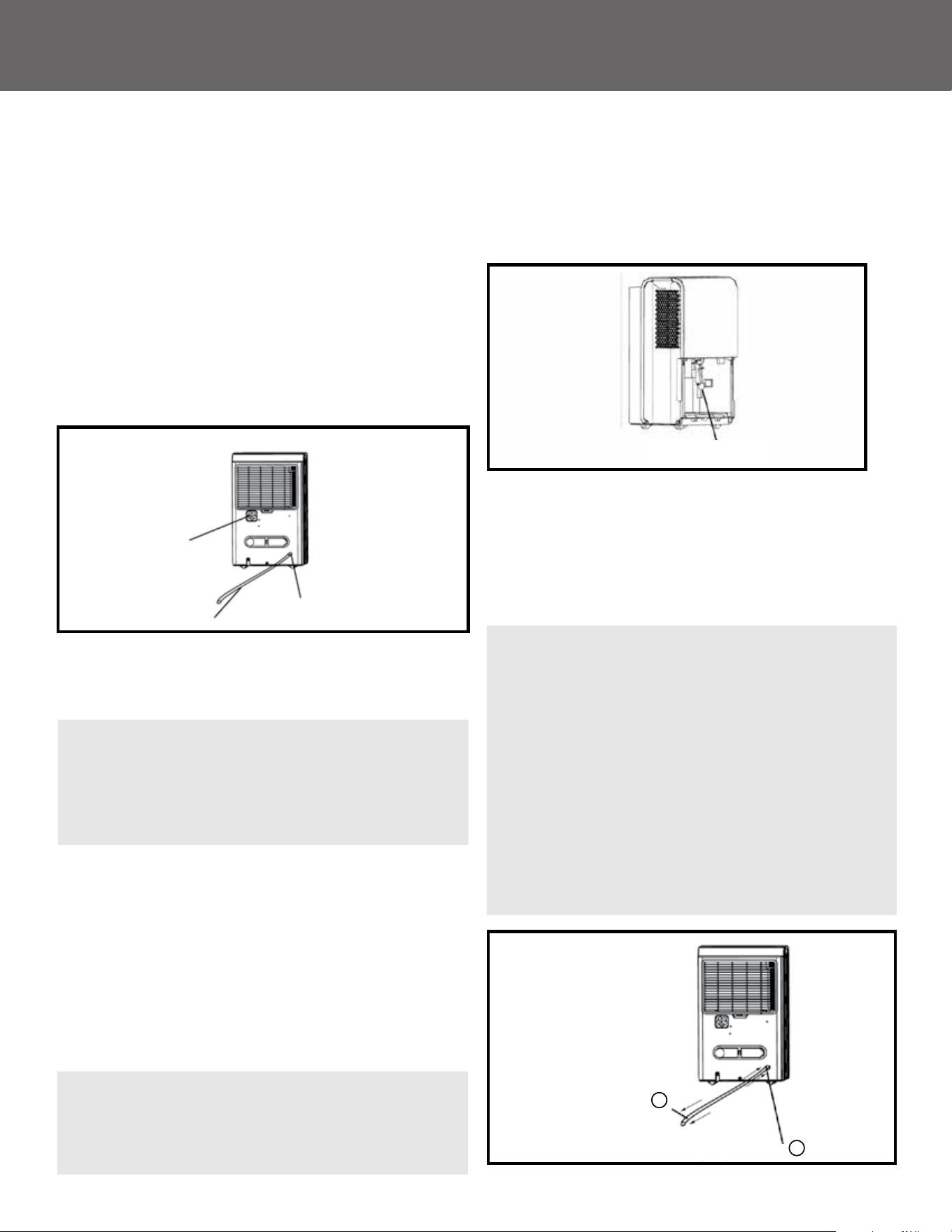

Removing the Collected Water ..................................................................................................

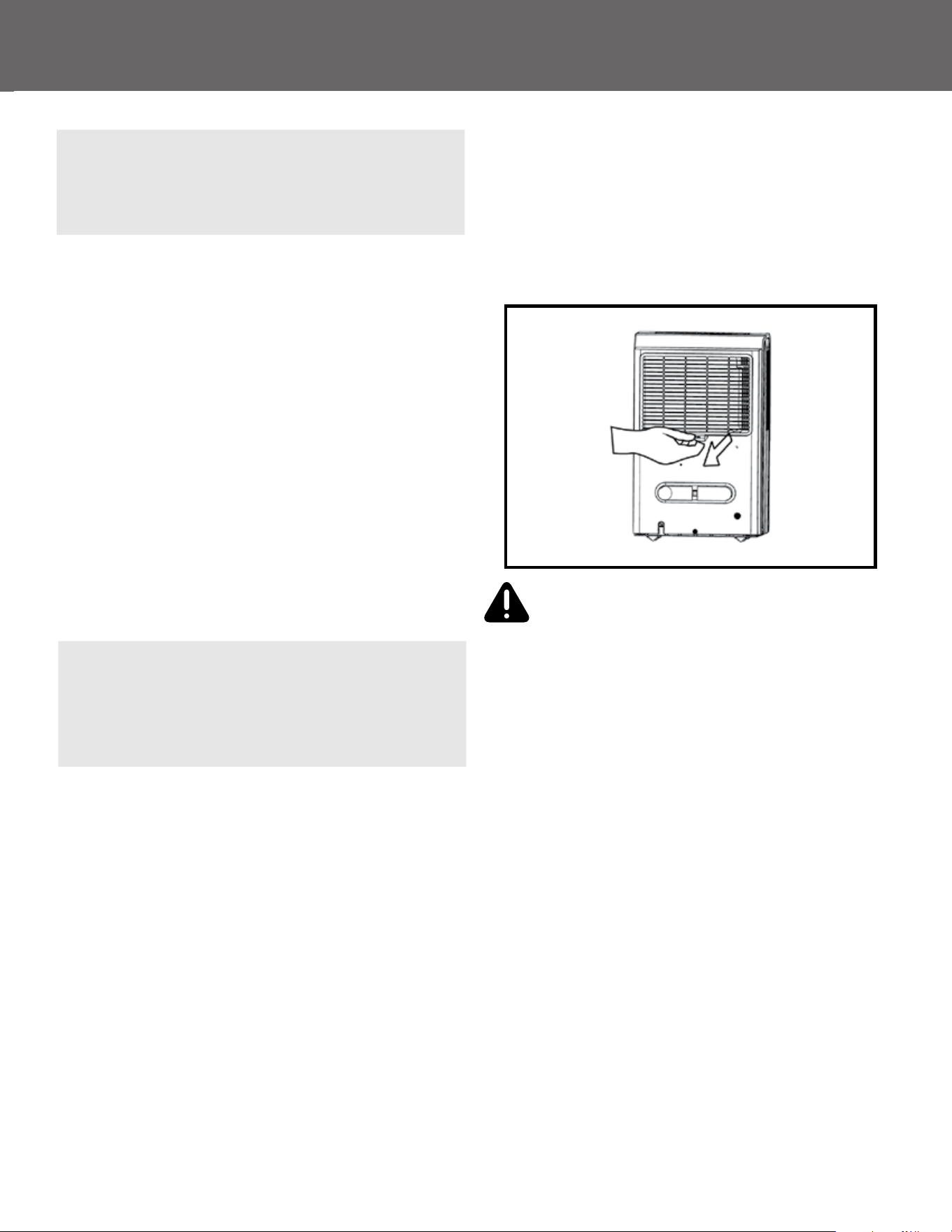

Cleaning the Grille and Case ......................................................................................................
Cleaning the Bucket ...................................................................................................................

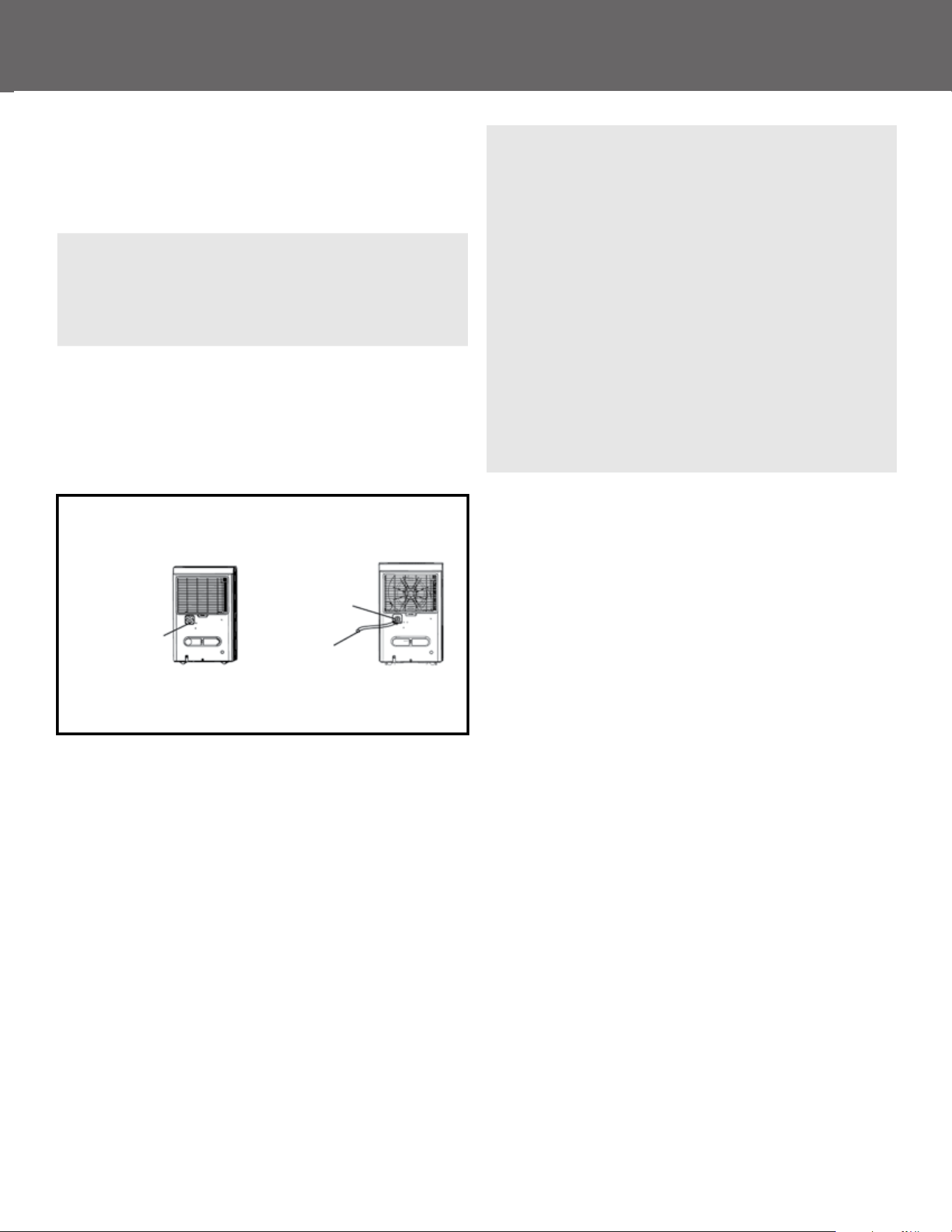

Cleaning the Air Filter .................................................................................................................
When Not in Use (Longer Time Periods) .....................................................................................
Troubleshooting Tips ..................................................................................................................
3
12
12
13
14
14
15
17
18
21
21
21
21
22
IMPORTANT NOTE:
Read this manual carefully before installing or operating your new machine.
Make sure to save this manual for future reference.
CONTENTS
Safety Precautions
Preparation
Operating Instructions
Care and Maintenance
Troubleshooting Tips
SAFETY PRECAUTIONS
• Do not exceed the rating of the power outlet or connection device.
• Do not operate or stop the unit by unplugging the power cord.
• Do not damage or use an unspecied power cord.
• Do not modify the power cord length or share the outlet with other appliances.
• Do not insert or pull out plug with wet hands.
• Do not install the appliance in a location that may be exposed to combustible gas.
• Do not place the unit near a heat source.
• Disconnect the power if strange sounds, smells, or smoke come from it.
• You should never try to take apart or repair the unit by yourself.
• Before cleaning, turn o the power and unplug the unit.
• Do not use the machine near ammable gas or combustibles, such as gasoline, benzene, thinner, etc.
• Do not drink or use the water drained from the unit.
• Do not take the water bucket out during operation.
• Do not use the unit in small spaces.
• Do not put in places where water may splash onto the unit.
• Place the unit on a level, sturdy section of the oor.
• Do not cover the intake or exhaust openings with cloths or towels.
• Care should be taken when using the unit in a room with the following persons: infants, children,
elderly people, and people sensitive to humidity.
• Do not use in areas where chemicals are handled.
• Never insert your nger or other foreign objects into grilles or openings. Take special care to warn children
of these dangers.
• Do not place heavy objects on the power cord and take care so that the cord is not compressed.
• Do not climb up on or sit on the unit.
• Always insert the lters securely. Clean lter once every two weeks.
• If water enters the unit, turn the unit o and disconnect the power, contact a qualied service technician.
• Do not place ower vases or other water containers on top of the unit.
• Do not use extension cords.
WARNING
Read the Safety Precautions Before Operation and Installation
To prevent death or injury to the user or other people and property damage. The following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage.
This symbol indicates the possibility of personal
injury or loss of life.
This symbol indicates the possibility of property
damage or serious consequences.
WARNING CAUTION
3
SAFETY PRECAUTIONS
• This appliance can be used by children aged from 8 years and above and a person with reduced
physical, sensory or mental capabilities. The appliance can also be used by an individual who lacks
experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children should not play with the
appliance. Cleaning and user maintenance should not be performed by children without supervision.
• This appliance is not intended for use by individuals (including children) with reduced physical, sensory
or mental capabilities or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualied individuals in order to avoid a hazard.
• Prior to cleaning or other maintenance, the appliance must be disconnected from the main power supply.
• Do not install the appliance in a location that may be exposed to combustible gas. If combustible gas
accumulates around the unit, it may cause re.
• If the appliance is knocked over during use, turn o the unit and unplug it from the main power supply
immediately. Visually inspect the unit to ensure there is no damage. If you suspect the unit has been
damaged, contact a technician or customer service for assistance.
• In a thunderstorm, the power must be cut o to avoid damage to the machine due to lightning.
• Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings.
Do not route the cord under furniture or appliances. Arrange the cord away from high trac areas and
where it will not be a tripping hazard.
• Do not operate the unit with a damaged cord or plug. Discard the unit or return to an authorized service
facility for examination and/or repair.
• To reduce the risk of re or electric shock, do not use this fan with any solid-state speed control device.
• The appliance shall be installed in accordance with national wiring regulations.
• Contact an authorized service technician for repair or maintenance of this unit.
• Turn o the product when not in use.
• The manufacturer’s nameplate is located on the rear panel of the unit and contains electrical and other
technical data specic to this unit.
CAUTION
CONTINUED
4
SAFETY PRECAUTIONS
1. Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specic information
on the type, the amount and the CO
2
equivalent in tons of the uorinated greenhouse gas (on some
models), please refer to the relevant label on the unit itself.
2. Installation, service, maintenance and repair of this unit must be performed by a certied technician.
3. Product uninstallation and recycling must be performed by a certied technician
Note about Fluorinated Gases (Not applicable to a unit using R290 Refrigerant)
CONTINUED
CONTINUED
• Ensure the unit is properly grounded. To minimize shock and re hazards, proper grounding is important.
The power cord is equipped with a three-pronged grounding plug for protection against shock hazards.
• Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is
not adequately grounded or protected by a time delay fuse or circuit breaker (please refer to the
nameplate for the electrical data), and have a qualied electrician install the proper receptacle.
• The unit’s circuit board (PCB) is designed with a fuse to provide overcurrent protection.
The specications of the fuse are printed on the circuit board.
5
SAFETY PRECAUTIONS
• Do not use means to accelerate the defrosting process or to clean, other than those recommended by
the manufacturer.
• The appliance should be stored in a room without continuously operating ignition sources
(for example: open ames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn.
• Be aware that the refrigerants do not have an odor.
• The appliance should be installed, operated and stored in a room with a oor area according to the
amount of refrigerant to be charged. For specic information on the type of gas and the amount, please
refer to the relevant label on the unit itself.
• Appliance should be installed, operated and stored in a room with a oor area larger than 4 m
2
.
Compliance with national gas regulations should be observed. Keep ventilation openings clear of
obstruction.
• The appliance should be stored so as to prevent mechanical damage from occurring.
• A warning that the appliance should be stored in a well-ventilated area where the room size corresponds
to the room area as specied for operation.
• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current
valid certicate from an industry-accredited assessment authority, which authorizes their competence to
handle refrigerants safely in accordance with an industry recognized assessment specication.
• Servicing should only be performed as recommended by the equipment manufacturer. Maintenance and
repair requiring the assistance of other skilled personnel should be carried out under the supervision of
the person competent in the use of ammable refrigerants.
• The appliance should be stored in a room without continuously operating open ames (for example an
operating gas appliance) and ignition sources (for example an operating electric heater).

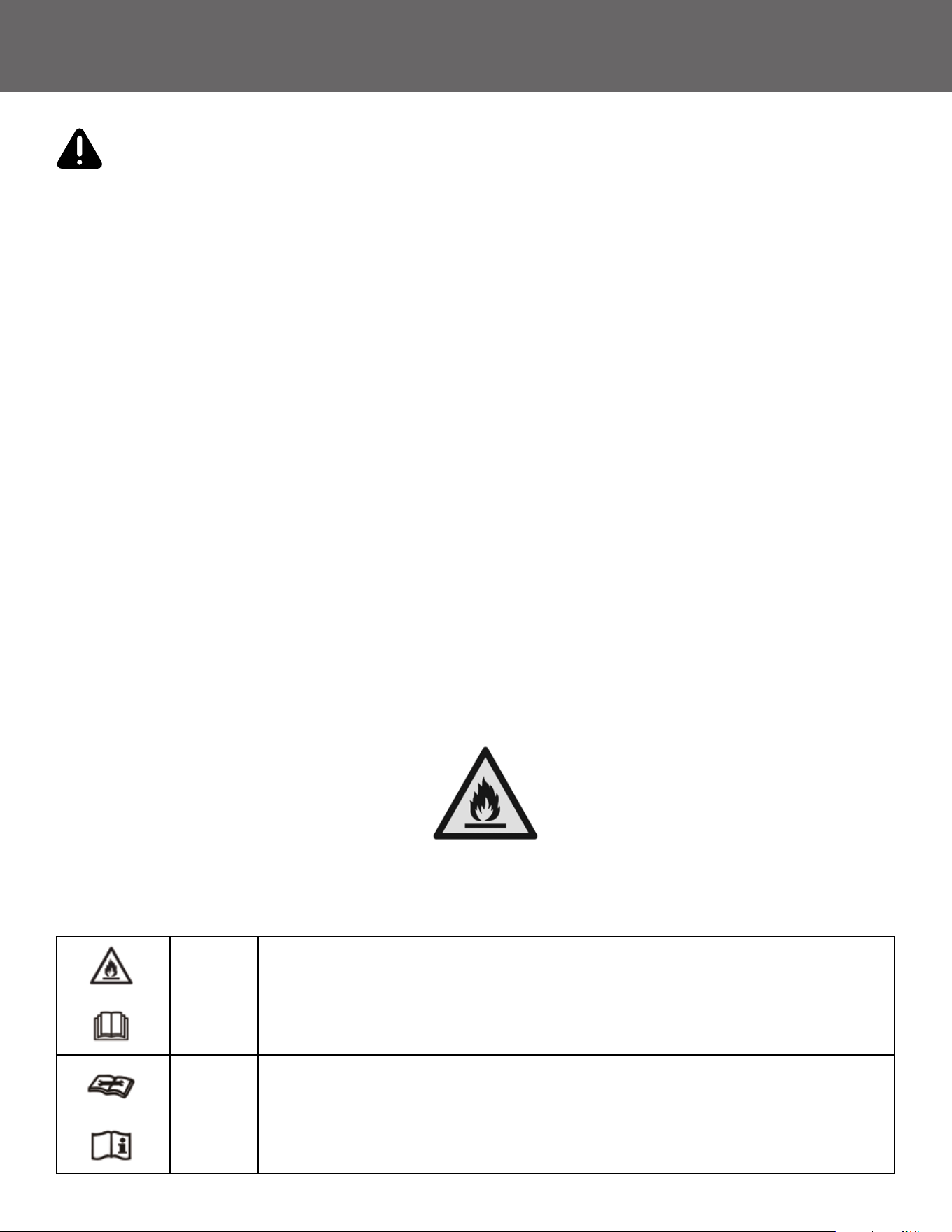

WARNING for Using R32/R290 Refrigerant
CAUTION: Risk of re/ammable materials
Explanation of symbols displayed on the unit (For a unit with R32/R290 Refrigerant only):
WARNING
This symbol shows that this appliance used a ammable refrigerant. If the refrigerant is
leaked and exposed to an external ignition source, there is a risk of re.
CAUTION
This symbol shows that the operation manual should be read carefully.
CAUTION
This symbol shows that a service personnel should be handling this equipment with
reference to the installation manual.
CAUTION
This symbol shows that information is available such as the operating manual or
installation manual.
CONTINUED
6
SAFETY PRECAUTIONS
1. Transport of equipment containing ammable refrigerants. See transport regulations.
2. Marking of equipment using signs. See local regulations.
3. Disposal of equipment using ammable refrigerants. See national regulations.
4. Storage of equipment/appliances. The storage of equipment should be in accordance with the
manufacturer’s instructions.
5. Storage of packed (unsold) equipment. Storage package protection should be constructed such that
mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.
The maximum number of pieces of equipment permitted to be stored together will be determined by
local regulations.
1. Checks to the area
Prior to beginning work on systems containing ammable refrigerants, safety checks are necessary
to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following
precautions should be complied with prior to conducting work on the system.
2. Work procedure
Work should be undertaken under in a controlled environment so as to minimize the risk of a ammable
gas or vapor being present while the work is being performed.
3. General work area
All maintenance sta and others working in the local area should be instructed as to the nature of work
being carried out. Work in conned spaces should be avoided. The area around the workspace should
be sectioned o. Ensure that the conditions within the area have been made safe by control of any
ammable material.
4. Checking for the presence of refrigerant
The area should be checked with an appropriate refrigerant detector prior to and during work, to ensure
the technician is aware of potentially ammable materials. Ensure that the leak detection equipment
being used is suitable for use with ammable refrigerants, i.e. non-sparking, adequately sealed or
intrinsically safe.
5. Presence of a re extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate
re extinguishing equipment should be available and at hand. Have a dry powder or CO
2
re
extinguisher adjacent to the charging area.
6. No ignition sources
No person carrying out work in relation to a refrigeration system which involves exposing any pipework
that contains or has contained ammable refrigerant should use any sources of ignition in such a
manner that it may lead to the risk of re or explosion. All possible ignition sources, including cigarette
smoking, should be kept suciently far away from the site of installation, repairing, removing and
disposal, during which ammable refrigerant can possibly be released to the surrounding space. Prior
to work taking place, the area around the equipment is to be surveyed to make sure that there are no
ammable hazards or ignition risks. No Smoking signs should be displayed.
7. Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the system
or conducting any hot work. A degree of ventilation should continue during the period that the work
is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it
externally into the atmosphere.
Information on Servicing
CONTINUED
7
CONTINUED
SAFETY PRECAUTIONS
8
8. Checks to the refrigeration equipment
When changing electrical components, please ensure that they suitable for that purpose and to the
correct specication. At all times, the manufacturer’s maintenance and service guidelines should be
followed. If in doubt, consult the manufacturer’s technical department for assistance. The following
checks should be applied to installations using ammable refrigerants:
• The charge size is in accordance with the room size within which the refrigerant containing parts
are installed.
• The ventilation machinery and outlets are operating adequately and are not obstructed.
• If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence
of refrigerant.
• Marking to the equipment continues to be visible and legible. Markings and signs that are illegible
should be corrected.
• Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to
any substance which may corrode refrigerant containing components, unless the components are
constructed of materials which are inherently resistant to being corroded or are suitably protected
against being so corroded.
9. Checks to electrical devices
Repair and maintenance to electrical components should include initial safety checks and component
inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be
connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately
but it is necessary to continue operation, an adequate temporary solution should be used. This should
be reported to the owner of the equipment, so all parties are advised. Initial safety checks should
include:
• That capacitors are discharged: this should be done in a safe manner to avoid possibility of sparking.
• That there no live electrical components and wiring are exposed while charging, recovering or purging
the system.
• That there is continuity of earth bonding.
10. Repairs to sealed components
• During repairs to sealed components, all electrical supplies should be disconnected from the
equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary
to have an electrical supply to equipment during servicing, then a permanently operating form of leak
detection should be located at the most critical point to warn of a potentially hazardous situation.
• Particular attention should be paid to the following to ensure that by working on electrical
components, the casing is not altered in such a way that the level of protection is aected. This
should include damage to cables, excessive number of connections, terminals not made to original
specication, damage to seals, etc. Ensure that apparatus is mounted securely. Ensure that seals
or sealing materials have not degraded such that they no longer serve the purpose of preventing
the entrance of ammable atmospheres. Replacement parts should be in accordance with the
manufacturer’s specications.
Note
The use of silicon sealant may inhibit the eectiveness of some types of leak detection equipment.
Intrinsically safe components do not have to be isolated prior to working on them.
CONTINUED
SAFETY PRECAUTIONS
11. Repair to intrinsically safe components
Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this
will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically
safe components are the only types that can be worked on while live in the presence of a ammable
atmosphere. The test apparatus should be at the correct rating. Replace components only with parts
specied by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere
from a leak.
12. Cabling
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or
any other adverse environmental eects. The check shall also take into account the eects of aging or
continual vibration from sources such as compressors or fans.
13. Detection of ammable refrigerants
Under no circumstances should potential sources of ignition be used in the searching for or detection
of refrigerant leaks. A halide torch (or any other detector using a naked ame) should not be used.
14. Leak detection methods
The following leak detection methods are deemed acceptable for systems containing ammable
refrigerants. Electronic leak detectors should be used to detect ammable refrigerants, but the
sensitivity may not be adequate or may need re-calibration. (Detection equipment should be calibrated
in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable
for the refrigerant used. Leak detection uids are suitable for use with most refrigerants but the use of
detergents containing chlorine should be avoided as the chlorine may react with the refrigerant and
corrode the copper pipework. If a leak is suspected, all naked ames should be removed/ extinguished.
If a leakage of refrigerant is found which requires brazing, all of the refrigerant should be recovered
from the system, or isolated (by means of shut o valves) in a part of the system remote from the leak.
Oxygen-free nitrogen (OFN) should then be purged through the system both before and during the
brazing process.
15. Removal and evacuation
When breaking into the refrigerant circuit to make repairs or for any other purpose conventional
procedures should be used. However, it is important that best practice is followed since ammability
is a consideration. The following procedure should be adhered to: Remove refrigerant; Purge the
circuit with inert gas; Evacuate; Purge again with inert gas; Open the circuit by cutting or brazing.
The refrigerant charge should be recovered into the correct recovery cylinders. The system should
be ushed with OFN to render the unit safe. This process may need to be repeated several times.
Compressed air or oxygen should not be used for this task. Flushing should be achieved by breaking
the vacuum in the system with OFN and continuing to ll until the working pressure is achieved, then
venting to atmosphere, and nally pulling down to a vacuum. This process should be repeated until
no refrigerant is within the system. When the nal OFN charge is used, the system should be vented
down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing
operations on the pipework are to take place. Ensure that the outlet for the vacuum pump is not close
to any ignition sources and there is ventilation available.
CONTINUED
9
SAFETY PRECAUTIONS
16. Charging procedures
In addition to conventional charging procedures, the following requirements should be followed. Ensure
that contamination of dierent refrigerants does not occur when using charging equipment. Hoses or
lines should be as short as possible to minimize the amount of refrigerant contained in them. Cylinders
should be kept upright. Ensure that the refrigeration system is earthed prior to charging the system with
refrigerant. Label the system when charging is complete (if not already). Extreme care should be taken
not to overll the refrigeration system. Prior to recharging the system, it should be pressure tested with
OFN. The system should be leak tested on completion of charging but prior to commissioning.
A follow-up leak test shall be carried out prior to leaving the site.
17. Decommissioning
Before carrying out this procedure, it is essential that the technician is completely familiar with the
equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely.
Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is
required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before
the task is commenced.
a. Become familiar with the equipment and it’s operation.
b. Isolate the system electrically.
c. Before attempting the procedure ensure that:
i. Mechanical handling equipment is available, if required, for handling refrigerant cylinders
ii. All personal protective equipment is available and being used correctly
iii. The recovery process is supervised at all times by a competent person
iv. Recovery equipment and cylinders conform to the appropriate standards
d. If possible, pump down refrigerant system.
e. If a vacuum is not possible, make a manifold so that refrigerant can be removed from various
parts of the system.
f. Make sure that cylinder is situated on the scales before recovery takes place.
g. Start the recovery machine and operate in accordance with manufacturer’s instructions.
h. Do not overll cylinders. (No more than 80% volume liquid charge).
i. Do not exceed the maximum working pressure of the cylinder, even temporarily.
j. When the cylinders have been lled correctly and the process completed, make sure that the
cylinders and the equipment are removed from site promptly and all isolation valves on the
equipment are closed o.
k. Recovered refrigerant should not be charged into another refrigeration system unless it has
been cleaned and checked.
18. Labelling
Equipment should be labelled stating that it has been de-commissioned and emptied of refrigerant. The
label should be dated and signed. Ensure that there are labels on the equipment stating the equipment
contains ammable refrigerant.
CONTINUED
10
SAFETY PRECAUTIONS
19. Recovery
When removing refrigerant from a system, either for servicing or decommissioning, it is recommended
good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders,
ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct
number of cylinders for holding the total system charge is available. All cylinders to be used are
designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the
recovery of refrigerant). Cylinders should be complete with pressure relief valve and associated shut-o
valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before
recovery occurs. The recovery equipment should be in good working order with a set of instructions
concerning the equipment that is at hand and should be suitable for the recovery of ammable
refrigerants. In addition, a set of calibrated weighing scales should be available and in good working
order. Hoses should be complete with leak-free disconnect couplings and in good condition. Before
using the recovery machine, check that it is in satisfactory working order, has been properly maintained
and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant
release. Consult the manufacturer if in doubt. The recovered refrigerant should be returned to the
refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged.
Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor
oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain
that ammable refrigerant does not remain within the lubricant. The evacuation process should be
carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor
body should be employed to accelerate this process. When oil is drained from a system,
it should be carried out safely.
CONTINUED
11
PREPARATION
Identication of Parts
All the illustrations in the manual are for explanation purpose only. Your machine may be slightly dierent.
Design Notice
In order to ensure the optimal performance of our products, the design specications of the unit are subject to
change without prior notice.
Panel
Handle (both sides)
Control panel
Water level window
Water bucket
Air Filter
Continuous drain hose outlet
Power cord buckle (placed in the water
bucket, used only when storing the unit)
Air outlet grille
Pump drain hose outlet (some models
without)
Caster
Power cord and plug
Air outlet grille
Control panel
Handle (both sides)
Water bucket
Air lter
Continuous drain hose outlet
Power cord buckle (placed in the water
bucket, used only when storing the unit)
Pump drain hose outlet
(some models without)
Caster
Power cord and plug
12
PREPARATION
Casters (At four points on the bottom of unit)
• Casters can move freely.
• Do not force casters to move over carpet, nor move the unit with water in the bucket.
(The unit may tip over and spill water.)
A dehumidier operating in a basement will have little or no eect in drying an adjacent enclosed storage
area, such as a closet, unless there is adequate circulation of air in and out of the area.
• Do not use outdoors.
• This dehumidifer is intended for indoor residential applications only. This dehumidier should not be used
for commercial or industrial applications.
• Place the dehumidier on a smooth, level oor strong enough to support the unit with a full bucket of water.
• Allow at least 8" of air space on all sides of the unit for good air circulation (at least 16" of air space
on air outlet).
• Place the unit in an area where the temperature will not fall below 41 °F. The coils can become covered with
frost at temperatures below 41 °F, which may reduce performance.
• Place the unit away from the clothes dryer, heater or radiator.
• Use the unit to prevent moisture damage anywhere books or valuables are stored.
• Use the dehumidier in a basement to help prevent moisture damage.
• The dehumidier must be operated in an enclosed area to be most eective.
• Close all doors, windows and other outside openings to the room.
Positioning the unit
13
16" or more
8" or more
16" or more
8" or more
8" or more
CONTINUED
PREPARATION
• When rst using the dehumidier, operate the unit continuously for 24 hours. Make sure the plastic cover on
the continuous drain hose outlet is installed properly, so there are no leaks.
• This unit is designed to operate with a working environment between 41 °F and 90 °F, and between
30%(RH) and 80%(RH).
• If the unit has been switched o and needs to be switched on again quickly, allow approximately three
minutes for the correct operation to resume.
• Do not connect the dehumidier to a multiple socket outlet, which is also being used for other electrical
appliances.
• Select a suitable location, making sure you have easy access to an electrical outlet.
• Plug the unit into an electrical socket outlet.
• Make sure the water bucket is correctly tted otherwise the unit will not operate properly.
Pump drain hose
(1 pc - only for the unit with pump feature)
Female threaded end (1 pc) (on some models)
Power cord buckle (1 pc)
Installation of the power cord buckle
When using the unit
Accessories (placed in the bucket of the unit)
Note
When the water in the bucket reaches to a certain level, please be careful to move the machine to avoid it tipping over.
14
Insert the power cord buckle into the unit
CONTINUED
OPERATING INSTRUCTIONS
The check lter feature is a reminder to clean the Air
Filter for more ecient operation. The Filter light (Clean
lter light) will illuminate after 250 hours of operation.
To reset after cleaning the lter, press the Filter button
and the light will go o. Press the Filter button for
3 seconds when the unit is on or o to initiate the
Wireless connection mode. The LED DISPLAY shows
“AP” to indicate you can set Wireless connection
and the compressor is forced o. If the connection
(router) is successful within 8 minutes, the unit will
exit Wireless connection mode automatically and the
Wireless indicator illuminates and the compressor
reverts previous state. If connection is failure within 8
minutes, the unit exits the Wireless connection mode
automatically.
HUMIDITY Set Control Buttons. The humidity level
can be set within a range of 35% RH (Relative
Humidity) to 85% RH (Relative Humidity) in 5%
increments. For drier air, press the (or <) button
and set to a lower percent value (%). For damper air,
press the (or >) button and set a higher percent
value (%).
Control the fan speed. Press to select either High or
Normal fan speed. Set the fan control to High for
maximum moisture removal. When the humidity has
been reduced and quiet operation is preferred, set
the fan control to Normal.
Press to turn the dehumidier on and o.
Press to activate the pump operation.
Press to activate the continuous dehumidifying
operation.
Control Panel Features
FILTER / WIRELESS Button (on some models)
UP/DOWN Buttons
TURBO Pad
POWER Button
PUMP Button (on some models)
CONTINUE Button
Note
Note
The following control panel is for explanation purposes
only. The control panel of the unit you purchased may be
slightly dierent according to the models. Your machine
may not contain some indicators or buttons. The actual
shape shall prevail.
Make sure the pump drain hose is installed into the
unit and the continuous drain hose is removed from the
unit before the pump operation is activated. When the
bucket is full, the pump starts to work. Refer to the next
pages for removing the collected water. Do not use this
operation when the outdoor temperature is equal to or
less than 32 °F.
TIMER POWER
On
Off
Defrost
Full
CONTD.
COMFORT
FILTER
TURBO
PUMP
Press to initiate the Auto start and Auto stop feature,
in conjunction with the and (or < and >) buttons.
TIMER Button
Use the Up/Down buttons to set the Auto start and
Auto stop time from 0.0 to 24.
TIMER SET CONTROL BUTTONS
15
16
OPERATING INSTRUCTIONS
CONTINUED
ERROR CODES AND PROTECTION CODES
Error Code Issue Resolution
AS Humidity sensor error Unplug the unit and plug it back in. If error repeats, call for service.
ES Tube temperature sensor of
the evaporator error
Unplug the unit and plug it back in. If error repeats, call for service.
P2 Bucket is full, or bucket is not
in the right position
Empty the bucket and replace it in the right position. Only available for the unit with
no pump feature.
P2 Bucket is full Empty the bucket. Only available for the unit with pump feature.
Eb Bucket is removed or not in
right position
Replace the bucket in the right position. Only available for the unit with pump feature.
Press to activate the comfort dehumidifying operation.
Press to activate the dryer operation. Press it again to stop the function.
Shows the set % humidity level from 35% to 85% or auto start/stop time (0~24) while setting, then shows
the actual (±5% accuracy) room % humidity level in a range of 30% RH (Relative Humidity) to 90% RH
(Relative Humidity).
COMFORT Button (on some models)
DRYER Button (on some models)
DISPLAY
Note
On this operation, the unit cannot be set for humidity level. For some models, under comfort dehumidifying operation,
pressing the Up/Down button will cancel this feature.
OPERATING INSTRUCTIONS
CONTINUED
OTHER FEATURES
Glows when the bucket is ready to be emptied.
When frost builds up on the evaporator coils, the
compressor will cycle o and the fan will continue to
run until the frost disappears.
The dehumidier shuts o when the bucket is full,
or when the bucket is removed or not replaced
in the proper position. For some models, the fan
motor will continue to run for 30 seconds. Wait 3
minutes before resuming operation. After the unit
has stopped, it cannot restart operation in the rst
3 minutes. This is to protect the unit. Operation will
automatically start after 3 minutes.
The system starts to count the time once the fan
motor operates. The check lter feature can be
only activated when the accumulated operation time
achieves 250 hours or more. The Reset light
(Clean lter indicator light) ashes once per second,
after nishing cleaning the air lter, press the Filter
button and the Reset light (Clean lter indicator light)
goes o.
If the unit breaks o unexpectedly due to the power
cut, it will restart with the previous function setting
automatically when the power resumes.
• When the unit is on, rst press the Timer button,
the Timer O indicator light illuminates. It indicates
the Auto Stop program is initiated. Press it again
the Timer On indicator light illuminates. It indicates
the Auto Start is initiated.
• When the unit is o, rst press the Timer button,
the Timer On indicator light illuminates. It indicates
the Auto Start program is initiated. Press it again
the Timer O indicator light illuminates. It indicates
the Auto Stop is initiated.
• Press or hold the UP or DOWN button to change
the Auto time by 0.5-hour increments, up to 10
hours, then at 1 hour increments up to 24 hours.
The control will count down the time remaining
until start.
• The selected time will register in 5 seconds and
the system will automatically revert back to display
the previous humidity setting.
• When the Auto Start & Auto Stop times are set,
within the same program sequence, Timer On/O
indicator lights illuminate identifying both On and
O times are now programmed.
• Turning the unit On or O at any time or adjusting
the timer setting to 0.0 will cancel the Auto Start/
Stop function.
• When LED display window displays the code
of P2, the Auto Start/Stop function will also
be cancelled.
BUCKET FULL LIGHT
AUTO DEFROST
AUTO SHUT OFF
CHECK FILTER FEATURE
AUTO-RESTART
SETTING THE TIMER
17
18
OPERATING INSTRUCTIONS
There are three ways to remove collected water.
1. Pull out the bucket a little.
2. Hold both sides of the bucket with even
strength and pull it out from the unit.
3. Pour the water out.
Removing The Collected Water
• When the unit is o, if the bucket is full, the Full
indicator light will illuminate.
• When the unit is on, if the bucket is full, the
compressor and the fan turn o, and the Full
indicator light will illuminate, the digital display will
show P2.
• Slowly pull out the bucket. Grip the left and right
handles securely, and carefully pull it out straight,
so water does not spill. Do not put the bucket
on the oor because the bottom of the bucket is
uneven. Otherwise the bucket will tip over and
cause the water to spill.
• Throw away the water and replace the bucket.
The bucket must be in right place and securely
installed for the dehumidier to operate.
• The machine will re-start when the bucket is
restored in its correct position.
1. Use the Bucket
Note
• When you remove the bucket, do not touch any parts
inside the unit. Doing so may damage the product.
• Be sure to push the bucket gently all the way into the
unit. Banging the bucket against anything or failing to
push it in securely may cause the unit not to operate.
• If the pump hose drops when you remove the bucket,
you must reinstall the pump hose properly to the unit,
before placing the bucket into the unit.
• When the unit is on, if the bucket is removed, the
compressor and the fan turn o, then the unit will beep
8 times and the digital display shows Eb.
• When the unit is o, if the bucket is removed, the unit
will beep 8 times and the digital display shows Eb.
Pump hose drops Reinstall pump hose properly
CONTINUED
19
OPERATING INSTRUCTIONS
• Water can be automatically emptied into a oor
drain by attaching a 5/16" water hose with
a 1" female threaded end (hose not included).
• Remove the plastic cover from the back drain
outlet of the unit and set aside, then insert the
drain hose through the drain outlet of the unit and
lead the drain hose to the oor drain or a suitable
drainage facility.
2. Continuous Draining
Note
On some models, the female threaded end
is included.
• When you remove the plastic cover, if there is
some water in the drain outlet in the back of the
unit, you must dry it. Make sure the hose is secure
so there are no leaks and the end of the hose is
level or down to let the water ow smoothly.
• Direct the hose toward the drain, making sure that
there are no kinks that will stop the water owing.
Make sure the water hose is lower than the drain
hose outlet of the unit.
• Select the desired humidity setting and fan speed
on the unit for continuous draining to start.
Note
When the continuous draining feature is not
being used, remove the drain hose from the
outlet, and dry the water in the continuous drain
hose outlet, otherwise the water can become
ice and cause the hose to be blocked. This
may cause the unit to fail. Make sure to empty
the bucket once a week when using the pump
draining feature. When the pump draining feature
is not being used, remove the pump drain hose
from the outlet. Press the pump drain hose outlet
in and take the pump drain hose out. Make sure
you do not let the water in the pump hose drip on
the oor.
Remove the
plastic cover by
counter-clockwise
rotation
Drain hose
Female threaded end
CONTINUED
OPERATING INSTRUCTIONS
• Check that the pump drain hose does not link
or back.
• Empty the water of the bucket.
• Reinstall the pump hose if it drops and reinstall
the bucket properly. Turn on the unit. If the error
repeats, call for service.
• Water can be automatically emptied into a oor
drain or a suitable drainage facility by attaching
the pump drain outlet with a pump drain hose
(included).
• Remove the continuous drain hose from the unit
and install the plastic cover to the continuous
drain hose outlet of the unit by clockwise rotation.
• Reinsert the pump drain hose into the pump drain
hose outlet for depth of 15mm at least, then lead
the water hose to the oor drain or a suitable
drainage facility.
3. Pump Draining (on some models)
• Press the pump pad of the unit to activate the
pump operation. When the bucket is full, the pump
starts to work.
• Make sure the hose is secure so there are
no leaks.
• Direct the hose toward the drain, making sure that
there are no kinks that will stop the water owing.
• Place the end of the hose into the drain and make
sure the end of the hose is level or down to let the
water ow smoothly.
• Select the desired humidity setting and fan speed
on the unit for pump draining to start.
Please turn o the unit and disconnect the power
cord out. Check the following things:
• Cleaning the lter of the pump.
• Remove the bucket from the unit, take down the
pump and clean the lter of the pump.
Note
Note
The pump may cause a loud noise when it
starts to work for 3~5 minutes. It is a normal
phenomenon.
Do not use this operation when the outdoor
temperature is equal to or less than 32 °F,
otherwise water is become ice that will cause the
water hose blocked up and the unit failure.
Make sure to empty the bucket once a week
when using the pump draining feature. When the
pump draining feature is not being used, remove
the pump drain hose from the outlet. Press the
pump drain hose outlet in and take the pump
drain hose out from it. Make sure do not let the
water in the pump hose drip to the oor.
Note
The pump operation “on” light blinks at 1Hz
when the pump is having an operational failure.
Reinstall the
plastic cover
Pump drain hose
Pump drain hose outlet
Filter of the pump
1. Press the pump drain hose outet in
2. Take the pump drain hose out
2
1
CONTINUED
20
CARE AND MAINTENANCE
DO NOT operate the dehumidier without a
lter because dirt and lint will clog it and reduce
performance.
• Use water and a mild detergent. Do not use bleach
or abrasives.
• Do not splash water directly onto the main unit.
Doing so may cause an electric shock, cause the
insulation to deteriorate, or cause the unit to rust.
• The air intake and outlet grilles get soiled easily, so
use a vacuum attachment or brush to clean.
• After turning o the unit, wait one day before
emptying the bucket.
• Clean the main unit, water bucket and air lter.
• Wrap the cord with the power cord buckle.
• Cover the unit with a plastic bag.
• Store the unit upright in a dry, well-ventilated place.
Every few weeks, clean the bucket to prevent growth
of mold, mildew and bacteria. Partially ll the bucket
with clean water and add a little mild detergent.
Swish it around in the bucket, empty and rinse.
• Remove the lter every two weeks based on normal
operating conditions.
• To remove the lter, pull lter outwards.
• Wash the lter with clean water then dry.
• Re-install the lter, replace bucket.
Cleaning the Grille and Case
When Not Using The Unit For Long Periods
Of Time
Cleaning the Bucket
Cleaning the Air Filter
Note
Note
Do not use a dishwasher to clean the bucket.
After clean, the bucket must be in place and
securely seated for the dehumidier to operate.
Turn the dehumidier o and remove the plug
from the wall outlet before cleaning.
CAUTION
21
Safety Precautions
Continued
TROUBLESHOOTING
Problem What to Check
Unit does not start Make sure the dehumidier is plugged completely into the outlet.
Check the house fuse/circuit breaker box.
Dehumidier has reached its preset level, or the bucket is full.
Water bucket is not in the proper position.switched on to protect the compressor.
Dehumidier does not dry the air
as it should
Did not allow enough time to remove the moisture.
Make sure there are no curtains, blinds or furniture blocking the front or the back of the dehumidier.
The humidity control may not be set low enough.
Check that all doors, windows and other openings are securely closed.
Room temperature is too low, below 41 °F.
There is a kerosene heater or something giving o water vapor in the room.
The unit makes a loud noise when
operating
The air lter is clogged.
The unit is tilted instead of upright, as it should be.
The oor surface is not level.
Frost appears on the coils This is normal. The dehumidier has an Auto Defrost feature.
Water on the oor Hose to connector or hose connection may be loose.
Intend to use the bucket to collect water, but the drain plug in the back has been removed.
ES, AS, P2, or Eb appear in the display These are error codes and protection codes. See the CONTROL PANEL FEATURES section.
The pump operation on light blinks at 1Hz Clean the lter of the pump.
Check the pump hose does not kink or block.
Empty the water out of the bucket.
22
The design and specications are subject to change without prior notice for product improvement.
Consult with the sales agency or manufacturer for details. Any updates to the manual will be
uploaded to the service website, please check for the latest version.
844-4PA-AIRE | 844-472-2473
www.perfectaire.us
1020_M516
Perfect Aire, LLC
5401 Dansher Road
Countryside, IL 60625
Printed in China
