INSTALLATION MANUAL, USE AND CARE AND WARRANTY FOR
AMERICANA GAS RANGES
RETAIN THIS MANUAL FOR FUTURE REFERENCE
DESIGN CLASS FUNCTION
CUISINE
ARR-503
PERFORMER
ARROB-430
Shown with optional 4" stub back and leg caps.
This manual is divided into several sections: (Model numbers for Cuisine Burner Ranges page 13 and Performer Burner Ranges page 14)
Important Safety Instructions informs you about signicant safety precautions when installing and operating your new appliance.
THIS IS A MUST READ SECTION OF THE MANUAL.
Installation Section describes how to unpack the unit, what to save and what to discard, installation dimensions, gas and electrical
connections and how to identify the primary parts of the product so you can better understand what’s going on “under the hood.”
How to Operate Your Range Section shows you how to light the burners, set the range for broil or bake and how to
use convection to speed cooking times and improve the quality of your baked and roasted dishes.
Care and Cleaning discusses how to keep your product in good operating condition, how to identify what might be going wrong
with the unit, and how to communicate your observations with authorized eld service technicians.
Troubleshooting describes how to troubleshoot common issues.
Americana Model and Parts Identication shows available parts for your range.
Warranty
BEFORE USING YOUR APPLIANCE, PLEASE READ THIS MANUAL, PAYING SPECIAL ATTENTION TO THE
IMPORTANT SAFETY INSTRUCTIONS LOCATED IN THE NEXT SEVERAL PAGES
ABOUT THIS MANUAL
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
CUISINE
SEALED
TOWER BURNERS
(Model Numbers
on page 13)
PERFORMER
OPEN BURNERS
(Model Numbers
on page 14)
2
7
16
20
20
21
22
!
WARNING
NEVER OPERATE THE TOP SURFACE COOKING SECTION
OF THIS APPLIANCE UNATTENDED.
» Failure to follow this warning statement could result
in re, explosion, or burn hazard that could cause
property damage, personal injury or death.
» If a re should occur, keep away from the
appliance and immediately call your re
department.
DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER.
2
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
FOR YOUR SAFETY!
Do not store or use gasoline or other ammable vapors or
liquids in the vicinity of this or any other appliance.
FOR
YOUR
SAFETY
FOR
YOUR
SAFETY
IMPORTANT – PLEASE READ AND FOLLOW!
Instruction to be followed in the event the user smells gas must be posted in a prominent location.
This information must be obtained by consulting the local gas supplier.
WARNING!
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING
IMPROPER
INSTALLATION
WARNING
IMPROPER
INSTALLATION
» Before beginning, please read all the instructions carefully.
» DO NOT remove permanently axed labels, warnings, or plates from product. This may void the warranty.
» All local and national codes and ordinances must be observed, installation must conform with local codes.
» The Installer must leave these instructions with the consumer who must retain for local inspector’s use and for future reference.
» Installation and service must be performed by a qualied installer, service agency or gas supplier.
» Please ensure that the product is properly grounded.
» In the Commonwealth of Massachusetts, installation must be performed by a licensed plumber or gas tter.
Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
Hazards or unsafe practices which will result in severe personal injury or death.
Hazards or unsafe practices which may result in severe personal injury or death.
Hazards or unsafe practices which may result in minor personal injury or property damage.
This is the SAFETY ALERT SYMBOL. This symbol alerts you to hazards which will result in severe injury or death.
CA PROPOSITION 65: The burning of gas cooking fuel generates some chemical by-products which
are on the list of substances known by the State of California to cause cancer, birth defects and/or
reproductive harm. To minimize exposure to these substances, always operate this unit according to the
Owners Manual, ensuring to provide proper ventilation.
This is a vented appliance. The appliance is not to be installed in conjunction with an air curtain, range
hood, or ventilation systems which operates by blowing air downward towards the appliance. This type of
ventilation system may cause ignition and combustion problems with the gas cooking appliance resulting in
personal injury or unintended operation.
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING
!
DANGER
!
WARNING
!
WARNING
!
!
CAUTION
3
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
A ground fault interrupter (GFI) shall be used as required by NFPA-70 (National Electric Code), Federal / State / Local
laws or local ordinances.
» The required use of a GFI is normally related to the location of the receptacle to its proximity to signicant sources of water or
moisture.
» American Range will not warranty any problems resulting from GFI outlets which are not installed properly or do not meet
the requirements below.
IF THE USE OF A GFI IS REQUIRED, it must be:
» The receptacle type (breaker type or portable type not recommended).
» Used with permanent wiring only (temporary or portable wiring not recommended).
» On a dedicated circuit (no other receptacles, switches or loads in the circuit).
» Connected to a standard breaker or appropriate size (GFI breaker of the same size not recommended).
» Rated for class (5mA + 1mA trip current) as per UL 943 standard.
» In good condition and free from any loose-tting gaskets (if applicable in outdoor situations).
» Protected from moisture (water, steam, high humidity) as much as reasonably possible.

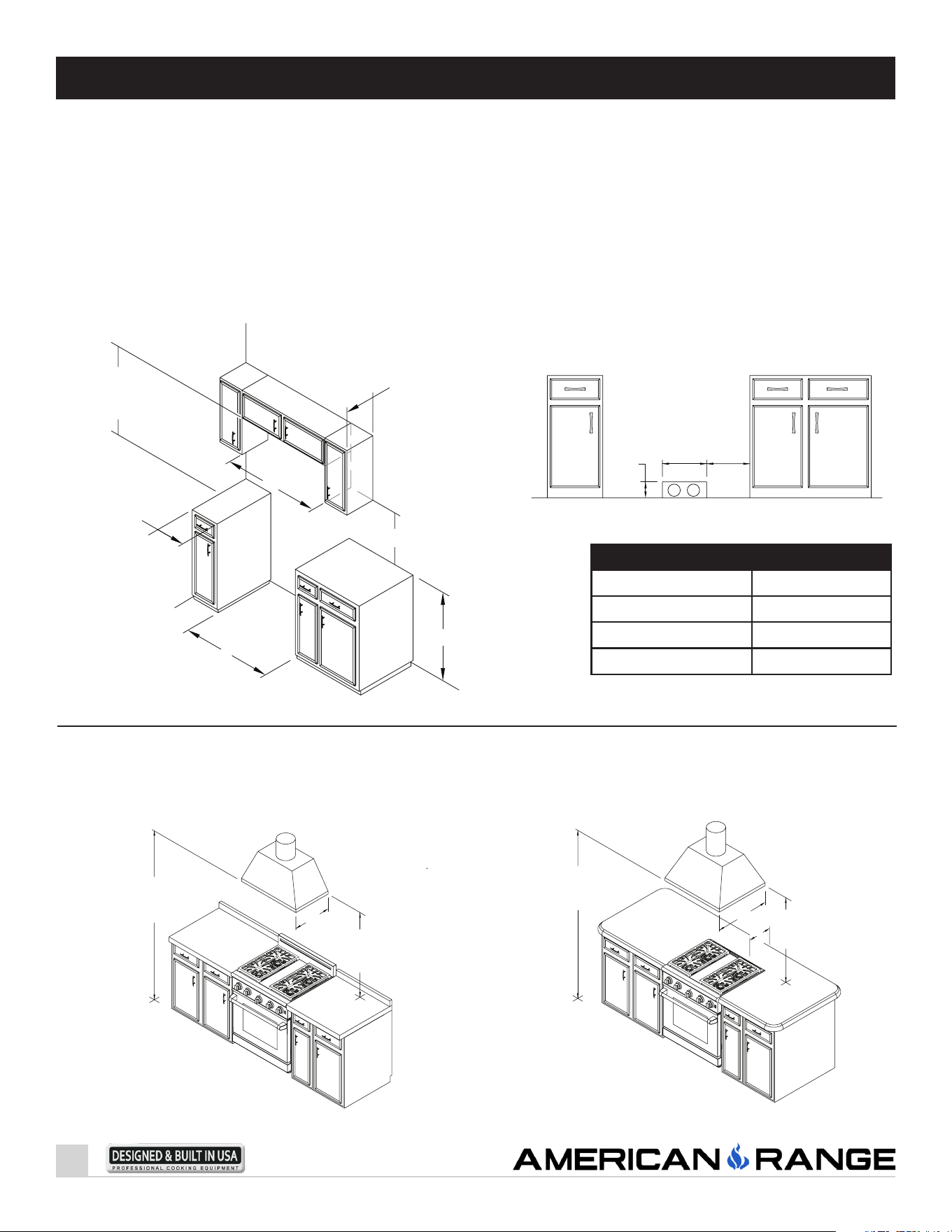

To prevent possible damage to cabinets and cabinet nishes, use only materials that will not discolor or delaminate
and will withstand temperatures up to 194ºF (90ºC). Heat resistant adhesive must be used if the product is to be
installed in laminated cabinetry, check with your builder or cabinet supplier to make sure that the materials meet
these requirements.
The use of cabinets for storage above the oven may result in potential re or burn hazard.
To avoid risk of electrical shock, personal injury or death; verify your appliance has been
properly grounded in accordance with local codes, or in absence of codes, with the National Electrical Code (NEC),
ANSI/NFPA 70 latest edition, or in Canada, to Canadian electrical codes, CSA, C22.2.

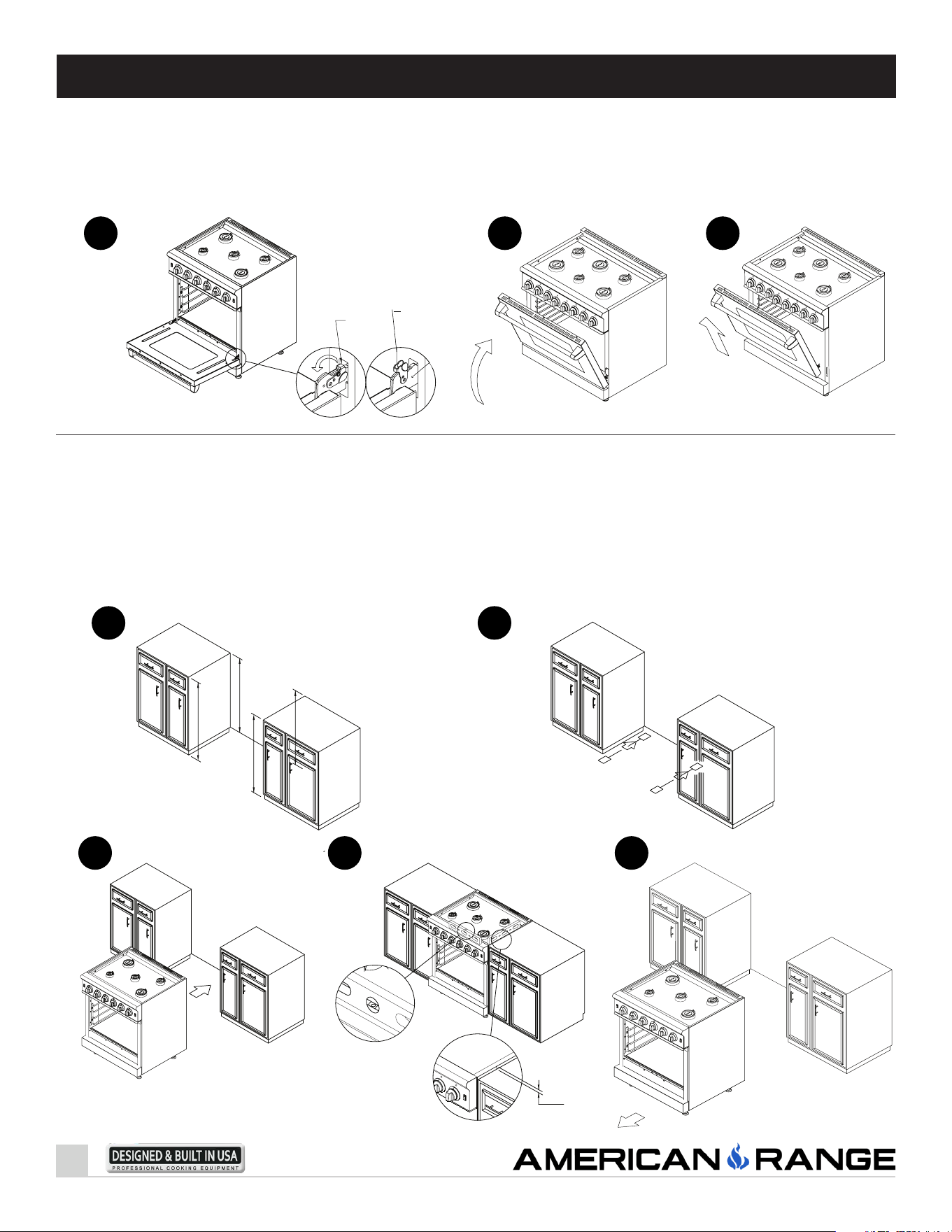

Do not use the handle or oven door to lift the oven, remove pull down door before installation to ensure that it is
not used to lift the unit. Make sure pins are inserted into hinges before removing door to prevent injury to hands
and / or ngers. (See installation instructions)
The misuse of the oven door(s) (e.g.; stepping, sitting, or leaning on them) can result in hazard or injuries and damage
to the product.
This appliance must not be used for space heating. This information is based on safety considerations.
MOVING HAZARD: To avoid risk of severe personal injury; this appliance requires two or more personnel while
handling and moving. Use of moving device is recommended.
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
DANGER
4
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING
DAMAGE, PERSONAL INJURY OR DEATH
INSTALLATION AND SERVICE MUST BE PERFORMED BY A CERTIFIED / LICENSED INSTALLER, SERVICE AGENCY OR THE
GAS SUPPLIER
» Do not store or use gasoline or other ammable vapors or liquids in the vicinity of this or any other appliance.
» Please observe all local and national codes and ordinances.
» Do not remove any permanent warning labels or plates from this product.
» Please ensure that this product is electrically grounded.
» Consumers must retain these instructions for local inspectors and for future use.
WHAT TO DO IF YOU SMELL GAS
» Do not try to light any appliance
» Do not touch any electrical switch
» Do not use any phone in your building
IMPORTANT SAFETY INSTRUCTIONS
PRECAUTIONS
SHIPPING DAMAGE CLAIM PROCEDURE
The equipment is crafted and inspected carefully by skilled personnel before leaving the factory. The transportation company assumes
full responsibility for the safe delivery upon acceptance of the equipment.
If you receive a damaged product, immediately contact your delivery company, your dealer, your builder or installer. Do not install or
attempt to operate a damaged appliance.
1. Note on the freight bill or express delivery any visible loss or damage and have the note signed by the person making the delivery.
2. File claim for damages immediately regardless of the extent of damages.
3. For damage noticed after unpacking (concealed loss or damage), notify the transportation company immediately and le a
“Concealed Damage” claim with them. This must be done within fteen (15) days from the date that delivery is made to you.
Retain the shipping container for inspection.
Check your local building codes for proper installation methods. In the absence of local codes, this appliance must be installed in
accordance with the National Fuel Gas Code No. Z223.1 current issue, and the National Electrical Code ANSI/NFPA No. 70 current
issue, or the CAN – B149 Installation Codes for Gas Burning Appliances, and C22.1 Canadian Electrical Code Part 1.
Verify the type of gas supplied to the location, being sure that the appliance is connected to the type of gas for which it is certied.
Models come from the factory certied for use with Natural Gas (NG) or Liquid Propane (LP) gas. Your product, shown on the rating
label and the supplied gas type must be the same. Upon opening your product, the rating label can be located on the front panel. If it is
a cooktop, the rating label can be found on the side panel underneath the left burner.
If connecting this appliance to propane gas, make certain the propane gas tank is equipped with its own high-pressure regulator – in
addition to the pressure regulator supplied with this product when applicable. The maximum propane gas pressure to this appliance
must not exceed 14.0 inches of water column (34.9 millibar) from the propane gas tank to the pressure regulator.
Your appliance must be installed by a qualied gas installation technician. Have the technician show you the exact location of the gas
shut-o valve on the incoming gas line so you know how to turn o the gas if necessary.
» Using a neighbor’s phone, immediately call your gas company
» Follow the gas supplier instructions
» If you can not reach your gas supplier, call the Fire Department
!
CAUTION
!
WARNING
5
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com

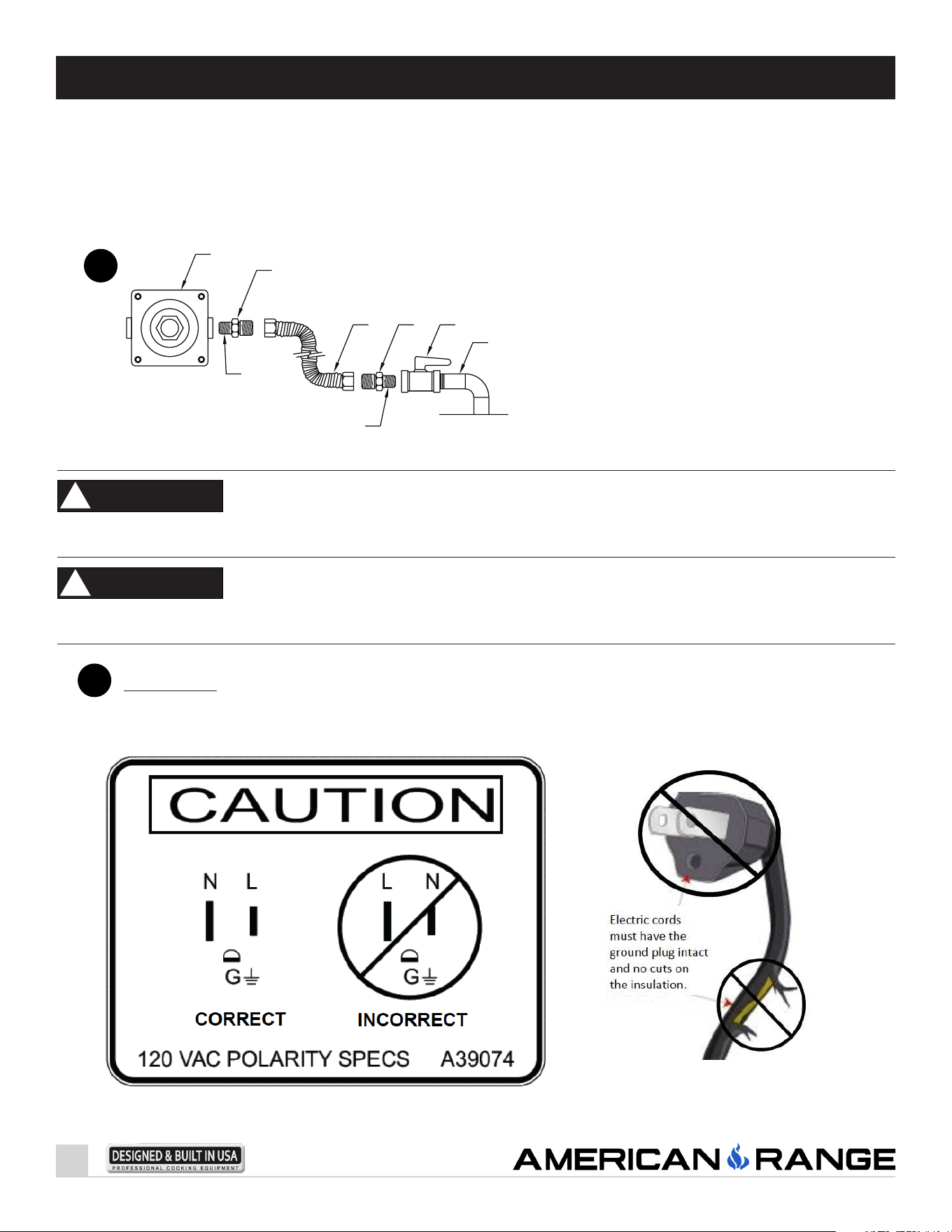

For personal safety, this appliance must be connected to a properly grounded and polarized electrical power supply. If only a two-prong
outlet is available, it is the customer’s responsibility to have it replaced with a dedicated, grounded, three-prong electrical outlet by a
licensed technician. The gas surface burner re-ignition system when applicable depends on a low resistance electrical ground connection
for reliable operation.
» Do not cut or remove the third (ground) prong from the power cord
» Do not use an adapter plug
» Do not use an extension cord
» Do not use a power cord that is frayed or damaged
IMPORTANT SAFETY INSTRUCTIONS
To avoid the possibility of explosion or re, do not store or use combustible, ammable or explosive liquids (such as gasoline) or vapors
inside or in the vicinity of this or any other appliance. Keep items that could explode, such as aerosol cans, away from the product. Do
not store explosive or ammable materials in nearby cabinets or areas. When operating the oven or broiler, do not touch the surfaces
of the ceramic tile broiler, the rack or rack supports, the walls of the oven or the inside surfaces of the oven door – interior surfaces
become hot enough to cause burns. The heat deector, which deects heat away from the control panel, and the oven door sides will
also be hot during use.
POWER FAILURE WARNING: Due to safety considerations and the possibility of personal injury, when applicable do not attempt
to light or operate range burners, grills, griddles, the oven or broiler during a power failure. Safety systems which detect the presence of
an ignition source and operate the gas safety valve do not function during a power failure. Be sure all gas valve knobs are turned to and
remain in the OFF position during a power failure.
To reduce the risk of appliance tipping, it must be secured to the wall with a properly installed anti-tip bracket. To make sure the bracket
has been installed properly, inspect behind the range using a ashlight.
» Anti-tip devices are supplied where applicable and are necessary for range products.
» This range can tip causing personal injury
» See Installation Instructions supplied with the range and install the anti-tip device packaged with the range
» If the anti-tip device cannot be located, contact American Range Customer Service by calling 818.897.0808 or by contacting us at
www.AmericanRange.com
Do not store items of interest to children above or near the appliance. Children, as well as adults, must never be allowed to sit, stand or
climb on any part of the appliance. Serious personal injury may occur.
Always DISCONNECT the electrical plug from the wall outlet power source before servicing the unit. It is recommended that a
dedicated electrical circuit be used for this appliance. Always turn gas shut-o valve to OFF position before servicing unit.
The California Safe Drinking Water and Toxic Enforcement Act of 1986 (Proposition 65) requires the Governor of California
to publish a list of substances known to the State of California to cause cancer or reproductive harm, and requires businesses to warn
customers of potential exposures to such substances. Users of this appliance are hereby warned that when the oven is operated, there
may be some low-level exposure to some of the listed substances including carbon monoxide. Exposure to these substances can be
minimized by properly venting the oven to the outdoors using approved overhead ventilation equipment or by opening the windows
and/or doors in the room where the appliance is located. This appliance must not be operated without a properly sized and functional
ventilation hood.
!
CAUTION
!
DANGER
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
DANGER
6
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and
overheating of the appliance. Do not use the range top or oven as a food or kitchen item storage area.
Never block or cover any slots, holes or passages located anywhere inside or outside the range. These structures are important to safe
operation of the appliance and doing so may block airow through the oven or cooktop possibly causing carbon monoxide poisoning
or re. Routinely keep all slots free of grease and other materials.
This appliance has been tested for safe performance using conventional cookware. DO NOT USE any device or accessory not
specically recommended in this guide. DO NOT USE pan or pan covers on surface units, grills or griddles. These devices can create
serious safety hazards including personal injury, create performance problems and may damage the appliance. Do not store or use
corrosive chemicals, vapors, ammables or non-food products in or near this appliance. It is specically designed for use when heating
or cooking food. The use of corrosive chemicals while heating or cleaning could result in personal injury or damage to the appliance.
Purchase a kitchen re extinguisher for your home and store it in close proximity to your appliance. Should an uncontrolled re occur,
never use water on grease res. Never pick up a aming pan. The oven door interior and exterior, especially the glass can get hot
during operation. Do not touch the glass – use the door handle to open or close the range door.
The push-to-turn gas valve knobs on the appliance are designed to be child-safe, however, they are not a guarantee of operation.
Children must not be left alone or unattended in the kitchen while the appliance is in use. Never leave the appliance unattended during
use. Boil-overs may occur, causing spills which may ignite.
Never wear loose tting or long sleeved apparel while cooking. Never wear garments made of ammable materials. Clothing may
ignite or catch utensil handles. DO NOT drape towels or other items on door handles. These items could ignite and cause burns.
If your product is a range or oven ALWAYS place oven racks in the desired position before you start cooking and while the oven is
cool. Always use dry and sturdy pot-holders to carefully slide the oven rack out to add or remove food.
If your product is a range or cooktop located near a window, be certain window curtains or other ammable objects do not blow over
or near the range burners; the items could catch on re.
If operating the surface burners, the ame must be adjusted to just cover the bottom of the pan or pot. Excessive high ame settings
may cause scorching of the nearby counter-top surface, as well as the outside of the utensil and handles.
ALWAYS turn the appliance o at the end of cooking.
When dehydrating food items, periodically check during the process to ensure that they do not catch on re.
If you are “aming” liquor or other spirits under an exhaust, TURN THE FAN OFF. The draft from the fan could cause the ames to
spread out of control.
Care must be exercised if your appliance is equipped with a high-shelf. During heavy or continuous use, this shelf may be come hot. Do
not place combustible materials or plastic items on the shelf.
Turn the knobs to the OFF position prior to removing them from the valve stems for cleaning.
IMPORTANT SAFETY INSTRUCTIONS
!
CAUTION
!
WARNING
7
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com

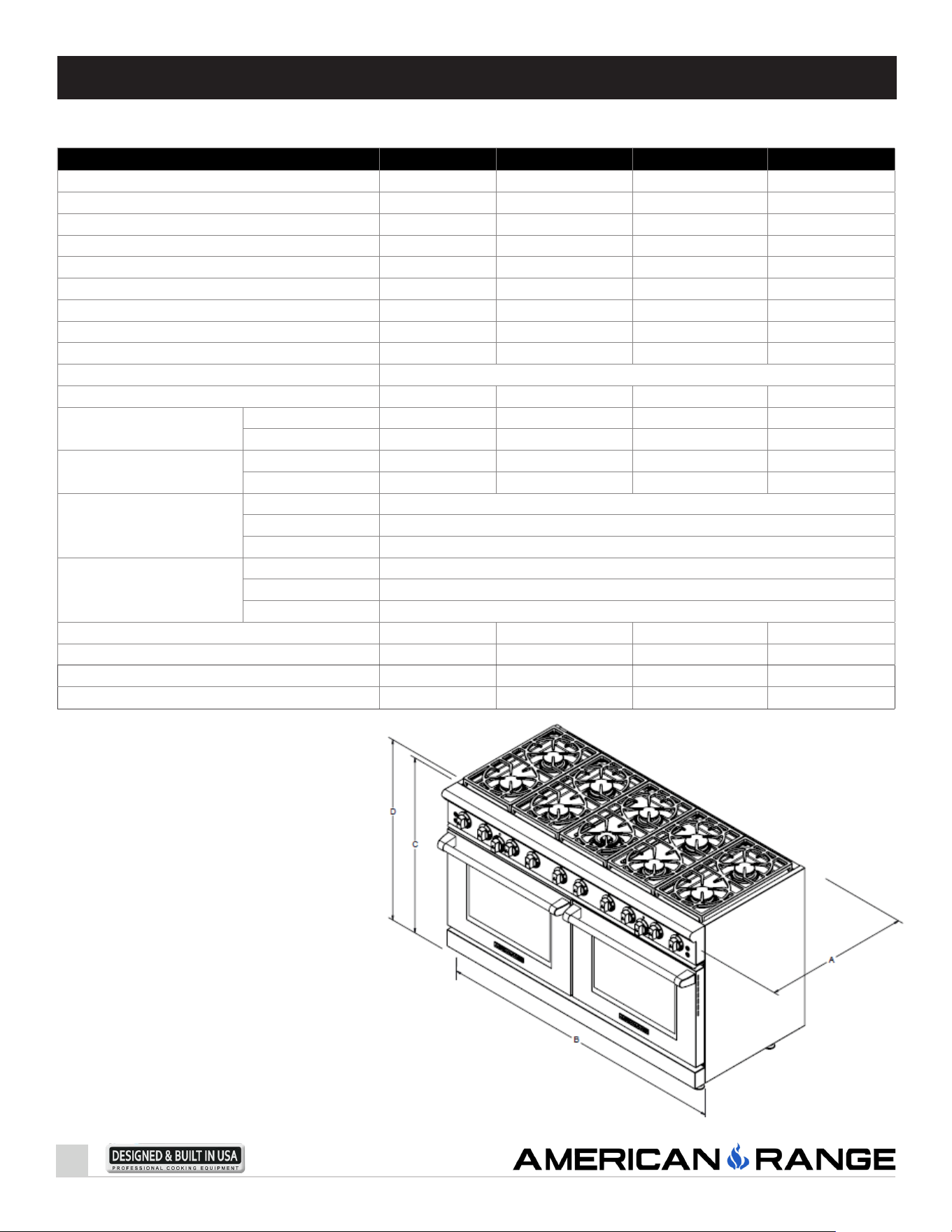

CUISINE and PERFORMER RANGES 30" MODELS 36" MODELS 48" MODELS 60" MODELS
A) Overall Depth 30" (762) 30" (762) 30" (762) 30" (762)
B) Overall Width 29-7/8" (759) 35-7/8" (911) 47-7/8" (1216) 59-7/8" (1521)
C) Overall Height (top of side panels) 36-1/2" (927) 36-1/2" (927) 36-1/2" (927) 36-1/2" (927)
D) Overall Height (top of grates) 37-5/8" (956) 37-5/8” (956) 37-5/8” (956) 37-5/8” (956)
Leg Adjustment 1" (25) 1" (25) 1" (25) 1" (25)
Oven Interior Width 26" (660) 32" (813) 26" (660) / 14" (356) 26" (660) / 26" (660)
Oven Interior Height 15" (381) 15" (381) 15" (381) 15" (381)
Oven Interior Depth 20-1/2" (521) 20-1/2" (521) 20-1/2" (521) 20-1/2" (521)
Oven Volume 4.6 CU. FT. 5.7 CU. FT. 4.6 / 2.6 CU. FT. 4.6 / 4.6 CU. FT.
Electrical Requirements 120 VAC, 15 amp 60 Hz Single Phase
Max Amp Usage 5 AMP 8 AMP 15 AMP 15 AMP
GAS REQUIREMENTS
Natural Gas 7" W.C. 7" W.C. 7" W.C. 7" W.C.
Liquid Propane * 11" W.C. 11" W.C. 11" W.C. 11" W.C.
GAS MANIFOLD
PRESSURE
Natural Gas 5" W.C. 5" W.C. 5" W.C. 5" W.C.
Liquid Propane * 10" W.C. 10" W.C. 10" W.C. 10" W.C.
RANGETOP BURNER RATING
Cuisine – Sealed Burner
Large 25,000 BTU
Medium 18,000 BTU
Small 13,000 BTU
RANGETOP BURNER RATING
Performer – Open Burner
Large 25,000 BTU
Medium 18,000 BTU
Small 12,000 BTU
Griddle Burner Rating N/A 20,000 BTU (5.86 kW) 20,000 BTU (5.86 kW) 20,000 BTU (5.86 kW)
Grill Burner Rating N/A 15,000 BTU (4.3 kW) 15,000 BTU (4.3 kW) 15,000 BTU (4.3 kW)
Approximate Shipping Weight (Cuisine) 345 LBS (156 kg) 405 LBS (184 kg) 660 LBS (300 kg) 780 LBS (354 kg)
Approximate Shipping Weight (Performer) 345 LBS (156 kg) 405 LBS (184 kg) 660 LBS (300 kg) 780 LBS (354 kg)
DIMENSIONS, SPECIFICATION, GAS and ELECTRICAL REQUIREMENTS
INSTALLATION
A: Overall Depth
B: Overall Width
C: Overall Height (top of side panels)
D Overall Height (top of grates)
DIMENSIONS (see chart above)
IMPORTANT: Use and complete the installation
checklist provided in this manual to ensure proper
installation and to validate the warranty.
* Make certain that the propane gas tank is
equipped with its own high-pressure regulator in
addition to the pressure regulator supplied with
this product.
8
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
INSTALLATION
The location selected for the range must meet the following criteria. If any of these criteria are not met, select another location.
SITE PREPARATION
» The range is a free standing appliance. If the range is to be installed adjacent to cabinets, the clearances where indicated are required.
» This range may not be recessed into the cabinets. The rear of the oven door must be beyond the edge of the front face of the adjacent
cabinet.
» The gas and electrical supplies should be located below the unit or in the adjacent right cabinet.
» Any openings in the wall behind the range and in the oor under the range must be sealed.
» Always keep the appliance free and clear of combustible materials, gasoline, or other ammable vapors and liquids.
» Do not obstruct the ow of combustion exhaust and ventilation air to the unit.
ELECTRICAL CONNECTION
» The Range must be electrically grounded in compliance with local codes or, in the absence of local codes, with the National Electrical
Code, ANSI/NFPA70.
» This range requires a 120 volt supply to operate the ignition system. The supply cord provided on the range is equipped with a three-
prong (grounding) plug for protection against electrical shock.
» The electrical service in the building must be equipped with a properly grounded three-prong receptacle.
» Do not cut or remove grounding prong from this plug.
POWER REQUIREMENTS FOR THIS RANGE
» 120 VAC, 60 Hz, single phase, 15 AMP Max
GAS CONNECTION
Be certain the appliance being installed is correct for the gas service being provided. Refer to the appliance rating plate for the gas supply
requirements.
A manual gas shut-o valve must be remotely installed and easily accessible in the adjacent cabinet. The regulator inlet is for a 3/4 inch gas
line. The appliance ships with a 1/2 inch to 3/4 inch adapter connected to the regulator.
» Use at least a 1/2" commercial ex hose to connect range to the gas supply (service line).
» A manual gas shut-o valve must be installed, in easy access in front of the gas supply (service line) and ahead of the range for safety
and ease of maintenance.
» All valves must be in the OFF position before connecting to the gas supply line.
RATING PLATE
The information on the rating
plate denes the model, serial
number, gas type (natural or
liquid propane), operating
pressures and burner BTU
ratings. Keep this information for
future reference. It is essential
for proper identication of the
unit when requesting additional
information or factory support.
BTU INPUT/HR/SECTION
3013256
MODEL NO.
ARR305
XXXXXX-XXX
XXX
GAS TYPE
MAN. PRESS.
IN W.C.
X.X
COOK TOP
Large
25,000
Medium
18,000
Small
13,000
VOLTS
120
OVEN BK 18
BROIL 18AMPS
CYCLES BK 24,30,36
28,000
BR 24,30,36PHASE
SERIAL NO.
GRILL
GRIDDLE
60
9
1 17,000
AMERICAN
American Range (www.americanrange.com)
13592 DESMOND ST., PACOIMA, CA 91331
ANSI Z21. 1b - 2003 HOUSEHOLD COOKING APPLIANCES
Cuisine Rating Plate
BTU INPUT/HR/SECTION
3013256
MODEL NO.
ARROB304
XXXXXX-XXX
XXX
GAS TYPE
MAN. PRESS.
IN W.C.
X.X
COOK TOP
Large
25,000
Medium
18,000
Small
12,000
ANSI Z21. 1b - 2003 HOUSEHOLD COOKING APPLIANCES
VOLTS
120
OVEN BK 18
BROIL 18AMPS
CYCLES BK 24,30,36
28,000
BR 24,30,36PHASE
SERIAL NO.
GRILL
GRIDDLE
60
9
1 17,000
AMERICAN
American Range (www.americanrange.com)
13592 DESMOND ST., PACOIMA, CA 91331
Performer Rating Plate
9
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
RANGE LOCATION:
The location for the range must meet the following criteria. If any of these criteria are not met, select another location.
CABINET PREPARATION:
1. The range is a free standing appliance. If the range is to be adjacent to cabinets, the clearances shown below, and on the next
page, are required.
2. This range may not be recessed into the cabinets. The rear of the door must be beyond the edge of the front face of the
adjacent cabinet.
3. The gas and electrical supplies should be located in adjacent right cabinet.
4. Any openings in the wall behind the range and in the oor under the range must be sealed.
5. Always keep the appliance clear and free from combustible materials, gasoline, or other ammable vapors and liquids.
6. Do not obstruct the ow of combustion and ventilation air to the unit.
For optimal performance, the range must be installed away from drafts that may be caused by doors,
windows, fans, heating and air conditioning outlets.
ELECTRICAL SERVICE:
A 120 VAC, 60Hz separately grounded circuit that is protected by a 15A circuit breaker or time delay fuse must be supplied to the
appliance.
GAS SUPPLY:
Be certain the appliance being installed is correct for the gas service being provided. Refer to the appliance data plate for the gas supply
requirements.
» Minimal natural gas supply pressure required is 7" water column.
» Minimal liquid propane (LP) gas supply pressure required is 11" water column.
A manual gas shut-o valve must be remotely installed and easily accessible in the adjacent cabinet. The regulator inlet is for 3/4" gas line.
The appliance ships with a 1/2" to 3/4" adapter connected to the regulator.
VENTILATION
Proper ventilation is required for safe, ecient operation of this appliance. The range/cooktop must be installed under an appropriate
canopy ventilation hood. The hood must be at least as wide as the appliance.
Especially in newer homes which are better sealed against the outdoors, a powerful exhaust fan can create a vacuum in the room. To
avoid this condition, have a qualied contractor match the appropriate hood to the specic cooktop/range. A balanced ventilation system
will factor the size of the range, size of the hood and power of the exhaust fan. It is recommended that the exhaust fan be powerful
enough to move a minimum of 300cfm.
The maximum depth of the overhead cabinets installed on either side of the hood is 13".
INSTALLATION
Do not use an extension cord with this appliance. Such use may result in re, electrical shock or other
personal injury.
The appliance is heavy. Use extreme care when handling.
Do not use the handle or oven door to lift the oven, remove pull down door before installation to ensure
that it is not used to lift the unit. Make sure pins are inserted into hinges before removing door to prevent
injury to hands and / or ngers. (See installation instructions)
» Do not remove protective packaging until you are ready to perform the installation.
» Do not remove the protective wrapping from the product control panel until the product is installed.
» Use proper equipment to move products.
» Any openings in the wall and in the oor behind or under the appliance must be sealed.
!
CAUTION
!
WARNING
!
WARNING
!
WARNING
!
WARNING
10
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
INSTALLATION INSTRUCTIONS
» Installation of this oven must be performed by qualied, certied and licensed persons.
» Products are anchored to the wooden shipping pallet using metal straps that are screwed to the bottom of the product and
the pallet.
» To remove the packaging, rst remove the staples located at the bottom perimeter of the corrugated cover.
» Remove the corrugated cover by lifting it o the product and remove the inner packing.
» Detach the product from the metal anchor strip by removing the attachment screw.
» Conrm available access to adequate power and gas. (See Specications, Gas and Electrical Requirements table.)
» Fill out the front page and installation checklist of this installation manual with requested data. Model number and serial
number can be found on the nameplate located underneath the control panel on the front of the appliance.
INSTALLATION
CLEARANCE DIMENSIONS
66" min.
TO
72" max.
30" min.
TO
36" max.
24"
Island Install
A
8" MIN.
24" MIN TO
NON-COMBUSTIBLE MA
TERIAL
30" MIN TO
COMBUSTIBLE MATERIAL
A
18" MIN.
13" MAX
36"
CABINET DEPTH
10" 6-7/8"
3-1/2"
ELECTRICAL & GAS
SUPPLY LOCATION
EG
Range Width “A” Dimension
29-7/8" (759mm) 30" (762 mm)
35-7/8" (911mm) 36" (914 mm)
47-7/8" (1216 mm) 48" (1219 mm)
59-7/8" (1521 mm) 60" (1524 mm)
CLEARANCE DIMENSIONS
Wall Install
6"
30"
66" min.
TO
72" max.
30" min.
TO
36" max.
30" min.
TO
24"
11
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
CATCH
RETAINING ARM
INSTALLATION
STEP ONE: REMOVE THE OVEN DOOR (Repeat steps A – C for second door, if applicable)
A. Open door to its fully opened position and remove oven racks. Using a screwdriver, rotate the catch over
the retaining arm on each hinge
B. Gently close the door until catch stops the door
C. Hold the door with both hands just below the handle and pull it away from the oven while continuing to lift.
A B C
RETAINING
ARM
STEP TWO: LEVEL THE RANGE
D. Measure the four corners in each cutout area to verify that ooring is level
E. For uneven or sloped oors, level unit with metal shims only, as the adjustment required may exceed the thread available in the leg.
F. IMPORTANT: Remove/peel-o all protective plastic lm from stainless steel and move unit into opening.
If possible, use protection for the oor.
G. Check that unit is level side to side and front to back. Side trim of the high corner must be 3/8" above countertop.
H. Pull oven straight out. Install Anti-Tip Device according to installation instructions found inside the Anti-Tip Device kit.
D
3/8"
(1cm)
E
F G H
12
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
INSTALLATION
STEP THREE: CONNECT GAS and ELECTRICAL SUPPLY
I. Connect the gas supply.
NOTE: Before placing appliance into operation, always check for gas leaks. This must be performed by your dealer, a qualied
licensed plumber, or gas service company
J. Connect the electrical supply.
F
A
B
C
BD
E
F
A. Gas pressure regulator.
B. Adapter (must have 1/2" male pipe thread).
C. Flexible connector.
D. Manual gas shut-o valve.
E. 3/4" or 1/2" gas supply.
F. Use pipe-joint compound.
To avoid risk of electrical shock, personal injury or death; leak testing of the appliance must be conducted
according to the manufacturer’s instructions. Before placing appliance in operation, always check for gas
leaks with soapy water solution.
DO NOT USE AN OPEN FLAME TO CHECK FOR GAS LEAKS
IMPORTANT – This appliance is equipped with a three-prong grounding plug for your protection against possible electric
shock hazard. Plug it only to a dedicated, grounded three-prong electrical outlet. It is the responsibility of the customer to
make sure the proper type of outlet is installed. Do not, under any circumstances, ground to a gas pipe.
The electrical service in the building must be equipped with a properly grounded three-prong receptacle,
in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/
NFPA 70, or in Canada – to Canadian electrical codes, CSA C22.2.
DO NOT CUT OR REMOVE THE GROUNDING PRONG FROM THIS PLUG
I
J
!
WARNING
!
DANGER
13
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
INSTALLATION
CATCH
RETAINING ARM

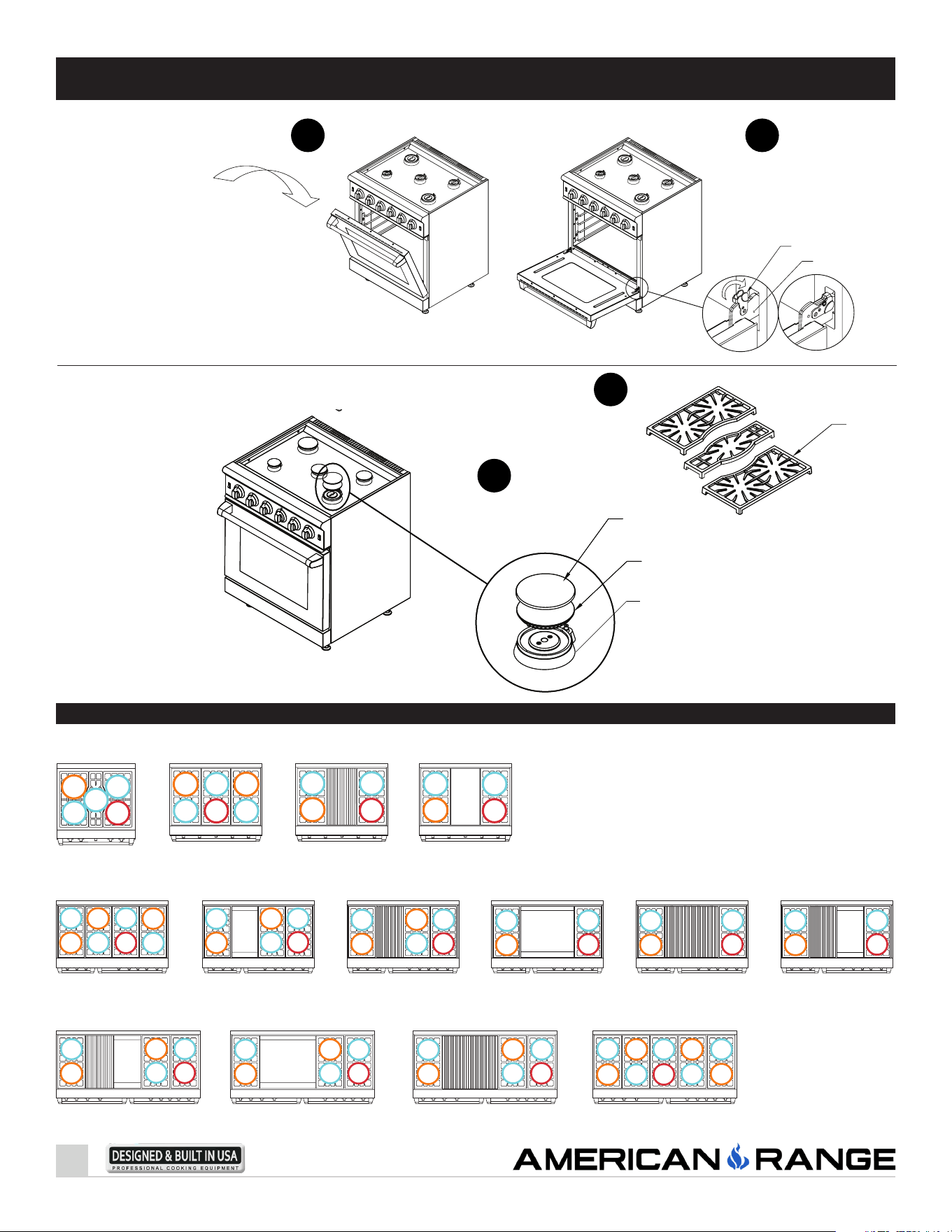

STEP FOUR: INSTALL
THE DOOR
STEP FIVE: INSTALL THE
BURNERS AND GRATES
K L
N
GRATE
ARR-848 ARR-648GD ARR-648GR ARR-4482GD ARR-4482GR ARR-448GDGR
ARR-530
ARR-660GDGR ARR-6602GD ARR-6602GR
SML
SMLMED
LRG
SMLSML
MED LRGSML
MED SMLSML
MED LRG
MED
SML
SMLSML
MED LRG
SMLSML
MED LRG
SMLSML
MED LRG
MEDSML
MED
MED
LRG SMLSML
SML
SMLSML
MED LRG
MED
SML
SMLSML
MED LRG
MED
SML
SMLSML
MED LRG
MED
SML
ARR-436GR
ARR-436GD
ARR-636
MED SML MED
SML LRG SML
SMLSML
MED LRG
SMLSML
MED LRG
Grill Double Griddle Double Grill Grill Griddle
Grill Griddle
Griddle
Double GriddleGriddleGrill Double Grill
CUISINE BURNER CONFIGURATIONS and MODEL NUMBERS
ARR-1060
MED SMLSML LRG MED
25
18
13
13
13
25
18 13
13
18
13
25
18
13
13
25
18
13
13
25
13
18
13
18
13
18
13
25
18 13
13
18
13
25
13
18
13
25
18 13
13
18
13
25
13
18
13
25
13
18
13
18
13
25
13
18
13
18
13
25
13
18
13
18
13
25
13
18
13
BURNER CAP
BURNER HEAD
M
BURNER BASE
BURNER CAP
BURNER HEAD
K. Install the door and open the
door completely.
L. Rotate the catch over the
retaining arm on each hinge.
(Install the oven racks and close
the oven door)
CUISINE:
M. Install burner
heads and burner
caps on the pre-
installed burner
bases.
N. Remove grates
from packaging
and inspect them
for rubber feet.
Place the grate
on top of grate
support.
SML
MED SMLSML MED SML
25
13
18
13 18
13
18
1813
13
14
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
INSTALLATION
BURNER PAN
PIN
BURNER BASE

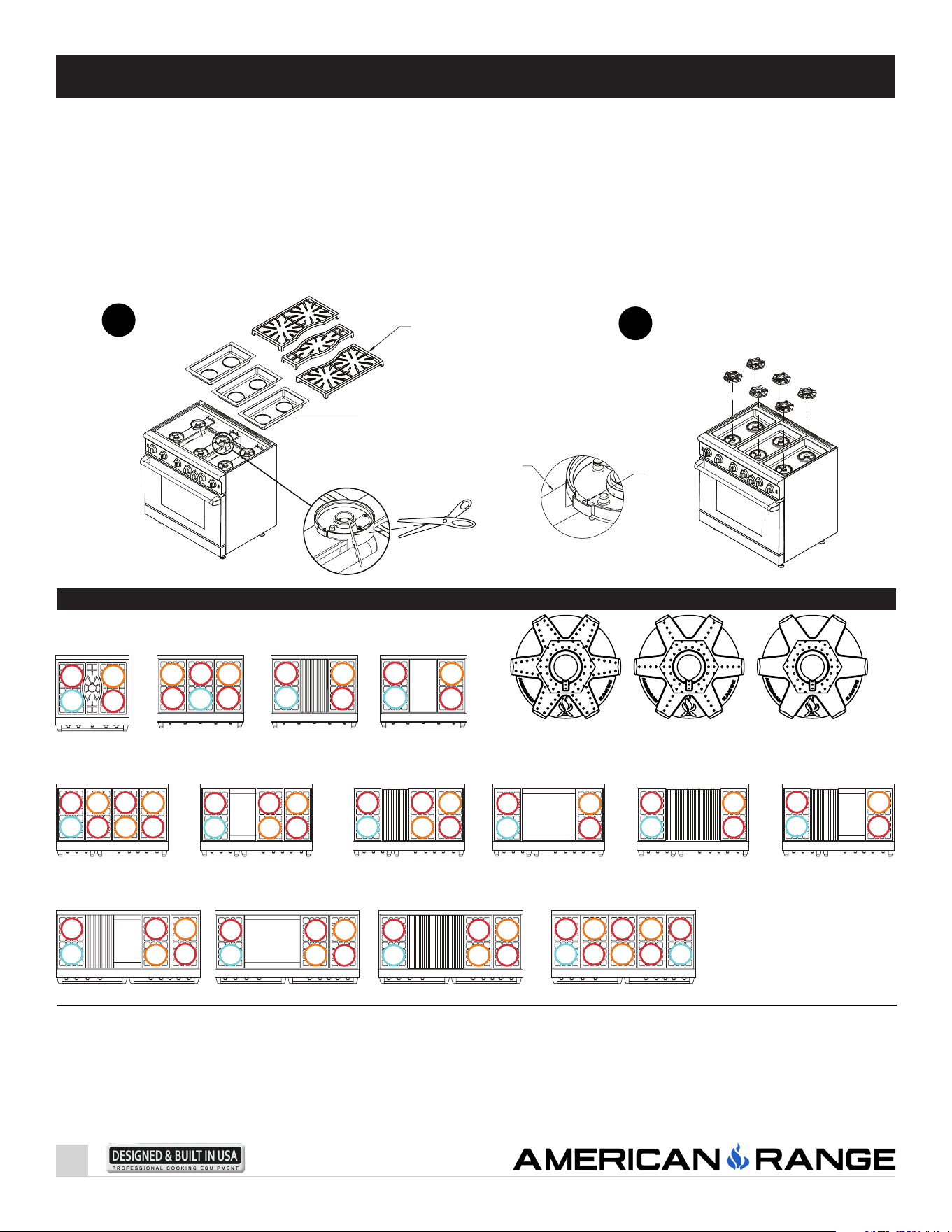

STEP FIVE: INSTALL THE BURNER AND GRATES (continued)
PERFORMER:
O. Remove the burner pans. Cut and discard the shipping ties on the burner base. Conrm that the burner base is at on the
burner support and the air shutter is positioned over the gas orice. Install the burner pans.
P. Install the burner heads on the burner bases. Align the holes on top of the burner with pins on base of burner for proper
capacity and operation. For locations of burner head see burner congurations. Each burner is dierent by BTU capacity. Mis aligning
them could increase carbon monoxide gases to an unsafe level and could alter the design performance of the range.
NOTE: On LP gas units, the small burner uses a “MEDIUM” burner head, but is congured to run at “SMALL” BTU levels.
REMOVE GRATES FROM PACKAGING AND INSPECT THEM FOR RUBBER FEET. PLACE GRATES ON TOP OF RANGETOP
LARGE MEDIUM SMALL
ARROB-848 ARROB-648GD ARROB-648GR ARROB-4482GD ARROB-4482GR ARROB-448GDGR
ARROB-430
ARROB-660GDGR ARROB-6602GD ARROB-6602GR
SML
MEDLRG
LRG
MEDLRG
SML
LRGMED
LRG MEDLRG
SML LRG
LRG
MED
MEDLRG
SML LRG
MEDLRG
SML LRG
MEDLRG
SML LRG
MEDLRG
SML
MED
MED LRG
LRG
LRG
MED
LRG
SML LRG
LRG
MED
MED
LRG
SML LRG
LRG
MED
MED
LRG
SML LRG
LRG
MED
ARROB-436GR
ARROB-436GD
ARROB-636
MED LRG MED
LRG SML LRG
MEDLRG
SML LRG
MED
LRG
SML
LRG
Grill
Double Griddle
Double Grill Grill Griddle
Grill Griddle
Griddle
Double GriddleGriddle
Grill
Double Grill
PERFORMER BURNER CONFIGURATIONS AND MODEL NUMBERS
ARROB-1060
MED
LRG
LRG
SML
MED
LRG
LRG
LRG
MED
SML
IMPORTANT: FINAL PREPARATION PRIOR TO USE
1. Verify all plastic protective lm has been removed from stainless steel.
2. All stainless steel body parts should be wiped with hot soapy water and with liquid cleaner designed for this material.
DO NOT USE ABRASIVE CLOTHS, CLEANERS OR POWDERS! Scratches are almost impossible to remove.
3. The interior of the oven should be washed thoroughly with hot, soapy water to remove lm residues and installation debris
before being used for food preparation, then rinsed and wiped dry. Solutions stronger than soapy water are rarely needed.
O
P
GRATE
BURNER PAN
25
18
12
18
25
25
25
18
12
25
25
18
12
25
25
18 18
18
12
25
25
25
18
18
12
25
25
25
18
12
25
25
18
18
12
25
25
25
18
12
25
25
18
12
25
25
25
18
12
25
18
12
25 25
18
25
25
18
12
25 25
18
25
18
12
25 25
18
25
18
12
25 25
18
25
18
12
25
15
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
CHECK ALL THAT APPLY
INSTALLATION CHECKLIST
This checklist has been developed to assure proper installation of your appliance.
REGISTRATION CARD
TO VALIDATE YOUR WARRANTY,
YOU MUST MAIL, EMAIL OR FAX THIS FORM WITH A COPY
OF YOUR RECEIPT TO:
AMERICAN RANGE CUSTOMER SERVICE,
13592 DESMOND STREET, PACOIMA, CA 91331
EMAIL: [email protected] FAX: 818.897.8839
PRODUCT INSPECTION (Appearance and Aesthetics)
Inspect Packaging and Unit for Shipping Damage
Packaging damage? Yes No
Unit damage? Yes No
Inspect Unit for Manufacturing Defects
All Packaging Removed? Yes No
Rangetop Defects? Yes No
Front Section Defects? Yes No
Side Panels Defects? Yes No
Oven Interior Defects? Yes No
Grates Are Level and Do Not Rock? Yes No
INSTALLATION
Installation Manual Read? Yes No
Safety Instructions Read? Yes No
Specied Clearances (Including Cabinet-Surfaces Clearances)
were followed? Yes No
Unit Leveled, Front-to-Back and Side-to-Side? Yes No
Side-Trim Panels are 3/8" above the countertop? Yes No
Anti-Tip Bracket Installed? Yes No
Ventilation Requirements Followed? Yes No
Electrical Supply Properly Grounded? Yes No
Proper Polarity at receptacle? Yes No
Electrical Supply Adequate/Specied Input Voltage? Yes No
Power Cord Free From Damage? Yes No
No Extension Cord In Use? Yes No
GFCI Installed to specications? Yes No
Gas Supply Line Sized Per Specications? Yes No
A Manual Gas Shut-O Valve is Installed
According to Specications? Yes No
Gas Supply Matches Unit Requirements? Yes No
Natural Gas
Liquid Propane
Gas Supply Pressure Does Not Exceed 14" W.C.? Yes No
Gas Pressure Veried? Yes No
Natural Gas (7" Water Column)
Liquid Propane (11" Water Column)
Gas Connections Tested and Veried to be Leak-Free? Yes No
INSPECTION and INSTALLATION NOTES:
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
INITIAL START-UP
Rangetop and Oven Burner Ignition
Rangetop Burners? (Sealed or Open) Yes No
Griddle? (GD models only) Yes No
Grill? (GR models only) Yes No
Bake Burner? Yes No
Infrared Broiler Burner? Yes No
Air Shutter Adjustment (if needed)
Open-Burner Adjustment? (ARROB models) Yes No
Griddle Burner Adjustment? Yes No
Grill Burner Adjustment? Yes No
FUNCTIONAL VERIFICATION
Valve Rotation Functions? Yes No
All Lights Are Functional? Yes No
Convection Oven Functioning? Yes No
Drip Pan (ARROB models)? Yes No
Oven Door(s) Functioning? Yes No
Hinge-Swing Motion Conrmed? Yes No
Door Alignment Conrmed? Yes No
Gasket Seal Conrmed? Yes No
A Copy of This Manual Has Been Provided
To The Owner of The Appliance? Yes No
Model Number: ____________________________________ *
Serial Number: _____________________________________ *
Gas Type: _________________________________________ *
Electrical Information: _______________________________ *
Purchase Date: _____________________________________
Dealer: ____________________________________________
Installation Date: _________________________________________
Installation Company: _____________________________________
Installation Rep’s Name: ____________________________________
Installer’s Address: ________________________________________
Installer’s Phone: _________________________________________
* As specied on appliance Rating Plate – see page 8 for reference.
REGISTER ONLINE AT
www.americanrangehome.com/product-registration/
16
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
OPERATION OF THE BURNERS
1. Press in on the knob that corresponds to the burner that you
would like to light. Use the front panel graphic to conrm your
selection until you become familiar with the range. Turn the
knob counter-clockwise to the “American Flame” icon located
on the knob – this is the light position of the burner valve.
2. The igniter for all the surface burners will begin sparking –
however, gas will ow to only the selected burner.
3. After the burner lights, the igniter clicking will stop – indicating
that the ame sensing and re-ignition system is active on the
selected burner.
4. Rotate the knob to any ame setting that you desire between
MAX and SIMMER.
The surface burners are rated at dierent power levels:
BURNER
TYPE
SMALL MEDIUM LARGE
Open
Burners
12,000
BTU/hr
18,000
BTU/hr
25,000
BTU/hr
Sealed
Burners
13,000
BTU/hr
18,000
BTU/hr
25,000
BTU/hr
BEFORE USING THE NEW COOKTOP
» Before using the cooktop for the rst time, wash the outside
area with soap and water to remove any shipping and factory
residue.
» The burner grates are designed in sections and are easy to
remove and clean. They are made of cast iron with a porcelain
coating and will remain hot after the burner is turned o
creating a residual heat for continued cooking. Use caution when
handling.
» Your new professional Range is equipped with burners that are
similar to those used in restaurants. The burner heads are large
and designed to ensure even heat distribution for better cooking.
They must be in place and properly seated before lighting.
» The Range must not be operated without the burner heads.
» There are no continuously burning pilot lights. An electronic
spark ignition system is used to light the burner. If the ame
should go out from a boil-over or a strong draft, the burner will
automatically reignite.
If the ames look odd, (too small, too large, lazy or drifting, uneven
around the burner circle, etc.), check to see that the burner head
is seated correctly on the burner base. Do this when the burner is
cold by gently rocking the burner head or rotating the head from
side to side. If it is correctly seated, it will nest in detents, in the
case of the sealed burners, or on the corresponding pin/hole for
open burners. If this does not correct the problem, turn to the
Troubleshooting section of this manual.
AUTO RE-IGNITION
The surface burners are equipped with a special ignition and
re-ignition system that senses the presence of ame and re-ignites
the burner should the ame disappear while gas is still owing to
the burner.
Strong drafts, spills and general grime inuence the operation of
the automatic re-ignition system – a clean system will generally
function better than a dirty system. Periodically, remove any
materials or grime that might build up on the high voltage spark
electrode – using a toothbrush or other non-metallic cleaning
utensil.
When you are using the surface burners, select the burner power
and location depending on the heating or cooking function you
would like to perform.
A normal ame is blue in color and steady. Foreign materials in
the kitchen air or the gas line, especially in new construction
installations, may cause some orange color bursts during initial
operation. This will disappear with continued use. Small yellow tips
on the ends of ames are normal when using LP gas.
OVEN OPERATION
To light the oven, push in and turn the thermostat to the desired
operating temperature from 150ºF to 500ºF (66ºC to 260ºC).
You may be able to see a bright glow from the sides of the oven
bottom – this is normal and indicates the hot surface igniter is
activated. Once the igniter is hot enough for ignition, the gas valve
will open, allowing the ow of gas into the bake burner. This may
take up to one minute.
During the rst few minutes of operation, a mild condensation
may appear on the interior glass pane of the door window. Water
vapor is a normal by-product of combustion, and the condensation
will disappear as the oven warms.
If you would like to bake using the Convection feature, you may
turn on the fan at any time – allowing the oven about twenty or
thirty minutes to preheat before use.
Never place any pan or food item on the bottom of the oven,
always use an oven rack placed in at least the lowest position.
To use the Broil feature of the range, rst consider what type of
broiling you would like to perform. The closer you are to the broil
burner, the faster you will evaporate moisture from the surface of
food and the quicker the surface will brown. In a similar fashion,
the further away you place the food (on the lowest rack, for
example) the slower you will evaporate surface moisture and the
longer it will take for the surface to brown. A good rule of thumb
is to start about 6" away from the broiler and watch for how
quickly the food is browning.
OPERATING YOUR RANGE
17
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
COOKWARE RECOMMENDATIONS
To avoid the risk of serious injury, damage to the range or
cookware, please observe the following guidelines.
Bakeware, such as large casserole pans, cookie sheets, etc.,
should never be used on the cooktop.
Placement of large stock pots should be staggered when used
on the cooktop.
Select the base diameter of the pot to match the diameter
of the ame. The diameter of the ame and the diameter
of the pan bottom should match or be slightly smaller. Too
large or too small pots on a burner will compromise cooking
performance.
Do not place food packaged or wrapped in aluminum foil
directly on the burner grate above the burner. Aluminum foil
can melt during cooking.
Be careful to not let plastic, paper or cloth come in contact
with a hot burner grate. These materials can catch re or melt.
Never let a pan boil dry – and if it occurs remember it can be
extremely hot – and very dangerous. If this should occur, turn
o the burner immediately. Wait a while, until the pot cools
down enough to handle – this could be several minutes, but
could save you from burns or other serious injury.
The pan bottom should be at, the heavier the better – and
well balanced on the cooktop grate – sitting at without
rocking – preferably with tight tting lids. Try not to slide the
pot across the grates – while it is very handy to do so – you
may end up scratching the pot or the grate.
Always be careful when using high ames, as in wok cooking,
as they may contact ammable materials or make the handles
of the wok very hot. Use the wok ring (optional) to stabilize
the wok.
SUGGESTED BURNER SETTINGS
HEAT SETTINGS USE
Simmer
Melting small quantities of butter,
simmer grains, rice, oatmeal
Low Poaching eggs, sh, poultry
Low to Medium Fry eggs, heat milk, cream sauces
Medium Puddings, custards, gravies
Medium to High
Sauté vegetables, braise meats, soups
and stews, deep fat frying, boiling water
and pasta, blanching vegetables, searing
meats
High
Large quantity of water to boil, large
quantity frying and cooking
OVENS 101
The oven is a gas red, temperature controlled cooking cavity which
is highly insulated to keep the kitchen cool and the food hot. The
oven contains two burners – the Bake burner positioned below the
oven oor and the Broil burner located in the ceiling of the oven.
Bake and Broil are very dierent cooking operations and the burners
are designed to deliver energy in a way appropriate to the task.
There are two types of baking – called Standard Bake (or
conventional) and Convection Bake. Standard or conventional baking
make best use of Grandma’s cookie, cake or pie recipes – like bake
at 350ºF (177ºC) for forty-ve minutes – to get the job done. These
recipes are tried and true – conventional or standard bake will
deliver wonderful performance every time you cook.
When you Convection Bake (using a fan to circulate the high
temperature air inside the oven) you can lower the thermostat
about 25º and reduce the cook time by about 25% – and achieve
ne cooking results just like Grandma’s – taking less time and using
less energy. Use the same recommended temperatures for meats
and poultry dishes – but keep watch of the time. Convection
cooking technology was rst developed in Europe and has been
used for many years – recently taking hold in U.S. residential kitchens
and cookbooks.
In convection cooking, not only is the cook time faster, but also, the
oven temperature is more even, top to bottom and side to side
– so cookies on several racks will have the same brown color and
texture. However, to best take advantage of convection, use low,
shallow bakeware so that moving air can get over the sides and up
to the food surface. Foods in covered dishes (like casseroles or pot
roasts) do not benet from convection cooking.
BROILER OPERATION
To light the broiler, push in and turn the thermostat to the position
labeled BROIL on the control knob. In about twenty seconds, you
will see a bright glow in the oven – this is the hot surface igniter.
Once the igniter is hot enough for ignition, the gas valve will open,
allowing the ow of gas into the broil burner. This may take up to
one minute.
The broiler will have a blue ame that covers the ceramic tiles –
after a few minutes, the tiles will glow bright red/orange and radiate
infrared energy. Remember the red surface is over 1800ºF (983ºC)
in temperature and can be a source of serious burns or injury.
The Bake burner and Broil burner will not operate at
the same time; the convection fan will not operate
during broiling.
OPERATING YOUR RANGE
RANGETOP-BURNER OPERATION (Sealed and Open Burners)
Make sure there is nothing on the burners and/or grates prior to
igniting the burners. Push the knob in, and turn it counter-clockwise
to the HIGH position. Adjust the ame to the desired height. The
burners are equipped with a ame-sensing ignition system that
automatically detects the presence of ame on the burners, and
relights in the event the ame goes out.
18
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
GRILL OPERATION (GR Models Only)
Make sure there is nothing on the grilling rack prior to igniting the
grill. Push the knob in and turn it counter-clockwise to the HIGH
position. The power ON indicator light will glow indicating the
grill valve is on. The grill is equipped with a ame-sensing ignition
system – that automatically detects the presence of ame on the
grill burner – and relights it in the event it goes out. Adjust the
ame to the desired height.
After cooking, allow the module to cool completely and remove
the drip tray slowly, discarding grease and other food particles.
The grill grate may be removed – exposing the radiants – which
may be lifted out and placed in the dishwasher along with the drip
tray for cleaning. The grate is porcelain coated and may be washed
with hot soapy water and a soft brush.
BEST COOKING RESULTS WHEN USING YOUR GRILL
The intense radiant heat from the grill vaporizes the surface of
your food, locking in avor.
» Add any barbecue sauces during the last few minutes of
cooking, long enough to caramelize the sauce.
» For best results, turn food with tongs or a at spatula to
avoid piercing meat or poultry.
» Turn meat once when juices rise to the surface. Turning
meat more than once results in the loss of meat juices.
» Never squeeze juices out of meat.
» Before cooking steaks or chops, trim most of the outside
fat to prevent excessive are-ups. Slash into the edges of
steaks or chops to keep meat at on the grill.
» Fish should be cooked at the lowest setting eight to ten
minutes for every inch of thickness, measured at the
thickest part of the sh.
GRILL CHART
FOOD ITEM INTERNAL TEMPERATURE HEAT SETTING TIME
Hamburgers 1/2" to 3/4" 160ºF (71ºC) Medium 8 to 10 minutes
Steaks 1" to 1-1/2" Rare 140ºF (60ºC) Medium to High 10 to 20 minutes
Steaks 1" to 1-1/2" Medium 160ºF (71ºC) Medium to High 12 to 25 minutes
Pork chops 3/4" to 1" 145ºF (63ºC) and 3 minutes rest time Medium 15 to 25 minutes
Lamb chops 160ºF (71ºC) High 12 to 15 minutes
Poultry pieces 170ºF (77ºC) Low to Medium 25 to 35 minutes
Fish 1" thick 145ºF Minimum Medium 8 to 10 minutes
Allow grill to cool completely before cleaning. Remove the grates, grease collector and stainless steel
Radiant and place in hot soapy water. Clean the grill with hot soapy water and a soft grill brush.
Do not apply water or cleaner directly on the infrared burner.
GRIDDLE CHART
FOOD ITEM TEMP. SETTING HEAT SETTING
Eggs 225ºF to 250ºF (107ºC to 121ºC) Low
Bacon, ham, hot dogs 300ºF to 325ºF (149ºC to 163ºC) Medium to Low
Sausage, grilled cheese sandwiches 325ºF to 350ºF (163ºC to 177ºC) Medium
Pancakes, French toast 350ºF to 375ºF (177ºC to 191ºC) Medium
Hash brown potatoes, grilled onions 400ºF to 425ºF (204ºC to 218ºC) Medium to High
GRIDDLE OPERATION (GD Models Only)
The built-in griddle is made of polished steel to provide a smooth
cooking surface. A griddle drip pan is included.
Always preheat the griddle on the low setting, at least ten minutes
before cooking. The griddle burner is equipped with a hot surface
igniter and gas safety valve system.
To Start Cooking:
» Push knob in and turn the knob clockwise to the MAX
position. Preheat griddle for two to three minutes and turn
knob to a medium or low cook setting.
» The blue indicator light comes on and stays on until the
desired setting is reached and then turns o and on with
the heating cycle.
» For best results, add a small amount of butter, oil, or a
cooking spray to the griddle surface. Fatty meats like bacon
and sausage do not need extra fat.
The temperature settings
are meant as a guide.
You may need to adjust
the settings according
to your peronal cooking
preferences.
OPERATING YOUR RANGE
19
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
SEASON THE GRIDDLE:
1. The griddle has a factory applied coating that must be washed
o prior to use. (See Cleaning the Griddle)
2. Pour 1 tablespoon of vegetable oil (not corn or olive oil) and
rub on the entire surface of the griddle using a rough towel.
3. Push the griddle control knob in and turn to a medium setting
(350°F or 177°C).
4. Heat until griddle begins to smoke. Turn o griddle and allow it
to cool.
5. Returning to step 2, repeat the process.
When you are done “griddling” and while the griddle surface is still
warm, remove any left-on food particles. Allow the griddle to cool
and scrape o any excess grease from the surface with a exible
nylon spatula. Pull the spatula forward toward the front and push
any material into the front grease receiver.
To clean the griddle, moisten a soft scrub cloth, adding a drop of
mild degreaser dish soap to create a soapy lather – and wipe the
griddle from left to right. Clean in rows from the top to the bot-
tom, taking time to wash the entire griddle surface, including the
sides. When you are done, rinse away all the soap from the cloth
and wipe any suds from the griddle surface. Remove all remaining
moisture from the griddle with the second, clean soft cloth. Wipe
the area in rows again as well as the sides and front. You may have
to repeat action to ensure the griddle plate is dry and sparkling.
CLEANING THE GRIDDLE:
» The griddle is not to be removed for cleaning.
» Using a at plastic spatula gently remove burned on food.
» Clean the griddle thoroughly with hot soapy water and a rough
towel.
» The griddle drip pan and grease collector should be cleaned
after each use with hot soapy water and a sponge.
» It is normal for the griddle to darken with age and use, similar
to commercial cooking equipment.
DRYING AND DEHYDRATING
While the United States Department of Agriculture advises: DO
NOT hold foods at temperature between 40ºF to 140ºF (5ºC to
60ºC) more than 2 hours – and cooking raw foods below 275ºF
(60ºC) is not recommended, the low setting of the oven ranging
from 150ºF to 225ºF (66ºC to 108ºC) may be used to keep food
hot and in special recipes, used to dehydrate fruits and vegetables.
During dehydration, the convection fans circulates hot air over
the food, causes moisture to escape from the food surface –
generally drying it out. This removal of water inhibits growth of
microorganisms and slows down the activity of enzymes. Starting
with only the freshest, best quality food items, prepare as directed
and:
» Place the food on drying racks spaced evenly in the oven cavity.
» Set the temperature control to 200ºF (94ºC) and switch on the
convection fan.
» Remember to periodically check the food items for dryness
state.
CARE AND CLEANING
It is always easier to clean as you go – and while some evenings
you’d rather sit down with a good book instead of a Scrubby,
keeping your range cooktop and oven in a ready to go state for
the next meal makes everything a little more tolerable.
When cleaning the range:
» Use the mildest procedure that will do the job eciently and
eectively – and since some cleaners are harsher than others, it
is best to try them on a small, inconspicuous area rst.
» Use only clean, soft cloths, sponges, paper towels, plastic
brushes, non-metal soap pads for cleaning and scouring.
» When cleaning the oven door, control panel, top curved
section (called the bull nose) or the at top area – always
pretend it is made of wood – and rub the nish in the direction
of the grain. This is the most eective cleaning direction, to
prevent marring the surface.
» Any part of this appliance can be cleaned with hot, sudsy water.
When rinsing is required, rinse thoroughly.
» Always wipe dry immediately to reduce the appearance of
water marks.
To Clean the Cooktop
The cooktop is brushed stainless steel with polished aluminum
burner heads. The burner caps are steel coated porcelain.
» Do not use abrasives on stainless steel. Use towels, sponges or
soft plastic scrubbers. RUB ONLY WITH THE “GRAIN.”
» Do not use steel wool pads or green rough Scrubby’s.
» Wash all cooking surfaces with hot water and dish detergent
such as Simple Green, Ivory Liquid, or Joy.
» Rub stubborn spots with baking soda or liquid cleaner such as
Windex All Surface Cleaner or 409.
» Grates and burner caps can be soaked in hot soapy water. Mild
scouring cleaners can be used, such as Bon Ami or Cameo on
grates and burner caps.
TO CLEAN THE OVEN
The oven cavity is porcelainized with steel rack guides and racks.
The infrared broiler does not need to be cleaned. Any soil is
burned o by the intense heat.
» Place a medium glass baking dish lled with two cups of
ammonia. Close the door and allow the dish to sit overnight.
This process softens the soil for easier removal.
» Wash the interior of the oven with soap and water. Make a
paste with baking soda and water and using a sponge or nylon
pad rub away stubborn stains.
» Use mild scrubbing compounds such as Bon Ami or Cameo if
necessary.
» Do not use steel wool pads or abrasive sponges or scrubbers.
» If necessary, spray oven cleaner can be used. DO NOT SPRAY
OVEN CLEANER INTO THE CONVECTION FANS OR UP
ONTO THE INFRARED BROILER.
» When spray oven cleaners are used, follow using a 1/4 cup
vinegar mixed with one quart of water to rinse the oven.
» Do not use scouring powders on the glass window; oven spray
may be used on the window. Rinse with vinegar and water
solution.
OPERATING YOUR RANGE
20
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
CARE AND CLEANING RECOMMENDATIONS
PART / MATERIAL CLEANING SUGGESTIONS BEING CAREFUL
Main Top/
Porcelain Enamel
Soft Scrub may be used here. With a cool or slightly warm
surface, use a damp sponge or cloth as recommended by the
manufacturer.
Since the surface is glass (it can be scratched by certain
materials) try to rub gently in small circles to allow time and
chemical reactions to take place.
Sealed Burners
(Cuisine)
Caps and burner heads can be removed for cleaning using
hot sudsy water. A sti nylon bristle tooth brush can be used
to clean burner port openings.
Remember to dry out the ports (try to blow air through them
if you like). Water clogged ports burn with erratic ames and
could be dangerous.
Open Burners
(Performer)
The cast iron burner heads are heavy and porcelain coated.
If they are dirty, remove any large debris and gently scrub
under hot, soapy water.
Like the sealed burners, remember to dry out the ports (try to
blow air through them if you like). Water clogged ports burn
with erratic ames and could be dangerous.
Control Knobs/
Powder Paint
Use dry hands to pull o the knobs; hot sudsy water works
best here…
…with a sponge to avoid scratching
Chrome Knob Bezels
Hot soapy water works well here, with a sponge or soft
cloth.
As with any round feature that meets the stainless steel grain,
be careful to clean the bezels in a circular motion – and not
contact the stainless steel control panel.
Exterior Finish
Island Trim
Use hot soapy water, Fantastic, Formula 409, rinse and dry
immediately. For hard water spots, try household vinegar or
CLR. If there is any heat discoloration, consider using Zud,
Wright’s All Purpose Polish or Blue Away.
Rub lightly in the direction of the grain of the stainless steel.
Salt (sodium chloride), chlorine or chlorine compounds in
some cleaners are corrosive to stainless steel.
Grates/Porcelain
Enamel on Cast Iron
Hot water and detergent with scrubby, or soap lled steel
wool pad for really tough stains will work.
Remove sugar or acid based spills, they tend to attack the
enamel. Remember the grates are heavy, use care when lifting
and replacing.
Griddle
Moisten a soft scrub cloth, adding a drop of mild dish soap to
create a soapy lather – and wipe the griddle from left to right.
Use plastic spatulas and spoons when working the griddle. See
more tips in the discussion on griddle operation above.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE WHAT TO DO
Oven will not heat
No electrical power to the range
Gas service is turned o
Gas supply has been interrupted
Look for red glow of hot surface igniter
Check circuit breakers in house
Try to light a surface burner
Contact the gas company
If no glow, call for service
Oven light does
not work
Light switch is in the o position
Light is burned out
Try switching the light on
Locate and test a new replacement light, unscrew glass lens, remove bad
light, replace
Broiler will not light
No electrical power to the range
Gas service is turned o
Look for red glow of hot surface igniter
Check circuit breakers in house
Try to light a surface burner
If no glow, call for service
Burner lights, but
clicking won’t stop
Mis-wired high voltage connections
See that the burners are correctly matched to the high voltage
connections
Convection fan
does not turn
Switch the fan on
Unit in broil mode
Bad fan
Use the control panel switch
Turn thermostat to bake temperatures
Call for service
Igniters keep clicking
Reverse polarity of the electrical supply line
Poor electrical ground
Check the polarity with hand held tester
Be sure range power cord has three prongs and plugs directly (no adapter)
into the power receptacle
Condensation on the
oven window
Cold appliance
During cold weather, it is normal for some condensation to appear on the
window, it will disappear in about ten minutes.
Foods over-cook
Defective thermostat
Incorrect temperature or cooking time
Watch that thermostat indicator light cycles on and o every ve or ten
minutes at temperature
Reduce cooking time or temperature
21
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
AMERICANA MODEL AND PARTS IDENTIFICATION
CUISINE SEALED AND PERFORMER OPEN BURNERS
Oven Racks: Each oven is supplied with two heavy chrome-plated
adjustable oven racks.
Rack Supports: On each side of the oven, heavy chrome-plated rack
supports allow ve positions, numbered from the bottom up.
Oven Control Knob: The oven control knob is used to set the
Baking temperature or to select the Broil function. During baking, the
convection fan may be activated.
Bake Burner: The Bake Burner is located in the center of the oven,
below the oor and is activated by the Oven Control Knob.
Ceramic Tile Infrared Broil Burner: Positioned in the oven ceiling,
burning gas heats the ceramic tile to a temperature of 1,850ºF
(1,010ºC) – creating searing heat similar to the glowing coals of a
wood re.
Broil Burner Igniter: The igniter glows a very hot, bright red-orange
color, reaching proper ignition temperature to light the Ceramic Tile
Infrared Broil Burner.
Burner On Indicator Light: Whenever an oven burner is activated
(either Bake or Broil), the burner on indicator will glow. It is normal
for the indicator light to cycle o and on during baking or broiling –
showing that the requested temperature has been achieved – or that
more heat is required.
Door Gasket: The door gasket is made from high temperature
materials and creates a seal between the hot oven and the cool
kitchen.
Convection Fan and Switch: Operated by the front panel switch, the
convection fan circulates oven air, removing the “thermal boundary
layer” on items being baked – and in doing so – speeding up heat
transfer and cook time by as much as 25%. Convection is active only
during baking.
Oven Light and Switch: A single lamp is provided in the oven to
illuminate baked and broiled food items, as well as shed some light on
the wall to help during clean-up – activated by the front panel switch.
DESCRIPTION
ARR305
ARR366
ARR364GD
ARR364GR
ARR488
ARR486GD
ARR486GR
ARR484GDGR
ARR4842GD
ARR4842GR
ARR6010
ARR6062GD
ARR6062GR
ARR606GDGR
ARROB304
ARROB366
ARROB364GD
ARROB364GR
ARROB488
ARROB486GD
ARROB486GR
ARROB484GDGR
ARROB4842GD
ARROB4842GR
ARROB6010
ARROB6062GD
ARROB6062GR
ARROB606GDGR
Oven Racks 2 2 2 2 4 4 4 4 4 4 4 4 4 4 2 2 2 2 4 4 4 4 4 4 4 4 4 4
Cuisine Sealed
Burners
5 6 4 4 8 6 6 4 4 4 10 6 6 6
Performer
Open Burners
4 6 4 4 8 6 6 4 4 4 10 6 6 6
Center Grate 1
Burner Grates 2 3 2 2 4 3 4 3 2 4 5 3 5 4 2 3 2 3 4 3 4 3 2 4 5 3 5 4
Control Knobs 6 7 6 6 10 9 9 8 8 8 12 10 10 10 5 7 6 6 10 9 9 8 8 8 12 10 10 10
Griddle 1 1 1 2 2 1 1 1 1 2 2 1
Backyard Grill 1 1 1 2 2 1 1 1 1 2 2 1
Regist. Card
Page15
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Island Back 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Use and Care
Manual
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
22
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
American Range (hereafter AMR) hereby provides the following warranty
to the original residential user (“Owner”) for its new RESIDENTIAL
Product(s) to be free from defects in material and workmanship in normal
household use for the Warranty period(s) set forth below, beginning from
the date that power and/or gas is turned on with proof of installation.
Without proof of installation, the beginning is from time of purchase under
the terms and conditions as follows: Proof of original purchase date is
required to obtain service under this limited warranty.
This Warranty is applicable only on new AMR residential Products
and is non-transferable.
This Warranty is not applicable to AMR commercial Products. This
Warranty is strictly limited to Products sold to the original Owner in the
United States or Canada, and said Owner shall not be entitled to transfer
this Warranty to third parties. This Warranty is also not applicable on
AMR residential Products that are used for commercial purposes, including
without limitation, vacation rentals, re stations, clubs, government facilities,
non-prot groups, bed and breakfast facilities, and board and care facilities,
and any home based business whereby AMR products are utilized for a
commercial, non-household purpose. Residential products should not be
used in a commercial environment.
Warranty Period: For all Product(s) properly registered with AMR, with
proof of purchase and within ninety (90) days from the date of purchase, a
two year warranty* is in eect subject to the terms and conditions herein.
However, in the event that Owner fails to promptly register the Product(s)
with AMR within ninety (90) days of the date of purchase, the Warranty
period shall be strictly limited to a period of one year for parts and labor,
from the date of purchase. Proof of purchase is required for all claims
under this Warranty.
*Igniters limited to a one year warranty, from the date of purchase. Proof
of purchase is required for all claims under this Warranty. Two Year
Warranty applies only to purchases made after May 1, 2018, with a serial
number of 180101-100 or higher.
Exceptions to the Warranty: Rubber seals, light bulbs, and gaskets are
covered for a period of ninety (90) days only. Oven glass, porcelain, and
Products that are not defective, but that require adjustments for normal
wear and tear are expressly excluded from this Warranty.
Warranty Claims: In the event of a claim for repair of the Product(s), and
to obtain warranty service, Owner must contact either (i) the dealer from
whom the product was purchased; (ii) an authorized AMR service agent; or
(iii) AMR Residential service support at 1-888-753-9898. You will be asked
to provide a model and serial number, and date of original purchase.
AMR shall provide all new replacement parts and all repair labor under the
Warranty.
Under the terms of this Warranty, service must be performed by a factory
authorized AMR service agent/representative, and approved in advance by
AMR. AMR shall not be responsible for labor costs that have not been pre-
approved, with written conrmation by AMR. Note that service providers
are independent entities and not aliated with AMR. Travel expenses from
the factory authorized service agent to the product location are limited to
25 miles each way. For greater distances, either have the product delivered
to the servicer, make separate travel arrangements, or pay for the additional
servicer travel. All repair services shall be provided during normal business
hours. AMR will not be responsible for premium time or overtime charges
for labor covered under this warranty or for repairs made without AMR
authorization. Such charges shall be the responsibility of the Owner.
Limitation of Warranty: AMR shall have no obligation under this
Warranty as to any Product(s) which have been misapplied, mishandled,
abused, misused, modied, altered, subject to improper cleaning methods,
subject to harsh chemical action, modied by unauthorized service
personnel, damaged by accidents, ood, re, smoke, public unrest,
earthquake, tornado, hurricane, other acts of God, Owner negligence,
reasons beyond the control of AMR, failures due to improper installation,
insucient gas or electrical supply, problems due to improper ventilation,
or removed/altered serial numbers. Any damage due to water, chemical,
or direct contact to infrared burners will also not be covered under this
Warranty. This Warranty shall be void if the Product(s) are not properly
installed by a licensed plumber, and not properly calibrated for electrical
and gas connectivity, gas line size, correct pressure, and properly leveled.
Additionally, AMR factory recommended cleaning instructions must
be followed by Owner at all times or this Warranty shall be voided by
AMR. All delivery, installation, labor costs and other service costs are the
responsibility of the purchaser.
Dealer display, model home display and products sold “as-is” have the
following warranty:
1. One (1) year parts only warranty, if the manufacture date is less than
three (3) years old.
2. Excludes items that are: missing; cracked; aesthetic; broken; dented;
frayed.
Accordingly, except as stated herein-above the dealer display
and model home display goods are being sold on an “as-is”
or “with all faults” basis. Except as stated, the entire risk
as to the quality and performance of the goods is with the
buyer. Additionally, except as stated, should the goods prove
defective following their purchase, the buyer and not the
manufacturer, distributor, or retailer assumes the entire
cost of all necessary servicing or repair.
THIS WARRANTY IS LIMITED AND MADE IN LIEU OF ANY
AND ALL OTHER SUCH WARRANTIES EXPRESSED OR IMPLIED,
INCLUDING WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE
ENTIRE LIABILITY OF AMR IS SET FORTH HEREIN THIS WARRANTY.
OWNER SPECIFICALLY UNDERSTANDS AND ACKNOWLEDGES
THAT THERE ARE NO WARRANTIES, EITHER EXPRESSED OR
IMPLIED HEREUNDER OTHER THAN THE WARRANTIES WHICH
ARE SPECIFICALLY STATED HEREIN. SAID OWNER SHALL NOT RELY
ON ANY OTHER ASSERTIONS, REPRESENTATIONS OR STATEMENTS
BY AMR OR ITS AGENTS, OTHER THAN THOSE SPECIFICALLY
EXPRESSED IN THIS WARRANTY.
AMR’S LIABILITY ON ANY CLAIM OF ANY KIND IS EXPRESSLY
LIMITED AND SHALL NOT EXCEED THE WHOLESALE PRICE OF
THE PRODUCT(S) OR PART(S) THEREOF THAT GIVE RISE TO SUCH
CLAIM.
Failure by AMR to enforce any of its rights under this Warranty shall not
be construed as a waiver of those rights. AMR specically reserves the right
to investigate and verify all claims to determine the validity of the claim and
the claimant’s qualications under this Warranty. AMR reserves the right to
refuse Warranty service in the event that AMR determines that a claimant’s
right to the Warranty is inapplicable under the terms and conditions herein.
AMR is not responsible for consequential or incidental damage whether
arising out of breach of warranty, breach of contract, tort, or any other
legal theory, including without limitation, property damage, bodily injury,
loss of use, and/or lost prots. This Warranty gives the Customer certain
legal rights. The customer may also have other legal rights which vary from
state to state. Some states do not allow limitations on how long an implied
warranty lasts, or do not allow the exclusion or limitation of incidental
or consequential damages. If such laws apply, the limitations or exclusions
contained in the terms and conditions of this Warranty may not apply to all
such Owners.
AMR expressly reserves the right to make changes to their Warranty policy
before or after purchase by the Owner.
WARRANTY
23
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
NOTES
WARRANTY REQUIREMENT
For reliable operation and for your own safety, this professional cooking equipment must be installed by
a certied/licensed contractor.
Failure to comply will void any written or implied warranty.
In the event the equipment requires service during the standard warranty period, the receipt proving
certied installation must be made available to American Range for verication.
If installation was not performed by a certied/licensed contractor, be prepared to submit a major credit
card for payment for proper installation prior to service.
R70213 RevC 08312022
24
4580 N. Walnut Rd., N. Las Vegas, NV 89081
|
13592 Desmond St., Pacoima, CA 91331
|
tel: 818.897.0808
|
888.753.9898
|
www.AmericanRangeHome.com
© 2022 American Range All Rights Reserved
