4-LEVEL BUMPER RACK
MODEL NO: RE55.V7
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
9 Familiarise yourself with the application, limitations and hazards of the rack.
9 Maintain the rack in good condition (use authorised replacement parts).
9 Keep the rack clean for best and safest performance.
9 Locate the rack in a suitable work area.
WARNING! Use the rack on level and solid ground, preferably concrete.
8 DO NOT overload the rack.
8 DO NOT climb on the rack.
8 DO NOT use the rack for any purpose other than for which it is designed.
8 DO NOT use the rack if any parts are damaged or missing as this may cause failure and/or personal injury.
9 Keep the work area clean, uncluttered and ensure that there is adequate lighting.
9 Keep children and unauthorised persons away from the work area.
WARNING! The warnings, cautions and instructions discussed in this manual cannot cover all possible conditions and situations that may
occur. It must be understood that common sense and caution are factors which cannot be built into this product, but must be applied
by the operator.
2. INTRODUCTION
Double sided rack for safe and tidy workshop storage of most vehicle bumpers. Heavy duty construction ideal for use in body shops. Four pairs
of height adjustable support arms for maximum capacity and exibility. Fitted with four castors, two with brake, for maximum manoeuvrability
and safe positioning.
3. SPECIFICATION
Model No .......................................................................RE55
Width ........................................................................ 1170mm
Height ......................................................................2180mm
Arm length ..................................................................520mm
Safe working load.........................................................160kg
4. ASSEMBLY

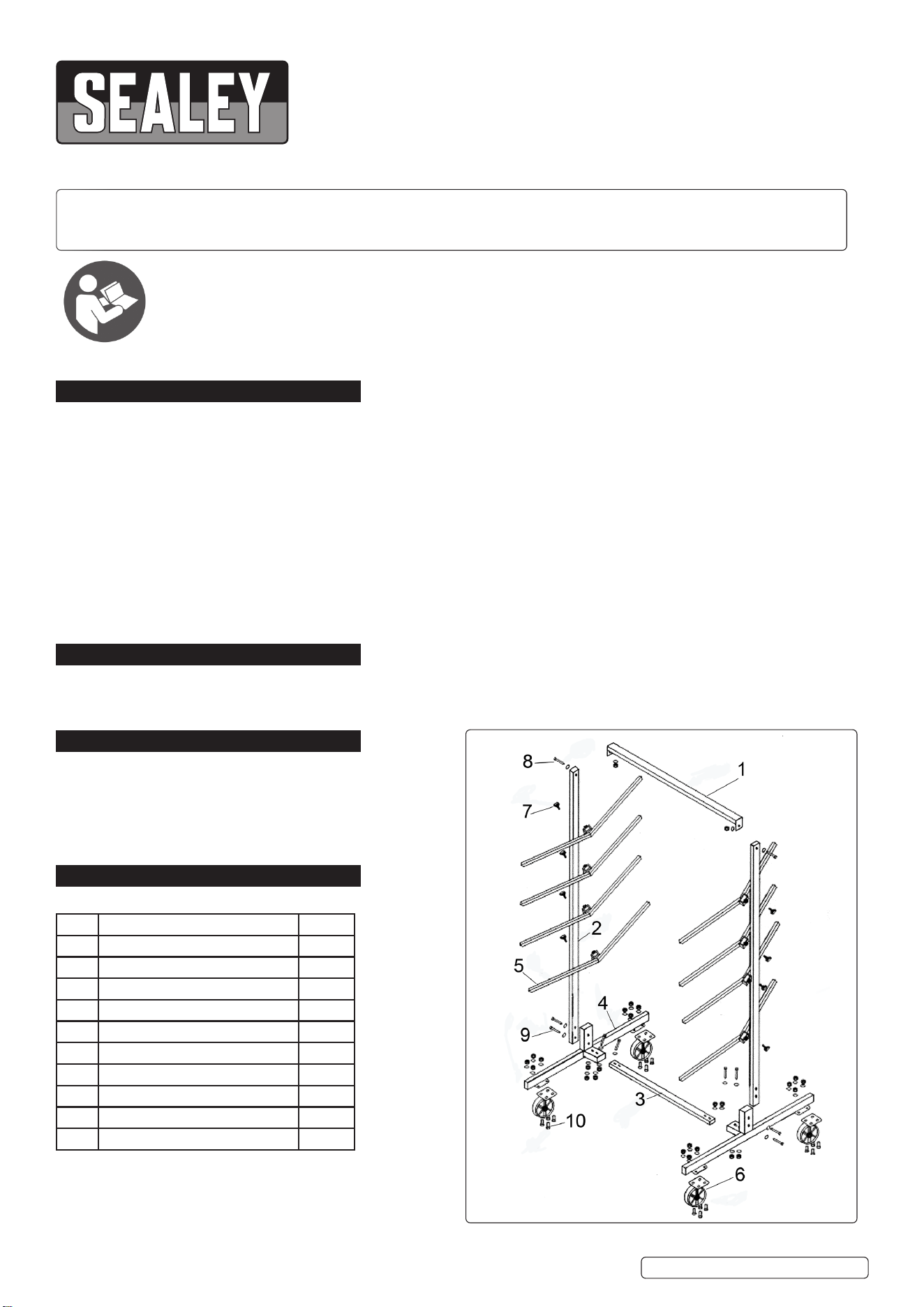

4.1. Check quantities of parts.
Item Description Qty.
1 Horizontal top bar 1Pc
2 Vertical support bar 2Pcs
3 Horizontal bottom bar 1Pc
4 Base bar 2Pcs
5 Bumper support bar 8Pcs
6 Casters 4Pcs
7 Knob 8Pcs
8 Bolt, Washers, Nut 2Sets
9 Bolt, Washers, Nut 8Sets
10 Bolt, Washers, Nut 16Sets
RE55.V7 Issue:1 19/08/21
Original Language Version
© Jack Sealey Limited
Refer to
instructions
4.2. Using bolt set (10) attach casters (6) to base bars (4).
4.3. Using bolt set (9) attach horizontal bottom bar (3) to base bars (4).
4.4. Slide bumper support bars (5) on to vertical support bars (2), clamp in position using knob (7).
4.5. Side vertical support bars (2) on to base bars (4) see diagram. Fix/bolt together using bolt set (9). Ensure the clamping knobs (7)
are positioned as shown.
4.6. Using bolt set (8) attach horizontal top bar (1) taking necessary precautions as this is above head height.
