Dear Customer,
Please read this manual before using the product.
Thank you for choosing this product. We would like you to achieve the optimal efficiency
from this high quality product which has been manufactured with state of the art technol-
ogy. To do this, carefully read this manual and any other documentation provided before
using the product and keep it as a reference.
Heed all information and warnings in the user manual. This way, you will protect yourself
and your product against the dangers that may occur.
Keep the user manual. Include this guide with the unit if you hand it over to someone else.
The following symbols are used in the user guide:
Hazard that may result in death or injury.
NOTICE A hazard that may cause material damage to the product or its
surroundings
Important information or useful tips on operation.
Read the user manual.
Risk of fire / Flammable materials
2 / 31 EN
Refrigerator / User Manual
1- Safety Instructions 3
1.1 Intended Use. . . . . . . . . . . . . . . . . . . . . 3
1.2 - Safety for children, vulnerable persons and
pets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 - Electrical safety . . . . . . . . . . . . . . . . . 3
1.4 - Transportation safety. . . . . . . . . . . . . . 4
1.5 - Installation safety . . . . . . . . . . . . . . . . 4
1.6- Operational safety . . . . . . . . . . . . . . . . 5
1.7- Maintenance and cleaning safety . . . . . 6
1.8- Lighting. . . . . . . . . . . . . . . . . . . . . . . . 7
1.9 Compliance with the WEEE Directive and
Disposing of the Waste Product . . . . . . . . . 7
1.10 Compliance with RoHS Directive . . . . . . 7
1.11 Package information. . . . . . . . . . . . . . . 7
1.12 Service . . . . . . . . . . . . . . . . . . . . . . . . 7

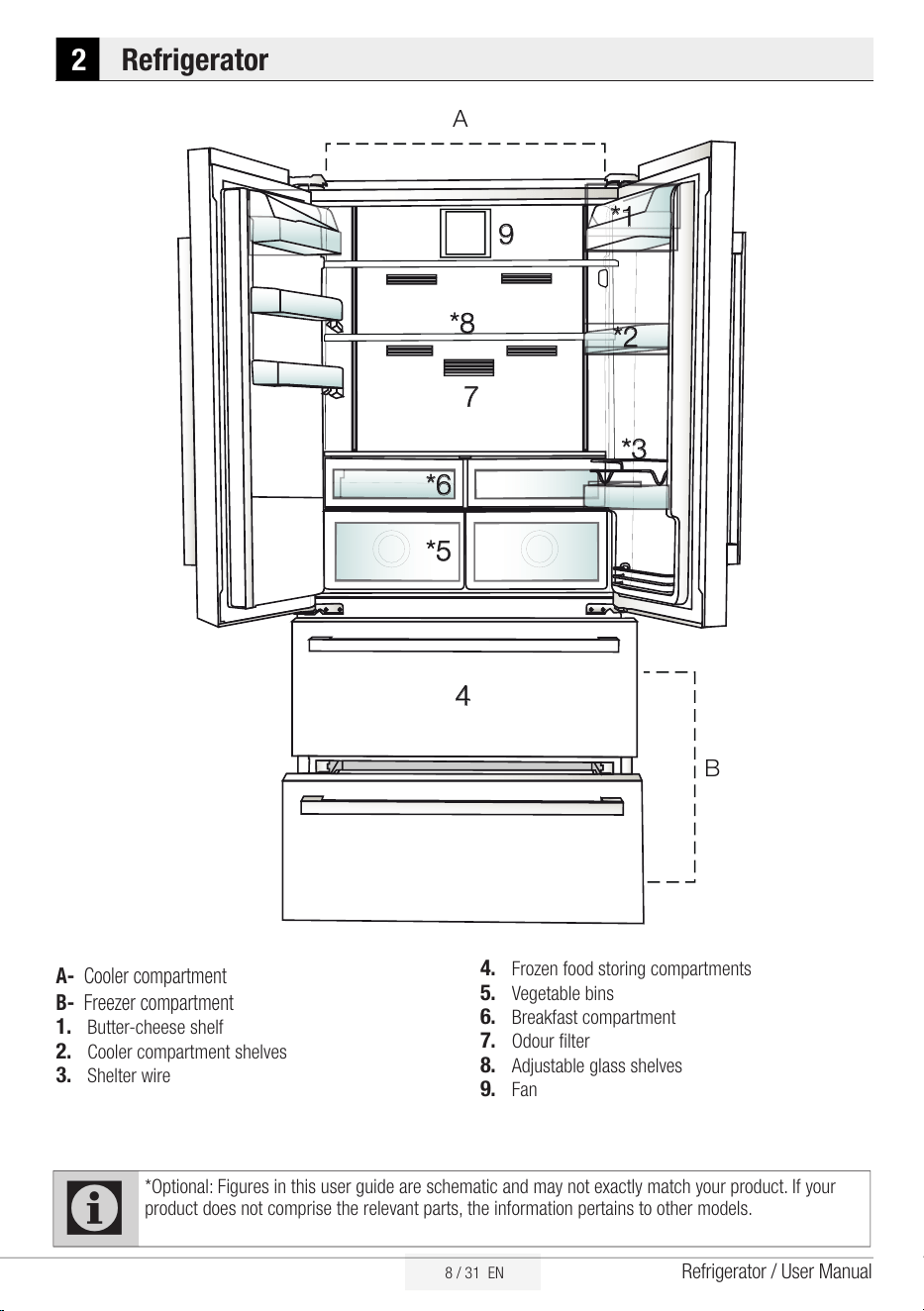

2 Refrigerator 8
3 Installation 9
3.1. Right place for installation . . . . . . . . . . . . . . 9
3.2. Attaching the plastic wedges . . . . . . . . . . . . 9
3.3. Adjusting the stands . . . . . . . . . . . . . . . . . 10
3.4. Power connection . . . . . . . . . . . . . . . . . . . 10
3.5. Water connection . . . . . . . . . . . . . . . . . . . 10
3.6. Connecting water hose to the product . . . . 11
3.7. Connecting to water mains . . . . . . . . . . . . 11
3.8. For products using water carboy . . . . . . . . 12
3.9 Water filter . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.9.1. Fixing external filter on the wall (Optional) 13
3.9.2. Internal filter . . . . . . . . . . . . . . . . . . . . . 14
4 Preparation 16
4.1. What to do for energy saving . . . . . . . . . . . 16
4.2. First use . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3 Hints and Tips . . . . . . . . . . . . . . . . . . . . . . 17
4 Preparation 17
5 Using the product 18
5.1. Indicator panel . . . . . . . . . . . . . . . . . . . . . 18

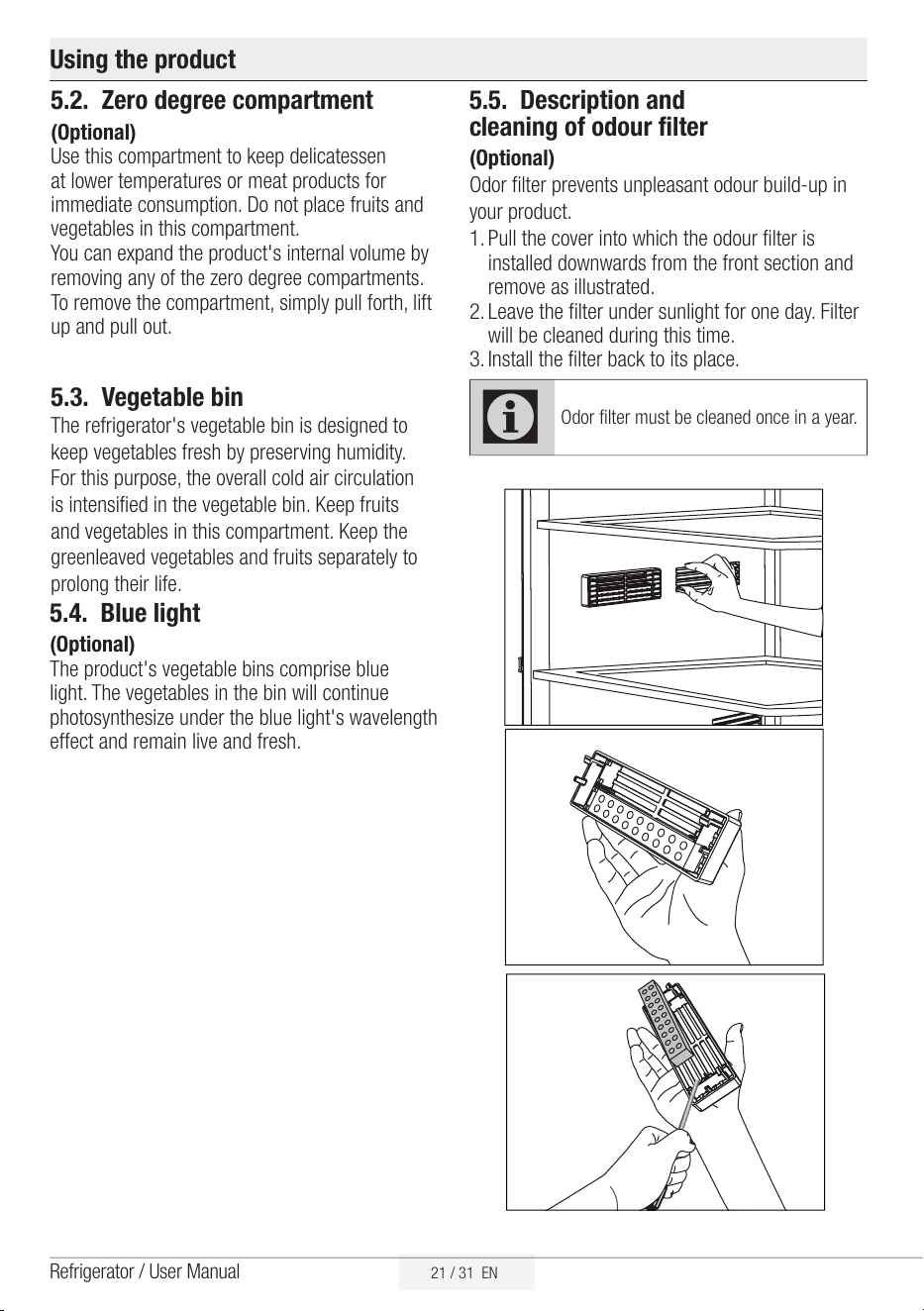

5.2. Zero degree compartment . . . . . . . . . . . . . 21
5.3. Vegetable bin . . . . . . . . . . . . . . . . . . . . 21
5.4. Blue light . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.5. Description and cleaning of odour filter . . . 21
5.8. Ice maker . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.9. Ice box . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.6. Telescopic drawer . . . . . . . . . . . . . . . . . . 22
5.7. Ionizer . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.10. Movable middle section . . . . . . . . . . . . . 23
5.11. Ice container . . . . . . . . . . . . . . . . . . . . . . 23
5.12. Humidity controlled crisper . . . . . . . . . . . . 23
5.13. Freezing fresh food . . . . . . . . . . . . . . . . . 24
5.14. Recommendations for storing frozen foods 24
5.15. Deep freezer details . . . . . . . . . . . . . . . . . 24
5.16. Placing the food. . . . . . . . . . . . . . . . . . . . 25
5.17. Door open alert . . . . . . . . . . . . . . . . . . . . 25
5.18. Interior light . . . . . . . . . . . . . . . . . . . . . . . 25
6 Maintenance and cleaning 26
6.1. Preventing malodour . . . . . . . . . . . . . . . . . 26
6.2. Protecting plastic surfaces . . . . . . . . . . . . 26
7 Troubleshooting 27
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data available: Model,
Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
VISIT OUR WEBSITE TO:
Get usage advice, brochures, trouble shooter, service and repair information:
www.smeg.com/services/customer-service
3 / 31 EN
Refrigerator / User Manual
• This section contains safety instructions that
will help get protected against risks of personal
injury or property damage.
• Our company shall not be responsible
for damages that may arise when these
instructions are not followed.
Installation and repair procedures
must always be performed by the manufacturer,
authorised service agent or a qualified person
specified by the importer.
Only use original parts and accessories.
Original spare parts will be provided for
10 years, following the product purchasing date.
Do not repair or replace any part of the
product unless specified expressly in the user
manual.
Do not make any technical modifications
to the product.
1.1 Intended Use
• This product is not suitable for commercial use
and it must not be used out of its intended use.
This product is designed to be used in houses and
indoor places.
For example:
- Personnel kitchens in stores, offices and other
working environments,
- Farm houses,
- Areas used by customers at hotels, motels and
other types of accommodation,
- Bed&breakfast type hotels, boardinghouses,
- Catering and similar non-retail applications.
This product should not be used outdoors with or
without a tent above it such as boats, balconies or
terraces. Do not expose the product to rain, snow,
sun or wind.
There is the risk of fire!
1.2 - Safety for children,
vulnerable persons and pets
• This product can be used by children at and
above 8 years old and by persons with limited
physical, sensory or mental capabilities or who
lack experience and knowledge provided that
they are supervised or trained on the safe use of
the product and the risks it brings out.
• Children aged from 3 to 8 years are allowed to
load and unload refrigerating products.
• Electrical products are dangerous for children
and pets. Children and pets must not play with,
climb or enter the product.
• Cleaning and user maintenance should not be
performed by children unless they are supervised
by someone.
• Keep packaging materials away from children.
There is the risk of injury and suffocation!
• Before disposing of the old or obsolete product:
1.
Unplug the product by gripping from the plug.
2.
Cut the power cable and remove it from the appliance
together with its plug
3.
Do not remove the shelves or drawers so that it is
harder for children to enter the product.
4.
Remove the doors.
5.
Keep the product in a way that it will not tip over.
6.
Do not allow children play with the old product.
• Never throw the product into fire for disposal.
There is the risk of explosion!
• If there is a lock on the door of the product, the
key should be kept out of the reach of children.
1.3 - Electrical safety
• The product must be unplugged during
installation, maintenance, cleaning, repairing and
moving procedures.
1- Safety Instructions
4 / 31 EN
Refrigerator / User Manual
Safety and environment instructions
• If the power cable is damaged, it must be
replaced by a qualified person specified by
the manufacturer, authorised service agent or
importer in order to avoid potential dangers.
• Do not squeeze the power cable under or
behind the product. Do not place heavy objects
on the power cable. Power cable must not be
bent excessively, pinched or get in contact with
any heat source.
• Do not use extension cords, multi-sockets or
adapters to operate the product.
• Portable multi-sockets or portable power
sources can overheat and cause fire.
Therefore, do not keep any multi-sockets
behind or near the product.
• Plug must be easily accessible. If this is not
possible, the electrical installation to which the
product is connected must contain a device
(such as a fuse, switch, circuit breaker, etc.)
which conforms to the electrical regulations
and disconnects all poles from the grid.
• Do not touch the power plug with wet hands.
• Remove the plug from the socket by gripping
the plug and not the cable.
1.4 - Transportation safety
• Product is heavy; do not move it alone.
• Do not hold its door when moving the product.
• Pay attention not to damage the cooling
system or the piping during transportation.
If the piping is damaged, do not operate the
product and call the authorised service agent.
1.5 - Installation safety
• Call the authorised service agent for installation
of the product. To make the product ready for
use, check the information in the user manual
to make sure that the electricity and water
installations are suitable. If they are not, call a
qualified electrician and plumber to have the
necessary arrangements made. Otherwise,
there is the risk of electric shock, fire, problems
with the product, or injury!
• Prior to installation, check if the product has
any defects on it. If the product is damaged, do
not have it installed.
• Place the product on a clean, flat and solid
surface and balance it with adjustable feet.
Otherwise, the product may tip over and cause
injuries.
• The installation location must be dry and
well ventilated. Do not place carpets, rugs or
similar covers under the product. Insufficient
ventilation causes the risk of fire!
• Do not cover or block the ventilation openings.
Otherwise, power consumption increases and
your product may get damaged.
• Product must not be connected to supply
systems such as solar power supplies.
Otherwise, your product may get damaged due
to sudden voltage changes!
• The more refrigerant a refrigerator contains,
the larger the installation location must be. If
the installation location is too small, flammable
refrigerant and air mixture will accumulate in
cases of refrigerant leakage in cooling system.
The required space for each 8 gr of refrigerant
is 1 m³ minimum. The amount of refrigerant in
your product is indicated on the Type Label.
• Product must not be installed in places
exposed to direct sunlight and it must be
kept away from heat sources such as hobs,
radiators, etc.
If it is inevitable to install the product close to
a heat source, a suitable insulation plate must
be used in between and the following minimum
distances must be kept to the heat source:
- Minimum 30 cm away from heat sources
such as hobs, ovens, heater units or stoves,
- Minimum 5 cm away from electric ovens.
• Protection class of your product is Type I.
Plug the product in a grounded socket that
conforms the voltage, current and frequency
values stated on the type label of the product.
The socket must be equipped with a 10 A – 16
A circuit breaker. Our company shall not be
liable for any damages that will arise when
the product is used without grounding and
5 / 31 EN
Refrigerator / User Manual
Safety and environment instructions
electrical connection in accordance with the
local and national regulations.
• Product must not be plugged in during
installation. Otherwise, there is the risk of
electric shock and injury!
• Do not plug the product in sockets that are
loose, dislocated, broken, dirty, greasy or bear
the risk of getting in contact with water.
• Route the power cable and hoses (if any) of the
product in a way that they do not cause risk of
tripping over.
• Exposing the live parts or power cable to
humidity may cause short circuit. Therefore,
do not install the product in places such as
garages or laundry rooms where humidity is
high or water may splash. If the refrigerator
gets wet with water, unplug it and call the
authorised service agent.
• Never connect your refrigerator to energy
saving devices. Such systems are harmful to
your product.
1.6- Operational safety
• Never use chemical solvents on the product.
There is the risk of explosion!
• If the product malfunctions, unplug it and do
not operate until it is repaired by the authorised
service agent. There is the risk of electric
shock!
• Do not place flame sources (lit candles,
cigarettes, etc.) on or close to the product.
• Do not climb on the product. There is the risk
of falling and getting injured!
• Do not damage the pipes of the cooling
system with sharp or penetrating objects.
The refrigerant that might come out when the
refrigerant pipes, pipe extensions or surface
coatings are punctured causes skin irritations
and eye injuries.
• Unless recommended by the manufacturer, do
not place or use electrical devices inside the
refrigerator/deep freezer.
• Be careful not to trap your hands or any other
part of your body in the moving parts inside the
refrigerator. Pay attention not to squeeze your
fingers between the door and the refrigerator.
Be careful when opening and closing the door
particularly if there are children around.
• Never eat ice cream, ice cubes or frozen food
right after removing them from the refrigerator.
There is the risk of frostbite!
• When your hands are wet, do not touch the
inner walls or metal parts of the freezer or
the food stored therein. There is the risk of
frostbite!
• Do not place tins or bottles that contain
carbonated drinks or freezable liquids in the
freezer compartment. Tins and bottles may
burst. There is the risk of injury and material
damage!
• Do not place or use flammable sprays,
flammable materials, dry ice, chemical
substances or similar heat-sensitive materials
near the refrigerator. There is the risk of fire
and explosion!
• Do not store explosive materials that contain
flammable materials, such as aerosol cans, in
your product.
• Do not place containers filled with liquid onto
the product. Splashing water on an electrical
part may cause electric shock or the risk of
fire.
• This product is not intended for storing
medicines, blood plasma, laboratory
preparations or similar medical substances and
products subject to Medical Products Directive.
• Using the product against its intended purpose
may cause the products stored inside it to
deteriorate or spoil.
• If your refrigerator is equipped with blue light,
do not look at this light with optical tools. Do
not stare at UV LED lamp directly for a long
time. Ultraviolet light may cause eye strain.
6 / 31 EN
Refrigerator / User Manual
Safety and environment instructions
• Do not overload the product. Objects in the
refrigerator may fall down when the door is
opened, causing injury or damage. Similar
problems may arise if any object is placed onto
the product.
• To avoid injuries, make sure that you have
cleaned all the ice and water that may have
fallen or splashed on the floor.
• Change the position of the shelves/bottle
holders on the door of your refrigerator only
when they are empty. There is the risk of injury!
• Do not place objects that can fall down/tip over
onto the product. Such objects may fall down
when the door is opened and cause injuries
and/or material damage.
• Do not hit or exert excessive force on glass
surfaces. Broken glass may cause injuries and/
or material damage.
• Cooling system of your product contains
R600a refrigerant: Type of the refrigerant used
in the product is indicated on the type label.
This refrigerant is flammable. Therefore, pay
attention not to damage the cooling system
or the piping while the product is in use. If the
piping is damaged:
- Do not touch the product or the power cable,
- Keep away potential sources of fire that may
cause the product to catch fire.
- Ventilate the area where the product is
located. Do not use fans.
- Call the authorised service agent.
• If the product is damaged and you see
refrigerant leak, please stay away from the
refrigerant. Refrigerant may cause frostbite in
case of skin contact.
For products with a Water Dispenser/
Ice Machine
• Use only potable water. Do not fill the
water tank with any liquids -such as
fruit juice, milk, carbonated beverages
or alcoholic drinks- that are not suitable
for use in the water dispenser.
• There is the risk for health and safety!
• Do not allow children play with the
water dispenser or ice machine
(Icematic) in order to prevent accidents
or injuries.
• Do not insert your fingers or other
objects into the water dispenser hole,
water channel or ice machine container.
There is the risk of injury or material
damage!
1.7- Maintenance and
cleaning safety
• Do not pull from the door handle if you need
to move the product for cleaning purposes.
Handle may break and cause injuries if you
exert excessive force on it.
• Do not spray or pour water on or inside the
product for cleaning purposes. There is the risk
of fire and electric shock!
• Do not use sharp or abrasive tools when
cleaning the product. Do not use household
cleaning products, detergent, gas, gasoline,
thinner, alcohol, varnish etc.
• Only use cleaning and maintenance products
inside the product that are not harmful for
food.
• Never use steam or steam assisted cleaners to
clean or defrost the product. Steam gets into
contact with the live parts in your refrigerator,
causing short circuit or electric shock!
7 / 31 EN
Refrigerator / User Manual
Safety and environment instructions
• Make sure that no water enters the electronic
circuits or lighting elements of the product.
• Use a clean and dry cloth to wipe the foreign
materials or dust on the pins of the plug. Do
not use a wet or damp cloth to clean the plug.
There is the risk of fire and electric shock!
1.8- Lighting
• Call the authorised service when it is required
to replace the LED/bulb used for lighting.
1.9 Compliance with the WEEE
Directive and Disposing
of the Waste Product
This product complies with EU WEEE Directive
(2012/19/EU). This product bears a classification
symbol for waste electrical and electronic equip-
ment (WEEE).
This symbol indicates that this product
shall not be disposed with other house-
hold wastes at the end of its service life.
Used device must be returned to offical
collection point for recycling of electrical
and electronic devices. To find these collection sys-
tems please contact to your local authorities or re-
tailer where the product was puchased. Each
household performs important role in recovering
and recycling of old appliance. Appropriate disposal
of used appliance helps prevent potential negative
consequences for the environment and human
health.
1.10 Compliance with
RoHS Directive
The product you have purchased complies with EU
RoHS Directive (2011/65/EU). It does not contain
harmful and prohibited materials specified in the
Directive.
1.11 Package information
Packaging materials of the product are
manufactured from recyclable materials
in accordance with our National
Environment Regulations. Do not dis-
pose of the packaging materials together with the
domestic or other wastes. Take them to the pack-
aging material collection points designated by the
local authorities.
1.12 Service
• To repair the appliance contact the Authorised
Service Centre. Use original spare parts only.
• Please note that self-repair or nonprofessional
repair can have safety consequences and might
void the guarantee.
• The following spare parts will be available for 7
years after the model has been discontinued:
thermostats, temperature sensors, printed
circuit boards, light sources, door handles, door
hinges, trays and baskets. Please note that
some of these spare parts are only available
to professional repairers, and that not all spare
parts are relevant for all models.
• Door gaskets will be available for 10 years after
the model has been discontinued.
8 / 31 EN
Refrigerator / User Manual
*1
*3
*2
*5
*6
7
*8
9
4
A
B
2 Refrigerator
C
*Optional: Figures in this user guide are schematic and may not exactly match your product. If your
product does not comprise the relevant parts, the information pertains to other models.
A- Cooler compartment
B- Freezer compartment
1. Butter-cheese shelf
2. Cooler compartment shelves
3. Shelter wire
4. Frozen food storing compartments
5. Vegetable bins
6. Breakfast compartment
7. Odour filter
8. Adjustable glass shelves
9. Fan
9 / 31 EN
Refrigerator / User Manual
3 Installation
3.1. Right place for installation
Contact the Authorized Service for the product's
installation. To ready the product for installation,
see the information in the user guide and make
sure the electric and water utilities are as required.
If not, call an electrician and plumber to arrange
the utilities as necessary.
B
WARNING: The manufacturer assumes
no responsibility for any damage caused
by the work carried out by unauthorized
persons.
B
WARNING: The product’s power cable
must be unplugged during installation.
Failure to do so may result in death or
serious injuries!
A
WARNING: If the door span is too narrow
for the product to pass, remove the door
and turn the product sideways; if this does
not work, contact the authorized service.
• Place the product on a flat surface to avoid
vibration.
• Place the product at least 30 cm away from the
heater, stove and similar sources of heat and at
least 5 cm away from electric ovens.
• Do not expose the product to direct sunlight or
keep in damp environments.
• The product requires adequate air circulation to
function efficiently. If the product will be placed
in an alcove, remember to leave at least 5 cm
distance between the product and the ceiling
and the walls.
• Do not install the product in environments with
temperatures below -5°C.
3.2. Attaching the plastic wedges
Use the plastic wedges provided with the product
to provide sufficient space for air circulation
between the product and the wall.
1.
To attach the wedges, remove the screws on the
product and use the screws provided with the wedges.
2.
Attach 2 plastic wedges on the ventilation cover as
shown in the figure.
10 / 31 EN
Refrigerator / User Manual
Installation
3.3. Adjusting the stands
If the product is not in balanced position, adjust the
front adjustable stands by rotating right or left.
3.4. Power connection
A
WARNING: Do not use extension or
multi sockets in power connection.
B
WARNING: Damaged power cable
must be replaced by Authorized
Service.
C
When placing two coolers in adjacent
position, leave at least 4 cm distance
between the two units.
• Our firm will not assume responsibility for any
damages due to usage without earthing and
power connection in compliance with national
regulations.
• The power cable plug must be easily
accessible after installation.
• Do not use multi-group plug with or without
extension cable between the wall socket and
the refrigerator.
3.5. Water connection
(Optional)
A
WARNING: Unplug the product and
the water pump (if available) during
connection.
The product’s water mains, filter and carboy
connections must be rendered by authorized
service.
The product can be connected to a carboy or
directly to the water mains, depending on the
model. To establish the connection, the water hose
must first be connected to the product.
Check to see the following parts are supplied with
your product’s model:
3
1
4
2
*5
1. Connector (1 piece): Used to attach the water
hose to the rear of the product.
2. Hose clip (3 pieces): Used to fix the water
hose on the wall.
3. Water hose (1 piece, 5 meter diameter 1/4
inches): Used for the water connection.
4. Faucet adapter (1 piece): Comprises a porous
filter, used for connection to the cold water
mains.
5. Water filter (1 piece *Optional): Used to
connect the mains water to the product. Water
filter is not required if carboy connection is
available.
Positioning
This appliance should be installed in a dry, well
ventilated indoor position.
This appliance is intended to be used at ambient
temperature ranging from 10°C to 38°C.
11 / 31 EN
Refrigerator / User Manual
Installation
3.6. Connecting water
hose to the product
To connect the water hose to the product,
follow the instructions below.
1. Remove the connector on the hose nozzle
adaptor in the back of the product and run the
hose through the connector.
2. Push the water hose down tightly and connect
to the hose nozzle adaptor.
3. Tighten the connector manually to fix on the
hose nozzle adaptor. You may also tighten the
connector using a pipe wrench or pliers.
3.7. Connecting to water mains
(Optional)
To use the product by connecting to the cold water
mains, a standard 1/2” valve connector must be
installed to the cold water mains in your home. If
the connector is not available or if you are unsure,
consult a qualified plumber.
1. Detach the connector (1) from the faucet
adaptor (2).
1
23
2. Connect the faucet adaptor to the water mains
valve.
3. Attach the connector around the water hose.
12 / 31 EN
Refrigerator / User Manual
Installation
4. Attach the connector into the faucet adaptor
and tighten by hand / tool.
5. To avoid damaging, shifting or accidentally
disconnecting the hose, use the clips provided
to fix the water hose appropriately.
A
WARNING:After turning the faucet on,
make sure there is no water leak on
either end of the water hose. In case of
leakage, turn the valve off and tighten all
connections using a pipe wrench or pliers.
3.8. For products using water carboy
(Optional)
To use a carboy for the product’s water
connection, the water pump recommended by the
authorized service must be used.
1. Connect one end of the water hose provided
with the pump to the product (see 3. 6) and
follow the instructions below.
2. Connect the other end of the water hose to
the water pump by pushing the hose into the
pump’s hose inlet.
3. Place and fasten the pump hose inside the
carboy.
4. Once the connection is established, plug in
and start the water pump.
C
Please wait 2-3 minutes after starting the
pump to achieve the desired efficiency.
C
See also the pump’s user guide for water
connection.
C
When using carboy, water filter is not
required.
3.9 Water filter
(Optional)
The product may have internal or external filter,
depending on the model. To attach the water filter,
follow the instructions below.
13 / 31 EN
Refrigerator / User Manual
Installation
3.9.1. Fixing external filter
on the wall (Optional)
A
WARNING: Do not fix the filter on the
product.
Check to see the following parts are supplied with
your product’s model:
1
2
3
4
5
6
1. Connector (1 piece): Used to attach the water
hose to the rear of the product.
2. Faucet adapter (1 piece): Used for connection
to the cold water mains.
3. Porous filter (1 piece)
4. Hose clip (3 pieces): Used to fix the water
hose on the wall.
5. Filter connecting apparatus (2 pieces): Used to
fix the filter on the wall.
6. Water filter (1 piece): Used to connect the
mains water to the product. Water filter is not
required if carboy connection is available.
1. Connect the faucet adaptor to the water mains
valve.
2. Determine the location to fix the external filter.
Fix the filter’s connecting apparatus (5) on the
wall.
3. Attach the filter in upright position on the filter
connecting apparatus, as indicated on the
label. ( 6 ).
4. Attach the water hose extending from the top
of the filter to the product’s water connection
adaptor (see. 3 6).
14 / 31 EN
Refrigerator / User Manual
Installation
After the connection is established, it should look
like the figure below.
Water line:
Carboy line:
3.9.2. Internal filter
The internal filter provided with the product is
not installed upon delivery; please follow the
instructions below to install the filter.
1. “Ice Off ” indicator must be active while
installing the filter. Switch the ON-OFF
indicator using the “Ice” button on the screen.
2. Remove the vegetable bin (a) to access the
water filter.
15 / 31 EN
Refrigerator / User Manual
Installation
3. Remove the water filter by-pass cover by
pulling.
C
A few drops of water may flow out after
removing the cover; this is normal.
4. Place the water filter cover into the
mechanism and push to lock in place.
5. Push the “Ice” button on the screen again to
cancel the “Ice Off ” mode.
C
The water filter will clear certain foreign
particles in the water. It will not clear the
microorganisms in the water.
C
The filter replacement period of your
product is 6 months.
16 / 31 EN
Refrigerator / User Manual
4 Preparation
4.1. What to do for energy saving
A
Connecting the product to electronic
energy-saving systems is harmful, as it
may damage the product.
• For a freestanding appliance; ‘this refrigerating
appliance is not intended to be used as a built-
in appliance’.
• Do not keep the refrigerator doors open for
long periods.
• Do not place hot food or beverages into the
refrigerator.
• Do not overfill the refrigerator; blocking the
internal air flow will reduce cooling capacity.
• To be able store maximum food in the freezer
compartment of your refrigerator, the upper
drawers have to be removed and placed on
top of wire rack. The net volume and energy
consumption values specified in the energy
label of the refrigerator was tested after
removing the freezer compartment’s upper
shelf and the ice container which can easily
be removed manually. Using the lower drawer
while loading is highly recommended.
• Since hot and humid air will not directly
penetrate into your product when the doors
are not opened, your product will optimize
itself in conditions sufficient to protect your
food. Functions and components such as
compressor, fan, heater, defrost, lighting,
display and so on will operate according to
the needs to consume minimum energy under
these circumstances.
• Depending on the product’s features;
defrosting frozen foods in the cooler
compartment will ensure energy saving and
preserve food quality.
• Make sure the foods are not in contact with
the cooler compartment temperature sensor
described below.
• Food must be stored in drawers inside the
cooler compartment in order to provide energy
saving and preserve the food in a better
ambient.
• Prevent direct contact between the
temperature sensor in the freezer compartment
and the food packages. Energy consumption
may increase in case of a contact with the
sensor.
4.2. First use
Before using your refrigerator, make sure the
necessary preparations are made in line with
the instructions in “Safety and environment
instructions” and “Installation” sections.
• Keep the product running with no food inside
for 6 hours and do not open the door, unless
absolutely necessary.
C
A sound will be heard when the
compressor is engaged. It is normal to
hear sound even when the compressor is
inactive, due to the compressed liquids and
gasses in the cooling system.
C
It is normal for the front edges of the
refrigerator to be warm. These areas are
designed to warm up in order to prevent
condensation.
C
In some models, indicator panel is dimmed
automatically 5 minutes after the door is
closed. It will be activated again when the
door is opened or any key is pressed.
17 / 31 EN
Refrigerator / User Manual
4 Preparation
4.3 Hints and Tips
Hints for energy saving
• Most efficient use of energy is ensured in the
configuration with the drawers in the bottom part
of the appliance and shelves evenly distributed.
Position of the door bins does not affect energy
consumption.
• Do not open the door frequently or leave it open
longer than necessary.
• Do not set too high temperature to save energy
unless it is required by the characteristics of the
food.
• If the ambient temperature is high and the
temperature control is set to low temperature and
the appliance is fully loaded, the compressor may
run continuously, causing frost or ice formation on
the evaporator. In this case, set the temperature
control toward higher temperature to allow
automatic defrosting and to save energy this way.
• Ensure a good ventilation. Do not cover the
ventilation grilles or holes.
Hints for fresh food refrigeration
• Good temperature setting that ensures
preservation of fresh food is a temperature less
than or equal to +4°C.
Higher temperature setting inside the appliance
may lead to shorter shelf life of food.
• Cover the food with packaging to preserve its
freshness and aroma.
• Always use closed containers for liquids and
for food, to avoid flavours or odours in the
compartment.
• To avoid the cross-contamination between
cooked and raw food, cover the cooked food and
separate it from the raw one.
• It is recommended to defrost the food inside the
fridge.
• Do not insert hot food inside the appliance. Make
sure it has cooled down at room temperature
before inserting it.
• To prevent food waste the new stock of food
should always be placed behind the old one.
Hints for food refrigeration
• Meat (all types): wrap in a suitable packaging and
place it on the glass shelf above the vegetable
drawer. Store meat for at most 1 -2 days.
18 / 31 EN
Refrigerator / User Manual
C
*Optional: The figures in this user guide are intended as drafts and may not perfectly match your
product. If your product does not comprise the relevant parts, the information pertains to other models.
5 Using the product
5.1. Indicator panel
This touch-control indicator panel allows you to set the temperature without opening the door of your
refrigerator. Just touch the relevant button with your finger to set the temperature.
*1
2
4
5
68
9
10
11
12
11
5
6
1 *2
4
78
9
(*)
7.2 7.1
3
3
10.1
10.2
1- Economic use
2- High temperature / fault alert
3- Energy saving function (display off)
4- Rapid cooling
5- Vacation function
6- Cooler compartment temperature setting
7- Energy saving (display off) / Alarm off warning
8- Keypad lock
9- Eco-fuzzy
10- Freezer compartment temperature setting
11- Rapid freezing
19 / 31 EN
Refrigerator / User Manual
Using the product
1. Economic use
This sign will light up when the freezer compart-
ment is set to -18°C’, the most economical
setting. ( ) Economic use indicator will turn off
when rapid cooling or rapid freezing function is
selected.
2. High temperature / fault alert
This indicator ( ) will light up in case of tem-
perature faults or fault alerts.
This indicator illuminates during power failure, high
temperature failures and error warnings. During
sustained power failures, the highest temperature
that the freezer compartment reaches will flash on
the digital display. After checking the food located
in the freezer compartment press the alarm off
button to clear the warning.
3. Energy saving function (display off)
If the product doors are kept closed for a long time
energy saving function is automatically activated
and energy saving symbol is illuminated. When
energy saving function is activated, all symbols
on the display other than energy saving symbol
will turn off. When the Energy Saving function is
activated, if any button is pressed or the door is
opened, energy saving function will be canceled
and the symbols on display will return to normal.
Energy saving function is activated during delivery
from factory and cannot be canceled.
4. Rapid cooling
When the rapid cooling function is turned on, the rapid
cool indicator will light up ( ) and the cooler com-
partment temperature indicator will display the value 1.
Push the Rapid cool button again to cancel this func-
tion. The Rapid cool indicator will turn off and return
to normal setting. The rapid cooling function will be
automatically cancelled after 1 hour, unless cancelled
by the user. Too cool a large amount of fresh food,
press the rapid cool button before placing the food in
the cooler compartment.
5. Vacation function
To activate the Vacation function, press the
button for ( ) 3 seconds; this will activate the
vacation mode indicator ( ). When the Vacation
function is active, the cooler compartment
temperature indicator displays the inscription
“- -” and no cooling process will be active in
the cooling compartment. This function is not
suitable to keep food in the cooler compartment.
Other compartments will remain cooled with the
respective temperature set for each compartment.
Push the vacation function button again to
cancel this function
6. Cooler compartment temperature setting
After pressing the button, the cooler compartment
temperature can be set to 8,7,6,5,4,3,2 and 1
respectively. ( )
7.1. Energy saving (display off)
Pressing this button ( ) will light up the energy
saving sign ( ) and the Energy-saving function
will activate. Activating the energy-saving function
will turn off all other signs on the display. When
the energy-saving function is active, pressing any
button or opening the door will deactivate the
energy-saving function and the display signals will
return to normal. Pressing this button ( ) again
will turn off the energy-saving sign and deactivate
the energy-saving function.
7.2.Alarm off warning:
In case of power failure/high temperature alarm,
after checking the food located in the freezer
compartment press the alarm off button to clear
the warning.
8. Keypad lock
Press the keypad lock button ( ) simultaneously
for 3 seconds. The keypad lock sign
( ) will light up and the keypad lock will be
activated. The buttons will be inactive when the
Keypad lock is activated. Press the Keypad lock
button again simultaneously for 3 seconds. The
keypad lock sign will turn off and the keypad lock
mode will be disengaged.
Press the keypad lock button ( ) to prevent
changing the refrigerator’s temperature settings.
20 / 31 EN
Refrigerator / User Manual
Using the product
9. Eco-fuzzy
To activate the eco-fuzzy function, press and hold
the eco-fuzzy button for 1 second. When this
function is active, the freezer will switch to the
economic mode after at least 6 hours and the
economic use indicator will light up. To deactivate
the ( ) eco-fuzzy function, press and hold the
eco-fuzzy function button for 3 seconds.
The indicator will light up after 6 hours when the
eco-fuzzy function is active.
10. Freezer compartment temperature setting
The temperature in the freezer compartment is ad-
justable. Pressing the button will enable the freezer
compartment temperature to be set at -15,-16
-18 -19, -20, -22 and -24. ( )
11. Rapid freezing
For rapid freezing, press the button; this will acti-
vate the rapid freezing indicator ( ).
When the rapid freezing function is turned on, the
rapid freeze indicator will light up and the freezer
compartment temperature indicator will display
the value -27. Press the Rapid freeze button (
) again to cancel this function. The Rapid freeze
indicator will turn off and return to normal setting.
The rapid freezing function will be automatically
cancelled after 24 hours, unless cancelled by the
user. To freeze a large amount of fresh food, press
the rapid freeze button before placing the food in
the freezer compartment.
21 / 31 EN
Refrigerator / User Manual
Using the product
5.2. Zero degree compartment
(Optional)
Use this compartment to keep delicatessen
at lower temperatures or meat products for
immediate consumption. Do not place fruits and
vegetables in this compartment.
You can expand the product's internal volume by
removing any of the zero degree compartments.
To remove the compartment, simply pull forth, lift
up and pull out.
5.3. Vegetable bin
The refrigerator's vegetable bin is designed to
keep vegetables fresh by preserving humidity.
For this purpose, the overall cold air circulation
is intensified in the vegetable bin. Keep fruits
and vegetables in this compartment. Keep the
greenleaved vegetables and fruits separately to
prolong their life.
5.4. Blue light
(Optional)
The product's vegetable bins comprise blue
light. The vegetables in the bin will continue
photosynthesize under the blue light's wavelength
effect and remain live and fresh.
5.5. Description and
cleaning of odour filter
(Optional)
Odor filter prevents unpleasant odour build-up in
your product.
1. Pull the cover into which the odour filter is
installed downwards from the front section and
remove as illustrated.
2. Leave the filter under sunlight for one day. Filter
will be cleaned during this time.
3. Install the filter back to its place.
C
Odor filter must be cleaned once in a year.
22 / 31 EN
Refrigerator / User Manual
Using the product
5.6. Telescopic drawer
Pay attention not to squeeze any parts of your
body such as hands, feet and etc. between the
movable parts while the drawer is in use in order
to avoid any injury.
You can remove the partition in the drawer as
illustrated when you want to clean it.
You can remove the drawers only for cleaning.
It is not possible to group the drawers in their
places after loading them with food when they are
removed.
5.7. Ionizer
(Optional)
The ionizer system in the cooler compartment’s
air duct serves to ionize the air. The negative
ion emissions will eliminate bacteria and other
molecules causing odour in the air.
5.8. Ice maker
The ice machine is nonremovable. There must be
ice container at the bottom of the ice machine.
5.9. Ice box
Please read the warnings carefully on the ice con-
tainer. The ice container is used for ice collection
poured ice machine. Do not put water in it to make
ice as it may break. The ice container is not used
for storing foods.
Warning: Do not change the location of the ice
container.
23 / 31 EN
Refrigerator / User Manual
Using the product
5.10. Movable middle section
Movable middle section is intended to prevent
the cold air inside your refrigerator from escaping
outside.
Sealing is provided when the gaskets on the door
presses on the surface of the movable middle
section while the cooler compartment doors are
closed.
Another reason that your refrigerator is equipped
with a movable middle section is that it increases
the net volume of the cooler compartment.Standard
middle sections occupy some non-usable volume in
the refrigerator.
Movable middle section is closed when the left
door of the cooler compartment is closed.
It must not be opened manually. It moves under the
guidance of the plastic part on the body while the
door is closed.
5.11. Ice container
(Optional)
Ice container allows you to obtain ice from the
product easily.
Using the ice container
1. Remove the ice container from the freezer
compartment.
2. Fill the ice container with water.
3. Place the ice container in the freezer
compartment. About two hours later, the ice is
ready.
4. Remove the ice container from the freezer
compartment and bend it over the service plate.
Ice cubes will easily fall down to the service plate.
5.12. Humidity controlled crisper
(This feature is optional)
Humidity rates of the vegetables and fruit are kept
under control with the feature of humidity-controlled
crisper and the food is ensured to stay fresh for longer.
We recommend you to place the leafy vegetables such
as lettuce, spinach and the vegetables which are sensi-
tive to humidity loss, in a horizontal manner as much
as possible inside the crisper, not on their roots in a
vertical position.
While the vegetables are being placed, specific gravity
of the vegetables should be taken into consideration.
Heavy and hard vegetables should be put at the bottom
of the crisper and the lightweight and soft vegetables
should be placed over.
Never leave the vegetables inside the crisper in their
bags. If the vegetables are left inside their bags, this
will cause them to decompose in a short period of
time. In case contacting with other vegetables is not
preferred for hygiene concerns, use a perforated paper
and other similar packaging materials instead of a bag.
Do not place together the pear, apricot, peach, etc. and
apple in particular which have a high level of genera-
tion of ethylene gas in the same crisper with the other
vegetables and fruit. The ethylene gas which is emitted
by these fruit may cause the other fruit to ripen faster
and decompose in a shorter time.
24 / 31 EN
Refrigerator / User Manual
Using the product
5.13. Freezing fresh food
• To preserve food quality, the food items placed
in the freezer compartment must be frozen as
quickly as possible, use the rapid freezing for
this.
• Freezing the food items when fresh will extend
the storage time in the freezer compartment.
• Pack the food items in air-tight packs and seal
tightly.
• Make sure the food items are packed before
putting in the freezer. Use freezer holders,
tinfoil and damp-proof paper, plastic bag
or similar packaging materials instead of
traditional packaging paper.
• Mark each food pack by writing the date on the
package before freezing. This will allow you to
determine the freshness of each pack every
time the freezer is opened. Keep the earlier
food items in the front to ensure they are used
first.
• Frozen food items must be used immediately
after defrosting and should not be frozen again.
• Do not froze large quantities of food at once.
Freezer
Compartment
Setting
Cooler
compartment
Setting
Descriptions
-18°C 4°C This is the default, recommended setting.
-20,-22 or
-24°C
4°C
These settings are recommended for ambient temperatures
exceeding 30°C.
Rapid Freeze 4°C
Use this to freeze food items in a short time. The product will reset
to previous settings when the process is completed.
-18°C or colder 2°C
Use these settings if you believe the cooler compartment is not cold
enough due to ambient temperature or frequently opening the door.
5.14. Recommendations for
storing frozen foods
The compartment must be set to at least -18°C.
1. Place the food items in the freezer as quickly
as possible to avoid defrosting.
2. Before freezing, check the “Expiry Date” on
the package to make sure it is not expired.
3. Make sure the food’s packaging is not
damaged.
5.15. Deep freezer details
As per the IEC 62552 standards, the freezer must
have the capacity to freeze 4.5 kg of food items at
-18°C or lower temperatures in 24 hours for each
100 litres of freezer compartment volume.
Food items can only be preserved for extended
periods at or below temperature of -18°C .
You can keep the foods fresh for months (in deep
freezer at or below temperatures of 18°C ).
The food items to be frozen must not contact
the already-frozen food inside to avoid partial
defrosting.
25 / 31 EN
Refrigerator / User Manual
Using the product
Boil the vegetables and filter the water to extend
the frozen storage time. Place the food in air-tight
packages after filtering and place in the freezer.
Bananas, tomatoes, lettuce, celery, boiled eggs,
potatoes and similar food items should not be
frozen. When these foods are frozen, only their
nutritional value and taste shall be affected
negatively. They shall not be spoiled so that they
would create a risk for human health.
5.16. Placing the food
Freezer
compartment
shelves
Various frozen foods including
meat, fish, ice cream,
vegetables etc.
Cooler
compartment
shelves
Food items inside pots, capped
plate and capped cases, eggs
(in capped case)
Cooler
compartment
door shelves
Small and packed food or
beverages
Vegetable bin Fruits and vegetables
Fresh food
compartment
Delicatessen (breakfast food,
meat products to be consumed
in short notice)
5.17. Door open alert
(Optional)
The door open alert system of your refrigerator
may differ depending on the model.
Version 1;
If the door of the product remains open for a
certain time (between 60 s and 120 s), an audio
warning signal sounds; depending on the product
model, a visual warning signal (light flash) can also
be displayed. If you close the door of the device or
press a button on the screen of the device, if any,
the warning sound will stop.
Version 2;
If the door of the device remains open for a certain
period of time (between 60 s and 120 s), the
door open alert is sounded. The door open alert is
sounded gradually. First, an audible warning starts
to sound. After 4 minutes, if the door is still not
closed, a visual warning (lighting flash) is activated.
The door open alert will be delayed for a certain
period of time (between 60 s and 120 s) when any
key on the product screen, if any, is pressed. Then
the process will start again. When the device door
is closed, the door open alert will be cancelled.
5.18. Interior light
Interior light uses a LED type lamp. Contact the
authorized service for any problems with this lamp.
Interior light used in this product is not intended
for home lighting and not suitable for such
purposes. Interior lights in cooler or freezer
compartments are intended to help safe and
convenient food placement into the refrigerator.
The lamp(s) used in this appliance is not suitable
for household room illumination. The intended
purpose of this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer in a safe and
comfortable way.
26 / 31 EN
Refrigerator / User Manual
6 Maintenance and cleaning
Cleaning the product regularly will prolong its
service life.
B
WARNING: Disconnect the power before
cleaning the refrigerator.
• Do not use sharp and abrasive tools, soap,
house cleaning materials, detergents, gas,
gasoline, varnish and similar substances for
cleaning.
• Melt a teaspoonful of carbonate in the water.
Moisten a piece of cloth in the water and wring
out. Wipe the device with this cloth and dry off
thoroughly.
• Take care to keep water away from the lamp’s
cover and other electrical parts.
• Clean the door using a wet cloth. Remove all
items inside to detach the door and chassis
shelves. Lift the door shelves up to detach.
Clean and dry the shelves, then attach back in
place by sliding from above.
• Do not use chloric water or cleaning products
on the exterior surface and chrome-coated
parts of the product. Chlorine will cause rust on
such metallic surfaces.
• Do not use sharp, abrasive tools, soap,
household cleaning agents, detergents,
kerosene, fuel oil, varnish etc. to prevent
removal and deformation of the prints on the
plastic part. Use lukewarm water and a soft
cloth for cleaning and then wipe it dry.
6.1. Preventing malodour
The product is manufactured free of any
odorous materials. However, keeping the food in
inappropriate sections and improper cleaning of
internal surfaces may lead to malodour.
To avoid this, clean the inside with carbonated
water every 15 days.
• Keep the foods in sealed holders.
Microorganisms may spread out of unsealed
food items and cause malodour.
• Do not keep expired and spoilt foods in the
refrigerator.
6.2. Protecting plastic surfaces
Oil spilled on plastic surfaces may damage the
surface and must be cleaned immediately with
warm water.
27 / 31 EN
Refrigerator / User Manual
7 Troubleshooting
Check this list before contacting the service. Doing so will save you time and money. This list includes
frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned
herein may not apply to your product.
The refrigerator is not working.
• The power plug is not fully settled. >>> Plug it in to settle completely into the socket.
• The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the
fuses.
Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).
• The environment is too cold. >>> Do not install the product in environments with temperatures
below -5°C.
• The door is opened too frequently >>> Take care not to open the product’s door too frequently.
• The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in
sealed holders.
• The product’s door is left open. >>> Do not keep the product’s door open for long periods.
• The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.
Compressor is not working.
• In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure
in the product’s cooling system is not balanced, which triggers the compressor thermic safeguard.
The product will restart after approximately 6 minutes. If the product does not restart after this
period, contact the service.
• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is
carried out periodically.
• The product is not plugged in. >>> Make sure the power cord is plugged in.
• The temperature setting is incorrect. >>> Select the appropriate temperature setting.
• The power is out. >>> The product will continue to operate normally once the power is restored.
The refrigerator's operating noise is increasing while in use.
• The product’s operating performance may vary depending on the ambient temperature variations.
This is normal and not a malfunction.
The refrigerator runs too often or for too long.
28 / 31 EN
Refrigerator / User Manual
Troubleshooting
• The new product may be larger than the previous one. Larger products will run for longer periods.
• The room temperature may be high. >>> The product will normally run for long periods in higher
room temperature.
• The product may have been recently plugged in or a new food item is placed inside. >>> The
product will take longer to reach the set temperature when recently plugged in or a new food item
is placed inside. This is normal.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot
food into the product.
• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside
will cause the product to run longer. Do not open the doors too frequently.
• The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to temperature too low. >>> Set the temperature to a higher degree and
wait for the product to reach the adjusted temperature.
• The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>>
Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer
periods to preserve the current temperature.
The freezer temperature is very low, but the cooler temperature is adequate.
• The freezer compartment temperature is set to a very low degree. >>> Set the freezer
compartment temperature to a higher degree and check again.
The cooler temperature is very low, but the freezer temperature is adequate.
• The cooler compartment temperature is set to a very low degree. >>> Set the freezer
compartment temperature to a higher degree and check again.
The food items kept in cooler compartment drawers are frozen.
• The cooler compartment temperature is set to a very low degree. >>> Set the freezer
compartment temperature to a higher degree and check again.
The temperature in the cooler or the freezer is too high.
• The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the
cooler compartment has an effect on the temperature in the freezer compartment. Wait until the
temperature of relevant parts reach the sufficient level by changing the temperature of cooler or
freezer compartments.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too
frequently.
• The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in or a new food item is placed inside. >>> This is
normal. The product will take longer to reach the set temperature when recently plugged in or a
new food item is placed inside.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot
food into the product.
Shaking or noise.
29 / 31 EN
Refrigerator / User Manual
Troubleshooting
• The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust
the stands to balance the product. Also make sure the ground is sufficiently durable to bear the
product.
• Any items placed on the product may cause noise. >>> Remove any items placed on the product.
The product is making noise of liquid flowing, spraying etc.
• The product’s operating principles involve liquid and gas flows. >>> This is normal and not a
malfunction.
There is sound of wind blowing coming from the product.
• The product uses a fan for the cooling process. This is normal and not a malfunction.
There is condensation on the product's internal walls.
• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too
frequently; if open, close the door.
• The door may be ajar. >>> Fully close the door.
There is condensation on the product's exterior or between the doors.
• The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation
will dissipate when the humidity is reduced.
The interior smells bad.
• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and
carbonated water.
• Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials
without free of odour.
• The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms
may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the
product.
The door is not closing.
• Food packages may be blocking the door. >>> Relocate any items blocking the doors.
• The product is not standing in full upright position on the ground. >>> Adjust the stands to balance
the product.
• The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to
bear the product.
The vegetable bin is jammed.
• The food items may be in contact with the upper section of the drawer. >>> Reorganize the food
items in the drawer.
A
WARNING: If the problem persists after following the instructions in this section, contact
your vendor or an Authorised Service. Do not try to repair the product.
TECHNICAL DATA
The technical information is situated in the rating plate on the internal side of the appliance and on
the energy label.
The QR code on the energy label supplied with the appliance provides a web link to the information
related to the performance of the appliance in the EU EPREL database. Keep the energy label for
reference together with the user manual and all other documents provided with this appliance.
It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu
and, the model name and product number that you find on the rating plate of the appliance.
INFORMATION FOR TEST INSTITUTES
Installation and preparation of the appliance for any EcoDesign verification shall be compliant with
EN 62552. Ventilation requirements, recess dimensions and minimum rear clearances shall be
as stated in this User Manual at Chapter 3. Please contact the manufacturer for any other further
information, including loading plans.
This product is equipped with a lighting source of the "G" energy class.
The lighting source in this product shall only be replaced by professional repairers.
