ASSEMBLY GUIDE
3-in-1 60 in. TV Stand
NS-STV3N1705
www.insigniaproducts.com
2
Contents
IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Stand Hardware . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
TV Mounting Kit Hardware . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tools needed (not provided) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Assembling your TV stand. . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Mounting your TV using the swivel configuration . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Mounting your TV using the wall-mount configuration. . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Mounting your TV using the tabletop configuration. . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Maintaining your TV stand . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Specifications. . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
ONE-YEAR LIMITED WARRANTY . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
www.insigniaproducts.com
3
3-in-1 60 in. TV Stand
IMPORTANT SAFEGUARDS
WARNING
CAUTION
The top surface of this TV stand is designed for use with a product weighing no more than 100 lbs. (45.36 kg) and having
a width that permits it to sit evenly on the TV stand with no more than a one-inch overhang on each side of the shelf. Use
with products that weigh more than the maximum weight allowed, or with dimensions that extend beyond the
maximum width may result in instability, which may result in injury.
CAUTION
This product contains small items that could be a choking hazard if swallowed. Keep these items away from young
children!
WARNING
Please use your TV stand correctly and safely. Improper use can cause safety hazards or damage to your furniture or
household items. Carefully read the following chart.
SAVE THESE INSTRUCTIONS
LOOK OUT FOR: WHAT CAN HAPPEN: HOW TO AVOID THE PROBLEM:
• Children climbing on the
TV stand.
• A child may try to reach a
toy
or other object by
climbing on the TV stand.
• Children will play and be
acti
ve near the TV.
• Risk of injury or death.
• A c
hild climbing on the
TV s
tand can make it
top-heavy and cause it to
tip over.
• A child playing with a TV
can
cause it to tip over.
• Never allow children to climb on or play with
the
TV stand.
• Do not place toys or food on the top shelves.
Chil
dren may try to climb to reach them out of
curiosity.
• Improper use of the TV
stan
d to support TVs.
• A stand designed for use
with
TVs will specify the
maximum weight rating
and recommended size of
the TVs it will safely
support.
• Risk of injury or death.
• TVs
can be very heavy.
Note: older CRT TVs tend to be
unbalanced and prone to
tipping forward.
• A TV must only be set on furniture specifically
designed to support a television.
• Never use a TV that exceeds the weight ratings
or s
ize guidelines specified for the TV stand.
• Improperly moving the
TV s
tand.
• The TV stand can tip over
or break if improperly
moved.
• Risk of injury.
• Unl
oad shelves from the top to the bottom
befo
re moving the TV stand.
• Do not push the TV stand, especially on a
carp
eted floor. Have a friend help you lift the
item and set it in place.
• Do not lift the TV stand using the top shelf. Lift
from
the frame.
• Remove the TV before moving the TV stand.
• The
TV/stand assembly
tipp
ing forward.
• Risk of injury.
• Top-heavy furniture can
tip
over.
• The TV and stand could
be d
amaged.
• Use the tipping restraint hardware provided
and
install it properly.
Some steps are more easily
handled with two adults.
www.insigniaproducts.com
4
Features
• 60 in. (152.4 cm) tabletop holds most TVs up to 70 in. (177.8 cm) and 100 lbs. (45.36 kg)
• Two additional 54 in. (137.16 cm) shelves house your DVD player, gaming consoles, cable box and more
• 3-in-1 design lets you choose how to display your TV – on the tabletop, mounted with the stand or on the wall
• Cable management wheels make it easy to route and hide cords

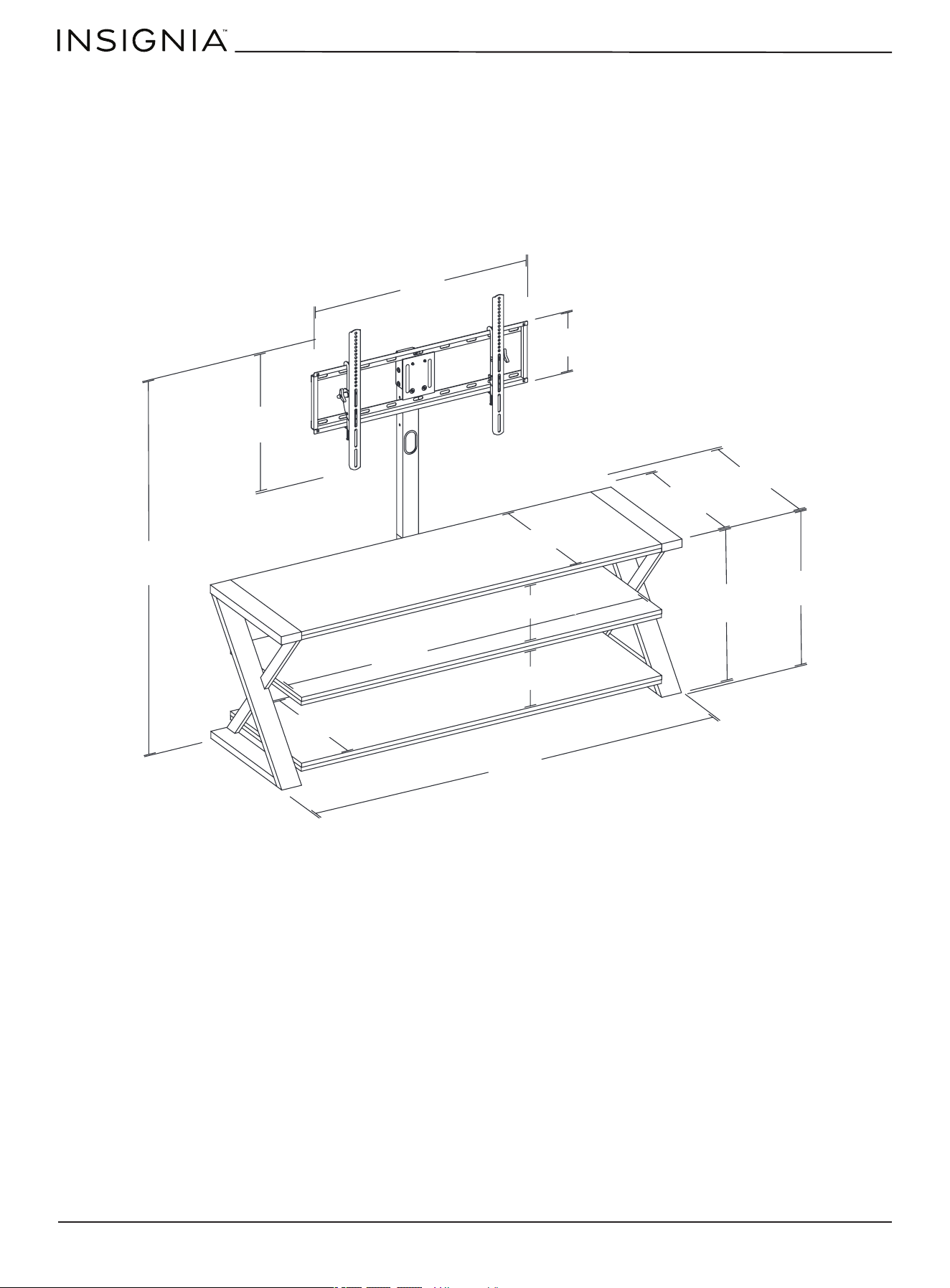

Dimensions
53.94 in.
(137 cm)
60 in.
(152.4 cm)
(top size)
55.75 in. (141.6 cm)
Including floor leveler
32 in.
(81.3 cm)
8.22 in. (20.9 cm)
18.43 in. (46.8 cm)
21 in. (53.4 cm)
20 in. (50.8 cm)
8.22 in. (20.9 cm)
8.75 in. (22.2 cm)
20 in. (50.8 cm)
18.43 in. (46.8 cm)
22 in. (55.9 cm)
22.25 in. (56.5 cm)
Including floor
leveler
www.insigniaproducts.com
5
3-in-1 60 in. TV Stand

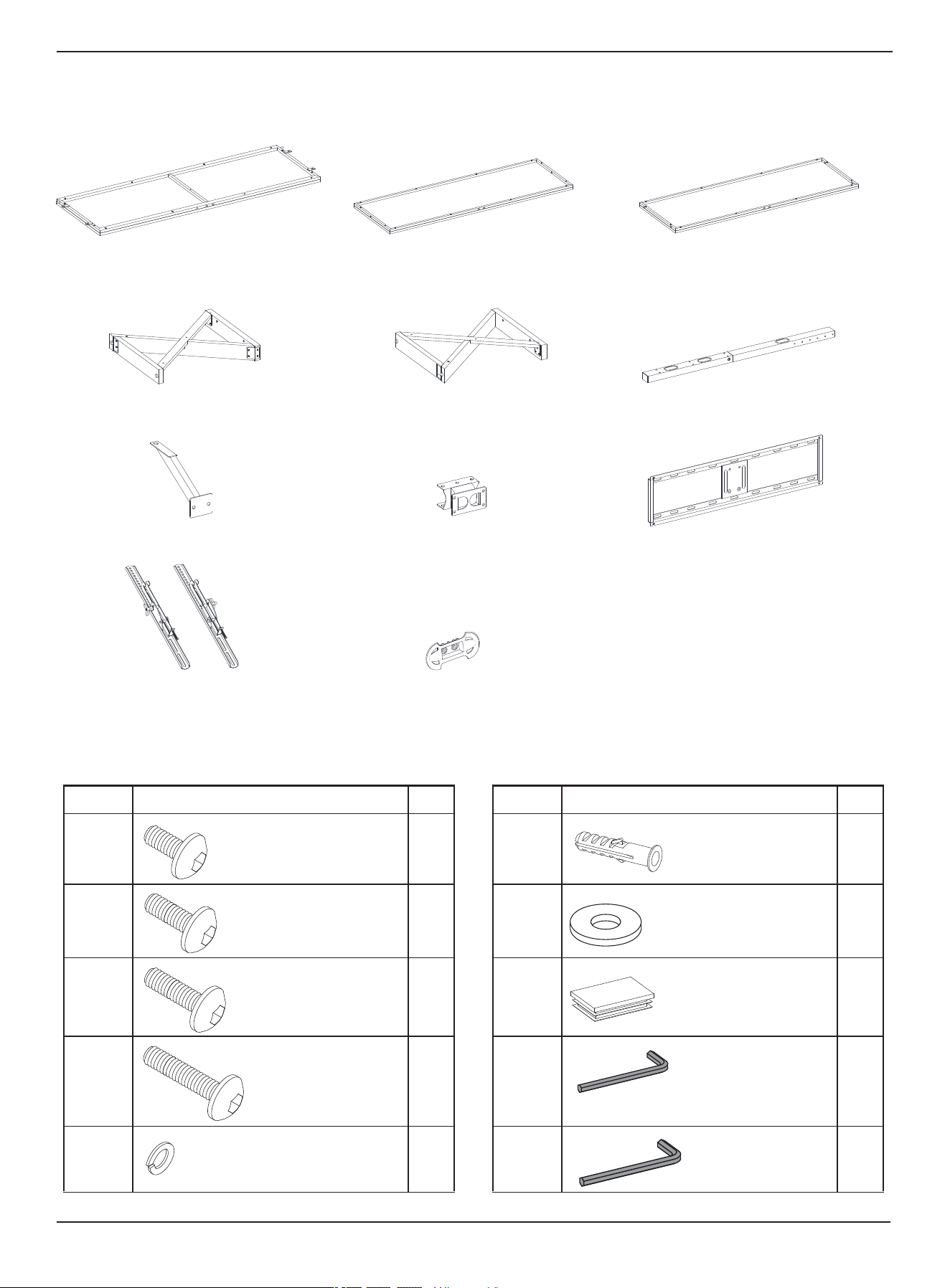

Package contents
Parts
Stand Hardware

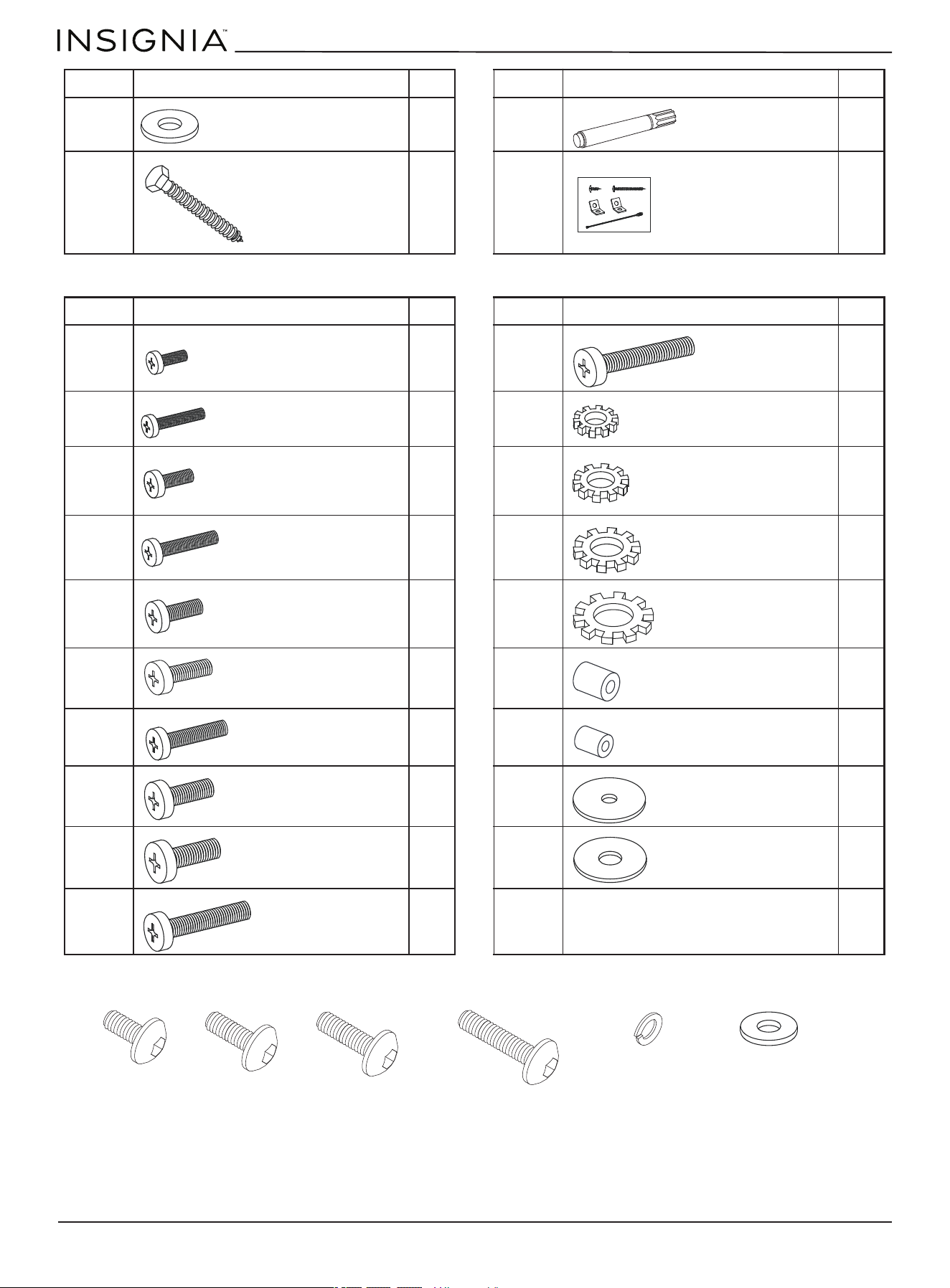

LABEL TV STAND PART QTY. LABEL TV STAND PART QTY.
L 4 T 4
M 13 U 4
N 14 V 1
P 2 W 2
Q 17 X 1
A Top shelf (1) B Middle shelf (1) C Bottom shelf (1)
D Left leg (1) E Right leg (1) F Spine assembly (1)
G Top shelf support (1) I Mounting frame(1)
J TV brackets (2)
H Swiveling bracket(1)
K Cable management wheels (2)
JR JL
1/2” Bolt
Concrete anchor
5/8” Bolt
Large flat washer
1” Bolt
Spine end cap
1 1/2” Bolt
4 mm hex wrench
Lock washer
3/16” hex wrench
www.insigniaproducts.com
6

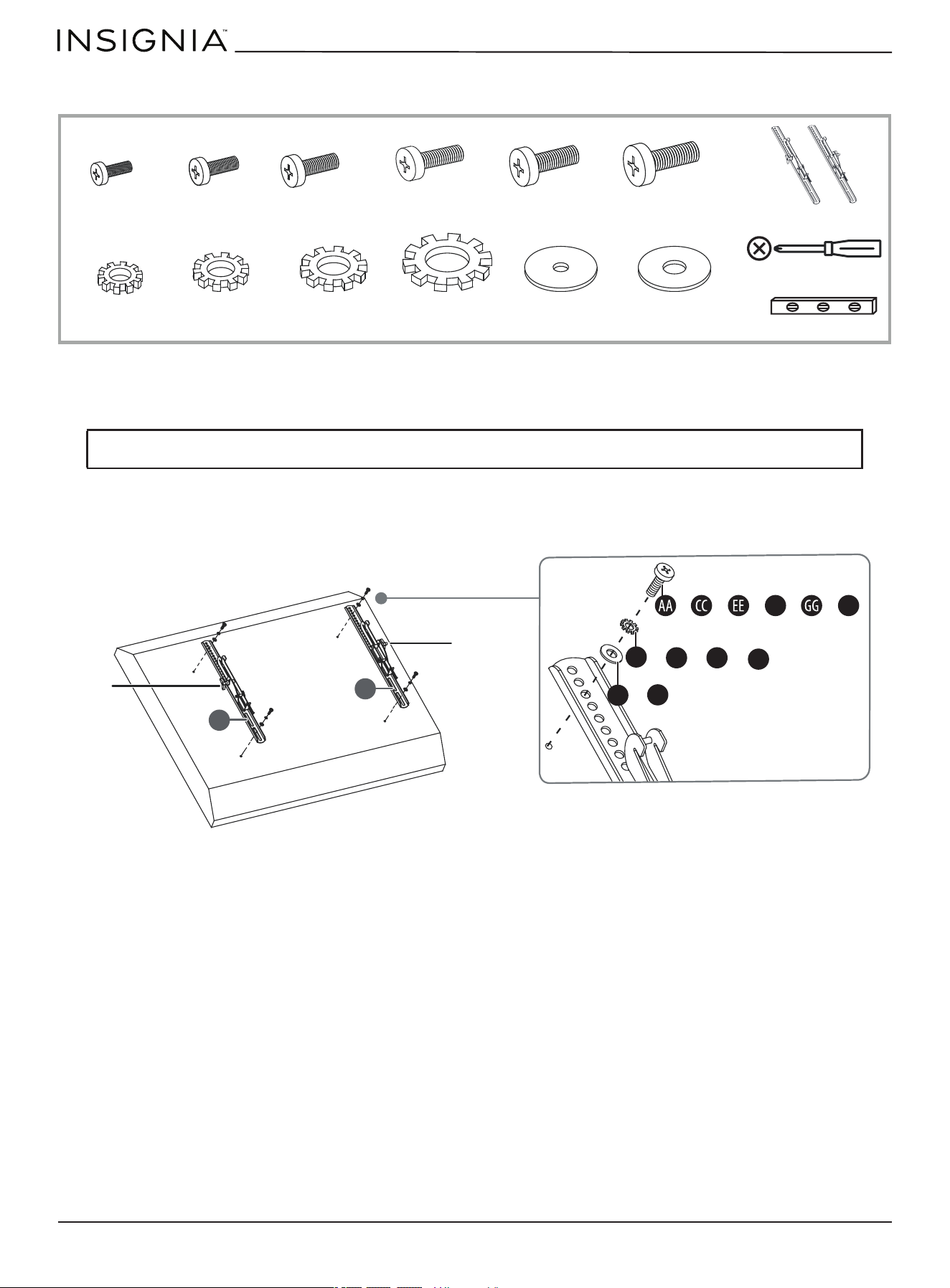

TV Mounting Kit Hardware
Extra hardware
R 17 Y 1
S 4 Z 1
LABEL TV MOUNT PART QTY. LABEL TV MOUNT PART QTY.
AA 4 JJ 4
BB 4 KK 4
CC 4 LL 4
DD 4 MM 4
EE 4 NN 4
SS 4 OO 4
FF 4 PP 4
GG 4 QQ 4
HH 4 RR 4
II 4
LABEL TV STAND PART QTY. LABEL TV STAND PART QTY.
Small flat washer
Touch up pen
2 1/2” Lag bolt
Tipping restraint hardware kit
M4 x 12 mm bolt
M8 x 50 mm bolt
M4 x 30 mm bolt
M4 lock washer
M5 x 12 mm bolt
M5 lock washer
M5 x 30 mm bolt
M6 lock washer
M6 x 12 mm bolt
M8 lock washer
M6 x 16 mm bolt
Large spacer
M6 x 35 mm bolt
Small spacer
M8 x 16 mm bolt
M4/M5 flat washer
M8 x 20 mm bolt
M6/M8 flat washer
M8 x 40 mm bolt
1/2” Bolt
5/8” Bolt
1” Bolt
1 1/2” Bolt
Lock washer
Small flat washer
www.insigniaproducts.com
7
3-in-1 60 in. TV Stand
Tools needed (not provided)
Note: DO NOT USE power tools unless they are explicitly identified in this manual as required for use during assembly.
Power tools can damage the fasteners, hardware, and/or components.
Phillips screwdriver
Hammer
1/8” drill bit (for tipping restraint)
3/16” wood drill bit
or
7/16” masonry drill bit
Power drill
Socket wrench with
a 1/2” socket
Edge-to-edge
stud finder
Pencil
Level
www.insigniaproducts.com
8
Assembling your TV stand

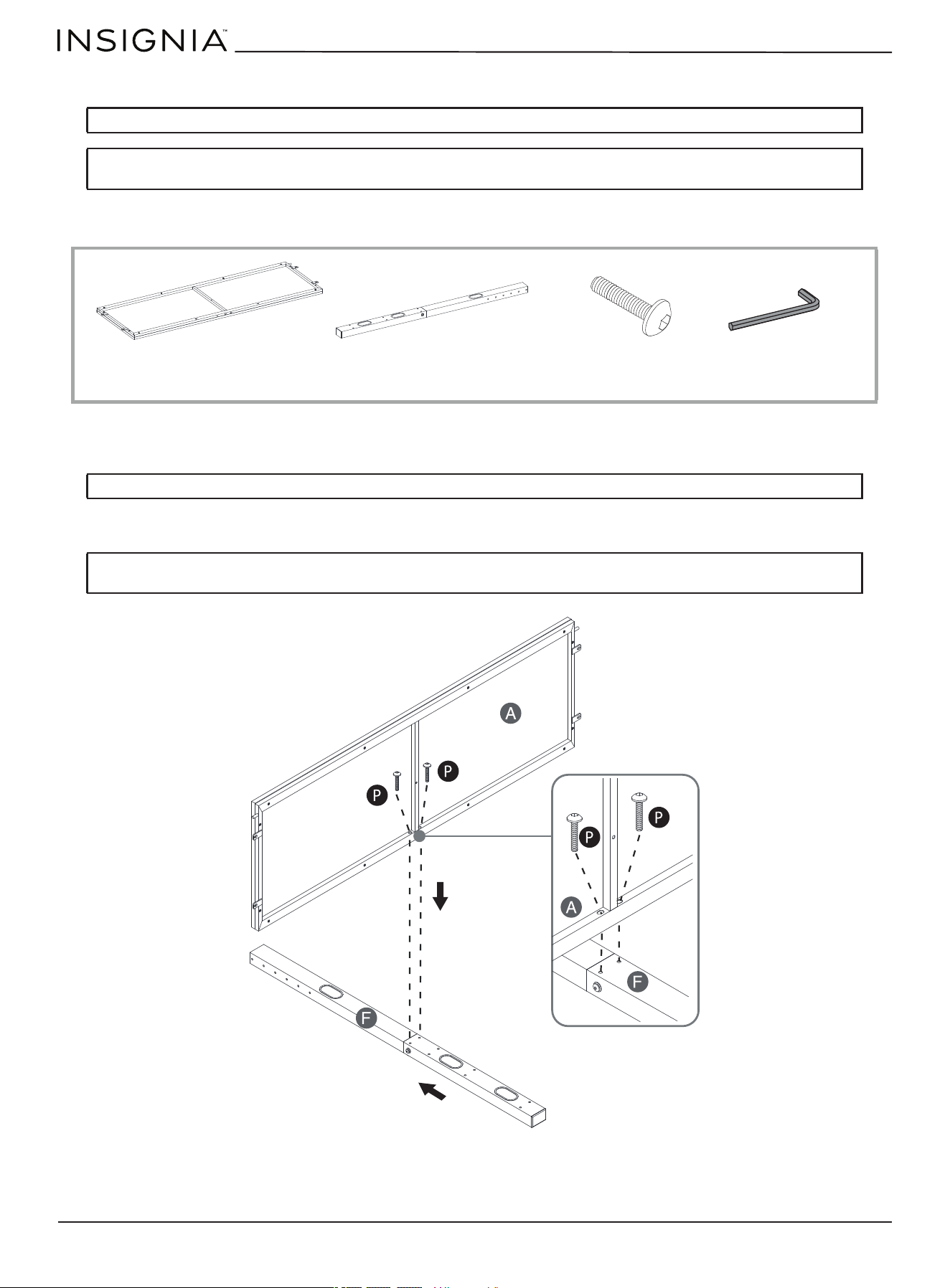

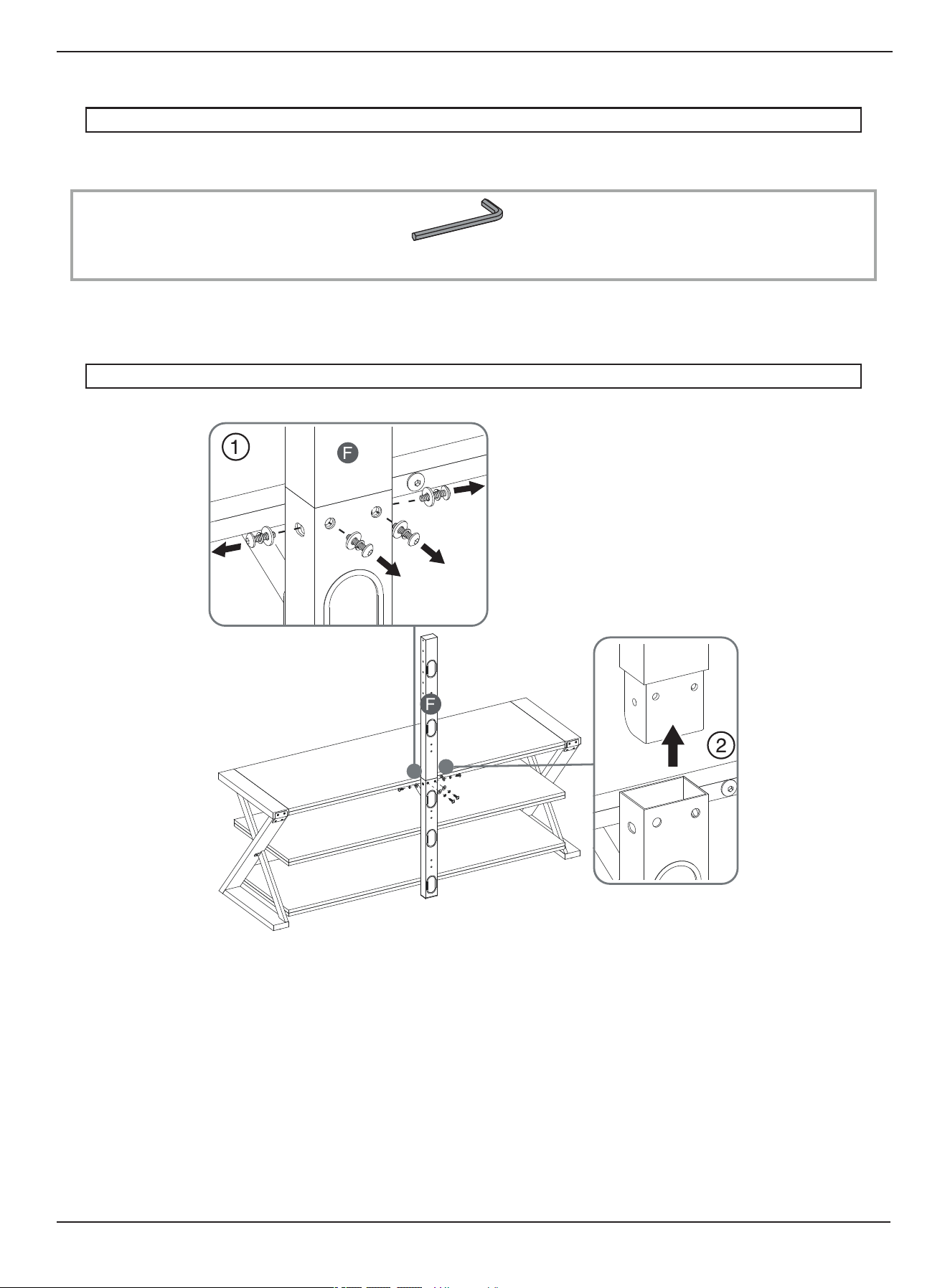

STEP 1: Attaching the top shelf to the spine assembly
You need:
1 Align the top shelf (A) to the spine assembly (F) at a 90° angle. Make sure that the drilled holes on the shelf align with
the threaded holes on the spine.
2 Insert two 1 1/2” bolts (P) through the drilled holes on the shelf frame (A), then screw them into the holes on the spine
assembly with the 4 mm hex wrench (W).
Tip: Assemble your TV stand on a carpeted floor or the empty TV stand carton to avoid scratching it.
Note: Do not fully tighten all bolts until you finish assembling all of the parts. After assembly, go back and fully
tight
en all bolts. This will make the assembly easier.
Note: The metal frame will face the floor when you turn your stand upright.
Note: Do not fully tighten all bolts until you finish assembling all of the parts. After assembly, go back and fully
tight
en all bolts. This will make the assembly easier.
A Top shelf (1)
F Spine assembly (1)
P 1 1/2” bolt (2) W 4 mm hex wrench (1)
F
www.insigniaproducts.com
9
3-in-1 60 in. TV Stand

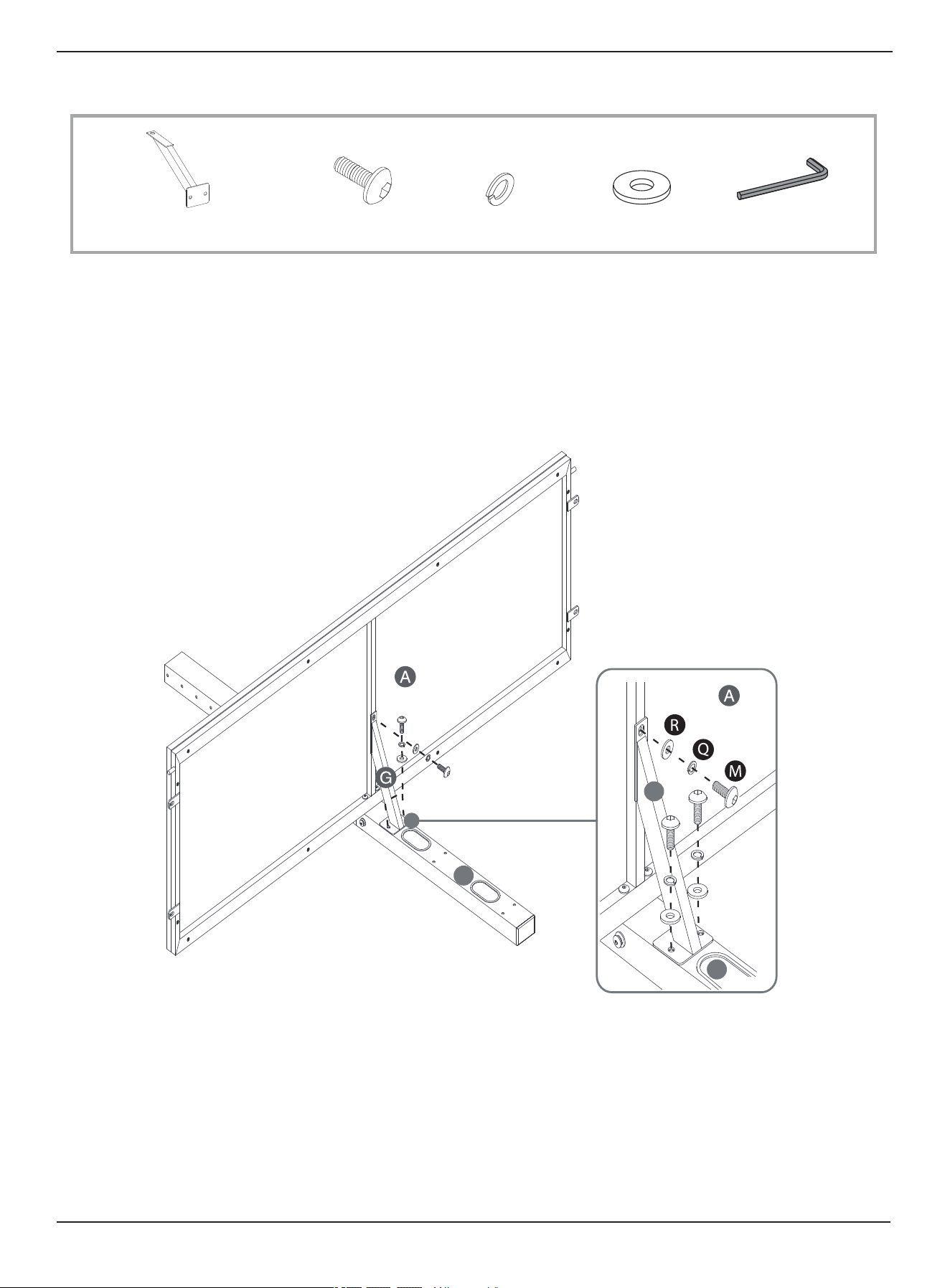

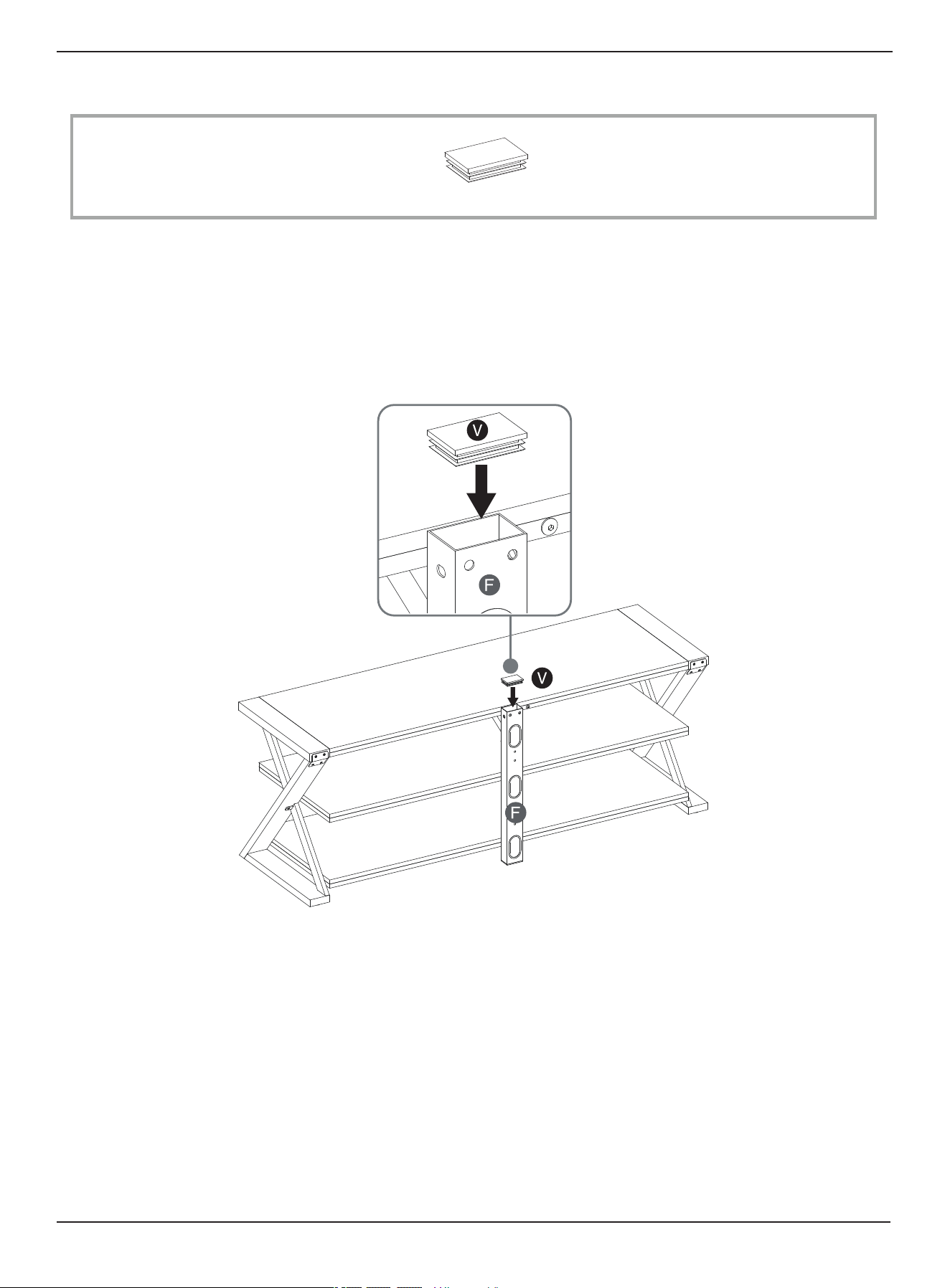

STEP 2: Attaching the top shelf support to the spine assembly and top shelf frame
You need:
1 Align the top shelf support (G) with the center of the top shelf frame (A) and the spine assembly (F).
2 Place a small flat washer (R) and a lock washer (Q) over the hole in the top of the shelf support and in the two holes on
the bottom of the shelf support.
3 Insert a 5/8” bolt (M) through each set of washers, then tighten the bolts with the 4 mm hex wrench (W).
G Top shelf support (1)
M 5/8” bolt (3)
W 4 mm hex wrench (1)
Q Lock washer (3)
R Small flat washer (3)
G
F
F
www.insigniaproducts.com
10

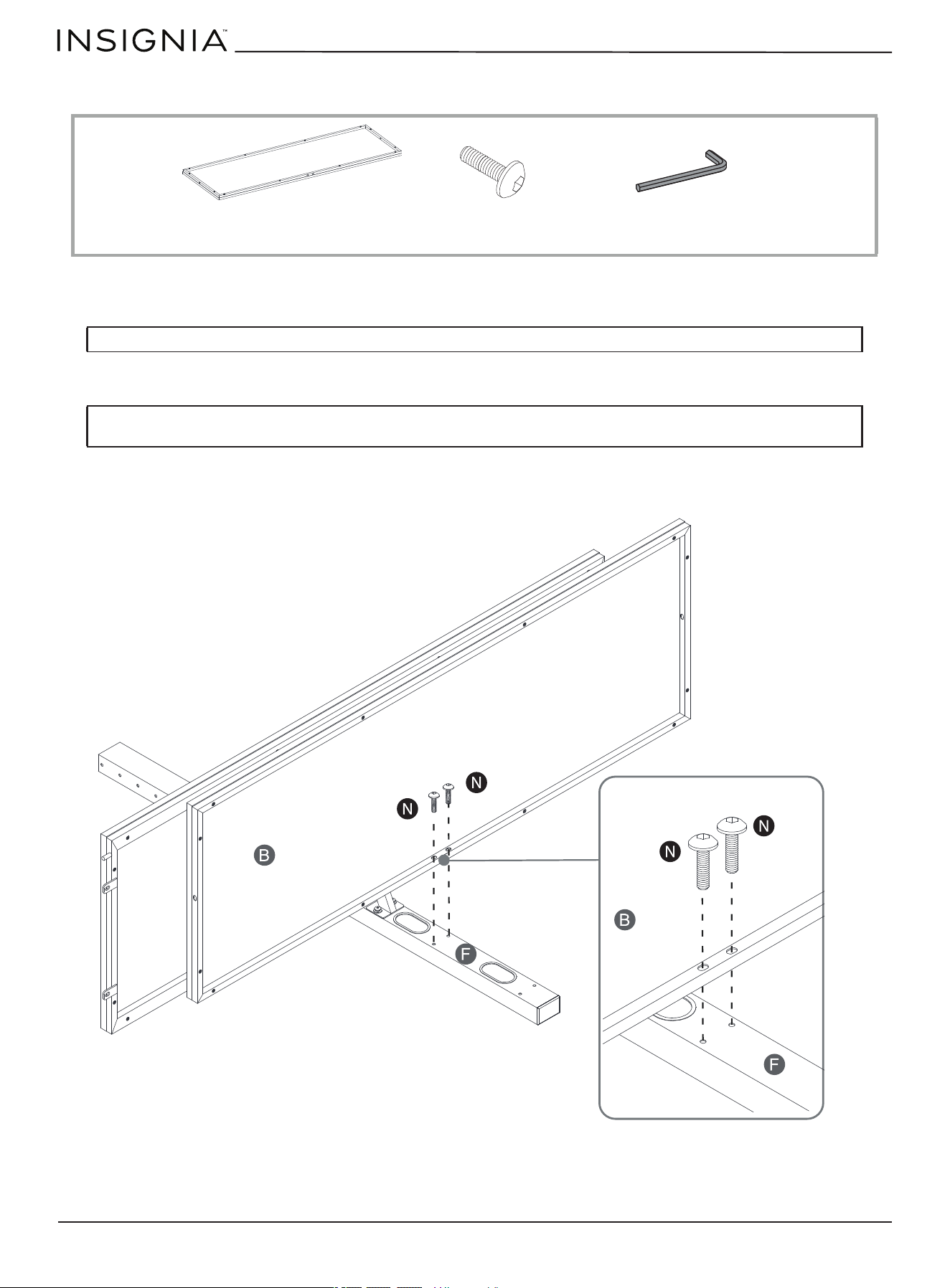

STEP 3: Attaching the middle shelf to the spine assembly
You need:
1 Align the middle shelf (B) to the spine assembly (F) at a 90° angle. Make sure that the drilled holes on the shelf align
with the threaded holes on the spine.
2 Insert 1" bolts (N) through the drilled holes on the middle shelf (B), then screw them into the holes on the spine
assembly with the 4 mm hex wrench (W).
Note: The metal frame will face the floor when you turn your stand upright.
Note: Do not fully tighten all bolts until you finish assembling all of the parts. After assembly, go back and fully
tight
en all bolts. This will make the assembly easier.
N 1” bolt (2)B Middle shelf (1) W 4 mm hex wrench (1)
www.insigniaproducts.com
11
3-in-1 60 in. TV Stand

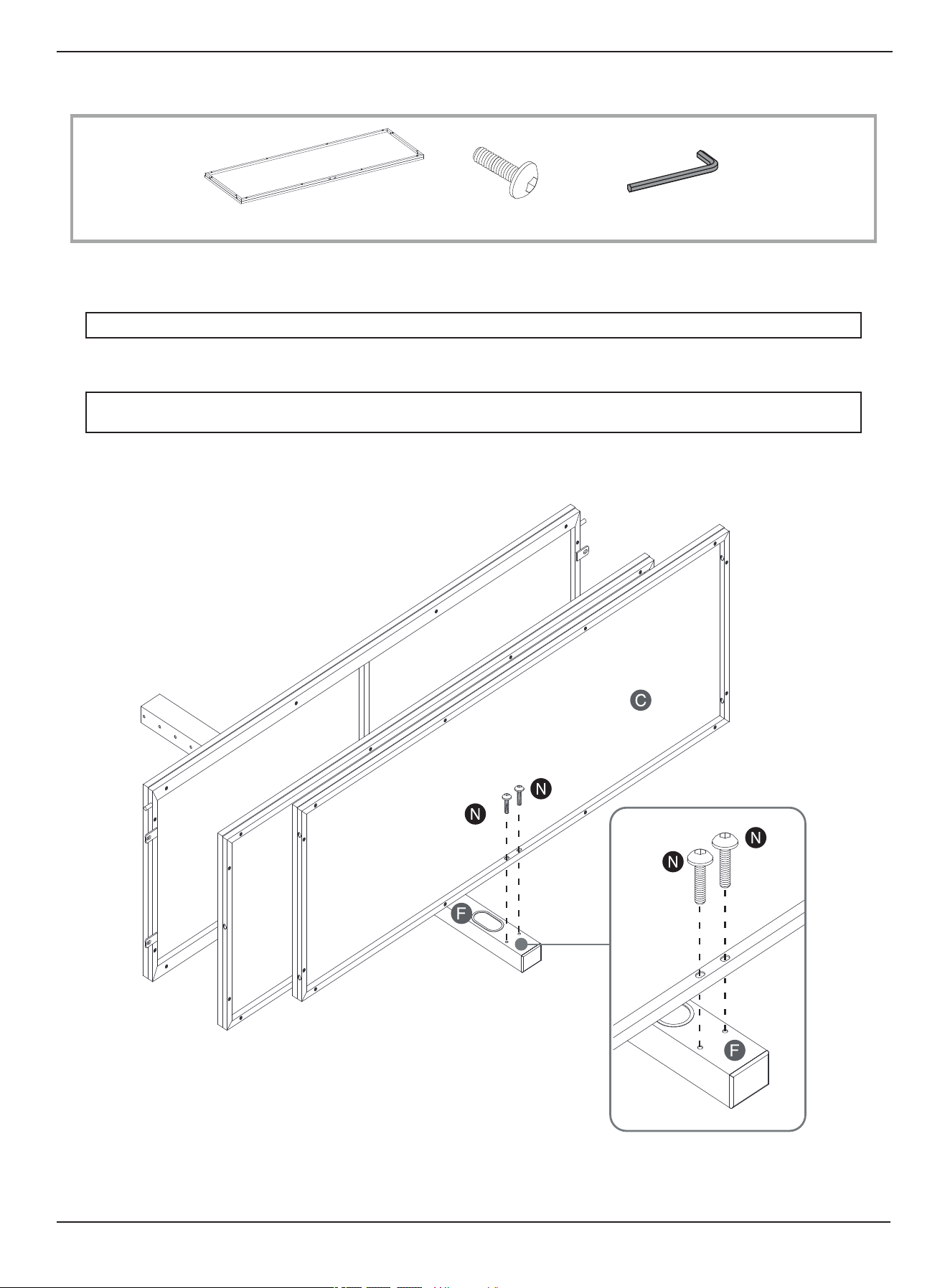

STEP 4: Attaching the bottom shelf to the spine assembly
You need:
1 Align the bottom shelf (C) to the spine assembly (F) at a 90° angle. Make sure that the drilled holes on the shelf align
with the threaded holes on the spine.
2 Insert 1" bolts (N) through the drilled holes on the bottom shelf (C), then screw them into the holes on the spine
assembly with the 4 mm hex wrench (W).
Note: The metal frame will face the floor when you turn your stand upright.
Note: Do not fully tighten all bolts until you finish assembling all of the parts. After assembly, go back and fully
tight
en all bolts. This will make the assembly easier.
N 1” bolt (2)C Bottom shelf (1) W 4 mm hex wrench (1)
www.insigniaproducts.com
12

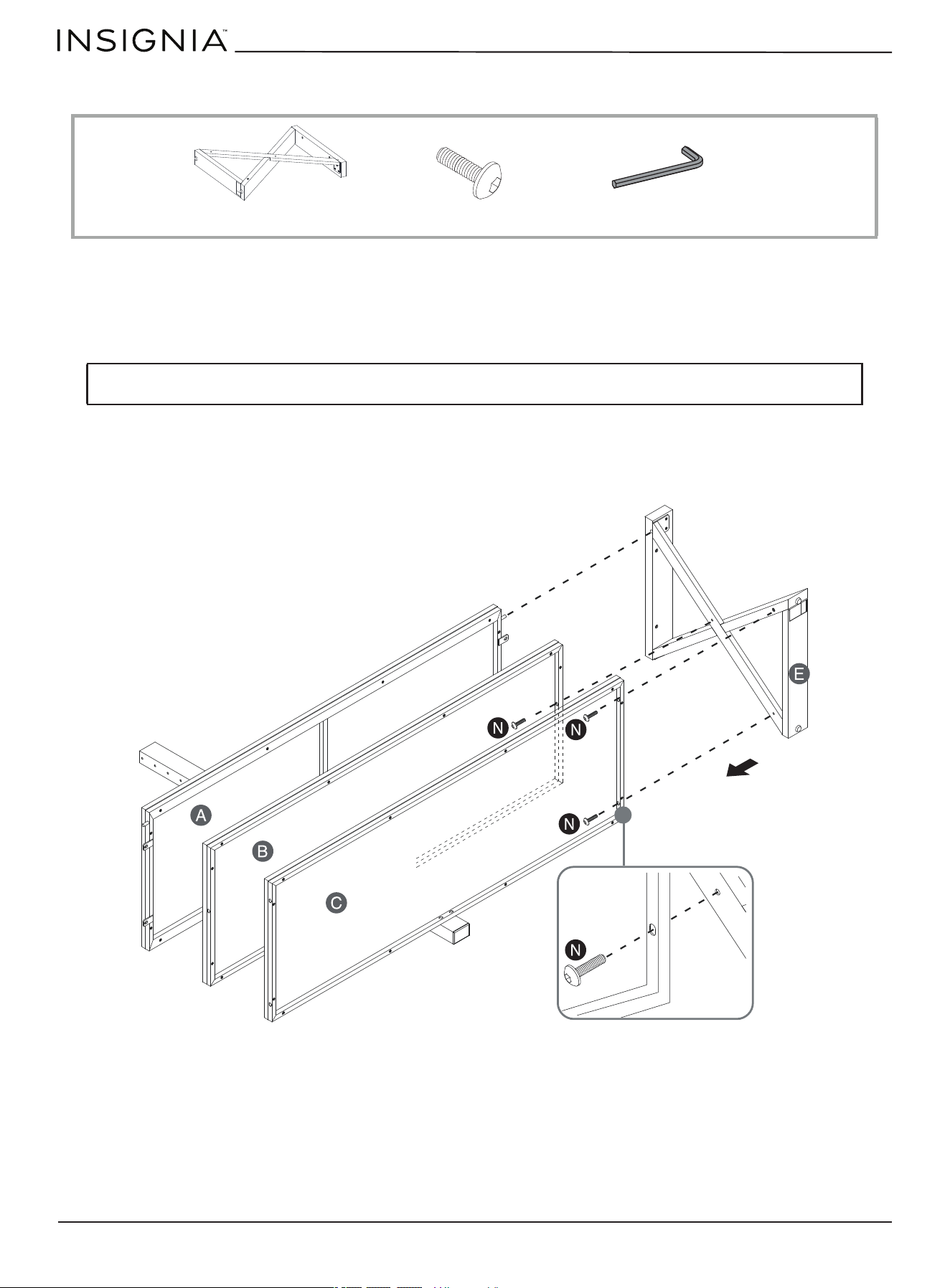

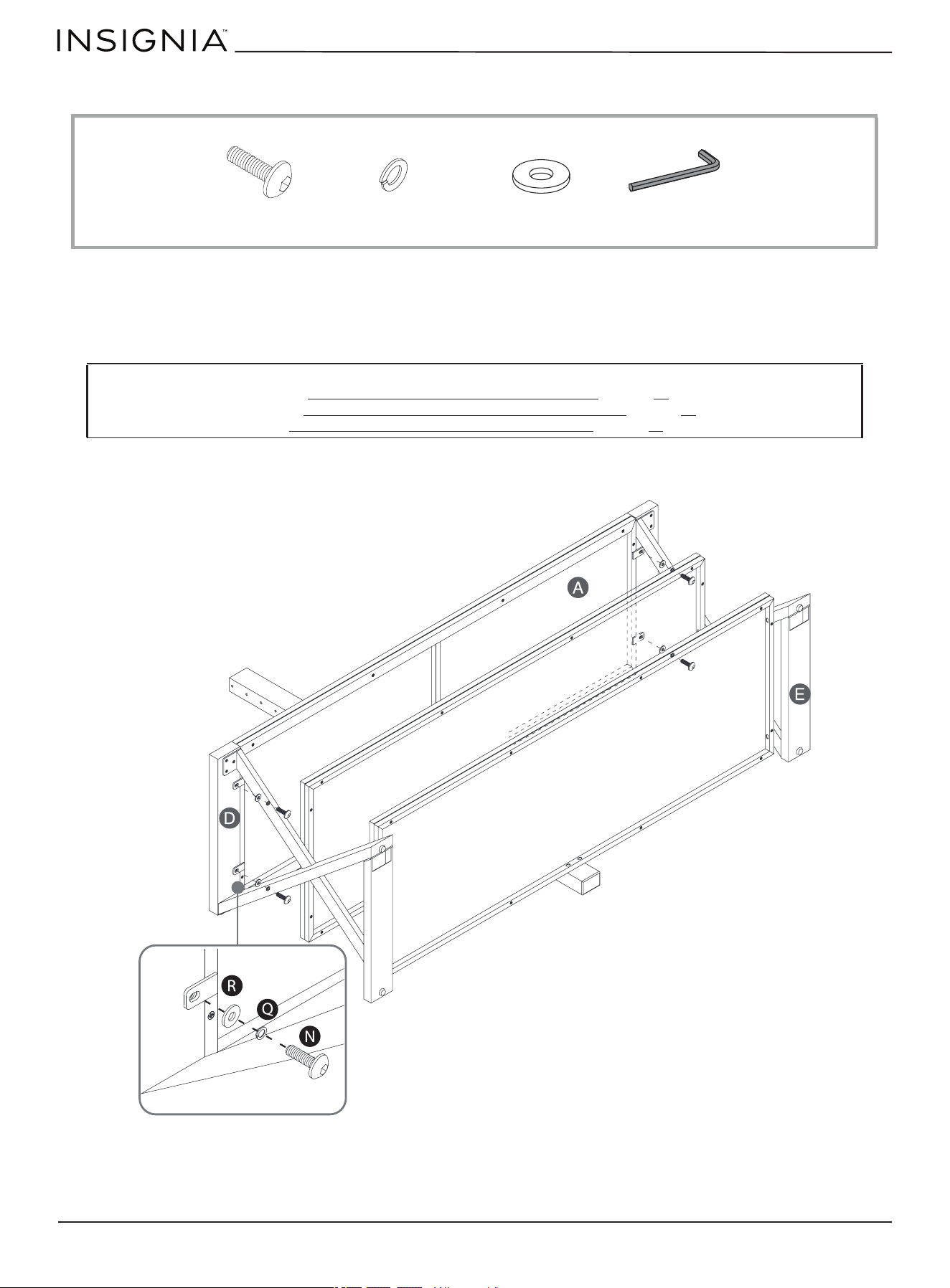

STEP 5: Attaching the right leg to the shelves
You need:
1 Align and attach the right leg (E) to the shelf frames (A, B, and C). Make sure that the mounting holes on the shelf frame
overlap the threaded sockets in the right leg (E), and that the metal pin on the top shelf frame (A) fits into the hole in
the right leg (E).
2 Insert 1" bolts (N) through the drilled holes on the middle and bottom shelves (B and C), then screw them into the
holes on the right leg (E) with the 4 mm hex wrench (W).
Note: Do not fully tighten all bolts until you finish assembling all of the parts. After assembly, go back and fully
tight
en all bolts. This will make the assembly easier.
E Right leg (1) N 1” bolt (3) W 4 mm hex wrench (1)
www.insigniaproducts.com
13
3-in-1 60 in. TV Stand

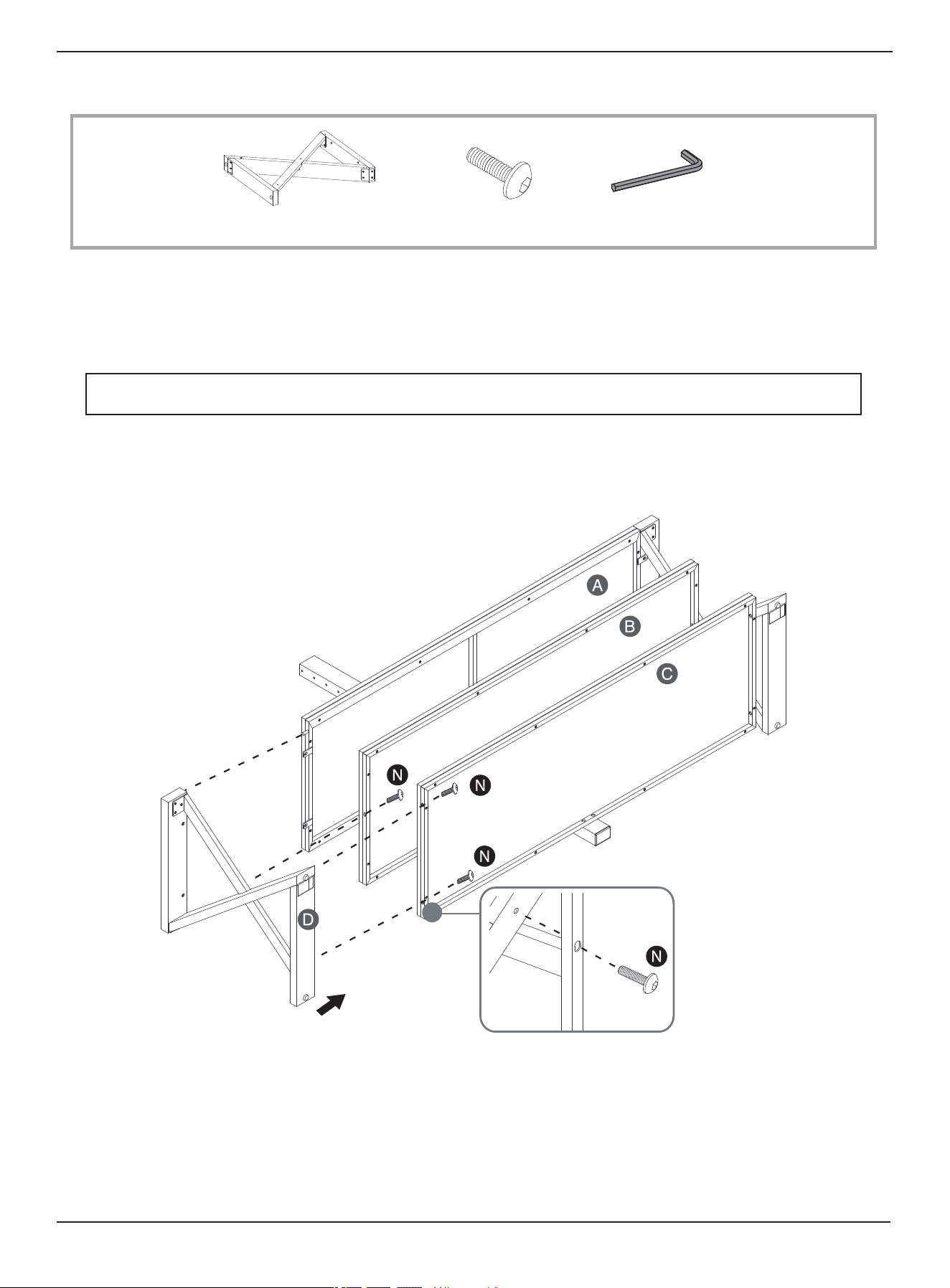

STEP 6: Attaching the left leg to the shelves
You need:
1 Align and attach the left leg (D) to the shelf frames (A, B, and C). Make sure that the mounting holes on the shelf frame
overlap the threaded sockets in the left leg (D), and that the metal pin on the top shelf frame (A) fits into the hole in the
left leg (D).
2 Insert 1" bolts (N) through the drilled holes on the middle and bottom shelves (B and C), then screw them into the
holes on the left leg (D) with the 4 mm hex wrench (W).
Note: Do not fully tighten all bolts until you finish assembling all of the parts. After assembly, go back and fully
tight
en all bolts. This will make the assembly easier.
D Left leg (1) N 1” bolt (3) W 4 mm hex wrench (1)
A
www.insigniaproducts.com
14
STEP 7: Attaching the top shelf frame to both legs
You need:
1 Place small flat washers (R) and lock washers (Q) over each of the metal brackets of the top shelf (A) at both ends.
2 Insert 1" bolts (N) through the washers and the metal brackets and into the four threaded inserts on the top rails of the
left and right legs (D and E).
3 Tighten all bolts with the 4 mm hex wrench (W) and stand the assembled unit upright.
Notes:
• For swivel stand assembly, go to Mounting your TV using the swivel configuration on page 15.
• For wall-mount assembly, go to Mounting your TV using the wall-mount configuration on page 25.
• For table top assembly, go to Mounting your TV using the tabletop configuration on page 32.
N 1” bolt (4) W 4 mm hex wrench (1)Q Lock washer (4) R Small flat washer (4)
www.insigniaproducts.com
15
3-in-1 60 in. TV Stand

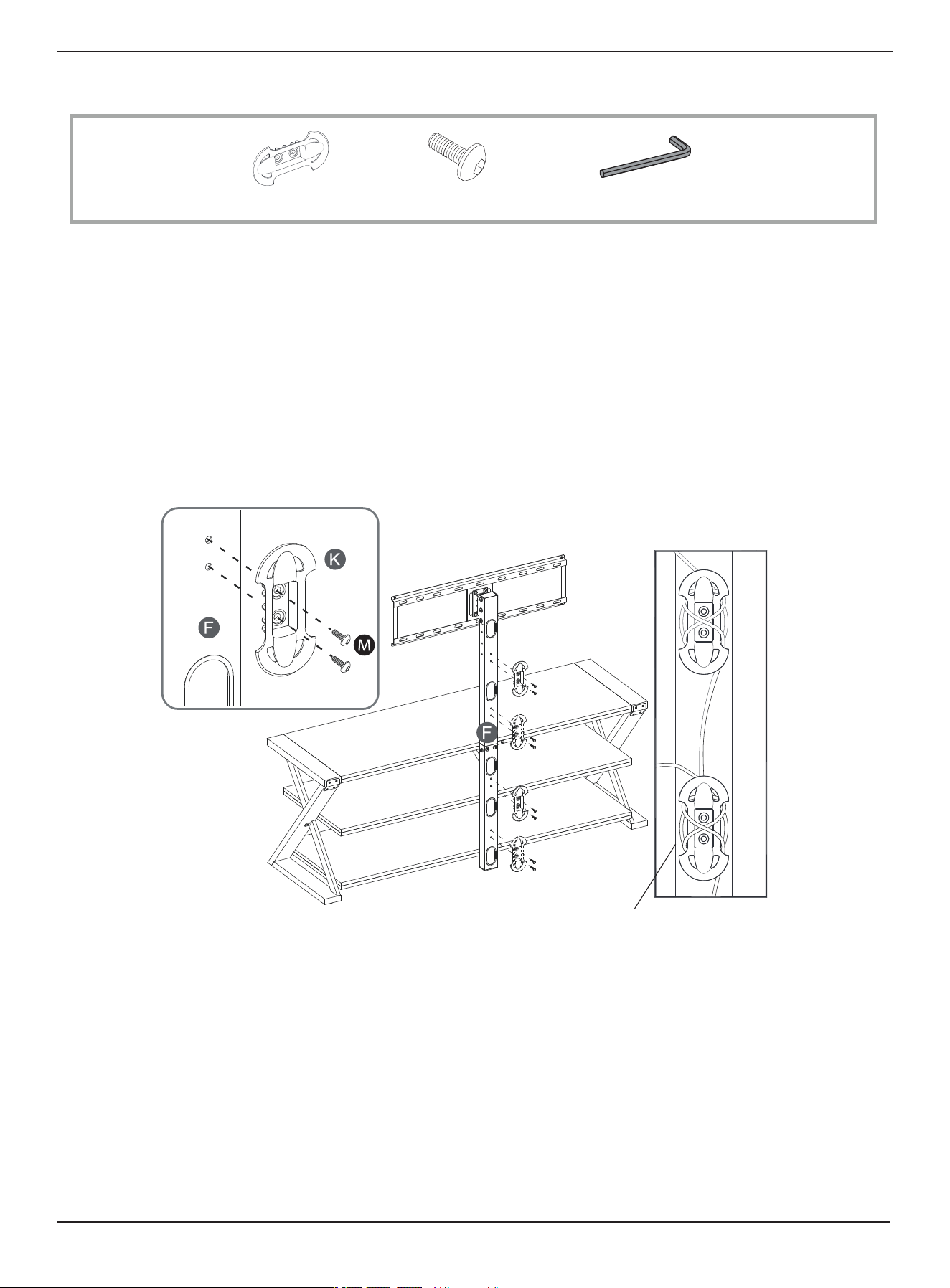

Mounting your TV using the swivel configuration

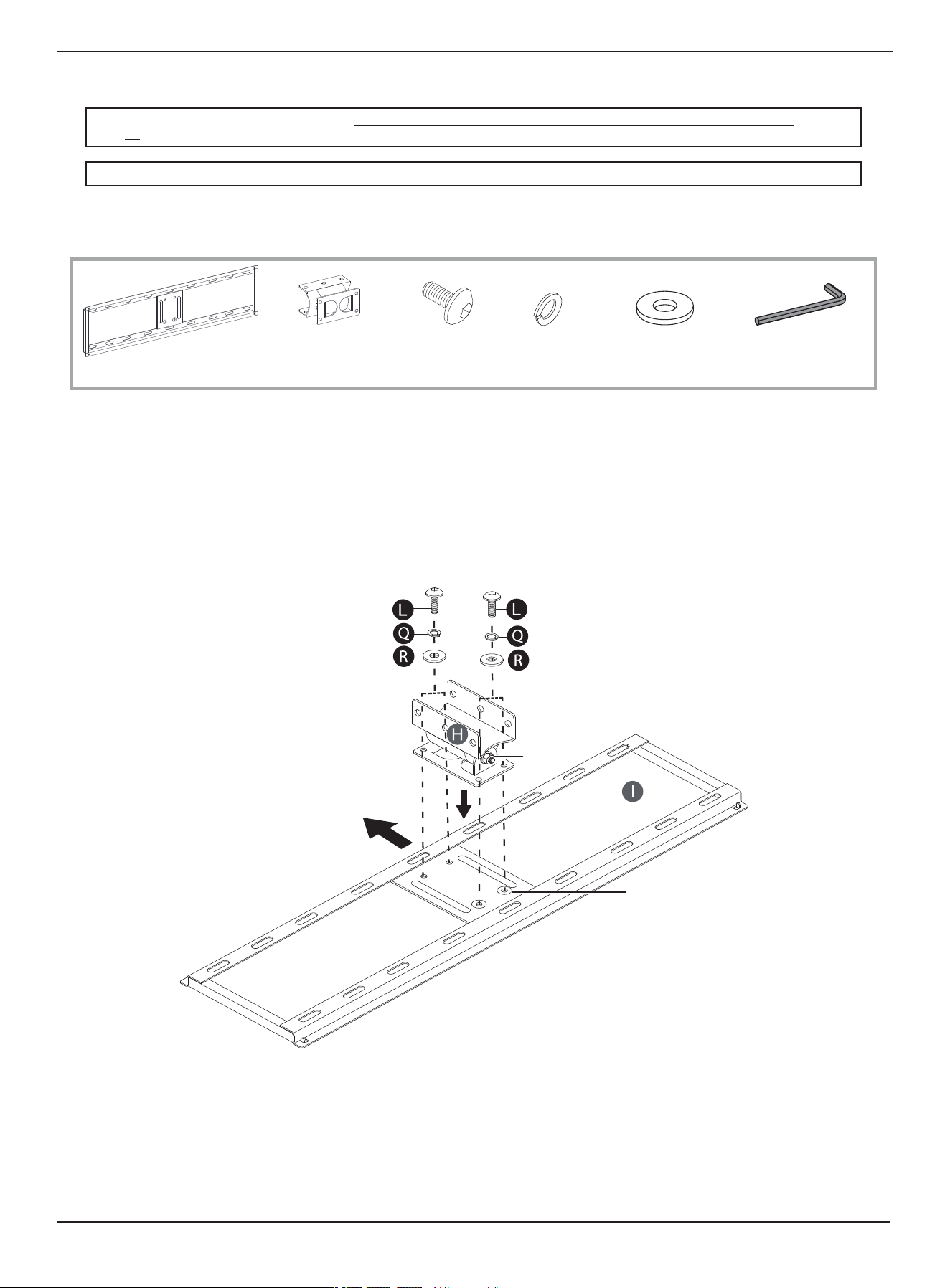

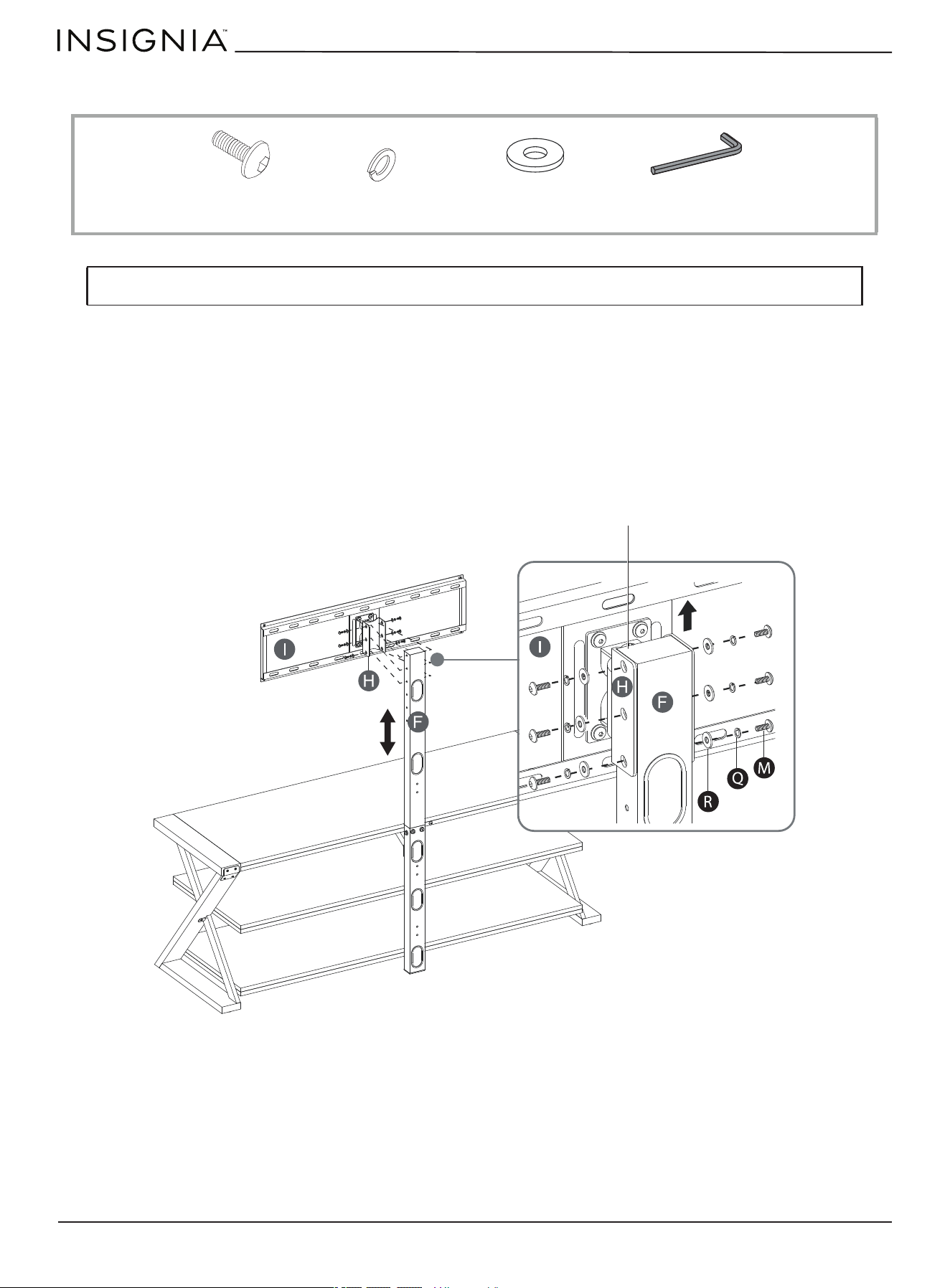

STEP 1: Attaching the swivel bracket to the mounting frame
You need:
1 Align the four mounting holes in the swivel bracket (H) with the holes on the back side of the mounting frame (I). Make
sure that the pre-mounted hex nut on the swivel bracket and the two raised holes on the mounting frame point in the
same direction.
2 Place small flat washers (R) and lock washers (Q) over each of the mounting holes on the back of the swivel bracket (H).
3 Insert a 1/2” bolt (L) through the washers and into each of the threaded holes on the mounting frame (I).
4 Tighten the bolts with the 4 mm hex wrench (W).
Note: If you are wall mounting the TV, go to STEP 4: Selecting the correct bolts, washers, and spacers to mount your TV on
page
18.
CAUTION: This unit will only support a TV with a maximum weight of 100 lbs. (45.36 kg).
H Swivel bracket (1)
I Mounting frame (1)
L 1/2” bolt (4)
Q Lock washer (4)
R Small flat washer (4)
W 4 mm hex wrench (1)
Pre-mounted
hex nut
Raised holes
www.insigniaproducts.com
16
STEP 2: Attaching the swivel bracket assembly to the spine
You need:
1 Place a small flat washer (R) and a lock washer (Q) over one of the holes on the side of the swivel bracket (H).
2 Insert a 5/8” bolt (M) through the washers and into the threaded hole on the spine assembly (F).
3 Repeat steps 1 through 2 for the five remaining holes.
4 Tighten the bolts with the 4 mm hex wrench (W).
Note: The upper spine provides four height options for your TV. Based on your TV size, adjust the swivel bracket (H) to the best
height for optimum viewing.
M 5/8” bolt (6) Q Lock washer (6) R Small flat washer (6) W 4 mm hex wrench (1)
Note: The pivot bolt
head is located at the top
www.insigniaproducts.com
17
3-in-1 60 in. TV Stand

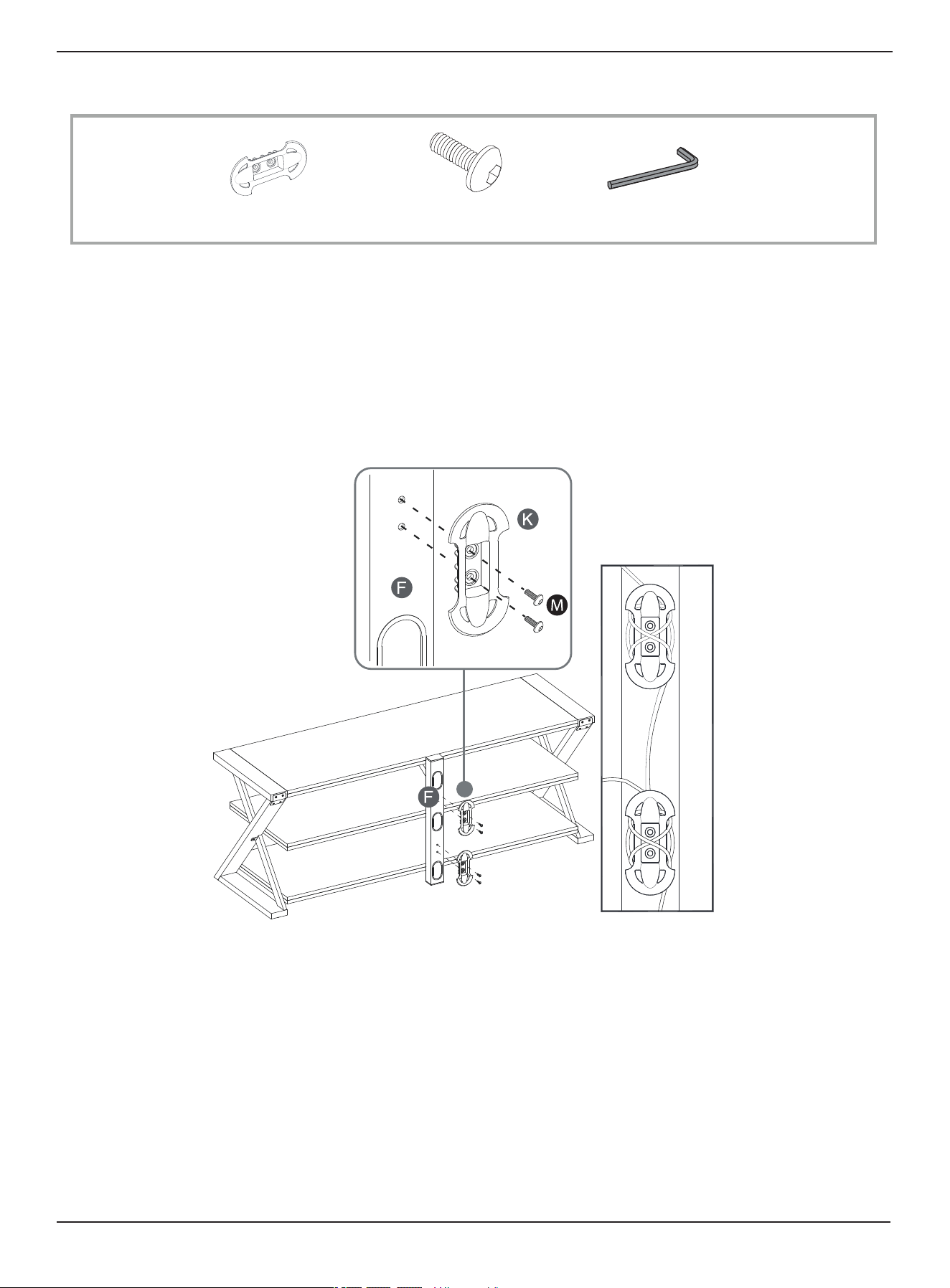

STEP 3: Attaching the cable wheels to the spine
You need:
1 Align a cable management wheel (K) with one of four possible locations on the spine assembly (F), then insert two 5/8”
bolts (M) through the cable management wheel and into the spine.
2 Repeat for the other cable management wheel.
3 Tighten the bolts with the 4 mm hex wrench (W).
M 5/8” bolt (4) W 4 mm hex wrench (1)K Cable management wheel (2)
Cables wrapped on the cable wheel
www.insigniaproducts.com
18
STEP 4: Selecting the correct bolts, washers, and spacers to mount your TV
To select the correct bolt, washer, and spacer size, try one of the bolts in one of the four VESA mounting holes on the back
of your TV. A bolt that is too large will not fit in the hole at all, but make sure that the bolt size you choose is not too loose.
It should grip the hole threads evenly and not wobble. After you determine which size bolts to use, go to the next step.
M4 hardware assembly:
• M4 × 12 mm bolts (AA) top screw holes
• M4 × 30 mm bolts (BB) bottom screw holes
• M4 lock washers (KK)
• M4/M5 flat washers (QQ)
• Small spacers (PP)
M5 hardware assembly:
• M5 × 12 mm bolts (CC) top screw holes
• M5 × 30 mm bolts (DD) bottom screw holes
• M5 lock washers (LL)
• M4/M5 flat washers (QQ)
• Small spacers (PP)
M6 hardware assembly:
• M6 × 12 mm bolts (EE) top screw holes or M6 x 16 mm bolts (SS) top screw holes
• M6 × 35 mm bolts (FF) bottom screw holes
• M6 lock washers (MM)
• M6/M8 flat washers (RR)
• Large spacers (OO)
M8 hardware assembly:
• M8 × 16 mm bolts (GG) or M8 × 20 mm bolts (HH) top screw holes
• M8 x 40 mm bolts (II) or M8 x 50 mm bolts (JJ) bottom screw holes
• M8 lock washers (NN)
• M6/M8 flat washers (RR)
• Large spacers (OO)
www.insigniaproducts.com
19
3-in-1 60 in. TV Stand

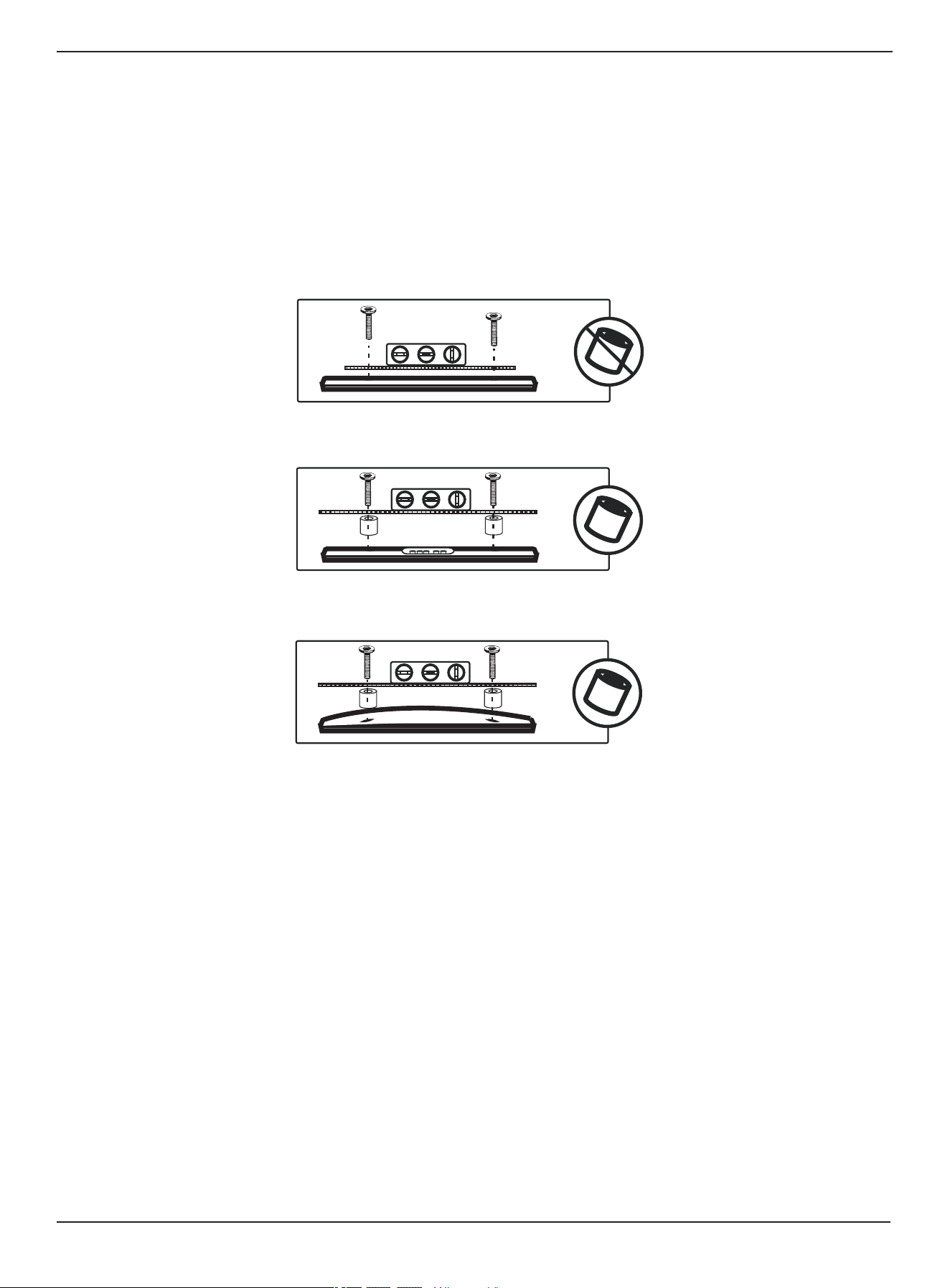

STEP 5: Determine whether your TV has a flat back, an irregular or obstructed back, or a curved
screen:
1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and
scratches.
2 If your TV has a table-top stand attached, remove the stand. See the documentation that came with your TV for
instructions.
3 Lay the TV brackets, oriented vertically, on the back of your TV.
4 Align the screw holes in the TV brackets with the mounting screw holes on your TV.
5 Identify which type of back your TV has:
• Flat back: The brackets lay flush against the back of your TV and do not block any jacks. You do not need spacers when
assembling the wall mount.
• Obstructed back: The brackets block one or more of the jacks on the back of your TV. You will need spacers when
assembling the wall mount.
• Irregularly-shaped back: There is a gap between a bracket and some part of the back of your TV. You will need
spacers when assembling the wall mount.
6 Remove the TV brackets.
www.insigniaproducts.com
20

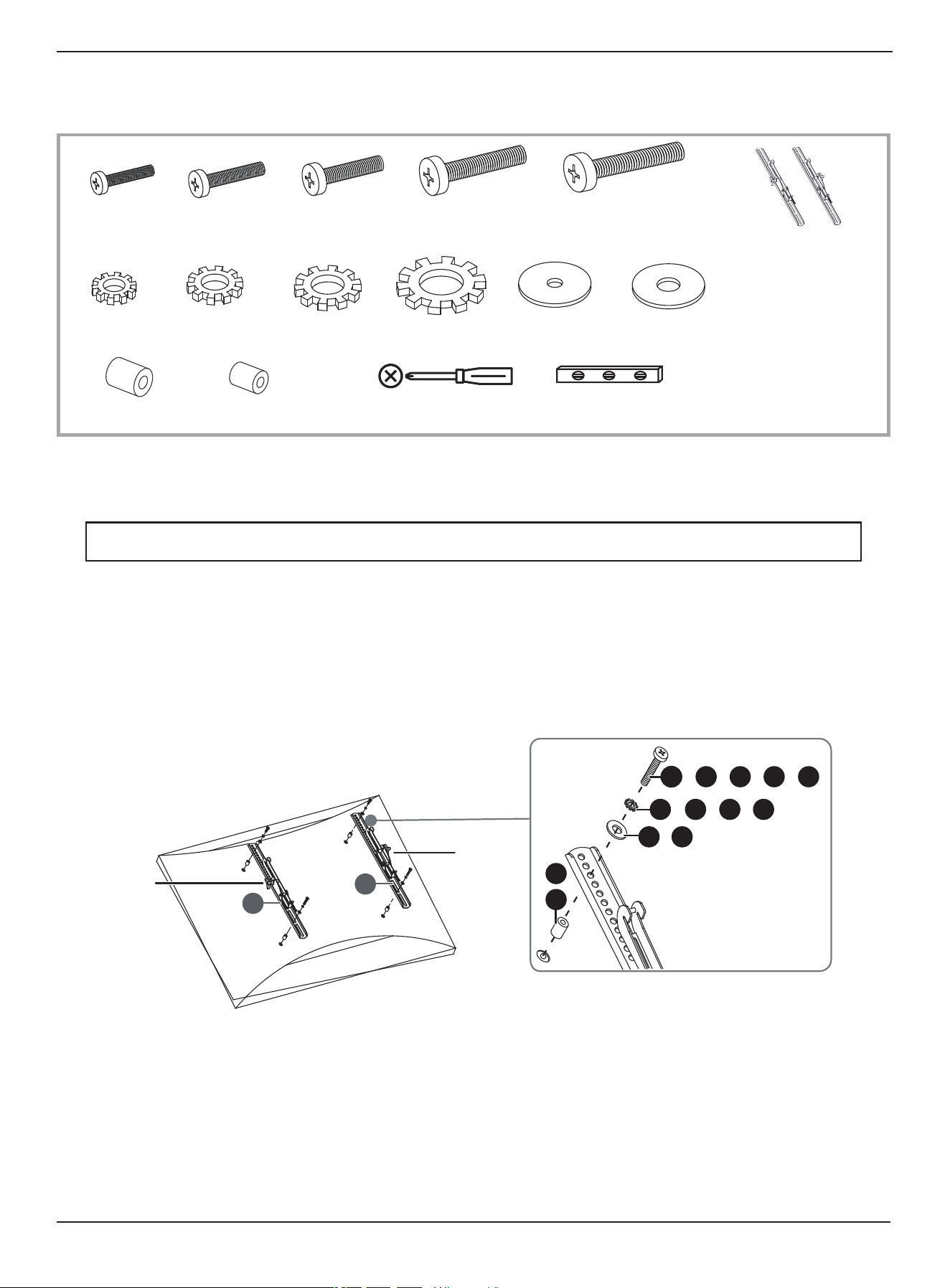

STEP 6: Option 1 - Mounting the TV brackets on a TV with a flat back
You need:
1 Insert the selected bolts through the washers and correct mounting holes on the TV brackets (J), then finger tighten
them into the threaded holes on the back of your TV. Make sure that the TV brackets are centered and level with each
other and that the hooks face the bottom of the TV.
2 Tighten the bolts until they are snug against the TV brackets using a Phillips screwdriver. DO NOT over tighten.
CAUTION: Lean the TV up against a wall or other solid surface when attaching with the TV brackets. DO NOT place the TV face
down on the glass screen as it may cause permanent damage.
J TV brackets (2)
AA M4 x 12 mm
bolt (4)
Phillips screwdriver
CC M5 x 12 mm
bolt (4)
EE M6 x 12 mm
bolt (4)
GG M8 x 16 mm
bolt (4)
HH M8 x 20mm
bolt (4)
KK M4 lock
washer (4)
LL M5 lock
washer (4)
MM M6 lock
washer (4)
NN M8 lock
washer (4)
QQ M4/M5 flat
washer (4)
RR M6/M8 flat
washer (4)
Level
or
or or or
or or or or
SS M6 x 16 mm
bolt (4)
or
JR
JL
HH
NN
KK
LL
MM
RR
QQ
SS
or
oror
or
or oror
or or
Tension knob
faces outward
Tension
knob faces
outward
www.insigniaproducts.com
21
3-in-1 60 in. TV Stand
STEP 6: Option 2 - Mounting the TV brackets on a TV with an irregular or obstructed back or a
curved screen
You need:
1 Insert the selected bolts through the washers and correct mounting holes on the TV brackets (J), add spacers (OO or
PP) as necessary to level the brackets, then finger tighten them into the threaded holes on the back of your TV. Make
sure that the TV brackets are centered and level with each other and that the hooks face the bottom of the TV.
2 Tighten the bolts until they are snug against the TV brackets using a Phillips screwdriver. DO NOT over tighten.
CAUTION: Lean the TV up against a wall or other solid surface when attaching with the TV brackets. DO NOT place the TV face
down on the glass screen as it may cause permanent damage.
BB M4 x 30 mm
bolt (4)
Phillips screwdriver
DD M5 x 30 mm
bolt (4)
FF M6 x 35 mm
bolt (4)
II M8 x 40 mm bolt
(4)
JJ M8 x 50mm bolt
(4)
Level
OO large spacer (4)
PP small spacer (4)
J TV brackets (2)
KK M4 lock
washer (4)
LL M5 lock
washer (4)
MM M6 lock
washer (4)
NN M8 lock
washer (4)
QQ M4/M5 flat
washer (4)
RR M6/M8 flat
washer (4)
or or or or
or
or
or
or
or
BB
DD
NN
KK
LL
MM
RR
QQ
00
PP
II JJ
FF
JR
JL
or
or
or
or
or
oror
or
or
Tension knob
faces outward
Tension knob
faces outward
www.insigniaproducts.com
22

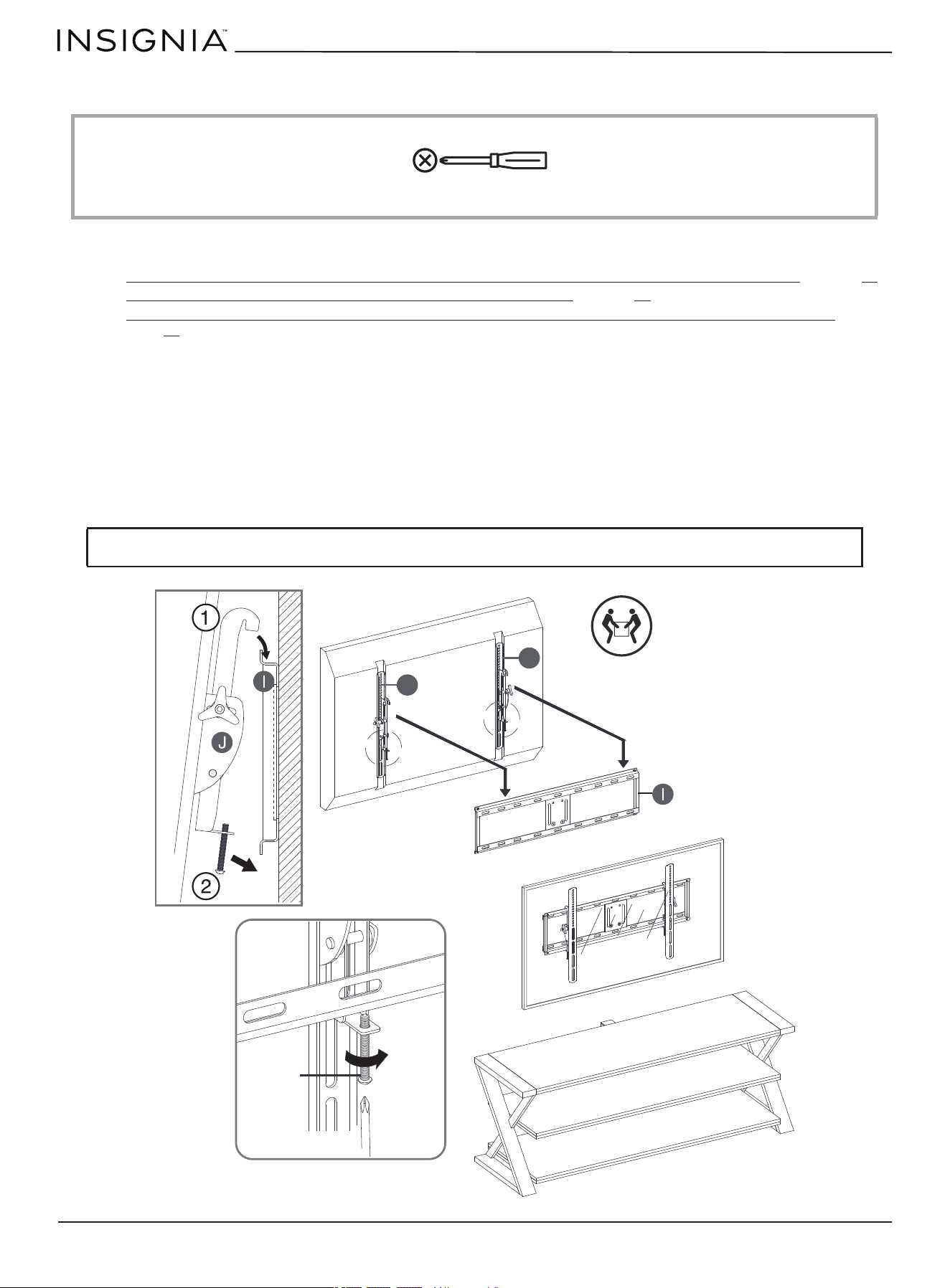

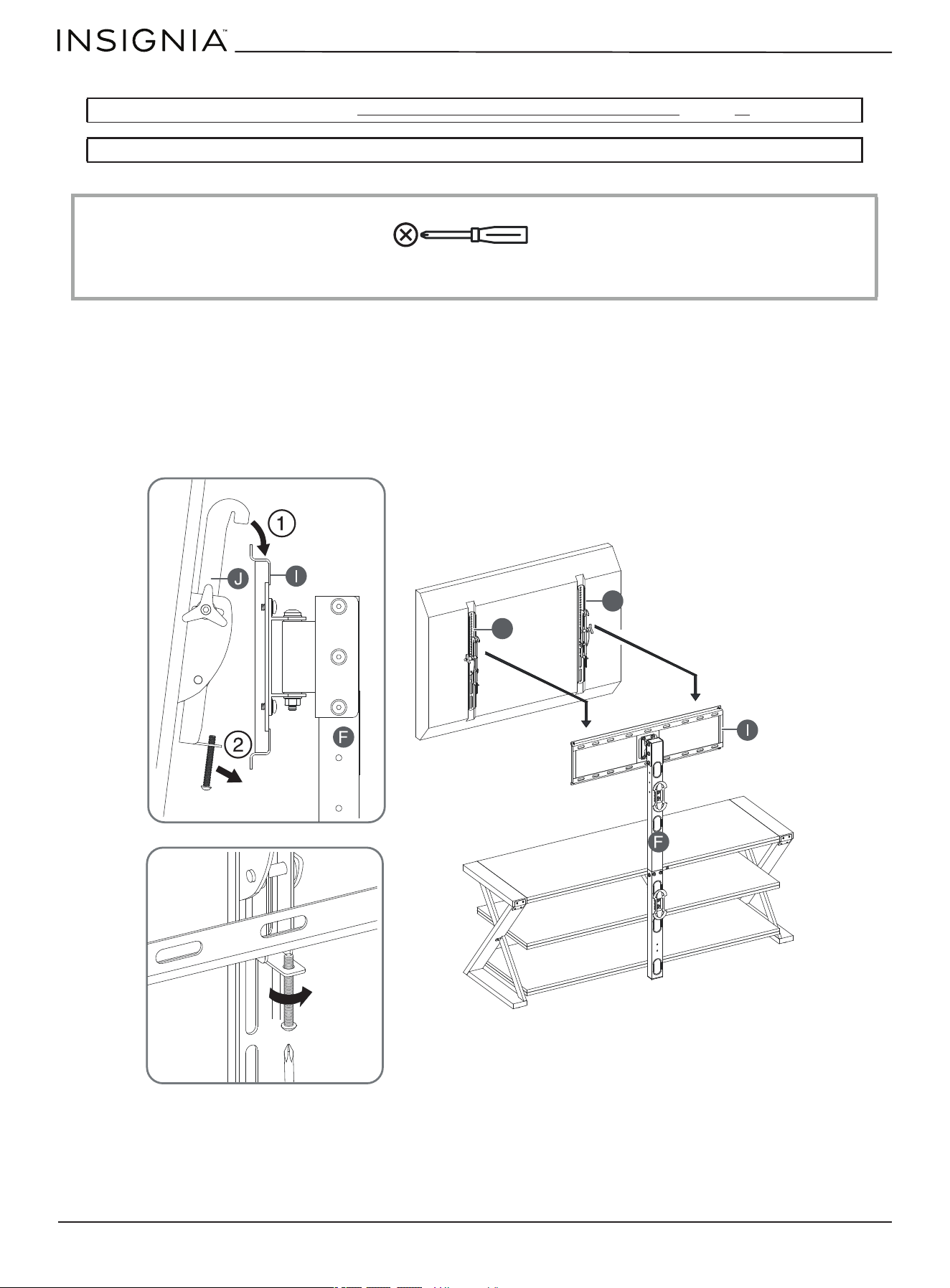

STEP 7: Attaching the TV to the mounting frame
You need:
1 With the help of another adult, lift the TV up to the mounting frame (I).
2 Holding the TV with the top of the screen tilted toward the back of the unit, slide the upper edges of the right and left
TV brackets (J) into the rail on the upper lip of the TV mounting frame (I).
3 Center the TV, then secure it in place using a Phillips screwdriver to tighten the safety bolt on the bottom hooks.
Tighten until the safety bolt hits the underside of the mounting frame.
Note: If you are wall-mounting the TV, go to Mounting your TV using the wall-mount configuration on page 25.
CAUTION: This unit will only support a TV with a maximum weight of 100 lbs. (45.36 kg).
Phillips screwdriver
JL
JR
www.insigniaproducts.com
23
3-in-1 60 in. TV Stand

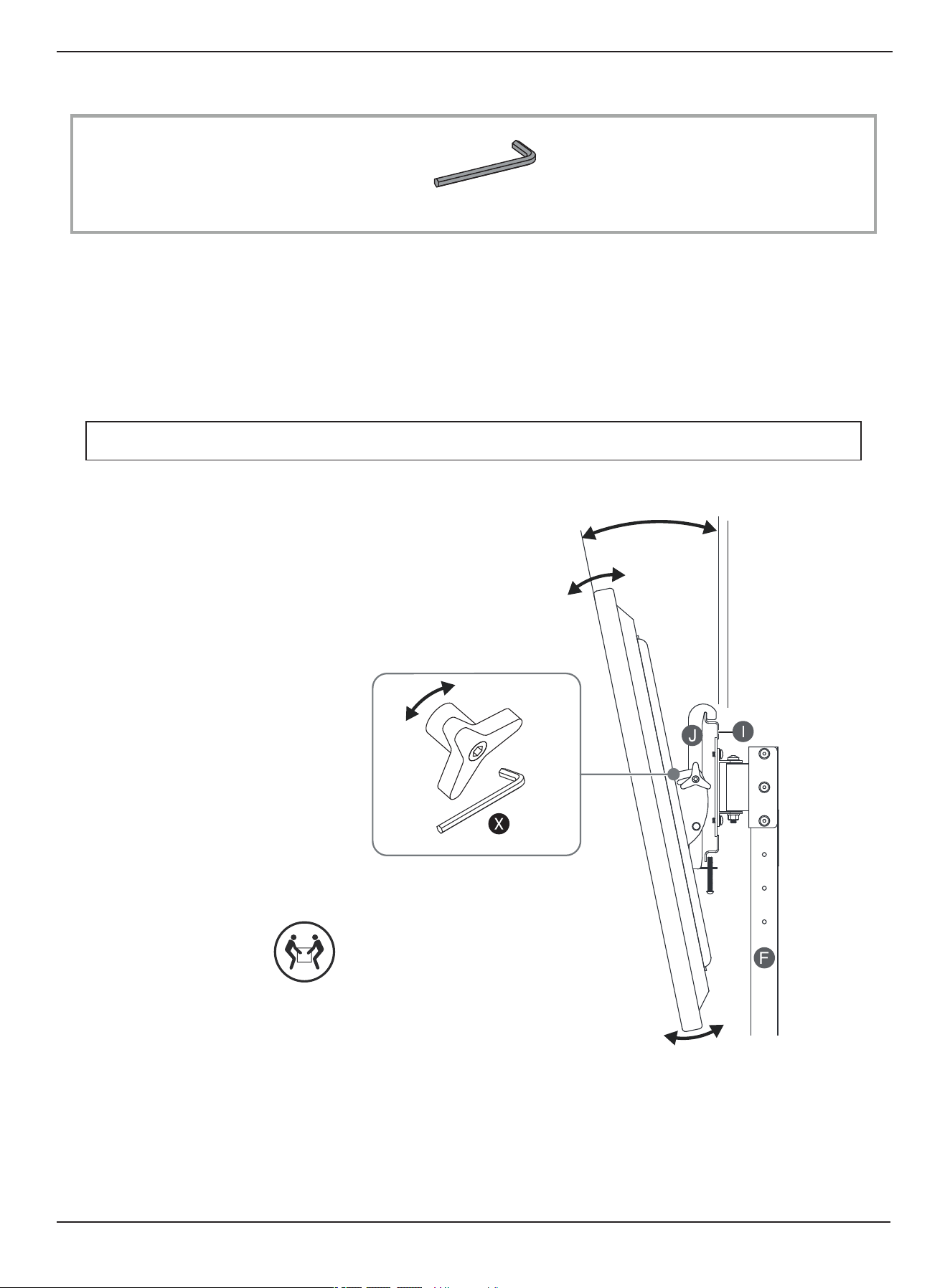

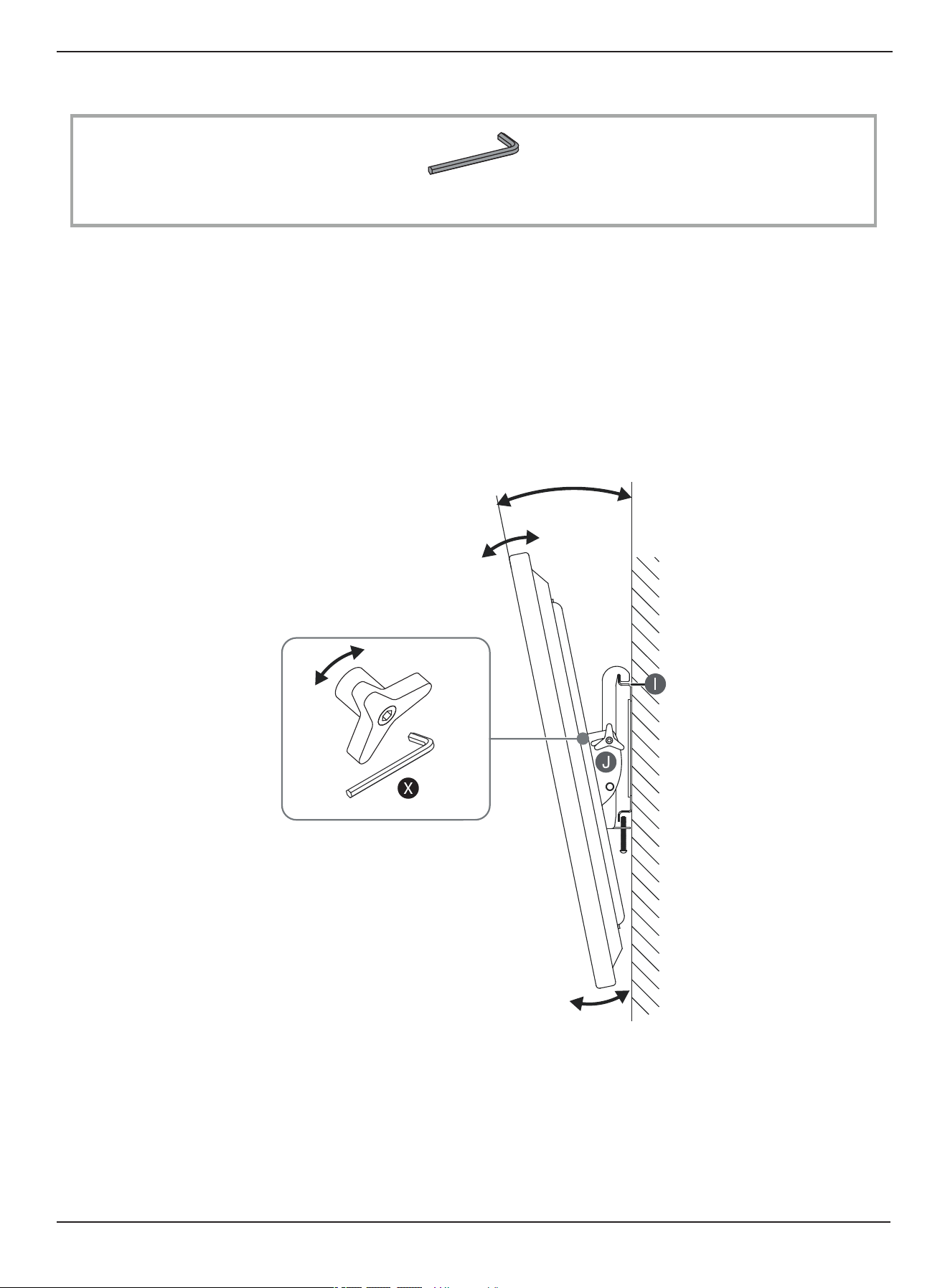

STEP 8: Adjusting the tilt
You need:
The TV brackets (J) let you make a tilt adjustment of up to 11° down and 5° up to provide optimum viewing and minimize
glare.
1 With the help of another adult, gently grasp the edge of the TV to avoid any damage and carefully move it up or down
to the position you want. Turn the tension knobs counterclockwise to loosen the knobs on both TV brackets (J) if
necessary.
2 Turn the tension knob clockwise to tighten the brackets to maintain position. Use the 3/16” hex wrench (X) to tighten
the tension knobs, if necessary.
WARNING: Exercise caution when adjusting the tilt. Failure to do so could result in your TV stand falling forward, resulting in
damage to equipment or personal injury.
X 3/16” hex wrench (1)
CAUTION - HEAVY: This step may
require two persons to complete.
-5° ~ 11°
CAUTION - HEAVY: This step may
require two persons to complete.
www.insigniaproducts.com
24

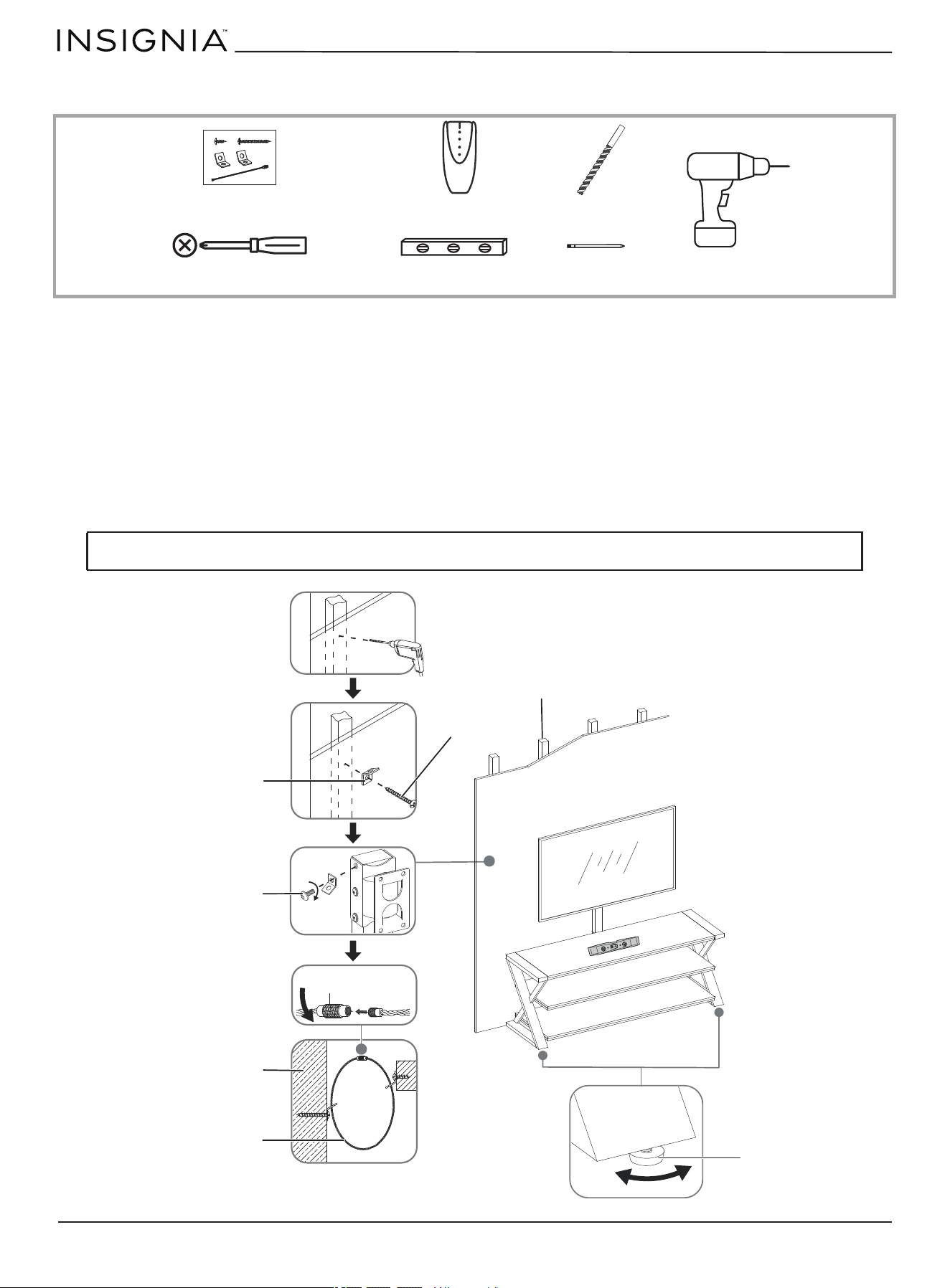

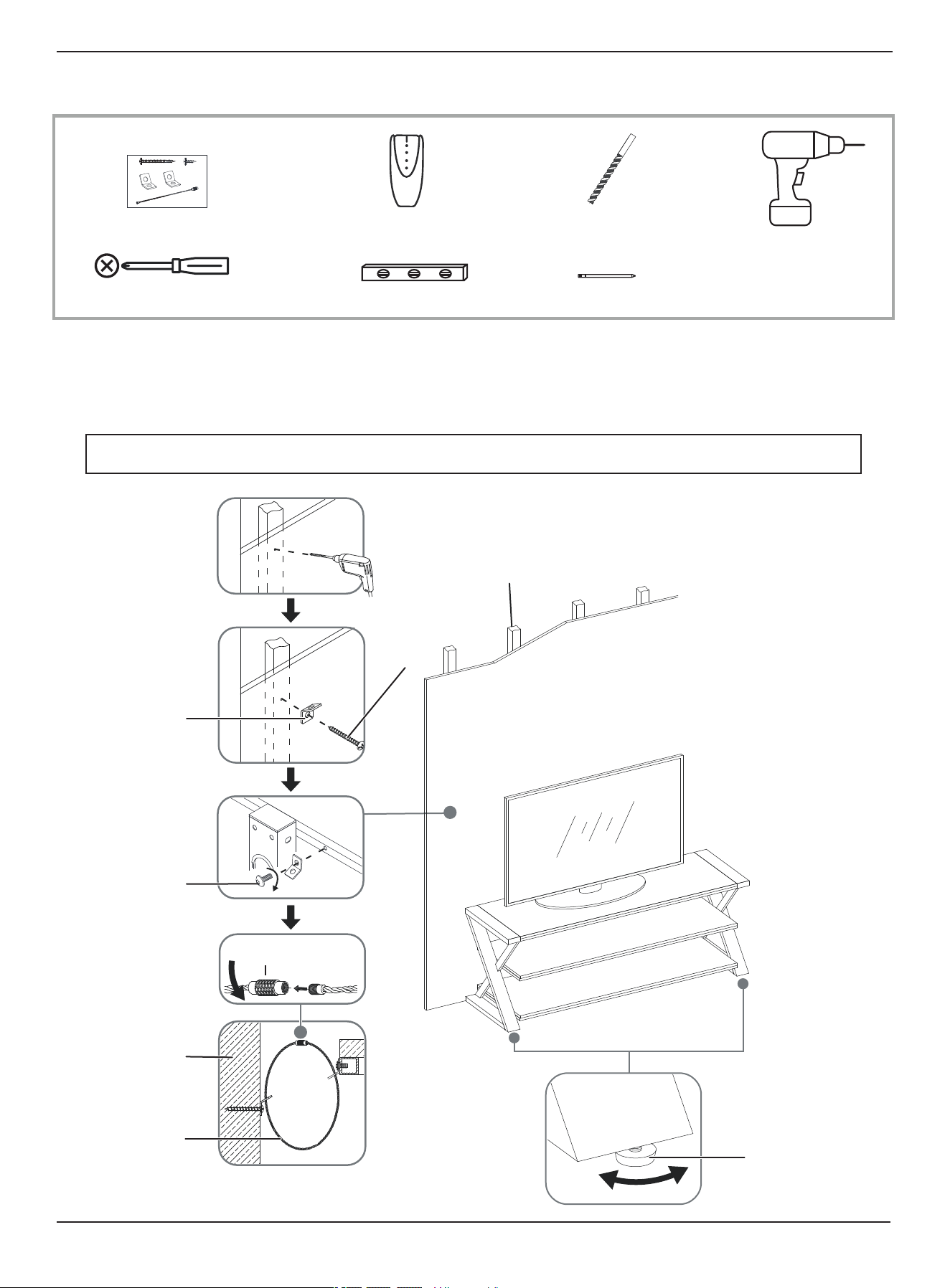

STEP 9: Positioning your TV stand and installing the tipping restraint hardware kit
You need:
1 Position your assembled stand against a wall where you plan to use it.
2 Adjust the leveling feet to level your TV stand.
3 Align the spine (F) with a stud and mark the wall at the center point of the stud. The mark should be within 3 in. (7.6 cm)
of the bolt on the top of swivel bracket.
4 Using a 1/8” drill bit, drill a hole at the marked location and attach one metal bracket using the long screw included in
the tipping restraint kit (Z).
5 Remove one 5/8” bolt, with washers, installed on the top of swivel bracket (H).
6 Attach the other metal bracket from the tipping restraint kit (Z) to the swivel bracket (H) using the removed bolt and
washers.
7 Insert the male end of the steel cable from the tipping restraint kit down through the mounting hole in each metal
bracket. Securely connect both ends together by turning the female connector clockwise.
WARNING: The tipping restraint must be installed correctly. Failure to do this could result in your TV/stand assembly falling
forward, resulting in damage to equipment or personal injury.
Z Tipping restraint hardware kit(1)
Phillips screwdriver
Edge-to-edge stud finder
Level
1/8” drill bit
Pencil
Power drill
Metal bracket
Existing bolt
Wall
Steel cable
Wood stud
Wall
TV
Long screw
Leveling foot
Connector
www.insigniaproducts.com
25
3-in-1 60 in. TV Stand
Mounting your TV using the wall-mount configuration

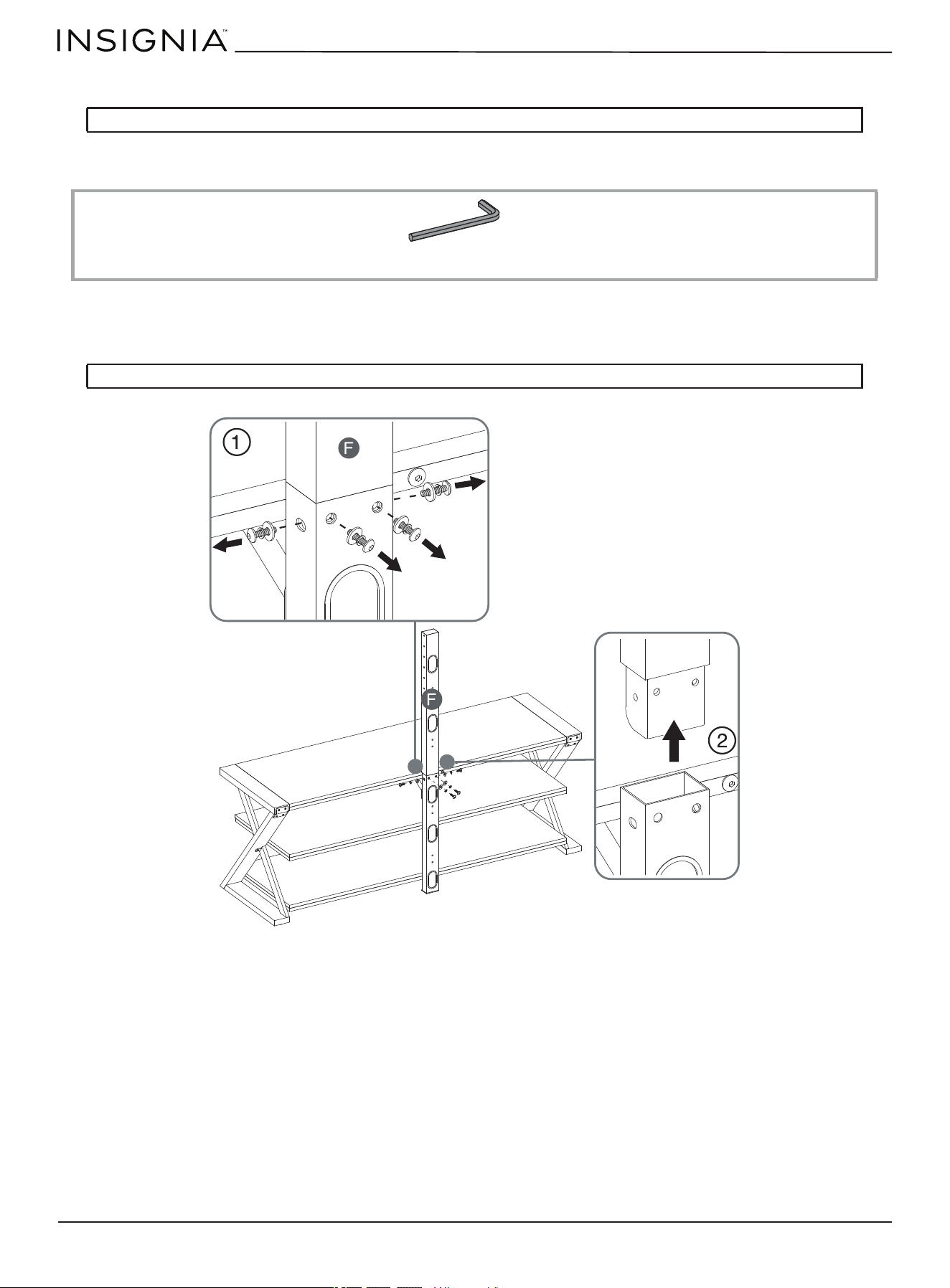

STEP 1: Removing the upper spine
You need:
• Unscrew the four bolts and the washers on the spine assembly (F), then remove the upper section of the spine from
the spine assembly.
CAUTION: This unit will only support a TV with a maximum weight of 100 lbs. (45.36 kg).
Note: Keep the upper spine and the fasteners at a proper place in case you will use the floating swivel mount.
W 4 mm hex wrench
www.insigniaproducts.com
26
STEP 2: Inserting the end cap
You need:
• Insert the spine end cap (V) all the way into the top of the lower section of the spine (F).
V Spine end cap (1)
www.insigniaproducts.com
27
3-in-1 60 in. TV Stand

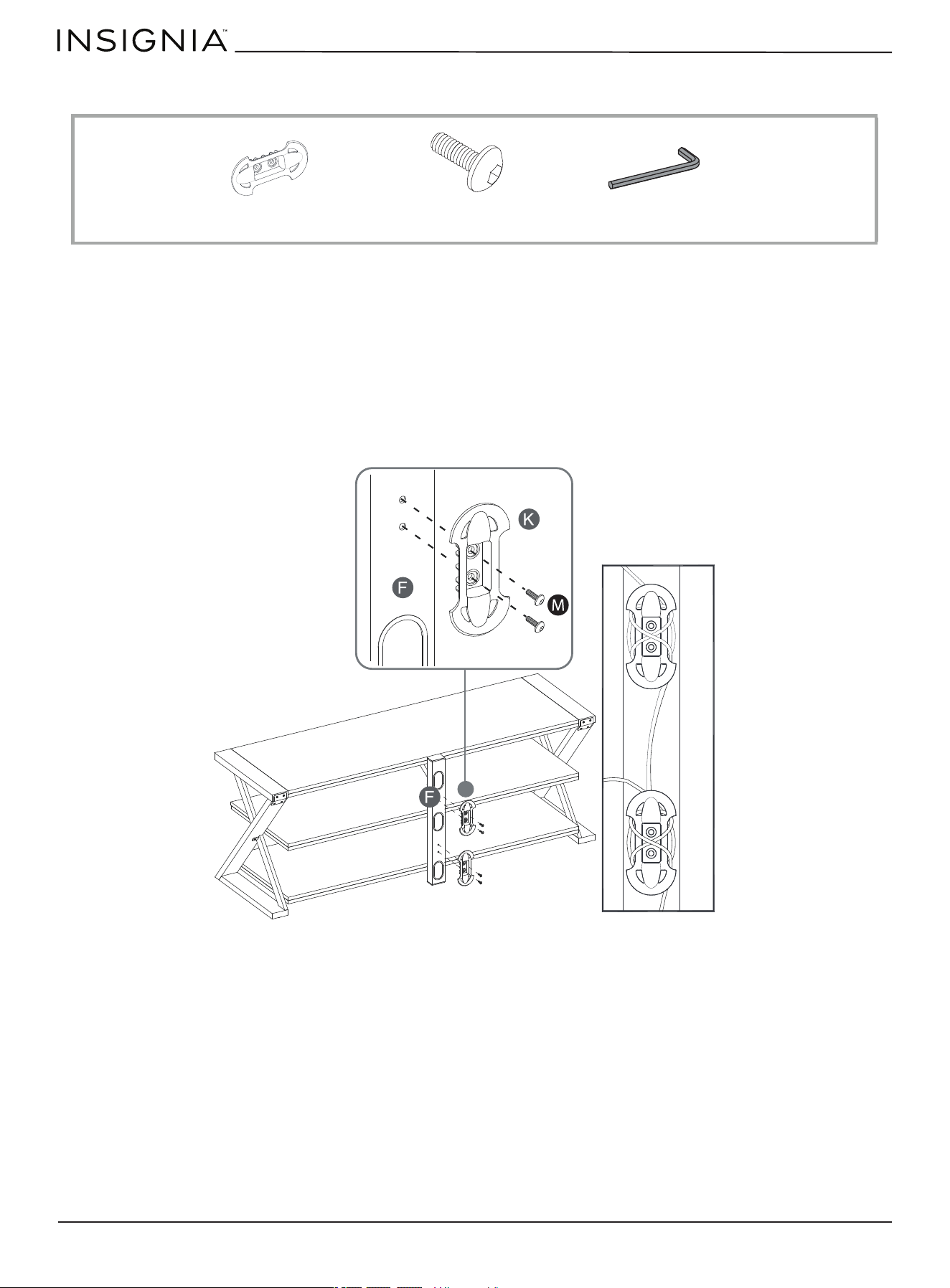

STEP 3: Attaching the cable management wheels
You need:
1 Align a cable management wheel (K) with one of two possible locations on the lower spine (F), then insert two 5/8”
bolts (M) through the cable management wheel and into the spine assembly.
2 Repeat for the other cable management wheel.
3 Tighten the bolts with the 4 mm hex wrench (W).
K Cable management wheel (1)
W 4 mm hex wrench
M 5/8” bolt (4)
Cables wrapped on cable management wheel
www.insigniaproducts.com
28

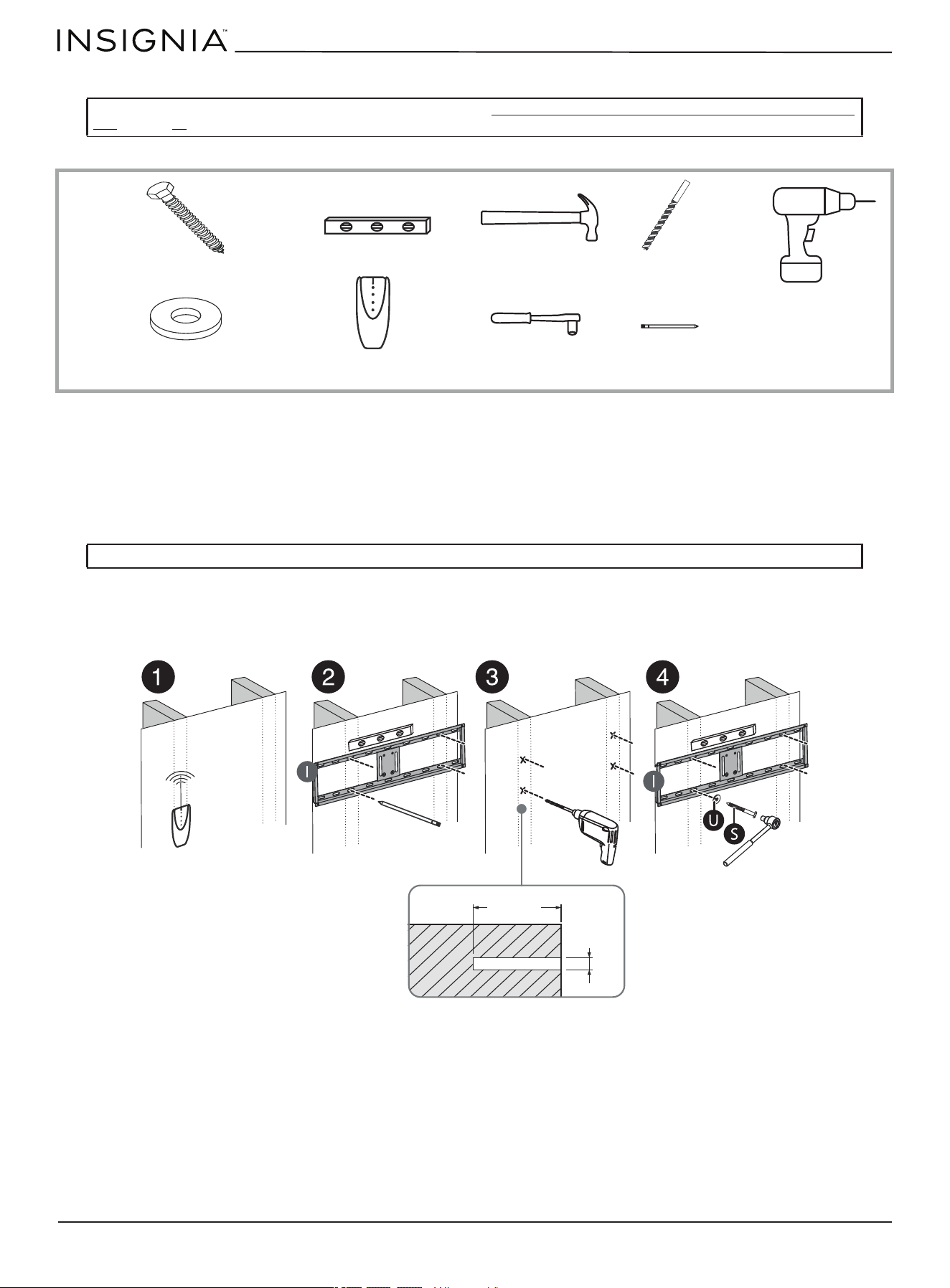

STEP 4: Option 1 - Mounting the frame to a stud wall
You need:
1 Use a stud sensor to locate two adjacent wall studs, then position the mounting frame (I) exactly between the two
studs.
2 Use a level to make sure that the mounting frame is level, then mark the four mounting holes. Remove the mounting
frame.
3 Drill four 3/16” (4.8 mm) holes 2.5" (64 mm) deep using a drill with 3/16” a wood drill bit.
4 Align the mounting frame (I) with the pilot holes, then secure the frame to the wall with four lag bolts (S) and four
washers (U) using a socket wrench with a 1/2” socket.
Note: If you are mounting the TV on a concrete or block wall, to go STEP 4: Option 2 - Mounting the frame to a block or concrete
wall on page 29.
CAUTION: Make sure that the lag bolts are tight and secure, but do not overtighten them.
S Lag bolt (4)
U Large flat washer (4)
Level
Hammer
3/16” wood drill bit
Edge-to-edge stud finder
Socket wrench with
a 1/2” socket
Pencil
Power drill
2.5” (64 mm)
3/16”
(4.8 mm)
www.insigniaproducts.com
29
3-in-1 60 in. TV Stand

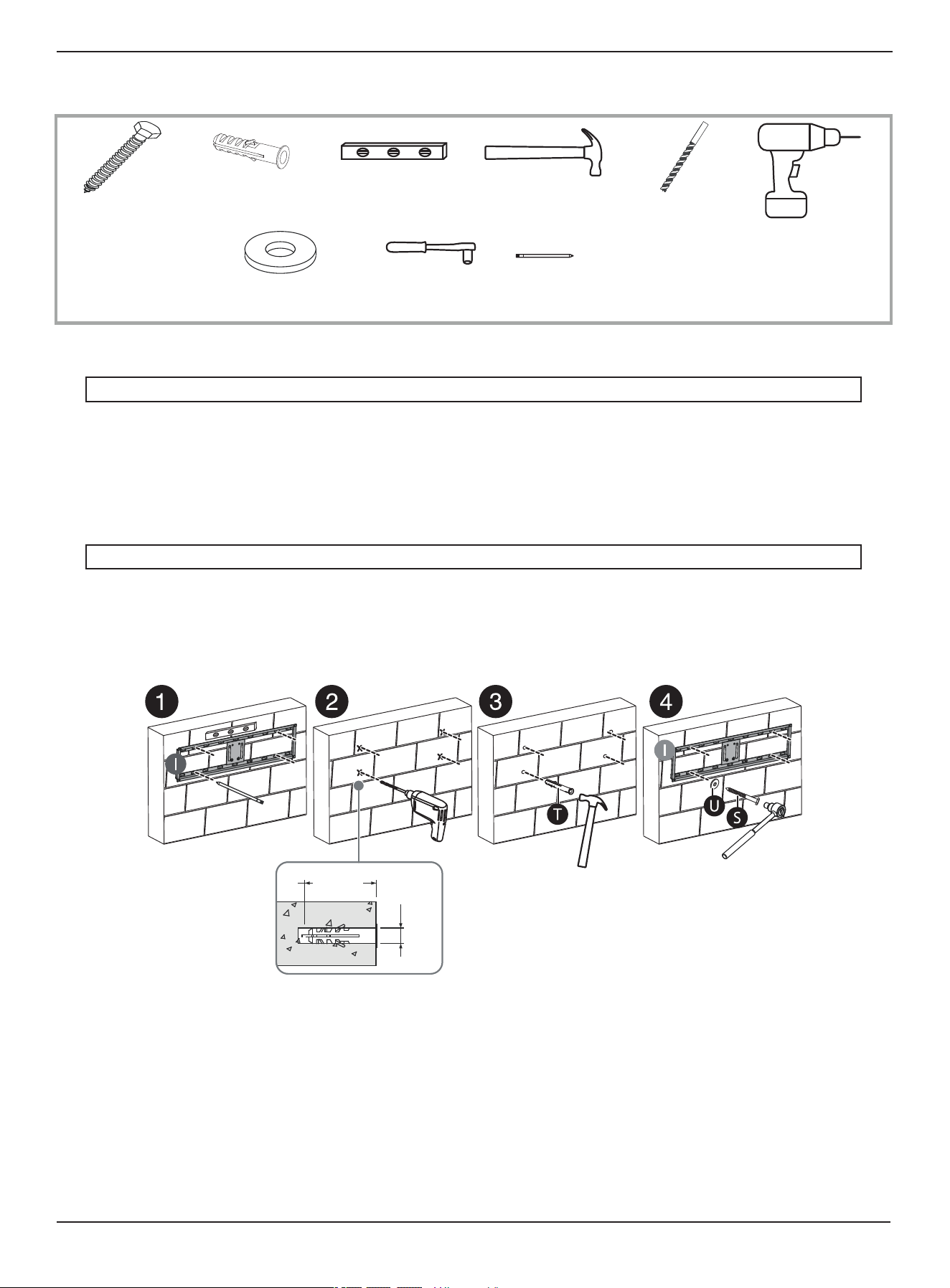

STEP 4: Option 2 - Mounting the frame to a block or concrete wall
You need:
1 Place the mounting frame (I) against the wall where you intend to mount the TV. Use a level to make sure that the
mounting frame is level, then mark the four mounting holes on the wall. Remove the mounting frame.
2 Drill four 7/16” (11 mm) holes through the marks to a depth of 2.5" (64 mm) using a 7/16” masonry drill bit.
3 Insert a concrete anchor (T) into each of the holes using a hammer.
4 Align the mounting frame (I) over the concrete anchors.
5 Place a washer (U) over one of the mounting frame screw holes, then insert a lag bolt (S) and tighten using a socket
wrench with a 1/2” socket.
6 Repeat the previous step for the other three lag bolt holes.
CAUTION: Do not locate the mounting holes into the mortar between blocks. The TV may fall causing damage or injury.
CAUTION: Make sure that the lag bolts are tight and secure, but do not overtighten them.
S Lag bolt (4)
U Large flat washer (4)
Level
Hammer
7/16” masonry drill bit
Socket wrench with
a 1/2” socket
Pencil
T Concrete anchor (4)
Power drill
2.5” (64 mm)
7/16”
(11 mm)
www.insigniaproducts.com
30
STEP 5: Attaching your TV to the mounting frame on the wall
You need:
1 Depending on the type of TV that you own, attach the TV brackets (J) to the back of the TV following the steps in:
•
STEP 5: Determine whether your TV has a flat back, an irregular or obstructed back, or a curved screen: on page 19
• STEP 6: Option 1 - Mounting the TV brackets on a TV with a flat back on page 20
• STEP 6: Option 2 - Mounting the TV brackets on a TV with an irregular or obstructed back or a curved screen on
page 21
2 With the help of another adult, lift the TV up to the mounting frame (I).
3 Holding the TV with the top of the screen tilted toward the wall, slide the upper edges of the right and left TV brackets
(J) into the rail on the upper lip of the TV mounting frame (I).
4 Center the TV, then secure it in place using a Phillips screwdriver to tighten the safety bolt on the bottom hooks.
Tighten until the safety bolt hits the underside of the mounting frame.
5 Position your assembled stand against a wall, under the TV, where you plan to use it.
6 Adjust the leveling feet to level your TV stand.
7 Follow the instructions printed on the bag containing the tipping restraint hardware kit (Z) to attach the restraint
hardware to the wall and your stand.
WARNING: The tipping restraint must be installed correctly. Failure to do this could result in your TV stand falling forward,
resulting in damage to equipment or personal injury.
Phillips screwdriver
JR
JL
CAUTION - HEAVY: This step may
require two persons to complete.
Safety bolt
www.insigniaproducts.com
31
3-in-1 60 in. TV Stand
STEP 6: Adjusting the tilt
You need:
The TV brackets (J) let you make a tilt adjustment of up to 11° down and 5° up to provide optimum viewing and minimize
glare.
1 With the help of another adult, gently grasp the edge of the TV to avoid any damage and carefully move it up or down
to the position you want. Turn the tension knobs counterclockwise to loosen the knobs on both TV brackets (J) if
necessary.
2 Turn the tension knob clockwise to tighten the brackets in position. Use the 3/16” hex wrench (X) to tighten the
tension knobs, if necessary.
X 3/16” hex wrench (1)
-5° ~ 11°
Turn clockwise to tighten
Turn counterclockwise to loosen
www.insigniaproducts.com
32
Mounting your TV using the tabletop configuration
STEP 1: Removing the upper spine
You need:
• Unscrew the four bolts and the washers on the spine (F), then remove the upper section of the spine from the spine
assembly.
CAUTION: This unit will only support a TV with a maximum weight of 100 lbs. (45.36 kg).
Note: Keep the upper spine and the fasteners in a proper place in case you use the floating swivel mount.
W 4 mm hex wrench
www.insigniaproducts.com
33
3-in-1 60 in. TV Stand
STEP 2: Inserting the end cap
You need:
• Insert the spine end cap (V) all the way into the top of the lower section of the spine (F).
V Spine end cap (1)
www.insigniaproducts.com
34
STEP 3: Attaching the cable management wheels
You need:
1 Align a cable management wheel (K) with one of two possible locations on the lower spine assembly (F), then insert
two 5/8” bolts (M) through the cable management wheel and into the spine assembly.
2 Repeat for the other cable management wheel.
3 Tighten the bolts with the 4 mm hex wrench (W).
K Cable management wheel (2)
W 4 mm hex wrench
M 5/8” bolt (4)
Cables wrapped on cable management wheel
www.insigniaproducts.com
35
3-in-1 60 in. TV Stand
STEP 4: Positioning your TV stand and installing the tipping restraint hardware kit
You need:
1 Position your assembled stand against a wall where you plan to use it.
2 Adjust the leveling feet to level your TV stand.
3 Follow the instructions printed on the bag containing the tipping restraint hardware kit (Z) to attach the tipping
restraint hardware to the wall and to your TV stand.
WARNING: The tipping restraint must be installed correctly. Failure to do this could result in your TV/stand assembly falling
forward, resulting in damage to equipment or personal injury.
Z Tipping restraint hardware kit(1)
Phillips screwdriver
Edge-to-edge stud finder
Level
1/8” drill bit
Pencil
Power drill
Metal bracket
Existing bolt
Wall
Steel cable
Wood stud
Wall
TV
Long screw
Leveling foot
Connector
www.insigniaproducts.com
36
Maintaining your TV stand
Wood/Laminate
• Use your favorite type of furniture polish.
• Do not spray polish directly onto the TV stand. Spray onto a soft cloth, then wipe the TV stand.
• Always test any polish in a discrete location first, such as the back of the TV stand, to make sure that there is no adverse
reaction.
• Dust frequently with a soft cloth.
• Never slide objects across surfaces. Lift objects from the top surface rather than dragging them across the finish when
moving them.
• Do not expose your TV stand to direct sunlight, drying heat sources, or dampness.
• Clean spills immediately with a soft, damp cloth.
• Use a protective pad when using your TV stand as a writing surface (especially when using a ballpoint pen).
Metal
• For everyday cleaning of chrome, brass, aluminum, and painted metal surfaces, wipe with a slightly damp, soft cotton
cloth, or vacuum to keep them looking their best.
• If soiled, wipe with a clean sponge or cloth wrung out of water. Wipe dry with a cloth or paper towel to avoid water
spots.
• Don’t use any harsh abrasives or chemicals to clean any metal surfaces because they may damage the protective
coating.
• Metal may rust if the finish is scratched or if your furniture is exposed to excessive humidity, particularly in salt water
locations.
• Most metal furniture has a protective coating to prevent rust, however rust may occur if the finish is marred or wears
away over time.
Specifications
Dimensions (H × W × D) 22.25 x 60 × 21 in. (56.5 x 152.4 × 53.4 cm)
With full spine and swivel: 55.75 x 60 × 21 in. (141.6 x 152.4 × 53.4 cm)
Weight 3-in-1 TV stand: Net weight: 85.87 lbs. (38.95 kg)
Gross weight: 97.89 lbs. (44.4 kg)
Maximum overall weight: 300 lbs. (136.07 kg)
Maximum top shelf weight: 100 lbs. (45.36 kg)
Maximum lower shelf weight: 50 lbs. (22.68 kg)
Maximum TV weight on swivel stand configuration: 100 lbs. (45.36 kg)
Maximum TV weight for wall mount configuration: 100 lbs. (45.36 kg)
Maximum TV weight for tabletop configuration: 100 lbs. (45.36 kg)
Recommended screen sizes 37 in. to 70 in. diagonal (32.5 in. to 61 in. width)
www.insigniaproducts.com
37
3-in-1 60 in. TV Stand
ONE-YEAR LIMITED WARRANTY
Definitions:
The Distributor* of Insignia branded products warrants to you, the original purchaser of this new Insignia-branded product (“Product”), that the Product shall
be free of defects in the original manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase of the Product
(“Warranty Period”).
For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy branded retail store or online at
www.bestbuy.com
or www.bestbuy.ca and is packaged with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the
Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia
repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with
new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If
service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your
Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website ((www.bestbuy.com or www.bestbuy.ca), please take your
original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same
amount of protection as the original packaging.
To obtain warranty service, in the United States and Canada call 1-877-467-4289. Call agents may diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the country
where the original purchase was made.
What does the warranty not cover?
This warranty does not cover:
• Food, beverage, and/or medicine loss/spoilage.
• Customer instruction/education
• Installation
• Set up adjustments
• Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
• Accidental damage
• Misuse
• Abuse
• Negligence
• Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or
apartment complex, or otherwise used in a place of other than a private home.
• Modification of any part of the Product, including the antenna
• Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Insignia to service the Product
• Products sold “as is” or “with all faults”
• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly illuminated) grouped in an area smaller than one tenth (1/10)
of the display size or up to five (5) pixel failures throughout the display. (Pixel based displays may contain a limited number of pixels that may not
function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE
FOR AN
Y INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT
NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS
WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY
IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE
WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME
STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE
OR PROVINCE TO PROVINCE.
Contact Insignia:
1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
*Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2024 Best Buy. All rights reserved.
www.insigniaproducts.com
1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico)
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2024 Best Buy. All rights reserved.
V2 ENGLISH
24-0552
