16” HIGH VELOCITY DRUM FAN
MODEL NO: HVD16
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
I
MP
PO
R
RTA
TA
NT:
PLEA
S
E READ THE
S
E IN
S
TRU
C
TI
O
N
S
C
AREFULLY. N
O
TE THE
S
AFE
O
PERATI
O
NAL RE
Q
UIREMENT
S
, WARNIN
GS
&
C
AUTI
O
N
S
. U
S
E
TH
HE
P
PR
O
ODU
C
T
CO
RRE
C
TLY AND WITH
C
ARE F
O
R THE P
U
RP
OS
E F
O
R WHI
C
H IT I
S
INTENDED. FAIL
U
RE T
O
D
O
SO
MAY
C
A
US
E DAMA
G
E AND
/O
R
PE
ER
S
SON
N
AL IN
JU
RY AND WILL INVALIDATE THE WARRANTY. KEEP TH
ESE
IN
STR
UCT
ION
S S
AFE
FO
R F
U
T
U
RE
USE
.
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and all
electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products. You may obtain an RCD by contacting your local Sealey stockist.
If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable
Appliance Test) tested.
Electrical safety information: it is important that the following information is read and understood.
1.1.1. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
1.1.3. Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is fi tted with the
correct fuse - see fuse rating in these instructions.
DO NOT pull or carry the appliance by the power cable.
DO NOT pull the plug from the socket by the cable.
DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or
replaced immediately by a qualifi ed electrician.

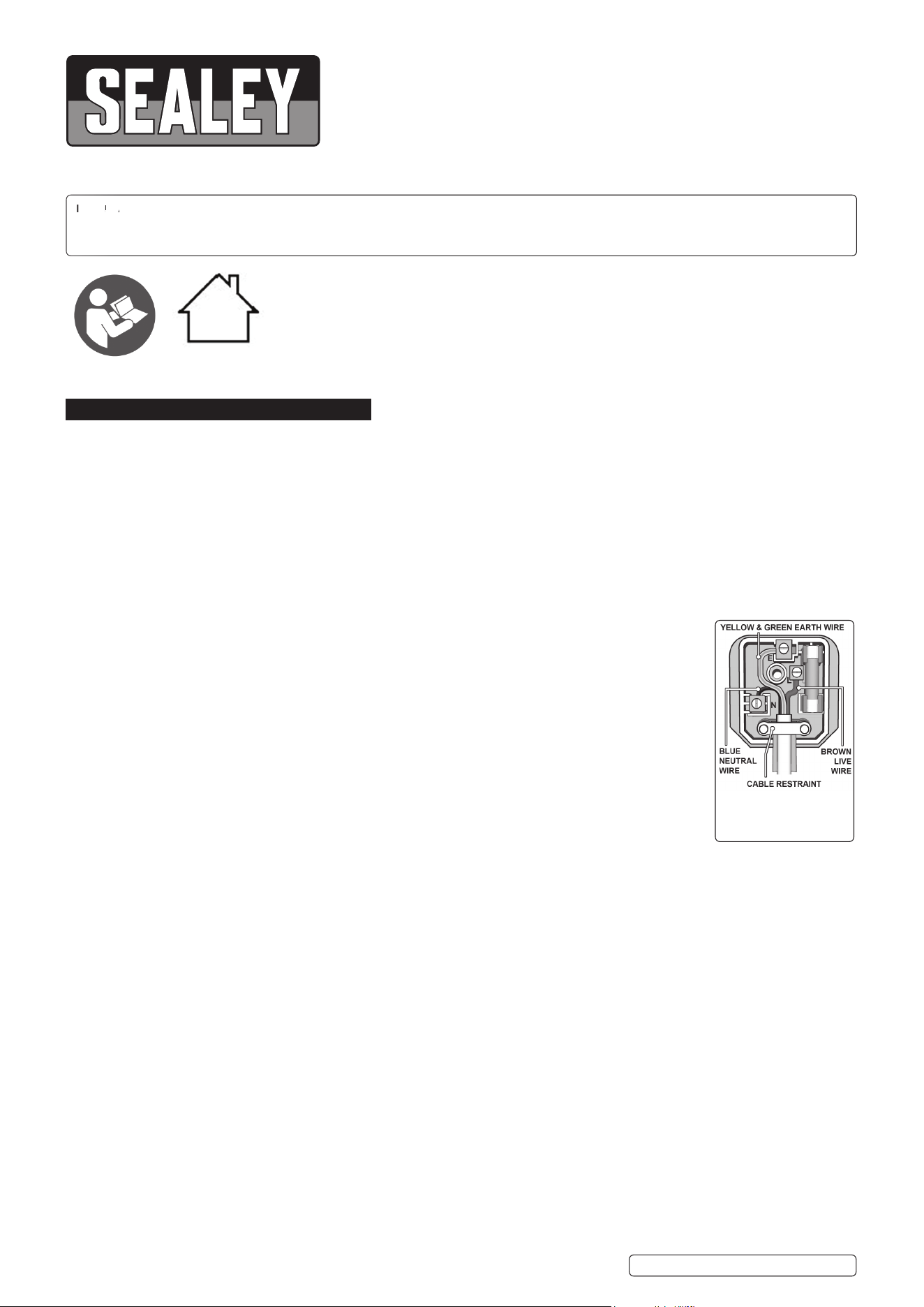

1.1.4. This product is fi tted with a BS1363/A 13 Amp 3 pin plug.
If the cable or plug is damaged during use, switch the electricity supply and remove from use.
Ensure that repairs are carried out by a qualifi ed electrician.
Replace a damaged plug with a BS1363/A 13 Amp 3 pin plug. If in doubt contact a qualifi ed electrician.
A) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
B) Connect the BROWN live wire to the live terminal ‘L’.
C) Connect the BLUE neutral wire to the neutral terminal ‘N’.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
Sealey recommend that repairs are carried out by a qualifi ed electrician.
1.2. GENERAL SAFETY
Disconnect the fan from the mains power when not in use and before servicing or performing any maintenance.
Use the fan in dry areas only. DO NOT use in wet or areas with high condensation such as showers, pools etc.
WARNING! If the fan falls into water or any other liquid, immediately switch off and disconnect from the mains power supply.
DO NOT touch the fan until the mains power supply has been disconnected.
Always disconnect the fan from the power supply when moving from one location to another and ensure fan is stood on a level
surface.
The fan air flow is powerful. Before use ensure that there is nothing nearby that will be damaged or displaced by the stream of air.
Keep the fan clean and maintained in good condition. For motor service, contact an authorised service agent.
Use recommended parts only. Unapproved parts may be dangerous, and will invalidate your warranty.
DO NOT operate the fan where there are explosive or flammable gases, fumes or other hazardous substances.
DO NOT stand the fan on the power cable.
DO NOT insert any objects through the fan guard.
DO NOT cover the fan when in use.
DO NOT immerse the fan in water or any other liquid.
DO NOT allow children to operate the fan.
DO NOT stand the fan where it may be knocked over or off a surface, or where the lead may cause a person to trip.
DO NOT use the fan outdoors.
DO NOT modify speed control or attempt to fit any additional external speed control device to the fan.
When not in use place the fan in original box, or otherwise cover to protect from dust and store in a safe, dry, childproof location.
Replacement fuse
rating:
HVD16 Issue 1 15/02/21
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Indoor Use
Only
2. INTRODUCTION
High velocity three-speed drum fan is a lightweight, portable and robust unit fi tted with rubber feet for stability. Features a handle and
360° tilting stand allowing control of airfl ow to exactly where it is needed. Carefully balanced and fully guarded aluminium blades provide
quiet and safe operation. Suitable for use in industrial, commercial, agricultural, automotive workshop, showroom and home applications.
Fitted with BS approved plug.
3. SPECIFICATION
Model No:...................................................................HVD16
Current: .......................................................................... 0.5 A
Fan diameter: .................................................Ø400 mm (16”)
Fan power input (P): ....................................................124 W
Fan sound power level (L
WA
): .................................... 68 dB(A)
Maximum air velocity (c): ........................................... 5.6 m/s
Maximum fan fl ow rate (F): ............... 64.9 m
3
/min (2292 cfm)
Plug type .................................................................. 3-Pin BS
Seasonal electricity consumption (Q): ................. 39.7 kWh/a
Speeds: ................................................................................ 3
Speed range: ...................................................800-1225 rpm
Service value (SV): .........................................0.5 (m
3
/min)/W
Standby power consumption (P
SB
): ...............................0.0 W
Supply: .......................................................................... 230 V
4. OPERATION
WARNING! Ensure that you read, understand and apply safety instructions in Section 1 before using fan.
4.1. Check that the speed control is set to “0” (OFF) and then plug into the mains power supply and switch the power on.
4.2. The fan features 3 speeds which are selectable using the switch located at the back of the fan, above the motor.
4.3. Adjust the direction of the air flow by moving from side to side and tilting the fan up or down as required.
4.4. Turn the speed control switch to “0” (OFF) and disconnect the fan from mains power after use.
5. MAINTENANCE
WARNING! Ensure that the fan is disconnected from the mains power supply before attempting any of the following:
5.1. Use a soft, damp cloth to clean the fan.
DO NOT immerse the fan in water and never allow water to drip onto the motor housing. DO NOT use solvents, petroleum, paint
thinner or other chemicals to clean the fan.
5.2. To clean the fan blade, undo the cross headed screws around the circumference, remove the grille and clean the blade with a
slightly damp cloth. Replace the grille as required and refit the cross headed screws.
5.3. Should the motor, switch or the power lead require service or maintenance contact your local Sealey stockist.
HVD16 Issue 1 15/02/21
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
