PMS 419
2024
OWNER’S
MANUAL
Sportsman 570 Tractor
Sportsman 570 Zugmaschine
Sportsman 570 MD
For Maintenance and Safety
WARNING
Read this manual carefully. It contains important safety
information. This is an adult vehicle only.
Operation is prohibited for those under 16 years of age.
WARNING
Operating, servicing, and maintaining a passenger vehicle or off-road
vehicle can expose you to chemicals including engine exhaust, carbon
monoxide, phthalates, and lead, which are known to the State of California
to cause cancer and birth defects or other reproductive harm. To minimize
exposure, avoid breathing exhaust, do not idle the engine except as
necessary, service your vehicle in a well-ventilated area and wear gloves
or wash your hands frequently when servicing your vehicle.
For more information go to www.P65Warnings.ca.gov/passenger-vehicle.
!
WARNING
Read, understand, and follow all of the instructions and safety
precautions in this manual and on all product labels.
Failure to follow the safety precautions
could result in serious injury or death.
!
For videos and more information
about a safe riding experience with
your Polaris vehicle, scan this QR
Code® with your smartphone or visit:
www.polaris.com/en-us/safety/
2024 Owner’s Manual
Sportsman 570 Tractor
Sportsman 570 EPS Tractor
Sportsman 570 EPS SP Tractor
Sportsman 570 EPS LE Tractor
Sportsman 570 EPS Agri Pro Edition Tractor
Sportsman 570 EPS Hunter Edition Tractor
Sportsman 570 EPS SP Ohlins Edition Tractor
Sportsman 570 Zugmaschine
Sportsman 570 EPS Zugmaschine
Sportsman 570 EPS SP Zugmaschine
Sportsman 570 EPS LE Zugmaschine
Sportsman 570 EPS Agri Pro Edition Zugmaschine
Sportsman 570 EPS Hunter Edition Zugmaschine
Sportsman 570 MD
Sportsman 570 EPS MD
Sportsman 570 EPS SP MD
APP STORE® is a registered trademark of trademark of Apple Inc.
BatteryMinder® is a registered trademark of VDC Electronics, Inc. Bluetooth®
is a registered trademark of Bluetooth Sig, Inc. Google Play® and Android®
are registered trademarks of Google LLC. iOS® is a registered trademark of
Cisco Technology, Inc. Loctite® is a registered trademark of Henkel
Corporation. MACPHERSON RIDE® is a registered trademark of Aftermarket
Auto Parts Alliance, Inc. MIKUNI® is a registered Trademark of MIKUNI
CORPORATION. NGK® is a registered trademark of NGK Spark Plug Co.,
Ltd. Phillips® is a registered trademark of the Phillips Screw Company. QR
Code® is a registered trademark of DENSO WAVE INCORPORATED. Tread
Lightly
SM
is a service mark of the United States Department of Agriculture.
Unless noted, trademarks are the property of Polaris Industries Inc.
Copyright 2023 Polaris Industries Inc. All information contained within this
publication is based on the latest product information at the time of
publication. Due to constant improvements in the design and quality of
production components, some minor discrepancies may result between the
actual vehicle and the information presented in this publication. Depictions
and/or procedures in this publication are intended for reference use only. No
liability can be accepted for omissions or inaccuracies. Any reprinting or
reuse of the depictions and/or procedures contained within, whether whole or
in part, is expressly prohibited.
The original instructions for this vehicle are in English. Other languages are
provided as translations of the original instructions.
Printed in Hungary
9941295 Rev 02
Thank you for purchasing a POLARIS vehicle, and welcome to our world-wide
family of POLARIS enthusiasts. Be sure to visit us online at www.polaris.com for
the latest news, new product introductions, upcoming events, career
opportunities and more.
Here at POLARIS we proudly produce an exciting line of utility and recreational
products. We believe POLARIS sets a standard of excellence for all utility and
recreational vehicles manufactured in the world today. Many years of experience
have gone into the engineering, design, and development of your POLARIS
vehicle, making it the finest machine we’ve ever produced.
For safe and enjoyable operation of your vehicle, be sure to follow the
instructions and recommendations in this owner’s manual. Your manual contains
instructions for minor maintenance, but information about major repairs is
outlined in the POLARIS Service Manual and can be performed by a factory
certified Master Service Dealer (MSD) technician.
Your POLARIS dealer knows your vehicle best and is interested in your total
satisfaction. Your POLARIS dealership can perform all of your service needs
during and after the warranty period.
For the most up-to-date owner’s manual visit
https://www.polaris.com/en-us/owners-manuals.
3
WELCOME
The following signal words and symbols appear throughout this manual and on
your vehicle. Your safety is involved when these words and symbols are used.
Become familiar with their meanings before reading the manual.
DANGER
DANGER indicates a hazardous situation which, if not avoided, WILL result in
death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, COULD result
in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, COULD result
in minor to moderate injury.
NOTICE
NOTICE provides key information by clarifying instructions.
IMPORTANT
IMPORTANT provides key reminders during disassembly, assembly, and
inspection of components.
The Prohibition Safety Sign indicates an action NOT to take in
order to avoid a hazard.
The Mandatory Action Sign indicates an action that NEEDS to
be taken to avoid a hazard.
4
SAFETY SYMBOLS AND SIGNAL WORDS
Introduction . . . . . . . . . . . . . . . . . . . . 7
Safety . . . . . . . . . . . . . . . . . . . . . . 13
Features and Controls . . . . . . . . . . . . . . 35
Operation . . . . . . . . . . . . . . . . . . . . 77
Winch Guide (If Equipped) . . . . . . . . . . . . 97
Emission Control Systems . . . . . . . . . . . . . 107
Maintenance . . . . . . . . . . . . . . . . . . 109
Specifications . . . . . . . . . . . . . . . . . . 179
POLARIS Products . . . . . . . . . . . . . . . . 183
Troubleshooting . . . . . . . . . . . . . . . . . 185
Warranty . . . . . . . . . . . . . . . . . . . . 209
Maintenance Log . . . . . . . . . . . . . . . . 215
5
6
INTRODUCTION
IMPORTANT WARNING ABOUT THIS MANUAL
WARNING
Failure to heed the warnings and safety precautions contained in this manual
can result in severe injury or death. A POLARIS ATV is not a toy and can be
hazardous to operate. This vehicle handles differently than other vehicles,
such as motorcycles and cars. A collision or rollover can occur quickly, even
during routine maneuvers like turning, or driving on hills or over obstacles, if
you fail to take proper precautions.
• Read this owner’s manual. Understand all safety warnings, precautions and
operating procedures before operating a POLARIS ATV. Keep this manual
with the ATV.
• Never operate an ATV without proper instruction. Take a certified ATV safety
training course. In the United States, certified training can be found at www.
atvsafety.org.
• This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited for
anyone under 16 years of age.
• Never permit a guest to operate the ATV unless the guest has read this
manual and all product labels and has completed a certified safety training
course. In the United States, certified training can be found at www.
atvsafety.org.
7
INTRODUCTION
VEHICLE IDENTIFICATION NUMBERS
The vehicle identification number (VIN)
q
is stamped on the lower frame rail on
the front right side of the vehicle.
Record your vehicle's identification numbers in the spaces provided. Remove
the spare key and store it in a safe place. An ignition key can be duplicated only
by ordering a POLARIS key blank and mating it with one of your existing keys.
The ignition switch must be replaced if all keys are lost.
NOTICE
Images are for reference only. Your model might differ slightly.
Vehicle Model Number
Frame VIN
q
Engine Serial Number
w
REPLACEMENT KEYS
A replacement key can be made from the original key.
Key Blank:
P/N 4080125
Rubber Key Cover:
P/N 5458344
11
INTRODUCTION
NEAR-FIELD COMMUNICATION (NFC)
(IF EQUIPPED)
Some Polaris vehicles come equipped with a near-field communication (NFC)
chip. The NFC chip is embedded in the Polaris emblem located at the front of
the vehicle and seamlessly connects you to a digital platform of vehicle
information and tools. See your dealer for more information.
IMPORTANT
Not all devices are equipped with an NFC reader. Additionally, some devices
require third party applications to access NFC content. For questions regarding
the NFC reader on your device, refer to the device’s user manual.
On models equipped with NFC, place your smartphone directly over the Polaris
emblem to do the following:
• View vehicle-specific
information
• Access your Polaris Garage
• Download and view the
owner’s manual
• View accessory instructions
• Watch how-to videos
• Access warranty information
• Check for service notifications
RIDE COMMAND WITH NFC
Additional NFC features are available when using the Ride Command mobile
app. To access these features, do the following:
1. Download the Ride Command mobile app from the Apple App Store® or
Google Play® store.
2. Create or log in to an existing account.
3. From the Ride Command mobile app home screen, select Add Vehicle.
4. On the vehicle, tap the NFC-enabled badge with the phone to scan the
vehicle.
5. Confirm information, name your vehicle, and tap add to garage.
SYSTEM REQUIREMENTS
Refer to device manufacturer’s instructions to verify NFC read capability, and/or
NFC-capable add-ons.
12
INTRODUCTION
SAFETY
SAFETY TRAINING
Safety training is a top priority for POLARIS. POLARIS strongly encourages you
and any family members who will be riding this vehicle to take a training course.
For more information about safety, contact an authorized POLARIS dealer or
visit the POLARIS web site at www.polaris.com.
Your POLARIS vehicle is considered an off-road vehicle. Familiarize yourself
with all laws and regulations concerning the operation of this vehicle in your
area.
We strongly advise you to strictly follow the recommended maintenance
program outlined in your owner's manual. This preventive maintenance program
is designed to ensure that all critical components on your vehicle are thoroughly
inspected at specific intervals.
SAFE RIDING GEAR
Always wear helmet, eye protection, gloves,
long-sleeve shirt, long pants, and over-the-ankle
boots at all times. Protective gear reduces the
chance of injury.
q
Helmet
w
Eye Protection
e
Long Sleeves
r
Gloves
t
Long Pants
y
Over-the-Ankle Boots
HELMET
Wearing a helmet can prevent a severe head injury. Whenever riding this
POLARIS vehicle, always wear a helmet that meets or exceeds established
safety standards. Clasp the buckle and pull each strap tight to ensure the helmet
is properly secured to the head.
13
SAFETY
Approved helmets in the USA and Canada bear a
U.S. Department of Transportation (DOT) label.
Approved helmets in Europe, Asia and Oceania
bear the ECE 22.05 label. The ECE mark consists
of a circle surrounding the letter E, followed by the
distinguishing number of the country which has
granted approval. The approval number and serial
number will also be displayed on the label.
EYE PROTECTION
Do not depend on eyeglasses or sunglasses for eye protection. Whenever riding
this POLARIS vehicle, always wear shatterproof goggles or use a shatterproof
helmet face shield. POLARIS recommends wearing approved Personal
Protective Equipment (PPE) bearing markings such as VESC 8, V-8, Z87.1, or
CE. Make sure protective eye wear is kept clean.
GLOVES
Wear gloves for comfort and for protection from sun, cold weather and other
elements.
BOOTS
Wear sturdy over-the-ankle boots for support and protection. Never ride a
POLARIS vehicle with bare feet or sandals.
CLOTHING
Wear long sleeves and long pants to protect arms and legs.
14
SAFETY
SAFETY WARNINGS
WARNING
Failure to operate this vehicle properly can result in a collision, loss of control,
accident or rollover, which may result in serious injury or death. Heed all safety
warnings outlined in this section of the owner’s manual. See the operation
section of this owner’s manual for proper operating procedures.
OPERATING WITHOUT INSTRUCTION
Operating this ATV without proper instruction
increases the risk of an accident. The
operator must understand how to operate the
ATV properly in different situations and on
different types of terrain.
Beginning and inexperienced operators
should complete the recommended safety
training before operating this vehicle.
Never permit a guest to operate the ATV
unless the guest has read this manual and all
product labels and has completed a certified
safety training course.
AGE RESTRICTIONS
This vehicle is an ADULT VEHICLE ONLY.
Operation is prohibited for anyone under 16
years of age.
Never allow anyone under 12 years of age to
ride as a passenger on a 2-up ATV.
Even though a child may be within the
recommended age group for operating some
ATVs, they may not have the skills, abilities,
or judgment needed to operate or ride on this
ATV safely and could be susceptible to
accident or injury.
If you are operating a 2-up ATV, do not carry
passengers whose feet do not reach the
footrests.
15
SAFETY
USING ALCOHOL OR DRUGS
Never consume alcohol or drugs before or
while operating this vehicle.
Operating this vehicle after consuming
alcohol or drugs could adversely affect
operator judgment, reaction time, balance
and perception.
FAILURE TO INSPECT BEFORE OPERATING
WARNING
Failure to inspect and verify that the vehicle is in safe operating condition
before operating increases the risk of an accident.
Always perform the pre-ride inspection before each use of your vehicle to
make sure it's in safe operating condition.
Always follow the inspection and maintenance procedures and schedules
described in this owner’s manual.
HANDLING GASOLINE
Gasoline is highly flammable and explosive under certain conditions.
• Always exercise extreme caution whenever handling gasoline.
• Always refuel with the engine stopped, and outdoors or in a well ventilated
area.
• Never carry fuel or other flammable liquids on this vehicle. Failure to follow
this instruction could lead to serious burn injuries or death.
• Do not smoke or allow open flames or sparks in or near the area where
refueling is performed or where gasoline is stored.
• Do not overfill the tank. Do not fill the tank neck.
• If gasoline spills on your skin or clothing, immediately wash it off with soap
and water and change clothing.
16
SAFETY
EXPOSURE TO EXHAUST
CAUTION
Engine exhaust fumes are poisonous and can cause loss of consciousness or
death in a short time. Never start the engine or let it run in an enclosed area.
Operate this vehicle only outdoors or in well-ventilated areas.
PROTECTIVE APPAREL
Riding in this vehicle without wearing an
approved helmet and protective eye wear
increases the risk of a serious injuries in the
event of an accident.
Always wear a helmet, eye protection,
gloves, long-sleeve shirt, long pants and
over-the-ankle boots.
FORESTRY APPLICATION AND CROP SPRAYING
This vehicle does not have a Falling Objects Protective Structure (FOPS). Do
not use the vehicle in forestry application situations where the risk of falling
objects may be present.
This vehicle is not equipped for protection against hazardous substances. It
does not offer any protection against substances which are harmful to health.
Always wear proper personal protective equipment if this vehicle is used for crop
spraying or other applications requiring the use of hazardous substances.
17
SAFETY
OPERATING ON PUBLIC ROADS (TRACTOR OR
ZUGMASCHINE MODELS ONLY)
This vehicle is approved for on-road use.
OPERATING ON PUBLIC ROADS (MD MODELS
ONLY)
Operating this vehicle on public streets, roads
or highways could result in a collision with
another vehicle. Never operate this vehicle
on any public street, road or highway,
including dirt and gravel roads (unless
designated for off-highway use).

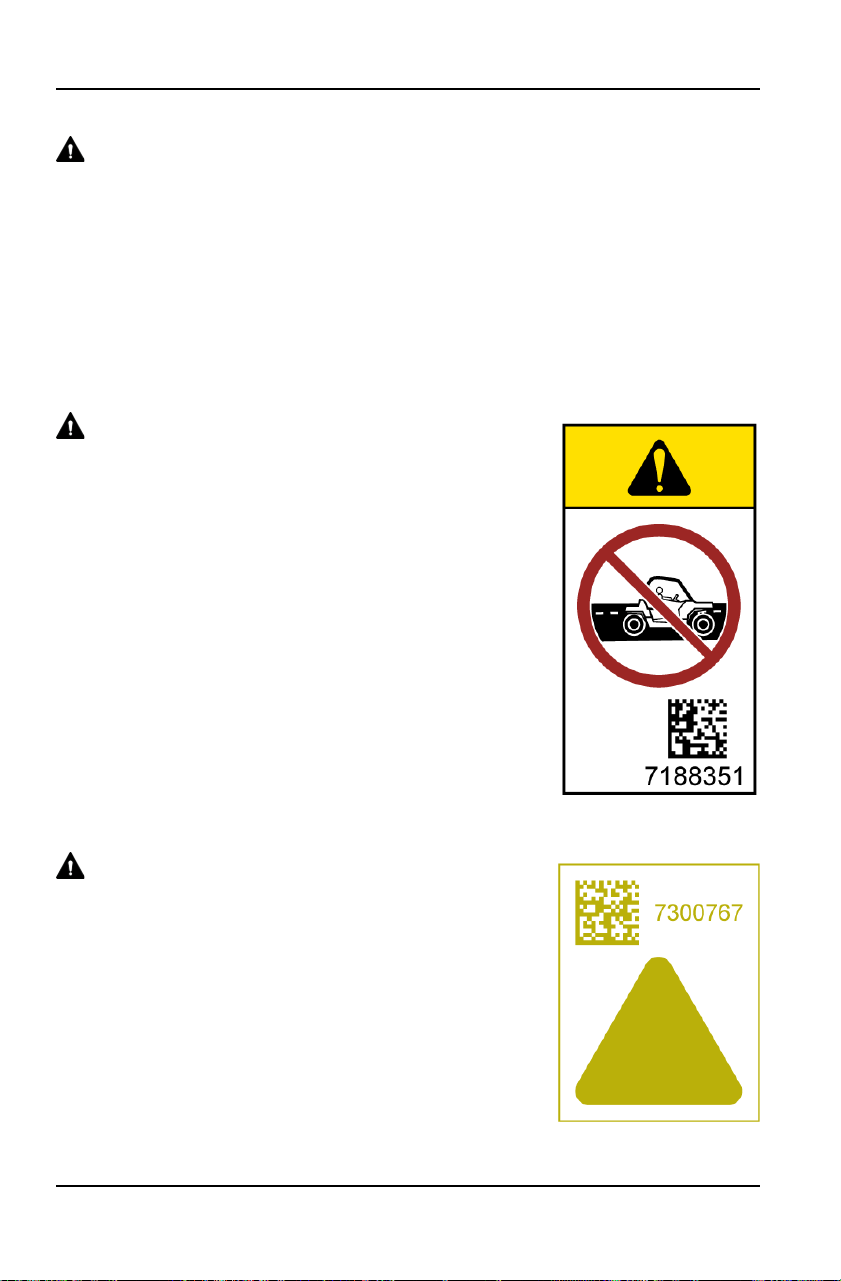

OPERATING ON PAVEMENT
This vehicle’s tires are primarily designed for off-road use. Operating this vehicle
on paved surfaces (including sidewalks, paths, parking lots and driveways) may
adversely affect the handling of the vehicle and may increase the risk of loss of
control and accident or rollover. Avoid operating the vehicle on pavement. If it's
unavoidable, travel slowly, travel short distances and avoid sudden turns or
stops.
18
SAFETY
OPERATING AT EXCESSIVE SPEEDS
Operating this vehicle at excessive speeds
increases the operator's risk of losing control.
Always operate at a speed that's appropriate
for the terrain, the visibility and operating
conditions and your skills and experience.
PHYSICAL CONTROL OF THE VEHICLE
Removing even one hand or foot can reduce ability to control the vehicle or
could cause loss of balance and ejection from the ATV.
If a person's feet are not firmly planted on the footrests, they could come into
contact with the wheels or other moving parts and lead to accident or injury.
Always keep both hands on the handlebars and both feet on the footrests of the
ATV during operation.
TURNING IMPROPERLY
CAUTION
Turning improperly could cause loss of traction, loss of control, accident or
rollover. Always follow proper procedures for turning as described in this
owner’s manual.
Avoid sharp turns. Never turn while applying heavy throttle. Never make abrupt
steering maneuvers. Practice turning at slow speeds before attempting to turn at
faster speeds.
19
SAFETY
JUMPS AND STUNTS
Exhibition driving increases the risk of an
accident or rollover. DO NOT do power
slides, “donuts”, jumps or other driving stunts.
Avoid exhibition driving.
IMPROPER HILL CLIMBING
Improper hill climbing could cause loss of control or rollover. Use extreme
caution when operating on hills. Always follow proper procedures for hill climbing
as described in this owner's manual. See the New Operator Driving Procedures
section for details.
DESCENDING HILLS IMPROPERLY
Improperly descending a hill could cause loss of control or rollover. Always
follow proper procedures for traveling down hills as described in this owner’s
manual. See the New Operator Driving Procedures section for details.
CROSSING HILLSIDES
Driving on a sidehill is not recommended. Improper procedure could cause loss
of control or rollover. Avoid crossing the side of any hill unless absolutely
necessary.
If crossing a hillside is unavoidable, always follow proper procedures as
described in this owner's manual. See the New Operator Driving Procedures
section for details.
20
SAFETY
STALLING WHILE CLIMBING A HILL
Stalling, rolling backwards or improperly
dismounting while climbing a hill could cause
a rollover.
• Always maintain a steady speed when
climbing a hill.
• Always engage ADC mode (if equipped)
before ascending or descending a hill. If
ADC mode is not equipped, apply AWD
mode before ascending or descending a
hill.
If all forward speed is lost:
• Lean forward to keep body weight uphill. A passenger should also lean uphill.
• Apply the brakes.
• Lock the parking brake when fully stopped.
• Dismount on the uphill side of the vehicle, or on the left if the vehicle is
pointing straight uphill. Have a passenger dismount first, then the operator
may dismount.
• Turn the ATV around and remount, following the procedure described in the
owner's manual.
If the ATV begins rolling downhill:
• Keep operator and passenger body weight uphill.
• Never apply engine power.
• Apply the brake lever gradually.
• When fully stopped, apply the auxiliary brake as well, and then lock the
parking brake.
• Dismount on the uphill side of the vehicle, or on the left if the vehicle is
pointing straight uphill. Have a passenger dismount first, then the operator
may dismount.
• Turn the ATV around and remount, following the procedure described in the
owner's manual.
21
SAFETY
OPERATING ON STEEP HILLS
Operating on excessively steep hills could
cause an overturn.
Never operate on hills too steep for the ATV
or for your abilities.
Never operate this ATV on hills steeper than
15 degrees.
OPERATING ON SLIPPERY TERRAIN
Failure to use extra caution when operating
on excessively rough, slippery or loose
terrain could cause loss of traction, loss of
control, accident or overturn.
Do not operate on excessively rough, slippery
or loose terrain until you've learned and
practiced the skills necessary to control the
vehicle on such terrain.
Always use extra caution on rough, slippery
or loose terrain.
OPERATING IN UNFAMILIAR TERRAIN
Failure to use extra caution when operating on unfamiliar terrain could result in
an accident or rollover.
Unfamiliar terrain may contain hidden rocks, bumps, or holes that could cause
loss of control or rollover.
Travel slowly and use extra caution when operating on unfamiliar terrain. Always
be alert to changing terrain conditions.
22
SAFETY
IMPROPER TIRE MAINTENANCE
Operating this vehicle with improper tires or
with improper or uneven tire pressure could
cause loss of control or accident.
Always use the size and type of tires
specified for your vehicle.
Always maintain proper tire pressure as
described in the owner's manual and on
safety labels.
OPERATING IMPROPERLY IN REVERSE
Improperly operating in reverse could result in a collision with an obstacle or
person. Always follow proper operating procedures as outlined in this manual.
See the New Operator Driving Procedures section for details.
Before shifting into reverse gear, always check for obstacles or people behind
the vehicle. When it's safe to proceed, back slowly.
OPERATING OVER OBSTACLES
Improperly operating over obstacles could
cause loss of control or rollover.
Before operating in a new area, check for
obstacles. Avoid operating over large
obstacles such as large rocks and fallen
trees. Always follow the proper procedures
outlined in this manual when operating over
obstacles. See the New Operator Driving
Procedures section for details.
23
SAFETY
SKIDDING OR SLIDING
Failure to use extra caution when operating
on excessively rough, slippery or loose
terrain could cause loss of traction, loss of
control, accident or rollover. Do not operate
on excessively slippery surfaces. Always
slow down and use additional caution when
operating on slippery surfaces.
Skidding or sliding due to loss of traction can
cause loss of control or rollover (if tires regain
traction unexpectedly). Always follow proper
procedures for operating on slippery surfaces
as described in this owner's manual. See the
New Operator Driving Procedures section for
details.
OPERATING A DAMAGED VEHICLE
CAUTION
Operating a damaged vehicle can result in an accident. After any rollover or
other accident, have a qualified service dealer inspect the entire machine for
possible damage, including (but not limited to) brakes, throttle, and steering
systems.
OPERATING THROUGH WATER
Operating through deep or fast-flowing water can cause loss of traction, loss of
control, rollover or accident. Never operate in fast-flowing water or in water that
exceeds the floor level of the vehicle.
Always follow proper procedures for operating in water as described in this
owner’s manual.
Wet brakes may have reduced stopping ability. After leaving water, test the
brakes. Apply them lightly several times while driving slowly. The friction will help
dry out the pads.
OPERATING IN LIGHTNING
Avoid operating this vehicle when lightning could occur unless the vehicle is
equipped with a fully enclosed cab. Rubber tires, rubber handgrips and a foam
seat will not protect a rider from lightning strikes. Always seek safe shelter when
lightning is imminent.
24
SAFETY
IMPROPER CARGO LOADING
Overloading the vehicle or carrying cargo improperly may cause changes in
stability and handling, which could cause loss of control or an accident.
• Always follow the instructions in this owner’s manual for carrying cargo.
• Never exceed the stated load capacity for this vehicle.
• Cargo should be properly distributed and securely attached.
• Reduce speed when carrying cargo or pulling a trailer. Allow a greater
distance for braking.
OPERATING ON FROZEN BODIES OF WATER
Severe injury or death can result if the vehicle and/or the operator fall through
the ice. Never operate the vehicle on a frozen body of water unless you have
first verified that the ice is sufficiently thick to support the weight and moving
force of the vehicle, you and your cargo, together with any other vehicles in your
party.
Always check with local authorities and residents to confirm ice conditions and
thickness over your entire route. Vehicle operators assume all risk associated
with ice conditions on frozen bodies of water.
POOR VISIBILITY
CAUTION
Operating this vehicle in darkness or inclement weather could result in a
collision or accident, especially if operating on a road or street. Use caution
and drive at reduced speeds in conditions of reduced visibility such as fog, rain
and darkness. Clean headlights frequently and replace burned out headlamps
promptly.
PHYSICAL SKILLS
Safe operation of this rider-active vehicle requires good judgment and physical
skills. Persons with cognitive or physical disabilities who operate this vehicle
have an increased risk of overturn and loss of control.
25
SAFETY
HOT EXHAUST SYSTEMS
WARNING
Exhaust system components are very hot during and after use of the vehicle.
Hot components can cause burns and fire. Do not touch hot exhaust system
components. Always keep combustible materials away from the exhaust
system.
Use caution when traveling through tall grass, especially dry grass and when
traveling through muddy conditions. Always inspect the underside of the
vehicle and areas near the exhaust system after driving through tall grass,
weeds, brush, other tall ground cover, and muddy conditions. Promptly remove
any grass, debris or foreign matter clinging to the vehicle and pay particular
attention to the exhaust system area.
TRAILER HITCH WARNING (IF EQUIPPED)
If using a hitch, ensure the receiver does not exceed a two inch drop or raise.
WARNING
When trailering with your ATV, be aware that the exhaust is located above the
hitch ball receiver and the trailer hitch. During operation of the ATV, the
exhaust will produce hot exhaust gas that should not be inhaled and that may
elevate the surface temperature of surrounding surfaces, including trailer
surfaces (e.g., trailer hitch, trailer tongue, trailer walls, . . . etc.). To reduce the
risk of inhaling exhaust gases and to avoid risk of burn or injury, shut off your
engine and allow time for the exhaust gases to dissipate and for the surfaces
surrounding the exhaust to cool, including the trailer surfaces, before
connecting or disconnecting a trailer. To reduce the potential for the trailer hitch
or trailer tongue from getting too hot, do not use a receiver hitch with a rise of
more than two inches.
UNAUTHORIZED USE OF THE VEHICLE
Leaving the keys in the ignition can lead to unauthorized use of the vehicle by
someone under the age of 16, without a drivers license, or without proper
training. This could result in an accident or rollover. Always remove the ignition
key when the vehicle is not in use.
26
SAFETY
EQUIPMENT MODIFICATIONS
Your POLARIS vehicle is designed to provide safe operation when used as
directed. Modifications to your vehicle may negatively impact vehicle stability.
Failure of critical machine components may result from operation with any
modifications, especially those that increase speed or power. This vehicle may
become less stable at speeds higher than those for which it is designed. Loss of
control may occur at higher speeds.
Do not install any non-POLARIS-approved accessory or modify the vehicle for
the purpose of increasing speed or power. Any modifications or installation of
non-POLARIS-approved accessories could create a substantial safety hazard
and increase the risk of bodily injury.
The POLARIS limited warranty on your POLARIS vehicle will be terminated if
any non-POLARIS approved equipment and/or modifications have been added
to the vehicle that increase speed or power.
The addition of certain accessories, including (but not limited to) mowers,
blades, tires, sprayers, or large racks, may change the handling characteristics
of the vehicle. Use only POLARIS-approved accessories, and familiarize
yourself with their function and effect on the vehicle.
For more information about ATV safety, see the Safety Training section.
27
SAFETY
SAFETY LABELS AND LOCATIONS
Warning labels have been placed on the vehicle for your protection. Read and
follow the instructions on each label carefully. If any of the labels shown in this
manual differ from the labels on your vehicle, always read and follow the
instructions of the labels on the vehicle.
If an informational or graphic label becomes illegible or comes off, contact your
POLARIS dealer to purchase a replacement. Replacement safety labels are
provided by POLARIS at no charge. The part number is printed on the label.
SPORTSMAN 570
q
General Alert
w
Discretionary Alert
e
Grease Point Alert (if equipped)
r
AWD/4x4 Alert
t
Tire Pressure Alert
y
Clutch Cover Alert
u
Override Alert
i
Fuel Alert
o
Rack Alerts
a
Off Road Use Only Alert (if
equipped)
s
Hitch Alert (if equipped)
d
Radiator Cap Warning
f
Jacking Points Alert
28
SAFETY
GENERAL ALERT — TRACTOR & ZUGMASCHINE
MODELS
WARNING
Before you operate this vehicle,
read the owner’s manual. Never
allow anyone under 16 years of
age to operate this vehicle.
Always wear an approved
helmet, goggles, and protective
clothing. Never use alcohol or
drugs before or while operating.
Never carry more than one
passenger. This vehicle is
approved for on-road use.
Part Number: 7181540
GENERAL ALERT — MD MODELS
WARNING
Before you operate this vehicle,
read the owner’s manual. Never
allow anyone under 16 years of
age to operate this vehicle.
Always wear an approved
helmet, goggles, and protective
clothing. Never use alcohol or
drugs before or while operating.
Never carry more than one
passenger. Never operate the
vehicle on any public street,
road or highway.
Part Number: 7181538
DISCRETIONARY ALERT
WARNING
Read and understand your
owner’s manual. Never operate
this vehicle on hills steeper than
15°.
Part Number: 7181536
29
SAFETY
GREASING POINT ALERT
WARNING
Always read and understand
your owner’s manual.
Lubricate as recommended.
Part Number: 7300027
4X4 (AWD) ALERT
WARNING
Do not push switch to engage 4X4 (AWD) if the rear
wheels are spinning. This may cause severe drive
shaft and clutch damage.
Part Number: 7181543
TIRE PRESSURE ALERT
WARNING
TIRE PRESSURE IN kPa:
FRONT – 48,3 kPa
REAR – 48,3 kPa
Part Number: 7183263
30
SAFETY
CLUTCH COVER ALERT
WARNING
Keep body parts away from belt.
Part Number: 7181427
OVERRIDE ALERT
WARNING
Improper use of override button can lead to loss of
control resulting in severe injury or death. Do not
activate override while throttle is engaged. Always
apply throttle gradually while in reverse.
Part Number: 7181544
FUEL ALERT
Compatible Fuel Types:
• E5
• E10
Part Number: 7300053
31
SAFETY
RACK ALERT
WARNING
DO NOT TOW FROM RACK OR
BUMPER. Vehicle damage or
tipover may result causing
severe injury or death. Tow only
from tow hooks or hitch.
Maximum Rack Loads: Front 41
kg. Rear 82 kg.
Part Number: 7181584
ACCESSORY OFF ROAD USE ONLY ALERT
WARNING
Accessories marked by this decal are approved for
off-road use only. NEVER use accessories marked
with this decal on public roads.
Part Number: 7188351
RADIATOR CAP WARNING
WARNING
Hot pressurized fluid can cause serious burns. Do not
touch radiator cap when hot. Open slowly.
Part Number: 7300767
32
SAFETY
34
FEATURES AND CONTROLS
OVERVIEW
NOTICE
Image is for reference only. Your model might differ slightly.
q
Brake Lever
w
Left Hand Controls
e
Work Light Switch (if equipped)
r
Digital Display
t
Hand Warmer Switch (if
equipped)
y
Thumb Warmer Switch (if
equipped)
u
Driveline Mode Switch
i
Throttle Lever
o
Ignition Switch
a
Battery Charge Port
s
Auxiliary Outlet
35
FEATURES AND CONTROLS
LEFT-HAND CONTROLS
q
Light Switch
w
Engine Stop Switch
e
Hazard Switch
r
Turn Signal Switch
t
Horn Switch
y
Override Switch
ENGINE STOP SWITCH
NOTICE
The engine will not start or run when the switch is in the OFF position.
Push the stop switch down to stop the engine quickly. Pull the stop switch up to
the RUN position before attempting to start the engine.
Both the main switch and the engine stop switch will shut off all electrical power
to the vehicle, including lights.
36
FEATURES AND CONTROLS
MODE / REVERSE OVERRIDE SWITCH
This vehicle is equipped with a reverse speed limiter system. To gain additional
wheel speed while backing, release the throttle and depress the override switch.
WARNING
Pressing the override switch while the throttle is open can cause loss of
control, which may result in serious injury or death. Always release the throttle
before pressing the override switch.
The reverse override switch also acts as a MODE button when held down for
approximately one half second. The transmission cannot be in reverse when
using the override switch as a MODE button.
TURN SIGNAL SWITCH
Push the toggle switch either left or right to activate the corresponding turn
signal light. The indicator in the gauge will also flash. Return the toggle to the
center position and push it inward to end the signal.
HEADLIGHT AND MOMENTARY HIGH BEAM
SWITCH
The lights do not operate unless the main key switch is on and the engine stop
switch is in the RUN position.
SWITCH
POSITION
FUNCTION
High Beam
Low Beam
Press this switch with your left forefinger to activate the headlight high beam.
The lights will return to low beam when the switch is released.
38
FEATURES AND CONTROLS
IGNITION SWITCH
WARNING
Do not attach a large key fob or key ring to the main switch. It may contact the
gas tank cap when turning, causing an interruption to the electrical system and
an unexpected engine shut-down during operation. This could result in serious
injury or death.
SWITCH
POSITION
FUNCTION
End all electrical power to the vehicle
The LIGHTS ON position turns the headlights on. The
engine stop switch must be in the RUN position.
Start the engine. The headlights are not on in this position.
After starting the engine, release the key switch to the
PARKING LIGHTS ON position. The parking lights and
taillights are on in this position.
39
FEATURES AND CONTROLS
RIGHT-HAND CONTROL
THROTTLE LEVER
WARNING
Operating an ATV with sticking or improperly operating throttle controls could
cause an accident. Never start or operate an ATV that has a sticking or
improperly operating throttle. Immediately contact your POLARIS dealer or
other qualified person for service if throttle problems arise.
Failure to check or maintain proper operation of the throttle system can result
in an accident if the throttle lever sticks during operation. Always check the
lever for free movement and return before starting the engine. Also check
occasionally during operation.
Engine speed and vehicle movement
are controlled by pressing the throttle
lever
q
. The throttle lever is spring
loaded. Engine speed returns to idle
when the lever is released.
WARNING
Modifications to the electronic throttle control could result in failure to perform
as designed, which could result in an accident. Do not attempt to modify the
throttle control system or replace it with any after market throttle mechanisms.
DRIVELINE MODE SWITCH
The driveline mode switch
q
controls
the All Wheel Drive (AWD) system. Use
this switch to change the driveline
modes between Turf Mode, 2WD, AWD,
and ADC. The vehicle automatically
engages AWD when operating in
reverse if the driveline mode is set to
AWD.
40
FEATURES AND CONTROLS
BRAKES
BRAKE LEVER
WARNING
Operating the ATV with a spongy brake lever can result in loss of braking,
which could cause an accident. Never operate the ATV with a spongy-feeling
brake lever. Always contact your dealer for service before operating the
vehicle.
Squeeze the brake lever
q
toward the handlebar to apply
the front and rear brakes. These
brakes are hydraulically
activated disc type brakes that
are activated by only one lever.
Always test brake lever travel
and master cylinder fluid level
before riding. When squeezed,
the lever should feel firm.
Any sponginess would indicate a possible fluid leak or low master cylinder fluid
level, which must be corrected before riding. Contact your POLARIS dealer or
other qualified service facility for proper diagnosis and repairs.
MASTER CYLINDER/BRAKE FLUID
WARNING
An over-full master cylinder may cause brake drag or brake lock-up, which
could result in an accident. Maintain brake fluid at the recommended level. Do
not overfill.
Check the brake fluid in the
master cylinder before each ride.
1. Position the ATV on a level
surface.
2. Position the handlebars so
the master cylinder
w
is
level.
41
FEATURES AND CONTROLS
3. View the brake fluid level through the indicator window
e
on the side of the
master cylinder. The window will appear dark when the fluid level is at MAX.
When fluid level is at the MIN mark, only the lower half of the indicator will be
dark. If the entire indicator window is clear, the master cylinder is empty of
fluid.
4. If fluid level is below the MIN mark, remove the cover screws and add fluid to
the fill line. Do not overfill. Use DOT 4 brake fluid only.
IMPORTANT
Operating the ATV with brake fluid levels below the MIN mark may cause poor
braking performance. If fluid levels are consistently low, it could indicate a leak
somewhere in the brake system. Always ensure the master cylinder reservoir
has the recommended amount of brake fluid. Do not operate if brake fluid is
below the MIN line.
5. Reinstall the cover. Torque screws to specification.
TORQUE
Brake Fluid Cover Screws
17.7 in-lbs (2 N·m)
WARNING
Never store or use a partial bottle of brake fluid. Brake fluid is hygroscopic,
meaning it rapidly absorbs moisture from the air. The moisture causes the
boiling temperature of the brake fluid to drop, which can lead to early brake
fade and the possibility of brake failure, which could result in an accident. After
opening a bottle of brake fluid, always discard any unused portion.
42
FEATURES AND CONTROLS
BRAKE HOLDING LATCH
WARNING
Operating the ATV while the brake holding latch is engaged could result in an
accident or fire. Always check to be sure the latch is disengaged before
operating.
To lock the parking brake, do the following:
1. Place the transmission in
PARK.
2. Squeeze and release the
brake lever two or three
times, then squeeze and
hold.
3. Push the brake holding latch
r
forward to engage the
lock.
4. Release the brake lever.
5. To release the brake holding latch, squeeze and release the brake lever. It
will return to its unlocked position.
WARNING
The brake holding latch may relax if left on for a long period of time. Always
block the wheels to prevent rolling. Always block the wheels on the downhill
side of the ATV if leaving it parked on a hill. Another option is to park the ATV in
a sidehill position. Never depend on the brake holding latch alone if the ATV is
parked on a hill.
AUXILIARY FOOT BRAKE
WARNING
Never back down a hill. Applying the auxiliary brake when backing down a hill
may cause rear tipover, which could result in serious injury or death.
Use caution when applying the auxiliary brake. Do not aggressively apply the
auxiliary brake when going forward. The rear wheels may skid and slide
sideways, causing loss of control and serious injury or death.
43
FEATURES AND CONTROLS
The auxiliary brake system is intended to be used as a backup for the main
brake system. Should the main system fail, use the auxiliary foot brake
q
.
The auxiliary foot brake is located on the inside of the right footrest. Operate this
brake with your right foot. If the rear wheels slide while using the auxiliary brake,
reduce brake pedal pressure to brake the rear wheels without skidding.
BRAKE FLUID LEVEL
Check the brake fluid level frequently for the auxiliary
brake system. The reservoir is located under the front
storage box.
Maintain the fluid level between the maximum and
minimum marks. Use DOT 4 brake fluid only.
STUCK BRAKE
This ATV is designed to prevent riders from driving through their brakes or
overheating the brake system in the event of a stuck brake. If the brakes are
engaged and the system detects pressure on the throttle, power will be limited to
the vehicle and a scrolling message will appear on the gauge: “RELEASE
BRAKES”.
In the event of this message, do the following:
44
FEATURES AND CONTROLS
1. Bring vehicle to a full stop.
2. Check the brakes to ensure the brake lever is not stuck and the brake
holding latch is unlocked.
3. Once brakes are disengaged, the message will clear and the fault will be
saved in the historic code.
AUTOMATIC TRANSMISSION GEAR SELECTOR
The transmission gear selector is located on the right side of the vehicle. To shift
gears, brake to a complete stop. When the engine is idling, move the lever to the
desired gear.
H: High Gear
L: Low Gear
N: Neutral
R: Reverse
P: Park
NOTE
Shifting gears with the engine speed above idle or while the vehicle is moving
could cause transmission damage.
Whenever the ATV is left unattended, always place the transmission in PARK
and lock the parking brake.
TIP
To extend belt life, use low forward gear when pulling a heavy load at less than
7 mph (11 km/h) for extended periods and when operating uphill at a slow
speed.
45
FEATURES AND CONTROLS
INSTRUMENT CLUSTER
OVERVIEW
NOTICE
Features and telltales vary by model.
DISPLAY AREA FUNCTION
q
Gear Indicator
H = High Gear
L = Low Gear
N = Neutral
R = Reverse Gear
P = Park
– = Gear Signal Error (or shifter between gears)
w
Display Area 2
This area displays odometer, trip meter, trip meter 2,
voltage, engine temperature, engine hour meter,
programmable service hour interval, ground speed,
or engine RPM.
e
Display Area 1
This area displays engine RPM, ground speed, or
coolant temperature.
r
Fuel Gauge
The segments of the fuel gauge show the level of
fuel in the fuel tank. When the last segment clears, a
low fuel warning is activated. All segments including
the fuel icon will flash. Refuel immediately.
46
FEATURES AND CONTROLS
DISPLAY AREA FUNCTION
t
Service Indicator
A flashing wrench symbol alerts the operator that the
preset service interval has been reached. Your
POLARIS dealer can provide scheduled
maintenance. See page 68 for more information.
y
Clock
The clock displays time in a 12-hour or 24-hour
format.
u
Driveline Mode
Indicator
Segments of the indicator illuminate based on
driveline mode engaged.
INDICATOR LAMPS
INDICATOR ICON FUNCTION
Check Engine
This indicator appears if a fault occurs.
Do not operate the vehicle if this warning
appears. Serious engine damage could
result. Your authorized POLARIS dealer
can assist.
EPS Warning (if
equipped)
This indicator illuminates when a fault has
occurred in the EPS system. Your
authorized POLARIS dealer can assist.
EPS operation is possible with key
on/engine off for up to 5 minutes.
Engine Hot
This lamp illuminates to indicate an
overheated engine of at least (111 °C). If
the indicator flashes, a severe
overheating condition exists. Engine shut
down will occur at (119 °C).
Neutral
This lamp illuminates when the
transmission is in neutral and the ignition
key is in the ON position.
Helmet/Seat
Belt
This lamp flashes for several seconds
when the key is turned to the ON position.
The lamp is a reminder to wear helmet
and seat belt (if equipped) before
operating.
47
FEATURES AND CONTROLS
INDICATOR ICON FUNCTION
High Beam
This lamp illuminates when the headlamp
switch is set to high beam.
Brake Failure
This lamp illuminates when the Brake
System detects a stuck brake while the
throttle lever is engaged. This lamp also
illuminates when the brake fluid level in
the rear brake circuit is too low. Stop the
vehicle, check the brake functionality, and
verify the brake fluid in the reservoirs.
Trailer Indicator
The Turn Trailer Indicator is illuminating
when the trailer turn signals are active.
48
FEATURES AND CONTROLS
DISPLAY AREA 1
Pressing the MODE button
will change the information
displayed in Area 1
q
.
DISPLAY AREA 1 FUNCTION
Speed The vehicle’s speed will be displayed in mph, or km/h.
Engine
Temperature
The vehicle’s current engine temperature will be
displayed.
RPM The vehicle’s RPM will be displayed.
49
FEATURES AND CONTROLS
DISPLAY AREA 2
Toggle the Up/Down
buttons to change the
information displayed in
Area 2
w
.
DISPLAY AREA 2 FUNCTION
Odometer The vehicle’s odometer reading will be displayed.
Engine
Temperature
The vehicle Engine Temperature will be displayed.
Trip 1 The vehicle Trip 1 mileage will be displayed.
Trip 2 The vehicle Trip 2 mileage will be displayed.
RPM The vehicle RPM will be displayed.
Voltage The vehicle’s current battery voltage will be displayed.
Speed The vehicle’s current speed will be displayed.
Engine Hours The vehicle’s engine hours will be displayed.
Service Hours The vehicle’s service hours will be displayed.
50
FEATURES AND CONTROLS
OPTIONS MENU
From the options menu you
can view diagnostic codes,
access the advanced menu,
set the clock, and much more.
For a full list of available
options see below.
To enter the Options Menu,
press and hold the MODE
button.
OPTIONS MENU NOTES
Electronic Power Steering (EPS) Turn EPS feature on/off and set
between high, medium, or low.
Diagnostic Codes Only displays if fault codes are
present or stored.
Advanced Menu (if equipped) Set maximum speed and geofencing
settings.
Units - Distance Select MPH or KPH.
Units - Temp Select between °F and °C.
Clock (if equipped) Select between 12H or 24H, and set
time.
Backlight Color Select between Blue or Red.
Backlight Level Set backlight brightness level.
Service Hours View/Set Service hours.
Exit Menu Exit.
51
FEATURES AND CONTROLS
ELECTRONIC POWER STEERING (EPS)
Electronic power steering (EPS), if equipped, engages when the ignition key is
turned to the ON position. EPS remains engaged whether the vehicle is moving
or idle. See the Instrument Cluster section for EPS Warning Indicator
information.
NOTICE
Never switch EPS modes while the vehicle is in motion. Ensure the vehicle is
fully stopped and no force is applied to the steering system before switching
EPS modes.
EPS has three modes: high,
medium, low. To set the EPS
mode, do the following.
1. Stop the ATV and put it in
PARK.
2. Press and hold the MODE
button to enter the Options
Menu. “OPTIONS” will
display on the screen for 3
seconds before showing the
first menu item.
3. Select “EPS” from the
Options Menu by pressing
the MODE button.
4. Toggle the Up/Down Buttons to choose between the high, medium, and low
modes.
5. Press the MODE button to lock in the EPS setting.
52
FEATURES AND CONTROLS
DIAGNOSTIC CODE
Diagnostic Code Screen will show available MIL that has come on during that
ignition cycle.
To access the Diagnostic Code
Screen, do the following:
1. Press and hold the MODE
button to enter the Options
Menu. “OPTIONS” will
display on the screen for 3
seconds before showing
first menu item.
2. Select “Diagnostic Codes” from the Options Menu by pressing the MODE
button.
Toggle the Up/Down Buttons to cycle through Code(s).
NOTICE
This option will only be available if a fault code was set or is active during the
current ignition key 'on' cycle. Turning off the ignition will clear any save fault
codes from the gauge.
q
Display area 1 will show FMI
w
Display area 2 will show SPN
e
Clock Area will show Count.
53
FEATURES AND CONTROLS
NOTICE
When the gauge is displaying a fault code, the warning telltale (check engine
or EPS) will blink to indicate which controller set the fault code.
3. To exit the Options Menu the user can select Exit Menu function from
Options Menu, can hold Mode Button and exit out of Options Menu, or not
press any button for 10 seconds, which will exit out of the Options Menu.
ADVANCED MENU (IF EQUIPPED)
From the Advanced menu (if
equipped) you can set the
maximum speed, enable and
disable a geofence, and more.
For a full list of available
options see below.
ADVANCED MENU NOTES
Maximum Speed Set maximum Speed
Geofence Enable/Disable Geofence
Inside Geofence Speed Set inside Geofence maximum
vehicle speed
Outside Geofence Speed Set outside Geofence maximum
vehicle speed
Change PIN (if equipped) Change PIN
Exit Advanced Menu Exit
54
FEATURES AND CONTROLS
ENTER PIN
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “ADVANCED MENU” by pressing the MODE button.
3. Enter PIN.
NOTICE
If PIN is lost or displaced please contact your Polaris dealer for assistance.
4. To exit the Advanced Menu the user can select Exit Menu function from
Advanced Menu, can hold MODE button and exit out of Advanced Menu, or
not press any button for 10 seconds, which will exit out of the Options Menu.
NOTE
The gauge will lock after 5 incorrect PIN entries. To unlock the gauge, power
cycle the vehicle using the key ignition switch.
55
FEATURES AND CONTROLS
MAXIMUM SPEED (IF EQUIPPED)
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “ADVANCED MENU” by pressing the MODE Button.
3. Enter PIN.
4. Select “MAX SPEED” from the Advanced Menu by pressing the MODE
button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down Buttons to increase/decrease Max Speed.
e
With the desired Max Speed displayed, press the MODE button which will
set the Max Speed and return to the Advanced Menu.
5. To exit the Advanced Menu the user can select Exit Menu function from
Advanced Menu, can hold MODE Button and exit out of Advanced Menu, or
not press any button for 10 seconds, which will exit out of the Options Menu.
NOTICE
If Geofence is active, “MAX GEOFENCE SPEED” will scroll continuously on
the display screen when the vehicle reaches the predefined speed limit. Press
the up or down buttons to return to the display home screen. If the vehicle
remains at the predefine maximum speed, the message will repeat after 10
seconds.
56
FEATURES AND CONTROLS
GEOFENCING (IF EQUIPPED)
Before you can use the
geofencing features, you must
first download the Polaris Ride
Command app from the
APPLE APP STORE® or
Google Play® and create an
account. Enabling and
disabling a geofence, as well
as changing the minimum and
maximum speeds, can be
done using the vehicle display
after a geofence boundary has
been created through the Ride
Command app.
WARNING
GPS accuracy can vary by region, so make certain to give adequate distance
for geofence boundaries to accommodate this variation. A geofence will not
stop the vehicle. It will only slow to the entered speed limit.
To access the geofencing features, do the following:
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “ADVANCED MENU” by pressing the MODE button.
3. Enter PIN.
4. Select “GEOFENCE” from the Advanced Menu by pressing the MODE
button.
5. Toggle the Up/Down buttons to cycle through options (On/Off).
6. With the desired option displayed, press the MODE button which will set
function and return to the Advanced Menu.
7. To exit the Advanced Menu, select Exit Menu. You can also hold the Mode
Button, or not press any button for 10 seconds, to exit the Advanced Menu.
57
FEATURES AND CONTROLS
INSIDE GEOFENCE SPEED
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “ADVANCED MENU” by pressing the MODE button.
3. Enter PIN.
4. Select “INSIDE GEOFENCE SPEED” from the Advanced Menu by pressing
the MODE button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down buttons to increase/decrease Inside Geofence
Maximum Speed.
e
With the desired speed displayed, press the MODE button which will set
the Inside Geofence Speed and return to the Advanced Menu.
5. To exit the Advanced Menu the user can select Exit Menu function from
Advanced Menu, can hold MODE button and exit out of Advanced Menu, or
not press any button for 10 seconds, which will exit out of the Options Menu.
NOTICE
If Geofence is active, the display will scroll “IN GEOFENCE” when the vehicle
enters the predefined Geofence area.
58
FEATURES AND CONTROLS
OUTSIDE GEOFENCE SPEED
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “ADVANCED MENU” by pressing the MODE button.
3. Enter PIN.
4. Select “OUTSIDE GEOFENCE SPEED” from the Advanced Menu by
pressing the MODE button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down Buttons to increase/decrease Outside Geofence
Maximum Speed.
e
With the desired speed displayed, press the mode button which will set
the Outside Geofence Speed and return to the Advanced Menu.
5. To exit the Advanced Menu the user can select Exit Menu function from the
Advanced Menu, can hold Mode button and exit out of Advanced Menu, or
not press any button for 10 seconds, which will exit out of the Options Menu.
NOTICE
If Geofence is active, the display will scroll “OUT GEOFENCE” when the
vehicle exits the predefined Geofence area.
59
FEATURES AND CONTROLS
REQUIRE PIN TO START (IF EQUIPPED)
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “ADVANCED MENU” by pressing the MODE button.
3. Enter PIN.
4. Select “REQUIRE PIN TO START” from the Advanced Menu by pressing the
MODE button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down buttons to enable/disable requiring PIN to start
vehicle.
e
With the desired option displayed, press the MODE button which will set
the function and return to the Advanced Menu.
5. To exit the Advanced Menu the user can select Exit Menu function from
Advanced Menu, can hold MODE button and exit out of Advanced Menu, or
not press any button for 10 seconds, which will exit out of the Options Menu.
60
FEATURES AND CONTROLS
START PIN DELAY
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “ADVANCED MENU” by pressing the MODE button.
3. Enter PIN.
4. Select “PIN DELAY” from the Advanced Menu by pressing the MODE button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down buttons to enable/disable PIN Delay.
e
With the desired option displayed, press the MODE button which
will set the function and return to the Advanced Menu.
5. To exit the Advanced Menu the user can select Exit Menu function from
Advanced Menu, can hold Mode Button and exit out of Advanced Menu, or
not press any button for 10 seconds, which will exit out of the Options Menu.
61
FEATURES AND CONTROLS
CHANGE PIN
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “ADVANCED MENU” by pressing the MODE button.
3. Enter PIN.
4. Select “CHANGE PIN” from the Advanced Menu by pressing the MODE
button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down buttons to increase/decrease the first digit of the new
PIN.
e
With the desired first digit of the new PIN displayed, Press the MODE button
which will set the digit and move to the 2nd digit.
r
Toggle the Up/Down Buttons to increase/decrease the 2nd digit of the new
PIN. Press MODE button to set 2nd digit and move on to the 3rd digit.
t
Toggle the Up/Down Buttons to increase/decrease the 3rd digit of the new
PIN. Press MODE button to set 3rd digit and move on to the 4th digit.
5. Press the MODE button to set the 4th digit and exit.
6. To exit the Advanced Menu the user can select Exit Menu function from
Advanced Menu, can hold Mode button and exit out of Advanced Menu, or
not press any button for 10 seconds, which will exit out of the Options Menu.
62
FEATURES AND CONTROLS
UNIT SELECTION DISTANCE
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “Units-Distance” from the Options Menu by pressing the MODE
button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down Buttons to change the units (MPH or KPH)
e
With the correct unit displayed, Press the mode button which will set
the unit and return to the Options Menu.
3. To exit the Options Menu the user can select Exit Menu function from
Options Menu, can hold Mode Button and exit out of Options Menu, or not
press any button for 10 seconds, which will exit out of the Options Menu.
63
FEATURES AND CONTROLS
UNIT SELECTION TEMPERATURE
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “Units - Temp” from the Options Menu by pressing the MODE button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down Buttons to change the units (°F or °C)
e
With the correct unit displayed, Press the mode button which will set
the unit and return to the Options Menu.
3. To exit the Options Menu the user can select Exit Menu function from
Options Menu, can hold Mode Button and exit out of Options Menu, or not
press any button for 10 seconds, which will exit out of the Options Menu.
64
FEATURES AND CONTROLS
CLOCK
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “Clock” from the Options Menu by pressing the MODE button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down Buttons to change the units (12H or 24H)
e
With the correct unit displayed, Press the mode button which will set the
unit.
r
Toggle the Up/Down Buttons to change the units (Cycles Hours)
t
With the correct unit displayed, Press the mode button which will set the
unit.
y
Toggle the Up/Down Buttons to change the units (Cycles 10s of Minutes)
u
With the correct unit displayed, Press the mode button which will set the
unit.
i
Toggle the Up/Down Buttons to change the units (Cycles 1s of Minutes)
o
With the correct unit displayed. Press the mode button which will set the
unit and return to the Options menu.
3. To exit the Options Menu the user can select Exit Menu function from
Options Menu, can hold Mode Button and exit out of Options Menu, or not
press any button for 10 seconds, which will exit out of the Options Menu.
65
FEATURES AND CONTROLS
BACK LIGHT COLOR
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “Backlight Color” from the Options Menu by pressing the MODE
button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down Buttons to change the units (Blue or Red)
e
With the correct unit displayed, Press the mode button which will set
the unit and return to the Options Menu.
3. To exit the Options Menu the user can select Exit Menu function from
Options Menu, can hold Mode Button and exit out of Options Menu, or not
press any button for 10 seconds, which will exit out of the Options Menu.
66
FEATURES AND CONTROLS
BACK LIGHT LEVEL
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “Backlight Level” from the Options Menu by pressing the MODE
button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down Buttons to change the units (Increase or De-
crease Level)
e
With the correct unit displayed, Press the mode button which will set
the unit and return to the Options Menu.
3. To exit the Options Menu the user can select Exit Menu function from
Options Menu, can hold Mode Button and exit out of Options Menu, or not
press any button for 10 seconds, which will exit out of the Options Menu.
67
FEATURES AND CONTROLS
SERVICE HOURS
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “Service Hours” from the Options Menu by pressing the MODE button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down Buttons to change the units (0, 5, 10 - 95, 100)
e
With the correct unit displayed, press the MODE button, which will set
the unit and return you to the Options Menu.
NOTICE
To reset service hours after they have counted down to "0.0", reselect the
existing setpoint or select a new service hour value.
3. To exit the Options Menu the user can select Exit Menu function from
Options Menu, can hold Mode Button and exit out of Options Menu, or not
press any button for 10 seconds, which will exit out of the Options Menu.
PAIRING YOUR PHONE TO THE GAUGE
Use the following procedure to pair your phone with the vehicle’s digital gauge.
NOTICE
Bluetooth® functionality is compatible with both iOS® and Android® phones.
For iOS® phones, you must go to the Settings option and enable notifications.
Most Android® phones will prompt the user automatically to enable
notifications as part of the pairing process.
68
FEATURES AND CONTROLS
1. Make sure Bluetooth® is enabled on your phone.
2. Access the options menu on the vehicle’s digital gauge and select BT PAIR.
The Bluetooth® icon will begin to blink.
3. Find and select Polaris Gauge on your phone’s Bluetooth® menu or prompt.
Pairing should occur momentarily. Pairing mode will continue for up to 90
seconds or if you exit the BT PAIR menu.
After successfully pairing the phone, the vehicle’s digital gauge will automatically
reconnect with the phone each time it is powered on and within range. No further
action is required by the user at this point.
ALL WHEEL DRIVE SYSTEM
NOTICE
Switching to AWD while the rear wheels are spinning may cause severe drive
shaft and gearcase damage. Always switch to AWD while the rear wheels have
traction or are at rest.
The All Wheel Drive system is controlled by the Driveline switch. See page 40.
Engage AWD before getting into conditions where front wheel drive may be
needed. If the rear wheels are spinning, release the throttle before switching to
AWD.
69
FEATURES AND CONTROLS
AWD MODE
Move the momentary Driveline switch to the far right to
engage AWD. AWD will engage when engine speed
slows to below 3100 RPM. The gauge will display
“AWD”. There is no limit to the length of time the
vehicle may remain in AWD. The vehicle automatically
engages AWD when operating in reverse if the switch
is set to the AWD position.
Once enabled, AWD remains enabled until the switch is turned off. If the switch
is turned off while the demand drive unit is moving, it will not disengage until the
rear wheels regain traction.
When in AWD, the demand drive unit will automatically engage any time the rear
wheels lose traction. When the rear wheels regain traction, the demand drive
unit will automatically disengage.
2X4 MODE
Move the momentary switch to the far left to operate in
two-wheel drive. AWD will disengage when engine
speed slows to below 3100 RPM. The gauge will
display “2X4”.
70
FEATURES AND CONTROLS
FOUR-WHEEL DESCENT CONTROL (IF EQUIPPED)
NOTICE
Switching to 4WDC while the rear wheels are spinning may cause severe drive
shaft and gearcase damage. Always switch to 4WDC while the rear wheels
have traction or are at rest.
The Four-Wheel Decent Control (4WDC) system allows engine braking to all
four wheels when the vehicle descends a hill or incline. Always engage 4WDC
mode (if equipped) before ascending or descending a hill.
ENGAGING FOUR-WHEEL DESCENT CONTROL
The 4WDC system will automatically engage when all of the following conditions
occur:
• 4WDC is engaged
• The throttle must be closed (throttle lever released)
• The transmission must be in gear (high, low or reverse)
DISENGAGING FOUR-WHEEL DESCENT CONTROL
The 4WDC system will automatically disengage if at least one of the following
conditions occur:
• The 4X4 switch is moved out of the 4WDC position
• The throttle is open (throttle is applied)
• The transmission is shifted to neutral or park
• The vehicle is on flat ground, or not actively descending a hill
71
FEATURES AND CONTROLS
AUXILIARY OUTLET
A 12-volt accessory outlet is located on the
pod. Use the outlet to power an auxiliary light
or other optional accessories or lights.
FUEL CAP
This vehicle is equipped with a digital fuel gauge that will indicate a low fuel
condition. Refuel when the gauge indicates a low fuel condition.
Always refuel with the engine stopped,
and outdoors or in a well ventilated
area. Refuel on a level surface.
Remove the fuel tank cap to add fuel to
the fuel tank. Use unleaded gasoline
with a minimum 87 octane rating
(R+M)/2 or 91 RON minimum. Do not
use fuel with ethanol content greater
than 10 percent, such as E-85 fuel.
Compatible fuel types: E5, E10
72
FEATURES AND CONTROLS
ELECTRONIC POWER STEERING (EPS)
Electronic power steering (EPS), if equipped, engages when the ignition key is
turned to the ON position. EPS remains engaged whether the vehicle is moving
or idle. See the Instrument Cluster section for EPS Warning Indicator
information.
BATTERY CHARGE PORT
Your vehicle is equipped with a battery charge port
q
. The battery charge port
allows you to quickly and easily connect a battery charger or maintainer to your
vehicle’s battery. For more information see page 166.
NOTICE
Image is for reference only. Your model might differ slightly.
73
FEATURES AND CONTROLS
HITCHES
See the Specifications section for hitch weight capacities.
WARNING
Do not operate a combination Tractor-machine or Tractor-trailer unless all
instructions have been followed. See the Hauling Cargo section for details.
WARNING
Whenever the Tractor is towing, always stay clear of the area between the
Tractor and the towed object.
REAR HITCH
Use the rear hitch for towing a trailer. See the Hauling Cargo section for
procedures.
IMPORTANT
The values below are specific to the factory-installed rear hitch. For the
maximum vertical load and maximum towable mass on the hitch at the vehicle
level, see the Specifications chapter.
REAR HITCH SPECIFICATIONS PER COMPONENT CERTIFICATE
Maximum Vertical Load
85 kg applied on coupling point
Maximum Towable Mass
2000 kg
Approval #
E20 55R-01 4430
Maximum Dynamic Force (D)
10,2 kN
REAR HITCH CERTIFICATION LABEL
The hitch certification label is located
near the hitch on models equipped with
a factory-installed rear hitch.
74
FEATURES AND CONTROLS
HITCH REMOVAL / INSTALLATION
1. To remove the hitch, remove the cotter pin
q
and hitch pin
w
. Remove the
hitch, then reinstall the hitch pin
w
and secure the cotter pin
q
.
2. To install the hitch, remove the cotter pin
q
from the hitch pin and remove
the hitch pin
w
.
3. Install the hitch to the receiver.
4. Reinstall the hitch pin (from the left side of the hitch) through the bore of both
the receiver and the hitch.
5. Reinstall the cotter pin. Make sure the hitch assembly is secure at that the
cotter pin is properly engaged over the hitch pin.
NOTICE
After 1000 km of use, tighten the bolt holding the trailer ball to the hitch to 445
N·m.
75
FEATURES AND CONTROLS
76
OPERATION
SAFE OPERATION PRACTICES
WARNING
Failure to operate the vehicle properly can result in a collision, loss of control,
accident or rollover, which may result in serious injury or death. Read and
understand all safety warnings outlined in the safety section of this owner’s
manual.
1. Complete the recommended safety training before operating this vehicle.
Visit www.atvsafety.org for safety courses and riding tips. See page 13 for
details.
2. Do not allow anyone under 16 years of age to operate this vehicle. Do not
allow anyone with cognitive or physical disabilities to operate this vehicle.
3. Never carry a passenger on a 1-up ATV. Never carry more than one
passenger on a 2-up ATV.
4. Engine exhaust fumes are poisonous. Never start the engine or let it run in
an enclosed area.
5. Before operating, learn how to use the auxiliary brake for emergency
situations (if service brakes become inoperable).
6. Use caution and drive at reduced speeds in conditions of reduced visibility
such as fog, rain and darkness. Clean headlights frequently and replace
burned out headlamps promptly.
7. Drive in a manner appropriate for your skills, your passenger’s skills (if you
are operating a 2-up ATV), and operating conditions. Never operate at
excessive speeds. Never attempt wheelies, jumps, or other stunts. Never
remove your hands from the handlebars while operating, and always keep
both feet on the footrests.
8. Never consume alcohol or drugs before or while operating an ATV.
9. Always use the size and type of tires specified for your vehicle. Always
maintain proper tire pressure.
10.Never operate a damaged ATV. After any overturn or accident, have a
qualified service dealer inspect the entire machine for possible damage.
11. Never operate the ATV on a frozen body of water unless you have
independently verified that the ice is sufficiently thick to support the weight
and moving force of the ATV, you and your cargo, together with any other
vehicles in your party.
77
OPERATION
12.Do not touch hot exhaust system components. Always keep combustible
materials away from the exhaust system.
13.Always remove the ignition key when the vehicle is not in use to prevent
unauthorized use.
TRAIL ETIQUETTE
Always practice good etiquette when riding. Allow a safe distance between your
vehicle and other vehicles operating in the same area. Communicate to
oncoming operators by signaling the number of vehicles in your group. When
stopping, move your vehicle to the edge of the trail as far as possible to allow
others to pass safely.
KNOW YOUR RIDING AREA/TREAD LIGHTLY
SM
Familiarize yourself with all laws and regulations concerning the operation of this
vehicle in your area. Respect the environment in which you ride your vehicle.
Find out where the designated riding areas are by contacting your POLARIS
dealer, a local riding club, or local officials.
Help keep our trails open for recreational vehicle use. As an off-road enthusiast,
you represent the sport and can set a good example (or a poor example) for
others to follow. Tread Lightly
SM
. Operate with respect for the terrain, avoid
littering, and always stay on the designated trails.
78
OPERATION
VEHICLE BREAK-IN PERIOD
The break-in period for your new POLARIS vehicle is the first 25 hours of
operation, or the time it takes to use the first two tanks full of gasoline. No single
action on your part is as important as a proper break-in period. Careful treatment
of a new engine and drive components will result in more efficient performance
and longer life for these components. Perform the following procedures
carefully.
NOTICE
Excessive heat build-up during the first three hours of operation will damage
close-fitted engine parts and drive components. Do not operate at full throttle
or high speeds during the first three hours of use.
Use of any improper oils may cause serious engine damage. POLARIS PS-4
Full Synthetic 5W-50 4-Cycle Oil is specifically formulated for your 4-cycle
engine.
ENGINE AND DRIVETRAIN BREAK-IN
1. Fill the fuel tank with gasoline. Always exercise extreme caution whenever
handling gasoline.
2. Check the oil level. See the Oil Level Check section for reference. Add the
recommended oil as needed to maintain the oil level in the safe operating
range.
3. Drive slowly at first. Select an open area that allows room to familiarize
yourself with vehicle operation and handling.
4. Avoid aggressive use of the brakes.
5. Vary throttle positions. Do not operate at sustained idle.
6. Pull only light loads.
7. Perform regular checks on fluid levels, controls, and areas outlined in the
pre-ride inspection checklist.
8. During the break-in period, change both the engine oil and filter at 25 hours
or 500 miles (800 km) (whichever comes first).
9. During the break-in period, change the front gearcase fluid at 25 hours or
500 miles (800 km) (whichever comes first).
10.During the break-in period, check the transmission fluid level at 25 hours or
500 miles (800 km) (whichever comes first).
79
OPERATION
BRAKE SYSTEM BREAK-IN
Apply only moderate braking force for the first 50 stops. Aggressive or overly
forceful braking when the brake system is new could damage brake pads and
rotors.
Perform the following steps on a new vehicle or anytime brake pads are
replaced on the vehicle:
1. In an appropriate riding area, safely slow the vehicle with moderate (70%)
braking from 30 mph (50 km/h) down to 5 mph (8 km/h). Do not stop
completely in order to keep air flowing through the brakes.
2. Repeat for 10-20 cycles and let the brakes cool between each cycle by riding
your vehicle approximately 0.25 miles (400 m).
3. After you have completed all 20 cycles, ride the ATV for awhile to cool the
braking system to avoid overheating the brakes.
4. Stop the vehicle and put the transmission in PARK. DO NOT apply the
parking brake until the brake system has fully cooled.
PVT BREAK-IN (CLUTCHES / BELT)
A proper break-in of the clutches and drive belt will ensure a longer life and
better performance. Break in the clutches and belt by operating at slower
speeds during the break-in period as recommended. Pull only light loads. Avoid
aggressive acceleration and high speed operation during the break-in period.
If a belt fails and you need to replace it, always clean all debris from the PVT
intake and outlet duct, the clutch, and the engine components.
80
OPERATION
PRE-RIDE CHECKLIST
Failure to inspect and verify that the ATV is in safe operating condition before
operating increases the risk of an accident. Always inspect the ATV before each
use to make sure it's in safe operating condition.
ITEM REMARKS PAGE
Brake system/lever travel
Ensure proper operation.
Inspect for adequate brake
pad life.
page 41
page 125
Brake fluid
Ensure proper level page 44
Auxiliary brake Ensure proper operation page 43
Front suspension Inspect, lubricate if necessary
-
Rear suspension Inspect, lubricate if necessary
-
Steering Ensure free operation
-
Tires
Inspect condition and pressure page 133
Wheels/fasteners
Inspect, ensure fastener
tightness
page 135
Fuel and oil
Ensure proper levels page 116
Coolant level
Ensure proper level page 124
Coolant hoses
Inspect for leaks
-
Throttle
Ensure proper operation page 40
Indicator lights/switches Ensure operation page 47
Engine stop switch Ensure proper operation page 36
Air filter
Inspect, clean or replace page 176
Headlamp Check operation page 38
Brake light/taillight Check operation
-
Riding gear
Wear approved helmet,
goggles, and protective
clothing
page 13
Winch (if equipped) Inspect cable and switch page 97
Grass and leaves
Remove grass, leaves, foreign
matter, and other flammable
material or debris, especially
near the exhaust system.
-
81
OPERATION
DRIVING PROCEDURES
NEW OPERATOR DRIVING PROCEDURES
1. Complete a certified safety training course. See the Safety Training section.
2. Wear protective riding gear. See the Safe Riding Gear section.
3. Perform the pre-ride inspection.
3. Place the transmission
in PARK.
4. Lock the brake holding
latch.
5. Mount the vehicle from
the left side.
6. Sit upright with both
feet on the footrests
and both hands on the
handlebars.
7. Start the engine and
allow it to warm up.
8. Shift the transmission into gear.
9. Check your surroundings and determine your path of travel.
10.Release the brake holding latch.
11. Slowly depress the throttle with your right thumb and begin driving.
12.Drive slowly. Practice maneuvering and using the throttle and brakes on level
surfaces.
82
OPERATION
TURNING THE VEHICLE
Both rear wheels drive equally at all times. This means that the outside wheel
must travel a greater distance than the inside wheel when turning, and the inside
tire must slip traction slightly.
1. Slow down.
2. Never turn quickly when carrying cargo.
3. Steer in the direction of the turn.
4. Keep both feet on the footrests.
5. Lean your upper body to the inside of the turn while supporting your weight
on the outer footrest. This technique alters the balance of traction between
the rear wheels, allowing the turn to be made smoothly. The same leaning
technique should be used for turning in reverse.
6. Practice making turns at slow speeds before attempting to turn at faster
speeds.
WARNING
Turning improperly can result in vehicle overturn. Never turn abruptly or at
sharp angles. Never turn at high speeds.
83
OPERATION
DRIVING ON SLIPPERY SURFACES
WARNING
Skidding or sliding can cause loss of control or rollover (if tires regain traction
unexpectedly). When operating on slippery surfaces such as ice or loose
gravel, reduce speed and use extra caution to reduce the chance of skidding or
sliding out of control. Do not operate on excessively slippery surfaces.
Whenever riding on slippery surfaces such as wet trails or loose gravel, or
during freezing weather, follow these precautions:
1. Do not operate on excessively rough, slippery or loose terrain.
2. Slow down when entering slippery areas.
3. Engage 4X4 before wheels begin to lose traction.
NOTICE
Severe damage to drive train may occur if the 4X4 is engaged while the wheels
are spinning. Allow the rear wheels to stop spinning before engaging 4X4, or
engage 4X4 before wheels begin to lose traction.
4. Maintain a high level of alertness, reading the trail and avoiding quick, sharp
turns, which can cause skids.
5. Never apply the brakes during a skid. Correct a skid by turning the
handlebars in the direction of the skid and shifting your body weight forward.
84
OPERATION
DRIVING UPHILL
Braking and handling are greatly affected when operating in hilly terrain.
Improper procedure could cause loss of control or overturn. Whenever traveling
uphill, follow these precautions:
1. Always engage 4WDC before ascending or descending a hill.
2. Drive straight uphill.
3. Avoid steep hills. Maximum incline is: 15°
4. Always check the terrain carefully before ascending any hill.
5. Never climb hills with excessively slippery or loose surfaces.
6. Keep both feet on the footrests.
7. Shift body weight uphill.
8. Proceed at a steady rate of speed and throttle opening. Opening the throttle
suddenly could cause the ATV to flip over backwards.
9. Never go over the top of any hill at high speed. An obstacle, a sharp drop, or
another vehicle or person could be on the other side of the hill.
10.Remain alert and be prepared to take emergency action. This may include
quick dismounting of the vehicle.
85
OPERATION
DRIVING DOWNHILL
When driving downhill, follow these precautions:
1. Always check the terrain carefully before descending a hill.
2. Always engage 4WD or 4WDC mode (if equipped) before ascending or
descending a hill.
3. Avoid steep hills. Maximum incline is 15°
4. Always descend a hill with the transmission in forward gear. Do not descend
a hill with the transmission in neutral.
5. Slow down. Never travel down a hill at high speed.
6. Drive straight downhill. Avoid traveling down a hill at an angle, which would
cause the vehicle to lean sharply to one side.
7. Shift body weight uphill.
8. Apply the brakes slightly to aid in slowing. Applying the brakes too firmly may
cause the rear wheels to lock, which could result in loss of control.
86
OPERATION
DRIVING ON A SIDEHILL (SIDEHILLING)
Driving on a sidehill is not recommended. Improper procedure could cause loss
of control or overturn. Avoid crossing the side of any hill unless absolutely
necessary.
If crossing a sidehill is unavoidable, follow these precautions:
1. Slow down.
2. Avoid crossing the side of a steep hill.
3. Lean into the hill, transferring your upper body weight toward the hill while
keeping your feet on the footrests.
4. If the vehicle begins to tip, quickly turn the front wheel downhill, if possible, or
dismount on the uphill side immediately!
87
OPERATION
TURNING AROUND ON A HILL (K-TURN)
If the vehicle stalls while climbing a hill, never back it down the hill! Use the
K-turn to turn around.
1. Stop and lock the parking brake while keeping body weight uphill.
2. Always move the 4X4 switch to ADC 4X4 before ascending or descending a
hill. See the Switch Location section for details.
3. Leave the transmission in forward and shut off the engine.
4. Dismount on the uphill side of the vehicle, or on the left if the vehicle is
pointing straight uphill.
5. Staying uphill of the vehicle, turn the handlebars full left.
6. While holding the brake lever, release the parking brake lock and slowly
allow the vehicle to roll around to your right until it's pointing across the hill or
slightly downward.
7. Lock the parking brake. Remount the vehicle from the uphill side, keeping
body weight uphill. Start the engine with the transmission still in forward.
8. Release the parking brake and proceed slowly, controlling speed with the
brake lever, until the vehicle is on more level ground.
88
OPERATION
DRIVING THROUGH WATER
NOTICE
Major engine damage can result if the vehicle is not thoroughly inspected after
operation in water. Perform the services outlined in the Maintenance chapter.
The following areas need special attention: engine oil, transmission oil,
demand drive fluid and all grease fittings.
If the vehicle tips or overturns in water, or if the engine stops during or after
operating in water, service is required before starting the engine. Your
POLARIS dealer can provide this service. If it's impossible to bring the vehicle
in before starting the engine, perform the service outlined in the Vehicle
Immersion section of this manual, and take the vehicle in for service at the first
opportunity.
Your ATV can operate through water with a maximum recommended depth
equal to the bottom of the footrests.
Follow these procedures
when operating through
water:
1. Determine water
depths and current
before entering water.
2. Choose a crossing
where both banks have
gradual inclines.
3. Avoid operating
through deep or
fast-flowing water.
4. After leaving water, test the brakes. Apply them lightly several times while
driving slowly. The friction will help dry out the pads.
If it’s unavoidable to enter water deeper than the footrest level:
• Proceed slowly. Avoid rocks and obstacles.
• Balance your weight carefully. Avoid sudden movements.
• Maintain a steady rate of speed. Do not make sudden turns or stops. Do not
make sudden throttle changes.
89
OPERATION
DRIVING OVER OBSTACLES
Follow these precautions when operating over obstacles:
1. Always check for obstacles before operating in a new area.
2. Look ahead and learn to read the terrain. Be constantly alert for hazards
such as logs, rocks and low hanging branches.
3. Travel slowly and use extra caution when operating on unfamiliar terrain. Not
all obstacles are immediately visible.
4. Never attempt to operate over large obstacles, such as rocks or fallen trees.
5. If you are operating a 2-up ATV, always have the passenger dismount before
you operate over an obstacle that could cause a fall from the vehicle or
vehicle tipover.
90
OPERATION
DRIVING IN REVERSE
Follow these precautions when operating in reverse:
1. Always check for obstacles or people behind the vehicle.
2. Always avoid backing downhill.
3. Back slowly.
4. Apply the brakes lightly for stopping.
5. Avoid turning at sharp angles.
6. Never open the throttle suddenly.
7. Do not use the override switch unless additional wheel speed is required for
vehicle movement. Use the override with caution as rearward vehicle speed
is greatly increased. Do not operate at wide open throttle. Operate the
throttle just enough to maintain a desired speed.
NOTICE
Excessive throttle operation while in the speed limit mode may cause fuel to
build in the exhaust, resulting in engine popping and/or engine damage.
91
OPERATION
BOARDING AND DISMOUNTING THE VEHICLE
BOARDING
If boarding from the left side of the vehicle, grasp the left handlebar grip with
your left hand. Step onto the footrest and place your right foot and leg across the
seat. Sit astride the vehicle.
If boarding from the right side of the vehicle, grasp the right handlebar grip with
your right hand. Step onto the footrest and place your left foot and leg across the
seat. Sit astride the vehicle.
DISMOUNTING
1. Position the vehicle on a level surface.
2. Place the transmission in PARK (or neutral).
3. Stand on the footrests and dismount the vehicle, holding onto the handlebar
for support.
STARTING THE ENGINE
NOTICE
If the PIN security code feature on your vehicle is set to ON, the engine will not
start unless the correct PIN number is entered.
1. Position the vehicle on a level surface outdoors or in a well-ventilated area.
2. Place the transmission in PARK.
3. Lock the brake holding latch.
4. Sit on the vehicle and move the engine stop switch to RUN.
NOTICE
Do not press the throttle while starting the engine.
5. Turn the ignition key past the ON position to engage the starter. Activate the
starter for a maximum of five seconds, releasing the key when the engine
starts.
6. If the engine does not start, return the key to the OFF position and wait five
seconds before attempting to start again. Activate the starter for another five
seconds if necessary. Repeat this procedure until the engine starts.
NOTICE
Operating the vehicle immediately after starting could cause engine damage.
Allow the engine to warm up for several minutes before operating the vehicle.
92
OPERATION
COLD WEATHER OPERATION
If the vehicle is used year-round, check the oil level frequently. A rising oil level
could indicate the accumulation of contaminates such as water or excess fuel in
the bottom of the crankcase. Water in the bottom of the crankcase can lead to
engine damage and must be drained. Water accumulation increases as outside
temperature decreases.
STOPPING THE ENGINE
1. Release the throttle completely and brake to a complete stop.
2. Place the transmission in PARK.
3. Turn the key to the OFF position.
4. Slowly release the brake pedal and make sure the transmission is in PARK
before exiting the vehicle.
WARNING
A rolling vehicle can cause serious injury. Always place the transmission in
PARK before stopping the engine.
PARKING THE VEHICLE
1. Stop the vehicle on a level surface. When parking inside a garage or other
structure, be sure that the structure is well ventilated and that the vehicle is
not close to any source of flame or sparks, including any appliance with pilot
lights.
2. Place the transmission in PARK.
3. Turn the engine off.
4. Engage the parking brake holding latch located on the left hand control.
5. Make sure the transmission is in PARK before exiting the vehicle.
6. Remove the ignition key to prevent unauthorized use.
PARKING ON AN INCLINE
Avoid parking on an incline if possible. If it's unavoidable, follow these
precautions:
1. Stop the engine.
2. Place the transmission in PARK.
3. Engage the parking braking holding latch on left hand control.
4. Always block the rear wheels on the downhill side.
93
OPERATION
HAULING CARGO
WARNING
Overloading the vehicle or carrying or towing cargo improperly can alter
vehicle handling and may cause loss of control or brake instability, which can
result in serious injury or death. Always follow these precautions when hauling
cargo:
REDUCE SPEED AND ALLOW GREATER DISTANCES FOR BRAKING
WHEN HAULING CARGO.
NEVER EXCEED THE MAXIMUM WEIGHT CAPACITY of the vehicle. When
determining the weight you are adding to the vehicle, include the weight of the
operator, passenger (if you are operating a 2-up ATV), accessories, loads in
the rack or box and the load on the trailer tongue. The combined weight of
these items must not exceed the maximum weight capacity.
CARGO WEIGHT DISTRIBUTION should be 1/3 on the front rack and 2/3 on
the rear rack. When operating over rough or hilly terrain, reduce speed and
cargo to maintain stable driving conditions. Carrying loads on only one rack
increases the possibility of vehicle overturn.
CARRY LOADS AS LOW ON THE RACKS AS POSSIBLE. Carrying loads
high on the racks raises the center of gravity of the vehicle and creates a less
stable operating condition.
SECURE ALL LOADS BEFORE OPERATING. Unsecured loads can create
unstable operating conditions, which could result in loss of control of the
vehicle.
OPERATE ONLY WITH STABLE AND SAFELY ARRANGED LOADS. When
handling off-centered loads that cannot be centered, securely fasten the load
and operate with extra caution. Always attach the tow load to the hitch point
designated for your vehicle.
HEAVY LOADS CAN CAUSE BRAKING AND CONTROL PROBLEMS. Use
extreme caution when applying brakes with a loaded vehicle. Avoid terrain or
situations that may require backing downhill. Adjust suspension springs
preload accordingly to the vehicle load. See details of adjustment procedure in
"Maintenance" section.
USE EXTREME CAUTION when operating with loads that extend over the
rack sides. Stability and maneuverability may be adversely affected, causing
the vehicle to overturn.
DO NOT BLOCK THE FRONT HEADLIGHT BEAM when carrying loads on the
front rack.
DO NOT TRAVEL FASTER THAN THE RECOMMENDED SPEEDS.
The vehicle should never exceed 10 mph (16 km/h) while towing a load on a
level surface. Vehicle speed should never exceed 5 mph (8 km/h) when towing
loads in rough terrain, while cornering, or while ascending or descending a hill.
94
OPERATION
HAULING CARGO GUIDELINES
1. Never exceed the weight capacities specified for your ATV on warning labels
and in the specifications section of this manual
2. Cargo weight should be evenly distributed (1/3 on the front rack and 2/3 on
the rear rack) and mounted as low as possible.
3. When operating over rough or hilly terrain, reduce speed and cargo weight to
maintain stable driving conditions.
4. NEVER exceed 50 mph (80 km/h) when rear cargo loads are above 75 lbs
(34 kg) and/or front cargo loads are above 37 lbs (17 kg).
5. Do not obstruct the headlight beam with cargo.
6. Slow down.
7. Use low forward gear when hauling or towing heavy cargo to extend belt life.
8. Always operate the vehicle with extreme caution whenever hauling or towing
loads. Balance, handling and control may be affected.
TOWING LOADS
Always attach a towed load to the hitch point. Remove the hitch from the ATV
when not towing a trailer. If towing a load, reduce rear rack cargo weight by the
amount of tongue weight. Strictly follow the instructions outlined in the operator’s
manual of the mounted or trailed machinery or trailer. Never operate the
combination tractor — machine or tractor — trailer unless all instructions have
been followed.
• The combination of rear rack cargo weight and tongue weight must not
exceed the rear rack capacity.
• The total load (operator, accessories, cargo and weight on hitch) must not
exceed the maximum weight capacity of the vehicle.
• Whatever the vehicle is towing, always stay clear of the area between the
vehicle and the towed object.
NOTICE
Using an improper hitch or exceeding the maximum tongue weight capacity
can result in serious damage to the vehicle. Never install a hitch longer than 13
cm (5.11”). Never install automotive accessories on your POLARIS ATV.
Always install POLARIS-approved (or equivalent) accessories designed for
ATV use.
95
OPERATION
WINCH GUIDE (IF EQUIPPED)
WINCH SAFETY
These safety warnings and instructions apply if your vehicle came equipped with
a winch or if you choose to add an accessory winch to your vehicle.
WARNING
Improper winch use can result in SEVERE INJURY or DEATH. Always follow
all winch instructions and warnings in this manual.
Your winch may have a cable made of either wire rope or specially designed
synthetic rope. The term “winch cable” will be used for either unless noted
otherwise.
WINCH SAFETY PRECAUTIONS
1. Read all sections of this manual.
2. Never use alcohol or drugs before or while operating the winch.
3. Never allow children under 16 years of age to operate the winch.
4. Always wear eye protection and heavy gloves when operating the winch.
5. Always keep body, hair, clothing and jewelry clear of the winch cable, fairlead
and hook when operating winch.
6. Never attempt to “jerk” a load attached to the winch with a moving vehicle.
See the Shock Loading section on page 105.
7. Always keep the area around the vehicle, winch, winch cable, and load clear
of people (especially children) and distractions while operating the winch.
8. Always turn the vehicle ignition power OFF when it and the winch are not
being used.
9. Always be sure that at least five (5) full turns of winch cable are wrapped
around the winch drum at all times. The friction provided by this wrapped
cable allows the drum to pull on the winch cable and move the load.
10.Always apply your vehicle’s park brake and/or park mechanism to hold the
vehicle in place during winching. Use wheel chocks if needed.
11. Always align the vehicle and winch with the load directly in front of the
vehicle as much as possible. Avoid winching with the winch cable at an angle
to the winching vehicle’s centerline whenever possible.
97
WINCH GUIDE (IF EQUIPPED)
12.If winching at an angle is unavoidable, follow these precautions:
a. Look at the winch drum occasionally. Never let the winch cable “stack” or
accumulate at one end of the winch drum. Too much winch cable at one
end of the winch drum can damage the winch and the winch cable.
b. If stacking occurs, stop winching. Follow step 15 of Winch Operation to
feed and rewind the cable evenly before continuing the winch operation.
13.Never winch up or down at sharp angles. This can destabilize the winching
vehicle and possibly cause it to move without warning.
14.Never attempt to winch loads that weigh more than the winch’s rated
capacity.
15.The winch motor may become hot during winch use. If you winch for more
than 45 seconds, or if the winch stalls during operation, stop winching and
permit the winch to cool down for 10 minutes before using it again.
16.Never touch, push, pull or straddle the
winch cable while winching a load.
17.Never let the winch cable run through
your hands, even if wearing heavy gloves.
18.Never release the clutch on the winch
when the winch cable is under load.
19.Never use the winch for lifting or
transporting people.
20.Never use the winch to hoist or suspend a
vertical load.
21.Always inspect your winch and winch cable before each use.
22.Never winch the hook fully into the winch. This can cause damage to winch
components.
23.Unplug the remote control from the vehicle when the winch is not in use to
prevent inadvertent activation and use by unauthorized persons.
24.Never grease or oil the winch cable. This will cause the winch cable to collect
debris that will shorten the life of the cable.
98
WINCH GUIDE (IF EQUIPPED)
WINCH OPERATION
Read the Winch Safety Precautions in the preceding pages before using your
winch.
TIP
Consider practicing the operation and use of your winch before you actually
need to use it in the field.
WARNING
Improper winch use can result in SEVERE INJURY or DEATH. Always follow
all winch instructions and warnings in this manual.
Each winching situation is unique.
• Take your time to think through the winching you are about to do.
• Proceed slowly and deliberately.
• Never hurry or rush during winching.
• Always pay attention to your surroundings.
• You may need to change your winching strategy if it is not working.
• Always remember that your winch is very powerful.
• There are simply some situations that you and your winch will not be able to
deal with. Do not be afraid to ask others to help when this happens.
1. Always inspect the vehicle, winch, winch cable and winch controls for any
signs of damage or parts in need of repair or replacement before each use.
Pay particular attention to the first 3 feet (1 meter) of winch cable if the winch
is being used (or has been used) for lifting an accessory plow assembly.
Promptly replace any worn or damaged cable.
2. Never operate a winch or a vehicle in
need of repair or service.
3. Always apply your vehicle’s park brake
and/ or park mechanism to hold the
vehicle in place during winching. Use
wheel chocks if needed.
4. Always use the hook strap when handling
the hook.
99
WINCH GUIDE (IF EQUIPPED)
WARNING
Never put your fingers into the hook. This could lead to SEVERE INJURY.
• Attach the hook itself onto the load or use a tow strap or chain to secure the
load to the winch cable.
TIP
A “tow strap” is NOT intended to stretch. A “recovery strap” is designed to
stretch.
WARNING
Never use a recovery strap when winching due to the excessive energy that
can be released if the winch cable breaks. This can result in SEVERE INJURY
or DEATH. See the Shock Loading section on page 105.
• Never hook the winch cable back onto itself. This will damage the winch cable
and may result in winch cable failure.
WARNING
Replace the winch cable at the first sign of damage to prevent SEVERE
INJURY or DEATH in the event of failure. For your safety, always replace
POLARIS winch parts (including the cable) with genuine POLARIS
replacement parts available at your authorized POLARIS dealer, or other
qualified dealer.
100
WINCH GUIDE (IF EQUIPPED)
• If possible, keep the winch cable aligned with the centerline of the winching
vehicle. This will help the spooling of the winch cable and reduce the load on
the fairlead.
• If freeing a stuck vehicle by attaching to a tree, use an item such as a tow
strap to avoid damaging the tree during winch operation. Sharp cables and
chains can damage and even kill trees. Please remember to Tread Lightly℠
(treadlightly.org).
• Before operating the winch, be sure that the safety latch on the winch cable
hook is fully seated when the load is attached.
• Never operate your winch with a damaged hook or latch. Always replace
damaged parts before using the winch.
5. Never remove the hook strap from the hook.
6. Release the winch clutch and pull out the winch cable.
7. Pulling out as much cable as possible maximizes the winch’s pulling
capacity. Always be sure that at least five (5) full turns of winch cable are
wrapped around the winch drum at all times. The friction provided by this
wrapped cable allows the drum to pull on the winch cable and move the load.
8. Read and adhere to the following information for winch damping to ensure
safe winch use.
a. In order to absorb energy that could be released by a winch cable failure,
always place a “damper” on the winch cable. A damper can be heavy
jacket, tarp, or other soft, dense object. A damper can absorb much of the
energy released if a winch cable breaks when winching. Even a tree limb
can help as a damper if no other items are available to you.
b. Lay the damper on top of the mid-point of the winch cable length that is
spooled out.
101
WINCH GUIDE (IF EQUIPPED)
c. On a long pull, it may be necessary to stop winching so that the damper
can be repositioned to the new mid-point of the winch cable. Always
release the tension on the winch cable before repositioning the damper.
d. Avoid being directly in line with the winch cable whenever possible. Also,
never permit others to stand near or in line with the winch cable during
winch operation.
9. Never hook the winch cable back onto itself. This will damage the winch
cable and may result in winch cable failure.
10.Never use straps, chains or other rigging items that are damaged or worn.
11. The ONLY time a winch-equipped vehicle should be moving when using the
winch is when that vehicle itself is stuck. The winch equipped vehicle should
NEVER be in motion to “shock” load the winch cable in an attempt to move a
second stuck vehicle. See the Shock Loading section on page 105. For your
safety, always follow these guidelines when winching a vehicle free:
a. Release the winch clutch and spool out the necessary length of winch
cable.
b. Align the winch cable as close as possible to the winching vehicle’s
centerline.
c. Attach the winch cable hook to the anchor point or the stuck vehicle’s
frame following instructions in this manual.
d. Re-engage the clutch on the winch.
e. Slowly winch in the slack in the winch cable.
f. Select the proper vehicle gear to propel the stuck vehicle in the direction
of winching.
g. Shift to the lowest gear available on the stuck vehicle.
h. Slowly and carefully apply vehicle throttle and winch together to free the
vehicle.
i. Stop winching as soon as the stuck vehicle is able to propel itself without
the help of the winch.
j. Detach the winch cable hook.
k. Rewind the winch cable evenly back onto the winch drum following the
instructions in this manual.
12.Never attempt to winch another stuck vehicle by attaching the winch cable to
a suspension component, brush guard, bumper or cargo rack. Vehicle
damage may result. Instead, attach the winch to a strong portion of the
vehicle frame or hitch.
102
WINCH GUIDE (IF EQUIPPED)
13.Extensive winching will run down the battery on the winching vehicle. Let the
winching vehicle’s engine run while operating the winch to prevent the
battery from running low if winching for long periods.
14.The winch motor may become hot during winch use. If you winch for more
than 45 seconds, or if the winch stalls during operation, stop winching and
permit the winch to cool down for 10 minutes before using it again.
15.After winching is complete, especially if winching at an angle, it may be
necessary to re-distribute the winch cable across the winch drum. You will
need an assistant to perform this task.
a. Release the clutch on the winch.
b. Feed out the winch cable that is unevenly bunched up in one area.
c. Re-engage the winch clutch.
d. Have an assistant pull the winch cable tightly with about 100 lbs. (45 kg)
of tension using the hook strap.
e. Slowly winch the cable in while your assistant moves the end of the winch
cable back and forth horizontally to evenly distribute the winch cable on
the drum.
f. Doing this reduces the chances of the winch cable “wedging” itself
between lower layers of winch cable.
103
WINCH GUIDE (IF EQUIPPED)
WINCH CABLE CARE
WARNING
Use of worn or damaged cable could lead to sudden failure and SEVERE
INJURY.
For your safety, always replace POLARIS winch parts (including the cable) with
genuine POLARIS replacement parts available at your authorized POLARIS
dealer, or other qualified person.
1. Always inspect your winch before each use. Inspect for worn or loose parts
including mounting hardware. Never use the winch if any part needs repair or
replacement.
2. Always inspect your winch cable before each use. Inspect for worn or kinked
winch cable.
A kinked winch cable made of wire rope
is shown at right. Even after being
“straightened out,” this cable has
already been permanently and severely
damaged. Promptly discontinue use of
a winch cable in this condition.
A kinked winch cable made of wire rope
that has been “straightened out” is
shown at right. Even though it may look
usable, the cable has been permanently
and severely damaged. It can no longer
transmit the load that it could prior to
kinking. Promptly discontinue use of a
winch cable in this condition.
A winch cable made of synthetic rope
should be inspected for signs of fraying.
Replace the cable if fraying is observed
(shown below). Promptly discontinue
use of a winch cable in this condition.
Also replace the winch cable if there are
fused or melted fibers. Such an area of
the synthetic rope will be stiff and
appear smooth or glazed. Promptly
discontinue use of a winch cable in this
condition.
104
WINCH GUIDE (IF EQUIPPED)
SHOCK LOADING
WARNING
Your winch cable is very strong but it is NOT designed for dynamic, or “shock”
loading. Shock loading may tension a winch cable beyond its strength and
cause the cable to break. The end of a broken winch cable under such high
loading can cause SEVERE INJURY or DEATH to you and other bystanders.
Winch cables are designed to NOT absorb energy. This is true of both wire-rope
and synthetic-rope winch cables.
1. Never attempt to “jerk” a load with the winch. For example, never take up
slack in the winch cable by moving the winching vehicle in an attempt to
move an object. This is a dangerous practice. It generates high winch cable
loads that may exceed the strength of the cable. Even a slowly moving
vehicle can create large shock loads in a winch cable.
WARNING
SEVERE INJURY or DEATH can result from a broken winch cable.
2. Never quickly turn the winch ON and OFF repeatedly (“jogging”). This puts
extra load on the winch, winch cable, and generates excessive heat from the
motor. This is a form of shock loading.
3. Never tow a vehicle or other object with your winch. Towing an object with a
winch produces shock loading of the cable even when towing at slow
speeds. Towing from a winch also positions the towing force high on the
vehicle. This can cause instability of the vehicle and possibly lead to an
accident.
4. Never use recovery straps with your winch. Recovery straps are designed to
stretch and can store energy. This stored energy in the recovery strap is
released if a winch cable fails making the event even more hazardous.
Similarly, never use elastic “bungie” cords for winching.
5. Never use the winch to tie down a vehicle to a trailer or other transportation
vehicle. This type of use also causes shock loading that can cause damage
to the winch, winch cable, or vehicles used.
Your winch cable is designed and tested to withstand the loads produced
by the winch motor when operated from a stationary vehicle. Always
remember that the winch and winch cable are NOT designed for shock
loading.
105
WINCH GUIDE (IF EQUIPPED)
WINCH MAINTENANCE AND SERVICE SAFETY
WARNING
Improper or lack of winch maintenance and service could lead to SEVERE
INJURY or DEATH. Always follow all winch instructions and warnings in this
manual.
1. Always inspect your winch before each use. Inspect for worn or kinked winch
cable. Also inspect for worn or loose parts including mounting hardware.
2. Permit your winch motor to cool down prior to servicing your winch.
3. Never work on your winch without first disconnecting the battery connections
to prevent accidental activation of the winch.
4. For your safety, always replace POLARIS winch parts (including the cable)
with genuine POLARIS replacement parts available at your authorized
POLARIS dealer, or other qualified person.
5. Some winch models use wire rope as the winch cable. Other winches use a
specially designed synthetic rope as the winch cable.
6. Never replace a synthetic-rope winch cable with a consumer-grade polymer
rope such as can be purchased in a hardware store. Although they may look
similar, they are NOT alike. A polymer rope not designed for winch use will
stretch and store excessive energy when winching.
WARNING
Failure of a stretched rope under winching conditions will release all of the
stored energy. This will increase the chances of SEVERE INJURY or DEATH.
106
WINCH GUIDE (IF EQUIPPED)
EMISSION CONTROL SYSTEMS
NOISE EMISSION CONTROL SYSTEM
Do not modify the engine, intake or exhaust components, as doing so may affect
compliance with governmental noise level requirements.
CRANKCASE EMISSION CONTROL SYSTEM
This engine is equipped with a closed crankcase system. Blow-by gases are
forced back to the combustion chamber by the intake system. All exhaust gases
exit through the exhaust system.
EXHAUST EMISSION CONTROL SYSTEM
Exhaust emissions are controlled by engine design. An electronic fuel injection
(EFI) system controls fuel delivery. The engine and EFI components are set at
the factory for optimal performance and are not adjustable.
ELECTROMAGNETIC INTERFERENCE
This vehicle complies with the EMC requirements of European directive
2014/30/EU.
Non-ionizing Radiation: This vehicle emits some electromagnetic energy.
People with active or non-active implantable medical devices (such as heart
monitoring or controlling devices) should review the limitations of their device
and the applicable electromagnetic standards and directives that apply to this
vehicle.
CARBON DIOXIDE (CO2) EMISSION
Carbon dioxide (CO2) emission: 1035 g/kWh
This CO2 measurement results from testing over a fixed test cycle under
laboratory conditions a(n) (parent) engine representative of the engine type
(engine family) and shall not imply or express any guarantee of the performance
of a particular engine representative of the engine type (engine family) and shall
not imply or express any guarantee of the performance of a particular engine.
107
EMISSION CONTROL SYSTEMS
EUROPEAN VIBRATION AND NOISE
The driver-perceived noise and hand/arm and whole body vibration levels of this
machinery is measured per EN 15997.
SPORTSMAN 570
(EPS)
Noise
A-Weighted Sound
Pressure Level at Rider's
Ear
79,3 dB(A)
(uncertainity 3dB)
C-Weighted Sound
Pressure Level at Rider's
Ear
104 dB(C)
(uncertainity 3dB)
A-Weighted Sound Power
Level
n/a
Vibration
Weighted Hand-Arm
Vibration Level
<2,5 m/s²
Weighted Seat Vibration
Level
<0,5 m/s²
108
EMISSION CONTROL SYSTEMS
MAINTENANCE
PERIODIC MAINTENANCE
Any qualified repair shop or person may maintain, replace or repair the emission
control devices or systems on your vehicle. An authorized POLARIS dealer can
perform any service that may be necessary for your vehicle. POLARIS also
recommends POLARIS parts for emissions-related service, however equivalent
parts can be used.
It is a potential violation of the EU law if a part supplied by an aftermarket parts
manufacturer reduces the effectiveness of the vehicle’s emission controls.
Tampering with emission controls is prohibited by law.
Owners are responsible for performing the scheduled maintenance identified in
this owner’s manual. Careful periodic maintenance will help keep your vehicle in
safe, reliable condition. Inspect, clean, lubricate, adjust and replace parts as
necessary. When inspection reveals the need for replacement parts, genuine
POLARIS parts are available from your POLARIS dealer. Equivalent parts may
be used for emissions-related service.
Record maintenance and service in the Maintenance Log beginning on page
215. Service and adjustments are important for proper vehicle operation. If
you're not familiar with safe service and adjustment procedures, a qualified
dealer can perform these operations. Maintenance intervals in the following
chart are based upon average riding conditions and an average vehicle speed of
approximately 10 mph (16 km/h). Vehicles subjected to severe use must be
inspected and serviced more frequently.
SEVERE USE DEFINITION
Severe use is defined as:
• Frequent immersion in mud, water, or sand
• Frequent or prolonged operation in dusty environments
• Short trip cold weather operation
• Racing or racing-style high RPM use
• Prolonged low speed, heavy load operation
• Extended idle
109
MAINTENANCE
POLARIS MAINTENANCE SCHEDULE
The intervals shown are based on vehicles operated under normal conditions.
Each interval is given in hours and miles (kilometers). Items should be serviced
at whichever interval comes first.
Continue to reference the following maintenance schedules at the given
intervals as hours and miles (kilometers) increase on the vehicle.
Vehicles subjected to severe use must be serviced at 50% of the stated interval.
Examples of Severe Use: Frequent immersion in mud, water, or sand, constant
high RPM use, prolonged low-speed heavy load operation, extended idle, and
short trip cold weather operation.
INITIAL BREAK-IN SERVICE
FIRST 25 HOURS / 500 MILES (800 KM)
Brake System
Initial fluid level inspection; inspect for fluid
leaks; add recommended brake fluid from a
sealed container if needed. Inspect brake pad
wear.
Engine Oil and Filter Change the engine oil and filter.
Front Gearcase Fluid
Change fluid.
Transmission Fluid
Initial fluid level inspection; inspect for fluid
leaks; add lubricant if needed.
The break-in period consists of the first 25 hours of operation. Careful
treatment of a new engine and drive components will result in more efficient
performance and longer life for these components. The items outlined in this
service interval only need to be performed at the first 25 hours of operation.
They do not need to be performed every 25 hours.
110
MAINTENANCE
Vehicles subjected to severe use must be serviced at 50% of the stated interval.
Examples of Severe Use: Frequent immersion in mud, water, or sand, constant
high RPM use, prolonged low-speed heavy load operation, extended idle, and
short trip cold weather operation.
EVERY 100 HOURS / 1000 MILES (1600 KM) OR YEARLY
Air Filter
Replace air filter. Ensure proper installation of
filter and airbox cover. Inspect ducts and
screens; clean as necessary.
Battery
Check terminals; terminals should be tight and
free of corrosion. Clean, test, and replace as
necessary.
Brake Pad Wear
Inspect; replace as needed.
Clutches (Non-EBS)*
Inspect bushings, rollers, wearable parts;
clean; replace worn parts.
Cooling System
Fluid level inspection; inspect for fluid leaks;
add coolant if needed. Inspect coolant strength
seasonally; pressure test system yearly.
Drive Belt
Inspect; replace as needed.
Engine Breather Inspect; clean; replace if necessary.
Exhaust Silencer / Pipe Inspect for leaks or damage.
Front Gearcase Fluid Check fluid.
Fuel System*
Cycle key to pressurize fuel pump; check for
leaks at fuel system connections, check for
leaks at fill cap.
General Lubrication
Locate all applicable fittings and grease.
Parking Brake Inspect and adjust as needed.
Spark Arrestor
Clean out.
Suspension Components*
Inspect tie rods, wheel bearings, suspension
bushings, and ball joints for loose or worn
components; replace as needed. Inspect shock
absorbers for leaks or damage.
Throttle Cable (if
applicable)*
Inspect; adjust; replace if necessary.
111
MAINTENANCE
EVERY 100 HOURS / 1000 MILES (1600 KM) OR YEARLY
Transmission Fluid Check fluid.
Wiring Inspect for wear, routing, and retention.
* Have an authorized Polaris dealer or other qualified person perform these
services.
Vehicles subjected to severe use must be serviced at 50% of the stated interval.
Examples of Severe Use: Frequent immersion in mud, water, or sand, constant
high RPM use, prolonged low-speed heavy load operation, extended idle, and
short trip cold weather operation.
ADDITIONAL MAINTENANCE INTERVALS
Every 200 hours / 2000
miles (3200 km)
Clutches (EBS)*
Inspect bushings, rollers,
wearable parts; clean;
replace worn parts.
Engine Oil and Filter
Change the engine oil
and filter.
Front Gearcase
Fluid
Change fluid.
Shock Absorbers*
Inspect; replace or rebuild
(if applicable) as needed.
Spark Plugs
Inspect; replace as
needed.
Transmission Fluid
Change fluid.
Every 500 hours / 5000
miles (8000 km)
Valve Clearance*
Inspect; adjust as
needed.
Every 24 months / 2
years
Brake Fluid
Change fluid.
Every 60 months / 5
years
Coolant
Change fluid.
* Have an authorized Polaris dealer or other qualified person perform these
services.
112
MAINTENANCE
ELEVATING THE VEHICLE FOR SERVICE
Some service procedures require elevation of the vehicle. Always position the
vehicle on a firm, level surface before elevating. Do not position a jack or jack
stand under any components other than the frame.
Use an appropriate lift or floor jack. Place the floor jack at the front (or rear) of
the vehicle, directly under the center of the unit. Make sure the floor jack makes
contact only with the frame of the vehicle while lifting
q
,
w
,
e
, and
r
.
Do not allow the vehicle to remain elevated on a floor jack. After elevating, place
jack stands under the frame on each side of the floor jack, then lower the floor
jack.
113
MAINTENANCE
LUBRICATION GUIDE
Check and lubricate all components at the intervals outlined in the Polaris
Maintenance Schedule on page 110. Items not listed in the chart should be
lubricated at the General Lubrication interval.
The a-arms and lower control arms are lubricated at the factory, and no
additional lubrication will be needed. However, if these components are
subjected to severe use, grease zerks have been provided for additional
lubrication at the user's discretion.
ITEM LUBE CAPACITY AT FLUID
CHANGE
INSPECTION
PROCEDURE
Engine Oil
PS-4 5W-50 4-Cycle
Oil
2 qt. (1.9 L)
Maintain level in safe
range on dipstick.
Brake Fluid DOT 4 Brake Fluid -
Maintain level
between fill lines.
Transmission Oil
AGL Gearcase
Lubricant &
Transmission Fluid
1 qt. (0.95 L)
Maintain level at
bottom of fill hole
threads.
Demand Drive (Front
Gearcase)
Demand Drive
9.3 fl oz. (275 ml)
Maintain level at
bottom of fill hole
threads.
Front Prop Shaft
U-Joint Grease -
Grease fittings (3
pumps maximum)
every 50 hours, or 500
miles (whichever
comes first), before
long periods of
storage, or after
pressure washing or
submerging.
114
MAINTENANCE
ENGINE OIL
WARNING
Vehicle operation with insufficient, deteriorated, or contaminated engine oil will
cause accelerated wear and may result in engine seizure, accident and injury.
Always check and change the engine oil at the intervals outlined in the Polaris
Maintenance Schedule. Always use the recommended engine oil.
Pay special attention to the oil level. A rise in oil level during cold weather can
indicate contaminants collecting in the oil sump or crankcase. Change oil
immediately if the oil level begins to rise. Monitor the oil level, and if it continues
to rise, discontinue use and determine the cause. Your authorized dealer can
assist.
OIL RECOMMENDATIONS
IMPORTANT
Always change the oil filter when you change the engine oil.
POLARIS recommends the use of POLARIS PS-4 Full Synthetic 5W-50 4-cycle
oil or a similar oil for this engine. Oil may need to be changed more frequently if
POLARIS oil is not used. Always use 5W-50 oil. Follow the manufacturer's
recommendations for ambient temperature operation.
See the Lubrication Guide section for fluid recommendations, capacities, and
plug torques.
IMPORTANT
Mixing brands or using a non-recommended oil may cause serious engine
damage. Always use the recommended oil. Never substitute or mix oil brands.
115
MAINTENANCE
OIL LEVEL CHECK
IMPORTANT
Check the oil level when the engine is cold. Never check the oil with the engine
running or damage to the dipstick and / or engine could occur.
To check the oil level, do the
following:
1. Position the vehicle on a
level surface. Put the
transmission in PARK (P)
and lock the parking brake.
2. Access the oil dipstick and fill
tube from the right side of the
ATV
q
. Remove the dipstick.
Wipe it dry with a clean cloth.
3. Reinstall and tighten the
dipstick.
4. Remove the dipstick and check the
oil level.
5. Add the recommended lubricant as
needed. Maintain the oil level in the
safe range between the FULL and
ADD marks. Do NOT overfill.
6. Reinstall and tighten the dipstick.
116
MAINTENANCE
OIL AND OIL FILTER CHANGE
IMPORTANT
Always change the oil filter when you change the engine oil.
The engine oil and oil filter
should be changed in
accordance with the Polaris
Maintenance Schedule. See
the Lubrication Guide section
for fluid recommendations and
capacities.
1. Position the vehicle on a level surface.
2. Put the transmission in PARK (P) and lock the parking brake.
3. Clean the area around the drain plug
q
.
4. Place a drain pan under the crankcase.
5. Remove the drain plug
q
and washer. Allow the oil to drain completely.
CAUTION
Hot oil can cause burns to skin. Do not allow hot oil to contact skin.
6. Install a new sealing washer on the drain plug. The sealing surfaces on drain
plug and crankcase should be clean and free of burrs, nicks or scratches.
7. Reinstall the drain plug. Torque to specification.
TORQUE
Drain Plug:
12 ft-lbs (16 N·m)
117
MAINTENANCE
8. Place an oil drain pan and shop towels beneath the oil filter.
9. Using an oil filter wrench (available from your POLARIS dealer), turn the filter
counter-clockwise to remove it.
Oil Filter Wrench
PU-50105
10.Using a clean dry cloth, clean the filter sealing surface on the crankcase.
11. Lubricate the o-ring on the new filter with a film of fresh engine oil. Check to
make sure the o-ring is in good condition.
12.Install the new filter and rotate it clockwise by hand until the filter gasket
contacts the sealing surface, then turn it an additional 3/4 turn.
13.Remove the engine access panel on the right side of the vehicle.
14.Remove the dipstick. Add the Polaris recommended lubricant as necessary
to bring the oil level within the SAFE range on the dipstick. DO NOT overfill.
FLUID CAPACITY
Recommended Lubricant:
Polaris PS-4 Synthetic 4-Cycle Engine Oil
Capacity:
2 qt (1.9 L)
15.Reinstall the dipstick.
118
MAINTENANCE
16.Start the engine. Allow it to idle for one to two minutes.
17.Stop the engine and check for leaks.
18.Check the oil level. Add engine oil as needed to bring the level to the upper
mark on the dipstick. See the Oil Level Check section for proper procedure.
19.Dispose of used filter and oil properly.
119
MAINTENANCE
TRANSMISSION OIL
Always check and change the transmission oil at the intervals outlined in the
Polaris Maintenance Schedule. See the Lubrication Guide section for fluid
recommendations and capacities. Maintain the oil level at the bottom of the fill
plug hole. The fill plug is located on the left side of the ATV behind the footwell.
The drain plug is located on the right side of the vehicle.
OIL CHECK
1. Position the vehicle on a level
surface. Put the transmission in
PARK (P) and lock the parking
brake.
2. Remove the fill plug
q
. Check the
oil level. Oil should reach the bottom
of the fill hole threads.
3. Slowly add the recommended fluid
as needed to bring the level to the
bottom of the fill hole threads.
4. Reinstall the fill plug. Torque to
specification.
TORQUE
Fill Plug:
12 ft-lbs (16 N·m)
OIL CHANGE
1. Position the vehicle on a level surface. Put the transmission in PARK (P) and
lock the parking brake.
2. Place a drain pan under the gearcase. Remove the drain plug
w
. Allow the
oil to drain completely.
3. Clean and reinstall the drain plug. Torque to specification.
120
MAINTENANCE
4. Remove the fill plug. Slowly add the
proper amount of the recommended
oil. Oil should reach the bottom of
the fill hole threads.
5. Reinstall the fill plug. Torque to
specification.
6. Check for leaks.
7. Dispose of used oil properly.
TORQUE
Drain Plug:
12 ft-lbs (16 N·m)
FRONT GEARCASE (DEMAND DRIVE) FLUID
Always check and change the demand drive fluid at the intervals outlined in the
Polaris Maintenance Schedule.
Change the front gearcase fluid every 25 hours if the ADC unit is exposed to
extreme use. Extreme use includes any of the following:
• operation in ADC mode for prolonged periods
• constant ADC operation on hilly or mountainous terrain
• ADC is the primary mode of all-wheel-drive operation
NOTICE
If the front gearcase is makes excessive noise during ADC operation, change
the demand drive fluid. If the noise continues, please see your POLARIS
dealer or other qualified service facility for service.
Use the recommended fluid. Use of other fluids may result in improper operation
of components. Maintain the fluid level at the bottom of the fill hole threads. The
fill plug is located on the right side of the demand drive unit. The drain plug is
located on the bottom right side of the unit.
121
MAINTENANCE
FLUID CHECK
1. Position the vehicle on a level surface. Put the transmission in PARK (P) and
lock the parking brake.
2. Remove the fill plug
q
. Check the fluid level, verifying the level reaches the
bottom of the fill hole threads.
3. Add the recommended fluid as needed to bring the level to the bottom of the
fill hole threads.
FLUID CAPACITY
Recommended Lubricant:
Polaris Demand Drive Fluid
Capacity:
9 fl oz (265 mL)
4. Reinstall the fill plug. Torque to specification.
TORQUE
Fill Plug:
19 ft-lbs (26 N·m)
122
MAINTENANCE
FLUID CHANGE
1. Position the vehicle on a level surface. Put the transmission in PARK (P) and
lock the parking brake.
2. Remove the fill plug.
3. Place a drain pan under the demand drive unit. Remove the drain plug
w
.
Allow the fluid to drain completely.
4. Clean and reinstall the drain plug. Torque to specification.
5. Add the proper amount of the recommended fluid. Ensure the oil reaches the
bottom of the fill hole threads.
6. Reinstall the fill plug. Torque to specification.
7. Check for leaks.
8. Dispose of used fluid properly.
TORQUE
Drain Plug:
19 ft-lbs (26 N·m)
POWER STEERING UNIT
If your model is equipped with power steering, frequently clean the areas around
and on the power steering unit to allow proper cooling. Clean these areas
thoroughly.
STEERING ASSEMBLY
The steering assembly of the ATV should be checked periodically for loose nuts
and bolts. If loose nuts and bolts are found, see your authorized dealer or other
qualified service facility before operating the vehicle.
123
MAINTENANCE
COOLING SYSTEM
The engine coolant level is controlled, or maintained, by the recovery system.
The recovery system components are the recovery bottle, the radiator filler neck,
the radiator pressure cap and the connecting hose.
As coolant operating temperature increases, the expanding (heated) excess
coolant is forced out of the engine, past the pressure cap, and into the recovery
bottle. As engine coolant temperature decreases the contracting (cooled)
coolant is drawn back up from the bottle, past the pressure cap, and into the
radiator.
Some coolant level drop on new vehicles is normal as the system is purging
itself of trapped air. Check the coolant level and maintain as recommended by
adding coolant to the recovery bottle.
POLARIS recommends the use of POLARIS Antifreeze 50/50 Premix. This
antifreeze is already premixed and ready to use. Do not dilute with water. See
the Polaris Products section for the part numbers.
RECOVERY BOTTLE COOLANT
The recovery bottle fluid level can be accessed from the front left wheel well.
1. View the fluid level in the
bottle.
2. If the level is low, remove
the bottle cap and add
coolant as needed.
Maintain the coolant level
between the minimum and
maximum marks on the
bottle (when the fluid is
cool).
3. Reinstall the cap.
4. Close and secure the front box and cover.
RADIATOR COOLANT
To ensure that the coolant maintains its ability to protect the engine, we
recommend that the system be completely drained every five (5) years and fresh
Antifreeze 50/50 Premix added.
Any time the cooling system has been drained for maintenance or repair,
replace the coolant with fresh Antifreeze 50/50 Premix. If the recovery bottle has
run dry, check the level in the radiator. Add coolant as needed.
124
MAINTENANCE
CAUTION
Escaping steam can cause burns. Never remove the pressure cap while the
engine is warm or hot. Always allow the engine to cool before removing the
pressure cap.
1. Access the pressure cap under the front box. See the Front Compartment
section for details.
2. Remove the pressure cap.
3. Using a funnel, slowly add coolant through the radiator filler neck.
4. Reinstall the pressure cap. Use of a non-standard pressure cap will not allow
the recovery system to function properly. Your POLARIS dealer can provide
the correct replacement part.
5. Close and secure the front box and cover.
BRAKES
HAND BRAKE
CAUTION
Brake discs can become extremely hot after operation. Allow the discs to cool
before performing maintenance to prevent risk of burns.
The front and rear brakes are hydraulic disc brakes, activated by moving the
single brake lever toward the handlebar. These brakes are self- adjusting.
Under normal operation, the diaphragm extends into the reservoir as fluid level
drops. If the fluid level is low and the diaphragm is not extended, a leak is likely
and the diaphragm should be replaced. To ensure proper diaphragm operation,
always fill the reservoir as needed whenever the cover is loosened or removed.
Do not overfill.
WARNING
An over-full master cylinder may cause brake drag or brake lock- up, which
could result in serious injury or death. Maintain brake fluid at the recommended
level. Do not overfill.
The following checks are recommended to keep the brake system in good
operating condition. Check more often if brakes are used heavily under normal
operation.
125
MAINTENANCE
1. Always keep brake fluid at an adequate level. See the Master Cylinder/Brake
Fluid section for details.
2. Check the brake system for fluid leaks.
3. Check the brakes for excessive travel or spongy feel.
4. Check the friction pads for wear, damage and looseness. Replace brake
pads when they are worn to .030” (0.762 mm).
5. Check the security and surface condition of the disc. Clean any grease using
a recommended brake cleaner or alcohol. Do not use spray lubricants or
other petroleum-based products. If you discover any damage (cracks,
excessive corrosion, warping) see your dealer for service before operating.
AUXILIARY FOOT BRAKE
The hydraulic auxiliary brake system requires no adjustment. Check the brake
fluid level frequently for the auxiliary brake system.
SIDE PANEL / FOOTWELL REMOVAL
LEFT SIDE PANEL / FOOTWELL REMOVAL
1. Remove the seat.
2. Use the Multi-Function Pliers (included in your vehicle’s toolkit) to remove the
four push rivets from the side panel / close off panel.
3. Grasp the rear of the side panel. With a firm motion, pull the side panel
outward to disengage it from the vehicle.
126
MAINTENANCE
RIGHT SIDE PANEL / FOOTWELL REMOVAL
1. Remove the seat.
2. Use the Multi-Function Pliers (included in your vehicle’s toolkit) to remove the
two push rivets from the side panel.
3. Grasp the rear of the side panel. With a firm motion, pull the side panel
outward to disengage it from the vehicle.
129
MAINTENANCE
4. Lift the close off panel / shield upward to disengage it from the vehicle.
NOTICE
The engine access panel is also removed.
5. Remove the two screws and two push rivets from the footwell.
6. Remove the four screws and nuts from the bottom of the footwell. Pull the
footwell downward and outward to disengage it from the vehicle.
130
MAINTENANCE
SIDE PANEL / FOOTWELL INSTALLATION
LEFT SIDE PANEL / FOOTWELL INSTALLATION
1. Install the footwell onto the vehicle. Loosely install the four screws and nuts
into the bottom of the footwell.
NOTICE
Observe the condition of each push rivet and check for damage. If damaged,
POLARIS recommends that you replace the push rivet before installation.
2. Loosely install the two screws and two push rivets into the footwell.
3. Install the side panel / close off panel onto the vehicle and install the four
push rivets.
4. Install the seat.
5. Torque all fasteners to specification.
TORQUE
Footwell to Chassis Fasteners:
3 in-lbs (4 N·m)
Footwell to Rear Cab Screws:
Torque Until Fully Seated
RIGHT SIDE PANEL / FOOTWELL INSTALLATION
1. Install the footwell onto the vehicle. Loosely install the four screws and nuts
into the bottom of the footwell.
NOTICE
Observe the condition of each push rivet and check for damage. If damaged,
POLARIS recommends that you replace the push rivet before installation.
2. Loosely install the two screws and two push rivets into the footwell.
3. Install the close off panel / shield onto the vehicle.
4. Install the side panel onto the vehicle and install the two push rivets.
131
MAINTENANCE
TIRES
WARNING
Operating your ATV with worn tires, improperly inflated tires, non-standard tires
or improperly installed tires will affect vehicle handling and could cause an
accident resulting in serious injury or death. Always follow all tire maintenance
procedures as outlined in this manual and on the labels on the vehicle. Always
use original equipment size and type when replacing tires.
Refer to the Specifications chapter for recommended tire type, size, and
pressure.
TIRE AGING
WARNING
Tires age, even if they are unused or only used occasionally. Evidence of aging
could appear as cracks in the treads or sidewall rubber, sometimes
accompanied by carcass deformation. Old tires should be checked by tire
specialists to determine their suitability for further use.
TIRE TREAD DEPTH
Always replace tires when tread depth
is worn to 3 mm (1/8”) or less.
133
MAINTENANCE
WHEEL REMOVAL
1. Stop the engine.
2. Place the transmission in PARK.
3. Lock the parking brake.
4. Loosen the wheel nuts slightly.
WARNING
Do not service axle nuts that have a cotter pin installed. Your authorized dealer
can assist.
5. Elevate the side of the vehicle by placing a suitable stand under the foot rest
frame.
6. Remove the wheel nuts.
7. Remove the wheel.
WHEEL INSTALLATION
1. Place the transmission in PARK.
2. Lock the parking brake.
3. Place the wheel on the hub with the valve stem toward the outside and
rotation arrows on the tire pointing toward forward rotation (if equipped).
4. Install the wheel nuts and finger-tighten them.
5. Lower the vehicle to the ground.
6. Torque the wheel nuts to specification.
WARNING
Loose nuts could cause a tire to come off during operation, which could result
in an accident or overturn. Always ensure that all nuts are torqued to
specification.
134
MAINTENANCE
TOE ALIGNMENT
WARNING
Severe injury or death can result from improper toe alignment and adjustment.
Do not attempt to adjust tie rod alignment. All tie rod adjustments should be
performed by an authorized POLARIS dealer or other qualified service facility.
Use the following procedure to check the toe alignment of the vehicle. The
recommended toe alignment is 1/4-1/2 inch (6-12 mm).
1. Position the vehicle on a level surface.
2. Place the handlebars in a straight-ahead position.
3. Tie a length of string between two stands. Position the stands so that the
string is flush with the side of the rear tire. If available, you may use a long
straight-edge instead of string.
4. Measure the distance from the string to the rim at the front
q
and rear
w
of
the front rim. The rear measurement should be 1/8–1/4 inch (3–6 mm) more
than the front measurement on each side of the vehicle to obtain the
recommended 1/4–1/2 inch (6-12 mm) toe out alignment.
5. Repeat the measurement procedure on the other side of the vehicle.
6. If you discover improper alignment, see your POLARIS dealer for service.
136
MAINTENANCE
CAMBER AND CASTER
The camber and caster are non-adjustable.
AIR FILTER
It is recommended that the air filter is replaced annually. When riding in
extremely dusty conditions, replacement is required more often.
1. Lift up on the rear of the seat.
2. Pull the seat back and free of the tabs.
NOTICE
When reinstalling seat, make sure the slots in the seat engage the tabs in the
fuel tank.
3. Remove the six clips
q
from air box
cover and remove cover
w
.
4. Inspect the gasket
e
. It should
adhere tightly to the cover and seal
all the way around.
137
MAINTENANCE
5. Loosen the air filter hose clamp
r
and remove air filter assembly.
6. Inspect the air filter and replace if
necessary. If the filter has been
soaked with fuel or oil, it must be
replaced.
7. Reinstall the air filter on the main
filter mount. Place hose clamp over
the assembly and torque to
specification.
NOTICE
Apply a small amount of general purpose grease to the sealing edges of the
filter before reinstalling.
TORQUE
Air Filter Hose Clamp:
20 in-lbs (2 N·m)
NOTICE
The air filter should rest on the filter supports. Proper placement of the air filter
is important to prevent rattles and air leaks.
8. Install air box cover and secure with the clips.
FUSE REPLACEMENT
If the engine stops or will not start, or if you experience other electrical failures, a
fuse may need replacement. Locate and correct any short circuits that may have
caused the blown fuse, then replace the fuse. Spare fuses are provided in the
fuse box.
1. Open the front box cover, and remove the access panel.
2. Remove fuse box cover.
3. Remove the suspect fuse from the fuse panel. If the fuse is blown, install a
new fuse with the same amperage.
4. Secure the fuse box cover and access panel.
5. Secure the front box cover.
138
MAINTENANCE
LIGHTS
CAUTION
Poor lighting can result in reduced visibility when driving. Headlight and taillight
lenses become dirty during normal operation. Clean headlights frequently and
replace burned out headlamps promptly.
Always make sure lights are adjusted properly for best visibility.
LED HEADLIGHT REPLACEMENT
This ATV is equipped with LED headlights. If the headlights become inoperable,
the entire assembly must be replaced by an authorized POLARIS dealer or
other qualified service facility.
139
MAINTENANCE
WORK LIGHT ADJUSTMENT
The headlight beam can be adjusted slightly upward or downward. Use the
following procedure to make the adjustment.
NOTICE
Image is for reference only. Your model might differ slightly.
1. Position the vehicle on a level surface with the headlight approximately 25 ft
(7.6 m) from a wall
q
. Place the transmission in PARK.
2. Measure the distance from the floor to the center of the headlight and make a
mark on the wall at the same height.
3. Start the engine. Turn on the headlight.
4. Observe the headlight aim on the wall. The most intense part of the headlight
beam should be 2 in (5 cm) below the mark on the wall
w
. Include rider
weight on the seat when measuring.
5. The adjustment screw is located on the right side of the headlight pod. To
adjust the beam, loosen the screw. Adjust the headlamp to the desired
position, then tighten the screw.
140
MAINTENANCE
HEADLIGHT ADJUSTMENT
To adjust the front headlights, do the following:
1. Place the vehicle on a level surface with the headlight approximately 23 ft (7
m) from a wall.
NOTICE
Rider weight must be included on the seat while performing this procedure.
2. Place the transmission in PARK.
3. Measure the distance from the floor to the center of the headlight and make a
mark on the wall at the same height.
4. Turn ignition ON and switch the headlight to low beam.
5. Observe the headlight aim on the wall. The horizontal line, separating the
lit-zone from the unlit-zone, should be aimed 8 in (20 cm) below the mark
placed on the wall in step 3.
6. Open the front rack.
7. Adjust the beam to desired position by tightening or loosening the screws at
the top of the lights. Adjust each light independently.
WARNING
Due to the nature of ATVs and where they are operated, headlight lenses can
become dirty. Frequent washing is necessary to maintain lighting quality.
Riding with poor lighting can result in severe injury or death.
141
MAINTENANCE
3. Disconnect the main wiring harness
r
from the back of the work light.
4. Lift the work light out of the vehicle to remove it.
5. Reverse steps for installation. Torque screws to specification.
TORQUE
Work Light Pod Screws:
20 in-lbs (2 N·m)
6. Adjust the work light pod.
TAILLIGHTS/BRAKE LIGHTS REPLACEMENT
The taillight assembly is not serviceable. If the light fails to operate properly,
replace the entire taillight assembly.
143
MAINTENANCE
SPARK PLUGS
SPARK PLUG RECOMMENDATIONS
Refer to the specifications section for the recommended spark plug type and
gap for your vehicle. Torque spark plugs to specification.
NOTICE
Using non-recommended spark plugs can result in serious engine damage.
Always use POLARIS-recommended spark plugs or their equivalent.
TORQUE
Spark Plug
9 ft-lbs (12 N·m)
SPARK PLUG INSPECTION
Spark plug condition is indicative of engine operation. Check the spark plug for
the correct color.
CAUTION
A hot exhaust system and engine can cause burns. Wear protective gloves
when removing a spark plug for inspection. Allow engine to cool before
removing spark plug wire.
1. Rotate the spark plug cap 1/4 turn and pull it off the spark plug.
2. Rotate the spark plug counter-clockwise to remove it.
3. Reverse the procedure for spark plug installation. Torque to specification.
NORMAL PLUG
The normal insulator tip is gray, tan or light brown. There will be few combustion
deposits. The electrodes are not burned or eroded. This indicates the proper
type and heat range for the engine and the service.
The tip should not be white. A white insulator tip indicates overheating, caused
by use of an improper spark plug or incorrect throttle body adjustments.
WET FOULED PLUG
The wet fouled insulator tip is black. A damp oil film covers the firing end. There
may be a carbon layer over the entire nose. Generally, the electrodes are not
worn. General causes of fouling are excessive oil consumption, use of
non-recommended oil, or poor fuel quality.
144
MAINTENANCE
VEHICLE IMMERSION
If your vehicle becomes immersed, major engine damage can result if the
machine is not thoroughly inspected. Take the vehicle in for service before
starting the engine. Your POLARIS dealer can provide this service.
If it's impossible to take your ATV to a dealer before starting it, follow the steps
outlined below.
1. Move the ATV to dry land or at the very least, to water below the footrests.
2. Check the air box. If water is present, dry the air box and replace the filter
with a new filter. If equipped, remove the air box drain plug to drain water.
Reinstall the drain plug.
CAUTION
Serious damage could occur if the air box drain plug is not reinstalled properly.
3. Remove the spark plugs.
4. Turn the engine over several times using the electric start.
5. Dry the spark plugs. Reinstall the plugs or install new plugs.
6. Attempt to start the engine. If necessary, repeat the drying procedure.
CAUTION
Serious damage can occur after immersion if fluids are not changed promptly.
Your authorized dealer can assist.
7. Take the vehicle in for service as soon as possible, whether you succeed in
starting it or not. Your authorized dealer can provide the required service.
8. If water has been ingested into the PVT, follow the procedure in the PVT
System section for drying out the PVT.
145
MAINTENANCE
SPARK ARRESTOR SERVICE
WARNING
Do not perform clean out immediately after the engine has been run, as the
exhaust system becomes very hot. Serious burns could result from contact
with exhaust components.
To reduce fire hazard, make sure that there are no combustible materials in the
area when purging the spark arrestor.
Wear eye protection.
Do not stand behind or in front of the vehicle while purging the carbon from the
spark arrestor.
Never run the engine in an enclosed area. Exhaust contains poisonous carbon
monoxide gas.
Do not go under the machine while it is inclined. Put the transmission in PARK
(P), lock the parking brake, and block the wheels to prevent roll back.
Failure to heed these warnings could result in serious personal injury or death.
The spark arrestor should be periodically cleaned to remove accumulated
carbon. A plugged spark arrestor will affect engine performance. Replace a
cracked or damaged spark arrestor before running the vehicle.
1. Remove the spark arrestor screen
fasteners
q
.
146
MAINTENANCE
2. Remove the spark arrestor
w
from
the end of the muffler.
3. Use a non-synthetic brush to clean
the screen
e
on the spark arrestor.
If necessary, blow debris from the
screen with compressed air.
4. Inspect the screen for wear and damage. Replace if damaged.
5. Install the spark arrestor. Torque fasteners to specification.
TORQUE
Spark Arrestor Screen Fasteners:
8 ft-lbs (11 N·m)
PVT SYSTEM
WARNING
Failure to comply with the instructions in this warning can result in severe injury
or death.
Do not modify any component of the PVT system. Doing so may reduce its
strength so that a failure may occur at a high speed. The PVT system has been
precision balanced. Any modification will cause the system to be out of
balance, creating vibration and additional loads on components.
The PVT system rotates at high speeds, creating large amounts of force on
clutch components. Extensive engineering and testing has been conducted to
ensure the safety of this product. However, as the owner, you have the
following responsibilities to make sure this system remains safe:
• Always follow all recommended maintenance procedures. Always look for
and remove debris inside and around the clutch and vent system when
replacing the belt.
• See your POLARIS dealer, or other qualified person, for service and repair
assistance.
• This PVT system is intended for use on POLARIS products only. Do not
install it in any other product.
• Always make sure the PVT housing is securely in place during operation.
147
MAINTENANCE
The basic operation of the POLARIS PVT system is dependent on engine speed
and vehicle torque requirements. As engine speed increases, the force exerted
on the movable drive sheave by the flyweights also increases. This, in turn,
increases the amount of pinch applied to the drive belt. Similarly, if the engine
speed decreases, the amount of centrifugal force decreases, reducing the
amount of belt pinch.
On POLARIS ATVs, the approximate gear ratio difference between high and low
range is 1:2.25. This difference in gearing affects the operation of the PVT,
especially at speeds less than 7 MPH (11 km/h), due to the system's
dependence on engine speed.
For example, when operating at a ground speed of 3 MPH (5 km/h) in low range,
the engine speed would be around 3000 RPM. This is well above the
engagement speed of 1600 - 1800 RPM. However, in high range at 3 MPH (5
km/h), the engine would be running at only 1500 RPM. Whenever operating this
close to the engagement speed, the engine may be running at a speed too low
to provide the pinch needed to prevent belt slip. Belt slip is responsible for
creating the excessive heat that destroys belts, wears clutch components and
causes outer clutch covers to fail.
The air temperature in the clutch cover is substantially reduced by using low
range while operating at low ground speeds. Reducing the temperature inside
the clutch cover greatly extends the life of the PVT components (belt, cover,
etc.).
WHEN TO USE LOW RANGE AND HIGH RANGE
CONDITION RANGE TO USE
Operating at speeds less than 7 MPH
(11 km/h)
Low
Towing heavy loads Low
Operating in rough terrain (swamps,
mountains, etc.)
Low
Operating at speeds greater than 7
MPH (11 km/h)
High
148
MAINTENANCE
PVT DRYING
There may be some instances when water is accidently ingested into the PVT
system. Use the following instructions to dry it out before operating.
1. Position the vehicle on a level surface.
2. Remove the drain plug. Allow the water to drain completely. Reinstall the
drain plug.
3. Start the engine. Place the transmission in PARK.
4. Apply varying throttle for 10-15 seconds to expel the moisture and air-dry the
belt and clutches. Do not hold the throttle wide open for more than 5
seconds.
5. Allow the engine RPM to settle to idle speed, then shift the transmission to
low range.
6. Test for belt slippage. If the belt slips, repeat the process. Your vehicle
requires service as soon as possible, which your authorized dealer can
provide.
PVT BREAK-IN (CLUTCHES / BELT)
A proper break-in of the clutches and drive belt will ensure a longer life and
better performance. Break in the clutches and belt by operating at slower
speeds during the break-in period as recommended. Pull only light loads. Avoid
aggressive acceleration and high speed operation during the break-in period.
If a belt fails and you need to replace it, always clean all debris from the PVT
intake and outlet duct, the clutch, and the engine components.
DRIVE BELT REMOVAL
DRIVE BELT REMOVAL (EBS MODELS)
1. Position the vehicle on a level surface. Put the transmission in PARK (P) and
lock the parking brake.
2. Elevate and safely support the rear of the vehicle.
3. Remove the seat.
4. Remove the left side panel / footwell. See page 126.
149
MAINTENANCE
9. Insert the Belt Removal Tool
q
(included in your vehicle’s toolkit) into the
threaded hole on the driven clutch as shown and turn clockwise to spread the
clutch.
10.Carefully walk the belt off the driven clutch and remove from the drive clutch.
DRIVE BELT REMOVAL (NON-EBS MODELS)
1. Position the vehicle on a level surface. Put the transmission in PARK (P) and
lock the parking brake.
2. Elevate and safely support the rear of the vehicle.
3. Remove the seat.
4. Remove the left side panel / footwell. See page 126.
151
MAINTENANCE
7. Remove the 8 fasteners securing the outer PVT cover to the inner PVT cover.
8. Using care, pull the outer PVT cover out the side of the vehicle.
9. Note the orientation of the drive belt so that it can be installed in the same
direction.
10.Squeeze the belt in the center to spread the driven clutch sheaves.
11. Carefully walk the belt off the driven clutch and remove from the drive clutch.
153
MAINTENANCE
DRIVE BELT INSPECTION
1. Inspect belt for hour glassing (extreme circular wear in at least one spot and
on both sides of the belt). Hour glassing occurs when the drive train does not
move and the drive clutch engages the belt.
2. Inspect belt for loose cords, missing cogs, cracks, abrasions, thin spots, or
excessive wear. Compare belt measurements with a new drive belt. Replace
if necessary.
3. Belts with thin spots, burn marks, etc., should be replaced to eliminate noise,
vibration, or erratic PVT operation. See General Diagnostic information for
possible causes.
154
MAINTENANCE
DRIVE BELT INSTALLATION
DRIVE BELT INSTALLATION (EBS MODELS)
1. Clean the inside of the PVT covers thoroughly.
WARNING
Failure to remove all debris when replacing the belt could result in vehicle
damage, loss of control, and severe injury or death.
IMPORTANT
Orient the belt as it was removed or orient the new belt so that you can read
the text.
2. With the Belt Removal Tool
q
installed, loop the belt over the drive clutch
and over the driven clutch.
3. Rotate the driven clutch and walk the belt into the clutch.
4. Remove the Belt Removal Tool from driven clutch.
155
MAINTENANCE
DRIVE BELT INSTALLATION (NON-EBS MODELS)
1. Clean the inside of the PVT covers thoroughly.
WARNING
Failure to remove all debris when replacing the belt could result in vehicle
damage, loss of control, and severe injury or death.
IMPORTANT
Orient the belt as it was removed or orient the new belt so that you can read
the text.
2. Loop the belt over the drive clutch and begin to walk it over the driven clutch
sheave.
NOTICE
The belt might curl up around the bottom of the driven clutch sheave. If this
occurs, push the bottom of the belt down when needed to aid installation.
159
MAINTENANCE
8. Install the left side panel / footwell. See page 131.
9. Install the seat.
BATTERY
WARNING
Improperly connecting or disconnecting battery cables can result in an
explosion and cause serious injury or death. When removing the battery,
always disconnect the negative (black) cable first. When reinstalling the
battery, always connect the negative (black) cable last.
Your ATV is equipped with a sealed battery, which requires little maintenance.
POLARIS does not recommend using a conventional battery in this vehicle. The
orientation of the battery could result in electrolyte leakage, which would shorten
the life of the battery considerably.
Always keep battery terminals and connections free of corrosion. If cleaning is
necessary, remove corrosion with a stiff wire brush. Wash with a solution of one
tablespoon baking soda and one cup water. Rinse well with tap water and dry off
with clean shop towels. Coat the terminals with dielectric grease or petroleum
jelly.
162
MAINTENANCE
BATTERY REMOVAL
WARNING
Improperly connecting or disconnecting battery cables can result in an
explosion and cause serious injury, death, vehicle damage, and/or battery
damage. When removing the battery, always disconnect the negative (-) black
cable first. When reinstalling the battery, always connect the negative (-) black
cable last.
NOTICE
If electrolyte spills, immediately wash it off with a solution of one tablespoon
baking soda and one cup water to prevent damage to the vehicle.
To remove the battery, do the following:
1. Unlatch the front rack latches
and open the front rack.
2. Remove the two battery hold
down strap screws
q
and
remove strap from vehicle.
3. Disconnect the negative (-)
black cable
w
first. Then
disconnect the positive (+)
red cable
e
.
4. Carefully lift the battery out of the vehicle.
BATTERY INSTALLATION
WARNING
Improperly connecting or disconnecting battery cables can result in an
explosion and cause serious injury, death, vehicle damage, and/or battery
damage. When removing the battery, always disconnect the negative (-) black
cable first. When reinstalling the battery, always connect the negative (-) black
cable last.
163
MAINTENANCE
NOTICE
Using a new battery that has not been fully charged can damage the battery
and result in a shorter life. It can also hinder vehicle performance. Refer to the
battery charging information in the Maintenance chapter before installing the
battery.
CAUTION
To reduce the chance of sparks when installing the battery, always connect the
negative (-) black cable last.
1. Clean battery cables and terminals with a stiff wire brush. Corrosion can be
removed using a solution of one cup water and one tablespoon baking soda.
Rinse well with clean water and dry thoroughly.
2. Carefully install the battery into the vehicle.
3. Connect the positive (+) red cable as shown below. Torque to specification.
q
Flange Bolt
w
Battery Cable
e
Internal Tooth Lock Washer
r
Flat Washer
t
Flange Nut (Torque Applied)
TORQUE
Battery Terminals
62 in-lbs (7 N·m)
4. Install positive battery boot.
5. Connect and tighten the negative (-) black cable. Torque to specification.
6. Verify the battery cables are properly routed.
BATTERY STORAGE
Whenever the vehicle is not used for a period of three months or more, remove
the battery from the vehicle, ensure that it's fully charged, and store it out of the
sun in a cool, dry place. Check battery voltage each month during storage and
recharge as needed to maintain a full charge.
164
MAINTENANCE
NOTICE
Image is for reference only. Your model might differ slightly.
POLARIS recommends maintaining battery charge by using a POLARIS battery
trickle charger or by charging once a month using the battery charge port
q
.
The POLARIS offered battery trickle charger can be left connected during the
storage period, and will automatically charge the battery if the voltage drops
below a pre-determined point. See the POLARIS Products chapter for the part
number.
IMPORTANT
POLARIS recommends using a trickle charger that shuts off automatically
when the battery is fully charged. If you are not using a trickle charger that
automatically shuts when the battery is fully charged, make sure to monitor the
battery charge level and disconnect the charger when the battery is fully
charged.
CAUTION
When using a battery trickle charger, always place the charger on the ground,
or on a suitable elevated surface. Never place the charger on the vehicle or let
it hang from the battery charge port while plugged in.
165
MAINTENANCE
BATTERY CHARGING
Read all instructions before proceeding with the installation of this battery.
The battery is already filled with electrolyte and has been fully charged at the
factory. Never pry the caps off or add any other fluid to this battery.
The single most important thing about maintaining the battery is to keep it fully
charged. Use a voltmeter to measure DC voltage to determine the battery state
of charge.
WARNING
An overheated battery may explode, causing severe injury or death. Always
watch charging times carefully. Stop charging if the battery becomes very
warm to the touch. Allow it to cool before resuming charging.
For a refresh charge, follow all instructions carefully.
1. The battery should be disconnected from a load or charger for at least two
hours before checking voltage. Check the battery voltage with a voltmeter. A
fully charged battery will register 12.6 V or higher.
2. If the voltage is less than 12.6 volts, recharge the battery at 2 amps or less
until the battery charger indicates charge complete.
3. When using an automatic charger, refer to the charger manufacturer's
instructions for recharging. When using a constant current charger, use the
following guidelines via the table below.
VOLTAGE TABLE
Always verify battery condition before and 1-2 hours after the end of charging.
STATE OF CHARGE VOLTAGE ACTION
CHARGE TIME
(USING CONSTANT
CURRENT
CHARGER @
STANDARD AMPS
SPECIFIED ON TOP
OF BATTERY)
100% 12.6-12.8 volts Low Maintenance
Battery: check after 60
days
None required
50%-75% 12.0-12.5 volts Needs charge 5-11 hours
25%-50% 11.5-12.0 volts Needs charge At least 13 hours,
verify state of charge
0%-25% 11.5 volts or less Needs charge At least 20 hours
166
MAINTENANCE
BATTERY IDENTIFICATION
IMPORTANT
It is important to identify the type of battery installed in the vehicle. Different
types of batteries require different service procedures. Proper servicing and
upkeep of the battery is very important for maintaining long battery life. All
Polaris ORV models include either a Conventional battery or a Low
Maintenance battery.
CONVENTIONAL BATTERY
• The battery is NOT activated when
packaged
• Distilled water and electrolyte added
as required
• Removable cap plugs located on top
of battery
• Vent tube located on side of battery
LOW MAINTENANCE BATTERY
