INSTRUCTIONS FOR:
WORKSHOP STOOL PNEUMATIC with
ADJUSTABLE HEIGHT SWIVEL SEAT &
BACK REST
MODEL No: SCR14.V2
Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained, give
you years of trouble-free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND
CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY
CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE
USE.
3. ASSEMBLY
1. SAFETY
1.1 GENERAL SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations
are adhered to when using this stool.
Locate stool in a suitable working area.
WARNING! Use stool on level and solid ground, preferably concrete.
Keep the stool clean and tidy in accordance with good workshop practice.
DO NOT use the stool for any purpose other than that for which it is designed.
DO NOT stand on the stool.
DO NOT use the stool outdoors.
DO NOT get the stool wet or use in damp or wet locations or areas where there is condensation.
DO NOT clean the stool with any solvents which may damage the plated surface or the protective
coating on the padded seat base.
2. SPECIFICATIONS & CONTENTS
Four legged heavy-duty steel construction with a polished chrome plate
finish for corrosion resistance. Two strengthening rings for stability, lower
one also acts as a foot rest. Features pneumatic height adjustment,
Ø350mm padded swivel seat and padded back rest for comfort and
ease when turning to and from point of work.
Specifications: Seat Height: Range .....730 - 880mm
Capacity:................... 136kg
Weight: . . . . . . . . . . . . . . . . . . . . . 8.5kg
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
Original Language Version
SCR14.V2 Issue: 1 -05/02/15

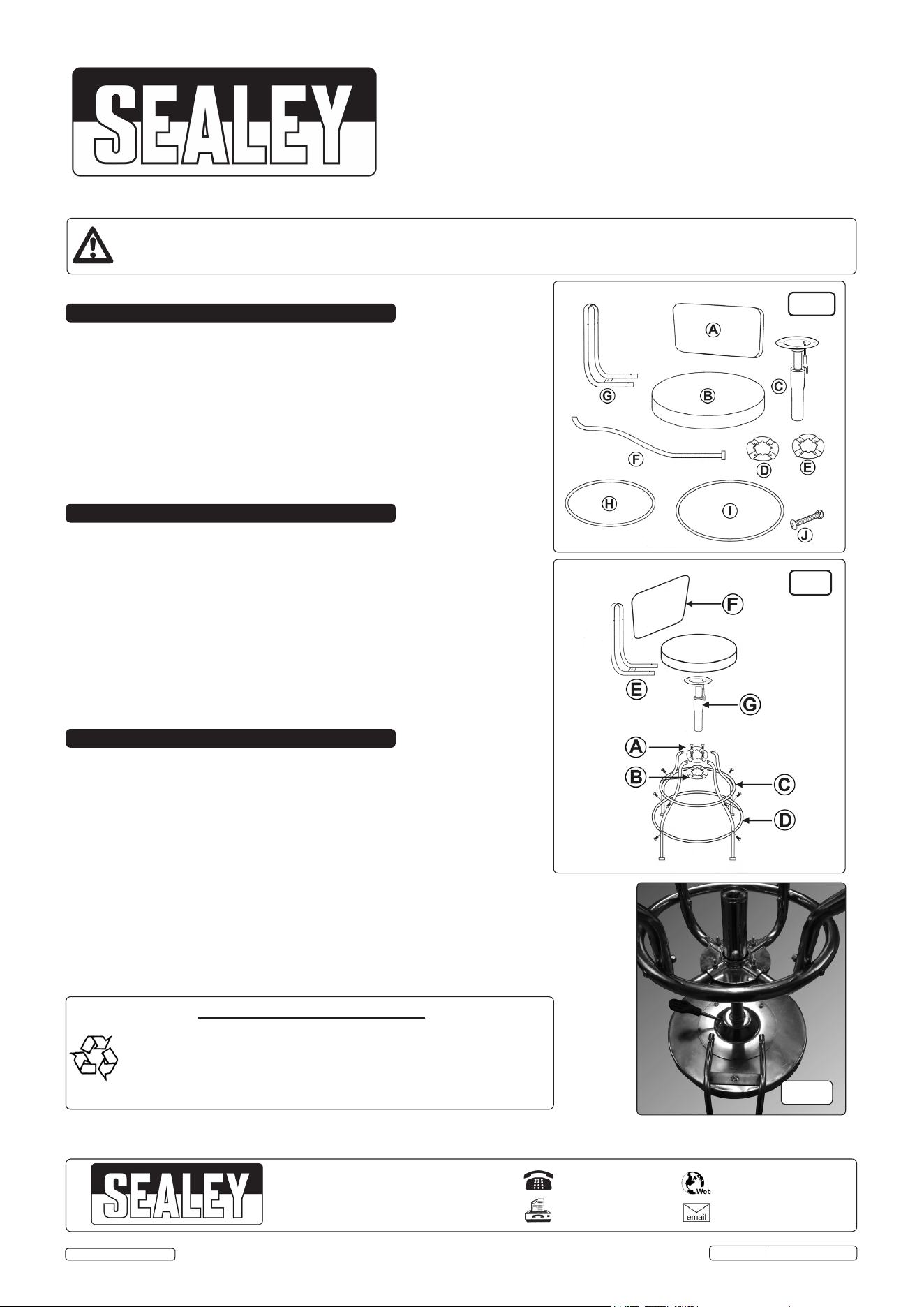

3.1. Take the four legs (fig1.F) and sandwich the upper ends between the two hub plates
(fig.2.A,fig.2.B). Secure with four bolts and nuts (fig.3)
3.2. Attach the upper ring (fig.1.H) with four bolts and nuts. See fig.2C.
3.3. Attach the lower footrest ring (fig.1.I) with four bolts and nuts, ensure the ring is attached on
the inside of the frame. See fig.2D.
3.4. Attach the seat frame (fig.1.G) to the seat base (fig.1.B) with 3 bolts. See fig.3.
3.5. Attach the backrest (fig.1.A) to seat frame using 2 bolts.
3.6. Insert the larger end of the pneumatic cylinder into the centre hub, it is an interference fit so
ensure it is pushed in with reasonable force. See fig.2G.
3.7. Take the seat assembly and push it onto the pneumatic cylinder.
3.8. Level the stool using the screw foot fitted to each leg.
3.9. Check that all fixings are tight.
Ref...Description
A ....Backrest
B ....Seat
C....Pneumatic piston
D....Hub Plate
E ....Hub Plate
F ....Leg
G....Seat Frame
H....Upper Ring
I ....Footrest Ring
J ....Fixings
g.2
g.1
Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. All tools,
accessories and packaging should be sorted, taken to a recycling centre and disposed
of in a manner which is compatible with the environment.
When the product becomes completely unserviceable ,dispose of it according to local
regulations.
