FROST-FREE DRAWER REFRIGERATORS,
FREEZERS and REFRIGERATOR/FREEZERS
Models:
Refrigerators:
ASDR1524
ASDR2414
SDHDR1535
SDHDR2446
ADRD241
DB2DRR1584ASD
DB2DRR2487ASD
DB2DRR1585SD
DB2DRR2488SD
DB2DRR2486ADA
SPR627OS2D
SP6DS3D
LADR1545
ASDR1554
SDR1529
DB2DRROS2489
DB3DRR2499
LDR1549
SDDR1558
LADR2433
ASDR2444
SDR2418
LDR2437
SDDR2448
FF642D
FF642DADA
LDR24A
SPR245OS3D
FF493D
Freezers:
ADFD243
ADFD243IM
SCFF532D
SCFF532DIM
SPFF51OS2D
DB2DFZ2474ADA
DB2DFZIM2494ADA
DB2DFZ2475
DB2DFZIM2495
DB2DFZOS2478
SCFF532DADA
LDF24A
Refrigerator/Freezers:
ADRF244
ADRF244IM
SPRF34D
SPRF34DIM
SPRF2D24ADA
DB2DRF2479ADA
DB2DRFIM2482ADA
DB2DRF2481
DB2DRFIM2483
LDRF24A
User Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Ave
Bronx, New York 10474
www.summitappliance.com
Write Serial Nos. (on lower left side of
bottom drawer) here:
2
TABLE OF CONTENTS
Appliance Safety 3
Important Safeguards 3-5
Disposal 5
Location of Parts 6-7
Installation Instructions 8-13
Before Using your Appliance 8
Installation of your Appliance 8-10
Electrical Connection 10-11
Connecting to the Water Supply 11
Installing the Stainless-Steel Handles 11
Adjusting the Kick Plate 11-12

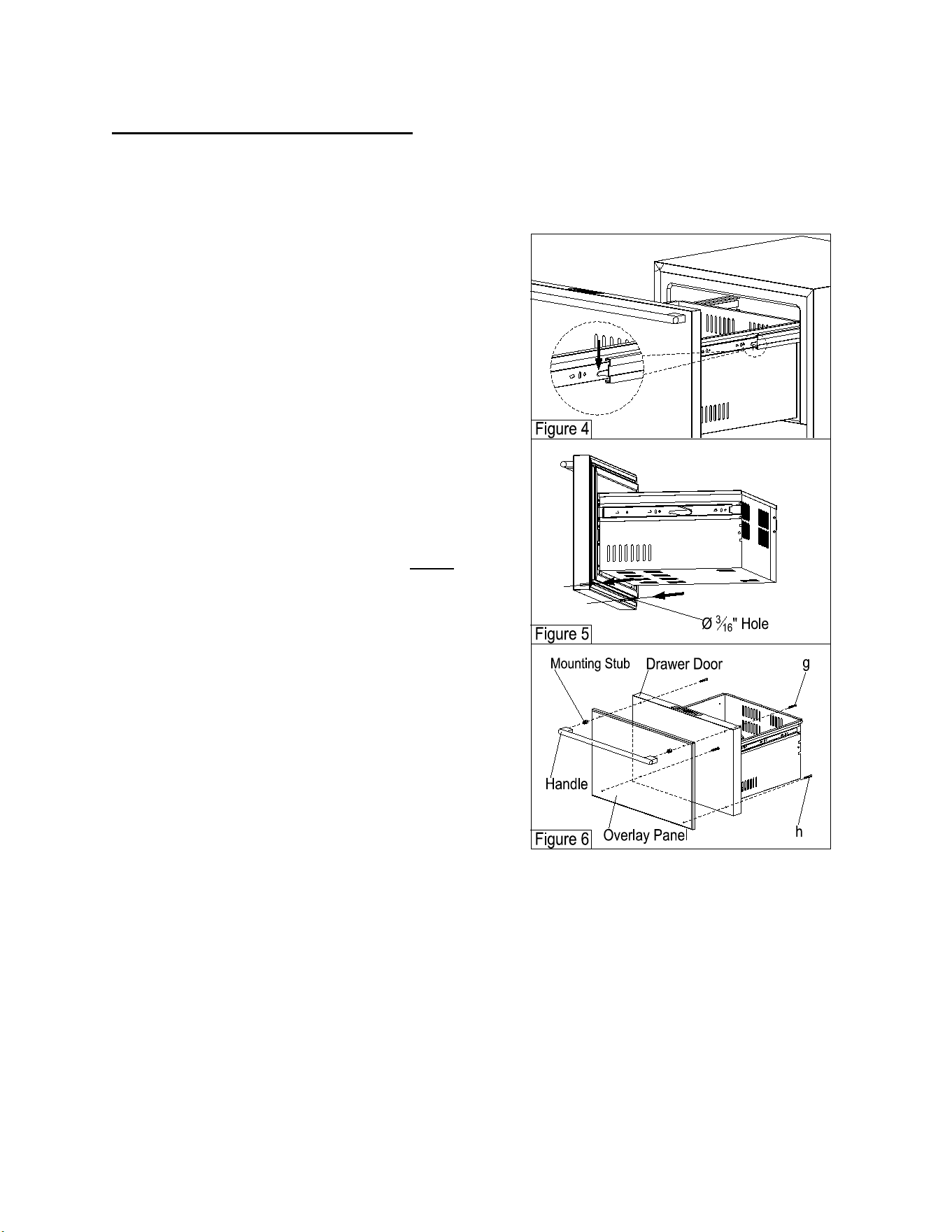

Fully Overlay Panel Installation 12-14
Operating your Appliance 15-20

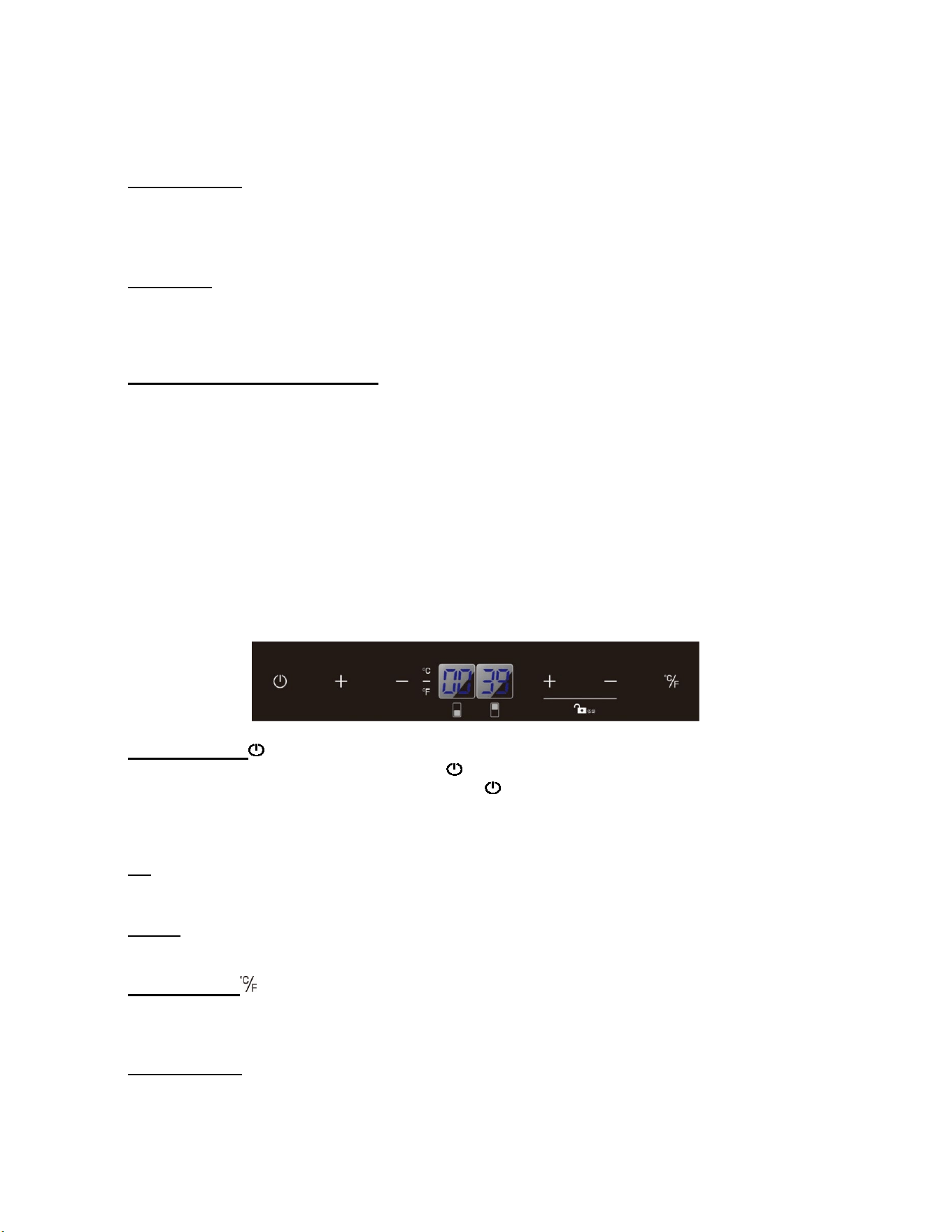

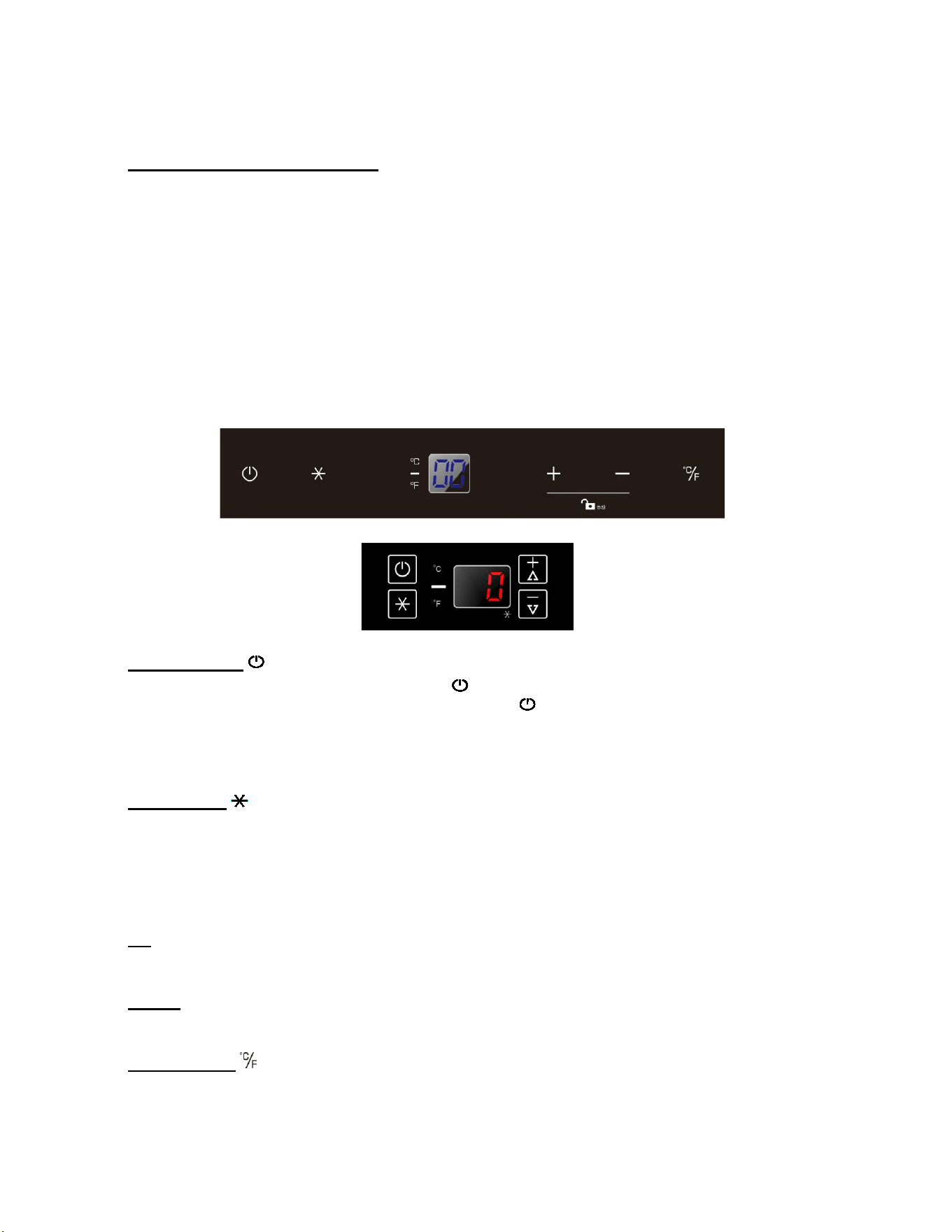

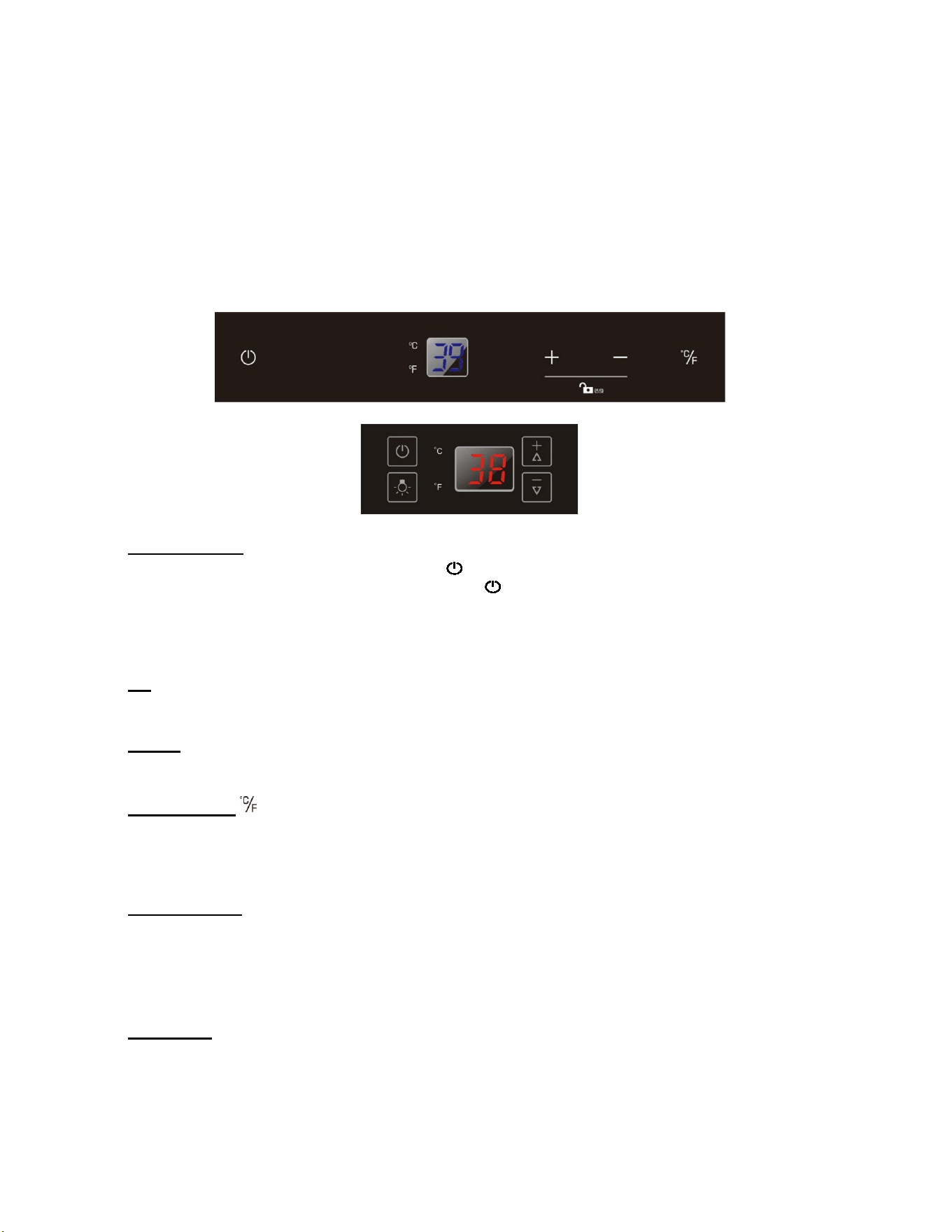

Control Panel for Refrigerators 15-18
Interior Light 18
Sabbath Mode 18
Temperature Memory Function 19
Defrosting 19
Using the Freezer 19
Ice Maker 19
Temperature Alarm/Door Alarm 19-20
Care and Maintenance 21
Cleaning your Appliance 21
Power Failure 21
Vacation Time 21
Moving your Appliance 21
Energy-Saving Tips 21
Troubleshooting 22-23
Limited Warranty 26
3
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. The symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words "DANGER" or "WARNING".
DANGER means that failure to heed this safety
statement may result in severe personal injury or
death.
WARNING means that failure to heed this safety
statement may result in extensive product damage,
serious personal injury, or death.
All safety messages will alert you about the potential hazard, tell you how to reduce the chance of injury,
and let you know what can happen if the instructions are not followed.
IMPORTANT SAFEGUARDS
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precautions,
including the following:
• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do
not use an extension cord.
• Replace all panels before operating.
• It is recommended that a separate circuit serving only your appliance be provided. Use receptacles
that cannot be turned off by a switch or pull chain.
• WARNING: Never clean appliance parts with flammable fluids. These fumes can create a fire hazard
or explosion. And do not store or use gasoline or other flammable vapors and liquids or explosive
substances such as aerosol cans with a flammable propellant in this appliance or in the vicinity of this
or any other appliance. The fumes can create a fire hazard or explosion.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in
electrical shock or death.
• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in
this manual. All other servicing should be referred to a qualified technician.
A3 Warning: Risk of Fire / Flammable Materials. R600a
• This appliance is CFC- and HFC-free and contains small quantities of Isobutane (R600a) which is
environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the
greenhouse effect. Care must be taken during transportation and setting up of the appliance that no
parts of the cooling system are damaged. Leaking coolant can ignite and may damage the eyes.
4
• In the event of any damage:
o Avoid open flames and anything which creates a spark,
o Disconnect from the power supply,
o Air the room in which the appliance is located for several minutes and
o Contact the Service Department for advice.
• The more coolant there is in an appliance, the larger the room it should be installed in. In the event of
a leakage, if the appliance is in a small room, there is the danger of combustible gases building up.
• For every ounce of coolant at least 325 cubic feet of room space is required. The amount of coolant in
the appliance is stated on the data plate inside the appliance. It is hazardous for anyone other than
an Authorized Service Person to carry out servicing or repairs to this appliance.
• Take serious care when handling, moving and using the appliance to avoid either damaging the
refrigerant tubing or increasing the risk of a leak.
• Replacing component parts and servicing shall be done by factory authorized service personnel, so
as to minimize the risk of possible ignition due to incorrect parts or improper service.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
FOLLOW WARNING CALLOUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
• Use two or more people to move and install appliance. Failure to do so can result in back or other
injury.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process or to
clean, other than those recommended by the manufacturer.
• WARNING: The appliance shall be stored in a room without continuously operating ignition sources
(for example: open flames, an operating gas appliance or an operating electric heater.
• WARNING: Do not pierce or burn. Do not damage the refrigerant circuit.
• WARNING: Be aware that refrigerants may not contain an odour.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.

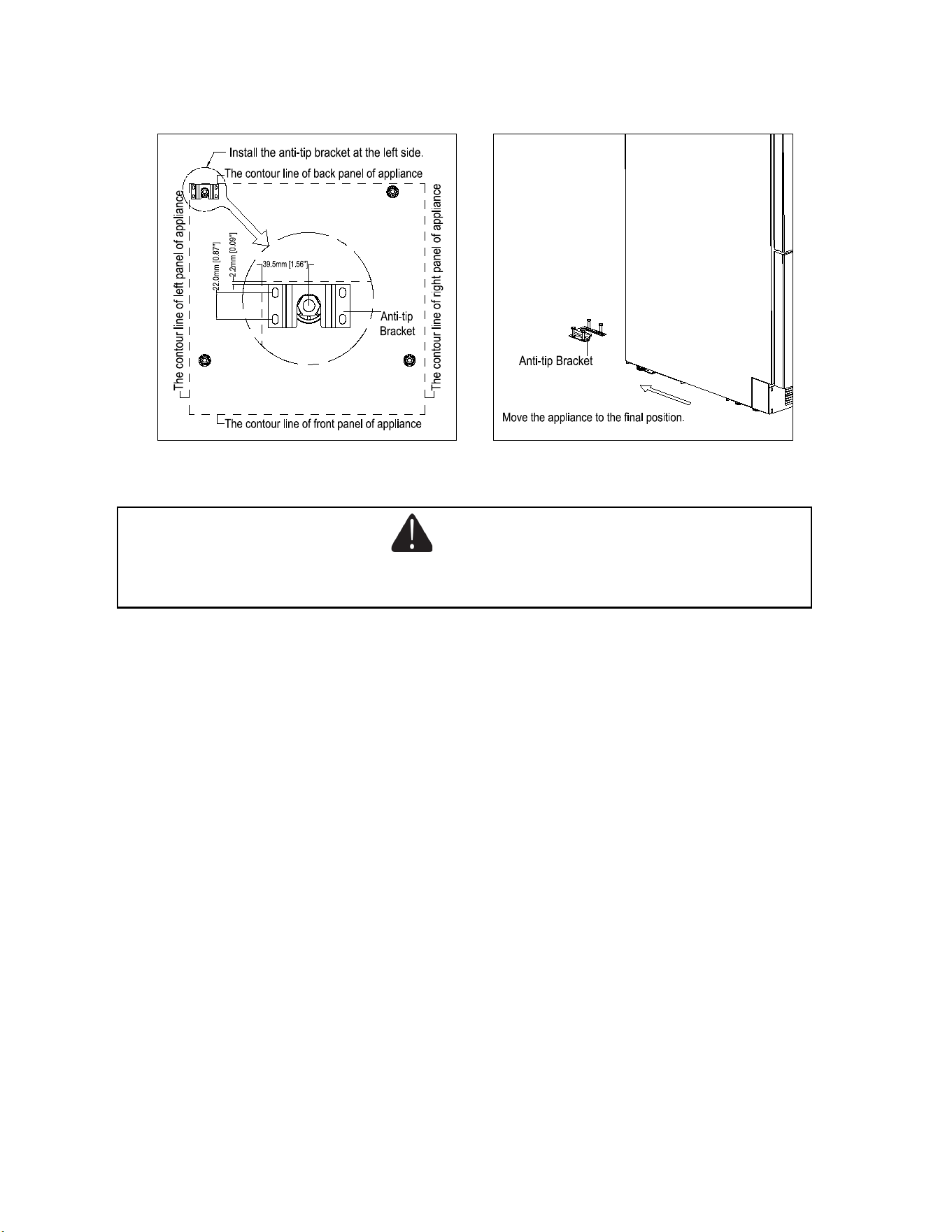

• WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with
the instructions.
• WARNING: Danger of injury from LED lamp. If the cover is defective: do not look directly into the
illumination with optical lenses from close proximity. The eyes can be injured.
• CAUTION: Use this appliance only for its intended purpose. This equipment is intended for the storage
and display of packaged products only.
• To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed.
Choose a well-ventilated area with temperatures above 44°F (7°C) and below 90°F (32°C).
• The appliance should not be located next to ovens, grills or other sources of high heat.
• The appliance must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances, is required.
• Do not kink or pinch the power supply cord of the appliance.
• The size of the fuse (or circuit breaker) should be 15 amperes.
• It is important that the appliance be leveled in order to work properly. You may need to make several
adjustments to level it.
• Make certain that the pipes are not pinched, kinked or damaged during installation.
• Check for leaks after connection.
• Never allow children to operate, play with or crawl inside the appliance.
• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage
5
or discolor the interior.
• Use this appliance only for its intended purpose as described in this User Manual.
• Keep fingers out of the “pinch point” areas. Clearances between the door and cabinet are necessarily
small. Be careful closing the door when children are in the area.
- SAVE THESE INSTRUCTIONS -
DISPOSAL
Dispose of your appliance packaging properly. Ensure that any plastic wrappings, bags, etc., are disposed
of safely and kept out of the reach of babies and young children. Danger of suffocation!
Refrigeration equipment must be properly disposed of in a professional and appropriate way, in accordance
with the current local regulations and laws which protect the environment. This applies to your old appliance
and to your new unit once it has reached the end of its service life.
WARNING: Please ensure that old, worn appliances are rendered unusable before disposal by removing
the doors, removing the plug, cutting the network cable, and removing or destroying any snap fastenings
or bolts. Leave shelving in place. You will thus prevent children from locking themselves in the appliance
during play (risk of suffocation) or endangering their lives in any other way. DO NOT dispose of the
appliance in landfill as the insulation (Cyclopentane) and refrigerant gas (R600a) contained in these
appliances are flammable.
Disposal instructions:
• The appliance must not be disposed of in the dustbin or with normal household rubbish.
• The coolant circuit, particularly the heat exchanger at the back/bottom of the unit, must not be damaged.
• The appliance is not to be handled as normal household waste but is to be taken to a recycling collection
point for electrical and electronic goods. By correctly disposing of this product, you are contributing to
the protection of the environment and to the health of your fellow human beings. Improper disposal
endangers health and the environment. Further information about the recycling of the product may be
obtained from your town hall, refuse collection department or the store where you purchased the product.
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are
still dangerous, even if they will “just sit for a few days”.
Before discarding your old refrigerator:
• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.
6
LOCATION OF PARTS
Refrigerators: ASDR1524 / LADR1545 / ASDR1554 / SDR1529 / LDR1549 /
SDDR1558 / ASDR2414 / LADR2433 / ASDR2444 / SDR2418 / LDR2437 /
SDDR2448 / SDHDR1535 / SDHDR2446 / ADRD241 / FF642DADA /
LDR24A / FF642D / SPR627OS2D / DB2DRR1584ASD /
DB2DRR2487ASD / DB2DRR1585SD / DB2DRR2488SD /
DB2DRR2486ADA / DB2DRROS2489
Freezers: ADFD243 / SCFF532DADA / LDF24A / ADFD243IM/ SCFF532D /
SCFF532DIM / SPFF51OS2D / DB2DFZ2474ADA / DB2DFZIM2494ADA /
DB2DFZ2475 / DB2DFZIM2495 / DB2DFZOS2478
Refrigerator/Freezers: ADRF244 / SPRF2D24ADA / LDRF24A / ADRF244IM/
SPRF34D / SPRF34DIM / DB2DRF2479ADA / DB2DRFIM2482ADA /
DB2DRF2481 / DB2DRFIM2483
Digital Control Panel
Upper Drawer Divider
Handle
I
ce Bucket (*)
Lower Drawer
Wire Rack (*)
Upper Drawer
Ice Maker (*)
Adjustable Legs
(*) Only available for certain models.
7
Refrigerators: SP6DS3D / SPR245OS3D / FF493D / DB3DRR2499
Digital Control Panel
Handle
Drawer
Adjustable Legs
8
INSTALLATION INSTRUCTIONS
Before Using your Appliance
• Remove the exterior and interior packing.
• Before connecting the appliance to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
• Install the handles on the drawers, if they are not already attached. (See Installing the Stainless
Steel Handles.)

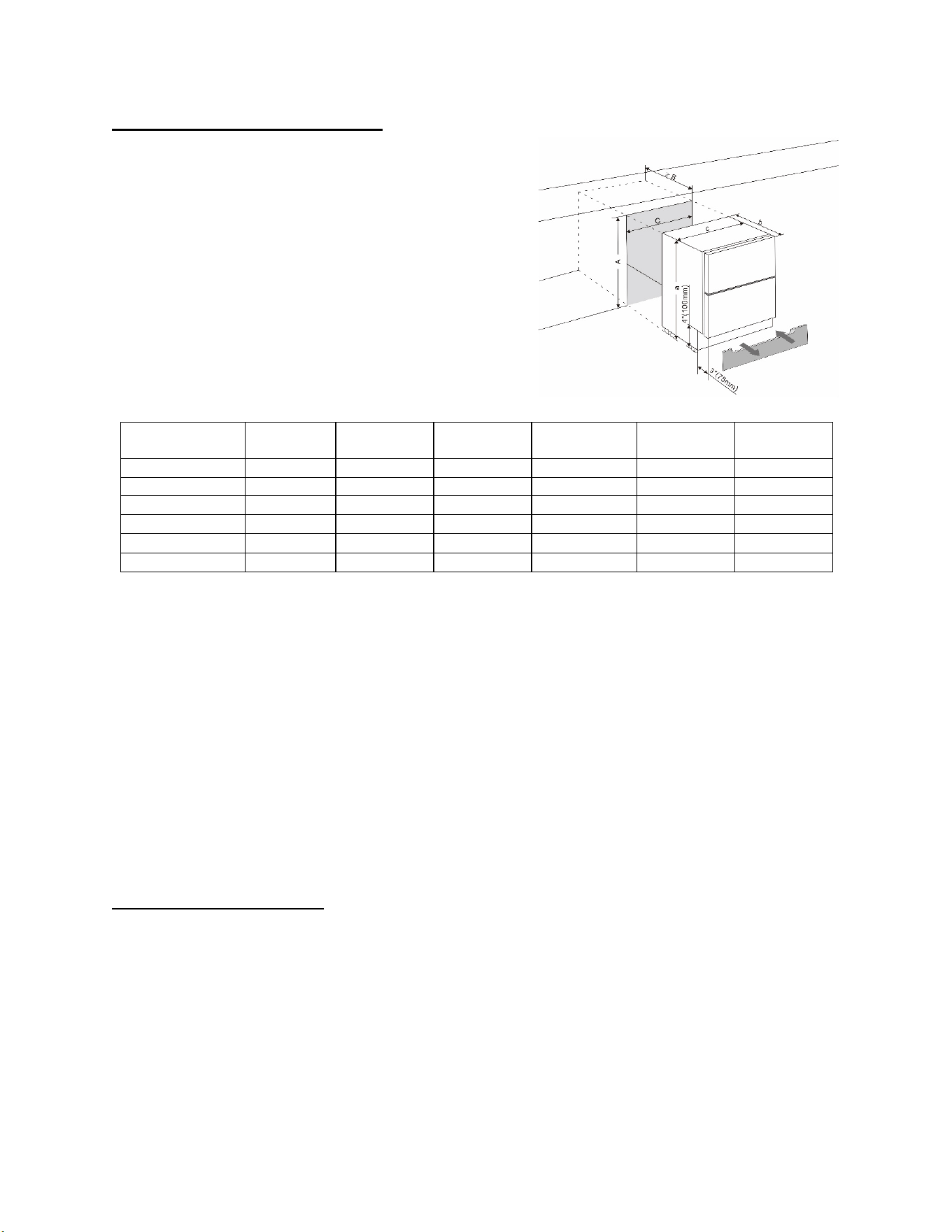

Installation of your Appliance
• The appliance is designed for built-in or recessed or free-standing installation for outdoor and
indoor use for models SPR627OS2D, ADRD241, FF642DADA, LDR24A, SPFF51OS2D,
ADFD243, ADFD243IM, SCFF532DADA, LDF24A, ADRF244, SPRF2D24ADA, LDRF24A,
SPR245OS3D, DB2DRR2486ADA, DB2DFZ2474ADA, DB2DFZIM2494ADA, DB2DRROS2489,
DB2DFZOS2478, DB2DRF2479ADA and DB2DRFIM2482ADA. All other models are indoor use
only.
CAUTION: This appliance is not designed for the storage of medicine or other medical products.
• Place your appliance on a floor that is strong enough to support it when it is fully loaded. To level
the unit, adjust the front leveling legs.
• For free-standing installation, 5” (127mm) of space between the back and sides of the unit, and
4” (102mm) at the top, are suggested. This allows the proper air circulation to cool the
compressor and condenser. Even for built-in installation, it is a must to keep ¼” (6.35mm) space
on each side and at the top and 2” (51mm) at the rear. Take care that the air vent at the front of
the appliance is never covered or blocked in any way.
NOTE: It is recommended that you do not install the appliance near an oven, radiator or other
heating source. Direct sunlight may affect the outer coating and heat sources may increase
electrical consumption. Don’t install in a location where the temperature will fall below 44°F
(7°C). For best performance, do not install the appliance behind a cabinet door or block the
base grille.
• Avoid locating the unit in moist areas.
• Plug the appliance into an exclusive, properly grounded wall outlet.
9
Built-in Under-counter Instructions
Make sure your installation does not block the front
ventilation grille. The unit is designed to fit under
worktops, using the height-adjustable ventilation grille to
ensure that the feet are concealed from front view.
If the unit is fully integrated to be installed for fitting
kitchen plinth, make sure that the ventilation gaps in the
plinth are at least 300 square centimeters and remove
the ventilation grilles, so that warm air can disperse
unhindered. Otherwise, the appliance has to work
harder, resulting in an increase in electricity
consumption.
NOTE: When pushing the appliance into the niche, make
sure that the mains cable does not get trapped.
Model No.
a
(Inch/mm)
b
(Inch/mm)
c
(Inch/mm)
A
(Inch/mm)
B
(Inch/mm)
C
(Inch/mm)
ASDR1524
32" / 813
18" / 455
14¾" / 375
32⅛" / 816
18" / 455
15" / 380
SDHDR1535
34" / 864
18" / 455
14¾" / 375
34⅛" / 866
18" / 455
15" / 380
ASDR2414
32" / 813
18" / 455
23½" / 595
32⅛" / 816
18" / 455
23⅝" / 600
SDHDR2446
34" / 864
18" / 455
23½" / 595
34⅛" / 866
18" / 455
23⅝" / 600
ADRD241
32" / 813
22½" / 570
23½" / 595
32⅛" / 816
22¾" / 575
23⅝" / 600
SPR627OS2D
34" / 864
24" / 608
23½" / 595
34⅛" / 866
24" / 608
23⅝" / 600
NOTE:
1. Models LADR1545, ASDR1554, SDR1529, LDR1549, SDDR1558 and DB2DRR1584ASD have
the same size as ASDR1524.
2. Model DB2DRR1585SD has the same size as SDHDR1535.
3. Models LADR2433, ASDR2444, SDR2418, LDR2437, SDDR2448 and DB2DRR2487ASD have
the same size as ASDR2414.
4. Model DB2DRR2488SD has the same size as SDHDR2446.
5. Models FF642DADA, LDR24A, ADFD243, SCFF532DADA, LDF24A, ADRF244,
SPRF2D24ADA, LDRF24A, ADFD243IM, ADRF244IM, DB2DRR2486ADA, DB2DFZ2474ADA,
DB2DRF2479ADA, DB2DFZIM2494ADA and DB2DRFIM2482ADA have the same size as
ADRD241.
6. Models FF642D, SCFF532D, SCFF532DIM, SPFF51OS2D, SPRF34D, SPRF34DIM,
SP6DS3D, SPR245OS3D, FF493D, DB2DRROS2489, DB2DFZ2475, DB2DFZIM2495,
DB2DFZOS2478, DB2DRF2481, DB2DRFIM2483 and DB3DRR2499 have the same size as
SPR627OS2D.
Anti-tip Bracket Installation
To reduce the risk of tipping the unit by abnormal usage or improper loading, the appliance must be
secured by properly installing the anti-tip device packed with the appliance.
• Place the anti-tip bracket on the floor as shown in the figure. An anti-tip bracket must be installed
at the left side.
• Mark the locations of the 4 holes of the anti-tip bracket on the floor.
• Use a 5/16” masonry drill bit and insert plastic anchors.
• Secure bracket to floor using screws.
• Slide appliance into position and make sure the leg engages the anti-tip bracket.
NOTE: If the unit is relocated, the bracket must be removed and installed in the new location.
10
Electrical Connection
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three-prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third (ground) prong from the power cord
supplied. For personal safety, this appliance must be properly grounded. Any questions concerning
power and/or grounding should be directed toward a certified electrician or an authorized service
center.
This appliance requires a standard 115/120 Volt AC ~ 60Hz three-prong grounded electrical outlet.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left exposed
or dangling.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevents overloading house wiring circuits that could cause a fire hazard from overheating. Never
unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out
from the receptacle. Repair or replace immediately all power cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either end. When moving the appliance, be careful not to damage the power cord.
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by a qualified electrician or an authorized service center.
11
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord, it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at
least 10 amperes.
Connecting to the Water Supply (If available)
Prepare water supply line before installation for models with ice maker. Installation requires a 1/4" ID
copper cold water line and compression fitting (not supplied).
All the necessary hardware is not provided so it is necessary to hire a professional licensed plumber
to complete the installation.
Connect the water line to the nearest cold water source. Leave sufficient coiled copper tubing to the
unit to allow the unit to be pulled out of the cabinet or away from the wall for cleaning and service.
Also make sure that the tubing is not pinched or damaged during the transportation.
WARNING: Connect to potable water supply only.
IMPORTANT NOTE: Water lines cannot be exposed to freezing temperatures.
Installing a Stainless-Steel Handle
This appliance includes the stainless-steel handles
that are not required to operate the unit. To install
the handles, follow the instructions below:
Locate the handle (2) over the mounting stud (1) of
the door and using the supplied Allen key, tighten
the securing grub screws (3) to fix the handle.
Adjusting the Kick Plate (Only for ADA
models)
The pre-fitted kick-plate of the appliance includes
an adjustable kick-plate section that is initially
seated behind the upper section. To adjust the
kick-plate height, follow the instructions below:
1. Remove the screws (1) from both the top left-
and top right-hand sides of the kick-plate.
2. Loosen or remove the screws (2) from both the
bottom left- and bottom right-hand sides of the
kick-plate. Failure to loosen the bottom screws
sufficiently may cause damage to the lower
trim when adjusting it.
3. Carefully guide the lower trim down until the desired height is achieved.
4. Reinsert screws and tighten them.
WARNING
Improper water line connection may result in flooding. You must use a licensed plumber.
Review state and local plumbing codes before installation.
1
2
3
1
2
12
Full Overlay Panel Installation (Optional)
An overlay panel covers the stainless steel to give it an integrated appearance. There are two installation
options for attaching the overlay panel to the unit’s door. Option 1 does not require drilling through the
unit door and can be easily installed using the bracket kit provided with your unit. Option 2 requires drilling
into the unit door for a flush appearance. The overlay panel and appropriate hardware are not included
with the unit. Please refer to the instructions for both options and choose the one that best suits your
needs.
Overlay Panel Preparation
Prepare the overlay panel to the dimensions as per the descriptions given below.
H
W
19mm [3/4"]
7-§ ¶2.5mm [§ ¶1/10'']
6mm[15/64''] DEEP
35mm [1 3/8"]
15mm [19/32"]
50mm [1 31/32"]
8mm [5/16"]
180mm [7 3/32"]
Important:
1. H = height of door + 3/80” (1mm), W = width of door + 5/32” (4mm).
2. Ensure that all new holes are drilled to the correct depth to avoid splits in the wood when hardware
is installed.
Included in the bracket kit
stainless trim (1)
per drawer
truss head screws (7)
per drawer
mounting brackets (2)
per drawer
pan head screws
(4) per drawer
a.
c.
d.
f.
13
Door Panel Installation Option 1: (using bracket kit provided)
This is an easier installation option that does not require drilling into the unit’s door.
NOTE: This option will leave a 3/16” (5mm) gap between the overlay panel and the top of door. The
stainless-steel trim (included in the kit) will fill this gap.
Installing the handle(s) on the overlay panel
If reusing the handle(s) that came with the unit:
1. Unscrew the studs located on the front face of the drawer and set them aside for later use.
2. Remove the screws from the drawer and proceed to mark their positions on the overlay panel by
using the handle as a guide.
3. Use a 3/16” (5mm) drill bit to the make the holes on the overlay panel for the screws.
4. Insert the screws, making sure to leave the head of the screw flush with the surface of the panel
(countersink screws if necessary).
5. Take the studs you saved in Step 1 and screw them back. They are now projecting from the face of
the panel.
6. Place the handle over the mounting studs and, using the supplied Allen key, tighten the securing
grub screws to fix the handle. Refer to “Installing a Stainless Steel Handle” (Refer to page 11).
If using a customer supplied handle(s):
1. Attach the handle to the overlay panel by using flat head or countersunk screws.
Figure 1
a
c
d
b
e
f
Figure 2 Figure 3
Installing the bracket
1. Attach the stainless trim (a) at the top of the wood overlay panel (b) with (3) #8 x 3/8 truss head
Phillips self-tapping screws (c). (see Figure 1)
2. Drill the 2 mounting brackets (d) on either side of the wood overlay panel with (4) #8 x 3/8 truss head
Phillips screws (c). (see Figure 1)
3. Align the brackets (d) with the sides of the unit door (e) gently sliding wood overlay panel into place.
(see Figure 2)
4. Drill (4) #8 x 3/8 pan head Phillips self-tapping screws (f) to secure the bracket to the door. (see
Figure 3)
Important: Tape over the head of the screws with a strong hold tape to prevent scratching the unit door.
14
Door Panel Installation Option 2:
This option will leave the panel flush with the door but will require drilling through the front door(s) of the
unit. (Hardware is not included for this option).
1. Empty the drawers of any items.
2. Release the drawers from the track by pressing the
right lever down and lifting the left lever up at the
same time. (see Figure 4).
3. Pull the drawer completely off the cabinet tracks.
4. Peel gasket off the door groove and set it aside.
5. Unscrew the mounting studs that are on the door.
Set them aside for later use.
6. Remove the screws that were holding the studs in
place.
7. Drill 2 new holes into the door groove at the lower
inside of the drawer with a 3/16” (5mm) drill bit until
it goes through the door face (see Figure 5).
8a.
If reusing the handle(s) that came with the unit:
• Replace the screws from Step 6 with #10-32
UNF x 2.5 screws (g). (see Figure 6)
• Drill 2 holes with diameter 3/16” (5mm) into the
overlay panel at the top. The holes MUST match
the position of the protruding screws on the
door.
• Mount the overlay panel on to the protruding
screws.
• Screw the studs from Step 5 into the screw.
• Refer to Page 11 for handle installation.
• Drill 2 #10x2 Phillips self-tapping screws (h)
through the existing holes in the door groove at
the bottom to secure the overlay panel. (see
Figure 6)
8b.
If using a customer supplied handle(s):
• Attach the handles to the wood overlay panels
with flat head screws till they are flush.
• Drill 4 #10x2 Phillips self-tapping screws (h)
through the 4 existing holes in the door groove to
secure the overlay panel. (see Figure 6)
9. Reapply the gaskets, then align the left and right slide channels with the tracks in the cabinet.
Ensuring an even engagement on both sides of the track, and gently push the drawer into the cabinet
until it stops.
15
OPERATING YOUR APPLIANCE
It is recommended you install the appliance in a place where the ambient temperature is between
44º and 95ºF (7º and 35ºC). If the ambient temperature is above or below the recommended
temperatures, the performance of the unit may be affected. For example, placing your unit in
extremely cold or hot conditions may cause interior temperatures to fluctuate. The expected
operating temperature range may not be reached.
Control Panel for Refrigerators
*
**
ON/OFF Power
To turn the appliance off, press and hold the key for 5 seconds until the temperature display goes
off. To turn the appliance on, press and hold the
key for 1 second until the temperature display
lights up.
NOTE: Pressing the POWER key once can switch off the audible alarm when the alarm is on.
UP +
Used to increase (warm) the set temperature by 1°C/1ºF.
DOWN -
Used to decrease (cool) the set temperature by 1°C/1ºF.
ºF/ºC Selector
* Select the temperature display in Fahrenheit or Celsius degrees.
** To change the temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press and
hold the LIGHT key for 5 seconds.
Indicator Light
The indicator light is the dot located at the bottom right corner of the display. The indicator light will
be on when a multi-key function is selected. To perform a multi-key function, touch and hold the
first key, then touch the second key for at least 5 seconds and then release both keys.
Child Lock
* If in 2 minutes or longer without touching any key, the child lock will be activated automatically.
To cancel the lock, touch the UP and DOWN keys at the same time for at least 5 seconds and the
indicator light will flash three times to confirm the action.
16
Setting the Temperature Control
• You can set the temperature by pressing the UP and DOWN keys. When you press either of
the two buttons for the first time, the LED readout will show the original temperature set
previously. (The temperature preset at the factory is 38°F or 3°C.)
• The temperature you are setting will increase by one degree each time you press the UP key
and will decrease by one degree each time you press the DOWN key.
• The range of set temperatures is from 36°F to 43°F.
• To view the set temperature at any time, press the UP or DOWN key. The set temperature will
temporarily flash in the display window for 5 seconds. Then the display shows the current inner
temperature again.
Control Panel for Freezers
*
**
ON/OFF Power
To turn the appliance off, press and hold the key for 5 seconds until the temperature display
goes off. To turn the appliance on, press and hold the
key for 1 second until the temperature
display lights up.
NOTE: Pressing the POWER key once can switch off the audible alarm when the alarm is on.
SuperFreeze
SuperFreeze is used to freeze fresh food quickly. The function overrides the thermostat control
and will make the compressor operate continuously. It is not necessary to adjust the thermostat
setting when using this function. When the function is selected, the SuperFreeze indicator (the dot
at the bottom right of the display) will be ON. The function can be turned off by pressing the key
again and the indicator will turn OFF. SuperFreeze will turn off automatically after 8 hours.
UP +
Used to increase (warm) the set temperature by 1°C/1ºF.
DOWN -
Used to decrease (cool) the set temperature by 1°C/1ºF.
ºF/ºC Selector
* Select the temperature display in Fahrenheit or Celsius degrees.
17
** To change the temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press and
hold the SuperFreeze key for 5 seconds.
Indicator Light
The indicator light is the dot located at the bottom right corner of the display. The indicator light will
be on when a multi-key function is selected. To perform a multi-key function, touch and hold the
first key, then touch the second key for at least 5 seconds and then release both keys.
Child Lock
* If in 2 minutes or longer without touching any key, the child lock will be activated automatically.
To cancel the lock, touch the UP and DOWN keys at the same time for at least 5 seconds and the
indicator light will flash three times to confirm the action.
Setting the Temperature Control
• You can set the temperature by pressing the UP and DOWN keys. When you press either of
the two keys for the first time, the LED readout will show the original temperature set
previously. (The temperature preset at the factory is 0°F or -18°C.)
• The temperature you are setting will increase by one degree each time you press the UP key
and will decrease by one degree each time you press the DOWN key.
• The range of set temperatures is from -11°F to 11°F.
• To view the set temperature at any time, press the UP or DOWN key. The set temperature will
temporarily flash in the display window for 5 seconds. Then the display shows the current
inner temperature again.
Control Panel for Refrigerator/Freezers
ON/OFF Power
To turn the appliance off, touch and hold the key for 5 seconds until the temperature display goes
off. To turn the appliance on, touch and hold the
key for 1 second until the temperature display
lights up.
NOTE: Touching the POWER key once can switch off the audible alarm when the alarm is on.
UP
+
Used to increase (warm) the set temperature by 1°C/1ºF.
DOWN -
Used to decrease (cool) the set temperature by 1°C/1ºF.
ºF/ºC Selector
Select the temperature display setting in Fahrenheit or Celsius degree.
Indicator Light
The indicator light is the dot located at the bottom right corner of the display. The indicator light will
be on when a multi-key function is selected. To perform a multi-key function, touch and hold the first
18
key, then touch the second key for at least 5 seconds and then release both keys.
Child Lock
If in 2 minutes or longer without touching any key, the child lock will be activated automatically. To
cancel the lock, touch the UP and DOWN keys at the same time for at least 5 seconds and the
indicator light will flash three times to confirm the action.
Setting the Temperature Control
• The unit has two separate temperature compartments. You can set the temperature of the
bottom compartment (freezer) by touching the left UP and DOWN symbols and set the
temperature of the top compartment (refrigerator) by touching the right UP and DOWN symbols.
When you touch either key for the first time, the LED readout will show the original temperature
set previously. (The temperature preset at the factory is 0°F/-18°C for freezer compartment and
38°F/3°C for refrigerator compartment.)
• The temperature you are setting will increase by one degree each time you touch the UP key,
and will decrease by one degree each time you touch the DOWN key.
• The range of the temperature control is from -11°F/-24°C to 11°F/-12°C for freezer compartment
and from 36°F/2°C to 43°F/6°C for refrigerator compartment.
• To view the set temperature at any time, touch the UP or DOWN symbol. The set temperature
will temporarily flash in the display window for 5 seconds. Then the display shows the current
inner temperature again.
Interior Light
The unit is equipped with the interior LED lights which will be turned ON when a door is opened. The
LED type lights are designed for extremely long life. They are not user serviceable. To change them
please contact the service department.
NOTE: Please use only the original LED light fittings provided by the manufacturer.
Sabbath Mode
Sabbath mode is available for the observance of certain religious holidays. This mode turns off the
displays, interior light and audible alarms and prevents them from turning on again. Normal cooling
operations will still take place.
To initiate Sabbath mode, touch and hold the POWER and ºC/F or LIGHT or SUPERFREEZE keys
simultaneously for at least 5 seconds. The displays will go off to confirm the Sabbath mode is ON.
NOTES:
• If the unit is unplugged or power is lost or turned off, you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the unit will not start.
• When you use the unit for the first time or restart the unit after it has been shut off for a long
time, there could be a few degrees variance between the temperature you select and the one
indicated on the LED readout. This is normal and is due to the length of the activation time.
There should not be a problem once the unit has been running for a few hours.
19
Sabbath mode can be canceled by repeating the above process. The Sabbath Mode will
automatically turn off after 96 hours.
Temperature Memory Function
In the event of a power interruption (power surge, breaker switch, etc.), the unit can remember the
previous temperature settings, and when power is recovered, the cabinet temperature will return to
the same set temperature as before the power went off.
Defrosting
• Under normal operating conditions, the unit requires no manual defrosting.
• The evaporator behind the rear wall of the unit defrosts automatically. The condensate collects in
the
drainage channel behind the rear wall of the unit and flows through the drainage hole into the
drip tray by the compressor where it evaporates.
• However, frost may accumulate on the evaporator if the unit is repeatedly opened in high heat or
high humidity locations. If this frost pattern does not clear within 24 hours, your unit will require
manual defrosting.
Using the Freezer (if available)
• This unit is designed for the long-term storage of frozen food. Storage time is up to three
months.
• The storage life of frozen foods varies, and the recommended storage time should not be
exceeded.
• Pre-packed commercially frozen food should be stored in accordance with the frozen foods
manufacturer’s instructions for a three-star frozen food storage compartment or home freezer.
• Place frozen food into the freezer as quickly as possible after purchase. If there are instructions
on the packet, carefully follow these instructions regarding storage times.
Ice Maker (if available)
Make sure the water supply is ON and lower the bail arm on the ice maker to its ON position. As
soon as the inner mechanism reaches the proper temperature, the ice maker will fill the mold with
water.
The first cubes may be small because of air in the water line. Later cubes will be of standard
crescent moon type size.
For the first time to use,
• Let the ice maker make ice for 1-2 days.
• Discard the first 2-3 batches of ice to remove the impurities in the water supply system.
When the ice bucket is full, the ice making mechanism will automatically shut off.
Ice delivery may be interrupted by raising the bail arm to the OFF position.
If the ice maker is not used regularly, it is recommended that the ice bucket be emptied periodically
to insure fresh ice.
Temperature Alarm/Door Alarm
20
• An audible alarm sounds if the storage temperature is not cold enough. The temperature display
flashes at the same time.
• The cause of the temperature being too high may be:
o Warm fresh food was placed inside.
o Too much warm ambient air flowed in when rearranging and removing food.
o Power failure for some time
o The appliance is faulty.
• The audible alarm is automatically silenced, and the temperature display stops flashing when the
temperature is sufficiently cold again.
• If a drawer has been left open for more than 60 seconds, the alarm will sound. Pressing the
POWER key once switches off the audible alarm.
21
CARE AND MAINTENANCE
Cleaning Your Appliance
• Turn off the power, unplug the appliance, and remove all items, including racks and dividers.
• Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of
baking soda to a quart of water).
• Wash the racks and dividers with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning the area where the controls are
located, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry
with a clean, soft cloth.
• Use an approved stainless-steel cleaner to clean the doors and handles. Do not use steel wool
or a steel brush on the stainless steel.
CAUTION: Failure to unplug the appliance before cleaning could result in electrical shock or other
personal injury.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times the drawers are opened. If the power is going to be off
for a longer period of time, you need to take the proper steps to protect the contents.
Vacation Time
• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn
off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave
the drawers open slightly, blocking them open if necessary.
Moving your Appliance
1. Remove all items.
2. Securely tape down all loose items (racks, dividers) inside your appliance.
3. Turn the adjustable legs up to the base to avoid damage.
4. Tape the drawers shut.
5. Be sure the appliance stays secure in the upright position during transportation. Also, protect the
outside of the appliance with a blanket or similar item.
Energy-Saving Tips
• The appliance should be located in the coolest area of the room or outdoor location, away from
heat-producing appliances and out of direct sunlight.
• Ensure that the unit is adequately ventilated. Never cover air vents.
• Do not keep the drawers open any longer than necessary.
• Let hot foods cool to room temperature before placing in the unit. Overloading the unit forces the
compressor to run longer.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the unit. This
cuts down on frost build-up inside the unit.
• Unit bins and racks should not be lined with aluminum foil, wax paper, or paper toweling. Liners
interfere with cold air circulation, making the unit less efficient.
• Organize and label food to reduce drawer openings and extended searches. Remove as many
items as needed at one time and close the drawer as soon as possible.
22
TROUBLESHOOTING
You can solve many common problems easily, saving you the cost of a possible service call. Try the
suggestions below to see if you can solve the problem before calling the servicer.
PROBLEM
POSSIBLE CAUSE
REMEDY
Appliance
does not
operate.
Appliance is not connected to a power
supply.
The appliance is turned off.
Tripped circuit breaker or blown fuse
Connect the appliance.
Switch on the appliance.
Switch on circuit breaker or replace
fuse.
Appliance is
not cold
enough.
The temperature is not set correctly.
The ambient temperature could require a
lower temperature setting.
Drawers were opened too often.
A drawer was not closed completely.
Drawer is not hermetically sealed.
The condenser is too dirty.
The ventilation opening is blocked or too
dusty.
Check the set temperature.
Set a lower temperature.
Do not open drawers more often than
necessary.
Close drawer properly.
Check the seal and clean or replace.
Clean the condenser when necessary.
Clear the obstructions and clean off the
dust.
Appliance
turns itself on
and off
frequently.
The room temperature is higher than
average.
A large amount of food has been added to
the unit.
Drawers are opened too often.
A drawer is not closed completely.
A drawer gasket does not seal properly.
Put the appliance in a cooler place.
Leave the appliance to work for a while
until the set temperature has been
reached.
Do not open the drawers more often
than necessary.
Close drawer properly.
Check the drawer seal and clean or
replace it.
The light does
not work.
Appliance is not connected to a power
supply.
Tripped circuit breaker or a blown fuse.
The light was switched off on the control
panel.
Connect the appliance.
Switch on circuit breaker or replace
fuse.
Switch on the light.
Vibrations
The appliance is not properly leveled.
Level the appliance with the adjustable
feet.
The appliance
seems to
make too
much noise.
The rattling noise may come from the flow of the refrigerant, which is normal. As each
cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your
appliance.
If temperature fluctuations occur, the contraction and expansion of the inner walls
may cause popping and crackling noises.
The appliance is not properly leveled.
Level the appliance with the adjustable
feet.
One or more of the following sounds is
heard:
- Buzzing
- Trickling water
- Thud (clatter of ice)
The water valve is operating.
Water is entering the icemaker to fill
cup.
Ice is being dumped into the ice bin
.
Drawers
will not close
properly.
The appliance is not properly leveled.
The gaskets are dirty.
The racks or bins are out of position.
Level the appliance with the adjustable
feet.
Clean the drawer gaskets.
23
Check the racks and bins and refit
correctly.
Display “E0”,
“E1”. “E2”,
“E3”, “E4”,
“E5” or “E7”.
“E0” indicates a communication error for 3
zone models.
“E1” or “E2” indicates that the air
temperature sensor has failed.
“E3” or “E4” indicates that the defrost
sensor in the evaporator has failed.
“E5” indicates defrost heater failure.
“E7” indicates door switch failure.
Call for service.
The alarm
sounds and
the
temperature
display
flashes.
Has a drawer been open for longer than
60 seconds? If not, then the temperature
has risen higher or fallen lower than the
temperature that has been set. This
could be due to:
The appliance drawers being opened too
often.
The ventilation opening being covered or
too dusty.
A lengthy interruption in the power supply.
A large amount of food has been added to
the unit.
If yes, close the drawer.
Do not open drawers more often than
necessary.
Clear the obstructions and clean off the
dust.
Leave the appliance to work for a while
until the set temperature has been
reached.
The icon “--” is
lit and flashing
in the
temperature
display.
The display temperature is out of range.
Only temperatures within the range
16~99°F/-9~37°C for refrigerators and
the range -99~99°F/-73~37°C
for freezers can be displayed. If the
temperature is not within this range,
the icon “--” will be displayed instead.
This is normal.
Ice tastes
stale.
The ice is old.
Make a new batch.
Water in
icemaker
overflows
Refrigerator or icemaker is not level.
If the icemaker still overflows after
leveling.
Level the appliance with the adjustable
feet. Water pressure must be 20-80 psi.
Turn off the icemaker’s water supply at
the shut-off valve and raise the
icemaker’s bail arm to the “off” position
(see previous page); then contact your
local service center.
Not enough
ice.
It will take 48 hours to fill the ice bucket.
The icemaker will make ice every 2 to 3
hours.
For more ice, adjust the freezer control
to a colder setting.
Ice making
has stopped.
Be sure that the bail arm is lowered to its
ON position. Make sure that the water
shut-off valve is open. The water shut-off
valve or the water valve screen is clogged.
Contact your local service center.
If you've checked the table above and find that you still need help with your appliance, call our
Customer Service facility at 800-932-4267 between 9:00AM and 5:00PM ET. We will do our best to
answer your questions.
24
CALIFORNIA CARB/SNAP DISCLOSURE
This product uses eco-friendly hydrocarbon refrigerant and fully complies with California
CARB regulations.
However, we are required by California Law to provide the following disclosure statement in every
product sold in California.
"This equipment is prohibited from use in California with any refrigerants on the 'List of Prohibited
Substances' for that specific end-use, in accordance with California Code of Regulations, title 17,
section 95374. This disclosure statement has been reviewed and approved by Felix Storch, Inc. and
Felix Storch, Inc. attests, under penalty of perjury, that these statements are true and accurate."
This product does not use any refrigerants on the 'List of Prohibited Substances'"
25
NOTES
26
LIMITED WARRANTY
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is
operated and maintained according to instructions attached to or furnished with the product, warrantor
will pay for factory-specified parts and repair labor to correct defects in materials or workmanship.
Service must be provided by a designated service company. Outside the 48 states, all parts are
warranted for one year from manufacturing defects. Plastic parts, shelves and cabinets are warranted
to be manufactured to commercially acceptable standards, and are not covered from damage during
handling or breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your
appliance, to replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such
as filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper
installation, installation not in accordance with electrical or plumbing codes, or use of products not
approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is
not installed in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE
YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS
MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU
MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
Printed in P.R.C.
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Ave
Bronx, New York 10474
www.summitappliance.com
