USER'S MANUAL
Console Table
HW64005
2 pcs
1
1/10

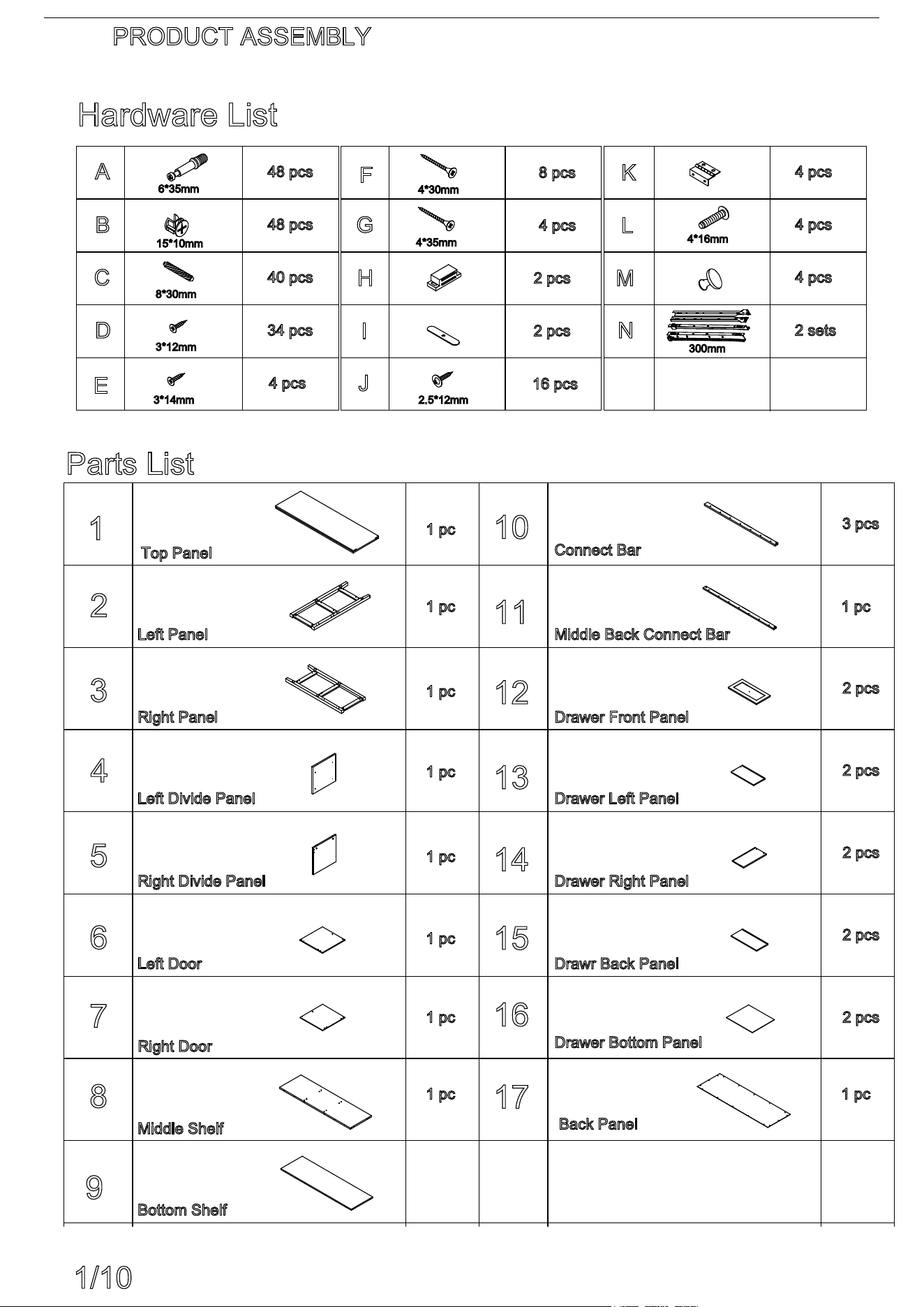

Hardware List
Parts List
48 pcs
A
B
I
J
PRODUCT ASSEMBLY
48 pcs
8*30mm
6*35mm
15*10mm
40 pcs
C
D
G
H
K
E
F
3*14mm 2.5*12mm
4 pcs
1 pc
L
M
N
4 pcs
2 pcs
16 pcs
2 sets
3*12mm
4*30mm
4*35mm
4*16mm
8 pcs
4 pcs
4 pcs
4 pcs
34 pcs
300mm
2
1 pc
10
1 pc
3
1 pc
11
4
1 pc
12
5
1 pc
13
6
1 pc
14
7
1 pc
15
2 pcs
8
1 pc
16
1 pc
9
17
2 pcs
2 pcs
2 pcs
3 pcs
2 pcs
Top Panel
Left Panel
Right Panel
Left Divide Panel
Right Divide Panel
Left Door
Right Door
Middle Shelf
Bottom Shelf
Back Panel
Drawer Bottom Panel
Drawr Back Panel
Drawer Right Panel
Drawer Left Panel
Drawer Front Panel
Middle Back Connect Bar
Connect Bar
2/10

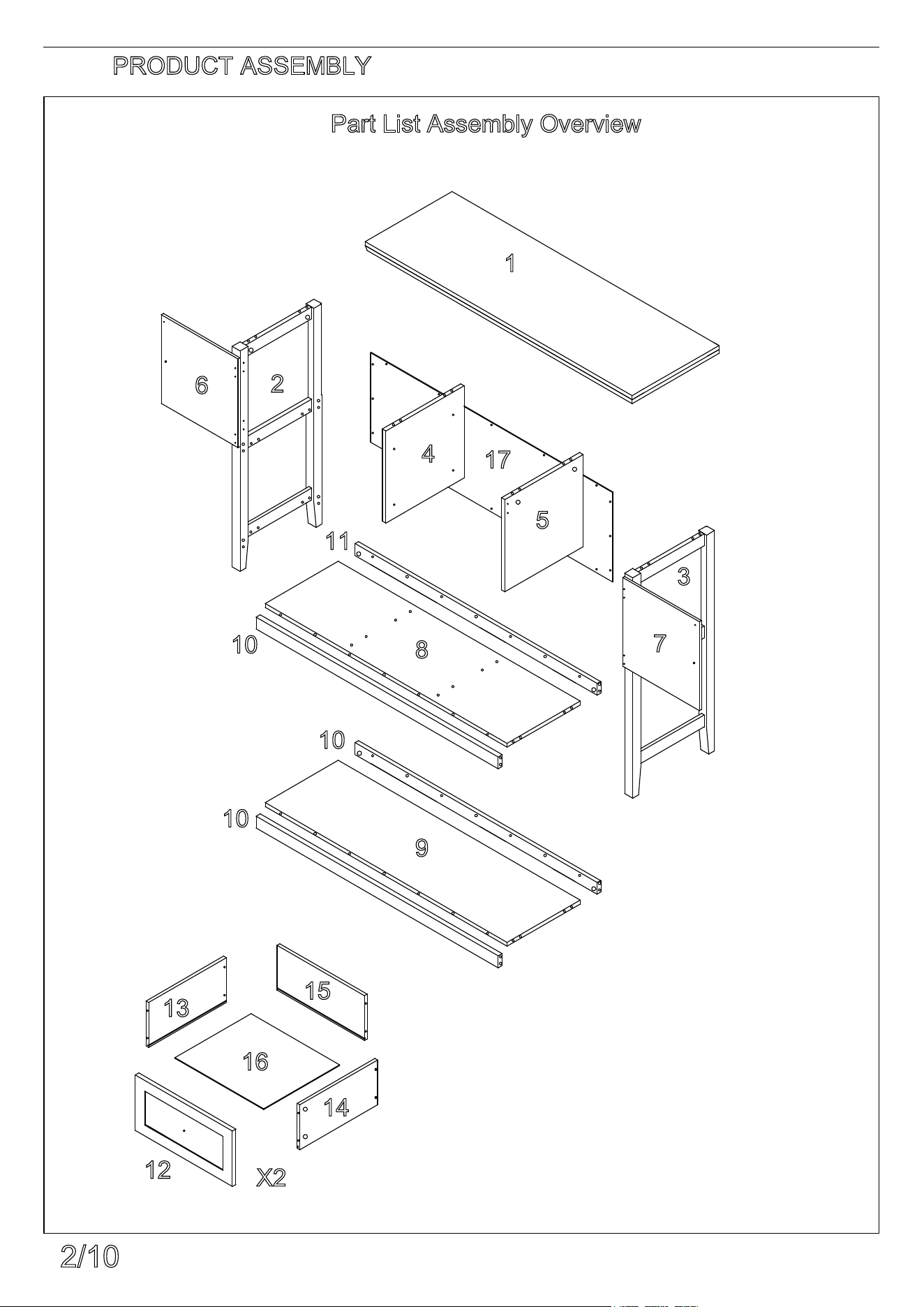

Part List Assembly Overview
PRODUCT ASSEMBLY
1
2
3
4
5
8
6
7
9
10
10
10
11
12
13
14
15
16
17
X2
Step 1
3/10
48 pcs
A
PRODUCT ASSEMBLY
1
10
11
12
X2
X3
A
A
A
A
2 3
A
A

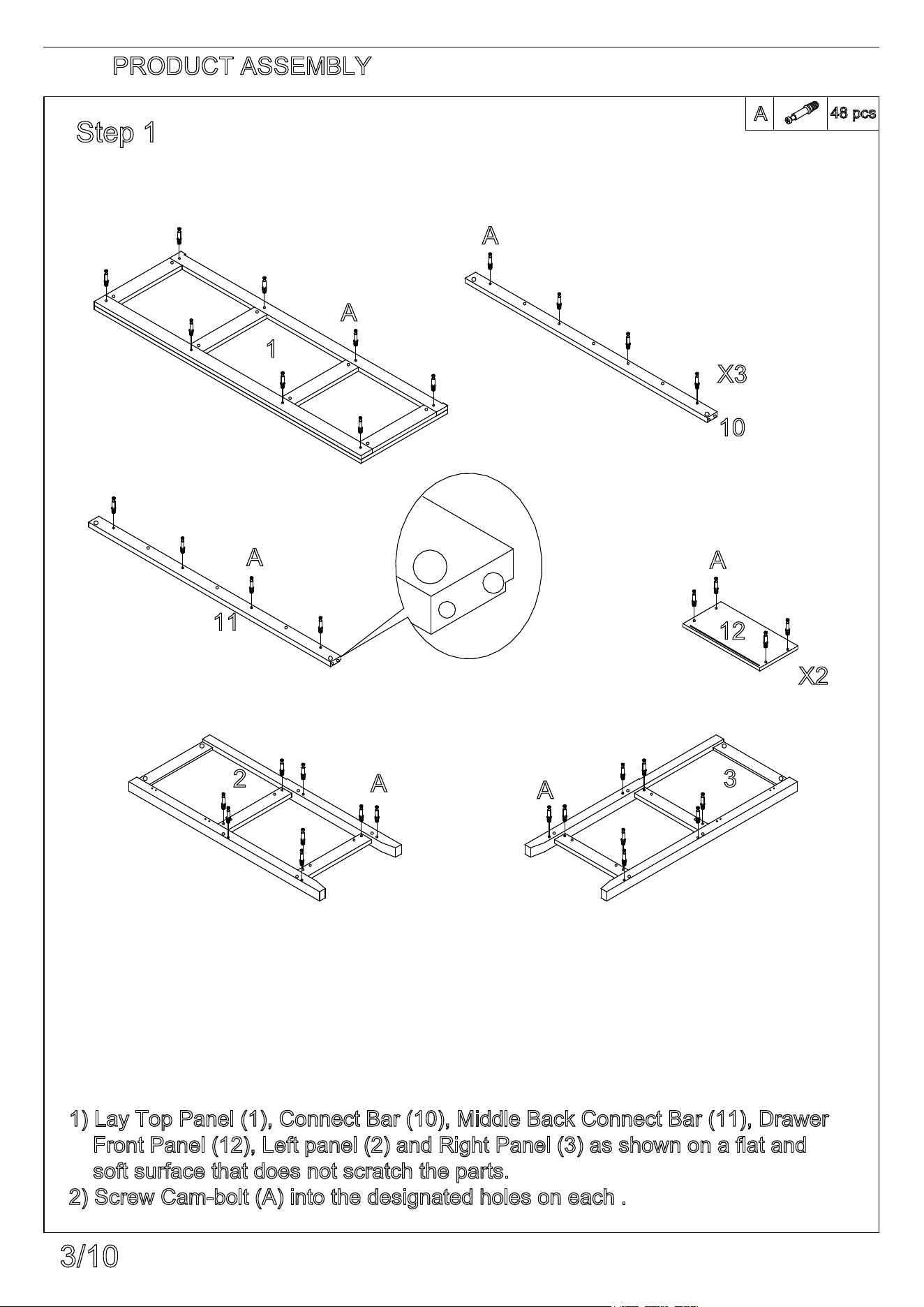

1) Lay Top Panel (1), Connect Bar (10), Middle Back Connect Bar (11), Drawer
Front Panel (12), Left panel (2) and Right Panel (3) as shown on a flat and
soft surface that does not scratch the parts.
2) Screw Cam-bolt (A) into the designated holes on each .
F
8 pcs
F
X2
X2
X2
12
13
14
15
16
8 pcs
B
2 pcs
L
2 pcs
M
B
M
L
N2
2
sets
D
8 pcs
D
N2
D
N2
Step 3
Step 4
Step 2
4/10
PRODUCT ASSEMBLY

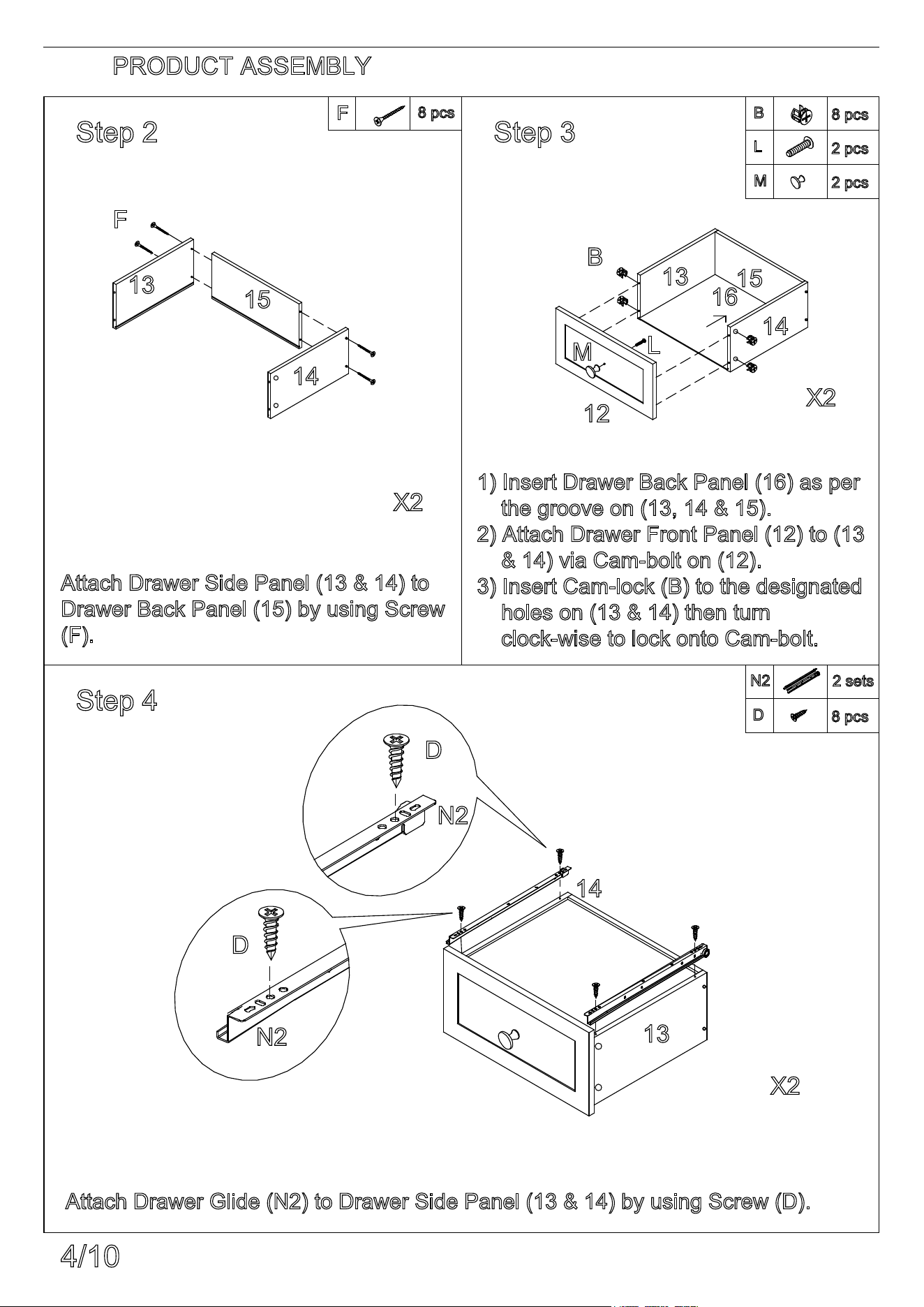

Attach Drawer Side Panel (13 & 14) to
Drawer Back Panel (15) by using Screw
(F).
1) Insert Drawer Back Panel (16) as per
the groove on (13, 14 & 15).
2) Attach Drawer Front Panel (12) to (13
& 14) via Cam-bolt on (12).
3) Insert Cam-lock (B) to the designated
holes on (13 & 14) then turn
clock-wise to lock onto Cam-bolt.
13
14
15
Attach Drawer Glide (N2) to Drawer Side Panel (13 & 14) by using Screw (D).
13
14
D
I
K
10 pcs
2 pcs
4 pcs
67
D
I
D
K
2
sets N1
D
8 pcs
5
4
N1
D
Step 5
5/10
PRODUCT ASSEMBLY
Step 6

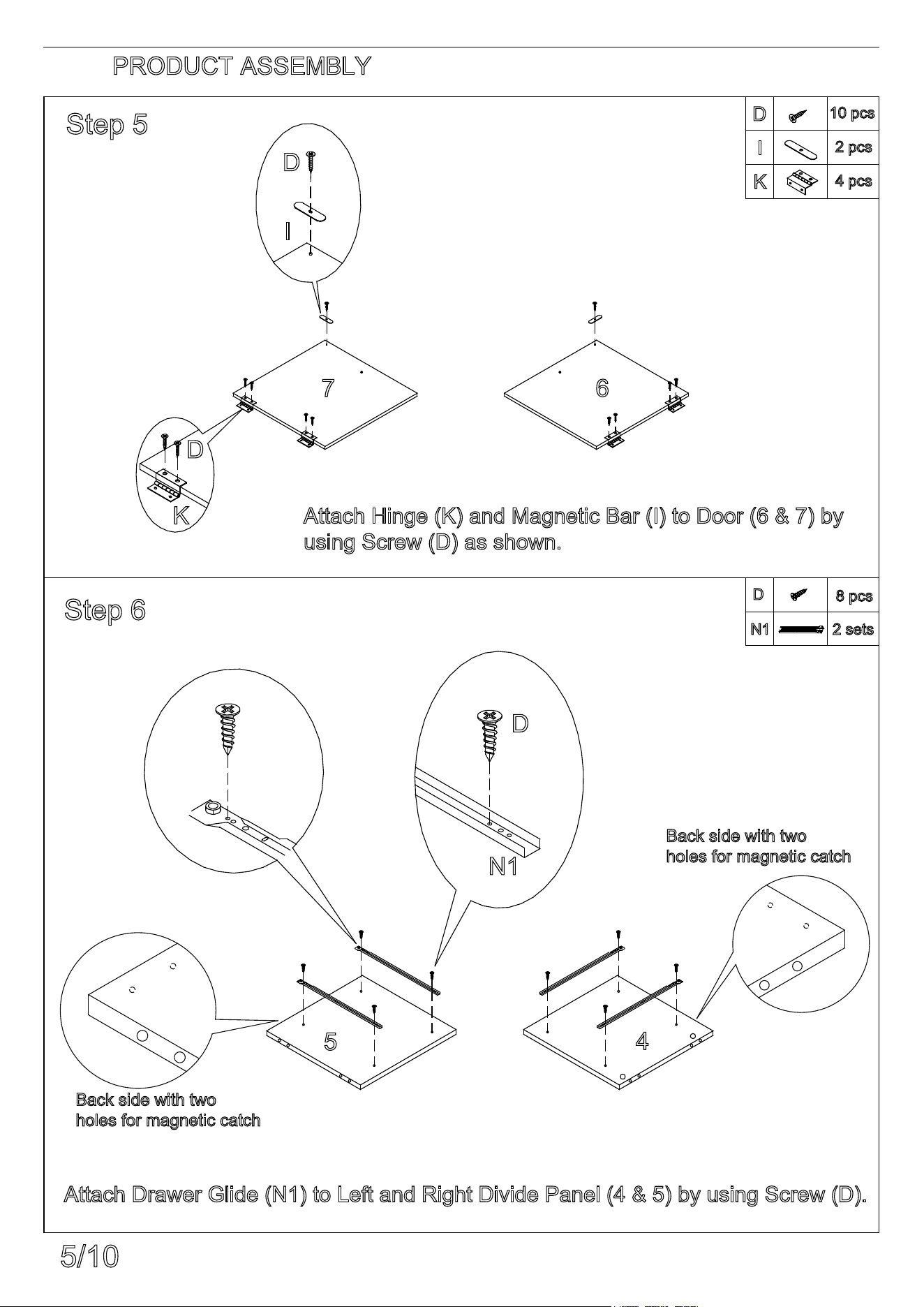

Attach Hinge (K) and Magnetic Bar (I) to Door (6 & 7) by
using Screw (D) as shown.
Attach Drawer Glide (N1) to Left and Right Divide Panel (4 & 5) by using Screw (D).
Back side with two
holes for magnetic catch
Back side with two
holes for magnetic catch
C
10
9
10
B
8 pcs
B
C
6 pcs
C
10
8
11
B
Step 7
6/10
PRODUCT ASSEMBLY
Step 8
8 pcs
B
C
6 pcs

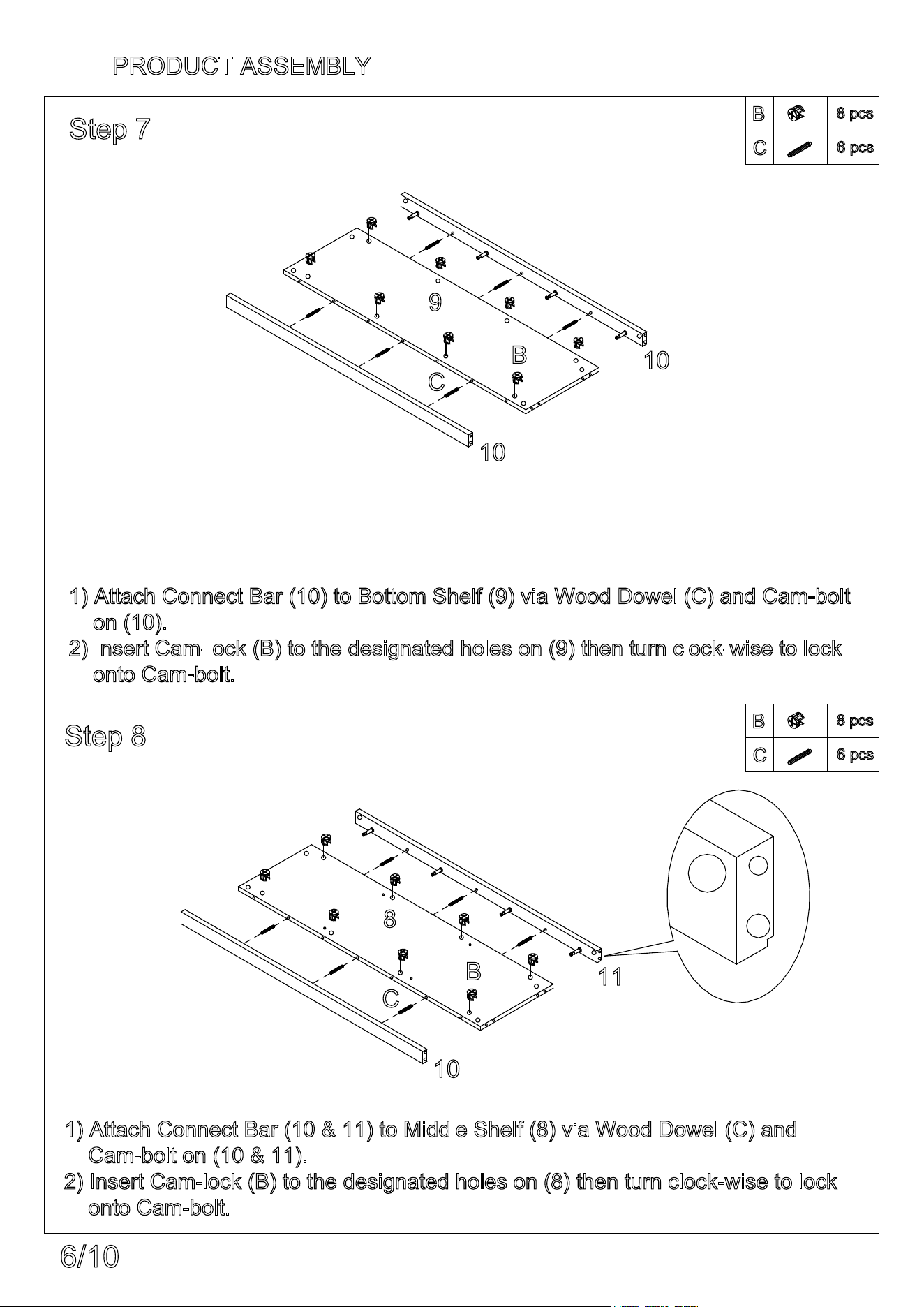

1) Attach Connect Bar (10) to Bottom Shelf (9) via Wood Dowel (C) and Cam-bolt
on (10).
2) Insert Cam-lock (B) to the designated holes on (9) then turn clock-wise to lock
onto Cam-bolt.
1) Attach Connect Bar (10 & 11) to Middle Shelf (8) via Wood Dowel (C) and
Cam-bolt on (10 & 11).
2) Insert Cam-lock (B) to the designated holes on (8) then turn clock-wise to lock
onto Cam-bolt.
2
B
C
8
C
4 pcs
B
4 pcs
9
C
B
11
10
Step 9
7/10
PRODUCT ASSEMBLY
Step 10
C
4 pcs
B
4 pcs

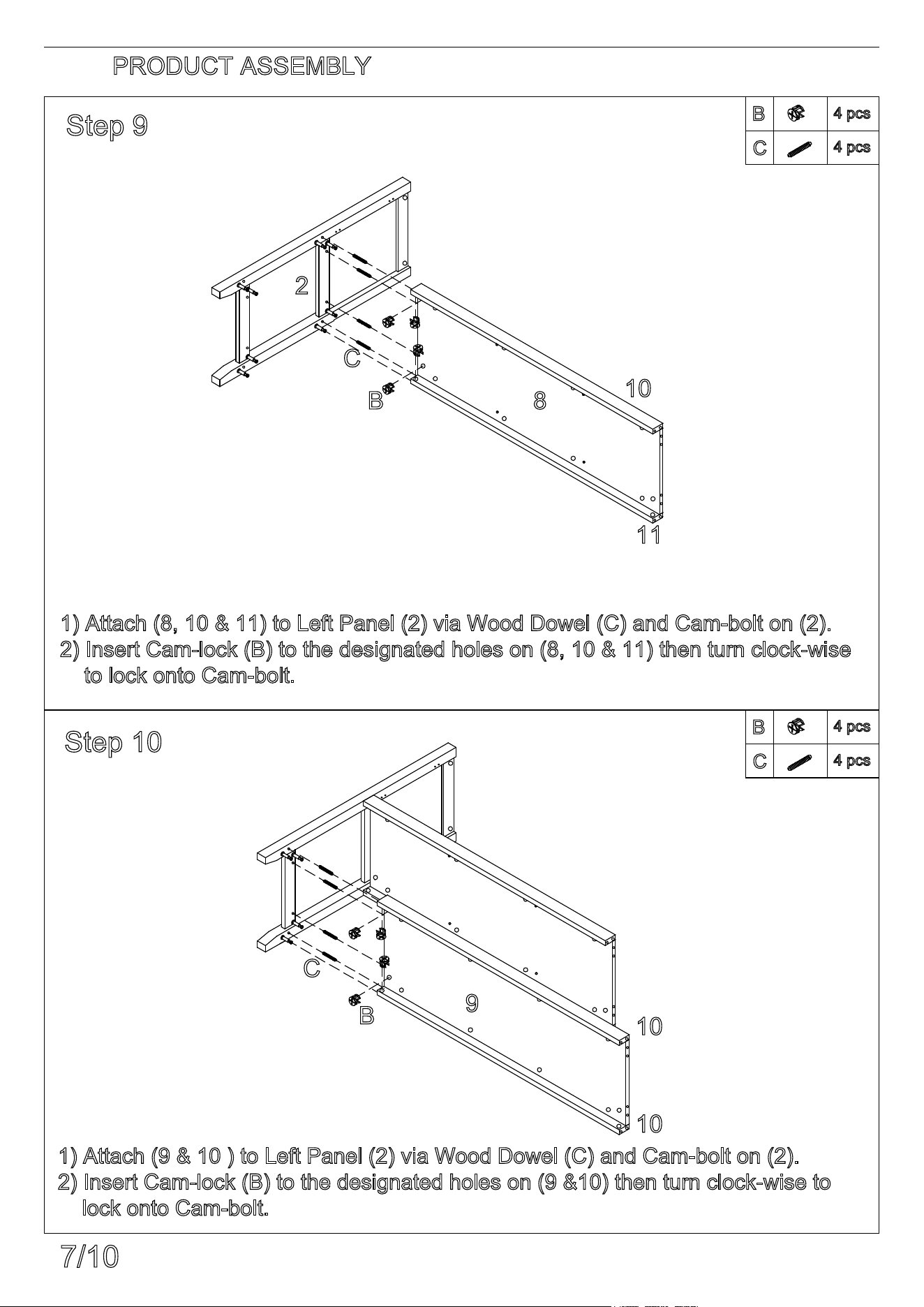

1) Attach (8, 10 & 11) to Left Panel (2) via Wood Dowel (C) and Cam-bolt on (2).
2) Insert Cam-lock (B) to the designated holes on (8, 10 & 11) then turn clock-wise
to lock onto Cam-bolt.
1) Attach (9 & 10 ) to Left Panel (2) via Wood Dowel (C) and Cam-bolt on (2).
2) Insert Cam-lock (B) to the designated holes on (9 &10) then turn clock-wise to
lock onto Cam-bolt.
10
10
C
8 pcs
B
8 pcs
G
C
4 pcs
4 pcs
4
5
C
G
Step 12
Step 11
8/10
PRODUCT ASSEMBLY
3
9
8

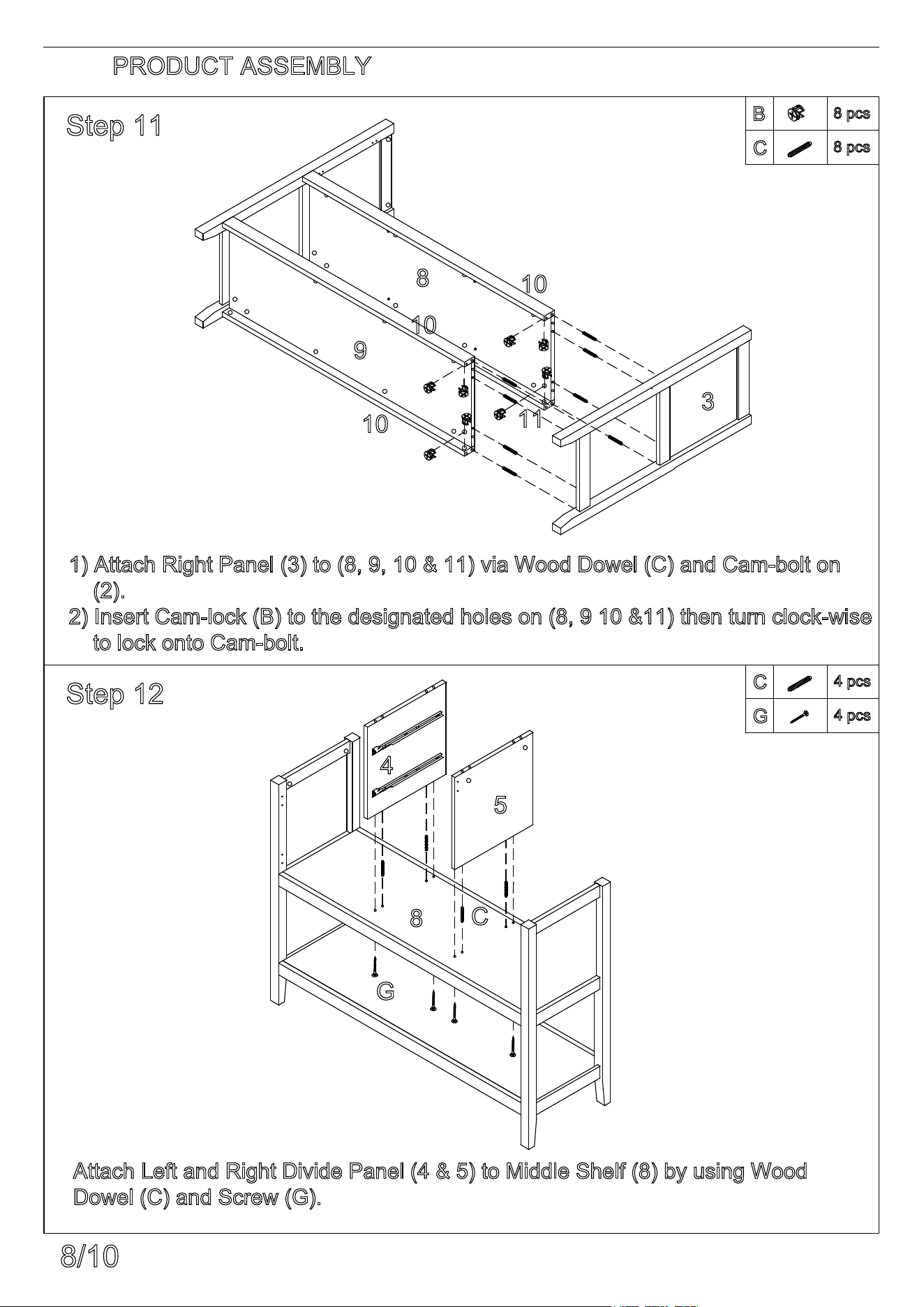

1) Attach Right Panel (3) to (8, 9, 10 & 11) via Wood Dowel (C) and Cam-bolt on
(2).
2) Insert Cam-lock (B) to the designated holes on (8, 9 10 &11) then turn clock-wise
to lock onto Cam-bolt.
10
10
10
11
Attach Left and Right Divide Panel (4 & 5) to Middle Shelf (8) by using Wood
Dowel (C) and Screw (G).
8
C
8 pcs
B
8 pcs
1
C
B
J
17
Step 13
9/10
PRODUCT ASSEMBLY
Step 14
16 pcs
J
4
5
2
3

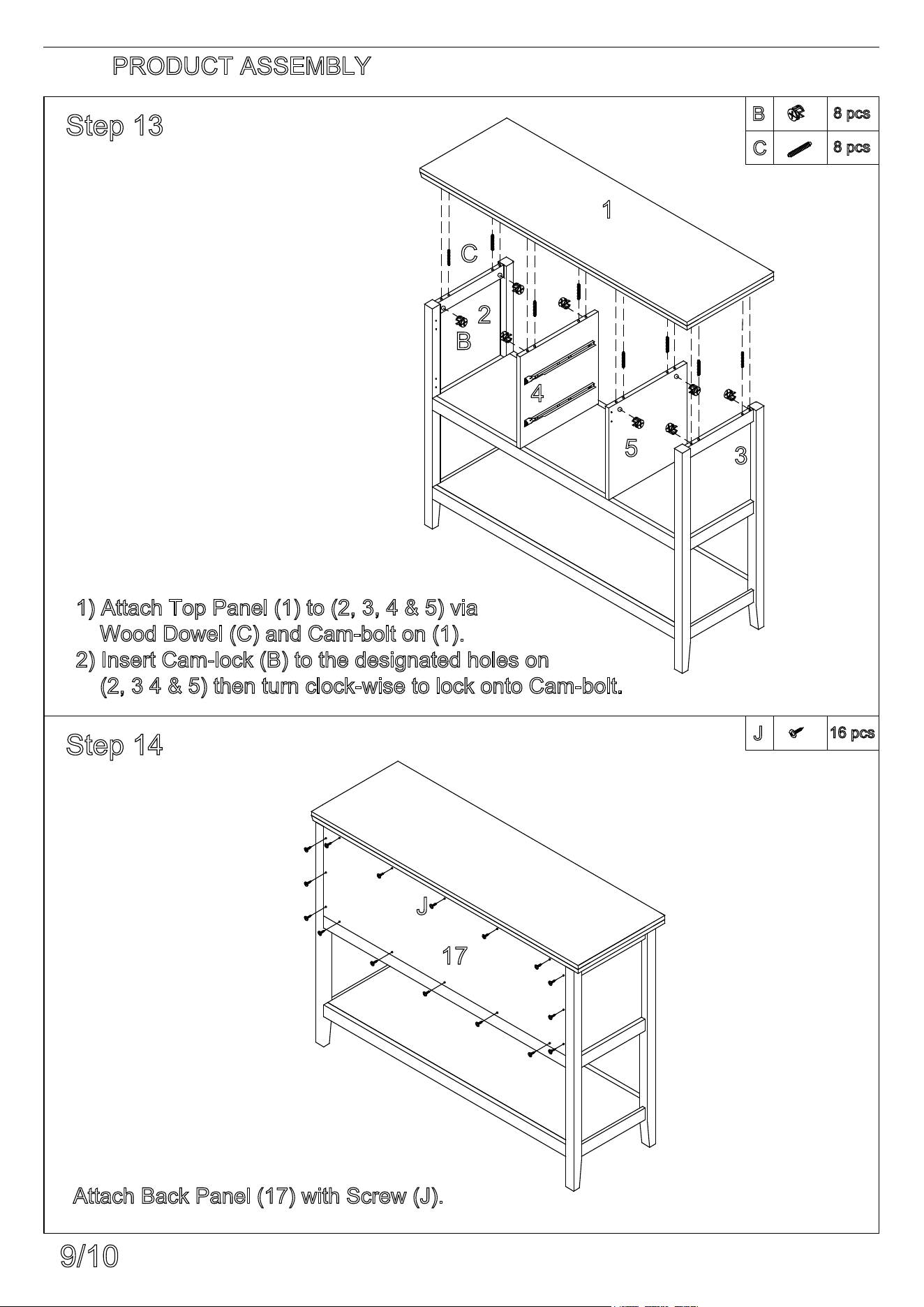

1) Attach Top Panel (1) to (2, 3, 4 & 5) via
Wood Dowel (C) and Cam-bolt on (1).
2) Insert Cam-lock (B) to the designated holes on
(2, 3 4 & 5) then turn clock-wise to lock onto Cam-bolt.
Attach Back Panel (17) with Screw (J).
N1
N2
6
7
E
H
4 pcs
2 pcs
L
M
D
D
E
H
Step 15
10/10
PRODUCT ASSEMBLY
Step 16
2 pcs
D
L
M
8 pcs
2 pcs

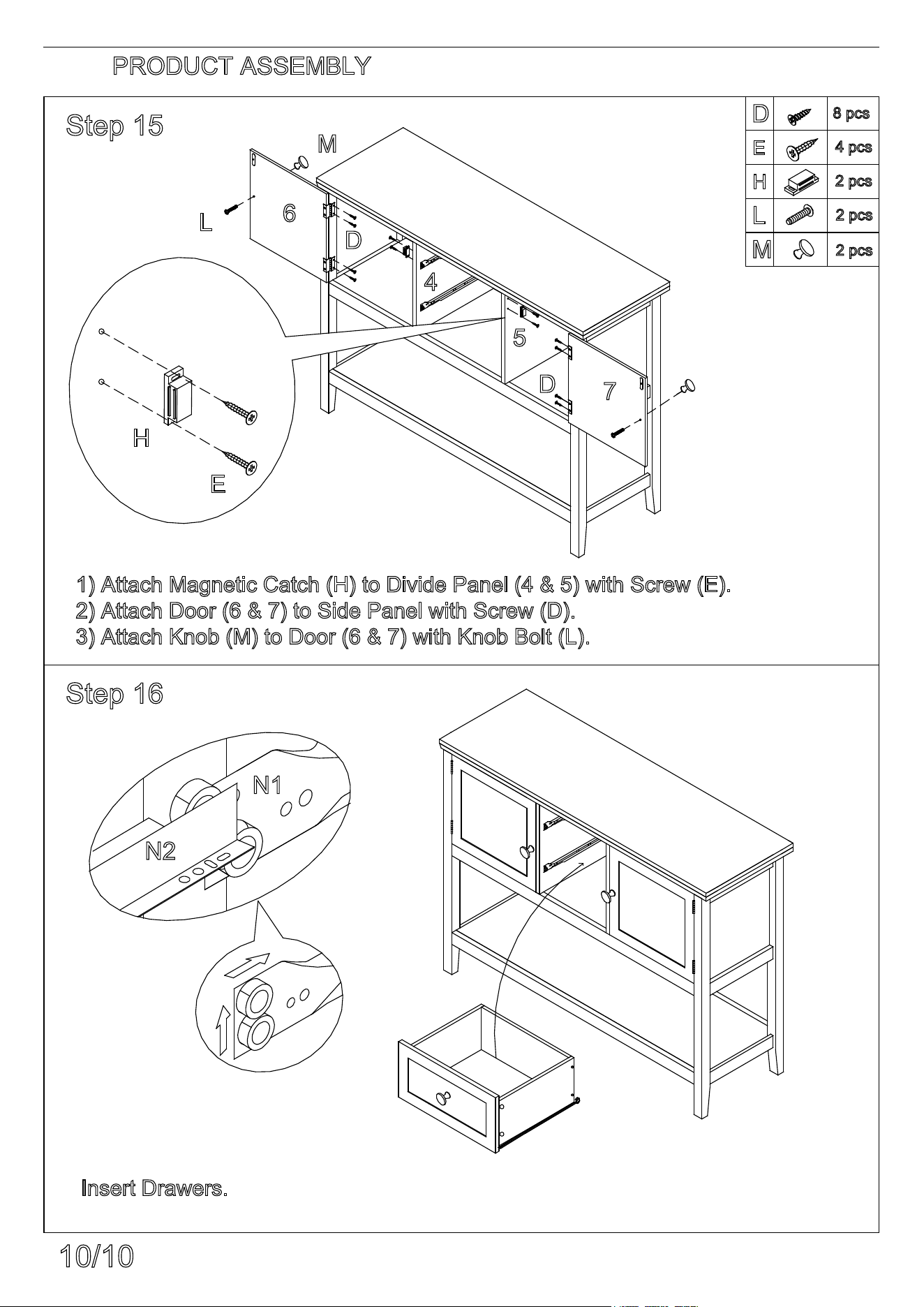

1) Attach Magnetic Catch (H) to Divide Panel (4 & 5) with Screw (E).
2) Attach Door (6 & 7) to Side Panel with Screw (D).
3) Attach Knob (M) to Door (6 & 7) with Knob Bolt (L).
4
5
Insert Drawers.
TIPS：
Your suggestions and comments for Costway are really important to us!
We sincerely solicit you to go back to our shop and leave a good rating in just a
simple click. It would be quite encouraging if you could kindly do so like below:
February 24, 2018
Great product so far. Fast delivery, easy setup, and working without any issues.
Great products so far
With your inspiring rating, Costway will be more consistent to offer you
EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
