Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
9 Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs
and all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with
all electrical products.
Electrical safety information. It is important that the following information is read and understood:
9 Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9 Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are
secure.
Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the correct fuse.
8 DO NOT pull or carry the appliance by the power cable.
8 DO NOT pull the plug from the socket by the cable.
8 DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is replaced immediately
by a qualied electrician.
If the cable or plug is damaged during use, switch o the electricity supply and remove from use.
1.2. Ensure that repairs are carried out by a qualied electrician.
1.3. GENERAL SAFETY
▲ DANGER! BE AWARE, LEAD-ACID BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR
THIS REASON, IT VERY IMPORTANT TO READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY, EACH TIME YOU USE THE
CHARGING EQUIPMENT.
1.3.1. Follow these instructions and those published by the battery and vehicle manufacturers, and the maker of any equipment you intend to
use in the vicinity of the battery. Remember to review warning marks on all products and on engines.
WARNING! Modern vehicles contain extensive electronic systems.
You are required to check with the vehicle Manufacturer, for any specic instructions regarding the use of this type of equipment on
each vehicle.
1.3.2. No liability will be accepted for damage / injury, where this product is not used in accordance with all instructions.
1.4. PERSONAL PRECAUTIONS
1.4.1. Ensure there is another person within hearing range and close enough to come to your aid, should a problem arise when working near a
lead-acid battery.
9 Wear safety eye protection and protective clothing. Avoid touching eyes while working near battery.
9 Have fresh water and soap nearby in case battery acid contacts skin, clothing or eyes.
9 Wash immediately with soap and water if battery acid contacts skin or clothing. If acid enters eye, flush eye immediately with cool, clean
running water for at least 15 minutes and seek immediate medical attention.
9 Remove personal metallic items such as rings, bracelets, necklaces and watches. A lead-acid battery can produce a short-circuit current
which is high enough to weld a ring or the like to metal, which would cause severe burns.
9 Ensure hands, clothing (especially belts) are clear of fan blades and other moving or hot parts of engine, remove ties and contain long hair.
8 DO NOT smoke or allow a spark or flame in the vicinity of battery or engine.
1.5. GENERAL SAFETY INSTRUCTIONS
9 Familiarise yourself with the application and limitations of the charger as well as the potential hazards. Also refer to the vehicle
manufacturer’s hand book. IF IN ANY DOUBT CONSULT A QUALIFIED ELECTRICIAN.
9 Ensure the charger is in good order and condition before use. If in any doubt do not use the unit, contact your Sealey stockist.
9 Use the starter/charger in the upright position only and ensure it is placed on a stable surface which will adequately support its weight.
9 Ensure the charger is disconnected from the mains supply before attaching/detaching the power clamps to/from the battery.
9 Keep tools and other items away from the engine and ensure you can see the battery and working parts of engine clearly.
9 Ensure the output of the charger is the same voltage as the battery.
9 Ensure that during charging, the charger is placed in a location where there is sufficient ventilation to prevent the build up of explosive
gases from a lead acid battery, and DO NOT cover or obstruct the charger ventilation louvres.
9 If battery has caps to access the battery fluid, remove the caps and check the fluid level before connecting the power clamps.
9 If necessary top-up the battery with distilled water by referring to the battery manufacturer’s instructions (Apply the personal safety
precautions described in part 1.3).
9 If the charger receives a sharp knock or blow the unit must be checked by a qualified service agent before using.

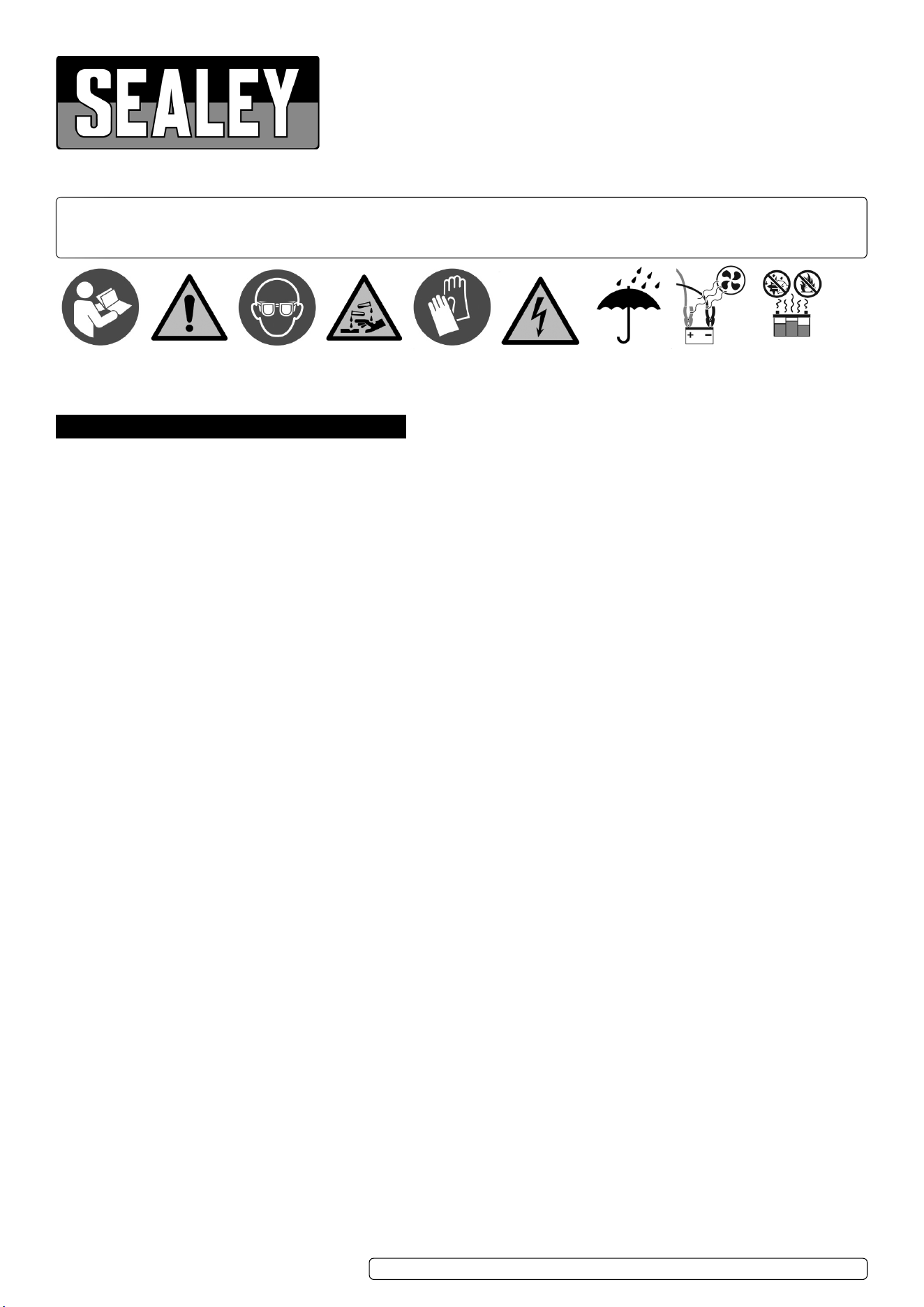

Wear
Protective
Gloves
Warning:
Electricity
Protect
From
Rain
Use in
Well
Ventilated
Areas
Keep away
from sources
of ignition:
Battery could
explode
Refer to
Instruction
Manual
Warning:
Explosive
Material
Wear eye
Protection
Warning:
Corrosive
substance
BATTERY CHARGERS 8/11/14/16/19/28AMP 230V
MODEL NO:
CHARGE 106.V3/107.V3/110.V3/112.V3/115.V3/124.V3
CHARGE106.V3, 107.V3, 110.V3, 112.V3, 115.V3, 124.V3 Issue 2 (H,1,F) 04/10/23Original Language Version
© Jack Sealey Limited
9 If the battery terminals are corroded or dirty clean them before attaching the power clamps.
9 Keep children and unauthorised persons away from the working area.
8 DO NOT dis-assemble the charger for any reason. The charger must only be checked by qualified service personnel.
8 DO NOT try to charge a non-rechargeable battery.
8 DO NOT try to charge battery if battery fluid is frozen.
WARNING! To prevent the risk of sparking, short circuit and possible explosion DO NOT drop metal tools in the battery area, or allow
them to touch the battery terminals.
8 DO NOT allow power clamps to touch each other or to make contact with any metallic part of the vehicle.
8 DO NOT cross connect power leads from charger to battery. Ensure positive (+/RED) is to positive and negative (-/BLACK) is to negative.
8 DO NOT pull the cables or clamps from the battery terminals.
8 DO NOT use the charger outdoors, or in damp, or wet locations and DO NOT operate within the vicinity of flammable liquids or gases.
8 DO NOT use charger inside vehicle or inside engine compartment.
9 Ensure there is effective ventilation to prevent a build-up of explosive gases, and do not cover or obstruct charger ventilation louvres.
8 DO NOT use the charger for a task for which it is not designed.
WARNING! DO NOT simultaneously charge batteries of different capacities or discharge levels.
WARNING! If a fuse blows, ensure it is replaced with an identical fuse type and rating. Use only Sealey genuine parts.
9 When not in use, store the charger carefully in a safe, dry, childproof location.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
2. INTRODUCTION
Steel case with carry handle, these single phase chargers feature plenty of ventilation to help maintain low transformer temperatures.
A large ammeter displays rate of charge and a dash-mounted fuse provides polarity protection in the event that clips are connected
incorrectly. Rocker switches control variable output to the battery to maintain peak condition. Suitable for regular and low maintenance
batteries.
3. SPECIFICATION
MODEL NO. CHARGE106 CHARGE107 CHARGE110 CHARGE112 CHARGE115 CHARGE124
Cable & Clamp
Length
2m 2m 2m 2m 2m 2m
Output 12/24V 12/24V 12/24V 12/24V 12/24V 12/24V
Output Charge
Peak (EN)
8A(6A) 11A(7A) 14A(10A) 16A(12A) 19A(15A) 28A(24A)
Battery Range 10-95Ah 20-105Ah 20-120Ah 20-180Ah 20-250Ah 25-320Ah
Input Charge 1.3A 1.6A 2.2A 2.6A 3.2A 4.2A
Charging Rates 2 2 2 2 2 2
Supply 230V 230V 230V 230V 230V 230V
Polarity protection Fuse (1 x 15A) Fuse (1 x 15A) Fuse (1 x 20A) Fuse (1 x 30A) Fuse (1 x 30A) Fuse (1 x 40A)
Fuse SBF1550 (pack
of 50)
CHARGE106.07
(single)
SBF1550
(pack of 50),
CHARGE107.07
(single)
SBF2050 (pack
of 50)
CHARGE110.07
(single)
MF3010
(pack of 10),
CHARGE112.07
(single)
MF3010
(pack of 10),
CHARGE115.07
(single)
MF4010 (pack of
10),
CHARGE124.07
(single)
4. OPERATION
WARNING! Ensure all the safety instructions in section 1 are read and followed before using the charger.
4.1. PREPARATION
4.1.1. It is important to correctly prepare for charging, ensuring that you follow Section 1 safety requirements carefully.
4.1.2. Check that the capacity of the battery is compatible with charger output.
4.1.3. Charging current (amps) should not exceed one tenth of the value of the battery capacity (amp hours).
4.1.4. Check battery to ensure that the POSITIVE and NEGATIVE terminals are clearly identiable before removing the battery from the vehicle.
4.1.5. Follow the vehicle manufacturer’s instructions for charging the battery. Disconnect and remove the battery from the vehicle and place in
an appropriate safe area ready for charging.
4.1.6. Remove the battery electrolyte cover or caps to allow the gases produced by charging to escape.
4.1.7. Check that the electrolyte uid level in the battery is above the plates. If not, add distilled water to cover them by 5-10mm.
8 DO NOT touch the battery uid as it is corrosive.
4.1.8. The correct charging status of the battery may be determined by using a hydrometer which will measure the specic density of the
electrolyte. The following gures (kg/L) apply at 20°C:
1.28 = Fully charged, 1.21 = Half charged, 1.14 = Fully discharged.
WARNING! Be cautious and vigilant as the electrolyte is highly corrosive acid.
4.2. CONNECTING CHARGER TO BATTERY
4.2.1. Ensure that the battery charger is unplugged from the mains power supply before connecting power leads to the battery.
4.2.2. Select the charger voltage to match that of the battery by setting the rocker switch to either 12 or 24 volts. Initially, always set the
Charge Rate rocker switch to ‘MIN’.
4.2.3. Check the charger clamps and battery terminals to ensure that they are clean and free from oxidation.
4.2.4. Connect the charger POSITIVE (Red or +) lead to the POSITIVE (+) terminal of the battery and the NEGATIVE (Black or -) lead to the
NEGATIVE (-) terminal of the battery.
CHARGE106.V3, 107.V3, 110.V3, 112.V3, 115.V3, 124.V3 Issue 2 (H,1,F) 04/10/23Original Language Version
© Jack Sealey Limited
4.3. CHARGING THE BATTERY
4.3.1. Connect the charger to the mains power supply and turn it on with the front panel mounted ON/OFF switch.
4.3.2. Check the current delivery to the battery by reading the ammeter on the front of the battery charger. During charging the pointer on the
ammeter will slowly move to the left according to the capacity and condition of the battery (see g.1, meter face may vary according to
model.)
4.3.3. If a boost charge is required, ensure that an initial charge has built up rst before moving the Charge Rate rocker switch to ‘BOOST’,
see g.2.
4.3.4. To indicate that the battery is fully charged the reading on the ammeter should be at the “0”output indicator. To correspond with this the
electrolyte in the battery will begin to gas. Stop charging at this point in order to protect the battery plates from damage.
WARNING! The charger will not switch o automatically. The state of charge should be regularly monitored by the person with
responsibility for charging the battery.
8 DO NOT leave the charger operating unattended or overnight.
4.3.5. Unplug the charger from the mains power supply and then disconnect the clamps from the battery terminals. Clean and store the
charger in a safe, dry area.
4.3.6. Replace the battery electrolyte cover or caps. Wipe up any splashes or spillages, remembering that the electrolyte is a corrosive acid.
Return the battery to the vehicle, secure according the manufacturer’s instructions and re-connect the power leads.
4.3.7. Check to ensure that all tools are removed before closing the bonnet or boot.

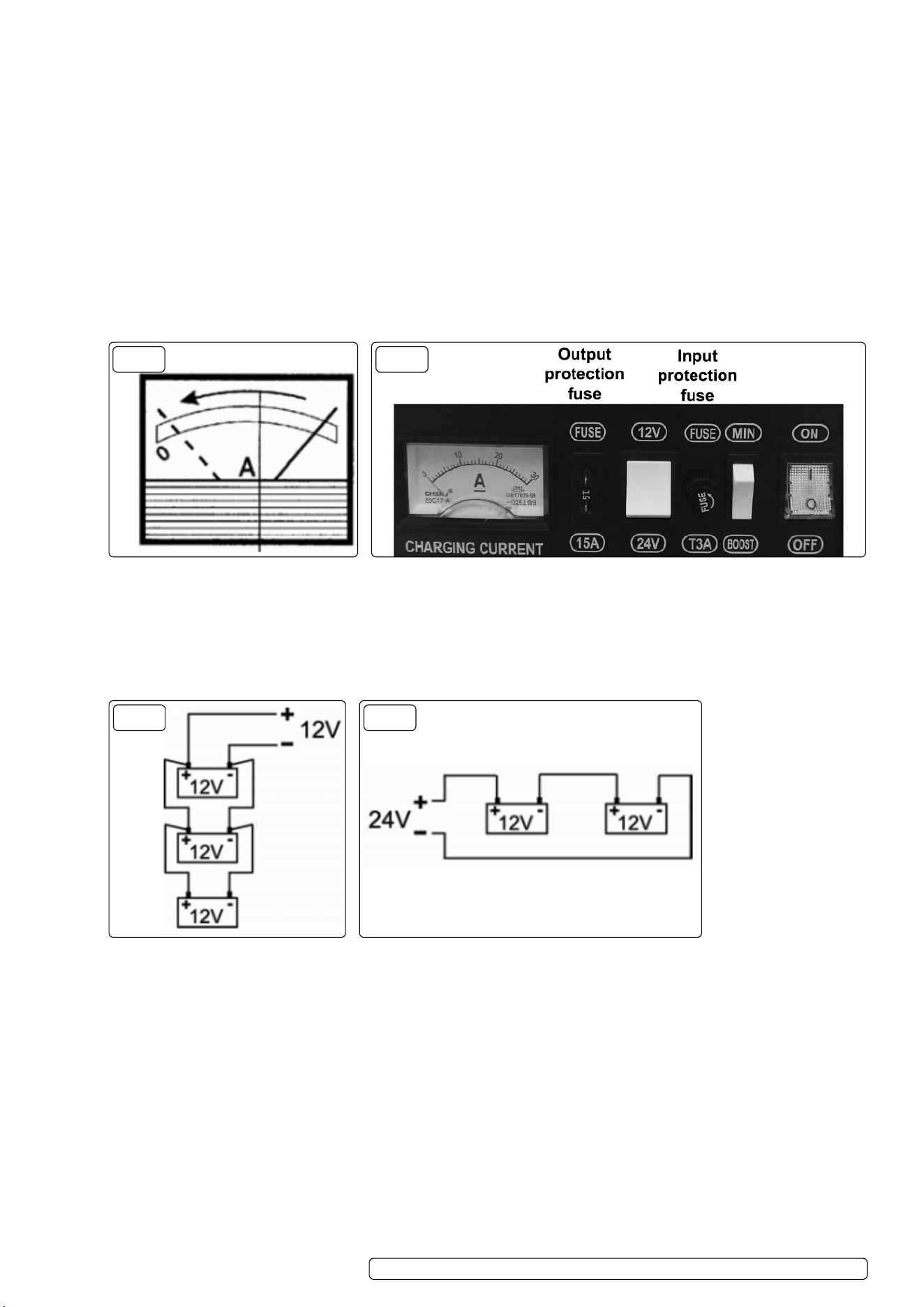

FIG.1 FIG.2
4.3.8. SEALED BATTERIES
4.3.8.1. Charge a sealed battery very slowly, carefully monitoring the voltage across the battery terminals using a normal tester.
4.3.8.2. When the battery terminal voltage reaches 14.4V for 12V batteries or 28.8V for 24V batteries, stop charging.
4.4. MULTIPLE BATTERY CHARGING
WARNING! DO NOT simultaneously charge dierent types of battery or batteries with dierent capacities or levels of discharge.
4.4.1. A number of batteries may be charged at the same time. To do so we recommend “parallel connection” as shown in g.3.
4.4.2. Two batteries may be charged in series using the 24V output as shown in g.4.
FIG.3 FIG.4
4.5. FUSE
4.5.1. The charger is equipped with two front panel mounted fuses. The output protection fuse on the left will interrupt the circuit in the
following circumstances:
a) Overload - too high a current to the battery.
b) Short circuit - clamps touch, or cross-connection to battery.
c) If the output fuse blows take the following action:
Disconnect the charger from the mains power supply.
Allow the unit to cool down, establish the reason for fuse blowing and correct.
Replace the fuse. DO NOT use a fuse with copper bridge or similar as these will damage your charger.
Refer to Section 3 ‘Specications’ for fuse information. We recommend that you hold 2 spare fuses with
the charger.
4.5.2. The input protection fuse is situated to the right hand side of the control panel, see g.3. If this fuse blows, replace only with a fuse of
the same value.
4.6. THERMAL PROTECTION
4.6.1. When a high current causes the charger to overheat the internal thermal protection will cut o the current. When the charger has
cooled suciently it will automatically reconnect.
NOTE: The use of an incorrect fuse will invalidate your warranty.
CHARGE106.V3, 107.V3, 110.V3, 112.V3, 115.V3, 124.V3 Issue 2 (H,1,F) 04/10/23Original Language Version
© Jack Sealey Limited
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
CHARGE106.V3, 107.V3, 110.V3, 112.V3, 115.V3, 124.V3 Issue 2 (H,1,F) 04/10/23Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.
REGISTER YOUR
PURCHASE HERE
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts
without prior notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please
email or call our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
