LWX60966B
EN User Manual | Washer Dryer
aeg.com\register
Welcome to AEG! Thank you for choosing our appliance.
Get usage advice, brochures, trouble shooter, service and repair information:
www.aeg.com/support
Subject to change without notice.
CONTENTS
1. SAFETY INFORMATION................................................................................ 2
2. SAFETY INSTRUCTIONS.............................................................................. 5
3. PRODUCT DESCRIPTION............................................................................. 7
4. TECHNICAL DATA......................................................................................... 8
5. INSTALLATION...............................................................................................8
6. CONTROL PANEL........................................................................................ 12
7. PROGRAMMES............................................................................................ 14
8. OPTIONS...................................................................................................... 18
9. SETTINGS.................................................................................................... 19
10. BEFORE FIRST USE..................................................................................20
11. DAILY USE - WASHING ONLY.................................................................. 20
12. DAILY USE - DRYING ONLY......................................................................24
13. DAILY USE - WASHING & DRYING...........................................................25
14. FLUFF IN THE FABRICS............................................................................26
15. HINTS AND TIPS........................................................................................ 26
16. CARE AND CLEANING.............................................................................. 29
17. TROUBLESHOOTING................................................................................ 33
18. CONSUMPTION VALUES.......................................................................... 37
19. ENVIRONMENTAL CONCERNS................................................................39
1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions.
The manufacturer is not responsible for any injuries or
damage that are the result of incorrect installation or usage.
Always keep the instructions in a safe and accessible location
for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
2 ENGLISH
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
• Children between 3 and 8 years of age and persons with
very extensive and complex disabilities shall be kept away
from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away
from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not
play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the
door is open.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
• This appliance is for washing and drying domestic-type
machine-washable and dryable laundry only.
• Do not use the dryer function if laundry has been soiled with
industrial chemicals.
• This appliance is designed for single household domestic
use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
similar accommodation where such use does not exceed
(average) domestic usage levels.
• Do not change the specification of this appliance.
ENGLISH 3
• Do not install the appliance behind a lockable door, a sliding
door or a door with a hinge on the opposite side, that would
prevent the appliance door from being fully open.
• Connect the mains plug to the mains socket only at the end
of the installation process. Make sure that the mains plug is
accessible after installation.
• The ventilation opening in the base must not be covered by
a carpet, mat, or any floor covering.
• WARNING: The appliance must not be supplied through an
external switching device, such as a timer, or connected to
a circuit that is regularly switched on and off by a utility.
• Ensure good air ventilation in the room where the appliance
is installed to avoid the backflow of unwanted gases into the
room from appliances burning gas or other fuels, including
open fires.
• Exhaust air must not be discharged into a flue which is used
for exhausting fumes from any appliances burning gas or
other fuels.
• The operating water pressure at the water entry point from
the outlet connection must be between 0.5 bar (0.05 MPa)
and 10 bar (1.0 MPa).
• The appliance maximum load is 9 kg. Do not exceed the
maximum load of each programme (refer to the
"Programmes" chapter).
• The appliance must be connected to the water mains using
the new supplied hose sets, or other new hose sets
supplied by the Authorised Service Centre.
• Old hose sets must not be reused.
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
• Wipe away lint or packaging debris that has accumulated
around the appliance.
• Items that have been soiled with substances such as
vegetable or mineral oil, acetone, alcohol, petrol, kerosene,
spot removers, turpentine, waxes and wax removers should
4 ENGLISH
be washed separately with an extra amount of detergent
before being dried in the washer dryer.
• Do not use the appliance if items have been soiled with
industrial chemicals.
• Do not dry unwashed items in the wash dryer.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, and rubber backed articles and clothes,
or pillows fitted with foam rubber pads should not be dried
in the washer dryer.
• Fabric softeners, or similar products, should only be used
as specified by the product manufacturer’s instructions.
• Remove all objects from items that could be a source of fire
ignition such as lighters or matches.
• WARNING: Never stop the washer dryer before the end of
the drying cycle unless all items are quickly removed and
separated so that residual heat can dissipate.
• The final part of the washer dryer cycle takes place without
heat (cool down cycle) to ensure that items reach a
temperature that will not cause damage to them.
• Do not use high pressure water sprays and/or steam to
clean the appliance.
• Clean the appliance with a moist cloth. Use only neutral
detergents. Do not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
• Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
The installation must comply with
relevant national regulations.
• Follow the installation instructions supplied
with the appliance.
• Do not install or use the appliance where
the temperature can be less than 0°C or
where it is exposed to the weather.
• Always keep the appliance vertical when it
is being moved.
• Make sure that there is air circulation
between the appliance and the floor.

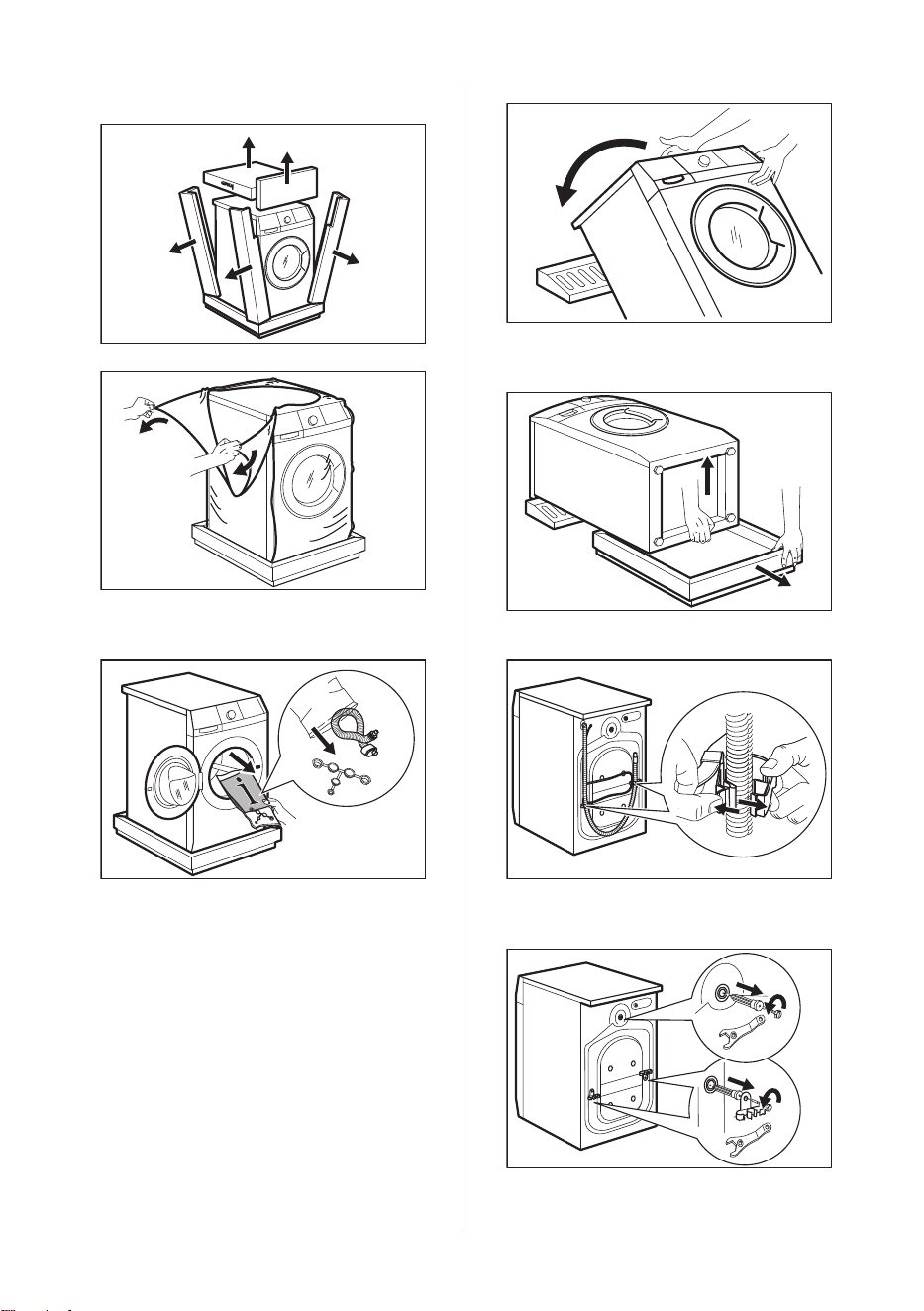

• Remove all the packaging and the transit
bolts.
• The floor area on which the appliance is to
be installed must be flat, stable, heat
resistant and clean.
• Keep the transit bolts in a safe place. If the
appliance is to be moved in the future they
ENGLISH 5
must be reattached to lock the drum to
prevent an internal damage.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
• Do not install or use a damaged
appliance.
• Do not install the appliance where the
appliance door cannot be fully opened.
• Adjust the feet to have the necessary
space between the appliance and the
flooring.
• When the appliance is in its permanent
position, check if it is levelled correctly
with the aid of a spirit level. If it is not,
adjust the feet accordingly.
2.2 Electrical Connection
WARNING!
Risk of fire and electric shock.
• WARNING: This appliance is designed to
be installed / connected to a grounding
connection in the building.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Do not touch the mains cable or the mains
plug with wet hands.
• This appliance is fitted with a 13 A mains
plug. If it is necessary to change the mains
plug fuse, use only a 13 A ASTA (BS
1362) fuse (UK and Ireland only).
2.3 Water Connection
• The inlet water shall not exceed 25 °C.
• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not
used for a long time, where repair work
has been carried out or new devices fitted
(water meters, etc.), let the water flow until
it is clean and clear.
• Ensure that there are no visible water
leaks during and after the first use of the
appliance.
• Do not use an extension hose if the inlet
hose is too short. Contact the Authorised
Service Centre for the replacement of the
inlet hose.
• When unpacking the appliance, It is
possible to see water flowing from the
drain hose. This is due to the testing of the
appliance with the use of water in the
factory.
• You can extend the drain hose to
maximum 400 cm. Contact the Authorised
Service Centre for the other drain hose
and the extension.
• Make sure that there is access to the tap
after the installation.
2.4 Use
WARNING!
Risk of injury, electric shock, fire, burns
or damage to the appliance.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not touch the glass door while a
programme operates. The glass can get
hot.
• Do not dry damaged (torn, frayed) items
that contain padding or fillings.
• If laundry has been washed with a stain
remover, carry out an additional rinse
cycle before starting a drying cycle.
• Make sure that all metal objects are
removed from the laundry.
• Dry only fabrics that are suitable to dry in
the appliance. Follow the cleaning
instruction on the item label.
• Do not sit or stand on the open door of the
appliance.
• Do not dry dripping wet clothes in the
appliance.
• Do not let hot items to touch the plastic
parts of the appliance.
• Remove a detergent ball (if used) before
starting a drying programme.
• Do not use a detergent ball if setting a
non-stop programme.
2.5 Service
• To repair the appliance contact the
Authorised Service Centre. Use original
spare parts only.
• Please note that self-repair or non-
professional repair can have safety
consequences and might void the
guarantee.
6 ENGLISH
• The following spare parts are available for
at least 10 years after the model has been
discontinued: motor and motor brushes,
transmission between motor and drum,
pumps, shock absorbers and springs,
washing drum, drum spider and related
ball bearings, heaters and heating
elements, including heat pumps, piping
and related equipment including hoses,
valves, filters and aquastops, printed
circuit boards, electronic displays,
pressure switches, thermostats and
sensors, software and firmware including
reset software, door, door hinge and
seals, other seals, door locking assembly,
plastic peripherals such as detergent
dispensers. The duration may be longer in
your country. For further information,
please visit our website.
• Please note that some of these spare
parts are only available to professional
repairers, and that not all spare parts are
relevant for all models.
• Concerning the lamp(s) inside this product
and spare part lamps sold separately:
These lamps are intended to withstand
extreme physical conditions in household
appliances, such as temperature,
vibration, humidity, or are intended to
signal information about the operational
status of the appliance. They are not
intended to be used in other applications
and are not suitable for household room
illumination.
2.6 Disposal
• Disconnect the appliance from the mains
electrical and water supplies.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
• Remove the door catch to prevent children
or pets from becoming trapped in the
drum.
• Dispose of the appliance in accordance
with local requirements for the disposal of
Waste Electrical and Electronic Equipment
(WEEE).
3. PRODUCT DESCRIPTION
3.1 Appliance overview
1 2 3
5
6
7
4
1
Worktop
2
Detergent dispenser
3
Control panel
4
Door handle
5
Rating plate
6
Drain pump filter
7
Feet for levelling the appliance
ENGLISH 7
00000000
00A
Mod.
xxxxxxxxx
000V ~ 00Hz 0000 W
910000000
00
A
B
C
Prod.No.
D
The rating plate reports the model name (A), product
number (B), electrical ratings (C) and serial number
(D).
4. TECHNICAL DATA
Dimension Width/ Height/ Total depth 59.7 cm /84.7 cm /64.2 cm
Electrical connection Voltage
Overall power
Fuse
Frequency
230-240 V
2200 W
13 A
50 Hz
Level of protection against ingress of solid particles and moisture
ensured by the protective cover, except where the low voltage
equipment has no protection against moisture
IPX4
Water supply
1)
Cold water
Water supply pressure
2)
Minimum
Maximum
0.5 bar (0.05 MPa)
10 bar (1.0 MPa)
Maximum wash load Cotton 9 kg
Maximum dry load Cotton
Synthetics
6.0 kg
4.0 kg
Spin Speed Maximum spin speed 1551 rpm
1)
Connect the water inlet hose to a water tap with a 3/4'' thread.
2)
The appliance works correctly if the water pressure is not lower than 0.05 MPa (0.5 bar). If you cannot connect
the water inlet hose to the cold water tap of the primary hydraulic system, connect it to your domestic cold water
storage system. Make sure not to exceed a distance of 5.02 m (16.5 ft) between the appliance inlet hose and the
bottom of the water storage tank.
5. INSTALLATION
WARNING!
Refer to Safety chapters.
5.1 Unpacking
WARNING!
Remove all the packaging and the transit
bolts before installing the appliance.
1. Use the gloves. Remove the external film.
If necessary, use a cutter.
8 ENGLISH
2. Remove the cardboard top. Remove the
polystyrene packaging materials.
3. Remove the internal film.
4. Open the door. Remove the polystyrene
piece from the door seal and all the items
from the drum.
5. Put one of the polystyrene packaging
elements on the floor behind the
appliance. Carefully put down the
appliance with the rear side on it. Make
sure not to damage the hoses.
6. Remove the polystyrene protection from
the bottom. Pull up the appliance in
vertical position.
1
2
7. Remove the power supply cable and the
drain hose from the hose holders.
8. Remove the three bolts. Use the key
supplied with the appliance. Pull out the
plastic spacers.
ENGLISH 9
9. Put the plastic caps in the holes. You can
find these caps in the user manual bag.
We recommend that you keep the
packaging and the transit bolts for any
movements of the appliance.
.
5.2 Information for installation
Positioning and levelling
Adjust the appliance correctly to prevent
vibration, noise and movement of the
appliance when it operates.
1. Install the appliance on a flat hard floor.
The appliance must be levelled and stable.
Make sure that the appliance does not touch
the wall or other units and there is air
circulation below the appliance.
2. Loosen or tighten the feet to adjust the
level. All feet must rest firmly on the floor.
WARNING!
Do not put cardboard, wood or equivalent
materials below the appliance feet to
adjust the level.
The inlet hose
CAUTION!
Make sure there is no damage to hoses
and there are no leaks from the
couplings. Do not use an extension hose
if the inlet hose is too short. Contact the
service centre for information on inlet
hose replacement.
1. Connect the water inlet hose to the back of
the appliance.
20º20º
45º45º
2. Position it toward left or right depending on
the positon of the water tap. Make sure that
the inlet hose is not in vertical position.
3. If necessary, loosen the ring nut to set it in
the correct position.
4. Connect the water inlet hose to the cold
water tap with 3/4'' thread.
WARNING!
The inlet water shall not exceed 25 °C.
Water drainage
The drain hose should stay at a height of no
less than 60 cm and not more than 100 cm.
You can extend the drain hose to
maximum 400 cm. Contact the
authorised service centre to buy the other
drain hose and the extension.
10 ENGLISH
It is possible to connect the drain hose in different ways:
min.600 mm
max.1000 mm
(
*
)
(
*
)
(
*
)
Make sure that the drain hose makes a loop
to prevent particles going into the appliance
from the sink.
Connect the drain hose to the spigot and
tighten it with a clamp. Make sure that the
drain hose makes a loop to prevent particles
going into the appliance from the sink.
Position the hose directly to a built-in drain
pipe in the room wall and tighten it with a
clamp.
4. Without the plastic hose guide, to a sink
spigot- Put the drain hose in the spigot and
tighten it with a clamp.
The drain hose can be bent into U shape and
put around the plastic guide. On the edge of a
sink - Fasten the guide to the water tap or to
the wall.
Make sure that the plastic guide cannot
move when the appliance drains and the
drain hose end is not immersed in the
water. There may be a return of dirty
water into the appliance. Buy accessories
from authorised supplier.
To a stand pipe with vent hole - Insert the
drain hose directly into a drain pipe or stand
pipe
The end of the drain hose must always
be ventilated , i.e. the inner diameter of
the drain pipe (min. 38 mm - min. 1.5")
must be larger than the external diameter
of the drain hose.
5.3 Installation on suspended
flooring
Suspended wooden floors are particularly
susceptible to vibration.
To limit vibration we recommend placing a
waterproof wooden panel, at least 15 mm
thick, under the appliance. It should be
screwed to at least 2 floor beams and should
extend beyond the front feet.
If possible, install the appliance where the
floor is more stable.
5.4 Electrical connection
At the end of installation you can connect the
mains plug to the mains socket.
ENGLISH 11
The rating plate and the 'Technical Data'
chapter indicate the necessary electrical
ratings. Make sure that they are compatible
with the mains power supply.
Check that your domestic electrical
installation can take the maximum load
required, also taking into account any other
appliances may also be in use.
Connect the appliance to an earthed
socket.
The power supply cable must be easily
accessible after installing the appliance.
For any electrical work required to install this
appliance, contact our Authorised Service
Centre.
The manufacturer does not accept any
responsibility for damage or injury through
failure to comply with the above safety
precaution.
6. CONTROL PANEL
6.1 Control panel description
1 2 3 4
91011
7
6
8
5
1
Programme knob
2
Spin speed reduction (Spin)
3
Temperature selection (Temperature )
4
Display
5
Drying time selection (Time Dry)
6
Prewash phase (Prewash)
7
Additional rinse (Extra Rinse)
8
Automatic drying level (Auto Dry)
9
Start/Pause
10
Delay start setting (Delay Start)
11
Time saving (Time Save)
12 ENGLISH
6.2 Display
A B
E DFG
C
A
Time area
: Programme duration
: Selected drying time
: Delay start
: Alarm codes
: Message of error
: The programme is completed.
Time programme indicators
: Normal duration indicator
: Quick indicator
: Super quick indicator
B Delay start indicator
C
Child safety lock indicator
D
Door locked indicator
E
, ,
Indicators of dryness level
F
Drying phase indicator
G
Washing phase indicator
ENGLISH 13
7. PROGRAMMES
7.1 Programme Chart
Programme
Default temperature
Temperature range
Maximum load
Reference spin
speed
Programme description
(Type of load and level of soiling)
Eco 40-60 (Wash only mode)
40 °C
1)
9 kg
1600 rpm
White cotton and fast-coloured cotton. Normally
soiled items.
Eco 40-60 + Cupboard dry level
(Wash & Dry mode)
40 °C
2)
6.0 kg
1600 rpm
Eco 40-60 + Cupboard dry level
(Dry only mode)
6.0 kg
White cotton and fast-coloured cotton.
Cottons
40 °C
90°C - (Cold)
9 kg
1600 rpm
White cotton and coloured cotton.
Normally, heavily and lightly soiled items.
Synthetics
40 °C
60°C - (Cold)
4 kg
1200 rpm
Synthetic items or mixed fabric items.
Normally soiled items.
Wool
40 °C
40°C - (Cold)
1.5 kg
1200 rpm
Machine washable wool, hand washable wool and
other fabrics with «hand washing» care symbol
3)
.
Delicates
30 °C
40°C - (Cold)
2 kg
1200 rpm
Delicate fabrics such as acrylics, viscose and
mixed fabrics requiring gentler washing. Normally
and lightly soiled items.
Anti-allergy
60 °C
9 kg
1600 rpm
White cotton items. This programme removes micro-
organisms thanks to a washing phase with the temper‐
ature maintained above 60°C for several minutes. This
helps remove germs, bacteria, micro-organism and
particles. An additional rinsing phase ensures a proper
removal of detergent residues and pollens/allergenic
items. In this way the wash is more effective.
20min 3kg
30 °C
40 °C - 30 °C
3 kg
1200 rpm
A very short cycle for lightly soiled cotton and syn‐
thetic items or worn only once.
Drain 9 kg To drain the water in the drum. All fabrics.
Spin
9 kg
4)
1600 rpm
5)
All fabrics, except woollens and delicate fabrics.
To spin the laundry and to drain the water in the drum.
14 ENGLISH
Programme
Default temperature
Temperature range
Maximum load
Reference spin
speed
Programme description
(Type of load and level of soiling)
Rinse
9 kg
4)
1600 rpm
5)
To rinse and spin the laundry. All fabrics, except
woollens and very delicate fabrics. Reduce the spin
speed accordingly to the type of laundry.
Wool
1.0 kg
Drying programme for wool fabrics. Gentle drying for
hand-washable woollens. Remove immediately the
items when the programme is completed.
Synthetics
4.0 kg
Drying programme for synthetic items and mixed
fabrics.
Cottons
6.0 kg
Drying programme for cotton items.
NonStop 60min
30 °C
40 °C - 30 °C
1 kg
1200 rpm
Complete programme composed of a washing phase
and of a drying phase for a small load of mixed fabrics
(cotton and synthetic items).
Off position
1)
According to UK Ecodesign for Energy-Related Products and Energy Information Regulations, this programme
at default temperature and spin speed, in washing only mode, with rated capacity 9 kg is able to clean normally
soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.
For the reached temperature in the laundry, the programme duration and other data, please refer to 'Con‐
sumption Values' chapter.
The most efficient programmes in terms of energy consumption are generally those that perform at lower tem‐
peratures and longer duration.
2)
According to UK Ecodesign for Energy-Related Products and Energy Information Regulations, this programme
at default temperature and spin speed, in washing and drying mode, with rated capacity 6.0 kg and with Cupboard
dry level performs the wash and dry cycle able to clean normally soiled cotton laundry declared to be washable at
40 °C or 60 °C, together in the same cycle and, after drying phase, the laundry can be immediately stored in a
cupboard.
3)
During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or
doesn't rotate properly, but this is normal for this programme.
4)
The maximum load refers to cottons items. Reduce the load accordingly in case of other type of laundry.
5)
The maximum spin speed is related to cotton items. Set the spin speed. Make sure that it agrees with the laun‐
dry.
Programme options compatibility
Programme
Spin
Time Save
Delay Start
Eco 40-60
■ ■ ■ ■ ■
■
1)
■
ENGLISH 15
Programme
Spin
Time Save
Delay Start
Cottons ■ ■ ■ ■ ■ ■ ■
Synthetics ■ ■ ■ ■ ■ ■ ■
Wool
■ ■ ■ ■
Delicates ■ ■ ■ ■ ■ ■
Anti-allergy ■ ■ ■ ■ ■ ■
20min 3kg ■ ■ ■
Drain ■
Spin ■ ■ ■
Rinse ■ ■ ■ ■ ■
Wool
■
Synthetics
■
Cottons
■
NonStop 60min ■
1)
Only the QUICK option is available.
Suitable detergents for each programme
Programme Universal
powder
1)
Liquid
Universal
Liquid for
coloureds
Delicates
woollens
Special
Eco 40-60 ▲ ▲ ▲ -- --
Cottons ▲ ▲ ▲ -- --
Synthetics ▲ ▲ ▲ -- --
Delicates -- -- -- ▲ ▲
Wool -- -- -- ▲ ▲
20min 3kg -- ▲ ▲ -- --
Anti-allergy ▲ ▲ -- -- ▲
NonStop 60min -- ▲ ▲ -- --
1)
At temperature higher than 60 °C the use of powder detergent is recommended.
▲ = Recommended -- = Not recommended
16 ENGLISH
7.2 Automatic drying
Initial cycle times for programmes with Auto Dry option are only
estimates, the actual drying time may slightly differ from the time
displayed.
Dryness Level Type of fabric Load
Extra Dry
For towelling materials
Cottons and Linen
(bathrobes, bath towels, etc)
up to 6.0 kg
For items to be stored Cottons and Linen
(bathrobes, bath towels, etc)
up to 6.0 kg
Synthetics and mixed fabrics
(jumpers, blouses, underwear,
household and bed linen)
up to 4.0 kg
Wool items (woollen jumpers) up to 1.0 kg
Iron Dry
Suitable for ironing
Cottons and Linen
(sheets, tablecloths, shirts, etc)
up to 6.0 kg
7.3 Timed drying
Dryness Level Type of fabric Load (kg) Spin
speed
(rpm)
Suggested
duration
(mins)
Extra Dry
For towelling materials
Cottons and Linen
(bathrobes, bath towels, etc)
6.0 1600 245 - 265
4.0 1600 165 - 185
2.0 1600 125 - 135
Cupboard Dry
For items to be stored
Cottons and Linen
(bathrobes, bath towels, etc)
6.0 1600 235 - 255
4.0 1600 155 - 175
2.0 1600 115 - 125
Cupboard Dry
For items to be stored
Synthetics and mixed fabrics
(jumpers, blouses, underwear,
household and bed linen)
4.0 1200 135 - 145
1.0 1200 40 - 50
Wool
(woollen jumpers)
1.0 1200 110 - 130
Iron Dry
Suitable for ironing
Cottons and Linen
(sheets, tablecloths, shirts, etc)
6.0 1600 170 - 190
4.0 1600 105 - 125
2.0 1600 75 - 85
ENGLISH 17
7.4 Woolmark Wool Care - Blue
• The wool wash cycle of this machine has
been approved by The Woolmark
Company for the washing of wool
garments labelled as “hand wash”
provided that the products are washed
according to the instructions on the
garment label and those issued by the
manufacturer of this washing machine.
M0000.
• The wool drying cycle of this machine has
been tested and approved by The
Woolmark Company. The cycle is suitable
to dry wool garments which are labelled
“hand wash” provided that the garments
are washed in a Woolmark endorsed hand
washing cycle and dried according to the
instructions issued by the manufacturer.
M0000.
The Woolmark symbol is a Certification mark
in many countries.
8. OPTIONS
8.1 Temperature
Set this option to change the default
temperature.
Indicator
= cold water.
The display shows the set temperature.
8.2 Spin
With this option you can change the default
spin speed.
The indicator of the set speed comes on.
Additional spin options:
No Spin
• Set this option to deactivate all spin
phases. Only the drain phase is available.
• The related indicator comes on.
• Set this option for very delicate fabrics.
• The rinses phase uses more water for
some washing programmes.
Rinse Hold
• Set this option to prevent the laundry
creases.
• The related indicator comes on.
• There is a water in the drum when the
programme is completed.
• The drum turns regularly to prevent the
laundry creases.
• The door stays locked. You must drain the
water to unlock the door.
To drain the water refer to ‘At the end of
the programme’.
8.3 Time Dry
With this option you can set the time for the
fabrics you have to dry. The display shows
the set value.
Each time you press this touchpad the time
value increases by 5 minutes.
You cannot set all time values for
different types of fabrics.
8.4 Auto Dry
With this option you can set an automatic
level of dryness for the laundry. The display
shows the symbol of the set level.
• Extra dry level for cotton items
• Cupboard dry level for cotton and
synthetic items
• Iron dry level for cotton items
18 ENGLISH
8.5 Prewash
With this option you can add a prewash
phase to a washing programme.
Use this option for heavy soil.
When you set this option the programme
duration increases.
The related indicator comes on.
8.6 Extra Rinse
With this option you can add extra rinses to a
washing programme.
Use this option for persons allergic to
detergents and in areas where the water is
soft.
The related indicator comes on.
8.7 Delay Start
With this option you can delay the start of a
programme from 30 minutes to 20 hours.
The display shows the related indicator.
8.8 Time Save
Press Time Save to decrease the programme
time.
You can select:
•
QUICK: to wash items with daily soil.
• SUPER QUICK: to wash quickly items
with almost no soil.
Some programmes accept only one of
these options.
9. SETTINGS
9.1 Child Lock
With this option you can prevent that the
children play with the control panel.
• To activate/deactivate this option, press
and at the same time until the
indicator
comes on/goes off.
You can activate this option:
• After you press : the options and the
programme knob are locked.
• Before you press : the appliance
cannot start.
9.2 Permanent Extra Rinse
With this option you can permanently have an
extra rinse when you set a new programme.
• To activate/deactivate this option press
and at the same time until the
indicator comes on/goes off.
9.3 Acoustic signals
The acoustic signals operate when:
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic signals,
press and at the same time for 6
seconds.
If you deactivate the acoustic signals,
they continue operate when the
appliance has a malfunction.
ENGLISH 19
10. BEFORE FIRST USE
During installation or before first use you
may observe some water in the
appliance. This is residual water left in
the appliance after a full functional test in
the factory to ensure the appliance is
delivered to customers in perfect working
order and is no cause for concern.
1. Connect the mains plug to the mains
socket.
2. Open the water tap.
3. Put 2 litre of water in the detergent
compartment for washing phase.
This activates the drain system.
4. Put a small quantity of detergent in the
compartment for washing phase.
5. Set and start a programme for cotton at
the highest temperature without laundry.
This removes all possible dirt from the drum
and the tub.
11. DAILY USE - WASHING ONLY
WARNING!
Refer to Safety chapters.
11.1 Loading the laundry
1. Open the appliance door.
2. Empty the pockets and unfold the items
before you put them in the appliance.
3. Put the laundry in the drum, one item at a
time.
Do not put too much laundry in the drum.
4. Close the door firmly.
CAUTION!
Make sure that no laundry gets caught
between the seal and the door to avoid
risk of water leakage and damage to the
laundry.
Washing heavily oiled, greasy stains
could cause damage to rubber parts of
the washing machine.
11.2 Using detergent and additives
1. Measure out the detergent and the fabric
conditioner.
2. Put the detergent and the fabric
conditioner into the compartments.
Always follow the instructions that
you find on the packaging of the
detergent products, but we
recommend that you do not exceed
the maximum indicated level. This
quantity will however guarantee the
best washing results.
20 ENGLISH
3. Carefully close the detergent drawer.
11.3 Check the position of the
detergent flap
1. Pull out the detergent dispenser until it
stops.
A
2. Press the lever down to remove the
dispenser.
3. To use powder detergent, turn the flap
up.
4. To use liquid detergent, turn the flap
down.
B
With the flap in the position DOWN:
• Do not use gelatinous or thick liquid
detergents.
• Do not exceed to liquid detergent dose
indicated on the flap.
• Do not set the prewash phase.
• Do not set the delay start function.
5. Measure out the detergent and the fabric
conditioner.
6. Carefully close the detergent dispenser.
Make sure that the flap does not cause a
blockage when you close the drawer.
11.4 Setting a programme
1. Turn the programme knob to switch the
appliance on and set the required
programme:
• The indicator
flashes.
• The display shows the level of the
Time Manager, the programme
duration and the indicators of the
phases of the programme.
2. If necessary, change the temperature and
the spin speed or add available options.
When you activate an option, the
indicator of the set option comes on.
If you set something incorrect, the display
shows the message .
11.5 Starting a programme without
the delay start
Press .
• The indicator of stops to flash and
stays on.
• The indicator starts to flash on the
display.
• The programme starts, the door locks,
the display shows the indicator
.
ENGLISH 21
If the indicator flashes, the
door is locking. If the display
shows an alarm message after the
indicator has flashed for a few
seconds, it indicates that the door
is not properly locked (for more
details see Troubleshooting
chapter).
• The drain pump can operate for a
short time when the appliance fills
water.
After approximately 15 minutes from the
start of the programme:
• The appliance adjusts automatically
the programme duration agree with
the laundry load.
• The display shows the new value.
11.6 Starting a programme with the
delay start
1. Press Delay Start again and again until
the display shows the delay you want to
set.
The related indicator comes on the display.
2. Press
:
• The appliance starts the countdown.
• The door locks, the display shows the
indicator .
If the indicator flashes, the door is
locking. If the display shows an alarm
message after the indicator has
flashed for a few seconds, it indicates
that the door is not properly locked (for
more details see Troubleshooting
chapter).
• When the countdown is completed,
the programme starts automatically.
You can cancel or change the set of the
delay start before you press the . To
cancel the delay start:
• Press to set the appliance to
pause.
• Press
until the display shows
'.
• Press again to start the
programme immediately.
11.7 The ProSense System load
detection
The ProSense System adjusts the
programme duration to the load to achieve
perfect washing results in the minimum
possible time. After touching the Start/Pause
button new cycle duration will be
displayed after 10-15 min.
The ProSense System is not available
with all programmes such as :Wool,
Rinse, SpinDrain, and programmes with
short cycles.
11.8 Interrupting a programme and
changing the options
You can change only some options before
they operate.
1. Press .
The indicator flashes.
2. Change the options.
3. Press again.
The programme continues.
11.9 Cancelling a running
programme
1. Turn the programme knob to position
to cancel the programme and to
deactivate the appliance.
2. Turn the programme knob again to
activate the appliance. Now, you can set
a new washing programme.
22 ENGLISH
Before starting the new programme the
appliance could drain the water. In this
case, make sure that the detergent is still
in the detergent compartment, if not fill
the detergent again.
11.10 Opening the door
CAUTION!
If the temperature and level of the water
in the drum are too high and the drum
still rotates, you cannot open the door.
While a programme or the delay start
operates, the appliance door is locked and
the display shows the indicator .
Open the appliance door when the
programme or the delay start operates:
1. Press
to pause the appliance.
2. Wait until the door lock indicator goes
off.
3. Open the door.
4. Close the door and press again .
The programme or delay start continues to
operate.
11.11 At the end of the programme
• The appliance stops automatically.
• The acoustic signal operates (if it is
activated).
• In the display comes on.
• The indicator of the goes off.
• The door lock indicator goes off.
• You can open the door.
• Remove the laundry from the appliance.
Make sure that the drum is empty.
• Close the water tap.
• Turn the programme knob to position
to deactivate the appliance.
• Keep the door ajar, to prevent the mildew
and odours.
The washing programme is completed,
but there is water in the drum:
• The drum turns regularly to prevent the
creases in the laundry.
• The door lock indicator is on. The
indicator flashes. The door stays
locked.
• You must drain the water to open the
door.
To drain the water:
1. If necessary, decrease the spin speed. If
you set , the appliance only drains.
2. Press
. The appliance drains the water
and spins.
3. When the programme is completed, and
the door lock indicator goes off, you
can open the door.
4. Turn the programme knob to position
to deactivate the appliance.
The appliance drains and spins
automatically after approximately 18
hours (except for Wool programme).
11.12 Stand-by
Some minutes after the end of the washing
programme, if you do not deactivate the
appliance, the energy saving status activates.
The energy saving status decreases the
energy consumption when the appliance is on
the stand by.
• All indicators and the display go off.
• The indicator of the
flashes slowly
• Press one of the options to deactivate the
energy saving status.
If you set a programme or an option that
ends with water in the drum, the energy
saving status function doesn't activate
to remind you to drain the water.
ENGLISH 23
12. DAILY USE - DRYING ONLY
WARNING!
Refer to Safety chapters.
This appliance is an automatic washer
dryer.
12.1 Drying setting
WARNING!
Make sure that the water tap is open.
1. Turn the programme knob to the desired
programme to activate the appliance.
2. Load the laundry one item at a time.
3. Turn the programme dial to the
programme applicable for the items to
dry. The display shows the drying
indicator .
To have a good drying performance do
not exceed the maximum drying loads
recommended in the user manual. Do
not set a spin speed lower than the
automatic speed of the set programme.
12.2 Drying at automatic levels
The laundry can be dried at pre-defined
levels of dryness:
1. Press again and again until the display
shows one of the dryness level indicator:
• : IRON DRY level indicator for
cotton items
• : CUPBOARD DRY level indicator
for cotton and synthetic items
• : EXTRA DRY level indicator for
cotton items
The display shows a time value, calculated
on the default load size. If the amount of your
laundry is more or less than the default size,
the appliance adjusts automatically the time
value during the cycle.
2. Press to start the programme.
The display shows the door locked indicator
. The drying indicator starts to flash.
You cannot set all dryness levels for any
type of laundry.
12.3 Timed drying
The laundry can also be dried with a manual
timed drying:
1. Press again and again to set the time
value (see the «Programmes for timed
drying» table).
• The display shows 10 minutes. Each
time you press this touchpad the time
value increases by 5 minutes.
• The display shows the set time value:
for example –
.
• After some seconds the display shows
a new time value: . The appliance
calculates also the duration of the anti-
crease and the cooling phases.
2. Press to start the programme.
• The display shows regularly a new
time value.
• The drying indicator
starts to flash.
• The display shows the door locked
indicator .
If you set only 10 minutes of drying, the
appliance performs only a cooling phase.
If the laundry is not sufficient dry, set
again a short drying time.
12.4 End of the drying programme
The appliance stops automatically.
• The acoustic signals operate (if they are
active).
• In the display comes on.
• The indicator goes off.
• The last minutes of the drying cycle the
appliance performs a cooling and anti-
crease phase. The door is still locked.
24 ENGLISH
When the door locked goes off in the
display, you can open the door.
1. Turn the programme knob to to
deactivate the appliance.
After some minutes from the end of the
programme, the energy saving function
automatically deactivates the appliance.
2. Remove the laundry from the appliance.
Make sure that the drum is empty.
3. Keep the door ajar, to prevent mildew and
odours.
4. Close the water tap.
13. DAILY USE - WASHING & DRYING
WARNING!
Refer to Safety chapters.
This appliance is an automatic washer
dryer.
13.1 Non-Stop programme
1. Turn the programme knob to the desired
programme to activate the appliance.
2. Load the laundry one item at a time.
To have a good drying performance do
not exceed the maximum drying loads
recommended in the user manual. Do
not set a spin speed lower than the
automatic speed of the set programme.
3. Put the detergent and the additives in the
appropriate compartment.
4. Turn the programme dial to the washing
programme.
The display shows the indicators of the
different washing phases.
5. Set the available options.
13.2 Washing & Automatic drying
1. Press again and again until the display
shows one of the dryness level indicator:
• : IRON DRY level indicator for
cotton items
•
: CUPBOARD DRY level indicator
for cotton and synthetic items
•
: EXTRA DRY level indicator for
cotton items
The display shows the indicator . The time
value on the display is the duration of the
washing + drying cycles, calculated on a
default load size.
To have a good drying the appliance
does not let you set a too low spin speed
for the items to be washed and dried.
2. Press to start the programme.
In the display the indicator of the set dryness
level stays on.
The door locked indicator goes on.
The display shows regularly a new time
value.
The last minutes of the drying cycle the
appliance performs the anti-crease and
the cooling phases.
13.3 Washing & Timed Drying
To have a good drying the appliance does not
let you set a too low spin speed for the items
to be washed and dried.
1. Press to set the drying time value. The
display shows 10 minutes.
The indicator comes on in the display. The
display shows the set drying value time. for
example: . After some seconds the
display shows the final time value
, that
is the total duration of the washing and drying
cycles (washing + drying + anti-crease +
cooling phases).
ENGLISH 25
If you set only 10 minutes of drying after
washing, the appliance calculates also
the duration of the anti-crease and the
cooling phases.
2. Press to start the programme.
In the display the indicator comes on.
The door is locked. The display shows
regularly a new time value.
13.4 End of the programme
The appliance stops automatically. The
acoustic signals operate (if they are active).
For more information see "At the end of the
drying programme " of the previous chapter.
1. Remove the laundry from the appliance.
Make sure that the drum is empty.
2. Keep the door ajar to prevent mildew and
odours.
3. Close the water tap.
14. FLUFF IN THE FABRICS
During the washing and/or drying phase,
some types of fabric, (sponge, wool,
sweatshirt) could release fluff.
The released fluff could stick to the fabrics
during the next cycle.
To prevent the fluff in your laundry, we
recommend that you:
• Do not wash dark fabrics after you have
washed and dried light coloured fabrics
(new sponge, wool, sweatshirt ) and the
contrary.
• Line dry this type of fabrics at open air
when they are washed the first time.
• Clean the drain filter.
• After the drying phase, clean the empty
drum, the gasket and the door with a wet
cloth.
14.1 How to remove the fluff in the
garments
To remove the fluff inside the drum, set a
special programme:
1. Empty the drum.
2. Clean the drum, the gasket and the door
with a wet cloth.
3. Set the rinse programme.
4. Press at the same time and to
activate the cleaning function until the
display shows CLE.
5. Press to start the programme.
15. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
15.1 The laundry load
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that are on
the laundry care labels.
• Do not wash white and coloured items
together.
• Some coloured items can discolour with
the first wash. We recommend that you
wash them separately for the first times.
• Turn multilayered fabrics, wool and items
with painted illustrations inside out.
• Wash and pre-treat heavy soil stains with
a suitable detergent before putting in
drum.
• Be careful with the curtains. Remove the
hooks and put the curtains in a washing
bag or pillowcase.
• Do not wash laundry without hems or with
cuts. Use a washing bag to wash small
and/or delicate items (e.g. underwired
bras, belts, tights, shoelaces, ribbons,
etc. ).
26 ENGLISH
• A very small load can cause balance
problems with the spin phase leading to
excessive vibration. If this occurs:
- interrupt the programme and open the
door (refer to "Daily Use" chapter);
-manually redistribute the load so that the
items are spaced evenly around the tub;
-press the Start/Pause button. The spin
phase continues.
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts, cords,
shoelaces, ribbons and any other loose
elements.
• Empty the pockets and unfold the items.
15.2 Stubborn stains
For some stains, water and detergent is not
sufficient.
We recommend that you pre-treat these
stains before you put the items in the
appliance.
Special stain removers are available. Use the
special stain remover that is applicable to the
type of stain and fabric.
Do not spray stain remover on garments near
the appliance as it is corrosive to the plastic
parts.
15.3 Detergent type and quantity.
The choice of detergent and use of correct
quantities not only affects your wash
performance, but also helps to avoid waste
and protect the environment:
• Use only detergents and other treatments
specially made for washing machines.
First, follow these generic rules:
– powder detergents for all types of
fabric, excluding delicate. Prefer
powder detergents containing bleach
for whites and laundry sanitization,
– liquid detergents, preferably for low
temperature wash programmes (60 °C
max) for all types of fabric, or special
ones for woollens only.
• The choice and quantity of detergent will
depend on: type of fabric (delicates,
woollens, cottons, etc), the colour of
clothes, size of the load, degree of soiling,
wash temperature and hardness of the
water used.
• Follow the instructions that you find on
packaging of the detergents or other
treatments without exceeding the
indicated maximum level (
).
• Do not mix different types of detergents.
• Use less detergent if:
– you are washing a small load,
– the laundry is lightly soiled,
– there is large amounts of foam during
washing.
• When using detergent tabs or pods,
always put them inside the drum, not in
the detergent dispenser.
Insufficient detergent may cause:
• unsatisfactory washing results,
• the wash load to turn grey,
• greasy clothes,
• mould in the appliance.
Excessive detergent may cause:
ENGLISH 27
• sudsing,
• reduced washing effect,
• inadequate rinsing,
• a greater impact for the environment.
15.4 Ecological hints
To save water, energy and to help protect the
environment, we recommend that you follow
these tips:
• Normally soiled laundry may be washed
without prewash in order to save
detergent, water and time (the
environment is protected too!).
• Loading the appliance to the maximum
capacity indicated for each
programmes helps to reduce energy
and water consumption.
• With adequate pre-treatment, stains and
limited soiling can be removed; the
laundry can then be washed at a lower
temperature.
• To use the correct quantity of detergent,
refer to the quantity suggested by the
detergent producer and check the water
hardness of your domestic system. Refer
to "Water hardness".
15.5 Water hardness
If the water hardness in your area is high or
moderate, we recommend that you use a
water softener for washing machines. In
areas where the water hardness is soft it is
not necessary to use a water softener.
To know the water hardness in your area,
contact your local water authority.
Use the correct quantity of the water softener.
Obey the instructions that you find on the
packaging of the product.
15.6 Prepare the drying cycle
• Open the water tap.
• Check if the drain hose is connected
properly. Refer to installation chapter for
more information.
• For the maximum laundry load of the
drying programmes, refer to the drying
programmes table.
15.7 Items not suitable for drying
Do not set a drying programme for this
laundry:
• Synthetic curtains.
• Pieces of clothing with metal inserts.
• Nylon stockings.
• Quilts.
• Bed covers.
• Duvets.
• Anoraks.
• Sleeping bags.
• Fabrics with residue of hair sprays, nail
solvents or similar.
• Garments with foam-rubber or materials
similar to foam-rubber.
15.8 Garment labels
When you dry the laundry, obey the
indications on the labels of the
manufacturers:
• = The item can be tumble dried
• = The drying cycle is at high
temperature
•
= The drying cycle is at reduced
temperature
• = The item can not be tumble dried.
15.9 Drying cycle duration
The drying time can change depending on:
• speed of the last spin
• dryness level
• type of laundry
• weight of the load
15.10 Additional drying
If, at the end of the drying programme, the
laundry is still damp, set a short drying cycle
again.
WARNING!
To avoid creasing and shrinkage do
not overdry the laundry.
15.11 General Tips
Refer to the «Drying programmes» table to
find the average drying times.
Experience will help you to dry the laundry
better. Take note of the duration of the cycles
done before.
28 ENGLISH
To avoid the static charge at the end of the
drying cycle:
1. Use fabric conditioner in the washing
cycle.
2. Use special fabric conditioner for tumble
dryers.
When the drying programme is completed
remove the laundry promptly.
16. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
16.1 Periodic cleaning schedule
Periodic cleaning helps to extend the life
of your appliance.
After each cycle, keep the door and the
detergent dispenser slightly ajar to get air
circulation and dry the humidity inside the
appliance: this will prevent mildew and
odours.
If the appliance is not used for a long time:
close the water tap and unplug the appliance.
Indicative periodic cleaning schedule:
Descaling Twice a year
Maintenance wash Once a month
Clean door seal Every two months
Clean drum Every two months
Remove fluff inside the
drum
Twice a month
1)
Clean detergent dispens‐
er
Every two months
Clean drain pump filter Twice a year
Clean the inlet hose and
the valve filter
Twice a year
1)
Refer to ''Fluff in the fabrics'' chapter.
The following paragraphs explain how you
should clean each part.
16.2 Removing foreign objects
Make sure that pockets are empty and all
loose elements are tied up before
running your cycle. Refer to "The laundry
load" in "Hints and tips".
Remove any foreign objects (such as metal
clip, buttons, coins, etc) that you may find in
the door seal, the filters and the drum. Refer
to "Door seal with double lip trap", "Cleaning
the drum", "Cleaning the drain pump" and
"Cleaning the inlet hose and the valve filter"
paragraphs. If necessary, please contact the
Authorised Service Centre.
16.3 External cleaning
Clean the appliance with soap and warm
water only. Fully dry all the surfaces. Do not
use a scouring pads or any scratching
material.
CAUTION!
Do not use alcohol, solvents or chemical
products.
CAUTION!
Do not use the metal surfaces with
chlorine-based detergent.
16.4 Descaling
If the water hardness in your area is high or
moderate, we recommend that you use a
water descaling product for washing
machines.
Regularly examine the drum to prevent
limescale and rust particles.
ENGLISH 29
To remove rust particles use only special
products for washing machines. Do this
separately from the laundry wash.
Always obey the instructions that you find
on the packaging of the product.
16.5 Maintenance wash
With the low temperature programmes it is
possible that some detergent stays in the
drum. Perform a maintenance wash regularly.
To do this:
• Remove all laundry from the drum.
• Select the cotton programme with the
highest temperature with a small quantity
of detergent.
16.6 Door seal with double lip trap
This appliance is designed with a self
cleaning draining system, allowing light fluff
fibers that fall off the clothes to be drained out
with the water. Regularly examine the seal.
Coins, buttons, other small items can be
recovered at the end of the cycle.
Clean it when needed, using ammonia cream
cleanser agent without scratching the seal
surface.
Always obey the instructions that you find
on the packaging of the product.
16.7 Cleaning the detergent dispenser
1.
1
2
2.
3. 4.
30 ENGLISH
16.8 Cleaning the drain filter
Do not clean the drain filter if the water in the appliance is hot.
• Repeat the steps 2 and 3 until the water stops flowing out.
• Always keep a rag nearby to dry up any water spillage.
1. 2.
180°
3.
2
1
4.
1
2
5. 6.
ENGLISH 31
7.
2
1
8.
Regularly check the drain pump filter and make sure that it is clean.
Make sure that the impeller of the pump can rotate. If it does not rotate, contact the
Authorised Service Centre. Make sure also that you tighten the filter correctly to prevent
leakages.
16.9 Cleaning the inlet hose and the valve filter
1.
1
2
3
2.
32 ENGLISH
3. 4.
45°
20°
16.10 Emergency drain
Because of a malfunction, the appliance
cannot drain the water.
If this occurs, do steps (1) through (8) of
'Cleaning the drain filter'. If necessary, clean
the pump.
When you drain the water with the
emergency drain procedure, you must
activate the drain system again:
1. Put 2 litres of water in the main wash
compartment of the detergent dispenser.
2. Start the programme to drain the water.
16.11 Frost precautions
If the appliance is installed in an area where
the temperature can be less than 0° C,
remove the remaining water from the inlet
hose and the drain pump.
1. Disconnect the mains plug from the
mains socket.
2. Close the water tap.
3. Put the two ends of the inlet hose in a
container and let the water flow out of the
hose.
4. Empty the drain pump. Refer to the
emergency drain procedure.
5. When the drain pump is empty, install the
inlet hose again.
WARNING!
Make sure that the temperature is higher
than 0 °C before you use the appliance
again.
The manufacturer is not responsible for
damages caused by low temperatures.
17. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
17.1 Alarm Codes and Possible failures
The appliance does not start or it stops during operation. First try to find a solution to the problem
(refer to the tables).
WARNING!
Deactivate the appliance before carrying out any check.
ENGLISH 33
With some problems, the display shows an alarm code and the Start/
Pause button may flash continuously:
If the appliance is overloaded, remove some items from the drum
and/or keep pressed the door while touching the Start/Pause
button until the indicator stops flashing (see the picture below).
Problem Possible solution
The appliance does not fill
with water properly.
• Make sure that the water tap is open.
• Make sure that the pressure of the water supply is not too low. For this infor‐
mation, contact your local water authority.
• Make sure that the water tap is not clogged.
• Make sure that the inlet hose has no kinks, damages or bends.
• Make sure that the connection of the water inlet hose is correct.
• Make sure that the filter of the inlet hose and the filter of the valve are not clog‐
ged. Refer to 'Care and cleaning'.
The appliance does not
drain the water.
• Make sure that the sink spigot is not clogged.
• Make sure that the drain hose has no kinks or bends.
• Make sure that the drain filter is not clogged. Clean the filter, if necessary. Re‐
fer to "Care and cleaning".
• Make sure that the connection of the drain hose is correct.
• Set the drain programme if you set a programme without drain phase.
• Set the drain programme if you set an option which ends with water in the tub.
The appliance door is open
or not closed correctly.
• Make sure that the door is properly closed.
Internal fail. No communica‐
tion between electronic ele‐
ments of the appliance.
• The programme was not finished properly or the appliance stopped too early.
Switch the appliance off and on again.
• If the alarm code appears again, contact the Authorised Service Centre.
The mains supply is unsta‐
ble.
• Wait until mains supply is stable.
34 ENGLISH
If the display shows other alarm codes, deactivate and activate the
appliance. If the problem continues, contact the Authorised Service Centre.
In case of different problem with the washing machine check the table
below for possible solutions.
Problem Possible solution
The programme does not
start.
• Make sure that the mains plug is connected to the mains socket.
• Make sure that the appliance door is closed.
• Make sure that there is no damaged fuse in the fuse box.
• Make sure that the Start/Pause has been touched.
• If the delay start is set, cancel the setting or wait for the end of countdown.
• Deactivate the Child Lock function if it is on.
• Check the position of the knob on the selected programme.
The appliance fills with water
and drains immediately.
• Make sure that the drain hose is in the correct position. The hose may be posi‐
tioned too low. Refer to "Installation instruction".
The spin phase does not op‐
erate or the washing cycle
lasts longer than usual.
• Set the spin programme.
• Make sure that the drain filter is not clogged. Clean the filter, if necessary. Re‐
fer to "Care and cleaning".
• Adjust manually the items in the tub and start the spin phase again. This prob‐
lem may be caused by balance problems.
There is water on the floor.
• Make sure that the couplings of the water hoses are tight and there is not wa‐
ter leakages.
• Make sure that the water inlet hose and the drain hose have no damages.
• Make sure you use the correct detergent and the correct quantity of it.
You cannot open the appli‐
ance door.
• Make sure that a washing programme that ends with water in tub, has not
been selected.
• Make sure that the washing programme is finished.
• Set the drain or the spin programme if there is water in the drum.
• Make sure that the appliance receives electrical power.
• This problem may be caused by a failure of the appliance. Contact the Author‐
ised Service Centre.
If you need to open the door, please read carefully "Emergency door opening".
The appliance makes an un‐
usual noise and vibrates.
• Make sure the levelling of the appliance is correct. Refer to "Installation in‐
struction".
• Make sure that the packaging and/or the transit bolts are removed. Refer to
"Installation instruction".
• Add more laundry in the drum. The load may be too small.
The programme duration in‐
creases or decreases during
programme execution.
• The ProSense System is able to adjust the programme duration according to
the type and the laundry load size. Refer to "The ProSense System load de‐
tection" in "Daily Use" chapter.
The washing results are not
satisfactory.
• Increase the detergent quantity or use a different detergent.
• Use special products to remove the stubborn stains before you wash the laun‐
dry.
• Make sure that you set the correct temperature.
• Decrease the laundry load.
ENGLISH 35
Problem Possible solution
Too much foam in the drum
during the washing cycle.
• Reduce the quantity of detergent.
After the washing cycle,
there are some detergent
residues in the dispenser
drawer.
• Make sure that the flap is in the correct position (UP for powder detergent -
DOWN for liquid detergent).
• Make sure you have used the detergent dispenser according the indications
given in this user manual.
The appliance does not dry
or does not dry correctly.
• Turn the water tap on.
• Make sure the drain filter is not clogged.
• Reduce the laundry load.
• Make sure you have set the correct cycle. if necessary, set again a short dry‐
ing time.
The laundry is full of different
colours fluff.
The fabrics washed in the previous cycle released fluff of a different colour:
• The drying phase helps to eliminate some fluff.
• Clean the clothes with a fluff remover.
In case of an excessive amount of fluff in the drum run the special programme to
clean it (refer to “Fluff in the fabrics" for more details).
After the check, activate the appliance. The programme continues from the
point of interruption.
If the problem occurs again, contact the Authorised Service Centre.
The necessary data for the service centre are on the rating plate.
17.2 Emergency door opening
In case of power failure or appliance failure
the appliance door remains locked. The
washing programme continues, when the
power is restored. If the door remains locked
in case of failure, it is possible to open it
using the emergency unlock feature.
Before opening the door:
CAUTION!
Make sure that the water temperature
and the laundry are not hot. Wait till
they cool down, if necessary.
CAUTION!
Make sure that the drum is not
rotating. Wait till the drum stops
rotating, if necessary.
Make sure that the water level inside
the drum is not too high. Proceed with
an emergency drain, if necessary
(refer to «Emergency drain» in «Care
and cleaning» chapter).
To open the door, proceed as follows:
1. Turn the selector to position to switch
the appliance off.
2. Disconnect the mains plug from the
mains socket.
3. Open the filter flap.
4. Keep the emergency unlock trigger pulled
downward and, at the same time, open
the appliance door.
36 ENGLISH
5. Take out the laundry and then close the
appliance door.
6. Close the filter flap.
18. CONSUMPTION VALUES
18.1 Introduction
See the web link www.theenergylabel.eu for detailed information
about Energy Label.
The QR code on the energy label supplied with the appliance
provides a web link to the product information sheet. Keep the
energy label for reference together with the user manual and all
other documents provided with this appliance.
18.2 Legend
kg Laundry load. hh:mm Programme duration.
kWh Energy consumption. °C Temperature in the laundry.
Litres Water consumption. rpm Spin speed.
% Remaining moisture at the end of the cycle. The higher is the spin speed, the higher is the noise and
the lower is the remaining moisture at the end of washing cycle.
Values and programme duration may differ depending on different conditions (e.g. room
temperature, water temperature and pressure, load size and type of laundry, supply
voltage) and also if you change the default setting of a programme.
ENGLISH 37
18.3 According to UK Ecodesign for
Energy-Related Products and
Energy Information Regulations
Washing only
Eco 40-60 pro‐
gramme
kg kWh Litres hh:mm % °C
rpm
1)
Full load 9 0.820 55,0 3:40 52,00 35,0 1551
Half load 4.5 0.540 45,0 2:35 52,00 33,0 1551
Quarter load 2.5 0.185 38,0 2:30 54,00 23,00 1551
1)
Maximum spin speed.
Wash and dry cycle
Eco 40-60 pro‐
gramme and Cup‐
board dry level
kg kWh Litres hh:mm % °C
rpm
1)
Full load 6.0 3.795 87,0 7:45 0,00 27,0 1551
Half load 3.0 1.980 58,0 5:00 0,00 25,0 1551
1)
Maximum spin speed.
Power consumption in different modes
Off (W) Stand-by (W) Delay start (W)
0.30 0.30 4.00
Time to Off/Standby mode is 15 minutes maximum.
18.4 Common programmes -
Washing only
These values are indicative only.
Programme
kg kWh Litres hh:mm % °C
rpm
1)
Cottons
2)
90°C
9 2.700 90,0 4:05 44,00 85,0 1600
Cottons
60°C
9 1.600 85,0 3:50 44,00 55,0 1600
Cottons
3)
20°C
9 0.350 85,0 3:00 44,00 20,0 1600
38 ENGLISH
Programme
kg kWh Litres hh:mm % °C
rpm
1)
Synthetics
40°C
4 0.800 55,0 2:15 35,00 40,0 1200
Delicates
4)
30°C
2 0.400 60,0 1:05 35,00 30,0 1200
Wool
30°C
1.5 0.300 65,0 1:05 30,00 30,0 1200
1)
Reference indicator of the spin speed.
2)
Suitable for washing heavily soiled textiles.
3)
Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.
4)
It also performs as quick washing cycle for lightly soiled laundry.
18.5 Common programmes - Wash
and dry
These values are indicative only.
Programme
kg kWh Litres hh:mm % °C
rpm
1)
Synthetics
40°C
4 2.800 85,0 5:00 1,00 40,0 1200
1)
Reference indicator of the spin speed.
19. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put the
packaging in relevant containers to recycle it.
Help protect the environment and human
health by recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol with
the household waste. Return the product to
your local recycling facility or contact your
municipal office.
ENGLISH 39
*
157079291-A-062024
