OWNER’S GUIDE &
INSTALLATION
INSTRUCTIONS
GE is a trademark of the General Electric Company. Manufactured under trademark license.
PFH18
ENGLISH/ESPAÑOL
CLOSET
FABRIC CARE
SAFETY INFORMATION ...........2
USING THE APPLIANCE
Getting Started ...................... 4
CARE AND CLEANING ...........20
INSTALLATION
INSTRUCTIONS ....................22
TROUBLESHOOTING TIPS ..... 30
LIMITED WARRANTY ...........35
CONSUMER SUPPORT .......... 36
Write the model and serial
numbers here:
Model #
_________________
Serial # _________________
They are on the label on
the front of the dryer
behind the door.
49-3000408 Rev 0
07-24
MFL71825956
2 49-3000408 Rev 0
READ AND SAVE THESE INSTRUCTIONS
To reduce the risk of death, fire, explosion, electric shock, or injury to persons when using
your appliance, follow basic precautions, including the following:
Ŷ
Read all instructions before using the appliance.
Ŷ
Follow all fabric care instructions and warnings to prevent melting of garments or damage to the appliance.
Ŷ
DO NOT place clothing or items that have been previously cleaned in, washed in, soaked in or spotted with
gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could
ignite or explode.
Ŷ
DO NOT use fabric softeners or products to eliminate static unless recommended by the manufacturer of the
fabric softener or product.
Ŷ
DO NOT use consumables unless recommended by the manufacturer of the product.
Ŷ
DO NOT add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water.
These substances give off vapors that could ignite or explode.
Ŷ
DO NOT place items exposed to cooking oils in your unit. Items contaminated with cooking oils may contribute
to a chemical reaction that could cause a load to catch fire.
Ŷ
DO NOT use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
Ŷ
Clean the lint screen before or after each cycle.
Ŷ
DO NOT store combustible materials, gasoline or other flammable liquids near the unit. Keep area around the
air intake vent on the front of the unit and adjacent surrounding areas free from the accumulation of lint, dust
and dirt.
Ŷ
The interior of the appliance should be cleaned periodically by qualified service personnel.
Ŷ
DO NOT spray any type of aerosol into, on or near the unit at any time. DO NOT use any type of spray
cleaner when cleaning the interior. Hazardous fumes or electrical shock could occur.
Ŷ
Risk of suffocation and injury from entrapment: DO NOT allow children to play on or in this appliance. Close
supervision of children is necessary when this appliance is used near children. Before the appliance is
removed from service or discarded, remove the door or lid. Failure to follow these instructions may result in
death or injury to persons.
Ŷ
DO NOT reach into the appliance if the hangers moving to prevent accidental entanglement.
Ŷ
DO NOT install or store this appliance where it will be exposed to the weather.
Ŷ
DO NOT tamper with controls, repair or replace any part of this appliance or attempt any servicing unless
specifically recommended in the user maintenance instructions or in published user repair instructions that you
understand and have the skills to carry out.
Ŷ
DO NOT climb or stand on this unit.
Ŷ
DO NOT operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or
broken parts including a damaged cord or plug.
Ŷ
Unplug the appliance or turn off the circuit breaker before servicing. Pressing the Power pad DOES NOT
disconnect power.
Ŷ
See “ELECTRICAL REQUIREMENTS” located in the Installation Instructions for grounding instructions.
Ŷ
DO NOT use replacement parts that have not been recommended by the manufacturer. (e.g. parts made at
home using a 3D printer).
Ŷ
DO NOT place hands or body near steam nozzle during operation. The steam is hot and could cause injury.
Ŷ
DO NOT open door during operation. The performance of the product may be adversely affected. If the
product is installed on or near carpet, condensation from hot air or steam may stain or damage the carpet.
WARNING
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
49-3000408 Rev 0 3
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
4 49-3000408 Rev 0
Getting started
USING THE APPLIANCE

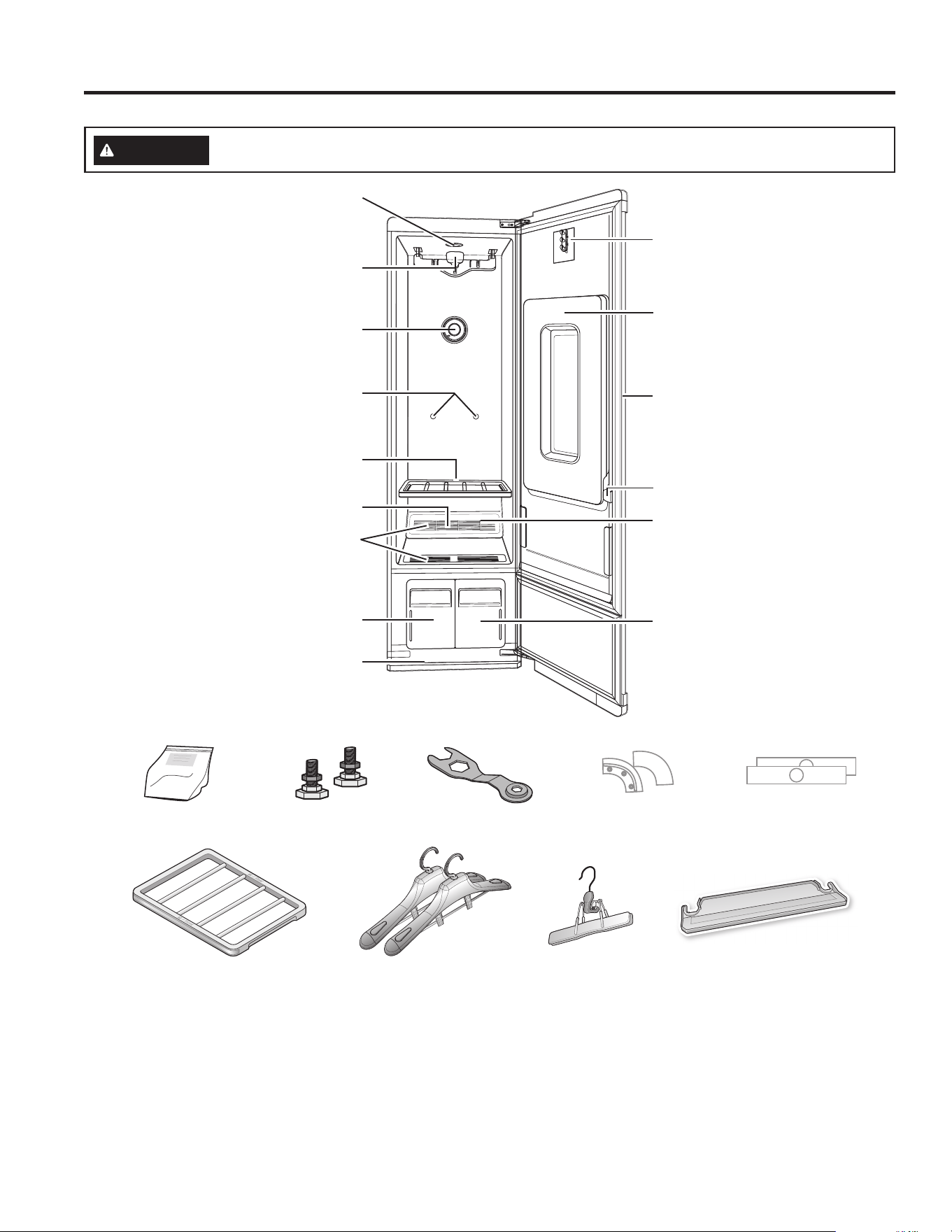

Shelf 2 hangers Pants hanger Drip Tray
An ordinary metal/plastic hanger can be used if the hook is less than 5/32 in. (4 mm) thick. The hook must fit in the
indentation in the moving hanger snugly. If the fit is too loose, it may result in vibration, noise, and damage to clothing.
NOTE: For your safety and for extended product life, use only authorized components. The manufacturer is
not responsible for product malfunction or accidents caused by the use of separately purchased unauthorized
components or parts.
*The door swing can be reversed by the installer to fit the installation location - Order part PFA18REVW - Door Reversing
Kit - on-line at GEApplianceparts.com today, 24 hours a day or by phone at 877.959.8688 during normal business
hours.
Throughout this manual, features and appearance may vary from your model.
To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY
INFORMATION before operating this appliance.
WARNING
Hooks for pants
crease care
Pants crease care
Door*
Clip
Steam nozzle
Water drain tank
Aroma filter
Shelf
Shelf holder
Interior light
Moving hanger
Interior light
Water supply tank
Drip tray
Hot air circulation vent

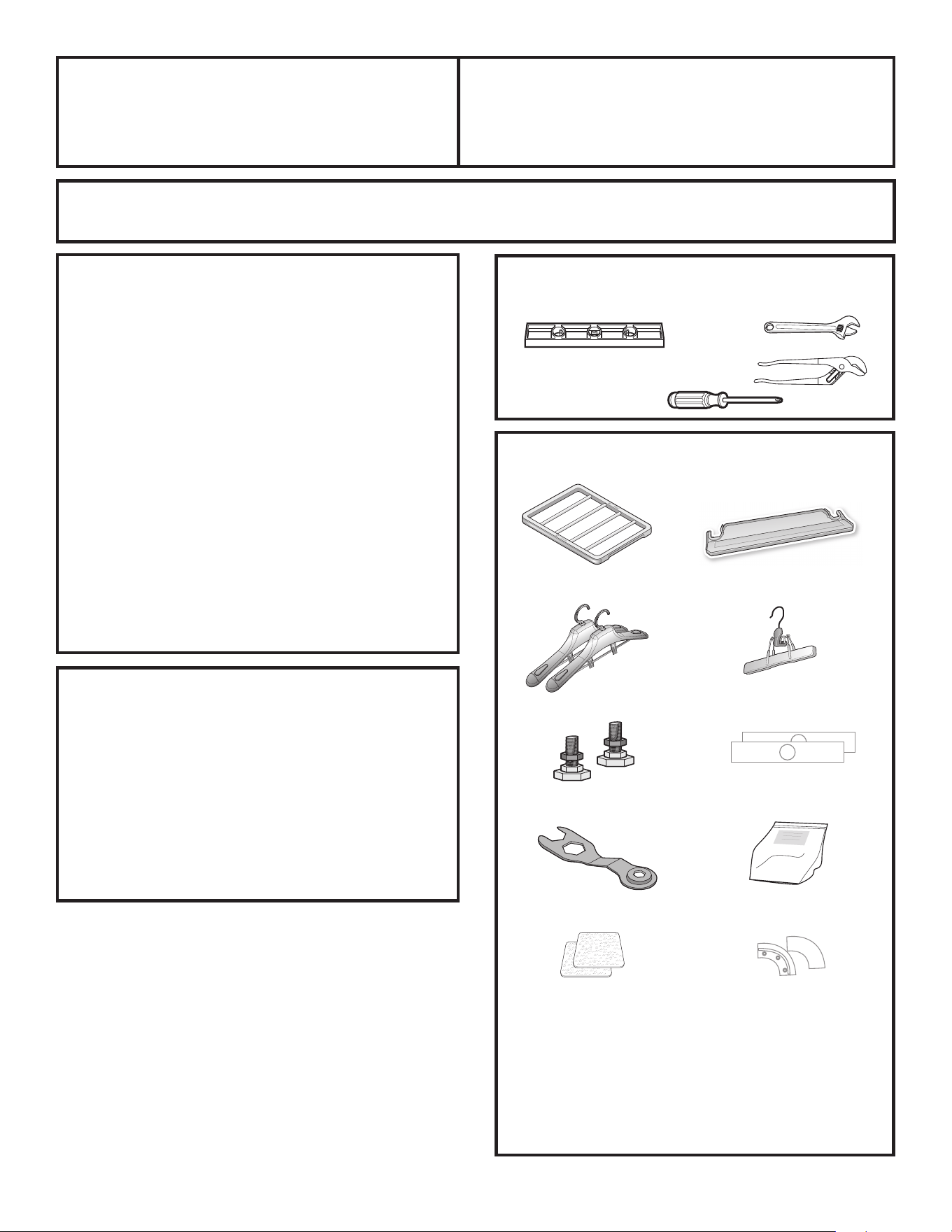

Anti-Tip Kit 2 Rear Leveling Feet Wrench 2 Rear Cap Covers 2 Hinge Covers
49-3000408 Rev 0 5
USING THE APPLIANCE
Getting started
Operation - Before Use
Clean the Fabric care closet
Clean the fabric care closet thoroughly and wipe off all dust that accumulated during shipping. See Care and
Cleaning section. Do not plug in or operate the appliance until the interior and exterior have thoroughly dried.
NOTES:
Ŷ
Do not scratch the fabric care closet with a sharp object or use a detergent that contains alcohol, bleach, a
flammable liquid or an abrasive when removing any tape or adhesive from the fabric care closet.
Ŷ
Do not peel off the model or serial number label or the technical information on the rear surface of the fabric care
closet.
Ŷ
Remove adhesive residue by wiping it off with your thumb or dish detergent.
Unpack accessories
Unpack the shelf and hangers. For instructions on installing or using accessories, see the Loading section.
Assemble the drip tray
Insert the drip tray at the bottom of the cabinet. See last step of Assembling the Drip Tray section.
Connect the power supply
Check if the power supply is connected before use.
Wash dirty clothes if necessary before putting them in the Fabric care closet
The fabric care closet does not have a washing function. Stains and loose dirt from one item may transfer to others
during a cycle. Wash or brush off dust and dirt, or spot-clean items, to avoid setting stains or transferring dirt or
odors.
6 49-3000408 Rev 0
Getting started
USING THE APPLIANCE
Using the Fabric care closet
1. Prepare Items
Ŷ
Wash clothes first, if needed.
Ŷ
No heat-sensitive items or items that can be damaged by exposure to water. See Choosing fabric care closet-
Safe Clothing section.
Ŷ
Place items on hangers or the shelf.
Ŷ
Fasten buttons and close zippers to keep items on moving hangers and prevent damage.
2 Clean Lint Filter, Change Sheet In Aroma Filter
Lift out filter and remove lint from last load for faster and more efficient performance. Reinstall filter, checking
alignment when closing grill. Do not operate the fabric care closet without the lint filter in place. See Checking the
Lint Filter section. If using a fabric softener sheet in the aroma filter, change it after every use. See Changing the
Aroma Sheet section
3. Check Water Tanks
Fill water supply tank if needed. Empty water drain tank if needed. Use clean tap water in the supply tank for better
product performance and lifespan. Do not use distilled water or reuse water from the drain tank. See
Care and
Cleaning section.
4. Load Fabric care closet
Pay attention to fabric care labels and cycle choice. If clothing is not appropriate for the cycle selected, it may shrink
or be seriously damaged. See Loading section. Remove all empty hangers to avoid noise, friction, and damage to
clothing.
5. Turn on Fabric care closet
Touch the Power pad to turn on.
6. Select Cycle
Touch pad to select desired cycle and settings. See the Cycle Guide section.
7. Begin Cycle
Touch and hold Start/Pause pad to begin cycle. Pause cycle at any time by touching Start/Pause again. Restart
cycle within four minutes of pausing it, or the fabric care closet shuts off and settings are lost. Do not open door
during cycle. If steam or hot air escape from open door, condensation may collect on floor or walls, resulting in
damage or mold.
8. End of Cycle
Remove items when cycle finishes. Leave door open to let hot air escape. Interior light shuts off after 4 minutes if
door is left open.
49-3000408 Rev 0 7
USING THE APPLIANCE
Getting started

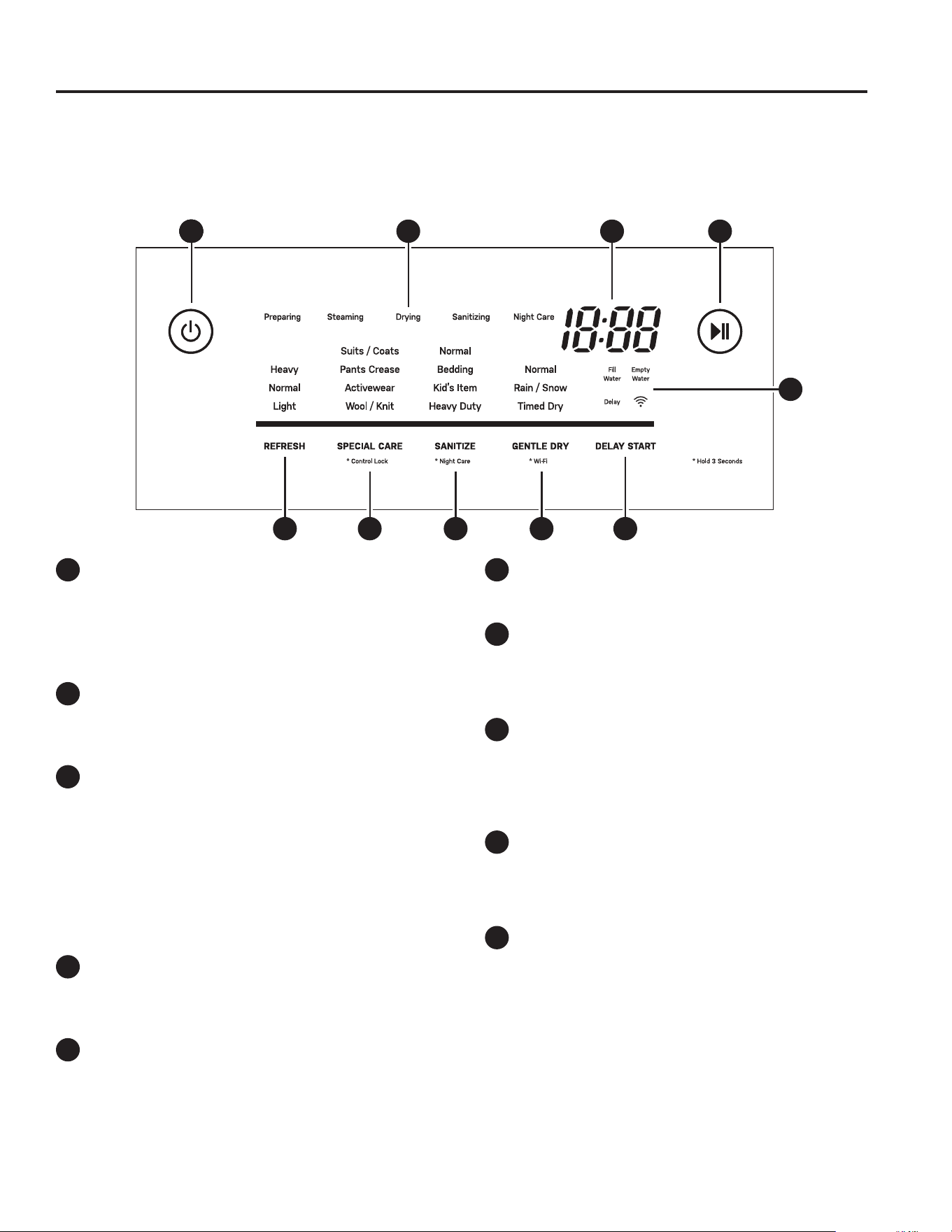

Control Panel
This unit utilizes capacitive touch. A light touch is enough to operate it. Use a cloth when cleaning the controls to
avoid contacting and activating the keys. Foreign substances on the control, wearing gloves, or touching the keys
through cloth may prevent the keys from activating.
1
Power On/Off
Touch Power to turn the fabric care closet ON/OFF. Once
the cycle is complete, the fabric care closet automatically
turns off after a few seconds if no keys are touched.
NOTE: Touching Power during a cycle will cancel
that cycle and the cycle settings will be lost.
2
Cycle Indicator
This portion of the display shows which stage of the styling
cycle is currently underway (Preparing, Steaming, Drying,
Sanitizing, or Night Care).
3
Option And Alert Indicators
Delay On: lights when the Delay Start
feature is set.
Fill Water: lights when the water supply tank is missing or
empty.
Empty Water: lights when the water drain tank is missing
or full.
Night Care: lights when the Night Care feature is set.
Wi-Fi: lights when the Wi-Fi function is set.
4
Time Display
The display shows the estimated time remaining and error
messages for the Fabric care closet. The cycle time may
vary by usage conditions.
5
Start/Pause
Touch and hold to start the selected cycle. If the Fabric care
closet is running, touch to pause the cycle without losing
the current settings.
NOTE: If you do not touch Start/Pause to resume a cycle
within
an hour of pausing it, the Fabric care closet turns off
automatically.
6
Refresh
Touch the icon to select a Refresh cycle. Touch repeatedly to
toggle through the settings. See the Cycle Guide section.
7
Special Care / *Control Lock
Touch the icon to select a Special Care cycle. Touch
repeatedly to toggle through the settings. Touch and hold
the icon for three seconds to activate/deactivate the Control
Lock function. See Locking the Controls section.
8
Sanitize / *Night Care
Touch the icon to select a SANITIZE cycle. Touch
repeatedly to toggle through the settings. See the Cycle
Guide section. Touch and hold the icon for three seconds
to activate/deactivate the Night Care function. See Night
Care section.
9
Gentle Dry/ *Wi-Fi
Touch the icon to select a Gentle Dry cycle. Touch
repeatedly to toggle through the settings. Press and hold
for three seconds to activate the Wi-Fi function. See Smart
Functions section.
10
Delay Start
Set a delayed start time for the cycle. See Setting a
Delayed Start Time section. Delay Start cannot be
selected with the Night Care cycle.
Depending on the model, some of the following functions may not be available.
1 2 4 511111
6
3
7 8 9 10
8 49-3000408 Rev 0
Getting started
Cycle Guide
USING THE APPLIANCE
Cycle Processes
Ŷ
Preparing heats the water in the tank in preparation for supplying steam.
Ŷ
Steaming sprays steam on the clothes.
Ŷ
Sanitizing removes germs from the clothes.
Ŷ
Drying removes moisture in the clothes.
Cycle Processes
Cycle Setting Clothing / Fabric Type
Est.
time in
Hr.: Min.
Prepare Steam Sanitize Dry
Refresh Cycle
Normal
suit, coat, school uniform, scarf,
washable wool, knitwear, outdoor/
performance clothing, towels,
denim wear, t-shirts, socks,
lingerie, sportswear, tablecloths
48
•• •
Light 20
•• •
Heavy 1:07
•• •
Special Care
Cycle
Suits/Coats
Specially designed to quickly
reduce odors from suits and coats.
35
•• •
Pants Crease
Use with Pants Crease Care.
Designed to accentuate the
creases in pants.
1:07
•• •
Sanitize Cycle
Normal
Same as Refresh cycle, excluding
wool and knitwear. Check Fabric
Care Guide sections and fabric
care labels in garments before
use. Natural fibers must be
marked washable/hand-washable
and tumble dry, to avoid shrinkage.
Do not use with items containing
rubber, foam, or adhesive.
1:28
••••
Bedding 1:43
••••
Kid's Item 1:43
••••
Heavy Duty 2:13
••••
Gentle Dry Cycle
Normal
Same as Refresh Cycle. Gentle
Dry is also safe for many
nonwashable garments such
as silk ties, blouses, and other
garments made from natural fibers
such as 100% wool, cashmere,
camel hair, and alpaca. See
Choosing Fabric care closet-
Safe Clothing section and always
check garment labels before using.
2:00
•
Rain/Snow 58
•• •
Time Dry 30-2:30
•
49-3000408 Rev 0 9
Getting started
Choosing A Cycle
Fabric care closet cycles are designed to fit a variety of situations. Select the cycle and setting that best match
the load contents and desired results for maximum performance and fabric care. For best results, pay attention
to garment care labels and choose a cycle that is appropriate for the fabric content of the items. See the Fabric
Care Guide section. For a guide to the symbols used on fabric care labels. Touch the cycle selector icon to select
the desired cycle. Press the icon repeatedly to select the desired setting. When you select a cycle, the light for the
default setting will turn on. See Using the Fabric care closet section for more details on operating methods.
Refresh Cycle
Use the Refresh cycle to reduce odors and wrinkles and to dry items. This cycle uses steam and should only be used
with washable items. The cycle is safe for washable wool and knitwear.
Sanitize Cycle
Use the Sanitize cycle to reduce germs and to dry items. Choose this cycle for clothing, bedding,and children's
clothing and soft toys. Quilts or blankets should be a single layer and weigh 3.3 lb (1.5 kg) or less. Do not use this
cycle for wool or knitwear, because the high temperatures and steam can cause shrinkage.
Gentle Dry Cycle
Use the Gentle Dry cycle to reduce odors and wrinkles and to dry items. Use this cycle to sanitize and reduce at
least 99% of bacteria and fungi in textiles and garments with innovative laundry technology that works to deeply
refresh fibers. Choose this cycle for non-washable fabrics like cashmere. There is also a downloadable dry cycle
called Air Fresh for use with fur and leather items. See Smart Functions section.
Rain/Snow
Select this setting to refresh and gently dry damp clothing.
USING THE APPLIANCE
10 49-3000408 Rev 0
Getting started
USING THE APPLIANCE

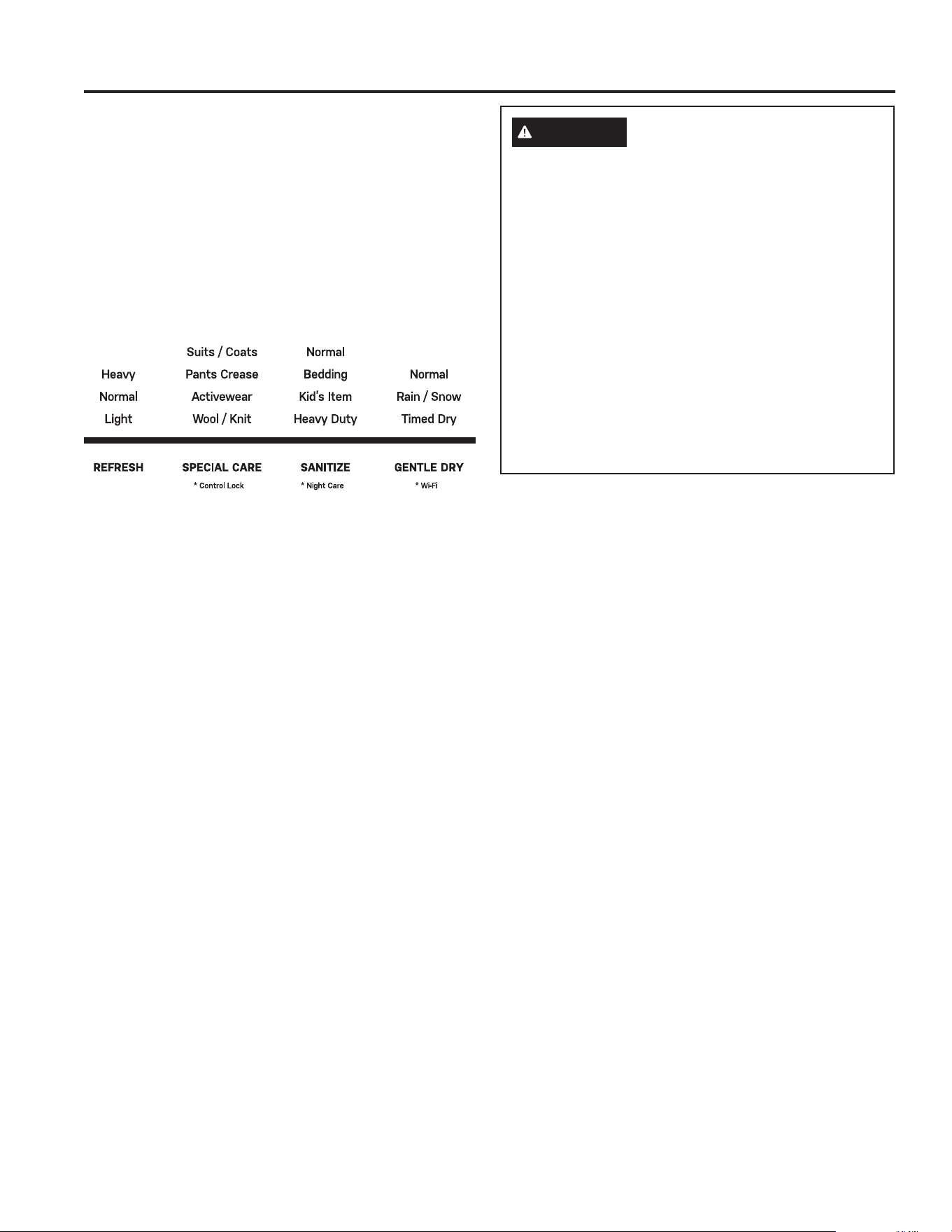

Cycle Settings And Options
Cycle Selector Icons
To change the settings during the cycle, touch Start/Pause
to pause the cycle, then touch the relevant cycle selector
icon to change settings.
Ŷ
Touch the Start/Pause pad to activate the control
panel.
The cycle selected and the Start/Pause pad start
blinking.
Select a Cycle
1. Touch Power.
2. Touch the cycle selector icon repeatedly until the
desired cycle and setting is illuminated.
3. Touch Start/Pause.
Changing Settings During a Cycle
1. Touch Start/Pause to pause the cycle.
2. Touch the relevant cycle selector icon to change
settings.
NOTES:
Ŷ
During the Refresh and Sanitize cycles, the machine
will make a boiling and hissing sound as water is boiled
to make steam and steam is sprayed on clothes. This is
normal.
Ŷ
The moving hanger will move even when only the shelf
is being used.
Ŷ
Cycle times may vary depending on the usage
environment, including water temperature.
Ŷ
Cycle time for the Gentle Dry cycle varies depending
on moisture level of items.
Ŷ
Dryness uniformity may vary based on thickness of
clothing.
Ŷ
If the Sanitize cycle is changed to a Refresh or Gentle
Dry cycle during operation, the sanitize process is not
performed.
Extra Functions
Some pads also activate special functions, including
Control Lock, Night Care, Delay Start, and Wi-Fi.
Locking the Controls
Use Control Lock to prevent unwanted use of the fabric
care closet or to keep cycle settings from being changed
while the fabric care closet is operating.
1. Touch and hold the Special Care icon for three
seconds to activate or deactivate the Control Lock
function.
2. "CL" appears in the display, and all controls are
disabled except the Power pad.
Ŷ
Control Lock does not lock the door.
Ŷ
The Control Lock setting is retained even if there is a
power outage.
Ŷ
Once set, Control Lock remains active until it
is manually deactivated. Control Lock must be
deactivated to run another cycle.

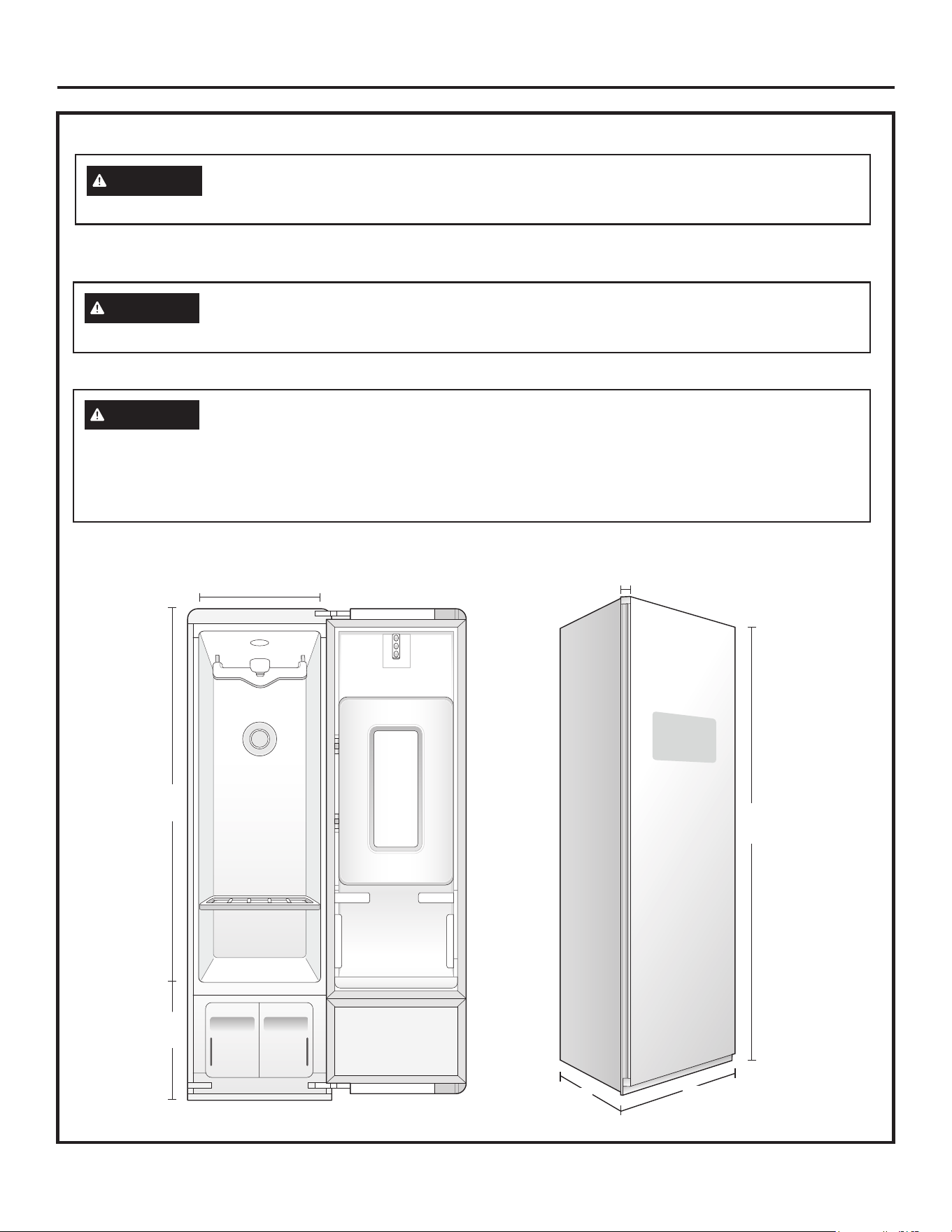

WARNING
Ŷ
Do not open the door during operation. There is a
risk of burns or injury from escaping hot air or steam.
Ŷ
Do not allow steam or hot air to escape the cabinet
during operation. Opening the door during operation
also affects performance, lengthens drying time, and
results in water condensing and collecting on the
floor.
Ŷ
Do not put very wet items in the fabric care closet
to dry. Shake off or wring out excess water before
putting items in the cabinet to dry. If a large amount
of water pools in the cabinet, drying performance
may suffer or the product may be damaged.
Ŷ
Remove or store the shelf when hanging longer
items so items will not get wrinkled.
Ŷ
Fasten buttons and zippers on hanging clothes
to prevent them from falling off hangers during
operation. Fasten the neck area with cotton string if
there is no button or zipper.
49-3000408 Rev 0 11
Getting started
USING THE APPLIANCE
Setting a Delayed Start Time
Use the Delay Start function to delay the start time of the
cycle.
1. Touch Power.
2. Touch the cycle selector icon for the desired cycle.
3. Touch Delay Start to set the start time of the cycle.
The default delay time is three hours. Each time you
touch the pad, the time increases by an hour, up to 19
hours.
Ŷ
Touch and hold the pad to increase the delay time more
quickly.
Night Care
Use the Night Care function to store items overnight or
anytime items cannot be removed soon after a cycle
ends. Night Care periodically produces warm air to
prevent condensation, keeping items warm and dry until
they are removed.
Ŷ
Once set, the Night Care function starts after the
selected cycle ends.
Ŷ
The Night Care function cannot be set to follow a
Gentle Dry cycle.
Ŷ
Night Care settings are lost if the Power pad is
pressed.
Ŷ
Night Care runs for a maximum of 24 hours.
Ŷ
It is safe to open the door at any time during the Night
Care function, even when the air is blowing.
Ŷ
It is normal for the Night Care function to make noise
periodically as it produces warm air.
Press and hold SANITIZE for three seconds to select the
night care function.
Setting the Night Care Function
1. Place clothes into the fabric care closet.
2. Touch cycle selector icon repeatedly until desired cycle
setting is selected.
3. Press and hold SANITIZE for three seconds to
illuminate the LED and activate Night Care.
4. Touch Start/Pause.
5. To cancel Night Care, touch another cycle selector
icon.
WARNING
Ŷ
Do not open the door during operation. There is a
risk of burns or injury from escaping hot air or steam.
Ŷ
Do not allow steam or hot air to escape the cabinet
during operation. Opening the door during operation
also affects performance, lengthens drying time, and
results in water condensing and collecting on the
floor.
12 49-3000408 Rev 0
Getting started
USING THE APPLIANCE
Sorting Loads

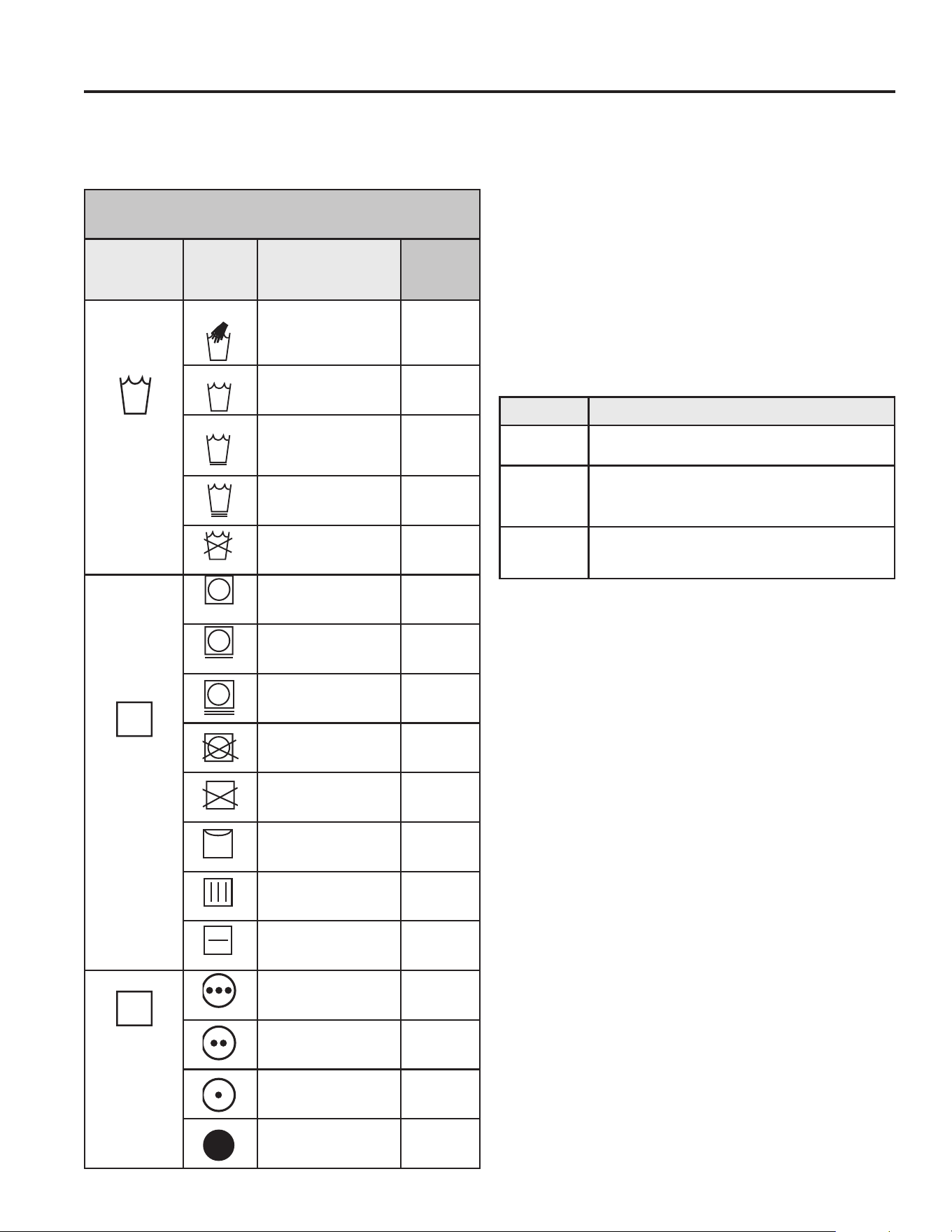

Fabric Care Labels
Most articles of clothing feature fabric care labels that
include instructions for proper care. Below are some of
the symbols that are relevant to choosing appropriate
items for the Fabric care closet.
*Some items such as fur and leather which are labeled
as do not wash can be used with the fabric care closet.
See the Fabric Care Guide section.
Grouping Similar Items
Ŷ
For best fabric care results, always treat fabrics with
similar care requirements together.
Ŷ
Different fabrics have different care requirements, and
some fabrics cannot be treated in certain Fabric care
closet cycles or should be treated separately.
Choosing Recommended Clothing
Some items are not appropriate for use with this
product.
Ŷ
Do not put the following items in the Fabric care closet.
Ŷ
Follow fabric care labels.
Ŷ
Do not put items that are sensitive to heat or are not
suitable for washing with water in fabric care closet
cycles that use steam. Use the Gentle Dry cycle only.
Ŷ
Fur, leather (only 100% natural leather), and silk items
should only be treated with the Gentle Care cycle.
Ŷ
Using the wrong cycle for items can result in damage to
fabrics.
Ŷ
Wash heavily soiled or stained clothes before putting
them in the fabric care closet. The fabric care closet
does not have a washing function. Loose soil or stains
can be transferred between garments during cycles.
Ŷ
Treat items with an unpleasant odor in a separate load.
Odors can be transferred between items during cycles.
Ŷ
Some odors can be difficult to remove. Odors from oily
substances may be difficult for the steam to penetrate.
Odors from extended storage may also be difficult to
remove.
Ŷ
Wrinkles may remain in some items. Wrinkles caused
by extended storage may be difficult to reduce.
Wrinkles in cotton or linen may not be reduced
completely.
Fabric care labels that can be used with the...
Category Label Meaning
Fabric
care
closet
Washing
Labels
Hand Wash
9
Machine Wash,
Normal Cycle
9
Perm Press/
Wrinkle
Resistant
9
Gentle/Delicate
9
Do Not Wash
9*
Drying
Labels
Normal
9
Permanent Press/
Wrinkle Resistant
9
Gentle/Delicate
9
Do Not Tumble
Dry
9
Do Not Dry
NO
Line/Hang Dry
9
Drip Dry
9
Dry Flat
9
Dryer Heat
Setting
Labels
High
9
Medium
9
Low
9
No Heat/Air Dry
NO
Category Non-Recommended Items
Clothes starched clothes, vinyl
Bedding/
Blankets
electric blankets, heavy blankets
(double layer or over 3.3 lb [1.5
kg])
Other
shoes, items made with sponge
rubber, items with adhesives
49-3000408 Rev 0 13
Getting started
USING THE APPLIANCE
Fabric Clothes
Refresh Cycle
Sanitize
Cycle
Gentle
Dry
Cycle
Comments
Reducing
Wrinkles
Removing
Odors
natural fibers
Cotton
towels, socks,
underwear,
jeans,
sportswear,
t-shirts, blankets
ŶŶŶ
Wrinkles may
remain in 100%
cotton fabrics.
Iron after cycle, if
desired.
Linen,
Hemp,
Ramie
summer clothes,
tablecloths
ŶŶŶ
Some wrinkles
may remain. Make
sure fabrics are
washable/hand
washable if using
Refresh/Sanitize
cycles. Lay clothes
on shelf if delicate.
Do not style
starched clothes.
Alpaca,
Camel Hair,
Cashmere
coats, suits
§§§
Ŷ
Lay knits on the
shelf. Alpaca and
camel hair shrink
in hot water.
scarves,
knitwear
§
Ŷ
Fur,
Leather
coats, scarves
Ŷ
Only use 100%
OHDWKHUQRDUWL¿FLDO
leather).
Silk
silk neckties,
ribbons,
scarves,
blouses, silk
velvet/plush
Ŷ
*Only use
downloaded Air
Fresh cycle (low
temperature
drying).
Wool
sweaters,
knitwear
§
Ŷ
Lay knits on shelf.
Some wool shrinks
when washed in
hot water. Make
sure fabrics are
washable/hand
washable if using
Refresh/Sanitize
cycles. Gentle Dry
cycle is safe for
most.
winter
coats, suits,
sportswear,
uniforms
ŶŶŶŶ
Fabric Care Guide
Ŷ
= Yes
§ = Check Label
14 49-3000408 Rev 0
Getting started
USING THE APPLIANCE
Fabric Care Guide (Cont.)
Ŷ
Fabrics come in a wide variety of weights and finishes and can have different care requirements for each variety. It is
difficult to cover them adequately in this manual. Before using the fabric care closet with any item, check the care label
before proceeding. Do not put items that are not colorfast, are heatsensitive, or are not suitable for washing with water
in the Refresh or Sanitize cycles. Do a water blot test on a small, inconspicuous spot (an inside seam) to determine if
the fabric is colorfast. For further assistance, consult the clothing manufacturer, a dry cleaning professional, or a more
detailed fabric care guide.
Ŷ
Using the fabric care closet with items that are very wet or are not colorfast may result in damage to the items and
staining from fabric dyes on the interior of the cabinet. These stains will not affect the operation of the fabric care
closet. Use toothpaste to remove stains from interior of cabinet.
Ŷ
The fabric care closet does not have a washing function. Wash soiled items before use.
Ŷ
= Yes
§ = Check Label
Fabric Clothes
Refresh Cycle
Sanitize
Cycle
Gentle
Dry
Cycle
Comments
Reducing
Wrinkles
Removing
Odors
Synthetic Fibers
Acetate
suit lining,
blouses,
neckties,
pajamas
ŶŶŶŶ
Acrylic
thermal
underwear,
knitwear
ŶŶŶŶ
Lay clothes on shelf
Nylon
stockings,
lingerie
ŶŶŶŶ
Lay clothes on shelf
sportswear,
curtains
ŶŶŶŶ
Polyurethane
stretchable
clothing
(containing
less than
5%)
ŶŶŶŶ
If the item contains more
than 5% polyurethane
(swimwear), check label
for care
Rayon suit lining
ŶŶŶŶ
49-3000408 Rev 0 15
Getting started
USING THE APPLIANCE

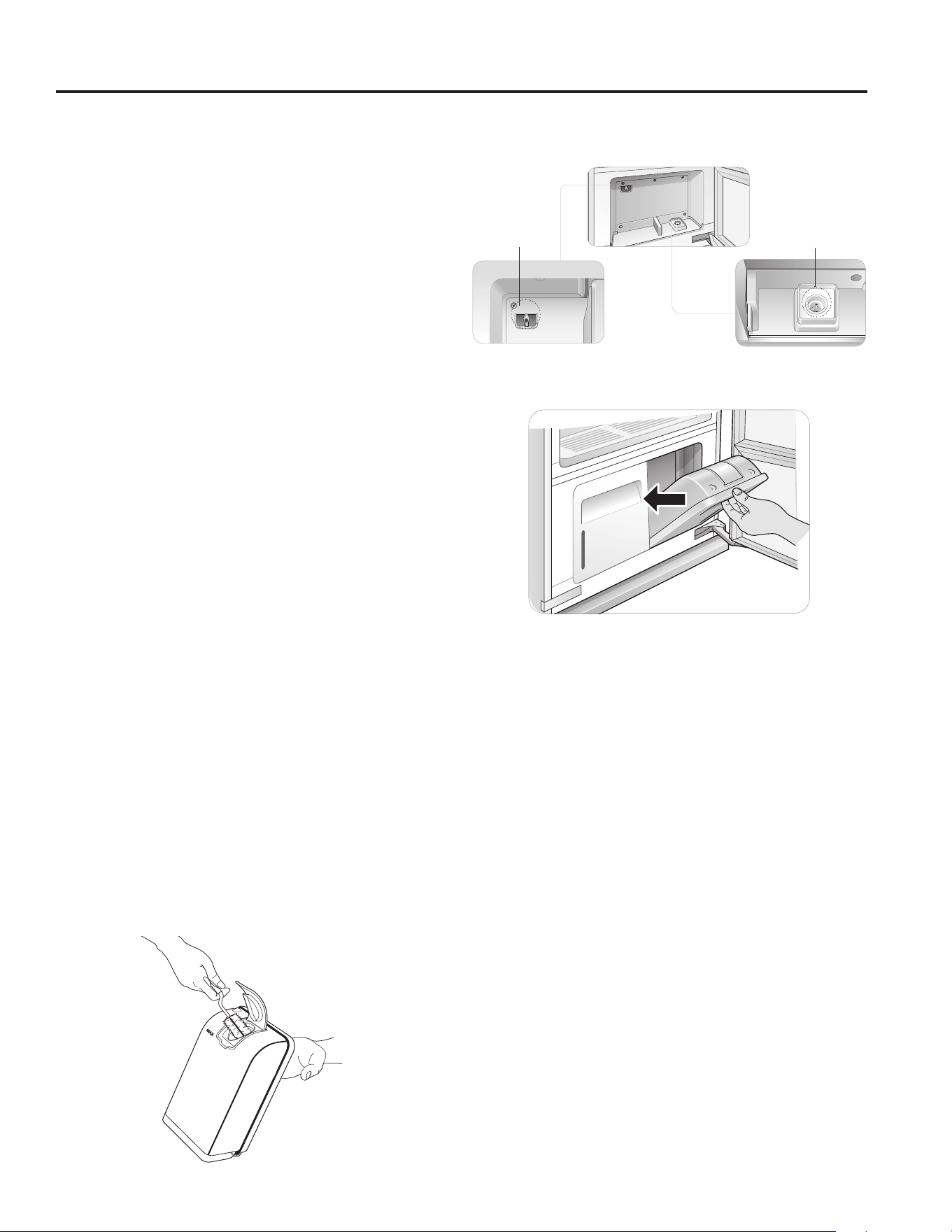

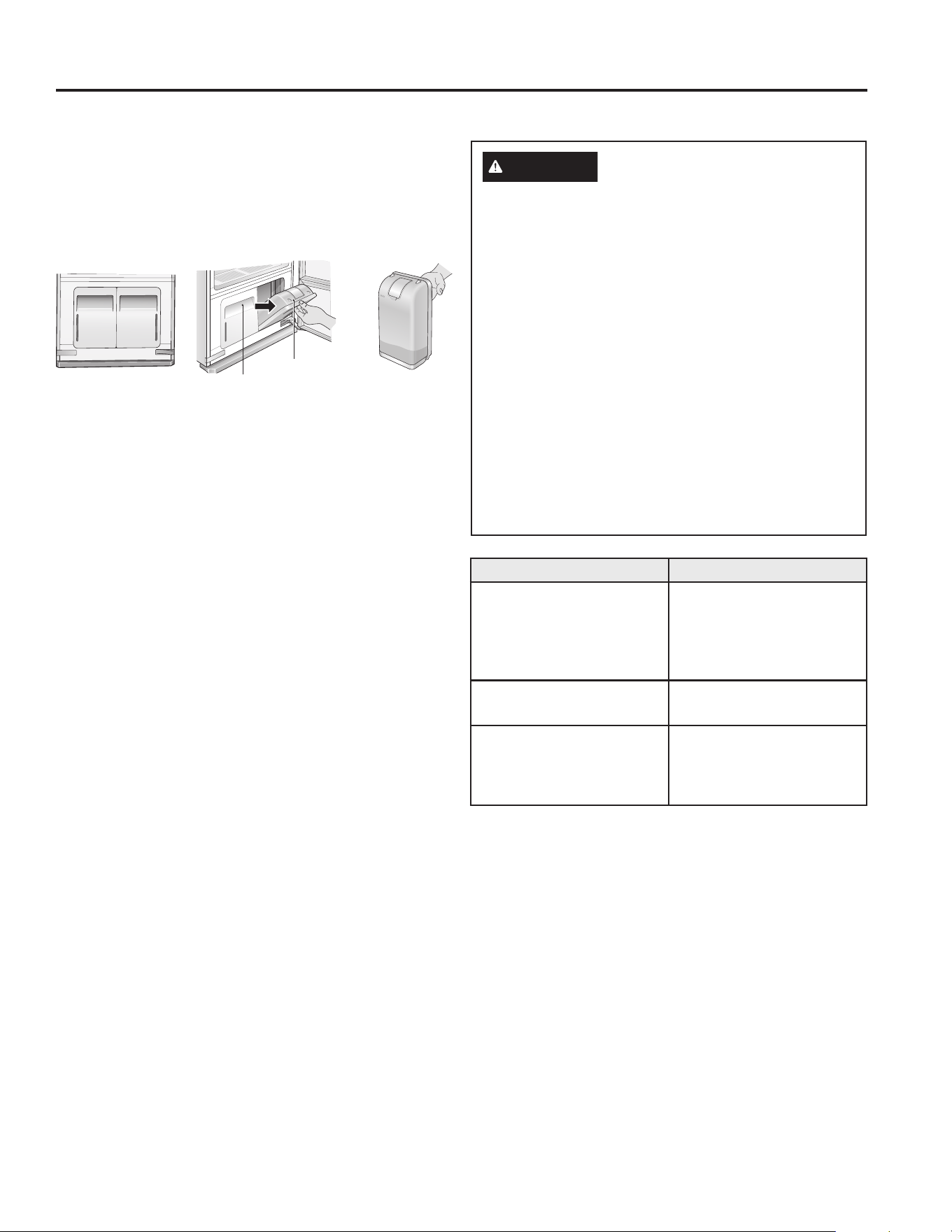

Checking The Water Tanks
Check the water in the water tanks before use. The water
supply tank must be filled with water before using the
fabric care closet. The fabric care closet does not work
without water. The water drain tank should be emptied
before each use.
1. Pull the handle of each tank forward to remove the
tank and check the level of water.
2. Make sure the water supply tank is filled with
water.
The full water supply tank can be used for approximately
four cycles, depending on the cycles used. Use clean tap
water or bottled water for best performance and longer
product life. Do not use distilled water or reuse the water
from the drain tank.
The first time the fabric care closet is used, 2/3 of the
water in the fully filled water supply tank is used. Less
water is used in following cycles.
NOTES:
Ŷ
Only use water when filling the water supply tank. Any
other substance, such as detergent or fabric softener,
may damage the fabric care closet.
Ŷ
Use only clean tap water or bottled water. Foreign
materials in the water may shorten the lifespan of the
fabric care closet.
Ŷ
Do not use distilled water. The water sensor may not
work.
Ŷ
Do not reuse the water in the drain tank to fill the water
supply tank.
3. Make sure the water drain tank is empty. The drain
tank will be filled after about three cycles. The tank
fills more quickly during drying cycles. The fabric
care closet does not work if the drain tank is full.
Ŷ
Some discoloration of the water drain tank may occur
over time. This is normal and will not affect product
performance.
Loading The Fabric care closet
Water Supply
Tank
Water Drain
Tank
WARNING
Ŷ
Check all pockets to make sure that they are
empty. Items such as clips, pens, coins, and keys
can damage both the fabric care closet and your
clothes. Flammable objects such as lighters or
matches could ignite, causing a fire. Failure to
remove items can result in fire, explosion, or death.
Ŷ
Never dry clothes that have been exposed to oil,
gasoline, or other flammable substances. Washing
clothes will not completely remove oil residues.
Failure to obey this warning can result in fire,
explosion, or death.
Ŷ
Remove empty hangers from the moving hanger
and place them on the shelf before starting the
cycle. Empty hangers may cause unnecessary
noise, friction, and damage to fabrics. See Storing
Hangers, page 28.
Ŷ
Hang hangers in the same direction on the moving
hanger to prevent collisions.
Accesory Items to use it with
Hangers shirts, dresses, suits,
coats, skirts, pants without
creases or too large for
pants press, or any item
that can use a hanger
Pants Crease Care pants when creases are
desired
Shelf sweaters, wool, knitwear,
lingerie, shoes, hats, toys,
and other clothing or items
that cannot use hangers
16 49-3000408 Rev 0
USING THE APPLIANCE
Getting started
The Moving Hanger
Hang clothes on the moving hanger using the hangers
provided with the fabric care closet, or use any plastic or
metal hanger that hooks snugly into the indentations in
the moving hanger.
Ŷ
Use the moving hanger for suits, coats, jackets,
blouses, dresses, skirts, and pants that do not require a
crease. Use the Pants Crease Care to crease pants.
Ŷ
Anything that can be securely placed on a hanger and
steamed or dried without retaining hanger marks or
other damage can be placed on the moving hanger.
Ŷ
Dry sweaters or knits on the shelf to avoid hanger
marks.
Ŷ
Clothing should be securely fastened, with zippers and
buttons closed, so that it does not fall off the moving
hanger during the cycle.
Ŷ
Arrange clothing so it does not touch the sides or rear
of the cabinet, if possible. Condensation may form on
the interior surface of the cabinet, and items in contact
with the surface may remain damp at the end of the
cycle. Hang larger items on the diagonal indentations
on the moving hanger.
The Pants Crease Care
Hang clothes in the Pants Crease Care using the pants
hanger provided with the fabric care closet or any pants
hanger that fits into the hooks above the door to the
Pants Crease Care.
Ŷ
Open the door to the Pants Crease Care by pressing
the icon on the front.
Ŷ
The Pants Crease Care keeps pants legs creased.
Ŷ
Pants can be pressed while refreshing other items in
the same cycle.
Ŷ
For optimum results, use the Extra Pants Care cycle
which is designed for use with the Pants Crease Care
feature. For instructions, see the Smart Functions
section and the instructions in the application.
NOTE: To avoid double creases, run a steam cycle using
the moving hanger to reduce any existing knife pleats,
and then use the pants press.
WARNING

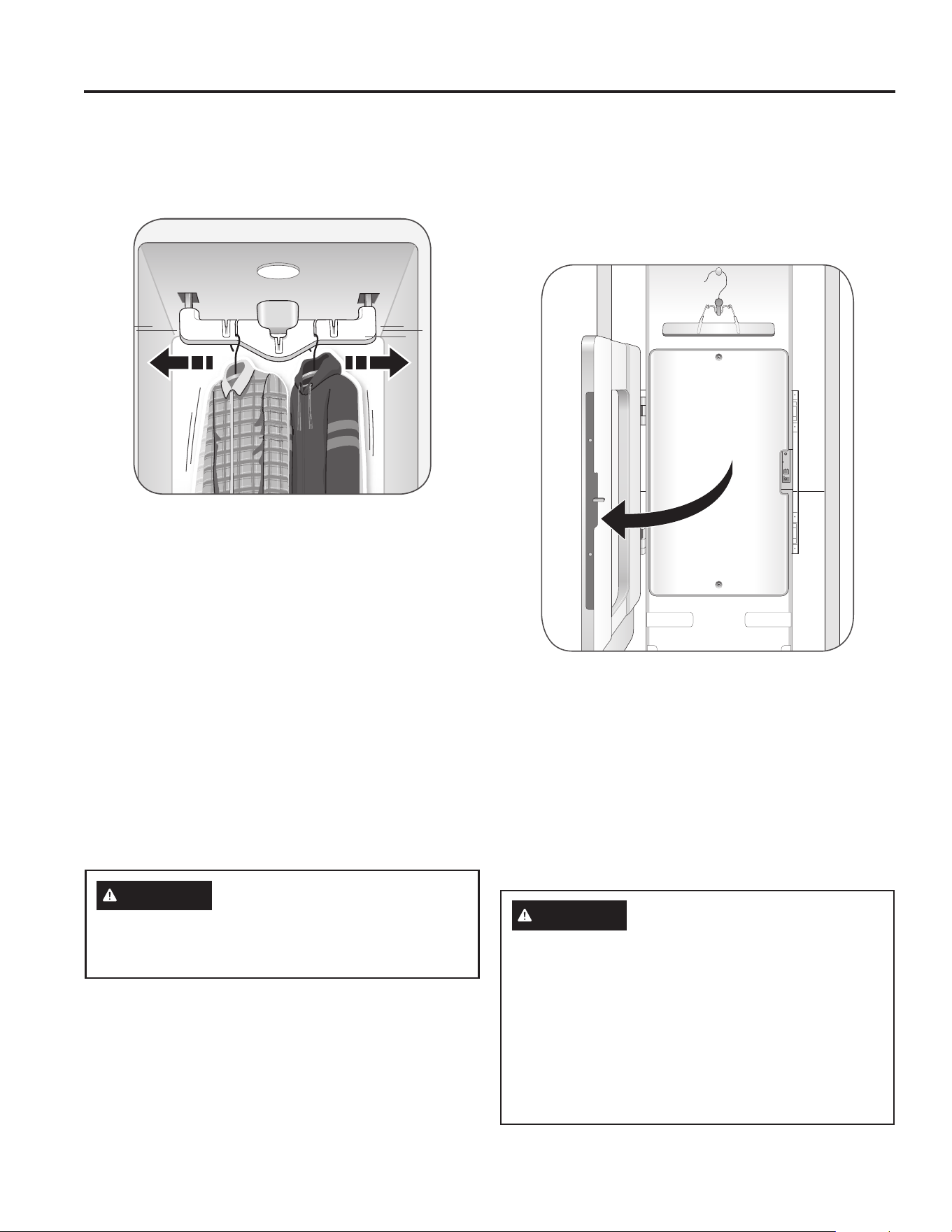

Do not lean or pull on the moving hanger. Do not allow
children play with or hang onto the moving hanger.
The unit could tip, resulting in damage or injury.
WARNING
Ŷ
Do not lean on or hang heavy items on the door of
the Pants Crease Care. The unit may tip, resulting
in damage or injury.
Ŷ
Do not allow children to play with or hang onto the
door of the Pants Crease Care. The unit may tip,
resulting in damage or injury.
Ŷ
Keep fingers out of pinch point areas when closing
the door of the Pants Crease Care. Supervise
nearby children to prevent injuries.
49-3000408 Rev 0 17
Getting started
USING THE APPLIANCE

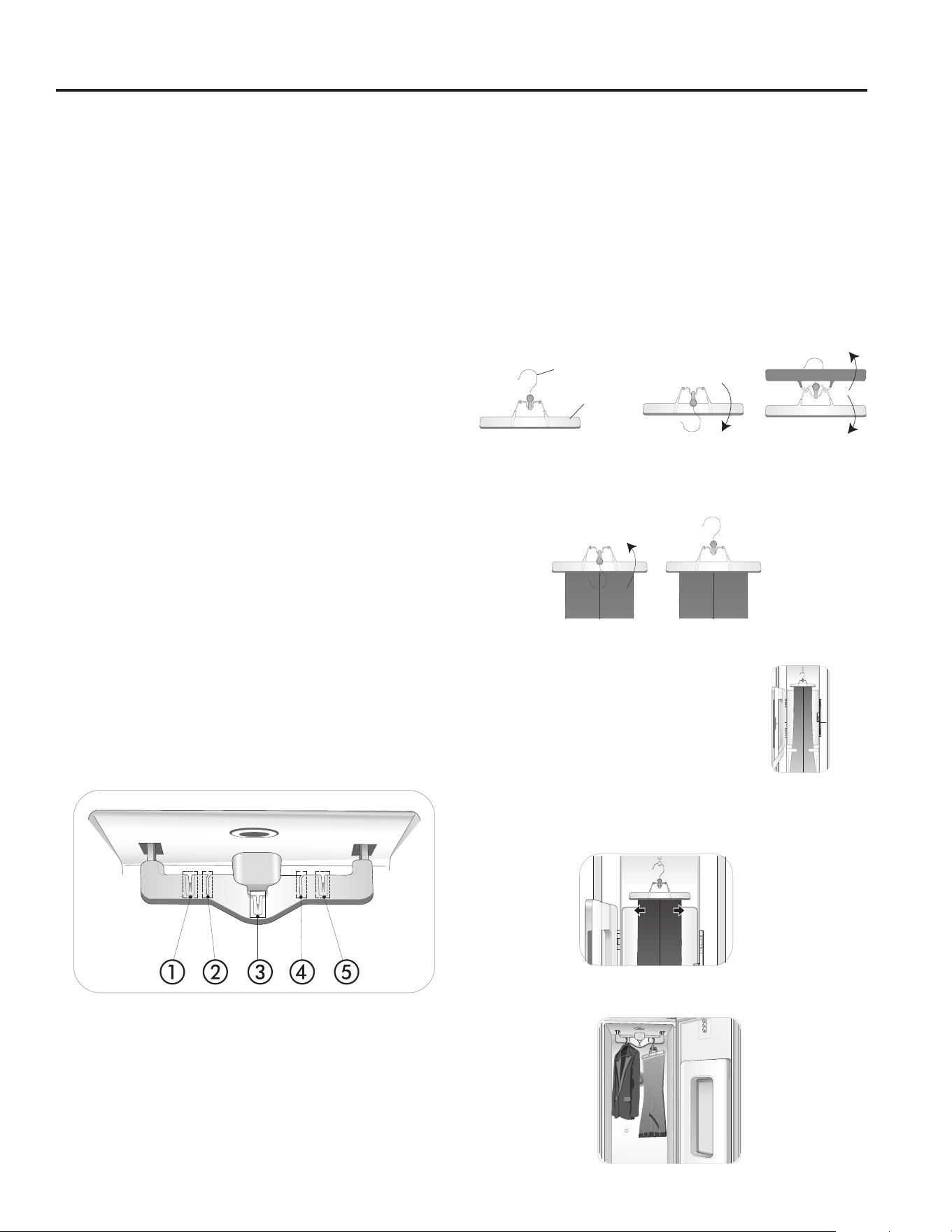

Hangers
The hangers that come with the fabric care closet are for
use with the fabric care closet only. Any plastic or metal
hanger that has a hook less than 5/32 in. (4 mm) thick
and hooks snugly into the indentations in the moving
hanger can be used in the fabric care closet.
Ŷ
Do not use hangers with wool, knitwear, or delicate
lingerie. The garments may stretch or be left with
hanger marks.
Ŷ
Wrinkles may appear at the back of the collar on some
garments.
Ŷ
Use the diagonal hanger grooves in the moving hanger
for large or bulky items.
Ŷ
Remove empty hangers or store them in the shelf
during operation. See Storing Hangers section.
1. Select an appropriate hanger. Choose the Fabric care
closet hanger that fits the item you are hanging up.
2. Fasten the buttons and zippers on all garments and
hang them on hangers. Doing so helps keep the
garments from falling or becoming more wrinkled
during the cycle. If a garment has no buttons or zipper,
fasten it with a cotton string around the collar area.
3. Place the hangers into the slots of the moving hanger
Ŷ
Place the hangers into the slots of the moving hanger.
Using the Moving Hanger
1. Insert hangers into slots and pull down to secure the
hook snugly.
Hooks should fit down in the slots snugly to prevent
noise, vibration, or damage to items during operation.
2. Use the diagonal slots (2 and 4) for bulky items.
Do not use diagonal slots and standard slots during the
same cycle. The hangers may knock into each other
and damage clothing.
3. Do not overcrowd items.
The fewer items, the better the drying performance.
Items that touch the sides of the cabinet may pick
up condensation from the cabinet and fail to dry
completely.
Pants Hanger or Pants Crease Care
Place pants either on the moving hanger or in the Pants
Crease Care, depending on whether maintaining the
creases on the pants legs is desired.
Ŷ
Hanging pants on the moving hanger may reduce the
creases on pants legs.
Ŷ
To maintain the creases on pants legs, use the Pants
Crease Care.
Ŷ
The Pants Crease Care is not designed to work with
pants that are wider than 38 in. (96 cm) or longer than
43 5/16 in. (110 cm). Check the size of the pants before
using the Pants Crease Care. If pants are too large,
use the moving hanger.
Opening and Closing the Pants Hanger
Ŷ
To open, fold the hook down toward the hanger blades
to unlock and separate the blades.
Ŷ
Once pants are inserted, bring the blades together and
rotate the hook up and away from the blades to lock
them in place.
Hanging Pants On the Pants Hanger
1. Remove all objects from pants pockets
and button the back pockets.
2. Fold pants along crease lines (or where
crease lines would be), and attach the
pants hanger at the ends of the pants
legs.
3. Tug gently on the sides of the pants legs.
Make sure pants are stretched tight within the hanger,
with no wrinkles, and will not fall out of the hanger
during the cycle.
4. Place the pants hanger on the moving hanger or in the
Pants Crease Care.
Hook
Hanger
Blades
18 49-3000408 Rev 0
USING THE APPLIANCE
Getting started
Using the Pants Crease Care
1. Open the Pants Crease Care by pressing on the icon
on the side.
2. Hang the pants hanger on the hook above the Pants
Crease Care that best fits the length of the pants being
pressed.
If the pants are longer, use the higher hooks to keep
the pants from hitting the floor of the cabinet.
The Pants Crease Care is not designed to work with
pants that are wider than 38 in. (96 cm) or longer
than 43 5/16 in. (110 cm). Check the size of the pants
before using the Pants Crease Care. If pants are too
large, use the moving hanger.
3. Make sure the pants are hanging
straight.
Check the creases on the legs
to make sure they are lined
up. Fix the pants with 2 clips
before closing the Pants Crease
Care. If the pants legs are not aligned
properly or the pants are not hanging
straight, double lines may appear at
the pants' edges, or the pants may be
wrinkled.
4. Close the Pants Crease Care, then
straighten the pants once more.
Gently tug the edges of the pants to
smooth out any wrinkles. Make sure the
pants are hanging straight in the Pants
Crease Care.

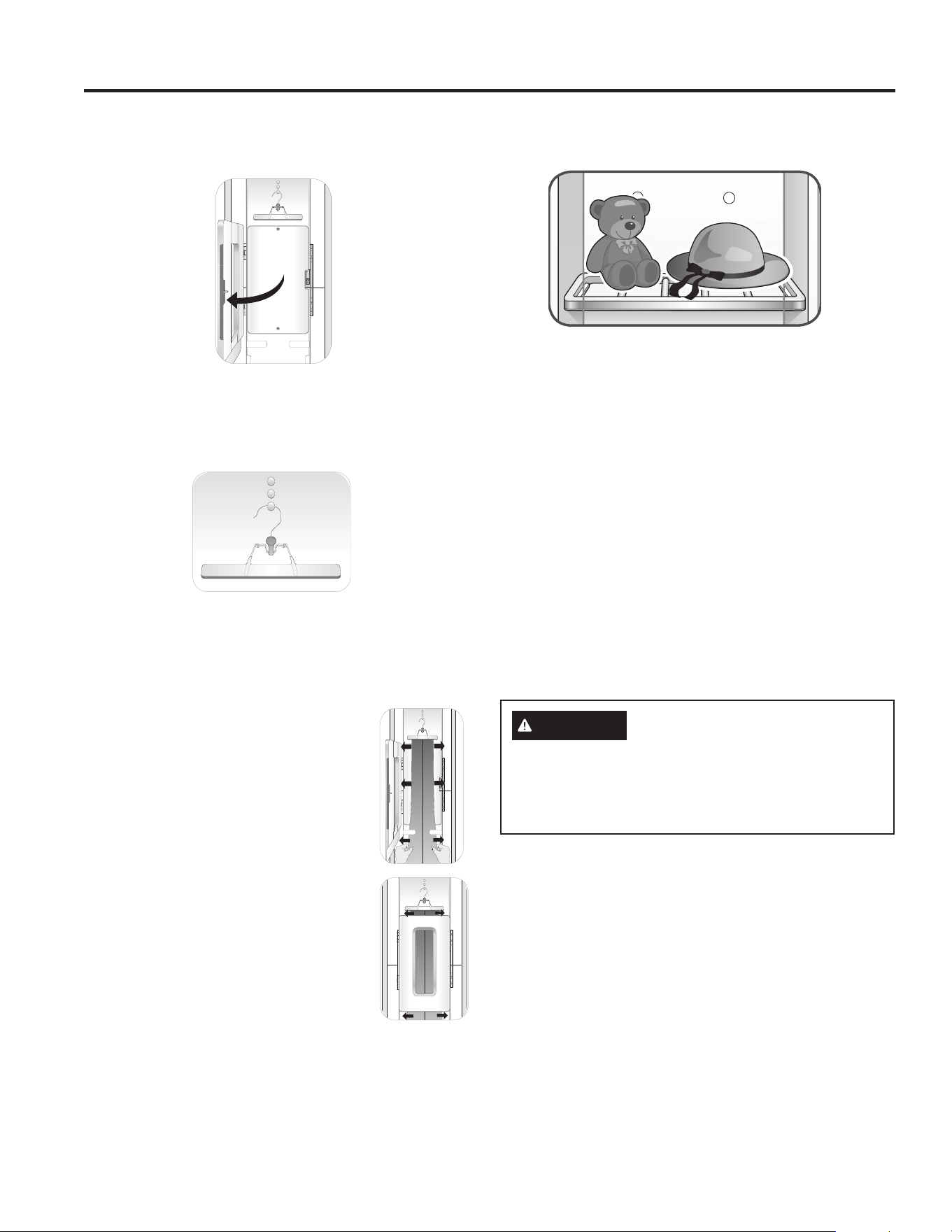

The Shelf
Use the shelf when styling clothes or other items that are
difficult to hang or that may be damaged by hang drying.
Ŷ
Use the shelf for stuffed toys, pillows, hats, and other
accessories.
Ŷ
Use the shelf for sweaters, knits, lingerie, or delicate
blouses that can show hanger marks, stretching, or
other damage if dried on a hanger.
Ŷ
For best drying performance, do not stack items on the
shelf. Dry single items or place items side by side with
space between.
Ŷ
When not in use, store the shelf on the shelf holder
knobs in the back of the cabinet.
Ŷ
For instructions on installing the shelf, see Assembling
the Shelf section. Do not use the shelf for storing
heavy items.
Ŷ
Arrange items on the shelf so they do not touch the
sides or rear of the cabinet, if possible. Condensation
may form on the interior surface of the cabinet, and
items in contact with the surface may remain damp at
the end of the cycle.
WARNING
Ŷ
Do not use the shelf to store heavy items. The shelf
may fall, resulting in damage or injury.
Ŷ
Do not step or sit on the shelf. The shelf may fall or
the unit may tip, resulting in damage or injury.
49-3000408 Rev 0 19
Choosing Fabric Care Closet Features
Shelf
Use the shelf for clothes and items that cannot be placed
on hangers. Do not stack items on the shelf. For best
drying performance, use the shelf for a single item or
smaller items with space between.
Assembling the Shelf
1. Hold the shelf so that the gray trim is toward the front.
2. Insert the left shelf groove into the left shelf support,
then lower the right shelf groove onto the right shelf
support.
3.
To disassemble, lift up the right side of the shelf, then
pull out the left side of the shelf from the shelf support.
Ŷ
Hang the shelf on the shelf holder when treating long
clothes such as coats or dresses.
Storing Hangers
Remove unused hangers from the moving hanger and
store them in the shelf during operation. This prevents
noise and damage to clothing.
1. Insert the hangers between the rails of the shelf.
2. When styling long clothes, if the shelf is stored on the
shelf holder, store the hangers outside the unit during
operation.
3. Do not use the shelf to store heavy items.
Getting started
USING THE APPLIANCE

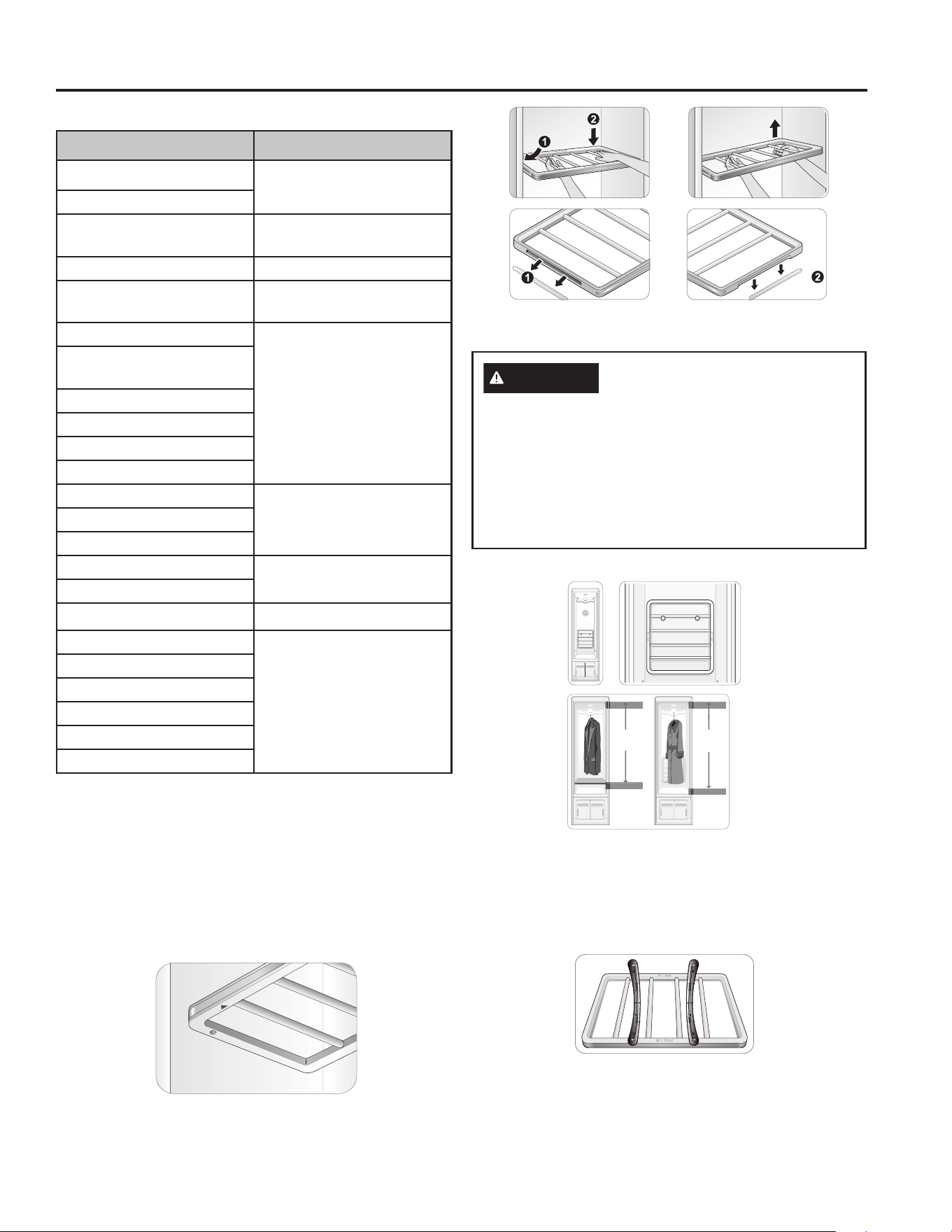

Item Placement
Suit Coat, Blazer
Moving Hanger
Coat, Jacket (Short)
Coat (Long)
Moving Hanger
(Remove Shelf)
Dress (Short) Moving Hanger
Dress (Long)
Moving Hanger
(Remove Shelf)
Skirt
Moving Hanger
Lightweight Blanket,
Throw
Baby Blanket
Pants (Not Creased)
Shorts
Children’s Clothes
Scarf
Moving Hanger
Or Shelf
Tie
Shawl
Lingerie
Moving Hanger Or Shelf (If
Delicate)
Shirt, Blouse
Pants (Creased) Pants Crease Care
Cap, Hat
Shelf
6WXႇHG7R\V
Pillow
Sweater
Knitwear
Infant Clothes
Bottom
Front
Right
Left
WARNING
Ŷ
The shelf cannot be assembled by sliding it into the
cabinet. It will fall if not assembled properly.
Ŷ
Do not place heavy objects on the shelf or use it to
store objects. Doing so can cause the product to
malfunction.
Ŷ
Do not allow children to climb on or hang on the
shelf. They could be injured.
51.2 in.
130 cm
41.3 in.
105 cm
20 49-3000408 Rev 0
Care and cleaning
CARE AND CLEANING

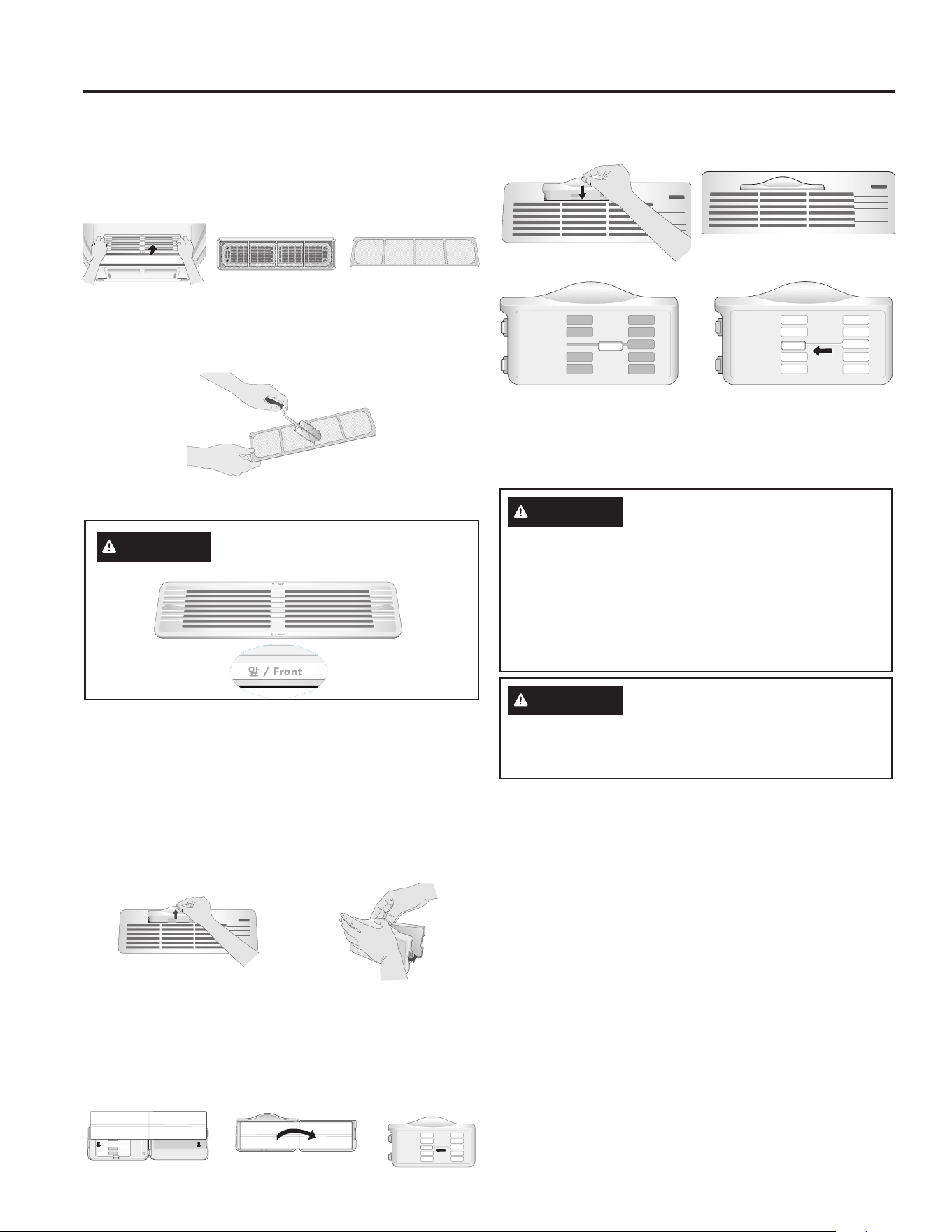

Checking The Filters Before Every Load
Checking the Lint Filter
Always make sure the lint filter is clean before starting a
new load; a clogged lint filter will increase drying times.
1. Open the front grill and take out the lint filter.
2. Brush the filter with a soft brush or clean it with a
vacuum cleaner.
If the lint filter is torn or damaged, replace it with a new
filter.
3. Reinstall the filter.
Changing the Fabric Softener Sheet
Use a dryer fabric softener sheet to add a refreshing
aroma to items. Replace the fabric softener sheet after
every use.
1. Remove the aroma filter from the fabric care closet.
2. Open the aroma filter and insert a dryer fabric softener
sheet into it.
3. Close the aroma filter and insert it back in the fabric
care closet.
Insert the aroma filter in the direction of the arrow. You
can adjust the opening of the perfume filter using the
adjustment lever. The more open the aroma filter is,
the richer the aroma gets.
4. When the cycle is complete, remove the aroma filter
and discard the fabric softener sheet.
NOTE: To use your favorite perfume, spray it 4-5 times
on a cotton pad and place the pad inthe aroma filter. The
strength of the resulting fragrance may vary depending
on the scent used.
Cleaning the Interior and Exterior
Proper care of your fabric care closet can extend its life.
1. Clean the inside and outside of the machine with a
damp cloth. Glass cleaner can be used to clean the
front glass panel, but spray it on a cloth and wipe
rather than spraying it directly on the panel.
2. Buff the door dry with a clean, dry cloth to prevent any
water stains.
3. Allow the interior and exterior to dry completely before
plugging in and operating the product.
NOTES:
Ŷ
Do not spray water directly on the product.
Ŷ
Do not use detergent, methylated spirits, solvents, or
any volatile liquids to clean the exterior of the product.
Ŷ
Never use steel wool or abrasive cleansers; they can
damage the surface.
Ŷ
Keep sharp objects away from the exterior of the
product. The touch panel may not work if damaged.
CAUTION
Check that the sides are aligned
correctly when inserting the grill.
RightLeft
OpenClose
WARNING
To reduce the risk of fire, electric shock, or injury
to persons when using this appliance, follow basic
precautions, including the following:
Ŷ
Unplug the fabric care closet before cleaning to
avoid the risk of electric shock. Failure to follow
this warning can cause serious injury, fire, electrical
shock, or death.
CAUTION
Ŷ
Never use harsh chemicals, abrasive cleaners, or
solvents to clean the fabric care closet. They will
damage the finish.
49-3000408 Rev 0 21
CARE AND CLEANING
Care and cleaning
Cleaning the Lint Filter
Always remove the lint from the filter after every cycle.
See Checking the Lint Filter section.
If the lint filter has become very dirty or clogged, wash the
lint filter in warm, soapy water and allow to dry thoroughly
before reinstalling.
Ŷ
Never operate the fabric care closet without the lint
filter.
Ŷ
Never operate the fabric care closet with a wet lint filter.
Cleaning the Aroma Filter
For best results, wash the aroma filter using hot water
and dish soap. After cleaning, wipe the filter with a clean
cloth and allow it to dry thoroughly before reinstalling it.
The aroma filter can also be cleaned in the top rack of
the dishwasher.
Ŷ
Never operate the fabric care closet without the aroma
filter.
Ŷ
Never operate the fabric care closet with a wet aroma
filter.
Cleaning the Water Tanks
The water in the water supply tank contacts the clothing
and items treated in the fabric care closet directly. Clean
both tanks periodically and keep them clean at all times.
If the tanks are not properly cleaned, they may start to
smell or need to be replaced.
Ŷ
Some discoloration of the water drain tank may occur
over time. This is normal and will not affect product
performance.
Ŷ
Use only clean tap water in the supply tank for best
performance and to prolong the life of the product. Do
not use distilled water.
Ŷ
Do not reuse the water from the water drain tank in the
water supply tank.
1. Clean the exterior of the tanks with a wet cloth.
2. Use a cleaning brush or detergent made exclusively for
water tanks to clean the inside of the water tanks.
These can often be found online or at a local RV and
camping store. Rinse tanks thoroughly after cleaning
with detergent to remove any residue.
3.
Make sure the drainage nozzle connected to the water
drain tank and the water supply hole connected to the
water supply tank are not clogged.
4. Allow the outsides of the tanks to dry completely
before reinstalling the tanks.
Water Supply
Hole
Drainage
Nozzle
22 49-3000408 Rev 0
Installation
Fabric care closet
Instructions
If you have any questions, call GE Appliances at 800.GE.CARES (800.432.2737) or visit our
Website at: GEAppliances.com
TOOLS REQUIRED
Ŷ
Level
Ŷ
Adjustable wrench
Ŷ
Channel-lock adjustable pliers
Ŷ
Phillips screwdriver
PARTS SUPPLIED
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT – Save these
instructions for local inspector’s use.
• IMPORTANT – Observe all
governing codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these
instructions for future reference.
• Skill level – Installation of this appliance requires
basic mechanical and electrical skills.
• Completion time – 1-3 hours
• Proper installation is the responsibility of the
installer.
• Product failure due to improper installation is not
covered under the Warranty.
DO NOT Install:
1. In an area exposed to dripping water or outside weather
conditions. The ambient temperature should never be
below 50°F (10°C) for proper operation.
2. In an area where it will come in contact with curtains
or drapes.
NOTE:,IIORRULVLQSRRUFRQGLWLRQXVHƎLPSUHJQDWHG
plywood sheet solidly attached to existing floor
covering.
LOCATION
GE Appliances Parts and Accessories
Order on-line at GEApplianceparts.com today,
24 hours a day or by phone at 877.959.8688 during
normal business hours.
Part Number Accessory
PFA18REVW Door Reversing Kit
Shelf
2 Hangers
Pants Hanger
2 Rear Leveling Feet
Wrench
Anti-Tip Kit
2 Rear Cap Cover2 Non-Skid Pads
2 Hinge Covers
Drip Tray
49-3000408 Rev 0 23

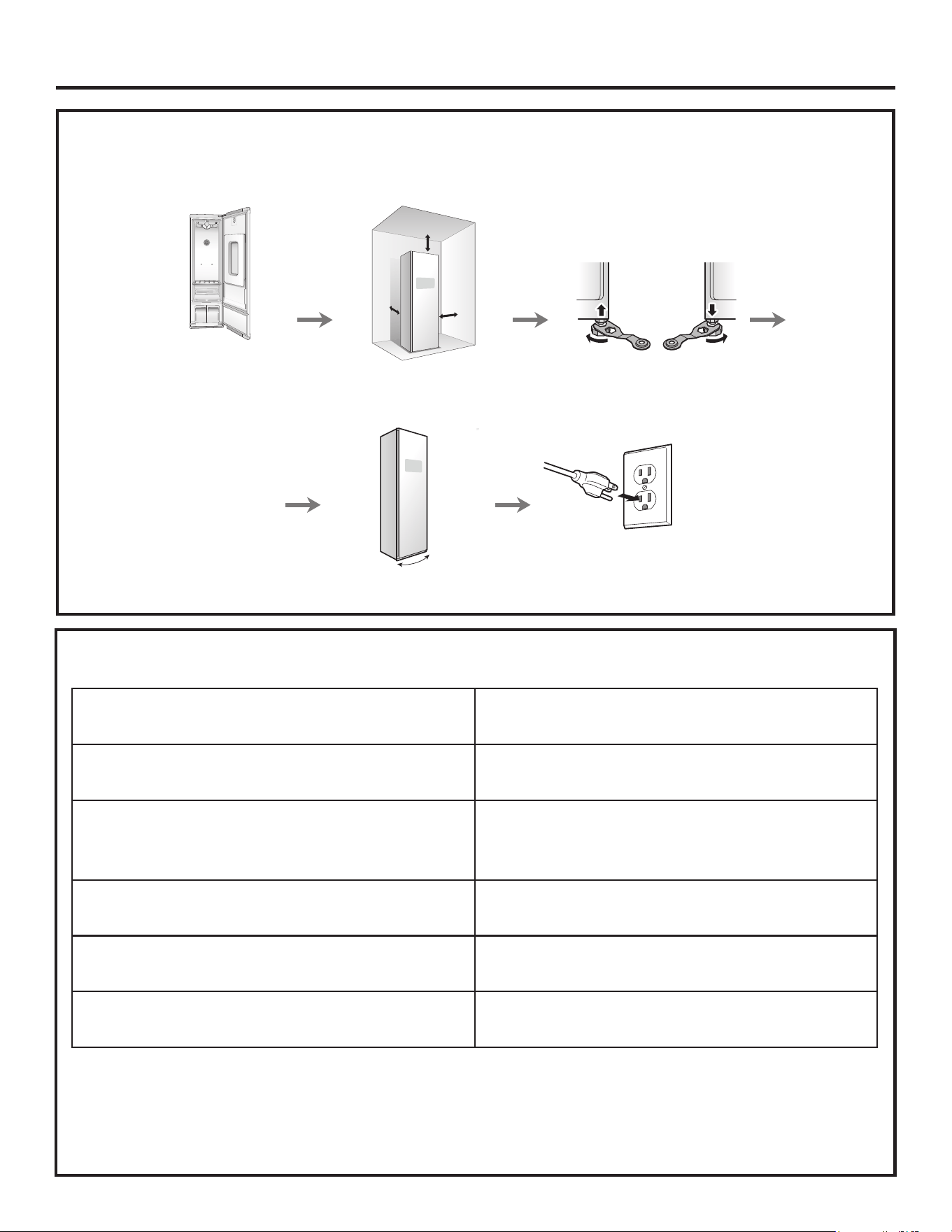

Installation Overview
3OHDVHUHDGWKHIROORZLQJLQVWDOODWLRQLQVWUXFWLRQV¿UVWDIWHUSXUFKDVLQJWKLVSURGXFWRUWUDQVSRUWLQJ
it to another location.
Installation Instructions
7 3/4 in.
20cm
2 in.
5 cm
2 in.
5 cm
Remove material from
inside and outside of
cabinet
Unpack and remove
shipping material
Check and choose the
proper location
Reverse the door swing
(if needed)
115–120V only
Connect to grounded outlet
Level the Fabric care closet
3URGXFW6SHFL¿FDWLRQV
The appearance and specifications listed in this manual may vary due to constant product improvements.
Description electric machine for maintaining clothing
Electrical Requirements 120V, 12.5 Amps/Electric, 60Hz
Dimensions
17 ½ in. (W) X 23 in. (D) X 72 13/16 in. (H), 39 ¾ in. (D
with door open)
445 mm (W) X 585 mm (D) X 1850 mm (H), 1010 mm
(D with door open)
Net Weight 172 lb (78 kg)
Maximum Capacity 4 items
Power Consumption 1500 W
24 49-3000408 Rev 0
Installation Instructions
Unpacking The Fabric care closet
Ŷ
Remove tape and any temporary labels from the fabric
care closet before using. Do not remove any warning
labels, the model and serial number label, or the Tech
Sheet that is located under the front of the Fabric care
closet.
Ŷ
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also
be easily removed by rubbing a small amount of liquid
dish soap over the adhesive with your fingers. Wipe
with warm water and dry.
Ŷ
Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove tape
or glue. These products can damage the surface of the
fabric care closet.
WARNING
Ŷ
Use two or more people to move and install the fabric
care closet. Failure to do so can result in back injury
or other injury.
Ŷ
The fabric care closet is heavy. Use the wheels at the
bottom of the product to move it. Push the fabric care
closet slowly from about halfway down the front side.
Ŷ
Keep the fabric care closet upright when moving it. If
you lay the fabric care closet on its side, refrigerant
may leak and cause the appliance to malfunction.
Ŷ
Keep flammable materials and vapors, such as
gasoline, away from the fabric care closet. Failure to
do so can result in fire, explosion, or death.
Choosing The Proper Location
Electricity Install where an outlet is easily accessible.
Use a single, dedicated grounded outlet:120 Volts, 60
Hz, AC, 15 Amps minimum.
WARNING
Do not plug in multiple appliances in
the same outlet with the fabric care
FORVHW2YHUORDGLQJKRXVHZLULQJFDQFDXVHD¿UH
hazard. To reduce the risk of electric shock, do not
install the Fabric care closet in a wet or damp area.
Floor Floor must be level and solid enough to support 172 lb
(78 kg). Adjust the leveling legs to compensate for any
XQHYHQQHVVLQWKHÀRRU'RQRWLQVWDOORQDSODWIRUPRU
a weakly supported structure. If installing on carpeting,
see Installing on Carpeting section.
Ambient temperature Temperature must be between 50°F (10°C) and 95°F
(35°C). If the ambient temperature is too low or high,
SHUIRUPDQFHPD\EHDႇHFWHG'RQRWLQVWDOOLQGLUHFW
sunlight or where the temperature may fall below 32°F
(0°C).
Clearances Allow at least 18 in. (46 cm) in front to open the door.
Allow at least 2 in. (5 cm) on both sides and between
the back of the fabric care closet and the wall. Allow at
least 7 3/4 in. (20 cm) between the top of the fabric care
closet and any overhanging shelves or cabinets.
If the fabric care closet is too close to adjacent items,
performance may decrease and electricity consumption
may increase.
49-3000408 Rev 0 25
Installation Instructions
Installation Location Requirements
The installation requires:
Ŷ
A grounded electrical outlet located within 2 ft. (61 cm) of either side of the appliance.
Clearances
WARNING
Read all installation instructions completely before installing and operating the fabric care
closet. It is important to review this entire manual before installing and using the fabric care
closet.
WARNING
Do not install or store the fabric care closet in an area where it will be exposed to water and/or
weather. Failure to follow this warning could result in risk of electric shock, injury, or product
damage or malfunction.
WARNING
Ŷ
The floor must be level, with a maximum slope of 1 inch (2.5 cm) under the fabric care closet. If the slope is
greater than 1 inch (2.5 cm), the appliance cannot be leveled properly.
Ŷ
Do not install the fabric care closet on a hollow or flexible platform. Doing so may cause excessive noise and
vibration and result in damage or injury if the product tips over.
2
3
/
64
in.
(52 mm)
15
5
/
32
in. (385 mm)
56½ in.
(1435 mm)
16
5
/
16
in.
(415 mm)
72
13
/
16
in.
(1850 mm)
23 in.
(585 mm)
17
1
/
2
in.
(445 mm)
26 49-3000408 Rev 0

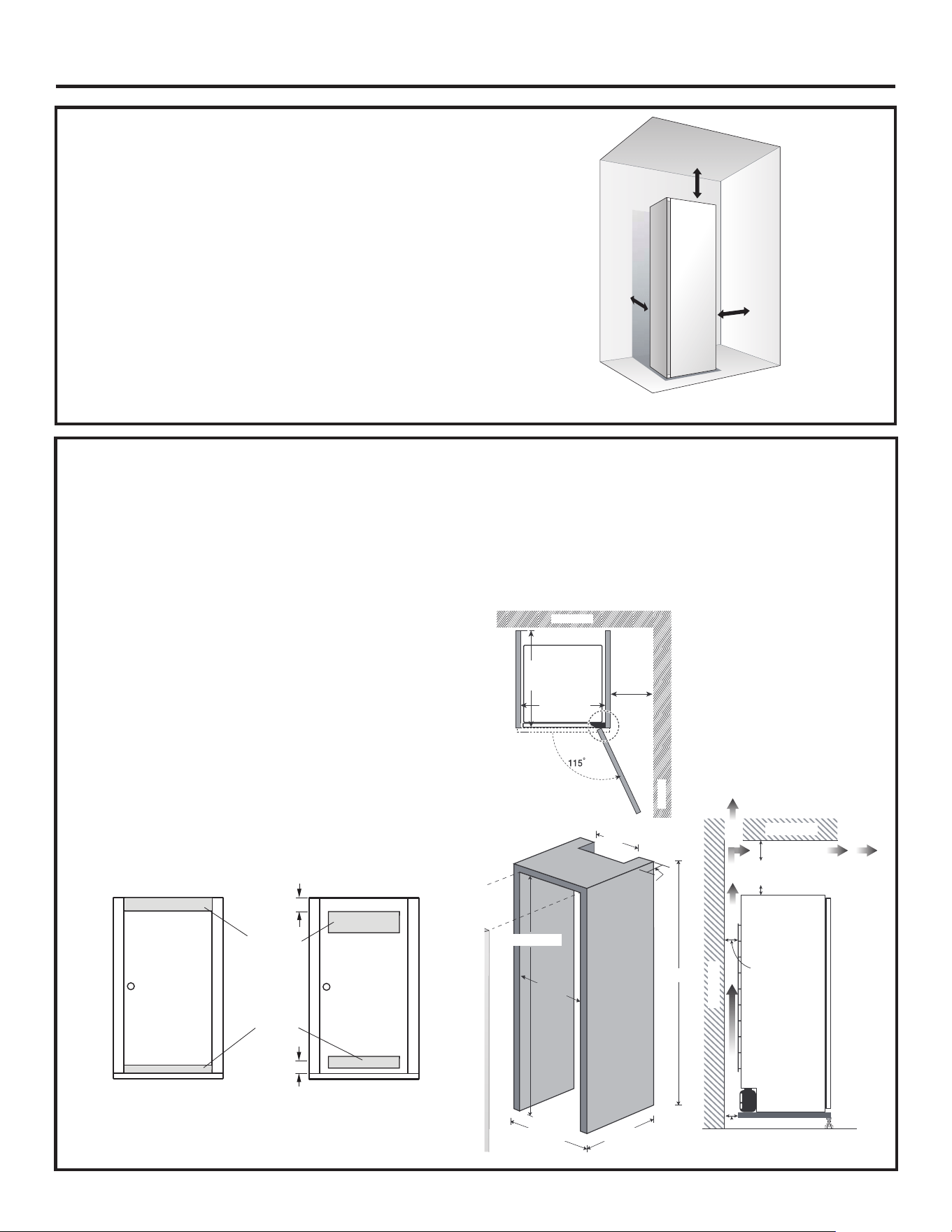

Installation Instructions
Recommended Installation Spacing
The following clearances are recommended for the fabric
care closet. Although the fabric care closet has been
tested for clearances of 1 3/16 inch (3 cm) on the sides
and rear, recommended clearances should be considered
for the following reasons:
Ŷ
Additional space should be considered for ease of
installation and servicing.
Ŷ
Additional space might be required for wall, door and
ÀRRUPROGLQJV
Ŷ
Additional space should be considered on all sides of
the Fabric care closet to reduce noise transfer.
Ŷ
Additional laundry appliance spacing should also be
considered.
7 3/4 in.
(20 cm)
2 in.
(5 cm)
2 in.
(5 cm)
18 in. (46 cm)
in front
Installation Spacing for Recessed Area or Closet Installation
There should be at least a little space around the Fabric care closet (or any other appliance) to avoid contact with
walls, furniture, or other appliances during operation. Allow a minimum of 1 3/16 inch (3 cm) on all sides of the fabric
care closet to avoid increased noise or damage.
Closet Ventilation Requirements
Ŷ
For closet installation, with a door, minimum ventilation
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.
Ŷ
Minimum vent opening for built-in installation is 31 ½ sq.
in. (200 cm2).
Closets with doors must have both an upper and lower
vent to prevent heat and moisture buildup in the closet.
One upper vent opening with a minimum opening of 48
sq. in. (310 cm2) must be installed no lower than 6 feet
above the floor. One lower vent opening with a minimum
opening of 24 sq. in. (155 cm2) must be installed no
more than one foot above the floor. One example shown
uses vent grilles in the door.
25 ½ in.
(650mm)
18 in. (455mm)
10 in. (250mm)
Wall
Wall
①
②
2 in. (50 mm)
1
3
/16 in. (30 mm)
1 in. (25 mm)
1
3
/16 in. (30 mm)
Wall
Ceiling
74.4 in. (1 ,
8
19 in. (485 mm )
24.8 in. (630 m m)
73.8 i n . (1,875 mm)
18 in. (455 mm )
15.75 in . (400 m m)
2 in. (50 m m )
48 sq. in.
(310 sq. cm)
24 sq. in.
(155 sq. cm)
3"
(7.6 cm)
3"
(7.6 cm)
Vent
Vent
in.
in.
closet door vent
requirements
Built-In Installation
49-3000408 Rev 0 27

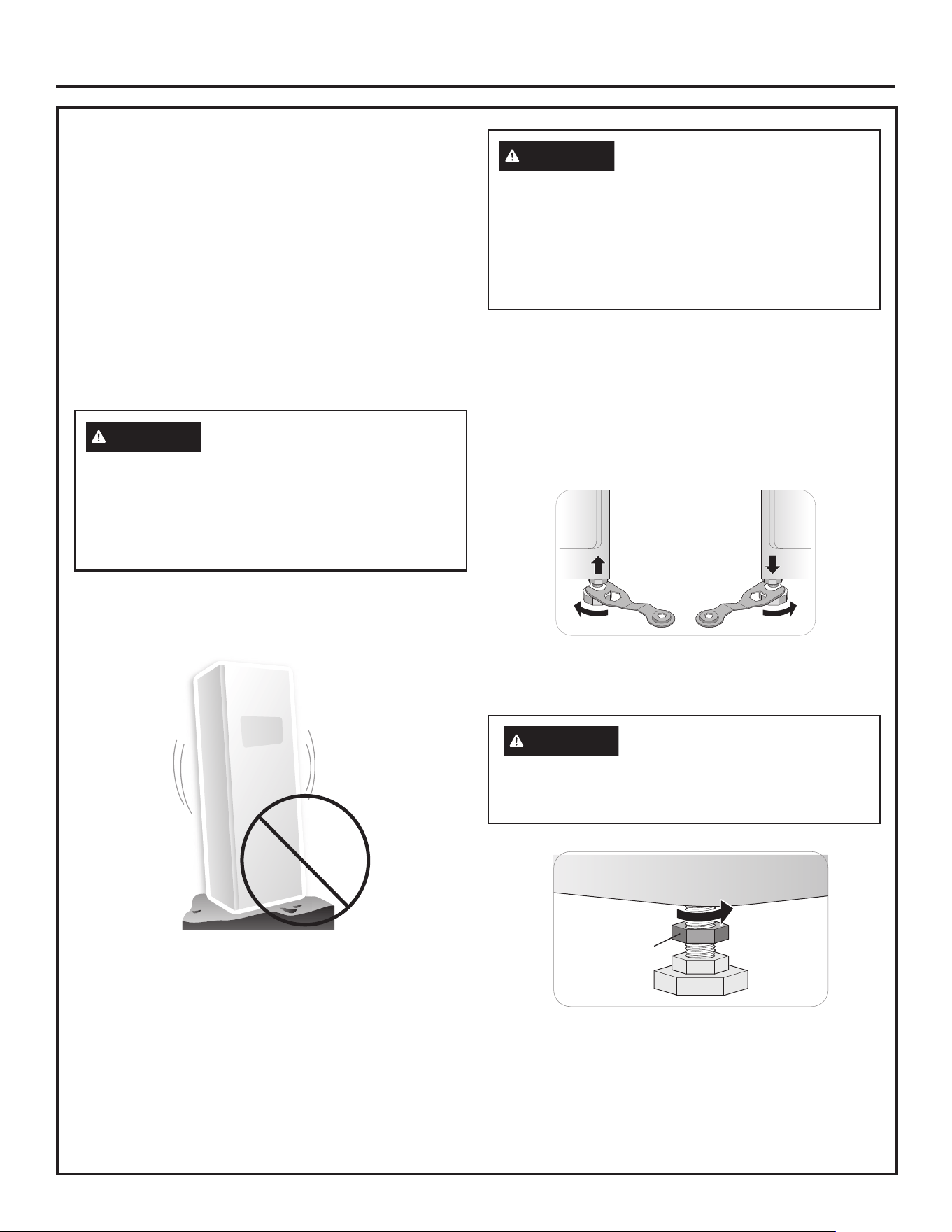

Installation Instructions
Leveling the Fabric care closet
The following clearances are recommended for the fabric
care closet. Although the fabric care closet has been
tested for clearances of 13/16 inch (3 cm) on the sides
and rear, recommended clearances should be considered
for the following reasons:
Ŷ
Additional space should be considered for ease of
installation and servicing.
Ŷ
Additional space might be required for wall, door and
ÀRRUPROGLQJV
Ŷ
Additional space should be considered on all sides of
the fabric care closet to reduce noise transfer.
Ŷ
Additional laundry appliance spacing should also be
considered.
Ŷ
To ensure that the fabric care closet provides optimal
performance, it must be level. To minimize vibration,
QRLVH DQG XQZDQWHG PRYHPHQW WKH ÀRRU PXVW EH D
perfectly level, solid surface.
NOTE: Adjust the leveling feet only as far as necessary
to level the fabric care closet. Extending the leveling feet
more than necessary can cause the fabric care closet to
vibrate.
1. Position the fabric care closet in the final location.
Check to make sure it is level. If installing on carpet,
see Installing on Carpeting first.
Ŷ
All leveling feet must rest solidly on the floor. Gently
push on the corners of the fabric care closet to make
sure that it does not rock from corner to corner. Make
sure there are no gaps between the front leveling feet
and the floor.
2.
Use the wrench (packaged with the manual) to turn the
leveling feet. Unscrew the front feet to raise the fabric
care closet or screw in the feet to lower it. If unable to
level the unit using only the front feet, install the two
rear leveling feet by tipping the unit. Do not lay the unit
down to install the leveling feet.
Raise or lower the unit using the leveling feet until the
fabric care closet is level from side to side and front to
back.
3. When the fabric care closet is completely stable and all
leveling feet are resting solidly on the floor, tighten the
locking nuts.
WARNING
To reduce the risk of injury to
persons, adhere to all industry
recommended safety procedures including the use of
long-sleeved gloves and safety glasses. Failure to
follow this warning can cause serious injury or death.
The appliance is heavy. Two or more people are
required when installing the fabric care closet. Failure
to follow this warning can cause serious injury or death.
WARNING
Ŷ
The fabric care closet is heavy. Use two or more
people if installing the rear leveling feet. Failure to
do so can result in back injury or other injury.
Ŷ
Keep the fabric care closet upright when moving
and installing it. If you lay the fabric care closet
on its side, refrigerant may leak and cause the
appliance to malfunction.
WARNING
Make sure that all leveling feet are
in firm contact with the floor. If the fabric care closet is
used without leveling, it may fall, causing injury,
damage, or product malfunction.
Locking
Nut
28 49-3000408 Rev 0
Installation Instructions
Reversing The Door
It is possible to reverse the direction of the door swing.
This should be done by the installer at the time of
installation, if desired. Instructions for reversing the door
are included in door reversal kit.
Installing On Carpeting
If installing the fabric care closet on carpeting, follow
these instructions.
1. Move the unit into its final location using the back
rollers.
2. Install the two rear leveling feet. Tip the unit, do not lay
it down, to install the leveling feet.
3. Level the unit following the instructions in Leveling the
Fabric care closet section.
4. If the carpet has very deep pile or padding, the front
feet may need to be extended slightly to install the drip
tray.
Ŷ
Be sure to check and empty the drip tray often.
Ŷ
Do not open the unit during operation to avoid
condensation forming on carpet surface, which may
result in surface mold or mildew.
Ŷ
Keep the bottom of the cabinet dry when filling or
emptying water tanks. Keep the outside of the water
tanks clean and dry to discourage growth of mold or
mildew.
WARNING
Do not attempt to reverse the door
swing yourself.
WARNING
Ŷ
The fabric care closet is heavy. Use two or more
people to install the rear leveling feet and carpet
spikes. Failure to do so can result in back injury or
other injury.
Ŷ
Keep the fabric care closet upright when moving
and installing it. If you lay the fabric care closet
on its side, refrigerant may leak and cause the
appliance to malfunction.
49-3000408 Rev 0 29

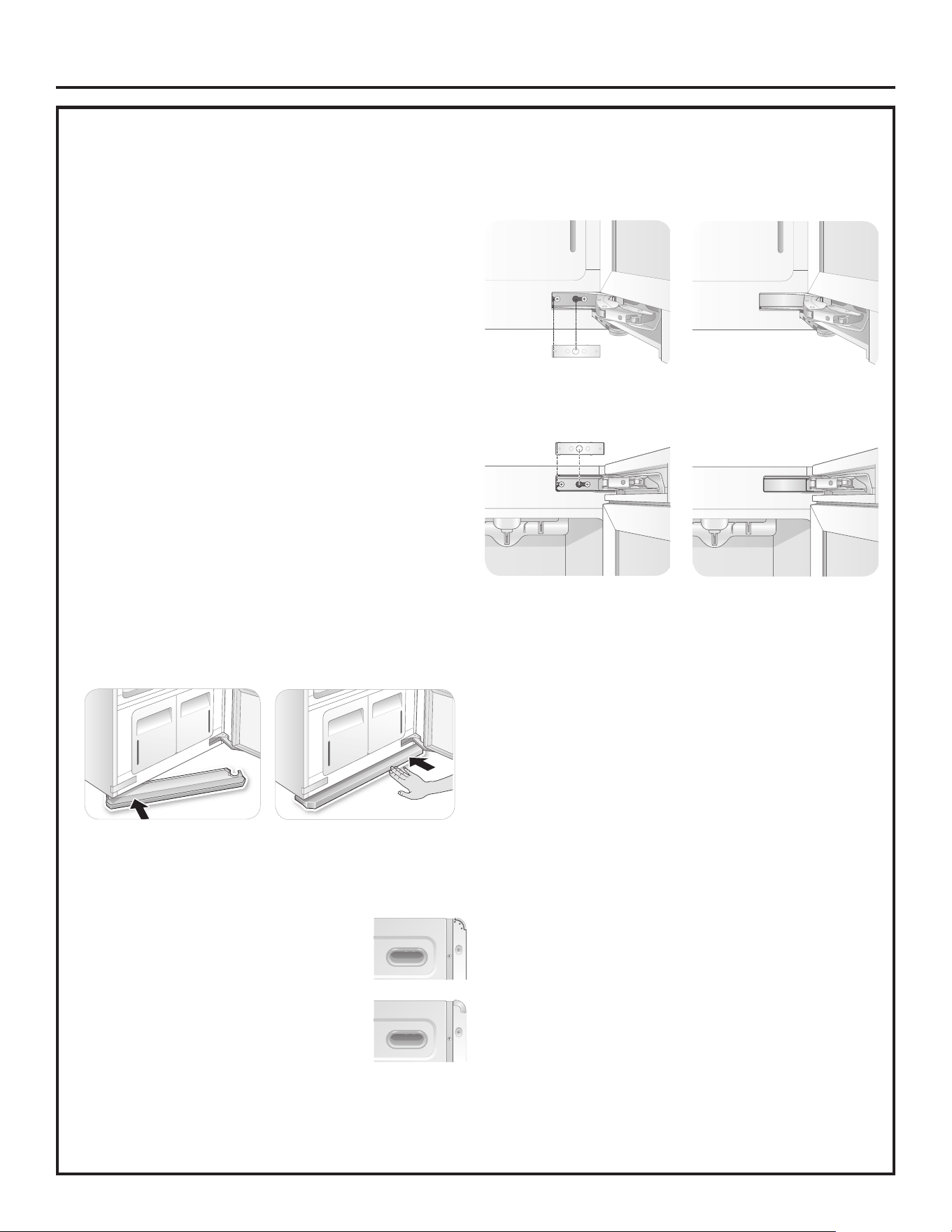

Installation Instructions
Installing The Anti-Tip Device
Ŷ
Appliances can tip, resulting in damage or injuries.
Do not operate the unit without the anti-tip device in
place and engaged. If an anti-tip device is not properly
installed, the appliance could be unexpectedly tipped
by a child or adult standing, sitting, leaning, or placing
excessive weight on an open door or the interior parts.
Ŷ
Install the anti-tip device packed with the fabric care
closet to reduce the risk of tipping. Refer to the
instructions provided with the anti-tip kit for proper anti-
tip device installation.
Ŷ
Check that the anti-tip device is properly installed.
With the appliance in its final location, make sure that
the slide adjuster on the cord is adjusted until there is
about one inch of slack in the cord.
Ŷ
The use of the anti-tip device does not preclude tipping
of the appliance when it is not properly installed.
Assembling The Drip Tray
Before using the fabric care closet, insert the drip tray
onto the bottom of the cabinet.
1. Hold the tray so the arrow and letter on the front of the
tray face up.
2. Insert one side of the tray first, then the other. Push
the tray until it slides completely in.
3. To detach, pull one side out then the other. If the tray
collects water, detach it and empty the water. After
emptying it, re-assemble the tray.
Ŷ
Do not operate the fabric care closet without installing
the drip tray. Doing so could lead to water damage
caused by leaking.
Installing Cap Covers
1. Line up the nubs on the cap cover with
the holes in the top corner of the cabinet.
2. Snap the cap cover into place. Repeat
with the remaining cap cover on the
other corner.
Installing Hinge Covers
1. Open the fabric care closet door.
2. Snap the hinge cover onto the lower hinge assembly
with the bent edge on the far side from the hinge.
3. Repeat with the remaining hinge cover on the upper
hinge assembly.
30 49-3000408 Rev 0
Troubleshooting Tips... Before you call for service
TROUBLESHOOTING TIPS
Q: What are aroma sheets and how do I use them?
A:
<RXFDQXVH\RXUIDYRULWHEUDQGRIGU\HUIDEULFVRIWHQHUVKHHWVLQWKHDURPD¿OWHUWRLQIXVHLWHPVZLWK
DUHIUHVKLQJDURPD7KHVKHHWVZLOOQRWVRIWHQJDUPHQWVRUUHGXFHVWDWLF7RXVHWKHDURPD¿OWHUDGG
a softener sheet before running a cycle. Dispose of the softener sheet at the end of the cycle. For best
SHUIRUPDQFHFOHDQWKHDURPD¿OWHUDIWHUHYHU\XVHV6HHChanging the Aroma Sheet section and
Cleaning the Aroma Filter section.
Q: Why is the cycle time longer than estimated for the Gentle Dry cycle?
A:
The fabric care closet uses a sensor to sense the dryness of fabrics. If clothing or other items are not dried
properly, the cycle time is extended automatically (except for Time Dry cycles).
Q: Can I install the fabric care closet on carpeting?
A:
If installing on carpeting (especially on padded or deep pile carpets), stabilize the unit by installing the rear
leveling legs. For instructions, see Installing on Carpeting section.
FAQS: Frequently Asked Questions
WARNING
Extra care must be taken to keep the area around the machine clean and dry. Do not open the
cabinet during operation. There is a risk of burns or injury, and condensation from escaping hot air or steam could
result in damage to carpeting.
49-3000408 Rev 0 31
TROUBLESHOOTING TIPS
Troubleshooting Tips... Before you call for service
Problem Possible Cause Solutions
Steam comes out when the door is
opened
Door is opened during operation It is normal for steam or hot air to
escape if the door is opened during
operation.
Full water supply tank is empty after
just one use
$SSOLDQFHLVEHLQJXVHGIRUWKH¿UVW
time
A larger amount of water is needed
WKH¿UVWWLPHWKHDSSOLDQFHLVXVHGWR
¿OOWKHHPSW\UHVHUYRLU
Appliance makes a loud vibrating
noise on startup
Moving hanger is balancing load
before operation
This is normal at the beginning of
the cycle. If the noise increases or
continues for a long time, call for
service.
Drying times are taking longer than
estimated
Clothes were extremely wet when
loaded
Drying times may be longer for very
wet or bulky clothing. Damp dry
clothes before putting them in the
fabric care closet. The fabric care
closet stops automatically when
clothes are dry.
Appliance is moving from left to right
while operating
Floor under appliance is not level
or is not sturdy enough to support
the weight of the appliance without
ÀH[LQJ
,QVWDOOWKHDSSOLDQFHZKHUHWKHÀRRU
is level and sturdy. Compensate for
DQ\VOLJKWXQHYHQQHVVLQWKHÀRRU
with the leveling legs. See Leveling
the Fabric care closet section.
Sound of motor whirring Compressor is running during drying This is normal.
Sound of water running, boiling, or
hissing
Steam being generated and sprayed
onto clothes
This is normal.
Steam or hot air leaks out when the
door is closed
An item is caught in the door,
keeping it slightly open
Make sure all items are completely
inside the cabinet and nothing is
caught in the door, blocking it from
closing completely.
The appliance will not operate &RQWUROSDQHOKDVSRZHUHGRႇGXHWR
inactivity
This is normal. Press the Power pad
to turn the appliance on.
Cord is unplugged Make sure cord is plugged securely
into a working outlet.
Circuit breaker/fuse is tripped/ blown Check house circuit breakers/fuses.
Replace fuses or reset breaker. The
appliance should be on a dedicated
branch circuit.
Appliance not connected to 120 V
socket
Make sure the cord is plugged
into a grounded socket rated for
this appliance. See the Product
6SHFL¿FDWLRQV section.
Before Calling For Service
Your appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early
stage. If your appliance does not function properly or does not function at all, check the following before you call for
service.
32 49-3000408 Rev 0
Troubleshooting Tips... Before you call for service
TROUBLESHOOTING TIPS
Problem Possible Cause Solutions
Control panel will not respond Control panel or pad has dirt on it Dirt or foreign objects on the control
panel will interfere with the operation of
the pads. Clean the control panel.
Control panel is locked Disable the Control Lock function. See
Locking the Controls section.
The cycle will not start Start/Pause was not touched after
the cycle was set.
Touch Start.
Cycle is producing steam There may be a period of inactivity
while steam is produced.
Control panel is locked Disable the Control Lock function and
touch Start. See Locking the Controls
section.
Clothes are wet at the end of the
cycle
Filter is clogged or grill is upside
down
&OHDQWKHOLQW¿OWHU,QVHUWWKHJULOOZLWK
the holes on the right side.
Door gasket is damaged If the rubber door gasket is damaged, it
OHDYHVDJDSLQWKHGRRUVHDODႇHFWLQJ
performance of the appliance. Call for
service.
Clothes caught in door Make sure all items are completely in
the cabinet and not stuck in the door,
blocking it from closing completely. Run
the cycle again.
Odor is not removed at end of cycle Clothes were stored for a long
period of time or are stained with a
strong-smelling substance
2GRUVFDQEHSDUWLFXODUO\GLႈFXOWWR
remove from clothes that have been
stored for long periods or have strong
smelling, oily stains. Wash the clothes
¿UVWEHIRUHXVLQJWKHIDEULFFDUHFORVHW
Wrinkles are not reduced at end of
cycle
Clothes were stored for a long
period of time
:ULQNOHVPD\EHYHU\GLႈFXOWWRUHGXFH
if set for a long time, especially in cotton
and linen fabrics. Iron clothes that have
been stored for a long period of time
before treating them with the fabric
care closet, to reduce wrinkles more
HႇHFWLYHO\
Clothes have an unpleasant odor at
end of cycle
Appliance has not been used for a
ORQJWLPHRUZDWHUWDQNVDQG¿OWHUV
have not been cleaned
Check for dirt or foreign objects in the
water supply and water drain tanks.
&OHDQWKH¿OWHUVDQGZDWHUWDQNV
Functions are not operating
properly
Detergent or fabric softener put in
water supply tank
Do not use anything but clean water in
the water supply tank.
49-3000408 Rev 0 33
TROUBLESHOOTING TIPS
Troubleshooting Tips... Before you call for service
Problem Possible Cause Solutions
Wrinkles at back of neck
after cycle
Item too large for hanger or fabric too
delicate
Use the right size hanger for the
item so the fabric won't bunch up
and cause wrinkles. Some fabrics
are delicate and will bunch around
the hanger no matter what you do.
Use the shelf for lingerie and other
delicate items.
Creases are gone from pants after
cycle
Pants were hung on the moving
hanger, not in the pants press
Hang pants in the pants press to
maintain creases at edge of pants
legs.
Clothing has water spots after cycle,
color has faded or run
Fabric is not washable, or is not
colorfast
Check fabric care labels before
treating items. See Sorting Loads
section and the Cycle Guide section.
Fill Water icon is blinking Water supply tank is empty or tank is
missing
Fill the water supply tank and
reinstall it.
Empty Water icon is blinking Water drain tank is full or tank
is missing
Empty the water drain tank and
reinstall it.
dE Error is blinking Door is not completely closed Check that items are completely
inside the cabinet and that the door
is tightly closed.
AE, LE, LE2, E1, E4, TE1, TE2,
TE3, TE5 shows on the display.
System error Unplug the appliance and call for
service.
Trouble connecting appliance and
smartphone to Wi-Fi network
The password for the Wi-Fi network
was entered incorrectly.
Delete your home Wi-Fi network and
begin the registration process again.
Mobile data for your smartphone
is turned on.
7XUQRႇWKH0RELOHGDWDRQ\RXU
smartphone before registering the
appliance.
The wireless network name (SSID) is
set incorrectly.
The wireless network name (SSID)
should be a combination of English
letters and numbers. (Do not use
special characters.)
The router frequency is not 2.4 GHz. Only a 2.4 GHz router frequency is
supported. Set the wireless router to
2.4 GHz and connect the appliance
to the wireless router. To check the
router frequency, check with your
Internet service provider or the router
manufacturer.
The distance between the appliance
and the router is too far.
If the appliance is too far from the
router, the signal may be weak
and the connection may not be
FRQ¿JXUHGFRUUHFWO\0RYHWKHURXWHU
closer to the appliance or purchase
and install a Wi-Fi repeater.
34 49-3000408 Rev 0
NOTES
NOTES
49-3000408 Rev 0 35
GE Appliances Limited Warranty
GEAppliances.com
All warranty service is provided by our Factory Service Centers, or an authorized Customer Care
®
technician. To schedule
service online, visit us at GEAppliances.com/service, or call GE Appliances at 800.GE.CARES (800.432.2737). Please
have your serial number and your model number available when calling for service.
Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a GE Appliances factory
service technician the ability to quickly diagnose any issues with your appliance and helps GE Appliances improve its
products by providing GE Appliances with information on your appliance. If you do not want your appliance data to be
sent to GE Appliances, please advise your technician not to submit the data to GE Appliances at the time of service.
This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use
within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available,
you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances
Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: GE Appliances, a Haier Company, Louisville, KY 40225
EXCLUSION OF IMPLIED WARRANTIES
Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties,
including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law.
For the period of: We will replace:
Ten years
From the date of the
original purchase
The motor, if it should fail due to a defect in materials or workmanship. During this
additional nine-year limited warranty, you will be responsible for any labor and
related service costs.
What is not covered:
Ŷ
Service trips to your home to teach you how to use
the product.
Ŷ
Improper installation, delivery or maintenance.
Ŷ
Failure of the product if it is abused, misused, or used for
other than the intended purpose or used commercially.
Ŷ
Replacement of house fuses or resetting of circuit
breakers.
Ŷ
Products which are not defective or broken, or which
are working as described in the Owner’s Manual.
Ŷ
Damage to the product caused by accident, fire,
floods or acts of God.
Ŷ
Incidental or consequential damage caused by
possible defects with this appliance.
Ŷ
Defects or damage due to operation in freezing
temperatures.
Ŷ
Damage caused after delivery.
Ŷ
Product not accessible to provide required service.
LIMITED WARRANTY
Staple your receipt here. Proof of the original purchase
date is needed to obtain service under the warranty.
Extended Warranties: Purchase a GE Appliances extended warranty and learn about special discounts that are
available while your warranty is still in effect. You can purchase it online anytime at
GEAppliances.com/extended-warranty
or call 800.626.2224 during normal business hours. GE Appliances Service will still be there after your warranty expires.
36 49-3000408 Rev 0
Printed in China
CONSUMER SUPPORT
Consumer Support
GE Appliances Website
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day
of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support
services designed for your convenience. GEAppliances.com.
Register Your Appliance
Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced
communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the
pre-printed registration card included in the packing material. GEAppliances.com/register.
Schedule Service
Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your
convenience any day of the year. GEAppliances.com/service or call 800.432.2737 during normal business hours.
Extended Warranties
Purchase a GE Appliances extended warranty and learn about special discounts that are available while your
warranty is still in effect. You can purchase it on-line anytime. GE Appliances Services will still be there after your
warranty expires. GEAppliances.com/extended-warranty or call 800.626.2224 during normal business hours.
Remote Connectivity
For assistance with wireless network connectivity (for models with remote enable), visit our website at
GEAppliances.com/connect or call 800.220.6899.
Parts and Accessories
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day.
GEApplianceparts.com or by phone at 877.959.8688 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel. Caution must be exercised, since improper
servicing may cause unsafe operation.
Contact Us
If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the
details including your phone number, or write to:
General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225
GEAppliances.com/contact or call 800.626.2000
