Sealey HVSF30 Industrial High Velocity Oscillating Pedestal User Manual

30” INDUSTRIAL HIGH VELOCITY

OSCILLATING PEDESTAL FAN

MODEL NO: HVSF30.V2

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these

instructions, and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY

1.1. ELECTRICAL SAFETY

 WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:

You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets

and any other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of

appropriate safety devices. A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. You

must also read and understand the following instructions concerning electrical safety.

9 Ensure that cables are always protected against short circuit and overload.

9 Regularly inspect power supply cables and plugs for wear or damage and check all connections

to ensure that none are loose.

9 Ensure that the voltage marked on the appliance matches the power supply to be

 usedandthattheplugisttedwiththecorrectfuse-seefuseratingatright.

8 DO NOT use worn or damaged cables, plugs or connectors. Have any faulty item repaired or

replaced immediately by a competent electrician.

9 It is recommended that this heater is wired directly to a fused isolator switch. If, however, a plug

 istted,thefollowingapplies:

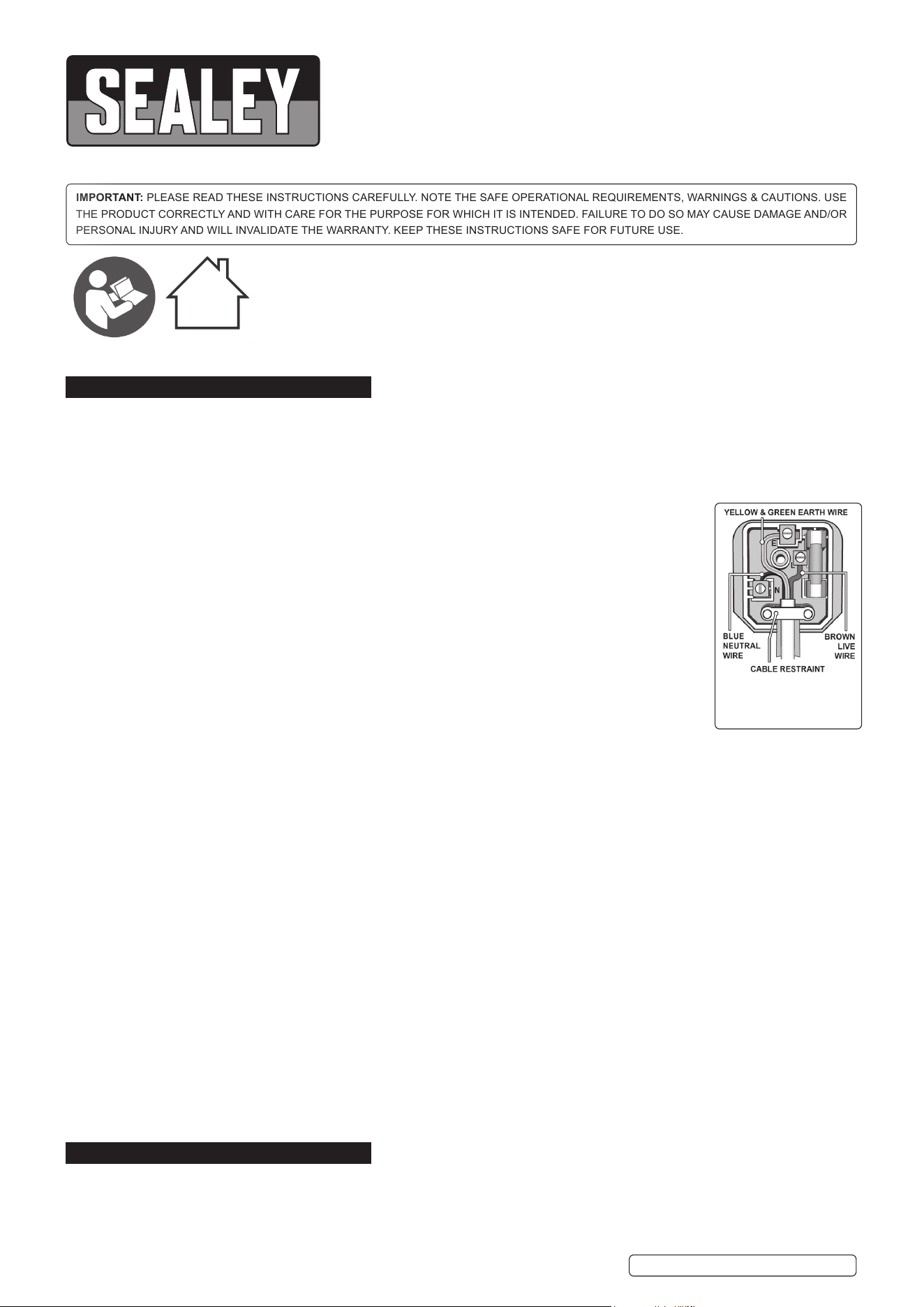

9 Fit a new plug according to the following instructions (UK only).

a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.

b) Connect the BROWN live wire to the live terminal ‘L’.

c) Connect the BLUE neutral wire to the neutral terminal ‘N’.

d) After wiring, check that there are no bare wires, that all wires have been correctly connected,

that the cable restraint is tight.

1.2. GENERAL SAFETY

9 Disconnect the fan from the mains power when not in use and before servicing or performing any maintenance.

9 Use the fan in dry areas only. DO NOT use in wet or areas with high condensation such as showers, pools etc.

 WARNING! If a fan falls into water or other liquid, immediately switch off and disconnect from the mains power supply. DO NOT

touch the fan until the mains power supply has been disconnected.

9 Always disconnect the fan from the power supply when moving it from one location to another and ensure fan is stood on a level

surface.

9 The fan air flow is powerful. Before use ensure that there is nothing nearby that will be damaged or displaced by the stream of air.

9 Keep the fan clean and maintained in good condition. For motor service contact an authorised service agent.

9 Use recommended parts only. Unapproved parts may be dangerous, and will invalidate your warranty.

8 DO NOT operate the fan where there are explosive or flammable gases, fumes or other hazardous substances.

8 DO NOT stand the fan on the power cable.

8 DO NOT insert any objects through the fan guard.

8 DO NOT cover the fan when in use.

8 DO NOT immerse the fan in water or any other liquid.

8 DO NOT allow children to operate the fan.

8 DO NOT stand the fan where it may be knocked over or off a surface, or where the lead may cause a person to trip.

8 DO NOT use the fan outdoors.

8 DO NOT modify speed control or attempt to fit any additional external speed control device to the fan.

9 When not in use place the fan in its original box, or otherwise cover, to protect from dust and store in a safe, dry, childproof

location.

NOTE: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or

lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a

person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

2. INTRODUCTION

High velocity pedestal fan suitable for movement of huge volumes of air. Carefully balanced and fully guarded blades provide quiet and safe

operation.Two-speedpowerselection,spring-assisted,height-adjustablestandandswitchableheadoscillationallowprecisecontrolofairow

toexactlywhereitisneeded.Fittedwith3-pinplug.Suitableforindustrial,commercial,agricultural,automotiveworkshopandshowroom

applications.

Recommended fuse rating

5 Amp

HVSF30.V2Issue2(3)09/02/2021

Original Language Version

©JackSealeyLimited

Refer to

instructions

Indoor Use

Only

3. SPECIFICATION

Model No: ........................................................... HVSF30.V2

Current: .........................................................................0.52A

Fan Diameter: .....................................................760mm(30”)

Height: ............................................................ 1610-2030mm

Max.fanairowrate(F): ....................................... 288m³/min

Fan power input: ...........................................................123W

Servicevalue(SV): ......................................... 2.3(m³/min)/W

Standby power consumption (Psb): ...............................0.0W

Fan sound power level (Lwa): ................................... 70dB(A)

Max. air velocity (c): .................................................... 3.8m/s

4. OPERATION

4.1. ASSEMBLY

4.1.1. Remove all packaging material and check contents with the parts list.

4.1.2. Bolt the outer tubular stand to the base using the fixings supplied.

4.1.3. Slidetheinnertubularstandintotheoutertubularstand,fitandtightenthesetknobtoholdatdesiredheight.

4.1.4. Locate the motor housing onto the top of the inner tubular stand and fix in place using the nut, bolt and washers supplied.

4.1.5. Place rear guard against the motor housing and fix in place using the 4 sets of nuts and washers.

4.1.6. Slidethefanontotheshaftandtightenthefixingscrewwithacrossheadscrewdriver.

4.1.7. Hook the front guard into place at the top of the rear guard and then push the 7 clips around the edge of the guards into place so that

they engage both the front and rear guards.

4.2. OPERATION

IMPORTANT:Ensurethatallsafetyinstructionsfromsection1havebeenreadandunderstoodbeforeusingthefan.

4.2.1. Setthefanonalevel,drysurface.

4.2.2. Plug the power cord into the mains supply.

4.2.3. Thefanfeatures3speeds-selectableusingthechainoperatedswitchlocatedatthebackofthefan.Thisoperatesinacycle-

  OFF-LOW-MED-HIGH-OFF.LOWorMEDsettingswillsuitmostneeds,HIGHisusedformaximumairmovement.

4.2.4. Adjustthedirectionofairflowupordownbylooseningtheknobandthentiltingthefanassemblytotherequiredangle,thenre-tighten

 theknob.Toadjusttheheightsetting,loosenthelowerknob,setatdesiredheightandthenre-tightenknob.Tooscillatethefanpress

downwards on the knob on the top of the motor housing. To stop oscillation, pull the knob upwards.

4.2.5. When not in use, disconnect from power supply and store in a safe, dry, childproof location.

5. MAINTENANCE

IMPORTANT: Turn the control switch to OFF and disconnect fan from power supply before cleaning.

5.1. Use only a soft, damp cloth to clean the fan.

8 DO NOT submerse the fan in water and NEVER allow water to drip into the motor housing.

8 DO NOT use solvents or other chemicals to clean the fan.

5.2. To clean the fan blades, loosen the 7 clips around the guards and then lift off the front guard from the top hook.

5.3. Wipe the blades and guards.

5.4. Reassemble by hooking the front guard into place at the top of the rear guard and then push the 7 clips back into place so that they

engage both the front and rear guards.

5.5.  Storethefaninitsoriginalboxorotherwisecoverthefantoprotectitfromdust.

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to

a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely

unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids

according to local regulations.

WEEE REGULATIONS

Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment

(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid

waste authority for recycling information.

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior

notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call

ourtechnicalteamontechnical@sealey.co.ukor01284757505.

Important: No Liability is accepted for incorrect use of this product.

Warranty:Guaranteeis12monthsfrompurchasedate,proofofwhichisrequiredforanyclaim.

Original Language Version

HVSF30.V2Issue2(3)09/02/2021
