1 Safety
Observe the following safety instructions.
1.1 General information
¡ Read this instruction manual carefully.
¡ Keep the instruction manual and the
product information safe for future refer-
ence or for the next owner.
¡ Do not connect the appliance if it has been
damaged in transit.
1.2 Intended use
This appliance is designed only to be built
into kitchen units. Read the special installation
instructions.
The appliance can only be used safely if it is
correctly installed according to the safety in-
structions. The installer is responsible for en-
suring that the appliance works perfectly at its
installation location.
Only use this appliance:
¡ For extracting cooking vapour.
¡ in private households and in enclosed
spaces in a domestic environment.
¡ up to an altitude of max. 2000m above
sea level.
Do not use the appliance:
¡ With an external timer.
1.3 Restriction on user group
This appliance may be used by children aged
8 or over and by people who have reduced
physical, sensory or mental abilities or inad-
equate experience and/or knowledge,
provided that they are supervised or have
been instructed on how to use the appliance
safely and have understood the resulting
dangers.
Do not let children play with the appliance.
Children must not perform cleaning or user
maintenance unless they are at least 15 years
old and are being supervised.
Keep children under the age of 8 years away
from the appliance and power cable.
1.4 Safe use
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch
fire.
▶ Never operate the appliance without a
grease filter.
▶ Clean the grease filters regularly.
▶ Never work with naked flames close to the
appliance (e.g. flambéing).
▶ Do not install the appliance near a solid
fuel heating appliance (e.g. wood- or coal-
burning) unless the heating appliance has
a sealed, non-removable cover. There must
be no flying sparks.
Hot oil and fat ignites very quickly.
▶ Always supervise hot oil and fat.
▶ Never extinguish burning oil or fat with wa-
ter. Switch off the hotplate. Extinguish
flames carefully using a lid, fire blanket or
something similar and leave to cool down.
When gas burners are in operation without
any cookware placed on them, they can build
up a lot of heat. A ventilation appliance in-
stalled above the cooker may become dam-
aged or catch fire.
▶ Only operate the gas burners with cook-
ware on them.
Operating multiple gas hobs at the same time
generates a great deal of heat. A ventilation
Safety en
3
appliance installed above the cooker may be-
come damaged or catch fire.
▶ Only operate the gas hobs with cookware
on them.
▶ Select the highest fan setting.
▶ Never operate two gas hobs simultan-
eously on the highest flame for longer than
15 minutes. Two gas hobs correspond to
one large burner.
▶ Never operate large burners of more than
5kW with the highest flame for longer
than 15minutes, e.g. a wok.
A non-regenerable odour filter may catch fire
in the oven.
▶ Only regenerable odour filters that can be
regenerated.
Fatty deposits in the grease filters may catch
fire.
▶ Clean the grease filters regularly.
WARNING‒Risk of suffocation!
Children may put packaging material over
their heads or wrap themselves up in it and
suffocate.
▶ Keep packaging material away from chil-
dren.
▶ Do not let children play with packaging ma-
terial.
Children may breathe in or swallow small
parts, causing them to suffocate.
▶ Keep small parts away from children.
▶ Do not let children play with small parts.
WARNING‒Risk of poisoning!
Risk of poisoning from flue gases being
drawn back in. Room-air-dependent heat-pro-
ducing appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and dis-
charge the exhaust gases into the open
through an exhaust gas system (e.g. a chim-
ney). With the extractor hood switched on, air
is extracted from the kitchen and the adjacent
rooms. Without an adequate supply of air, the
air pressure falls below atmospheric pressure.
Toxic gases from the chimney or the extrac-
tion shaft are sucked back into the living
space.
▶ Always ensure adequate fresh air in the
room if the appliance is being operated in
exhaust air mode at the same time as a
room-air-dependent heat-producing appli-
ance is being operated.
▶ It is only possible to safely operate the ap-
pliance if the pressure in the room in which
the heating appliance is installed does not
fall below 4Pa(0.04mbar). This can be
achieved whenever the air needed for com-
bustion is able to enter through openings
that cannot be sealed, for example in
doors, windows, incoming/exhaust air wall
boxes or by other technical means. An in-
coming/exhaust air wall box alone is not
sufficient to ensure compliance with the
limit.
▶ In any case, consult your responsible chim-
ney sweep. They are able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures
to you.
▶ Unrestricted operation is possible if the ap-
pliance is operated exclusively in circulat-
ing-air mode.
en Avoiding material damage
4
Using a gas cooking appliance leads to a
build-up of heat, moisture and combustion
products in the room where the appliance is
installed.
▶ Switch on the extractor hood when using a
gas cooking appliance.
WARNING‒Risk of burns!
The accessible parts of the appliance become
hot during operation.
▶ Never touch these hot parts.
▶ Keep children at a safe distance.
The appliance becomes hot during operation.
▶ Allow the appliance to cool down before
cleaning.
WARNING‒Risk of injury!
Components inside the appliance may have
sharp edges.
▶ Carefully clean the appliance interior.
Changes to the electrical or mechanical as-
sembly are dangerous and may lead to mal-
functions.
▶ Do not make any changes to the electrical
or mechanical assembly.
The filter cover may swing out.
▶ Open the filter cover slowly.
▶ Take hold of the filter cover after opening
until it no longer swings out.
▶ Close the filter cover slowly.
The light emitted by LED lights is very
dazzling, and can damage the eyes (risk
group 1).
▶ Do not look directly into the switched-on
LED lights for longer than 100seconds.
Improper repairs are dangerous.
▶ Repairs to the appliance should only be
carried out by trained specialist staff.
▶ If the appliance is defective, call Customer
Service.
→"Customer Service", Page9
WARNING‒Danger: Magnetism!
The appliance contains permanent magnets.
They may affect electronic implants, e.g.
pacemakers or insulin pumps.
▶ Persons with electronic implants must
stand at least 10cm away from the appli-
ance.
WARNING‒Risk of electric shock!
An ingress of moisture can cause an electric
shock.
▶ Before cleaning, pull out the mains plug or
switch off the fuse in the fuse box.
▶ Do not use steam- or high-pressure clean-
ers to clean the appliance.
Penetrating moisture may cause an electric
shock.
▶ Do not use wet sponge cloths.
WARNING‒Risk of explosion!
Highly caustic alkaline or highly acidic clean-
ing agents in conjunction with aluminium parts
in the interior of the appliance may cause ex-
plosions.
▶ Never use highly caustic alkaline or highly
acidic cleaning agents. In particular, do not
use commercial or industrial cleaning
agents in conjunction with aluminium parts,
e.g. grease filter on extractor hoods.
Avoiding material damage
2 Avoiding material damage
ATTENTION!
Condensate may cause corrosion damage.
▶ To prevent condensation from building up, switch on
the appliance during cooking.
If moisture gets into the controls, this may result in
damage.
▶ Never clean controls with a wet cloth.
Incorrect cleaning damages the surfaces.
▶ Follow the cleaning instructions.
▶ Do not use harsh or abrasive detergents.
▶ Clean stainless steel surfaces in the direction of the
finish only.
▶ Never clean controls with stainless steel cleaners.
Condensation that flows back in may damage the ap-
pliance.
▶ To prevent condensate from returning, fit the ex-
haust air pipe with a 1° gradient from the appliance.
If you put incorrect stress on the design elements, they
may break off.
▶ Do not pull design elements.
▶ Do not place objects on the design elements or
hang objects from them.
There is a risk of surface damage if you do not peel off
the protective film.
▶ Remove the protective film from all parts of the ap-
pliance before using for the first time.
Painted surfaces are easily damaged.
▶ Follow the cleaning instructions.
→"Cleaning the appliance", Page7
▶ Ensure that the painted surfaces are not scratched.
Environmental protection and saving energy en
5
Environmental protection and saving energy
3 Environmental protection and saving energy
3.1 Disposing of packaging
The packaging materials are environmentally compat-
ible and can be recycled.
▶
Sort the individual components by type and dispose
of them separately.
3.2 Saving energy
If you follow these instructions, your appliance will use
less power.
Adjust the fan speed to the amount of steam pro-
duced during cooking.
¡
The lower the fan speed, the less energy is con-
sumed.
Only use the intensive mode as required.
If cooking produces large amounts of steam, select a
higher fan speed in good time.
¡
The odours are distributed around the room less.
Switch off the lighting if it is no longer required.
¡
When the lighting is switched off, it does not con-
sume any energy.
Clean or replace the filters at regular intervals.
¡
The effectiveness of the filter is retained.
Put the cooking lid on.
¡
The cooking vapours and condensation are re-
duced.
Only use the additional functions if required.
¡
Switching off additional functions reduces power
consumption.
Operating modes
4 Operating modes
You can use your appliance in air extraction mode or
circulating-air mode.
4.1 Air extraction mode
The air which is drawn in is cleaned by the grease fil-
ters and conveyed to the exterior by a pipe system.
The air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels (not applicable to appliances that
only discharge the air back into the
room).
¡ If the exhaust air is to be conveyed
into a non-functioning smoke or ex-
haust gas flue, you must obtain the
consent of the heating engineer re-
sponsible.
¡ If the exhaust air is conveyed
through the external wall, a tele-
scopic duct should be used.
4.2 Air recirculation
The air which is drawn in is cleaned by the grease fil-
ters and an odour filter, and conveyed back into the
room.
To bind odours in air recirculation
mode, you must install an odour filter.
The different options for operating the
appliance in air circulation mode can
be found in our catalogue. Alternatively,
ask your dealer. The required accessor-
ies are available from specialist retail-
ers, from our after-sales service or from
the online shop.
→"Accessories", Page6
en Familiarising yourself with your appliance
6
Familiarising yourself with your appliance
5 Familiarising yourself with your appliance
5.1 Controls
You can use the control panel to configure all functions
of your appliance and to obtain information about the
operating status.
Switching on fan setting1
Switching off the appli-
ance
Switching on fan setting2
Switching on fan setting3
Switching on an intensive
setting
Switch the lighting on or
off.
Accessories
6 Accessories
You can buy accessories from the after-sales service,
from specialist retailers or online. Only use original ac-
cessories, as these have been specifically designed for
your appliance.
Accessories vary from one appliance to another. When
purchasing accessories, always quote the exact
product number (E no.) of your appliance. →Page9
You can find out which accessories are available for
your appliance in our catalogue, in the online shop or
from our after-sales service.
www.neff-international.com
Accessories Order number
Standard odor filter Z5135X1
Standard recirculation kit Z5135X3
Clean Air Plus air recircu-
lation set
Z51IXC1X6
Clean Air Plus odor filter
(replacement)
Z51IXB1X6
LongLife air recirculation
set
Z51ITD1X1
Long Life odour filter (re-
placement)
Z51ITP0X0
Basic operation
7 Basic operation
7.1 Switching on the appliance
▶
Press .
a The appliance starts at fan setting 1.
7.2 Setting a fan level
▶
Press , or .
7.3 Switching off the appliance
▶
Press .
Note:If the fan is running at level 2 or 3, press
twice.
7.4 Switching on intensive mode
If particularly strong odours or vapours develop, you
can use intensive mode.
▶
Press and hold .
a The LED flashes red.
a After approx. six minutes, the appliance automatic-
ally switches to a lower fan setting.
Note:You can switch on the intensive mode directly in
off-mode. Once the sixminutes has elapsed, the appli-
ance is switched off again.
7.5 Switching on the lighting
The lighting can be switched on and off independently
of the ventilation system.
▶
Press .
7.6 Switching off the lighting
▶
Press .
Cleaning and servicing
8 Cleaning and servicing
To keep your appliance working efficiently for a long
time, it is important to clean and maintain it carefully.
8.1 Cleaning products
You can obtain suitable cleaning products from after-
sales service or the online shop.
Cleaning and servicing en
7
ATTENTION!
Unsuitable cleaning products may damage the sur-
faces of the appliance.
▶ Do not use harsh or abrasive detergents.
▶ Do not use cleaning products with a high alcohol
content.
▶ Do not use hard scouring pads or cleaning
sponges.
▶ Only use glass cleaners, glass scrapers or stainless
steel care products if recommended in the cleaning
instructions for the relevant part.
▶ Wash sponge cloths thoroughly before use.
8.2 Cleaning the appliance
Clean the appliance as specified. This will ensure that
the different parts and surfaces of the appliance are
not damaged by incorrect cleaning or unsuitable clean-
ing products.
WARNING‒Risk of explosion!
Highly caustic alkaline or highly acidic cleaning agents
in conjunction with aluminium parts in the interior of the
appliance may cause explosions.
▶ Never use highly caustic alkaline or highly acidic
cleaning agents. In particular, do not use commer-
cial or industrial cleaning agents in conjunction with
aluminium parts, e.g. grease filter on extractor
hoods.
WARNING‒Risk of electric shock!
An ingress of moisture can cause an electric shock.
▶ Before cleaning, pull out the mains plug or switch
off the fuse in the fuse box.
▶ Do not use steam- or high-pressure cleaners to
clean the appliance.
WARNING‒Risk of burns!
The appliance becomes hot during operation.
▶ Allow the appliance to cool down before cleaning.
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
▶ Carefully clean the appliance interior.
1.
Observe the information regarding the cleaning
agents.
2.
Clean as follows, depending on the surface:
‒ Clean stainless steel surfaces in the direction of
the finish using a sponge cloth and hot soapy
water.
‒ Clean painted surfaces using a damp sponge
cloth and hot soapy water.
‒ Clean aluminium using a soft cloth and glass
cleaner.
‒ Clean plastic using a soft cloth and glass
cleaner.
‒ Clean glass using a soft cloth and glass cleaner.
3.
Dry with a soft cloth.
4.
Apply a thin layer of the stainless steel cleaning
product to stainless steel surfaces using a soft
cloth.
You can obtain stainless steel cleaning products
from the after-sales service or the online shop.
8.3 Cleaning controls
WARNING‒Risk of electric shock!
Penetrating moisture may cause an electric shock.
▶ Do not use wet sponge cloths.
1.
Observe the information regarding the cleaning
agents.
2.
Clean using a damp sponge cloth and hot soapy
water.
3.
Dry with a soft cloth.
8.4 Removing the grease filter
WARNING‒Risk of injury!
The filter cover may swing out.
▶ Open the filter cover slowly.
▶ Take hold of the filter cover after opening until it no
longer swings out.
▶ Close the filter cover slowly.
1.

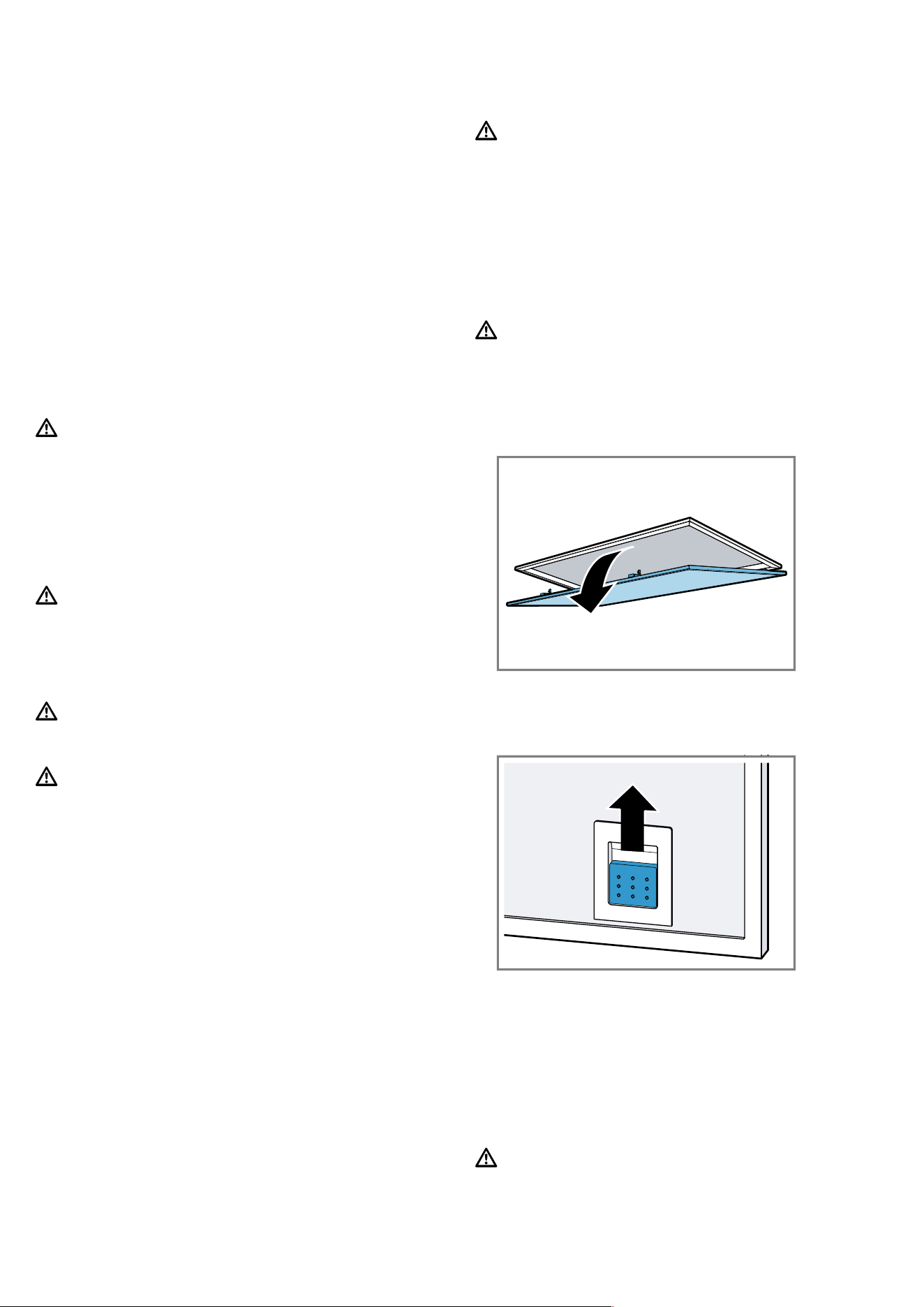

Open the filter cover by pulling it downwards.
2.
ATTENTION!
Falling grease filters may damage the hob below.
▶ Grip below the grease filter with one hand.
Open the locks on the grease filters.
3.
Remove the grease filters from the holders.
To prevent grease from dripping, hold the grease fil-
ter horizontally.
8.5 Cleaning grease filters manually
The grease filters filter the grease from the cooking va-
pour. Regularly cleaned grease filters guarantee a high
level of grease removal. We recommend cleaning the
grease filters every two months.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch fire.
▶ Clean the grease filters regularly.
en Troubleshooting
8
Requirement:The grease filters have been removed.
→"Removing the grease filter", Page7
1.
Observe the information regarding the cleaning
agents.
2.
Soak the grease filter in hot soapy water.
Use special grease solvent for stubborn dirt. You
can obtain grease solvents from customer service
or the online shop.
3.
Use a brush to clean the grease filters.
4.
Rinse the grease filters thoroughly.
5.
Allow the grease filters to drain.
8.6 Cleaning grease filters in the
dishwasher
The grease filters filter the grease from the cooking va-
pour. Regularly cleaned grease filters guarantee a high
level of grease removal. We recommend cleaning the
grease filters every two months.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch fire.
▶ Clean the grease filters regularly.
ATTENTION!
The grease filters may become damaged if they are
squeezed in the dishwasher.
▶ Do not squeeze the grease filters.
Note:When cleaning the grease filter in the dish-
washer, light discolouration may occur. This discoloura-
tion has no effect on the performance of the metal
grease filters.
Requirement:The grease filters have been removed.
→"Removing the grease filter", Page7
1.
Observe the information regarding the cleaning
agents.
2.
Place the grease filters loosely into the dishwasher.
Do not clean heavily soiled grease filters with
utensils.
Use special grease solvent for stubborn dirt. You
can obtain grease solvents from customer service
or the online shop.
3.
Start the dishwasher.
Select a temperature of no more than 70°C.
4.
Allow the grease filters to drain.
8.7 Fitting grease filters
ATTENTION!
Falling grease filters may damage the hob below.
▶ Grip below the grease filter with one hand.
1.
Fit the grease filters.
2.
Fold the grease filters upwards and engage the
locks.
3.
Make sure that the locks engage.
4.
Close the filter cover.
Troubleshooting
9 Troubleshooting
You can rectify minor faults on your appliance yourself.
Read the troubleshooting information before contacting
after-sales service. This will avoid unnecessary costs.
WARNING‒Risk of injury!
Improper repairs are dangerous.
▶ Repairs to the appliance should only be carried out
by trained specialist staff.
▶ If the appliance is defective, call Customer Service.
→"Customer Service", Page9
9.1 Replacing defective LED lights
▶
Defective LED lights may be replaced by the manu-
facturer, their customer service or a qualified techni-
cian (electrician) only.
9.2 Malfunctions
Fault Cause and troubleshooting
The appliance is not
working.
The mains plug of the power cord is not plugged in.
▶
Connect the appliance to the power supply.
The circuit breaker in the fuse box has tripped.
▶
Check the circuit breaker in the fuse box.
There has been a power cut.
▶
Check whether the lighting in your room or other appliances are working.
The lighting does not
work.
The LED lamp is defective.
▶
Call the after-sales service.
▶
Defective LED lights may be replaced by the manufacturer, their customer service or a
qualified technician (electrician) only.
Disposal en
9
Disposal
10 Disposal
10.1 Disposing of old appliance
Valuable raw materials can be reused by recycling.
▶
Dispose of the appliance in an environmentally
friendly manner.
Information about current disposal methods are
available from your specialist dealer or local author-
ity.
This appliance is labelled in accord-
ance with European Directive
2012/19/EU concerning used elec-
trical and electronic appliances
(waste electrical and electronic equip-
ment - WEEE).
The guideline determines the frame-
work for the return and recycling of
used appliances as applicable
throughout the EU.
Customer Service
11 Customer Service
Function-relevant genuine spare parts according to the
corresponding Ecodesign Order can be obtained from
Customer Service for a period of at least 10 years from
the date on which your appliance was placed on the
market within the European Economic Area.
Note:Under the terms of the manufacturer's warranty
the use of Customer Service is free of charge.
Detailed information on the warranty period and terms
of warranty in your country is available from our after-
sales service, your retailer or on our website.
If you contact Customer Service, you will require the
product number (E-Nr.) and the production number
(FD) of your appliance.
The contact details for Customer Service can be found
in the enclosed Customer Service directory or on our
website.
11.1 Product number (E-Nr.) and production
number (FD)
You can find the product number (E-Nr.) and the pro-
duction number (FD) on the appliance's rating plate.
Depending on the model, the rating plate can be found:
¡ Inside the appliance (remove grease filters for ac-
cess).
¡ On top of the appliance.
Make a note of your appliance's details and the Cus-
tomer Service telephone number to find them again
quickly.
Test information
12 Test information
This information has been produced to facilitate the in-
spection of the appliance.
¡ Measured in accordance with EN61591.
¡ The appliance is operated in its as-delivered condi-
tion.
¡ The appliance is measured at a colour temperature
of 4000k (switch position ).
¡ The grease absorption level has been determined
including the removable filter cover.
¡ Ensure that the filters do not move during the meas-
urement (by changing the appliance position to the
installation position).
Installation instructions
13 Installation instructions
Observe this information when installing the appliance.
en Installation instructions
10

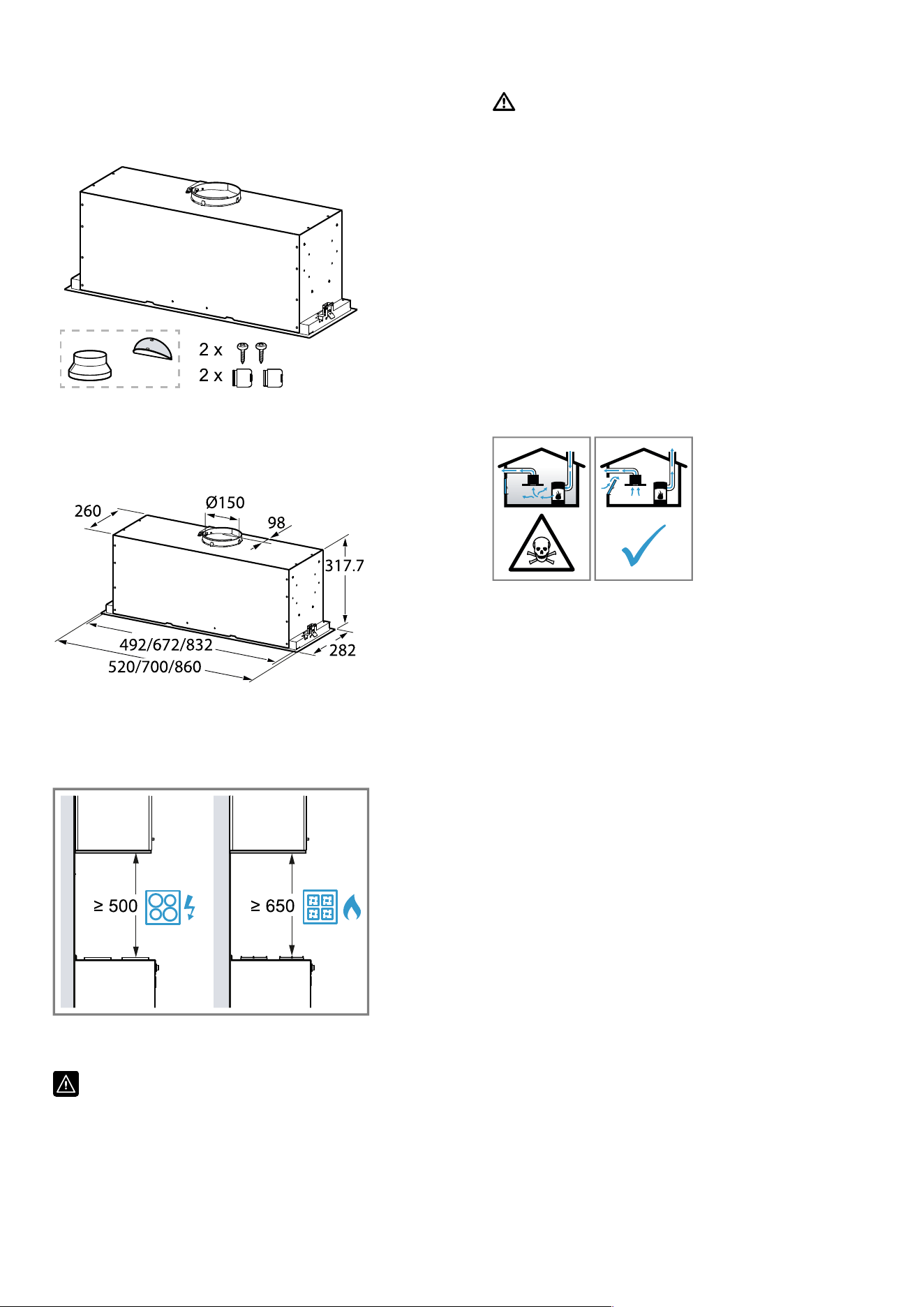

13.1 Scope of delivery
After unpacking all parts, check for any damage in
transit and completeness of the delivery.
13.2 Appliance dimensions
You will find the dimensions of the appliance here
13.3 Safety clearances
Comply with the safety clearances for the appliance.
For Australia and New Zealand the minimum safety
clearance above electrical cooktops must be 600 mm.
13.4 Secure installation
Follow these safety instructions when in-
stalling the appliance.
WARNING‒Risk of poisoning!
Risk of poisoning from flue gases being
drawn back in. Room-air-dependent heat-pro-
ducing appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and dis-
charge the exhaust gases into the open
through an exhaust gas system (e.g. a chim-
ney). With the extractor hood switched on, air
is extracted from the kitchen and the adjacent
rooms. Without an adequate supply of air, the
air pressure falls below atmospheric pressure.
Toxic gases from the chimney or the extrac-
tion shaft are sucked back into the living
space.
▶ Always ensure adequate fresh air in the
room if the appliance is being operated in
exhaust air mode at the same time as a
room-air-dependent heat-producing appli-
ance is being operated.
▶ It is only possible to safely operate the ap-
pliance if the pressure in the room in which
the heating appliance is installed does not
fall below 4Pa(0.04mbar). This can be
achieved whenever the air needed for com-
bustion is able to enter through openings
that cannot be sealed, for example in
doors, windows, incoming/exhaust air wall
boxes or by other technical means. An in-
coming/exhaust air wall box alone is not
sufficient to ensure compliance with the
limit.
▶ In any case, consult your responsible chim-
ney sweep. They are able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures
to you.
▶ Unrestricted operation is possible if the ap-
pliance is operated exclusively in circulat-
ing-air mode.
Installation instructions en
11
Risk of poisoning from flue gases being
drawn back in.
▶ If an extractor hood with an open-flued heat
production source is installed, the power
supply for the extractor hood must be
provided with a suitable safety switch.
Risk of poisoning from flue gases being
drawn back in.
▶ Do not emit the exhaust air into a smoke or
exhaust gas flue that is in operation.
▶ Do not emit the exhaust air into a shaft that
is used to ventilate installation rooms for
heat-producing appliances.
▶ If the exhaust air is to be conveyed into a
smoke or exhaust gas flue, you must obtain
the consent of the heating engineer re-
sponsible.
WARNING‒Risk of suffocation!
Children may put packaging material over
their heads or wrap themselves up in it and
suffocate.
▶ Keep packaging material away from chil-
dren.
▶ Do not let children play with packaging ma-
terial.
WARNING‒Risk of fire!
The grease deposits in the grease filter may
catch fire.
▶ Never work with naked flames close to the
appliance (e.g. flambéing).
▶ Do not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-remov-
able cover is present. There must be no fly-
ing sparks.
▶ The specified safety clearances must be
complied with in order to prevent a build-up
of heat.
▶ Observe the specifications for your cooking
appliances. If the installation instructions for
the cooking appliances specify a different
clearance, the larger of the two must al-
ways be provided for. If gas hobs and elec-
tric hobs are operated together, the largest
specified clearance applies.
WARNING‒Risk of injury!
Components inside the appliance may have
sharp edges.
▶ Wear protective gloves.
The appliance may fall down if it has not been
properly fastened in place.
▶ All fastening components must be fixed
firmly and securely in place.
Changes to the electrical or mechanical as-
sembly are dangerous and may lead to mal-
functions.
▶ Do not make any changes to the electrical
or mechanical assembly.
The filter cover may swing out.
▶ Open the filter cover slowly.
▶ Take hold of the filter cover after opening
until it no longer swings out.
▶ Close the filter cover slowly.
WARNING‒Risk of electric shock!
Sharp-edged components inside the appli-
ance may damage the connecting cable.
▶ Do not kink or trap the connecting cable.
Incorrect installation is dangerous.
▶ Connect and operate the appliance only in
accordance with the specifications on the
rating plate.
▶ Connect the appliance to a power supply
with alternating current only via a properly
installed socket with earthing.
▶ The protective conductor system of the do-
mestic electrical installation must be prop-
erly installed.
▶ Never equip the appliance with an external
switching device, e.g. a timer or remote
control.
▶ When the appliance is installed, the mains
plug of the power cord must be freely ac-
cessible. If free access is not possible, an
all-pole isolating switch must be installed in
the permanent electrical installation accord-
ing to the conditions of Overvoltage Cat-
egory III and according to the installation
regulations.
▶ When installing the appliance, check that
the power cable is not trapped or dam-
aged.
WARNING‒Danger: Magnetism!
The appliance contains permanent magnets.
They may affect electronic implants, e.g.
pacemakers or insulin pumps.
▶ Persons with electronic implants must
stand at least 10cm away from the appli-
ance.
13.5 General information
Follow these general instructions during the installation.
en Installation instructions
12
¡ For the installation, observe the currently valid build-
ing regulations and the regulations of the local elec-
tricity and gas suppliers.
¡ When discharging the exhaust air, the official and
legal regulations, such as the regional building
code., must be observed.
¡ In order to freely access the appliance for servicing,
select an easy-to-reach installation site.
¡ The surfaces of the appliance are sensitive. Avoid
damaging them during installation.
13.6 Instructions for the electrical
connection
In order to safely connect the appliance to the elec-
trical system, follow these instructions.
WARNING‒Risk of electric shock!
It must always be possible to disconnect the appliance
from the electricity supply. The appliance must only be
connected to a protective contact socket that has been
correctly installed.
▶ The mains plug for the mains power cable must be
easily accessible after the appliance is installed.
▶ If this is not possible, an all-pole isolating switch
must be integrated into the permanent electrical in-
stallation according to the conditions of overvoltage
category III and according to the installation regula-
tions.
▶ The permanent electrical installation must only be
wired by a professional electrician. We recommend
installing a residual-current circuit breaker (RCCB)
in the appliance's power supply circuit.
Sharp-edged components inside the appliance may
damage the connecting cable.
▶ Do not kink or trap the connecting cable.
¡ The connection data can be found on the rating
plate. →Page9
¡ The connecting cable is approx.1.30m long.
¡ This appliance complies with the EC interference
suppression regulations.
¡ The appliance corresponds to protection class 1.
You should therefore only use the appliance with a
protective earth connection.
¡ Do not connect the appliance to the power supply
during installation.
¡ Ensure that the protection against contact is guaran-
teed during installation.
13.7 Information on the installation situation
¡ Install this appliance in a kitchen cupboard.
¡ To install additional special accessory parts, ob-
serve the enclosed installation instructions.
¡ The width of the extractor hood must correspond at
least with the width of the hob.
¡ To optimally detect the cooking vapours, install the
appliance in the middle of the hob.
13.8 Instructions for the exhaust air pipe
The appliance manufacturer does not provide any war-
ranty for faults attributable to the pipeline.
¡ Use a short, straight exhaust air pipe with as large a
pipe diameter as possible.
¡ Long, rough exhaust air pipes, many pipe bends or
small pipe diameters reduce the suction power and
increase the fan noise.
¡ Use an exhaust air pipe that is made of non-com-
bustible material.
¡ To prevent condensate from returning, fit the ex-
haust pipe with a 1° gradient from the appliance.
Round pipes
Use round pipes with an inner diameter of 150mm (re-
commended) or at least 120mm.
Flat ducts
Use flat ducts with an inner cross-section that corres-
ponds to the diameter of the round pipes:
¡ Diameter of 150mm corresponds to ap-
prox.177cm².
¡ Diameter of 120mm corresponds to ap-
prox.113cm².
¡ Use sealing strips for different pipe diameters.
¡ Do not use any flat ducts with sharp bends.
13.9 Instructions for the air extraction mode
For air extraction mode, a one-way flap should be in-
stalled.
Notes
¡ If a one-way flap is not included with the appliance,
one can be ordered from a specialist retailer.
¡ If the exhaust air is conveyed through the external
wall, a telescopic duct should be used.
13.10 Information about circulating-air
mode
The appliance must only be operated when it is se-
curely installed and the pipework is connected.

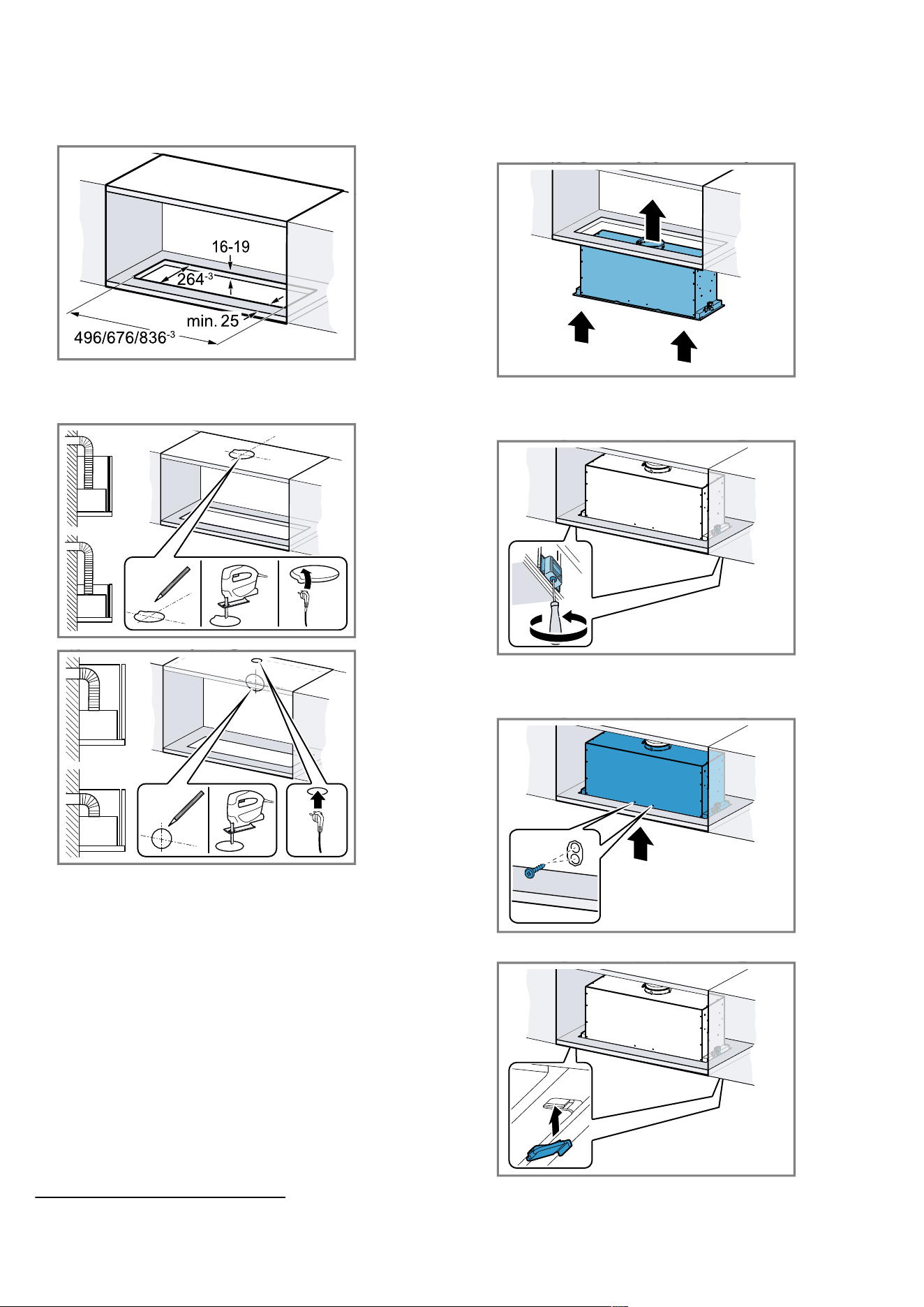

13.11 Installation
Checking the unit
1.
Check whether the fitted unit is level and has suffi-
cient load-bearing capacity.
The maximum weight of the appliance is 10kg.
Note:Note the furniture manufacturer's specifica-
tions with regard to the load-bearing capacity of the
fitted unit.
2.
Ensure that the fitted unit is heat-resistant up to
90°C.
3.
Ensure that the fitted unit is still stable after the cut-
outs have been made.
4.
Check the door hinges setting.
Depending on the design of the furniture, these may
no longer be accessible after installation.
Preparing the units
Requirement:The unit is suitable for the installation.
Installation instructions en
13
1.
Make the cut-out for the appliance.
‒ When doing so, make sure that the permissible
dimensions are complied with.
2.
Make the cut-out for the exhaust air pipe either
above the fitted unit or behind the fitted unit above
the appliance.
Unpacking the appliance
Unpack your appliance and check all parts for any
transport damage. Wear protective gloves when you
unpack the appliance.
ATTENTION!
The appliance frame is not a hand grip element.
▶ Do not lift the appliance by the frame.
Preparing the appliance
1.
If air extraction is required, fit the backflow flaps on
the air outlet and click them into place.
1
2.
Carefully remove the protective foil from the surface.
Installing the appliance
Note:We recommend that installation is carried out by
two persons.
1.
Insert the appliance together with the power cord
into the opening in the unit from below until you
hear the brackets engage. Avoid impacts and put-
ting pressure on one side when doing so.
2.
Tighten the two fastening screws alternating
between the left and right. Use a suitable tool to
avoid damaging the surface.
3.
Screw in the front two screws and select a hole so
that the surface of the appliance is flush with the fit-
ted unit.
4.
Insert the two screw covers.
1
Depending on the appliance specifications
en Installation instructions
14
Establishing the exhaust air connection
1.
Secure the air pipe to the air pipe connector.
2.
Establish the connection to the exhaust air opening.
3.
Seal the joints.
Removing the appliance
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
▶ Wear protective gloves.
1.
Disconnect the appliance from the power supply.
2.
Loosen the exhaust pipe.
3.
Open the filter cover.
4.
Remove the grease filters.
To avoid causing damage, do not bend the grease
filters.
5.
Loosen the two front screws
6.
Loosen the two fastening screws on the brackets al-
ternating between the left and right.
7.
Slowly take the appliance down.
ST4_Neff_Cover.indd 1ST4_Neff_Cover.indd 1 22.01.2024 10:51:4722.01.2024 10:51:47
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
*9001938245*
9001938245
040926
en
Valid within Great Britain:
Imported to Great Britain by
BSH Home Appliances Ltd.
Grand Union House
Old Wolverton Road
Wolverton, Milton Keynes
MK12 5PT
United Kingdom
