bRAKE AND CLUTCH bLEEDER
MODEL NO: VS1205
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
99 99 Keep this product in good working order and condition, take immediate action to repair or replace damaged parts.
99 99 Use approved parts only. Unapproved parts may be dangerous and will invalidate the warranty.
99 99 Keep children and unauthorised persons away from the work area.
99 99 Keep work area clean and tidy and free from unrelated materials.
99 99 Ensure the work area has adequate lighting.
98 99 DO NOT use the kit to perform a task for which it is not designed.
98 99 DO NOT allow untrained persons to use the kit.
98 99 DO NOT use when tired or under the inuence of drugs, alcohol or intoxicating medication.
99 99 After use, clean equipment and store in a cool, dry, childproof area.
9 Dispose of waste liquids in accordance with local authority regulations.
9 Always read and comply with the warnings on the brake uid container.
9 Wear eye protection and keep skin contact to a minimum. If brake uid enters eyes rinse with plenty of water and seek medical advice.
9 If swallowed seek medical advice immediately.
WARNING! Only use new brake uid, used brake uid or other uids will contaminate the system and possible brake system failure
may result.
88 89 DO NOT pollute the environment by allowing uncontrolled discharge of uids.
9 99 WARNING!9Brake uid is ammable - keep away from sources of ignition, including hot surfaces e.g. exhaust manifold.
9 99 WARNING!9Brake uid will damage paintwork. Any spillage should be ushed with water immediately.
2. INTRODUCTION

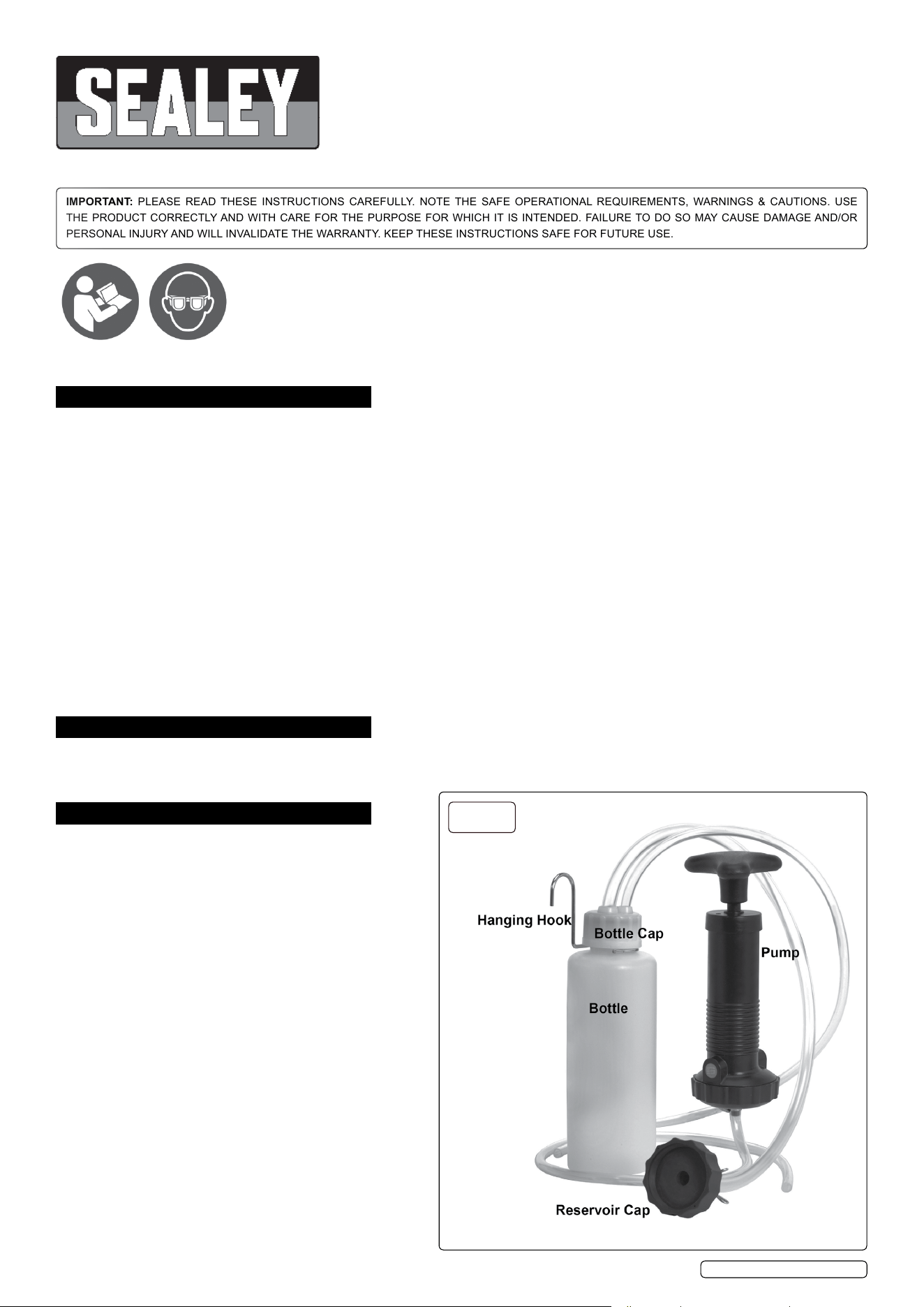

One-man brake and clutch bleeder. Bleeding requires no external power source - simply ll and pump. Bottle holds 400ml of hydraulic uid.
Design incorporates pressure control valve set at 20psi. Pressure range makes unit suitable for use with ABS systems. Fitted with Ø45mm cap
which is suitable for most European models.
3. SpECIFICATION
Model no ................................................................... VS1205
Capacity ....................................................................... 400ml
Maximum pressure ........................................... 1.4bar (20psi)
Weight ......................................................................... 0.38kg
Refer to
instruction
manual
Wear eye
protection
Original Language Version
© Jack Sealey Limited
g.1
VS1205 Issue: 2 (2) - 19/09/18
Original Language Version
© Jack Sealey Limited

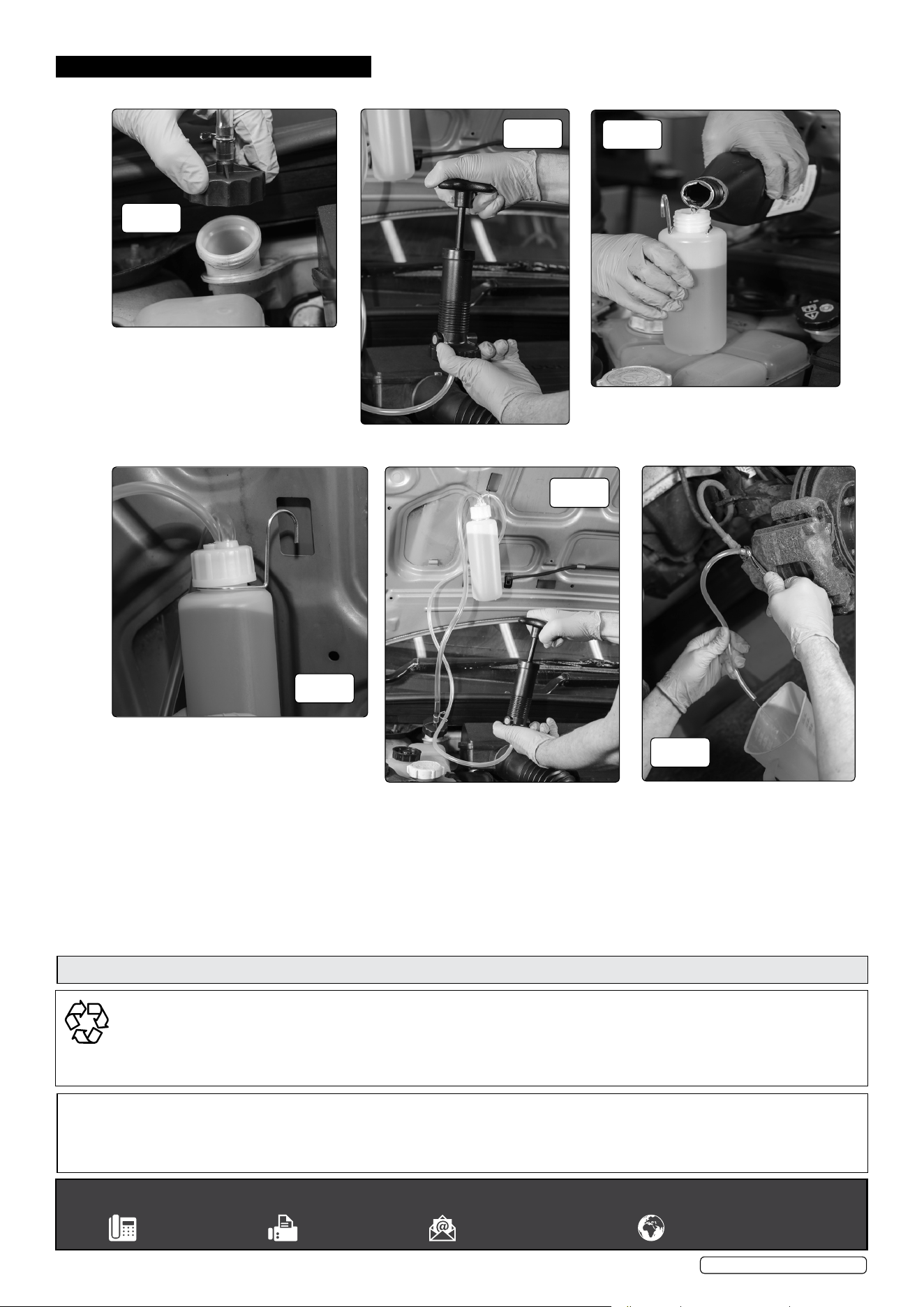

4. OpERATION
4.1. Always consult the vehicle manufacturer’s handbook or workshop manual for the recommended procedure.
4.2. Screw the cap onto the brake/clutch
reservoir. Make sure that the cap is tight
and connect the remaining pipes, g.1.
4.3. Pump the handle to pressurise, make sure
there are no leaks, g.2.
4.4. Release the pressure and ll the bottle with new brake uid, g.3.
4.5. Mount the bottle in a suitable position under
the bonnet using the metal hook, g.4.
4.6. Using a suitable pipe and waste container
(not supplied), push the pipe onto the bleed nipple. Pump the handle to pressurise the bottle, g.5.
4.7. Release bleed nipple allowing air and old brake uid to ow out of container, g.6.
4.8. When the bottle and reservoir is pressurised, follow the vehicle manufacturer’s instructions for brake or clutch bleeding.
4.9. Monitor the uid level in the bottle; if it needs replenishment before the bleeding procedure is complete, open the bottle cap slowly to
release the pressure. Rell the bottle and re-pressurise.
4.10. When the bleeding has been completed, release the bottle pressure by unscrewing the cap slowly.
4.11. Wipe the bottle cap with clean rag or paper to avoid dripping brake uid on paintwork.
4.12. When not in use, empty of brake uid and store in a clean, dry, childproof location.
4.13. Dispose of brake uid in accordance with national and local regulations.
.
VS1205 Issue: 2 (2) - 19/09/18
fig.
1
fig.
2
fig.
3
fig.
4
fig.
5
fig.
6
