BENCH GRINDER FLOOR STAND
MODEL NO: BGST
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE
WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. INTRODUCTION
Bench grinder stand with adjustable feet. Suits a wide variety of bench grinders with central mounting holes. Suitable for the following
Sealey machines: Model No’s BG150CX, BG150XD/99, BG150XL/96, BG150XLW/98, BG150XW/99, BG150XWL, BG150WL,
BG200WL, BG200XL, BG200/99. Also suitable for other leading brands of bench grinder*.
2. SPECIFICATION
Model No: .............................................................BGST
Bench Grinder Base (W x D): ....................270 x 220mm
Overall Size (W x D x H): .................465 x 465 x 900mm
3. CONTENTS
PART NO. DESCRIPTION QTY PART NO. DESCRIPTION QTY
1 Leg Braces - Short 4 7 Nuts 32
2 Top Brackets - Short Narrow 2 8 Nuts 2
3 Top Brackets - Short Wide 2 9 Bolt 2
4 Legs - Long 4 10 Washer 2
5 Foot Pads 4 11 Washer 2
6 Bolt 32 12 Washer 2
4. ASSEMBLY
Before you begin, separate all parts and group by size and style. If any parts are missing, contact your Sealey stockist immediately.
NOTE: nger tighten nuts and bolts when assembling. Once assembled, use an adjustable wrench to ensure all xings are secure.
WARNING! This stand must be installed on solid level ground and in combination with compatible bench grinders.

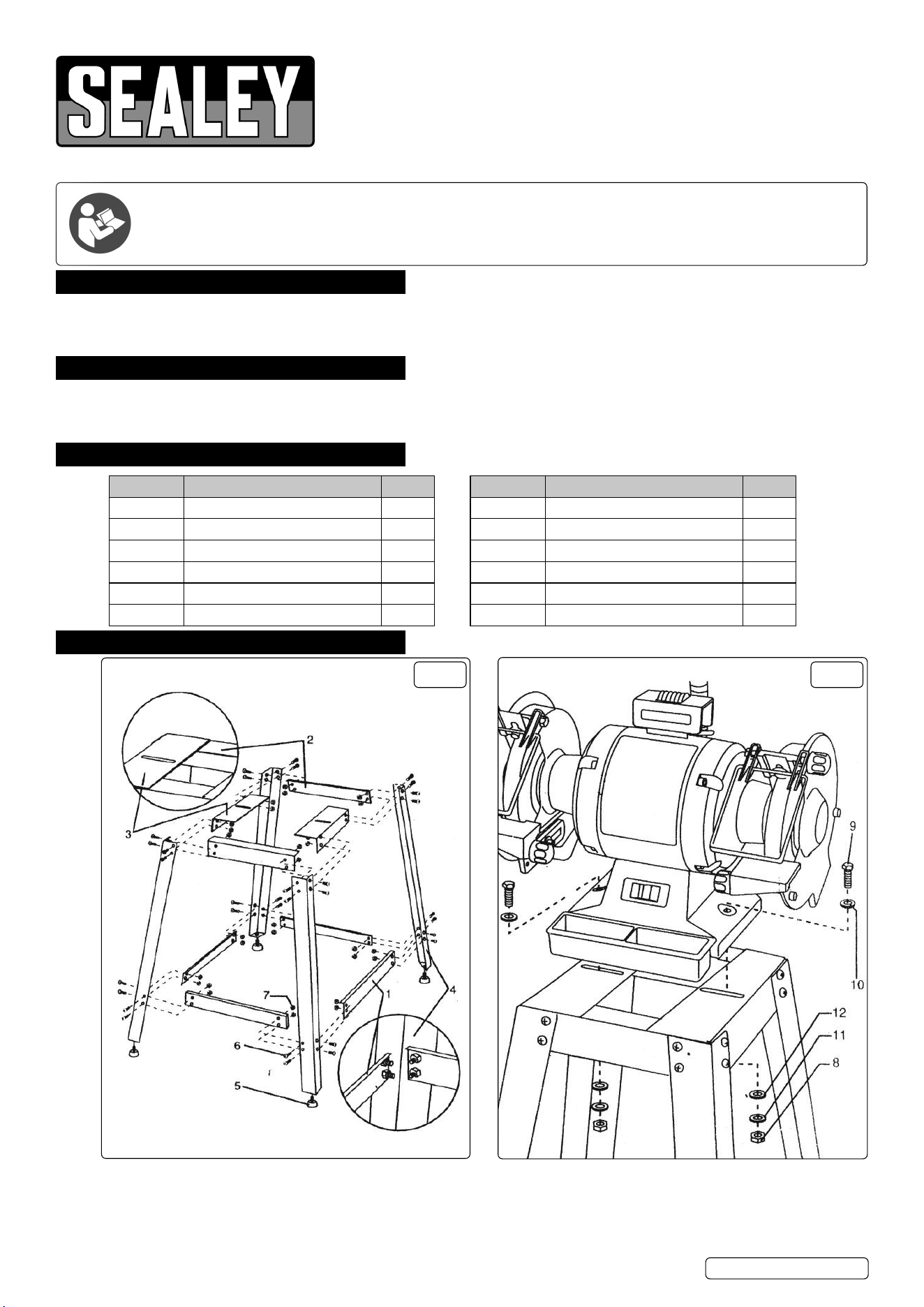

FIG.1
FIG.2
BGST Issue 1 29/09/23
Original Language Version
© Jack Sealey Limited
BGST Issue 1 29/09/23
Original Language Version
© Jack Sealey Limited
4.1. ASSEMBLING THE STAND (FIG.1)
4.1.1. Use bolts (6) and nuts (7) to assemble the leg set parts.
4.1.2. Attach a leg (4) to the slotted short top bracket (3). Attach the next leg to the opposite end of the top bracket. Finger tighten.
4.1.3. Repeat this assembly for the opposite side of the leg set.
4.1.4. Attach the completed leg assemblies to the narrow top brackets (2). Finger tighten. Repeat on the opposite side.
4.1.5. Insert bolt of the foot pad (5) into the leg ange hole at the bottom of the leg, and tighten.
4.1.6. Attach bottom leg braces (1) between each leg. Finger tighten.
4.1.7. Place the leg set on a level surface, adjust and tighten all nuts and bolts.
4.2. SECURING A GRINDER (FIG.2)
WARNING! To avoid injury, turn the grinder switch OFF and unplug from the power source before mounting onto the stand.
4.2.1. Position the grinder on the stand.
4.2.2. Match the slots of the leg set top to the holes on the bottom ange of the grinder base.
4.2.3. Secure the leg set to the grinder base using bolts (9), washers (10,11,12) , and nuts (8).
4.2.4. When all bolts and nuts are tightened, carefully set the grinder on a clean level surface.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.
