BOTTOM FREEZER REFRIGERATOR
REFRIGERADOR CON CONGELADOR INFERIOR
CONGI_LATEUR INFI_RIEUR RI_FRIGI_RATEUR
Models / Modelos / Modeles
795.7130-k
"k = color number
m
Z
"1"
Ill
t_
Zt
0
I""
'11
Z
MF_e_9_Te_ Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A. www.sears.com
Printed in Mexico
English Version 2
Spanish Version 33
French Version 66
Kenmore Warranty 3
Protection Agreements 4
Safety Instructions 5 - 6
Grounding Requirements 6

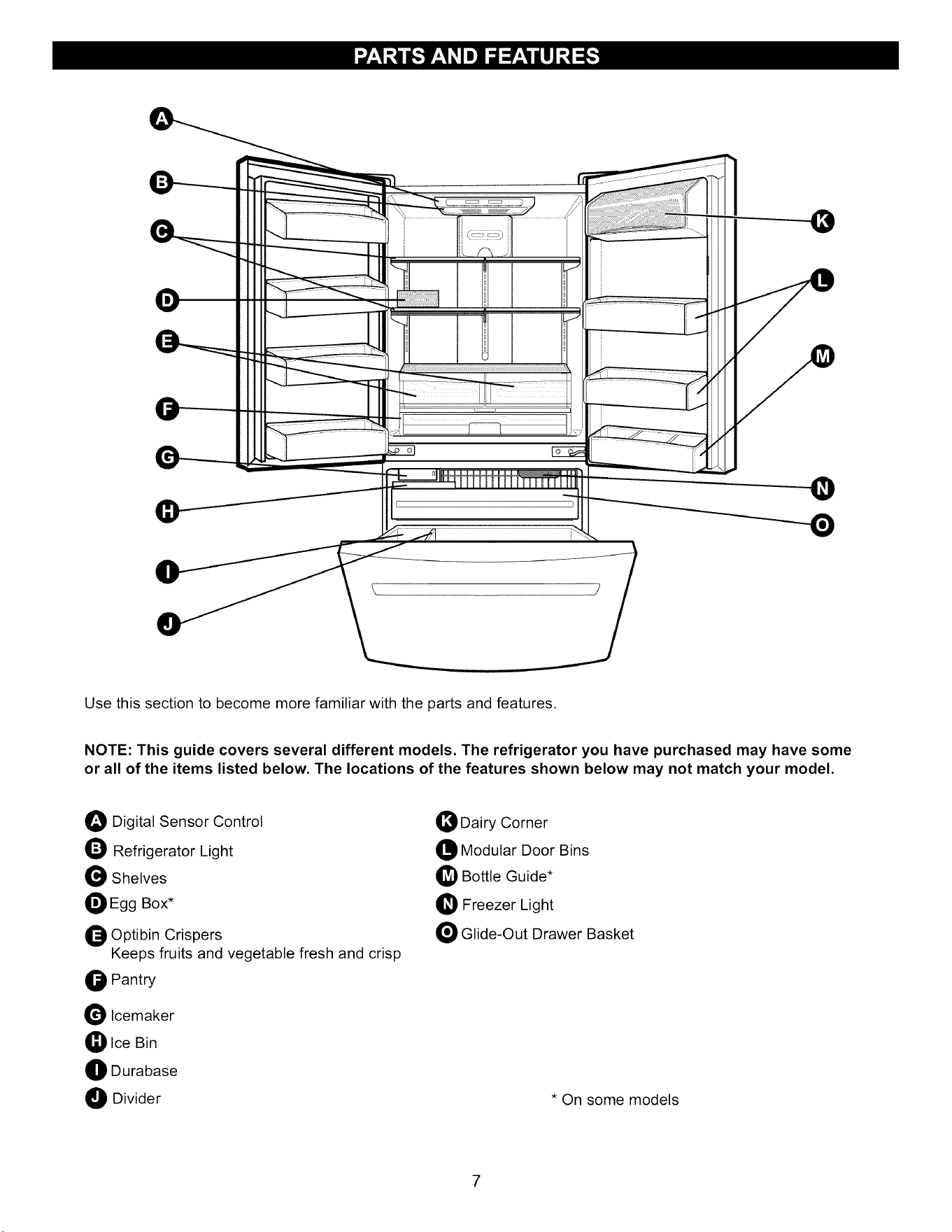

Parts and Features 7
Refrigerator Installation 8 - 15
Unpacking your refrigerator 8
Installation 8
Base Grille 8
How to remove door handle 9

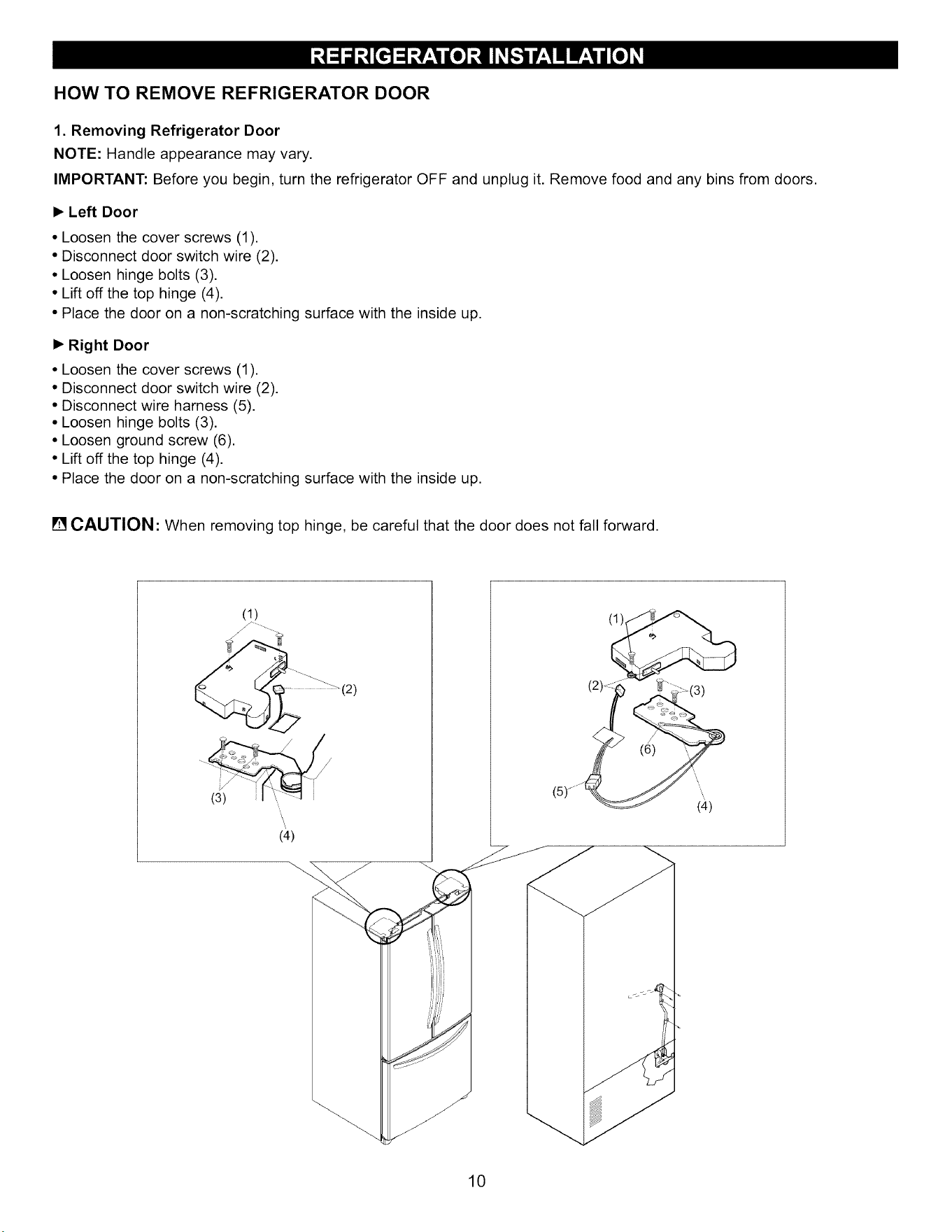

Removing and Replacing
Your refrigerator doors 10 - 11
Pull out drawer 12 - 13
Leveling and door alignment 14
Using your refrigerator 15 - 22

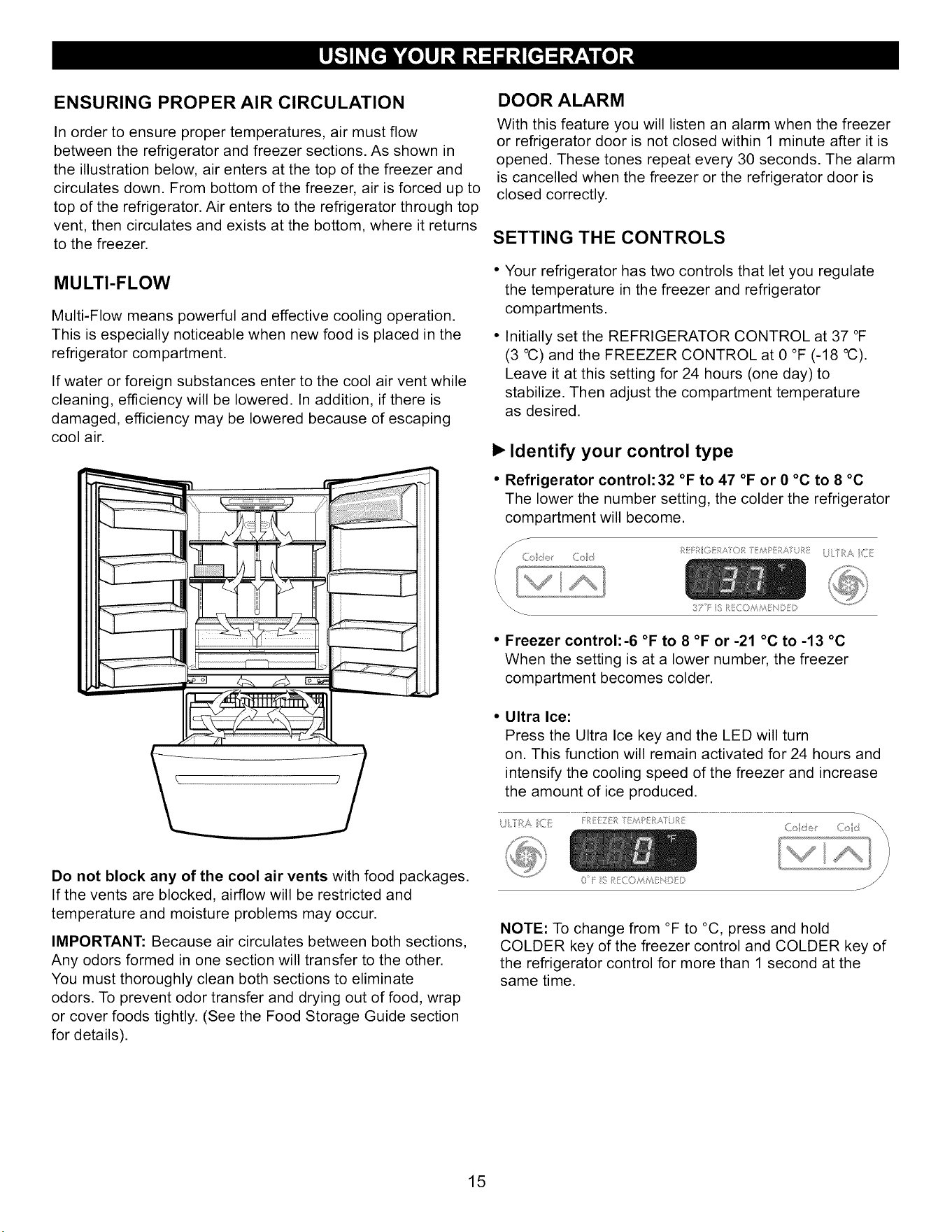

Ensuring proper air circulation 15
Multi Flow 15
Door alarm 15
Setting the controls 15

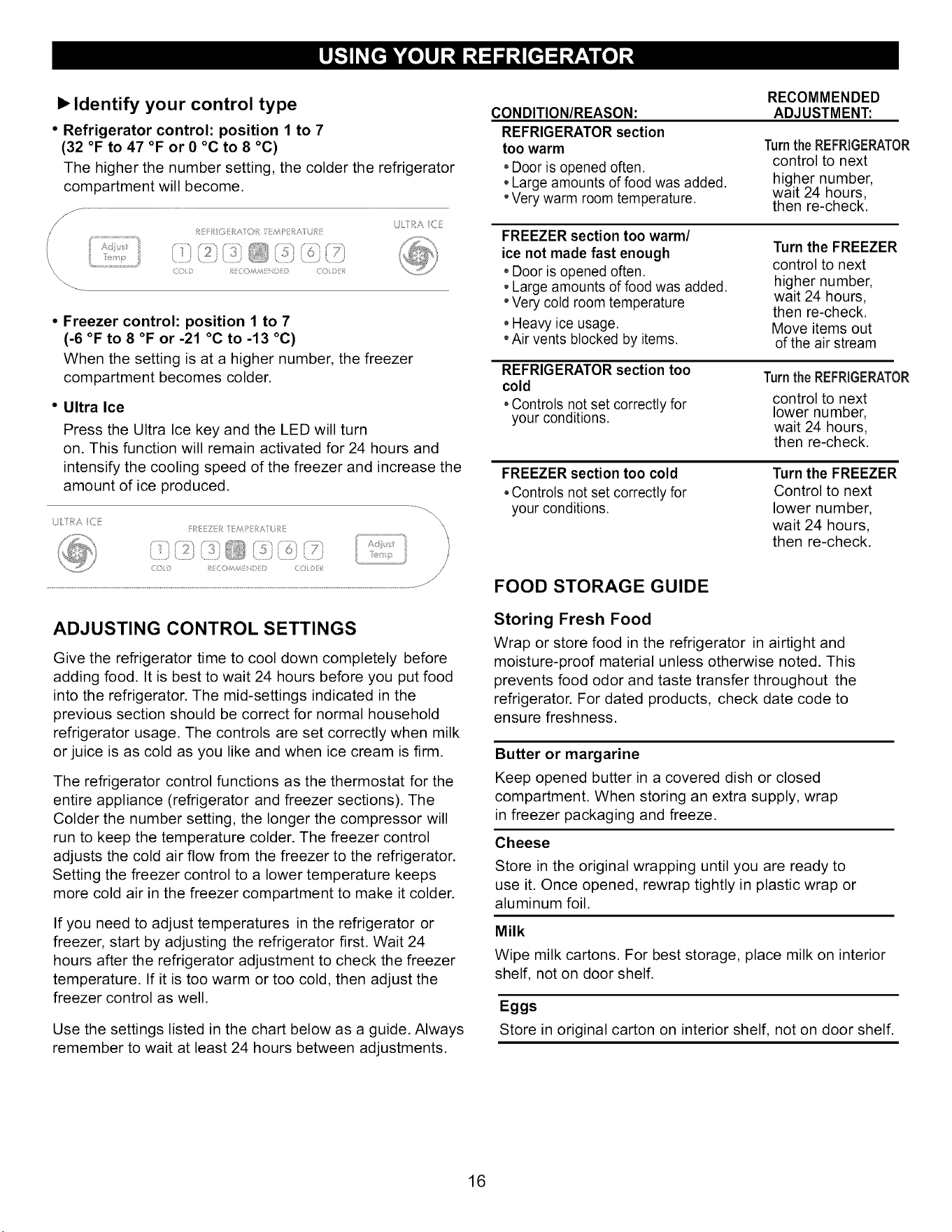

Adjusting control settings 16
Food storage guide 16

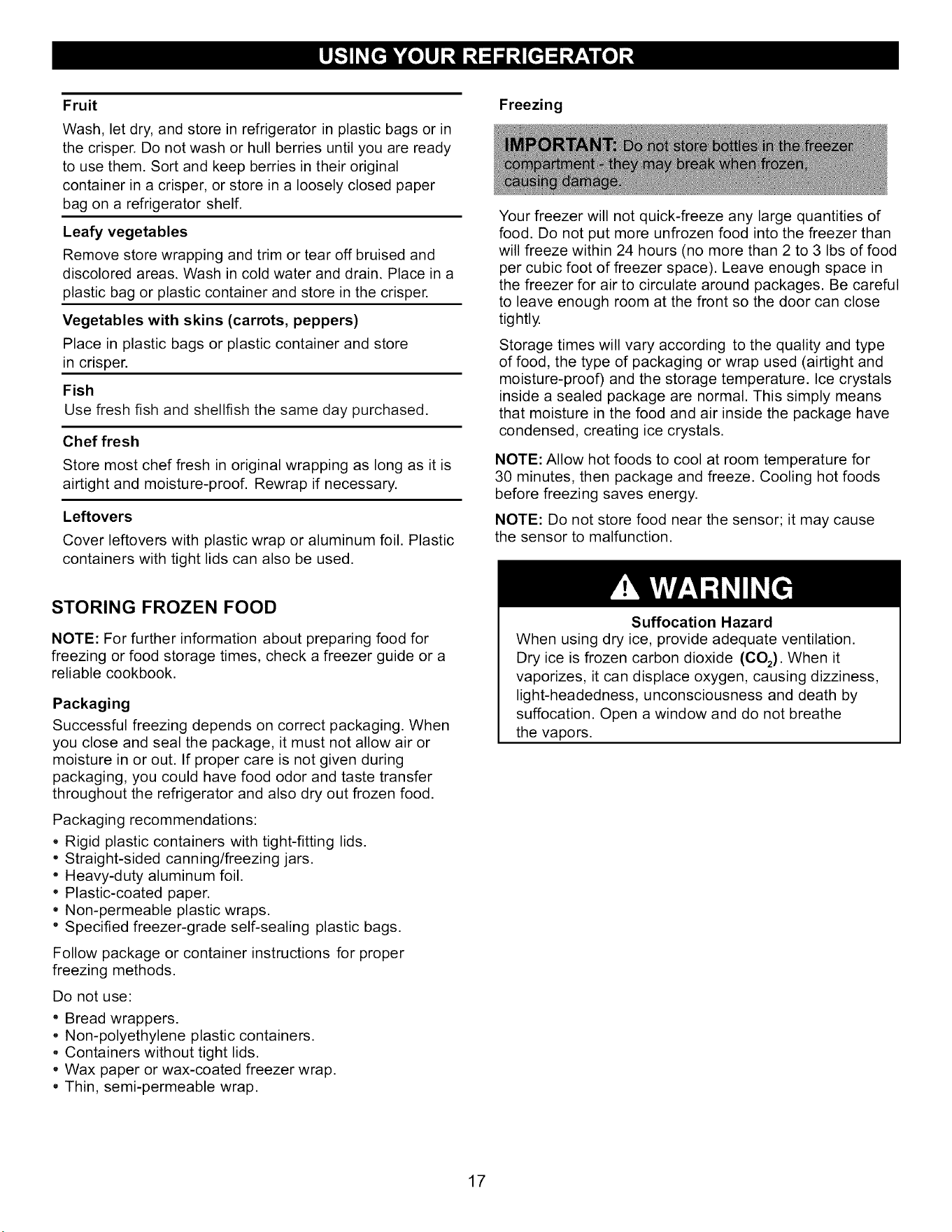

Storing frozen food 17
Refrigerator Section 18 - 21
Refrigerator shelves 18
Pantry 19
Crisper humidity control 19
Optibin Crisper 19

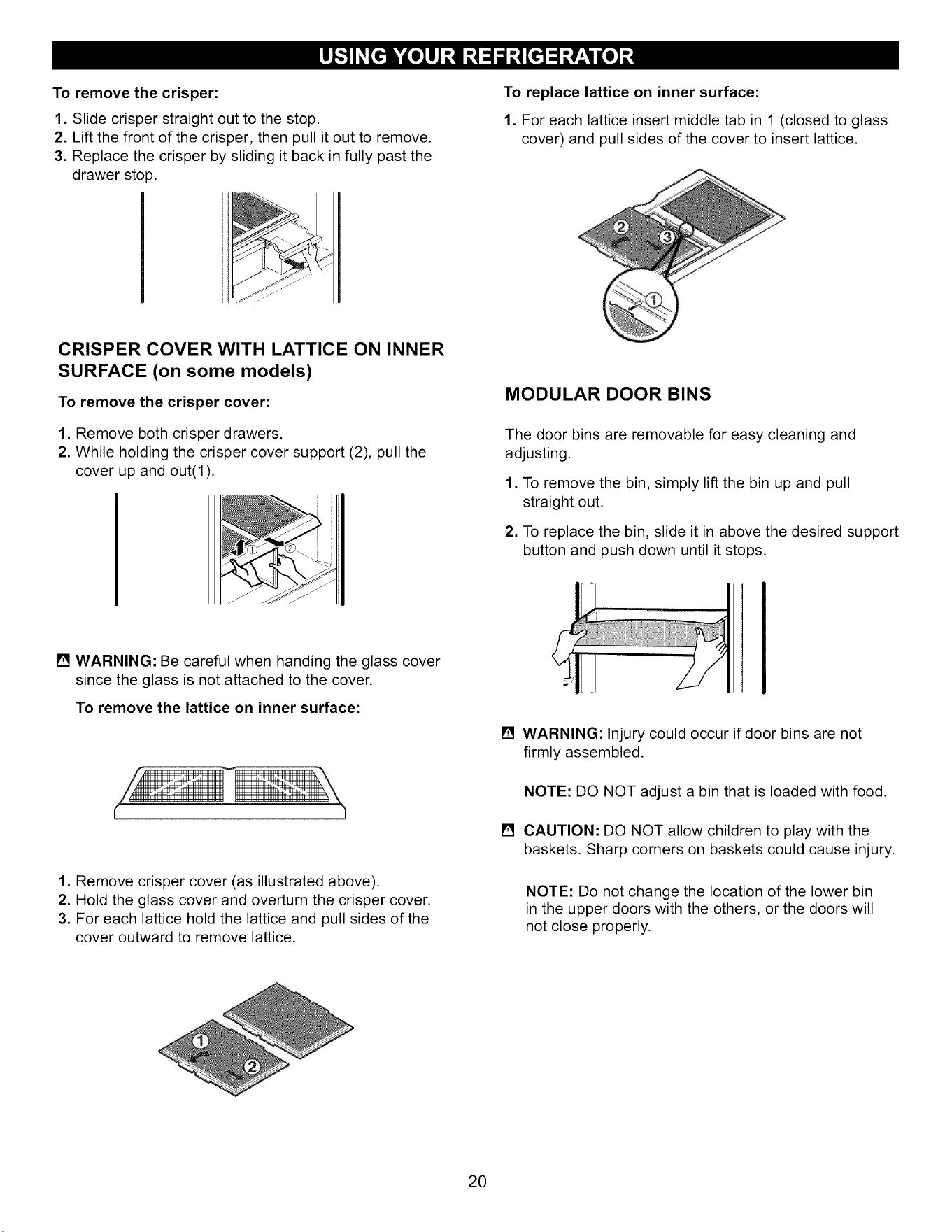

Crisper cover with lattice on inner surface 20
Modular Door Bins 20

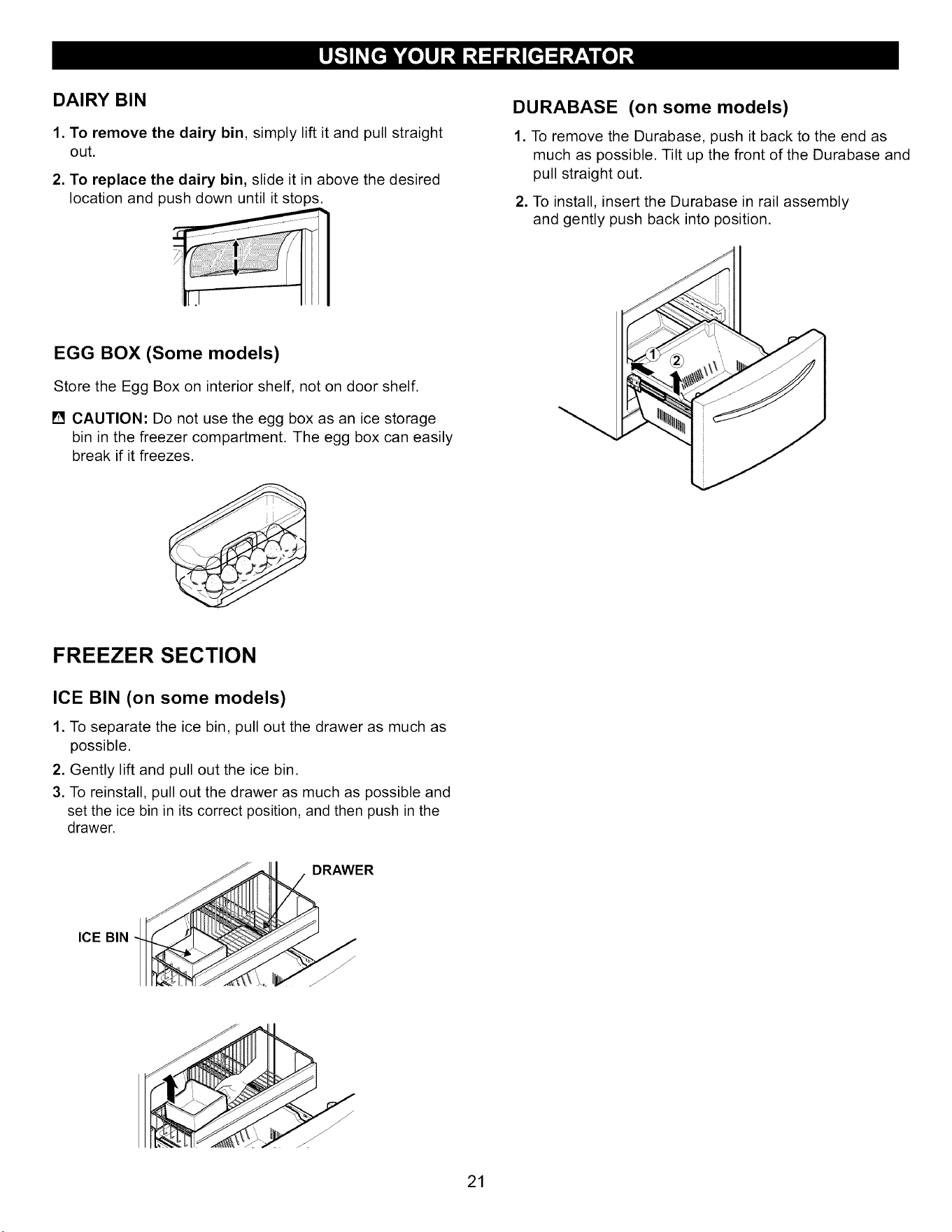

Dairy Bin 21
Egg Box 21
Freezer Section 21 - 22
Ice Bin 21
Durabase 21
Tilting Door 22

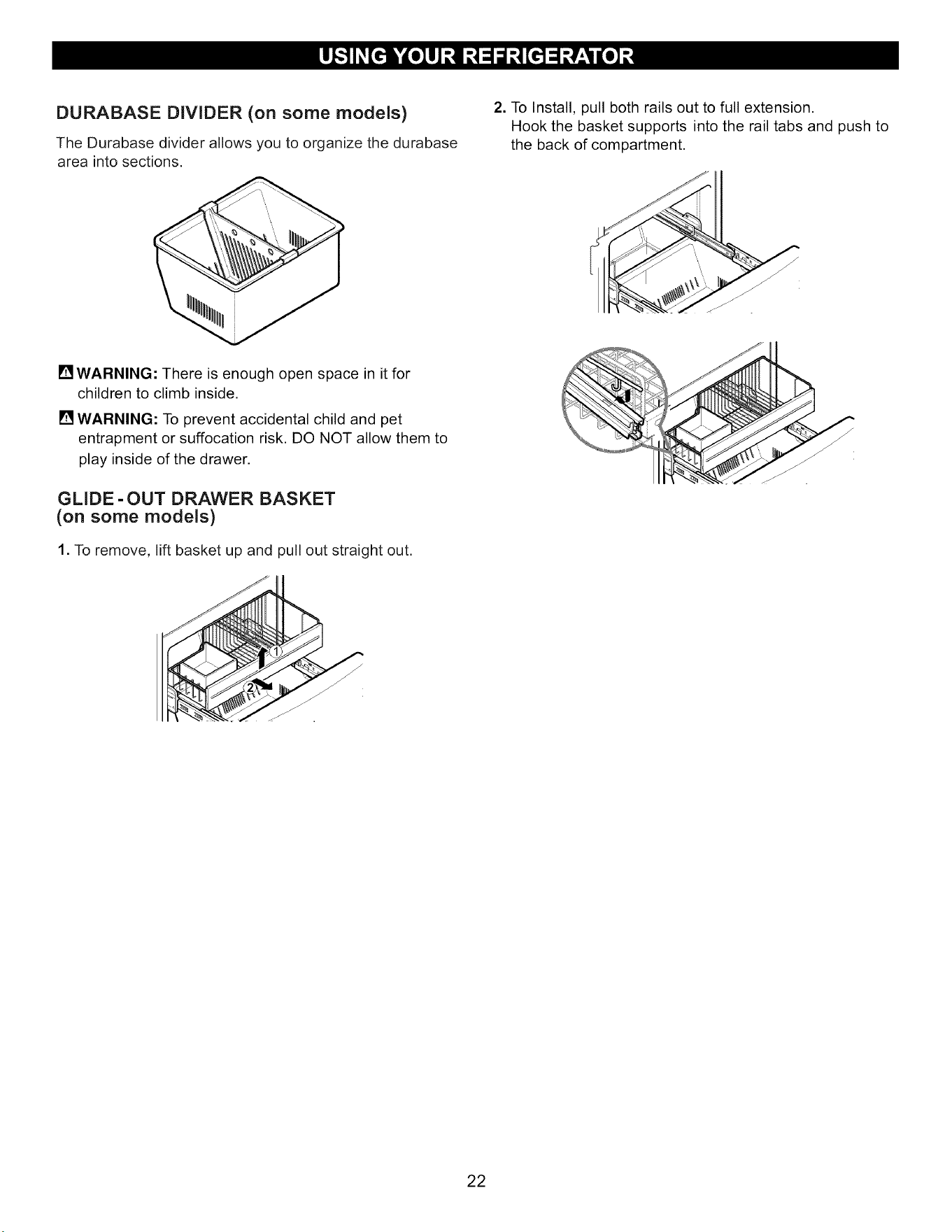

Durabase Divider 22
Glide-out drawer basket 22
Care and Cleaning 23 - 24
General cleaning tips 23
Outside 23
Inside walls 23
Door liner and gaskets 23
Plastic parts 23
Condenser coils 23
Light bulb replacement 23 - 24
Power interruptions 24
When you go on vacation 24
About the Custom Cube Ice Maker 25

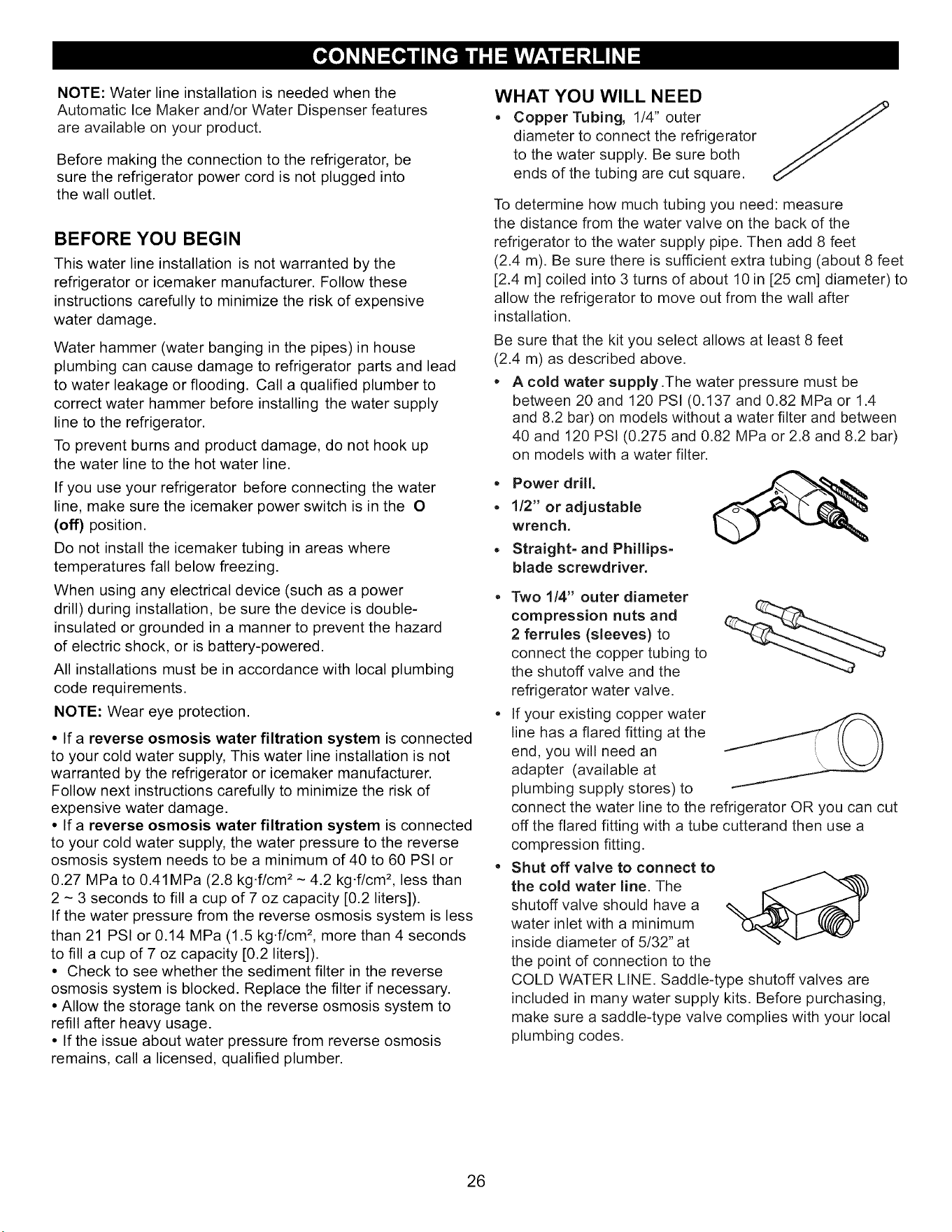

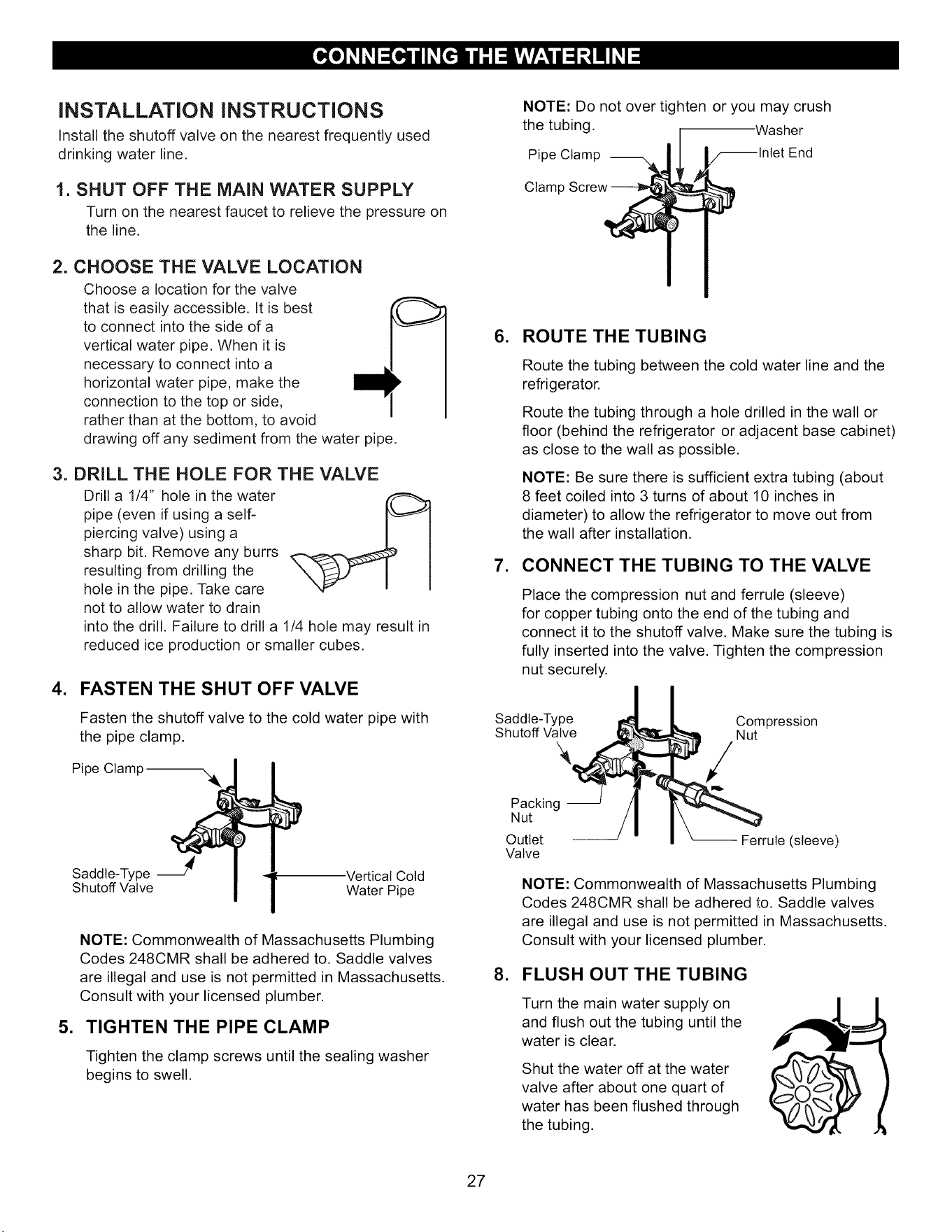

Connecting the Waterline 26 - 28

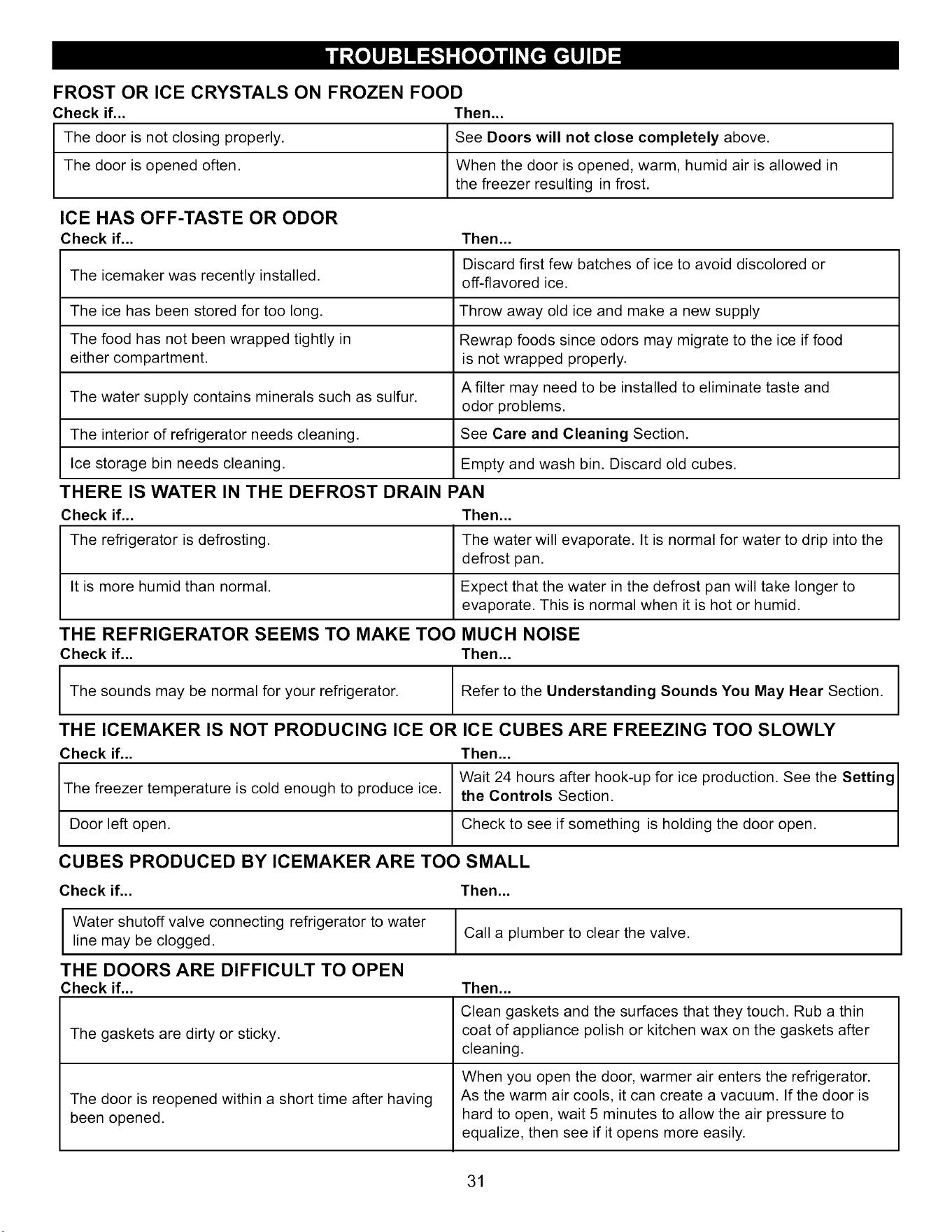

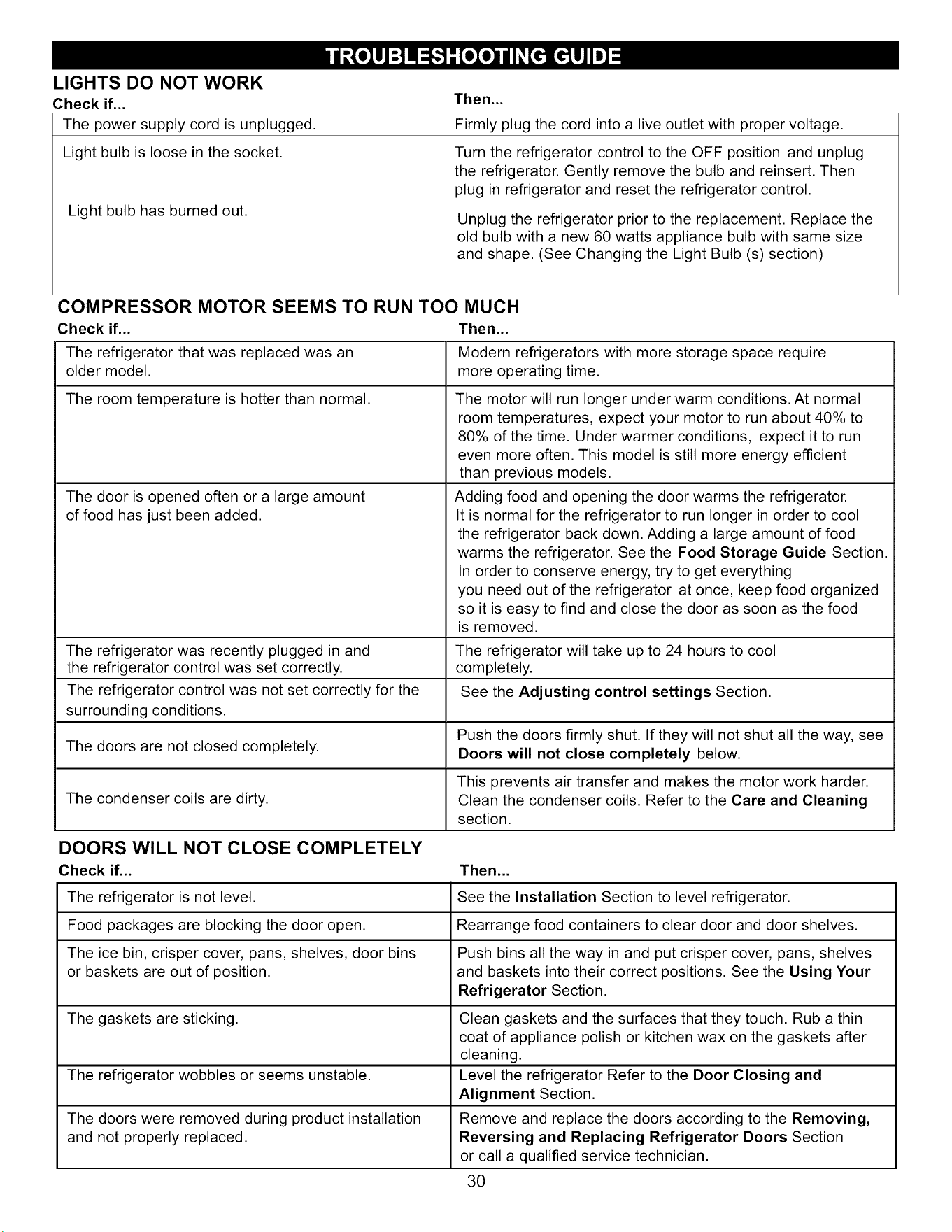

Troubleshooting Guide 29 - 32
BOTTOM FREEZER REFRIGERATOR
U.S.A. WARRANTY
Kenmore Appliance Warranty
_One Year Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due
to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME to arrange for
free repair.
If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of
purchase.
This Warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied
with the product.
5. Damage to or failure
purpose.
6. Damage to or failure
those recommended
7. Damage to or failure
of this product resulting from accident, abuse, misuse or use for other than its intended
of this product caused by the use of detergents, cleaners, chemicals or utensils other than
in all instructions supplied with the product.
of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, includingwarranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration
of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States and Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
k,
Sears Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8
J
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore _ product is designed and manufactured for years
of dependable operation. But like all products, it may
require preventive maintenance or repair from time to time.
That's when having a Master Protection Agreement can
save you money and aggravation.
The Master Protection Agreement also helps extend the life
of your new product. Here's what the Agreement* includes:
[] Parts and labor needed to help keep products operating
properly under normal use, not just defects. Our
coverage goes well beyond the product warranty. No
deductibles, no functional failure excluded from
coverage - real protection.
[] Expert service by a force of more than 10,000
authorized Sears service technicians, which means
someone you can trust will be working on your product.
[] Unlimited service calls and nationwide service, as
often as you want us, whenever you want us.
[] "No-lemon" guarantee- replacement of your covered
product if four or more product failures occur within
twelve months.
[] Product replacement if your covered product can't be
Fixed.
[] Annual Preventive Maintenance Check at your
Request - no extra charge.
[] Fast help by phone - we call it Rapid Resolution -
phone support from a Sears representative on all
products. Think of us as a "talking owner's manual."
[] Power surge protection against electrical damage due
to power fluctuations.
[] $250 Food Loss Protection annually for any food
spoilage that is the result of mechanical failure of any
covered refrigerator or freezer.
[] Rental reimbursement if repair of your covered product
takes longer than promised.
[]10% discount off the regular price of any non-covered
repair service and related installed parts.
Once you purchase the Agreement, a simple phone call is
all that it takes for you to schedule service. You can call
anytime day or night, or schedule a service appointment
online.
The Master Protection Agreement is a risk free purchase.
If you cancel for any reason during the product warranty
period, we will provide a full refund. Or a prorated refund
anytime after the product warranty period expires.
Purchase your Master Protection Agreement today7
Some limitations and exclusions apply. For prices and
additional information in the U.S.A. call 1-800-827-6655.
*Coverage in Canada varies on some items. For full
details call Sears Canada at 1-800-361-6655.
Sears Installation Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items, in the U.S.A. or Canada call
1-800-4-MY-HOME_.
In the space below, record the date of purchase, model and serial number of your product. You will find the model and
serial number printed on an identification label located on the right-hand side of the refrigerator compartment. Have
these items of information available whenever you contact Sears concerning your product.
Model No. Date of Purchase
Serial No.
Save these instructions and attach your sales receipt for future reference.

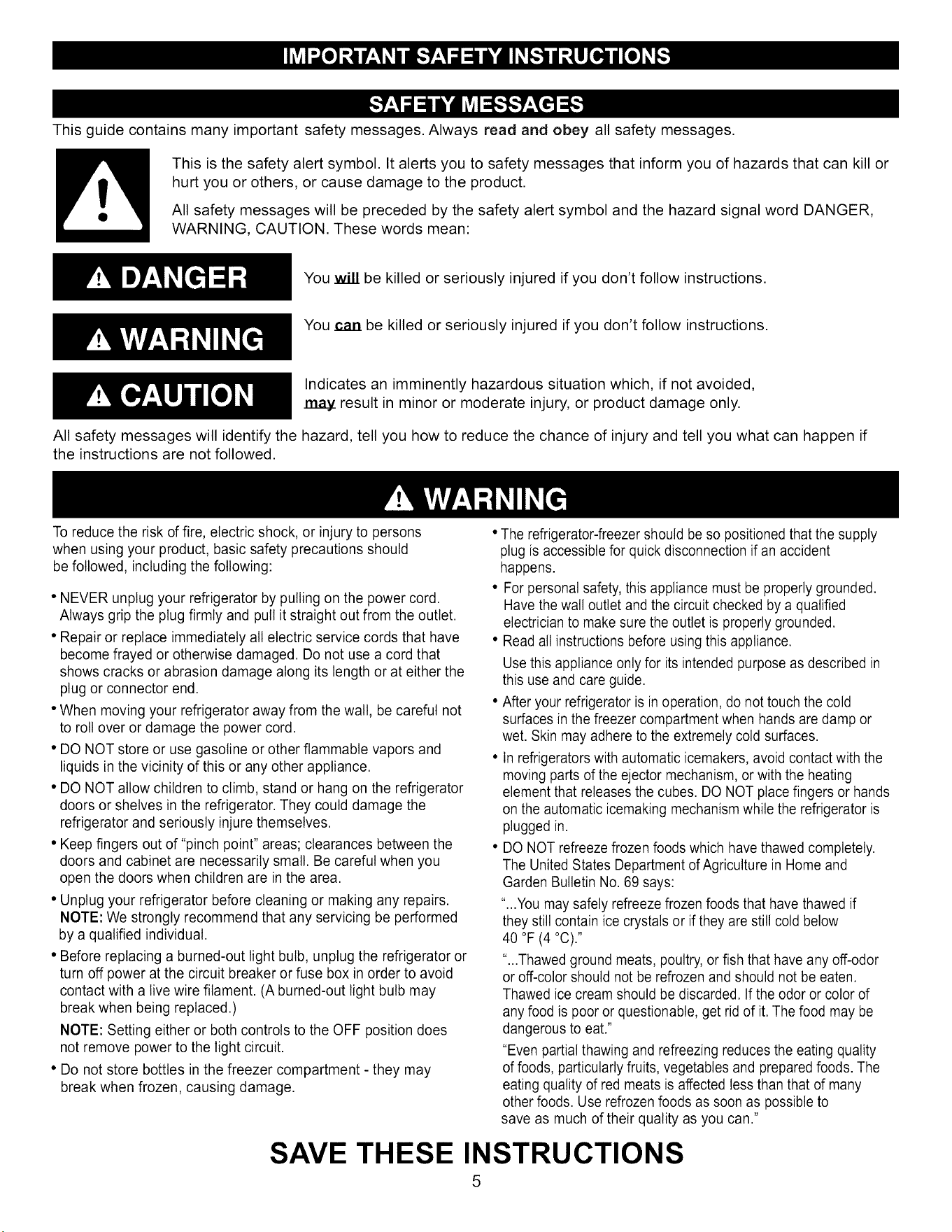

Thisguidecontainsmanyimportantsafetymessages.Alwaysreadandobeyallsafetymessages.
Thisisthesafetyalertsymbol.Italertsyoutosafetymessagesthatinformyouofhazardsthatcankillor
hurtyouorothers,orcausedamagetotheproduct.
AllsafetymessageswillbeprecededbythesafetyalertsymbolandthehazardsignalwordDANGER,
WARNING,CAUTION.Thesewordsmean:
Youwill be killed or seriously injured if you don't follow instructions.
You can be killed or seriously injured if you don't follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
m_a_y,result in minor or moderate injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if
the instructions are not followed.
Toreduce the risk of fire, electric shock, or injury to persons
when using your product, basic safety precautions should
be followed, includingthe following:
• NEVERunplugyour refrigerator by pulling on the power cord.
Always grip the plug firmly and pull itstraight out from the outlet.
• Repairor replace immediately all electric service cords that have
becomefrayed or otherwise damaged. Donot use a cord that
shows cracks or abrasion damage along its length or at either the
plug or connector end.
• When moving your refrigerator away from the wall, be careful not
to roll over or damage the powercord.
• DONOT store or use gasoline or other flammable vapors and
liquidsin thevicinity of this or any other appliance.
• DONOT allow childrento climb,stand or hang on the refrigerator
doors or shelves in the refrigerator.They could damage the
refrigeratorand seriously injure themselves.
• Keepfingers out of "pinch point" areas; clearances between the
doors and cabinet are necessarily small. Be careful when you
open the doorswhen children are in the area.
• Unplugyour refrigerator before cleaning or making any repairs.
NOTE:We strongly recommend that any servicing be performed
bya qualified individual.
• Beforereplacing a burned-out light bulb, unplug the refrigerator or
turn off power atthe circuit breaker or fuse box in order to avoid
contact with a livewire filament. (A burned-out light bulb may
breakwhen being replaced.)
NOTE: Setting either or both controls to the OFF position does
notremove power to the light circuit.
• Do not store bottles in the freezer compartment - they may
break when frozen, causing damage.
• Therefrigerator-freezershouldbeso positionedthat the supply
plugis accessiblefor quick disconnectionif an accident
happens.
• Forpersonalsafety,this appliancemust be properlygrounded.
Havethewall outlet andthe circuitcheckedbya qualified
electricianto makesurethe outlet isproperlygrounded.
• Readall instructionsbeforeusingthis appliance.
Use thisapplianceonlyfor its intendedpurposeas describedin
this useand careguide.
• Afteryour refrigeratoris inoperation,do nottouchthe cold
surfacesin thefreezer compartmentwhenhandsare dampor
wet.Skinmay adhereto the extremelycoldsurfaces.
• In refrigeratorswith automatic icemakers,avoidcontactwith the
movingparts ofthe ejector mechanism,or with the heating
elementthat releasesthecubes. DONOT placefingers or hands
on theautomatic icemakingmechanismwhile therefrigeratoris
pluggedin.
• DO NOTrefreezefrozenfoods which havethawedcompletely.
The UnitedStatesDepartmentofAgriculture in Homeand
GardenBulletinNo. 69 says:
"...Youmay safelyrefreezefrozenfoods that have thawedif
they stillcontain ice crystalsor ifthey are still coldbelow
40 °F(4 °C)."
"...Thawedground meats,poultry,or fish that haveany off-odor
or off-colorshould notbe refrozenand shouldnot be eaten.
Thawedice creamshouldbe discarded.If theodor or colorof
anyfood ispoor or questionable,get ridof it. Thefood may be
dangerousto eat."
"Evenpartialthawingand refreezingreducesthe eatingquality
offoods, particularlyfruits, vegetablesand preparedfoods. The
eatingqualityof red meatsis affectedlessthan that of many
otherfoods.Use refrozenfoods assoonas possibleto
save as much of their quality as you can."
SAVE THESE INSTRUCTIONS
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by person responsible for their safety. Children should be supervised to ensure that they do not play with the
appliance.
Child entrapment and suffocation are not problems of the
past. Junked or abandoned refrigerators are still dangerous...
even if they will sit for "just a few days". If you are getting rid
of your old refrigerator, please follow the instructions at right
to help prevent accidents.
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
- Take off the doors.
* Leave the shelves in place so that,
children may not easily climb inside.
Your old refrigerator may have a cooling system that used
CFCs (chlorofluorocarbons). CFCs are believed to harm
stratospheric Ozone.
For proper disposal of the product, please contact your
local regulatory agency.
If you are throwing away your old refrigerator, make sure
the CFC refrigerant is removed for proper disposal by a
qualified servicer. If you intentionally release this CFC
refrigerant, you can be subject to fines and imprisonment
under provisions of environmental legislation.
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
Electrical Shock Hazard
FOR YOUR PERSONAL SAFETY, this appliance must
be properly grounded. Have the wall outlet and the
circuit checked by a qualified electrician to make sure
the outlet is properly grounded.
3-prong
grounding
plug
3-prong
grounding type
wall receptacle _ _-_
Ensure proper
ground exists
before use.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the use of
an extension cord. However, if you still elect to use an
extension cord, it is absolutely necessary that it be a
UL-listed (in the United States), 3-wire grounding type
appliance extension cord having a grounding type plug
and outlet, and that the electrical rating of the cord be
15 amperes (minimum) and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator. If the supply cord
is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order
to avoid any hazard.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 volts, 60Hz, AC only and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a
fire hazard from overheated wires. It is recommended
that a separate circuit serving only this appliance be
provided. Use a receptacle which cannot be turned off
with a switch or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have
it replaced with a properly grounded three-prong wall
outlet. Do not, under any circumstances, cut or remove
the third (Ground) prong from the power cord.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the control
(Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to OFF and then disconnect
the refrigerator from the electrical source. When you
are finished, reconnect the refrigerator to the electrical
source and reset the control (thermostat, refrigerator
control or freezer control, depending on the model) to
the desired setting.
Usethissectiontobecomemorefamiliarwiththepartsandfeatures.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some
or all of the items listed below. The locations of the features shown below may not match your model.
O Digital Sensor Control
i_ Refrigerator Light
i_ Shelves
O Egg Box*
0ptibin Crispers
Keeps fruits and vegetable fresh and crisp
O Pantry
O Icemaker
O Ice Bin
O Durabase
O Divider
O Dairy Corner
_1 Modular Door Bins
Bottle Guide*
Freezer Light
_Glide-Out Drawer Basket
* On some models
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning type
labels, the model and serial number label, or the techsheet
(on some models), that is attached to back wall of the
refrigerator.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fingers. Wipe with warm
water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see the Important Safety Instructions
section.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator when
trying to move it, as floor damage could occur.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion or fire.
INSTALLATION
1. To avoid vibration, the unit must be level. If it is required,
adjust the leveling screws to compensate for
unevenness of the floor. The front should be slightly
higher than the rear to aid in door closing. Leveling
screws can be turned easily by tipping the cabinet
slightly. Turn the leveling screws clockwise (_) to
raise the unit, counterclockwise (_,.L) to lower it.
2. Install this appliance in an area where the temperature
is between 55 °F (13 °C) and 110 °F (43 °C.) If the
temperature around the appliance is too low or high,
cooling ability may be adversely affected.
3. Keep the refrigerator at a proper distance from
adjacent items and surfaces. Too small a distance
may result in lowered freezing capability and
increased electricity charge consumption.
(5.08 cm) 2" _'
(5.08 cm)
L.
2" 2"
(5.08 cm) (5.08 cm)
[] CAUTION: Avoid placing the unit near heat sources,
direct sunlight or moisture.
NEXT
.
.
,
Clean your refrigerator thoroughly and wipe off all dust
accumulated during shipping.
Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
Let your refrigerator run for 2 or 3 hours before store
food in it. Check the flow of cold air in the freezer
compartment to ensure proper cooling. Your refrigerator
is now ready for use.
E WARNING:
• Be careful when you work with hinge, base grille,
stopper etc. You may be injured.
• Do not put hands or metal sticks into air vents, base
grille or bottom of refrigerator. You may be injured or
receive an electrical shock.
BASE GRILLE INSTALLATION
To install or replace base grille:
1. Remove the 2 screws from the bottom front part of
refrigerator.
2. Place the base grille into position and insert and
tighten screws.
To remove the base grille
1. Remove screws from the base grille and remove it.
2. Reattach screws to the base of refrigerator.
TOOLS YOU MAY NEED
I _ 10 mm __ 1/4 in 1
1/4 in _ f/_
3/32 in
u
3/8 in
Hex head socket wrench Phillips screwdriver Flat head screwdriver Allen wrench
NOTE: It is always recommended that the doors be removed when it is necessary to move the refrigerator through a
narrow opening. If it is necessary to remove the handles follow the directions below.
NOTE: Handle appearance may vary from illustrations on this page.
HOW TO REMOVE DOOR HANDLE
1. Removing Refrigerator Handle
• Loosen the set screws with the 3/32" Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a 1/4"
Allen wrench.
Mounting
Fasteners
Screw
Allen Wrench
2. Removing Freezer Drawer Handle
• Loosen the set screws located on the lower
side of the handle with the 3/32" Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a 1/4"
Allen wrench.
HOW TO REMOVE REFRIGERATOR DOOR
1. Removing Refrigerator Door
NOTE: Handle appearance may vary.
IMPORTANT: Before you begin, turn the refrigerator OFF and unplug it. Remove food and any bins from doors.
• Left Door
• Loosen the cover screws (1).
• Disconnect door switch wire (2).
• Loosen hinge bolts (3).
• Lift off the top hinge (4).
• Place the door on a non-scratching surface with the inside up.
• Right Door
• Loosen the cover screws (1).
• Disconnect door switch wire (2).
• Disconnect wire harness (5).
• Loosen hinge bolts (3).
• Loosen ground screw (6).
• Lift off the top hinge (4).
• Place the door on a non-scratching surface with the inside up.
[] CAUTION: When removing top hinge, be careful that the door does not fall forward.
(1
\
\
\
(4)
(1)I_
(2)<_z
i /i
10
2. Replacing Refrigerator Door
• Right Door
• Lower the door onto the middle hinge pin (7).
• Make sure the door is aligned with the cabinet.
• Replace the top hinge (4) installing hinge
screws (3) to secure it.
• Make sure the gasket on the door is flush
against the cabinet and is not folded.
• Support the door on the handle side while
securing. And make sure the door is straight
and the gap between the doors is even across
the front.
• Install the ground screw (6).
• Connect the door switch wire (2).
• Tighten the cover screw (1).
• Left Door
• Lower the door onto the middle hinge pin (8).
• Make sure the door is aligned with the cabinet.
• Replace the top hinge (4) installing hinge
screws (3) to secure it.
• Make sure the gasket on the door is flush
against the cabinet and is not folded.
• Support the door on the handle side while
securing. And make sure the door is straight
and the gap between the doors is even across
the front.
• Connect the door switch wire (2).
• Tighten the cover screw (1).
NOTE: Make sure that the doors seal properly to ensure the
refrigerator runs efficiently.
11
HOW TO REMOVE AND INSTALL THE
PULL OUT DRAWER
1. Removing Pull out Drawer
IMPORTANT: To avoid possible injury, product or
property damage, you will need two persons to perform
the following instructions.
• Pull the drawer open to full lower extension. Remove
the durabase by lifting it from rail system.
Fig. 1 _._ I
_ Durabase__
• Press both hangers with yours thumbs to lift it up.
Fig. 2
• Separate the left and right rail cover
Fig. 3
• Remove the screws of the rail on both sides.
Fig. 4
screw
[]
CAUTION: When removing drawer door, do not hold it
by the handle. The door could fall down and you may
be injured. Grasp the door with both hands as pictured
below when removing.
[] CAUTION: When laying down the drawer, be careful
not to damage the floor or hurt your feet with the sharp
edges on hinge side.
With both hands, hold both sides of the door and pull it
up to separate it from the rails.
Fig. 5
Fig. 6
_R D°°r
supports
ail tabes
'h
° Push the rails back into drawer cavity. With both
hands, hold the center of the bar and push it in so
that both rails go back simultaneously.
Fig. 7
Fig. 8
12
HOW TO REMOVE AND INSTALL THE
PULL OUT DRAWER (cont.)
2. Installing Pull out Drawer
IMPORTANT: To avoid possible injury, product or
property damage, you will need two people to perform
the following instructions•
• With both hands, hold the center of the bar and pull it
out to let both rails out to full extension simultaneously.
° Hook door supports into rail tabs.
F" .^ Door Supports_,'_,%
,0,o
° Align the top holes of the rail cover with the top holes
of the door supports to assemble the rail cover•
Fig. 13
Verify the hole's assembly
Fig. 14
° Lower door into final position and tighten the screws.
Fig. 11._
Make sure you have the correct rail cover for each side.
_ Right
__ail cover
RaiLlecftver <'" _'_"_ _"'1_
Fig. 12 _ V
13
Fig. 15
° With the rails pulled out to full extension, insert the
durabase in the rail assembly.
Fig. 16
[] WARNING: To prevent accidental child and pet
entrapment or suffocation risk, DO NOT allow
them to play inside of drawer•
[] WARNING: DO NOT step or sit down on Freezer
Drawer•
LEVELING AND DOOR ALIGNMENT
Leveling
Your refrigerator has two front leveling screws, one on
the right and one on the left. If your refrigerator seems
unsteady or you want the doors to close easier, adjust the
refrigerator's tilt using the instructions below:
1. Plug the refrigerator's power cord into a 3-prong
grounded outlet. Move the refrigerator into its final
position.
2. Turn the leveling screw clockwise to raise that side of
the refrigerator or counterclockwise to lower it. It may
take several turns of the leveling screw to adjust the tilt
of the refrigerator.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws.
This makes it easier to adjust the screws.
\\
Door Alignment
If the space between your doors is uneven, follow the
instructions below to align the doors:
1. With one hand, lift up the door you want to raise at
middle hinge.
2. With other hand, use pliers to insert snap ring as
shown.
3. Insert additional snap rings until the doors are aligned.
(Three snap rings are provided with unit.)
\
\•
\
/
/
/
//
/
/
jJ
3. Open both doors again and check to make sure that
they close easily. If not, tilt the refrigerator slightly more
to the rear by turning both leveling screws clockwise. It
may take several more turns, and you should turn both
leveling screws the same amount.
4. Re-adjust if necessary.
5. Replace the base cover.
NOTE: Your new refrigerator is uniquely designed with
two fresh food doors. Either door can be opened or
closed independently of one another. You may have to
exert slight pressure on doors to get them to close
completely.
14
ENSURING PROPER AIR CIRCULATION
In order to ensure proper temperatures, air must flow
between the refrigerator and freezer sections. As shown in
the illustration below, air enters at the top of the freezer and
circulates down. From bottom of the freezer, air is forced up to
top of the refrigerator. Air enters to the refrigerator through top
vent, then circulates and exists at the bottom, where it returns
to the freezer.
MULTI-FLOW
Multi-Flow means powerful and effective cooling operation.
This is especially noticeable when new food is placed in the
refrigerator compartment.
If water or foreign substances enter to the cool air vent while
cleaning, efficiency will be lowered. In addition, if there is
damaged, efficiency may be lowered because of escaping
cool air.
DOOR ALARM
With this feature you will listen an alarm when the freezer
or refrigerator door is not closed within 1 minute after it is
opened. These tones repeat every 30 seconds. The alarm
is cancelled when the freezer or the refrigerator door is
closed correctly.
SETTING THE CONTROLS
Your refrigerator has two controls that let you regulate
the temperature in the freezer and refrigerator
compartments.
Initially set the REFRIGERATOR CONTROL at 37 °F
(3 %) and the FREEZER CONTROL at 0 °F (-18 °C).
Leave it at this setting for 24 hours (one day) to
stabilize. Then adjust the compartment temperature
as desired.
I_ Identify your control type
• Refrigerator control: 32 °F to 47 °F or 0 °C to 8 °C
The lower the number setting, the colder the refrigerator
compartment will become.
Coder ([OC; ]!
f
tv/A
\
H FR/G/RATOR ]I;MPH<A k k_: ULTi<A/CI]
3_F S _k_COMM/!B ;}ED
• Freezer control:-6 °F to 8 °F or -21 °C to -13 °C
When the setting is at a lower number, the freezer
compartment becomes colder.
Ultra Ice:
Press the Ultra Ice key and the LED will turn
on. This function will remain activated for 24 hours and
intensify the cooling speed of the freezer and increase
the amount of ice produced.
Do not block any of the cool air vents with food packages.
If the vents are blocked, airflow will be restricted and
temperature and moisture problems may occur.
IMPORTANT: Because air circulates between both sections,
Any odors formed in one section will transfer to the other.
You must thoroughly clean both sections to eliminate
odors. To prevent odor transfer and drying out of food, wrap
or cover foods tightly. (See the Food Storage Guide section
for details).
OF S YECOMM N©ED
NOTE: To change from °F to °C, press and hold
COLDER key of the freezer control and COLDER key of
the refrigerator control for more than 1 second at the
same time.
15
I_ Identify your control type
• Refrigerator control: position 1 to 7
(32 °F to 47 °F or 0 °C to 8 °C)
The higher the number setting, the colder the refrigerator
compartment will become.
f
R ::!_ _> ;{ATO //> R t
0 ) j:,vJ/! D D CD DR
I'IR/, i(7:
• Freezer control: position 1 to 7
(-6 °F to 8 °F or -21 °C to -13 °C)
When the setting is at a higher number, the freezer
compartment becomes colder.
• Ultra Ice
Press the Ultra Ice key and the LED will turn
on. This function will remain activated for 24 hours and
intensify the cooling speed of the freezer and increase the
amount of ice produced.
ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely before
adding food. It is best to wait 24 hours before you put food
into the refrigerator. The mid-settings indicated in the
previous section should be correct for normal household
refrigerator usage. The controls are set correctly when milk
or juice is as cold as you like and when ice cream is firm.
The refrigerator control functions as the thermostat for the
entire appliance (refrigerator and freezer sections). The
Colder the number setting, the longer the compressor will
run to keep the temperature colder. The freezer control
adjusts the cold air flow from the freezer to the refrigerator.
Setting the freezer control to a lower temperature keeps
more cold air in the freezer compartment to make it colder.
If you need to adjust temperatures in the refrigerator or
freezer, start by adjusting the refrigerator first. Wait 24
hours after the refrigerator adjustment to check the freezer
temperature. If it is too warm or too cold, then adjust the
freezer control as well.
Use the settings listed in the chart below as a guide. Always
remember to wait at least 24 hours between adjustments.
CONDITION/REASON:
REFRIGERATORsection
too warm
oDoor is opened often.
, Large amounts of food was added.
•Verywarm roomtemperature.
RECOMMENDED
ADJUSTMENT:
TurntheREFRIGERATOR
control to next
higher number,
wait 24 hours,
then re-check.
FREEZERsection too warm/
ice not made fast enough
Door is opened often.
•Large amounts of food was added.
•Verycold room temperature
•Heavy ice usage.
•Air vents blocked by items.
Turn the FREEZER
control to next
higher number,
wait 24 hours,
then re-check.
Move items out
of the air stream
REFRIGERATORsection too
cold
Controls not set correctly for
your conditions.
TurntheREFRIGERATOR
control to next
lower number,
wait 24 hours,
then re-check.
FREEZERsection too cold
°Controls not set correctly for
your conditions.
Turn the FREEZER
Control to next
lower number,
wait 24 hours,
then re-check.
FOOD STORAGE GUIDE
Storing Fresh Food
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
Butter or margarine
Keep opened butter in a covered dish or closed
compartment. When storing an extra supply, wrap
in freezer packaging and freeze.
Cheese
Store in the original wrapping until you are ready to
use it. Once opened, rewrap tightly in plastic wrap or
aluminum foil.
Milk
Wipe milk cartons. For best storage, place milk on interior
shelf, not on door shelf.
Eggs
Store in original carton on interior shelf, not on door shelf.
16
Fruit
Wash, let dry, and store in refrigerator in plastic bags or in
the crisper. Do not wash or hull berries until you are ready
to use them. Sort and keep berries in their original
container in a crisper, or store in a loosely closed paper
bag on a refrigerator shelf.
Leafy vegetables
Remove store wrapping and trim or tear off bruised and
discolored areas. Wash in cold water and drain. Place in a
plastic bag or plastic container and store in the crisper.
Vegetables with skins (carrots, peppers)
Place in plastic bags or plastic container and store
in crisper.
Fish
Use fresh fish and shellfish the same day purchased.
Chef fresh
Store most chef fresh in original wrapping as long as it is
airtight and moisture-proof. Rewrap if necessary.
Leftovers
Cover leftovers with plastic wrap or aluminum foil. Plastic
containers with tight lids can also be used.
Freezing
Your freezer will not quick-freeze any large quantities of
food. Do not put more unfrozen food into the freezer than
will freeze within 24 hours (no more than 2 to 3 Ibs of food
per cubic foot of freezer space). Leave enough space in
the freezer for air to circulate around packages. Be careful
to leave enough room at the front so the door can close
tightly.
Storage times will vary according to the quality and type
of food, the type of packaging or wrap used (airtight and
moisture-proof) and the storage temperature. Ice crystals
inside a sealed package are normal. This simply means
that moisture in the food and air inside the package have
condensed, creating ice crystals.
NOTE: Allow hot foods to cool at room temperature for
30 minutes, then package and freeze. Cooling hot foods
before freezing saves energy.
NOTE: Do not store food near the sensor; it may cause
the sensor to malfunction.
STORING FROZEN FOOD
NOTE: For further information about preparing food for
freezing or food storage times, check a freezer guide or a
reliable cookbook.
Packaging
Successful freezing depends on correct packaging. When
you close and seal the package, it must not allow air or
moisture in or out. If proper care is not given during
packaging, you could have food odor and taste transfer
throughout the refrigerator and also dry out frozen food.
Packaging recommendations:
• Rigid plastic containers with tight-fitting lids.
• Straight-sided canning/freezing jars.
• Heavy-duty aluminum foil.
, Plastic-coated paper.
, Non-permeable plastic wraps.
• Specified freezer-grade self-sealing plastic bags.
Follow package or container instructions for proper
freezing methods.
Do not use:
• Bread wrappers.
• Non-polyethylene plastic containers.
• Containers without tight lids.
• Wax paper or wax-coated freezer wrap.
• Thin, semi-permeable wrap.
Suffocation Hazard
When using dry ice, provide adequate ventilation.
Dry ice is frozen carbon dioxide (CO2). When it
vaporizes, it can displace oxygen, causing dizziness,
light-headedness, unconsciousness and death by
suffocation. Open a window and do not breathe
the vapors.
17
REFRIGERATOR SECTION
REFRIGERATOR SHELVES
The shelves in your refrigerator are adjustable to meet
your individual storage needs. These units are all glass
shelves.
IMPORTANT: Do not clean glass shelves with warm
water when they are cold. Shelves may break if exposed
to sudden temperature changes or impact, such as
bumping. For your protection, glass shelves are made
with tempered glass, which will shatter into small pebble-
sized pieces.
NOTE: Glass shelves are heavy. Use special care when
removing them to avoid dropping them.
Adjusting Shelves
Remove shelves from the shipping position and place the
shelves in the position you want.
• To remove a shelf: Tilt up the front of the shelf in the
direction of (I) and lift it in the direction of (2). Pull the
shelf out.
• To replace a shelf: Tilt the front of the shelf up and guide
the shelf hooks into the slots at a desired height. Then
lower the front of the shelf so that the hooks drop into the
slots.
®
NOTE: Make sure that shelves are level from one side to
the other. Failure to do so may result in the shelf falling or
the spilling food.
Sliding Out Shelves (optional on some models)
You can slide some glass shelves in and out of your
refrigerator as follows.
• To slide the shelf out, carefully pull front of shelf
toward you.
• To slide shelf in, push shelf in until it stops.
To remove a sliding shelf from its metal frame:
1. Pull the shelf out to the stop position.
2. Tilt the front of the shelf up and pull it past the stop
position.
3. Lift up the shelf to remove.
Replace the shelf by reversing the above steps.
Convenience Shelves (optional on some models)
• Folding Shelf: You can store taller items such as gallon
containers or bottles by simply sliding the shelf back.
18
PANTRY
(on some models)
Adjust the control to desired temperature by moving from
COLD to COLDER,
Pull forward to open, Lift slightly and pull it out to remove,
To remove the glass:
1.Lift up the glass after inserting a screwdriver under
the crisper cover.
2. Pull glass cover up and out.
CRISPER HUMIDITY CONTROL
(on some models)
You can control the amount of humidity in the moisture-
sealed crispers, Adjust the control to any setting between
"FRUIT" and "VEGETABLE",
"FRUIT" Lets moist air out from crisper for best storage of
fruits,
"VEGETABLE" Keeps moist air in crisper for best storage
of fresh, leafy vegetables,
jJ
n
f
FRUITS / VEGETABLES
J
To remove the crisper cover support:
NOTE: Remove glass before removing the crisper
cover support.
While holding the crisper cover support with both
hands (as shown in the image below). Pull
forward and slightly lift the front part.
OPTIBIN CRISPERS (on some models)
The OptiBin Crispers provide fresher-tasting fruit and
vegetables by letting you easily control humidity inside the
crisper. The OptiBin Crispers include: 1) a humidity
control knob at the front of the crisper cover and 2) a
large lattice on the inner surface of the cover to hold
or release moisture.
To remove the crisper:
1. Slide crisper straight out to the stop.
2. Lift the front of the crisper, then pull it out to remove.
3. Replace the crisper by sliding it back in fully past the
drawer stop.
To remove the glass:
1. Lift up the glass after inserting a screwdriver under the
crisper cover.
2. Pull up and out.
r_WARNING: Be careful when handling the glass cover since
the glass is not attached to the cover.
19
To remove the crisper:
1. Slide crisper straight out to the stop.
2. Liftthe front of the crisper, then pull it out to remove.
3. Replace the crisper by sliding it back in fully past the
drawer sto ).
To replace lattice on inner surface:
1. For each lattice insert middle tab in 1 (closed to glass
cover) and pull sides of the cover to insert lattice.
CRISPER COVER WITH LATTICE ON INNER
SURFACE (on some models)
To remove the crisper cover:
1. Remove both crisper drawers.
2. While holding the crisper cover support (2), pull the
cover up and out(l).
MODULAR DOOR BINS
The door bins are removable for easy cleaning and
adjusting.
1. To remove the bin, simply lift the bin up and pull
straight out.
2. To replace the bin, slide it in above the desired support
button and push down until it stops.
[] WARNING: Be careful when handing the glass cover
since the glass is not attached to the cover.
To remove the lattice on inner surface:
1. Remove crisper cover (as illustrated above).
2. Hold the glass cover and overturn the crisper cover.
3. For each lattice hold the lattice and pull sides of the
cover outward to remove lattice.
[]
[]
WARNING: Injury could occur if door bins are not
firmly assembled.
NOTE: DO NOT adjust a bin that is loaded with food.
CAUTION: DO NOT allow children to play with the
baskets. Sharp corners on baskets could cause injury.
NOTE: Do not change the location of the lower bin
in the upper doors with the others, or the doors will
not close properly.
2O
DAIRY BIN
1. To remove the dairy bin, simply lift it and pull straight
out.
2. To replace the dairy bin, slide it in above the desired
location and push down until it stops.
EGG BOX (Some models)
Store the Egg Box on interior shelf, not on door shelf.
[] CAUTION: Do not use the egg box as an ice storage
bin in the freezer compartment. The egg box can easily
break if it freezes.
DURABASE (on some models)
1. To remove the Durabase, push it back to the end as
much as possible. Tilt up the front of the Durabase and
pull straight out.
2. To install, insert the Durabase in rail assembly
and gently push back into position.
FREEZER SECTION
ICE BIN (on some models)
1. To separate the ice bin, pull out the drawer as much as
possible.
2. Gently lift and pull out the ice bin.
3. To reinstall, pull out the drawer as much as possible and
set the ice bin in its correct position, and then push in the
drawer.
DRAWER
ICE BIN
21
DURABASE DIVIDER (on some models)
The Durabase divider allows you to organize the durabase
area into sections,
2. To Install, pull both rails out to full extension.
Hook the basket supports into the rail tabs and push to
the back of compartment.
W_WARNING: There is enough open space in it for
children to climb inside.
[] WARNING: To prevent accidental child and pet
entrapment or suffocation risk. DO NOT allow them to
play inside of the drawer.
GLIDE- OUT DRAWER BASKET
(on some models)
1. To remove, lift basket up and pull out straight out.
J
J
/-
22
Explosion Hazard
Use non-flammable cleaner.
Failure to do so can result in death, explosion, or fire.
PLASTIC PARTS (covers and panels)
Do not use windows sprays, abrasive cleaners, or
flammable fluids. These can scratch or damage the
material. Use a clean sponge or soft cloth and a mild
detergent in warm water. Wash, rinse and dry all
surfaces thoroughly.
CONDENSER COILS
Remove grille base.
Use a vacuum cleaner with an extended attachment to
clean condenser coils.
Vacuum coils when dusty or dirty. Coils may need to be
cleaned as often as every other month.
Replace grille base.
BACK COVER
Both the refrigerator and freezer sections defrost
automatically. However, clean both sections about once a
month to prevent odors. Wipe up spills immediately.
GENERAL CLEANING TIPS
• Unplug refrigerator or disconnect power.
• Remove all removable parts, such as shelves, crispers,
etc.
• Use a clean sponge or soft cloth and a mild detergent in
warm water. Do not use abrasive or harsh cleaners.
• Hand wash, rinse and dry all surfaces thoroughly.
• Plug in refrigerator or reconnect power.
OUTSIDE
Waxing external painted metal surfaces helps provide rust
protection. Do not wax plastic parts. Wax painted metal
surfaces at least twice a year using appliance wax (or auto
paste wax). Apply wax with a clean, soft cloth.
For products with a stainless steel exterior, use a clean
sponge or soft cloth and a mild detergent in warm water.
Do not use abrasive or harsh cleaners. Dry thoroughly with
a soft cloth.
Note: Avoid door surface contact with chemical products
that contain Phosphate or Chlorine.
INSIDE WALLS (allow freezer to warm up so
cloth will not stick)
To help remove odors, you can wash the inside of the
refrigerator with a mixture of baking soda and warm water.
Mix 2 tablespoons baking soda to 1 quart of water (26 g
soda to 1 liter water). Be sure the baking soda is
completely dissolved so does it not scratch the surfaces of
the refrigerator.
DOOR LINERS AND GASKETS
Do not use cleaning waxes, concentrated detergents,
bleaches, or cleaners containing petroleum plastic parts.
ELECTRICAL SHOCK HAZARD
Before you begin, either unplug the refrigerator or
turn off power at the circuit breaker or fuse box.
Failure to do so could result in death or serious injury.
NOTE: Back cover should only be removed by a
qualified technician.
Clean the vents on the
back cover. Use a vacuum
cleaner with the brush
attachment, at least twice a
year to keep your
refrigerator working
efficiently.
BACK COVER
LIGHT BULB REPLACEMENT
Electrical Shock Hazard
Before replacing a burned-out light bulb, either unplug
the refrigerator or turn off power at the circuit breaker
or fuse box.
NOTE: Moving the control to the OFF position
does not remove power to the light circuit.
NOTE: Not all appliance bulbs will fit your refrigerator. Be
sure to replace the bulb with a maximum rating of 60 watts
and is the same size and shape.
NOTE: The light bulbs will turn off if door is left open for
seven continuous minutes. Shutting door for one second
will make light bulbs come back on.
To change the refrigerator light:
1. Unplug the power cord from the outlet.
2. Remove refrigerator shelves.
3. Release the hooks on the front of the light shield
with the help of a flat screwdriver and pull the
shield down to remove it.
23
4. Turn the bulb counter clockwise.
5. To assemble, first insert the hooks at the back and
then push up the light shield.
I
To change the freezer light:
1. Unplug refrigerator or disconnect power.
2. Reach behind light shield to remove bulb.
3. Replace bulb with a 60 watts appliance bulb
the refrigerator as shown in picture.(_
4. Plug in refrigerator or reconnect power.
1
POWER INTERRUPTIONS
If the electricity goes off, call the power company and ask
how long it will be off.
1. If the power will be out for 24 hours or less, keep
both refrigerator doors closed to help foods stay
cold and frozen.
2. If the power will be out for more than 24 hours:
a) Remove all frozen food and store it in a frozen
food locker.
OR
b) Place 2 Ibs of dry ice in the freezer for every cubic
foot of freezer space. This will keep the food frozen
for two to four days. While handling dry ice, wear
gloves to protect your hands from frostbite.
OR
c) If neither a food locker nor dry ice is available,
consume or can perishable food at once.
WHEN YOU GO ON VACATION
If you choose to leave the refrigerator on while you
are away, follow these steps to prepare your refrigerator
before you leave.
1. Use up any perishables and freeze other items.
2. Empty the ice bin.
If you choose to turn the refrigerator off before you
leave, follow these steps.
1. Remove all food from the refrigerator.
2. Depending on your model, set the thermostat control
(refrigerator control) to OFF. See the Setting the
Controls section.
,
4.
Clean refrigerator, wipe it and dry well.
Tape rubber or wood blocks to the tops of both doors to
prop them open far enough for air to get in. This stops
odor and mold from building up.
WHEN YOU MOVE
When you are moving your refrigerator to a new home,
follow these steps to prepare it for the move.
,
,
Remove all food from the refrigerator and pack all
frozen food in dry ice.
Depending on your model, turn the thermostat control
(refrigerator control) to OFF. See the Setting the
Controls section.
3. Unplug the refrigerator.
4. Empty the water from the defrost pan.
5. Clean, wipe and dry thoroughly.
6. Take out all removable parts, wrap them well and tape
them together so they do not shift and rattle during the
move.
,
,
Depending on the model, lower the front of the
refrigerator so it rolls more easily OR screw in the
leveling legs all the way so they do not scrape the floor.
See the Door Closing section.
Tape the doors shut and tape the power cord to the
refrigerator cabinet.
When you get to your new home, put everything back
and refer to the Installing Your Refrigerator section for
preparation instructions.
24
ICEMAKER
Personal Injury Hazard
Avoid contact with the moving parts of the ejector
mechanism, or with the heating element that releases
the cubes. DO NOT place fingers or hands on the
automatic icemaking mechanism while the refrigerator
is plugged in.
OPERATION INSTRUCTIONS
NOTE: Automatic Ice Maker feature is included only in
certain models. Please check your product specification.
A newly-installed refrigerator may take
12 to 24 hours to begin making ice.
Ic
•FeelerArm
This type of icemaker will produce twelve cubes per cycle
approximately 80-100 cubes in a 24-hour period,
depending on freezer compartment temperature, room
temperature, number of door openings and other
operating conditions.
If the refrigerator is used before the water connection is
made to the icemaker, set the power switch to O (off).
When the refrigerator has been connected to the water
supply, set the power switch to I (on).
The icemaker will fill with water only when it cools to freezing.
A newly-installed refrigerator may take 12 to 24 hours to
begin making ice cubes.
Throw away the first few batches of ice to allow the water
line to clear.
Be sure nothing interferes with the sweep of the feeler
arm.
When the bin fills to the level of the feeler arm, the
icemaker will stop producing ice.
It is normal for some cubes to be stuck together.
If ice is not used frequently, old ice cubes will become
cloudy, taste stale, and shrink.
WHEN YOU SHOULD SET THE ICEMAKER
POWER SWITCH TO O (OFF)
• When the water supply will be shut off for several hours.
• When the ice storage bin is removed for more than a
minute or two.
• When the refrigerator will not be used for several days.
NORMAL SOUNDS YOU MAY HEAR
• The icemaker water valve will buzz as the icemaker fills
with water. If the power switch is in the I (on) position, it
will buzz even if it has not yet been hooked up to water.
To stop the buzzing, move the power switch to O (off).
NOTE: Keeping the power switch in the I (on) position
before the water line is connected can damage the
icemaker.
• You will hear the sound of cubes dropping into the bin
and water running in the pipes as the icemaker refills.
PREPARING FOR VACATION
Set the icemaker power switch to O (off) and shut off the
water supply to the refrigerator.
If the surrounding air temperature will drop below freezing,
have a qualified servicer drain the water supply system to
prevent serious property damage due to flooding from
ruptured water lines or connections.
25
NOTE: Water line installation is needed when the
Automatic Ice Maker and/or Water Dispenser features
are available on your product.
Before making the connection to the refrigerator, be
sure the refrigerator power cord is not plugged into
the wall outlet.
BEFORE YOU BEGIN
This water line installation is not warranted by the
refrigerator or icemaker manufacturer. Follow these
instructions carefully to minimize the risk of expensive
water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and lead
to water leakage or flooding. Call a qualified plumber to
correct water hammer before installing the water supply
line to the refrigerator.
To prevent burns and product damage, do not hook up
the water line to the hot water line.
If you use your refrigerator before connecting the water
line, make sure the icemaker power switch is in the O
(off) position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power
drill) during installation, be sure the device is double-
insulated or grounded in a manner to prevent the hazard
of electric shock, or is battery-powered.
All installations must be in accordance with local plumbing
code requirements.
NOTE: Wear eye protection.
• If a reverse osmosis water filtration system is connected
to your cold water supply, This water line installation is not
warranted by the refrigerator or icemaker manufacturer.
Follow next instructions carefully to minimize the risk of
expensive water damage.
• If a reverse osmosis water filtration system is connected
to your cold water supply, the water pressure to the reverse
osmosis system needs to be a minimum of 40 to 60 PSI or
0.27 MPa to 0.41MPa (2.8 kg.f/cm 2 - 4.2 kg.f/cm 2,less than
2 - 3 seconds to fill a cup of 7 oz capacity [0.2 liters]).
If the water pressure from the reverse osmosis system is less
than 21 PSI or 0.14 MPa (1.5 kg.f/cm _,more than 4 seconds
to fill a cup of 7 oz capacity [0.2 liters]).
• Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to
refill after heavy usage.
• If the issue about water pressure from reverse osmosis
remains, call a licensed, qualified plumber.
WHAT YOU WILL NEED
, Copper Tubing, 1/4" outer
diameter to connect the refrigerator
to the water supply. Be sure both
ends of the tubing are cut square.
To determine how much tubing you need: measure
the distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8 feet
(2.4 m). Be sure there is sufficient extra tubing (about 8 feet
[2.4 m] coiled into 3 turns of about 10 in [25 cm] diameter) to
allow the refrigerator to move out from the wall after
installation.
Be sure that the kit you select allows at least 8 feet
(2.4 m) as described above.
, A cold water supply.The water pressure must be
between 20 and 120 PSI (0.137 and 0.82 MPa or 1.4
and 8.2 bar) on models without a water filter and between
40 and 120 PSI (0.275 and 0.82 MPa or2.8 and 8.2 bar)
on models with a water filter.
• Power drill.
• 1/2" or adjustable
wrench.
Straight= and Phillips=
blade screwdriver.
Two 1/4" outer diameter
compression nuts and
2 ferrules (sleeves) to
connect the copper tubing to
the shutoff valve and the
refrigerator water valve.
If your existing copper water
line has a flared fitting at the
end, you will need an
adapter (available at
plumbing supply stores) to
connect the water line to the refrigerator OR you can cut
off the flared fitting with a tube cutterand then use a
compression fitting.
Shut off valve to connect to
the cold water line. The
shutoff valve should have a
water inlet with a minimum
inside diameter of 5/32" at
the point of connection to the
COLD WATER LINE. Saddle-type shutoff valves are
included in many water supply kits. Before purchasing,
make sure a saddle-type valve complies with your local
plumbing codes.
26
iNSTALLATiON iNSTRUCTiONS
Install the shutoff valve on the nearest frequently used
drinking water line.
1. SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the pressure on
the line.
2. CHOOSE THE VALVE LOCATION
Choose a location for the valve
that is easily accessible. It is best
to connect into the side of a
vertical water pipe. When it is
necessary to connect into a
horizontal water pipe, make the
connection to the top or side,
rather than at the bottom, to avoid
drawing off any sediment from the water pipe.
3. DRILL THE HOLE FOR THE VALVE
Drill a 1/4" hole in the water
pipe (even if using a self-
piercing valve) using a
sharp bit. Remove any burrs
resulting from drilling the
hole in the pipe. Take care
not to allow water to drain
into the drill. Failure to drill a 1/4 hole may result in
reduced ice production or smaller cubes.
. FASTEN THE SHUT OFF VALVE
Fasten the shutoff valve to the cold water pipe with
the pipe clamp.
Pipe Clamp-
Saddle-Type J Vertical Cold
Shutoff Valve Water Pipe
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
5. TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not over tighten or you may crush
the tubing. Washer
Pipe Clamp End
Clamp
6. ROUTE THE TUBING
Route the tubing between the cold water line and the
refrigerator.
Route the tubing through a hole drilled in the wall or
floor (behind the refrigerator or adjacent base cabinet)
as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing (about
8 feet coiled into 3 turns of about 10 inches in
diameter) to allow the refrigerator to move out from
the wall after installation.
7. CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve. Make sure the tubing is
fully inserted into the valve. Tighten the compression
nut securely.
Saddle-Type
Shutoff Valve
Packing
Nut
Outlet
Valve
Compression
/.ut
_rule (sleeve)
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
8. FLUSH OUT THE TUBING
Turn the main water supply on
and flush out the tubing until the
water is clear.
Shut the water off at the water
valve after about one quart of
water has been flushed through
the tubing.
27
, CONNECT THE TUBING TO THE
REFRIGERATOR
NOTES:
• Before making the connection to the refrigerator, be
sure the refrigerator power cord is not plugged into
the wall outlet.
• If your refrigerator does not have a water filter,
we recommend installing one. If your water supply
has sand or particles that could clog the screen of
the refrigerator's water valve. Install the filter in the
water line near the refrigerator
IMPORTANT: Do not use old, worn or used waterlines,
only use new for a better use and service.
Connect only to the supply of drinking water for your
safety and health.
Remove the plastic flexible cap from the water valve
connection.
Y
Place the compression nut and ferrule (sleeve) onto
the end of the tubing.
Insert the end of the tubing into the connection as far
as possible. While holding the tubing, tighten the fitting.
10. TURN THE WATER ON AT THE
SHUT OFF VALVE
Tighten any connections that
leak.
Reattach the compressor
compartment access cover.
11. PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so h._ _
that it does not vibrate against
the back of the refrigerator or
against the wall. Push the
refrigerator back to the wall.
12. START THE ICE MAKER
Set the icemaker power switch to the ON position.
The icemaker will not begin to operate until it reaches
its operating temperature of 15 °F (-9 °C) or below. It
will then begin operation automatically if the icemaker
power switch is in the I (on) position.
1/4"
Compression
Nut
Ferule
(sleeve)
Refrigerator
Connection
Fasten the tubing into the tubing Clamp attached to
the back of the refrigerator.
First, loosen the screw fastening the clamp. Next,
insert the tubing in the groove. Finally, re-fasten the
screw.
28
UNDERSTANDING SOUNDS YOU MAY HEAR
Your new refrigerator may make sounds that your old one
did not make. Because the sounds are new to you, you
might be concerned about them. Most of the new sounds
are normal. Hard surfaces, like the floor, walls and
cabinets, can make the sounds seem louder than they
actually are. The following describes the kinds of sounds
and what may be making them.
The defrost timer will click when the automatic defrost
cycle begins and ends. The thermostat control (or
refrigerator control, depending on the model) will also
click when cycling on and off.
Rattling noises may come from the flow of refrigerant, the
water line, or items stored on top of the refrigerator.
Your refrigerator is designed to run more efficiently
to keep your food items at the desired temperature.
The high efficiency compressor may cause your new
refrigerator to run longer than your old one, and
you may hear a pulsating or high-pitched sound.
You may hear the evaporator fan motor circulating the air
through the refrigerator and freezer compartments.
As each cycle ends, you may hear a gurgling sound due
to the refrigerant flowing in your refrigerator.
Contraction and expansion of the inside walls may cause
a popping noise.
Water dripping on the defrost heater during a defrost
cycle may cause a sizzling sound.
You may hear air being forced over the condenser by the
condenser fan.
You may hear water running into the drain pan during the
defrost cycle.
REFRIGERATOR DOES NOT OPERATE
Check if...
The power supply cord is unplugged.
A household fuse has blown or circuit
breaker tripped.
The refrigerator control is set to the OFF position.
Then...
Firmly plug the cord into a live outlet with proper voltage.
Replace the fuse or reset the circuit breaker.
If word OFF is in the Freezer and Refrigerator Display, hold
COLDER key on refrigerator over 3 sec.
Refrigerator is in the defrost cycle. Wait about 30 minutes for defrost cycle to end.
Display shows the word OFF. (Style 1)
The control panel lights are blinking secuentially. (1-2-
3-4-5-6-7) (Style 2)
i_< =, ,= i: i \
/
=" (:]=S,='_;1;i ...... =A_SIQ .....
The refrigerator has been put into the store Demo
(Demonstration) Mode.
The Demonstration Mode disables the cooling system; only the
lamps and display work normally.
To disable press either of the cold _i1 _/buttons for 5 sec.
The refrigerator has been put into the store Demo
(Demonstration) Mode.
The Demonstration Mode disables the cooling system; only
the lamps and display work normally.
To disable press ULTRA ICE _:_and Adjust Temp
buttons at the same time for 5 seconds.
VIBRATION OR RATTLING NOISE
Check if... Then...
The refrigerator is not resting solidly on i Floor is weak or uneven or leveling legs need adjusting.
the floor. I See Installation Section.
29
LIGHTS DO NOT WORK
Check if... Then...
The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.
Light bulb is loose in the socket. Turn the refrigerator control to the OFF position and unplug
the refrigerator. Gently remove the bulb and reinsert. Then
plug in refrigerator and reset the refrigerator control.
Light bulb has burned out.
Unplug the refrigerator prior to the replacement. Replace the
old bulb with a new 60 watts appliance bulb with same size
and shape. (See Changing the Light Bulb (s) section)
COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH
Check if... Then...
The refrigerator that was replaced was an Modern refrigerators with more storage space require
older model, more operating time.
The room temperature is hotter than normal.
The door is opened often or a large amount
of food has just been added.
The motor will run longer under warm conditions. At normal
room temperatures, expect your motor to run about 40% to
80% of the time. Under warmer conditions, expect it to run
even more often. This model is still more energy efficient
than previous models.
Adding food and opening the door warms the refrigerator.
It is normal for the refrigerator to run longer in order to cool
the refrigerator back down. Adding a large amount of food
warms the refrigerator. See the Food Storage Guide Section.
In order to conserve energy, try to get everything
you need out of the refrigerator at once, keep food organized
so it is easy to find and close the door as soon as the food
is removed.
The refrigerator was recently plugged in and The refrigerator will take up to 24 hours to cool
the refrigerator control was set correctly, completely.
The refrigerator control was not set correctly for the See the Adjusting control settings Section.
surrounding conditions.
Push the doors firmly shut. If they will not shut all the way, see
The doors are not closed completely. Doors will not close completely below.
This prevents air transfer and makes the motor work harder.
The condenser coils are dirty. Clean the condenser coils. Refer to the Care and Cleaning
section.
DOORS WILL NOT CLOSE COMPLETELY
Check if... Then...
The refrigerator is not level. See the Installation Section to level refrigerator.
Food packages are blocking the door open. Rearrange food containers to clear door and door shelves.
The ice bin, crisper cover, pans, shelves, door bins Push bins all the way in and put crisper cover, pans, shelves
or baskets are out of position, and baskets into their correct positions. See the Using Your
Refrigerator Section.
The gaskets are sticking. Clean gaskets and the surfaces that they touch. Rub a thin
coat of appliance polish or kitchen wax on the gaskets after
cleaning.
The refrigerator wobbles or seems unstable. Level the refrigerator Refer to the Door Closing and
Alignment Section.
The doors were removed during product installation Remove and replace the doors according to the Removing,
and not properly replaced. Reversing and Replacing Refrigerator Doors Section
or call a qualified service technician.
30
Thedoorisnotclosingproperly.
Thedoorisopenedoften.
ICE HAS OFF-TASTE OR ODOR
FROST OR ICE CRYSTALS ON FROZEN FOOD
Check if... Then...
See Doors will not close completely above.
When the door is opened, warm, humid air is allowed in
the freezer resulting in frost.
Check if... Then...
Discard first few batches of ice to avoid discolored or
The icemaker was recently installed, off-flavored ice.
The ice has been stored for too long. Throw away old ice and make a new supply
The food has not been wrapped tightly in Rewrap foods since odors may migrate to the ice if food
either compartment, is not wrapped properly.
A filter may need to be installed to eliminate taste and
The water supply contains minerals such as sulfur.
odor problems.
The interior of refrigerator needs cleaning. See Care and Cleaning Section.
Ice storage bin needs cleaning. Empty and wash bin. Discard old cubes.
THERE IS WATER IN THE DEFROST DRAIN PAN
Check if... Then...
The refrigerator is defrosting. The water will evaporate. It is normal for water to drip into the
defrost pan.
It is more humid than normal. Expect that the water in the defrost pan will take longer to
evaporate. This is normal when it is hot or humid.
THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE
Check if... Then...
I The sounds be normal for Refer to the Sounds You Hear Section.
may your refrigerator. Understanding May
THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY
Check if... Then...
Wait 24 hours after hook-up for ice production. See the Setting I
q
The freezer temperature is cold enough to produce ice. the Controls Section.
1
Door left open. Check to see if something is holding the door open.
CUBES PRODUCED BY ICEMAKER ARE TOO SMALL
Check if... Then...
I Water shutoff valve connecting refrigerator to waterline may be clogged. Call a plumber to clear the valve.
THE DOORS ARE DIFFICULT TO OPEN
Check if... Then...
Clean gaskets and the surfaces that they touch. Rub a thin
The gaskets are dirty or sticky, coat of appliance polish or kitchen wax on the gaskets after
cleaning.
The door is reopened within a short time after having
been opened.
When you open the door, warmer air enters the refrigerator.
As the warm air cools, it can create a vacuum. If the door is
hard to open, wait 5 minutes to allow the air pressure to
equalize, then see if it opens more easily.
31
