E-CCM20120NFW
E-CCM20120NFX
1. ADVERTENCIAS DE SEGURIDAD......................................................................................... 1
2. INSTALACIÓN..................................................................................................................... 3
2.1 Ubicación.................................................................................................................... 3
2.2 Inv
el sen do de apertura de la puerta............................................................... 3

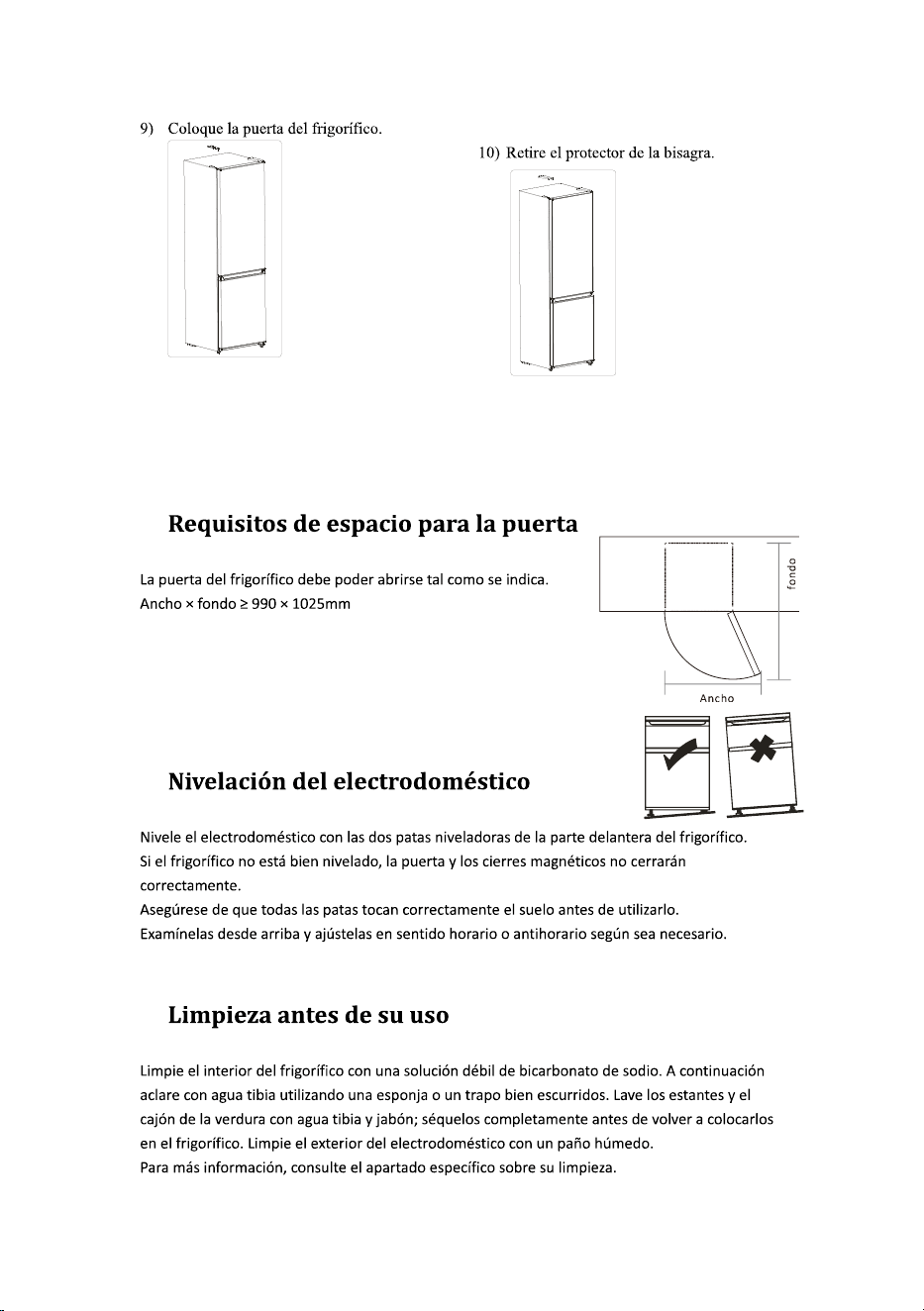

2.3 Requisitos de espacio para la puerta ......................................................................... 5
2.4 Nivelación del electrodomé
................................................................................ 5
2.5 Limpieza antes de su uso ........................................................................................... 5

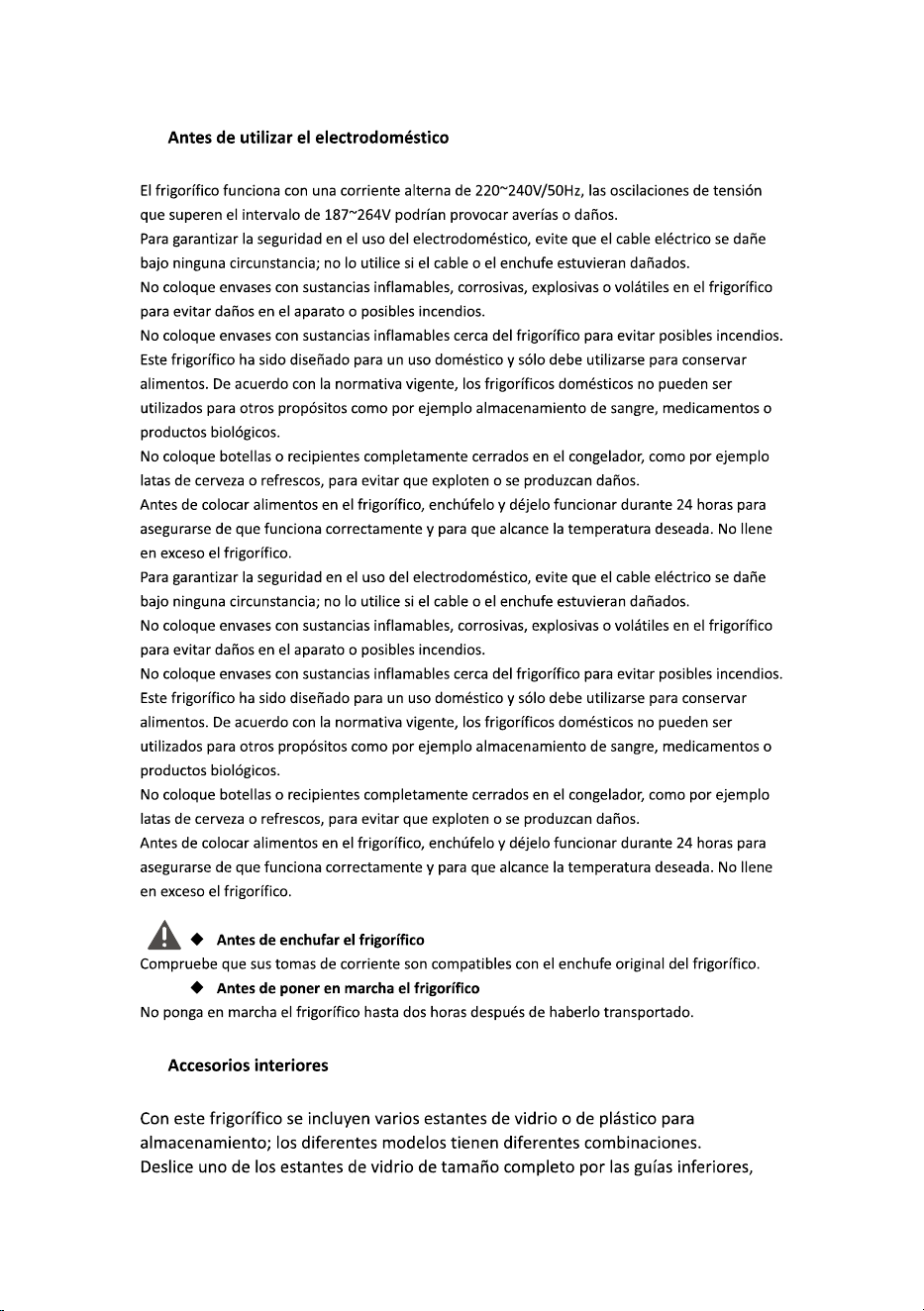

2.6 Antes de u
izar el electrodomé co ........................................................................ 6
2.7 Accesorios interiores.................................................................................................. 6

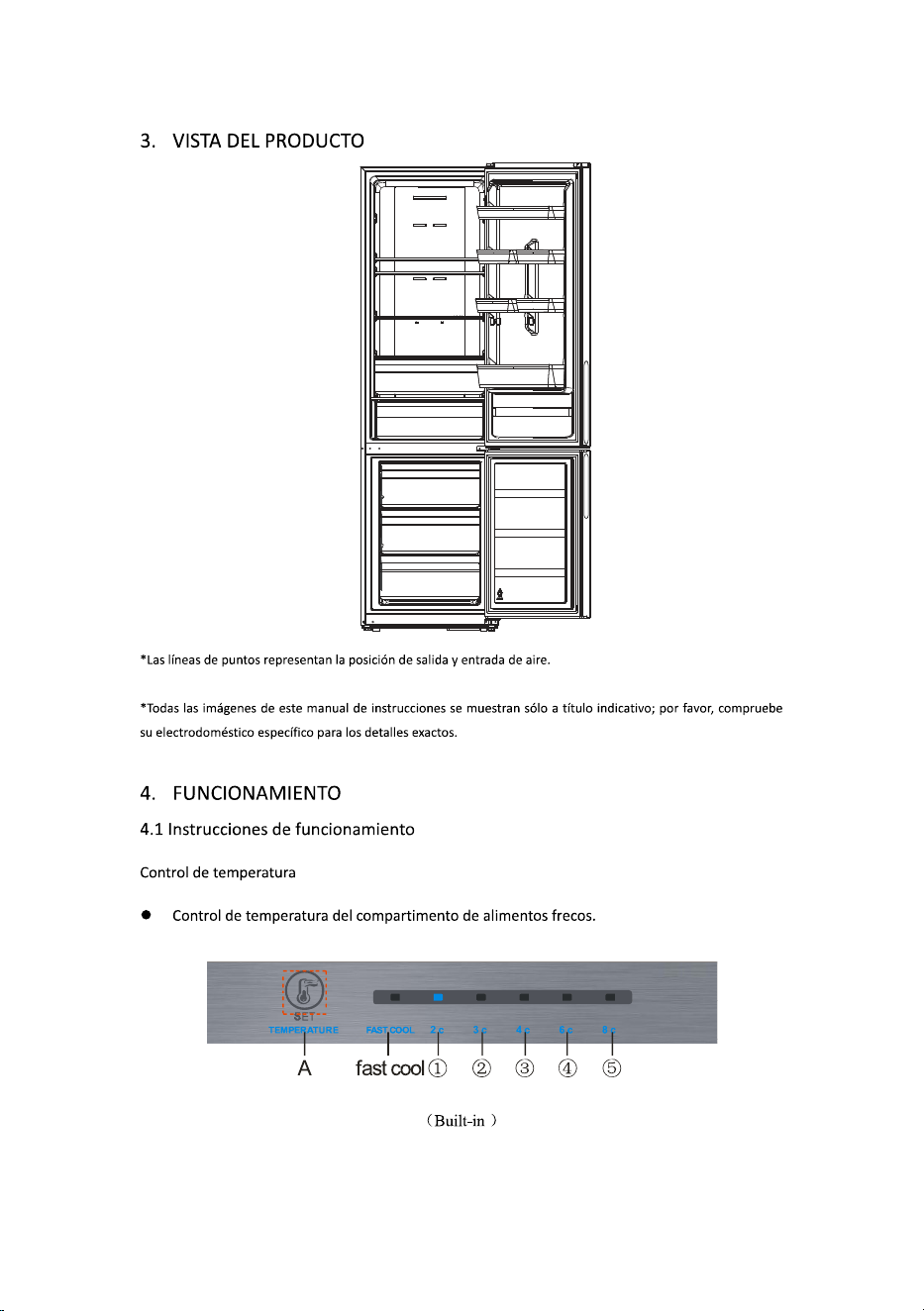

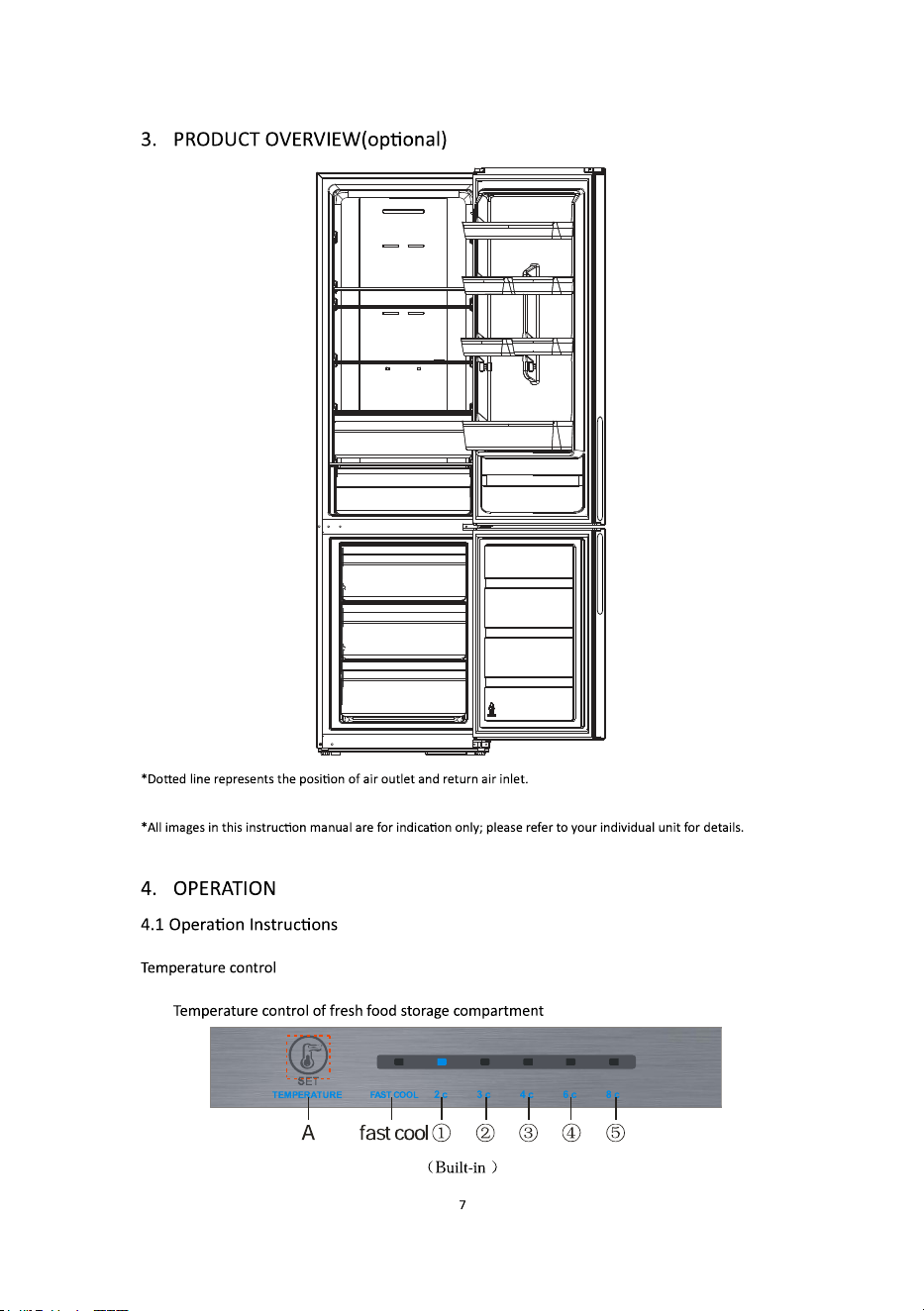

3. VISTA DEL PRODUCTO ....................................................................................................... 8

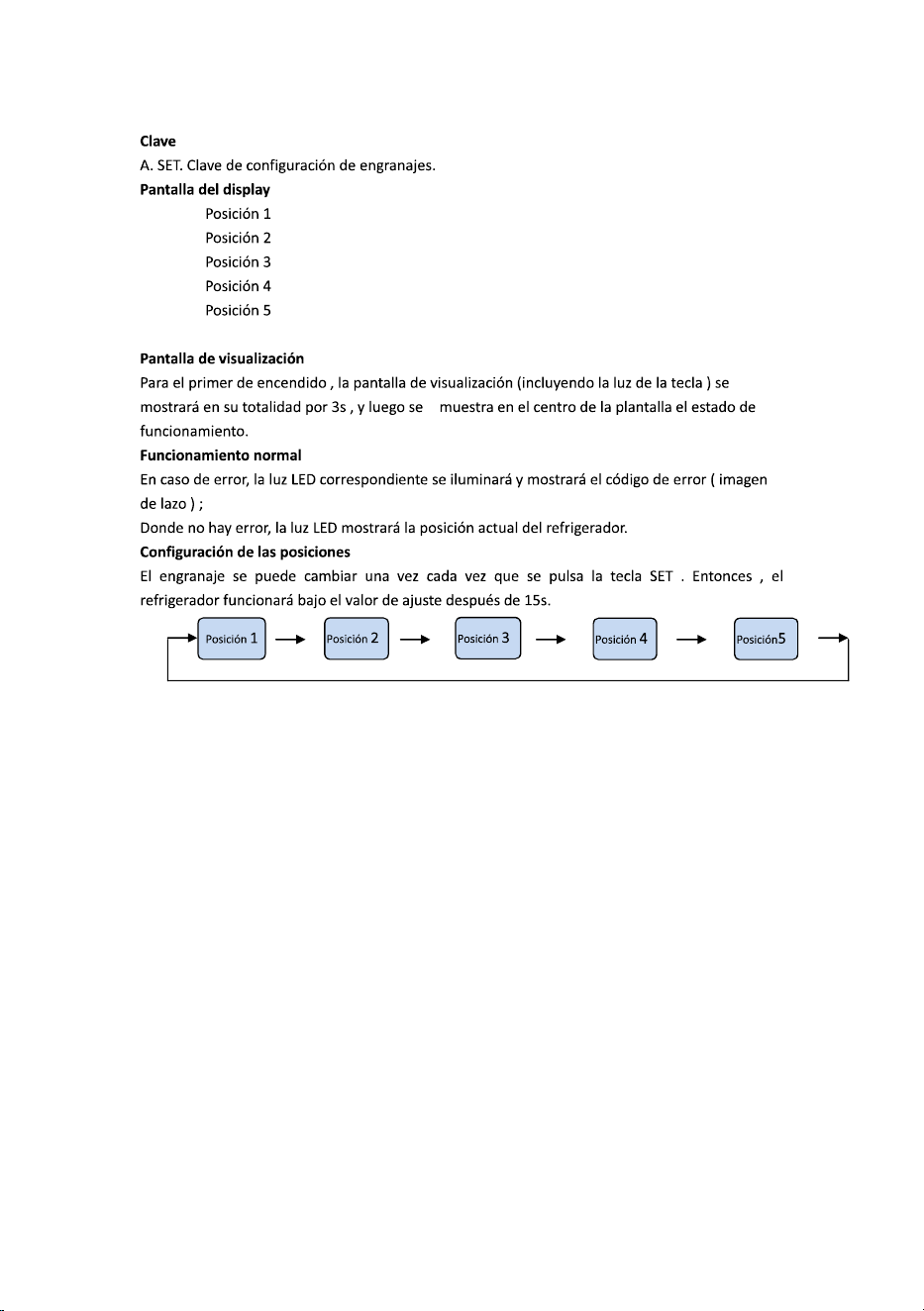

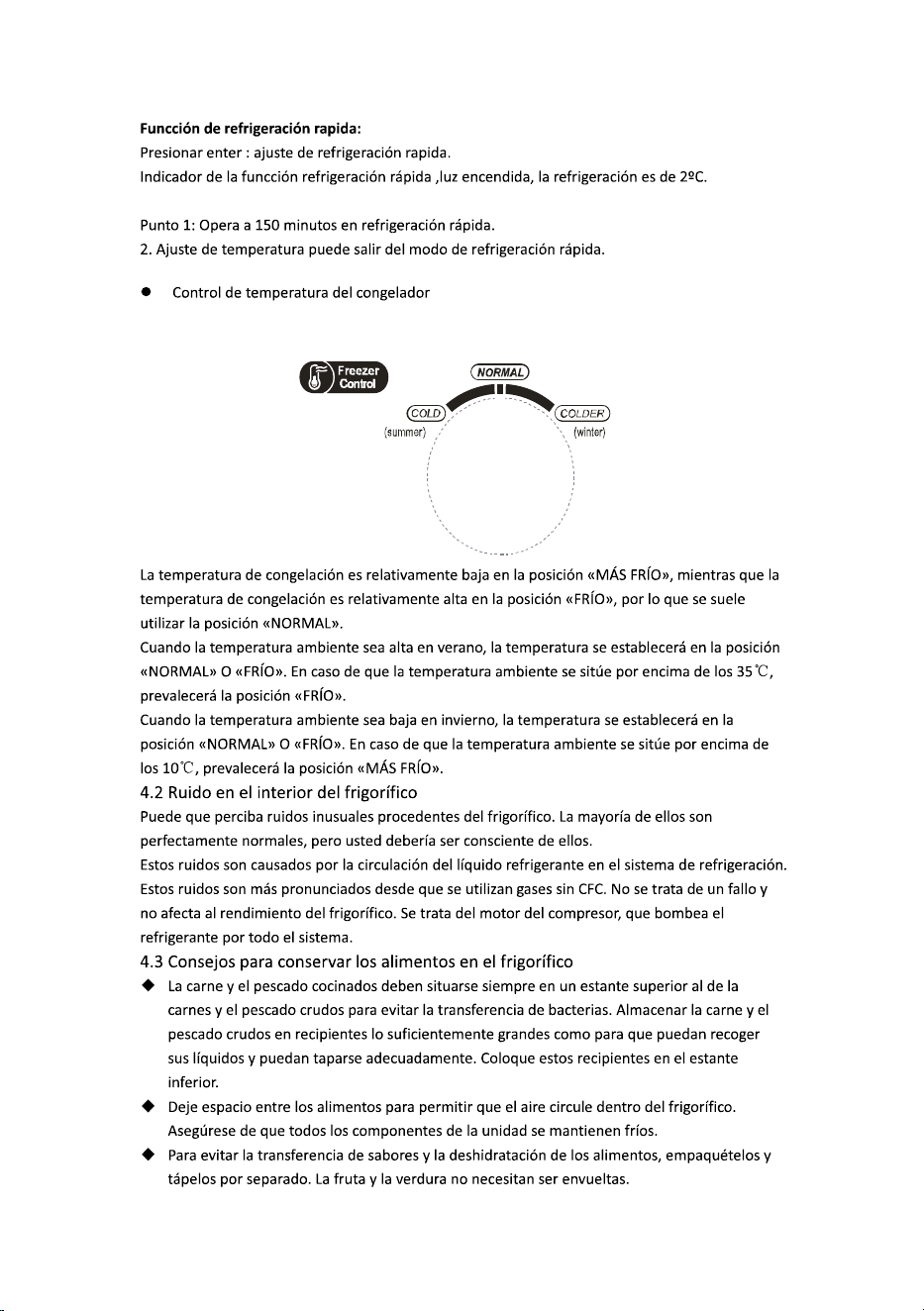

4. FUNCIONAMIENTO............................................................................................................ 8
4.1 Instrucciones de funcionamiento............................................................................... 8
4.2 Ruido en el interior del frigorí co ............................................................................ 10
4.3 Consejos para conservar los alimentos en el frigorí co .......................................... 10
4.4 Su
ón de la bombilla interior........................................................................... 11
5. LIMPIEZA.......................................................................................................................... 11
5.1 Descongelación ........................................................................................................ 11
5.2 Limpieza del interior y del exterior del frigorí co.................................................... 11
5.3 Consejos de limpieza................................................................................................ 11
6. MANTENIMIENTO............................................................................................................ 11
6.1 Su
ón de la bombilla interior........................................................................... 11
6.2 Precauciones a la hora de transportar o mover el frigorí
.................................. 11

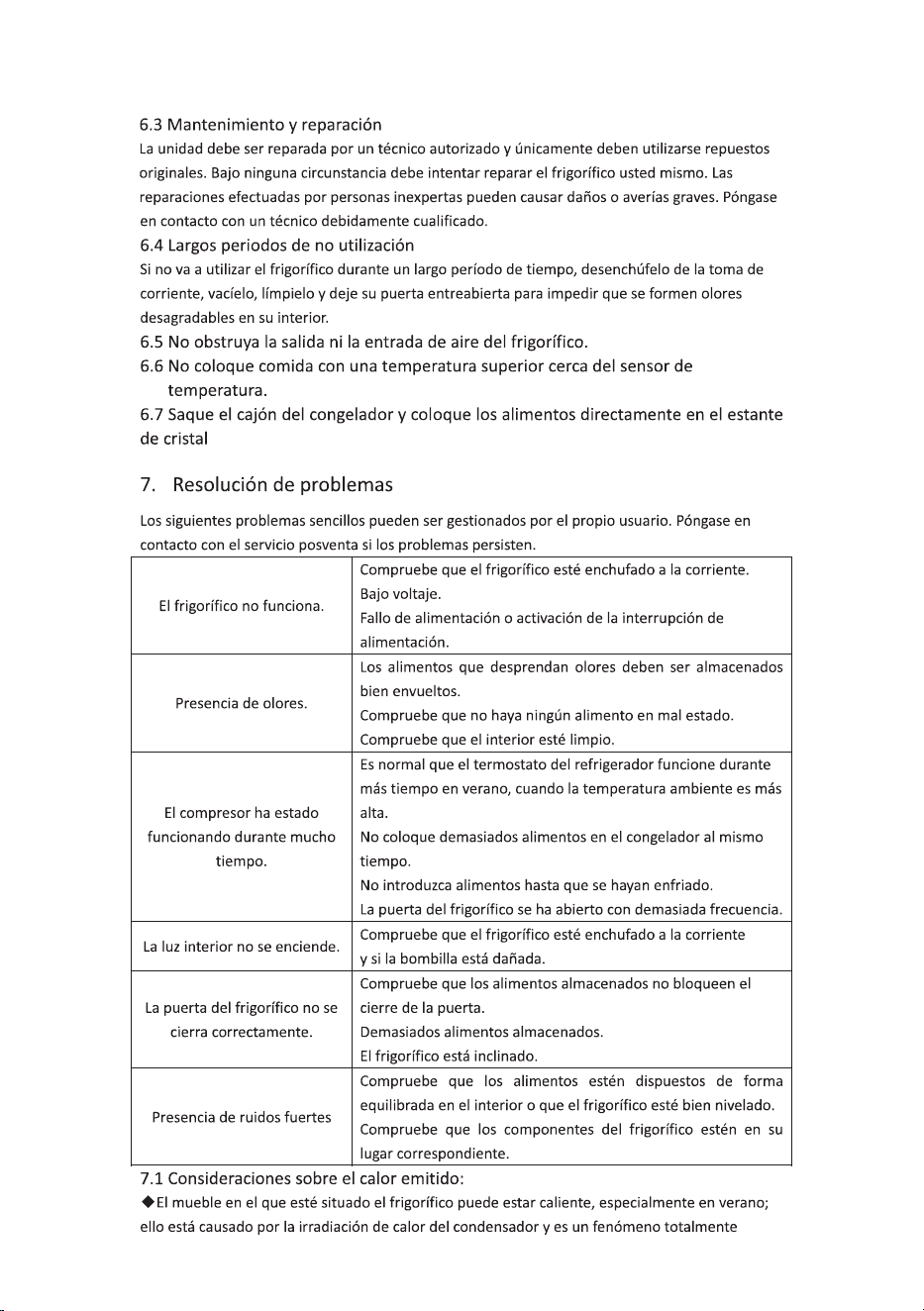

6.3 Mantenimiento y reparación ................................................................................... 12
6.4 Largos periodos de no
ización............................................................................. 12
6.5 No obstruya la salida ni la entrada de aire del frigorí co........................................ 12
7. Resolución de problemas ................................................................................................ 12
7.1 Consideraciones sobre el calor em do:.................................................................. 12

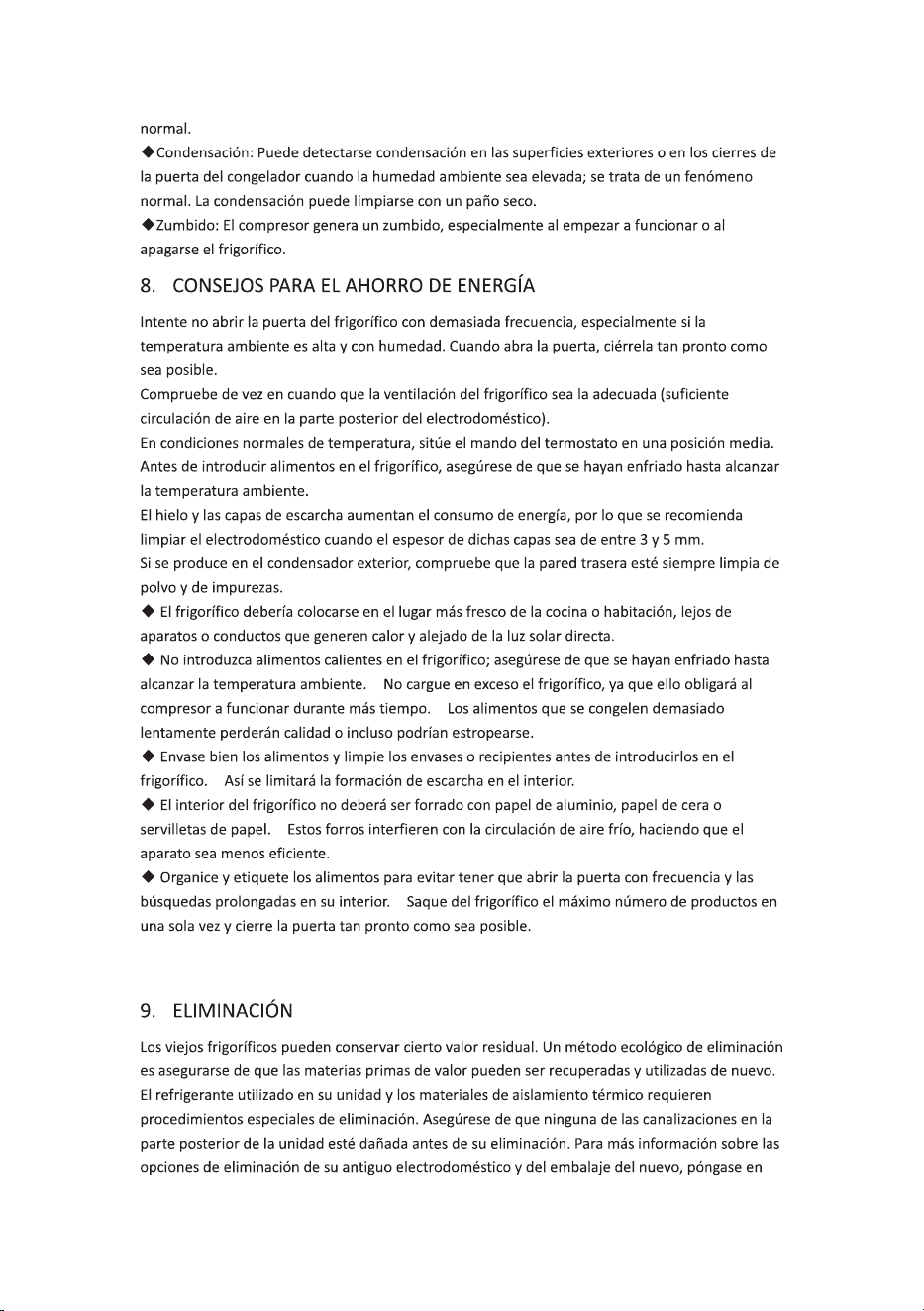

8. CONSEJOS PARA EL AHORRO DE ENERGÍA...................................................................... 13
9. ELIMINACIÓN................................................................................................................... 13

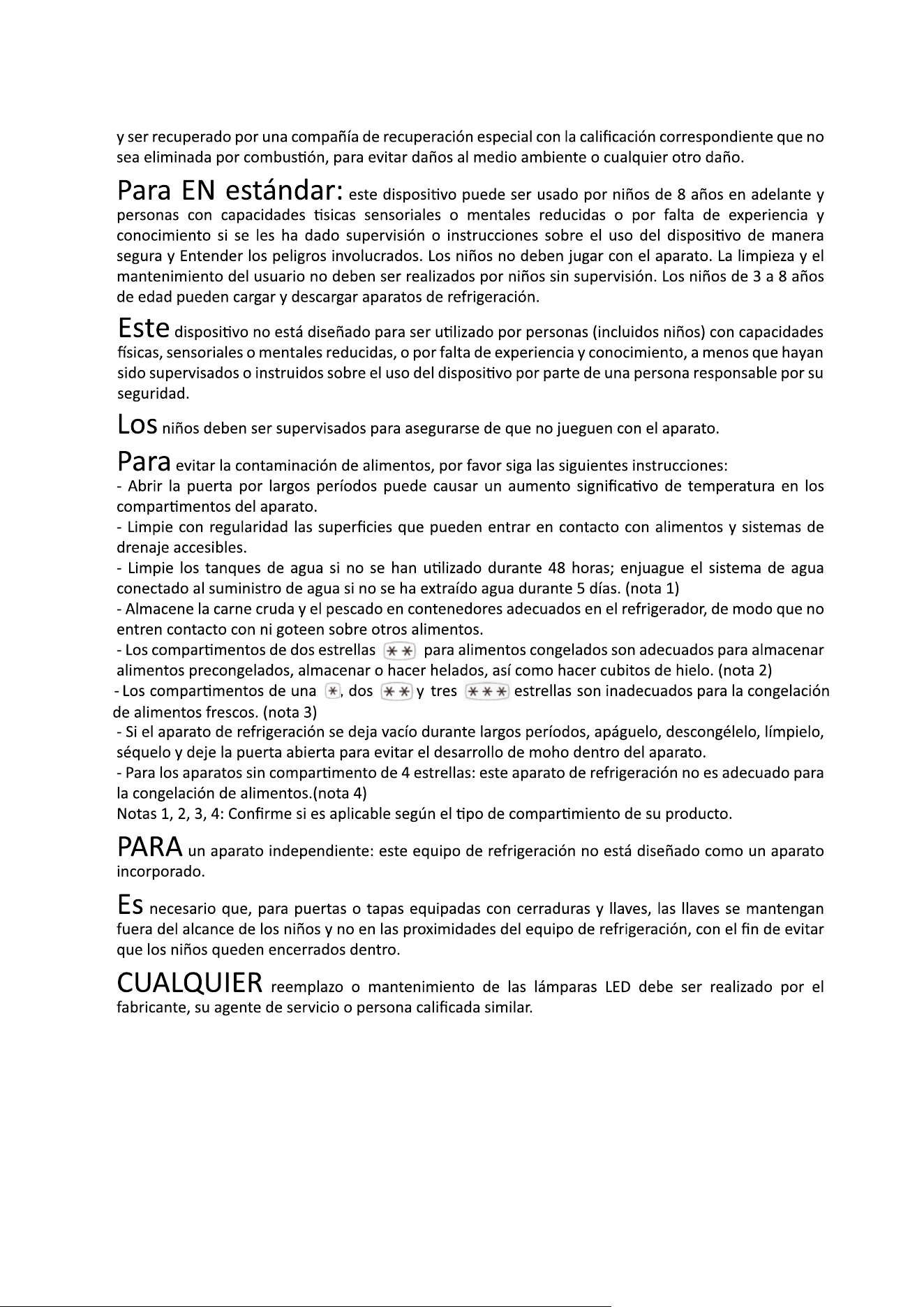

1.ADVERTENCIAS DE SEGURIDAD
Advertencia: riesgo de fuego/materiales in amables
Este aparato está diseñado para ser u�lizado en entornos domés�cos y similares, como áreas de
cocina del personal en �endas, oficinas y otros entornos de trabajo; Casas rurales y por clientes en
hoteles, moteles y otros entornos de �po residencial; ambientes �po cama y desayuno; Catering y
aplicaciones similares no minoristas.
Si el cable de alimentación está dañado, debe ser reemplazado por el fabricante, su agente de servicio
o personas con calificaciones similares para evitar un peligro.
No almacene sustancias explosivas como latas de aerosol con un carburante inflamable en este
aparato.
El aparato debe desenchufarse después de su uso y antes de llevar a cabo el mantenimiento por parte
del usuario.
ADVERTENCIA: Mantenga las aberturas de ven�lación, dentro de la carcasa del aparato o
en la estructura incorporada, sin obstrucciones.
ADVERTENCIA: No u�lice disposi�vos mecánicos u otros medios para acelerar el proceso de
descongelación, que no sean los recomendados por el fabricante.
ADVERTENCIA: No dañe el circuito de refrigerante.
ADVERTENCIA: No u�lice aparatos eléctricos dentro de los compar�mentos de
almacenamiento de alimentos del aparato, a menos que sean del �po recomendado por el fabricante.
ADVERTENCIA: abandone el refrigerador de acuerdo con los reguladores locales para usar
gas inflamable y refrigerante.
ADVERTENCIA: Al colocar el aparato, asegúrese de que el cable de alimentación no esté
atrapado o dañado.
ADVERTENCIA: No ubique tomas de corriente portá�les o fuentes de alimentación
portá�les en la parte posterior del disposi�vo.
No u�lice cables de extensión o adaptadores de dos patas sin conexión a �erra.
PELIGRO: Riesgo de atrapamiento infan�l. Antes de �rar su viejo refrigerador o congelador:
-Quítate las puertas.
-Deje los estantes en su lugar para que los niños no puedan trepar fácilmente hacia adentro.
El refrigerador debe desconectarse de la fuente de alimentación eléctrica antes de intentar la
instalación del accesorio.
El refrigerante y el material de espuma de ciclopentano u�lizados para el refrigerador son inflamables.
Por lo tanto, cuando se deseche el refrigerador, debe mantenerse alejado de cualquier fuente de fuego
2
3
2. INSTALACIÓN
2.1
2.2
Ubicación
A la hora de instalar el electrodomés
co, seleccione una ubicación bien ven lada y donde el
suelo sea llano y
me. No instale el electrodomés co cerca de una fuente de calor, como por
ejemplo una cocina, una caldera o un radiador. Evite también ubicarlo a la luz solar directa, ya
que ello podría hacer aumentar el consumo eléctrico. Situarlo en un lugar con temperaturas
demasiado bajas también podría hacer que el electrodomés co no funcionase correctamente.
Este electrodomés
co no ha sido diseñado para ser u lizado en garajes o en el exterior. No cubra
el electrodomés
co con ningún po de funda.
Al instalar el electrodomés
co, asegúrese de dejar un espacio libre de 1.5 cm a cada lado y por
detrás y de cierto espacio por la parte superior. Ello ayudará a que el aire circule alrededor del
frigorí
co y mejorará el proceso de enfriamiento.
4

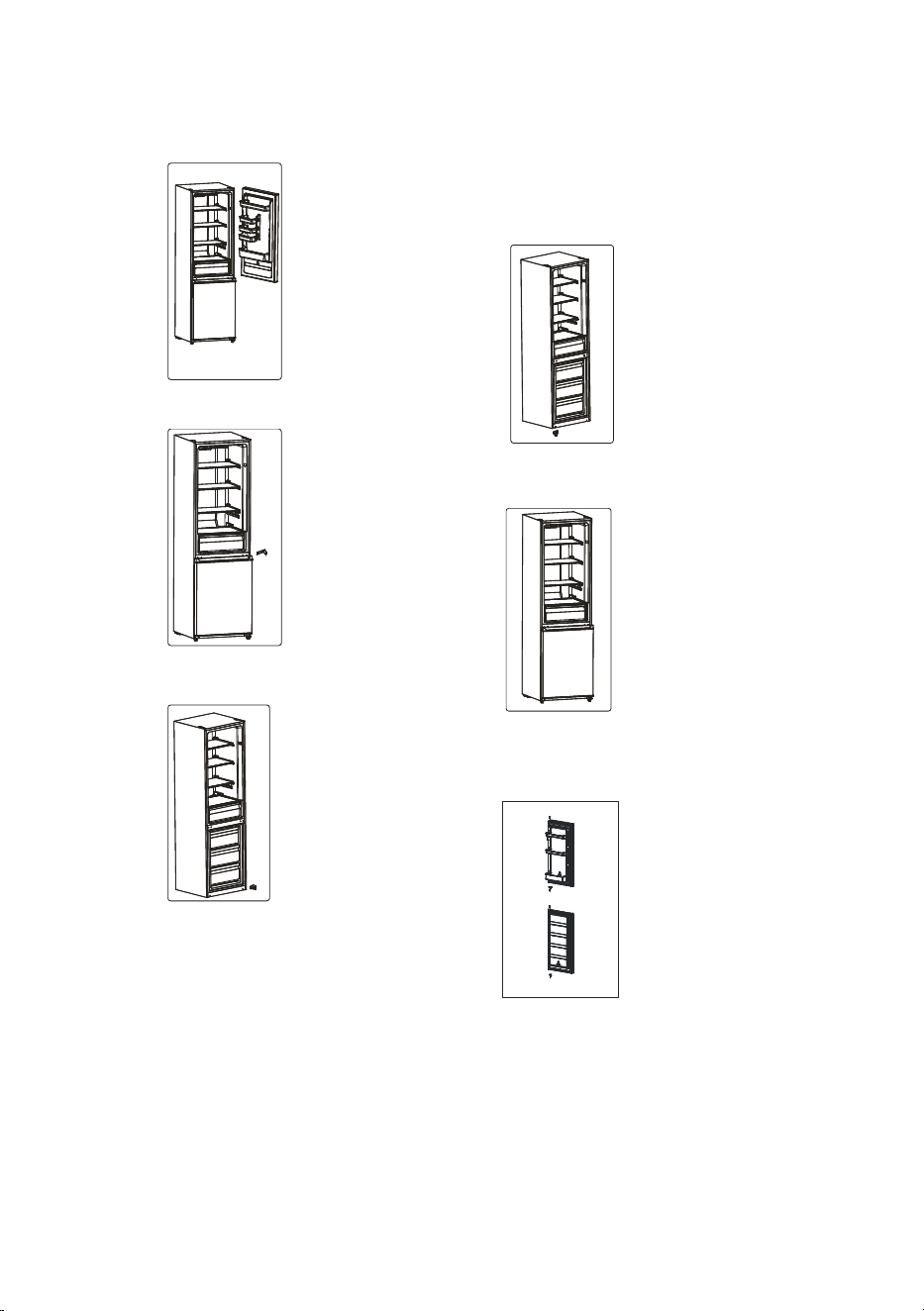

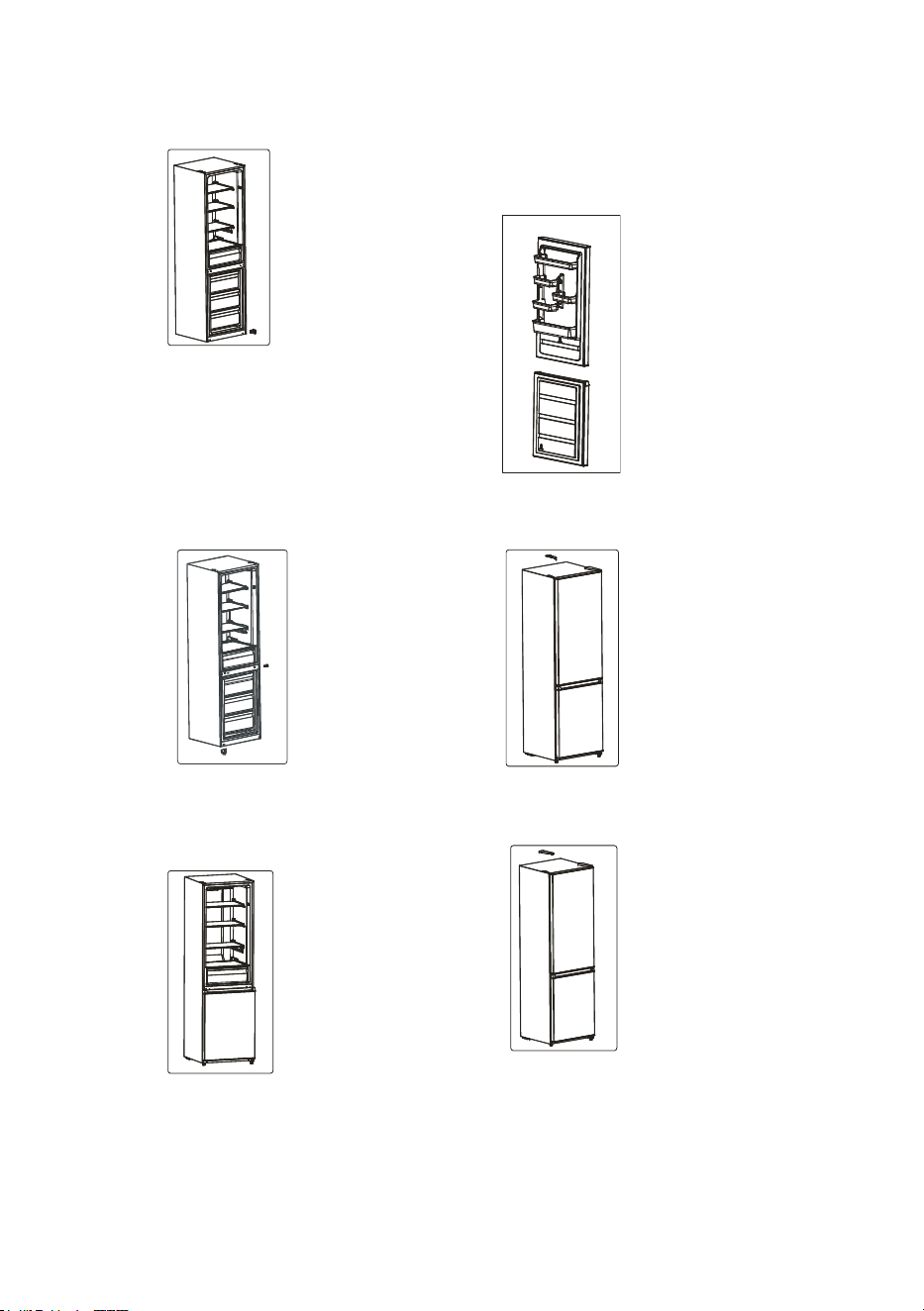

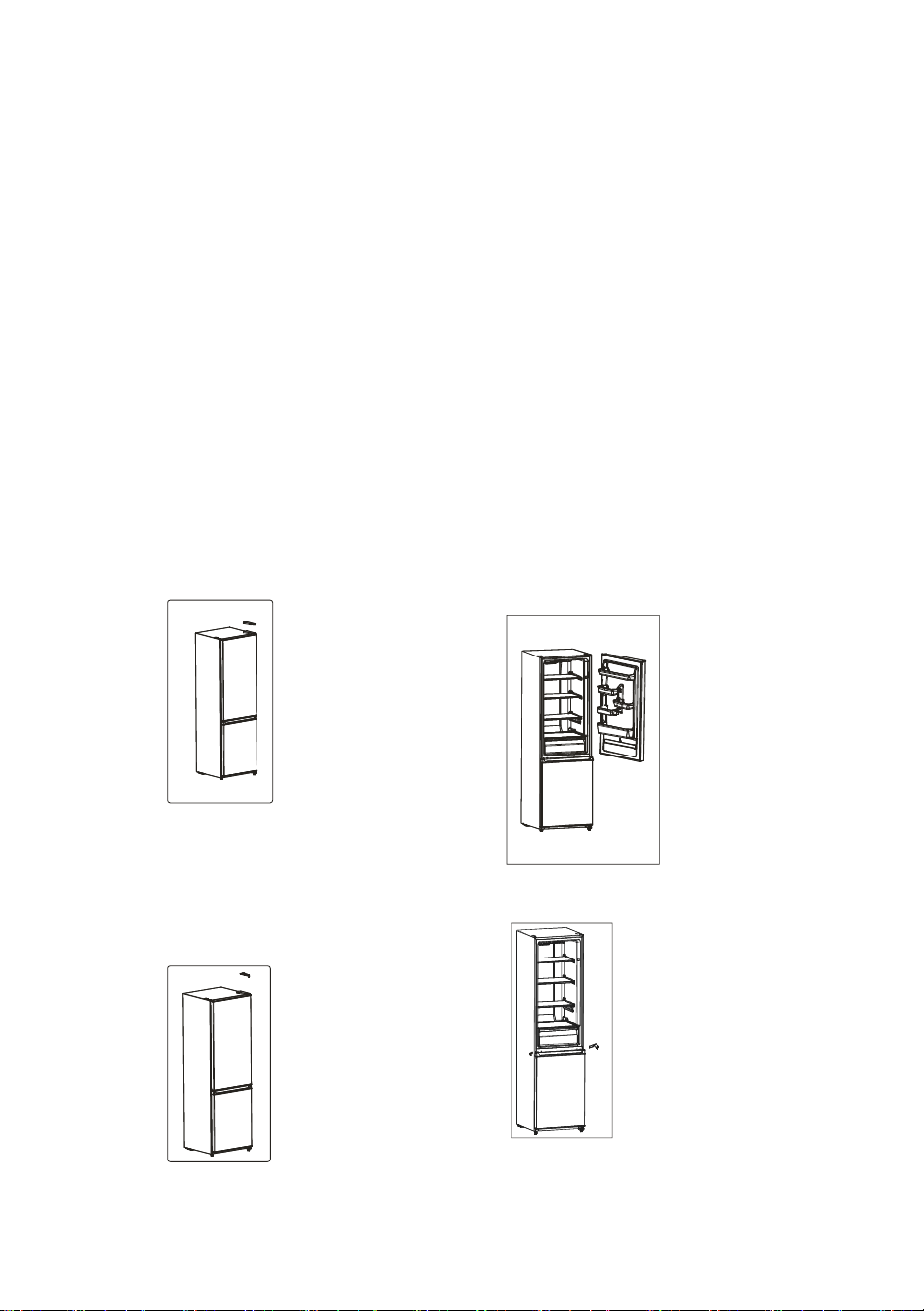

3) Remueva la puerta de la cámara de
refrigeración.
4) Quite la bisagra central con un
destornillador.
5) Retire la puerta del congelador.
6) Coloque el conjunto de bisagras con un
destornillador. Coloque el conjunto de
bisagra inferior en el lado izquierdo del
electrodoméstico con un destornillador.
7) Coloque la puerta del frigorífico sobre la
bisagra inferior.
8) Monte el conjunto de la bisagra central
hacia el lado izquierdo del gabinete.
5
2.3
2.4
2.5
6
2.6
2.7
7
por encima de los cajones de frutas y verduras y manténgalo en esta posición. Para
quitarlo,
re de él hacia adelante hasta que se pueda girar hacia arriba o hacia abajo
y re
rarse.
Haga lo mismo a la inversa para insertar el estante a una altura diferente.
Para aprovechar al máximo el espacio del compar mento de almacenamiento de alimentos
frescos y el de almacenamiento de alimentos congelados, el usuario puede re
rar uno o varios
estantes o cajones del electrodomés
co, según con el uso diario que realice de los mismos.
8
9
10
11
El polvo detrás del refrigerador y en el suelo deben limpiarse oportunamente para mejorar el
efecto de enfriamiento y el ahorro de energía.
Revise la junta de la puerta con regularidad para asegurarse de que no haya residuos. Limpie
la junta de la puerta con un paño suave humedecido con agua jabonosa o detergente diluido.
El interior del refrigerador debe limpiarse regularmente para evitar el mal olor.
estantes, cajones, etc.
Use un paño suave o una esponja para limpiar el interior del refrigerador, con dos cucharadas
Después de limpiar, abra la puerta y deje que se seque naturalmente antes de encenderla.
limpiar de manera regular con un paño suave, una esponja, etc. y cuando sea necesario, junto
a herramientas auxiliares, c
ra asegurarse de que no se acumulen
contaminantes o bacterias en estas áreas.
pueden causar malos olores en el frig co y pueden contaminar la comida.
Limpie el botellero, las baldas y los cajones con paño suave húmedo con agua enjabonada,
detergente, etc. y luego séquelo con un trapo o deje que se seque naturalmente.
Limpie la parte exterior del frig
co con un paño suave húmedo con agua enjabonada,
detergente, etc. y después séquelo.
pasta de dientes), disolventes naturales, (alcohol, acetona, aceite de plátano, etc.), agua
hirviendo, acido o productos alcalinos, que pueden dañar al interior y el exterior del frig
co.
Agua hirviendo y disolventes orgánicos como el benceno puede llegar a deformar o dañar las
No enjuague directamente con agua u otros líquidos durante la limpieza para evitar
cortocircuitos y que afecte al aislamiento eléctrico después de la inmersión.
12
13
14
contacto con su ayuntamiento.
Cuando deseche un refrigerador an
guo, re re cualquier po de cierre y las puertas como
medida de seguridad.
Eliminación correcta de este electrodomés co
Eliminación correcta de este electrodomés co
Este símbolo indica que este producto no debe desecharse junto con otros residuos
domés
cos en toda la UE. Para evitar cualquier posible daño al medio ambiente o a
la salud de las personas por una eliminación incontrolada, recíclelo de forma
responsable para fomentar la reu
lización sostenible de las materias primas. Si
desea devolver este producto, u
lice los sistemas de devolución y recogida o
póngase en contacto con el comercio donde lo adquirió. Ellos podrán llevar este
producto a unas instalaciones adecuadas para un reciclaje seguro.
Para más información, póngase en contacto con el ayuntamiento o con el comercio en el que
adquirió el producto.
Corbero
E-CCM20120NFW / E-CCM20120NFX
E
CE
231kWh / year
247L
83L
4
No Frost
9h
N/ST
41dB
595x630x2010mm
AC220V-240V
0.7A
3.89kg/24h
CORBERO：
Fefrigerator-Freezer
USER MANUAL
E-CCM20120NFW
E-CCM20120NFX
Contents
1. SAFETY WARNINGS............................................................................................................ 1
2. INSTALLTION...................................................................................................................... 3
2.1 Loca
on...................................................................................................................... 3
2.2 Reversing the Door Swing .......................................................................................... 3
2.3 Door Space Requirements.......................................................................................... 5
2.4 Levelling the Unit ....................................................................................................... 5
2.5 Cleaning Before Use ................................................................................................... 5
2.6 Before Using Your Unit............................................................................................... 5
2.7 Interior Accessories .................................................................................................... 6
3. PRODUCT OVERVIEW(op
onal) ........................................................................................ 7
4. OPERATION........................................................................................................................ 7
4.1
on In ons ............................................................................................... 7
4.2 Noise Inside the Unit!................................................................................................. 9
4.3 Tips for Keeping Food in the Unit............................................................................... 9
4.4 Change the Light Bulb .............................................................................................. 10
5. CLEANING ........................................................................................................................ 10
5.1 Defro ................................................................................................................. 10
5.2 Cleaning the Interior and the Exterior of the Unit ................................................... 10
5.3 Cleaning Tips ............................................................................................................ 10
6. MAINTENANCE ................................................................................................................ 11
6.1 Changing the Internal Light ...................................................................................... 11
6.2 Care When Handling / Moving Your Unit................................................................. 11
6.3 Servicing ................................................................................................................... 11
6.4 Switching O
for Long Periods of Time.................................................................... 11
6.5 Do not shield po ons of air outlet and return air inlet of the refrigerator........... 11
7. Trouble shoo
ng ............................................................................................................. 11
7.1 Warm
ps:................................................................................................................ 12
8. TIPS FOR ENERGY SAVING ............................................................................................... 12
9. DISPOSAL ......................................................................................................................... 13
1
1. SAFETY WARNINGS
Warning: risk of fire / flammable materials
THIS appliance is intended to be used in household and similar applications such as staff
kitchen areas in shops, offices and other working environments; farm houses and by clients in
hotels, motels and other residential type environments; bed and breakfast type environments;
catering and similar non-retail applications.
THIS appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.)
Children should be supervised to ensure that they do not play with the appliance.
IF the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
DO not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
THE appliance has to be unplugged after use and before carrying out user maintenance on the
appliance.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
WARNING: Please abandon the refrigerator according to local regulators for it use
flammable blowing gas and refrigerant.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or
damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at
the rear of the appliance.
DO not use extension cords or ungrounded（two prong）adapters.
DANGER: Risk of child entrapment.Before you throw away your old refrigerator or freezer:
-Take off the doors.
2
-Leave the shelves in place so that children may not easily climb inside.
THE refrigerator must be disconnected from the source of electrical supply before attempting
the installation of accessory.
REFRIGERANT and cyclopentane foaming material used for the appliance are
flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source
and be recovered by a special recovering company with corresponding qualification other than
be disposed by combustion, so as to prevent damage to the environment or any other harm.
FOR EN standard: This appliance can be used by children aged from 8 years and
above and persons with reduce physical sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision. Children aged
from 3 to 8 years are allowed to load and unload refrigerating appliances.
The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach
of children and not in the vicinity of the refrigerating appliance, in order to prevent children from
being locked inside.
TO avoid contamination of food, please respect the following instructions:
– Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
– Clean regularly surfaces that can come in contact with food and accessible drainage systems.
– Clean water tanks if they have not been used for 48 h; flush the water system connected to a
water supply if water has not been drawn for 5 days. （note 1）
– Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact
with or drip onto other food.
– Two-star frozen-food compartments are suitable for storing pre-frozen food,
storing or making ice-cream and making ice cubes. （note 2）
–One -, two and three-star compartments are not suitable for the
freezing of fresh food. （note 3）
–If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould developing within the appliance.
–For appliances without a 4-star compartment: this refrigerating appliance is not suitable for
freezing foodstuffs.（note 4）
Note 1,2,3,4：Please confirm whether it is applicable according to your product compartment
type.
FOR a freestanding appliance: this refrigerating appliance is not intended to be used as a
built-in appliance.
ANY replacement or maintenance of the LED lamps is intended to be made by the
manufacturer,its service agent or similar qualified person.
3
2. INSTALLTION
2.1 Location
When selecting a position for your unit you should make sure the floor is flat and firm, and the
room is well ventilated. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator.
Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient
temperatures may also cause the unit not to perform properly. This unit is not designed for use in
a garage or outdoor installation. Do not drape the unit with any covering.
When installing the unit, ensure that 10 cm of free space is left at both sides, 10 cm at the rear
and 30 cm at the top of the unit. This will allow cold air to circulate around the wine cooler and
improve the efficiency of the cooling process.
2.2 Reversing the Door Swing
1) Take off knuckle guard.
2) Take off top hinge.
3) Take off the door of refrigerating chamber
4) Take off middle hinge, left middle beam
screw cap and screw with a screw driver
4
5) Take off the door of freezing chamber
6) Take off hinge assembly with a screw
driver , Assemble lower hinge assembly to
left side of the cabinet with a screw driver.
Fix the removed medium beam screw and
screw cap to the right screw hole position.
7) Assemble the door of freezer chamber on
the lower hinge
8) Assemble middle hinge assembly to left
side of the cabinet
9) Assemble the door of refrigerating
10) Take on knuckle guard.
5
2.3Door Space Requirements
The unit's door must be able to open fully as shown.
W D 990 1025mm
2.4 Levelling the Unit
To do this adjust the two levelling feet at the front of the unit.
If the unit is not level, the door and magnetic seal alignments
will not be covered properly.
Make sure that the foot touches the ground before use.
Look down from the top, clockwise and counterclockwise loosening, tightening.
2.5 Cleaning Before Use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm
water using a 'Wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water
and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.
If you require more information refer to the Cleaning section.
2.6 Before Using Your Unit
The refrigerator adopts 220~240V/50Hz AC power, voltage fluctuations over the range of 187 ~
264V will cause malfunction or even damage.
Do not damage the power cord under any condition so as to ensure safety use, do not use when
the power cord is damaged or the plug is worn.
Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent
damages to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
This product is household refrigerators and shall be only suitable for the storage of foods.
According to national standards, household refrigerators shall not be used for other purposes,
such as storage of blood, drugs or biological products.
Do not place items such as bottled or sealed container of fluid such as bottled beers and
beverages in the freezer to prevent bursts and other losses.
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working
properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.
W
6
Do not damage the power cord under any condition so as to ensure safety use, do not use when
the power cord is damaged or the plug is worn.
Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent
damages to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
This product is household refrigerators and shall be only suitable for the storage of foods.
According to national standards, household refrigerators shall not be used for other purposes,
such as storage of blood, drugs or biological products.
Do not place items such as bottled or sealed container of fluid such as bottled beers and
beverages in the freezer to prevent bursts and other losses.
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working
properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.
Do not store or place dry ice in the refrigerator.
Before Plugging in
You must check that you have a socket which is compatible with the plug supplied
with the unit.
Before Turning On!
Do not turn on until two hours after moving the unit.
2.7 Interior Accessories
Various glass or plastic storage shelves are included with your appliance - different
models have different combinations.
You should always slide one of the full size glass storage shelves into the lowest set of
guides, above the fruit and vegetable containers, and keep it in this position. To do
this, pull the storage shelf forward until it can be swiveled upwards or downwards
and removed.
Please do the same in reverse to insert the shelf at a different height.
In order to make the most of the volume of the fresh food storage compartment and
frozen-food storage compartment, the user can remove one or more shelves, drawers, out
of the appliance, according to your daily use.
8
Key
A.SET: gear se ng key
Display screen
1 Gear 1
2 Gear 2
3 Gear 3
4 Gear 4
5 Gear 5
Display
For the
rst power-on, the display screen (including the key light) will be displayed in full for 3s,
and then the gear in the middle displays the state of running
Display of normal running
On the occurrence of a failure, the corresponding LED light will give a combined display of failure
code (loop display);
Where there is no failure, the LED light will display the current running gear of the refrigerator.
Gear se
ng
The gear will be changed once every
me when you press the key SET. Then, the refrigerator will
run under the se
ng value a er 15s.
Fast cool function
Enter: Circula
ng modula on rapid cooling mode
Operate: Indicator of rapid cooling lights up, and the refrigerator operates at 2
.
Exit: 1. Operate 150min under the rapid cooling mode
Gear 1 Gear 2 Gear 3 Gear 4 Gear 5
9
2. Temperature adjustment can exit from the rapid cooling mode
Temperature control of freezing chamber
LDER
LD
When ambient temperature is high in summer, the temperature shall be in the range from
LD LD
prevail.
When ambient temperature is low in winter, the temperature shall be in the range from
LDER LDER
prevail.
Chill compartment description: the temperature of chill compartment is -2 tcc 3, the
maximum tcc should be as near as possible +3 which however should not be exceeded. The
compartment is not suitable for storing certain fresh vegetables and fruits (which are sensitive to
low temperature).
4.2 Noise Inside the Unit!
You may notice that your unit makes some unusual noises. Most of these are perfectly normal,
but you should be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has
become more pronounced since the introduction of CFC free gases. This is not a fault and will not
affect the performance of your unit. This is the compressor motor working, as it pumps the
refrigerant around the system.
4.3 Tips for Keeping Food in the Unit
Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid
bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices
and cover it properly. Place the container on the lowest shelf.
Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the
unit are kept cool.
To prevent transfer of favours and drying out, pack or cover the food separately. Fruit and
vegetables do not need to be wrapped.
Always let pre-cooked food cool down before you put in the unit. This will help to maintain
the internal temperature of the unit.
To prevent cold air escaping from the unit, try to limit the number of times you open the
door. We recommend that you only open the door when you need to put food in or take food
out.
10
4.4 Change the Light Bulb
Lamp replacement by professionals
5. CLEANING
5.1 Defrosting
Auto-defrost for Frost-free Refrigerator
5.2 Cleaning the Interior and the Exterior of the Unit
Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the
cooling effect and energy saving.
Check the door gasket regularly to make sure there are no debris. Clean the door gasket with
a soft cloth dampened with soapy water or diluted detergent.
The interior of the refrigerator should be cleaned regularly to avoid odor.
Please turn off the power before cleaning interior, remove all foods, drinks ,shelves, drawers,
etc.
Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of
baking soda and a quart of warm water. Then rinse with water and wipe clean. After
cleaning, open the door and let it dry naturally before turning on the power.
For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or
corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and
when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no
contaminants or bacterials accumulation in these areas.
Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in
the interior of the refrigerator or contaminated food.
Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or
diluted detergent. Dry with a soft cloth or dry naturally.
Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water,
detergent, etc., and then wipe dry.
Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes),
organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline
items, which may damage the fridge surface and interior. Boiling water and organic solvents
such as benzene may deform or damage plastic parts.
Do not rinse directly with water or other liquids during cleaning to avoid short circuits or
affect electrical insulation after immersion.
5.3 Cleaning Tips
Condensation may appear on the outside of the unit. This may be due to a change in room
temperature. Wipe of any moisture residue. If the problem continues, please contact a qualified
technician for assistance.
11
6. MAINTENANCE
6.1 Changing the Internal Light
Lamp replacement by professionals.
6.2 Care When Handling / Moving Your Unit
Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted
by holding the edges of the top surface.
6.3 Servicing
The unit should be serviced by an authorized engineer and only genuine spare parts should be
used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out
by inexperienced persons may cause injury or serious malfunction. Contact a qualitatively
technician.
6.4 Switching Off for Long Periods of Time
When the unit is not in use for a long period of time, disconnect it from the mains supply, empty
all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.
6.5 Do not shield positions of air outlet and return air inlet of the refrigerator
6.6 Do not keep foods of higher temperature close to temperature sensor
6.7Take out drawer of freezing chamber of refrigerator and put foods directly on the
glass partition
7. Trouble shooting
The following simple issues can be handled by the user. Please call the after-sale service
department if the issues are not settled.
Inoperation
Whether the freezer is plugged and connected to power;
Low voltage;
Failure power or tripping circuit
Odor
Odorous foods should closely wrapped;
Whether foods are rotten;
Whether the interior shall be cleaned.
Long-term operation of
compressor
It is normal that refrigerator operates for longer time in
summer when the ambient temperature is higher;
Do not put too much food in the freezer at one time;
Do not put foods until they are cooled;
Frequent opening of refrigerator door.
Illuminating light does not
shine
Whether the refrigerator is connected to power,
whether the illuminating light is damaged.
The refrigerator door can not
be properly closed.
The freezer door is stuck by food packages;
Too much food;
Tilt refrigerator.
Loud noises
Whether the food is leveled, whether the refrigerator is
balanced;
Whether the refrigerator parts are properly placed.
12
7.1 Warm tips:
The refrigerator enclosure may emit heat during operation specially in summer, this is caused
by the radiation of the condenser, and it is a normal phenomenon.
Condensation: condensation phenomenon will be detected on the exterior surface and door
seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the
condensation can be wiped away with a dry towel.
Buzz: Buzz will be generated by running compressor specially when starting up or shutting
down.
8. TIPS FOR ENERGY SAVING
Try not to open the door too often, especially when the weather is wet and hot. Once you open
the door, close it as soon as possible.
Every now and then check if the appliance is sufficiently ventilated (adequate air circulation
behind the appliance).
In normal temperature conditions, please arrange the thermostat at the middle setting.
Before loading the appliance with packages of fresh food, make sure they are cooled to ambient
temperature.
Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3-5
mm thick.
If it is the outer condenser, the rear wall should be always clean free of dust or any impurities.
The appliance should be located in the coolest area of the room, away from heat producing
appliances or heating ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the appliance. Overloading the
appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or
spoil.
Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance.
This cuts down on frost build-up inside the appliance.
Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling.
Liners interfere with cold air circulation, making the appliance less efficient.
Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one time, and close the door as soon as possible.
13
9. DISPOSAL
Old units still have some residual value. An environmentally friendly method of disposal will
ensure that valuable raw materials can be recovered and used again. The refrigerant used in your
unit and insulation materials require special disposal procedures. Ensure that none of the pipes
on the back of the unit are damaged prior to disposal. Up to date information concerning options
of disposing of your old unit and packaging from the new one can be obtained from your local
council office.
When disposing of an old unit break of any old locks or latches and remove the door as a
safeguard.
Correct Disposal of this product
Correct Disposal of this product
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent
possible harm to the environment
or human health from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To return your used device,
please use the return and collection systems or contact the retailer where the
product was purchased. They can take this product for environmental safe recycling.
For more information, please contact the local authority or your retailer where you purchased
the product.
Corbero
E-CCM20120NFW / E-CCM20120NFX
E
CE
231kWh / year
247L
83L
4
No Frost
9h
3.89kg/24h
N/ST
41dB
595x630x2010mm
AC220V-240V
0.7A
CORBERO:
CERTIFICADO DE GARANTÍA
Imprescindible la presentación de la factura de compra acompañada del presente certificado de garantía.
Riesgos cubiertos.
Este aparato está garantizado contra cualquier defecto de funcionamiento, siempre que se destine a uso doméstico,
procediéndose a su reparación dentro del plazo de garantía y sólo por la red de SAT autorizados.
Nuestros electrodomésticos Corberó cuentan con la garantía legal del fabricante que cubre cualquier avería o defecto durante36
meses, desde su fecha factura de 1 de enero del 2022. En caso de que fuera necesario, nosotros nos ocupamos de cualquier posible
incidencia siempre que se deba a un componente defectuoso o fallo de fabricación.
Excepciones de garantía.
• Que la fecha del certificado no coincida con la fecha de venta de la factura original.
• Averías producidas por golpe, por caída o cualquier otra causa de fuerza mayor.
• Si el apa
rato ha sido manipulado por personal no autorizado.
• Las averías producidas o derivadas como consecuencia de un uso inadecuado, por defectos de instalación,
por introducir modificaciones en el aparato que alteren su funcionamiento.
• Puestas en marcha, mantenimiento, limpiezas, componentes sujetos a desgaste, lámparas, piezas estéticas,
oxidaciones, plásticos, gomas, carcasas y cristales.
“ESTAS EXCEPCIONES ANULAN LA GARANTÍA, SIENDO LA REPARACIÓN CON CARGO AL CLIENTE”
Periodo amparado en aparatos según ley de garantias en la venta de bienes de consumo Ley vigente es “RD 7/2021”
Horario de atención Lunes a Viernes de 9h00 a 19h00. Teléfono de contacto_ 911 08 08 08 Mail de contacto_ [email protected] web_ www.corbero.es
Dirección de Servicio técnico oficial_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona
Sevicio Técnico Oficial: 911 08 08 08
Los hornos microondas (a excepción de los integrables) y los hornos sobremesa en el caso de cualquier incidencia de
funcionamiento, deben de llevarse al servicio técnico más próximo por parte del cliente. No se recojen ni reparan en el
domicilio.
•
Garantía termos eléctricos. Garantía de 3 años incluyendo los costes de desplazamiento y mano de obra que
correspondan de la reparación del producto, teniendo que tener un mantenimiento una vez cada 12 meses.
Especialmente si Ud. ha instalado un aparato a gas, tenga presente como titular de la instalación, la obligatoriedad de
realizar una revisión completa de los equipos, (según Real Decreto 238 / 2013, del 5 Abril. RITE. IT3, M. Lo termos
eléctricos y calderas que incluyen depósitos acumuladores de agua caliente, para que se aplique la prestación de la
Garantía, es obligatorio que el ánodo de magnesio esté operativo y que realice la función de protección
adecuadamente. Para ello es recomendable que el ánodo se revise bianualmente por el Servicio Oficial y sea renovado
cuando fuera necesario. Periodicidad que deberá ser anual en aquellas zonas con aguas críticas (contenido de CaCO3
superiores a 200mg/L, es decir a partir de 20ºfH de dureza). Depósitos sin el correcto estado del ánodo de protección, no
tienen la cobertura de la garantía. Independientemente del tipo de depósito o producto, todas las válvulas de
sobrepresión de calefacción o a.c.s., deberán ser canalizadas para evitar daños en Ia vivienda por descargas de agua. La
garantía del producto no asume los daños causados por Ia no canalización del agua derramada por esta válvula.
•
CERTIFICATE OF GUARANTEE
The presentation of the purchase invoice accompanied by this guarantee certificate is essential.
Covered Risks.
This appliance is guaranteed against any malfunction, provided that it is intended for domestic use, proceeding to its repair within
the warranty period and only by the authorized SAT network.
Our Corberó appliances have the manufacturer's legal warranty that covers any breakdown or defect for 36 months, from the
invoice date of January 1, 2022. If necessary, we take care of any possible incident whenever it is due to a defective component or
manufacturing fault. Warranty Exceptions
Warranty Exceptions
•
That the date of the certificate does not coincide with the date of sale of the original invoice.
•
Faults produced by blow, by fall or any other cause of force majeure.
•
If the device has been manipulated by unauthorized personnel.
•
Faults produced or derived as a consequence of improper use, installation defects, or modifications to the device that
alter its operation.
•
Start-up, maintenance, cleaning, components subject to wear, lamps, aesthetic parts,
oxidation, plastics, rubbers, housings and crystals.
“THESE EXCEPTIONS VOID THE WARRANTY, THE REPAIR BEING CHARGED TO THE CUSTOMER”
Period covered in devices according to the law of guarantees in the sale of consumer goods Current law is “RD 7/2021”
Hours of operation Monday to Friday from9h00 a 19h00. Telephone contact_ 911 08 08 08 Contact email_ [email protected] web_ www.corbero.es
Official Technical Service Address_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona
Official Technical Service: 911 08 08 08
Microwave ovens (with the exception of built-in ones) and tabletop ovens in the event of any incident of
operation, they must be taken to the nearest technical service by the customer. They are not collected or repaired at
home.
•
Electric thermos guarantee. 3-year warranty including travel and labor costs that correspond to the repair of the
product, having to have maintenance once every 12 months. Especially if you have installed a gas appliance, keep in
mind as the owner of the installation, the obligation to carry out a complete review of the equipment, (according to
Royal Decree 238 / 2013, of April 5. RITE. IT3, M. Lo thermos electrical and boilers that include hot water storage tanks,
for the benefit of the Guarantee to apply, it is mandatory that the magnesium anode is operational and that it performs
the protection function adequately.For this, it is recommended that the anode be checked biannually by the Official
Service and is renewed when necessary Periodicity that must be annual in those areas with critical waters (CaCO3
content greater than 200mg/L, that is, from 20ºfH of hardness) Deposits without the correct state of the protection
anode are not covered by the warranty Regardless of the type of tank or product, all heating or DHW overpressure
valves must be channeled to avoid damage and n the house due to water discharges. The product warranty does not
cover damages caused by not channeling the water spilled by this valve.
•
