HW71518
Rattan Hanging Porch Swing
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
USA office: Fontana GBR office: Ipswich AUS office: Truganina
If you're having difficulty, our friendly
customer team is always here to help.
AUS:cs.au@costway.com
GBR:cs.uk@costway.com
Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from
babies and children as they potentially pose a serious choking hazard.
A
D
C
B
E
F
F
Notice
1. 50% Tighten before fixing all screws, Allen wrench is recommended
instead of an electric drill.
2. Place the item on a flat ground to adjust and make sure it remains
stable.
3. Tighten up all screws with tools gradually.
4. If the screws are not aligned with holes during assembly, please
loosen all the other screws to 50% and continue the assembly
process.
5. If the item is not stable, please loosen all the screws, adjust it on a
flat ground and tighten up all screws again.
6. Note: If one or some screws are fully tightened during assembly,
chances are the others will not be aligned with holes. In addition, all
the holes are designed to be relatively larger to provide more space
for the adjustment of the screws.
02 03
Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from
babies and children as they potentially pose a serious choking hazard.
A
D
C
B
E
F
F
Notice
1. 50% Tighten before fixing all screws, Allen wrench is recommended
instead of an electric drill.
2. Place the item on a flat ground to adjust and make sure it remains
stable.
3. Tighten up all screws with tools gradually.
4. If the screws are not aligned with holes during assembly, please
loosen all the other screws to 50% and continue the assembly
process.
5. If the item is not stable, please loosen all the screws, adjust it on a
flat ground and tighten up all screws again.
6. Note: If one or some screws are fully tightened during assembly,
chances are the others will not be aligned with holes. In addition, all
the holes are designed to be relatively larger to provide more space
for the adjustment of the screws.
02 03
A x1
B x1
C x1
D
x1
E
x1
Right Frame
Seat Cushion
F
x2
Back PillowBack Frame
Seat FrameLeft Frame

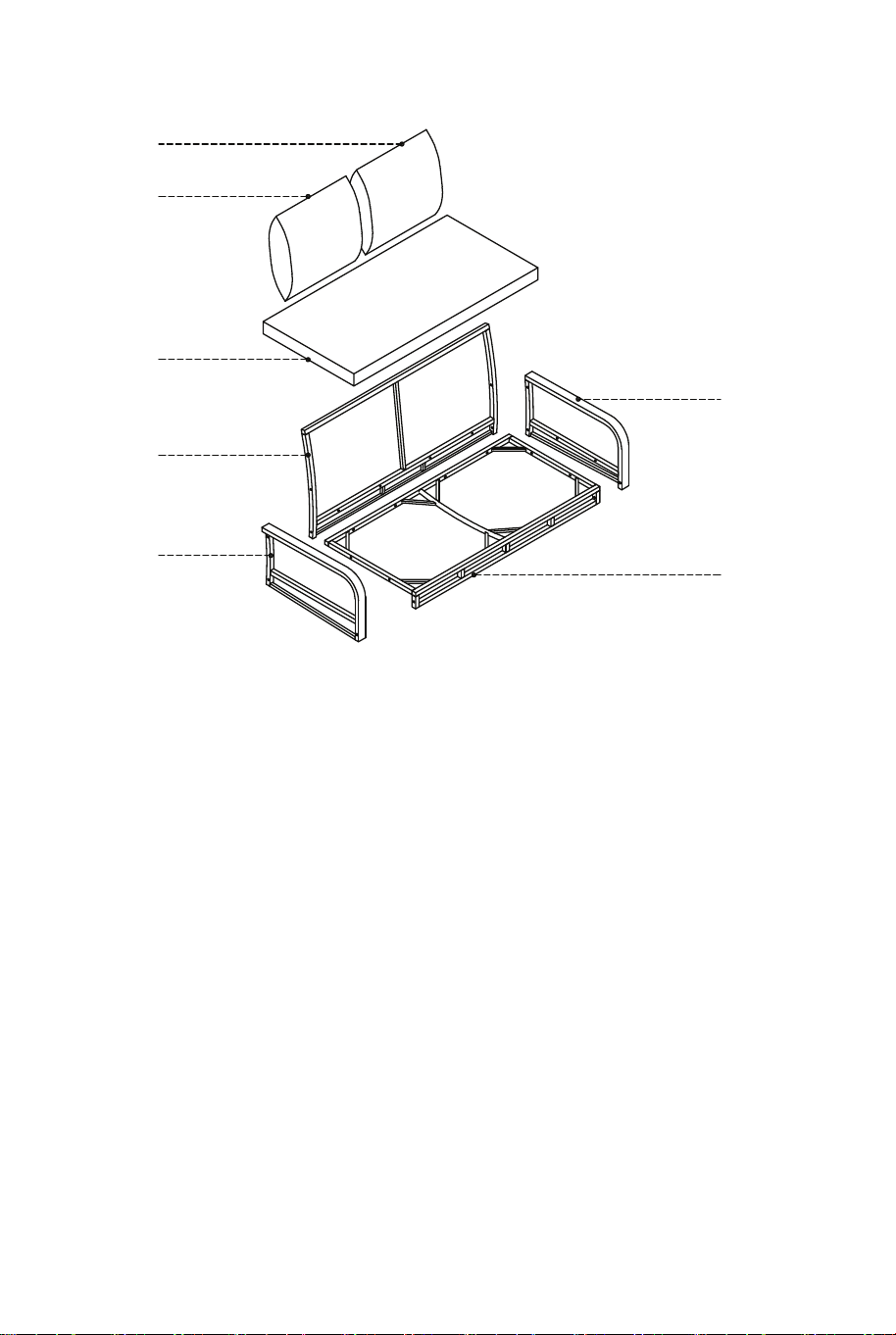

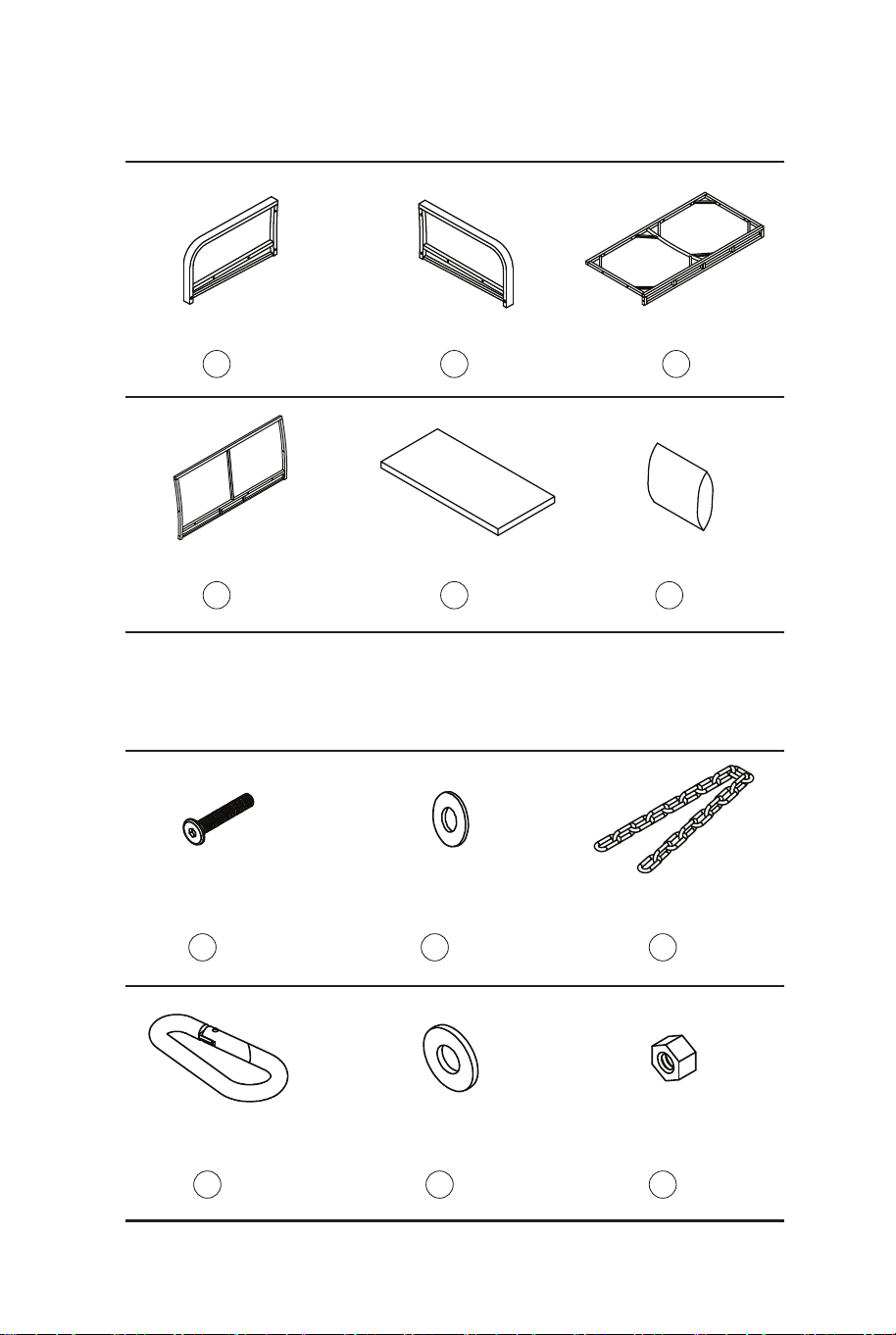

PARTS LIST
Bolt M6x40mm Steel chain
Washers
Ø6x16x1 mm
Safety keychain Nut M8
Washers
Ø8x20x2 mm
Bolt
M8x105mm
Spanner
Allen key M4
Bolt
M8x120mm
HARDWARE LIST
1
x10
2
x10
3 x2
4
x4
5
x6
6 x2
7
x2
8 x2 9 x1
10
x1

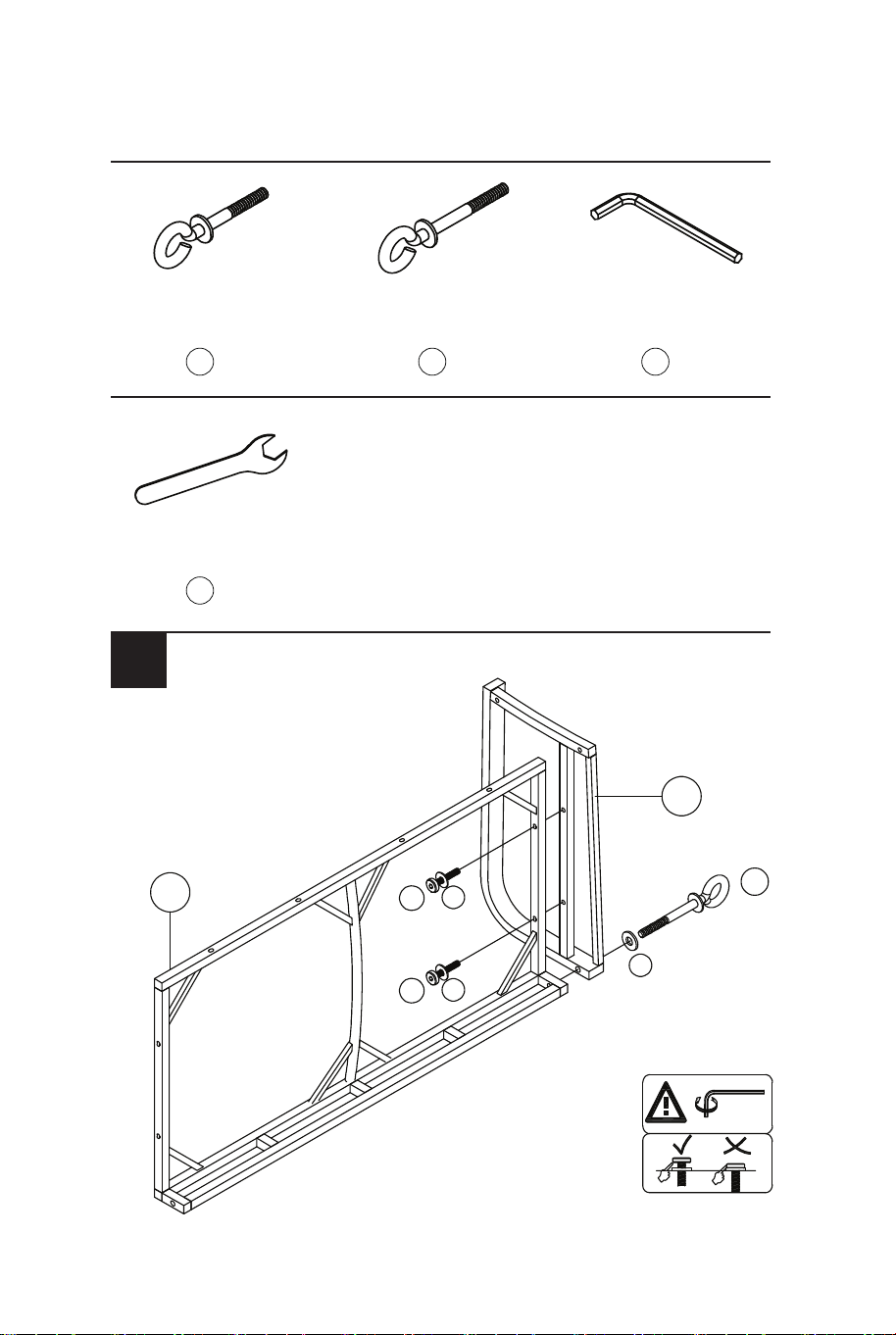

Connect Right frame (A) &
Seat frame (C) with Bolts (1)
& Washers (2); Bolt (8) &
Washer (5)
1
C
A
1
2
1
2
5
8
50% 100%
50%
04 05
A x1
B x1
C x1
D
x1
E
x1
Right Frame
Seat Cushion
F
x2
Back PillowBack Frame
Seat FrameLeft Frame
PARTS LIST
Bolt M6x40mm Steel chain
Washers
Ø6x16x1 mm
Safety keychain Nut M8
Washers
Ø8x20x2 mm
Bolt
M8x105mm
Spanner
Allen key M4
Bolt
M8x120mm
HARDWARE LIST
1
x10
2
x10
3 x2
4
x4
5
x6
6 x2
7
x2
8 x2 9 x1
10
x1
Connect Right frame (A) &
Seat frame (C) with Bolts (1)
& Washers (2); Bolt (8) &
Washer (5)
1
C
A
1
2
1
2
5
8
50% 100%
50%
04 05
42
3
B
1
2
1
2
8
5
50% 100%
50%

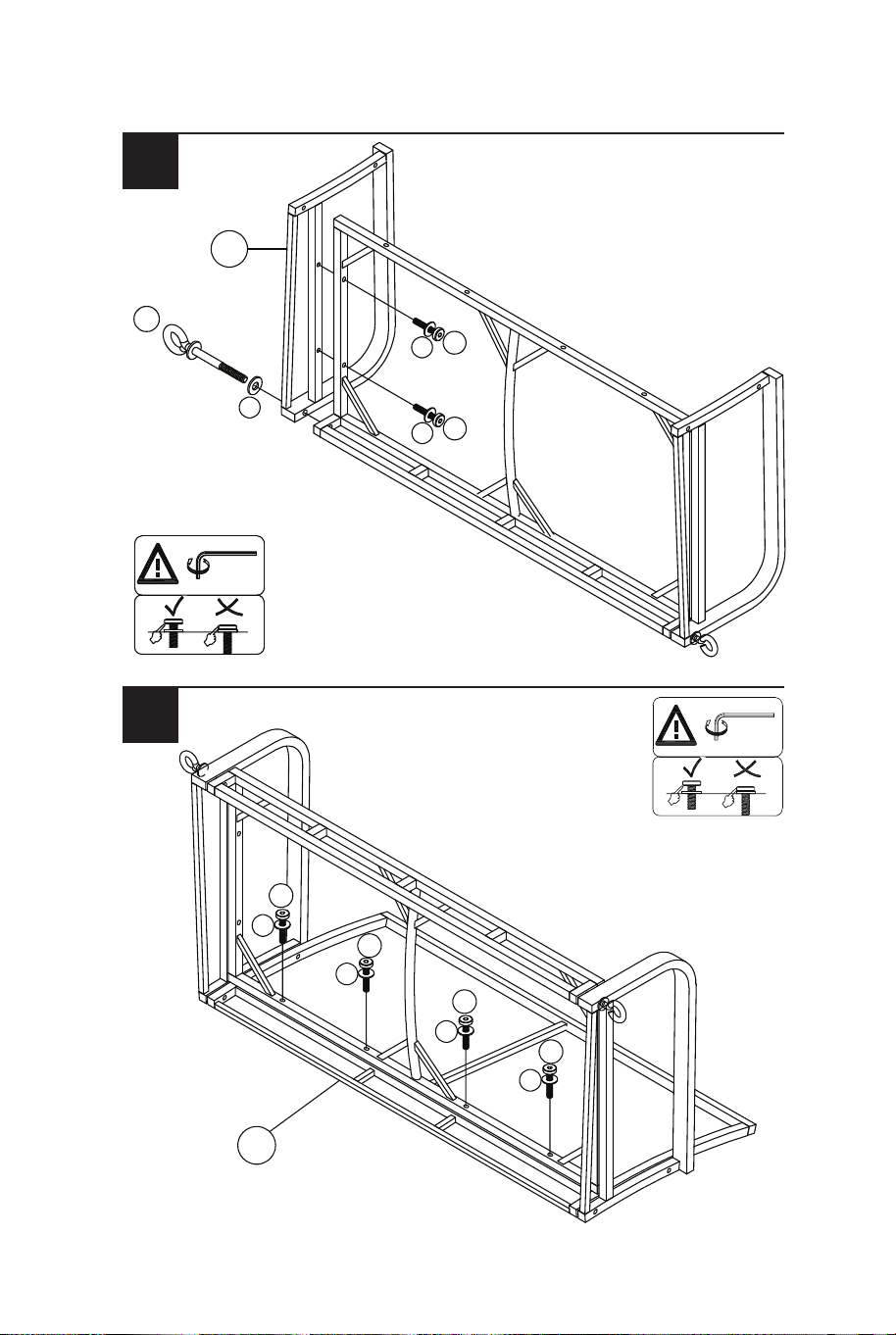

Connect Part from STEP 1 to Left
frame (B) with Bolts (1) & Washers
(2); Bolt (8) & Washer (5)
1
2
1
2
1
2
1
2
D
50% 100%
50%
Connect Part from STEP 2 to
Back frame (D) with Bolts (1)
& Washers (2)
50% 100%
50%
1
2
1
2
5
7
6
6
5
A
B
D
7
5
5

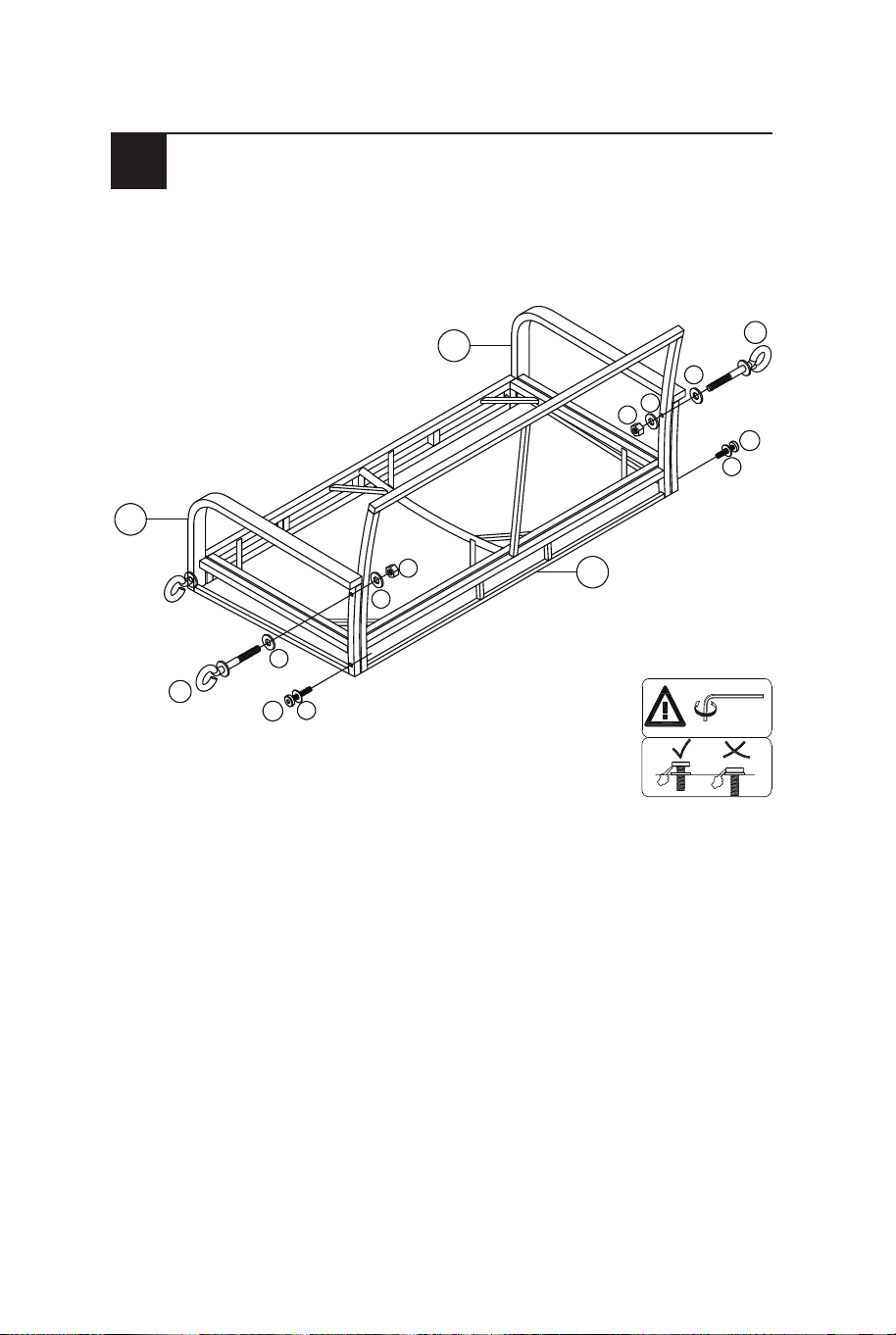

Connect the parts of the Back frame (D) to Right frame (A)
and Left frame (B) completed in STEP 3 with Bolts (1) &
Washers (2); Bolts (7) and Washers (5) & Nuts (6)
06 07
42
3
B
1
2
1
2
8
5
50% 100%
50%
Connect Part from STEP 1 to Left
frame (B) with Bolts (1) & Washers
(2); Bolt (8) & Washer (5)
1
2
1
2
1
2
1
2
D
50% 100%
50%
Connect Part from STEP 2 to
Back frame (D) with Bolts (1)
& Washers (2)
50% 100%
50%
1
2
1
2
5
7
6
6
5
A
B
D
7
5
5
Connect the parts of the Back frame (D) to Right frame (A)
and Left frame (B) completed in STEP 3 with Bolts (1) &
Washers (2); Bolts (7) and Washers (5) & Nuts (6)
06 07
65
4
4
3
3
3
4
4
4
4
3
100%
100%
F
F
E

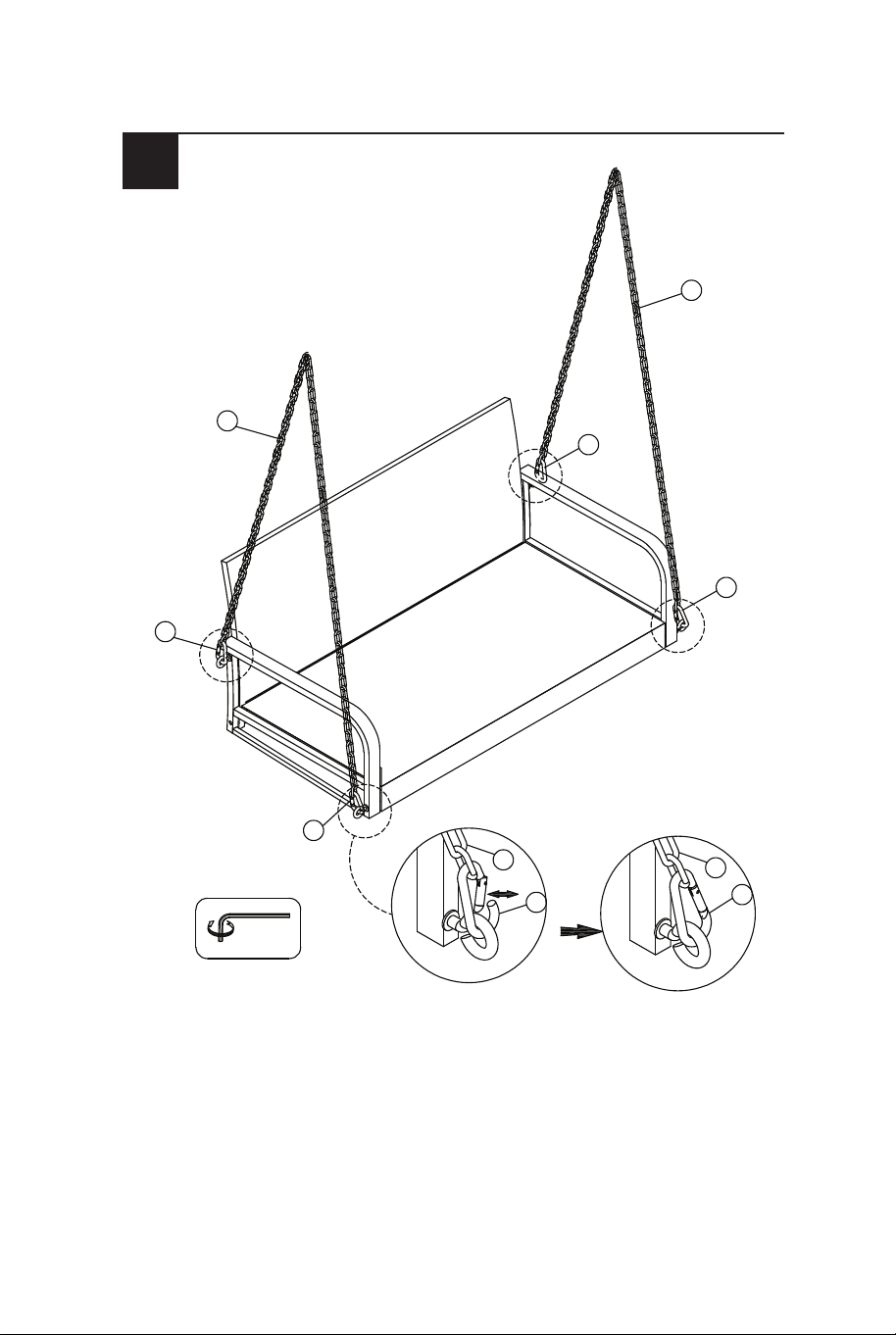

Connect Part from STEP 4 with Steel chain (3) & Safety
keychain (4)

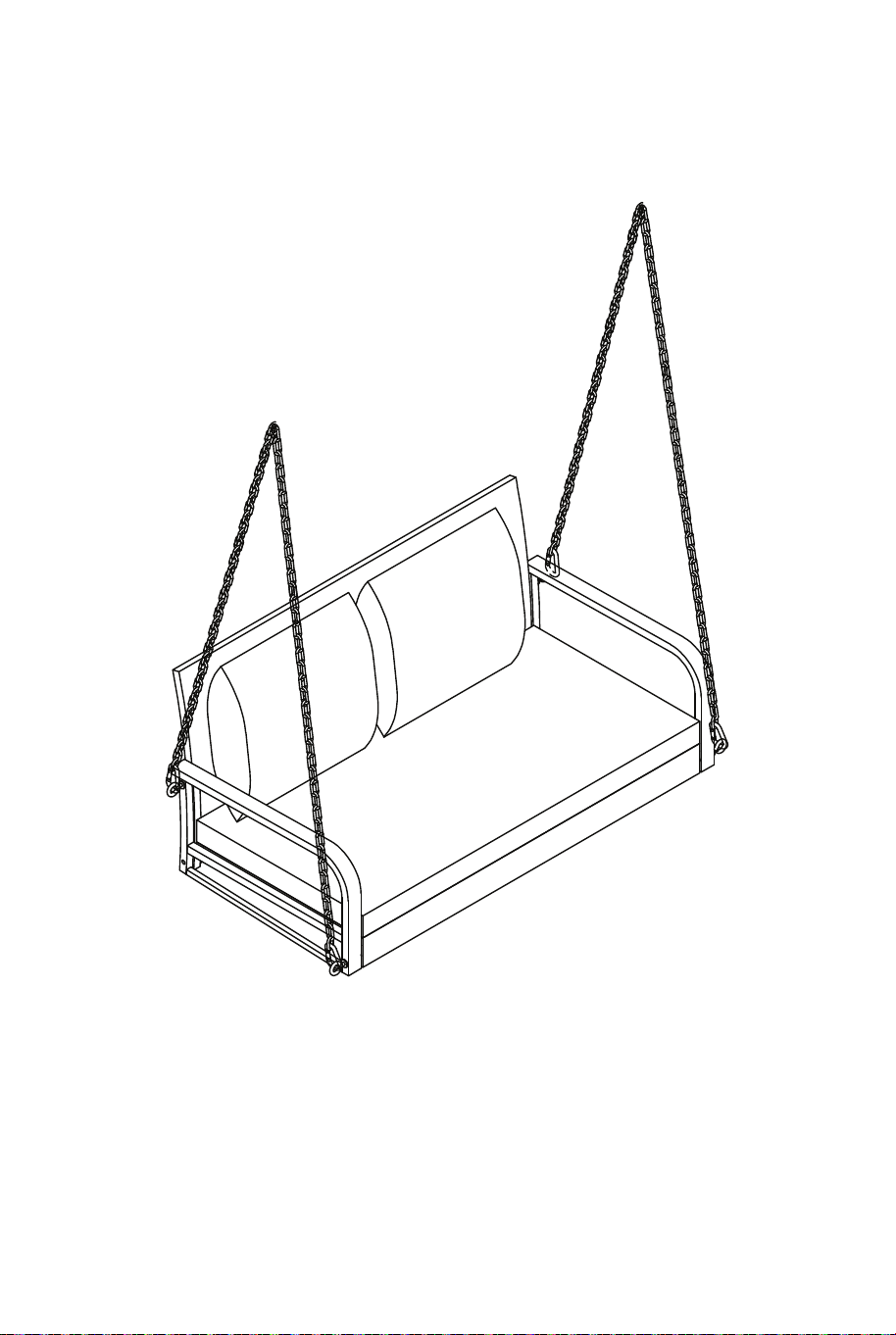

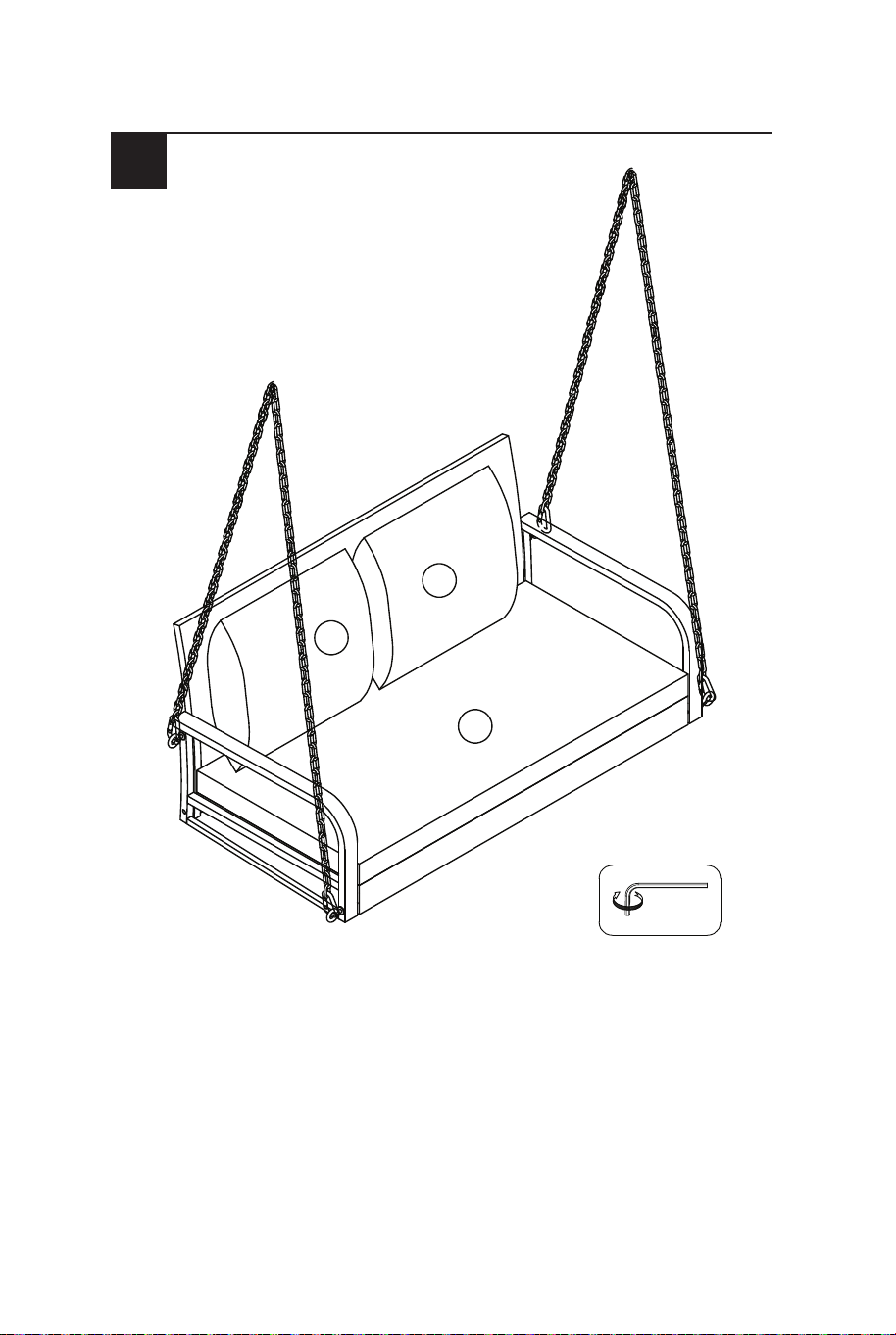

Put on Seat cushion (E) & Back Pillow (F) to complete the
assembly of Rattan Hanging Porch Swing
08 09
65
4
4
3
3
3
4
4
4
4
3
100%
100%
F
F
E
Connect Part from STEP 4 with Steel chain (3) & Safety
keychain (4)
Put on Seat cushion (E) & Back Pillow (F) to complete the
assembly of Rattan Hanging Porch Swing
08 09
In case a return is required, the item must be returned in original
box. Without this your return will not be accepted.
DO NOT discard the box / original packaging.
Take a photo of the box markings.
Take a photo of the damaged part (if applicable).
Send us an email with the images requested.
A photo of the markings (text) on the side of the box is required in
case a part is needed for replacement. This helps our staff identify
your product number to ensure you receive the correct parts.
A photo of the damage is always required to file a claim and get
your replacement or refund processed quickly. Please make sure
you have the box even if it is damaged.
Email us directly from marketplace where your item was purchased
with the attached images and a description of your claim.
Return / Damage Claim Instructions
FINISH
10 11
In case a return is required, the item must be returned in original
box. Without this your return will not be accepted.
DO NOT discard the box / original packaging.
Take a photo of the box markings.
Take a photo of the damaged part (if applicable).
Send us an email with the images requested.
A photo of the markings (text) on the side of the box is required in
case a part is needed for replacement. This helps our staff identify
your product number to ensure you receive the correct parts.
A photo of the damage is always required to file a claim and get
your replacement or refund processed quickly. Please make sure
you have the box even if it is damaged.
Email us directly from marketplace where your item was purchased
with the attached images and a description of your claim.
Return / Damage Claim Instructions
FINISH
10 11
