RICHMOND, PRECISION & STERLING DELUXE
User manual - TCH & RTY EI (90 cm)
2
COUNTRIES OF DESTINATION:
GB - Great Britain
IE - Ireland
DE - Germany
ES - Spain
FR - French
IT - Italy
PL - Poland
NL - Netherlands
BE - Belgium
SE - Sweden
CN - China
NZ - New Zealand
AU - Australia
TO CONTACT STOVES ABOUT YOUR
APPLIANCE, PLEASE CALL:
Customer Care Helpline
0344 815 3740
In case of diculty within the UK
Warranty Registration
0800 952 1065
*Please call our Customer Care team for
extended warranty
Spares Store
0344 815 3745
To register your appliance online:
www.stoves.co.uk
To contact us by email:
gdhainfo@gdha.com
To register your appliance by mail: Please
complete the warranty card and return to
the address supplied
Alternatively general, spares and service
information is available from our website
at:
www.stoves.co.uk
Calls are charged at the basic rate, please check with
your telephone service provider for exact charges
Your new appliance comes with our 2 year guarantee
(UK only), protecting you against electrical and
mechanical breakdown. To register, please complete
the registration form included, register online
or by phone. For full terms & conditions of the
manufacturer’s guarantee, please refer to the website
above. In addition, you may wish to purchase an
extended warranty. A leaflet explaining how to do this
is included with your appliance.
Our policy is one of constant development and
improvement, therefore we cannot guarantee
the strict accuracy of all of our illustrations and
specifications. Changes may have been made
subsequent to publishing.
Glen Dimplex Home Appliances, Stoney Lane,
Prescot, Merseyside, L35 2XW
3
CONTENTS
INTRODUCTION 4
SAFETY 5
GETTING TO KNOW YOUR PRODUCT 8
USING YOUR APPLIANCE 11
USING THE TOUCH CONTROL HOB (TCH) 12
USING THE ROTARY HOB (RTY) 19
USING THE GRILL 24
USING THE TOP OVEN 25
USING THE DIGITAL OVEN 27
USING THE MAIN OVEN - ELECTRIC 30
USING THE PROFLEX
TM
SPLITTER 33
COOKING GUIDE 35
BAKING GUIDE 38
ROASTING GUIDE 43
SHELF GUIDES AND RUNNERS 45
ADDITIONAL FEATURES 48
CLEANING YOUR APPLIANCE 49
TECHNICAL DATA 50
4
INTRODUCTION
Thank you for buying this British-built appliance from
us.
This user guide book is designed to help you through
each step of owning your new product.
Please read it carefully before you start using your
appliance, as we have endeavored to answer as many
questions as possible, and provide you with as much
support as we can.
General information, spares and service information is
available from our website.
If you should find something missing from your
product or have any questions that are not covered
in this user guide, please contact us (see contact
information inside the front cover).
EUROPEAN DIRECTIVES
As a producer and a supplier of cooking appliances we
are committed to the protection of the environment
and are in the compliance with the WEEE directive.
All our electric products are labelled accordingly with
the crossed out wheeled bin symbol. This indicates, for
disposal purposes at end of life, that these products
must be taken to a recognized collection points, such
as local authority sites/local recycling centres.
This appliance Complies with European Community
Directives (CE) for household and similar electrical
appliances and Gas appliances where applicable.
This appliance conforms to European Directive
regarding Eco design requirements for energy-related
products. Our policy is one of constant development
and improvement, therefore we cannot guarantee
the strict accuracy of all of our illustrations and
specifications - changes may have been made
subsequent to publishing.
DISPOSAL OF PACKAGING
MATERIAL
The packaging materials used with this
appliance can be recycled. Please dispose of
the packaging materials in the appropriate
container at your local waste disposal
facilities.
5
SAFETY
WARNING
6 Never put items directly on the base
of the oven or cover the oven with foil,
as this can cause the base element to
overheat.
6 Accessible parts may become hot when
the grill is in use. Children should be kept
away.
6 Do not place articles on or against the
appliance.
6 Always switch off your appliance and
allow it to cool down before you clean
any part of it.
6 Although every care has been taken to
ensure this appliance has no sharp edges,
we recommend that you wear protective
gloves when installing and moving this
appliance. This will prevent injury.
6 This appliance must be fitted to a switch
providing all pole disconnection with a
minimum contact separation of 3mm.
6 Connection should be made with a
suitable flexible cable with a minimum
temperature of 70 °C.
6 Do not use a steam cleaner on any
cooking range, hob or oven appliance.
6 Metallic objects such a knives, forks,
spoons and lids should not be placed on
the hob surface since they can get hot.
6 If your appliance is fitted with a lid, any
spillage should be removed from the lid
before opening. The hob surface should
be allowed to cool before closing the lid
(if fitted).
6 After use, switch off the hob element by
its control and do not rely on the pan
detector.
6 To avoid electric shock, ensure that the
appliance is switched off before replacing
the lamp.
6 The appliance is not intended to be
operated by means of an external timer
or separate control system.
6 Unattended cooking on a hob with fat or
oil can be dangerous and may result in
fire.
6 NEVER try to extinguish a fire with water,
but switch off the appliance and then
cover the flame with a lid or damp cloth.
6 Danger of fire: Do not store items on the
cooking surfaces.
6 Only use hob guards designed by the
manufacturer of the cooking appliance
or indicated by the manufacturer of the
appliance in the instructions for use as
suitable or hob guards incorporated in
the appliance. The use of inappropriate
hob guards can cause accidents.
6 If the cooker is placed on a base,
measures have to be taken to prevent the
appliance slipping from the base.
6 The cooking process has to be supervised.
A short term cooking process has to be
supervised continuously.
6 This appliance must not be installed
behind a decorative door in order to avoid
overheating.
6
6 Ensure shelving is correctly installed. See
the sections on the shelf runners and
shelf location within this book.
6 This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
6 When hot moist air (created through the
cooking process) meets a cooler surface
such as an oven door, condensation
is normal especially when cooking
high moisture content foods at low
temperatures.
To minimise this,
- Pre-heat the oven before putting the food
into the oven.
- Cover the food you are cooking.
- Where possible cook high moisture
content foods at higher temperatures.
- Do not leave food in the oven to cool
down.
6 Warning! If the surface is cracked, switch
off the appliance to avoid the possibility
of electric shock.
6 Warning! The appliance and its
accessible parts become hot during use.
Care should be taken to avoid touching
heating elements. Children less than 8
years of age shall be kept away unless
continuously supervised.
4
Note! Automatic cooking will normally
produce condensation when cooling
down and the food is still inside.
CAUTION
6 Children less than 8 years of age shall
be kept away unless continuously
supervised. This appliance can be
used by children aged from 8 years
and above and persons with reduced
physical sensory or mental capabilities
or lack of experience and knowledge
if they have been given supervision or
instruction concerning the use of the
appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and
user maintenance shall not be made by
children without supervision.
6 Do not use harsh abrasive cleaners or
sharp metal scrapers to clean the oven
door glass or the hob, since they can
scratch the surface, which may result in
shattering of the glass.
6 This induction hob complies with the
applicable EMC and EMF standards.
Therefore it should not interfere with
other electronic units. Persons fitted
with a pacemaker or any other electrical
implant should clarify with their doctor
or the producer of the implant, whether
there implant is adequate and fail-
safe. Please place pans centrally on
the cooking zones. The British Heart
Foundation provide additional advice
regarding using induction hobs when a
pacemaker is fitted.
7
FIRE SAFETY ADVICE
6 If you do have a fire in the kitchen, don’t
take any risks - get everyone out of your
home and call the Fire Service.
If you have an electrical fire in the
kitchen:
1. Pull the plug out, or switch off the power
at the fuse box - this may be enough to
stop the fire immediately
2. Smother the fire with a fire blanket,
or use a dry powder or carbon dioxide
extinguisher
6 Remember: never use water on an
electrical or cooking oil fire.
OTHER SAFETY ADVICE
6 Servicing should be carried out only by
authorised personnel.
6 Do not operate the appliance without the
glass panel correctly fitted.
6 There is a risk of electric shock, so always
make sure you have turned off and
unplugged your appliance. Always allow
the product to cool down before you
change a bulb.
6 Do not modify the outer panels of this
appliance in any way.
6 This appliance must be earthed.
6 The appliance must never be
disconnected from the mains supply
during use, as this will seriously affect
the safety and performance, particularly
in relation to surface temperatures
becoming hot and gas operated parts
not working efficiently. The cooling fan
(if fitted) is designed to run on after the
control knob has been switched off.
8
GETTING TO KNOW YOUR PRODUCT
4
Note: Your appliance layout may differ
depending on the model.

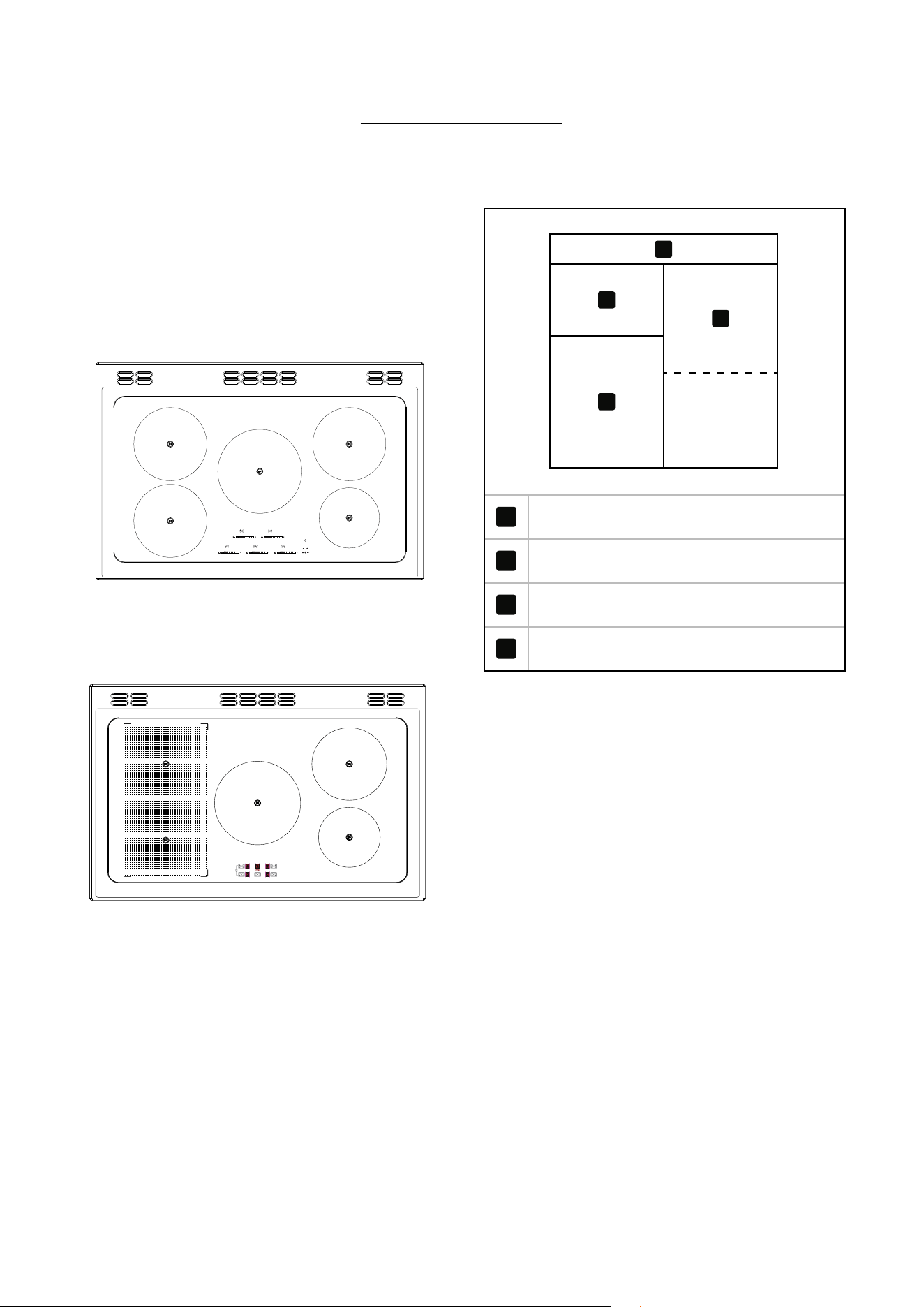

HOB
Touch Control (TCH)
Rotary (RTY)
OVERVIEW
1
90cm Deluxe
2
7
4
2
5
7
1
1
Fascia
2
Top Oven/Grill
4
Digital oven
7
Fanned Oven with Splitter
9

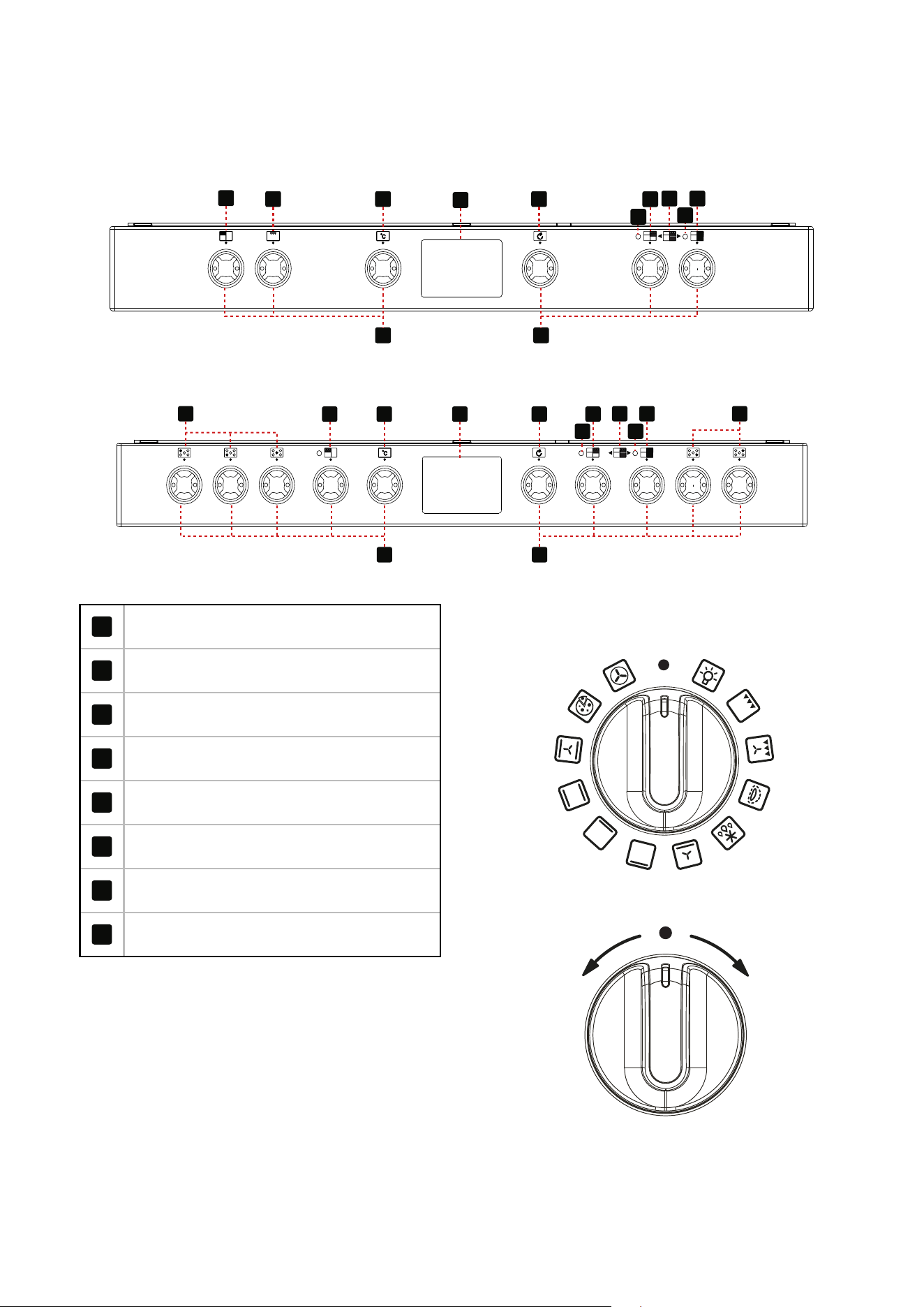

CONTROL PANEL
Touch Control (TCH)
37
6 11 9
3
4
5
5
6
8
8
Rotary (RTY)
1
1
911
4
5 5
6 6
7
3
8
8
1
Cook Zones
3
Oven
4
Digital oven display
5
Thermostat indicator
6
Top Oven/Grill
8
Hob and Oven controls
9
Digital oven - Function
11
Digital oven - Temperature
OVEN CONTROLS
Digital oven - Function
Digital oven - Temperature
10
Electric oven
OFF
S
120
140
160
180
200
220
240
260

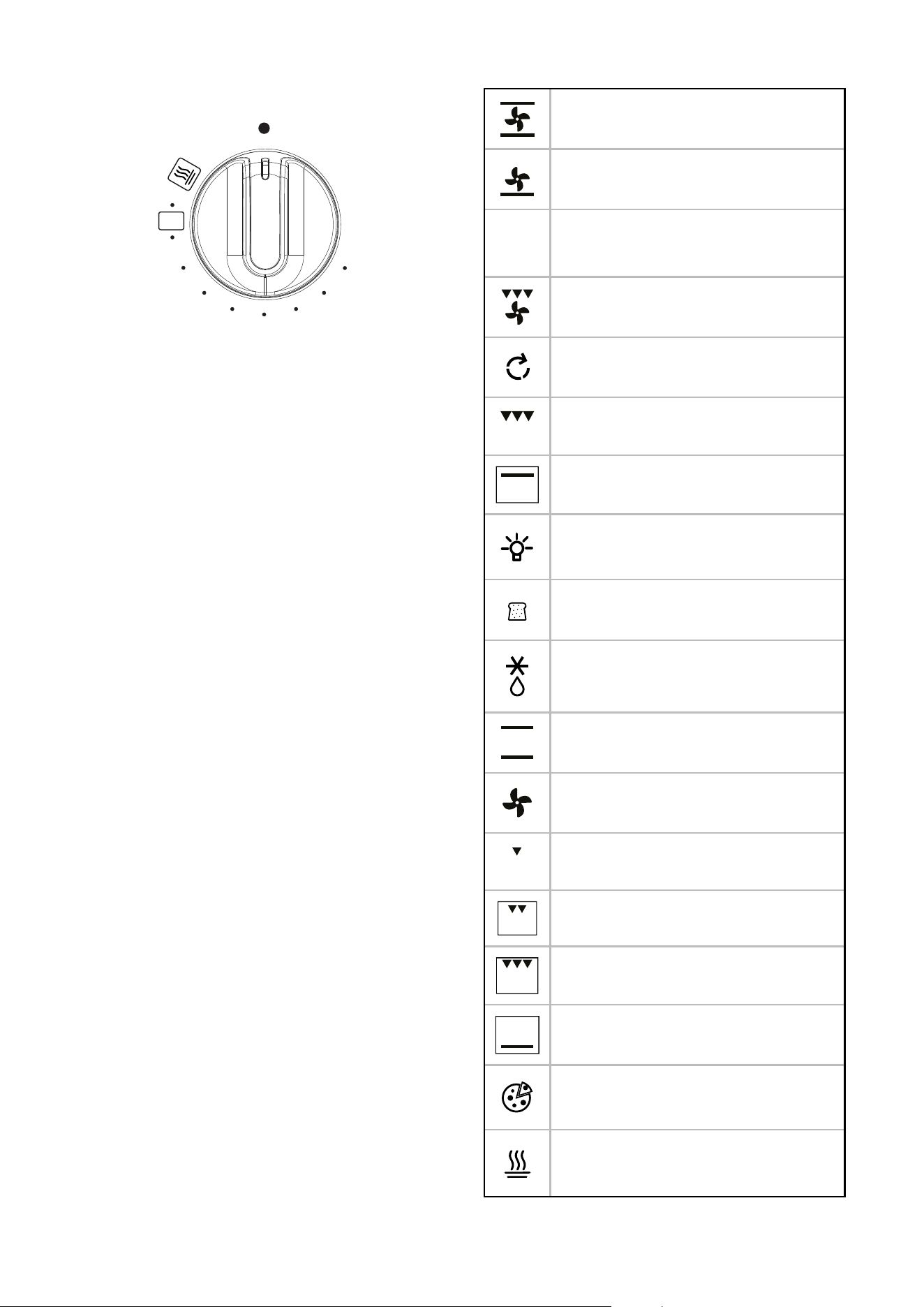

APPLIANCE FUNCTIONS
4
Note: Your oven may not have all of the
functions shown here. We recommend
for best cooking results, please preheat
your oven for 15 minutes and 3-5
minutes for grilling.
Intense Baking
Base Heat with Fan
S
Slow Cook
Fanned Grill
Oven Selector Control
Conventional Grill
Top Heat
Lights Only
Bread Proving
Defrost
Conventional oven
Fanned Oven
Low Grill
Single Grill
Dual Grill
Base Heat
Pizza Function
Keep Warm
11
USING YOUR APPLIANCE
OVENS AND GRILL
When using the top oven or main oven, the white
thermostat indicator light will come on until the
selected temperature is reached.
When using the digital oven, the temperature symbol
on the display blinks until the selected temperature is
reached.
When the Top oven/grill or grill is switched on, the
cooling fans come on to keep the fascia and control
knobs cool during cooking/grilling. The cooling
fans may operate when the main ovens are in use,
depending on the temperature setting. The fans may
continue to operate for a period after the oven/grill
has been switched off. During use the fan may cycle
on and off, this is normal.
6 Important: Never put items directly on
top the base of the oven, or cover the
oven base with foil, as this may cause
the element to overheat. Always position
items on the shelf.
4
The left hand main oven will not operate
if the programmer is set to Auto, see
Clock/Programmer section.
Top Oven - Grill
6 The door must be OPEN when the grill is
used.
Main Oven - Grill
6 The door must be CLOSED when the
grill is used for fanned and conventional
grilling.

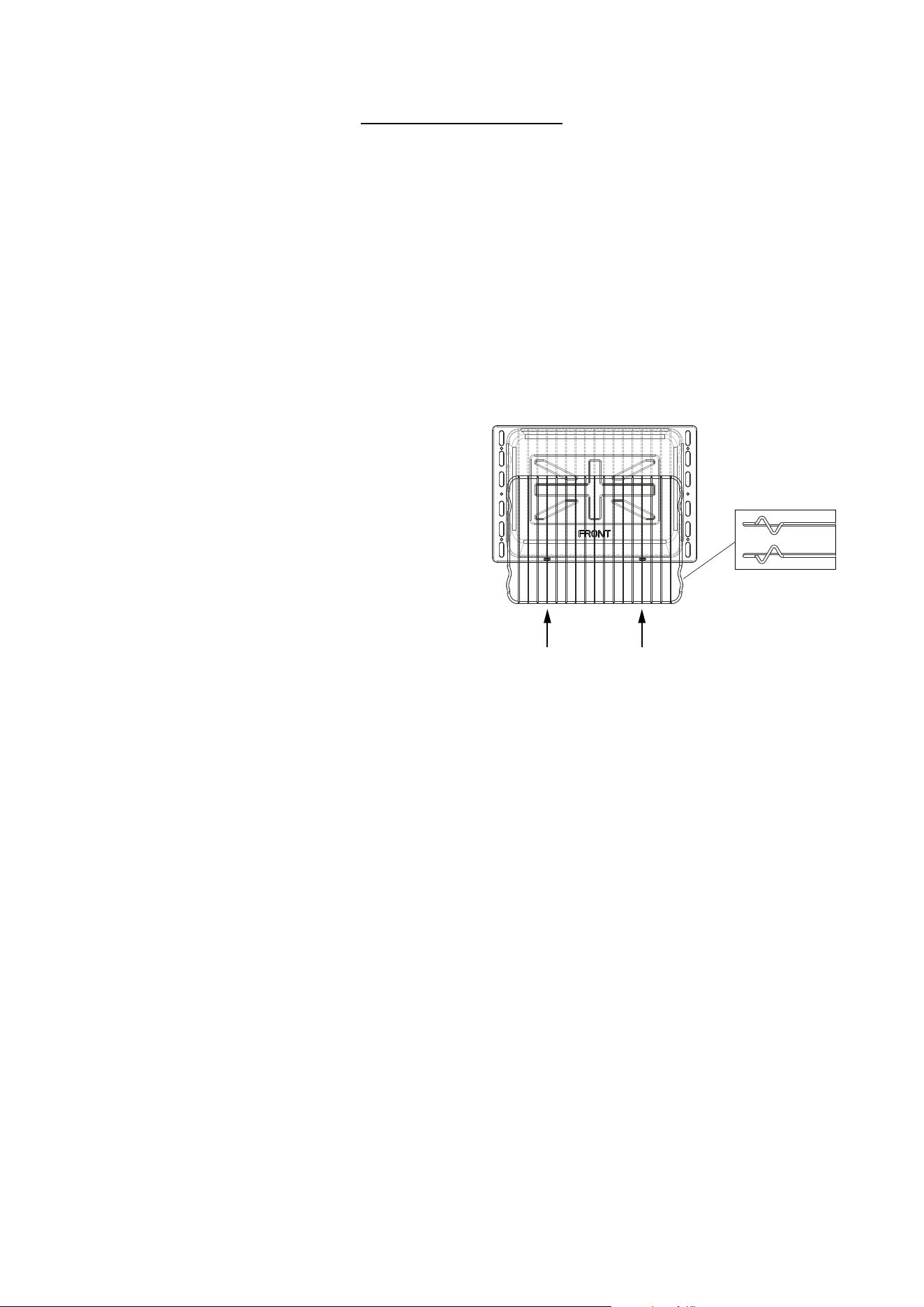

GRILL PAN AND TRIVET
The grill trivet (inside the grill pan) can be inverted
to give a high or low position, or it may be removed.
The speed of grilling can be controlled by selecting a
higher or lower shelf position, or adjusting the grill
setting.
To operate the grill, turn the left hand control to the
grill function symbol.
Inverted
6 The door must be open when the grill is
used for conventional grilling.
12
USING THE TOUCH CONTROL HOB (TCH)
SAFETY
6 Commercial simmering aids should
not be used as they create excessive
temperatures that can damage the
surface and may cause a hazard.
6 Do not place aluminium foil or plastic
utensils on the ceramic glass, as they may
melt and damage the surface.
6 Do not use the ceramic glass hotplate
surface for storage.
6 When cooking with fat or oil, never leave
unattended.
6 Turn pan handles to a safe position, so
they are out of reach of children, not
overhanging the appliance, and cannot be
caught accidentally.
6 Position pans over the centre of the
hotplate elements.
6 Do not use the hob as a chopping board
or a storage area, as this increases the
likelihood of it being damaged - e.g.;
plastic utensils placed on a warm hob
may melt onto it, and damage the
ceramic glass surface.
6 Be careful when cooking foods in salted
water, or foods containing large amounts
of sugar, syrup or jam - if they are spilled
onto hot areas of the hob they may
damage it.
6 Lift pans onto and off the surface, rather
than sliding them across the surface, to
avoid marks and scratches.
6 If you use a wet paper towel to remove
spills from a warm heating area of the
hob, be careful to avoid steam burns.
6 Do not use abrasive powder cleaners,
metal wire wool pads, impregnated
plastic pads, detergents, bleaches,
bath stain removers, or chemical oven
cleaners; all these types of products will
damage the ceramic glass.
Electromagnetic interference
The functions of the hob comply with the applicable
standards on electromagnetic interference
Your induction cooking hob thus complies fully with
the statutory requirements (Directive 2004/108/EC).
It is designed to not interfere with the functioning
of other electrical equipment as long as these also
comply with the same regulations.
Your induction hob generates magnetic fields in its
immediate vicinity.
So that there is no interference between your
cooking hob and a pacemaker, the pacemaker must
be designed in compliance with the appropriate
regulations.
In this respect we can only guarantee the compliance
of our own product. You can ask the manufacturer
or your doctor about the compliance or any
incompatibilities of your pacemaker.
ABOUT THE INDUCTION HOB
The induction hob provides the most energy efficient
hob technology available.
The induction system provides superior heat up
and cool down times for pans - you get fast, precise,
repeatable power control.
As induction only heats up the pan, there is no lost
heat from the cooking process, which in turn, limits
the heat generated in the kitchen.
13
Induction controls
Feature Symbol Description
Eco
power
Induction Power is the
most energy ecient
means of cooking food,
provides fast heat up
and boiling times.
Slide
Control
Slide your finger along
the graphic or simply
touch the graphic at
the power level you
require.
Digital
display
Secret till “lit” hob
display.
No. of
power
levels
13
Precise and repeatable
control settings.
Special
Func-
tions
Three preset
temperature controls
set at 42°C, 70°C, and
94°C. Ideal for Melting
chocolate, Warming
and Rapid Simmer
respectively.
Central
Power
On/O
Power On / O for the
Induction hob.
Power
Boost
Temporarily boost the
power to a cook zone
by a massive 60%.
Feature Symbol Description
Pause/
un-pause
This button pauses
cooking with one
touch. (cuts power)
Minute
Minder
To a maximum time of
9 hours 99 minutes,
you can time anything.
Auto
Time
Switch’s
O all 5
zones
Yes
All five zones can
be simultaneously
timed to turn o
automatically.
Key Lock
To prevent accidentally
changing settings,
press the key graphic
to lock the controls.
Pan De-
tection
Lets you know if the
correct pans are being
used and helps to save
energy. When a pan is
lifted o the zone, the
power is automatically
cut.
Overheat
Pan De-
tection
Yes
Helps prevent
cookware from
overheating providing
an additional level of
safety not available on
other types of hobs.
Child
Lock
Yes
Prevents unintentional
operation of the hob.
Residual
Heat In-
dictions
Warns you against
hot surfaces but also
indicates that the
residual heat which can
be used as a temporary
warm zone.
Holiday
Shut-
down
Yes
No operation is
required - the hob will
turn its self o if left.
14
Auto Power Tuning
Induction hobs have a unique power tuning system
that automatically tunes the power to the size of the
pan base this ensures energy isn’t wasted.
Small Pan
Large Pan
Touch Controls
The touch controls for your induction have been
designed to provide you with finger touch control of
your hob, providing accurate and repeatable power
settings for cooking and an easy clean surface that can
be easily wiped over.
Each cook zone displays it’s individual power setting.
Using the Touch Controls
To select a cook zone or the timer, simply touch the
graphic slider, using the flat of your finger, not the tip,
The controls respond to touch, so you don’t need to
apply any pressure.
Once you have powered on the induction hob, you
have 10 seconds to set the power or use the timer.
If the red displays disappear, simply press the power
button again.
Always ensure the control area is clean, dry and free
from of any objects (e.g. utensils, tea towels and
cloths). Spillages and water may make the controls
difficult to operate.
Power Boost
The power boost is a function that can be used to
temporally boost the normal maximum power for a
cook zone by borrowing the available power from a
“paired zone”.
All the cook zones have this function.
The Power Boost is activated by sliding or touching the
P.
4
Note The Power Boost function will only
operate for a limited time and is also
under thermal control. This means the
power boost will deactivate automatically
if the product is hot, to protect the
internal electronic components of the
hob and to prevent the cookware from
overheating.
Pan detection
When a zone has been activated but no pan has been
placed on the cook zone, the zone will recognise that
there is no pan in position. It also means the hob
only uses power when a suitable pan is placed on the
zone. This reduces the energy used during the cooking
process, i.e. when you take your pan off the zone
the hob automatically reduces the power, and only
switches back on when you replace the pan.
4
Note If the symbol does not disappear
when a pan is placed on the zone it
indicates that the pan is not suitable for
induction cooking.
Auto Stand by (Holiday Shut Down)
The hob will automatically switch itself off if left
unattended.
BASIC HOB FUNCTION
Turning on the hob.
∙ Use the on/off button.
Once you have powered on the induction hob, you
have 10 seconds to set the power or use the timer,
before the induction hob is automatically switched off.
Activating a cook zone.
Select the slider and operate by sliding your finger
across the graphic or touching the graphic at the
desired power level (0-9).
15
Turning off individual cooking zones.
Decrease the power setting until the display shows 0.
If the cook zone surface is hot to touch, H will replace
0 in the display.
On/Off switch
The central on/off switch enables all of the cooking
zones to be switched on/off simultaneously at a touch
of a button, so when you have finished cooking or are
called away from the kitchen for any reason you can
be safe in the knowledge that everything is under
control and safe.
To Operate
Select the on/off key. The key needs to be pressed for
at least 1 second to activate, this is to ensure that the
hob cannot be activated unintentionally.
4
All other keys only need to be pressed for
0.3 seconds to be activated/deactivated.
4
“H” will appear on any cook zone display
that is still hot to touch.
SPECIAL HOB FUNCTIONS
Special Function Key
Touch once for Function 1 94°C
- Ideal for a Rapid Simmering.
Touch twice for Function 2 70°C
- Ideal for keeping warm
Touch three times for Function
3 42°C - Ideal for melting or
sauces
Pause key
6 Warning! Don’t leave pans on the hob
when you’re not around - take them off
the heat if you have to leave the kitchen
(even if you think it will only be for a
moment, while you answer the door or
phone) or you can use the Pause Key.
The Pause key is ideal for unexpected interruptions
when cooking. With this button you can pause all
cooking settings (Cuts power) with one touch.
To Operate
1. Press the pause key.
4
Note:- All cook zones functions will
pause (no power) and will be displayed
for each cook zone.
2. To restart, press the pause button and then within
10 sec use the cooking zone slider left to the timer
(slide from low to higher levels).
4
Note:- All cook zones will automatically
resume to the previous settings.
Using the Timer
The timer has up to 7 timers. 6 timers to be assigned
to the cooking zones and one independent timer
called egg-timer.
The displays show the remaining time until the alarm
is activated.
All timers work as count down timers. The operation
range is between 1 min to 2h 59min. For times less
than 59mins, the display is exact to the second.
min
Before activating a timer the control has to be
switched on. Switching the control off deactivates
cooking zone related timers. The egg timer stays active
after switching the control off.
A symbol next to the zone will be lit when a timer is
set to that zone
16
Activating Cooking Zone Timer
To activate the timer, press both the plus (+) and
minus (-) keys together.
A timer can be activated for each active cooking zone.
After selecting the timer the cooking zone related
luminous symbol is fully lit and the timer display
shows 0.00. For the following 10 sec it is now pos-
sible to assign a timer value to the active cooking
zone. After 10 sec without input, the timer function
is deactivated and the display is switched off again.
Using the timer selection key again (as long as no
value was set) the next active cooking zone can be
selected.
Setting a timer value
By pressing the timer keys, a timer value can be set. If
the timer-plus-key is pressed first the display starts
with 1 min and can be increased in 1 min steps. If the
timer-minus-key is pressed first the timer starts with
15 min and can be decreased in 1 min steps.
Pressing the key permanently speeds up the timer
adjustment. The speed will also increase while the key
is held. (the time between two time steps reduces).
If a timer has expired the timer alarm is activated and
the assigned cooking zone is immediately switched
off.
The cooking zone display shows 0 or H.
4
If no user input stops the alarm signal it
will be on for maximum 2 minutes.
4
The alarm can be deactivated by
switching off the control using the main
switch or by pressing the two timer keys
or it will be deactivated automatically
after 2 minutes.
Switching off a timer or changing the time setting
The timer value can be modified at any time by
selecting the timer and then by pressing the (+ or -)
timer key.
To stop an active timer the value can be set to 0.
Pressing plus and minus simultaneously for 2 seconds
also resets the timer value to 0.00.
Minute Minder
The minute minder buzzes when the time set has
expired. It does not switch off any zone.
To Operate
1. Turn on the hob, using the on/off key.
2. Select the timer by pressing the + and - keys
together (do not activate any cook zone).
3. Set the right hand digit up to 9 minutes (Single
Minutes Units) and wait a couple of seconds.
4. The display will now indicate for you to set the left
hand digit, up to 90 minutes (10 Minute Units).
5. The timer is now set and begins counting down.
(No zone indicator light should be set).
6. You can now use the hob as normal.
When the time is up.
1. The corresponding indicator in the timer display
will flash, the timer will beep.
2. Touch any control to stop the beeping.
6 Warning! - Never leave the hob
unattended when in use, even when you
have set the timer to turn off the cook
zone.
Additional timer information
To modify or cancel a timer setting follow steps 1) to 5)
above.
To set the timer for additional zones follow steps 1) to
5) above.
If multiple zones have been set for timed operation,
the timer display will always display the time for the
cook zone with the shortest time remaining.
To check the timer setting for a different cook zone,
press the plus and minus keys together until the clock
symbol illuminates next to the chosen cook zone. The
remaining time will briefly appear in the timer display.
17
COOKWARE FOR THE INDUCTION
HOBS
Cookware for the induction cooking zones must be
made of metal and have magnetic properties. The base
must also be the correct diameter.
Suitable Cookware for
Induction Hobs
Unsuitable Cookware
Enamelled steel pots
with a thick base
Pots made of copper,
stainless steel,
aluminium, oven-proof
glass, wood, ceramic
and terra-cotta.
Cast iron pots with an
enamelled base
Pots made of multi
layer stainless steel,
rustproof ferrite steel
or aluminium with a
special base
Pans marked for use
with induction
How to establish the suitability of a pan
Check your pans with a magnet. If it sticks and it’s the
correct diameter, it’s suitable for use with induction.
Also with pans that bear the symbol for suitability for
cooking with induction.
4
Note - when using certain pans, you may
get various noises from the pans. This is
due to the design of the pans and does
not effect the performance or safety of
the hob.
Pans should not be allowed to come into contact
with coloured trims during use as this may cause
discolouration of the surface
Smallest recommended pan diameter
145mm
145mm
145mm
120mm
145mm
Child Lock
This feature is to help prevent accidental switching on
of the hob, especially by young children.
To activate:
∙ Press the key lock button and pause button
together, and then release them. Complete
activation by pressing the key lock button again.
Residual Heat indicators
If when the cook zone is switched off the glass
surface is above 60°C , H will be displayed in the
cook zone display until the glass surface drops below
approximately 55°C.
This feature not only warns you against hot surfaces
but also indicates that there is residual heat which can
be used as temporary warm zone.
4
Note - The cook zone itself does not heat
up, but the ceramic glass does get hot
because of the hot pan conducting heat
back onto the hob glass.
Overheat Pan Protection
The hob is equipped with additional safety systems
that help to prevent cookware from overheating,
providing an additional level of safety not available on
conven-tional hobs (such as gas and ceramic hobs).
Approximate Glass
Surface Termperature
(°C)
Intelligent hob safety
system
200
Reduces Power Boost
setting to Power Level
9
250
Reduces power to
60% of power level
setting
270
Switches cook zone
o
300
Switches whole
appliance o
18
4
Note - The safety temperature control
of the pans is only possible with quality
flat bottomed pans suitable for induction
cooking. Poor quality pans can create
air gaps between the glass and the
pan, which affects the accuracy of the
temperature control.
TROUBLESHOOTING WITH THE INDUCTION HOB
Code Problem Possible Cause Solution
-
Hob is not working in
display
Child lock is activated Deactivate child lock
- Power boost not working
The appliance is hot, power
boost is deactivated when
the appliance is hot to
protect the electronics and
prevents the pans from
overheating
Allow the appliance to cool
ER21
Control unit cuts o after
program setting
Electronics overheating Allow the appliance to cool
ER400 - -
Check mains cable
connection and terminals
at the terminal block are
wired correctly
E2
Overheating of induction
coil
Pan overheating
Remove pans and allow to
cool
E8 Fan blocked or faulty
Fan inlets are blocked or
faulty fans
Check fan inlet at the rear
of the appliance
E6 Error on power board No power to power board Please call Customer Care
ER03 and
continuous
tone or
Water or pans on the glass
above the user controls
Water or cookware on the
glass over the touch control
sensors
Clean any water on surface
above user controls/display
19
USING THE ROTARY HOB (RTY)
SAFETY
6 Commercial simmering aids should
not be used as they create excessive
temperatures that can damage the
surface and may cause a hazard.
6 Do not place aluminium foil or plastic
utensils on the ceramic glass, as they may
melt and damage the surface.
6 Do not use the ceramic glass hotplate
surface for storage.
6 When cooking with fat or oil, never leave
unattended.
6 Turn pan handles to a safe position, so
they are out of reach of children, not
overhanging the appliance, and cannot be
caught accidentally.
6 Position pans over the centre of the
hotplate elements.
6 Do not use the hob as a chopping board
or a storage area, as this increases the
likelihood of it being damaged - e.g.;
plastic utensils placed on a warm hob
may melt onto it, and damage the
ceramic glass surface.
6 Be careful when cooking foods in salted
water, or foods containing large amounts
of sugar, syrup or jam - if they are spilled
onto hot areas of the hob they may
damage it.
6 Lift pans onto and off the surface, rather
than sliding them across the surface, to
avoid marks and scratches.
6 If you use a wet paper towel to remove
spills from a warm heating area of the
hob, be careful to avoid steam burns.
6 Do not use abrasive powder cleaners,
metal wire wool pads, impregnated
plastic pads, detergents, bleaches,
bath stain removers, or chemical oven
cleaners; all these types of products will
damage the ceramic glass.
Electromagnetic interference
The functions of the hob comply with the applicable
standards on electromagnetic interference
Your induction cooking hob thus complies fully with
the statutory requirements (Directive 2004/108/EC).
It is designed to not interfere with the functioning
of other electrical equipment as long as these also
comply with the same regulations.
Your induction hob generates magnetic fields in its
immediate vicinity.
So that there is no interference between your
cooking hob and a pacemaker, the pacemaker must
be designed in compliance with the appropriate
regulations.
In this respect we can only guarantee the compliance
of our own product. You can ask the manufacturer
or your doctor about the compliance or any
incompatibilities of your pacemaker.
ABOUT THE INDUCTION HOB
The induction hob provides the most energy efficient
hob technology available.
The induction system provides superior heat up
and cool down times for pans - you get fast, precise,
repeatable power control.
As induction only heats up the pan, there is no lost
heat from the cooking process, which in turn, limits
the heat generated in the kitchen.
20
Induction controls
Feature Symbol Description
Digital
display
Shows the current
power level or active
feature per cook zone.
Key Lock
To prevent accidentally
changing settings,
press the key graphic
to lock the controls.
Heat up
time au-
tomatic
Heats the selected
zone with a higher
output.
Melting
Function
Warms the bottom of
the pan to 45°C (42°C
in the pan). Melts food
with optimised energy.
Warming
Function
Warms the bottom of
the pan to 70°C (65°C
in the pan). Keeps food
warm with optimised
energy.
Power
Boost
Temporarily boost the
power to a cook zone
by a massive 60%.
Dual
Zone
Status
Transmits the detected
pan size to the display.
Bridge
function
Creates a bridged
cooking zone of two
separate cooking
zones. The cooking
zones can be
controlled via one
control knob.
Feature Symbol Description
Pan De-
tection
Lets you know if the
correct pans are being
used and helps to save
energy. When a pan is
lifted o the zone, the
power is automatically
cut.
Overheat
Pan De-
tection
Helps prevent
cookware from
overheating providing
an additional level of
safety not available on
other types of hobs.
Child
Lock
Prevents unintentional
operation of the hob.
Residual
Heat In-
dications
Warns you against
hot surfaces but also
indicates that the
residual heat which
can be used as a
temporary warm zone.
Control knobs
Rotary hob (bridge)
A
9
1
2
3
4
5
6
7
8
P
Rotary hob (no bridge)
A
9
1
2
3
4
5
6
7
8
P
21
Rotate the control knob to control the hob. The
current power level of a zone is displayed on the
display of the hob.
The control knob locks into position after rotating. The
control knob rotates back automatically if the knob is
rotated to one of the two overwinding positions.
The control knob has 14 positions:
∙ Overwinding to the left (OWL) special function:
Heat up time automatic
∙ Off
∙ Melting Function
∙ Warming Function
∙ Power levels (1-9)
∙ Overwinding to the right (OWR) special function:
Power boost
BASIC HOB FUNCTION
Activating a cook zone
Rotate the control knob to a power level to activate a
cooking zone.
Turning off individual cooking zones
Rotate the control knob to zero to turn off an
individual cooking zone.
Adjusting of power levels
Rotate the control knob anticlockwise to increase
the power of a zone. Rotate the control knob back
clockwise to decrease the power of a zone.
FUNCTIONS
Idle mode
In Idle mode all displays are dark, except if there is
residual heat present.
Rotate one of the control knobs to leave Idle mode. If a
buzzer is available, a sound is played.
The display disappears after 15 seconds when the
control knobs are all rotated to zero. If a buzzer is
available, a sound is played.
Heat up time automatic
The heat up time automatic is a function that boosts
the power of a cooking zone before reaching the set
power level.
Rotate the control knob to the left overwind position
and hold for 2 seconds. Within the next 10 seconds,
rotate the control knob to the desired power level.
The display alternates between the “A” symbol and the
selected power level.
4
The heat up time automatic function is
not available in level 0, level 9, melting
function, warming function and the
power boost.
Melting Function
The melting function heats the bottom of the pan to
45°C.
Rotate the control knob to the melting function. The
display shows the “u” symbol.
4
The melting function can be used for 2
hours continuously.
Warming Function
The warming function heats the bottom of the pan to
70°C.
Rotate the control knob to the warming function. The
display shows the “u” symbol.
4
The warming function can be used for 2
hours continuously.
Power Boost
The power boost is a function that temporarily boosts
the power to a cooking zone.
Rotate the control knob to the right overwind position.
The display shows the “P” symbol.
4
After 10 minutes the power boost is
automatically switched off.
22
Dual Zone Status
The dual zone status is a function that transmits the
detected pan size to the display of the cooking zone.
Bridge function
The bridge function allows to create one bigger
cooking zone out of two smaller cooking zones.
The front or left (bigger) cooking zone is the master
cooking zone. The rear or right (smaller) cooking zone
is the slave cooking zone.
Rotate the control knobs of the master cooking zone
and the slave cooking zone to the right overwind
position and hold for 2 seconds. Rotate the control
knob of the slave cooking zone to power level 9 and
rotate the control knob of the master cooking zone to
the preferred power level.
The display of the slave cooking zone shows a bridge
symbol.
Pan Detection
When a zone has been activated but no pan has been
placed on the cook zone, the zone will recognise that
there is no pan in position. It also means the hob
only uses power when a suitable pan is placed on the
zone. This reduces the energy used during the cooking
process, i.e. when you take your pan off the zone
the hob automatically reduces the power, and only
switches back on when you replace the pan.
4
After 10 minutes the cooking zone turns
off. To reactivate the cooking zone, rotate
the control knob to zero.
Child Lock
This feature is to help prevent accidental switching on
of the hob, especially by young children.
Rotate the two most left control knobs to the left
overwind position and hold for 2 seconds to activate
the child lock.
Rotate the two most left control knobs to the left
overwind position and hold for 2 seconds to deactivate
the child lock.
Residual Heat Indications
If the cook zone is switched off and the glass surface
is above 60°C , H will be displayed in the cook
zone display until the glass surface drops below
approximately 55°C.
This feature not only warns you against hot surfaces
but also indicates that there is residual heat which can
be used as temporary warm zone.
4
Note - The cook zone itself does not heat
up, but the ceramic glass does get hot
because of the hot pan conducting heat
back onto the hob glass.
Auto stand by
A cooking zone that has exceeded the maximum
operating time switches off automatically.
To reactivate the cooking zone, rotate the control knob
to zero.
Power management
The power management system manages the power
to all the cooking zones. The latest set cooking zone
is prioritized. If there is no power, the set power level
of a cooking zone will not be displayed. The display
changes when rotating the control knob to the actual
power level.
Overheating status of cooking zone
The overheating status of the cooking zone decreases
the temperature of a cooking zone automatically when
the induction hob overheats.
Rotate the control knob of the cooking zone to the
power level indicated on the display before increasing
the power level.
Warming zone
The induction hob can be equipped with a
conventional low power heating element that can be
used as a warming zone. The warming zone can only
be on and off.
23
COOKWARE FOR THE INDUCTION
HOBS
Cookware for the induction cooking zones must be
made of metal and have magnetic properties. The base
must also be the correct diameter.
Suitable Cookware for
Induction Hobs
Unsuitable Cookware
Enamelled steel pots
with a thick base
Pots made of copper,
stainless steel,
aluminium, oven-proof
glass, wood, ceramic
and terra-cotta.
Cast iron pots with an
enamelled base
Pots made of multi
layer stainless steel,
rustproof ferrite steel
or aluminium with a
special base
Pans marked for use
with induction
How to establish the suitability of a pan
Check your pans with a magnet. If it sticks and it’s the
correct diameter, it’s suitable for use with induction.
Also with pans that bear the symbol for suitability for
cooking with induction.
4
Note - when using certain pans, you may
get various noises from the pans. This is
due to the design of the pans and does
not effect the performance or safety of
the hob.
Pans should not be allowed to come into contact
with coloured trims during use as this may cause
discolouration of the surface
Smallest recommended pan diameter
145 mm
145 mm
120 mm
TROUBLESHOOTING WITH THE
INDUCTION HOB
Independency of the control knobs under
a fault condition
If one control knob is not working properly, all other
control knobs are working as expected.
4
A cooking zone with a failure turns off
automatically.
Cable break or wrongly mounted pan
If a cable breaks or a pan is mounted wrongly
according to the cooking zone, the cooking zone turns
off automatically.
Permanent use of keys
If a control knob is rotated to a overwind position for
more than 30 seconds continuously, the induction hob
detects the permanent use of keys.
The corresponding display of the control knob shows
the flash symbol as error indicator.
3 seconds after releasing the control knob from the
overwind position, the flash symbol clears from the
display.
Clearance of error messages
If a error message is present, the induction hob must
detect that the faulty condition is fixed. Rotate the
control knob to zero.
Activated child lock function
If the child lock function is active, the induction hob
does not react on the control knobs.
24
USING THE GRILL
BEFORE YOU START GRILLING. . . .
Before you use the grill, make sure you have placed the
grill shelf in the position you need as once the grill is
on you may injure yourself if you try to move the shelf.
∙ Do not close the door while the grill is in use.
∙ Turn the top oven control knob to the required grill
setting.
∙ Turn the grill control knob (if fitted) to the heat
setting you require.
∙ To switch off, return the control knob(s) to the ‘off’
position.
∙ The cooling fan will come on during use, and may
continue to run for some time afterwards.
∙ To adjust your results, you can turn the grid over,
or remove it altogether.
∙ The dual grill uses all of the top element and is
ideal for grilling large quantities of food.
∙ The single grill uses part of the element only, and
is better suited to grill smaller amounts of food.
THE GRILL PAN
This appliance comes with a grill pan and trivet.
SHELF & TRIVET ADJUSTMENTS
Speed of grilling can be adjusted by changing the shelf
position or the turning the trivet.
∙ High: For thin foods and toasting
∙ Low: For thicker meat pieces.
ALUMINIUM FOIL
6 Never cover the grill pan or grill trivet
with foil, or allow fat to build up in the
grill pan, as this creates a fire hazard.
6 Accessible parts may become hot when
the grill is in use. Children should be kept
away.
TYPES OF GRILL
Dual grill: has two grill elements which can be used
together, or as a single grill.
For best results: Pre-heat the single grill for 5
minutes and the dual grill for 3 minutes.
THE COOLING FAN
During use the fan may cycle on and off, this is
normal.
When the grill is switched on, the cooling fan comes
on to keep the fascia and control knobs cool during
grilling. The fan may continue to operate for a period
after the grill has been switched off.
25
USING THE TOP OVEN
6 When you are cooking keep children
away from the vicinity of the oven.
6 Caution: The top element gets extremely
hot when in use, so take extra care to
avoid touching it.
4
The top oven is a conventional oven.
4
Note: The top oven is not controlled by
the programmer.
OVEN FURNITURE
Oven shelves
The oven shelf must be positioned with the upstand at
the rear of the oven and facing upwards.
4
Extra shelves may be ordered from your
local supplier.
Baking tray and roasting tins
For best cooked results and even browning, the
recommended size baking trays and roasting tins that
should be used are as follows;
∙ Baking tray 350 mm x 250 mm
∙ Roasting tin 370 mm x 320 mm
4
Position baking trays and roasting tins on
the middle of the shelves, and leave one
clear shelf-position between shelves, to
allow for circulation of heat.
4
We recommend that you use good quality
cookware. Poor quality trays and tins may
warp when heated, leading to uneven
baking results.
Shelf positions
As a general guide, when cooking frozen or chilled
food, use the highest possible shelf position, while
allowing some clearance between the food and the top
element. Follow the instructions given on packaging.
The cooling fan
When the top oven is switched on, you will hear
the cooling fan come on - this keeps the fascia and
control knobs of the appliance cool during cooking.
The fan may continue to operate for a period after the
oven control has been switched off.
TO TURN ON THE TOP OVEN
1. Turn the temperature control knob until the
required temperature is selected.
The white thermostat indicator will come on until
the selected temperature is reached, and then go off.
It will turn on and off periodically as the thermostat
operates to maintain the selected temperature.
2. To switch off, return the top oven control knob to
the off position.
6 Important: Never put items directly on
the base of the oven, or cover the oven
base with foil, as this may cause the
element to overheat. Always position
items on the shelf.
26
PREHEATING
Preheat the oven until the indicator light switches
off for the first time, this will take up to 15 minutes
depending on the temperature selected.
4
The oven must be preheated when
cooking frozen or chilled foods, and
we recommend preheating for yeast
mixtures, batters, soufflés, and whisked
sponges.
4
If you are not preheating the oven, the
cooking times in the following guide may
need to be extended, as they are based on
a preheated oven.
4
Put the oven shelves in the position
required before preheating the oven.
The oven shelf must be positioned with the up-stand
at the rear of the oven and facing up. Position baking
trays and roast-ing tins on the middle of the shelves,
and leave one clear shelf position between shelves, to
allow for circulation of heat.
WHEN USING THE TOP OVEN
As part of the cooking process, hot air is expelled
through a vent at the top of the oven(s). When opening
the oven door, care should be taken to avoid any
possible contact with potentially hot air, since this
may cause discomfort to people with sensitive skin.
We recommend that you hold the underneath of the
oven door handle.
27
USING THE DIGITAL OVEN
4
Please be aware that only the digital oven
is controlled by the programmer.
4
Note: Your clock / programmer may not
have all these functions
USING THE TOUCH CONTROLS
∙ Minus - Decrease time
∙ Timer - Scroll through to select a function
∙ Plus - Increase time
4
The symbol of an oven function will be
shown on the display when the function
is active or running in the background.
4
When the display is off, only the time of
day is shown.
SETTING THE TIME OF DAY
Time of day can be set before a heating operation is
started.
1. Press the timer button until the time of day symbol
appears.
2. Press the plus or minus buttons to set a time.
SETTING A HEATING OPERATION
To start a heating operation, a heating function and a
heating temperature must be selected.
Setting a heating function
∙ Rotate the Function control to select the desired
heating function.
To modify or cancel the heating function
∙ Rotate the Function control to select another
heating function.
∙ Rotate the Function control to O to cancel the
heating function.
Setting a heating temperature
∙ Rotate the Temperature control to select the
desired heating temperature. The selected
temperature shows in the display.
To modify or cancel the heating temperature
∙ Rotate the Temperature control to select another
heating temperature.
∙ Rotate the Temperature control to O to cancel the
heating temperature.
PREHEATING
The oven starts preheating when a heating function
and heating temperature have been set.
The temperature symbol
blinks to indicate
preheating.
The temperature symbol permanently lights up and
an acoustic signal sounds to indicate the oven has
reached the set temperature.
28
Fast preheat function
The fast preheat function automatically activates after
a heating operation has been selected that supports
the fast preheat function.
The fast preheat reduces the time the oven needs to
reach the selected heating temperature.
The display shows the fast preheat symbol .
The fast preheat function automatically deactivates
after the selected heating temperature is reached.
SETTING THE MINUTE MINDER
Minute minder is available before starting and while
using a heating operation.
1. Press the timer button until the minute minder
symbol appears.
2. Press the plus or minus buttons to set a time.
4
The maximum minute minder that can
be set is 23 hours and 59 minutes.
Once set, the minute minder starts to countdown
in steps of hours:minutes. If the minute minder has
reached 00:01 (hours:minutes), the display changes the
countdown to minutes:seconds.
The display shows the minute minder symbol and the
remaining time if no heating operation is running. The
display shows the minute minder symbol if a heating
operation is running.
4
The countdown continues in the
background if other functions are being
set.
When the set time for the minute minder has
completed, an alarm is heard and the minute minder
symbol flashes on the display.
∙ Press any button to stop the alarm and the time of
day is displayed.
To modify or cancel the minute minder
∙ Return to the minute minder function and use
either the plus or minus buttons to adjust the time.
By setting the time to 00:00 hours:minutes, this
cancels the countdown.
SETTING THE COOKING TIME
Cooking time is available while using a heating
operation.
1. Press the timer button until the cooking time
symbol
appears.
2. Press the plus or minus buttons to set a time.
4
The maximum cooking time that can be
set is 23 hours and 59 minutes.
4
The countdown continues in the
background if other functions are being
set.
When the set time for the cooking time has
completed, an alarm is heard and the auto cook
symbol flashes
on the display.
∙ Press any button to stop the alarm. After 7 minutes,
the alarm switches off and the heating function
stops.
To modify or cancel the cooking time
∙ Return to the cooking time function and use either
the plus or minus buttons to adjust the time.
By setting the time to 00:00 hours:minutes, this
cancels the countdown.
29
SETTING THE END OF COOKING
TIME
End of cooking time is available while using a heating
operation.
1. Press the timer button until the end of cooking
time symbol appears.
2. Press the plus or minus buttons to set a time.
4
The maximum end of cooking time that
can be set is 23 hours and 59 minutes.
4
The digital oven calculates the cooking
time if no cooking time has been set
before setting the end of cooking time.
The display shows the time of day if no cooking time
has been set.
The display shows the time of day plus the set end of
cooking time if a cooking time has been set.
The display shows the auto cook symbol
.
When the set time for the cooking time has
completed, an alarm is heard and the auto cook
symbol flashes on the display. Press any button to stop
the alarm. After 7 minutes, the alarm switches off and
the heating function stops.
To modify or cancel the end of cooking
time
Return to the end of cooking time function and use
either the plus or minus buttons to adjust the time.
By setting the time to the current time of day, this
cancels the countdown if no cooking time has been
set.
By setting the time to the current time of day plus the
remaining cooking time, this cancels the countdown if
a cooking time has been set.
SETTING DELAYED COOKING
Delayed cooking can be set by setting a cooking time
and setting the end of cooking time. See chapters
Setting the cooking time and Setting the end of
cooking time.
The heating operation starts once the start time is
reached.
Delayed cooking is available while using a heating
operation.
The display shows the auto cook symbol .
When the set time for the cooking time has
completed, an alarm is heard and the auto cook
symbol flashes on the display. Press any button to stop
the alarm. After 7 minutes, the alarm switches off and
the heating function stops.
To modify or cancel the delayed cooking
∙ Return to the cooking time function and use either
the plus or minus buttons to adjust the time.
By setting the time to 00:00 hours:minutes, this
cancels the countdown.
GRILLING FUNCTION
The temperature selection is replaced with a level
setting when the grilling function, fanned or
conventional, is selected.
The level setting can be L1, L2 or L3.
4
The grilling functions cannot be
controlled by the cooking time or end of
cooking time.
30
USING THE MAIN OVEN - ELECTRIC
6 Accessible parts may be hot when the
oven is used. Young children should be
kept away.
OVEN FURNITURE
Oven shelves
The oven shelf must be positioned with the upstand at
the rear of the oven and facing upwards.
4
Extra shelves may be ordered from your
local supplier.
Baking tray and roasting tins
For best cooked results and even browning, the
recommended size baking trays and roasting tins that
should be used are as follows;
∙ Baking tray 350 mm x 250 mm
This size of baking tray will hold up to 12 small cakes.
∙ Roasting tin 370 mm x 320 mm
4
Position baking trays and roasting tins on
the middle of the shelves, and leave one
clear shelf-position between shelves, to
allow for circulation of heat.
4
We recommend that you use good quality
cookware. Poor quality trays and tins may
warp when heated, leading to uneven
baking results.
Shelf positions
As a general guide, when cooking frozen or chilled
food, use the highest possible shelf position, while
allowing some clearance between the food and the top
element. Follow the instructions given on packaging.
To help the air circulate freely
Position the shelves evenly within the oven and
maintain a clearance from the oven roof and base.
If more than one cooking dish or baking tray is to be
used on a shelf, leave a gap of at least 25mm between
the items themselves and the oven interior.
The cooling fan
The cooling fan may operate when the main oven is
on and may continue to operate for a period after the
oven has been switched off.
Aluminium Foil
6 Use foil only to cover food or cooking
dishes, using foil to cover the shelves or
oven base creates a fire hazard.
WHEN USING THE OVEN
As part of the cooking process, hot air is expelled
through a vent at the top of the oven(s). When opening
the oven door, care should be taken to avoid any
possible contact with potentially hot air, since this
may cause discomfort to people with sensitive skin.
We recommend that you hold the underneath of the
oven door handle.
31
To switch on the oven
∙ Turn the oven control knob(s) to the required
setting.
The white thermostat neon (if fitted) will come
on until the selected temperature is reached and
then go off; it will turn on and off periodically as
the thermostat operates to maintain the selected
temperature.
∙ To switch off, return the control knob to the off
position.
Preheating
When cooking sensitive items such as souffle and
Yorkshire puddings or, when cooking bread, we
recommend that the oven is preheated until the neon
switches off for the first time. For any other types of
cooking, a preheat may not be required.
Cooking with a fanned oven
6 As this is a high efficiency oven, you may
notice the emission of steam from the
oven when the door is opened. Please
take care when opening the door.
If you are used to cooking with a conventional oven
you will find a number of differences to cooking with
a fan oven which will require a different approach:
There are no zones of heat in a fan oven as the
convection fan at the back of the oven ensures an even
temperature throughout the oven.
This makes it ideal for batch baking - eg; when
planning a party as all the items will be cooked within
the same length of time.
4
Foods are cooked at a lower temperature
than a conventional oven, so
conventional recipe temperature may
have to be reduced. Please refer to the
conversion chart.
4
Preheating is generally not necessary as a
fan oven warms up quickly.
4
There is no flavour transference in a fan
oven, which means you can cook strong
smelling foods such as fish at the same
time as mild foods - eg; milk puddings.
4
When batch baking foods that will rise
during cooking - eg; bread - always
ensure that enough space has been left
between the shelves to allow for the rise.
Notes:
4
When 2 or more shelves are being used, it
may be necessary to increase the cooking
time slightly.
4
Because the 2 oven shelves are wider
than in many ovens, it is possible to
cook 2 items per shelf - eg; 2 victoria
sandwiches or 2 casseroles.
4
When roasting meats, you will notice that
fat splashing is reduced, which is due in
part to the lower oven temperatures, and
will help keep cleaning of the oven to a
minimum.
4
Because a fan oven has an even
temperature throughout the oven, there
is no need to follow the shelf positions
given in the baking guide.
4
There is no need to interchange dishes
onto different shelves part way through
cooking, as with a conventional oven.
32
Keep Warm (Setting or 70°C)
This setting temperature is set to allow the user to
keep food warm without over cooking. This setting can
also thaw frozen foods, or warm plates.
4
Do not use this as a cooking function.
Defrosting
and cooling in the main
oven
To defrost frozen foods, turn the main oven control
to the Bread Proving position, place the food in the
centre of the oven and close the door.
To cool foods after cooking prior to refrigerating or
freezing, turn the main oven control to the defrost
position and open the door.
Defrosting times
4
Small or thin pieces of frozen fish or
meat - eg; fish fillets, prawns & mince
will take approximately 1 - 2 hours.
4
Placing the food in a single layer will
reduce the thawing time.
4
A medium sized casserole or stew will
take approximately 3 - 4 hours.
4
A 1½kg/3lb oven ready chicken will
take approximately 5 hours, remove the
giblets as soon as possible.
Be safe
4
Do not defrost stuffed poultry using this
method.
4
Do not defrost larger joints of meat and
poultry over 2kg / 4lb using this method.
4
Never place uncooked food for defrosting
next to cooked food which is to be cooled,
as this can lead to cross contamination.
4
Defrosting meat, poultry, and fish can be
accelerated using this method but make
sure they are completely thawed before
cooking thoroughly. Place meat and
poultry on a trivet in a meat tin.
33

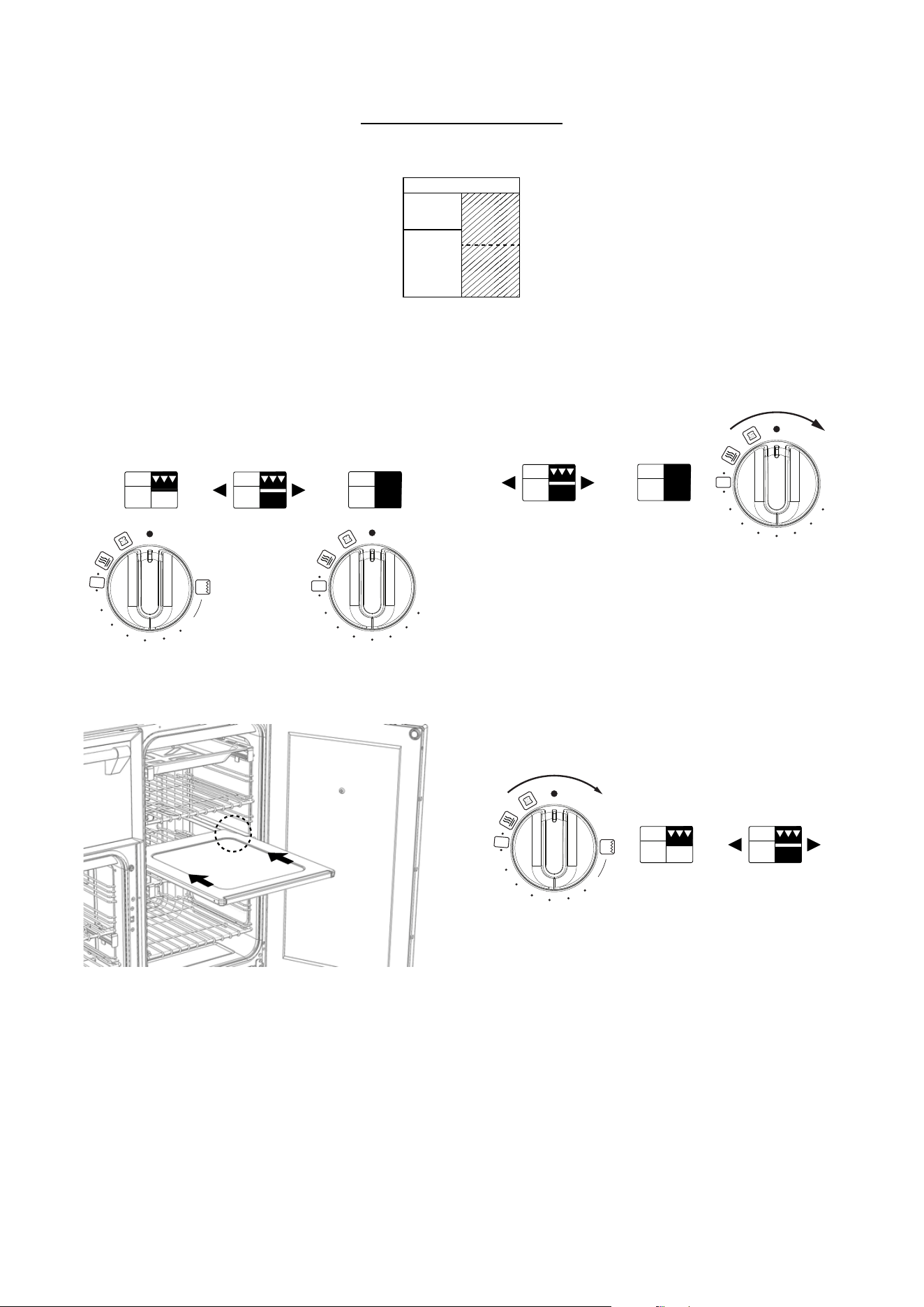

USING THE PROFLEX
TM
SPLITTER
With the PROFLEX™ splitter you can convert the
tall oven into two separate fan ovens which can be
controlled independently to maximise your cooking
options.
Left hand control Right hand control
120
140
160
S
200
220
180
240
S
120
140
160
180
200
220
240
260
HOW TO POSITION THE SPLITTER
TO ACTIVATE THE TALL OVEN
(WITHOUT SPLITTER)
S
120
140
160
180
200
220
240
260
To use the tall oven without the splitter, turn the
right hand control knob to the desired function or
temperature.
TO ACTIVATE THE SPLITTER
FUNCTION
Upper Oven (with splitter)
120
140
160
S
200
220
180
240
To use the upper oven separately, firstly insert the
splitter then turn the left hand control knob to select
the function or temperature. This will activate the top
half of the oven.
4
Please do not use the splitter as a shelf
and only position into the dedicated
guides in the tall cavity.
34
4
Note: We do not recommend using the
top oven only for cooking frozen foods
and foods with high moisture as this
can result in excess condensation. When
cooking foods with a high moisture
content, use either the full or both ovens.
Lower Oven (with splitter)
Left hand control Right hand control
120
140
160
S
200
220
180
240
S
120
140
160
180
200
220
240
260
With the upper oven activated, by turning the right
hand control knob to a function or temperature, the
lower oven can operate. The lower oven cannot be
used separately.
6 Warning: Please be aware that splitter
will get very hot.
USING THE UPPER AND LOWER
OVENS
When using the upper and lower ovens at different
temperatures, use the upper oven at the higher
temperature and the lower oven at the lower
temperature. The table below shows the minimum
temperature that can be achieved in the lower oven
when the upper oven is in use. For example with the
upper oven at 200°C, the minimum temperature that
can be used in the lower oven is 120°C.
Upper Oven
temperature (°C)
Lower Oven Minimum
temperature (°C)
100 (Slow Cook)
S
70 (Keep Warm)
120 80
140 90
160
100 (Slow Cook)
S
180 110
200 120
220 130
35
COOKING GUIDE
INDUCTION HOB
For best cooking results, follow the examples in the guide below, bearing in mind that settings 8 and 9 are
maximum positions and should only be used for deep frying and bringing up to the boil quickly.
Preparation Very fast frying Fast Medium Slow Simmering,
re-heating
Keep-
ing
warm
9 8 7 6 5 4 3 2 1
Soup
Thin soup
Thick soup
Fish
Court-Bouillon
Deep fried
Sauces
Thick, flour
based
Buttery,
containing
eggs
Vegetables
Spinach
Pulses
Boiled potatoes
Carrots
Saute potatoes
Frozen
vegetables
36
Preparation Very fast frying Fast Medium Slow Simmering,
re-heating
Keep-
ing
warm
9 8 7 6 5 4 3 2 1
Meat
Thin cuts of
meat
Fried steak
Other types of cooking
Deep frying:
frozen chips
Deep frying:
fresh chips
Pressure
cooking
Stewed fruit
Pancakes
Custard
To melt
chocolate
Jam
Milk
Fried eggs
Pasta
Re-heating
baby food
Rice pudding
Keeping food
warm
Stews
37
GRILL
Food Type Time Approx (mins)
Bacon
8 - 15
Sausages
12 - 15
Chops
- Lamb 10 - 15
- Pork 15 - 25
Toast
- 2 rounds 1 - 2 (per side)
- 4 rounds 1 - 2 (per side)
Bread products
- Buns 1 - 2 (per side)
- Tea cakes 1 - 2 (per side)
Cheese on toast
- 2 rounds 4 - 5
- 4 rounds 4 - 5
Fish
- Fillets 10 - 15
Chicken
- Fillets 20 - 30
Beef Steaks
- Rare 7 - 10
- Medium 10 - 15
- Well done 15 - 20
Gammon Steaks
12 - 15
4
As with any cooking guide, all times are
approximate and can be adjusted to suit
personal taste.
38
BAKING GUIDE
TOP OVEN
Cooking temperatures
The temperature settings and time given in the
Baking Guides are based on dishes made with block
margarine. If soft tub margarine is used, it may be
necessary to reduce the temperature setting. If a
recipe gives a different temperature set-ting to that
shown in the guide, the recipe instruction should be
followed.
4
Because the top oven is more compact,
it may be necessary to reduce cooking
temperatures specified in recipes by up
to 20°C.
4
Use the baking guide as a reference for
determining which temperatures to use.
Cooking times
4
These times are based on cooking in a
preheated oven.
4
These cooking times are approximate,
due to the size and type of cooking dish
and personal preferences.
Item Temperature (°C) Shelf Position Approximate cooking time
Small cakes 160°C - 180°C (fanned) 1 15 - 20 mins
Victoria sandwich (2 x 180mm
/ 7”)
160 1 20 - 25 mins
Swiss roll 200 1 8 - 12 mins
Semi rich fruit cake (180mm x
7”)
140 1 2¼ - 2¾ hours
Scones 215 1 10 - 15 mins
Meringues 90 - 100 1 2 - 3 hours
Shortcrust pastry 200 - 210 1
Depends on size & type
of cooking dish & also the
filling
Pu / flaky pastry 200 - 210 1
Choux pastry 200 - 210 1
Biscuits 160 - 200 2 10 - 20 mins
Sponge pudding 150 1 30 - 45 mins
Milk pudding 140 1 2 - 2½ hours
39
MAIN OVEN
Cooking times & temperatures
4
The temperature settings and times
given in the baking guide are based on
dishes made with block margarine. If
soft tub margarine is used it may be
necessary to reduce the temperature
setting.
4
Allow enough space between shelves for
food that will rise during cooking.
4
Do not place items on the oven base as
this will prevent air circulating freely.
4
Note: This is a fanned oven, therefore
some adjustment will have to be made to
conventional cooking temperatures. The
table below shows conventional cooking
temperatures, fanned oven temperatures
and gas marks. For optimum results,
conventional temperatures need to be
converted to fanned oven temperatures.
For example, an item which would nor-
mally cook at a conventional temperature
of 180 °C, will now cook at the fanned
oven temperature of 160 °C.
Conventional temperature (°C) Fanned Oven (°C) Gas Mark
100
110
130
140
150
160
180 - 190
200
220
230
250
100
110
120
130
140
150
160
170
180
190
200
1/4
1/4
1/2
1
2
3
4 - 5
6
7
8
9
Food Type Temp. Setting °C Time Approx. Shelf Position
Cakes
Small cakes 190 160 15 - 25 2 - 4
Victoria sandwich 180 160 20 - 30 3
Semi rich fruit cake 150 125 2½ - 3 hours 2
Christmas cake 150 125 2½ - 3 hours 2
Puddings
Bread & butter pudding 170 150 45 - 1 hour 3
Fruit crumble 200 175 40 - 1 hour 3
40
Food Type Temp. Setting °C Time Approx. Shelf Position
Miscellaneous
Yorkshire pudding:
- large 220 200 40 - 48 4 - 5
- small 220 200 15 - 20 4 - 5
Shortcrust pastry 200 180 depends on filling 4 - 5
MULTIFUNCTION OVEN
Cooking times & temperatures
4
This is a high efficiency oven, you may
notice an emission of steam when the
door is opened.
4
When cooking chilled or frozen foods,
use the recommended cooking times
and temperature on the packaging.
Always make sure the food is piping hot
throughout before serving.
4
There are no zones of heat, and no flavour
transfer when using a fanned oven -
allowing you to cook a greater variety of
foods together.
4
If you are cooking on more than one
shelf, you may need to slightly increase
the cooking time.
4
Always make sure that there is enough
space between dishes, to allow food to
rise, and to air to circulate.
4
Note: This is a fanned oven, therefore
some adjustment will have to be made to
conventional cooking temperatures. The
table below shows conventional cooking
temperatures, fanned oven temperatures
and gas marks. For optimum results,
conventional temperatures need to be
converted to fanned oven temperatures.
For example, an item which would
normally cook at a conventional
temperature of 180 °C, will now cook at
the fanned oven temperature of 160 °C.
Conventional temperature (°C) Fanned Oven (°C) Gas Mark
100
110
130
140
150
160
180 - 190
200
220
230
250
100
110
120
130
140
150
160
170
180
190
200
1/4
1/4
1/2
1
2
3
4 - 5
6
7
8
9
41
Food Type Temp. Setting °C Time Approx. Shelf Position
Cakes
Small cakes 190 175 15 - 25 2 & 4
Victoria sandwich 180 160 20 - 30 3
Semi rich fruit cake 150 125 2½ - 3 hours 2
Christmas cake 150 125 2½ - 3 hours 2
Puddings
Bread & butter pudding 170 150 - 45 - 1 hour 3
Fruit crumble 200 175 - 40 - 1 hour 3
Miscellaneous
Yorkshire pudding:
- large 220 200 200 40 - 45 4 - 5
- small 220 200 200 15 - 20 4 - 5
Shortcrust pastry 200 180 180
depends on
filling
4 - 5
GENERAL BAKING GUIDE
Traditional fruit cakes
It should be remembered that ovens can vary over
time, therefore cooking times can vary, making it
difficult to be precise when baking fruit cakes.
It is necessary therefore, to test the cake before
removal from the oven. Use a fine warmed skewer
inserted into the centre of the cake. If the skewer
comes out clean, then the cake is cooked.
4
Follow the temperatures suggested in the
recipe and then adjust accordingly to the
conversion table.
4
Do not attempt to make Christmas cakes
larger than the oven can cope with, you
should allow at least 25mm (1”) space
between the oven walls and the tin.
4
Always follow the temperatures
recommended in the recipe.
4
To protect a very rich fruit cake during
cooking, tie 2 layers of brown paper
around the tin.
4
We recommend that the cake tin is not
stood on layers of brown paper, as this
can hinder effective circulation of air.
4
Do not use soft tub margarine for rich
fruit cakes, unless specified in the recipe.
4
Always use the correct size and shape of
tin for the recipe quantities.
42
Trouble-shooting - fruit cakes
Problem Possible Cause
Fruit sinking to
the bottom
Low oven temperature which
may cause the cake to take
longer to set, allowing the
fruit to sink. Or, too much
liquid, or raising agent. The
fruit may not have been
properly washed and dried.
Cake sinking /
dipping in the
centre
Too much raising agent in
the mixture. Too hot, or
too cool an oven. Or, not
enough liquid or insucient
creaming.
Surface cracks
Too small a tin, or too much
mixture in the tin. Too much
raising agent in the mix,
plus not enough liquid or
insucient creaming. The
oven may be too hot.
Hard outer
crust with a
damp patch
inside
Oven too hot, therefore the
cake baked too quickly. Too
much sugar, or insucient
liquid.
Burnt outside
Oven temperature too high.
Oven too small for the size of
cake. Insucient protection
around the tin. Cake baked
on too high a shelf.
Texture with
pronounced
holes.
Too much raising agent. Flour
unevenly mixed.
Texture too
close and cake
insuciently
risen.
Not enough raising agent.
Not enough liquid. Too
cool an oven. Insucient
creaming.
Cake crumbles
when cut
Not enough liquid. Baked for
too long. Not enough sugar.
Too much baking agent.
Too dry
Over baking. Insucient egg
or liquid. Too much raising
agent.
Trouble-shooting - sponge cakes
Problem Possible Cause
Domed top
Insucient creaming of
mixture. Cake baked on
too high a shelf position, or
at too high a temperature.
Paper liners can cause the
outer edge not to rise and
the centre to peak.
Hollowed /
sunken top
Too much raising agent.
Oven temperature too low, or
incorrect shelf position. Cake
removed from oven before
it’s cooked. Use of soft tub
margarine.
Very pale, but
cooked
Oven temperature too low.
Baked too low in the oven
Overflowing tin
Tin too small for the amount
of mixture
43
ROASTING GUIDE
The times given in the roasting guide are only
approximate, because the size and age of the bird will
influence cooking times as will the shape of a joint
and the proportion of the bone.
Frozen meat should be thoroughly thawed before
cooking. For large joints it is advisable to thaw over
night.
Frozen poultry should be thoroughly thawed before
cooking. The time required depends on the size of the
bird - eg; a large turkey may take up to 48 hours to
thaw.
Use of a trivet with a roasting tin will reduce fat
splashing and will help to keep the oven interior clean.
Alternatively, to help reduce fat splashing, potatoes
or other vegetables can be roasted around the meat/
poultry.
Cook in main oven at:
160°C - 180°C (fanned)
180°C - 200°C
(conventional)
Approximate Cooking
Time (preheated oven)
Beef
Rare
20 minutes per 450g
(1lb), plus 20 minutes
Medium
25 minutes per 450g
(1lb), plus 25 minutes
Well
done
30 minutes per 450g
(1lb), plus 30 minutes
Lamb
Medium
25 minutes per 450g
(1lb), plus 25 minutes
Well
done
30 minutes per 450g
(1lb), plus 30 minutes
Pork -
35 minutes per 450g
(1lb), plus 35 minutes
Poultry -
20 minutes per 450g
(1lb), plus 20 minutes
Notes:
4
When cooking stuffed meat or poultry
calculate the cooking time from the total
weight of the meat plus the stuffing.
4
For joints cooked in foil or covered
roasters, and for lidded casseroles, add 5
minutes per 450g (1lb) to the calculated
cooking time.
4
Smaller joints weighing less than 1.25kg
(2½lb) may require 5 minutes per 450g
(1lb) extra cooking time.
4
Position the oven shelf so that the meat
or poultry is in the centre of the oven.
4
It is recommended that the appliance is
cleaned after open roasting.
44
ROAST TURKEY
Roasting turkey involves cooking two different types
of meat - the delicate light breast meat, which must
not be allowed to dry out, and the darker leg meat,
which takes longer to cook.
The turkey must be roasted long enough for the legs
to cook, so frequent basting is necessary. The breast
meat can be covered once browned.
To test if the turkey is cooked, push a fine skewer into
the thickest part of the thigh. If the juices run clear,
the turkey is cooked. If the juices are still pink, the
turkey will need longer cooking.
4
Always make sure that the turkey is
completely thawed and that the giblets
are removed before cooking.
4
Turkey should be roasted at gas mark 5
for 20 minutes per lb, plus 20 minutes,
unless packaging advises otherwise.
4
The turkey can be open roasted, breast
side down, for half of the cook time, and
then turned over for the remainder of the
cooking time.
4
If the turkey is stuffed, add 5 minutes per
1lb to the cooking time.
4
If roasting turkey covered with foil, add 5
minutes per 1lb to the cooking time.
4
Please note: for all other Roasting guides
refer to main oven section and see table.
45

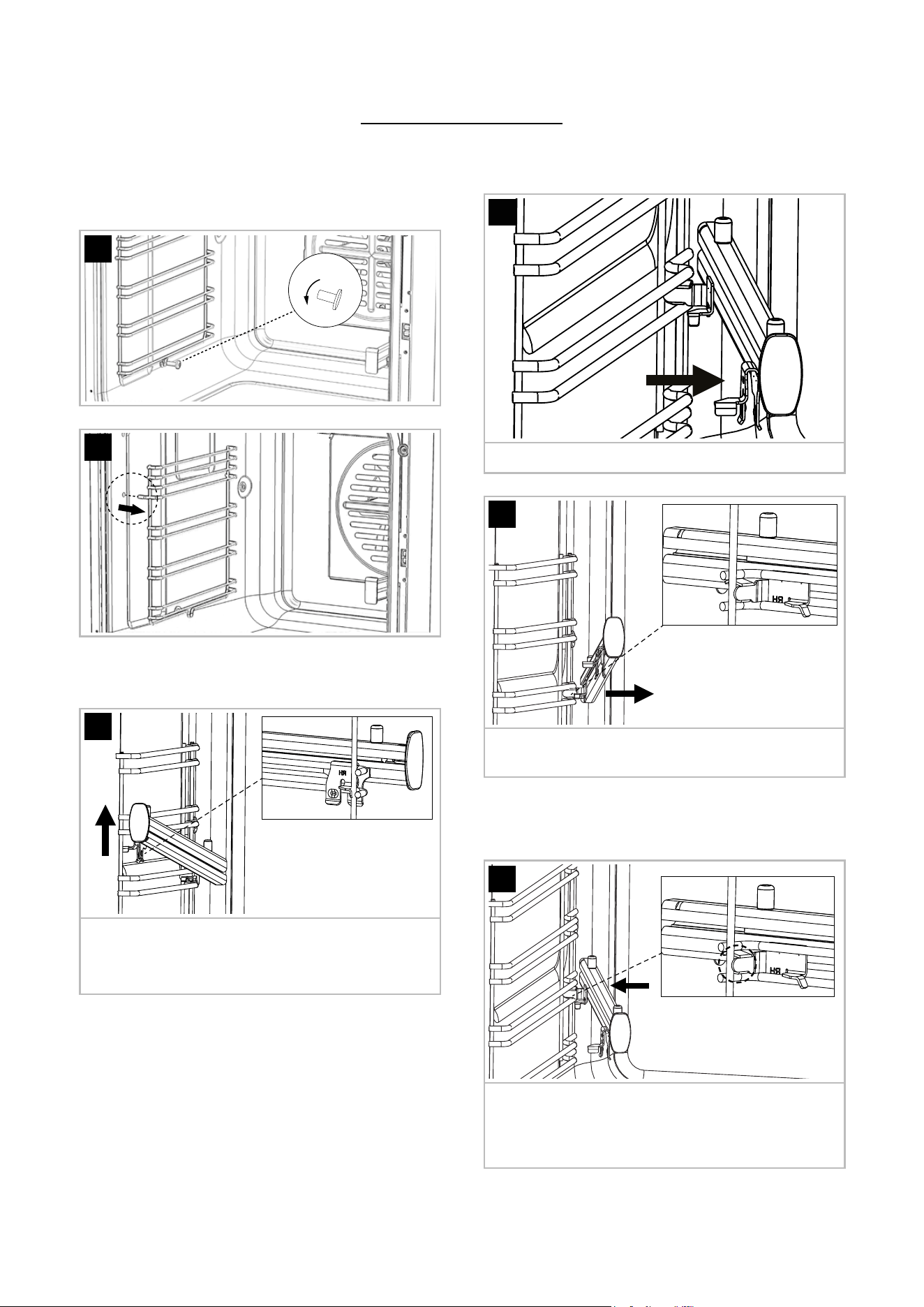

SHELF GUIDES AND RUNNERS
REMOVING SHELF GUIDES
To Open
1
2
REMOVING TELESCOPIC RUNNERS
Front Clip
1
1. Push the front of the runner upwards firmly,
ensuring the front clip is released from the shelf
guide.
2
2. Pull the runner away from the shelf guide.
Back clip
3
3. Pull the back clip away from in between the shelf
guide.
RE-FITTING TELESCOPIC RUNNERS
Back clip
1
1. Secure the back clip in between the shelf guide.
Ensure the runner is fully pushed back towards
the back of shelf guide.
46

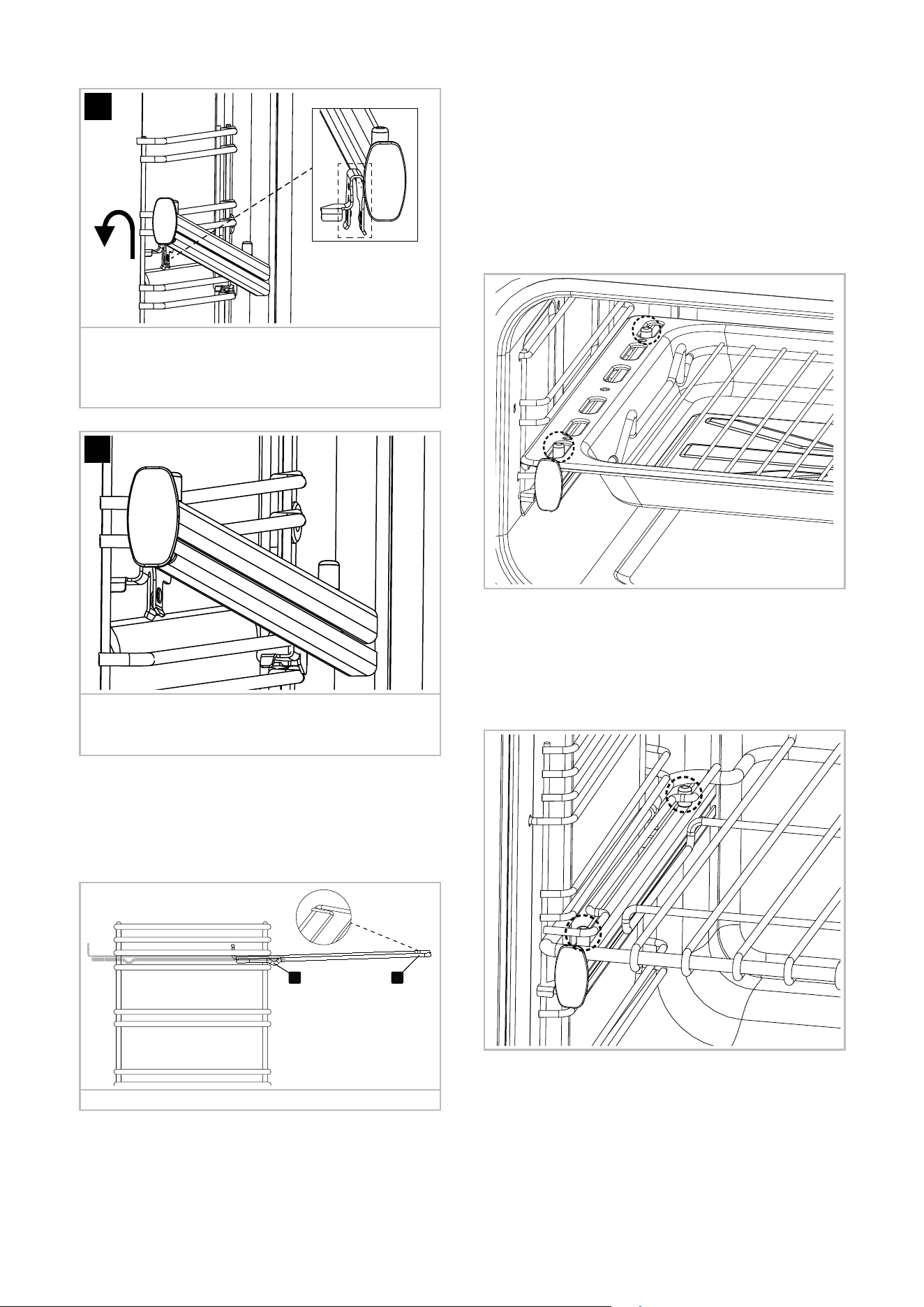

Front clip
2
2. Locate the front clip onto the shelf guide and
firmly push the front of the runner down until
the front clip is secured into place.
3
The Telescopic runner should now be fitted correctly
and secure to the shelf guide.
PLACING SHELVES
Standard shelves
1 2
Front of appliance
1. Slightly raise the shelf and insert in the chosen
shelf position
2. Ensure the shelf is fully pushed back towards the
back of the oven, until the shelf stopper is reached.
Positioning a full-width oven pan with
telescopic runners
4
Note: Please ensure the wires / oven
pan locate around the small tabs on the
telescopic runner.
Positioning a shelf on telescopic runners
47

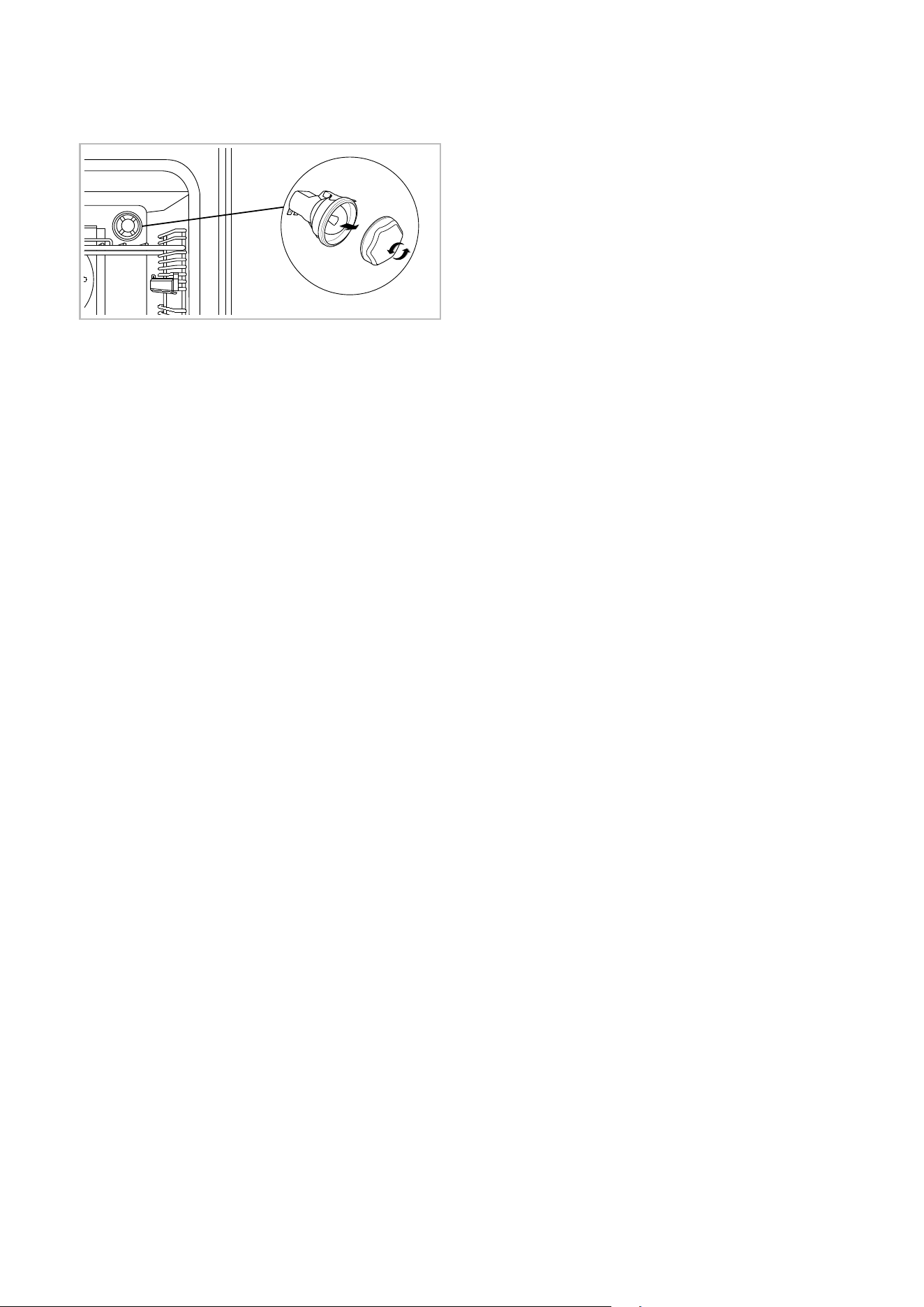

CHANGING THE LIGHT BULB
6 Warning! Switch off the power before
you change the light bulb.
4
Not all appliances have the same number
and type of bulbs. Before you replace
your bulb, check to see what type you
have. Please remember that bulbs are not
covered by your warranty.
48
ADDITIONAL FEATURES
PLATE RACK
1. Pull the shelf out of the cavity.
2. Tilt the plate warmer towards you and make sure
that it hooks underneath the shelf bars at the front.
3. Drop the plate warmer carefully into position.
The plate warmer is now secure and you can place
your plates into it.
6 Always make sure that you use oven
gloves if you are putting the plate
warmer into a hot, or recently used oven
to prevent burns.
6 Always make sure that your plates are
suitable for warming - some plates may
shatter or crack when exposed to heat.
6 We recommend that you heat the oven to
70°C, or below, if you are warming plates.
THE STEAM & INFUSE ACCESSORIES
The Steam & Infuse vertical cooking system is
designed to deliver an evenly cooked, healthier,
flavourful result every time. Simply fill the flavour pot
with stock/herbs or any other ingredients and place
your poultry/meat over the top.
Supporting poultry or other meat vertically exposes
all sides to the oven’s heat, promoting a more even
cook and allowing the fat to drip out, while flavour is
infused from the inside.
Also included are a set of skewers which are ideal
for making kebabs and can be suspended over the
specially designed rack.
4
Note: If the Steam and Infuse is not
supplied as standard, it can be purchased
through our Customer Care team
4
Note: Skewers are not to be used in tall
ovens in 90cm products and should
always be orientated across the oven so
not to come into contact with the oven
fan blades.
4
Please refer to our website for further
information on recipes
49

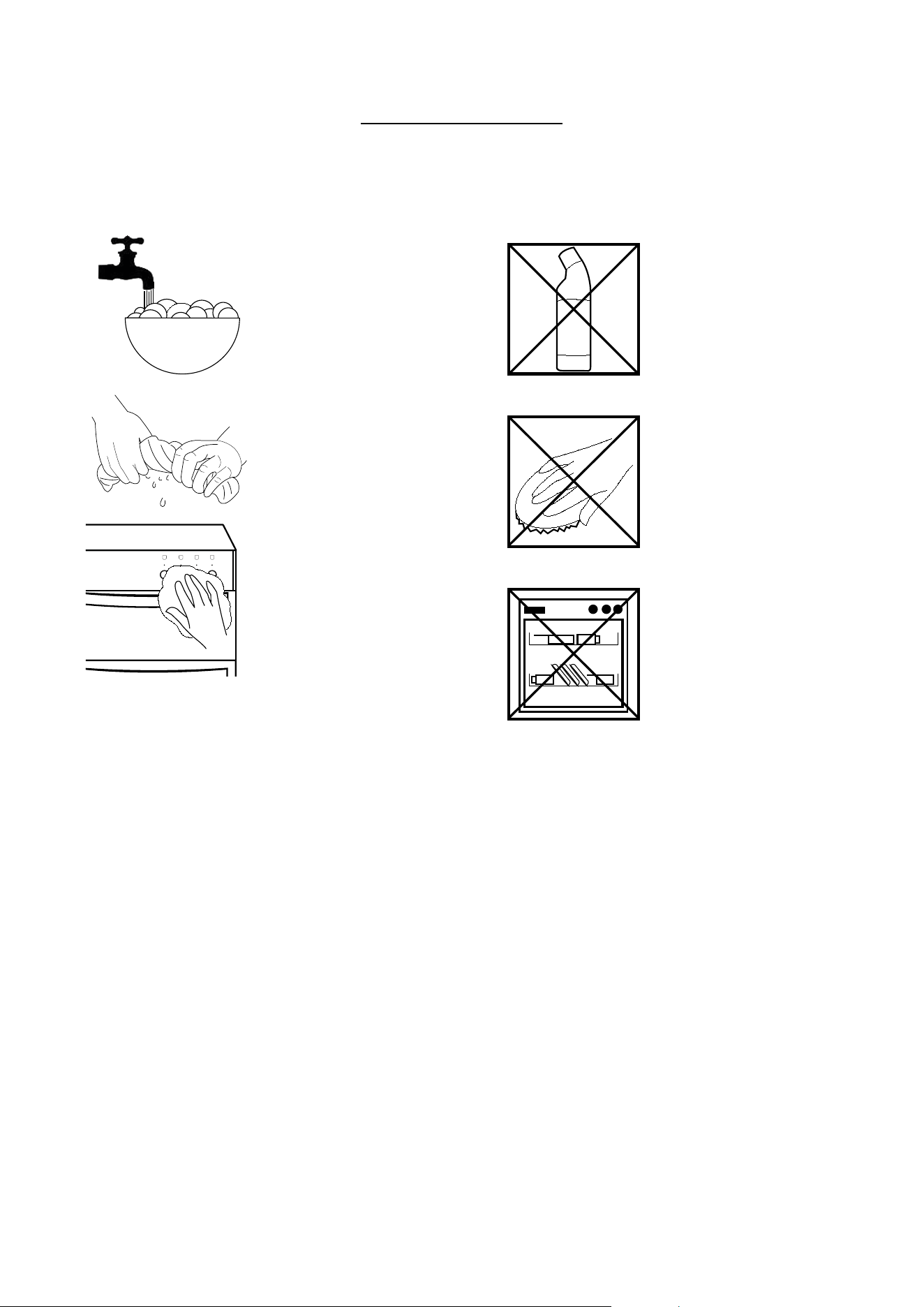

CLEANING YOUR APPLIANCE
DO'S
H
∙ Warm, soapy water
∙ Clean, wrung out cloth
∙ Wipe with damp cloth
∙ Dry with a soft cloth
4
Note: Always switch off your appliance
and allow it to cool down before you
clean any part of it.
4
Note: Please take extra care when
cleaning over the symbols on the control
panel, as this can lead to them fading.
4
Tips: Some foods can mark or damage
the metal or paint work e.g.; Vinegar,
fruit juices and salt. Always clean food
spillages as soon as possible.
DON’TS
∙ Undiluted bleaches
∙ Chloride products
∙ Wire Wool
∙ Abrasive cleaners
∙ Nylon pads
∙ Steam cleaners
Do not place in the
dishwasher:
∙ Cast iron griddle
∙ Pan supports
6 It is important to clean your appliance
regularly as a build up of fat can affect
its performance or damage it and may
invalidate your guarantee.
6 In addition to the above, do not use metal
scrapers to clean the oven door glass.
4
We offer a great range of cleaning
products and accessories for your
appliance. To shop, please visit our
website located at the front of this User
Guide.
50
TECHNICAL DATA
6 WARNING - This cooker must be earthed
ELECTRICAL SUPPLY / LOAD
Hob top
Electrical supply Hotplate Zone Load (kW)
240 V Induction
Left hand front 1.60 boost to 3.00
Left hand rear 1.60 boost to 3.00
Right hand front 1.10 boost to 2.20
Right hand rear 1.40 boost to 3.00
Middle 2.30 boost to 3.70
Appliance
Electrical supply Oven / Grill Load (kW)
240 V
Digital oven 3.1
Fanned oven 1.7 / 3.0
Single variable grill 1.55
Dual variable grill 1.7 / 2.7
Conventional top oven 1.4
Oven Lamps
Lamps (right hand oven) 25 W each
Lamp (left hand oven) 40 W each
Electrical supply Max. load (kW)
230/400V 3N ~ 50 Hz 14.95 - 16.38
51
084004301
WWW.STOVES.CO.UK
Glen Dimplex Home Appliances, Stoney Lane, Prescot, Merseyside, L35 2XW
www.stoves.co.uk
Customer Care
0344 815 3740
Product information helpline
0344 248 4149
