Convection / Microwave Oven
Model: CVM517P
Contents
Safety Information ...............................3
Using the Oven
Features ......................................7
Controls ......................................8
Cooking Options ................................9
Microwave Time and Auto Features ...............10
Power Level ..................................13
Microwave terms ..............................14
Microwave Sensor Features .....................14
Baking and Roasting Features ....................18
Fast Cook Feature .............................19
Cookware Tips ................................20
Best Method of Cooking Chart ....................21
Other Features ................................22
Care and Cleaning
Inside .......................................25
Outside ......................................25
Replacing the LED Lamp ........................26
Exhaust Feature ...............................27
Troubleshooting ...............................28
Optional Kits ..................................30
Limited Warranty ...............................31
Consumer Support .............................32
Español
Para consultar una version en español de este manual de instrucciones,
visite nuestro sitio de internet cafeappliances.com.
Owner's Manual
TM
2 49-7000085 Rev. 0
THANK YOU FOR MAKING CAFÉ A PART OF YOUR HOME.
We take pride in the craftsmanship, innovation and design that goes into every Café product, and
we think you will too. Among other things, registration of your appliance ensures that we can deliver
important product information and warranty details when you need them.
Register your Café appliance now online. Helpful websites are available in the Consumer Support
section of this Owner’s Manual. You may also mail in the pre-printed registration card included in the
packing material.
TM
49-7000085 Rev. 0 3
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
SAFETY INFORMATION
WARNING
To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to
excessive microwave energy:
When using electrical appliances, basic safety precautions should be followed, including the following:
■ Readallinstructionsbeforeusingthisappliance.
■ Readandfollowthespecificprecautionsinthe
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY section on
page 6.
■ Usethisapplianceonlyforitsintendeduseas
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This oven is
specifically designed to heat, dry or cook food, and is
not intended for laboratory or industrial use.
■ Thisappliancemustonlybeservicedbyqualified
service personnel. Contact nearest authorized
service facility for examination, repair or adjustment.
INSTALLATION
■ Installorlocatethisapplianceonlyinaccordance
with the provided installation instructions.
■ This appliance must be grounded. Connect only
to properly grounded outlet. See “GROUNDING
INSTRUCTIONS” found on page 6.
■ ThismicrowaveovenisULlistedforinstallationover
both gas and electric ranges.
■ Thisunitissuitableforuseabovegasorelectric
cookingequipment,36”orlesswide.
■ Do not operate this appliance if it has a damaged
power cord or plug, if it is not working properly, or if it
has been damaged or dropped.
■ Keepcordawayfromheatedsurfaces.
■ Do not let cord hang over the edge of the table or
counter
■ Donotimmersecordorpluginwater.
■ Donotcoverorblockanyopeningsonthe
appliance.
■ Donotstorethisapplianceoutdoors.Donotusethis
product near water—for example, in a wet basement,
near a swimming pool, near a sink or in similar
locations.
■ Donotmountthisapplianceoverasink.
TO REDUCE THE RISK OF FIRE IN THE CAVITY:
■ Do not overcook food. Carefully attend appliance
when paper, plastic or other combustible materials
are placed inside the oven to facilitate cooking.
■ Removewiretwist-tiesandmetalhandlesfrom
paper or plastic containers before placing them in
the oven.
■ Donotstoreanymaterialsinthisovenwhennotin
use. Do not leave paper products, cooking utensils
or food in the cavity when not in use. All racks
should be removed from oven when not in use.
■ Ifmaterialsinsidetheovenignite,keeptheoven
door closed, turn the oven off and disconnect the
power cord or shut off power at the fuse or circuit
breaker panel.
■ Donotoperatethemicrowavefeaturewithoutfoodin
the oven.
TO REDUCE THE RISK OF BURNS:
■ Becarefulwhenopeningcontainersofhotfood.Use
pot holders and direct steam away from face and
hands.
■ Vent,pierce,orslitcontainers,pouches,orplastic
bags to prevent build-up of pressure.
■ Becarefulwhentouchingtheturntable,door,racks,
or walls of the oven which may become hot during
use.
■ HOT CONTENTS CAN CAUSE SEVERE BURNS.
DO NOT ALLOW CHILDREN TO USE THE
MICROWAVE. Use caution when removing hot items.
4 49-7000085 Rev. 0
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
WARNING
Continued
OPERATING AND CLEANING
■ Donotstoreanythingdirectlyontopofthe
microwave oven surface when the microwave oven
is in operation.
■ Oversizedfoodsoroversizedmetalutensilsshould
not be inserted in a microwave/convection oven as
they may create a fire or risk of electric shock.
■ Donotcleanwithmetalscouringpads.Piecescan
burn off the pad and touch electrical parts involving a
risk of electric shock.
■ Do not use paper products in oven when appliance
is operating in any cooking mode except microwave.
■ Someproductssuchaswholeeggsandsealed
containers—for example, closed jars—are able to
explode and should not be heated in this oven.
■ Donotcoverracksoranyotherpartoftheoven
with meal foil. This will cause overheating of the
microwave/convection oven.
■ Cookmeatandpoultrythoroughly—
meat to at least an INTERNAL temperature of 160°F,
and poultry to at least an INTERNAL temperature
of 180°F. Cooking to these temperatures usually
protects against foodborne illness.
■ Makesureallcookwareusedinyourmicrowave
oven is suitable for microwaving. Most glass
casseroles, cooking dishes, measuring cups, custard
cups, pottery or china dinnerware which does not
have metallic trim or glaze with a metallic sheen can
be used.in compliance with cookware manufacturers’
recommendations.
■ Itisimportanttokeeptheareacleanwherethe
door seals against the microwave. Use only mild,
nonabrasive detergents applied with a clean sponge
or soft cloth. Rinse well.
SUPER HEATED WATER
■ Liquids,suchaswater,coffee,ortea,areableto
be overheated beyond the boiling point without
appearing to be boiling. Visible bubbling or boiling
when the container is removed from the microwave
oven is not always present. THIS COULD RESULT
IN VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN THE CONTAINER IS DISTURBED
OR A SPOON OR OTHER UTENSIL IS INSERTED
INTO THE LIQUID.
■ Toreducetheriskofinjurytopersons:
-Donotoverheattheliquid.
-Stirtheliquidbothbeforeandhalfwaythrough
heating it.
- Do not use straight-sided containers with narrow
necks.
- After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
- Use extreme care when inserting a spoon or other
utensil into the container.
USE OF THE MICROWAVE RACK ACCESSORY
■ Removethemicrowaverackfromtheovenwhennot
in use.
■ Usepotholderswhenhandlingthemicrowaverack
and cookware. They may be hot.
■ Donotuserackshelfandcircularrackatthesame
time.
■ Besurethatthemicrowaverackispositioned
properly inside the oven to prevent product damage.
Rack should not touch microwave walls.
49-7000085 Rev. 0 5
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
SAFETY INFORMATION
PACEMAKERS
Most pacemakers are shielded from interference from electronic products, including microwaves. However,
patients with pacemakers may wish to consult their physicians if they have concerns.
VENT FAN
The fan will operate automatically under certain conditions. Take care to prevent the starting
and spreading of
accidental cooking fires while the vent fan is in use.
■Cleantheundersideofthemicrowaveoften.Donot
allow grease to build up on the microwave or the
fan filters.
■Intheeventofagreasefireonthesurfaceunits
below the microwave oven, smother a flaming pan
on the surface unit by covering the pan completely
with a lid, a cookie sheet or a flat tray.
■Usecarewhencleaningtheventfanfilters.
Corrosive cleaning agents, such as lye-based oven
cleaners, may damage the filters.
■Whenpreparingflamingfoodsunderthemicrowave,
turn the fan on.
■Neverleavesurfaceunitsbeneathyourmicrowave
oven unattended at high heat settings. Boilovers
cause smoking and greasy spillovers that may ignite
and spread if the microwave vent fan is operating.
Tominimizeautomaticfanoperation,useadequate
sized cookware and use high heat on surface units
only when necessary.
6 49-7000085 Rev. 0
READ AND SAVE THESE INSTRUCTIONS
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
■Do Not Attempt to operate this oven with the
door open since open-door operation can result
in harmful exposure to microwave energy. It is
important not to defeat or tamper with the safety
interlocks.
■Do Not Place any object between the oven front
face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
■Do Not Operate the oven if it is damaged. It is
particularly important that the oven door close
properly and that there is no damage to the:
(1) door (bent)
(2) hinges and latches (broken or loosened)
(3) door seals and sealing surfaces
■The Oven Should Not be adjusted or repaired by
anyoneexceptproperlyqualifiedservicepersonnel.
GROUNDING INSTRUCTIONS
To prevent risk of electric shock, follow these instructions:
■Plug microwave into a grounded 3-prong outlet.
■Do not remove the ground prong or use an
adapter.
■Do not use an extension cord.
WARNING
Improper use of the grounding
plug can result in a risk of electric shock.
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire
for the electric current.
Thisapplianceisequippedwithapowercord
having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is
properly installed and grounded.
Consultaqualifiedelectricianorservice
technician if the grounding instructions are not
completely understood, or if doubt exists as to
whether the appliance is properly grounded.
A short power-supply is provided to reduce
the risks resulting from becoming entangled
or tripping over a longer cord. Do not use an
extension cord with this appliance. If the power
cordistooshort,haveaqualifiedelectrician
or service technician install an outlet near the
appliance.
49-7000085 Rev. 0 7
Features

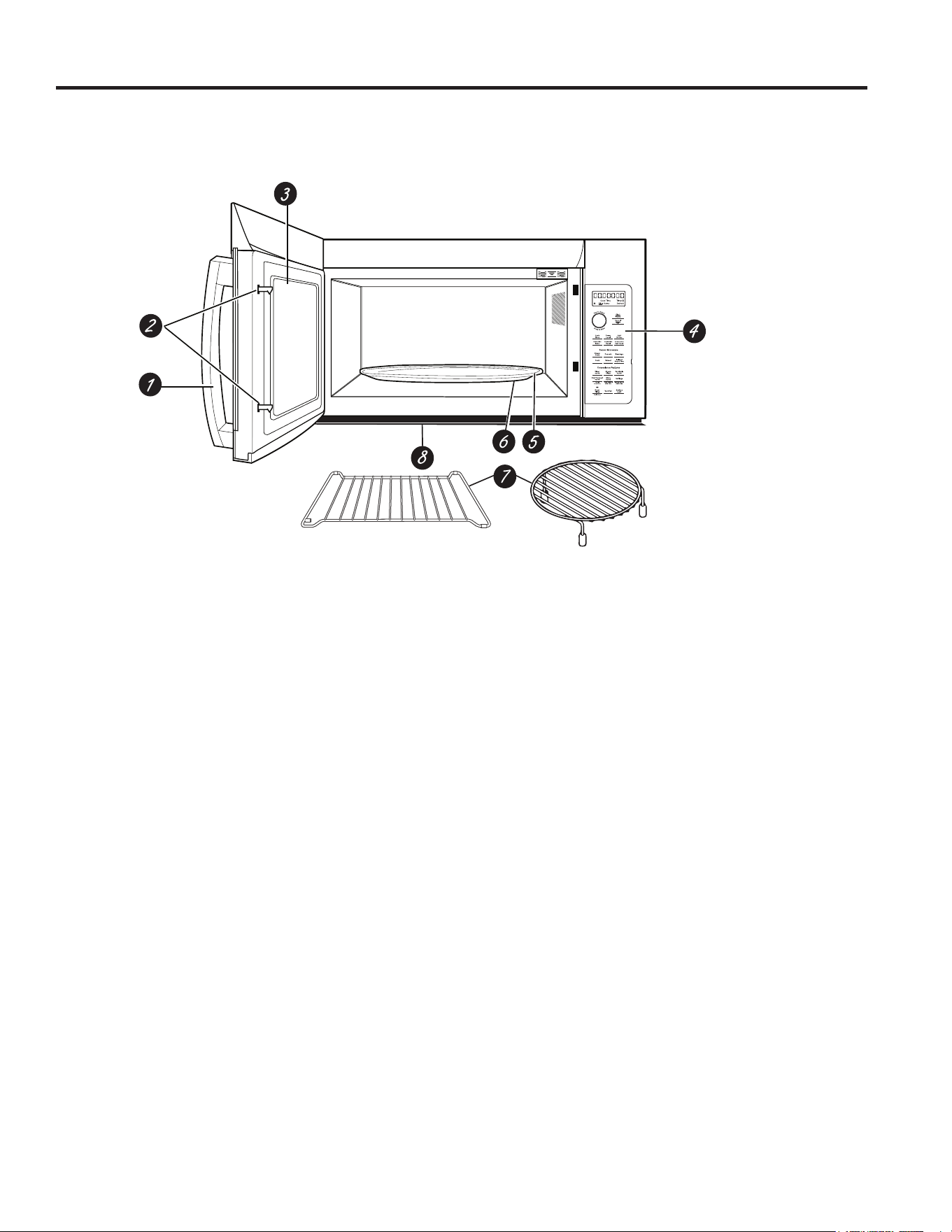

USING YOUR OVEN: Features
1. Door Handle.
2. Door Latches.
3. Window with Metal Shield. Screen allows cooking
to be viewed while keeping microwaves confined in
the oven.
4. Control Panel and Selector Dial.
5. Removable Turntable. Do not operate the oven
in the microwave mode without the turntable and
turntable support seated and in place.
6. Removable Turntable Support. Do not operate
the oven in the microwave mode without the
turntable and turntable support seated and in place.
7. Shelves. Use with Convection Bake, Convection
Roast or Combination Fast Bake. (Do not use
when microwave cooking.)
For best results, use one shelf in the lower
position and leave at least a 1-inch gap between
the cooking dish and the sides of the oven. For
two-level Baking or Fast Baking use both shelves.
8 Deflector. Provides robustness from cooktop heat.
Do not remove.
Throughout this manual, features and appearance may vary from your model.
8 49-7000085 Rev. 0

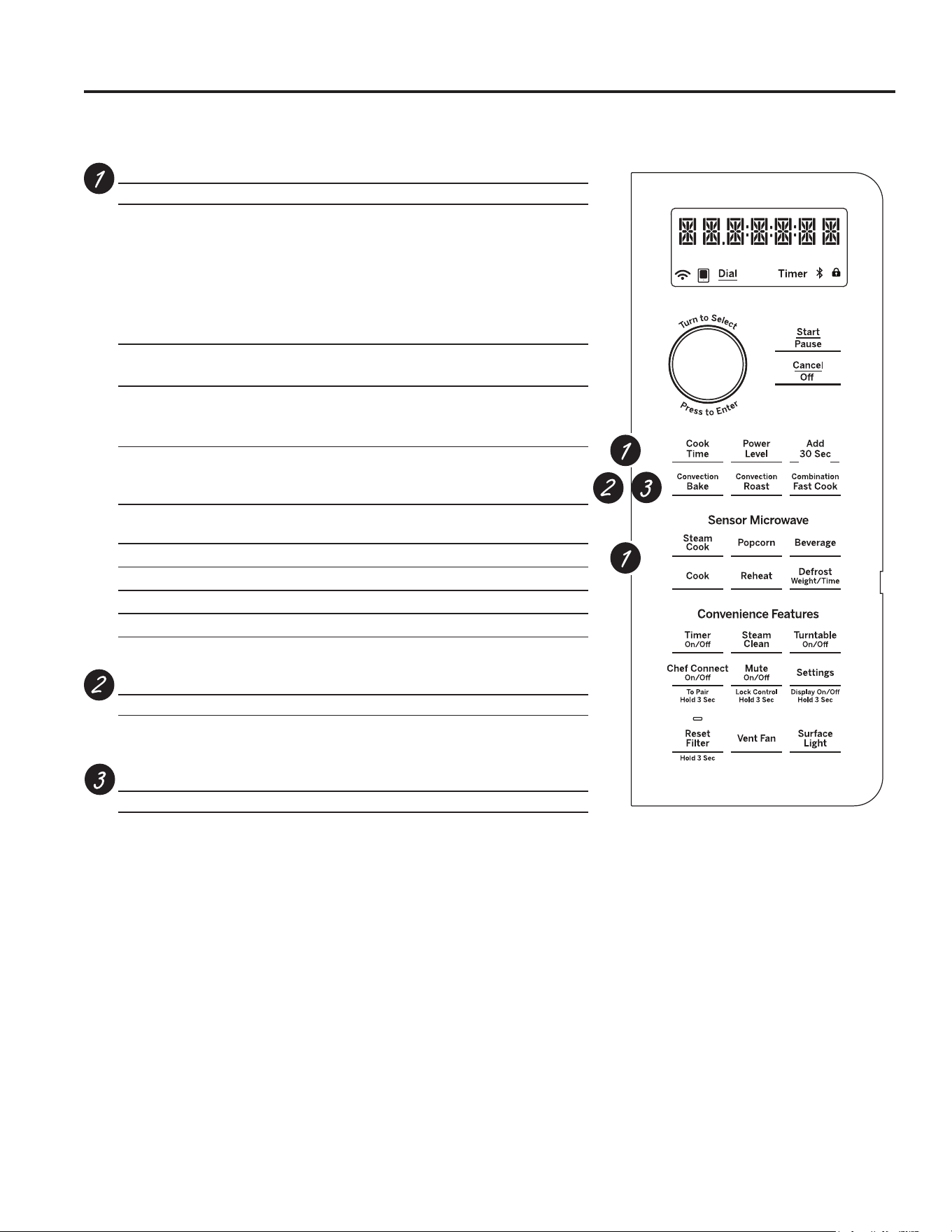

Controls
USING THE OVEN: Controls
My Cycle
Mute
Microwave Cooking Time and Auto Features
Press Turn and push dial to enter
Cook Time Amount of cooking time
Press once (Cook Time I) to
microwave any time between
15 seconds and 99 minutes.
Press twice (Cook Time II) to
add a 2nd microwave cooking
stage.
Mircrowave Express cook/
Add 30 sec. Starts immediately!
Defrost
Press once (Weight Defrost) Food weight up to six pound
Press twice (Timer Defrost) Amount of defrosting time
Power Level Power level 1–10
Sensor Features
Press Turn and push
dial to enter Option
Steam Cook Food type
Popcorn Starts immediately!
Beverage Starts immediately!
Reheat Food type
Cook Food type
Convection Baking or Convection Roasting
Press Turn and push dial to enter
Convection Bake or Oven temperature and cook time
Convection Roast
Combination Fast Cooking
Press Turn and push dial to enter
Combination Fast Cook Oven temperature and cook time
YoucancookbyMicrowave,ConvectionBake,ConvectionRoastorCombinationFastBake.Keephot,cooked
foods at serving temperature with the Warm feature.
49-7000085 Rev. 0 9
Combination Fast Cooking
Your oven also offers the option of Combination Fast Cook, using microwave energy along with convection cooking.
You cook with speed and accuracy, while browning and crisping to perfection. .
Cooking Method
Microwave energy and convection
heat combine to cook foods up
to 25% faster than regular ovens,
while browning and sealing in
juices.
Heat Source
Microwave energy and circulating
heated air.
Heat Conduction
Food heats from instant energy from penetration and
heat conducted from outside
of food.
Benefits
Shortened
cooking time from
microwave energy, plus
browning and crisping from
convection heat.

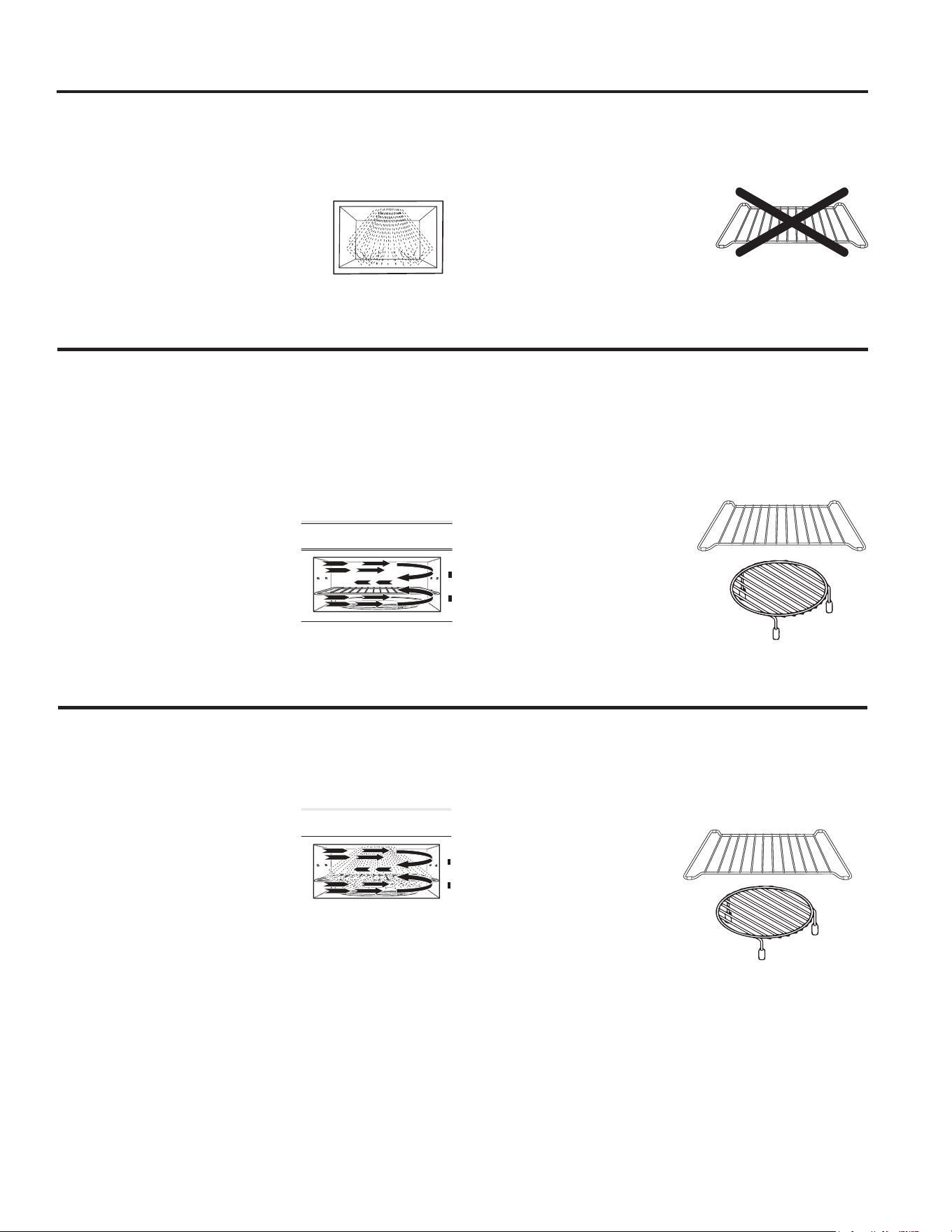

Options
USING THE OVEN: Options
Microwave Cooking
Your oven uses microwave energy to cook by a set time or weight, or automatically by sensor.
Sensor microwave works by detecting the increasing humidity released during cooking. The oven automatically
adjusts the cooking time to various types and amounts of food.
Cooking Method
Microwave energy is distributed evenly
throughout the oven for thorough, fast
cooking of food.
Heat Source
Microwave energy.
Heat Conduction
Heat produced within food by
instant energy penetration.
Benefits
Fast, high efficiency cooking.
Oven and surroundings do not get hot. Easy clean-up.

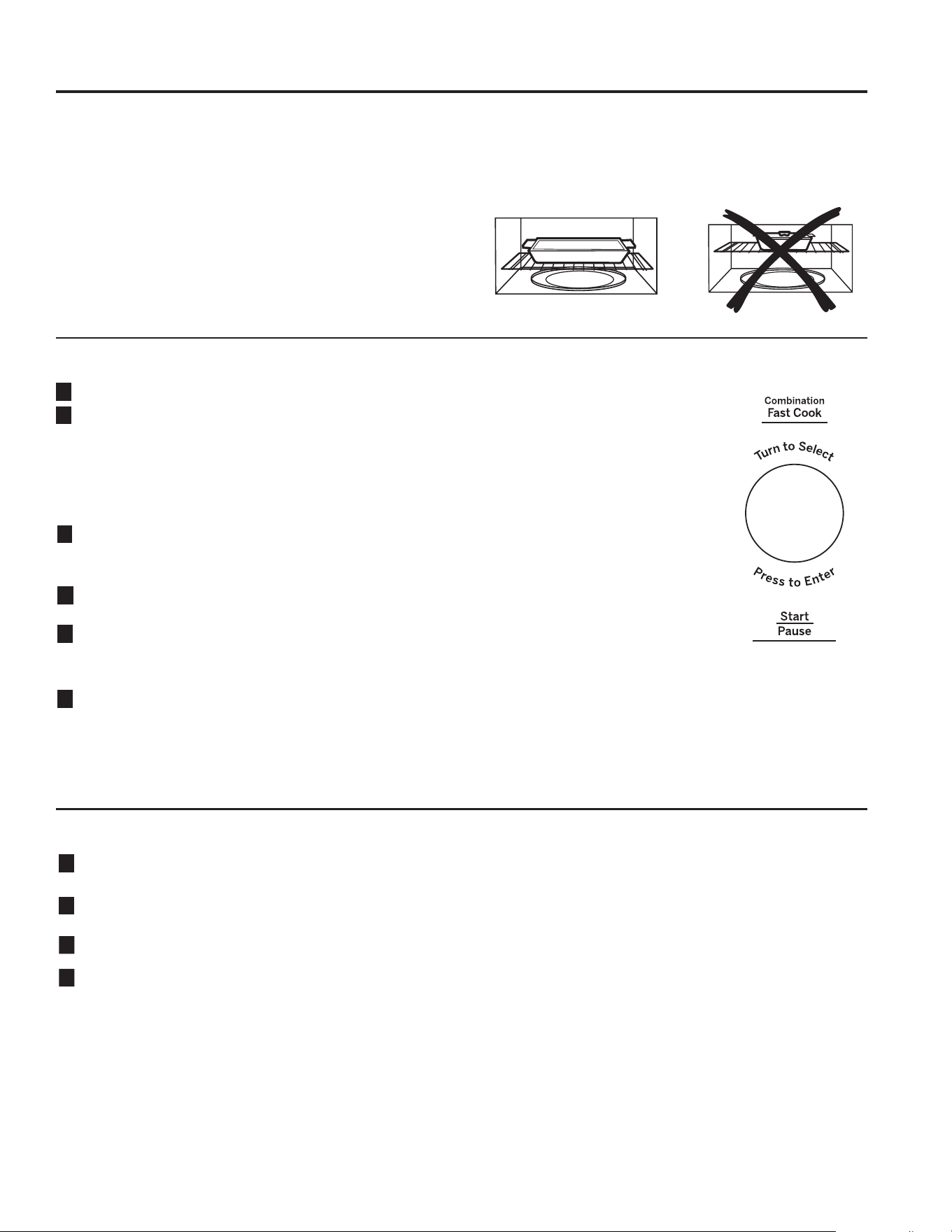

Always use the shelf with Fast
Bake. For best results, use one
shelf in the lower position.
or
Do not use the
shelves when
microwave cooking.
Convection Baking and Convection Roasting
During baking or roasting, a heating element is used to raise the temperature of the air inside the oven. Any oven
temperature from 225°F. to 425°F. may be programmed. A fan gently circulates this heated air throughout the oven,
over and around the food, producing golden brown exteriors and rich moist interiors. This circulation of heated air is
called convection.
Because the heated air is kept constantly moving, not permitting a layer of cooler air to develop around the food,
some foods cook faster than in regular oven cooking.
Cooking Method
Hot air circulates around food to
produce browned exteriors and
seal in juices.
Heat Source
Circulating heated air
(Convection).
Heat Conduction
Heat conducted from
outside of food to inside.
Benefits
Aids in browning and seals
in flavor. Cooks some foods
faster than regular ovens.
Always use the shelf when
baking. For best results, use
one shelf in the lower position.
or
10 49-7000085 Rev. 0
Time and Auto Microwave Features
USING THE OVEN: Time and Auto Microwave Features
Using the Dial

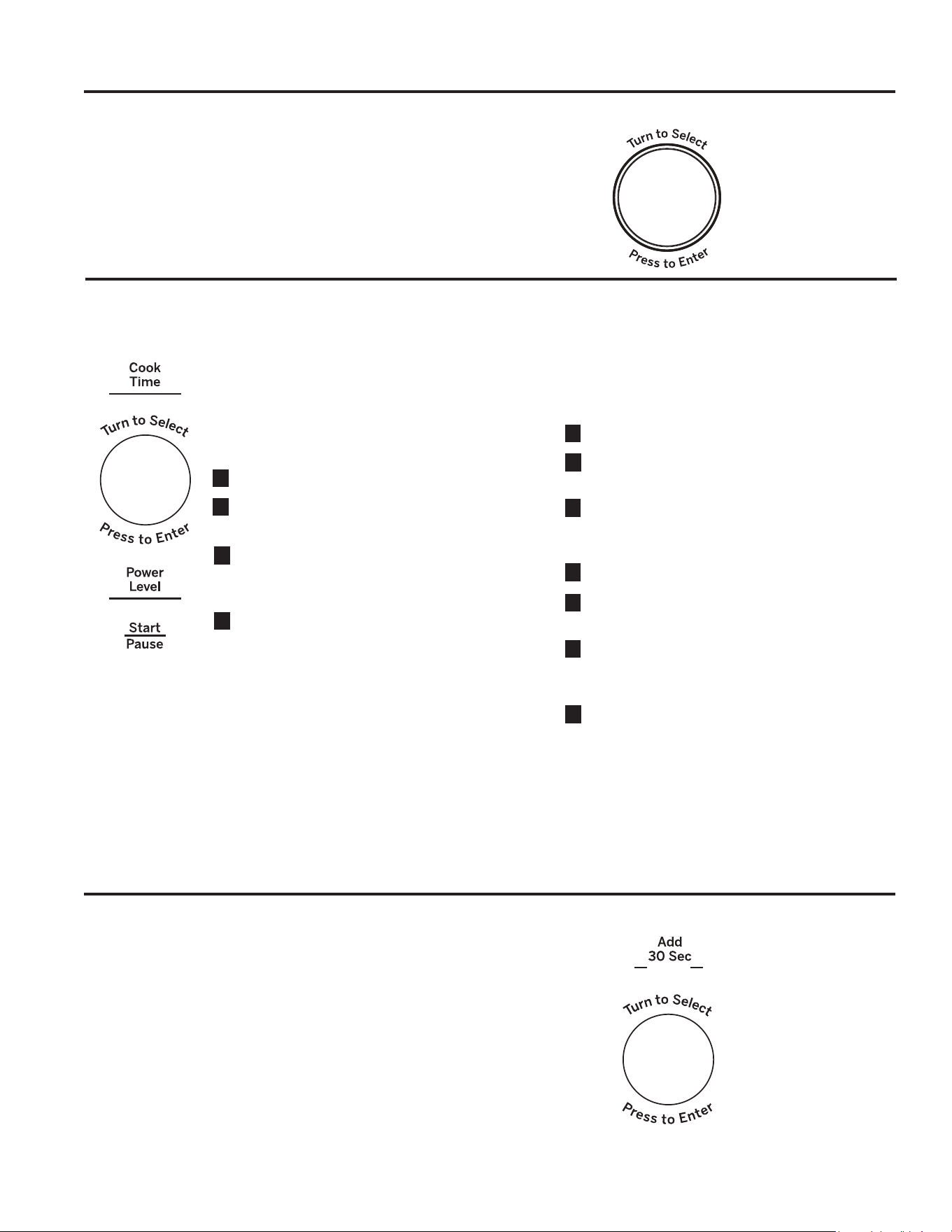

You can make selections on the oven by turning the dial
and pressing it to enter the selection.
Pressing the dial can also be used in place of the Start/
Pausebuttonforquickerprogrammingoftheoven.
Cook Time
(Do not use the shelves when microwave cooking.)
Cook Time I
Allows you to microwave for any time between
15 seconds and 99 minutes.
Power level 10 (High) is automatically set, but
you may change it for more flexibility.
1
Press the Cook Time button.
2
Turn the dial to set the cook time and press
the dial to enter.
3
Change power level if you don’t want full
power. (Press Power Level. Turn the dial to
select. Press the dial to enter.)
4
Press the dial or the Start/Pause button to
start cooking.
You may open the door during Cook Time to
check the food. Close the door and press the
dial or Start/Pause to resume cooking.
NOTE: You may change the cook time at any
time during cooking by turning the dial. You
may also change the power level by pressing
the Power Level button.
Cook Time II
Lets you change power levels automatically
during cooking. Here’s how to do it:
1
Press the Cook Time button.
2
Turn the dial to set the first cook time and
press the dial to enter.
3
Change the power level if you don’t want full
power. (Press Power Level. Turn the dial to
select. Press the dial to enter.)
4
Press the Cook Time button again.
5
Turn the dial to set the second cook time
and press the dial to enter.
6
Change the power level if you don’t want full
power. (Press Power Level. Turn the dial to
select. Press the dial to enter.)
7
Press the dial or the Start/Pause button to
start cooking.
At the end of Cook Time I, Cook Time II
counts down.
NOTE: You may change the cook time at any
time during cooking by turning the dial. You
may also change the power level by pressing
the Power Level button.
Add 30 Sec
Thisisaquickwaytosetandstartcookingin30second
blocks each time the Add 30 Second button is pressed.
The cook time may be changed by turning the dial at any
time during cooking.
The power level will automatically be set at 10 and the
oven will start immediately.
The power level can be changed as time is counting
down. Press the Power Level button, turn the dial and
press to enter.
My Cycle
49-7000085 Rev. 0 11
USING THE OVEN: Time and Auto Microwave Features
Time and Auto Microwave Features
■Removemeatfrompackageandplaceon
microwave-safe dish.
1

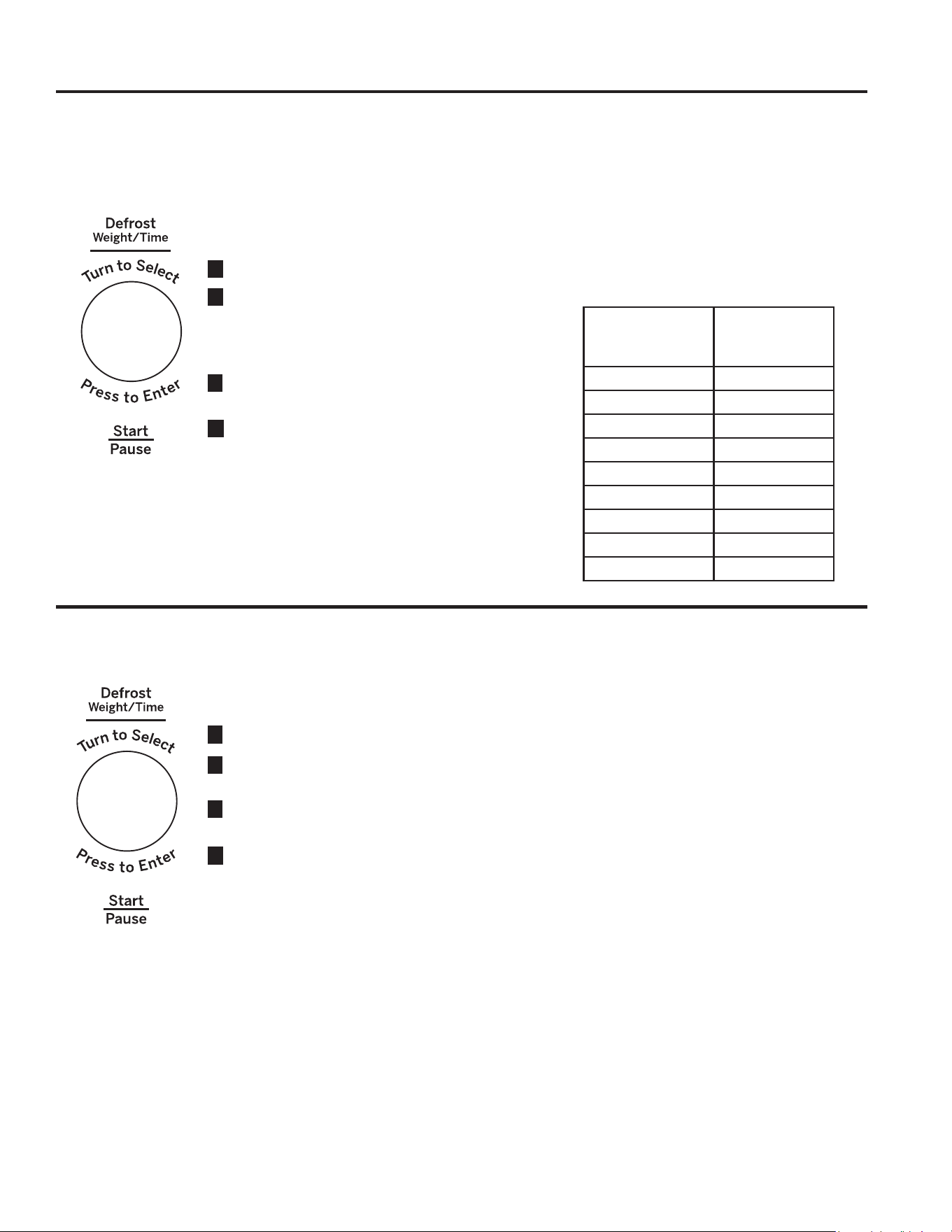

Press the Defrost button once.
2
Turn the dial to the food weight, using the
Conversion Guide at right. For example,
dial .5 for .5 pounds (8 oz.) Press the dial
to enter.
3
Press the Start/Pause button to start
defrosting.
4
Turn the food over if the oven signals
TURN FOOD OVER.
■Removedefrostedmeatorshieldwarm
areas with small pieces of foil.
■Afterdefrosting,mostmeatsneedtostand
5 minutes to complete defrosting.
Conversion Guide
If the weight of food is stated in pounds and
ounces, the ounces must be converted to
tenths (.1) of a pound.
Use Time Defrost to defrost for a selected
length of time.
1
Press the Defrost button twice.
2
Turn the dial to select the time you want.
Press the dial to enter.
3
Press the Start/Pause button to start
defrosting.
4
Turn the food over if the oven signals
TURN FOOD OVER.
You may change the defrost time at any time
during defrosting by turning the dial.
Power level is automatically set at 3, but
can be changed. You can defrost small
itemsquicklybyraisingthepowerlevelafter
entering the time. Power Level 7 cuts the
total defrosting time in about half; Power
Level 10 cuts the total time to approximately
1/3.However,foodwillneedmorefrequent
attention than usual.
A dull thumping noise may be heard during
defrosting. This is normal when oven is not
operating at High power.
Defrosting Tips
■Foodsfrozeninpaperorplasticcanbe
defrosted in the package. Closed packages
should be slit, pierced or vented AFTER
food has partially defrosted. Plastic storage
containers should be partially uncovered.
■Family-size,prepackagedfrozendinners
can be defrosted and microwaved. If the
food is in a foil container, transfer it to a
microwave-safe dish.
■Foodsthatspoileasilyshouldnotbe
allowed to sit out for more than one
hour after defrosting. Room temperature
promotes the growth of harmful bacteria.
■Whendefrosted,foodshouldbecoolbut
softened in all areas. If still slightly icy,
return to the microwave very briefly, or let it
stand a few minutes.
Weight of Food
in Ounces
Enter Food
Weight (tenths
of a pound)
1–2 .1
3 .2
4–5 .3
6–7 .4
8 .5
9–10 .6
11 .7
12–13 .8
14–15 .9
Weight Defrost
(Do not use the shelves when microwave cooking.)
Weight Defrost automatically sets the defrosting times and power levels to give even defrosting results for meats,
poultry and fish weighing up to one pound.
Time Defrost
(Do not use the shelves when microwave cooking.)
12 49-7000085 Rev. 0
Time and Auto Microwave Features
Defrosting Guide
Food Time Comments
Breads, Cakes
Bread, buns or rolls (1
piece)
1/4 min.
Sweet rolls (approx. 12 oz.) 2 to 4 min. Rearrange after half of time.
Fish and Seafood
Fillets, frozen (1 lb.) 6 to 9 min.
Fruit
Plastic pouch—1 or 2 1 to 5 min.
(10-oz. package)
Meat
Bacon (1 lb.) 2 to 5 min.
Place unopened package in oven. Let stand 5 minutes after defrosting.
Franks (1 lb.) 2 to 5 min. Place unopened package in oven. Microwave just until franks can be
separated. Let stand 5 minutes, if necessary, to complete defrosting.
Ground meat (1 lb.) 4 to 6 min. Turn meat over after first half of time.
Roast: beef, lamb, veal,
pork
9 to 13 min. per lb. Use power level 10.
Steaks, chops and cutlets 4 to 8 min. per lb. Place unwrapped meat in cooking dish. Turn over after first half of time
and shield warm areas with foil. After second half of time, separate pieces
with table knife. Let stand to complete defrosting.
Poultry
Chicken, broiler-fryer, cut up
(2
1
/2 to 3 lbs.)
14 to 20 min. Place wrapped chicken in dish. Unwrap and turn over after first half of
time. After second half of time, separate pieces and place in cooking dish.
Microwave 2 to 4 minutes more, if necessary. Let stand a few minutes to
finish defrosting.
Chicken, whole (2
1
/2 to 3
lbs.)
20 to 25 min. Place wrapped chicken in dish. After first half of time, unwrap and turn
chicken over. Shield warm areas with foil. To complete defrosting, run cool
water in cavity until giblets can be removed.
Cornish hen 7 to 13 min. per lb. Place unwrapped hen in oven breast-side-up. Turn over after first half of
time. Run cool water in cavity until giblets can be removed.
Turkey breast (4 to 6 lbs.) 3 to 8 min. per lb. Place unwrapped breast in microwave-safe dish breast-side-down. After
first half of time, turn breast-side-up and shield warm areas with foil.
Defrost for second half of time. Let stand 1 to 2 hours in refrigerator to
complete defrosting.
USING THE OVEN: Time and Auto Microwave Features
49-7000085 Rev. 0 13
USING THE OVEN: Time and Auto Microwave Features
Time and Auto Microwave Features
1
First, follow directions for Cook Time, Time
Defrost or Combination Fast Cook.
2
Press the Power Level button.
3
Turn the dial clockwise to increase and
counterclockwise to decrease the power
level. Press the dial to enter.
4
Press the Start/Pause button to start
cooking.
Variable power levels add flexibility to microwave
cooking. The power levels on the microwave
oven can be compared to the surface units on
a range. Each power level gives you microwave
energy a certain percent of the time. Power
Level 7 is microwave energy 70% of the time.
Power Level 3 is energy 30% of the time. Most
cooking will be done on High (Power Level
10) which gives you 100% power. Power Level
10 will cook faster but food may need more
frequentstirring,rotatingorturningover.
A lower setting will cook more evenly and need
less stirring or rotating of the food. Some foods
may have better flavor, texture or appearance if
one of the lower settings is used. Use a lower
power level when cooking foods that have
a tendency to boil over, such as scalloped
potatoes.
Rest periods (when the microwave energy
cyclesoff)givetimeforthefoodto“equalize”
or transfer heat to the inside of the food. An
example of this is shown with Power Level 3 -
the defrost cycle. If microwave energy did not
cycle off, the outside of the food would cook
before the inside was defrosted.
Here are some examples of uses for various
power levels:
High 10: Fish, bacon, vegetables, heating
liquids.
Med-High 7: Gentle cooking of meat and
poultry; baking casseroles and reheating.
Medium 5: Slow cooking and tenderizing for
stews and less tender cuts of meat.
Low 2 or 3: Defrosting; simmering; delicate
sauces.
Warm 1: Keepingfoodwarm;softeningbutter.
Power Level
The power level may be entered or changed immediately after entering the time for Cook Time, Time Defrost or
Combination Fast Cook. The power level may also be changed during time countdown.
14 49-7000085 Rev. 0
Microwave Terms
USING THE OVEN: Microwave Terms / Sensor Microwave Features
Term Definition
Arcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:
■the metal shelf being installed incorrectly and touching the microwave walls.
■metal or foil touching the side of the oven.
■foil that is not molded to food (upturned edges act like antennas).
■metal such as twist-ties, poultry pins, gold-rimmed dishes.
■recycled paper towels containing small metal pieces.
■the turntable ring support being installed incorrectly.

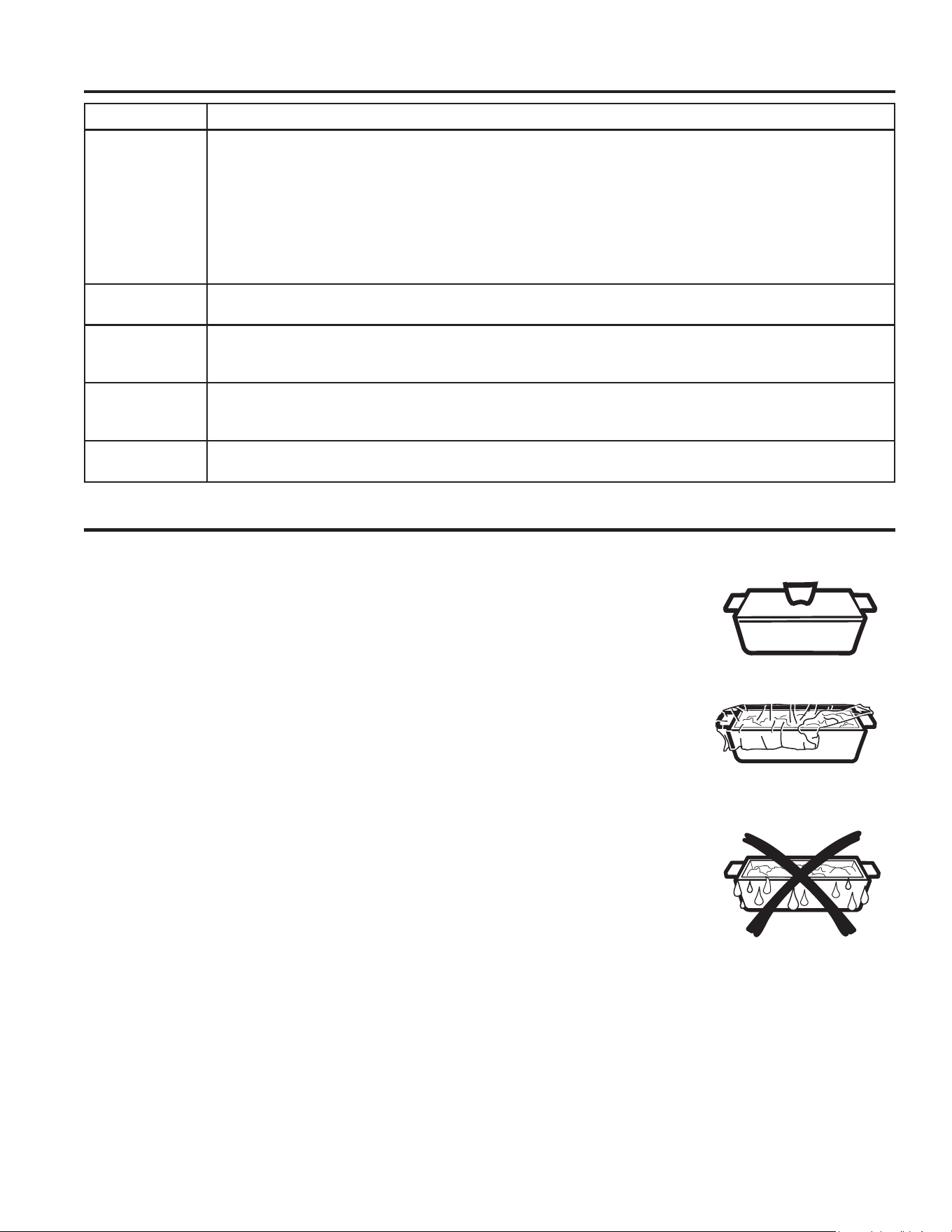

Covering Covers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic wrap or
covering with wax paper allows excess steam to escape.
Shielding In a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When
microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs on
poultry, which would cook before larger parts.
Standing Time When you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish
cooking or to set. Standing time is especially important in microwave cooking. Note that a microwaved
cake is not placed on a cooling rack.
Venting After covering a dish with plastic wrap, you vent the plastic wrap by turning back one corner so excess
steam can escape.
Sensor Microwave Features
Humidity Sensor
What happens when using the Sensor Features:
The Sensor Features detect the increasing humidity
released during cooking. The oven automatically adjusts
the cooking time to various types and amounts of food.
Do not use the Sensor Features twice in succession
on the same food portion—it may result in severely
overcooked or burnt food. If food is undercooked after the
countdown, use Cook Time for additional cooking time.
NOTE: Sensor features will not operate when the oven
is hot. If one of the sensor cooking buttons is pressed
when the temperature inside the oven is greater than
200°F,“OVENTOOHOTFORSENSORCOOKING-
USING ALTERNATE METHOD” will be displayed. The
oven will automatically change to cook by time (follow the
directions in the display) or once the oven is cool enough,
the sensor features will function normally.
■Thepropercontainersand
covers are essential for best
sensor cooking.
■Alwaysusemicrowave-
safe containers and cover
them with lids or vented
plastic wrap. Never use tight
sealing plastic containers -
they can prevent steam from
escaping and cause food to
overcook.
■Besuretheoutsideofthe
cooking containers and the
inside of the microwave
oven are dry before placing
food in the oven. Beads of
moisture turning into steam
can mislead the sensor.
Dry off dishes so they don’t
mislead the sensor.
Vented
Covered
49-7000085 Rev. 0 15
USING THE OVEN: Sensor Microwave Features

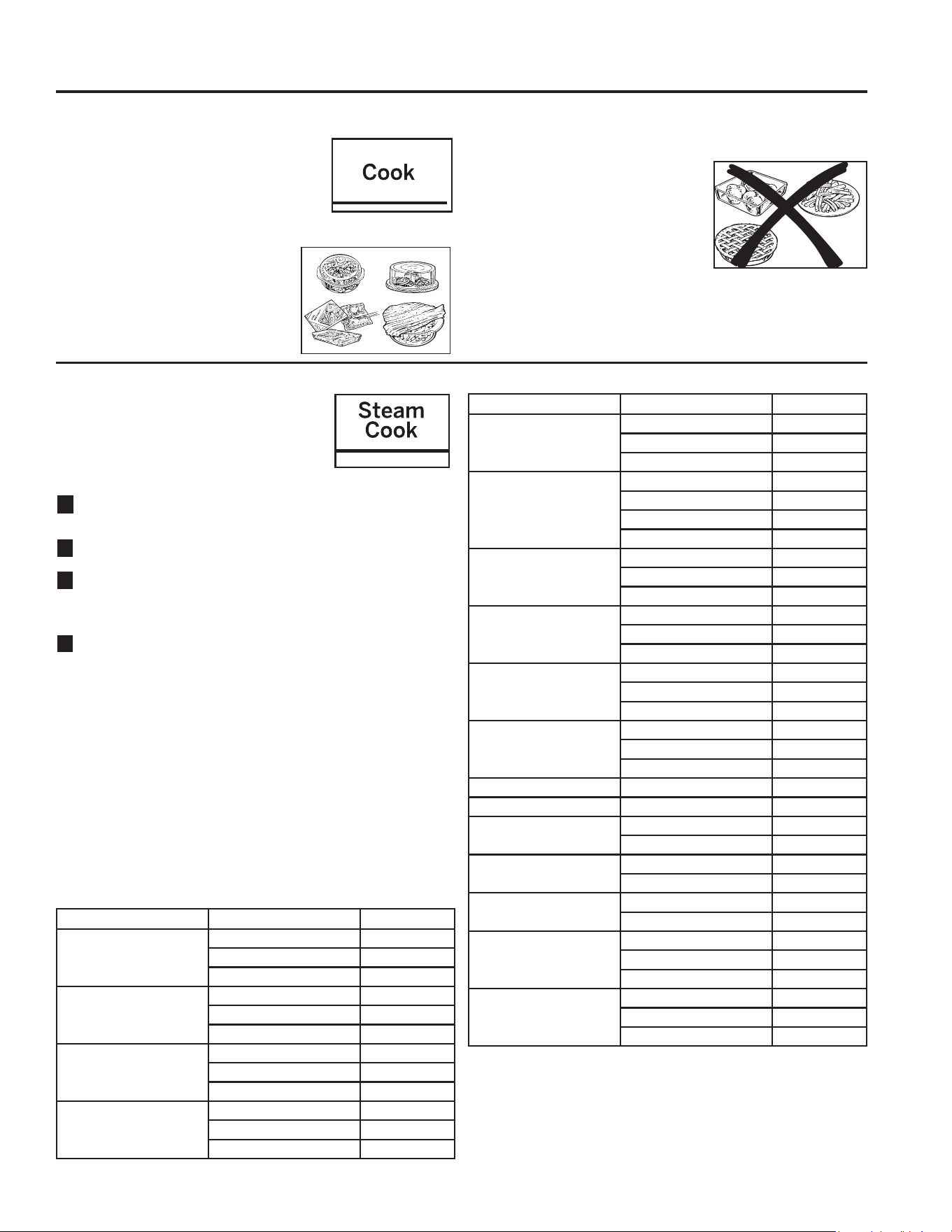

Steam Cook
TIMED STEAM* or SENSOR STEAM**
For best results, use steam or simmer
bowl. Add 2 Tablespoons (200 ml) of
water when steaming vegetables.
1
Press the Steam Cook pad once for Timed Steam or
twice for Sensor Steam cook.
2
Turn the dial to select food type. Press dial to enter.
3
Press the dial to select the amount, size and/or
doneness(ifrequired,theovenwillpromptyou).
Press the dial after each selection.
4
Insert food and close the door.
*Timed Steam is a pre-set time-based cook.
**Sensor Steam is a variable time based on a sensor.
Menu Selection for Sensor Steam**
For best results use 1-4 cups.
● Asparagus ●BrusselsSprouts
● Carrots ●Cauliflower
● Potatoes ●Rice
● Squash ●Zucchini
Menu Selection for Time Steam*
Cook (Do not use the shelves when microwave cooking.)
Because most cooking containers
must be covered during Cook, this
feature is best with foods that you
want to steam or retain moisture.
NOTE: Use of the metal shelf with
Cook is not recommended.
Recommended Foods
A wide variety of foods including
meats, fish and vegetables can be
cooked using this feature.
Foods not recommended
Foods that must be cooked
uncovered,foodsthatrequire
constant attention, foods that
requireadditionofingredients
during cooking and foods calling
for a dry look or crisp surface after
cooking should not be cooked
using this feature. It is best to Cook Time them.
Sensor Microwave Features
Food Amount Time
Asparagus 1 cup 3:40
2 cups 4:40
3 cups 5:40
Broccoli 1 cup 3:30
2 cups 4:15
3 cups 5:00
Brussels 1 cup 3:40
2 cups 4:30
3 cups 5:30
Carrots 1 cup 3:50
2 cups 4:50
3 cups 5:40
Food Amount Time
Cauliflower 1 cup 3:30
2 cups 4:40
3 cups 5:50
Chicken Breast 1 piece (6-8 oz) 6:00
(8-10 oz) 7:00
2 pieces (6-8 oz) 9:00
(8-10 oz) 10:00
Fish, 1 piece thin filet - 1/2" 4:30
medium filet - 1" 5:00
thick filet - 1-1/2" 5:30
Fish - 2 pieces thin filet - 1/2" 5:30
medium filet - 1" 6:00
thick filet - 1-1/2" 6:30
Green Beans 1 cup 3:30
2 cups 4:30
3 cups 5:30
Potatoes 1 ea 7:00
2 ea 10:00
3 ea 13:00
Quinoa 1 cup 20:00
Rice 1 cup 24:00
Scallops -
Bay Scallops
6-10 oz 4:20
10-16 oz 7:00
Sea Scallops 6-10 oz 5:00
10-16 oz 8:00
Shrimp 1/2 pound 5:00
1 pound 7:00
Squash 1 cup 4:00
2 cups 5:30
3 cups 7:00
Zucchini 1 cup 4:00
2 cups 5:00
3 cups 6:00
16 49-7000085 Rev. 0
USING THE OVEN: Sensor Microwave Features
Popcorn (Do not use the shelves when microwave cooking.)
To use the Popcorn feature:
1
Follow package instructions, using Cook Time if the
package is less than 1.5 ounces or larger than 3.5
ounces. Place the package of popcorn in the center of
the turntable.
2
Press the Popcorn button. The oven starts
immediately.
If you open the door while POPCORN SENSOR is
displayed, an error message will appear. Close the door,
press Cancel/O and begin again.
If food is undercooked after the countdown, use Cook
Time for additional cooking time.
How to Adjust the Automatic Popcorn Setting to
Provide a Shorter or Longer Cook Time
If you find that the brand of popcorn you use underpops
or overpops consistently, you can add or subtract 20–30
seconds to the automatic popping time.
To subtract or add time for sensor cook, turn the dial
when the time appears.
Sensor Microwave Features
Use only with prepackaged microwave
popcorn weighing 1.5 to 3.5 ounces.
NOTE: Do not use this feature twice
in succession on the same food
portion—it may result in severely
overcooked or burnt food.
Reheat (Do not use the shelves when microwave cooking.)
The Reheat feature reheats servings of previously
cooked foods or a plate of leftovers.
1
Placethecupofliquidorcoveredfoodintheoven.
Press Reheat and choose food type.
2
The oven signals when steam is sensed and the time
remaining begins counting down.
Do not open the oven door until time is counting down.
If the door is opened, close it and press Start/Pause
immediately.
After removing food from the oven, stir, if possible, to
even out the temperature. Reheated foods may have
wide variations in temperature. Some areas of food may
be extremely hot.
If food is not hot enough after the countdown use Cook
Time for additional reheating time.
Some Foods Not Recommended for Use With Reheat
It is best to use Cook Time for these foods:
■ Bread products.
■ Foods that must be reheated uncovered.
■ Foods that need to be stirred or rotated.
■ Foods calling for a dry look or crisp surface after
reheating.
Beverage (Do not use the shelves when microwave cooking.)
The Beverage feature heats beverages from 6 to 12
ounces.
Press the Beverage button. Then oven start
immediately.
Drinks heated with the Beverage feature may be very
hot. Remove the container with care.
NOTE: Do not use this feature twice in
succession on the same food portion—it may
result in severely overcooked or burnt food.
49-7000085 Rev. 0 17
USING THE OVEN: Sensor Microwave Features
Sensor Microwave Features
Cook (Do not use the shelves when microwave cooking.)
1
Place covered food in the oven and close the door.
Press the Cook button. ENTER FOOD TYPE appears
in the display.
2
Turn the dial to the desired food type. Press to enter.
See the Sensor Food Type Guide below for specific
foods and instructions.
The oven starts immediately.
NOTE: If the door was open while the control was being
set, close the door and press the Start/Pause button to
begin cooking.
If food is undercooked after the countdown, use Cook
Time for additional cooking time.
Do not open the oven door before the countdown time
is displayed—steam escaping from the oven can affect
cooking performance. If the door is opened, close the
door and press Start/Pause immediately.
If ground meat was selected, the oven may signal you
to drain and stir the meat. Open the door, drain the meat
and close the door. Press the Start/Pause button if
necessary to resume cooking.
Cooking Tips
■Whenovensignalsandcountdowntimeisdisplayed,
the door may be opened for stirring, turning or rotating
food. To resume cooking, close the door and press
Start/Pause.
■Matchtheamountoffoodtothesizeofcontainer.Fill
containers at least 1/2 full.
■Besureoutsideofcontainerandinsideofovenaredry.
■AftercompletionofCookcycle,iffoodneedsadditional
cooking, return food to oven and use Cook Time to
finish cooking.
NOTE: Do not use this feature
twice in succession on the same
food portion—it may result in
severely overcooked or burnt
food.
Sensor Food Type Guide
Food Type Servings Serving
Size
Comments
Chicken Bone-In
Boneless
2 to 8 pieces Useoblong,squareorrounddish.Coverwithventedplastic
wrap.
Fish — 4 to 16 oz. Useoblong,squareorrounddish.Coverwithventedplastic
wrap.
Ground Meat (Beef,
Pork, Turkey)
— 8 to 32 oz. Use round casserole dish. Crumble meat into dish. Cover with
vented plastic wrap.
Potatoes — 8 to 32 oz. Pierce skin with fork. Arrange in a star pattern in center of
turntable.
Vegetables Fresh 4 to 16 oz. Use microwave-safe casserole or bowl. Add 2 tablespoons water
for each serving. Cover with lid or vented plastic wrap.
Vegetables Frozen 4 to 16 oz. Use microwave-safe casserole or bowl. Follow package
instructions for adding water. Cover with lid or vented plastic
wrap.
Vegetables Canned 4 to 16 oz. Use microwave-safe casserole or bowl. Cover with lid or vented
plastic wrap.
18 49-7000085 Rev. 0
USING THE OVEN: Baking and Roasting Features
Baking or roasting uses a heating element to raise
the temperature of the air inside the oven. Any oven
temperature from 225°F to 425°F may be set. A fan
gently circulates this heated air throughout the oven, over
and around the food, producing golden brown exteriors
and rich, moist interiors. This circulation of heated air is
called convection.
Because the heated air is kept constantly moving,
not permitting a layer of cooler air to develop around
the food, some foods cook faster than in regular oven
cooking.
For Best Results…
Use one shelf in the lower position and leave at least a
1-inch gap between the cooking dish and the sides of the
oven. For two-level cooking only, use both shelves.
Use the circular rack if possible. If the food is too long to
turn (casseroles, lasagnas, etc.) or too tall to fit (roasts,
etc.), we recommend using the rectangular rack in the
lower position.
Theshelfisrequiredforgoodaircirculationandeven
browning.
See the Cookware Tips section for information on
suggested cookware.
Convection Bake or Convection Roast with Preheat
1
Press the Convection Bake or Convection Roast
button.
2
Turn the dial to set the oven temperature and press
dial to enter. Do not enter bake time now. (The cook
time will be entered later, after the oven is preheated.)
See the Convection Bake Offset section below.
3
Press the dial or the Start/Pause button to start
preheating.
4
When the oven is preheated, it will signal. If you do
not open the door within 1 hour, the oven will turn off
automatically.
5
Open the oven door and, using caution, place the food
in the oven.
6
Close the oven door. Turn the dial to set the cook time
and press the dial or Start/Pause to start cooking.
7
When cooking is complete, the oven will signal and
turn off.
NOTE: You may change the cook
time at any time during cooking by
turning the dial.
You may change the oven
temperature at any time during
cooking by pressing the Power
Level button. Turn the dial to set the
oven temperature and press the dial
to enter.
To view the cook time and oven
temperature during cooking, press
the Bake button.
Convection Bake or Convection without Preheating
1
Ifyourrecipedoesnotrequirepreheating,pressthe
Convection Bake or Convection Roast button. See
the Convection Bake Offset section below.
2
Turn the dial to set the oven temperature and press to
enter.
3
Turn the dial to set the cook time and press to enter.
4
Press the dial or the Start/Pause button to start the
oven.
NOTE: You may change the cook time at any time during
cooking by turning the dial.
You may change the oven temperature at any time during
cooking by pressing the Power Level button. Turn the
dial to set the oven temperature and press the dial to
enter.
To view the cook time and oven temperature during
cooking, press the Convection Bake button.
Baking and Roasting Features

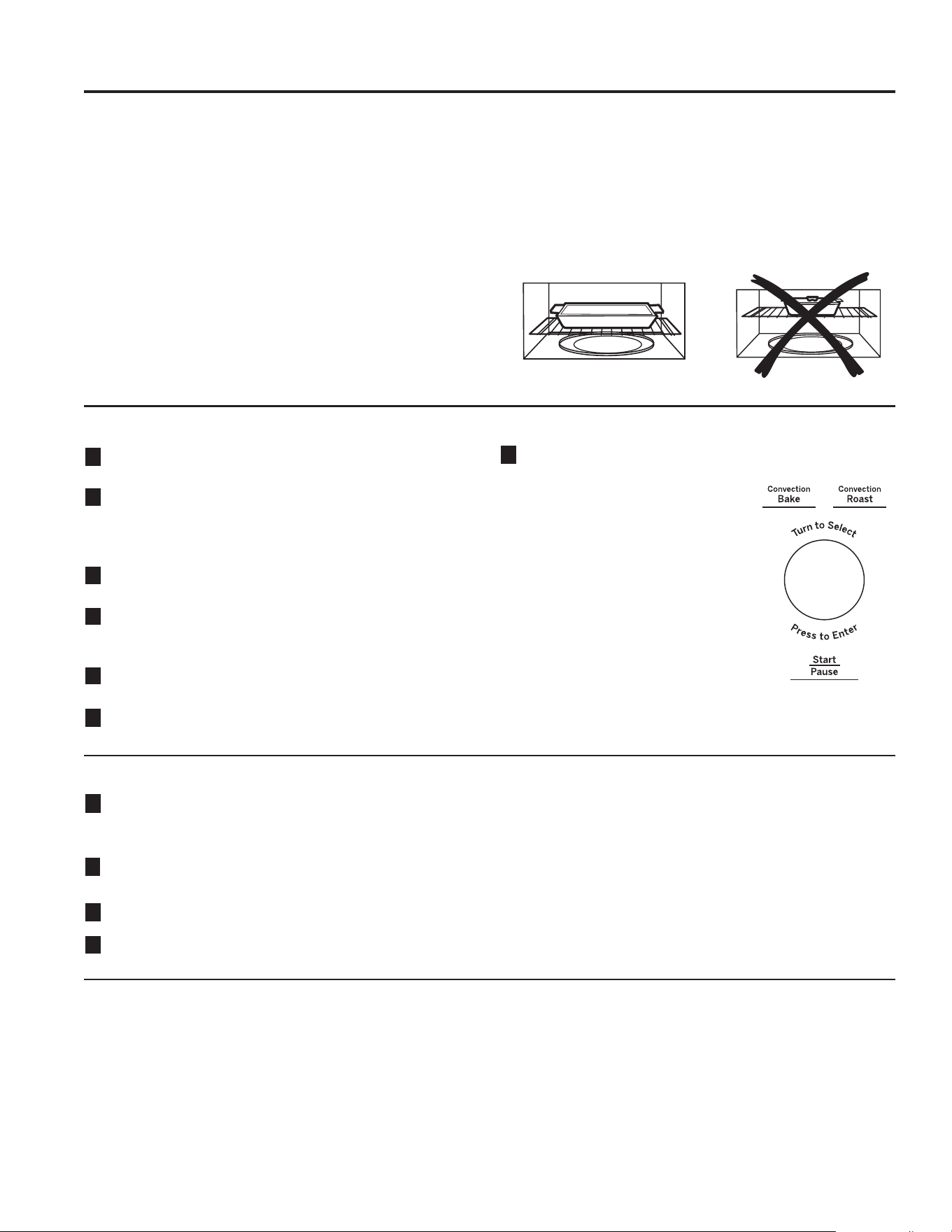

Correct shelf position
Incorrect shelf position
OR
Convection Bake Offset
When using Convection Bake, the Convection Bake
Offset feature will automatically convert entered regular
baking temperatures to convection baking temperatures.
This feature is activated so that the display will show
OFFSET ON and the actual converted (reduced)
temperature. For example, if you enter a regular recipe
temperature of 350°F and press the Start/Pause button,
the display will show the converted temperature of 325°F.
This feature can be turned off in the Settings menu. See
the Convection Bake Offset Selection in the Other
features section.
NOTE: If convection baking and the Convection Bake
Offset feature is turned off, reduce the oven temperature
25°F from the recipe to prevent overbrowning on the top
of baked goods.
49-7000085 Rev. 0 19
USING THE OVEN: Fast Cook Feature
Fast Cook Feature
Fast Cook without Preheat
1
Ifyourrecipedoesnotrequirepreheating,pressthe
Fast Cook button.
2
Turn the dial to set the oven temperature and press
to enter.
3
Turn the dial to set the cook time and press to enter.
4
Press the dial or the Start/Pause button to start
the oven.
NOTE: You may change the cook time at any time
during cooking by turning the dial.
You may change the oven temperature and microwave
power level at any time during cooking by pressing
the Power Level button. Turn the dial to set the oven
temperature and press the dial to enter. Then, turn the
dial to set microwave power level 1 through 3 and press
the dial to enter. The default power level is 3.
To view the cook time and oven temperature during
cooking, press the Fast Cook button.
NOTE:
■ Somerecipescallforpreheating.
■ ChecktheCookware Tips section for correct
cookware when using Fast Cook
■ DonotusemetalcookwarewithFast Cook.
■ SeetheBest Method of Cooking section to
determine the which foods are appropriate to cook
using Fast Cook.
Fast Cook offers the best features of microwave energy
and convection cooking. Microwaves cook food fast
and convection circulation of heated air browns foods
beautifully. Any oven temperature from 225°F to 425°F
may be set.
For Best Results…
Use one shelf in the lower position and leave at least a
1-inch gap between the cooking dish and the sides of
the oven.
Theshelfisrequiredforgoodaircirculationandeven
browning.
See the Cookware Tips section for information on
suggested cookware.
See the Best Method of Cooking section to determine
the which foods are appropriate to cook using Fast
Cook.
Fast Cook with Preheat
1
Press the Combination Fast Cook button.
2
Turn the dial to set the oven temperature and press
dial to enter. Do not enter Fast Cook cook time now.
(The cook time will be entered later, after the oven is
preheated.)
Press the dial or the Start/Pause button to start
preheating.
4
When the oven is preheated, it will signal. If you do
not open the door within 1 hour, the oven will turn off
automatically.
5
Open the oven door and, using caution, place the
food in the oven.
6
Close the oven door. Turn the dial to set the cook
time and press to enter. Press the dial or the Start/
Pause button to start cooking.
7
When cooking is complete, the oven will signal and
turn off.
NOTE: You may change the cook time at any time
during cooking by turning the dial.
You may change the oven
temperature and microwave power
level at any time during cooking
by pressing the Power Level
button. Turn the dial to set the oven
temperature and press the dial to
enter. Then, turn the dial to set
microwave power level 1 through
3 and press the dial to enter. The
default power level is 3.
To view the cook time and oven
temperature during cooking, press
the Fast Cook button.
■ Check the Cookware Tips section
for correct cookware when using
Fast Cook.
■ Do not use metal cookware with Fast Cook.
■ Reduce the recipe cook time by 25%.
■ See the Best Method of Cooking section to determine
the which foods are appropriate to cook using Fast
Cook
Correct shelf position
Incorrect shelf position
20 49-7000085 Rev. 0
USING THE OVEN: Cookware Tips
Cookware Tips
Convection Bake or Roast
Metal Pans are recommended for all types of baked
products, but especially where browning is important.
Dark or dull finish metal pans are best for breads and
pies because they absorb heat and produce crisper
crust.
Shiny aluminum pans are better for cakes, cookies or
muffins because they reflect heat
and help produce a light tender crust.
Glass or Glass-Ceramic casserole or baking dishes
are best suited for egg and cheese recipes due to the
cleanability of glass.
Combination Fast Bake
Glass or Glass-Ceramic baking containers are
recommended. Be sure not to use items with metal trim
as it may cause arcing (sparking) with oven wall or oven
shelf. This can damage the cookware, the shelf or the
oven.
Heat-Resistant Plastic microwave cookware (safe to
450°F) may be used, but it is not recommended for foods
requiringall-aroundbrowning,becausetheplasticisa
poor conductor of heat.
How to use Accessories

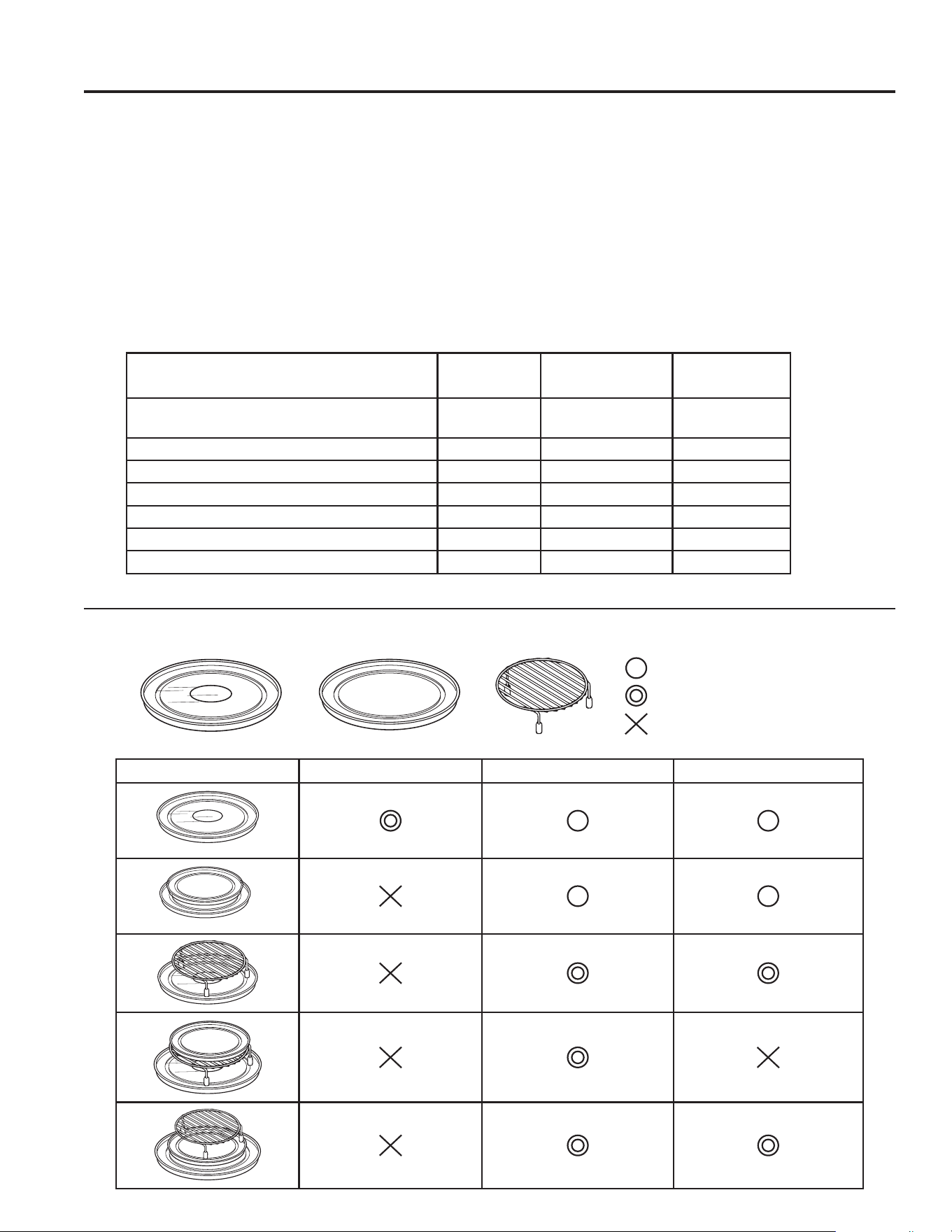

Cookware Microwave
Convection
Bake or Roast
Combination
Fast Cook
Heat-Resistant Glass, Glass-Ceramic (Pyrex
®
,
FireKing
®
, Corning Ware
®
, etc.)
Yes Yes Yes
Metal No Yes No
Non Heat-Resistant Glass No No No
Microwave-Safe Plastics Yes No Yes*
Plastic Films and Wraps Yes No No
Paper Products Yes No No
Straw, Wicker and Wood Yes No No
* Use only microwave cookware that is safe to 450°F.
Microwave Convection Combination
: Possible to use
: Recommended method
: Do not use
Glass Turntable Metal Tray Metal Rack
49-7000085 Rev. 0 21
USING THE OVEN: Best Method of Cooking
Best Method of Cooking
Foods Microwave Bake Roast Fast Cook
Appetizers
Dips and Spreads
Pastry Snacks
Beverages
Sauces and Toppings
Soups and Stews
Meats
Defrosting
Roasting
Poultry
Defrosting
Roasting
Fish and Seafood
Defrosting
Cooking
Casseroles
Eggs and Cheese
Scrambled, Omelets
Quiche, Souffle
Vegetables, (fresh)
Breads
Muffins, Coffee Cake
Quick
Yeast
Desserts
Cakes, Layer and
Bundt
Angel Food and
Chiffon
Custard and Pudding
Bar Cookies
Fruit
Pies and Pastry
Candy
Blanching Vegetables
Frozen Convenience
Foods
Use the following guide to select the best method of cooking. Recipes can be adapted using the guidelines
below to determine the appropriate cooking mode.
22 49-7000085 Rev. 0

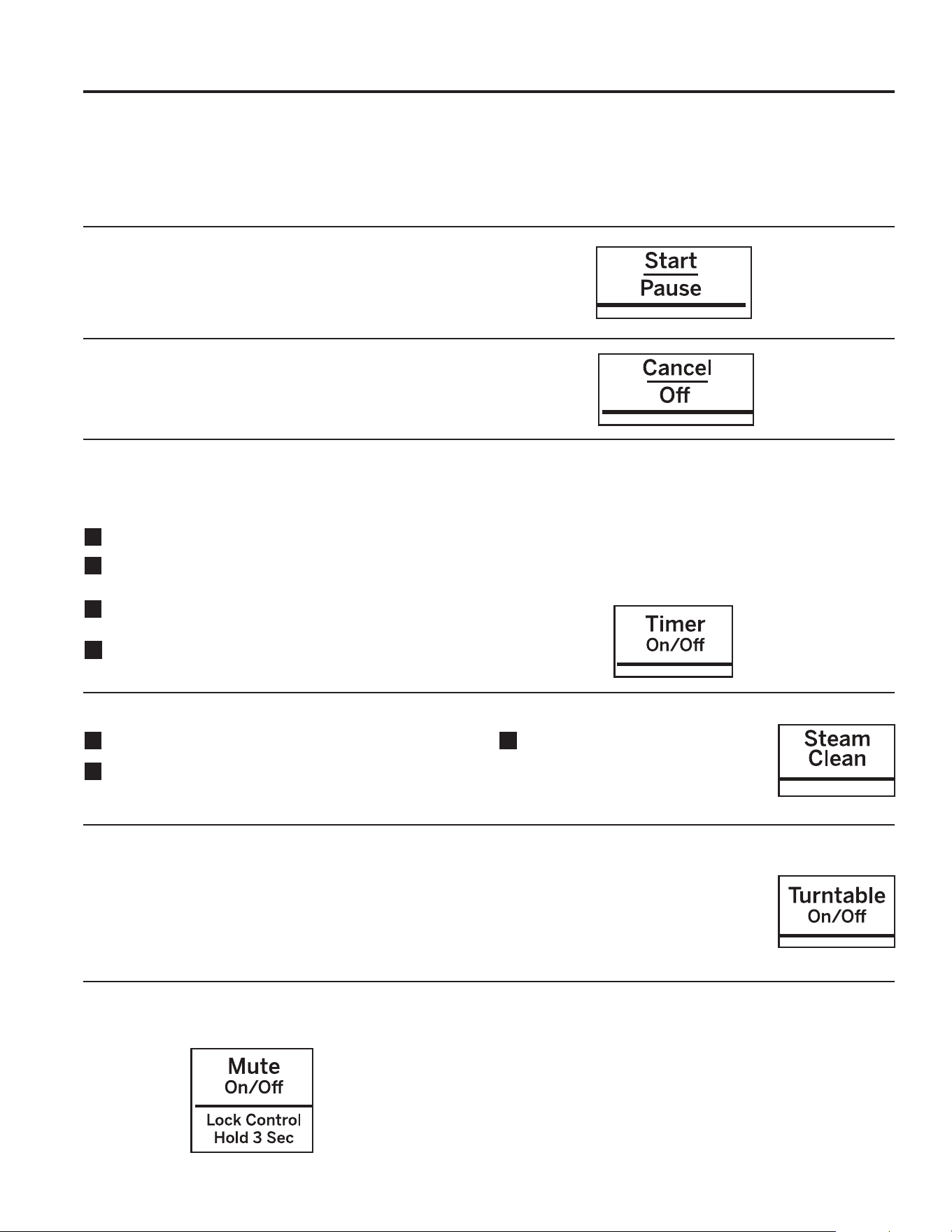

Mute On/Off
You can control sound using Mute On/Off button.
Control Lock-Out
You may lock the control panel to prevent the oven from
being accidentally started during cleaning or being used
by children.
To lock or unlock the controls, press and hold 3 seconds.
When the control panel is locked, CONTROL LOCKED will
be displayed briefly anytime a button or dial is pressed.
USING THE OVEN: Other Features
Other Features
Cooking Complete Reminder
To remind you that you have food in the oven, the oven
will display FOOD IS READY and beep once a minute
until you either open the oven door or press the Cancel/
Off button.
Start/Pause
In addition to starting many functions, Start/Pause allows
you to stop cooking without opening the door or clearing the
display.
Cancel/Off
Press the Cancel/Off button to stop and cancel cooking at
any time.
Timer On/Off
The Timer operates as a minute timer and can be used
at any time, even when the oven is operating.
1
Press the Timer button.
2
Turn the dial to select the minutes. Press the dial to
enter.
3
Turn the dial to select the seconds. Press the dial to
enter
4
Press the dial or Timer to start.
To cancel, press the Timer button.
When time is up, the oven will signal. To turn off the
timer signal, press Timer.
NOTE: The TIMER indicator will be lit while the timer is
operating.
Turntable
For best cooking results, leave the turntable on. It can be
turned off for large dishes.
Press the Turntable On/Off button to stop or start rotating
the turntable.
Sometimes the turntable can become too
hot to touch.
Be careful touching the turntable during
and after cooking.
Steam Clean
1
Press the Steam Clean button.
2
Put steam bowl with 1/4 cup of water.
3
Press the dial or Start/Pause to start.
Once the cycle is terminated, wipe oven
cavity with paper towel or cloth.
49-7000085 Rev. 0 23
USING THE OVEN: Other Features
Other Features
Auto Night Light
Auto Night Light can be set for light on during the
night. The surface light will be set to the LOW brightness
setting at the ON time. At the OFF time the surface light
will be turned off.
1
Press the Settings button and turn the dial to select
Auto Night Light. Press the dial to enter.
2
Turn the dial to select Off to turn off Auto Night
Light function. Press the dial to enter.
Turn the dial to select New to turn on Auto Night
Light function. Press the dial to enter. Enter ON time
and OFF time. Press the dial to enter.
Turn the dial to select Review to review the Auto
Night Light function setting. Press the dial to enter.
Set Clock
1
Press the Settings button and turn the dial to select
Clock Set. Press the dial to enter..
2
Turn the dial to set hours. Press the dial to enter.
3
Turn the dial to set minutes. Press the dial to enter.
4
Turn the dial to set AM/PM. Press the dial to enter.
Clock Mode
Clock Mode can be set for 12 hours and 24 hours.
1
Press the Settings button and turn the dial to select
Clock Mode. Press the dial to enter.
2
Turn the dial to set 12 hours or 24 hours Clock
Mode. Press enter to activate.
Display Speed
Display Speed can be adjusted for Slow, Normal, or
Fast
1
Press the Settings button and turn the dial to select
Display Speed. Press the dial to enter.
2
Turn the dial to set Display Speed (Slow, Normal,
Fast). Press enter to activate.
My Cycle
The Add 30 Sec. button can be adjusted to the My
Cycle features.
1
Press the Settings button and turn the dial to select
My Cycle. Press the dial to enter.
2
Turn the dial to select time (from 5 Sec to 60 Sec)
and press the dial to complete the setting.
Sound Level
Sound Level can be adjusted for
Mute, Low, Normal or Loud.
1
Press the Settings button and
turn the dial to select Sound
Level. Press the dial to enter.
2
Turn the dial to set Sound
Level (Mute, Low, Normal, or
Loud). Press enter to activate.
Surface Light Sync
1
Press the Settings button and turn the dial to select
Surface Light Sync. Press the dial to enter.
2
Turn the dial to select Sync Mode (Off, Low, High).
3
Press the dial to activate.
Vent Fan Sync
1
Press the Settings button and turn the dial to select
Vent Fan Sync. Press the dial to enter.
2
Turn the dial to select Vent Fan Sync Mode (Off,
Low, Medium or High).
3
Press the dial to activate.
Sync Auto Off
1
Press the Settings button and turn the dial to select
Sync Auto Off Press the dial to enter.
2
Turn the dial to select Sync Auto Off (up to 15
minutes and manual). Press enter to activate.
Convect Bake Offset
1
Press the Settings button and turn the dial to select
Convect Bake Offset. Press the dial to enter.
2
Turn the dial to select Convect Bake Offset On/Off
Press enter to activate.
Bake Temp Adjust
1
Press the Settings button and turn the dial to select
Bake Temp Adjust Press the dial to enter.
2
Turn the dial to select Bake Temp Adjust range
from -25 degree to 25 degree. Press enter to
activate.
24 49-7000085 Rev. 0
USING THE OVEN: Other Features
Other Features
Filter Replace Reminder
When the Filter Replace light turned
on, replace filter and press Reset
Filter and hold for 3 seconds to reset.
A filter is only needed for models that
are not vented to the outside.
Surface Light
Press Surface Light once for bright
light, twice for the night light or a third
time to turn the light off.
Vent Fan
The vent fan removes steam and other
vapors from surface cooking.
Press Vent Fan once for high fan
speed, twice for medium fan speed,
three times for low fan speed or a
fourth time to turn the fan off.
Automatic Fan
An automatic fan feature protects the microwave from
too much heat rising from the cooktop below it. It
automatically turns on if it senses too much heat.
If you have turned the fan on you may find that you
cannot turn it off. The fan will automatically turn off when
the internal parts are cool. It may stay on for 30 minutes
or more after the cooktop and microwave controls are
turned off.
Chef Connect
Use the Chef Connect feature
for connecting your microwave to
a Café range to sync your vent
fan, cooktop surface lights and
clock via Bluetooth technology.
1
You must have a Chef Connect enabled range. To
pair your microwave for the first time, initiate the
Chef Connect process on the Café range. Refer to
the range owner’s manual for instructions
2
On the microwave, hold Chef Connect button for 3
seconds. The Bluetooth icon on the display will
start flashing as the microwave starts to search and
pair with your Café range. The icon will remain ON
after pairing successfully.
If a Café range is not found within 2 minutes during
search mode the microwave will stop searching and
the Bluetooth icon will turn OFF.
On initial setup, the setup protocol will start.
If the Chef Connect feature is enabled the default
settings are as follows:
- Display clock sync: ON
- Auto surface light: ON (HIGH setting)
- Auto vent fan: OFF
- Auto off: 15 minutes
3
Turn the dial to select Surface Light Sync On/Off.
Press the dial to confirm. If on, it allows the
microwave surface lights to turn on at HIGH level
automatically when the paired range’s cooktop
burner turns ON. If OFF, the microwave surface
lights will not automatically turn on when a cooktop
burner turns on.
4
Turn the dial to select Vent Fan Sync ON/OFF.
Press the dial to confirm. If ON, it allows the
microwave vent fan to turn on at LOW speed
automatically when the paired range’s cooktop
burner turns on. If OFF, the vent fan will not turn ON
automatically when a cooktop burner is turned on.
Pairing is now complete, the Chef Connect feature
is now on.
NOTE: If there is no sync option selected during set
up, 5 minutes after icon turns ON, the units will
return to stand-by mode and use the default settings.
After completing the setting per above steps, your
microwaves vent fan and surface light could be set
to turn on automatically when the cooktop burner is
turned on. The cooktop and range clock display will
be synced to display the same time. The vent fan
and cooktop light will be set to automatically turn off
15 minutes after the cooktop burner is turned OFF.
If desired, the light, fan, and auto off settings can
now be changed using option in Settings.
Press Chef Connect once to temporarily turn OFF
communication between the microwave and range.
Press again to turn communication back ON. The
icon will illuminate when ON.
In the case of an unintended disconnect such as lost
power to the microwave or range the connection will
remain after power resumed. For very short power
interruptions, the power may need to be reset in
order to reconnect
NOTE: To unpair the microwave from the range,
press and hold the Chef Connect button on the
microwave for 3 seconds. The Bluetooth icon will
start to flash. Press cancel or wait 2 minutes for the
flashing to stop. You may need to unpair when the
Café range is replaced or serviced.
49-7000085 Rev. 0 25

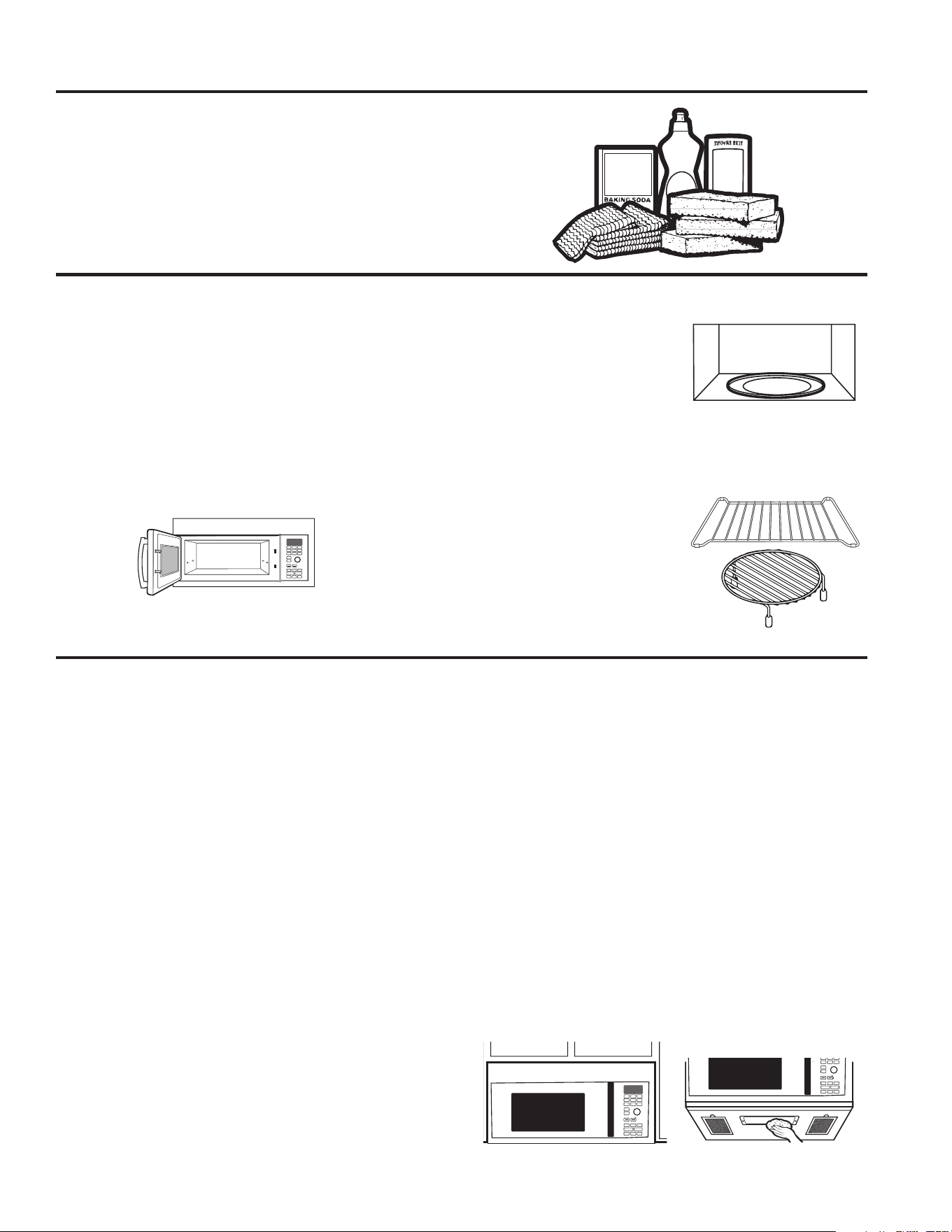

CARE AND CLEANING
Care and Cleaning
Helpful Hints
An occasional thorough wiping with a solution of baking
soda and water keeps the inside fresh.
Be certain the oven control is turned off before
cleaning any part of this oven.
How to Clean the Inside
Walls, Floor, Inside Window, Metal and Plastic Parts
on the Door
Some spatters can be removed with a paper towel;
othersmayrequireadampcloth.Removegreasy
spatters with a sudsy cloth, then rinse with a damp
cloth. Do not use abrasive cleaners or sharp utensils
on oven walls.
Never use a commercial oven cleaner on any part of
your microwave.
Removable Turntable and Turntable Support
To prevent breakage, do not
place the turntable into water
just after cooking. Wash it
carefully in warm, sudsy water
or in the dishwasher. The
turntable and support can be
broken if dropped. Remember, do not operate the oven
in the microwave mode without the turntable and support
seated and in place.
Shelves
Clean with mild soap and
water or in the dishwasher.
Do not clean in a
self-cleaning oven.
How to Clean the Outside
We recommend against using cleaners with ammonia
or alcohol, as they can damage the appearance of
the microwave oven. If you choose to use a common
household cleaner, first apply the cleaner directly to a
clean cloth, then wipe the soiled area.
Case
Clean the outside of the microwave with a sudsy cloth.
Rinse and then dry. Wipe the window clean with a
damp cloth.
Control Panel
Wipe with a damp cloth. Dry thoroughly. Do not use
cleaning sprays, large amounts of soap and water,
abrasives or sharp objects on the panel—they can
damage it. Some paper towels can also scratch the
control panel.
Door Panel
Before cleaning the front door panel, make sure you
know what type of panel you have. Refer to the 11
th
digit of the model number. “S” is stainless steel, “L” is
CleanSteel, "D" is for black slate or dark matte finish
and “B”, “W” or “C” are plastic colors.
Stainless Steel (on some models)
The stainless steel panel can be cleaned with Stainless
Steel Magic or a similar product using a clean, soft cloth.
Apply stainless cleaner carefully to avoid the surrounding
plastic parts. Do not use appliance wax, polish, bleach or
products containing chlorine on Stainless Steel finishes.
Plastic Color Panels
Use a clean, soft, lightly dampened cloth, then dry
thoroughly.
Door Seal
It’s important to keep the area clean where the door
seals against the microwave. Use only mild, non-
abrasive detergents applied with a clean sponge or soft
cloth. Rinse well.
Bottom
Clean off the grease and dust on the bottom often. Use a
solution of warm water and detergent.
T
u
r
n
t
o
S
e
l
e
c
t
P
r
e
s
s
t
o
E
n
t
e
r
Reheat
Timer
On/Off
Defrost
Weight/Time
Start
Pause
Cancel
Off
Lock Controls
Hold 3 Sec
Cook
Time
Set
Clock
Options Help
Surface
Light
Vent Fan
Popcorn
Beverage
Microwave
Express
Warm
Power
Level
Auto
Cook
Combination
Fast Bake
Convection
Roast
Turntable
Convection
Bake
T
u
r
n
t
o
S
e
l
e
c
t
P
r
e
s
s
t
o
E
n
t
e
r
Reheat
Timer
On/Off
Defrost
Weight/Time
Start
Pause
Cancel
Off
Lock Controls
Hold 3 Sec
Cook
Time
Set
Clock
Options Help
Surface
Light
Vent Fan
Popcorn
Beverage
Microwave
Express
Warm
Power
Level
Auto
Cook
Combination
Fast Bake
Convection
Roast
Turntable
Convection
Bake
T
u
r
n
t
o
S
e
l
e
c
t
P
r
e
s
s
t
o
E
n
t
e
r
Reheat
Timer
On/Off
Defrost
Weight/Time
Start
Pause
Cancel
Off
Lock Controls
Hold 3 Sec
Cook
Time
Set
Clock
Options Help
Surface
Light
Vent Fan
Popcorn
Beverage
Microwave
Express
Warm
Power
Level
Auto
Cook
Combination
Fast Bake
Convection
Roast
Turntable
Convection
Bake
26 49-7000085 Rev. 0
CARE AND CLEANING
Replacing LED Lamp
Cooktop Light/Nite Light
Replace with LED lamp. See back cover for ordering
online at cafeappliances.com.
1
To replace the cooktop light/nite light, first disconnect
the power at the main fuse or circuit breaker panel,
or pull the plug.
2
Remove the screw from the side of the light
compartment cover and lower the cover until it stops.
3
Be sure the LED lamp is cool before removing.
Remove a screw and connector from LED lamp.
4
Connect LED lamp and secure using the screw.
Raise the light cover and replace the screw. Connect
electrical power to the oven.
Remove screw.
49-7000085 Rev. 0 27

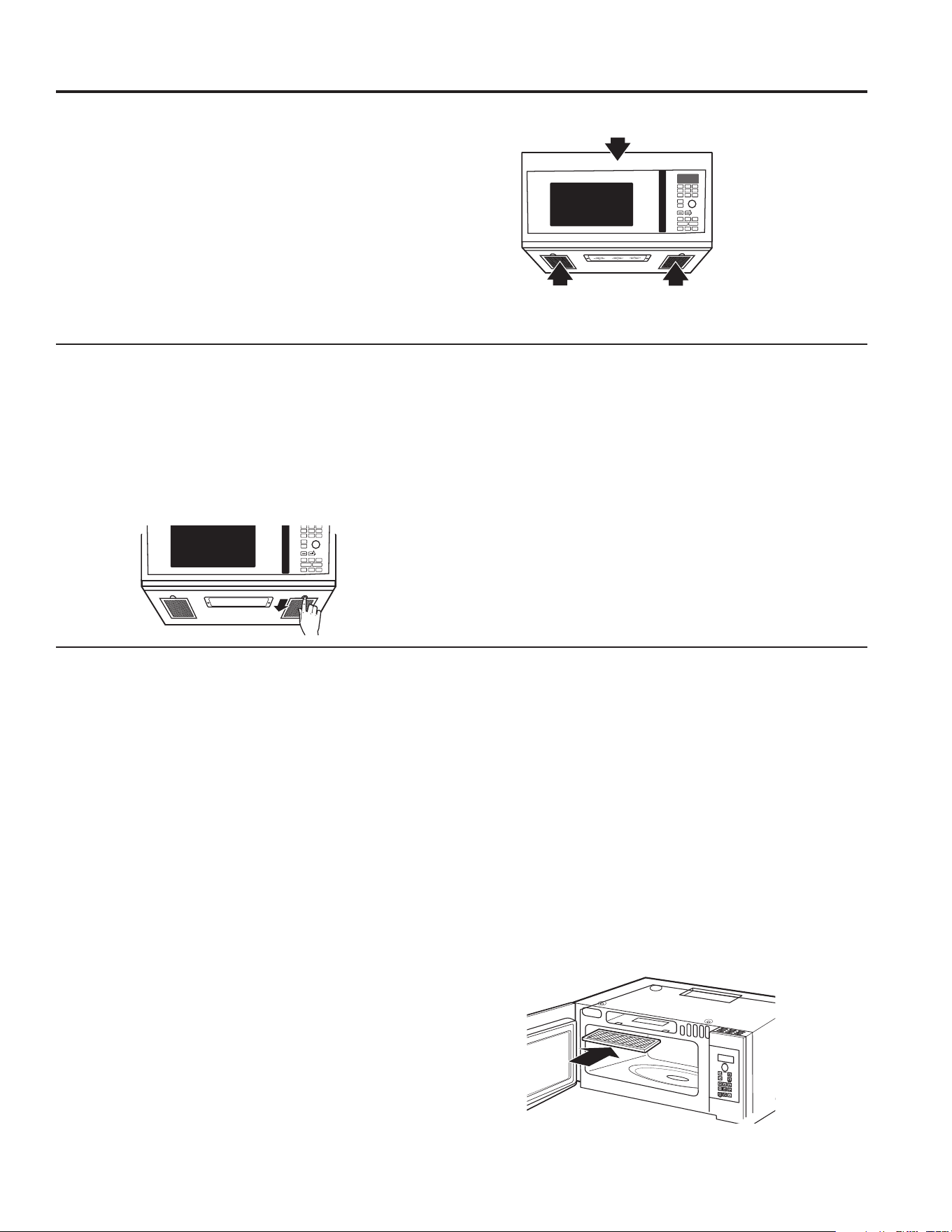

CARE AND CLEANING: Exhaust Feature
Reusable Vent Filters
The metal filters trap grease released by foods on the
cooktop. They also prevent flames from foods on the
cooktop from damaging the inside of the oven.
For this reason, the filters must always be in place when
the hood is used. The vent filters should be cleaned
once a month, or as needed.
Removing and Cleaning the Filters
To remove, slide them to the rear using the tabs. Pull
down and out.
To clean the vent filters, soak them and then swish
around in hot water and detergent. Don’t use ammonia
or ammonia products because they will darken the metal.
Light brushing can be used to remove embedded dirt.
Rinse, shake and let dry before replacing.
To replace, slide the filters into the frame slots on the
back of each opening. Press up and to the front to lock
into place.
Vent Fan
The vent fan has two metal reusable vent filters.
Models that recirculate air back into the room also use a
charcoal filter.
Exhaust Feature
T
u
r
n
t
o
S
e
l
e
c
t
P
r
e
s
s
t
o
E
n
t
e
r
Reheat
Timer
On/Off
Defrost
Weight/Time
Start
Pause
Cancel
Off
Lock Controls
Hold 3 Sec
Cook
Time
Set
Clock
Options Help
Surface
Light
Vent Fan
Popcorn
Beverage
Microwave
Express
Warm
Power
Level
Auto
Cook
Combination
Fast Bake
Convection
Roast
Turntable
Convection
Bake
Reusable vent filters
(on all models).
Charcoal filter
T
u
r
n
t
o
S
e
l
e
c
t
P
r
e
s
s
t
o
E
n
t
e
r
Reheat
Timer
On/Off
Defrost
Weight/Time
Start
Pause
Cancel
Off
Lock Controls
Hold 3 Sec
Cook
Time
Set
Clock
Options Help
Surface
Light
Vent Fan
Popcorn
Beverage
Microwave
Express
Warm
Power
Level
Auto
Cook
Combination
Fast Bake
Convection
Roast
Turntable
Convection
Bake
Charcoal Filter
The charcoal filter cannot be cleaned. It must be
replaced. See back cover for ordering online at
cafeappliances.com
If the model is not vented to the outside, the air will be
recirculated through a disposable charcoal filter that
helps remove smoke and odors.
The charcoal filter should be replaced when it is
noticeably dirty or discolored (usually after 6 to 12
months, depending on usage). See Optional Kits page
30, for more information.
CHARCOAL FILTER REPLACEMENT
1. Unplug the microwave oven.
2. Remove the vent grille mounting screws.
3. Tip the grille forward, then lift out to remove.
4. Remove the charcoal filter.
5. Slide a new charcoal filter into place.
6. Slide the bottom of the vent grille into place.
Push the top until is snaps into place.
Replace the mounting screws
7. Plug in the microwave oven.
28 49-7000085 Rev. 0
TROUBLESHOOTING TIPS
Problem Possible Cause What To Do
Oven will not start A fuse in your home may be blown or
the circuit breaker tripped.
Replace fuse or reset circuit breaker.
Power surge. Unplug the microwave oven, then plug it back in.
Plug not fully inserted into wall outlet. Make sure the 3-prong plug on the oven is fully
inserted into wall outlet.
Door not securely closed. Open the door and close securely.
Control panel lighted, yet
oven will not start
Door not securely closed. Open the door and close securely.
Start/Pause button not pressed after
entering cooking selection.
Press Start/Pause.
Another selection entered already
in oven and Cancel/Off button not
pressed to cancel it.
Press Cancel/Off
Cooking time not entered after pressing
Cook Time.
Make sure you have entered cooking time after
pressing Cook Time.
Cancel/Off was pressedaccidentally. Reset cooking program and press Start/Pause.
Food weight not entered after selecting
Auto Defrost or Fast Defrost.
Make sure you have entered food weight after
selecting Auto Defrost or Fast Defrost.
Food type not entered after pressing
Auto Cook.
Make sure you have entered a food type.
CONTROL LOCKED appears
on display
The control has been locked. Press and hold Mute On/Off for about 3
seconds to unlock the control.
OVEN TOO HOT FOR
SENSOR COOKING---USING
ALTERNATE METHOD
appears on display
One of the sensor cooking buttons was
pressed when the temperature inside
the oven was greater than 200°F.
These features will not operate when the oven
is hot. The oven will automatically change to
cook by time (follow the directions in the display)
or once the oven is cool enough, the sensor
features will function normally.
Floor of the oven is warm
even when the oven has not
been used
The cooktop light is located below the
oven floor. When light is on, the heat it
produces may make the oven floor get
warm.
This is normal.
You hear an unusual low-tone
beep
You have tried to change the power
level when it is not allowed.
Many of the oven’s features are preset and
cannot be changed.
Oven emits a smoky odor and
gray smoke after using the
Bake feature
Oils on the stainless steel cavity are
burning off after using the Bake feature
the first few times.
This is normal.
Food browns on top much
faster than on the bottom
Rack has been placed in the “high”
position.
Always use the rack in its “low” position.
Oven temperature fluctuates
during cooking
The cooking element cycles on and off
to maintain the oven temperature at the
desired setting.
This is normal.
Vent fan comes on
automatically
The vent fan automatically turns on
to protect the microwave if it senses
too much heat rising from the cooktop
below.
This is normal.
During Bake, Roast or Fast Bake
(after preheating), the vent fan will
automatically come on to cool the oven
components.
This is normal.
SENSOR ERROR appears on
the display
When using a Sensor feature, the door
was opened before steam could be
detected.
Do not open door until steam is sensed and time
is shown counting down on the display.
Steam was not detected in a maximum
amount of time.
Use Cook Time to heat for more time.
Troubleshooting Tips... Before you schedule service
Save time and money! Review the charts on the following pages first and you may not need to schedule service.
49-7000085 Rev. 0 29
TROUBLESHOOTING TIPS
Troubleshooting Tips... Before you schedule service
Things That Are Normal With Your Microwave Oven
■ Moisture on the oven door and walls while cooking.
Wipe the moisture off with a paper towel or soft cloth.
■ Moisture between the oven door panels when cooking
certain foods. Moisture should dissipate shortly after
cooking is finished.
■ Steam or vapor escaping from around the door.
■ Light reflection around door or outer case.
■ Dimming oven light and change in the blower sound at
power levels other than high.
■ The vent fan operating while the microwave is
operating. The vent fan will not go off nor can it be
turned off until the microwave is off.
■ Dull thumping sound while oven is operating.
■ Warm, convection bake, convection roast and
combination fast cook have a maximum cooking time
of 179 minutes (2 hours and 59 minutes). When
the maximum cooking time is reached, the oven will
automatically indicate that cooking is complete and
turn off the cooking element.
■ When using convection bake, convection roast or
combination fast cook with a preheat, the oven door
must be opened and the cooking time set after preheat
or the oven will turn off the cooking element after
1 hour.
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY
INTERFERENCE STATEMENT (U.S.A. ONLY)
ThisequipmentgeneratesandusesISMfrequency
energy and if not installed and used properly, that is in
strict accordance with the manufacturer’s instructions,
may cause interference to radio and television
reception. It has been type tested and found to comply
withlimitsforISMEquipmentpursuanttopart18of
FCC Rules, which are designed to part 18 of FCC
Rules, which are designed to provide residential
installation.
However, there is no guarantee that interference will not
occurinaparticularinstallation.Ifthisequipmentdoes
cause interference to radio or television reception, which
canbedeterminedbyturningtheequipmentoffandon,
the user is encouraged to try to correct the interference
by one or more of the following:
■Reorientthereceivingantennaoftheradioor
television.
■RelocatetheMicrowaveOvenwithrespecttothe
receiver.
■Movethemicrowaveovenawayfromthereceiver.
■Plugthemicrowaveovenintoadifferentoutletsothat
the microwave oven and the receiver are on different
branch codes.
The manufacturer is not responsible for any radio of TV
interference caused by unauthorized modification to this
microwave oven. It is the responsibility of the user to
correct such interference.
Thisequipmenthasbeentestedandfoundtocomply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interferenceinaresidentialinstallation.Thisequipment
generates,usesandcanradiateradiofrequencyenergy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
Ifthisequipmentdoescauseharmfulinterferenceto
radio or television reception, which can be determined
byturningtheequipmentoffandon,theuseris
encouraged to try to correct the interference by one or
more of the following measures:
■Reorientorrelocatethereceivingantenna.
■Increasetheseparationbetweentheequipmentand
receiver.
■Connecttheequipmentintoanoutletonacircuit
different from that to which the receiver is connected.
■Consultthedealeroranexperiencedradio/TV
technician for help.
TosatisfyFCCRFexposurerequirements,aseparation
distance of 20 cm or more should be maintained
between the antenna of this device and persons during
device operation.
To ensure compliance, operations at closer than this
distance is not recommended.
WARNING
Any changes or modifications to this
unit not expressly approved by the
party responsible for compliance could void the user’s
authoritytooperatetheequipment.
30 49-7000085 Rev. 0
Optional Kits
OPTIONAL KITS

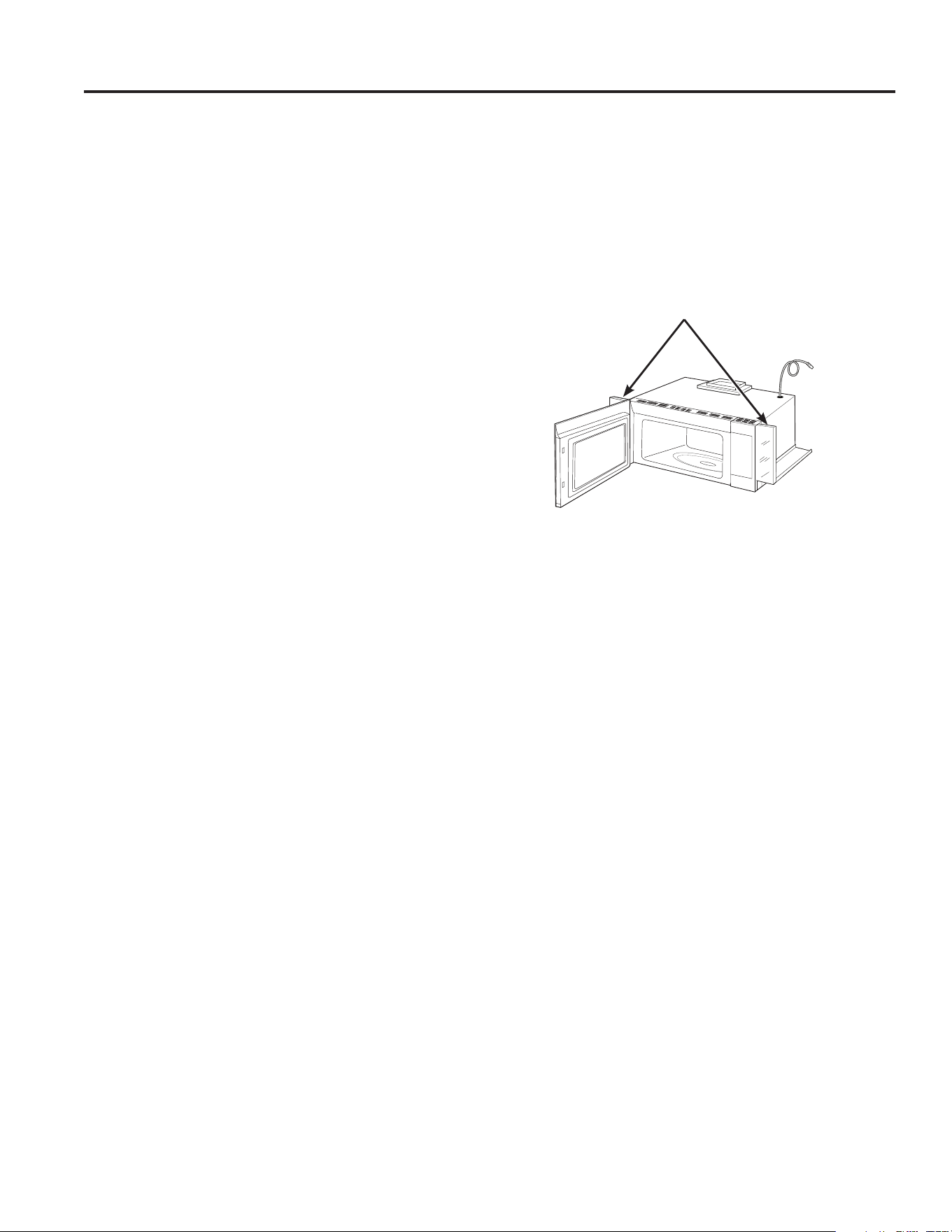

Filler Panel Kits
CVM517P2MS1
JX36BSS – Stainless
CVM517P3MD1
JX36BDS – Black Slate
When replacing a 36" range hood, filler panel kits fill
in the additional width to provide a custom built-in
appearance.
For installation between cabinets only; not for end-of-
cabinet installation. Each kit contains two 3" wide filler
panels.
■ JX15BUMP - Bump Out Kit
When installing a microwave in a kitchen with 15” deep
cabinets,thebumpoutkitisrequired.Thekitallows
the microwave to be installed 3 inches further out which
prevents the cabinets from blocking the ventilation holes
at the top of the microwave grill.
Filter Kits
Filter kits are used when the oven cannot be vented to
the outside.
Available at extra cost from your Café Appliances
supplier. See the back cover for ordering online at
cafeappliances.com.
Available at extra cost from your Café supplier.
FilterPanelKits
49-7000085 Rev. 0 31
Staple your receipt here. Proof of the original purchase
date is needed to obtain service under the warranty.
cafeappliances.com
All warranty service is provided by our Factory Service Centers, or an authorized service technician. To schedule
service online, visit us at cafeappliances.com/service.
What Café will not cover:
■ Servicetripstoyourhometoteachyouhowtouse
the product.
■ Improperinstallation,deliveryormaintenance.Ifyou
have an installation problem, contact your dealer or
installer.Youareresponsibleforprovidingadequate
electrical, exhausting, and other connecting facilities.
■ Failureoftheproductordamagetotheproductifitis
abused, misused (for example, cavity arcing from wire
rack or metal/foil), or used for other than the intended
purpose or used commercially.
■ Replacementofhousefusesorresettingofcircuit
breakers.
■ Damagetotheproductcausedbyaccident,fire,
floods or acts of God.
■ Incidentalorconsequentialdamagecausedby
possible defects with this appliance.
■ Damagecausedafterdelivery.
■ Productnotaccessibletoproviderequiredservice.
■ Servicetorepairorreplacelightbulbs,exceptforLED
lamps.
■ Damagetothefinish,suchassurfacerust,tarnish,or
small blemishes not reported within 48 hrs of delivery.
LIMITED WARRANTY
Café Microwave Oven Limited Warranty
EXCLUSION OF IMPLIED WARRANTIES
Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties,
including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or
the shortest period allowed by law.
This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. If the product is located in an area where service by a Café Appliances Authorized Servicer is not
available,youmayberesponsibleforatripchargeoryoumayberequiredtobringtheproducttoanAuthorizedCafé
Appliances Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to
your home.
Somestatesdonotallowtheexclusionorlimitationofincidentalorconsequentialdamages.Thislimitedwarranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: GE Appliances, a Haier company
LouisvilleKY,40225
For the period of Café will replace
One year
From the date
of the original
purchase
Any part of the oven which fails due to a defect in materials or workmanship. During this
limited one-year warranty, Café Appliances will also provide, free of charge, all labor and
related service costs to replace the defective part when the unit is serviced.
Five years
From the date
of the original
purchase
The magnetron tube, if the magnetron tube fails dues to a defect in materials or
workmanship. During this five-year limited warranty, you will be responsible for any labor or
in-home service costs.
32 49-7000085 Rev. 0
Printed in the Malaysia
Consumer Support
CONSUMER SUPPORT
Café Website
Haveaquestionorneedassistancewithyourappliance?TrytheCafé Appliances Website 24 hours a day, any day
of the year! You can also shop for more great Café Appliances products and take advantage of all our on-line support
services designed for your convenience. cafeappliances.com
Register Your Appliance
Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced
communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the
pre-printed registration card included in the packing material. cafeappliances.com/register
Schedule Service
Expert Café repair service is only one step away from your door. Get on-line and schedule your service at your
convenience any day of the year. cafeappliances.com/service
Extended Warranties
Purchase a Café extended warranty and learn about special discounts that are available while your warranty is still in
effect. You can purchase it on-line anytime. Café Appliances Services will still be there after your warranty expires.
cafeappliances.com/extended-warranty
Remote Connectivity
For assistance with wireless network connectivity (for models with remote enable), visit our website at
cafeappliances.com/connect
Parts and Accessories
Individualsqualifiedtoservicetheirownappliancescanhavepartsoraccessoriessentdirectlytotheirhomes
(VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day.
cafeappliances.com/parts
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel. Caution must be exercised, since improper
servicing may cause unsafe operation.
Contact Us
If you are not satisfied with the service you receive from Café Appliances, contact us on our Website with all the
details including your phone number, or write to: General Manager,
