TOPCHEST/MID-BOX/ROLLCAB - HEAVY DUTY
MODEL NO: AP6601, AP6610, AP6612.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &
CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO
SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE
FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using these units.
Locate the units in a suitable work area.
Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Use the Rollcab on level and solid ground, preferably concrete.
9 Keep the units clean and tidy in accordance with good workshop practice.
9 Keep children and unauthorised persons away from the work area.
8 DO NOT use these units for any purpose other than that for which they are designed.
8 DO NOT use the units outdoors.
8 DO NOT place the units in a damp or wet location or an area where there is condensation.
8 DO NOT clean the units with any solvents which may damage the surfaces or the protective coating.
8 DO NOT move the units with the drawers out. To avoid tipping, open one drawer at a time and close and secure all drawers whilst
moving the rollcab.
8 DO NOT step on the drawers.
8 DO NOT overload the drawers, weight limit per drawer is 36kg.
2. INTRODUCTION
All heavy gauged steel construction and manufactured with steel inner walls for extra strength and durability. Heavy-duty 45mm ball-
bearing drawer slides provide superior performance and carry heavier loads. Full height rear locking mechanism, locks full-length
drawers in multiple locations. Added security provided by tumbler lock, supplied with two folding keys. Rust and solvent resistant
powder coat paint nish. Each drawer features aluminium drawer pulls and non-slip liners.
3. SPECIFICATION
TOPCHEST
Model No: ..........................................................AP6610
Overall Size: ...................................1655 x 435 x 495mm
Small Drawer (x4): ...........................1200 x 405 x 50mm
Full Width Large Drawer (x1): ........1200 x 405 x 130mm
Small 1/2 Drawer (x4): .......................325 x 405 x 50mm
Large 1/2 Drawer (x1): .....................325 x 405 x 130mm
MID-BOX
Model No: ..........................................................AP6601
Overall Size: ...................................1665 x 440 x 170mm
Full Width Large Drawer (x1): ........1570 x 405 x 105mm
ROLLCAB
Model No: .....................................................AP6612.V2
Overall Size: .................................1680 x 465 x 1005mm
Large Drawer (x1): .........................1570 x 405 x 105mm
Small Drawer (x5): ...........................1200 x 405 x 50mm
Large Drawer (x1) ..........................1200 x 405 x 130mm
Small 1/2 Drawer (x4): .......................325 x 405 x 50mm
X-Large 1/2 Drawer (x1): ..................325 x 405 x 235mm
Refer to
instruction
manual
AP6601, AP6610, AP6612.V2 Issue 2 (ALL) 22/09/23
Original Language Version
© Jack Sealey Limited
4. ASSEMBLY AND USE
NOTE: These units are heavy, obtain the help of at least one other person before attempting to unpack them.
4.1. AP6612.V2
4.1.1. Attach the wheels to the bottom of the rollcab using 4 bolts, washers and spacers (if supplied) per wheel.
4.1.2. The braked swivel wheels should be mounted on the same end as the handle (left hand side), the normal swivel wheels in the middle
and the locked wheels at the far end (g.1).
4.1.3. Mount the side mounted handle onto the cabinet and attach with 4 bolts and washers (g.3).
4.2. ALL UNITS
4.2.1. AP6610 or AP6601 can be placed on top of AP6612.V2, alternatively all 3 units can be assembled together.
4.2.2. To remove a drawer with roller sliders, pull the drawer completely out, press down the left tab and lift up the right tab, pull drawer off the
slides (g.2).
4.2.3. To reinstall the drawer, realign with the internal drawer slide and push until it locks in place.
IMPORTANT: To avoid tipping, open one drawer at a time and close and secure all drawers whilst moving the rollcab/units.
Periodically lubricate wheel axles and tighten all nuts and bolts.

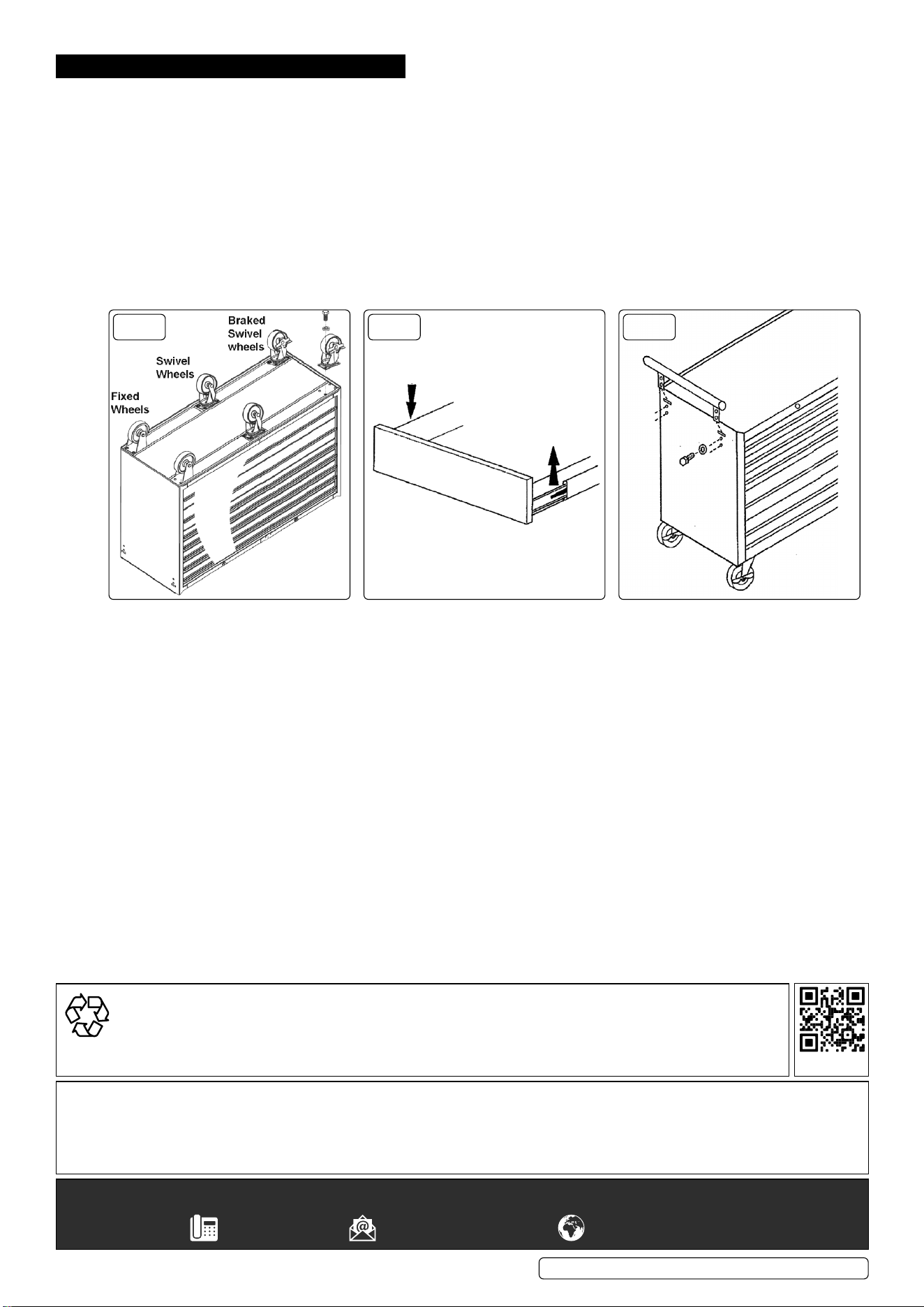

FIG.1 FIG.3FIG.2
