SPECIFICATIONS
LOUDSPEAKERS CH7140 CH6950 CH6940 CH6930 CH6920 CH6530 CH6520/CH6500/CH6552 CH5730
POWER HANDLING, PEAK 700W 600W 500W 400W 350W 300W 250W/200W 300W
IMPEDANCE 4 OHM 4 OHM 4 OHM 4 OHM 4 OHM 4 OHM 4 OHM 4 OHM
FREQUENCY RESPONSE 45Hz–20kHz 45Hz–20kHz 50Hz–20kHz 50Hz–20kHz 50Hz–20kHz 100Hz–18kHz 100Hz–18kHz 100Hz–18kHz
SPL 1 WATT/1 METER 93 dB 93 dB 92 dB 92 dB 92 dB 90 dB 90 dB 90 dB
CONE MATERIAL POLY INJECTION POLY INJECTION POLY INJECTION POLY INJECTION POLY INJECTION POLY INJECTION POLY INJECTION POLY INJECTION
VOICE COIL 1-1/4" ALUMINUM 1-1/4" ALUMINUM 1-1/4" ALUMINUM 1" ALUMINUM 1" ALUMINUM 1" ALUMINUM 1" ALUMINUM 1" ALUMINUM
TWEETER(S) 1" POLYIMIDE DOME 1" POLYIMIDE DOME 1" POLYIMIDE DOME 3/4" PIEZO 2" POLYIMIDE DOME 1/2" PIEZO 1" POLYIMIDE DOME 1/2" PIEZO
(2) 1/2" PIEZO (2) 1/2" PIEZO 1/2" PIEZO – – 1" POLYIMIDE DOME – 1" POLYIMIDE DOME
MIDRANGE 2-1/2" POLYIMIDE CONE 2-1/2" POLYIMIDE CONE 2-1/2" POLYIMIDE CONE 2" POLYIMIDE CONE – – – –
MOUNTING DEPTH 3-1/8" 3-1/8" 3-1/8" 3-1/8" 2-15/16" 2-1/8" 2-1/8"/1-3/4"/1-9/16" 2-1/16"

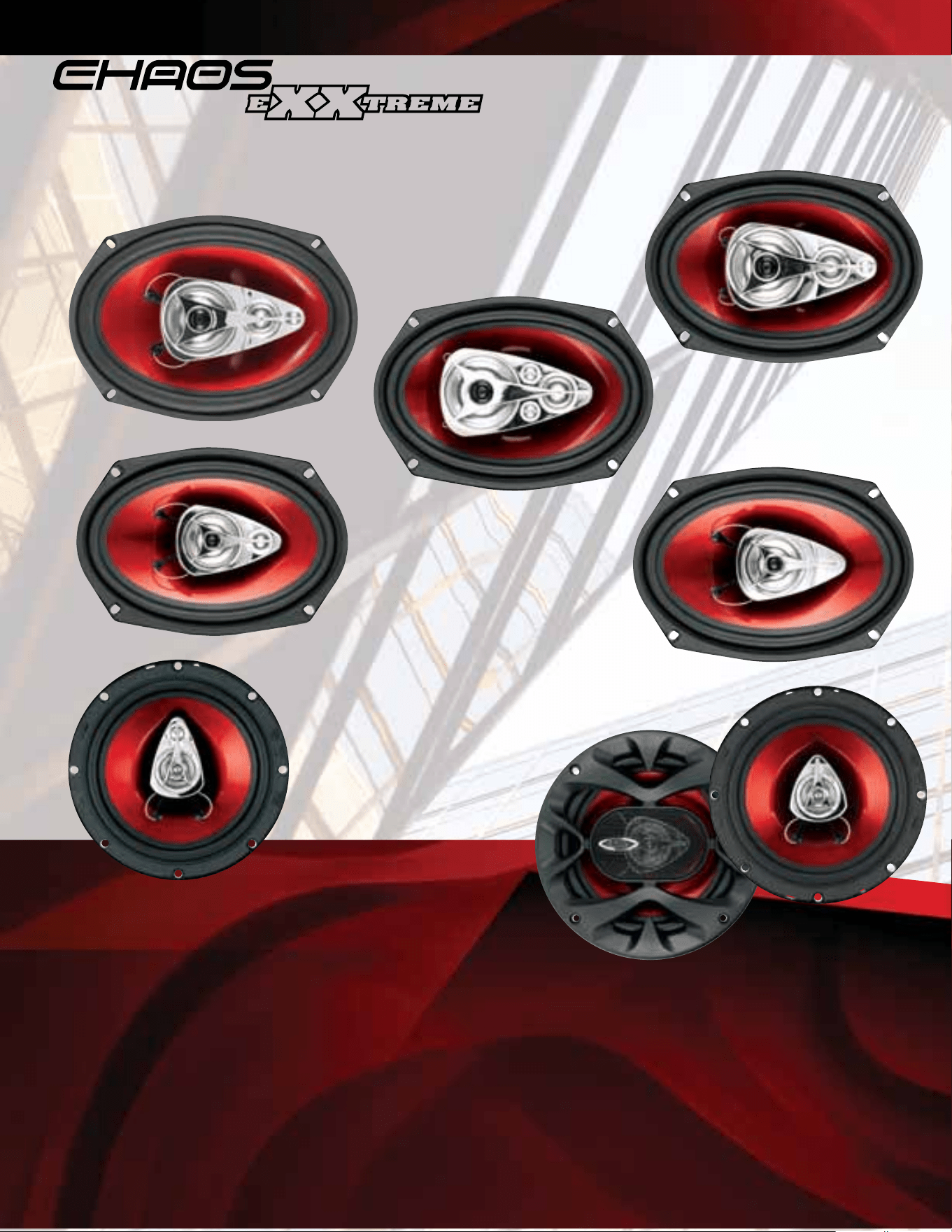

One look and you’ll know why they are called CHAOS
EXXTREME. The red metallic poly injection cone delivers clear
sound while the rubber surround provides smooth response and
durability.
CH6950
6" X 9" 5-WAY SPEAKER
CH6940
6" X 9" 4-WAY SPEAKER
CH7140
7" X 10" 4-WAY SPEAKER
CH6930
6" X 9" 3-WAY
SPEAKER
CH6920
6" X 9" 2-WAY
SPEAKER
CH6530
6.5" 3-WAY SPEAKER
CH6520
6.5" 2-WAY SPEAKER
CH6500
6.5" 2-WAY SLIM MOUNT
SPEAKER
1-3/4" MOUNTING DEPTH
LOUDSPEAKERS AND
SUBWOOFERS
74
CH5720 CH5530 CH5520 CH4630 CH4620 CH4330 CH4230 CH4220 CH3220
225W 225W 200W 250W 200W 400W 225W 200W 140W
4 OHM 4 OHM 4 OHM 4 OHM 4 OHM 4 OHM 4 OHM 4 OHM 4 OHM
100Hz–18kHz 100Hz–18kHz 100Hz–18kHz 100Hz–18kHz 100Hz–18kHz 100Hz–18kHz 100Hz–18kHz 100Hz–18kHz 100Hz–18kHz
90 dB 90 dB 90 dB 90 dB 90 dB 90 dB 90 dB 90 dB 88 dB
POLY INJECTION POLY INJECTION POLY INJECTION POLY INJECTION POLY INJECTION POLY INJECTION POLY INJECTION POLY INJECTION POLY INJECTION
1" ALUMINUM 1" ALUMINUM 1" ALUMINUM 1" ALUMINUM 1" ALUMINUM 1" ALUMINUM 1" ALUMINUM 1" ALUMINUM 1" ALUMINUM
1" POLYIMIDE DOME 1/2" PIEZO 1" POLYIMIDE DOME 1/2" PIEZO 1" POLYIMIDE DOME 1" POLYIMIDE DOME 1/2" PIEZO 1" POLYIMIDE DOME 1" POLYIMIDE DOME
– 1" POLYIMIDE DOME – 1" POLYIMIDE DOME – 2" POLYIMIDE DOME 1" POLYIMIDE DOME – –
– – – – – – – – –
2-1/16" 1-3/4" 1-3/4" 1-3/4" 1-3/4" 2-3/8" 1-11/16" 1-11/16" 1-3/8"

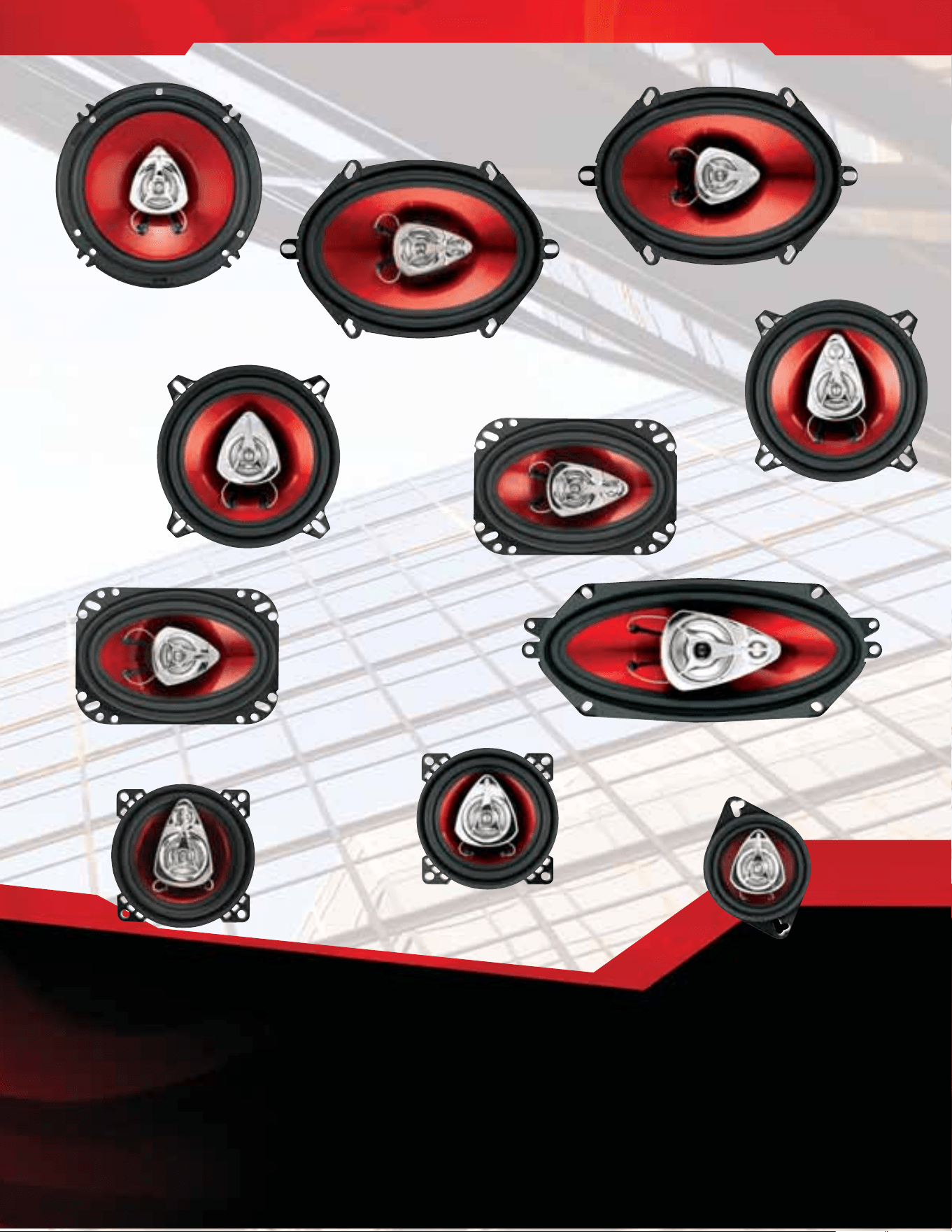

CH5730
5" X 7" 3-WAY
SPEAKER
CH5720
5" X 7" 2-WAY
SPEAKER
CH5530
5.25" 3-WAY
SPEAKER
CH5520
5.25" 2-WAY
SPEAKER
CH4630
4" X 6" 3-WAY
SPEAKER
CH4620
4" X 6" 2-WAY SPEAKER
CH4330
4" X 10" 3-WAY SPEAKER
CH4220
4" 2-WAY SPEAKER
CH4230
4" 3-WAY
SPEAKER
CH3220
3.5" 2-WAY
SPEAKER
CH6552
6.5" 2-WAY DUO-FIT SPEAKER
REPLACES EXISTING 5.25" OR
6.5" SPEAKER
