Page 3Page 2
Projection Alarm Clock with
Indoor Temperature/Humidity & Backlight
Model: 616-1412v4
DC:061422
1. Hold then release the SET button to enter the Settings Menu.
2. Press and release the + or - buttons to adjust the values.
Hold to adjust quickly.
3. Press and release the SET button to confirm and move to the
next item.
Time set order:
• 12/24 hour time • Hour • Minutes • Year • Month • Date
• Fahrenheit/Celsius
Note: Weekday will set automatically when Year, Month, and date
are set.
SETTINGS
POWER UP
1. Insert the stand into bottom of clock.
2. Insert the 5 volt power cord into an outlet, then into your
clock. Optional: Install 2-AAA batteries into your clock.
AAA
AAA
Stand

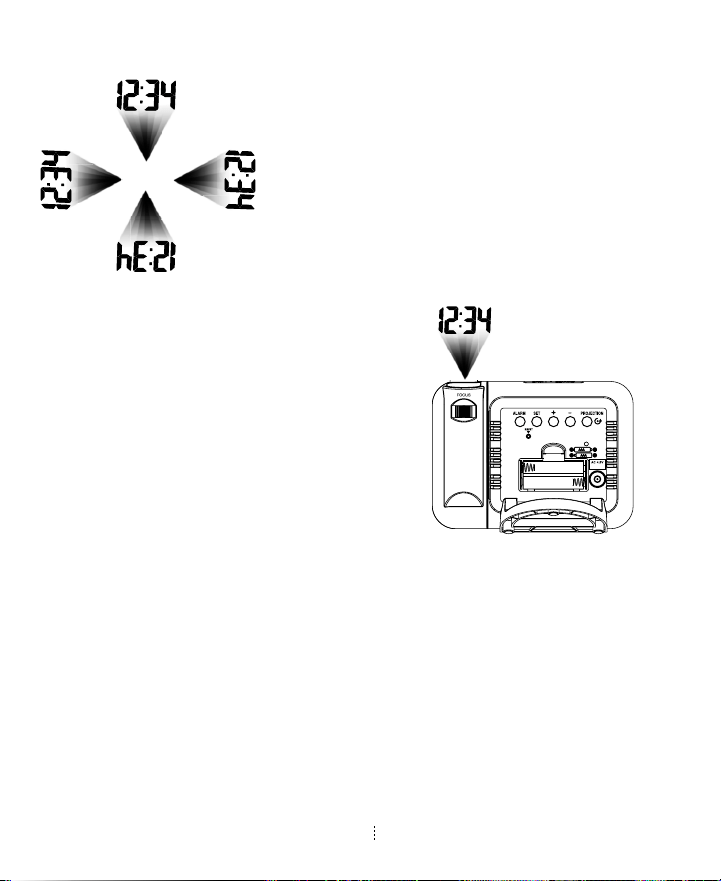

PROJECTION
Rotate Projection:
• Press and release the PROJECTION
button to rotate the image.
• The projected image can be rotated
in 90 degree increments.
Focus Projection:
• Use the Focus Wheel on the back
of your projection arm to provide
a clear projection image.
ADJUSTABLE BACKLIGHT
• Power Cord: Backlight and projection are on constantly.
Press SNOOZE/LIGHT to adjust the backlight:
High-Medium-Low-OFF.
• Batteries only: Press the SNOOZE/LIGHT button for a 10
second backlight and projection.
Note: Power cord use is required for
constant projection.
Full manual can be found under the Support tab here: bit.ly/laxtech_support
Page 3Page 2
Projection Alarm Clock with
Indoor Temperature/Humidity & Backlight
Model: 616-1412v4
DC:061422
1. Hold then release the SET button to enter the Settings Menu.
2. Press and release the + or - buttons to adjust the values.
Hold to adjust quickly.
3. Press and release the SET button to confirm and move to the
next item.
Time set order:
• 12/24 hour time • Hour • Minutes • Year • Month • Date
• Fahrenheit/Celsius
Note: Weekday will set automatically when Year, Month, and date
are set.
SETTINGS
POWER UP
1. Insert the stand into bottom of clock.
2. Insert the 5 volt power cord into an outlet, then into your
clock. Optional: Install 2-AAA batteries into your clock.
AAA
AAA
Stand
PROJECTION
Rotate Projection:
• Press and release the PROJECTION
button to rotate the image.
• The projected image can be rotated
in 90 degree increments.
Focus Projection:
• Use the Focus Wheel on the back
of your projection arm to provide
a clear projection image.
ADJUSTABLE BACKLIGHT
• Power Cord: Backlight and projection are on constantly.
Press SNOOZE/LIGHT to adjust the backlight:
High-Medium-Low-OFF.
• Batteries only: Press the SNOOZE/LIGHT button for a 10
second backlight and projection.
Note: Power cord use is required for
constant projection.
Full manual can be found under the Support tab here: bit.ly/laxtech_support
Page 3Page 2
Projection Alarm Clock with
Indoor Temperature/Humidity & Backlight
Model: 616-1412v4
DC:061422
1. Hold then release the SET button to enter the Settings Menu.
2. Press and release the + or - buttons to adjust the values.
Hold to adjust quickly.
3. Press and release the SET button to confirm and move to the
next item.
Time set order:
• 12/24 hour time • Hour • Minutes • Year • Month • Date
• Fahrenheit/Celsius
Note: Weekday will set automatically when Year, Month, and date
are set.
SETTINGS
POWER UP
1. Insert the stand into bottom of clock.
2. Insert the 5 volt power cord into an outlet, then into your
clock. Optional: Install 2-AAA batteries into your clock.
AAA
AAA
Stand
PROJECTION
Rotate Projection:
• Press and release the PROJECTION
button to rotate the image.
• The projected image can be rotated
in 90 degree increments.
Focus Projection:
• Use the Focus Wheel on the back
of your projection arm to provide
a clear projection image.
ADJUSTABLE BACKLIGHT
• Power Cord: Backlight and projection are on constantly.
Press SNOOZE/LIGHT to adjust the backlight:
High-Medium-Low-OFF.
• Batteries only: Press the SNOOZE/LIGHT button for a 10
second backlight and projection.
Note: Power cord use is required for
constant projection.
Full manual can be found under the Support tab here: bit.ly/laxtech_support
Page 6Page 5Page | 4
If you require additional support, call our friendly customer support team based out
of La Crosse, Wisconsin.
Phone: 1.608-782-1610
Or fill out our online support request form here: bit.ly/contact_techsupport
Our knowledgeable customer support team is available:
Monday-Friday, 8am-6pm CST.
JOIN THE CONVERSATION
Ask questions, watch detailed setup videos, and provide feedback on our social
media outlets!
WE’RE HERE TO HELP!
SPECIFICATIONS
Indoor:
Temperature Range: 32˚F to 122˚F (0˚C to 50˚C)
Humidity Range: 10% to 99% RH
Power:
5.0 Volt power cord included (Required)
HX075-0500550-AU-001
2-AAA batteries not included, backup for time and date
The plug on the power adapter is intended to serve as the disconnect
device, the socket-outlet shall be installed near the equipment and shall
be easily accessible.
Battery Life:
Over 12 months when using reputable batteries
Dimensions:
5.9” L x 2.3” W x 4.4” H inch (14.98cm L x 5.84cm W x 11.17cm H)
ALARM SETTINGS
SNOOZE
• Press the SNOOZE/LIGHT button to silence alarm for 10
minutes. Zz will show.
1. Hold the ALARM button to enter Alarm Settings.
2. Use the + or - button to adjust values. Hold to adjust quickly.
3. Press the ALARM button to confirm adjustments and move
to the next item. The alarm is active when set.
ACTIVATE/DEACTIVATE ALARM
• Press the ALARM button to activate or deactivate the alarm.
Alarm time will show breifly.
• Press ALARM button to stop a sounding alarm for 24 hours.
• When active, the Alarm Icon will show, and will diappear
when deactivated.
• If the clock display appears distorted or is not responding to
buttons, use a pen or paper clip to press the RESET button.
• This will return the clock to default settings.
RESET
WARRANTY INFO
La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product
relating to manufacturing defects in materials & workmanship.
La Crosse Technology, Ltd, 2830 S. 26th St., La Crosse, WI 54601
For Full Warranty Details, Visit: www.lacrossetechnology.com/support
CARE + MAINTENANCE
•
Do not mix old and new batteries.
•
Do not mix Alkaline, Lithium, standard, or rechargeable batteries.
•
Always purchase the correct size and grade of battery most suitable for intended use.
•
Clean the battery contacts and also those of the device prior to battery installation.
•
Ensure the batteries have with correct polarity (+ / -).
•
Remove batteries from equipment that will not to be used for an extended period.
•
Promptly remove expired batteries.
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
CAUTION!
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or processed
using electronic, mechanical or chemical process without the written permission
of the publisher.
This booklet may contain errors or misprints. The information it contains is regularly checked and corrections
are included in subsequent editions. We disclaim any responsibility for any technical error or printing error, or
their consequences. All trademarks and patents are recognized.
CA WARNING: This product can expose you to chemicals including acrylonitrile, butadiene, and
styrene, which are known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information, go to: www.P65Warnings.ca.gov
