MOTORCYCLE LIFT 450KG - 12V ELECTRO/

HYDRAULIC

MODEL NO.: MC454E

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these

instructions, and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY

1.1. GENERAL SAFETY

 WARNING! Disconnect lift from power supply before changing parts, servicing or performing any maintenance.

9 Ensure lift is kept clean and in good working order. Immediately repair or replace damaged parts.

9 Use recommended parts only. Incorrect parts may be dangerous and will invalidate the warranty.

9  Useaqualiedpersontolubricateandmaintainthelift.DO NOTusebrakeuidtotopupsystem.UseSealeyhydraulicoilonly.

9 Locate lift in a suitable, well lit work area. Keep area clean and tidy and free from unrelated materials.

9 Use lift on level and solid ground, preferably concrete, capable of withstanding the weight of the lift and any load placed on it.

9 Avoid tarmacadam since lift may sink in.

9 Ensure all non-essential persons keep a safe distance.

9 Always keep your hands and feet away from moving parts. DO NOT reach under the lift.

8 DO NOT operate the lift if parts are missing or damaged.

8 DO NOT adjust the safety overload valve.

9 Keep the lift clean for best and safest performance.

9 The maximum load is 450kg. DO NOT exceed this rated capacity.

9 Use this lift for lifting purpose only. NOT to be used for lifting persons. DO NOT use it for any other purpose it is not designed to

perform.

9 Keep children and unauthorised persons away from the work area.

9  Removeillttingclothing.Removeties,watches,ringsandotherloosejewellery,andcontainlonghair.

9 Keep proper balance and footing, DO NOT overreach and wear non-slip footwear.

9 Ensure the vehicle is adequately secured to the lifting platform with appropriate straps.

9 Before lowering lift ensure that there are no obstructions underneath and that all persons are standing clear.

8 DO NOT use the lift if damaged, any suspect parts are noted or it has been subjected to a shock load.

8 DO NOToperatetheliftwhenyouaretiredorundertheinuenceofalcohol,drugsoranyintoxicatingmedication.

8 DO NOT allow untrained persons to operate the lift.

8 DO NOTmakeanymodicationstothelift.

8 DO NOT get the lift wet.

9 When not in use remove power supply, and store in the down position in a safe, dry, childproof area.

 WARNING: The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and

situations that may occur. It must be understood that common sense and caution are factors which cannot be built into this product,

but must be applied by the operator.

2. INTRODUCTION

All steel construction with a 450kg capacity. 12V Electro/Hydraulic lifting system for simple, fast operation. Can be powered by a 12V vehicle

batteryoraRoadstartunit.Supportplatformfittedwithfullwidthloadingramp.Suppliedwithmotorcyclefrontwheellockingattachmentfortyre

widthsupto135mmtoassistinsecuringthevehicle.Fittedwithmulti-positionsafetylocktopreventaccidentallowering.Suitableforuseina

garage or shed without the need of mains 230v electricity supply or for a mobile mechanic or race pits. Designed for use with centre or side stand

motorcycles or with a rear paddock stand.

3. SPECIFICATION

Model no: .................................................................MC454E

Capacity: ...................................................................... 450kg

Minimum height: .........................................................215mm

Maximum height: ........................................................760mm

Platform Width: .......................................................... 650mm

Platform Length: .......................................................1828mm

ElectricalPowerSupply: ..................................................12V

MC454E Issue 1 10/10/22

Original Language Version

©JackSealeyLimited

Refer to

instructions

Wear protective

gloves

Wear safety

footwear

No reaching inWarning:

Crushing of

Hands

4. FEATURES

5. ASSEMBLY

 WARNING! The lift is very heavy. Use appropriate mechanical

lifting equipment.

NOTE: Item numbers refer to attached Parts list.

5.1.  Openthepackageandxthe4LiftingPins,washersandlock

nuts (items 5 / 29 / 30 ) to the edge of the frame.

5.2.  Useropes/stropsxedtothe4LiftingPinsandlifttheliftout.

NOTE: Thepumptankislledwithoil.DO NOT incline it

when lifting, so as to avoid the oil being poured out.

5.3. POWER UNIT PREPARATION

5.3.1. Remove the power unit assembly from the package, lift the

handle, align the notch then tighten with two set screws.

5.4. BASE FRAME, SIDE EXTENSIONS and RAMP (item 35, 16)

5.4.1. Raise the base frame slightly and insert the two short support leg

 assembliesintotheframeintheappropriatepositionandxin

 placeusingtheSafetyLatches(item36).

5.4.2.  SlideRamp(item16)intoplaceandxwithcotterpin(item17).

5.5. HYDRAULIC CONNECTION (g 1)

5.5.1. Connect the hydraulic hoses of the power unit and base frame with quick connector, connect the two wires of the power unit to the

battery, then press the lifting switch to raise the platform.

5.6. WHEEL CLAMP (refer to Parts List)

5.6.1.  FixWheelClamps(items44,46)inplaceusingxingsprovided.

5.6.2.  FixBa󰀪ePlate(item45)inplaceusingxingsprovided.

6. OPERATION

 WARNING!Ensurethatyouhaveread,understandandapplytheSection1SafetyInstructions.

 WARNING! DO NOT overload the lift. The maximum load is 450kg.

9 Position the lift in a suitable location, preferably on a concrete surface, capable of withstanding the weight of the motorcycle/vehicle

and the lift.

 WARNING! The motorcycle needs to be fully supported by the platform prior to lifting. The ramp (item 16) is only used to assist

the operator in wheeling the vehicle on to the platform when the lift is at its lowest position.

6.1. Wheel the motorcycle onto the lift and secure the front wheel into the clamp at the front of the lift.

6.2.  SecurethemotorcycletotheliftusingtheLiftingPins(items29)andappropriatestrapping.

6.3. The motorcycle lift already has hydraulic oil added before shipping.

6.4. Once connected to the power, the lift can be used immediately.

6.5. Remove the ramp (item 3) before lifting the platform.

6.6.  Standwellbackfromtheliftwhenliftingorloweringplatformtoavoiddanger.Usetheliftingswitch(g.1)toraisethelift.

6.7. Once at its desired height, lower the lift so that the safety brake engages.

6.8. LOWERING

6.8.1. Check there are no tools, equipment, cables or hoses under the lift.

6.8.2. The safety brake needs to be manually disengaged prior to lowering. Raise the lift to allow the safety brake to be released.

6.8.3. As the lift is completely lowered, the safety brake automatically engages ready for ascending.

NOTE: The safety brake only engages once the lift is completely lowered, NOT if the lift is stopped during descent and raised

 again.InthisinstancethesafetybrakeMUSTbemanuallyengaged.

Original Language Version

MC454E Issue 1 10/10/22

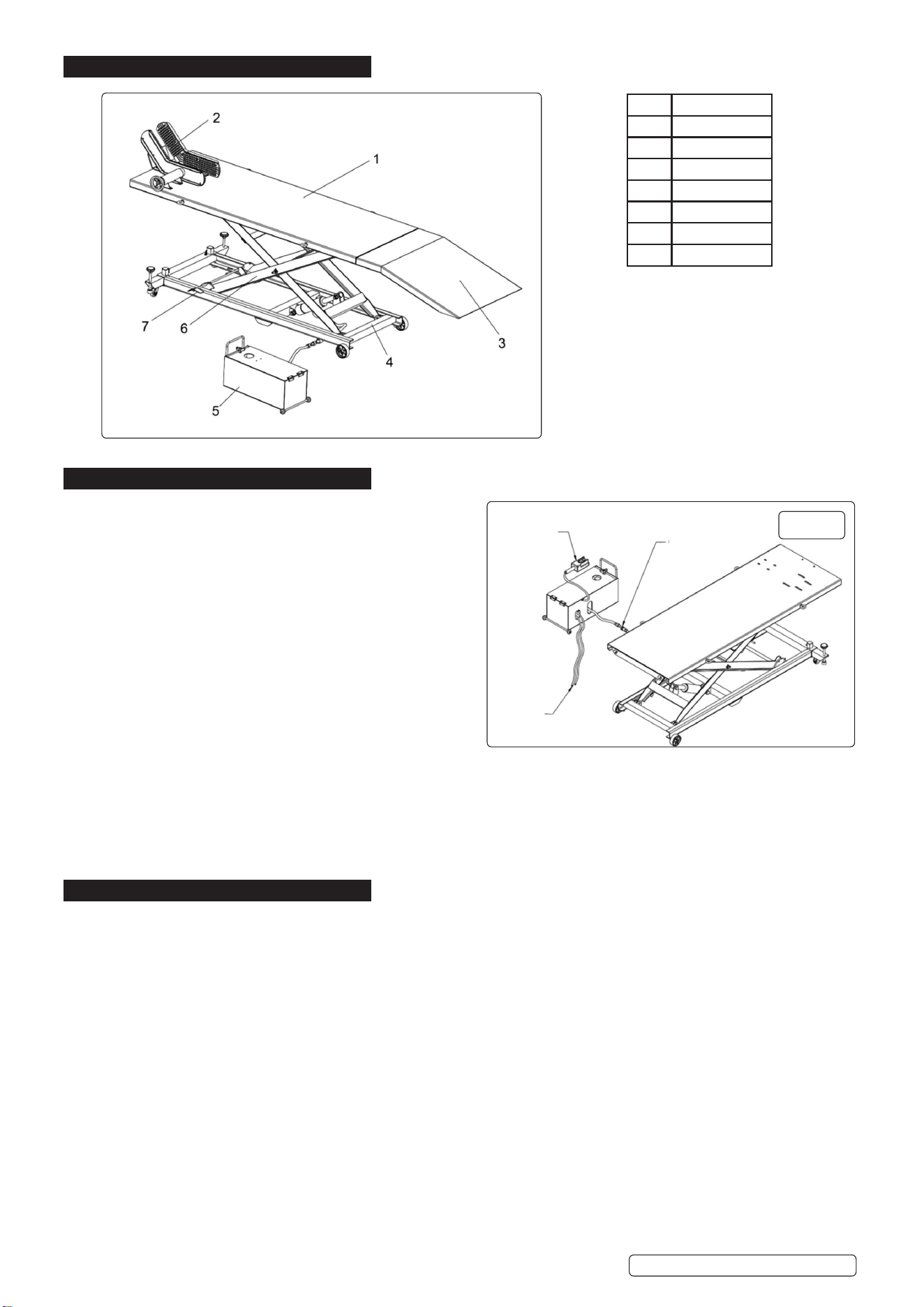

ITEM DESCRIPTION

1 Platform

2 Wheel Clamp

3 Ramp

4 Base Frame

5 Power Unit

6 Lifting Frame

7 Safety Device

g.1

Quick Connector

Battery

Lifting

Switch

7. MAINTENANCE

7.1. Clean and lubricate on a regular basis.

7.2. Before each use check all parts. If any part of the lift is damaged or suspect, remove the lift from service and take

necessary action to repair.

7.3.  Regularlycheckoillevelviallerhole.Withpistonfullydownremovellerplug,oilshouldbelevelwithbottomofllerhole. 

 Top-upasnecessary.UseagoodqualityjackoilsuchasSealeyHydraulicJackOil.DO NOTusebrakeuid.

7.4.  Ensurenodirtentershydraulicsystemwhenllingorremoving/replacingcomponents.

7.5.  Keeptheliftcleanandwipeo󰀨anyoilorgrease.Lubricateallmovingparts.

Original Language Version

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to

a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely

unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids

according to local regulations.

WEEE REGULATIONS

Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment

(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid

waste authority for recycling information.

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts

without prior notice.

Important: No Liability is accepted for incorrect use of this product.

Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.

PURCHASE HERE

MC454E Issue 1 10/10/22
