Instructions for the Use and Care and Installation of
RH-BBQ-1200
RH-BBQ-1500
RH-BBQ-03-1500
Barbeque Range Hoods
Before starting the appliance, please read this operating manual carefully.
Dear Customer,
Thank you for choosing our range hood. This hood has been designed and manufactured
specially with a view to satisfying your expectations and it will certainly constitute a fitting
element of a modern kitchen.
Please read these instructions carefully before installing the hood. They will make you avoid
mistakes during installation and operation of the hood.We wish you a lot of satisfaction from
choosing our range hood.
The installation work must be undertaken by a qualified electrician and competent installer.
The manufacturer disclaims all liability for any damage or injury caused as a result of not
following instructions for installation contained in the following text.
The range hood is rated for use on 220~240V, 50Hz.
GUIDELINES CONCERNING SAFE USE
RECOMMENDATIONS:
1. Check if the voltage value provided on the rating plate corresponds to the local electric
supply parameters.
2. Uncoil and straighten the electric supply cable before the installation.
3. This equipment is not to be used by persons (to include children) with limited physical,
sensory, or mental capacities, unless they do so under supervision or in accordance with the
equipment use instructions given to them by persons who are responsible for their safety.
Children must be prevented from playing with the range hood.
CAUTION:
1. The range hood, which serves the purpose of extracting kitchen vapors to the outside of a
room (working in an exhaust mode) must be connected to a proper ventilation channel (it
must not be connected to chimney ducts, smoke, and combustion gas ducts which are
used).
2. The equipment must be mounted at the height of at least 650 m above the work plate of
the stove. The hood works the most effectively at the height of 650 mm to 750 mm.
3. An open flame must not be left under the range hood.
4. Dishes that are fried on fats should be constantly monitored as overheated fat can easily
be become ignited.
5. The fat filter of the range hood must be replaced every 3 months. A filter that contains too
much fat in flammable.
6. The equipment should be unplugged from the power outlet before replacing the filter or
repairing the range hood.
7.When connecting the range hood to a 240 V power supply network, it must be connected
to an electric outlet which is in good condition.
Electric supply requirements
It is necessary to check if the voltage value stated on the rating plate corresponds to the
electric supply parameters in the house and that the electric supply is marked as ~
(alter-nating current). The range hood is an electric equipment made in the 1st class of fire
protection and it must be connected to an outlet with working protection circuit.
Caution! If a supply cable becomes damage, it must be replaced by the staff of a
professional repair shop.
Our packaging are made of environmentally friendly materials, which can
be reused:
- The external packaging is made of cardboard/foil
- The FCKW free shape of foamed polystyrene(PS)
- Polyethylene (PE) foils and bags
When disposing of the device, do not bring it to regular municipal waste
containers. Instead, bring it to electrical and electronic waste recycling
and reuse center. A relevant label has been put on the device, its
instructions manual, or on the package.
The device has been manufactured of recyclable materials. By bringing
old device to recycling collection center, you show that you care about
nature.
Ask your local environmental care authority for information on location of
such facilities.
INSTALLATION
Installation of the range hood in the exhaust mode
The following rules must be strictly followed to obtain optimal air extraction
• Keep exhaust duct short and straight
• Do not reduce the size or restrict exhaust duct
• When using flexible duct always install the duct pulled taut to minimize pressure loss
• Failure to observe these basic instructions will reduce the performance and increase noise
levels of the range hood
Ensure the exhaust ducting selected for installation complies with relevant standards and is
fire retardant.
1. Using a spirit level mark a vertical centre line on the wall where the hood is to be
positioned, and a horizontal line where the hood base will be.
NOTE: The distance from the horizontal line to an electrical cook-top underneath
must be minimum of 600mm & 650mm to the gas cook top and a maximum height of
750mm (refer to table below).
*If the instructions of the hob specify a greater distance than the minimum above, then that
shall be the minimum height for installation.
2. Remove all of the filters, and hang the range hood onto the expansion bolts and make
any necessary adjustments to ensure horizontal alignment.
3. Tighten all expansion bolts, checking that they are all properly engaged onto the range
hood through the neck of the key holes.

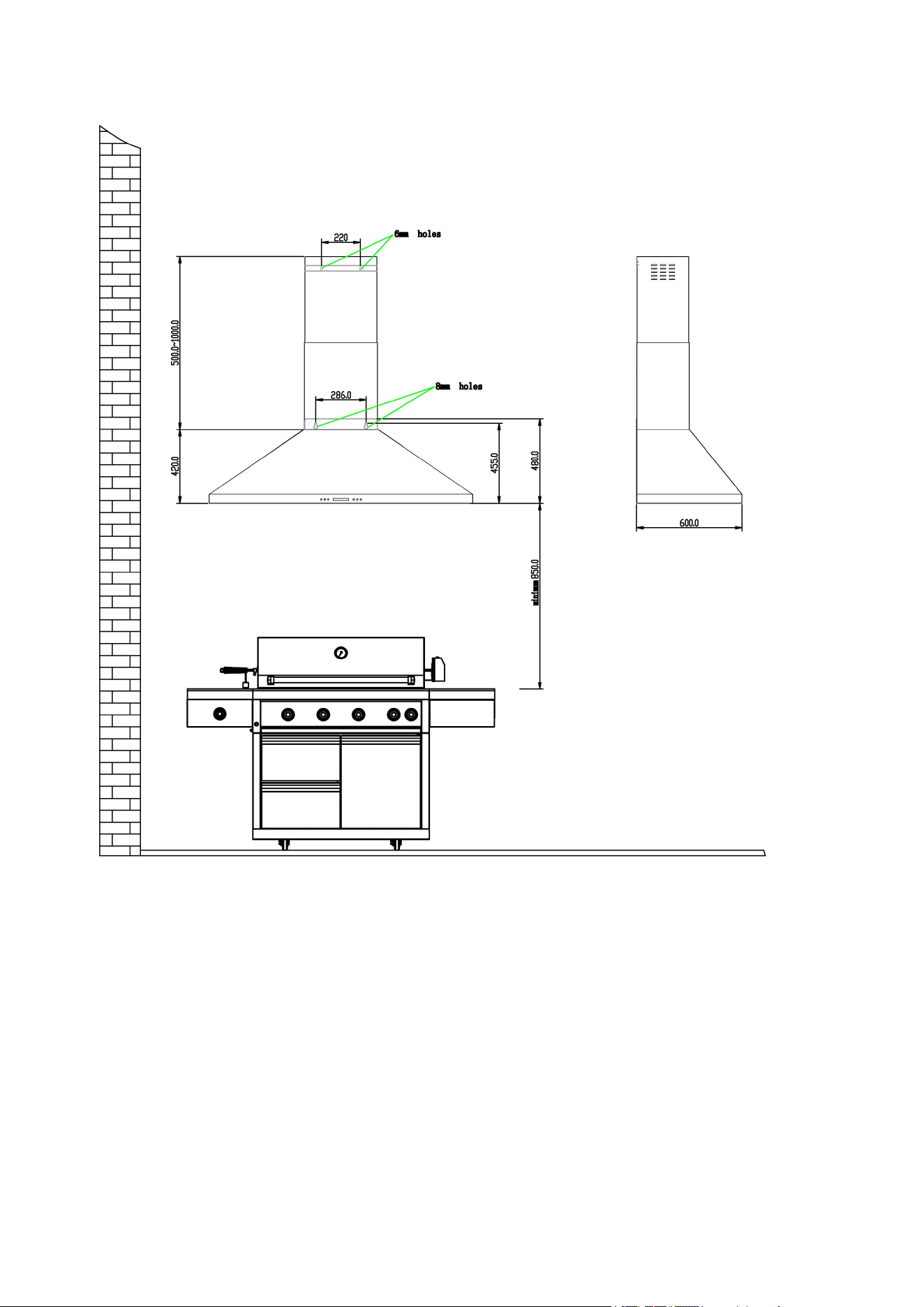

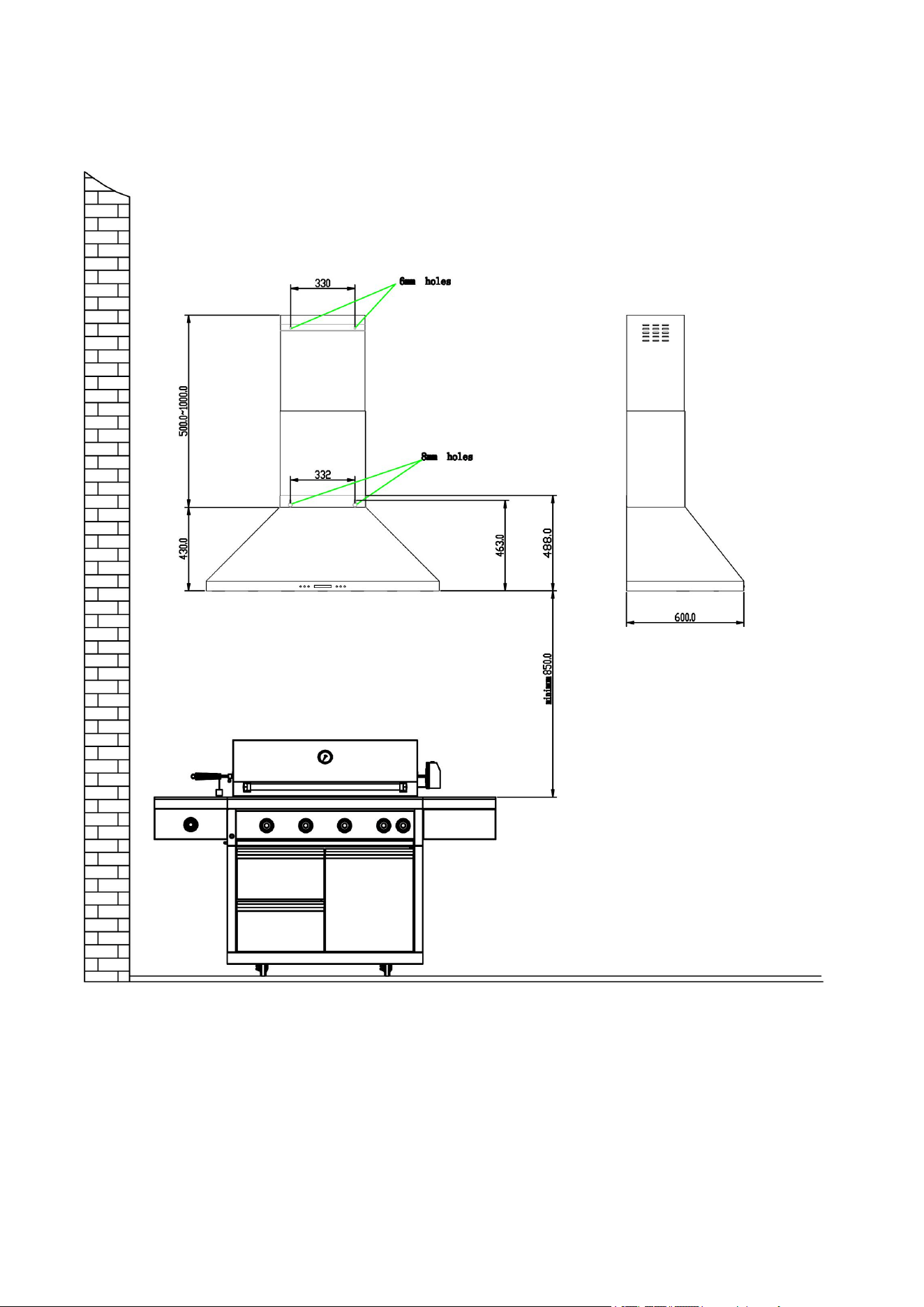

(RH-BBQ-1200 )
(RH-BBQ-1500)

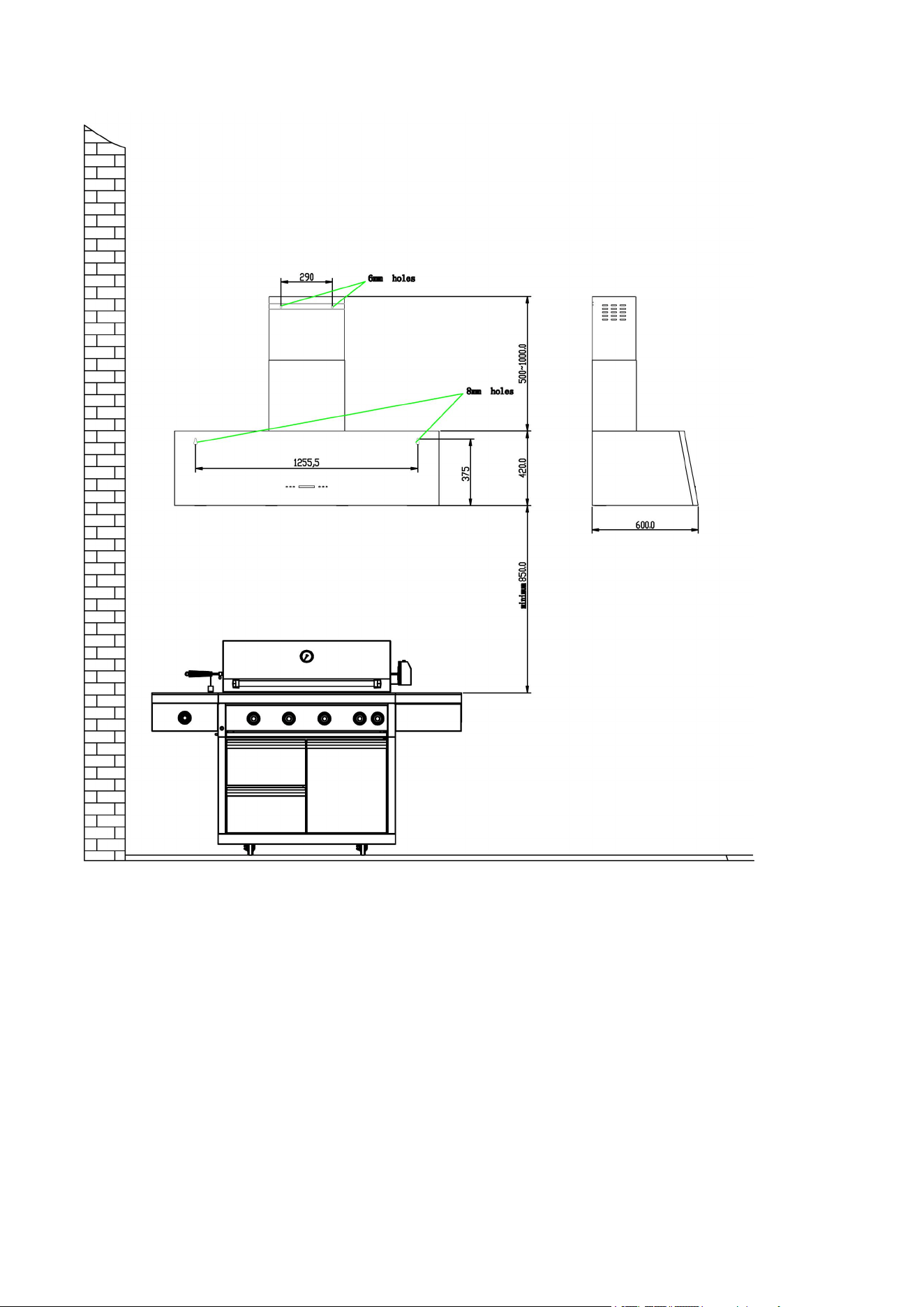

(RH-BBQ-03-1500)
4. Connecting to the power supply and testing:
a).Ensure that the voltage of the power supply matches that of the appliance.
b).The supply cord must be well fixed so that it cannot contact any sharp edges.
c).Clean the area of all dust and waste matter to avoid it being sucked into the chimney
before testing.
d).Plug the appliance into the power supply socket.
e).Check that the lights, motor and speed adjustments all work properly. Disconnect from the
power supply before proceeding.
5. Fitting the ducting:
a)The range hood must be ducted to open air using rigid or flexible fire retardant ducting of a
suitable length and matching outlet size. One 150cm or 200cm lengths of aluminum ducting
are included.
b).Use 2pcs ST3x8mm screws to fasten the flexible exhaust pipe onto Outlet
6.Fitting the telescopic duct cover:
a).Place the two part telescopic duct cover onto the range hood.Fasten the lower chimney
with 2 x ST4x6mm screws, put the chimney in position.
b).Determine position where upper decorative chimney maximum extent to, use 2pcs
ST4x55mm screws to secure the upper decorative chimney bracket onto wall.
c).Extend the upper decorative chimney to desired height and fix it with the upper decorative
chimney bracket by 4pcs ST4x8mm screws.
d).Adjust to desired length and fasten into place using the two 6 mm screws provided in the
bolt pack for masonry walls.
e).Remove all protective film on chimney and range hood, the installation is now finished.
6. Final testing and checking:
Check that all bolts are properly tighten, fit the filters and recheck all range hood
functions.Leave this copy of instructions with the user and instruct them to observe all safety
warnings.
Attention!

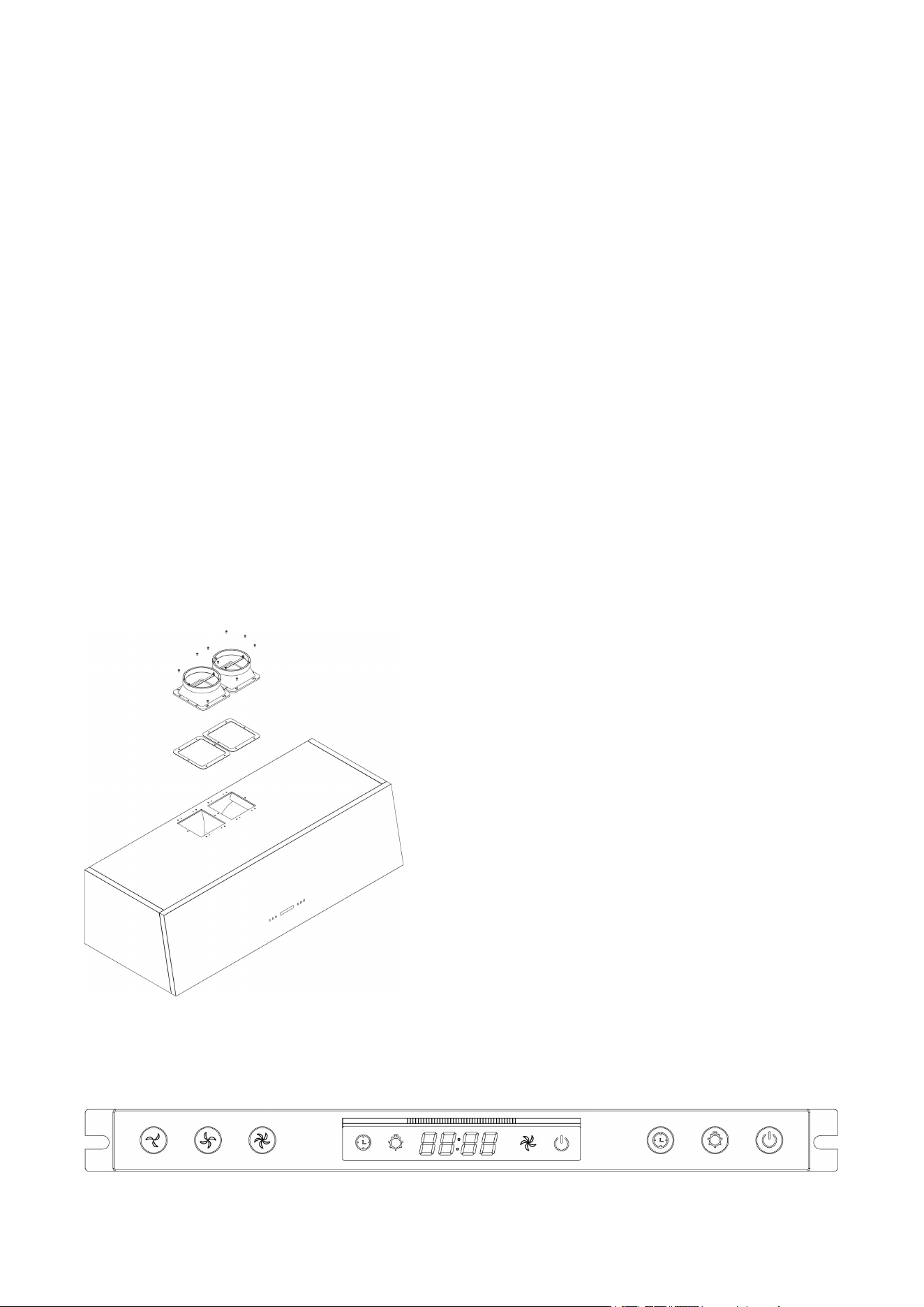

Install the outlets of RH-BBQ-03-1500
Use 12pcs ST4x12mm screws to fasten the gasket and outlet onto the rangehood body.
OPERATION INSTRUCTIONS

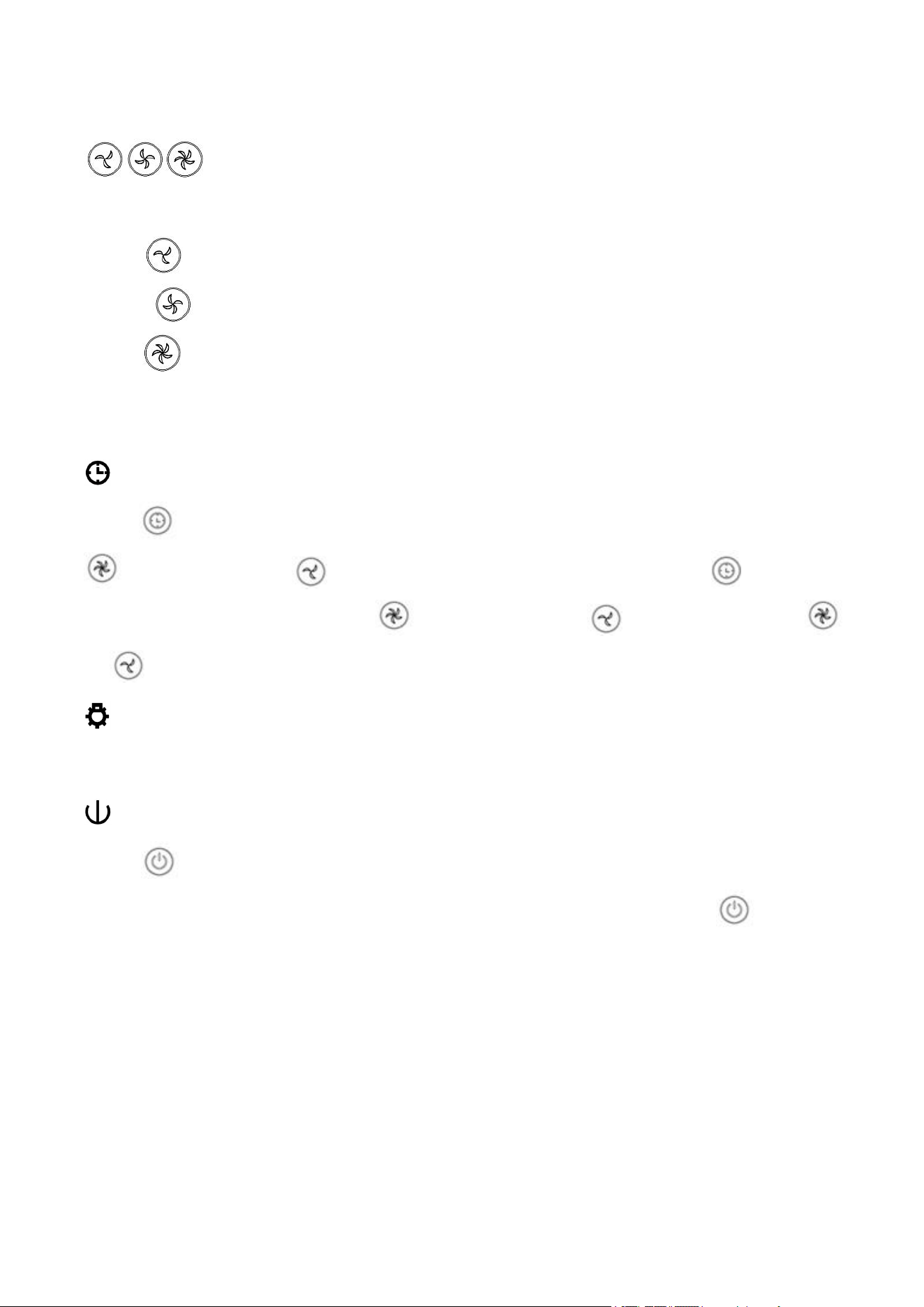

CONTROL PANEL:
Speed selection:
To switch the cooker hood motor on you should press the speed selection button. The motor
has 3 speeds which are LOW,MEDIUM and HIGH.
Press “ ”speed selection button will cause the motor to run at LOW speed.
Press “ ” the speed selection button will cause the motor to run at MEDIUM speed.
Press “ ” the speed selection button again will cause the motor to run at HIGH speed.
Another press of the speed selection button will return the motor to LOW speed.
To switch the hood off after use, press the power button. The speed need to reset when the
power was on next time.
Time display:
Press“ ” when the machine is on. The number of hour will flash on LED screen. Press
to add an hour or to reduce. When done with the hour, press again. The
number of minute will flash. Press to add a minute or to reduce. Pressing
or without release can do continuous adding or reducing.
Light control:
Press the light button once, the light on, press the light button again, the light off. The light
would be off when press on/off button and delay-off(when the time reach 0).
Power / Delay Button: to turn on/off the range hood
Press when the machine is on standby, the LED screen will light up. The range hood
will be turned on. The motor is still off until you press speed button. Press when the
motor is on, LED screen will show countdown 15
：
00. Once the countdown ends, the range
hood will be turned off.

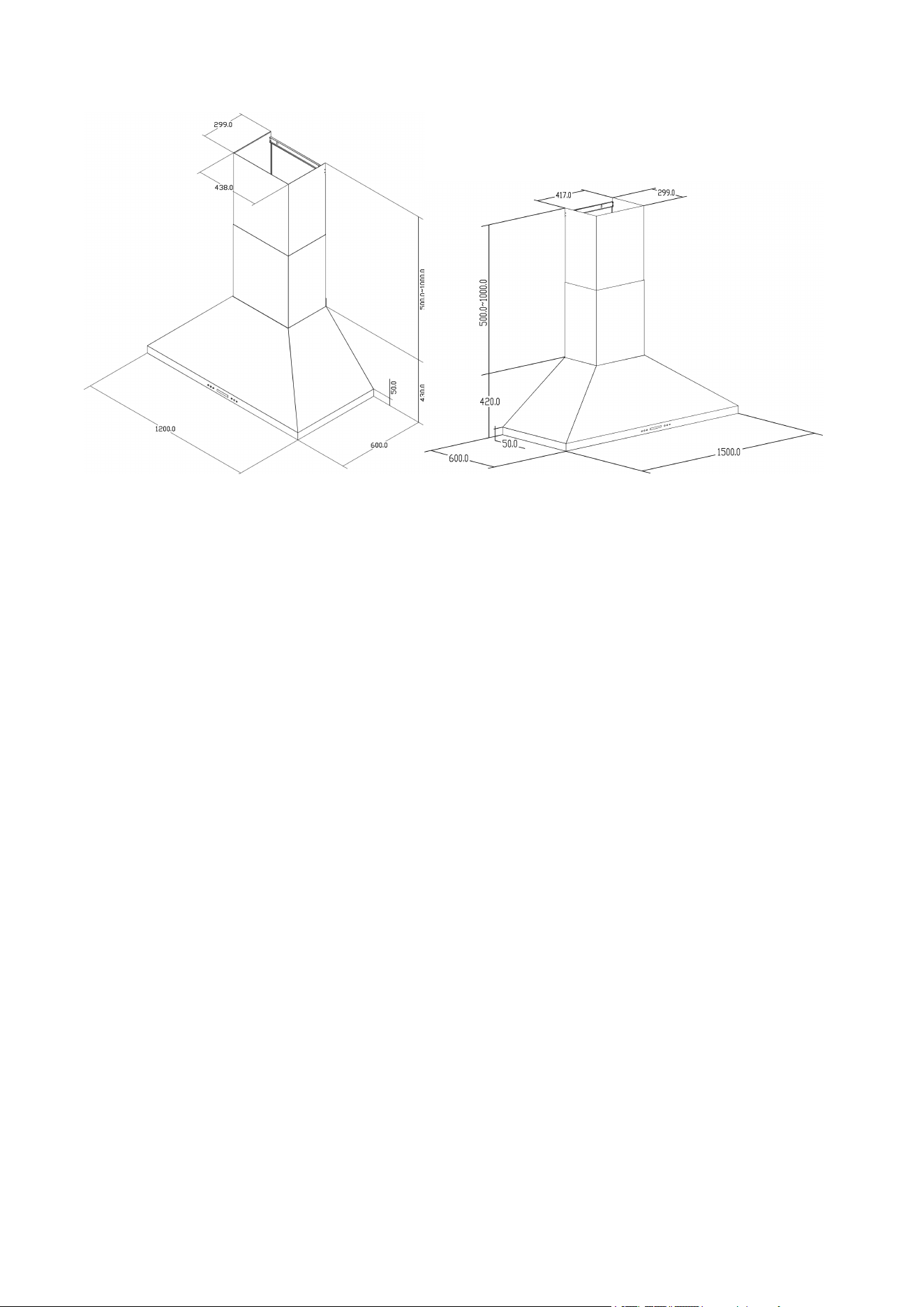

TECHHNICAL SPECS
（
RH-BBQ-1200
） （
RH-BBQ-1500
）
Technical data
Type of range hood RH-BBQ-1200 RH-BBQ-1500
Electric supply voltage AC 240V ~50Hz AC 240V ~50Hz
Number of fan motors 2 2
Fan speed 3 3
Number of aluminum filters 3 4
Lighting power [W] 4 x 1.5 4 x 1.5
Outlet [Ø mm] 150 150
Length of power cord [m] 2.0 2.0
Power consumption [W] 440 440
Loudness [dBA] 72 72
Net weight [kg] 33 35
Color Inox Inox
（

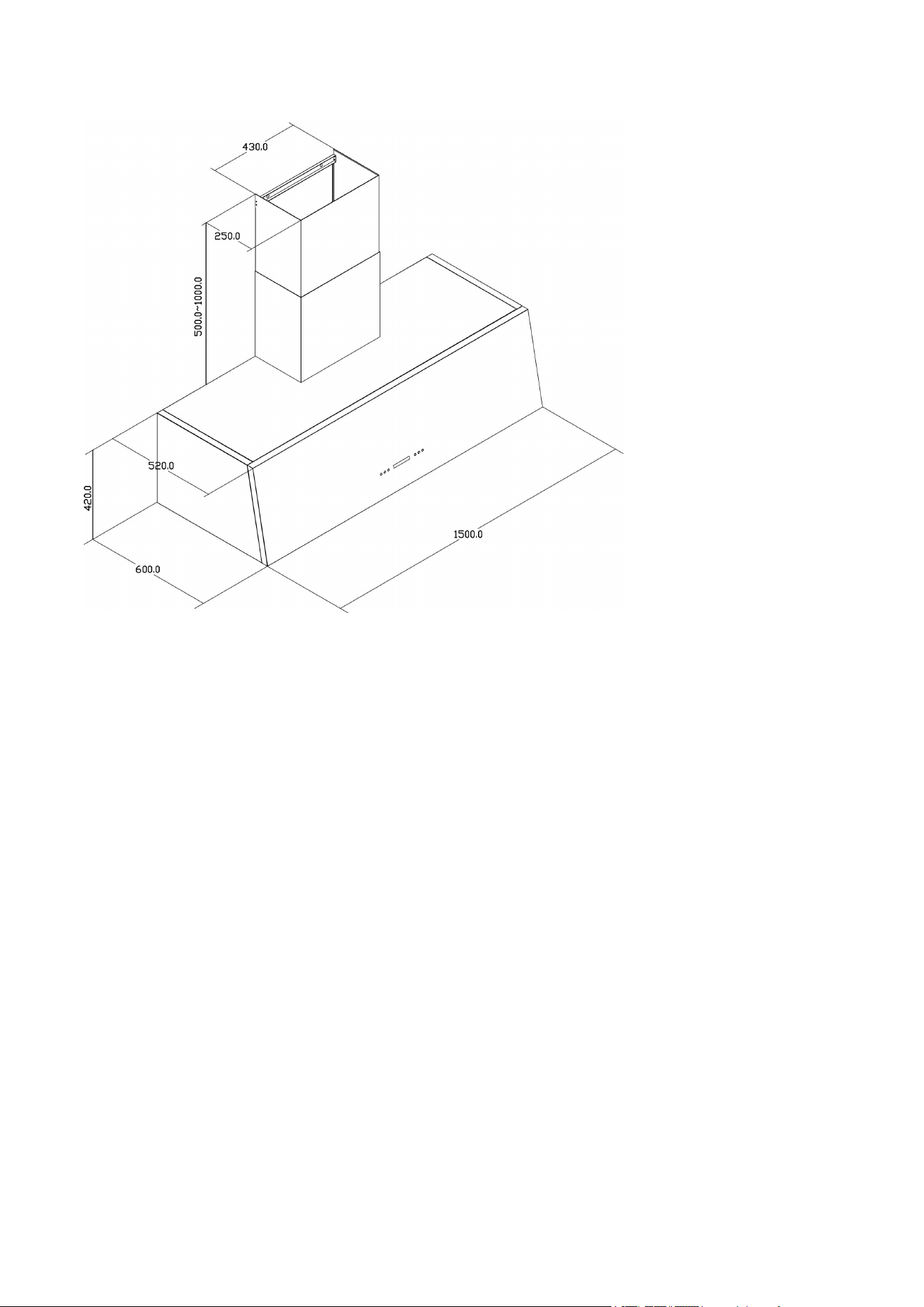

RH-BBQ-03-1500
）
Technical data
Type of range hood RH-BBQ-03-1500
Electric supply voltage AC 240V ~50Hz
Number of fan motors 2
Fan speed 3
Number of aluminum filters 4
Lighting power [W] 4 x 1.5
Outlet [Ø mm] 150
Length of power cord [m] 2.0
Power consumption [W] 440
Loudness [dBA] 72
Net weight [kg] 33
Color Inox
Packing list
1.Main body
2.Stainless steel chimney duct(2pcs)
3.Flexible aluminum pipe(2pc)
4.Brackets(2pcs)
5.Screws for complete range hood
6.Oil cup
7.User manual
Maintenance and cleaning
Clean the mainframe and the filters regularly.
There are two styles of inlet filters on these models.Both are removed by pulling the lever on
the adage of the filters and lifting them out of the slots which hold them.
Wash the filters in a dishwasher,or by hand using household dish-washing liquid and clean it
with a soft brush.
Allow filters to dry thoroughly before replacing them.
When replacing,ensure the filters are put back in their correct position.
Wipe any dirt on the mainframe with a wet cloth and mild detergent.Wipe with a dry towel.
Do not use abrasive cleaners or sources as these will damage the surface.
Commercial stainless steel cleaning products are available for more difficult staining.
Wash the grease filters on a regular basis wearing gloves.
Empty the oil and wash it clear before the oil cup is full.
When the oil reaches 2/3 of the oil cup,please empty the oil.
If range hood is unused for a long period of time,please unplug it from the electrical outlet.
When cleaning the product,ensure that the power is shut off
