CERAMIC TOWER HEATER
INSTRUCTION MANUAL
CTH-B-2000-BK
This product is only suitable for well insulated spaces or occasional use
IMPORTANT SAFEGUARDS
1. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
2. Children should be supervised to ensure that they do not play
with the appliance.
3. If the supply cord is damaged, it must be replaced by
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
4. WARNING: In order to avoid overheating, do not cover the
heater.
5. The heater must not be located immediately below a socket
outlet.
6. Do not use this heater in the immediate surroundings of a bath,
a shower or a swimming pool.
7. Do not use this heater if it has been dropped;
8. Do not use if there are visible signs of damage to the heater;
9. Use this heater on a horizontal and stable surface.
10. WARNING: Do not use this heater in small rooms when they
are occupied by persons not capable of leaving the room on their
own, unless constant supervision is provided.
11. WARNING: To reduce the risk of fire, keep textiles, curtains,
or any other flammable material a minimum distance of 1 m from
the air outlet.
12. This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
13. Children of less than 3 years should be kept away unless
continuously supervised.
14. Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been placed or
installed in its intended normal operating position and they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children aged from 3 years and less than 8 years shall not plug in,
regulate and clean the appliance or perform user maintenance.
15. CAUTION — Some parts of this product can become very hot
and cause burns. Particular attention has to be given where
children and vulnerable people are present.
16. Do not use the heater with a programmer, timer or any other
device that switches the heater on automatically
- CAUTION: In order to avoid a hazard due to inadvertent resetting
of the thermal cutout, this appliance must not be supplied through
an external switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by the utility.
•In order to prevent the risks of a fire, an electrical shock, burns
and other injuries, it is imperative to observe basic safety
measures when using electrical appliances.
•Please read the following information carefully before using the
appliance for the first time for your own safety and to ensure
correct use.
SAFETY INSTRUCTIONS
When using any electrically powered product, basic safety precautions should always be
followed, including the following:
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT.
WARNING - to reduce the risk of fire, electrical shock or injury to persons or property:
1. Always operate the product from a power source of the same voltage, frequency and
rating as indicated on the product identification plate.
2. Remove the unit from its packaging and check to make sure it is in good condition
before using.
3.
Do not let children play with parts of the packing ( such as plastic bags)
4. Close supervision is necessary when the product is used by or near children or infirm
persons. Do not allow children to use it as a toy.
5.
Do not operate any product with a damaged cord or plug, or after the product
malfunctions, or is dropped or appears damaged in any way. Return the complete
product to the place of purchase for inspection, repair or replacement.
6. Before unplugging the power cord, be sure to turn the power off. When touching the
unit, be sure your hands are dry to prevent electrical shock.
8.
Ensure the cord is fully extended before use and arrange it so that it is not in contact
with any part of the heater.
9.
In use, some parts of the heater are hot. When moving, hold the heater only by the
handle provided.
10. Do not use the heater in areas such as garages where petrol, paint or other
flammable substances are used or stored.
11. Do not use near or point the heater to furniture, animals, curtains or other
inflammable objects. Keep combustible materials such as furniture, bedding and any
other combustible materials at least 1 metre from the front and sides, and from the
rear of the heater.
12.
Do not place the cord under carpet or cover with throw rugs or furniture. Arrange the
cord so that it cannot be tripped over.
13. Do not place the heater on bedding or on thick and long pile carpet where the
openings may be blocked.
14. To reduce the risk of electric shock, do not immerse or expose the product or flexible
cord to rain, moisture or any liquid other than those necessary for correct operation of
the product.
15. This product should not be used in the immediate vicinity of water, such as bathtub,
washbowls, bathroom swimming pool etc. where the likelihood of immersion or
splashing could occur.
16. Switch off and unplug from outlet when not in use, before assembling or
disassembling parts and before cleaning. Remove by grasping the plug - do not pull
on the cord.
17. A common cause of overheating is deposits of dust and fluff entering the heater.
Ensure these deposits are removed regularly by unplugging the heater, allowing it to
cool and cleaning as described in the Care, Cleaning and Storage section.
18.
Be sure that no other high current appliances are plugged into the same circuit with
your heater as an overload can occur.
19. Avoid the use of an extension cord as the extension cord may overheat and cause a
risk of fire.
20. Do not use the appliance for other than its intended use.
21.
Do not use outdoors. FOR INDOOR USE ONLY.
22. Do not leave the appliance unattended when switched on.
23.
Do not place objects on the product or allow objects to obstruct the inlet or outlet
openings, or operate in close proximity to walls or curtains, etc. Do not cover the unit
when in operation.
24. Do not locate the heater immediately below a socket-outlet.
25. The use of attachments or accessories not recommended or sold by the product
distributor may cause personal or property hazards or injuries.
26.
This product is intended for normal domestic/household use only.
Use this heater as described in this manual. Any other uses, not recommended by the
manufacturer, may cause fire, electric shock, or injury to persons and may void
the warranty.
USING THE HEATER
1. Before inserting the plug into an electrical outlet, make sure that the electrical supply in
your area matches that on the rating label of the unit.
2. When plugged in, the ON/OFF symbol will light on.
3. When in Standby mode, only press to start the heater.
(a) The default heating mode is High Heat, the symbol will light on, the heater will
heat continuously in High Heat power.
(b) ECO Mode (Press MODE to switch it, the symbol ECO will light on ), the heater will
heat in energy-saving mode.
(c) Fan Mode (Press MODE again to switch it, the symbol will light on )
(d) Low Heat Mode ( Press MODE once again to switch it,the symbol will light on),
the heater will heat continuously in Low Heat power.
(c) TIMER: Press the button TIMER repeatedly to set a period after which the heater will
turn itself off (From 0 hour - 9 hours,in 1 hour intervals).
Key lock function: Keeping Press TIMER button on top panel for 3s, the heater will be
locked and can’t be operated anymore, and the lock symbol will light on; Keeping press
TIMER button again for 3s to release the children lock.
(d) Setting room temperature .Temperature setting from 15-35℃, the default setting
temperature is 30℃.Press TEMP button to set the desired temperature, in this smart
mode, the “TEMP” and “Mode” button will lights on, and the heater will now cycle on and
off to maintain the set temperature automatically.
MOOD LIGHTS: there are three moods lights at top control cover, Blue color for Fan
Mode, Purple color for Low power heat, Red Color for High power heat and ECO mode,
you can turn-off the moods lights by remote control.
(e) ECO mode: the red color mood lights will go into breathing mode, and ECO symbol
will light on. The heater will heating in cycle High Heat-Low Heat to maintain the room
temperature around 24C. The heater will cut-off automatically if there is no further
operation within 24 hours continuous working.
(f) Swing : Press OSC button to activate swing. Press it again to cancel.
(g) Press to turn off the heater, The heater will continue to work in
FAN mode for 15 seconds, allowing the product to cool.
* Keeping press for 3s to turn off the LED display, press any button to light
on again.
Touch Control Panel
Oscillation button Temperature setting button
LED display
Power settings button Timer setting button
Power ON/OFF button
(keep pressing 3s to turn-off LED lights)

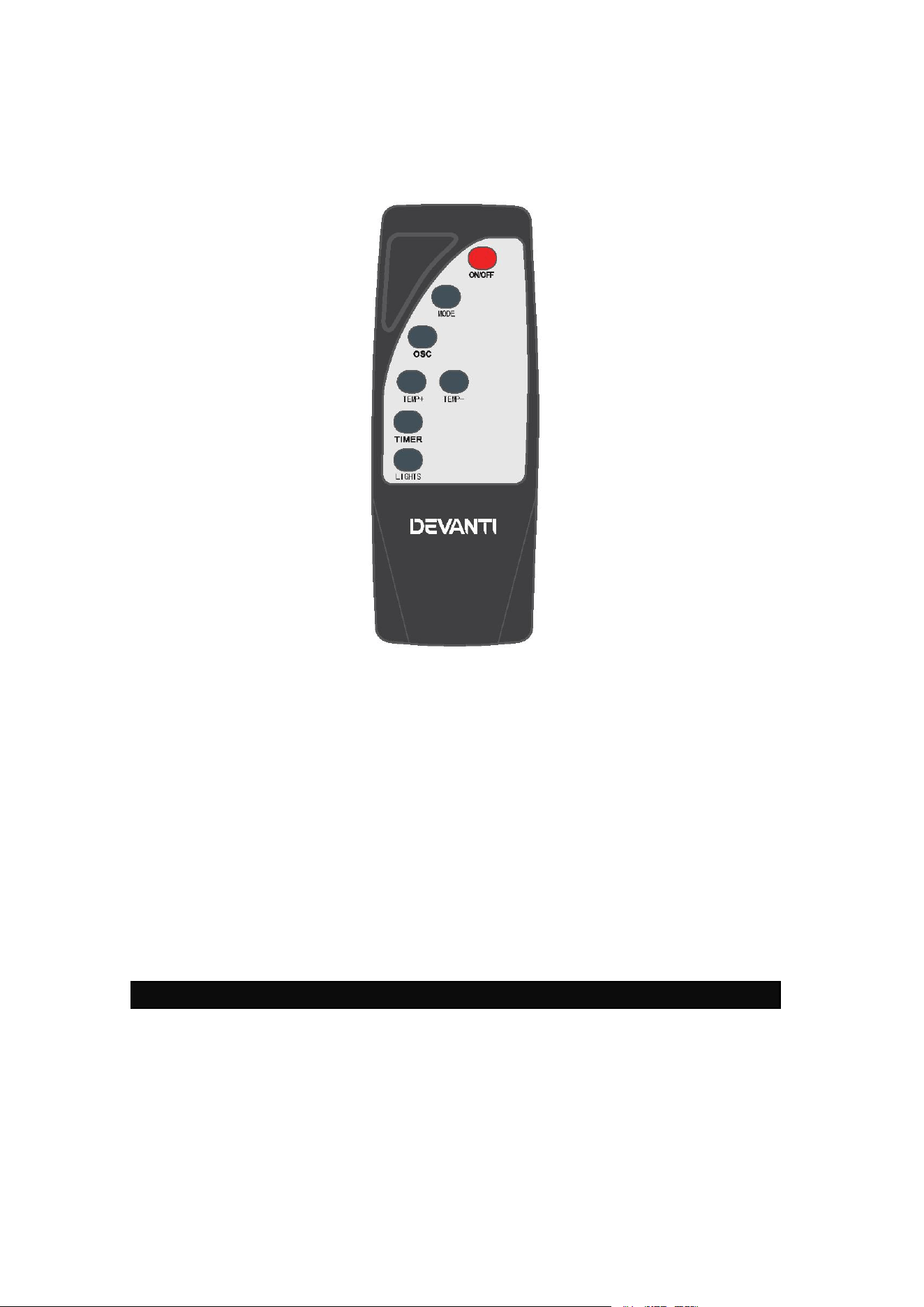

Remote Control
OVERHEAT PROTECTION
This heater is protected with an overheat protection that switches off the appliance
automatically in case of overheat,e.g. due to the total or partial obstruction of the grids. In
this case, unplug the appliance, wait about 30 minutes for it to cool down and remove the
object which is obstructing the grids. Then switch it back on as described above. The
appliance should operate normally. Should the problem persist, please contact the
nearest customer service.
NOTE: To assist in maintaining the internal components, after pressing the OFF button the fan
will continue to blow room air for a period of 15 seconds before shutting down to standby.
SAFETY SYSTEM
In the event of abnormal overheating, a safety device shuts down the appliance
automatically. In this case, must unplug the heater, after a short cooling down phase,
the appliance is ready for use again.
If you still notice the same defect as above mentioned, remove the plug from the
socket and consult your authorized dealer to your after-sales service department.
During use, do not touch or cover the air outlet. This may cause the unit to over heat,
and the safety device to operate.
The unit is also fitted with a tip over switch, it will cut out the power automatically if
tipped over.
MAINTENANCE
Your appliance must be switch OFF via the main power supply and unplugged
before proceeding with any cleaning work.
Clean the housing with a lightly damp cloth, a vacuum cleaner or a dusting brush.
Never use flammable or abrasive cleaning agents such as benzene or spirit to clean
the appliance.
Never immerse the appliance in water!
Clean the air inlet and outlet regularly with a vacuum cleaner.
If the appliance is not used for an extended period it must be protected against
excessive dust and dirt. Please dismount the heater and store in a dry place away
from sunlight and dirt.
SPECIFICATIONS
- Model: CTH-B-2000-BK
- Rating power : 2000W
- Voltage : 220-240V ~ 50-60Hz
- Class II
CORRECT DISPOSAL OF THIS PRODUCT
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection systems
or contact the retailer where the product was
purchased. They can take this product for
environmental safe recycling. Please bring the
batteries in the batteries disposal center (contact your
retailer in order to protect the environment).
