USER MANUAL
Dishwasher
EN
DBI364ID.W.AU
DBI364ID.S.AU
DBI364ID.BS.AU
3Your dishwasher ........................................
4Safety instructions .....................................
5Child lock .....................................................
5Installation ....................................................
5Overflow guard ............................................
5Packaging ....................................................
6Disposal .......................................................
6Symbols on the appliance ...........................
7Before washing for the first time ..............
7Water hardness ............................................
7Basic settings ..............................................
8Top up rinse aid ...........................................
9Greener dishwashing ................................
9Save energy and water ................................
10Loading the dishwasher ............................
10Fragile dishes ..............................................
10Loading affects the results ..........................
10The dishwasher baskets ..............................
11Top cutlery tray ............................................
12Upper basket ...............................................
13Lower basket ...............................................
15Cutlery basket ..............................................
17Using the dishwasher ................................
17Add detergent ..............................................
18On/Off ..........................................................
18Select program ............................................
19Select program mode ..................................
20Select option ................................................
20Start/Stop .....................................................
21If you want to load more dishes ...................
21Power failure ................................................
21Once the program has finished ...................
21For the best drying results ...........................
21Unloading the dishwasher ...........................
22Program chart ............................................
23Settings .......................................................
25Care and cleaning ......................................
25Top up rinse aid ...........................................
25Clean the filters ............................................
26Cleaning the spray arms ..............................
27Clean the outside of the dishwasher ...........
27Run Self-cleaning .........................................
28Remove blockages ......................................
29Winter storage/Transport .............................
30Troubleshooting .........................................
37Installation ..................................................
37Safety instructions ........................................
38Transport protection for the door .................
38Placing the dishwasher ................................
38Affix the protective film ................................
39
Adjust the height and slide the dishwasher
into place .....................................................
40Drainage connection ...................................
41Connection to water supply .........................
42Electrical connection ...................................
42Screwing the dishwasher into place ............
43Dishwasher kick panel .................................
44ASKO Service .............................................
44Information about your product ...................
44Contact your nearest service centre ............
44Number of cycles ........................................
45Technical information ................................
45Information on energy labelling ...................
45Technical data .............................................
45Information for test institute ..........................
Contents
Welcome to our growing ASKO family!
We are proud of our appliances. We hope that this appliance will be an appreciated and dependable
aid for many years to come.
Please read the operating instructions before use. They include general tips, information about the
settings and adjustments you can make, and the best way to take care of your appliance.
Top up rinse aid

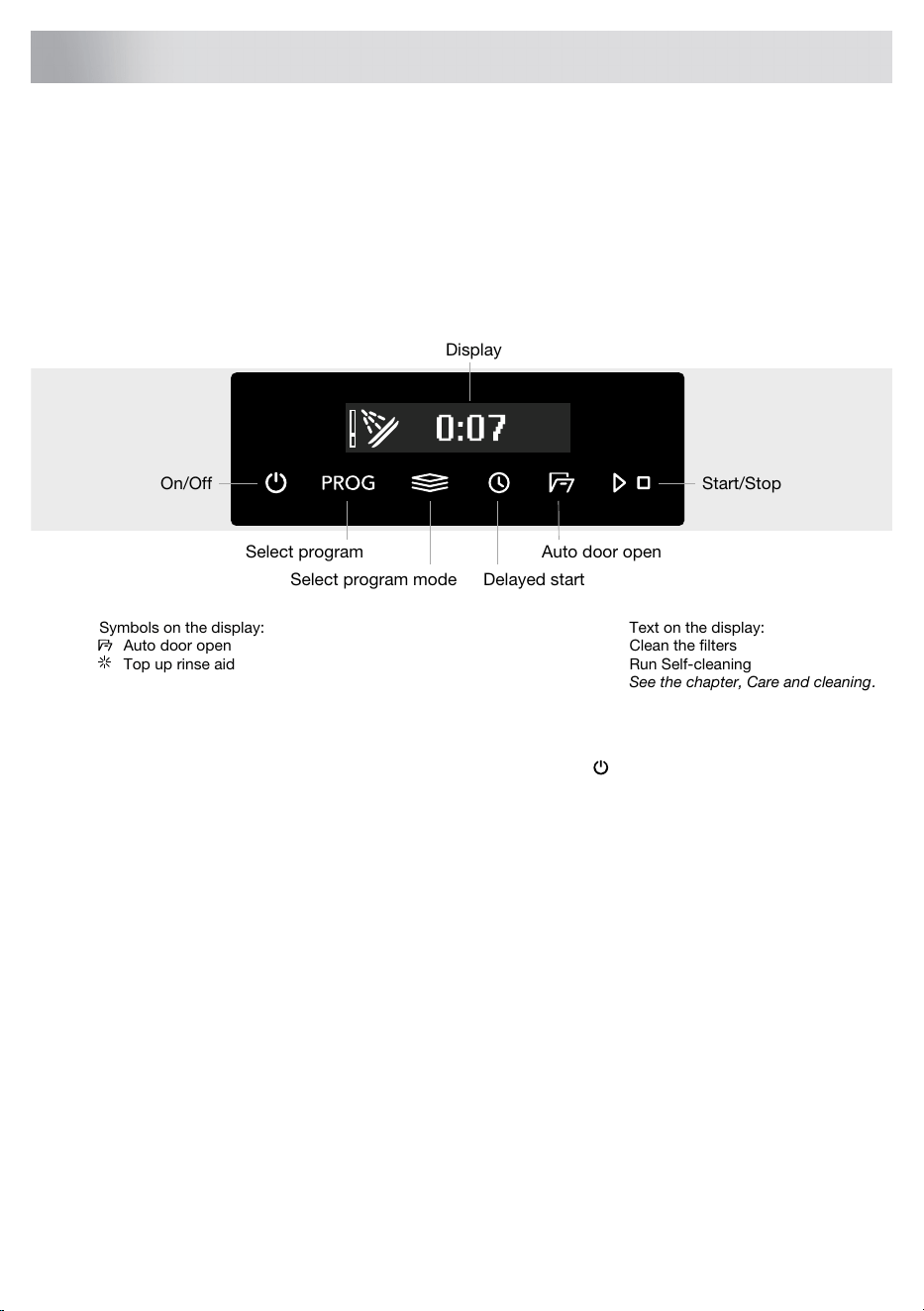

Display
Start/Stop
Select program mode
Select program Auto door open
Delayed start
On/Off
Auto door open
Symbols on the display: Text on the display:
Clean the filters
Run Self-cleaning
See the chapter, Care and cleaning.
To install the dishwasher see the chapter, Installation. Then press .
"Welcome to your ASKO. First time setup." is shown on the display the first time the dishwasher
is switched on. It is important that you choose the right settings to ensure good dishwashing results.
See page 7.
3
Your dishwasher
• Read the user manual and keep it in a safe place!
• Number of place settings: 16
• Never use the dishwasher for any purpose other than that
specified in these operating instructions.
• Do not load the dishwasher door or dishwasher baskets with
anything other than dishes.
• The door should not be left in the open position since this could
present a tripping hazard. Push the baskets in to avoid the risk
of the dishwasher tipping over.
• Use only dishwasher detergent!
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
• Any damaged cords must only be replaced by the manufacturer's
service centre or someone with similar professional qualifications.
• This appliance is intended to be used in household and similar
applications such as:
- staff kitchen areas in shops, offices and other working
environments;
- farm houses;
- by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments.
• Never place dishes with solvent residues in the dishwasher due
to the risk of explosion. Nor may dishes that contain ash, wax or
lubricants be washed in the dishwasher.
4
Safety instructions
• Children should be supervised to ensure that they do not play
with the appliance.
• Children must be watched. Do not allow children to use or play
with the dishwasher. Be especially vigilant when the door is open.
Some detergent may remain inside! After adding detergent, always
start the dishwasher immediately.
WARNING!
Knives and other utensils with sharp points must be loaded in the
basket with their points down or placed in a horizontal position.
WARNING!
Dishwasher detergents are strongly alkaline. They can be
extremely dangerous if swallowed. Avoid contact with skin and
eyes and keep children away from the dishwasher when the door
is open. Seek medical attention if swallowed.
Check that the detergent compartment is empty after completion
of the wash cycle.
Child lock
You can activate the Automatic child lock setting to prevent children from starting the dishwasher.
See the chapter, Settings. You can also temporarily activate and deactivate the Child lock function.
Press and hold and for three seconds.
Installation
See the chapter Installation.
Overflow guard
The overflow guard starts pumping water out of the water and turns the water supply off if the water
level in the dishwasher exceeds the normal level. If the overflow guard is triggered, F54 (Overfilling
water) appears on the display. Turn the water tap off and contact your nearest service centre. (To
avoid water leaking outside the dishwasher, do not remove the plug from the wall socket until the
water tap to the supply line has been turned off!)
Packaging
The outer packaging protects the product during transport. The packaging material is recyclable.
Separate the different packaging materials to help reduce raw material use and waste. Your dealer
can take the packaging for recycling or direct you to the nearest recycling centre. The packaging
is comprised of:
5
Safety instructions
• Corrugated cardboard made from up to 100% recycled material.
• Expanded polystyrene (EPS) with no added chlorine or fluorine.
• Supports made from untreated wood.
• Protective plastic made from polyethylene (PE).
Disposal
The dishwasher is manufactured and labelled for recycling. When the dishwasher has reached the
end of its service life and is to be disposed of, it should immediately be made unusable. Pull the
power cable out and cut it to the shortest length possible.
Contact your local authority for information about where and how your dishwasher should be correctly
recycled.
Symbols on the appliance
Read the User Manual.
6
Safety instructions
Water hardness
In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral
content). Hard water leaves a white coating on dishes and the dishwasher.
Checking water hardness
Contact the local water utility to check the water hardness in your area. This is important with regard
to how much detergent and rinse aid to use.
Basic settings
Press .
"Welcome to your ASKO. First time setup." is shown on the display. It is important that you choose
the right settings to ensure good dishwashing results.
Select setting with . Confirm selected setting with .
Settings
Select the language to be shown on the display.Language1.
By using rinse aid you will improve your drying result. You
will also achieve a better dishwashing result with glassware
and dishes.
Set level of rinse aid
0/1/2/3/4/5
Pre-selected at factory: 4
2.
The rinse aid dispenser can be adjusted between 0 (Off)
and 5 (High dose).
Activate this setting when using an all-in-one detergent that
contains rinse aid.
TAB On/Off
(All-in-one detergent)
3.
This setting reduces the rinse aid dose.
Pre-selected at factory: Off
To change the chosen setting, see the chapter Settings.
7
Before washing for the first time
Top up rinse aid

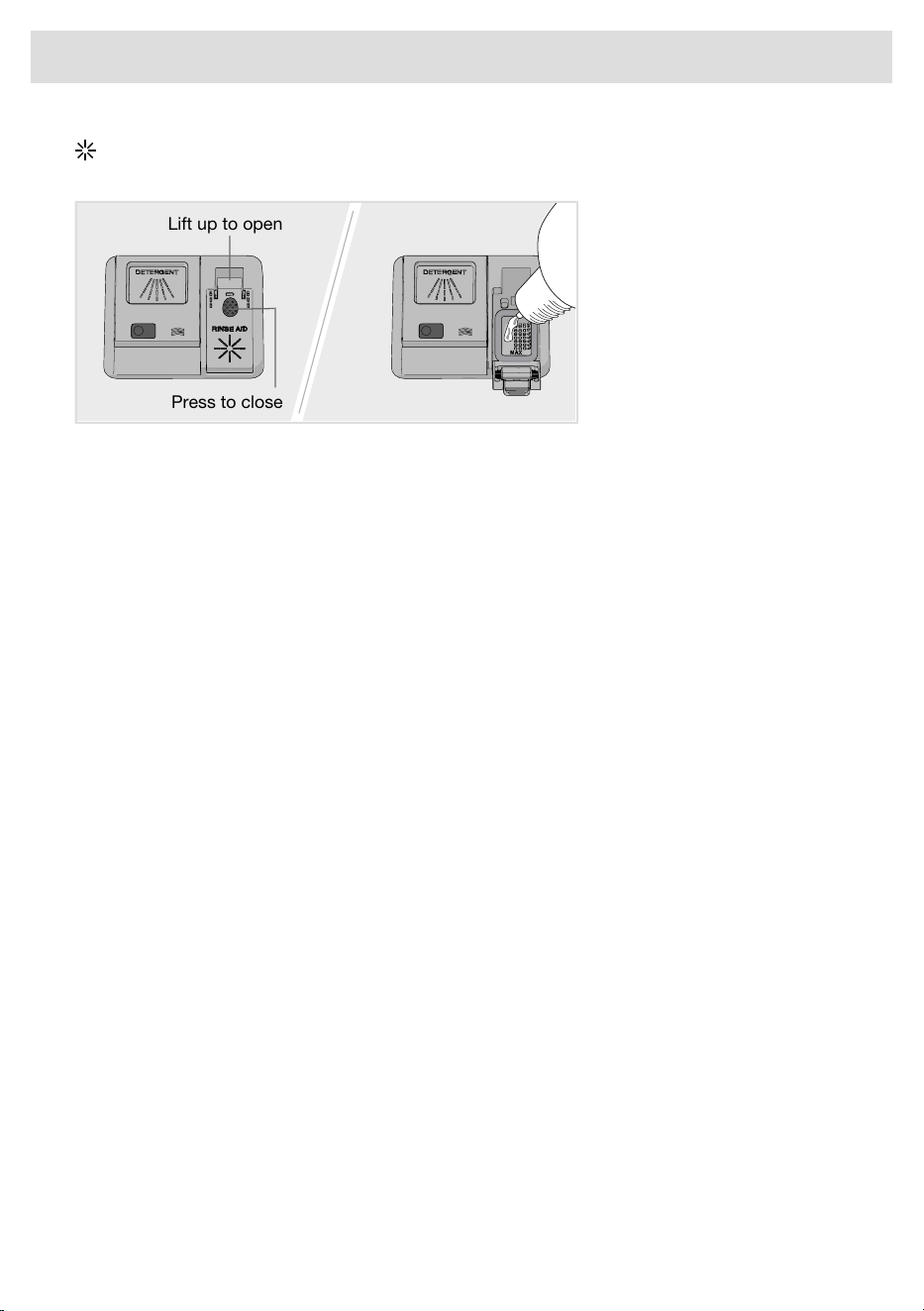

Top up the rinse aid compartment with rinse aid if you have selected Rinse aid 1 - 5.
Lift up to open
Press to close
1. Open the rinse aid compartment lid.
2. Carefully top the rinse aid up to the marked level MAX.
3. Wipe up any splashes of rinse aid around the compartment.
4. Close the lid firmly.
For water with a hardness greater than 10–12 °dH, you ought to use rinse aid with citric acid (known
as acid rinse aid).
8
Before washing for the first time
Save energy and water
When using a dishwasher in a residential setting, less energy and water are generally used compared
to washing the dishes by hand.
Do not rinse under running water
Do not rinse the dishes under running water as this will lead to increased energy and water
consumption. Simply scrape off large food particles before loading the dishwasher.
Choose a green detergent
Read the environmental declaration on the packaging!
Too much detergent and rinse aid can result in less effective dishwashing and also entail greater
environmental impact.
Run a fully loaded dishwasher
Save energy and water by waiting until the dishwasher is full before running a program. Use the
Rinse and hold program to rinse the dishes if there are any unpleasant odours.
You can also use the Anti-odour program to prevent bad odours from dirty dishes left in the
dishwasher.
Run programs at a lower temperature
If the dishes are only slightly dirty, you can select a program with a low temperature.
Select dishwashing program – Eco
Use when you want to save water and energy. For normally soiled load, such as plates, serving
dishes, cups, glasses and so on.
This dishwashing program is designed for an effective wash using as little energy and water as
possible. The program washes at a low temperature for a long time.
Select option – Auto door open
Better drying results are achieved if you use the Auto door open option, which automatically opens
the dishwasher door. Wait until the dishwasher indicates that the program has ended and the dishes
have cooled before unloading the dishwasher.
9
Greener dishwashing
Fragile dishes
Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot
withstand high heat, others can be damaged by dishwasher detergent.
Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver,
copper, tin, aluminium, wood and plastic. Look for the "Dishwasher safe" marking.
Fragile decoration
Porcelain with decoration on top of the glazing (the items feel rough) should not be washed in a
dishwasher.
Crystal/Glass
By using rinse aid you will improve your drying result. You will also achieve a better dishwashing
result with glassware and dishes.
Hand-painted glassware, as well as antique and very fragile items, should not be washed in a
dishwasher.
Silver
Silver and stainless steel items should not come into contact, as the silver can become discoloured.
In order to avoid marks and tarnishing, separate dishes made from different metals, such as silver,
stainless steel and aluminium.
Aluminium
Aluminium can lose its shine if washed in a dishwasher. However, good quality aluminium pans can
be washed in a dishwasher, even if some of the shine will be lost.
Cutlery with glued handles
Some types of glue are not dishwasher safe. In such cases, the handles may loosen.
Loading affects the results
Load the dishes carefully to ensure the best washing and drying results with the lowest possible
energy and water consumption. Give your dishwasher the best chance to reach and clean all surfaces,
as well as to dry the dishes as thoroughly as possible.
• All dirty surfaces should face inwards and downwards!
• Dishes should not be placed in or on each other.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
• Make sure small items cannot fall through the dishwasher basket; place them in the top cutlery
tray.
NOTE!
Check that the spray arms can rotate freely.
The dishwasher baskets
The dishwasher is equipped with a top cutlery tray, an upper basket and a lower basket.
The appearance of the baskets may differ depending on the dishwasher setup.
10
Loading the dishwasher

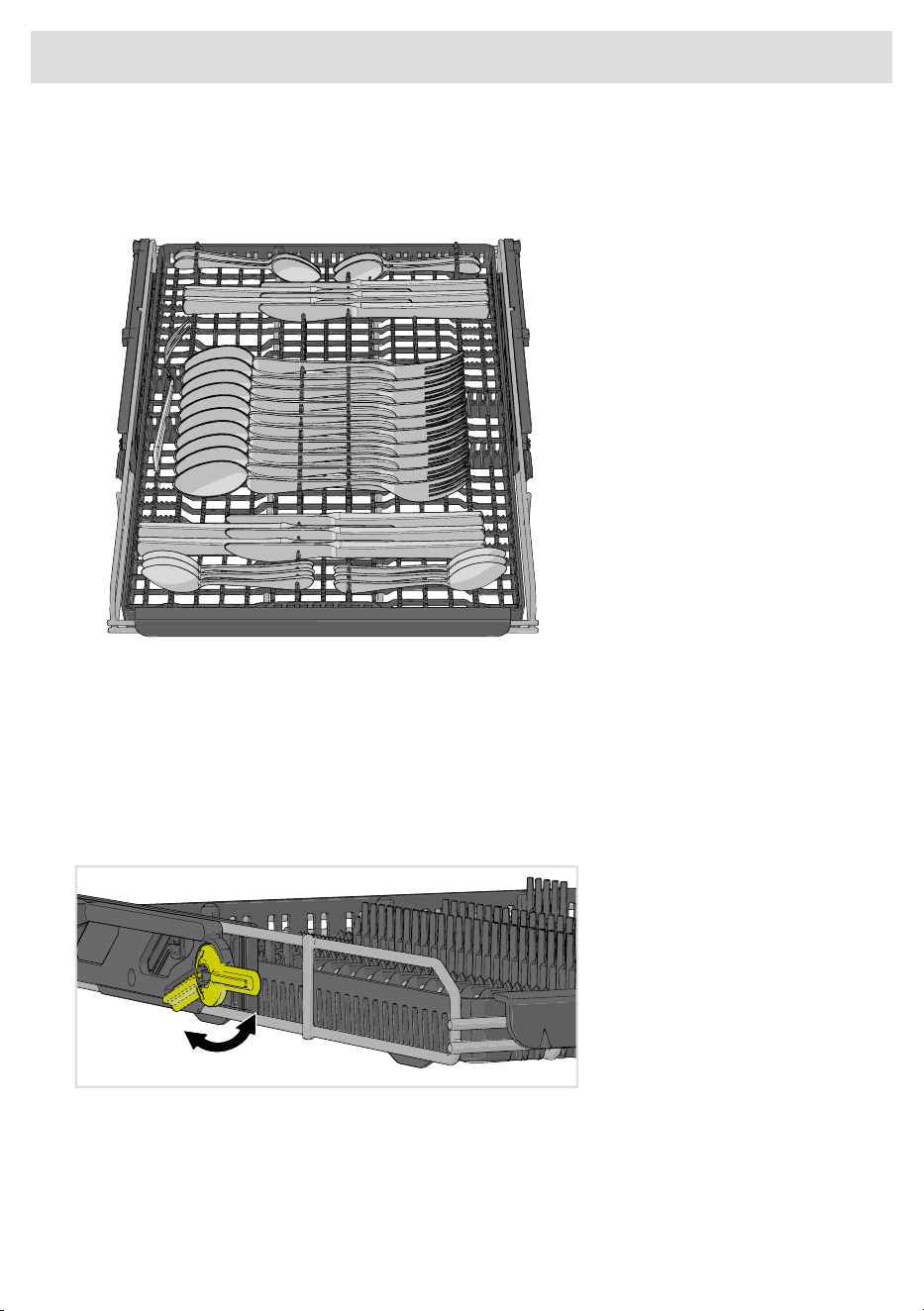

Top cutlery tray
The top cutlery tray has space for cutlery, ladles, whisks, serving cutlery and similar items.
Avoid placing tall objects in the top cutlery tray. They can block the top spray arm.
Raising the top cutlery tray
1. Pull out the top cutlery tray.
2. Pull the two locking handles on either side forward to raise the top cutlery tray.
Lowering the top cutlery tray
1. Pull out the top cutlery tray.
2. Slide the two locking handles on either side downwards and backwards to lower the top cutlery
tray.
11
Loading the dishwasher
Upper basket
Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should
face inwards and downwards! Place wine glasses on the wine glass shelf and knives in the knife
stand on the right.

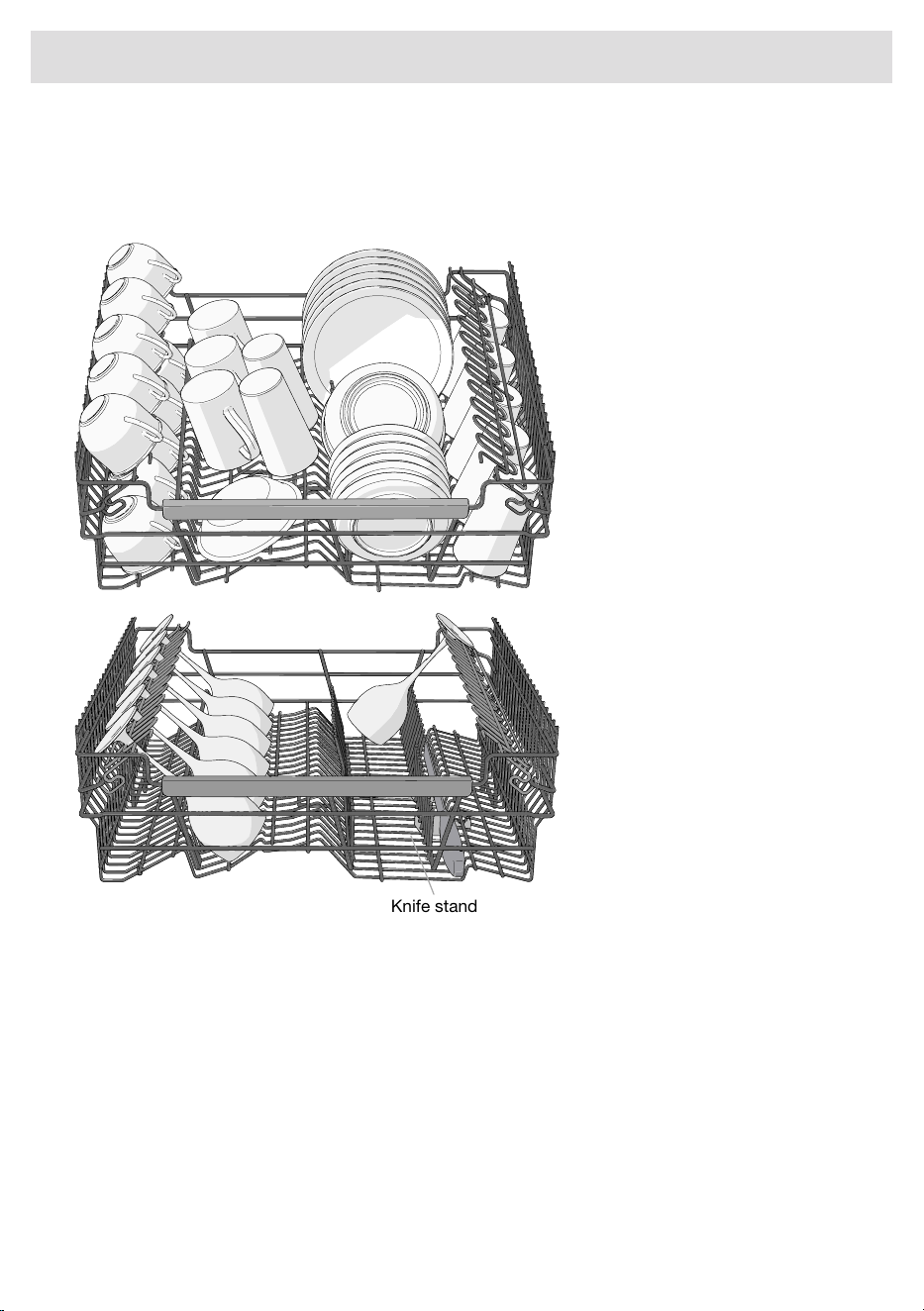

Knife stand
Raising and lowering the upper basket
1. Pull out the upper basket. (The basket must be empty.)
2. Turn the basket catch outwards at the end of both runners.
3. Grip the upper basket with both hands, pull it out, and move the upper basket to its other position.
4. Turn the basket catch on either side in to lock the basket in place.
12
Loading the dishwasher
WARNING!
Knives and other sharp must be placed horizontally in the dishwasher’s special cutlery baskets
to prevent damage to the dishwasher tub and risk of cut type injuries.
Lower basket
Place plates, side plates, serving dishes and pots in the lower basket.
Fit the cutlery holder to achieve
maximum loading capacity. (Found
inside the enclosed plastic bag.)

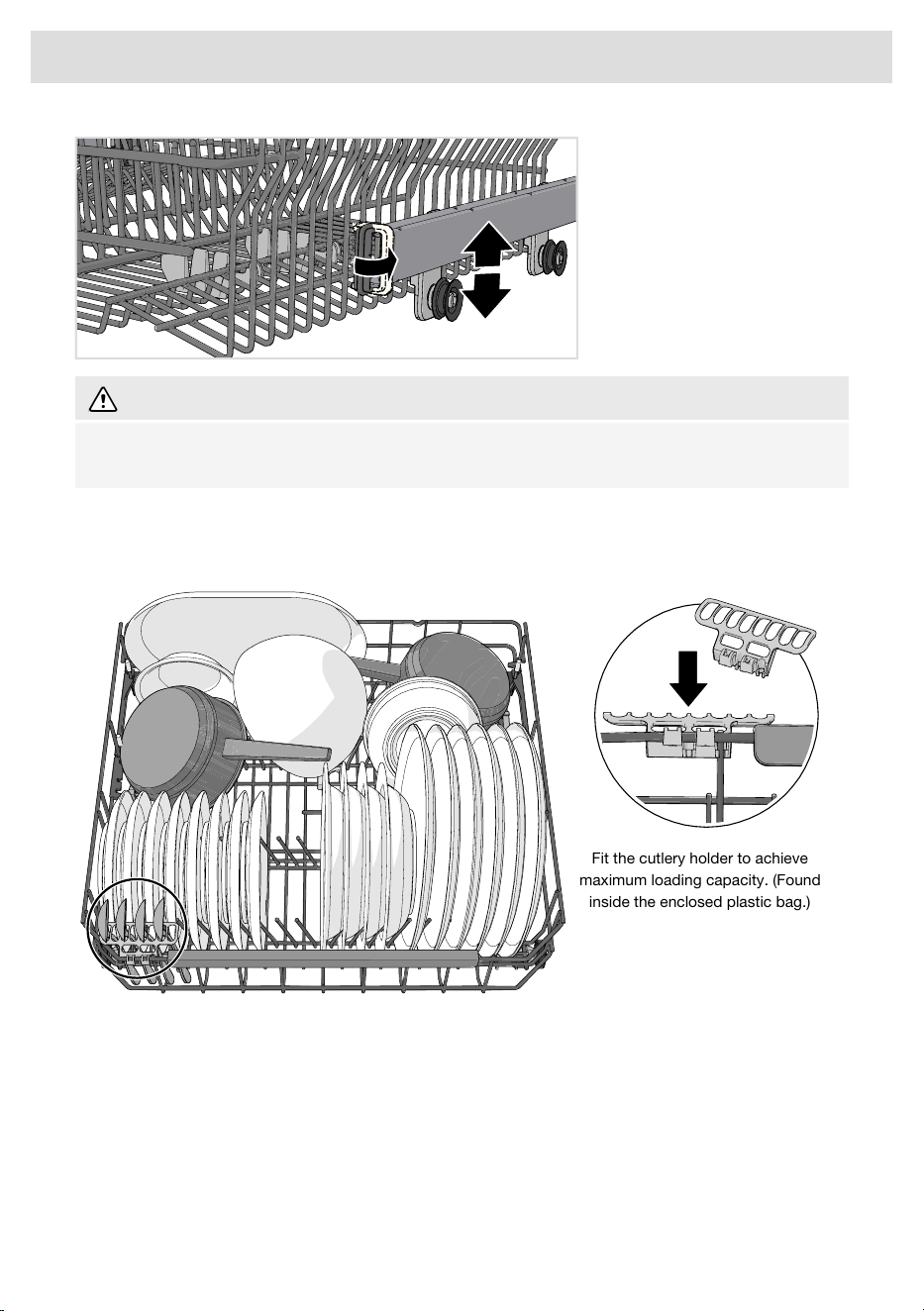

Adjustable plate supports
The adjustable plate supports can be adjusted to suit the dishes. Release the plate supports by
pushing them inwards before repositioning them. The plate supports can also be folded down to
make it easier to load pots and bowls.
13
Loading the dishwasher

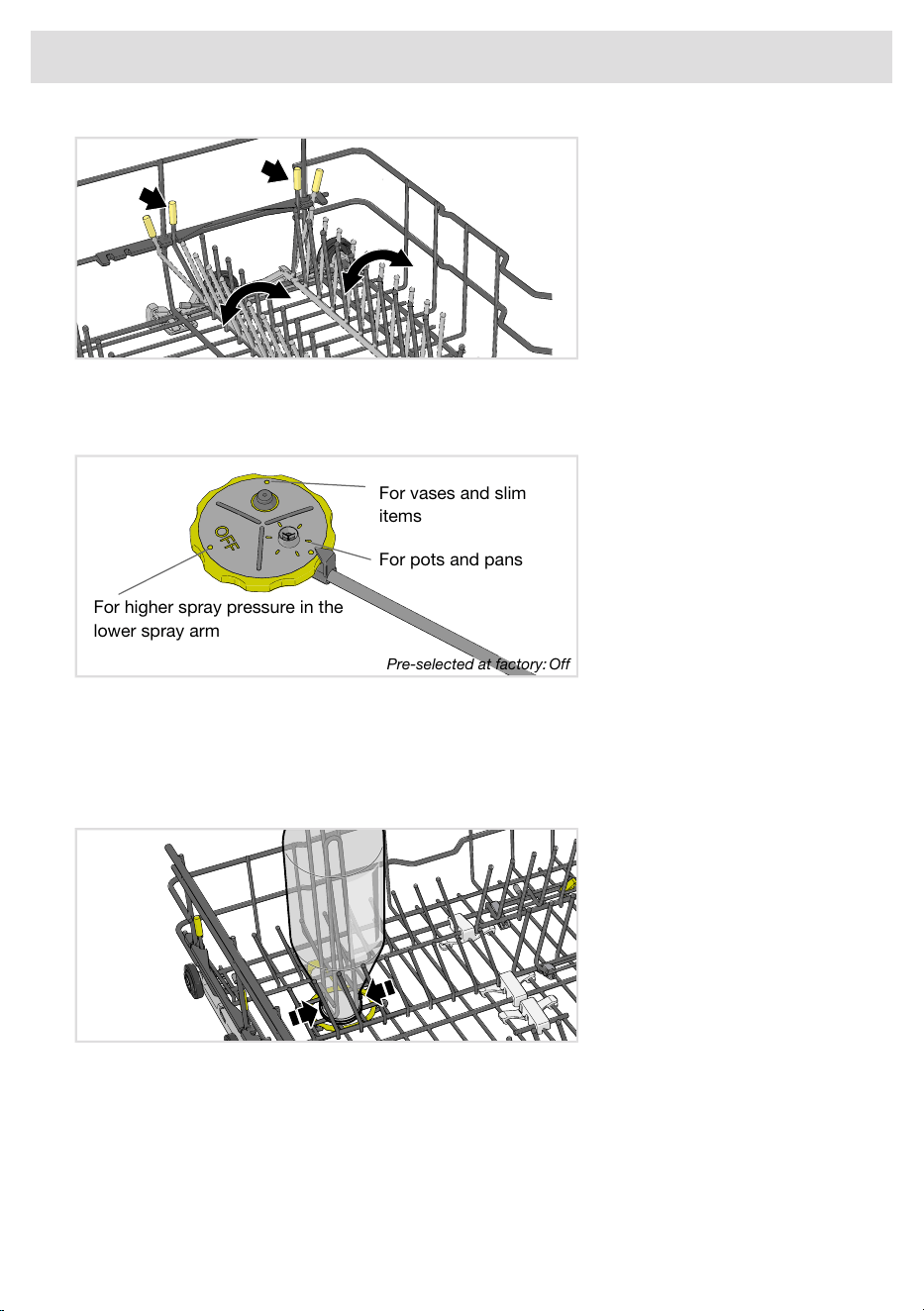

Adaptable power zones
The dishwasher's two adaptable power zones can be opened in two different positions or turned
off.
For vases and slim
items
For pots and pans
For higher spray pressure in the
lower spray arm
Pre-selected at factory: Off
Leave the power zones open if you want an increased water flow, for example where you have placed
pots and pans or vases and slim items. Turn the dishwasher power zones off if you want greater
spray pressure in the lower spray arm.
Accessory
Buy a vase and bottle holder. This accessory is available where you bought the dishwasher.
Washing large plates
You can adjust the lower basket for plates with a diameter of 25-31 cm by moving the adjustable
plate supports and their fixtures to increase the distance between the tine rows.
14
Loading the dishwasher
Accessory

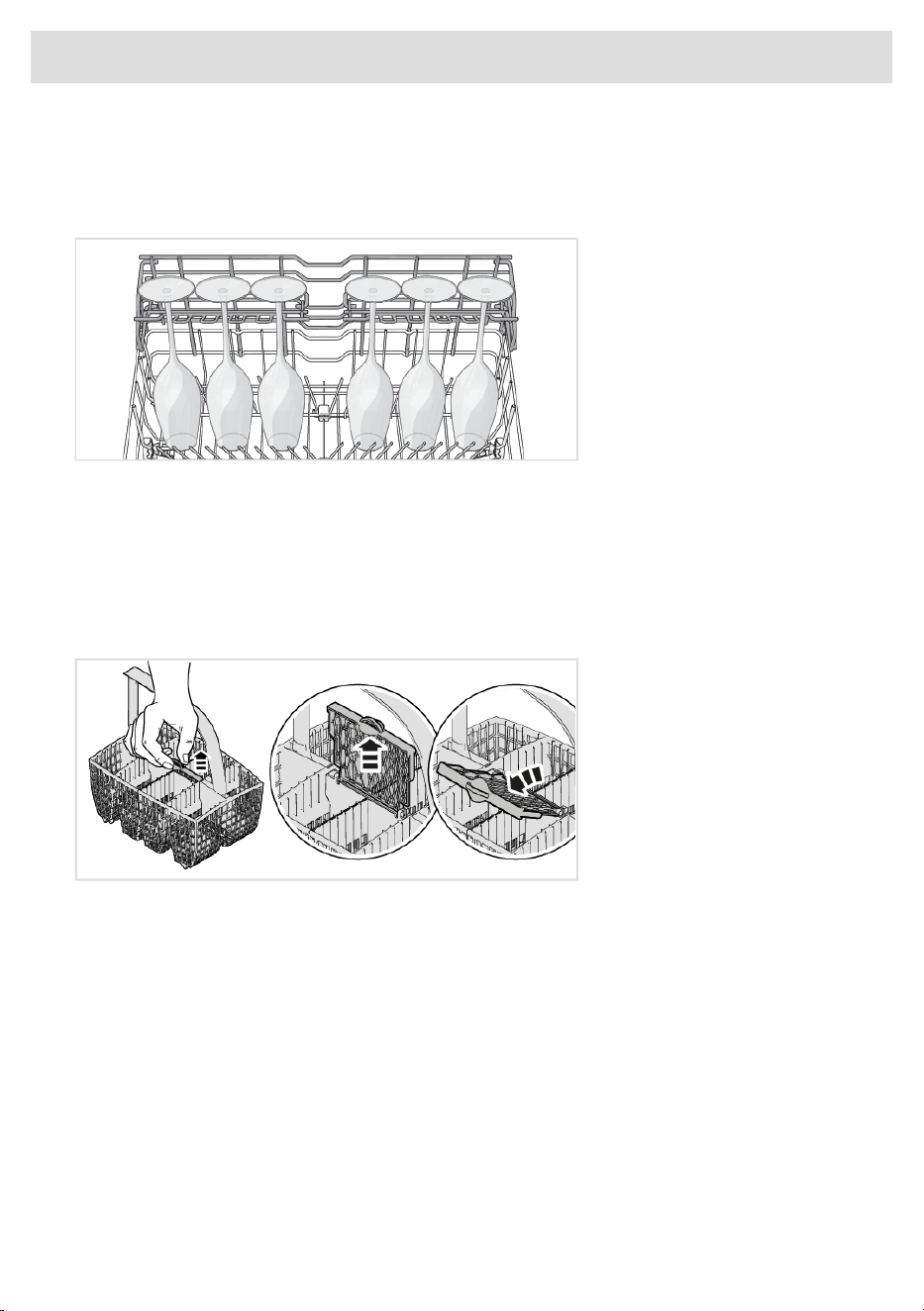

Buy a wine glass shelf with space for six tall
1)
wine glasses. The wine glass shelf is designed to
ensure optimal washing and drying results with tall wine glasses. The wine glass shelf is placed in
the rear section of the lower basket. This accessory can be purchased by calling ASKO.

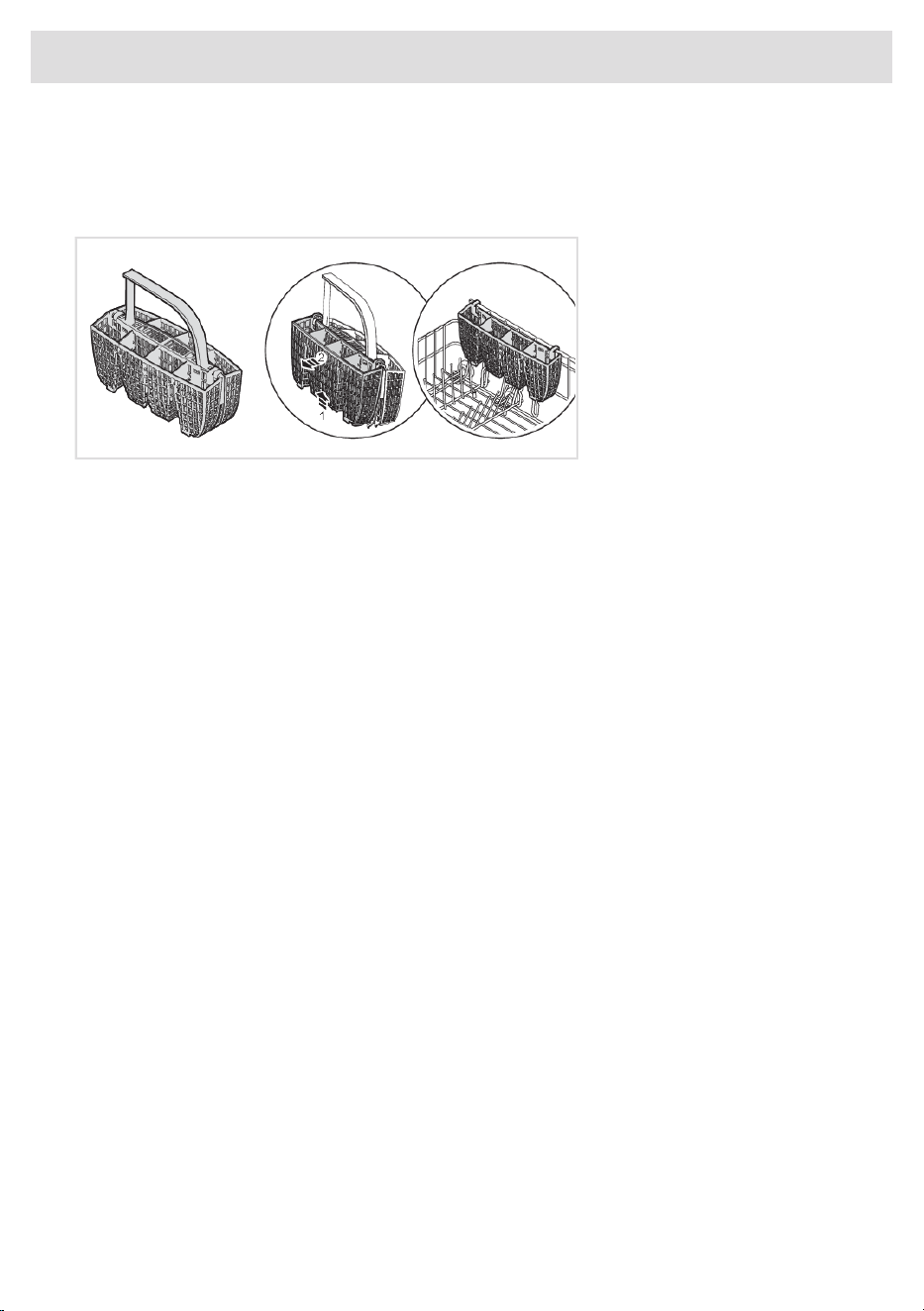

Cutlery basket
Accessory
Buy a cutlery basket. The cutlery basket is placed in the lower basket. This accessory can be
purchased by calling ASKO.
The cutlery basket has a fold-down section in the middle for small items or small shafts (such as
electric whisk attachments).
1)
Height: max. 25 cm, Diameter: max. 7.5 cm
15
Loading the dishwasher
Accessory
Buy an extra cutlery basket. The extra cutlery basket is flexible and can be dismantled and attached
to the lower basket or the large cutlery basket to make an extra large cutlery basket. This accessory
can be purchased by calling ASKO.
16
Loading the dishwasher
Add detergent
Follow the instructions on the detergent packaging.
Too much detergent can result in less effective dishwashing and also entails greater environmental
impact.
Detergent compartment
The detergent compartment must be dry when adding detergent.
If powder or liquid dishwasher detergent is used, add a small amount of the detergent to the prewash
detergent compartment.

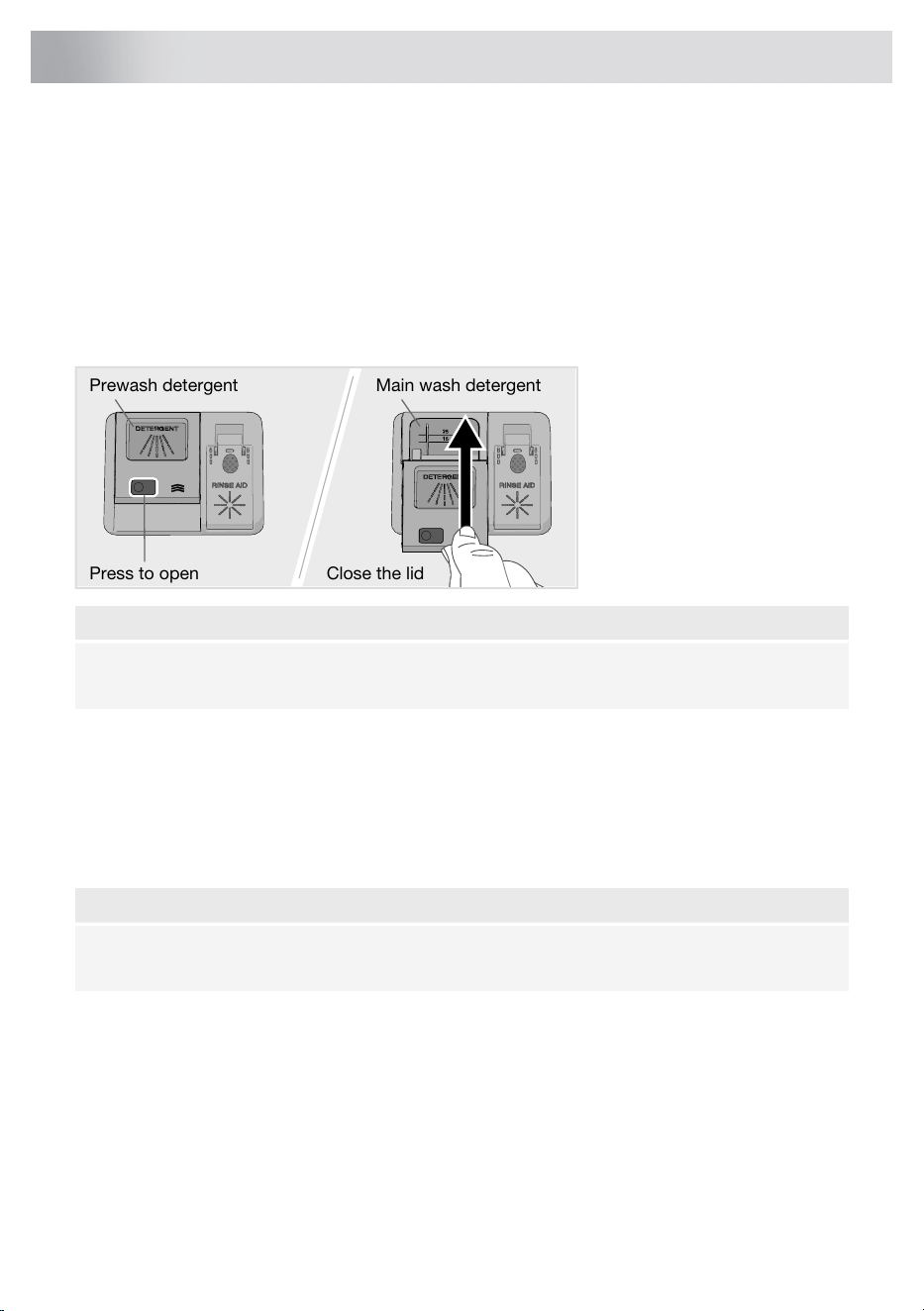

Press to open Close the lid
Prewash detergent
Main wash detergent
NOTE!
Use only dishwasher detergent! Washing up liquid must not be used as the foam that forms
prevents the dishwasher from operating effectively.
All-in-one detergent
There are many types of all-in-one detergents on the market. Read the directions for these products
carefully.
Activate the TAB setting when using an all-in-one detergent that contains rinse aid.
Dishwasher tablets are not recommended for short programs (less than 75 minutes). Use powder
or liquid dishwasher detergent instead.
NOTE!
Optimum washing and drying results are achieved by using normal dishwasher detergent together
with separately dispensed rinse aid.
Contact the detergent manufacturer if you have any questions about the detergent.
17
Using the dishwasher
Start/Stop
Select program mode
Select program Select option
On/Off
On/Off
Press . Also turn the water tap on if it is turned off.
Select program
To select a program, press the navigation button until the desired program is shown on the
display.
Select a program to suit the type of dishes and how dirty they are.
Eco
Use when you want to save water and energy. For normally soiled load, such as plates, serving
dishes, cups, glasses and so on.
You can read more about greener dishwashing in the chapter Greener dishwashing.
Heavy
Use to wash heavily soiled load, such as plates, serving dishes, cups, glasses and so on.
Intensive
A program with a high temperature for dissolving grease on very dirty dishes such as pans, casserole
dishes and oven dishes. If these dishes do not completely fill the dishwasher, you can add plates
and other dishes.
Quick
2)
A fast and effective program for slightly dried leftovers. (This program is not intended for burnt food
such as on oven dishes.)
The Auto door open option is important for ensuring the best drying results.
2)
When combined with Speed, the program is shortened (60 minutes).
18
Using the dishwasher
Time program
The program adapts to the specified running time or finish time. With this program it is important to
choose a time suited to how dirty the dishes are.
Press to set the desired program time.
Slightly dirty dishes0:15-0:45
Normally dirty dishes1:00-1:30
Very dirty dishes2:00-2:30
Hygiene
This program is designed to meet strict hygiene demands.
Rinse and hold
Used to rinse dishes while you wait for the dishwasher to become fully loaded.
Self-cleaning
Self-cleaning program for hygienic cleaning of the dishwasher tub, spray arms and spray pipes.
This program should be run (with no dishes in the machine) using normal dishwasher detergent or
citric acid. Special dishwasher cleaners are also available on the market. For the removal of lime
scale deposits, see Dishwasher tub in Chapter Care and cleaning.
Anti-odour
3)
This program prevents bad odours from dirty dishes left in the dishwasher. Only the dishwasher fan
is activated (at regular intervals during a period of 72 hours).
Select program mode
Press to scroll through the available program modes. The symbol is dimly lit in available program
modes and glows brighter when a program mode has been activated. (The program modes you
can select vary between programs.)
Speed
The program time is shortened, but the dishwasher uses more energy.
Night
Lower noise level during the dishwashing program. The program time is extended.
3)
Activate Odour control in the dishwasher Settings menu. See the Settings chapter.
19
Using the dishwasher
Select option
Available options are dimly lit. Select the options ( , ) to activate them. The options glow brighter
when activated. (The options you can select vary between programs.)
Auto door open
The dishwasher door opens automatically, which shortens the program time and improves the drying
results. Wait until the dishwasher indicates that the program has ended and the dishes have cooled
before unloading the dishwasher.
The drying time for the Auto door open option varies (from 5 to 90 minutes) depending on the model,
program and temperature of the final rinse.
The Auto door open option is pre-selected for some programs.
NOTE!
For the best drying results, do not close the door before the drying phase has finished and the
machine has automatically switched off.
WARNING!
The dishwasher door must not be blocked or closed when opened automatically. Doing so may
damage the door lock mechanism. Wait at least 5 minutes before closing the door.
Delayed start
When you select Delayed start, the dishwasher will start 1–24 hours after you press the .
1.
Press once to activate Delayed start. To set the desired number of hours, press several times
or hold it in.
2.
Press . The timer counts down and the dishwasher starts after the selected delay.
If you want to cancel the Delayed start option, press and hold for three seconds.
Start/Stop
Close the door properly, otherwise the dishwasher will not start. Press until the display shows
"Program started".
If the dishwasher is not started within 2 minutes of the last button press, the machine switches off.
Stopping or changing a program
In order to not accidentally press a button and cancel the current program, you must press and hold
for three seconds if you want to change the program after starting the dishwasher. Add more
detergent if the lid of the detergent dispenser has opened. Then choose a new program and press
.
Time remaining
Once you have chosen a program, a program mode and options, the time the program took when
last used is displayed.
Once you have started the dishwasher, the display shows the remaining program time. The remaining
time is updated during the drying phase.
20
Using the dishwasher
This may differ somewhat from time to time depending on the temperature of the water supply, the
amount of dishes, the ambient temperature and other factors.
During the first run of each program, the remaining time displayed can be slightly misleading, as
the dishwasher is estimating the time. When you run the program a second time, the dishwasher will
calculate the remaining time based on the previous duration of the program.
If you want to load more dishes
4)
Open the door. The dishwasher stops automatically. Add the dishes and close the door. After a
while, the dishwasher continues the program.
Power failure
If the dishwasher is turned off due to a power failure when a dishwashing program is running, the
program continues when power is restored. If the power is cut during drying, the program is
interrupted.
If you open the door for more than 2 minutes during drying, the program will be interrupted.
Once the program has finished
Once the program has finished, “Program done” appears on the display.
At the end of the program, you will hear a short beep. Chapter Settings describes how to change
this function.
The dishwasher switches off automatically after the program ends. Shut off the water tap after each
use (if required by your insurance company).
For the best drying results
• Fully load the dishwasher.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
• Top up with rinse aid or increase the rinse aid dose setting.
• Activate the Auto door open option.
• Allow the dishes to cool before unloading the dishwasher.
Unloading the dishwasher
Hot porcelain is more fragile. Leave the dishes to cool in the dishwasher before unloading them.
Unload the lower basket first to avoid any water drops from the upper basket falling onto the dishes
in the lower basket.
4)
You should not load more dishes if the lid of the detergent dispenser has been opened.
21
Using the dishwasher
Consumption values
1)
Final
rinse
Number
of rinses
Main washNumber
of prewashes
Program mode
/ Option
Program
Water cons. (liter)Energy
(approx. kWh)
Dishwashing time
(approx. hrs:min)
10.60.572:5835 °C251 °C1
3)
Eco
2)
11.51.22:4560 °C265 °C1
3)
Heavy
16.01.62:5065 °C270 °C2Intensive
14.51.31:3065 °C365 °C
3)
Quick
10.0-16.50.3-1.40:15-2:30≤65 °C2≤65 °C0-2Time program
10.51.31:0565 °C270 °CHygiene
3.50.010:071Rinse and hold
10.01.01:0565 °C270 °CSelf-cleaning
0.272:00Anti-odour
1)
Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more.
2)
The energy label performance figures are based on this program which is recommended for normally soiled load at the rated capacity (Option: Auto door open).
3)
Auto door open
22
Program chart

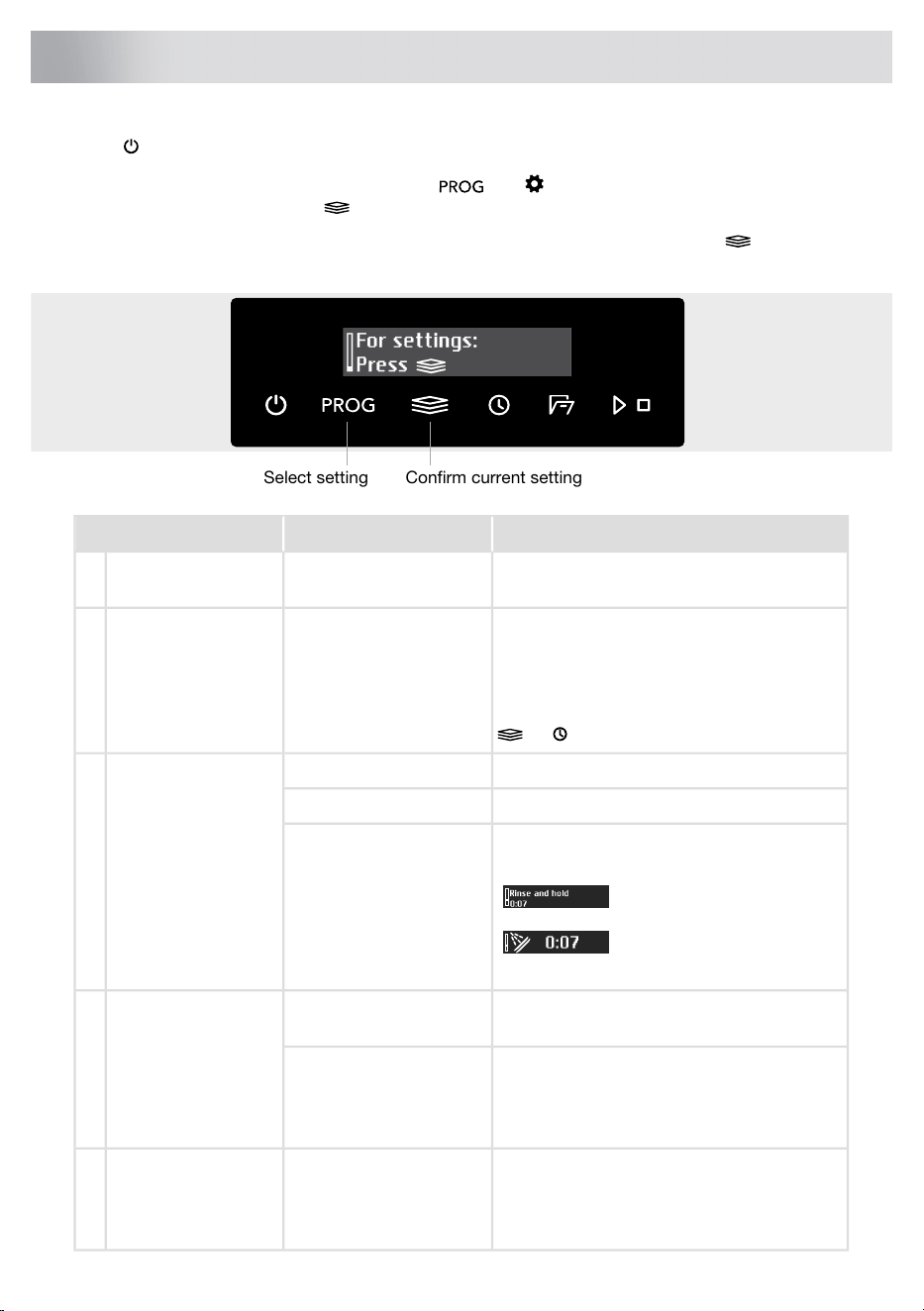

Press .
To open the dishwasher Settings menu, press until Settings menu is shown on the display
and confirm your selection with .
To exit the dishwasher's Settings menu, select Exit and confirm your selection with .
Confirm current settingSelect setting
AlternativesSettings
You can choose the language used for the
display.
Language1.
You can activate the Automatic child lock
setting to prevent children from starting the
dishwasher.
On/OffAutomatic child lock2.
To temporarily deactivate or activate the
Automatic child lock setting, press and hold
for three seconds.
Setting to hide the logo shown on the display.Logotype On/OffDisplay3.
For adjusting the contrast of the display.Contrast 1/2/3/4
You can select which information is shown
on the display.
Program Info screen T/S
T-Text (Text)
S-Symbol (Symbol)
A beep confirms that the display has been
pressed.
Feedback 0/1/2/3Sound4.
The buzzer indicates when a dishwashing
program has ended.
Notification 0/1/2/3
Error messages are always indicated by a
loud buzzer.
Setting for rinse aid dosage. The rinse aid
dispenser can be adjusted between 0 (Off)
and 5 (High dosage).
0/1/2/3/4/5Rinse aid5.
Increase the rinse aid dosage:
23
Settings
AlternativesSettings
• If the dishes have water marks.
Decrease the rinse aid dosage:
• If the dishes have a sticky white/blue film.
• If the dishes are streaked.
• Build-up of foam. If you have very soft
water, the rinse aid can be diluted 50:50
with water.
Activate this setting when using an all-in-one
detergent that contains rinse aid.
On/OffTAB
(All-in-one detergent)
6.
This setting reduces the rinse aid dose.
The Super rinse function rinses the dishes an
extra two times.
On/OffSuper rinse7.
The program time is extended and the
dishwasher uses more energy and water.
Activated in the following programs:
Heavy
Intensive
Quick
Hygiene
When Odour control is activated,
Anti-odour can be selected from the program
table.
On/OffOdour control8.
Any error messages.Failure readout9.
When contacting your service centre, you
may be asked to provide the most recent
error messages.
Restores all settings to the factory defaults.Factory reset10.
Select Factory reset and press .
To exit the dishwasher Settings menu, select
Exit and press .
Exit11.
24
Settings
Top up rinse aid
When the rinse aid needs topping up, the symbol lights on the display.
See the chapter Before washing for the first time.
Clean the filters

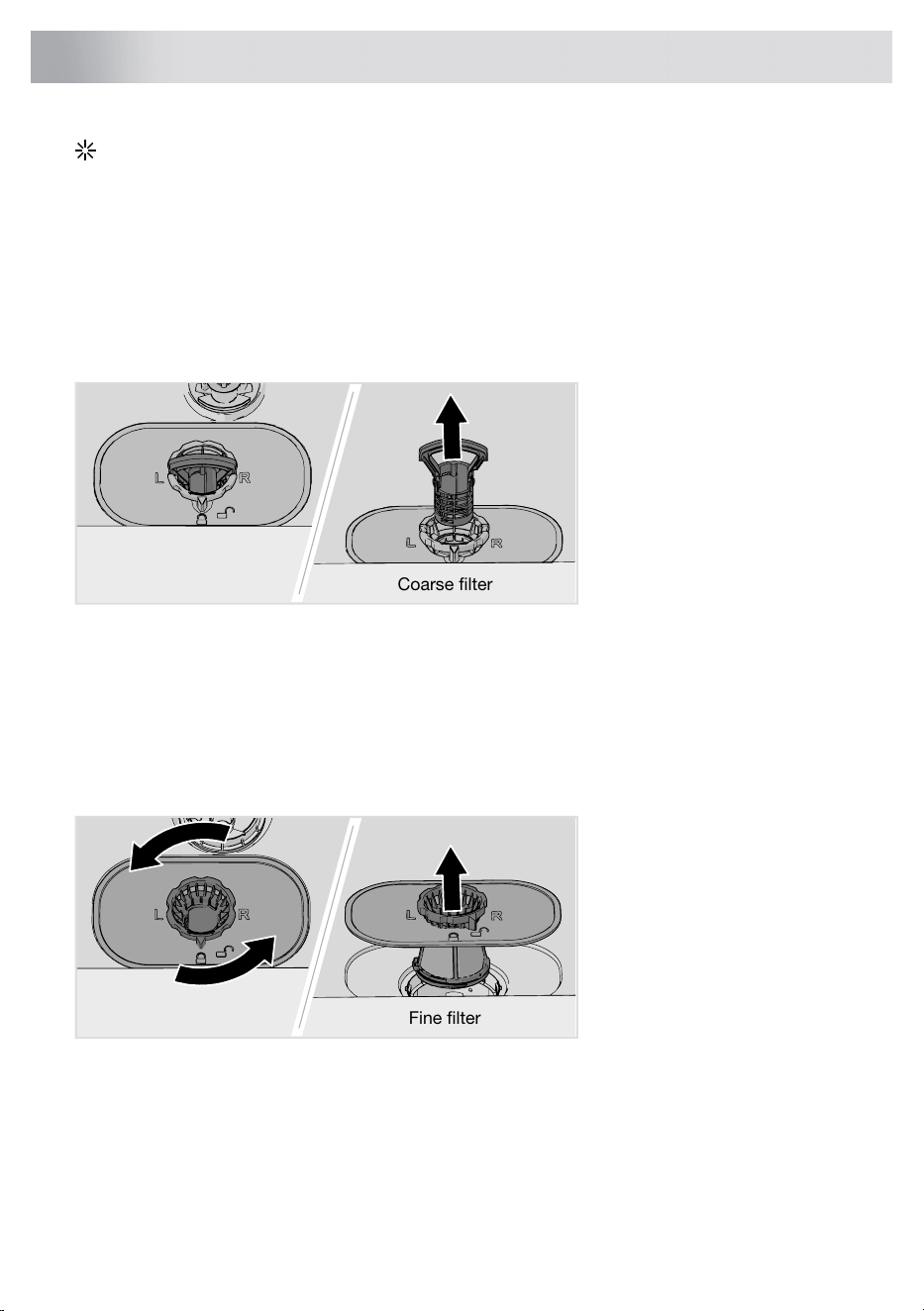

Coarse filter
The coarse filter traps larger food particles, which cannot get past the drainage pump. Empty the
coarse filter when necessary. It should be cleaned at regular intervals depending on how often the
dishwasher is used.
Coarse filter
1. Lift the coarse filter by the handle.
2. Empty the coarse filter.
3. Refit the coarse filter. Press it down until it clicks into place.
Fine filter
Debris that collects on the fine filter is automatically rinsed away during each wash. Clean the fine
filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher
is used.
Fine filter
1. Turn the locking ring anticlockwise and lift the fine filter straight up.
2. Clean the fine filter.
3. Refit the fine filter and turn the locking ring clockwise to its stop position. Check that the edges
seal properly.
Remember to refit the coarse filter!
25
Care and cleaning
NOTE!
Dishwashing results may be affected if the coarse and fine filters are incorrectly fitted. The
dishwasher must not be used without the filters in place!

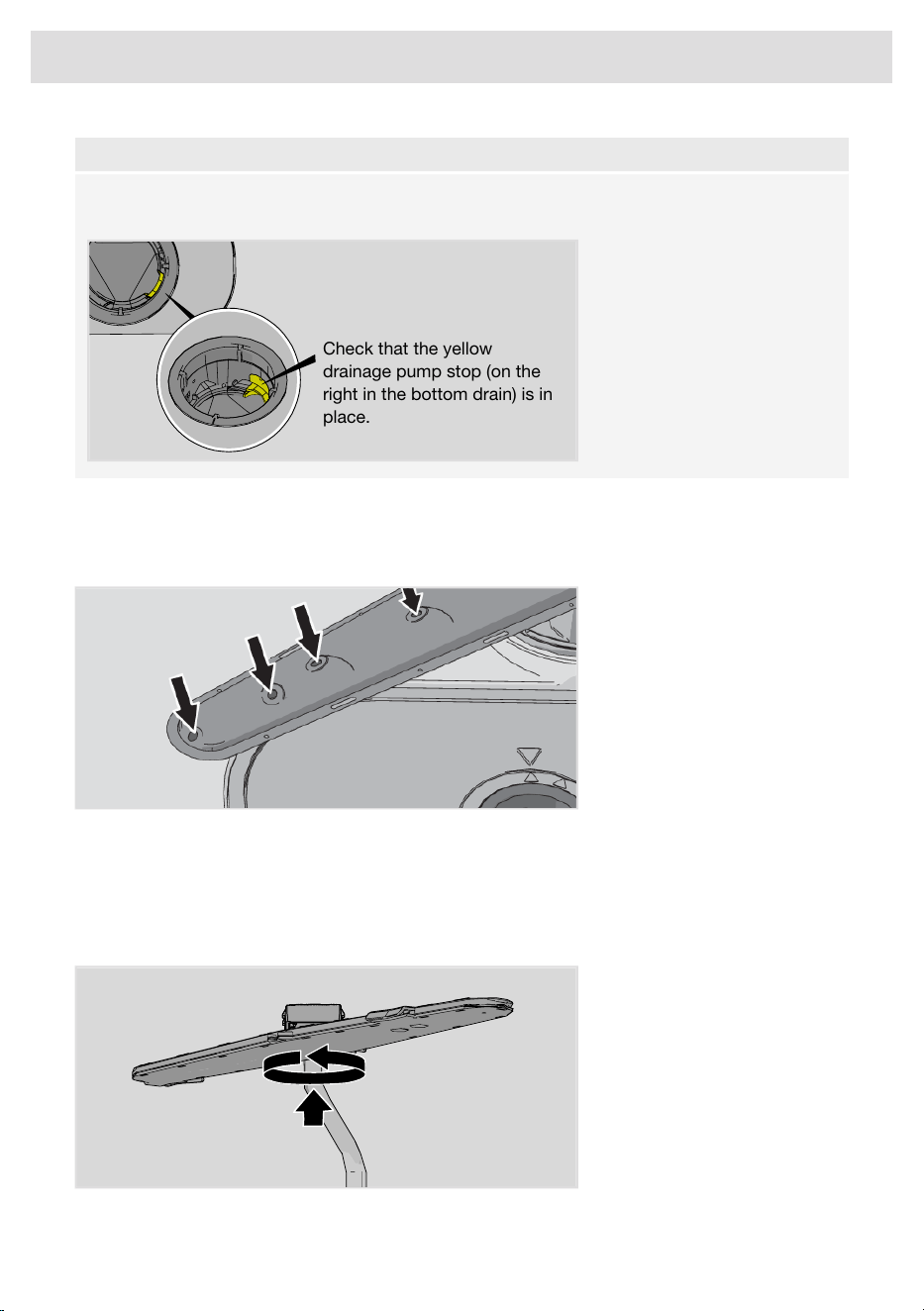

Check that the yellow
drainage pump stop (on the
right in the bottom drain) is in
place.
Cleaning the spray arms
Holes and bearings can sometimes become blocked. Remove any debris using a pin or something
similar. The spray arms also have holes on their undersides.
To facilitate cleaning, you can remove the spray arms. Remember to fit them firmly back into place
after cleaning.
Top spray arm

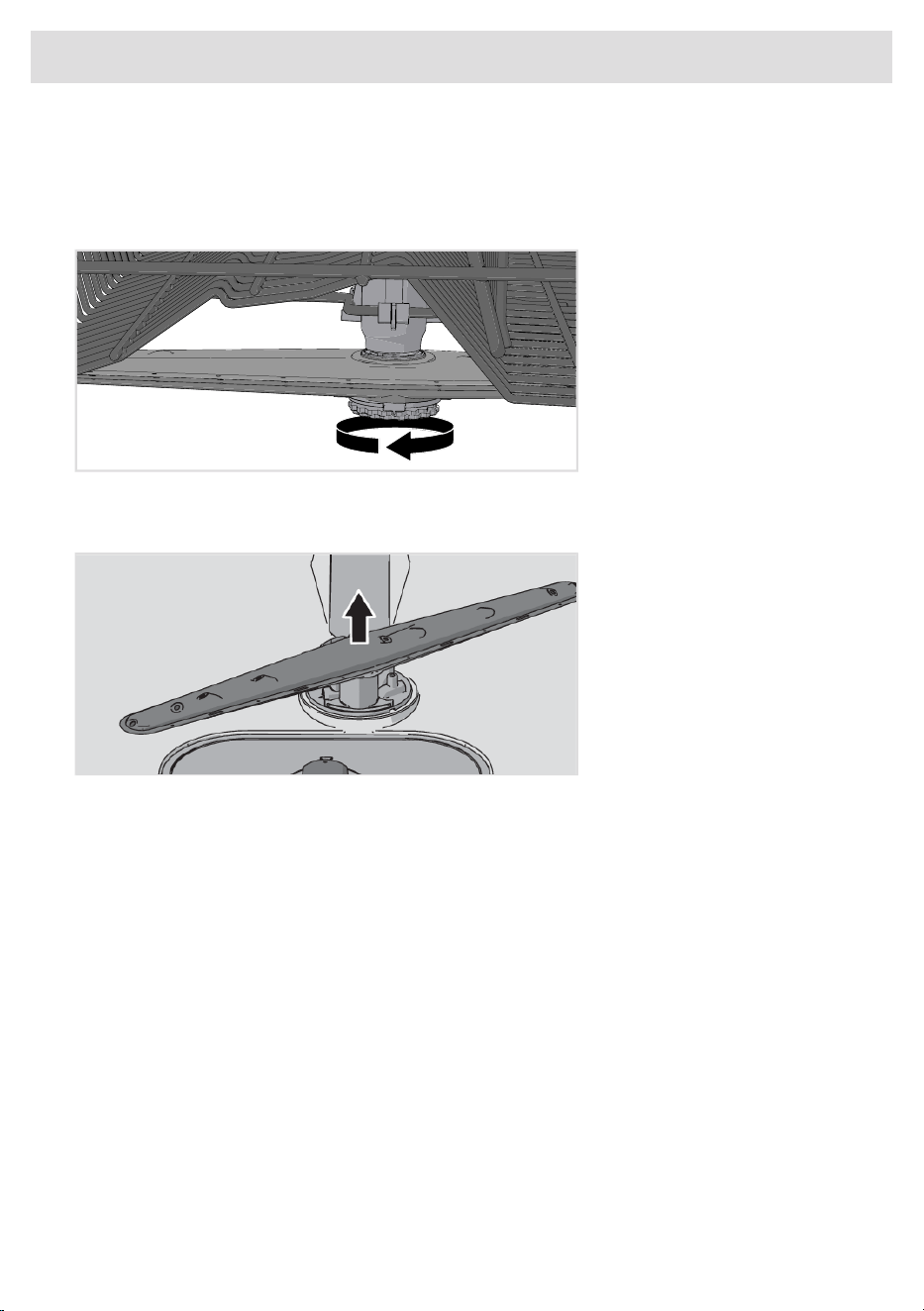

• Pull out the top cutlery tray. Push up on the top spray arm while turning it anticlockwise to release
it.
26
Care and cleaning
Upper spray arm
• Pull out the upper basket.
• Unscrew the spray arm bearings counterclockwise to remove the spray arm from the upper
basket.
Lower spray arm
• Pull the lower spray arm straight up to release it.
Clean the outside of the dishwasher
Door and door seal
Open the door. Clean the sides of the door and the door seal regularly with a slightly damp cloth.
Clean the door seal at the lower front edge of the dishwasher with a washing-up brush.
Display
Keep the display and the buttons clean. If necessary, wipe them with a dry or slightly damp cloth.
Never use cleaning products – they may scratch the surface.
Run Self-cleaning
Dishwasher tub
The dishwasher tub is made of stainless steel and is kept clean through normal use (when used
regularly).
If you have hard water, limescale deposits may build up in the dishwasher. If this happens, run the
Self-cleaning program with two tablespoons of citric acid in the detergent compartment (with no
dishes in the machine). Special dishwasher cleaners are also available on the market.
27
Care and cleaning
Remove blockages
Unblocking the drainage pump
If the dishwasher still contains water after the program has finished, something may be blocking the
drainage pump, which results in the error message Water outlet fault or BLDC drain pump fault.
1.
Turn the machine off using and remove the plug from the wall socket.
2. Remove the coarse filter and the fine filter.
3. Scoop out the water from the dishwasher tub.

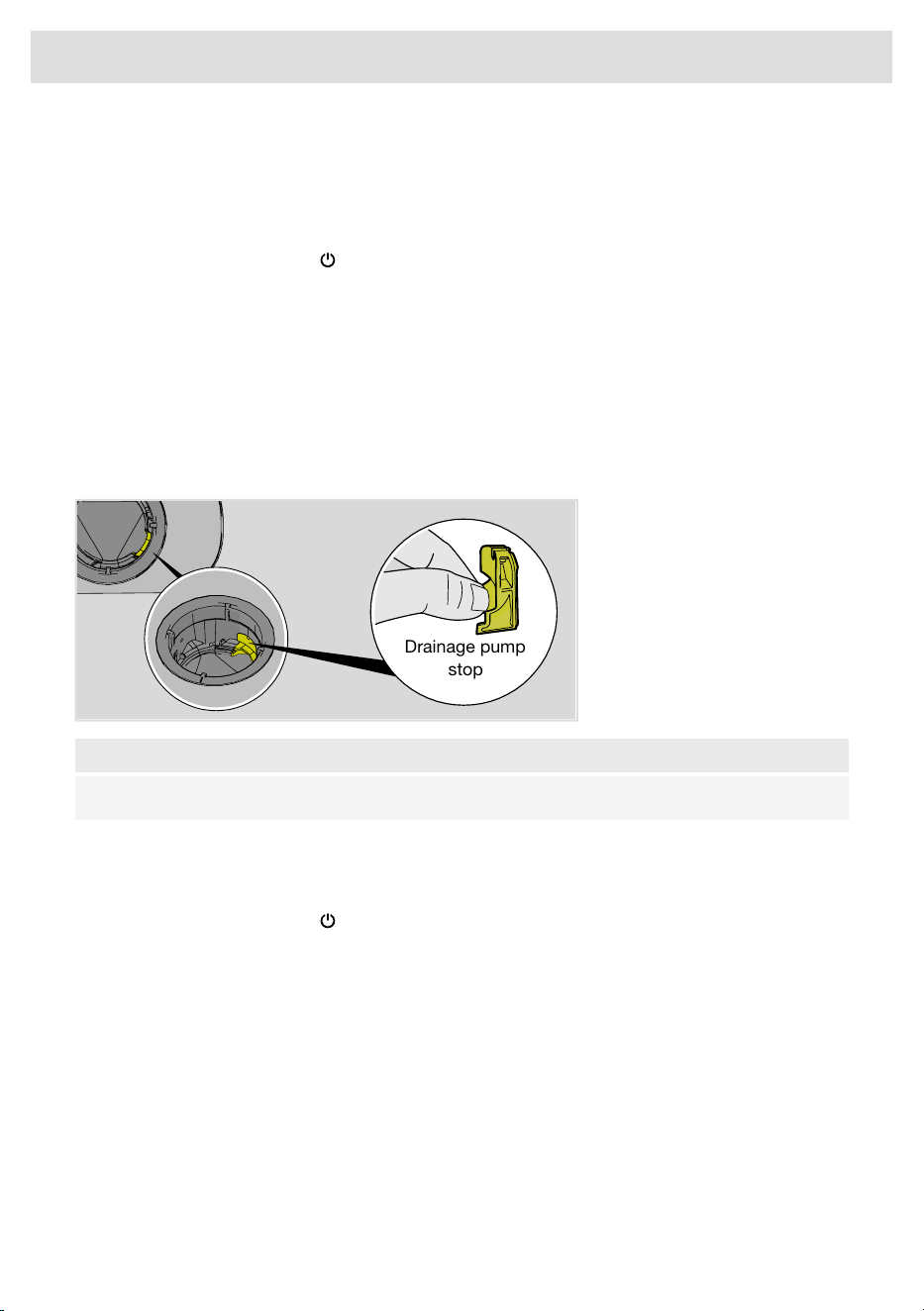

4. In order to inspect the drainage pump, remove the yellow drainage pump stop on the right in
the bottom drain. (Use a pair of pliers if necessary.)
5. Turn the pump wheel located behind the drainage pump stop by hand. Carefully remove any
items.
6. Refit the drainage pump stop along with the fine and coarse filters.
7. Plug the machine in again.
Drainage pump
stop
NOTE!
Do not forget to refit the drainage pump stop.
Unblocking the inlet hose filter
If the water supply contains small particles, the outer filter on the inlet hose may become blocked,
which results in the Water inlet fault error message.
1.
Turn the machine off using and remove the plug from the wall socket.
2. Turn off the water tap.
3. Unscrew the inlet hose.
4. Carefully remove the outer filter from the inlet hose and clean it.
5. Refit the filter and check that the gasket is correctly positioned.
6. Screw the inlet hose firmly into place.
28
Care and cleaning
7. Plug the machine into the wall socket and turn on the water tap. Allow the pressure to settle for
a while and check that the connection is watertight.
Outer filter on
inlet hose
Gasket
Winter storage/Transport
Store the dishwasher above freezing temperature and avoid long transport distances in very cold
weather. Transport the dishwasher upright or laying on its back.
Water must be removed from the machine before the dishwasher is transported anywhere or before
being stored for long periods.
29
Care and cleaning
ActionError messages
Unblocking the drainage pump. See the chapter, Care and
cleaning. If the problem persists, contact your nearest service
centre.
Overfilling water 1F10
See "Water remains in the dishwasher" under "Problem" in the
table below. If the problem persists, contact your nearest service
centre.
Water outlet faultF11
Check whether dishwasher inlet hose is connected to a pressure
limiting valve (some pressure limiting valves may restrict the supply
of water to the dishwasher).
Water inlet fault 1F12
Check that the water tap is on. Check that the outer filter on the
inlet hose is not blocked. See Unblocking the inlet hose filter in
the chapter, Care and cleaning. If the problem persists, contact
your nearest service centre.
Turn the water tap off and contact your nearest service centre.Inlet valve leakageF40
Turn the water tap off. Remove the plug from the wall socket and
contact your nearest service centre.
Heater fault 1F41
Contact your nearest service centre.Diverter faultF45
Clean the coarse and fine filters. Check that the outer filter on the
inlet hose is not blocked. If the problem persists, contact your
nearest service centre.
Water level faultF52
Turn the water tap off and contact your nearest service centre.Overfilling water 2F54
To avoid water leaking outside the dishwasher, do not remove the
plug from the wall socket until the water tap on the supply line has
been turned off!
Contact your nearest service centre.Circulation pump faultF56
Check whether dishwasher inlet hose is connected to a pressure
limiting valve (some pressure limiting valves may restrict the supply
of water to the dishwasher).
Water inlet fault 2F67
Check that the water tap is on. Check that the outer filter on the
inlet hose is not blocked. See Unblocking the inlet hose filter in
the chapter, Care and cleaning. If the problem persists, contact
your nearest service centre.
See "Water remains in the dishwasher" under "Problem" in the
table below. If the problem persists, contact your nearest service
centre.
BLDC drain pump faultF68
Press any button to clear the error message.
30
Troubleshooting
ActionPossible causesProblem
Wait a moment then try again.You have pressed the display
too soon after opening the door.
The display does not react when
pressed.
See the chapter Safety
instructions.
Child lock or Automatic child
lock is activated.
Clean with a dry or slightly damp
cloth.
Dirt on the display.
Turn off the water tap. Unplug
from the powerpoint and wait for
60 seconds. Then plug the
appliance back into the
powerpoint and turn on the
water tap.
The control panel needs
calibration.
Check that the baskets are
correctly positioned horizontally.
The baskets are not correctly
positioned.
Cannot close door.
Check that the dishes are not
blocking the baskets from
sliding properly into place.
Check the door lock. If it does
not click into place and lock,
open the door.
The door lock does not click into
place and lock.
Press and hold and
until the display starts flashing.
Wait until it stops flashing (60
seconds). Close the door.
Check that the door lock clicks
into place and locks.
31
Troubleshooting
ActionPossible causesProblem
Press and hold until the
display shows "Program started".
has not been pressed.
The dishwasher does not start.
Check.The door is not properly closed.
Close the door and wait. After a
while, the dishwasher continues
the program.
You have opened the
dishwasher to add more dishes
while a program is in progress.
Check the door lock. If it has not
clicked into place and locked,
open the door.
The door lock has not clicked
into place and locked.
Press and hold and
until the display starts flashing.
Wait until it stops flashing (60
seconds). Close the door.
Check that the door lock clicks
into place and locks and that the
dishwasher starts.
Press and hold for three
seconds if you want to cancel
the Delayed start option.
Check that the Delayed start
option has been selected.
Check.The plug is not plugged into the
wall socket.
Check.A fuse/circuit breaker has been
tripped.
32
Troubleshooting
ActionPossible causesProblem
Check that the dishes are not
blocking the spray arms.
The spray arms do not rotate.The dishes are not clean.
Clean the spray arms. See
Chapter Care and cleaning.
Spray arm holes or bearings
blocked.
Select a program with a high
temperature to dissolve grease
on very dirty dishes, such as
Intensive.
Unsuitable dishwashing
program.
Dose according to water
hardness. Far too much or far
too little detergent results in
poorer dishwashing results.
Incorrect detergent dosage.
Avoid large packages.Old detergent. Detergent is a
perishable product.
Do not cover porcelain with
large bowls or similar. Avoid
placing very tall glasses in the
corners of the baskets. See the
chapter, Loading the
dishwasher.
Dishes loaded incorrectly.
Place dishes to sit steady.Glasses and cups have toppled
over during the program.
Clean the coarse and fine filters.The filters are clogged.
Check that the filters are fitted
correctly. See the chapter, Care
and cleaning.
The filters are not fitted correctly.
Check that the yellow drainage
pump stop (on the right in the
bottom drain) is in place. See
the chapter, Care and cleaning.
Drainage pump stop missing.
Rinse off these types of
foodstuffs if not starting the
dishwasher immediately. Use
the Rinse and hold program.
Some foodstuffs, such as
mustard, mayonnaise, lemon,
vinegar, salt and dressings, can
cause spots on stainless steel if
left for too long.
Spots on stainless steel or silver.
In order to avoid marks and
tarnishing, separate dishes
made from different metals,
such as silver, stainless steel
and aluminium.
All stainless steel can cause
spots on silver if they come into
contact during dishwashing.
Aluminium can also cause spots
on dishes.
33
Troubleshooting
ActionPossible causesProblem
See the chapter Settings.Incorrect rinse aid dosage
setting.
Spots or films on the dishes.
Change all-in-one detergents or
deactivate the TAB setting and
top up with separate rinse aid.
See Rinse aid in the chapter,
Settings.
The setting TAB is activated and
all-in-one detergent with
insufficient drying effect is being
used.
Wash crystal at a low
temperature and with a
conservative amount of
detergent. Contact the detergent
manufacturer.
Too high temperature and/or too
much detergent can cause
etching on crystal.
Unfortunately, this cannot be
repaired, only prevented.
Reduce the dosage. See the
chapter Settings. If you have
very soft water, you may want to
dilute the rinse aid 50:50 with
water.
Rinse aid dosage setting too
high.
The dishes have a sticky
white/blue film.
Use a detergent with a
bleaching agent.
Lipstick and tea/coffee stains
can be difficult to remove.
Spots left after washing.
The detergent compartment
must be dry when adding
detergent.
The detergent compartment was
damp when adding detergent.
Detergent residue in the
detergent compartment after
dishwashing.
Check that the dishes are not
preventing the detergent
compartment from opening.
The detergent compartment is
blocked.
Check that the dishes are
placed securely. Spin the spray
arms to make sure they can
rotate.
The dishes are not correctly
placed or the spray arms are not
rotating.
Rattling sound when
dishwashing.
No action. The program time is
stored and next time the
program is run the corrected
time will be displayed.
The program is taking longer
than estimated.
1 minute is shown for a longer
period on the display.
34
Troubleshooting
ActionPossible causesProblem
Clean the coarse and fine filters.The filters are clogged.Water remains in the
dishwasher.
Check that the filters are fitted
correctly. See the chapter, Care
and cleaning.
The filters are not fitted correctly.
Clean the drainage pump. See
the chapter Care and cleaning.
Debris in the drainage pump.
Check that the yellow drainage
pump stop (on the right in the
bottom drain) is in place. See
the chapter, Care and cleaning.
Drainage pump stop missing.
Check that the hose is free from
kinks and sharp bends.
Kink in drainage hose.
Disconnect the drainage hose
where it connects to the sink
unit's water trap. Check that no
debris has fastened and that the
connection has an inner
diameter of at least 14 mm.
Blocked drainage hose.
Clean with washing-up brush
and low foaming cleaner.
Dirt around the seals and in
corners.
Bad odour in dishwasher.
Run a program with a high
temperature once or twice a
month. Or run a self-cleaning
program. See Self-cleaning in
the chapter Using the
dishwasher.
Low temperature programs have
been selected for a prolonged
period.
Select a program with a high
temperature to dissolve grease
on very dirty dishes, such as
Intensive. Or run a self-cleaning
program once or twice a month.
See Self-cleaning in the chapter
Using the dishwasher.
Low temperature programs have
been selected for a prolonged
period.
Grease deposits in the
dishwasher.
35
Troubleshooting
ActionPossible causesProblem
Activate the Auto door open
option.
The Auto door open option is not
activated.
The dishes are not dry enough.
Fully load the dishwasher.The dishwasher is not fully
loaded.
Top up with rinse aid or increase
the rinse aid dose setting.
Rinse aid needs topping up or
dosage is set too low.
Change all-in-one detergents or
deactivate the TAB setting and
top up with separate rinse aid.
See Rinse aid in the chapter,
Settings.
The setting TAB is activated and
all-in-one detergent with
insufficient drying effect is being
used.
36
Troubleshooting

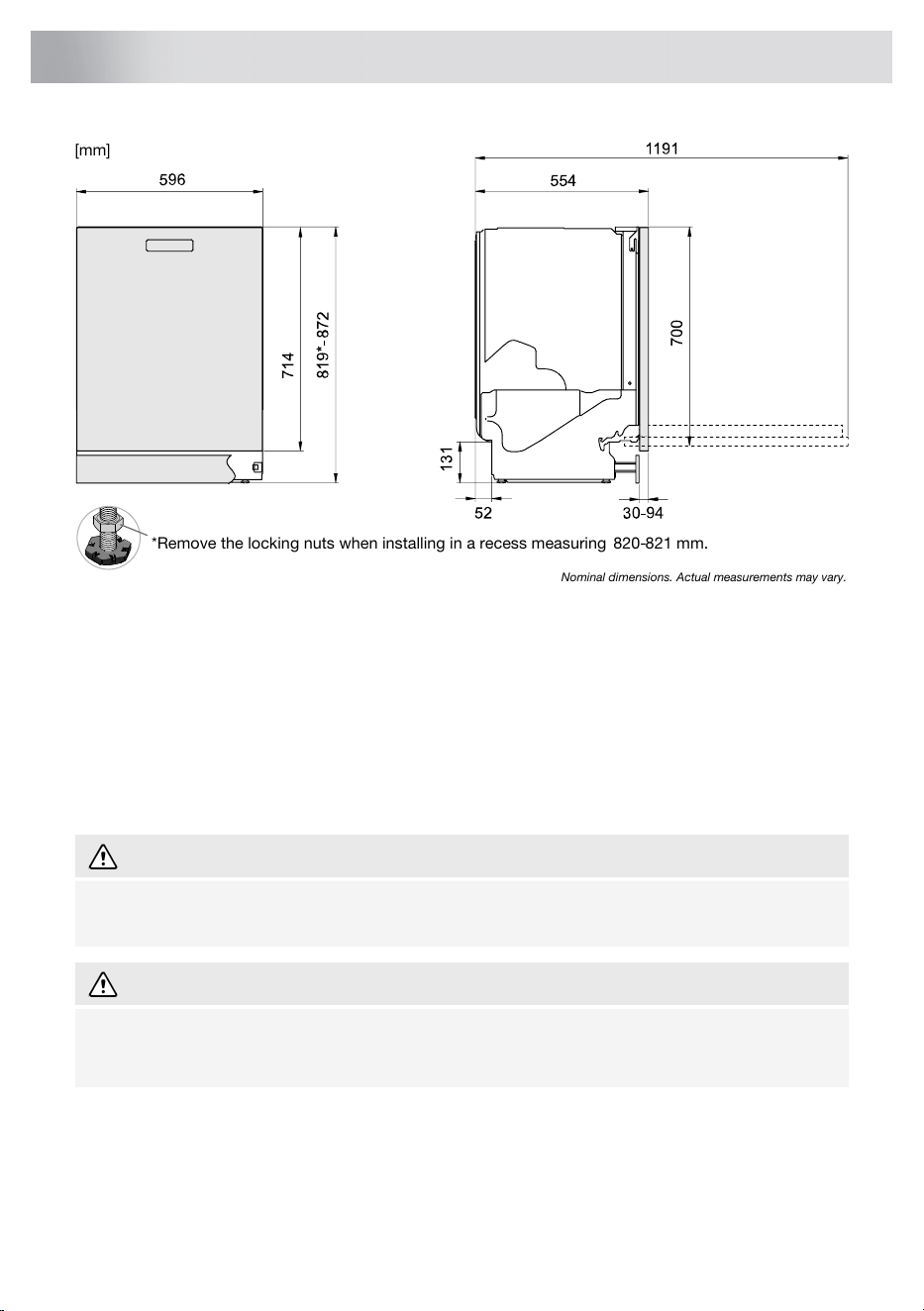

*Remove the locking nuts when installing in a recess measuring 820-821 mm.
Nominal dimensions. Actual measurements may vary.
[mm]
Safety instructions
• Connections to electricity, water and drainage must be performed by a qualified professional.
• Always follow applicable regulations for water, drainage and electricity.
• Take care during installation! Wear protective gloves! There must always be two people!
• Before screwing the dishwasher into place, test the dishwasher by running the Rinse and hold
program. Check that the dishwasher fills with water and drains. Check also that none of the
connections leak.
WARNING!
The ventilation opening in the lower part of the door must not be blocked by a rug, carpet or
similar furnishing.
WARNING!
Turn off the water supply when installing the dishwasher!
The plug must be disconnected or power to the socket turned off while the work is carried out!
37
Installation
Transport protection for the door
Do not forget to remove the transport protection for the door when unpacking the dishwasher.
Placing the dishwasher

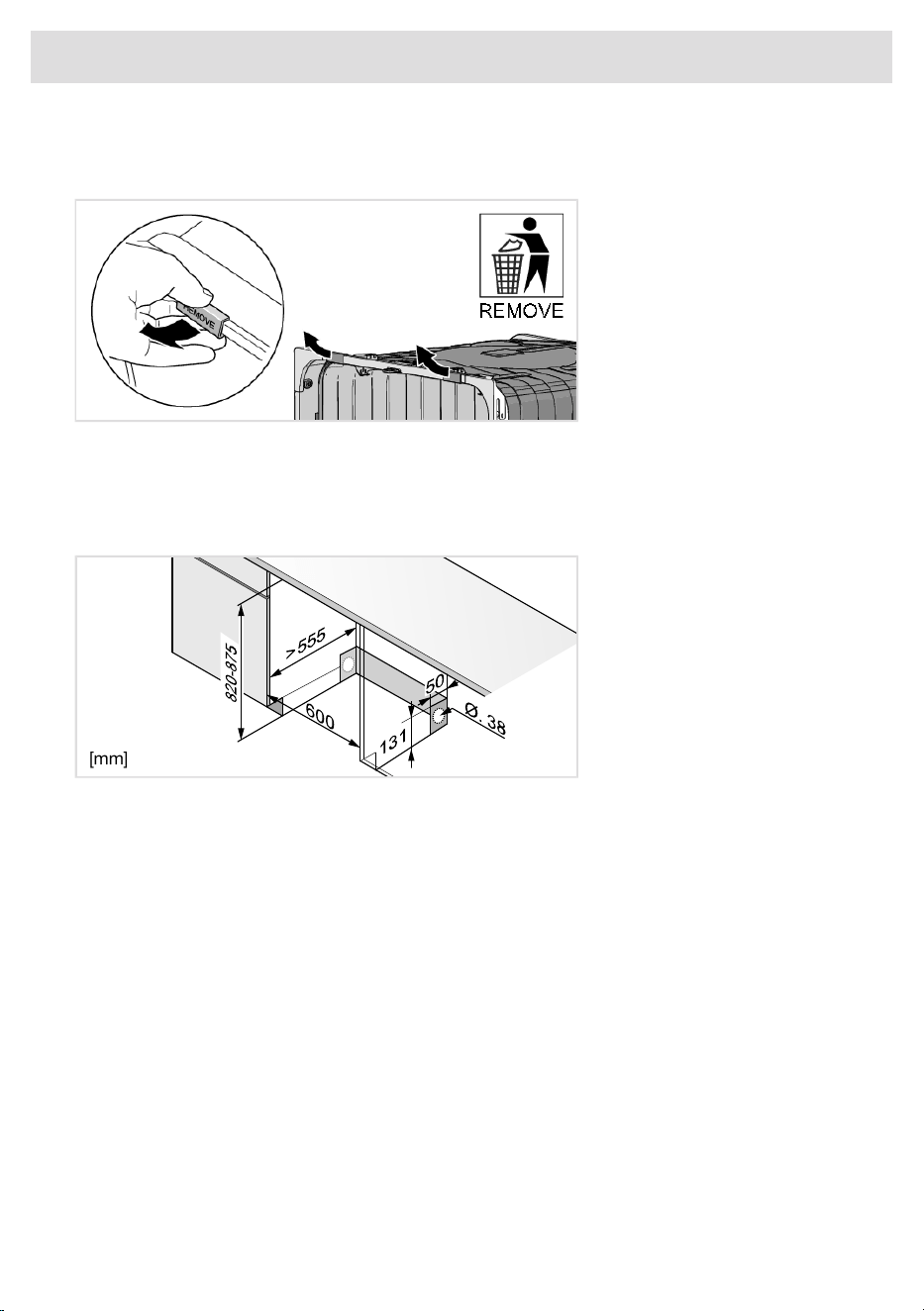

The dishwasher is intended for installation under a worktop. The recess dimensions are illustrated.
Holes for wires/cables need not be larger than 38 mm in diameter. Make sure the edges of such
holes are even to prevent damage to the drainage and inlet hoses and the power cable.
[mm]
If the dishwasher is built-in the surrounding cabinetry must be resistant to any condensation from
the dishwasher.
Accessory
Buy an accessory kit for freestanding installation (two side panels, a worktop and two anti-tip brackets).
If the dishwasher is placed so that one of the sides is visible, side panels must be fitted. If the
dishwasher is completely freestanding, both side panels, a worktop and anti-tip brackets must be
fitted. Accessories can be purchased from where you bought the dishwasher.

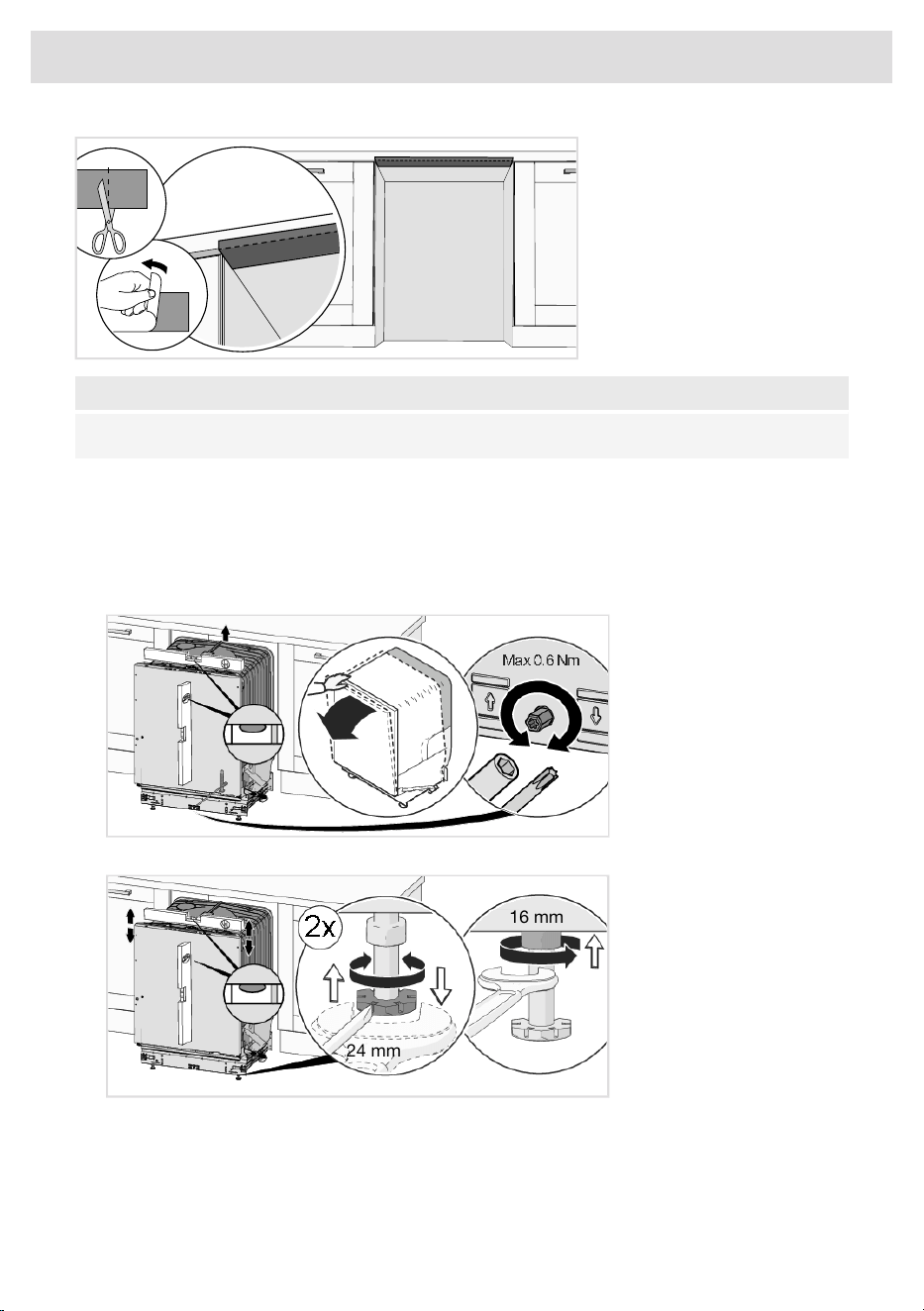

Affix the protective film
Mount the protective film beneath the worktop and up around the edge. The function of the protective
film is to protect the worktop from moisture. (The protective film is in the enclosed plastic bag.)
38
Installation
NOTE!
The surface to which the protective film is affixed must be clean and dry.
Adjust the height and slide the dishwasher into place
1. Start by measuring the height from the floor to the bottom edge of the worktop.
2. Measure the height from the floor to the top edge of the dishwasher.
3. Lean the dishwasher forwards a little and adjust the rear foot with the screw at the front of the
dishwasher. Turn clockwise to lower or anticlockwise to raise.
4. Adjust the front feet by turning them clockwise to raise and anticlockwise to lower the dishwasher.
24 mm
16 mm
5. Check that there is an air gap of at least 3 mm between the underside of the worktop and the
top edge of the dishwasher.
6. Slide the dishwasher into place.
• Pull the supply and drainage hoses and the power cord when sliding the dishwasher into
place.
39
Installation
• Check that the drainage hose has no kinks or sharp bends. Also check that there is nothing
that can damage the hoses.
• Check that the machine is installed such that the door opens freely, otherwise door lock
functionality may be disrupted.
7. Make any final adjustments to the feet and tighten the lock nuts on the front feet.

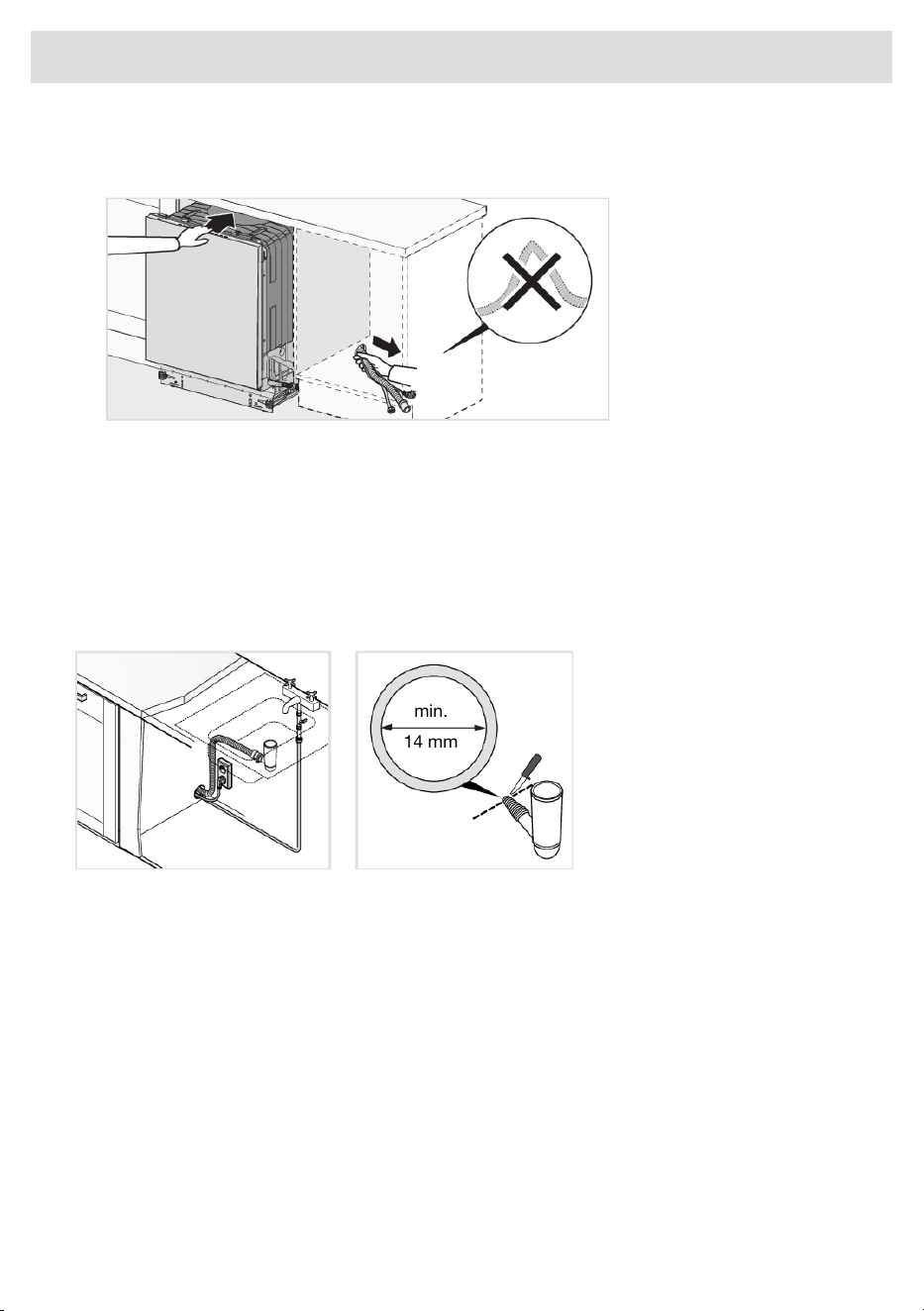

Drainage connection
This dishwasher is suitable for installing in a raised recess (to attain an ergonomic working height).
This means that the dishwasher can be placed so that the drainage hose runs to a lower level than
the bottom of the dishwasher, such as by routing it directly to a floor drain.
min.
14mm
40
Installation

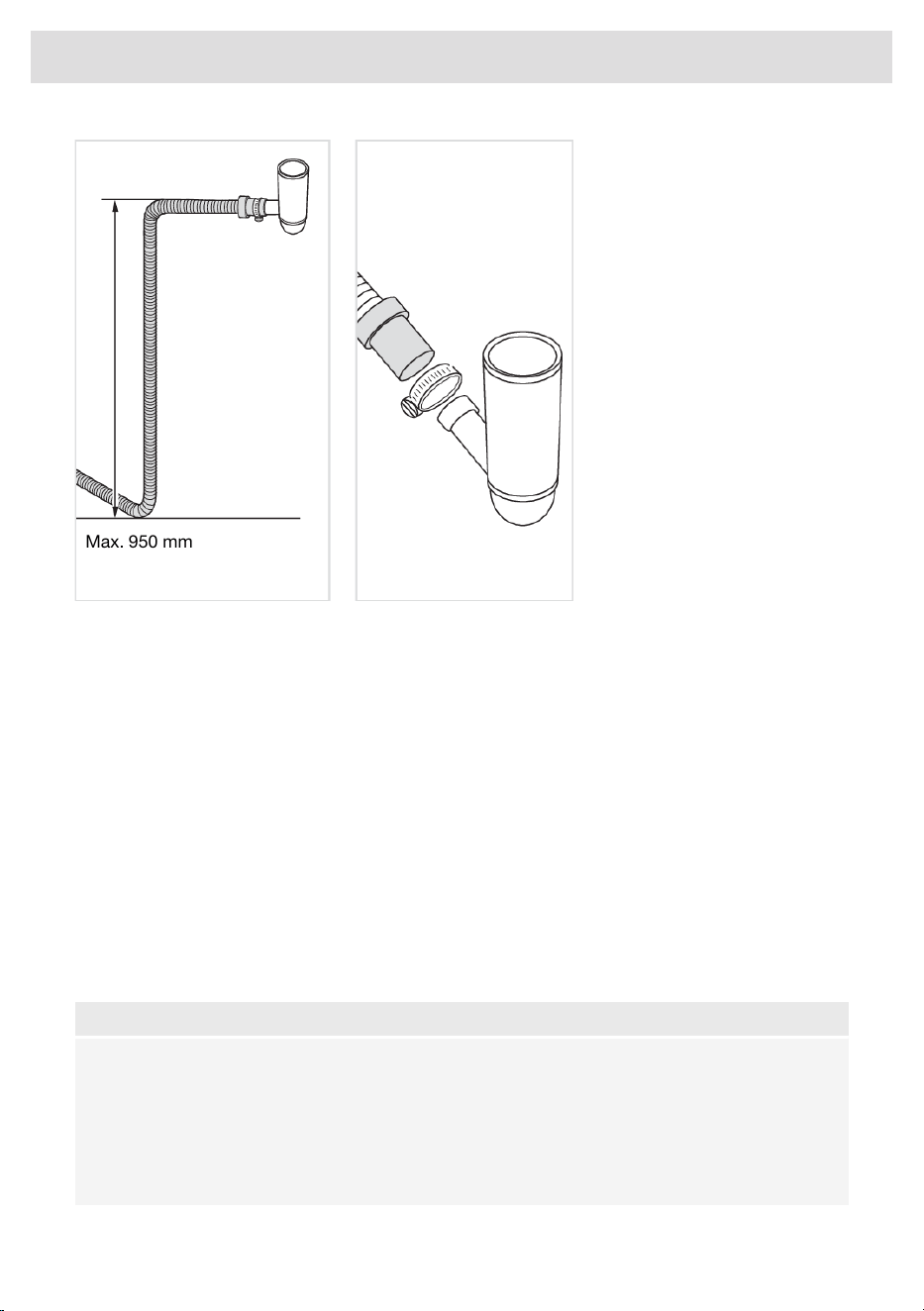

Max. 950mm
The drainage hose can also be connected to a connection nipple on the sink unit’s water trap. The
connection nipple must have an internal diameter of at least 14 mm.
The drainage hose may be extended by a maximum of 2.5 m (the total length of the drainage hose
must not exceed 4.5 m). Any joints and connecting pipes must have an internal diameter of at least
14 mm.
No part of the drainage hose may be more than 950 mm above the bottom of the dishwasher.
Attach the drainage hose with a hose clamp. Ensure that the drainage hose has no kinks.
Connection to water supply
Use only the inlet hose supplied with the dishwasher. Do not re-use old or other spare hoses.
The supply pipe must be fitted with a water tap (stopcock). The water tap must be easily accessible,
so that the water can be shut off if the dishwasher has to be moved.
Once the installation is complete, turn on the water tap and allow the pressure to settle for a while.
Check that all connections are watertight.
NOTE!
Only cold water connection is suitable for this appliance.
The water pressure must be between 0.03 and 1.0 MPa.
Connecting a dishwasher to the water supply via certain types of pressure limiting valves may
restrict the water supply! This may cause the error message “Water inlet fault” to be displayed.
If the water pressure is higher than 1.0 MPa a pressure limiting valve must be fitted.
41
Installation
Electrical connection
Information about the electrical connection can be found on the compliance plate. This specification
must match the electricity supply.
The dishwasher must be connected to an earthed wall socket.
The electric wall socket must be placed outside of the installation area to be easily accessible after
installing the dishwasher. Do not use an extension cord!

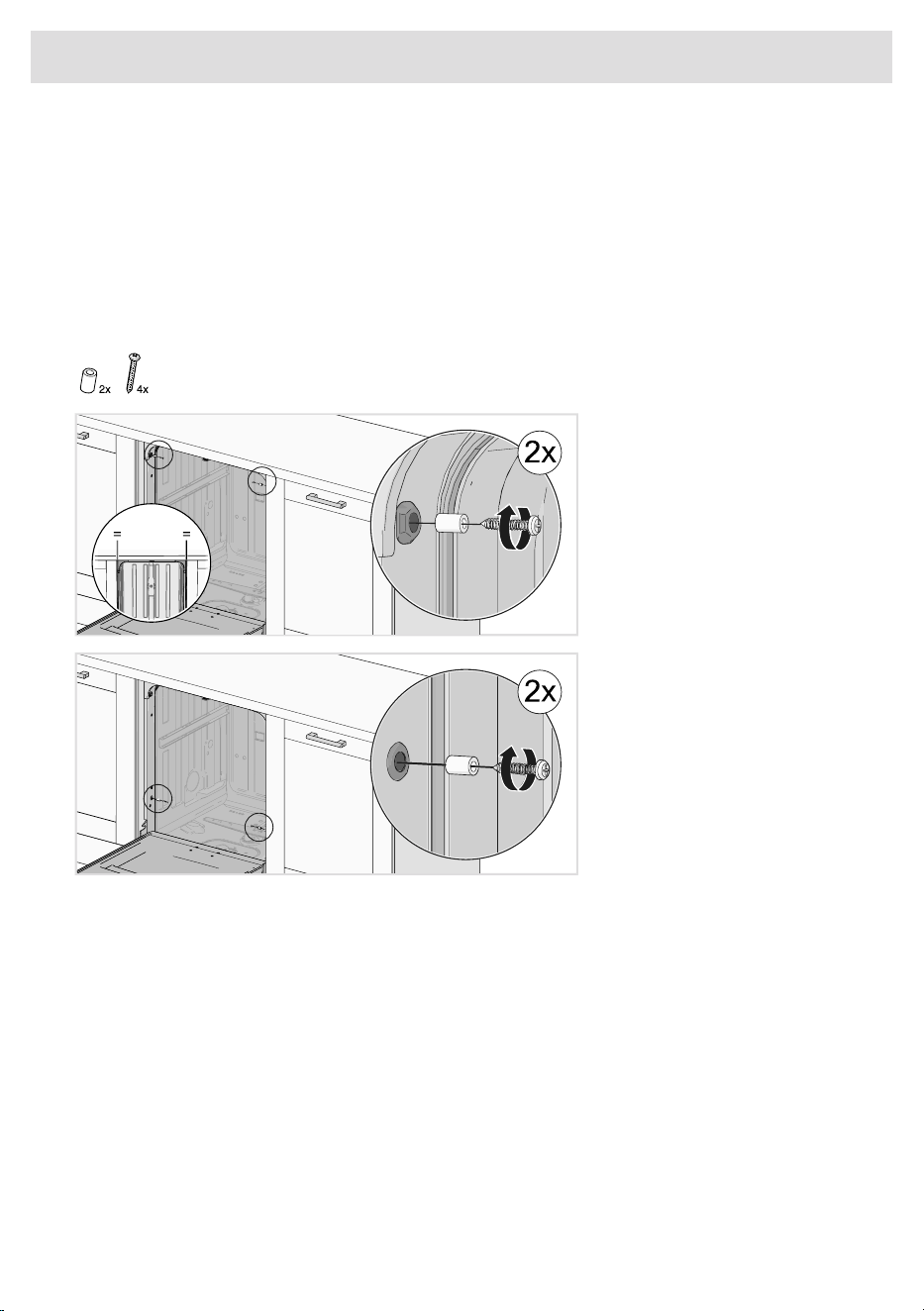

Screwing the dishwasher into place
After fastening the machine, check that the front feet still touch the floor.
42
Installation

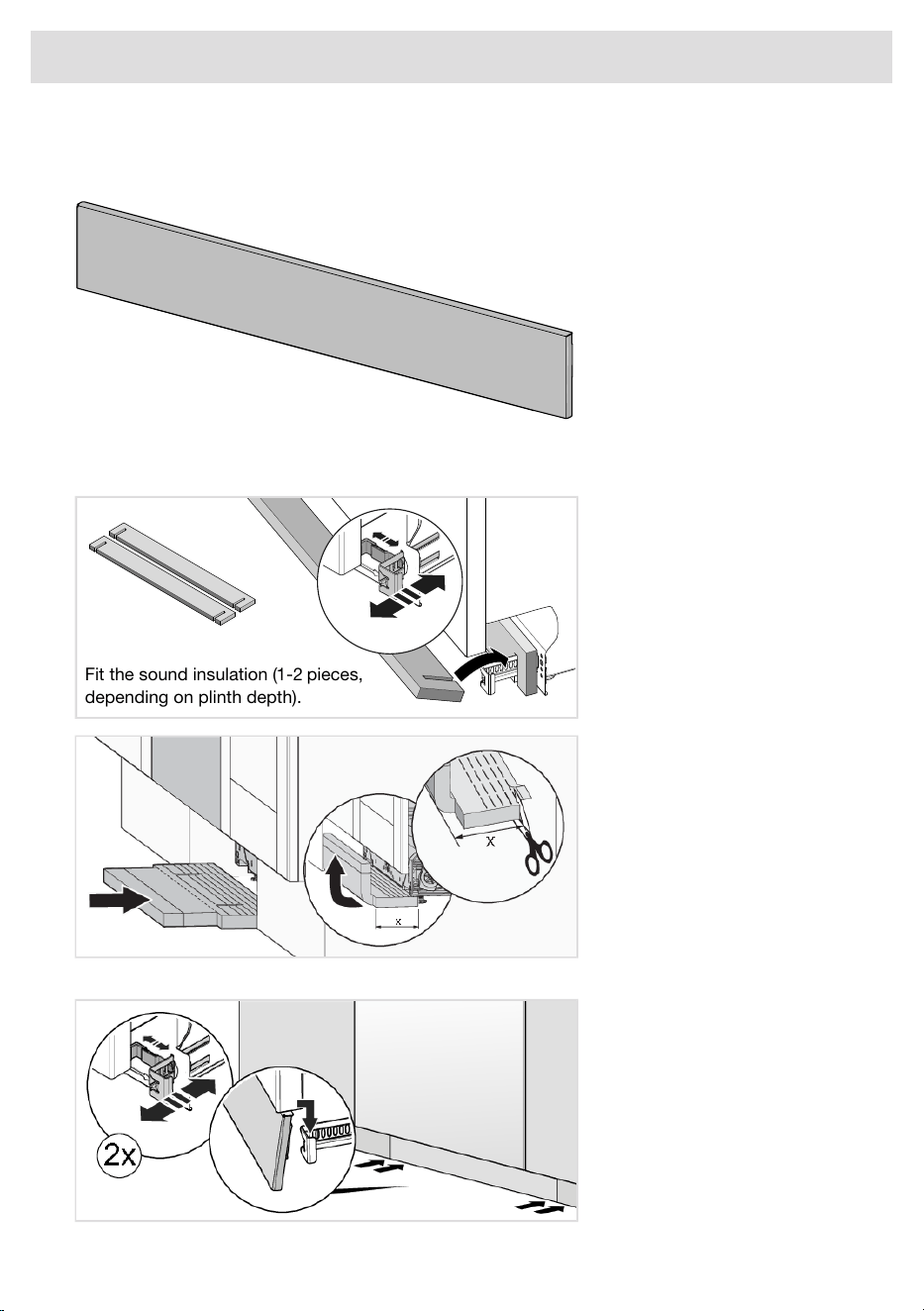

Dishwasher kick panel
The dishwasher is supplied with a kick panel.
Install the sound insulation
(only certain models)
Fit the sound insulation (1-2pieces,
depending on plinth depth).
Install the kick panel
43
Installation
Information about your product
There is a QR code on the compliance plate. Scan the code to view information about your product.
Contact your nearest service centre
Read the chapter Troubleshooting before contacting the service centre. If you have encountered a
problem that you cannot resolve, please contact your nearest service centre for professional help.
See www.asko.com.
When making contact, provide the details on the serial number plate. Include the article number (1)
and the serial number (2).
Please note that non-professional repairs may risk user safety and affect the warranty.
QR code
1
2
Number of cycles
Press and hold and for 3 seconds to show Number of cycles on the display.
44
ASKO Service
Information on energy labelling
AS/NZS 2007Australian standard:
16Number of place settings:
Eco
1)
, Auto door openDishwashing programs:
2:58 hours:minutesProgram time:
Cold water 20 °CConnection:
IEC 60704-2-3Test method for noise measurement:
1)
This dishwashing program is the standard cleaning cycle used to compile the energy labelling information. It
is intended for washing normally dirty dishes at the rated capacity and is the most effective program in terms
of combined energy and water consumption.
Technical data
819-872 mmHeight:
596 mmWidth:
554 mmDepth:
45 kg
1)
Weight:
0.03-1.0 MPaWater pressure:
See compliance plateElectrical connection:
See compliance plateRated power:
1)
Weight can vary due to different specifications.
Information for test institute
The request should include the details on the product’s serial number plate. Include the article
number (1) and the serial number (2).
1
2
45
Technical information
874288
WWW.ASKO.COM
We reserve the right to make changes.
-a4
