3/8”SQ DRIVE CALIBRATED MICROMETER
TORQUE WRENCH - BLACK SERIES
MODEL NO: AK623B
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
9 Ensure all workshop safety rules, regulations, and conditions are complied with when using this torque wrench.
9 Maintain the wrench in good condition and replace any damaged or worn parts. Use genuine parts only. Non-authorised parts
may be dangerous and will invalidate the warranty.
8 DO NOT abuse the wrench it is a precision tool.
9 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9 Keep children and unauthorised persons away from the working area.
WARNING! DO NOT use the wrench if damaged or thought to be faulty. (Contact Service Agent).
8 DO NOT drop or throw the wrench.
8 DO NOT use this wrench unless you have been instructed in its use by a qualified person.
8 DO NOT use any cleaner which might affect the high pressure grease with which the wrench it is packed.
9 After use adjust to lowest torque setting (but not below). Clean and store in a safe, dry, childproof location.
2. INTRODUCTION
Heat treated steel ratchet head. Fully hardened and tempered. Electrodeposition nish for corrosion resistance. Calibration tolerance in
accordance with BS EN ISO 6789-1:2017. Every wrench is tested and supplied with an individually numbered test certicate. Micrometer type
torque range adjustment with scale graduated in both Nm and lb.ft. Flip reverse ratchet mechanism. Supplied in storage case.
3. SPECIFICATION
Model No ................................................................. AK623B
Drive ........................................................................... 3/8”Sq
Length ........................................................................365mm
Range ...................................................... 7-112Nm(5-83lb.ft)
4. OPERATION
4.1. Hold torque wrench in one hand so that required scale (lb.ft or Nm) is uppermost and visible.
4.2. Turn knurled lock screw at the end of the handle anticlockwise to unlock the knurled adjusting grip.
4.3. SETTING THE WRENCH IN NEWTONS
4.3.1. Therefore to set the wrench at 100Nm:
4.3.2. Turn the grip until the top edge of the grip is level with the 98Nm line on the handle scale and the zero graduation on the grip is aligned
with the centre line of the handle scale.
4.3.3. Rotate the handle further, clockwise, until the ‘2’ graduation on the grip is aligned with the centre line to give a setting of 98+2=100Nm.
4.3.4. Tighten the knurled lock screw at the end of the handle to prevent accidental alteration of the setting.
4.4. When tightening the nut/bolt you will feel and hear the wrench mechanism click when the set torque is reached. Immediately stop
applying force to the wrench to avoid over tightening the nut/bolt. The torque wrench will reset ready for the next application.

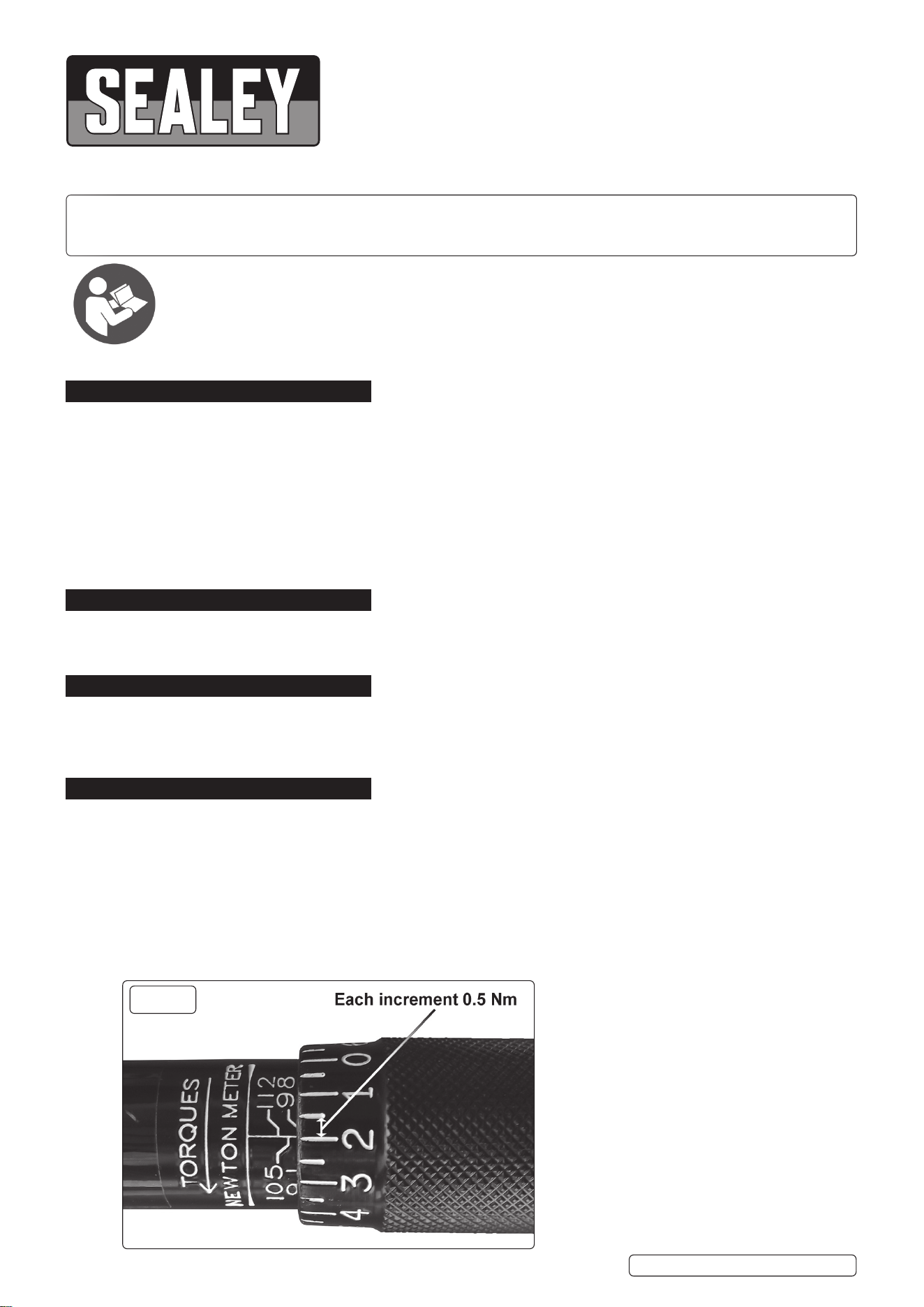

NOTE: If using the Nm scale then each division on the grip graduation is equivalent to 0.5Nm (fig.1).
g.1
AK623B Issue 5 (5) 01/09/22
Original Language Version
© Jack Sealey Limited
Refer to
instructions

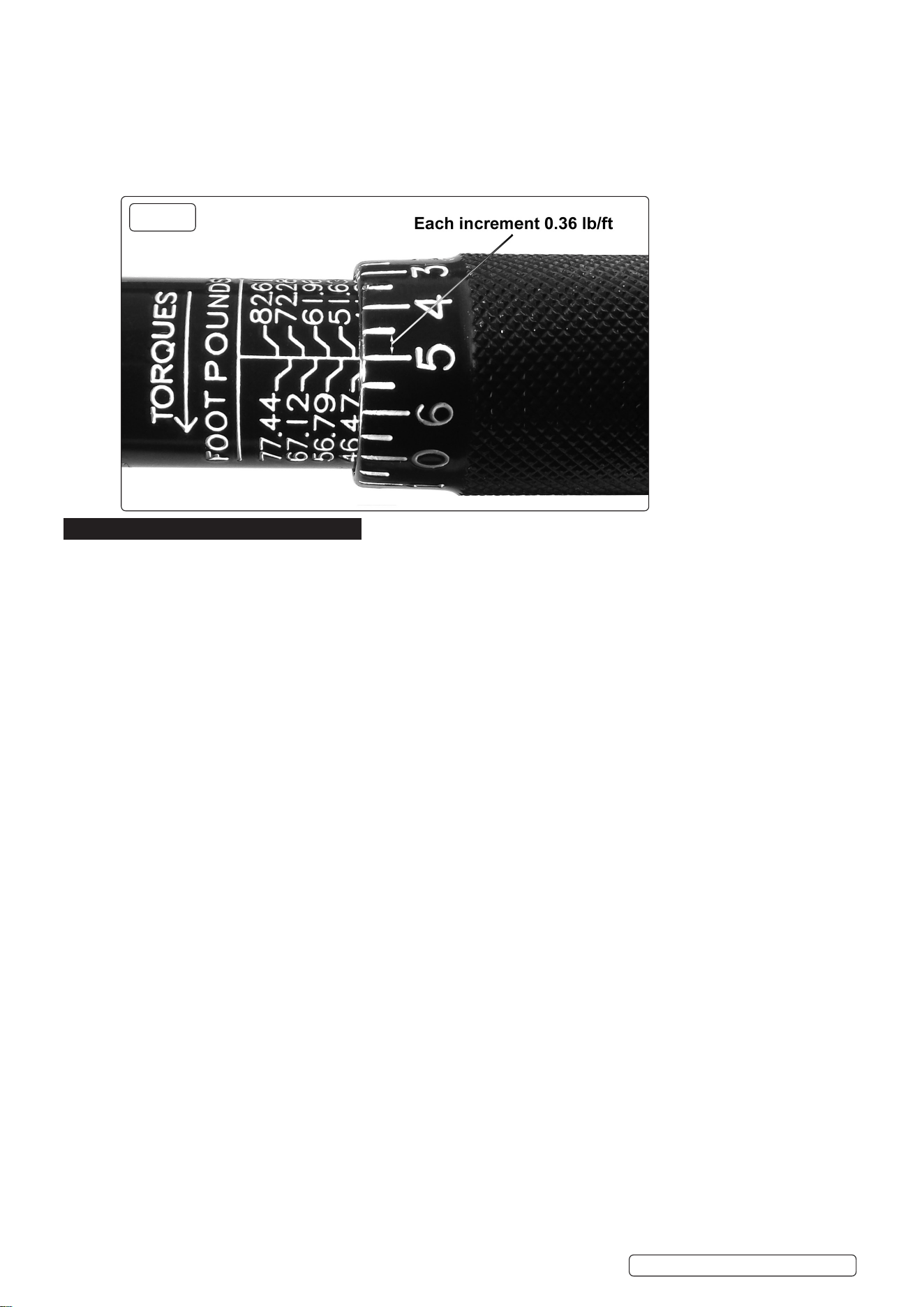

4.5. SETTING THE WRENCH IN POUND FEET
4.5.1. Turn the adjusting grip to select the torque setting as follows:
4.5.2. Required setting - 50lb.ft
4.5.3. Turn the grip until the top edge of the grip is level with the 46.47lb.ft line on the handle scale and the zero graduation on the grip is
aligned with the centre line of the handle scale.
4.5.4. Rotate the handle further, clockwise, by 10 increments until the ‘5’ graduation on the grip is aligned with the centre line to give a setting
of 46.47 + (10 increments x 0.36) = 50.07lb.ft.
NOTE: If the torque wrench has not been used for some time, operate it a few times, at a low setting, to ensure all internal parts are coated
in grease.
5. RECALIBRATION
5.1. In order to ensure continued accuracy, the torque wrench should be recalibrated annually and after any impact or other misuse.
Contact a NAMAS accredited laboratory.
g.2
Original Language Version
© Jack Sealey Limited
AK623B Issue 5 (5) 01/09/22
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Lifetime guarantee from purchase date, proof of which is required for any claim.
°C
%
Min Torque:
7
Max torque:
112
Min Max
Min Torque:
Max torque:
Min Max
20%
0 0.00 0.00
Nm
Measurement uncertainty
Ambient temperature
1
Com
p
leted test readin
g
3
Clockwise
5

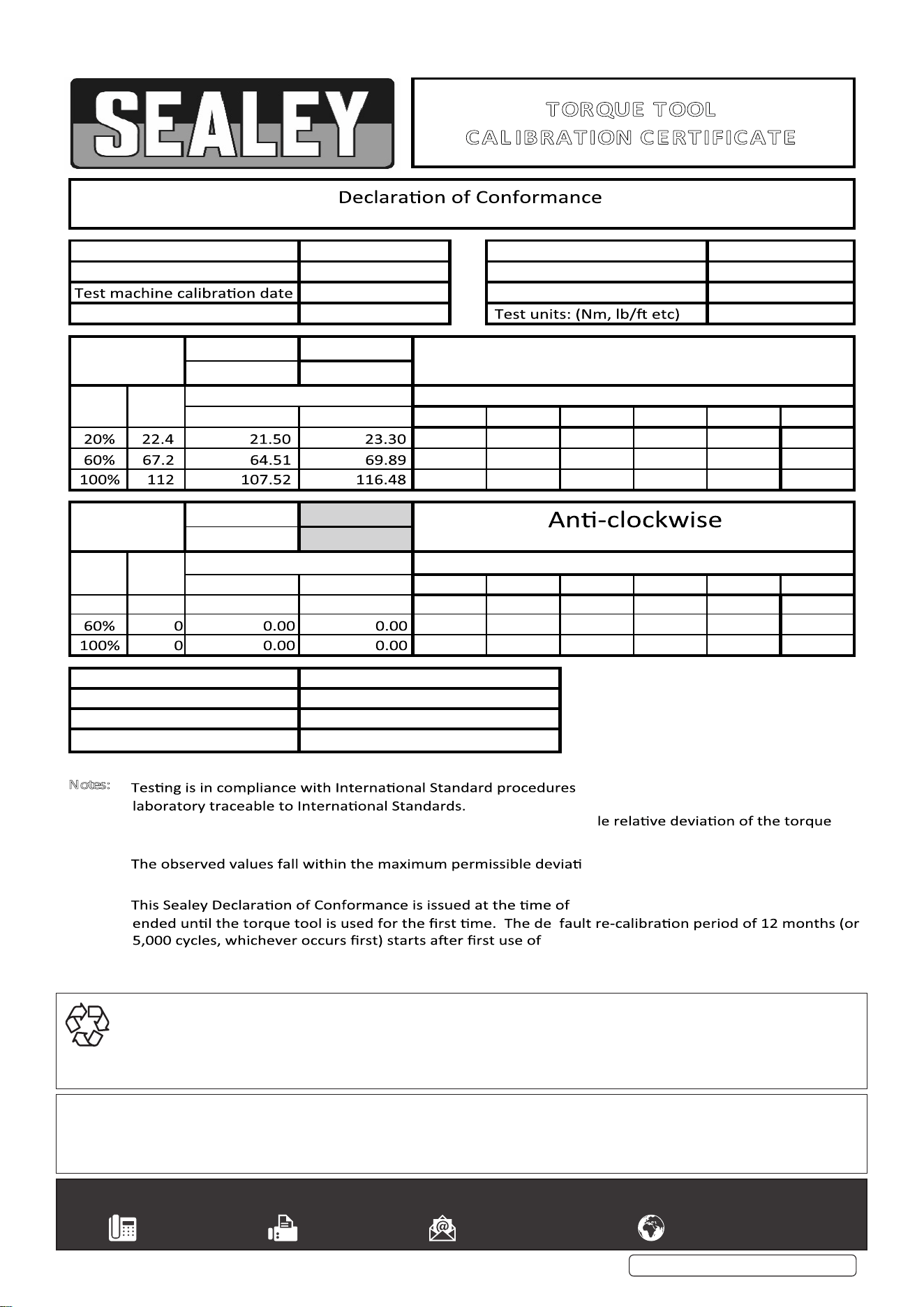

TORQUE TOOL
