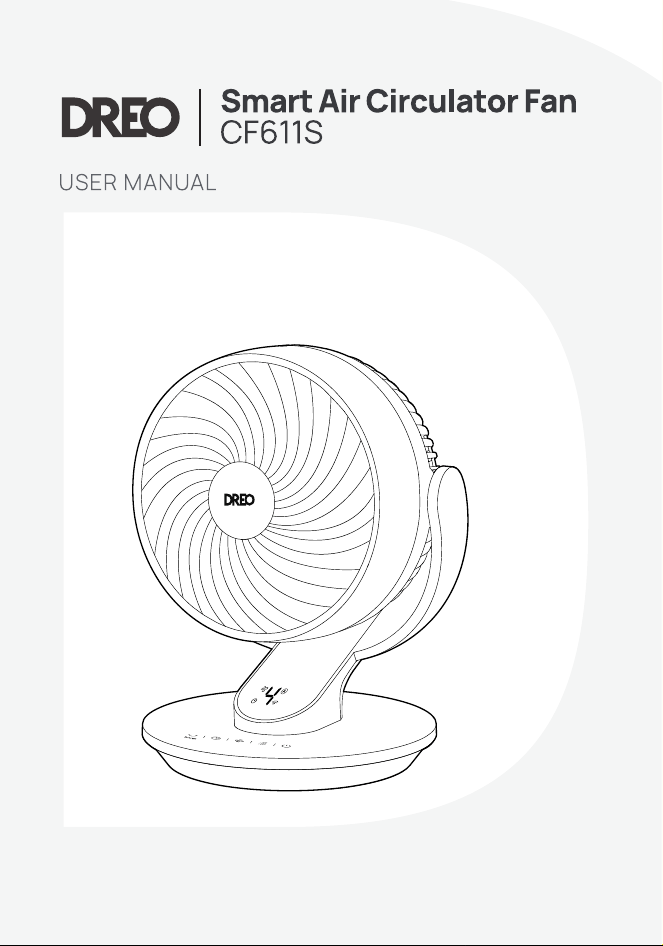

Dreo DTAF01S CF611S Air Circulator Fan

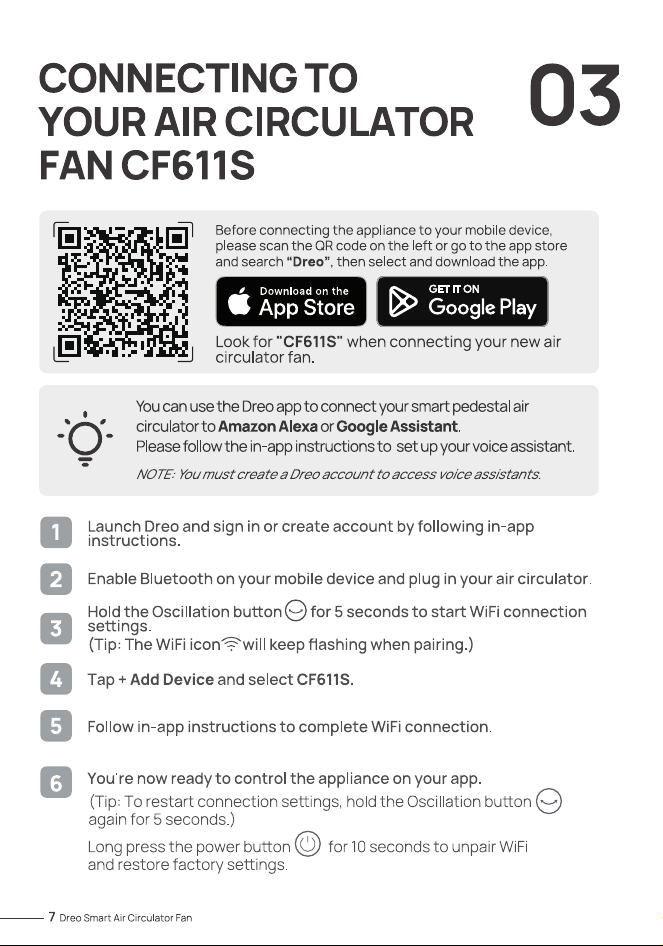

1. the Dreo App by scanning the QR code in the Quick Start Guide/User Manual.2. Once you log in, tap + Add Device on the app. . 3. Select the Dreo appliance you want to link.4. Hold the Oscillation button for 5 seconds to start Wi Fi connection settings. The WiFi icon will keep flashing when pairing.5. Select your WiFi, enter your password, and tap Next to connect to the network. The WiFi icon will keep flashing when pairing.6. You are now ready to control the appliance on your app. Start by giving your Air Circulator Fan a new name! Hold the oscillation button again for 5 seconds to restart the network setup.

This oscillating fan uses aerodynamic technology to generate a smoother airflow, producing a noise level of around 28dB during operation, making it a quiet fan that won't disturb your sleep.

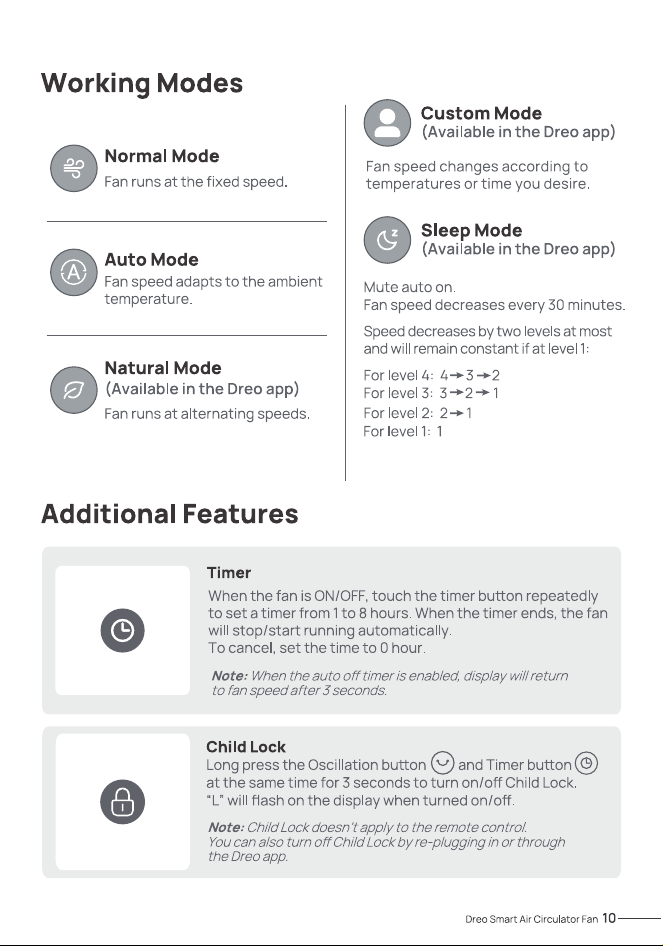

This fan has 2 working modes with a total of 4 fan speed levels from level 1 to level 4. In Auto mode, the fan speed can adapt to the ambient temperature and change accordingly.

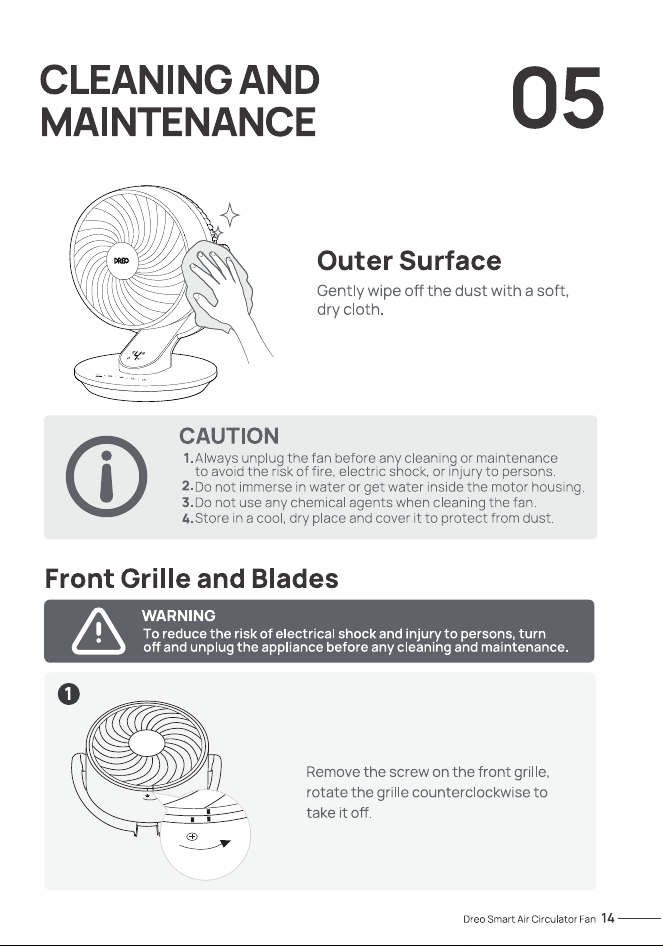

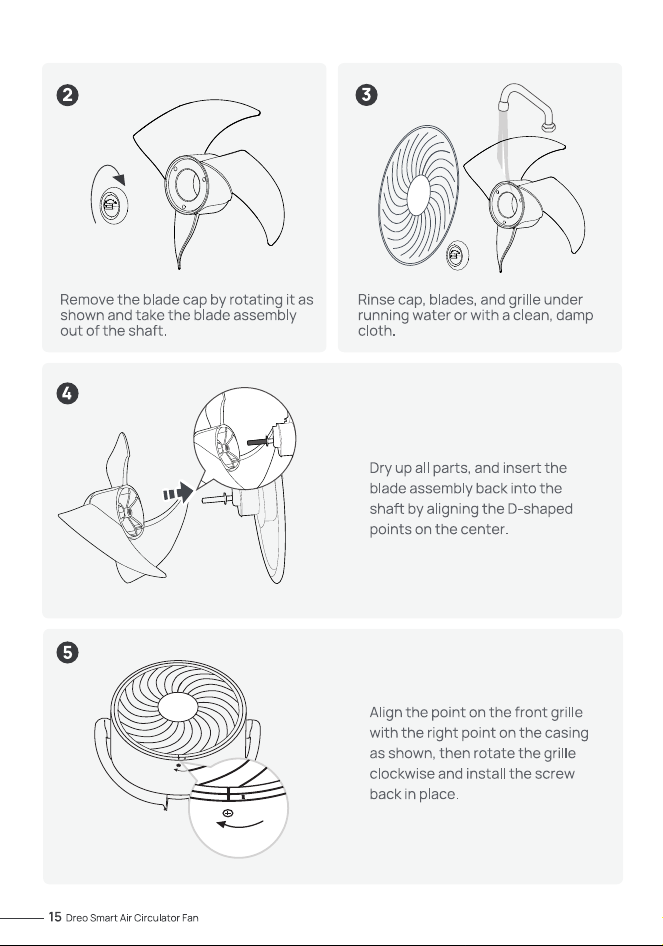

Yes, the grill and blades of this fan can be disassembled. The following disassembly steps are for reference only:1. Remove the screw on the front grille and rotate the grille counterclockwise to take it off.2. Remove the blade cap by rotating it as shown and take the blade assembly out of the shaft.3. Rinse the cap, blades, and grille under running water or with a clean, damp cloth.

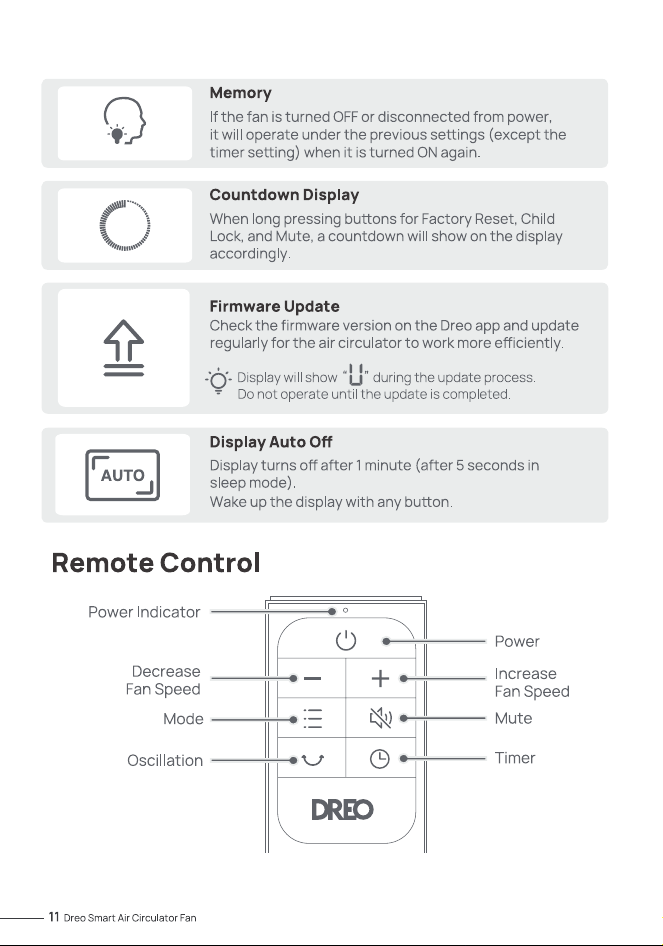

This fan has a Display Auto off function. If there is no operation for 1 minute, the screen will automatically turn off, and the indicator light will also go off. You can wake up the screen and indicator light by touching any button. If the indicator light does not turn on when you turn on the fan, please contact [email protected].

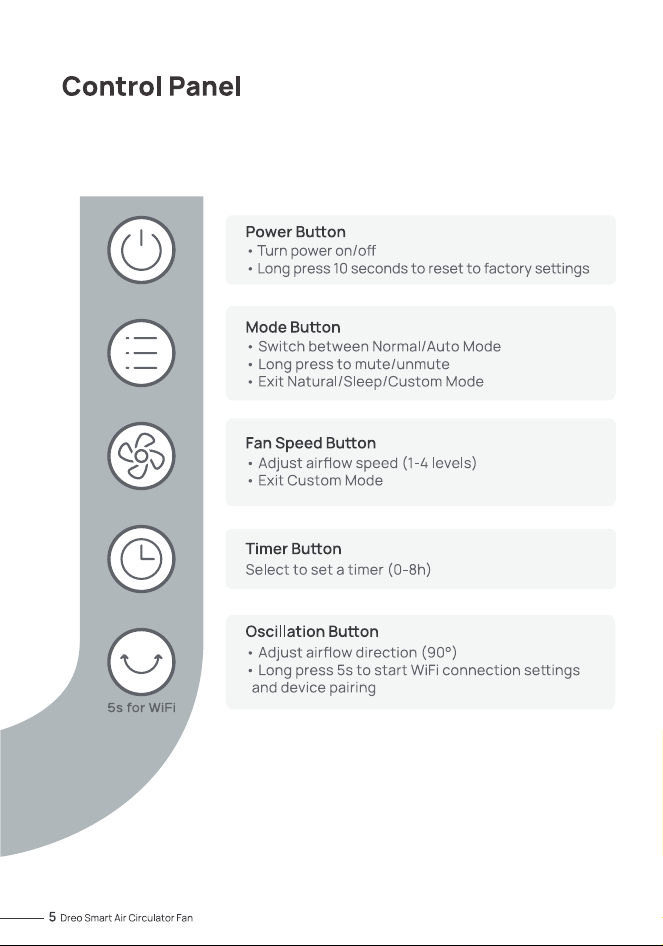

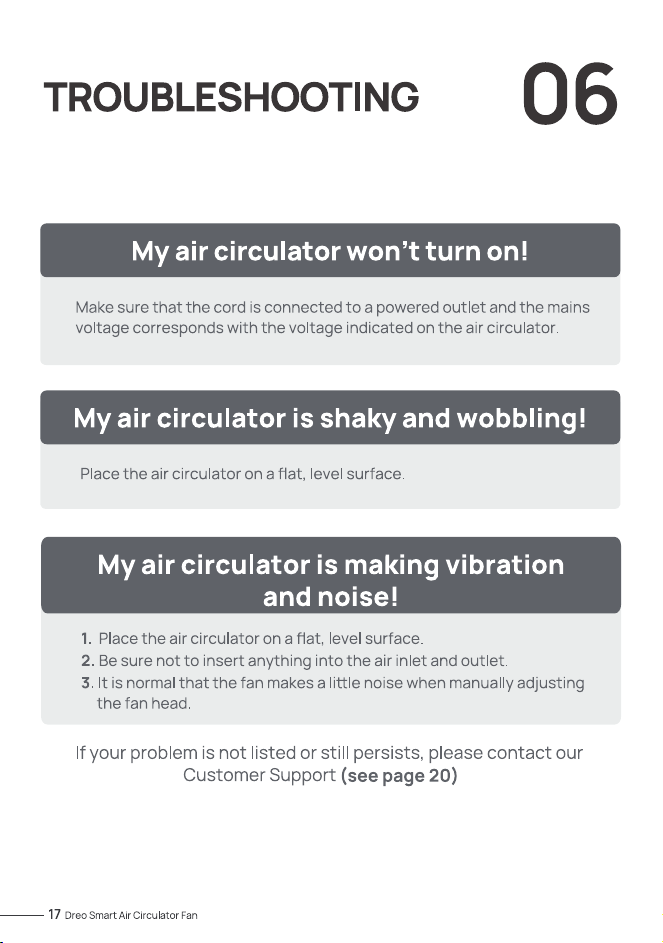

1. Ensure that the cord is connected to a powered outlet, and the mains voltage corresponds to the voltage indicated on the air circulator.2. Press the power button on the control panel or via remote to turn on/off the air circulator.3. If using a smart plug, the fan can not be directly turned on. The program will be on standby after being powered on, and then turn the fan on by pressing the power button or remote control.4. If the smart socket is used, the machine can not be turned on directly. Because the machine is programmed to power on and standby first, you must press the on button or use the remote control to turn on the machine.

1. Replug the power cord.2. Press the power button/remote control to turn on the air circulator.3. Check the air inlet/outlet and see if there are any obstacles or abnormal deformations.

1. Check if the surface is flat.2. Check if the base of the fan is normal, as foreign objects may affect stability.

1. Switch the fan speed to a higher one.2. Clean the inlet grills and test the air circulator again.3. Check if the air inlet is blocked by any obstacles.

1. Test with remote control.2. If possible, take a short video and send it to [email protected].

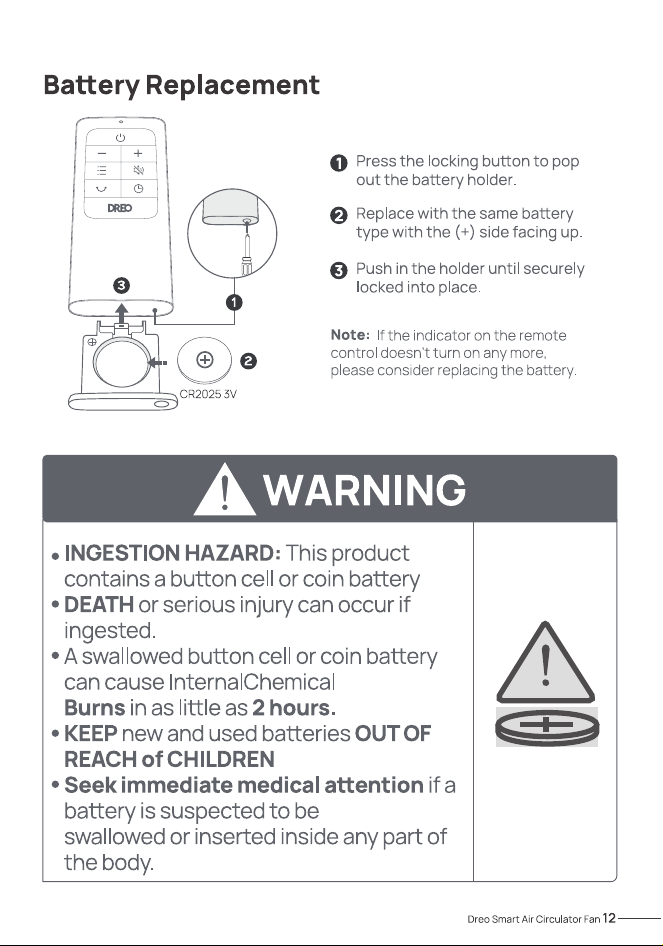

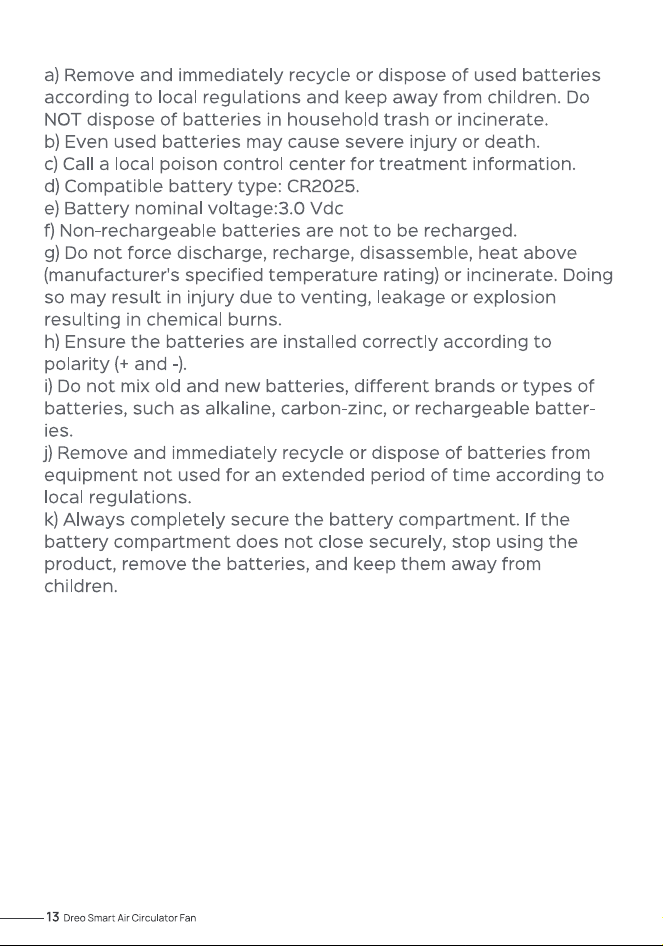

1. Make sure the transparent film on the remote control has been removed.2. Test by controlling the air circulator via the control panel.3. Replace the battery in the remote as instructed in the User Manual.Note: Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.
