COMPACT
COMPLETE
COST-EFFECTIVE
MOBOTIX MOVE All-in-one Video Solution With License-free Operating Soware and App
• No compromise on quality: cyber-secure standalone video system including recording
• No time-consuming installation: direct connection and PoE supply for up to 16 cameras
• No compromise on performance: with Intel high-performance processor
• no PC, no video server, no licenses and no technical expertise required
• No extra costs: there are no further costs to pay once the system has been installed
• No risk: qualified MOBOTIX partners oer support and assist with purchasing and installation
PLUG&PLAY
SOLUTIONS
An Unbeatable Team
With its centrally managed MOBOTIX MOVE cameras in
combination with the MOBOTIX MOVE NVR (Network Video
Recorder), MOBOTIX now oers a highly practical plug-and-
play complete solution that's easy to use and perfect for
local video surveillance systems with a limited number of
cameras.
Numerous Uses
As a compact end-to-end video solution, MOBOTIX MOVE
is recommended for all kinds of security applications. In
addition to live videos and playback videos at resolutions
of up to Full HD and including sound, all other video
analysis functions of MOBOTIX MOVE cameras can be used,
such as video motion detection, periodic recording, noise
alert, tamper alert, signal via external input and manual
triggering.
Connecting a camera to the MOBOTIX MOVE NVR with
integrated PoE switch couldn't be easier and no additional
training is needed for everyday use. There are no further
costs to pay once the system is installed, even for future
soware updates. There are no license fees either.
Separating the MOBOTIX MOVE NVR camera network from
the rest of the company network as recommended (i.e.
using it as a standalone system) keeps the video system
safe from cyberattacks.
MOBOTIX MOVE Cameras & NVR
The perfect local video surveillance solution with the ability
to connect up to 16 professional network cameras
Plug & Play
Premium MOBOTIX MOVE Cameras
The MOBOTIX MOVE camera series comprises three
dierent camera types with dierent specifications: PTZ
SpeedDome cameras, bullet cameras and dome cameras.
Depending on the model, these premium weatherproof IP
cameras oer top-of-the-range features such as a maximum
resolution of four megapixels, integrated infrared
illumination, automatic day/night switchover, Wide
Dynamic range (WDR), or motorized one-push auto focus
and high-speed PTZ.
MOBOTIX MOVE NVR All-in-one Devices
With Eight or Sixteen Channels
MOBOTIX MOVE NVR is available in two dierent desktop
versions (optional 19" rack-mounting kit available): one
with eight and one with sixteen video channels and PoE
ports. This allows as many as eight or sixteen MOBOTIX
MOVE PoE cameras to be connected directly to each
other and supplied with power simultaneously. It's also
possible to connect another four or eight externally
powered cameras to the MOBOTIX MOVE NVR 8CH or
16CH respectively. This means that even cameras which
are physically further away (for example in an adjacent
building) can be connected to the MOVE NVR's LAN port
via an additional PoE switch — with only one network
connection cable.
Preinstalled on Every NVR: Free Video
Management Soware
Thanks to the system's video management soware
(incl. virtual joystick and integrated site plans), which is
highly intuitive to use, specially tailored to MOBOTIX MOVE
cameras and built directly into the device firmware—
plus the ability to directly connect up to two high-
resolution displays, a keyboard, mouse and joystick—a
single MOBOTIX MOVE NVR can replace an entire video
workstation PC.
Discover the full potential:
https://www.mobotix.com/en/products/move-cameras
MOBOTIX MOVE NVR With Up to 28-TB Hard Disk Capacity
In addition to 100% live operation (decoder function), a MOBOTIX MOVE NVR can also manage continuous or event-
triggered recordings taken by the connected cameras. Using the recorder functionality requires one or two additional
hard disk drives (HDD) per NVR (not available from MOBOTIX, installed inside the device housing). For demanding 24/7
use in video surveillance, MOBOTIX recommends suitable HDD models (3.5" SATA3) such as Seagate SkyHawk or Western
Digital Purple with 8 or 14 TB each.
Detailed information about MOBOTIX MOVE cameras and MOBOTIX MOVE NVR devices can be found online at: https://www.
mobotix.com/de/produkte/move-cameras
For iOS and Android: Free MOBOTIX MOVE NVR App
The MOBOTIX MOVE NVR app can be downloaded free of charge from the App Store or Google Play. This mobile VMS
solution enables you to view and control all the MOBOTIX MOVE cameras connected to a MOBOTIX MOVE NVR (Live View,
Playback View). An additional Wi-Fi connection is needed to connect the app to the MOBOTIX MOVE NVR and cameras
locally. A global remote connection is also possible.

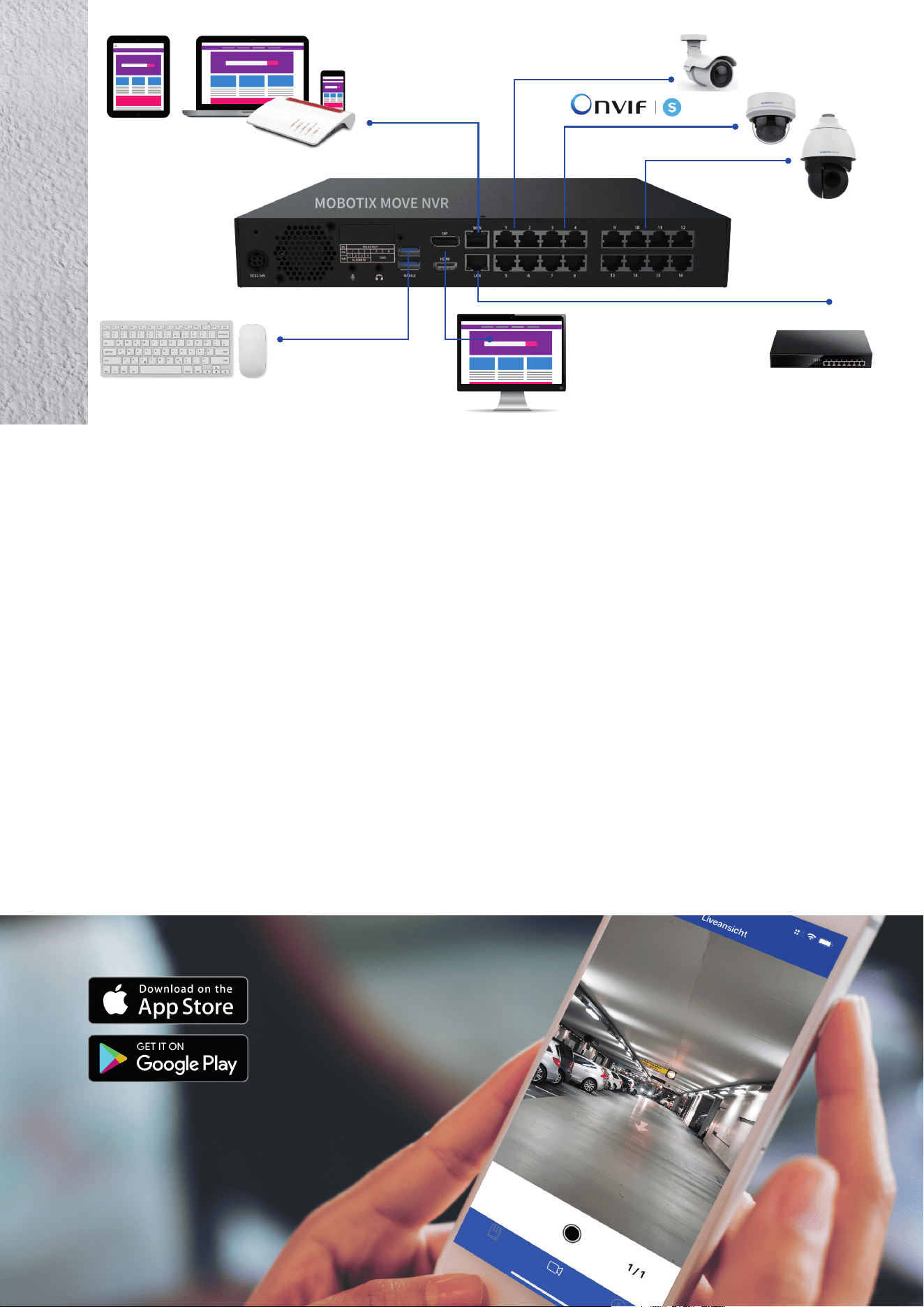

Up to 16 cameras
PoE switch for up to
8 more cameras
(optional)
DisplayPort/HDMI
Keyboard/Mouse
MOBOTIX MOVE NVR
Remote access via
app/web browser
(optional)
MOBOTIX MOVE Bullet Cameras
Art. no. Need*
BulletCamera 4MP-IR-LED (F1.7: 3 to 9 mm, angle of view HxV: 103°–35° x 53°–23°) Mx-BC1A-4-IR
BulletCamera 4MP-IR-LED (F1.6: 9 to 22 mm, angle of view H: 35°–15°, V: 20°–9°) Mx-BC1A-4-IR-D
BulletCamera 2MP-IR-LED (F1.4: 2.8 to 12 mm, angle of view H: 91°–34°) Mx-BC1A-2-IR
VandalBullet 4MP-IR-LED (F1.6: 2.7 to 12 mm, angle of view H: 99°–31°, V: 53°–18°) Mx-VB1A-4-IR
VandalBullet 4MP-IR-LED (F1.6: 9 to 22 mm, angle of view H: 35°–15°, V: 20°–9°) Mx-VB1A-4-IR-D
MOBOTIX MOVE SpeedDome Cameras
VandalDome 4MP-IR-LED (F1.7: 3 to 9 mm, angle of view HxV: 103°–35° x 53°–23°) Mx-VD1A-4-IR
VandalDome 4MP-IR-LED (F1.6: 9 to 22 mm, angle of view H: 35°–15°, V: 20°–9°) Mx-VD1A-4-IR-D
VandalDome 2MP-IR-LED (F1.4: 2.8 to 12 mm, angle of view H: 91°–34°) Mx-VD1A-2-IR
MOBOTIX MOVE SpeedDome PTZ cameras
SpeedDome 3MP (F1.6: 4.3 to 129 mm, angle of view HxV: 62°–2° x 47°–2°) Mx-SD1A-330
SpeedDome 3MP (F1.6: 4.3 to 170 mm, angle of view HxV: 62°–2° x 49°–1°)
Mx-SD1A-340-IR
MOBOTIX MOVE NVR Network Video Recorders
NVR-8-POE • 8 camera ports with PoE+ supply • Max. storage capacity 20 TB (2x 3.5”
SATA3) • Ports: 4x USB (2x USB 3.0), 1x HDMI & 1x DisplayPort (Full HD), Wi-Fi & LAN
Uplink (RJ-45), 8x LAN port RJ-45 with PoE+ (30W/port, total max. 120W), 3.5-mm
Mic-In, 3.5-mm Line-Out, 1x DC52-56V
Mx-S-NVR1A-8-
POE
NVR-16-POE • 16 camera ports with PoE+ supply • Max. storage capacity 28 TB (2x
3.5" SATA3) • Ports: 4x USB (2x USB 3.0), 1x HDMI & 1x DisplayPort (Full HD), Wi-Fi &
LAN Uplink (RJ-45), 16x LAN port RJ-45 with PoE+ (30W/port, total max. 140W), 3.5-
mm Mic-In, 3.5-mm Line-Out, 1x DC52-56V
Mx-S-NVR1A-16-
POE
My Personal
MOBOTIX MOVE Video System
From planning and purchasing through to installing and configuring your MOBOTIX MOVE video system, you will receive
active support from your experienced MOBOTIX partner. You can choose from the following MOBOTIX MOVE cameras and
NVR devices (prices on request):
*If you already know which cameras/NVR devices you want and how many you need,
your MOBOTIX partner will be happy to prepare a tailored quote for you.
EN_09/20
MOBOTIX AG
Kaiserstrasse
67722 Langmeil, Germany
Tel.: +49 6302 9816-103
www.mobotix.com
MOBOTIX is a registered trademark of MOBOTIX AG in the European Union, the USA, and other countries. This
may only be transferred to trade or commercial partners. Subject to change. MOBOTIX does not assume any
liability for technical errors, printing errors or omissions. All rights reserved.
© MOBOTIX AG 2020
Intelligent Video Security Solutions From
Germany
MOBOTIX oers a comprehensive range of solutions for all aspects of video-based security systems. We oer high-quality energy-
eicient systems that mean our customers save money on every MOBOTIX system installed.
Our motto Beyond Human Vision is also our mission: MOBOTIX is fully committed to making itself the most reliable company it
can be, one that protects people and property by using intelligent, cyber-secure video technology to go beyond human vision.
MOBOTIX sells its network solutions to business clients and private customers through specialist dealers, partners and the
electrical wholesale trade, i.e. professional installers and service providers for video surveillance, building engineering and
industrial applications.
We will be happy to help you find the right MOBOTIX partner for your project.
Sold by:
