• Page 1 - English - : Register your new device on MyBosch now and get free benefits boschhomecom welcome Washing machine WAN24126AU en User manual and installation instructions
• Page 2 - English - : en Further information and explanations are available online Table of contents 1 Safety 4 11 General information 4 12 Intended use 4 13 Restriction on user group 4 14 Safe installation 5 15 Safe use 7 16 Safe cleaning and mainten ance 9 2 Preventing material damage 10 3 Environmental protection and saving energy11 31 Disposing of packaging 11 32 Save energy and conserve resources 11 33 Energy saving mode 11 4 Installation and connection12 41 Unpacking the appliance 12 42 Contents of package 12 43 Requirements for the install ation location 12 44 Removing the transit bolts 13 45 Connecting the appliance 14 46 Aligning the appliance 16 5 Familiarising yourself with your appliance17 51 Appliance 17 52 Detergent drawer 17 53 Control panel 18 6 Before using for the first time 19 61 Starting an empty washing cycle 19 7 Display 20 8 Buttons 22 9 Programmes 23 10 Accessories27 11 Laundry27 111 Preparing the laundry 27 12 Detergents and care products 28 13 Basic operation 28 131 Switching on the appliance 28 132 Setting a programme 28 133 Adjusting the programme settings 28 134 Loading laundry 28 135 Inserting the measuring aid for liquid detergent 28 136 Use the measuring aid for liquid detergent 29 137 Adding detergent and care product 29 138 Starting the programme 30 139 Changing the activated pro gramme end time 30 1310 Soaking laundry 30 1311 Adding laundry 30 1312 Cancelling the pro gramme 30 1313 Resuming the programme when the programme status is Rinse Hold 31 1314 Unloading the laundry 31 1315 Switching off the appli ance 31
• Page 3 - English - : en 14 Childproof lock31 141 Activating the childproof lock 31 142 Deactivating the childproof lock 31 15 Basic settings33 151 Overview of the basic set tings 33 152 Changing the basic set tings 34 16 Programme counter 34 161 Calling up the programme counter 34 17 Cleaning and servicing34 171 Cleaning the drum 34 172 Cleaning the detergent drawer 34 173 Cleaning the drain pump 35 18 Troubleshooting39 181 Emergency release 48 19 Transportation storage and disposal 48 191 Removing the appliance 48 192 Inserting the transit bolts 48 193 Using the appliance again 48 194 Disposing of old appliance 49 20 Customer Service49 201 Product number ENr and production number FD 49 21 Consumption values50 211 Information for test institute 51 22 Technical data 52
• Page 4 - English - : en Safety 1 Safety Observe the following safety instructions 11 General information Read this instruction manual carefully Keep the instruction manual and the product information safe for future reference or for the next owner Do not connect the appliance if it has been damaged in transit 12 Intended use Only use this appliance for washing machinewashable fabrics and handwashable wool in accordance with the care label with tap water and commercially available detergents and care products suitable for washing machines in private households and in enclosed spaces in a domestic en vironment up to an altitude of max 4000m above sea level 13 Restriction on user group This appliance may be used by children aged 8 or over and by people who have reduced physical sensory or mental abilities or inadequate experience andor knowledge provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers Do not let children play with the appliance Cleaning and user maintenance must not be performed by chil dren unless they are being supervised Keep children under the age of 3 years and pets away from the appliance
• Page 5 - English - : Safety en 14 Safe installation WARNINGRisk of electric shock Incorrect installation is dangerous Connect and operate the appliance only in accordance with the specifications on the rating plate Connect the appliance to a power supply with alternating cur rent only via a properly installed socket with earthing The protective conductor system of the domestic electrical in stallation must be properly installed The installation must have a sufficiently large cross section When using a residual current circuit breaker only use a type with the mark Never equip the appliance with an external switching device eg a timer or remote control When the appliance is installed the mains plug of the power cord must be freely accessible If free access is not possible an allpole isolating switch must be installed in the permanent elec trical installation according to the installation regulations When installing the appliance check that the power cable is not trapped or damaged If the insulation of the power cord is damaged this is dangerous Never let the power cord come into contact with hot appliance parts or heat sources Never let the power cord come into contact with sharp points or edges Never kink crush or modify the power cord WARNINGRisk of fire It is dangerous to use an extended power cord and nonapproved adapters Do not use extension cables or multiple socket strips Only use adapters and power cords approved by the manufac turer If the power cord is too short and a longer one is not available please contact an electrician to have the domestic installation adapted
• Page 6 - English - : en Safety WARNINGRisk of injury The high weight of the appliance may result in injury when lifted Do not lift the appliance on your own If this appliance is not correctly installed in a washerdryer stack the installed appliance may fall Only stack the dryer on a washing machine using the connec tion kit from the dryer manufacturer No other installation method is permitted Do not install the appliance in a washerdryer stack if the dryer manufacturer does not offer a suitable connection kit Do not install appliances from different manufacturers and with varying depths and widths in a washerdryer stack Do not install a washerdryer stack on a platform the appli ances may tip over WARNINGRisk of suffocation Children may put packaging material over their heads or wrap themselves up in it and suffocate Keep packaging material away from children Do not let children play with packaging material CAUTIONRisk of injury The appliance may vibrate or move when in use Place the appliance on a clean even solid surface Align the appliance using the appliance feet and a spirit level If hoses and power cords have been laid incorrectly this causes a tripping hazard Lay hoses and power cords in such a way that there is no risk of tripping If the appliance is moved by holding onto protruding components such as the appliance door the parts may break off Do not move the appliance by holding onto protruding parts CAUTIONRisk of cutting Touching sharp edges on the appliance may lead to cuts Do not touch the sharp edges on the appliance
• Page 7 - English - : Safety en Wear protective gloves when installing and transporting the ap pliance 15 Safe use WARNINGRisk of electric shock If the appliance or the power cord is damaged this is dangerous Never operate a damaged appliance Never pull on the power cord to unplug the appliance Always unplug the appliance at the mains If the appliance or the power cord is damaged immediately un plug the power cord or switch off the fuse in the fuse box and turn off the water tap Call customer services Page49 An ingress of moisture can cause an electric shock Only use the appliance in enclosed spaces Never expose the appliance to intense heat or humidity Do not use steam or highpressure cleaners hoses or sprays to clean the appliance WARNINGRisk of harm to health Children can lock themselves in the appliance thereby putting their lives at risk Do not install the appliance behind a door as this may obstruct the appliance door or prevent it from opening With redundant appliances unplug the power cord Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close WARNINGRisk of suffocation Children may breathe in or swallow small parts causing them to suffocate Keep small parts away from children Do not let children play with small parts
• Page 8 - English - : en Safety WARNINGRisk of poisoning Detergents and care products may result in poisoning if con sumed If accidentally swallowed seek medical advice Keep detergents and care products out of the reach of children WARNINGRisk of explosion Laundry that has been pretreated with cleaning agents that con tain solvents may cause an explosion in the appliance Rinse pretreated laundry thoroughly with water before washing CAUTIONRisk of injury The covering plate may break if you stand on or climb onto the appliance Do not stand on or climb onto the appliance The appliance may tip over if you sit on or lean against the open door Do not sit on or lean against the appliance door Do not place any objects on the appliance door Reaching into the drum while it is still turning may cause hand in juries Wait for the drum to come to a complete stop before reaching inside CAUTIONRisk of scalding When you wash at high temperatures the detergent solution gets hot Do not touch the hot detergent solution CAUTIONRisk of chemical burns If the detergent drawer is opened detergent and care products may spray out from the appliance Contact with eyes or skin may cause irritation Rinse eyes andor skin thoroughly with clean water if they come into contact with detergents or care products If accidentally swallowed seek medical advice Keep detergents and care products out of the reach of children
• Page 9 - English - : Safety en 16 Safe cleaning and maintenance WARNINGRisk of electric shock Improper repairs are dangerous Never make any technical modifications to the appliance or its features Repairs to the appliance should only be carried out by trained specialist staff Only use genuine spare parts when repairing the appliance If the power cord of this appliance is damaged it must be re placed by the manufacturer the manufacturers Customer Ser vice or a similarly qualified person in order to prevent any risk An ingress of moisture can cause an electric shock Before cleaning pull out the mains plug or switch off the fuse in the fuse box Do not use steam or highpressure cleaners hoses or sprays to clean the appliance WARNINGRisk of injury The use of nonoriginal spare parts and nonoriginal accessories is dangerous Only use the manufacturers original spare parts and original ac cessories WARNINGRisk of poisoning Poisonous fumes may be given off if you use cleaning agents that contain solvents Do not use cleaning agents that contain solvents
• Page 10 - English - : en Preventing material damage Preventing material damage 2 Preventing material damage Preventing material damage ATTENTION The functionality of the appliance may be impaired if you use the wrong quantity of fabric softener de tergent care product or cleaning agent Follow the dosage recommenda tions from the manufacturer Exceeding the maximum load capa city impairs the function of the appli ance Observe the maximum load capa city for each programme and do not exceed it quotProgrammesquot Page23 The appliance is secured for trans portation using transit bolts Transit bolts which have not been removed may result in material damage and damage to the appliance Before starting up the appliance remove the transit bolts completely and keep them in a safe place Before transport fit the transit bolts fully in order to prevent damage in transit Material damage may be caused if the water inlet hose is connected in correctly Tighten the screw connections on the water inlet until they are hand tight Connect the water inlet hose dir ectly to the water tap without any additional connecting elements such as adapters extensions or valves Make sure that the valve housing for the water inlet hose does not come into contact with its sur roundings and is not subjected to any external forces Ensure that the inner diameter of the water tap is at least 17mm Make sure that the length of the thread on the connection to the water tap is at least 10mm If the water pressure is too high or too low the appliance may not be able to operate properly Ensure that the water pressure in the water supply system is at least 100kPa 1bar and max 1000kPa 10bar If the water pressure exceeds the maximum value specified a pres surereducing valve must be in stalled between the drinking water connection and the hose set of the appliance Do not connect the appliance to the mixer tap of an unpressurised hotwater boiler Modified or damaged water hoses may result in material damage and damage to the appliance Never kink crush modify or cut through water hoses Only use the water hoses supplied with the appliance or genuine spare hoses Never reuse water hoses that have been used before Operating the appliance using water that is dirty or too hot may lead to material damage and damage to the appliance Only operate the appliance with cold mains water Unsuitable cleaning products may damage the surfaces of the appli ance Do not use harsh or abrasive de tergents Do not use cleaning products with a high alcohol content Do not use hard scouring pads or cleaning sponges Clean the appliance with nothing but water and a soft damp cloth
• Page 11 - English - : Environmental protection and saving energy en Remove all detergent residue spray residue or other residues im mediately if they come into contact with the appliance Environmental protection and saving energy 3 Environmental protec tion and saving energy Environmental protection and saving energy 31 Disposing of packaging The packaging materials are environ mentally compatible and can be re cycled Sort the individual components by type and dispose of them separ ately 32 Save energy and con serve resources If you follow these instructions your appliance will use less electricity and less water Choose programmes with low tem peratures and longer wash times and use maximum load capacity a Energy consumption and water consumption is most efficient Add detergent based on the laun drys degree of soiling a For light to normal soiling a smal ler amount of detergent is suffi cient Observe the dosage recom mendation from the detergent manufacturer Reduce the washing temperature for lightly and normally soiled laundry a At lower temperatures the appli ance consumes less energy For light to normal soiling lower tem peratures than indicated on the care label are also sufficient Set the maximum spin speed if you want to dry the laundry in the tumble dryer afterwards a The drier the laundry the shorter the programme duration when dry ing which in turn reduces energy consumption A higher spin speed reduces the residual moisture in the laundry and increases the volume of the spin noise Wash the laundry without prewash a Washing with prewash increases the programme duration and in creases energy and water con sumption The appliance has a continuous automatic load adjustment function a Depending on the type of fabric and load capacity the continuous automatic load adjustment func tion optimally adjusts the water consumption and programme dur ation 33 Energy saving mode If you do not use the appliance for an extended period it automatically switches to energysaving mode Energysaving mode ends when you use the appliance again

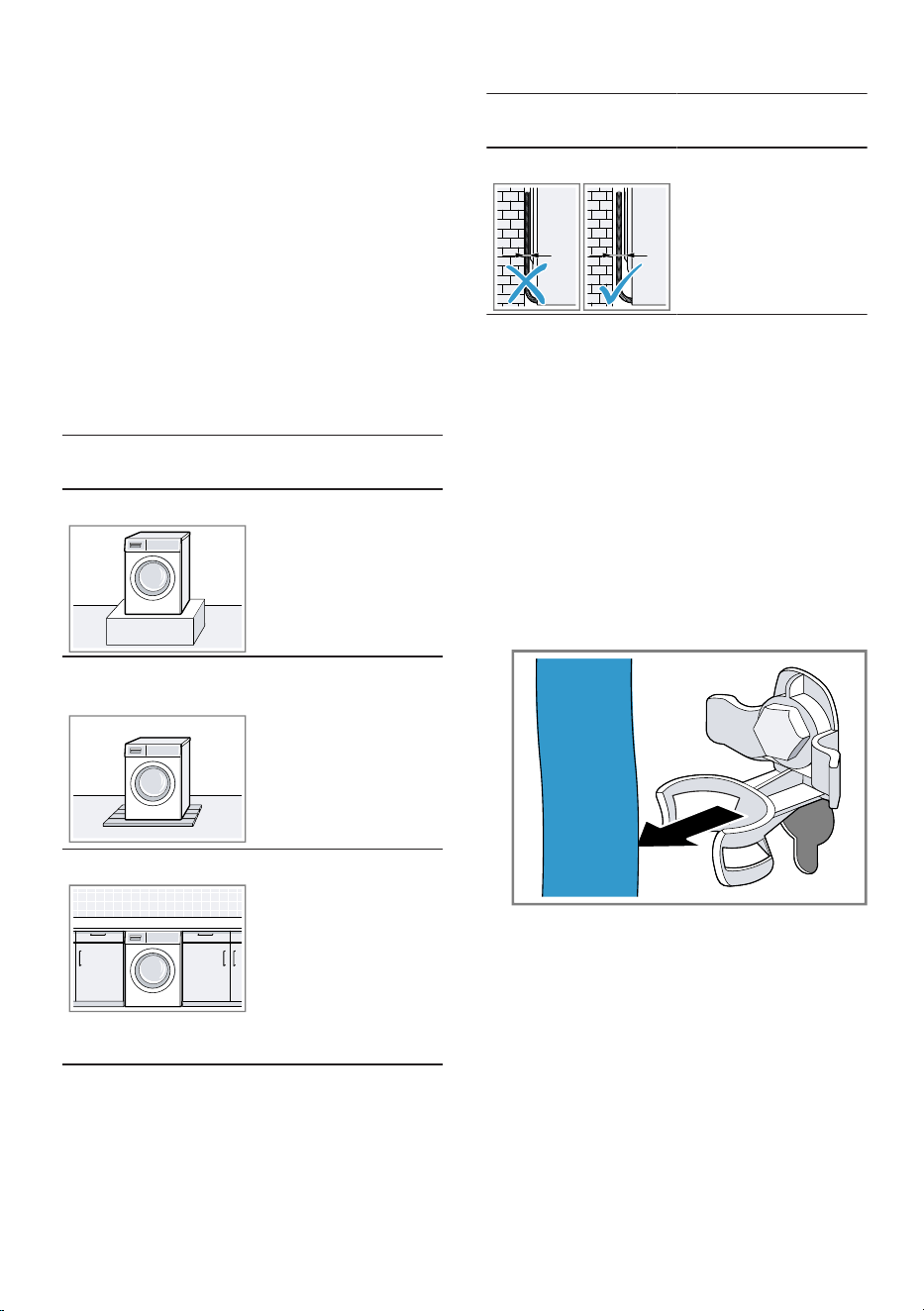

• Page 12 - English - : en Installation and connection Installation and connection 4 Installation and con nection Installation and connection 41 Unpacking the appliance ATTENTION Objects remaining in the drum that are not designed for operation with the appliance may cause material damage and damage to the appli ance Remove these objects along with all supplied accessories from the drum before starting the appliance 1 Remove any packaging and pro tective covers completely from the appliance quotDisposing of packagingquot Page11 2 Check the appliance for visible damage 3 Open the door 4 Remove any accessories from the drum 5 Close the door 42 Contents of package After unpacking all parts check for any damage in transit and complete ness of the delivery ATTENTION If the appliance is operated with in complete or defective accessories the appliance may not be able to op erate properly or this may result in material damage or damage to the appliance Do not operate the appliance with incomplete or defective accessor ies Replace the accessories in ques tion before operating the appli ance quotAccessoriesquot Page27 NoteThe appliance has been tested at the factory to check it is in working order As a result water stains may remain in the appliance These marks will disappear after the first wash cycle The delivery consists of the following Washing machine Accompanying documents Transit bolts quotRemoving the transit boltsquot Page13 Cover caps Water inlet hose quotConnecting the water inlet hosequot Page14 Elbow for securing the water outlet hose 43 Requirements for the in stallation location WARNING Risk of electric shock The appliance contains live parts Touching live parts is dangerous Do not operate the appliance without a cover cap WARNING Risk of injury When using the appliance on a base the appliance may tip over Always secure the feet of the appli ance to a base using the manufac turers fixing brackets Page27 before using the appliance for the first time
• Page 13 - English - : Installation and connection en ATTENTION If residual water in the appliance freezes this may cause damage to the appliance Do not install or operate this appli ance anywhere that is liable to ex perience frost or outdoors If the appliance is tilted at an angle greater than 40 residual water may leak out of the appliance and cause material damage Tilt the appliance carefully Transport the appliance in an up right position Installation loca tion Requirements Base Secure the appli ance with fixing brackets Page27 Wooden joist floor Place the appli ance on a water resistant wooden board minimum thickness of 30mm which is screwed tightly to the floor Kitchen unit Only install the appliance under neath a continu ous worktop that is securely con nected to adja cent cabinets Required niche width 60cm Installation loca tion Requirements Against a wall Do not trap the power cord or the hoses between the wall and the appli ance 44 Removing the transit bolts The appliance is secured for trans portation using transit bolts on the rear of the appliance NoteKeep the transit bolt screws and the sleeves in a safe place for fu ture transport quotInserting the transit boltsquot Page48 1 Pull the hoses out of the holders

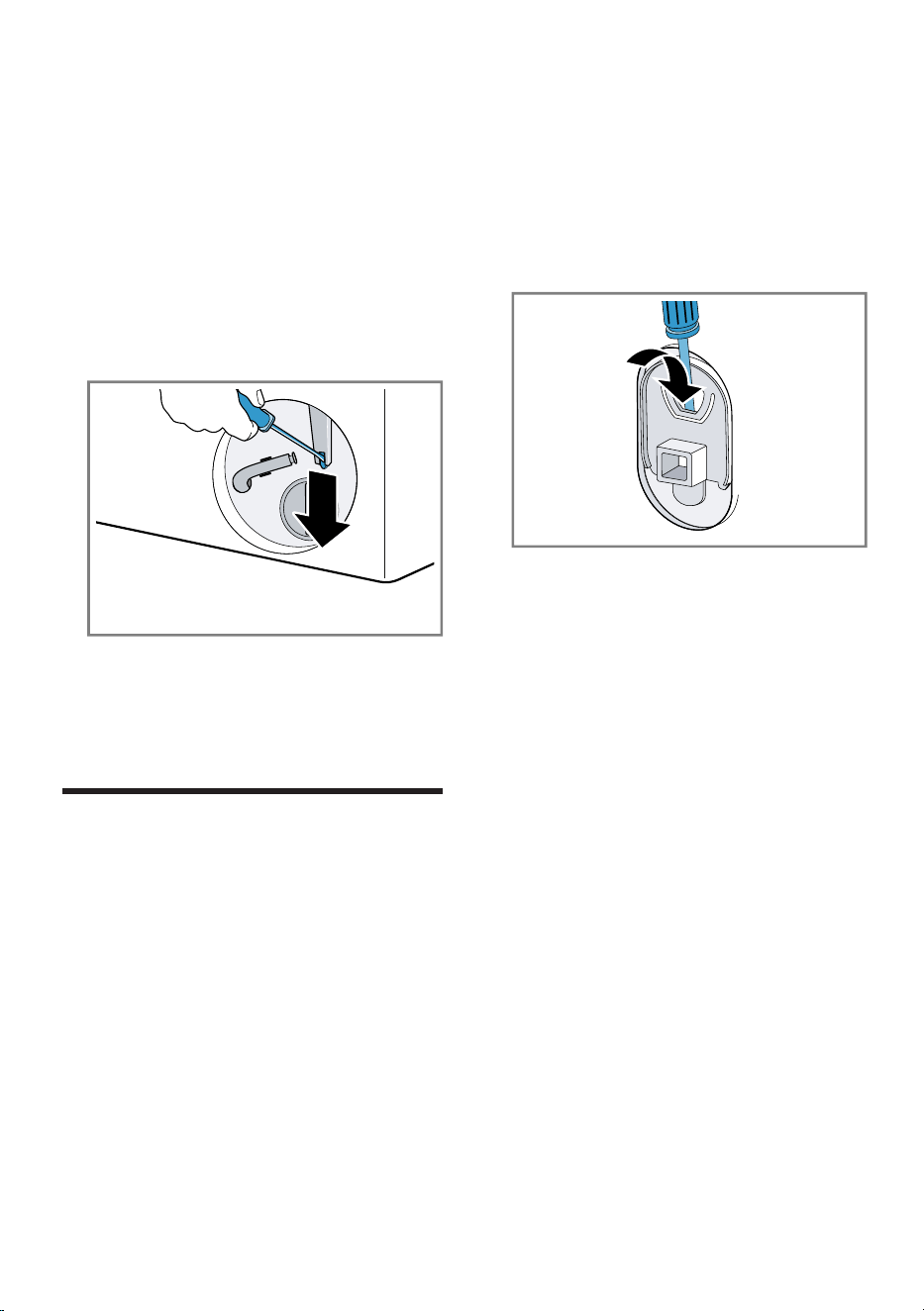

• Page 14 - English - : en Installation and connection 2 Unscrew and remove all of the screws for the 4 transit bolts using a WAF 13 wrench 3 Remove the power cable from the holder 4 Remove the 4 sleeves 5 Put on the 4 cover caps 6 Push the 4 cover caps downwards NoteTo install the transit bolts to transport the appliance perform these steps again in the reverse or der 45 Connecting the appliance Connecting the water inlet hose 1 Connect the water inlet hose

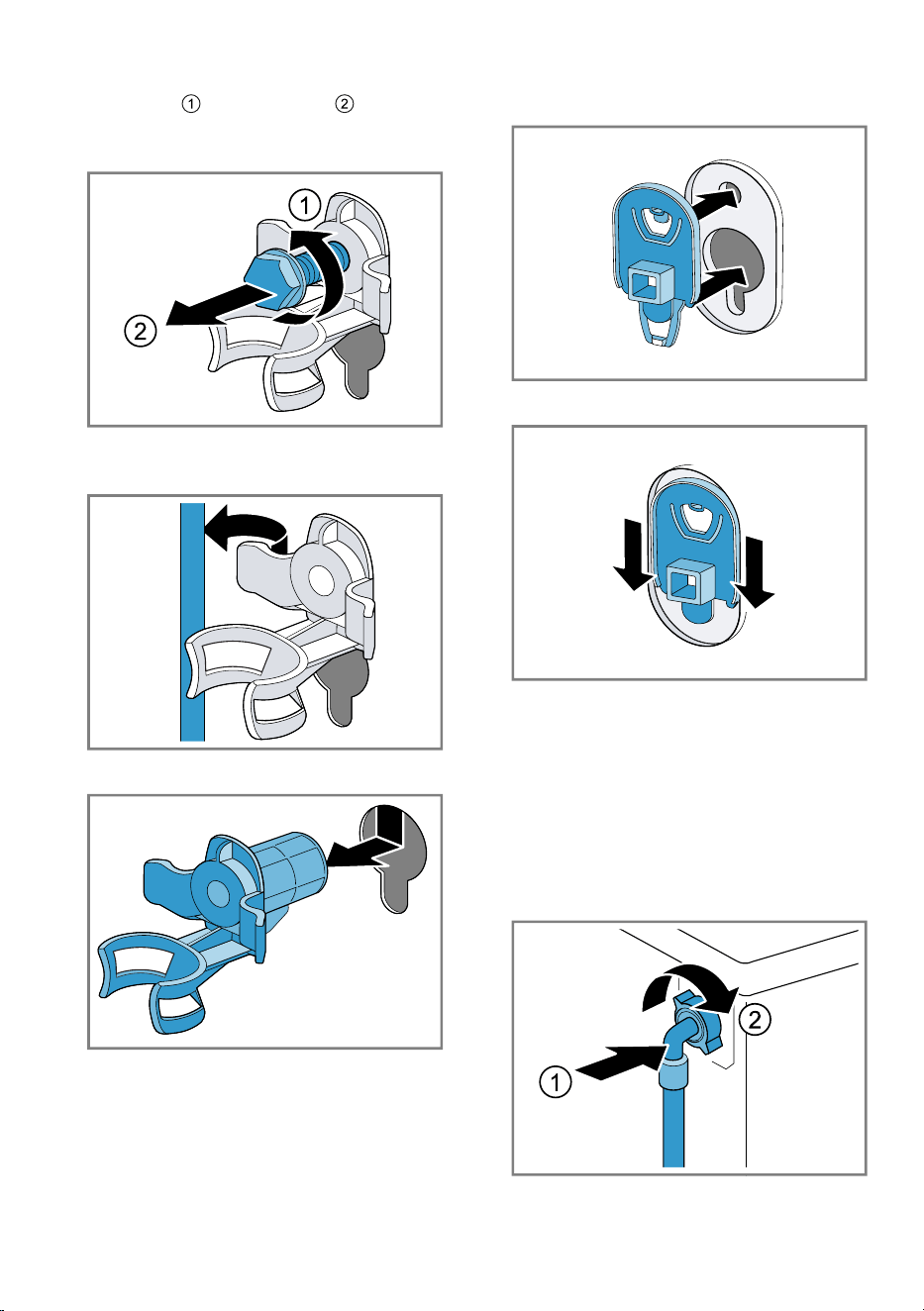

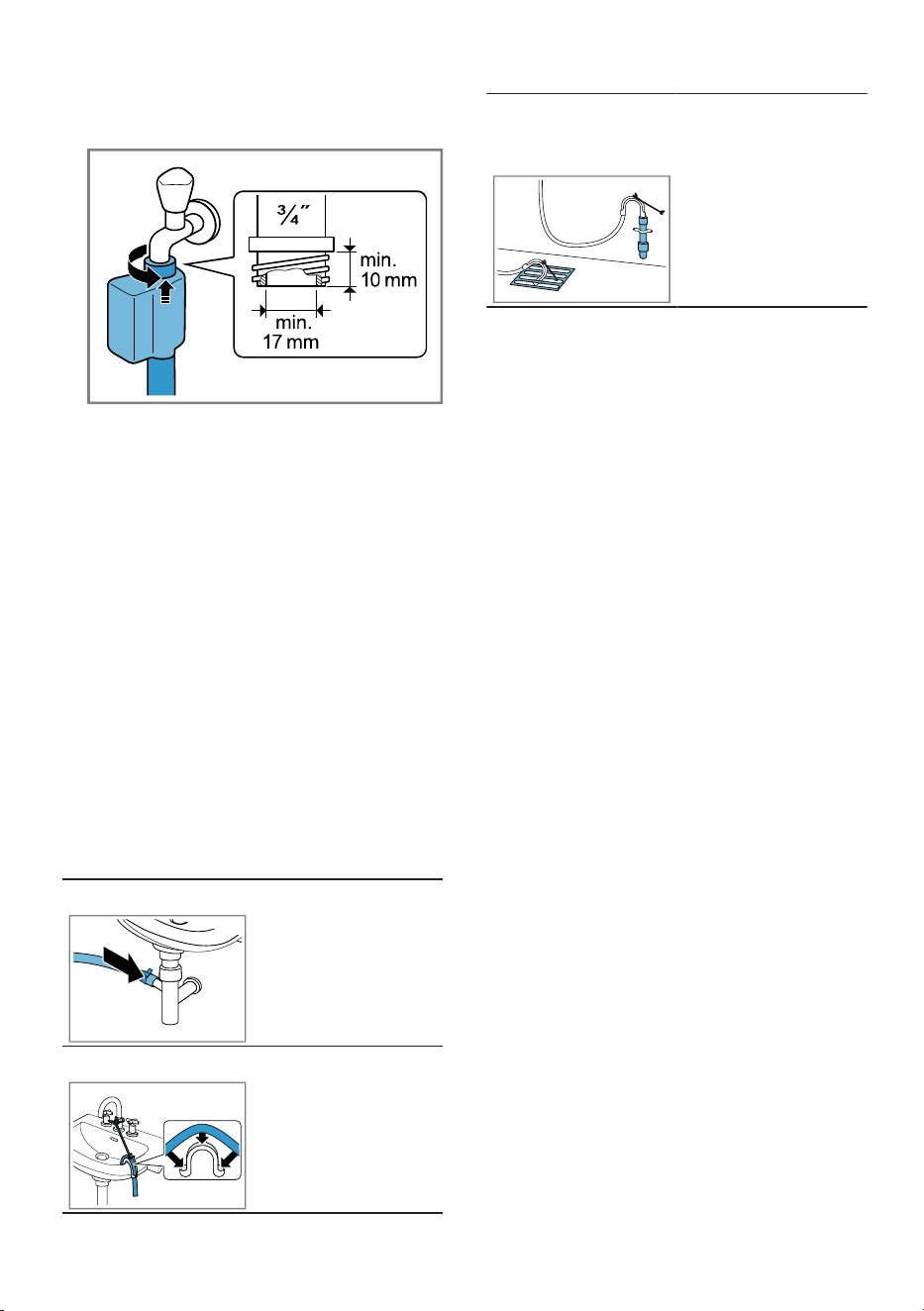

• Page 15 - English - : Installation and connection en 2 Connect the water inlet hose to a tap 264mm34quot 3 Open the water tap carefully and check that the connection points are tight Water outlet connection types This information is intended to help you to connect this appliance to the water outlet ATTENTION When draining the water outlet hose is subject to water pressure and may come loose from the installed con nection point Secure the water outlet hose against unintentional loosening NoteObserve the draining heights The maximum draining height is 100cm Siphon Secure the con nection point with a 2440 mm hose clamp Sink Fix and secure the water outlet hose with an el bow quotAccessoriesquot Page27 Plastic pipe with rubber sleeve or gully Fix and secure the water outlet hose with an el bow quotAccessoriesquot Page27 Connecting the appliance to the electricity supply NoteYour electrical domestic install ation for this appliance must comply with the local legal provisions and safety regulations and should in clude a residual current circuit breaker 1 Insert the mains plug of the appli ances power cable in a socket nearby The connection details of the appli ance can be found under Tech nical data Page52 2 Check the mains plug is inserted properly

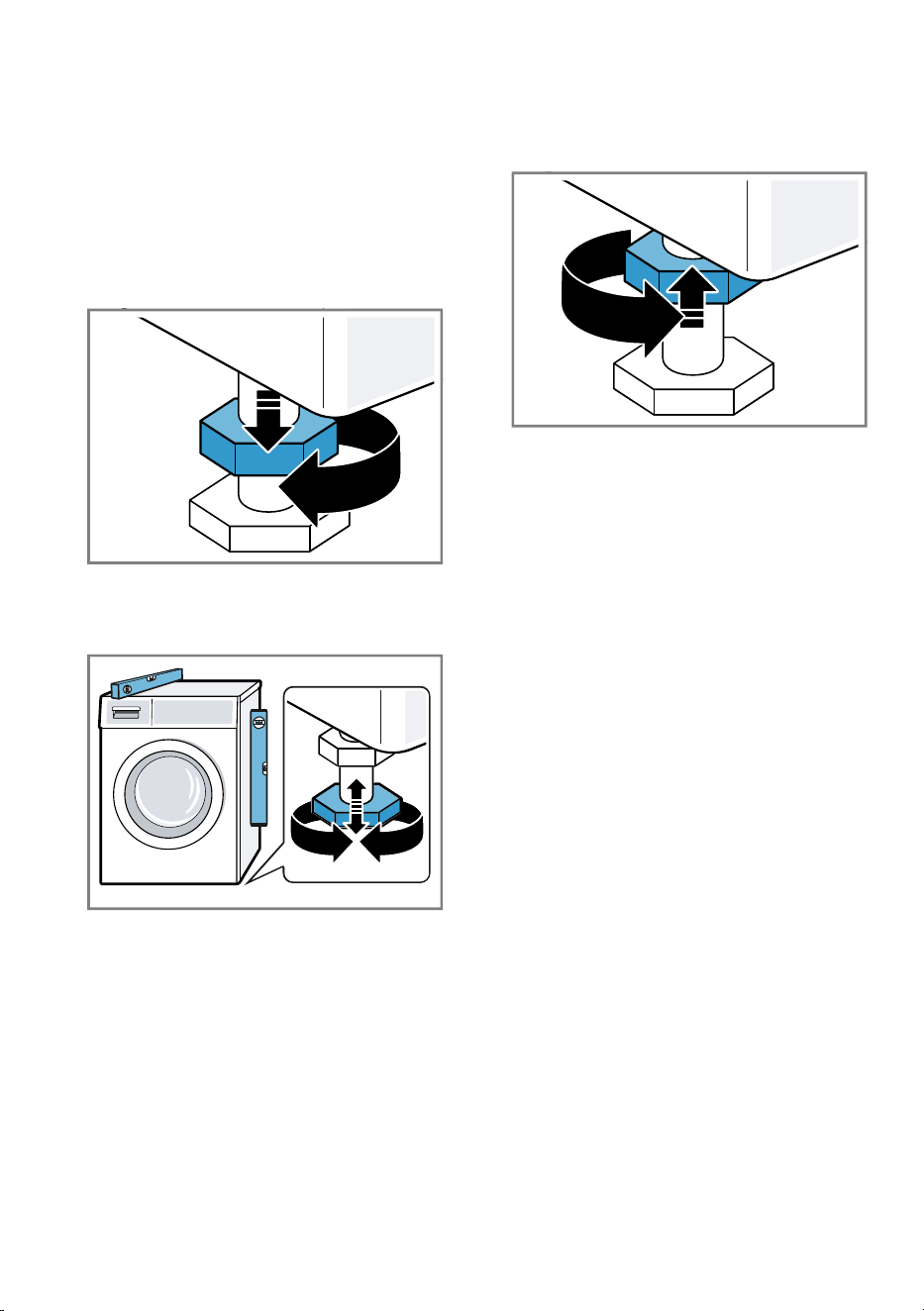

• Page 16 - English - : en Installation and connection 46 Aligning the appliance In order to reduce noise and vibra tion and to prevent the appliance from moving align the appliance cor rectly 1 Use a WAF 17 wrench to loosen the lock nuts in a clockwise direc tion 2 To align the appliance turn the ap pliance feet Check that the appli ance is level using a spirit level All appliance feet must stand firmly on the ground 3 Use a WAF 17 wrench to tighten the lock nuts against the housing until they are handtight In doing so hold the foot tight and do not adjust its height

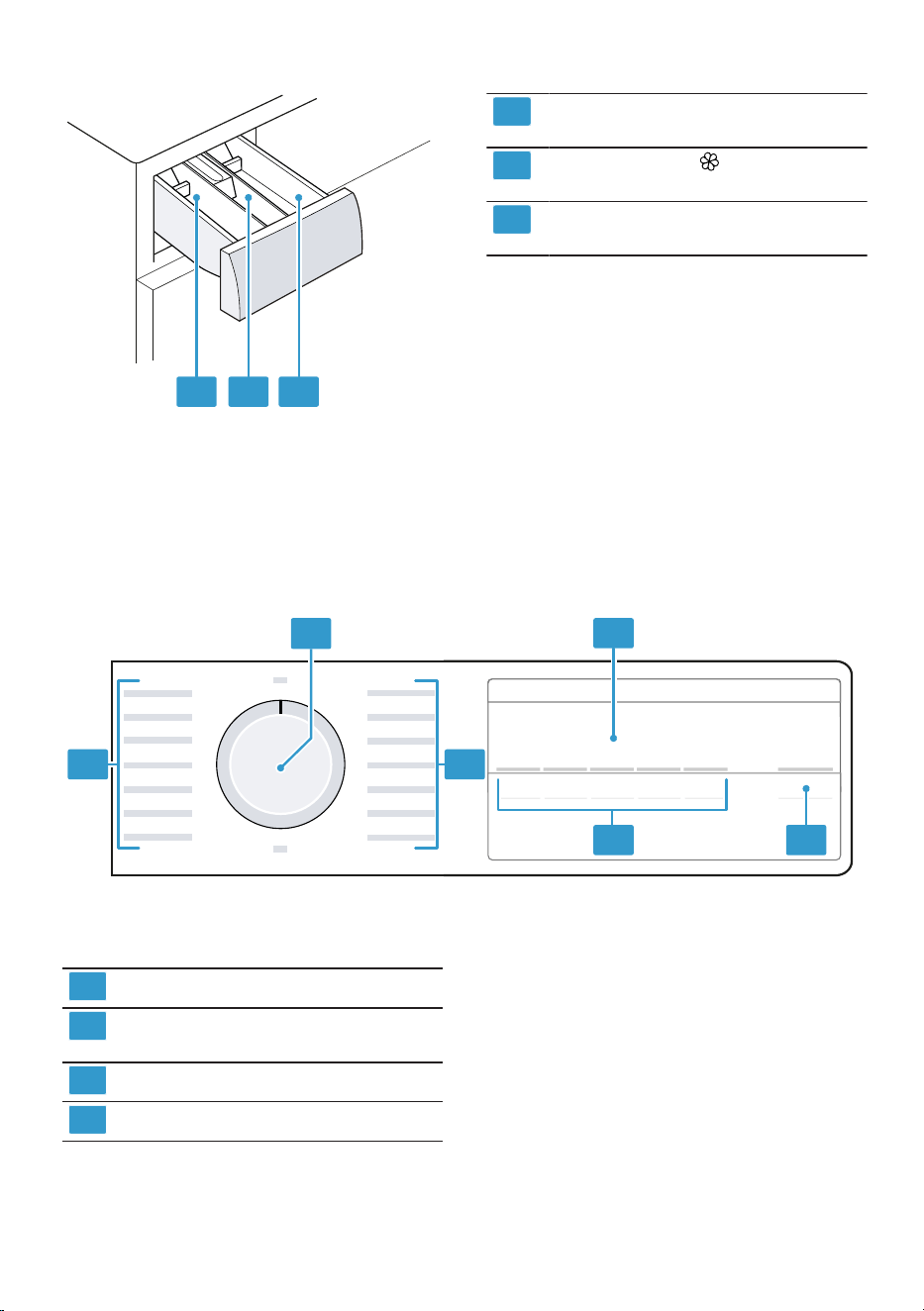

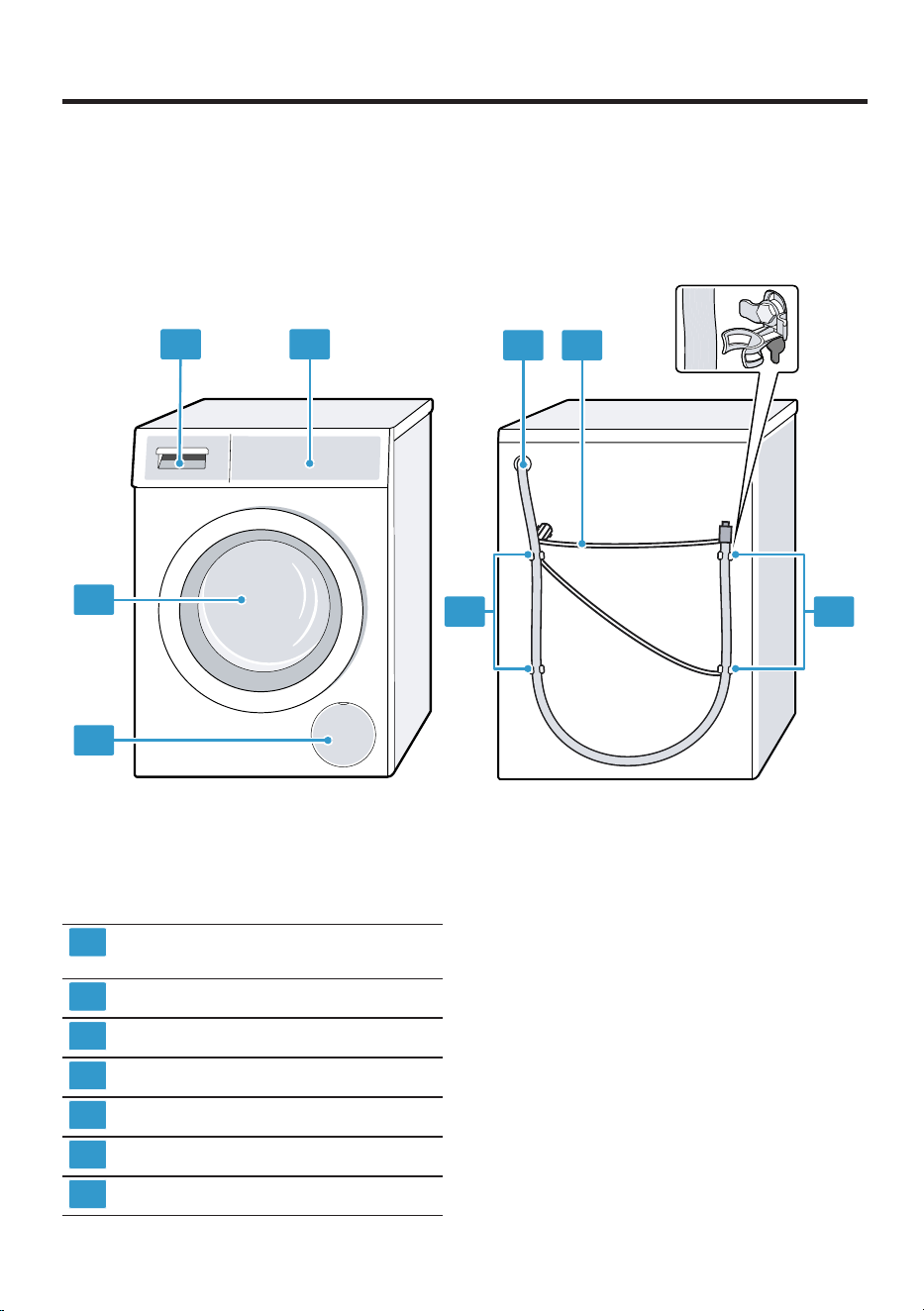

• Page 17 - English - : Familiarising yourself with your appliance en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance Familiarising yourself with your appliance 51 Appliance You can find an overview of the parts of your appliance here On certain models specific details such as the colour and shape may differ from those pictured Maintenance flap for the drain pump Page35 Door Detergent drawer Page17 Control panel Page18 Water outlet hose Page15 Power cord Page15 Transit bolts Page13 52 Detergent drawer NoteObserve the manufacturers in structions on the use and dosage of the detergent and care product and the information in the programme de scriptions
• Page 18 - English - : en Familiarising yourself with your appliance 1 2 3 Dispenser II detergent for the main wash Compartment Fabric softener Compartment I Detergent for prewash 53 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status 2 3 1 1 4 4 Programmes Page23 Programme selector Page28 Display Page20 Buttons Page22
• Page 19 - English - : Before using for the first time en Before using for the first time 6 Before using for the first time Before using for the first time Prepare the appliance for use 61 Starting an empty wash ing cycle Your appliance was inspected thor oughly before leaving the factory To remove any residual water run the first wash cycle without any laundry 1 Turn the programme selector to Drum Clean 2 Close the door 3 Pull out the detergent drawer 4 Pour approx 1 litre of tap water into compartment II 5 Add washing powder containing oxygen bleach to compartment II To prevent foaming use only half of the amount of detergent recom mended by the detergent manufac turer for light soiling Do not use detergent suitable for woollens or delicates 6 Push in the detergent drawer 7 Press Start Reload to start the programme a The display shows the remaining programme duration a After the programme has ended the display shows quotEndquot 8 Start the first wash cycle or set the programme selector to Off to switch off the appliance quotBasic operationquot Page28
• Page 20 - English - : en Display Display 7 Display Display The display shows the current settings options or relevant information Example Display Display Description 040 Expected programme duration or programme time re maining in hours and minutes 10h Program end time quotButtonsquot Page22 Recommendation for the maximum load capacity for the selected program in kg 1200 Set spin speed in rpm quotButtonsquot Page22 0 No final spin only draining Rinse Hold no draining 90 Set temperature in C quotButtonsquot Page22 cold Start cancel or pause Lights up The programme is running and can be can celled or paused Flashes The programme can be started or continued P Pause Programme status Rinse hold Programme status End Program end Programme status Example
• Page 21 - English - : Display en Display Description Lights up The childproof lock is activated Flashes The childproof lock is activated and the appli ance has been operated quotDeactivating the childproof lockquot Page31 Washing with additional water and a rinse cycle is activ ated quotButtonsquot Page22 Shortened programme length is activated quotButtonsquot Page22 Flashes Drum cleaning is required Run the Drum Clean programme for cleaning and caring for the drum and the outer tub quotCleaning the drumquot Page34 Lights up The voltage control system has paused the pro gram due to impermissible voltage drops The voltage is permissible again and the programme continues quot lights upquot Page41 NoteThe programme duration is extended Flashes The voltage control system has paused the pro gramme due to impermissible voltage drops quot flashesquot Page41 NoteThe programme continues when the voltage is per missible again Lights up The door is locked and cannot be opened Flashes The door is not closed properly Off The door is unlocked and can be opened No water pressure quotE30 10 andor quot Page40 The water pressure from the tap is too low E35 10 Error code error display signal quotTroubleshootingquot Page39 Example
• Page 22 - English - : en Buttons Buttons 8 Buttons Buttons The selection of programme settings depends on the programme that is set Button Selection More information Start Reload Start Cancel Pause Start cancel or pause the pro gramme SpeedPerfect Activate Deactivate Activate or deactivate a shorter pro gramme duration NoteEnergy consumption increases The washing result is not affected by this Finished in Up to 24 hours Set the programme end time The programme duration is already in cluded in the set number of hours Once the programme has started the programme duration is displayed TempC 90 Adjust the temperature Set temperature in C Spin Speed 1200 Adjust the spin speed or activate Rinse Hold Set spin speed in rpm If is selected the water is not drained at the end of the washing cycle and the spin cycle is deactiv ated The laundry remains in the rins ing water 3 sec Activate Deactivate quotChildproof lockquot Page31 Rinse Plus Activate Deactivate Activate or deactivate a washing pro gramme with more water and an addi tional rinse cycle Recommended for particularly sensit ive skin or in regions with very soft water
• Page 23 - English - : Programmes en Programmes 9 Programmes Programmes NoteThe laundrys care labels provide you with additional information on pro gramme selection Programme Description Max load kg Cottons Wash hardwearing items made of cotton linen or blended fabrics Also suitable as a short program when you activate SpeedPerfect Programme setting Max 90 C Max 1200rpm Cottons Eco Wash hardwearing items made of cotton linen or blended fabrics Energysaving program for normally soiled laundry NoteTo save energy the actual washing temperat ure may deviate from the set washing temperature The washing performance meets legal require ments Programme setting Max 90 C Max 1200rpm Cottons Pre wash Wash hardwearing items made from cotton linen or blended fabrics Programme with prewash for heavily soiled laundry Divide the detergent between the detergent drawer for the prewash and the main wash quotDetergent drawerquot Page17 Programme setting Max 90 C Max 1200rpm Easy Care Wash items made from synthetic or blended fab rics Programme setting Max 60 C Max 1200 rpm Quick Mixed Wash items made from cotton linen or synthetic or blended fabrics Suitable for lightly soiled laundry SpeedPerfect activated Washing not possible
• Page 24 - English - : en Programmes Programme Description Max load kg Programme setting Max 60 C Max 1200rpm Delicates Silk Wash delicate washable items made from silk vis cose and synthetic fabrics Use a detergent that is suitable for delicates or silk NoteWash especially delicate items or items with hooks eyelets or clips in a mesh laundry bag Programme setting Max 40 C Max 800rpm Wool Hand or machinewashable items that are made from wool or contain wool To prevent the laundry from shrinking the drum moves the items very gently with long pauses Use a detergent that is suitable for wool Programme setting Max 40 C Max 800rpm Rinse Rinse and then spin the laundry and drain the wa ter Programme setting Max 1200 rpm Spin Drain Spin the laundry and drain the water If you only want to drain the water activate 0 The laundry is not spun Programme setting Max 1200 rpm Hygiene Plus Wash hardwearing items made of cotton linen or blended fabrics Suitable for allergy sufferers and for strict hygiene requirements NoteOnce the set temperature has been reached it remains constant throughout the entire washing process Programme setting Max 60 C Max 1200rpm SpeedPerfect activated Washing not possible
• Page 25 - English - : Programmes en Programme Description Max load kg Shirts Blouses Wash noniron shirts and blouses made from cot ton linen or synthetic or blended fabrics NoteUse the Delicates Silk programme to wash shirts and blouses made from silk or delicate fabrics Programme setting Max 60 C Max 800rpm Iron Assist Suitable for shirts Tshirts and similar fabrics made from cotton linen or blended fabrics Programme for warming and steaming dry items using steam in order to hang them up once the programme has ended or to make them easier to iron The programmes maximum load is five shirts or five tshirts Activate SpeedPerfect if you only want to steam one item of laundry Notes Immediately after the programme ends hang up the warm steamed items or iron them The laundry is not washed or cleaned Do not use any detergent or cleaning products The steam is hot and may cause damage to cer tain fabrics or fabric types The programme is therefore not suitable for out door clothing or items made from silk or wool such as jumpers Easy Care Plus Wash darkcoloured and colourintense items made from cotton or easycare fabric eg jeans Turn laundry insideout before washing Use liquid detergent Programme setting Max 40 C Max 1200rpm Drum Clean Clean and care for the drum Use this programme in the following cases Before using the appliance for the first time If you regularly wash at temperatures of 40C or lower SpeedPerfect activated Washing not possible
• Page 26 - English - : en Programmes Programme Description Max load kg After a prolonged period of nonuse Use washing powder containing oxygen bleach Add the washing powder containing oxygen bleach to compartment II for the main wash quotDetergent drawerquot Page17 Halve the amount of detergent to avoid foaming Do not use fabric softener Do not use liquid detergent or detergent that is in tended for woollens or delicates NoteThe drum cleaning indicator flashes to re mind you if you have not used a programme at 60C or higher for a long time Super 15 30 Wash items made from cotton or synthetic or blen ded fabrics Short programme for small items of lightly soiled laundry The programme duration is approx 30 minutes If you wish to reduce the programme duration to 15 minutes activate SpeedPerfect The maximum load is reduced to 20kg Programme setting Max 40 C Max 1200rpm SpeedPerfect activated Washing not possible
• Page 27 - English - : Accessories en Accessories 10 Accessories Accessories Use original accessories These have been made especially for your appli ance NoteSome accessories are avail able in other colours Contact quotCustomer Servicequot Page49 Use Order num ber Water inlet hose ex tension Extend the water inlet hose for cold water or AquaStop approx 250 m WMZ2381 Fixing brackets Improves the stability of the appliance WMZ2200 Longer water inlet hose Replace the standard water inlet hose with a longer hose 220 m Elbow Secure the water outlet hose in place 00655300 Liquid detergent in sert Measure liquid detergent 00605740 Platform Install the appliance at a raised height so that it can be easily loaded and unloaded WMZP W20W Washing machine cleaners Cleaning products for maintaining the ap pliance interior Laundry 11 Laundry Laundry 111 Preparing the laundry ATTENTION Objects remaining in the laundry may damage the laundry and the drum Remove all items from any pock ets in your laundry before using the appliance Note The appliance and fabrics are protected when you prepare your laundry Brush off sand and soil Sort the laundry according to col our and textiles and observe the care labels Close all zips Velcro fasteners hooks and eyes Tie cloth belts cloth straps and cords together Remove curtain fittings and lead strips Wash small or particularly delicate items in a mesh washing bag Wash large and small items of laundry together Wash laundry with fresh stains im mediately Pretreat laundry with dried stains and wash several times Load the laundry unfolded into the drum Before loading the drum any laun dry that has been pretreated with chlorine bleach should be rinsed several times
• Page 28 - English - : en Detergents and care products Detergents and care products 12 Detergents and care products Detergents and care products The manufacturers instructions for use and dosage can be found on the packaging Notes When using liquid detergents only use liquid detergents that are self flowing Do not mix different liquid deter gents Do not mix detergent and fabric softener Do not use products that have ex pired or are highly congealed Do not use products containing solvents caustic agents or volatile substances Do not use chlorine bleach Do not use dyes regularly as fixing salt can damage stainless steel Do not use colorbleaching agents in the appliance Basic operation 13 Basic operation Basic operation 131 Switching on the appli ance RequirementThe appliance has been correctly installed and connec ted quotInstallation and connectionquot Page12 Turn the programme selector to a programme 132 Setting a programme 1 Turn the programme selector and set the required programme quotProgrammesquot Page23 2 If required adjust the programme settings quotAdjusting the programme set tingsquot Page28 133 Adjusting the pro gramme settings RequirementA programme has been set quotSetting a programmequot Page28 Adjust the programme settings quotButtonsquot Page22 NoteThe programme settings are not saved permanently for the pro gramme 134 Loading laundry NoteTo prevent creasing note the maximum load for the programmes quotProgrammesquot Page23 Requirements The laundry is prepared and sor ted quotLaundryquot Page27 The drum is empty 1 Open the door 2 Place the laundry in the drum 3 Close the door Ensure that there is no laundry trapped in the door 135 Inserting the measuring aid for liquid detergent If you order the measuring aid as an accessory you must use the measur ing aid 1 Pull out the detergent drawer

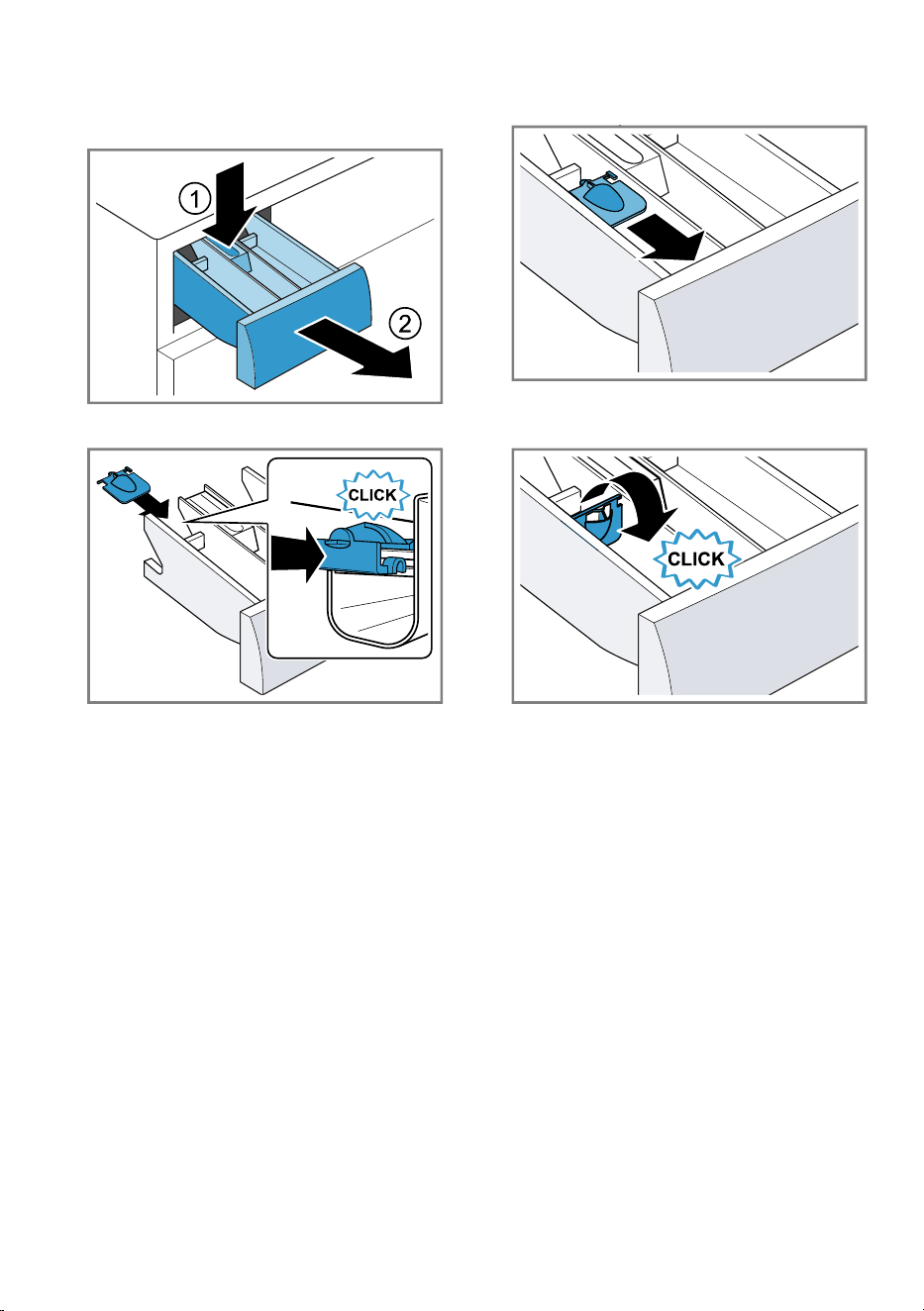

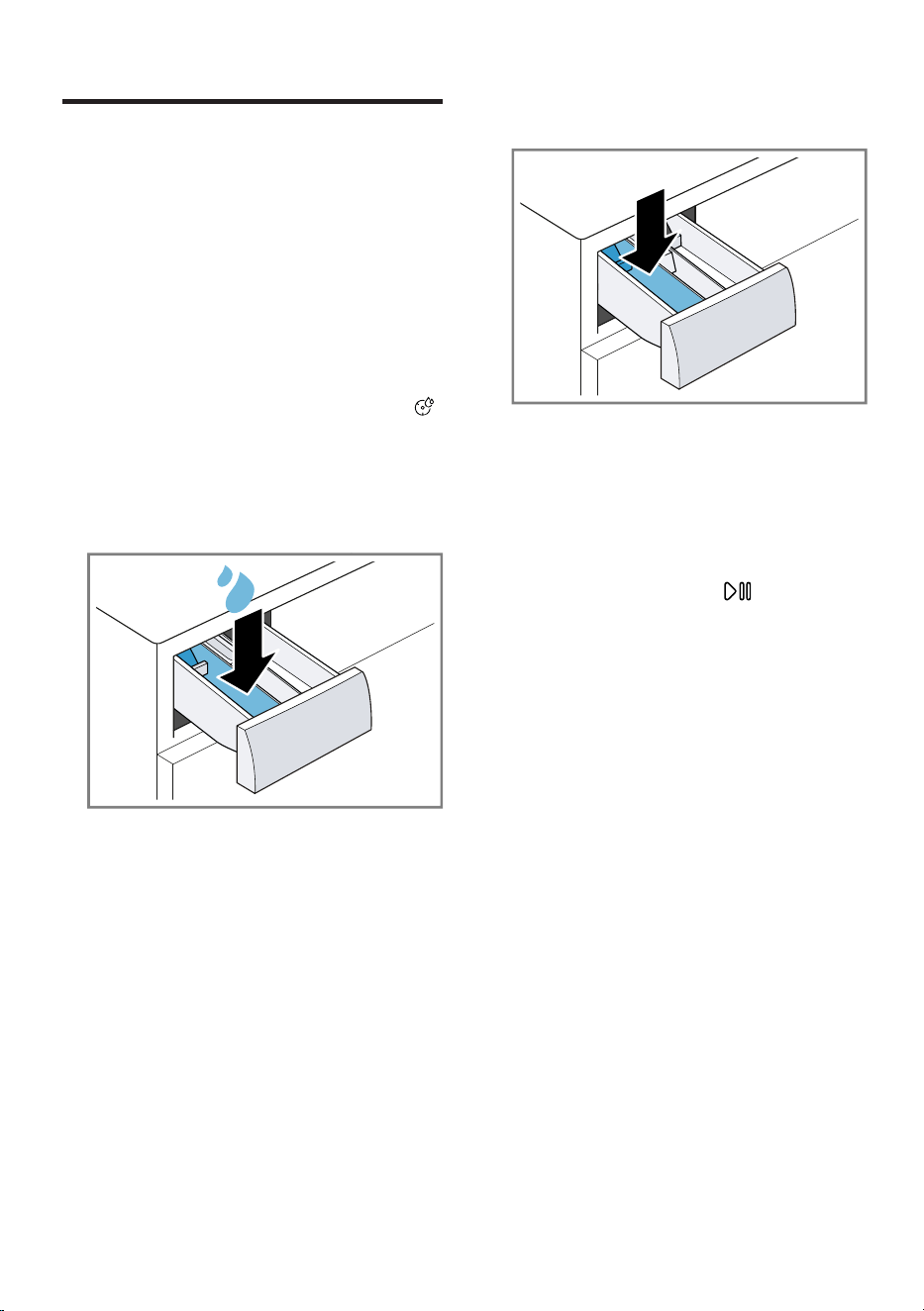

• Page 29 - English - : Basic operation en 2 Press down on the insert and re move the detergent drawer 3 Insert the measuring aid 4 Insert the detergent drawer 136 Use the measuring aid for liquid detergent To add liquid detergent you can use a measuring aid in the detergent drawer 1 Pull out the detergent drawer 2 Slide the measuring aid forwards 3 Fold the measuring aid down and click it into place 4 Push in the detergent drawer 137 Adding detergent and care product Notes Do not use the measuring aid for liquid detergent for gel detergents washing powder or if Prewash or quotReady inquot time are activated Observe the information about de tergents and care products Page28 1 Pull out the detergent drawer 2 Pour in detergent quotDetergent drawerquot Page17 3 If required add the care product 4 Push in the detergent drawer
• Page 30 - English - : en Basic operation 138 Starting the programme RequirementA programme is set quotSetting a programmequot Page28 Press Start Reload a The drum rotates and load detec tion takes place This can take up to 2 minutes after which water enters the drum a The display shows the programme duration or the programme end time a After the programme has ended the display shows quotEndquot 139 Changing the activated programme end time You can repeatedly change the set and activated programme end time before starting the programme Requirements The programme is set quotSetting a programmequot Page28 The programme end time is set and activated quotButtonsquot Page22 1 Press Start Reload The activated programme end time is paused 2 Press Finished in until the dis play shows the required pro gramme end time 3 Press Start Reload The changed programme end time is activated 1310 Soaking laundry NoteNo additional detergent is re quired for soaking The appliance uses the filled detergent for soaking and washing Requirements The laundry is placed in the appli ance quotLoading laundryquot Page28 A programme has started quotStarting the programmequot Page30 1 Press Start Reload approx 10minutes after the programme start The programme pauses and the laundry can soak 2 Press Start Reload after the required soaking time 1311 Adding laundry After the programme starts you can remove or add laundry depending on the programme status 1 Press Start Reload The appliance pauses NoteIf you want to add laundry follow the instructions on the dis play quotDisplayquot Page21 2 Open the door 3 Add or remove laundry 4 Close the door 5 Press Start Reload 1312 Cancelling the pro gramme 1 Press Start Reload 2 Open the door The appliance door remains locked for safety reasons if the temperature and water levels are high If the temperature is high start the Rinse programme
• Page 31 - English - : Childproof lock en If the water level is high start the Spin programme or select a suitable programme for drain ing quotProgrammesquot Page23 3 Remove the laundry quotUnloading the laundryquot Page31 1313 Resuming the pro gramme when the pro gramme status is Rinse Hold Requirements Rinse Stop is activated quotButtonsquot Page22 The last rinse cycle of the set pro gramme has ended and the laun dry is in the rinsing water 1 Set the Spin programme or a programme for draining the water quotProgrammesquot Page23 2 Press Start Reload 1314 Unloading the laundry 1 Open the door 2 Remove the laundry from the drum 1315 Switching off the appli ance 1 Turn the programme selector to Off 2 Turn off the tap 3 Wipe the rubber gasket dry and re move any foreign objects 4 Leave the appliance door and de tergent drawer open so that resid ual water can evaporate Childproof lock 14 Childproof lock Childproof lock Secure your appliance against being operated unintentionally using the controls 141 Activating the childproof lock Press and hold the two 3 sec buttons for approx 3seconds a The display shows a The control elements are locked a The childproof lock remains active even after the appliance has been switched off and in the event of a power cut 142 Deactivating the child proof lock RequirementTo deactivate the childproof lock the appliance must be switched on Press and hold the two 3 sec buttons for approx 3seconds
• Page 32 - English - : en Childproof lock So that the programme currently running is not cancelled the pro gramme selector must be set to the initial programme a goes out in the display
• Page 33 - English - : Basic settings en Basic settings 15 Basic settings Basic settings You can configure the basic settings for your appliance to meet your needs 151 Overview of the basic settings Basic setting Programme position Value Description End signal 2 0 off 1 quiet 2 me dium 3 loud 4 very loud Set the volume of the signal at the end of the programme Button signal 3 0 off 1 quiet 2 me dium 3 loud 4 very loud The volume of the audible signal emitted when the buttons are pressed Drum cleaning reminder 4 On OFF Activate or deactivate the re minder to clean the drum Programme counter 5 42 Display the number of finished programmes Example
• Page 34 - English - : en Programme counter 152 Changing the basic set tings 1 Set the programme selector to po sition 1 2 Press Start Reload and at the same time turn the programme selector to position2 a The display shows the current value 3 Set the programme selector to the required position quotOverview of the basic settingsquot Page33 4 To change the value press Fin ished in 5 To save the changes switch off the appliance Programme counter 16 Programme counter Programme counter The program counter displays the number of finished programmes 161 Calling up the pro gramme counter 1 Set the programme to position1 2 Press Start Reload and set the programme to position 2 at the same time 3 Set the programme to position5 Cleaning and servicing 17 Cleaning and servi cing Cleaning and servicing To keep your appliance working effi ciently for a long time it is important to clean and maintain it carefully 171 Cleaning the drum CAUTION Risk of injury Permanently washing at low temper atures and a lack of ventilation for the appliance may damage the drum and cause injury Regularly run a programme for cleaning the drum or wash at tem peratures of at least 60C Leave the appliance to dry after every operation with the door open and leave the detergent drawer to dry Run the Drum Clean pro gramme without laundry but with washing powder that contains oxy gen bleach or a a cleaning agent for caring for the inside of the ap pliance quotAccessoriesquot Page27 172 Cleaning the detergent drawer 1 Pull out the detergent drawer

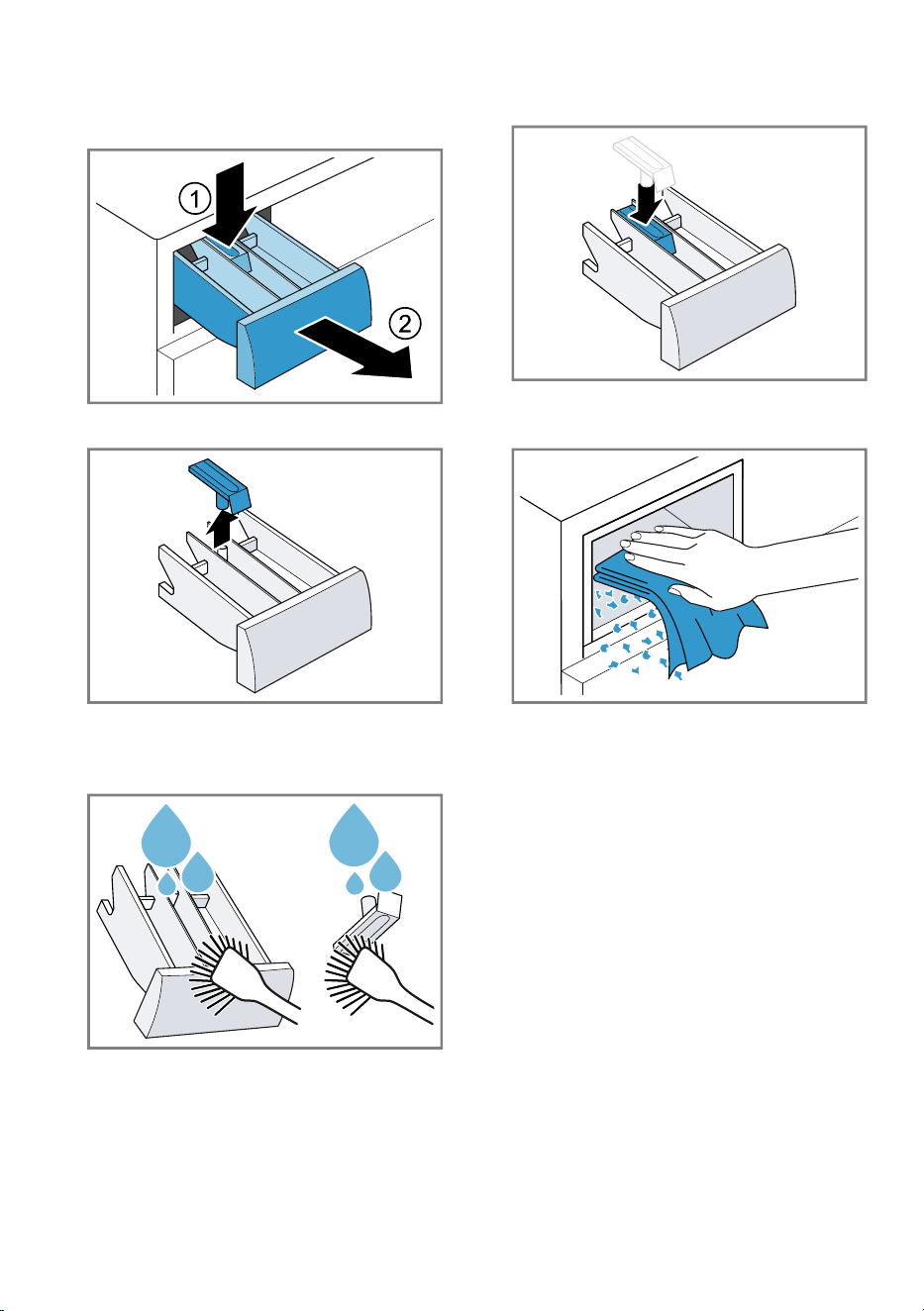

• Page 35 - English - : Cleaning and servicing en 2 Press down on the insert and re move the detergent drawer 3 Pull out the insert upwards 4 Clean the detergent drawer and in sert with water and a brush and then dry them 5 Fit the insert and click it into place 6 Clean the opening for the deter gent drawer 7 Push in the detergent drawer 173 Cleaning the drain pump Clean the drain pump regularly at least once a year as well as in the event of faults eg blockages or rat tling noises Emptying the drain pump 1 Turn off the tap 2 Switch off the appliance quotSwitching off the appliancequot Page31 3 Disconnect the appliances mains plug from the power supply

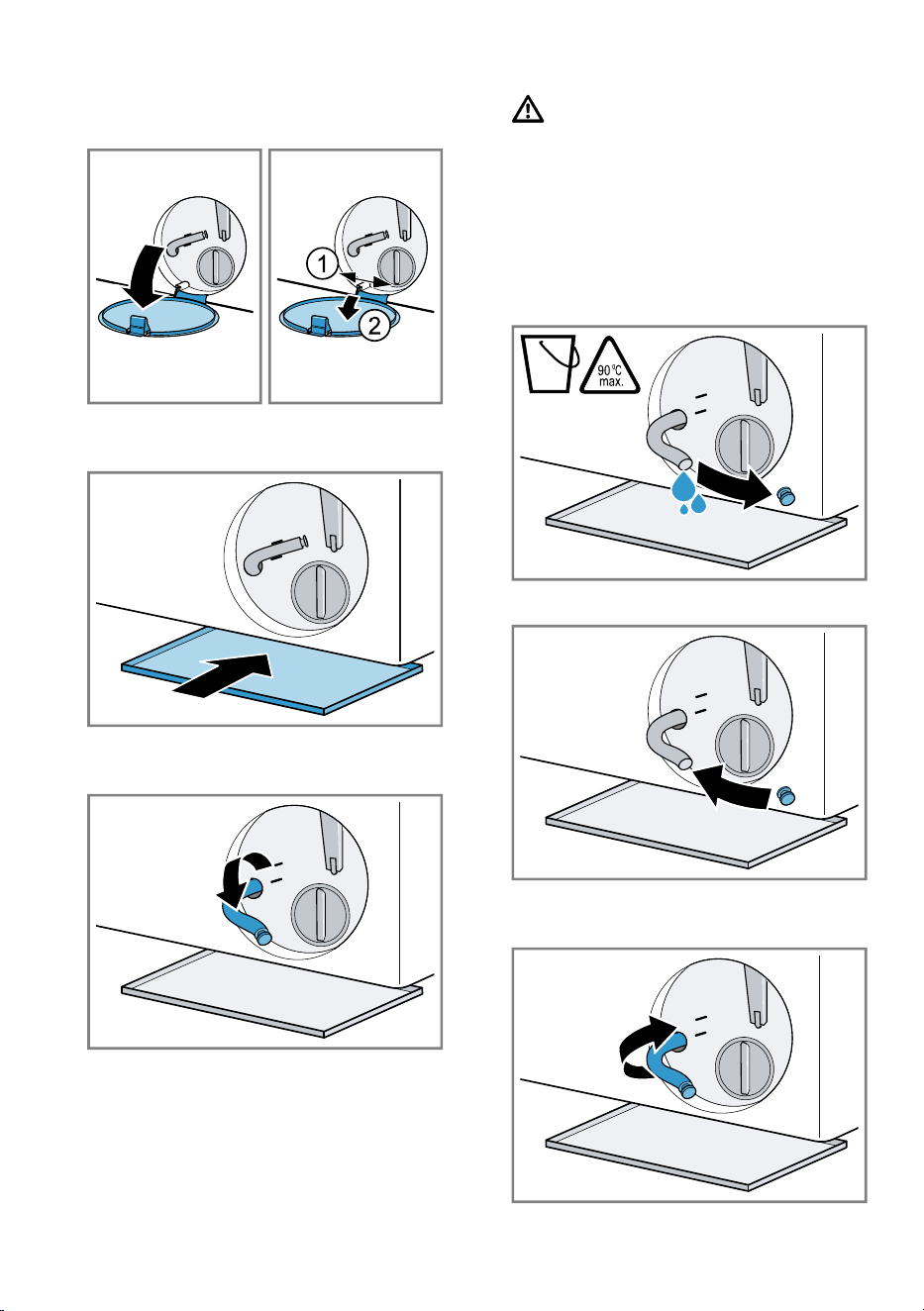

• Page 36 - English - : en Cleaning and servicing 4 Open and remove the mainten ance flap 5 Slide a sufficiently large container under the opening 6 Take the drain hose out of the holder CAUTIONRisk of scalding When you wash at high temperat ures the detergent solution gets hot Do not touch the hot detergent solution To allow the detergent solution to flow out into the container remove the sealing cap 8 Firmly press on the sealing cap 9 Insert the drain hose into the holder

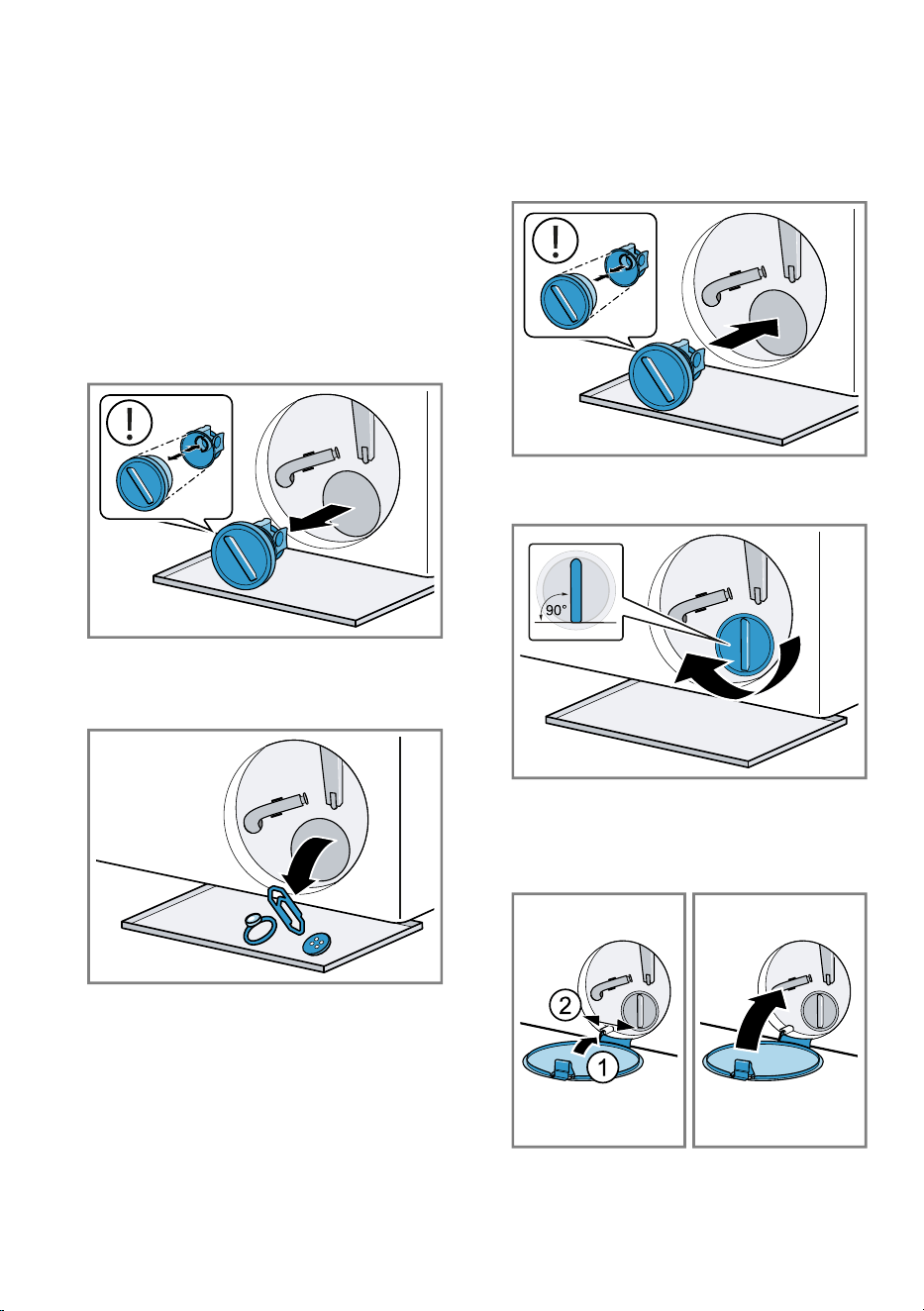

• Page 37 - English - : Cleaning and servicing en Cleaning the drain pump RequirementThe drain pump is empty Page35 1 Since water may remain in the drain pump unscrew the pump cap carefully The filter insert in the pump housing may become stuck due to coarse particles of dirt Loosen the dirt and remove the filter insert 2 Clean the interior the thread on the pump cap and the pump hous ing The pump cap is comprised of two parts which can be taken apart for cleaning 3 Ensure that the impeller in the drain pump can rotate 4 Insert the pump cap Ensure that the parts of the pump cap are correctly as sembled 5 Screw the pump cap as far as it will go The handle on the pump cap must be in a vertical position 6 Insert and close the maintenance flap
• Page 38 - English - : en Cleaning and servicing Before the next wash To prevent unused detergent from flowing straight into the outlet in the next wash run a suitable programme for draining after you have emptied the drain pump 1 Open the water tap 2 Insert the mains plug 3 Switch on the appliance 4 Pour 1litre of water into compart ment II 5 Select a suitable programme for draining quotProgrammesquot Page23
• Page 39 - English - : Troubleshooting en Troubleshooting 18 Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself Read the troubleshoot ing information before contacting aftersales service This will avoid unneces sary costs WARNING Risk of electric shock Improper repairs are dangerous Repairs to the appliance should only be carried out by trained specialist staff Only use genuine spare parts when repairing the appliance If the power cord of this appliance is damaged it must be replaced by the manufacturer the manufacturers Customer Service or a similarly qualified person in order to prevent any risk Fault Cause and troubleshooting The display goes out and Start Reload flashes Energysaving mode is active Press any button a The display lights up again quotE30 80quot Drain pipe or water outlet hose is blocked Clean the drain pipe and the water outlet hose Drain pipe or water drain hose is caught or jammed Ensure that the drain pipe and water drain hose are not kinked or trapped The water outlet hose is connected too high Install the water outlet hose at a maximum height of 1 metre Unapproved extension installed on the water drain hose Remove any unapproved extensions from the water hose quotConnecting the appliancequot Page14 Drain pump is blocked quotCleaning the drain pumpquot Page35 Pump cover is not correctly assembled Correctly assemble the pump cover The pump cap is not fully screwed in Ensure that the pump cap is screwed in all the way into the appliance The handle on the pump cap must be in a vertical position Detergent dosage is too high
• Page 40 - English - : en Troubleshooting Fault Cause and troubleshooting quotE30 80quot Immediate measure Mix one tablespoon of fabric softener with 05 litres of water and pour the mix ture into compartment II not for outdoor clothing sportswear or items stuffed with down Reduce the amount of detergent for the next wash ing cycle with the same load quotE36 25 26quot Drain pump is blocked quotCleaning the drain pumpquot Page35 quotE60 2Bquot The unbalanced load detection system has interrupted the spin cycle because the laundry is unevenly distrib uted Redistribute the laundry in the drum NoteWhere possible mix large and small items in the drum Different sized items of laundry distribute themselves better during the spin cycle quotE30 10quot andor The water pressure is low No remedial action possible The filters in the water inflow are blocked Clean the filters in the water inflow The tap is turned off Turn on the tap The water inlet hose is kinked or jammed Ensure that the water inlet hose is not kinked or jammed Water level measurement system is defective NoteWith the error message the appliance starts a draining process 1 First wait approx 5 minutes until the drain process ends 2 To reset the error message switch the appliance off 3 Switch the appliance back on 4 If the error message is displayed again call cus tomer service quotCustomer Servicequot Page49 flashes The automatic voltage control system detects an un authorised voltage drop No remedial action possible NoteIf the power supply is stable the programme continues to run as normal
• Page 41 - English - : Troubleshooting en Fault Cause and troubleshooting flashes Voltage underusage may cause extension of a pro gramme No remedial action possible lights up Voltage underusage may cause extension of a pro gramme No remedial action possible lights up The temperature is too high Wait until the temperature has dropped Cancel the programme quotCancelling the programmequot Page30 Water level is too high Select a suitable programme for draining quotProgrammesquot Page23 flashes Door is not closed Close the door Laundry is caught in the door Remove any trapped laundry Drum cleaning is required quotCleaning the drumquot Page34 quotE3020quot Detergent dosage is too high Reduce the amount of detergent for the next wash ing cycle with the same load Additional water is added Do not add any extra water to the appliance while it is operating Solenoid valve defective Call the aftersales service quotCustomer Servicequot Page49 All other error codes Malfunction 1 Switch the appliance off and then on again 2 If the message appears again disconnect the appli ance from the power supply for at least 30 seconds by pulling out the plug or by switching off the relev ant circuit breaker in the fuse box a If the fault was a oneoff the message disappears 3 If the message appears again call the aftersales service Please specify the exact error message when calling quotCustomer Servicequot Page49
• Page 42 - English - : en Troubleshooting Fault Cause and troubleshooting The appliance is not working The mains plug of the power cord is not plugged in Connect the appliance to the power supply The circuit breaker in the fuse box has tripped Check the circuit breaker in the fuse box There has been a power cut Check whether the lighting in your room or other appliances are working The programme does not start Start Reload has not been pressed Press Start Reload Door is not closed Close the door Childproof lock is activated Deactivate childproof lock quotDeactivating the childproof lockquot Page31 Finished in is activated Check whether Finished in is activated quotButtonsquot Page22 Laundry is caught in the door Remove any trapped laundry The door cannot beopened is activated Continue the programme by selecting Spin or a suitable programme for draining and pressing Start Reload quotResuming the programme when the programme status is Rinse Holdquot Page31 The temperature is too high Wait until the temperature has dropped Cancel the programme quotCancelling the programmequot Page30 Water level is too high Select a suitable programme for draining quotProgrammesquot Page23 Power failure Open the door using the emergency release quotEmergency releasequot Page48 The water is not drain ing Drain pipe or water outlet hose is blocked Clean the drain pipe and the water outlet hose Drain pipe or water drain hose is caught or jammed
• Page 43 - English - : Troubleshooting en Fault Cause and troubleshooting The water is not drain ing Ensure that the drain pipe and water drain hose are not kinked or trapped Drain pump is blocked quotCleaning the drain pumpquot Page35 is activated Continue the programme by selecting Spin or a suitable programme for draining and pressing Start Reload quotResuming the programme when the programme status is Rinse Holdquot Page31 The water outlet hose is connected too high Install the water outlet hose at a maximum height of 1 metre Pump cover is not correctly assembled Correctly assemble the pump cover Detergent dosage is too high Immediate measure Mix one tablespoon of fabric softener with 05 litres of water and pour the mix ture into compartment II not for outdoor clothing sportswear or items stuffed with down Reduce the amount of detergent for the next wash ing cycle with the same load Unapproved extension installed on the water drain hose Remove any unapproved extensions from the water hose quotConnecting the appliancequot Page14 The pump cap is not fully screwed in Ensure that the pump cap is screwed in all the way into the appliance The handle on the pump cap must be in a vertical position Water is not flowing in Detergent is not being dispensed Start Reload has not been pressed Press Start Reload The filters in the water inflow are blocked Clean the filters in the water inflow The tap is turned off Turn on the tap The water inlet hose is kinked or jammed Ensure that the water inlet hose is not kinked or jammed
• Page 44 - English - : en Troubleshooting Fault Cause and troubleshooting The spin cycle runs several times The unbalanced load detection system eliminates an imbalance by repeatedly redistributing the laundry Not a fault no action required NoteWhen loading where possible place large and small items of laundry together in the drum Different sized items of laundry distribute themselves better during the spin cycle The programme dura tion changes during the wash cycle The programme operation is optimised electronically This may change the programme duration Not a fault no action required The unbalanced load detection system eliminates an imbalance by repeatedly redistributing the laundry Not a fault no action required NoteWhen loading where possible place large and small items of laundry together in the drum Different sized items of laundry distribute themselves better during the spin cycle Foam detection system switches on a rinse cycle if foam buildup is too high Not a fault no action required No water is visible in the drum Water is below the visible area Not a fault no action required Do not add any extra water to the appliance while it is operating Drum jerks after the programme starts This is caused by an internal motor test Not a fault no action required Residual water is present in the com partment Insert in compartment is blocked quotCleaning the detergent drawerquot Page34 Vibrations and move ment of the appliance whilst spinning Appliance is not correctly aligned quotAligning the appliancequot Page16 The appliance feet are not fixed Secure the appliance feet quotAligning the appliancequot Page16 Transit bolts have not been removed quotRemoving the transit boltsquot Page13 Drum rotates water does not flow in Load detection is active Not a fault no action required NoteThe load detection can take up to two minutes
• Page 45 - English - : Troubleshooting en Fault Cause and troubleshooting Heavy foam buildup Detergent dosage is too high Immediate measure Mix one tablespoon of fabric softener with 05 litres of water and pour the mix ture into compartment II not for outdoor clothing sportswear or items stuffed with down Reduce the amount of detergent for the next wash ing cycle with the same load High spin speed not reached A low spin speed is selected The next time you run a wash cycle set a higher spin speed Unbalance load detection system is using a reduced spin speed to eliminate an unbalance Redistribute the laundry in the drum NoteWhere possible mix large and small items in the drum Different sized items of laundry distribute themselves better during the spin cycle Start the Spin programme The spin programme does not start Drain pipe or water outlet hose is blocked Clean the drain pipe and the water outlet hose Drain pipe or water drain hose is caught or jammed Ensure that the drain pipe and water drain hose are not kinked or trapped The unbalanced load detection system has interrupted the spin cycle because the laundry is unevenly distrib uted Redistribute the laundry in the drum NoteWhere possible mix large and small items in the drum Different sized items of laundry distribute themselves better during the spin cycle Start the Spin programme Rushing hissing noise Water is flushed under pressure into the detergent drawer Not a fault normal operating noise Loud noises during the spin cycle Appliance is not correctly aligned quotAligning the appliancequot Page16 The appliance feet are not fixed Secure the appliance feet quotAligning the appliancequot Page16 Transit bolts have not been removed quotRemoving the transit boltsquot Page13
• Page 46 - English - : en Troubleshooting Fault Cause and troubleshooting Banging noises rat tling in the drain pump Foreign bodies have got into the drain pump quotCleaning the drain pumpquot Page35 Slurping rhythmical suction noise The drain pump is active the detergent solution is pumped out Not a fault normal operating noise Creasing The spin speed is too high The next time you run a wash cycle set a lower spin speed The load is too large The next time you run a wash cycle reduce the amount of laundry being loaded Unsuitable programme for the type of fabric Select the programmes that are suitable for the type of fabric Detergent or fabric softener drips off the seal and collects on the door or in the seal fold Too much detergentfabric softener in the detergent drawer When dosing liquid detergent and fabric softener observe the marking in the detergent drawer and do not dose above this The spin result is not satisfactory The laun dry is too wettoo damp A low spin speed is selected The next time you run a wash cycle set a higher spin speed Start the Spin programme Drain pipe or water outlet hose is blocked Clean the drain pipe and the water outlet hose Drain pipe or water drain hose is caught or jammed Ensure that the drain pipe and water drain hose are not kinked or trapped The unbalanced load detection system has interrupted the spin cycle because the laundry is unevenly distrib uted Redistribute the laundry in the drum NoteWhere possible mix large and small items in the drum Different sized items of laundry distribute themselves better during the spin cycle Start the Spin programme Unbalance load detection system is using a reduced spin speed to eliminate an unbalance Redistribute the laundry in the drum
• Page 47 - English - : Troubleshooting en Fault Cause and troubleshooting The spin result is not satisfactory The laun dry is too wettoo damp NoteWhere possible mix large and small items in the drum Different sized items of laundry distribute themselves better during the spin cycle Start the Spin programme Detergent residue on the damp washing Detergents may contain waterinsoluble substances that deposit on the laundry Start the Rinse programme Detergent residue on the dry laundry Detergents may contain waterinsoluble substances that deposit on the laundry Brush out the laundry after washing and drying Water is leaking out at the water inlet hose Water inlet hose is not correctlysecurely connected 1 Connect the water supply hose correctly quotConnecting the water inlet hosequot Page14 2 Tighten the screw connection Water is leaking out at the water outlet hose The water outlet hose is damaged Replace the damaged water outlet hose Water outlet hose is not connected correctly Connect the water outlet hose correctly quotWater outlet connection typesquot Page15 Odours have formed in the appliance Humidity and detergent residue may promote the formation of bacteria quotCleaning the drumquot Page34 If you are not using the appliance leave the door and detergent drawer open so that residual water can evaporate Damp stains have formed on the fabrics after the end of the Iron Assist pro gramme Water droplets from the drum or from the door have moistened the fabrics The drops come from either condensed steam or the residual moisture from the previous wash programme Iron the fabrics or hang them up to dry Fabric softener re mains in the detergent drawer The use of fabric softener is not supported for the se lected programme Before washing check whether the use of fabric softener is supported for the selected programme quotProgrammesquot Page23 Water is leaking from below the door Dirt on the door or seal causes leaks Clean the door and the seal

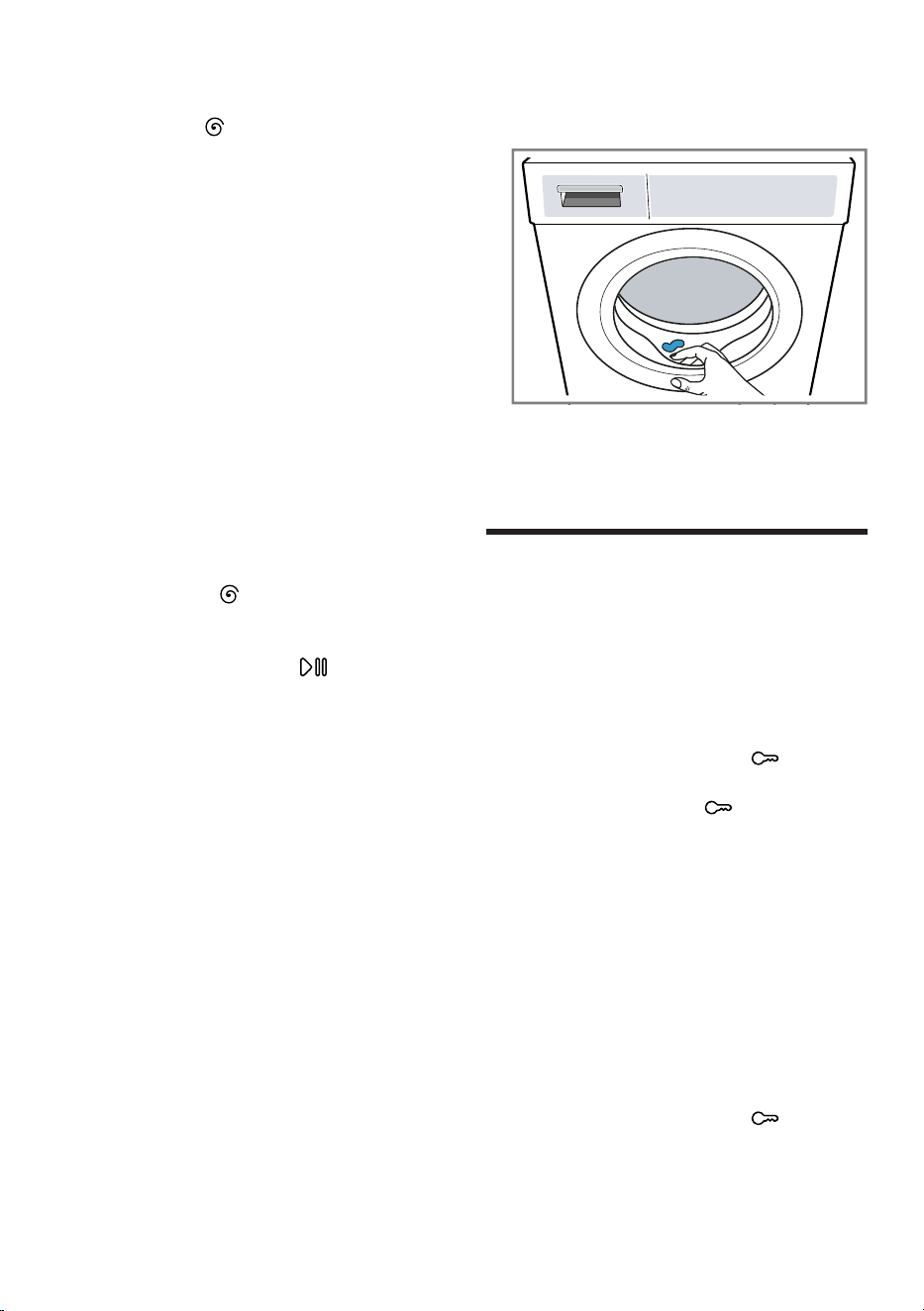

• Page 48 - English - : en Transportation storage and disposal 181 Emergency release Releasing the door RequirementThe drain pump is empty Page35 1 ATTENTION Escaping water may cause material damage Do not open the door if you can see water through the glass Pull the emergency release down wards with a tool and release a The door lock is released 2 Insert the maintenance flap and lock it into place 3 Close the maintenance flap Transportation storage and disposal 19 Transportation stor age and disposal Transportation storage and disposal 191 Removing the appliance 1 Turn off the tap 2 Empty the water inlet hose 3 Switch off the appliance quotSwitching off the appliancequot Page31 4 Unplug the appliances mains plug 5 Drain the water quotCleaning the drain pumpquot Page35 6 Detach the hoses 192 Inserting the transit bolts Secure the appliance before trans portation using transit bolts in order to prevent transport damage 1 Use a screwdriver to remove the 4 cover caps Keep the cover caps 2 Insert the 4 transit bolts quotRemoving the transit boltsquot Page13 193 Using the appliance again For further information see quotInstallation and connectionquot Page12 and quotStarting an empty washing cyclequot Page19
• Page 49 - English - : Customer Service en 194 Disposing of old appli ance Valuable raw materials can be re used by recycling WARNING Risk of harm to health Children can lock themselves in the appliance thereby putting their lives at risk Do not install the appliance behind a door as this may obstruct the ap pliance door or prevent it from opening With redundant appliances unplug the power cord Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close 1 Unplug the appliance from the mains 2 Cut through the power cord 3 Dispose of the appliance in an en vironmentally friendly manner Information about current disposal methods are available from your specialist dealer or local authority This appliance is la belled in accordance with European Directive 201219EU concerning used electrical and elec tronic appliances waste electrical and electronic equipment WEEE The guideline determ ines the framework for the return and recycling of used appliances as applicable throughout the EU Customer Service 20 Customer Service Customer Service Detailed information on the warranty period and terms of warranty in your country is available from our after sales service your retailer or on our website If you contact Customer Service you will require the product number E Nr and the production number FD of your appliance The contact details for Customer Ser vice can be found in the enclosed Customer Service directory or on our website 201 Product number ENr and production number FD You can find the product number E Nr and the production number FD on the appliances rating plate Depending on the model the rating plate is located On the inside of the door On the inside of the maintenance flap On the rear of the appliance Make a note of your appliances de tails and the Customer Service tele phone number to find them again quickly
• Page 50 - English - : en Consumption values Consumption values 21 Consumption values Consumption values The indicated consumption values are approximate The values may deviate from the indicated values depending on water pres sure water hardness water inlet temperature room temperature type of laun dry amount and soiling of laundry detergent used fluctuations in the mains voltage and selected settings Programme Temperat ure C Load kg Energy consump tion kWh Water con sumption l Pro gramme duration hmin Cottons 20 90 0360 820 400 Cottons 40 90 0650 820 255 Cottons 60 90 1100 820 305 Cottons Pre wash 40 90 0700 1000 315 Cottons Eco 60 90 0580 780 533 Easy Care 40 40 0800 610 237 Quick Mixed 40 40 0640 440 105 Delicates Silk 30 20 0230 350 040 Wool 30 20 0300 480 041 values determined according to the valid version of IEC60456 Programme setting with maximum speed for testing according to AS NZS20401 and labelling according to ASNZS20402 and ASNZS 6400 with cold water supply 20C The program is recommended for normally soiled laundry
