VIVOTEK
2 - User's Manual
Table of Contents
Overview
..............................................................................................................................................................
3
Revision History ...............................................................................................................................................3
Read Before Use ..............................................................................................................................................4
Package Contents ............................................................................................................................................4
Symbols and Statements in this Document ...................................................................................................... 5
Physical Description .........................................................................................................................................5
Repeater Model (
IB9381-HRT, IB9371-HRT
) Cascade Connections ...........................................................8
Hardware Installation ...................................................................................................................................... 10
Network Deployment ......................................................................................................................................19

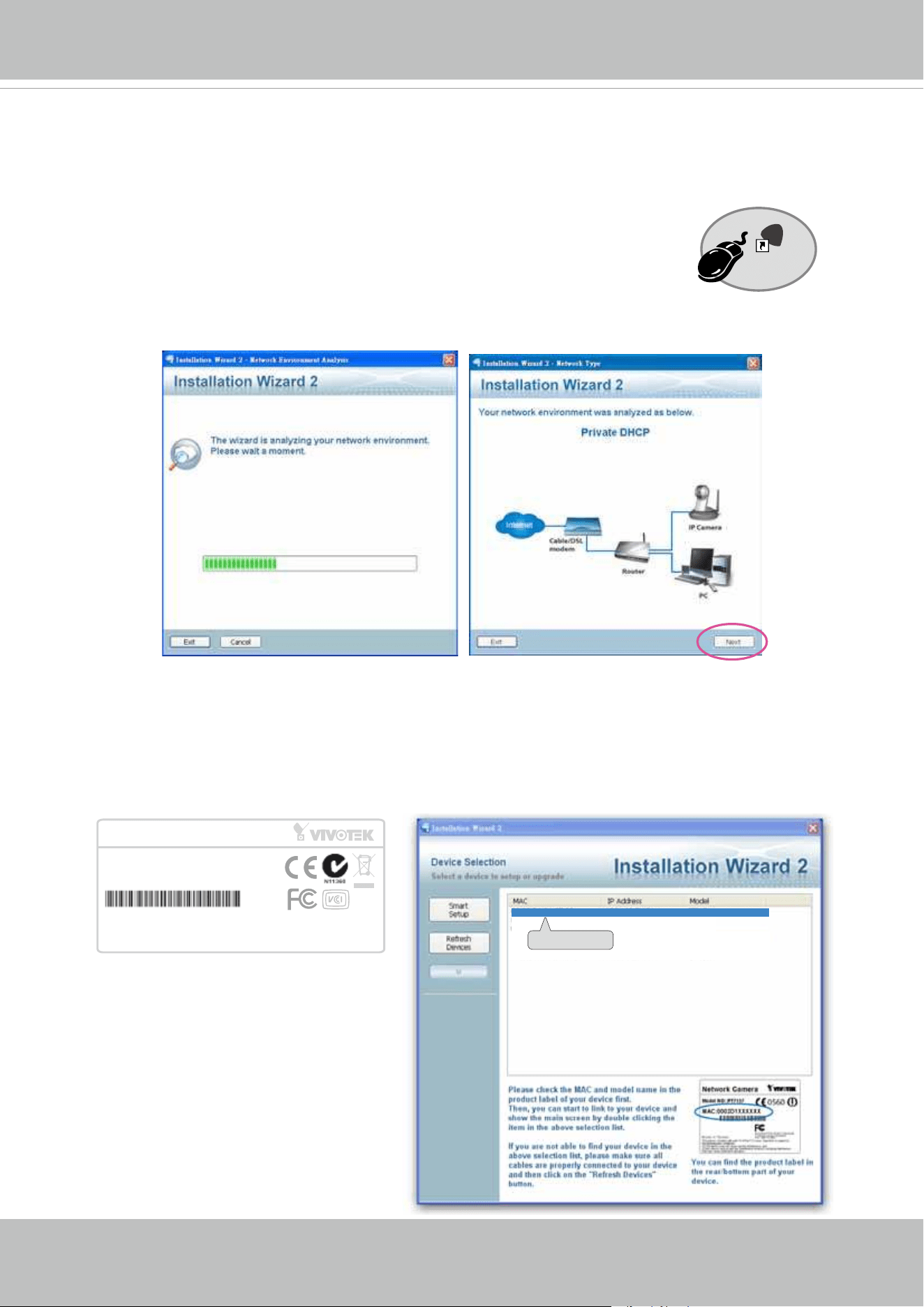

Software Installation .......................................................................................................................................22
Ready to Use .................................................................................................................................................. 23
Accessing the Network Camera
....................................................................................................................
24
Using Web Browsers ......................................................................................................................................24
Using RTSP Players ....................................................................................................................................... 27
Using 3GPP-compatible Mobile Devices ........................................................................................................ 28
Using VIVOTEK Recording Software .............................................................................................................29
Main Page
.........................................................................................................................................................
30
Client Settings
..................................................................................................................................................
35
Conguration
....................................................................................................................................................
40
System > General settings .............................................................................................................................41
System > Homepage layout ..........................................................................................................................43
System > Logs ...............................................................................................................................................46
System > Parameters ....................................................................................................................................48
System > Maintenance ................................................................................................................................... 49
Media > Image .............................................................................................................................................53
Media > Video ................................................................................................................................................66
Media > Video ................................................................................................................................................67
Media > Audio.................................................................................................................................................74
Network > General settings ............................................................................................................................75
Network > Streaming protocols ....................................................................................................................83
Network > SNMP (Simple Network Management Protocol) ...........................................................................92
Security > User accounts ...............................................................................................................................93
Security > HTTPS
(Hypertext Transfer Protocol over SSL)
..............................................94
Security > Access List ................................................................................................................................101
PTZ > PTZ settings ......................................................................................................................................106

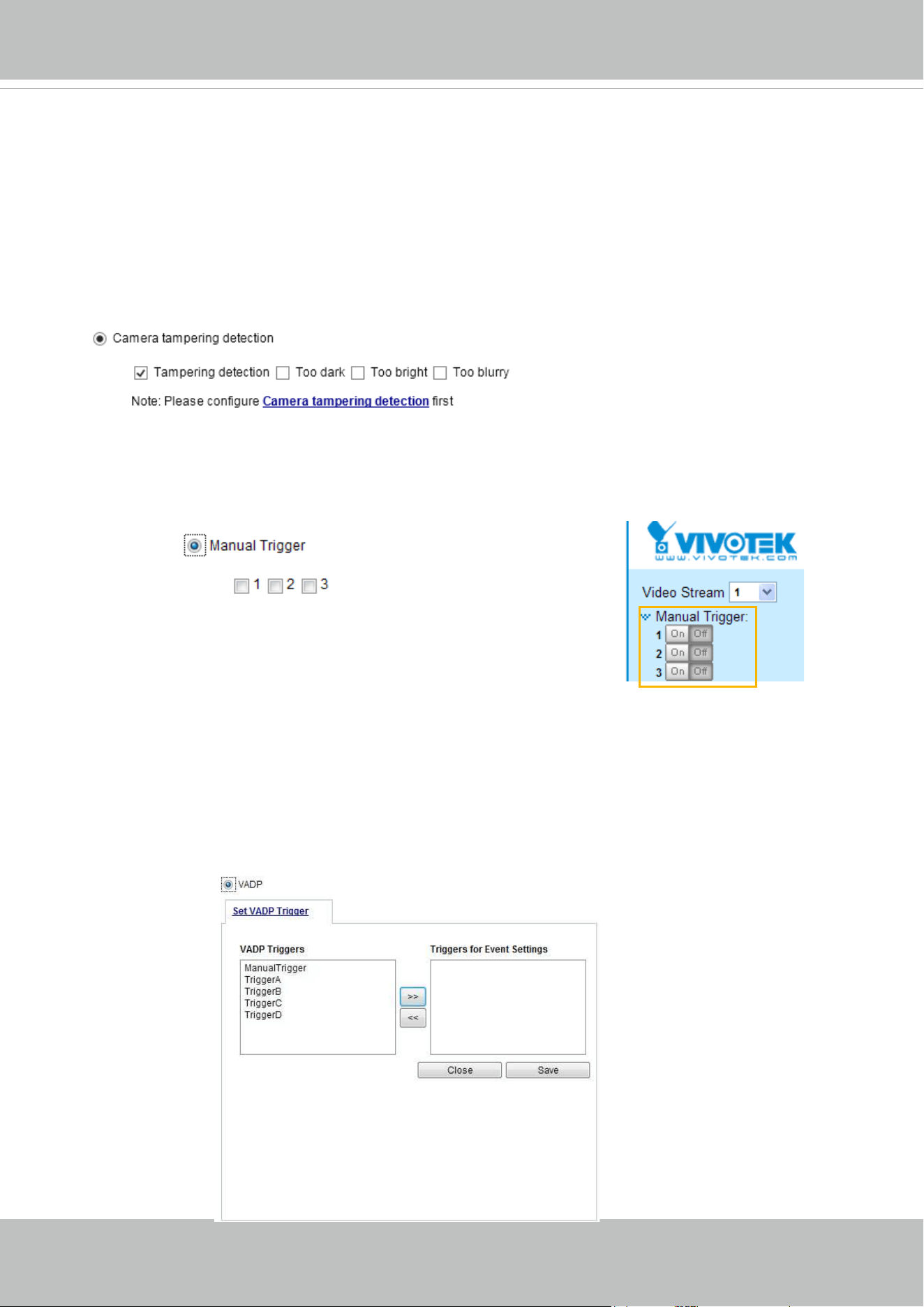

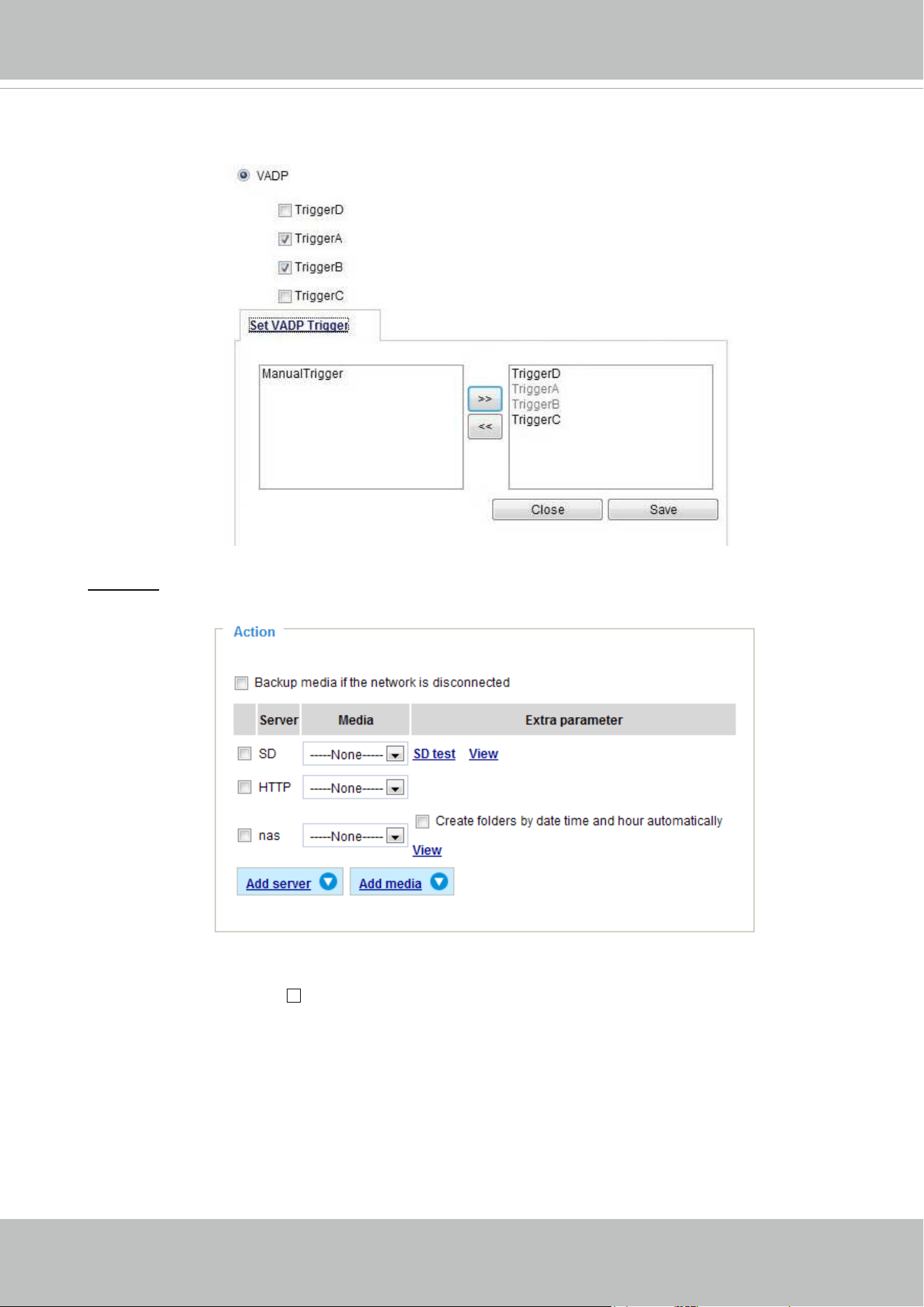

Event > Event settings..................................................................................................................................110

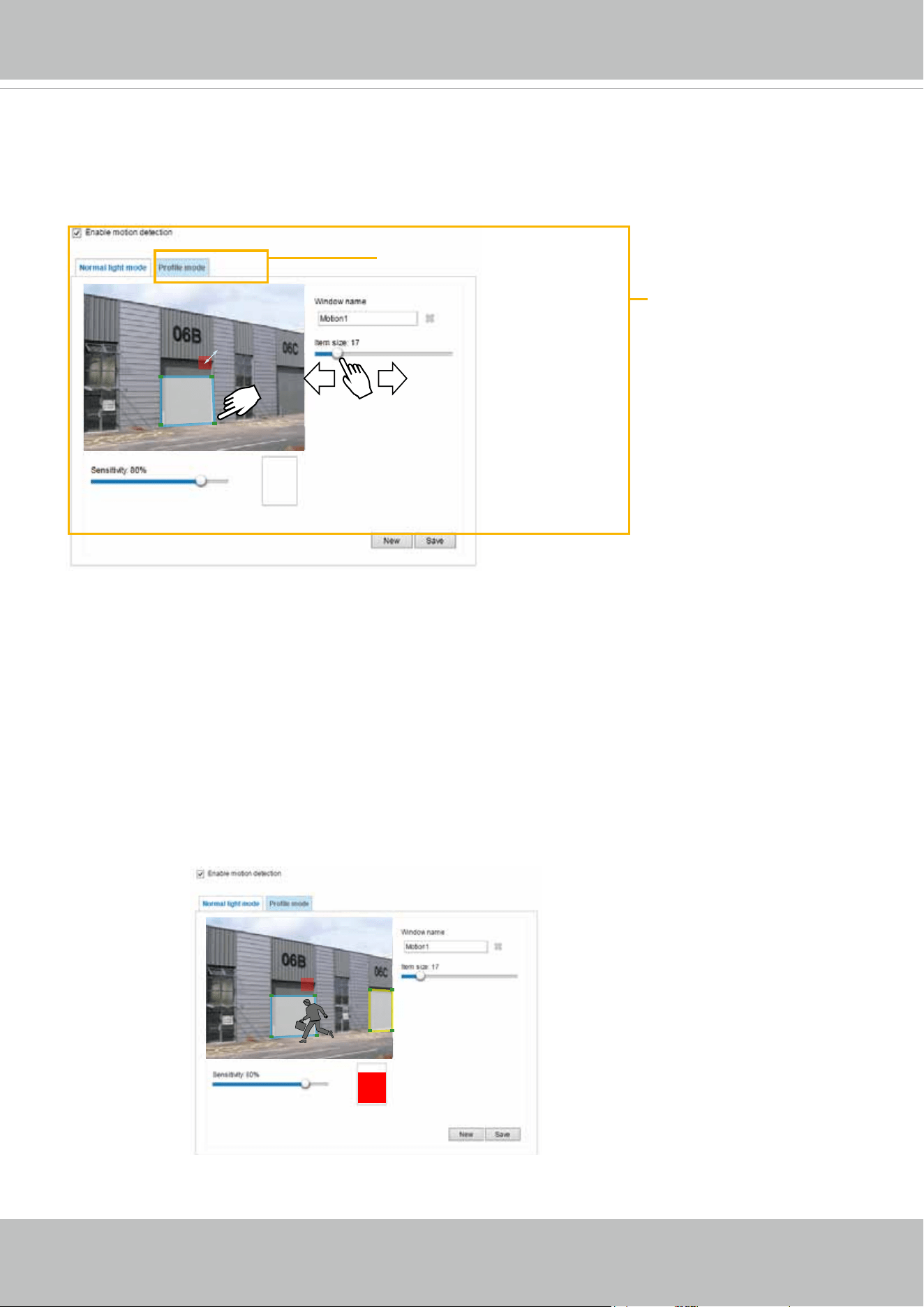

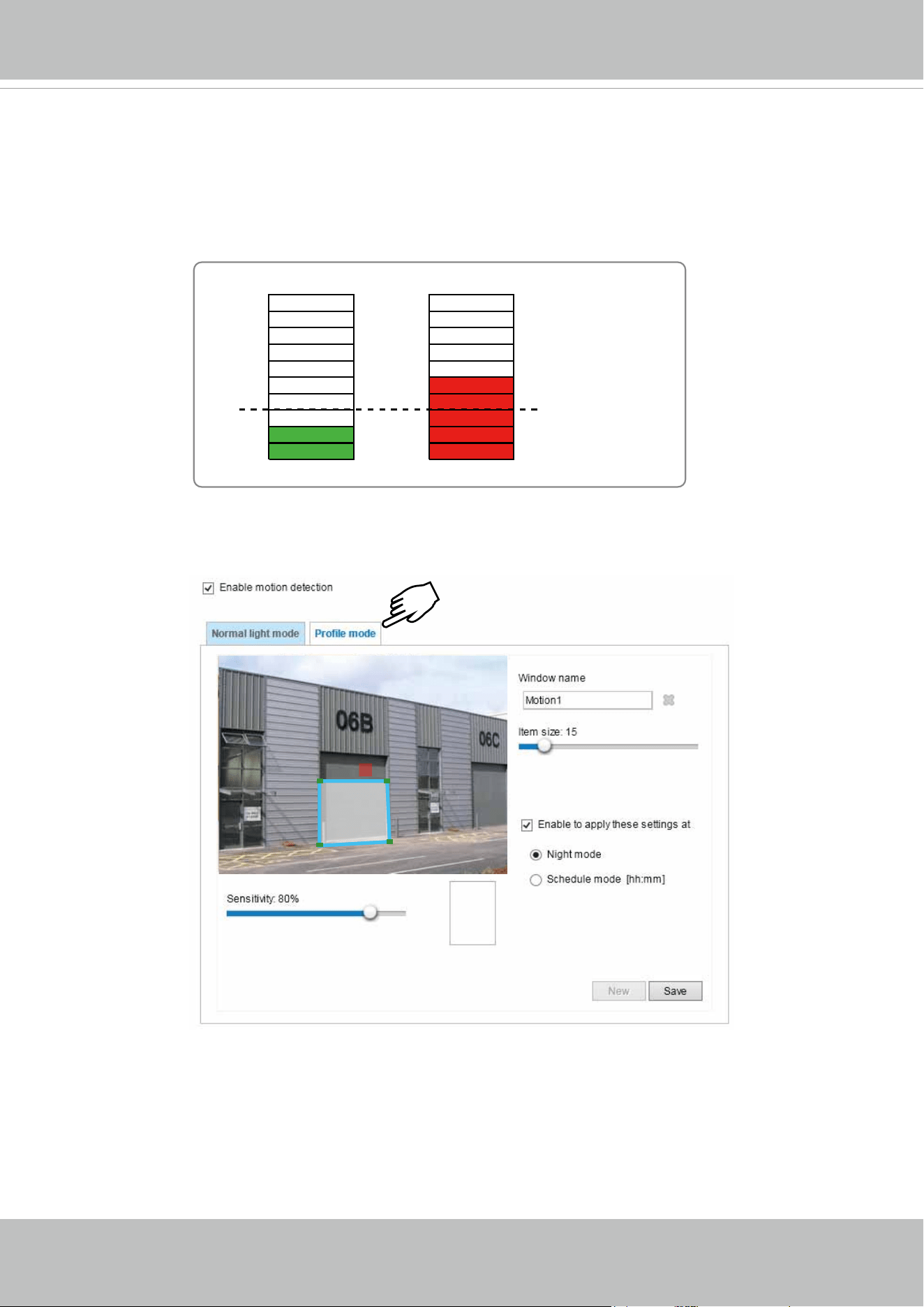

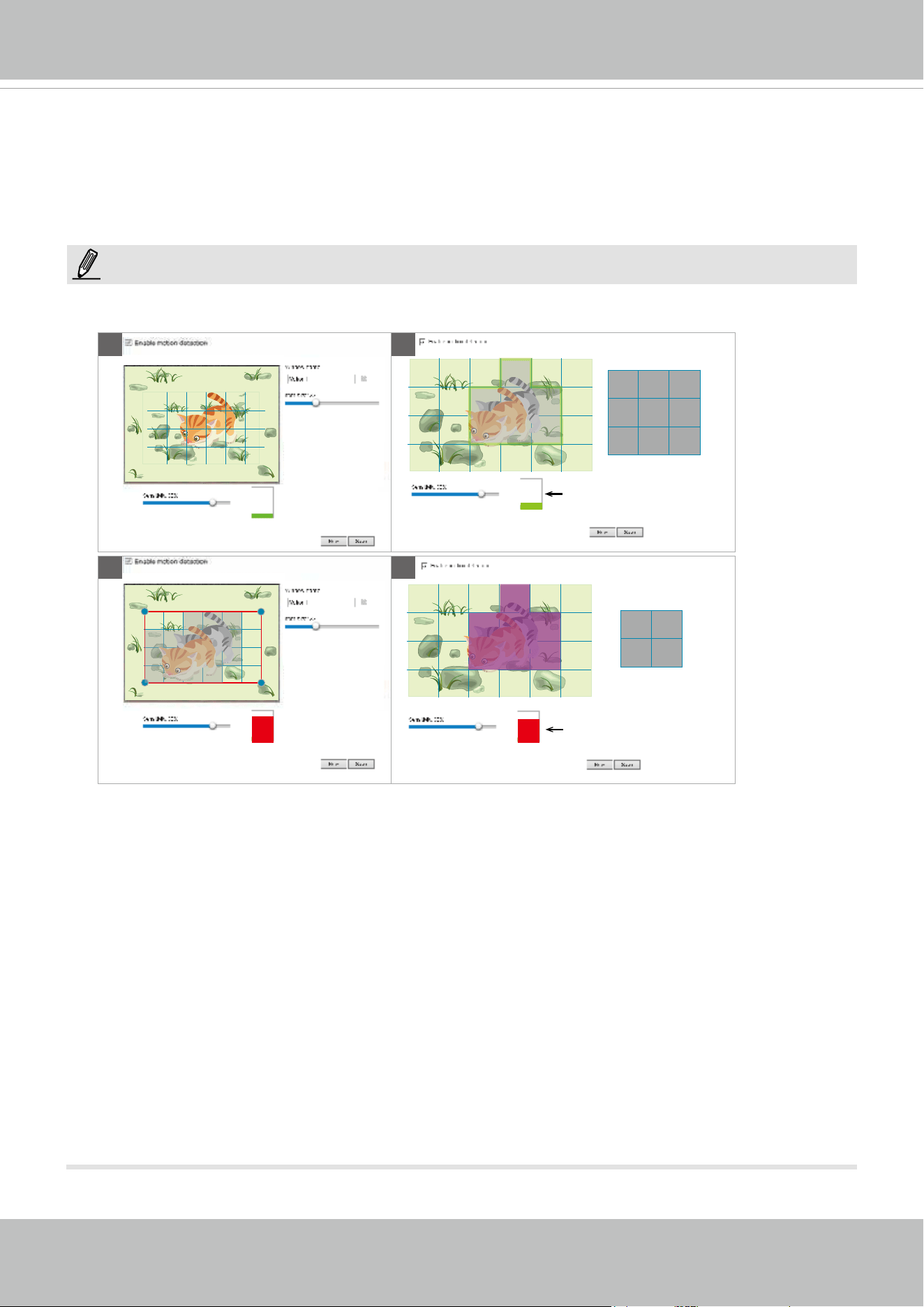

Applications > Motion detection....................................................................................................................124

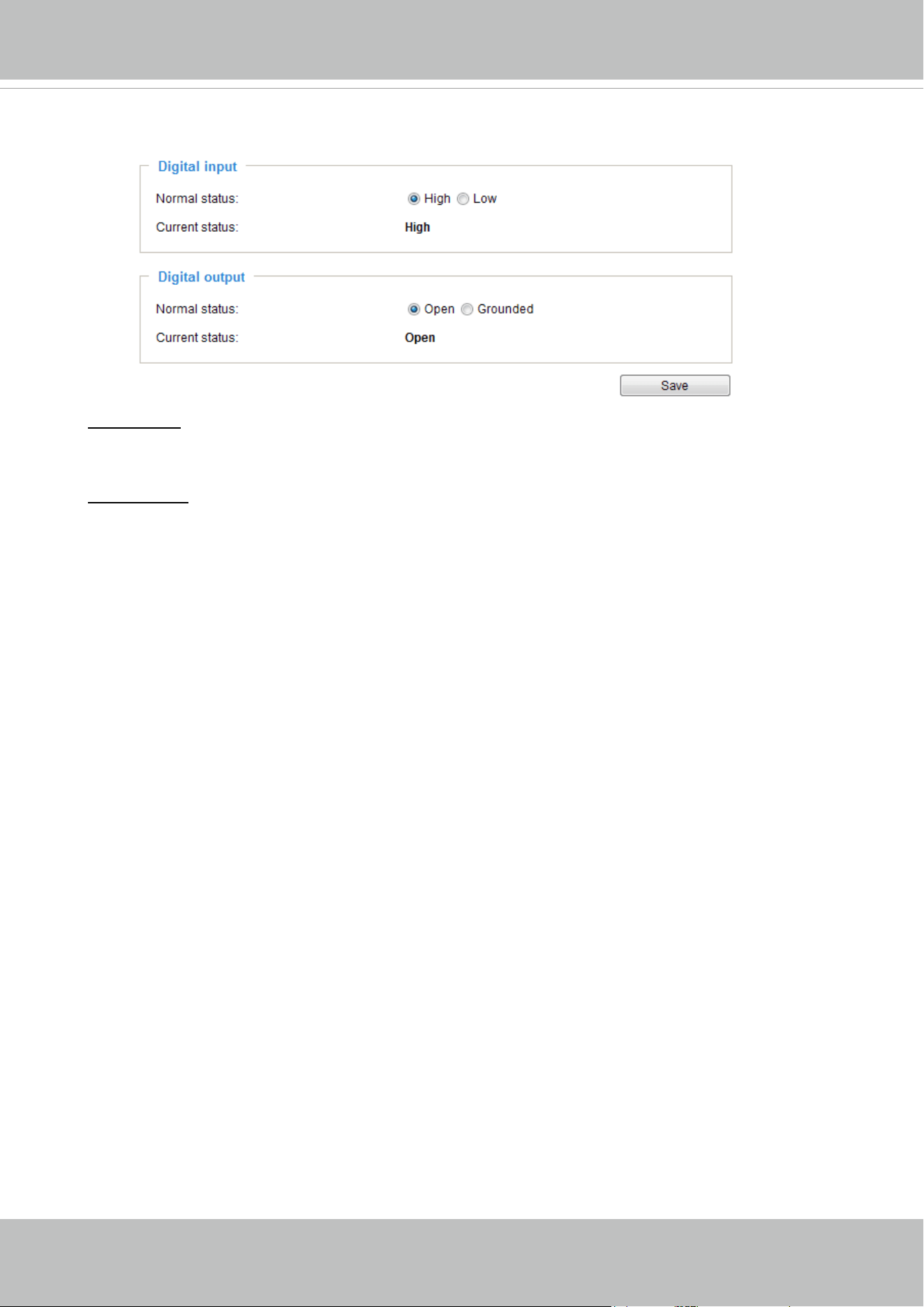

Applications > DI and DO ...........................................................................................................................127

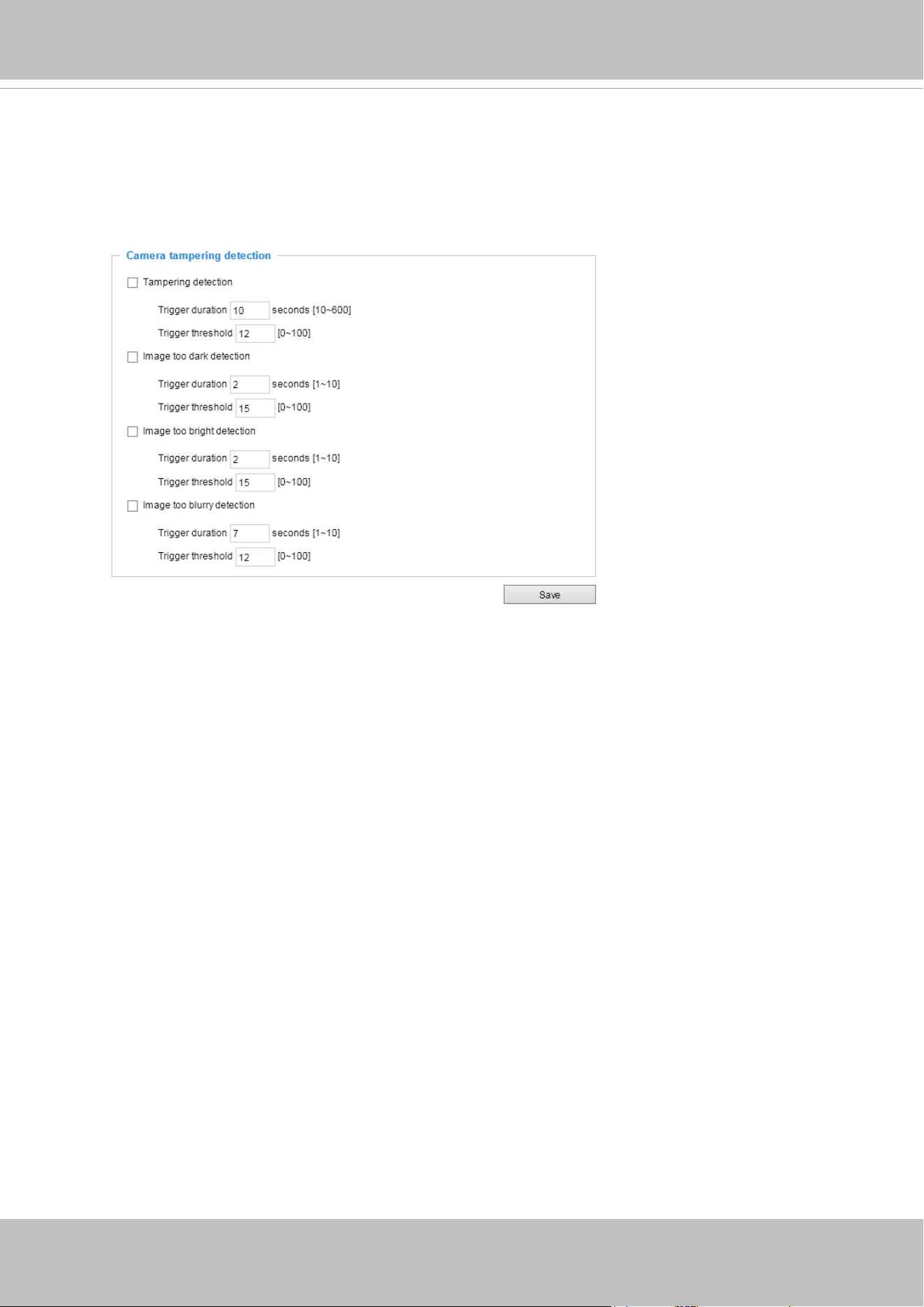

Applications > Tampering detection ............................................................................................................. 128

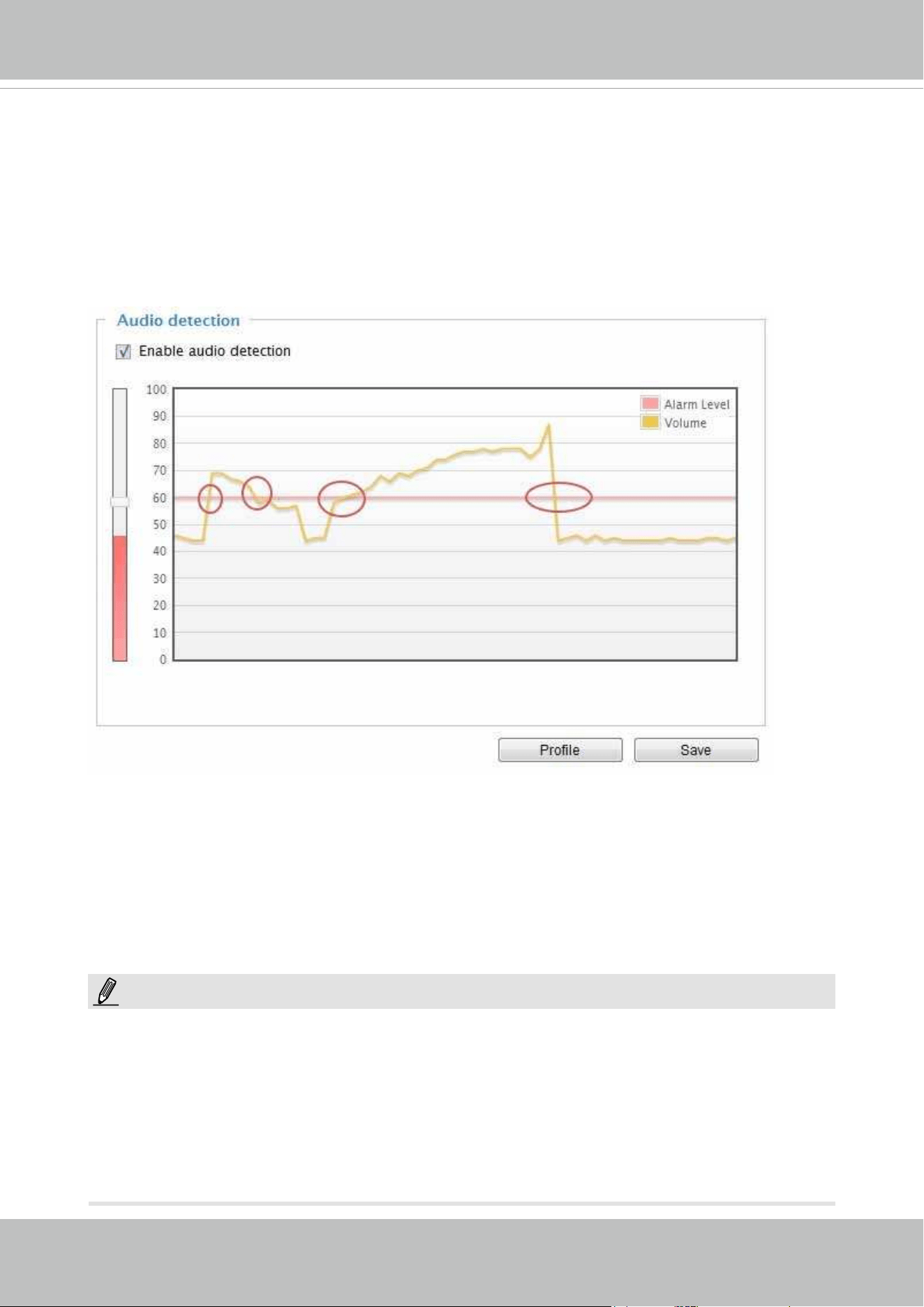

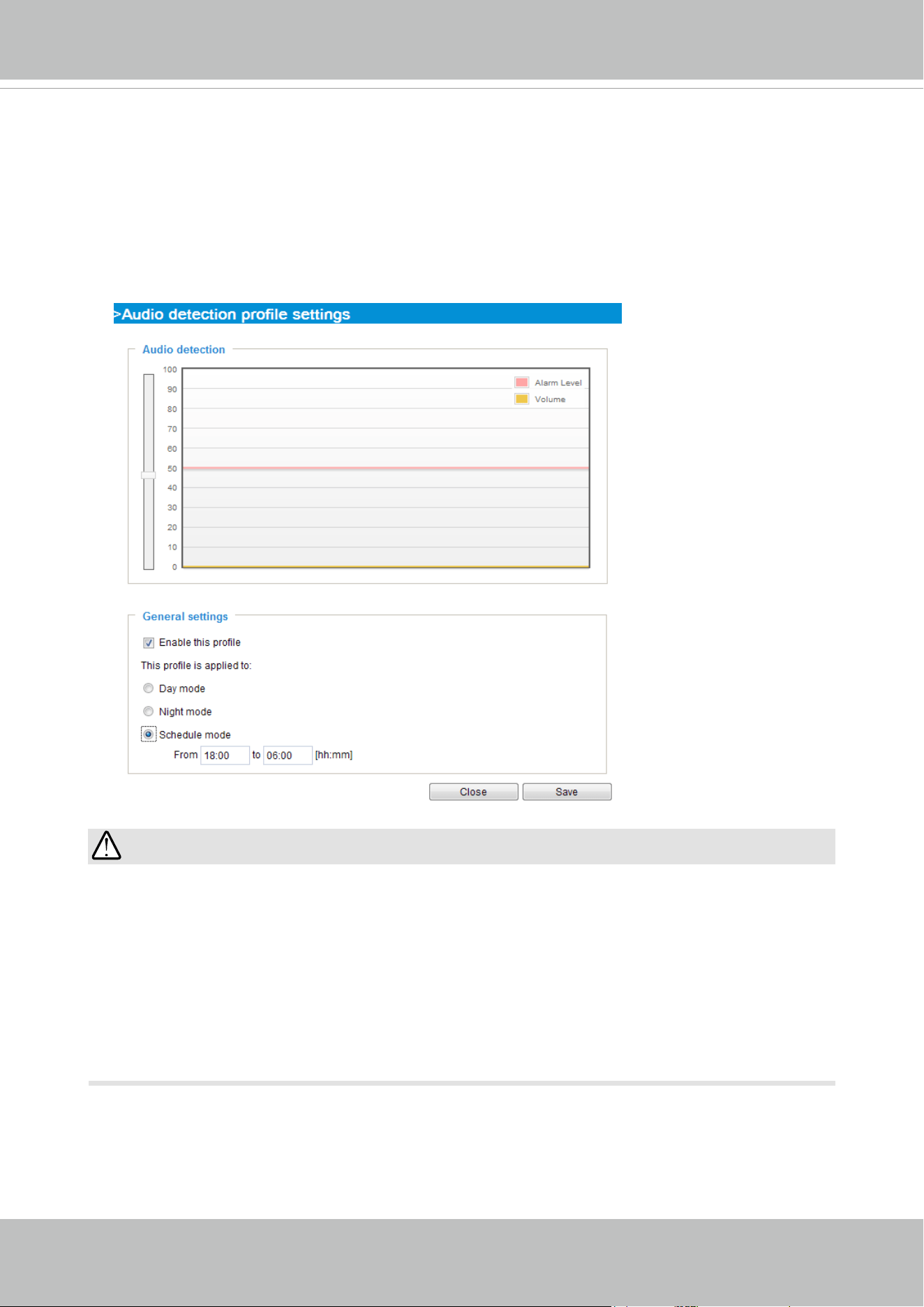

Applications > Audio detection ...................................................................................................................129

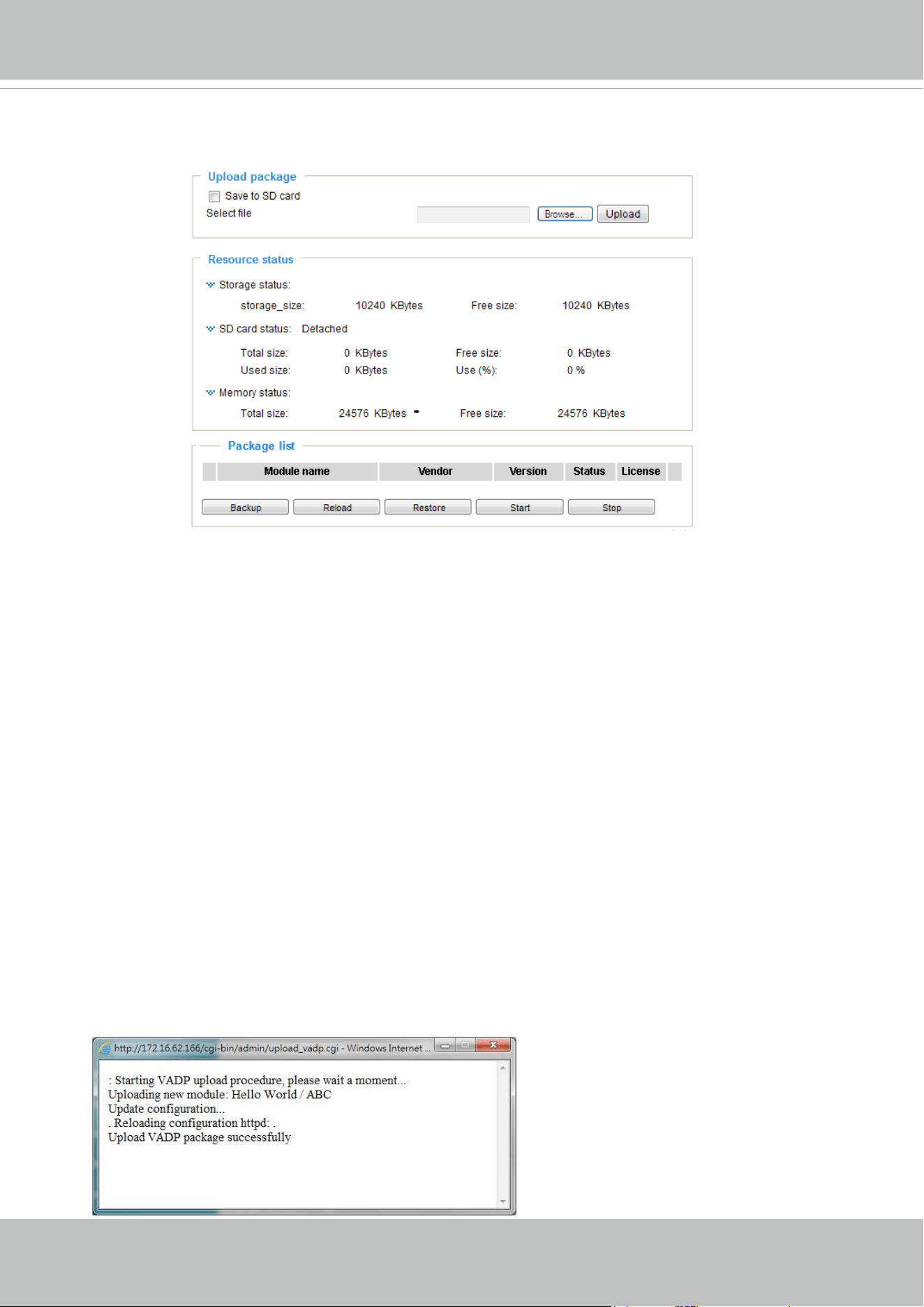

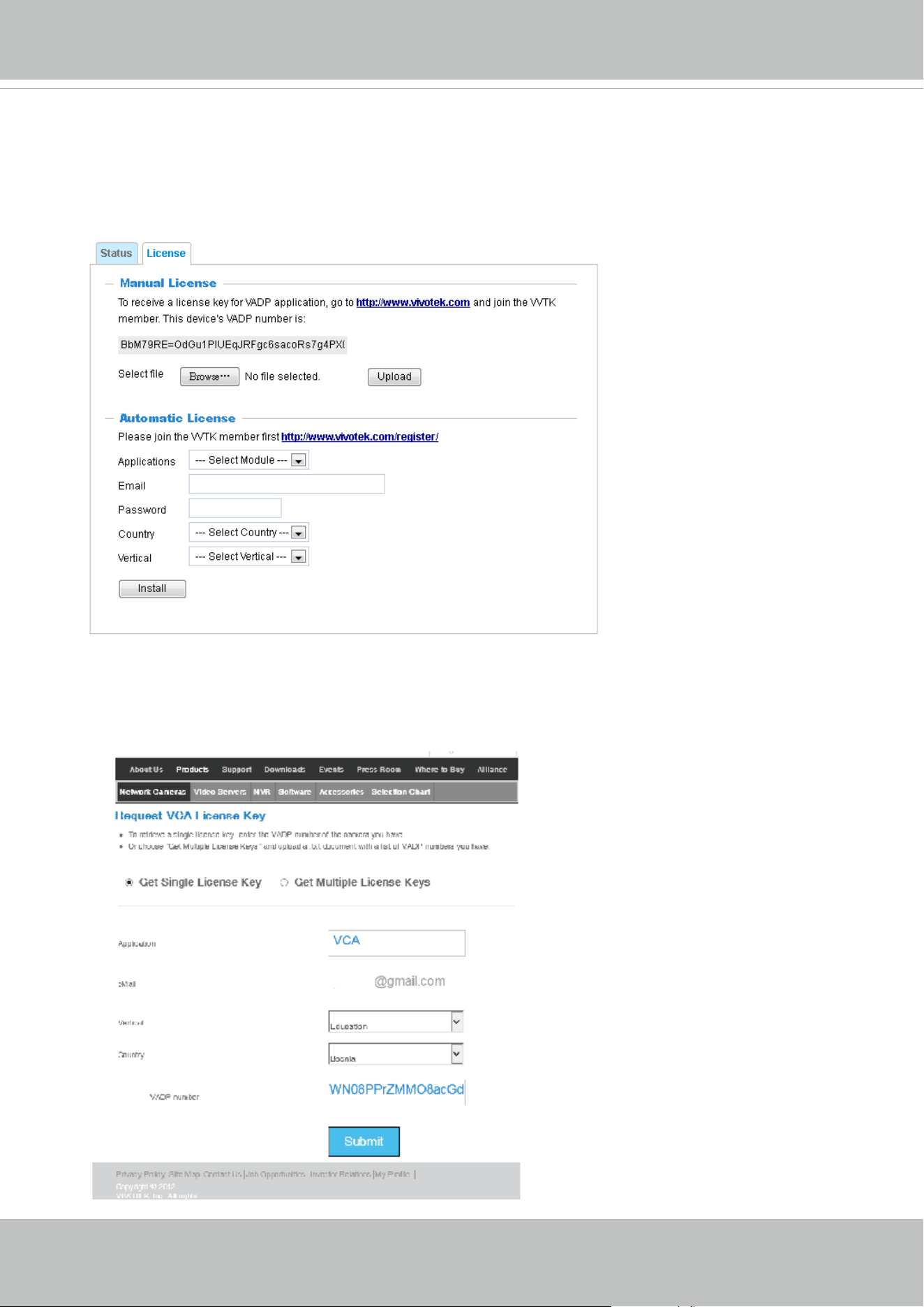

Applications > Package management - a.k.a., VADP (VIVOTEK Application Development Platform) .......131

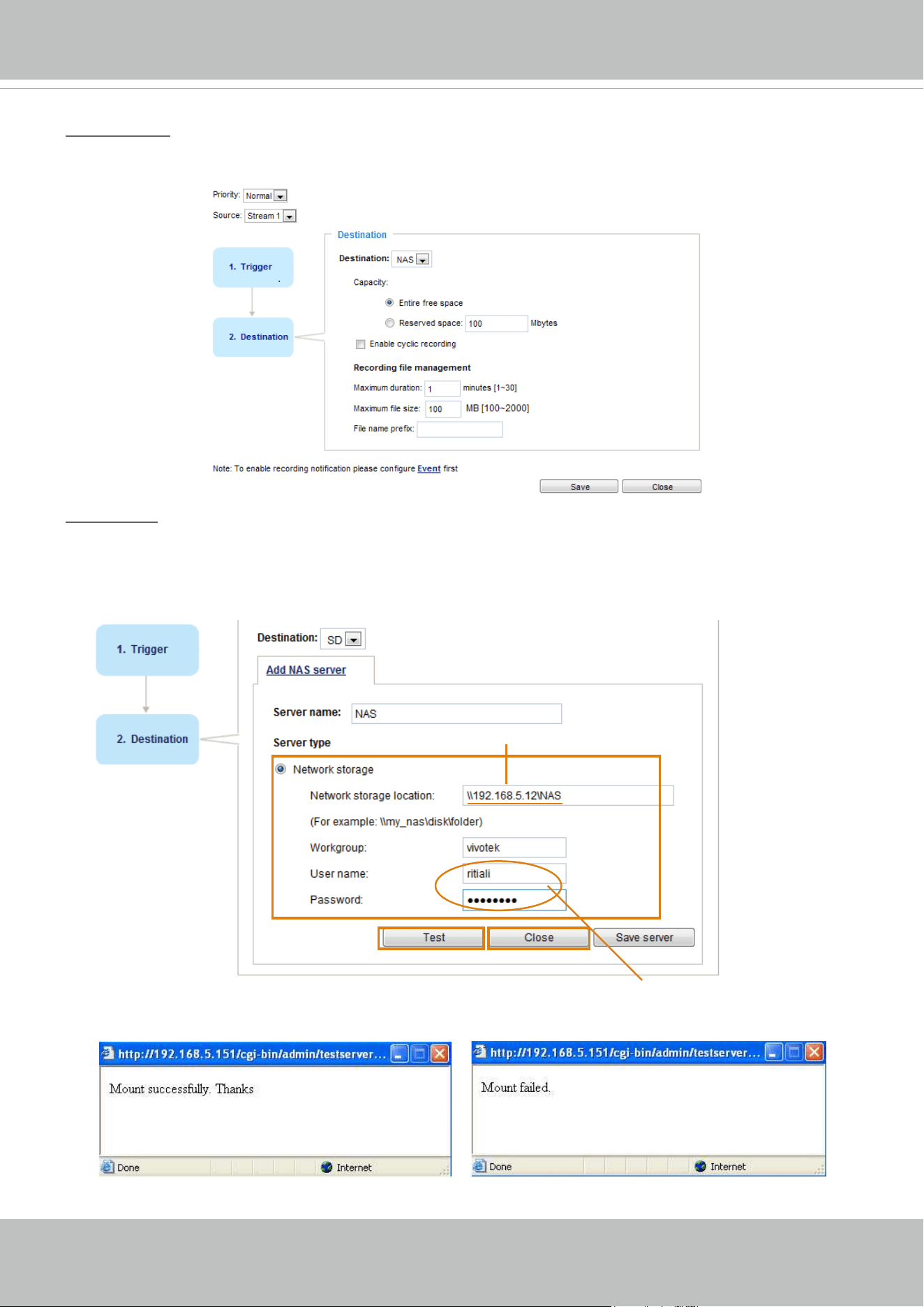

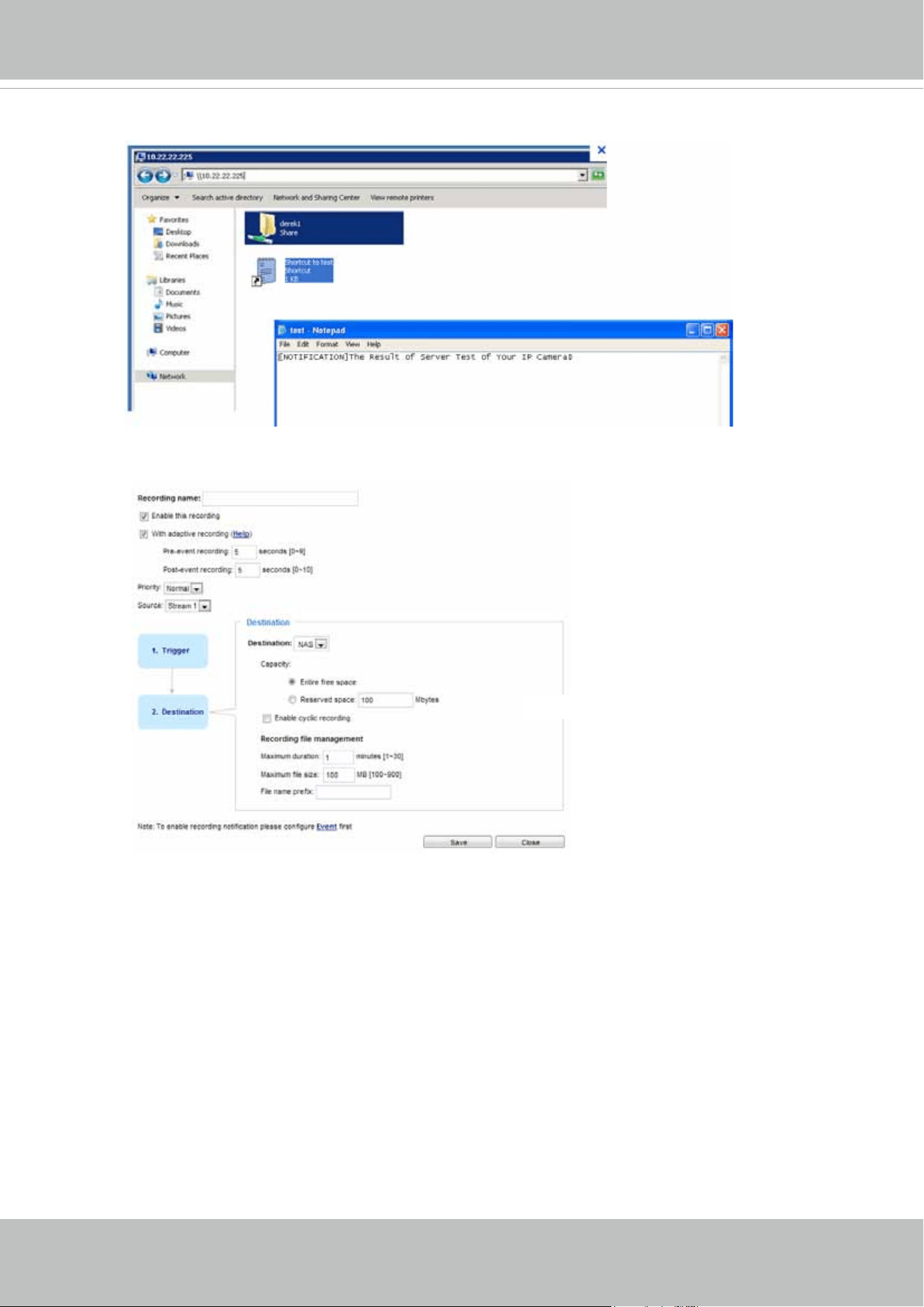

Recording > Recording settings ..................................................................................................................134
Local storage > SD card management ......................................................................................................... 139
Local storage > Content management .........................................................................................................140
VIVOTEK
User's Manual - 3
Appendix
....................................................................................................................................................
143
URL Commands for the Network Camera ................................................................................................ 143
Technical Specications ...........................................................................................................................316
Technology License Notice ....................................................................................................................... 317
Electromagnetic Compatibility (EMC) .......................................................................................................318
Overview
VIVOTEK’s IB9371-HTV and IB9371-EHT are two brand-new professional H.265 high-efciency
outdoor dome network cameras, offering 30 fps @ 3-Megapixel with outstanding image quality.
Employing H.265 technology enables the cameras to provide higher and more efficient image
compression rates than previous H.264 systems. In addition, VIVOTEK’s sophisticated Smart
Stream II enables the cameras to optimize resolution for a desired object or area and therefore to
maximize efciency of bandwidth usage. Combining both H.265 and Smart Stream II, the IB9371-
HTV and IB9371-EHT can reduce both bandwidth and storage consumption up to 80% while
maintaining image quality of the high standard.
As professional day/night cameras, the IB9371-HTV and IB9371-EHT are also equipped with WDR
Pro and SNV, empowering users to enjoy superb image-detail in any lighting condition. Additionally,
IP66-rated housing ensures the ability of these advanced cameras to withstand rain and dust, thus
guaranteeing smooth operation even under a multitude of harsh weather conditions. The cameras’
IK10-rated housing can also provide protection against acts of vandalism and other impacts.
Finally, a wide operating temperature range further enhances the performance and reliability of the
IB9371-EHT in both extremely cold and warm weather, even while using PoE.
VIVOTEK’s IB9381-HT and IB9381-EHT are two brand-new professional H.265 high-efficiency
outdoor bullet network cameras, offering 30 fps @ 5-Megapixel or 60 fps @ 1080p with outstanding
image quality. By employing H.265 technology, these cameras are able to provide higher and
more efficient image compression rates than previous H.264 systems. In addition, VIVOTEK’s
sophisticated Smart Stream II technology enables the cameras to optimize quality for desired
regions and therefore to maximize efciency of bandwidth usage. Combining both H.265 and Smart
Stream II, the IB9381-HT and IB9381-EHT can reduce bandwidth and storage consumption by up
to 80%* while retaining exceptional 5-Megapixel image quality.
As professional day/night cameras, the IB9381-HT and IB9381-EHT are also equipped with WDR
Pro and SNV, empowering users to enjoy superb image-detail in all lighting conditions. Additionally,
robust IP66-rated housing ensures the ability of these advanced cameras to withstand rain and
dust, thus guaranteeing smooth operation no matter how harsh the weather conditions. The
cameras’ IK10-rated metal housing will also provide protection against acts of vandalism and other
physical impacts. Finally, a wide operating temperature range further enhances the performance
and reliability of the IB9381-EHT in both extremely cold and extremely warm weather, even while
using PoE. * Depending on scenes.
Revision History
■ Rev. 1.0: Initial release.

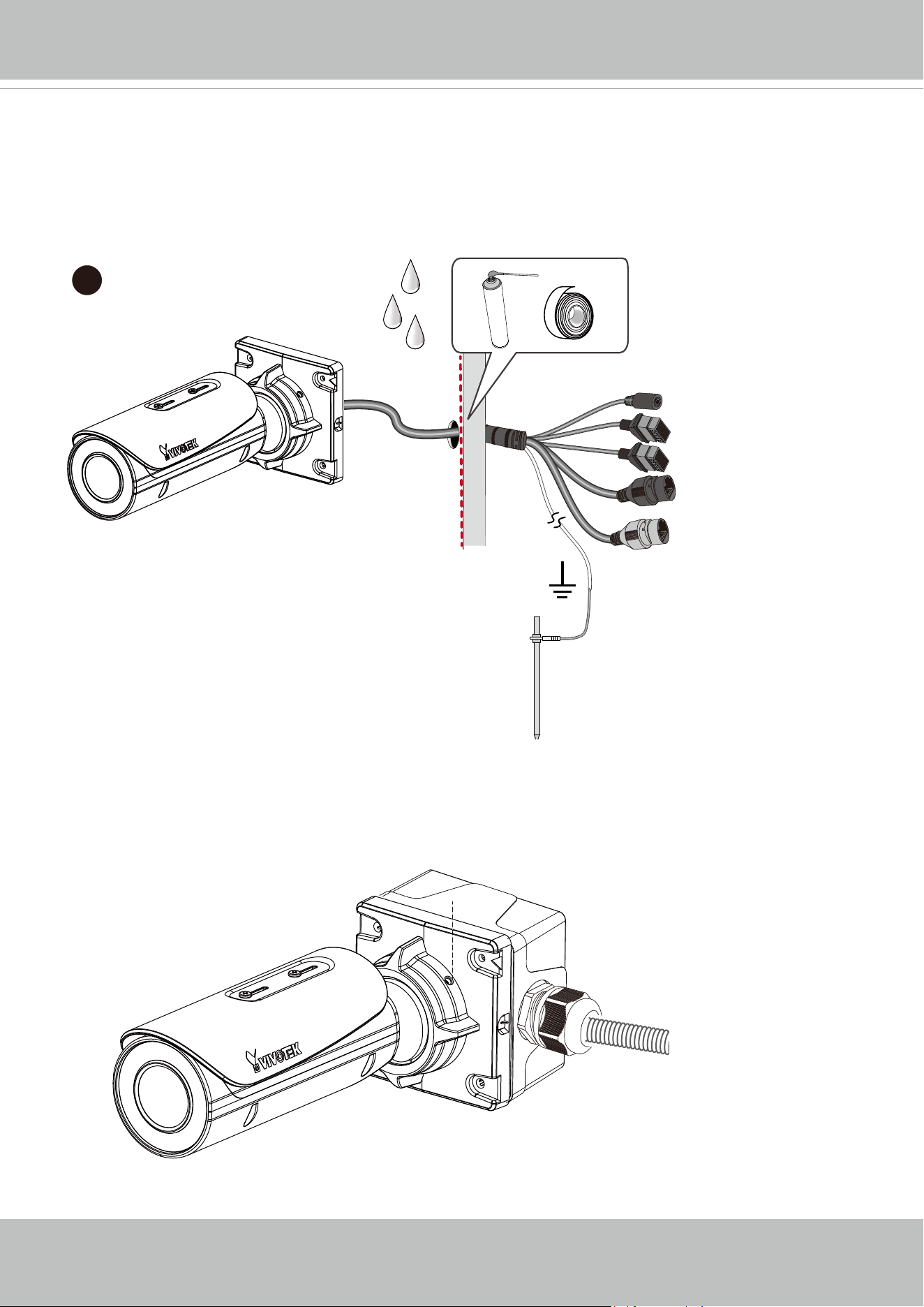

■ Rev. 1.1: Added ground connection. The later production come with a ground wire. .
VIVOTEK
4 - User's Manual
Read Before Use
The use of surveillance devices may be prohibited by law in your country. The Network Camera
is not only a high-performance web-ready camera but can also be part of a exible surveillance
system. It is the user’s responsibility to ensure that the operation of such devices is legal before
installing this unit for its intended use.
It is important to first verify that all contents received are complete according to the Package
Contents listed below. Take note of the warnings in the Quick Installation Guide before the Network
Camera is installed; then carefully read and follow the instructions in the Installation chapter to
avoid damage due to faulty assembly and installation. This also ensures the product is used
properly as intended.
The Network Camera is a network device and its use should be straightforward for those who
have basic networking knowledge. It is designed for various applications including video sharing,
general security/surveillance, etc. The Configuration chapter suggests ways to best utilize the
Network Camera and ensure proper operations. For creative and professional developers, the URL
Commands of the Network Camera section serves as a helpful reference to customizing existing
homepages or integrating with the current web server.
Package Contents
■ IB9371-HT/IB9371-EHT/IB9371-HRT, IB9381-HT/IB9381-EHT/IB9381-HRT
■ L-type T8 star driver, L-type hex wrench, desiccant bag, screws
■ Waterproof Ethernet cable housing
■ Software CD
■ Quick Installation Guide & alignment sticker
* T8 key wrench is also used for the hex socket screw on the camera bracke.
NOTE:
Use the camera only with a DC power supply that is UL listed, and limited power source
(LPS) certied. The power supply should bear the UL listed and LPS marks. The power
supply should also meet any safety and compliance requirements for the country of use.
The T and RT models have auto-focus motorized lens. Some of the sufx syntax used in
model naming are listed below:
E w/ heater for extreme weather
Fx Focal length w/ number
T w/ Remote focus lens
R w/ PoE repeater
H w/ High Dynamic Range functionality
NOTE:
VIVOTEK
User's Manual - 5
Symbols and Statements in this Document
i
INFORMATION: provides important messages or advices that might help prevent
inconvenient or problem situations.
NOTE: Notices provide guidance or advices that are related to the functional integrity of
the machine.
Tips: Tips are useful information that helps enhance or facilitae an installation, function,
or process.
WARNING: or IMPORTANT:: These statements indicate situations that can be
dangerous or hazardous to the machine or you.
Electrical Hazard: This statement appears when high voltage electrical hazards might
occur to an operator.
Physical Description
Front Panel
Motorized or
xed lens
Reset Button
SD/SDHC/SDXC
Card Slot
IMPORTANT:
The IB9371-EHT and IB9381-EHT come with an embedded heater and require an
802.3at PoE switch.
Model Consumption & PoE PSE
IB9371/9381-HT DC 12V - 11.5W / PoE - 12.7W (IEEE 802.3af)
IB9371/9381-EHT DC 12V - 23W / PoE - 25.5W (IEEE 802.3at)
VIVOTEK
6 - User's Manual
Connectors
The second LAN port (PoE out, yellow) is available on the IB9381-HRT and IB9371-HRT.
The R models come without the DC connector.
WARNING:
The yellow LAN port (PoE output) can only be used to connect to another IB9381 or 9371
camera. Please do not connect the yellow LAN port to a PC or switch LAN port! The high
voltage can damage the LAN port circuits.
•
The "E" models, e.g., IB9381-EHT, IB9371-EHT, do not support PoE cascade
connections due to its higher power consumption. The "E" models come with
embedded heater for low temperature environments.
IMPORTANT:
Au+
Au-
MIC P
MIC N
DO+
DO-
DI+
DI-
icro
General I/O Terminal Block
Ethernet 10/100 RJ45 Plug
R models: IB9381-HRT and IB9371-HRT.
VIVOTEK
User's Manual - 7
DI/DO Diagram
DI-
DO+
DI+
DO-
External
power source
VDC
Switch
BJT transistor
Relay
AC
Source
NO NC
External
device
DI-
DO+
DI+
DO-
VDC
Switch
BJT transistor
Relay
AC
Source
NO NC
External
device
1. The DO+ pin provides different output voltages depending on the camera model, 12V for
this model, and the max. load is 50mA.
2. The max. voltage for DO- pins is 80VDC (External power).
In order to control AC devices, the above diagram can be taken in consideration. The
diagram uses a relay to control the ON/OFF condition of the AC device.
3. An external relay can be triggered by using DO+ or by an external power source,
depending on the type of relay you use.
4. In case of using an individual relay (instead of using a relay module), for protection
against voltage or current spikes, a transient voltage suppression diode must be
connected in parallel with the inductive load.
VIVOTEK
8 - User's Manual
Repeater Model (
IB9381-HRT, IB9371-HRT
) Cascade Connections
Each camera consumes up to 14.5W power. Up to 2 R model cameras and 1 non-repeater
camera can be cascaded in a conguration with a cabling distance of up to 300 meters.
The precondition is the use of the AE-FED-0500-120 PoE switch, which can deliver more
than 50W of power per port (exceeding the 802.3at specications).
Please use quality cables when cabling over an extended distance. Power loss due to
resistance can occur with low-quality cables.
Many copper coated aluminum (CCA) and other non-standard conductors cabling products
are masqueraded as CAT5E or CAT6 cables. Please avoid using these CCA products
especially when cascading PoE cameras. It is a must to use Ethernet cables compliant
with the 3P/ETL standard.
IMPORTANT:
100m
100m
100m
IB9381-HRT
IB9381-HRT
IB9381-HT
IB9381-HRT
IB9381-EHT
IB9371-HRT
IB9371-HRT
IB9371-HT
IB9371-HRT
IB9371-EHT
1 2
3
4
1 2 3 4
LA N
Po E
UPL INK
Po E
ON
OFF
4xFE PoE + 1xFE Switch
UPLINK
POWER
ON
AW-FED-0500-120
NDR / HLG
The IB series "E" models
(heater models) can not
be applied in the cascade
conguration due to its extra
power consumption.
VIVOTEK
User's Manual - 9
Other-brand 802.3at PoE switch
100m
100m
IB9381-HRT
IB9381-HT
IB9371-HRT
IB9381-EHT
IB9371-EHT
IB9371-HT
When using an ordinary 802.3at PoE switch (30W output per port), up to 1 IB9381/9371-
HRT and 1 IB9381/9371-HT can be cascaded in a conguration with a cabling distance of
up to 200 meters.
Please use quality cables when cabling over an extended distance.
The IB "E" models (heater models) can not be applied in the cascade conguration due to
its extra power consumption.
VIVOTEK
10 - User's Manual
Hardware Installation
2. Attach the included alignment sticker to a preferred location.
3. Drill holes for mounting screws and a cabling hole.
0002D10766AD
XXXXXX
1
1. Jot down the camera's MAC address for later reference.
2
3
VIVOTEK
User's Manual - 11

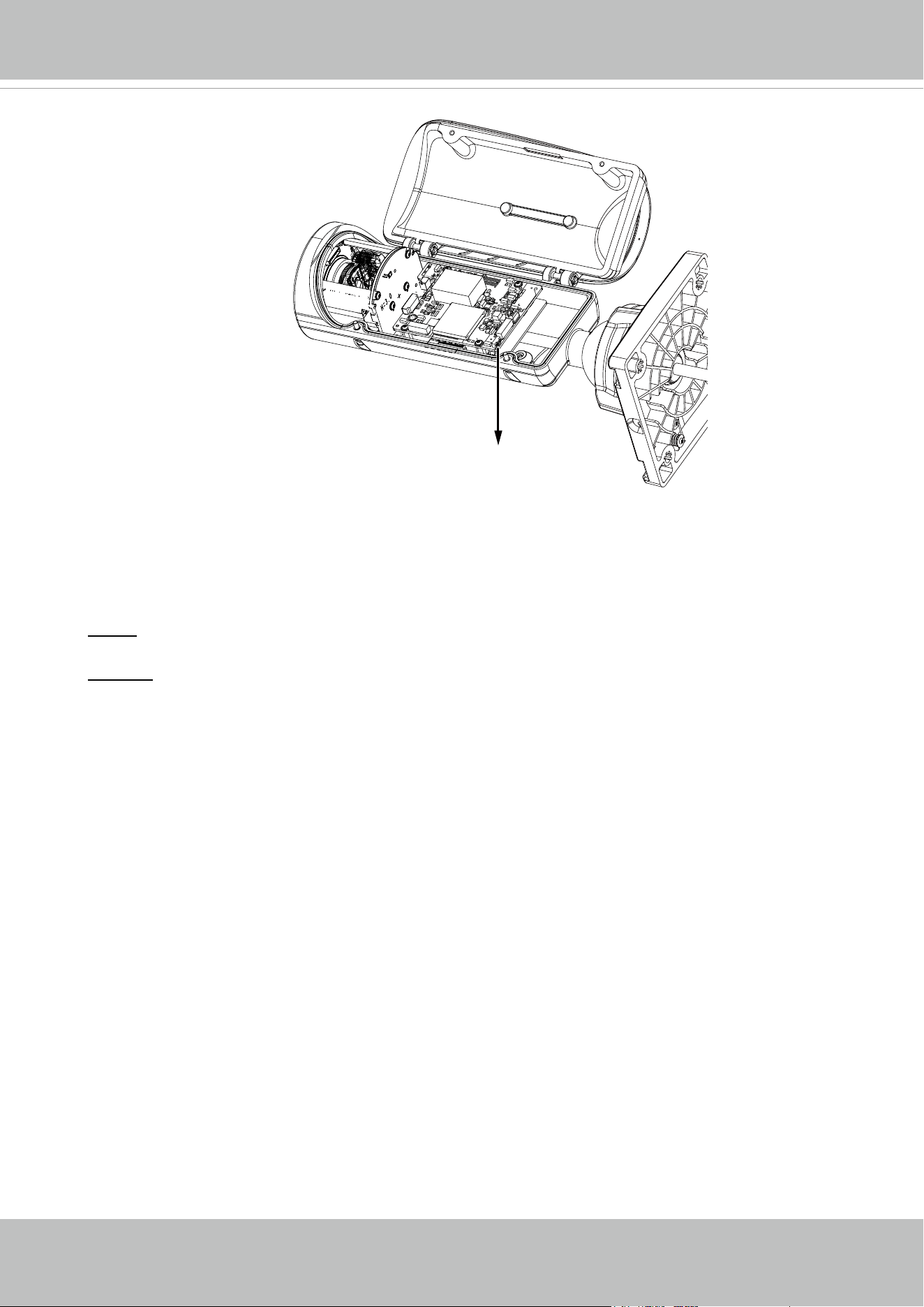

4. Loosen the anti-tamper screws to open the top cover.
5. Insert an SD card (user-supplied).
6. Replace the desiccant bag whenever you open the top cover. This ensures the
components are free from the moisture.
icro
M
TM
4
5
6
7
7. Install the sun shield.
VIVOTEK
12 - User's Manual
8. When connecting the LAN cable, use the cable housing to make sure the connections
are waterproof.
8-1. Pass the cable through the seal dome, and squeeze the rubber seal through an
RJ45 connector.
8-2. You can then pass the cable through the cable gland body.
8-3. Connect the Ethernet cable to the camera's RJ45 connector with a seal ring. Fasten
up these components. Make sure enough pressure is exerted on the rubber seal.
5.5 ~ 6.5mm
8
Connect the other interfaces, such as I/O wires.
VIVOTEK
User's Manual - 13
9. Secure the Network Camera to a wall or ceiling.
Wall Mount
Ceiling Mount
9
10. Adjust the shooting direction by loosening the hex and anti-tamper screws on the
fastening ring. Aim the camera at the area of your interest. Tighten the fastening ring
when done with the adjustment.
10
Fastening ring
VIVOTEK
14 - User's Manual
100m
100m
100m
IB9381-HRT
IB9381-HRT
IB9381-HT
IB9381-HRT
IB9381-EHT
IB9371-HRT
IB9371-HRT
IB9371-HT
IB9371-HRT
IB9371-EHT
1 2
3
4
1 2 3 4
LA N
Po E
UPL INK
Po E
ON
OFF
4xFE PoE + 1xFE Switch
UPLINK
POWER
ON
AW-FED-0500-120
NDR / HLG
11
11. If the cascade connection is preferred, connect the cameras as shown below.
VIVOTEK
User's Manual - 15
12. If your cables pass through a hole on a wall or ceiling, make sure the passage is waterproof
using sealant foam, heat shrink tubing, or putties. Make sure the interfaces, e.g., DC
connectors and terminal connectors, if unused, are also wrapped up using waterproof putties.
Connect the ground wire to a metal conduit or other ground path.
You can also purchase the AM-714 junction box to place all cabling connections within the
protection of the box .
12
VIVOTEK
16 - User's Manual
13. Install the "Installation Wizard 2" software utility on your software CD.
14. The program will search for VIVOTEK Video Receivers, Video Servers or Network Cameras
on the same LAN.
15. Double-click on the camera's MAC address to open a browser management session with
the camera.
15. With a live view is displayed on your laptop, adjust the zoom and focus to obtain an optimal
image. Check the live view to ensure the image is in focus.
The "T" models comes with motorized focus lens. Use the Auto Focus function in rmware
menu for best image.
Perform the Auto Focus function for best image. However, if you have cascaded cameras, do
this one by one. Do not perform this function simultaneously on multiple cameras because the
motorized lens also consume considerable power, and may cause the last camera on the line to
hang.
IMPORTANT:
VIVOTEK
User's Manual - 17
LED Denitions
Item LED status Description
LED De`nitions
1 Steady Red Powered and system booting, or network
failed
Red LED off Power off
Green LED off Network is disconnected
2
Steady Red and Green LED blinks every 1
sec.
Connected to network
3 Green LED blinks every 1 sec. and RED
LED
blinks consecutively every 0.15 sec.
Upgrading rmware
4
Green and RED blink every 0.15 sec, Green
and
RED light on, then blink again.
Restoring defaults
5 RED LED is on, Green LED blinks and RED
LED is constantly on.
Status after a reset (network connected)
Green and RED LEDs are constantly on. Status after a reset (network
disconnected)
VIVOTEK
18 - User's Manual
Hardware Reset
The reset button is used to reset the system or restore the factory default settings.
Sometimes resetting the system can return the camera to normal operation. If the system
problems remain after reset, restore the factory settings and install again.
Reset: Press the recessed reset button. Wait for the Network Camera to reboot.
Restore: Press and hold the reset button until the status LED rapidly blinks. Note that all
settings will be restored to factory default. Upon successful restore, the status LED will
blink green and red during normal operation.
SD/SDHC/SDXC Card Capacity
This network camera is compliant with SD/SDHC/SDXC 16GB / 8GB / 32GB / 64GB and
other preceding standard SD cards.
Reset Button
VIVOTEK
User's Manual - 19
Network Deployment
General Connection (PoE)
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data via a sin-
gle Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-
enabled switch via Ethernet cable.
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and a non-
PoE switch.
NOTE:
1. The camera is only to be connected to PoE networks without routing to outside plants.
2. For PoE connection, use only UL listed I.T.E. with PoE output.
PoE Switch
802.3af
802.3at for IB9371-EHT and IB9381-EHT
Non-PoE Switch
PoE Power Injector
(optional)
802.3at for IB9371-EHT and IB9381-
EHT
VIVOTEK
20 - User's Manual
Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below.
1. Connect your Network Camera behind a router, the Internet environment is illustrated below.
Regarding how to obtain your IP address, please refer to Software Installation on page 22 for
details.
IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
LAN (Local Area Network)
Router IP address : 192.168.0.1
WAN (Wide Area Network )
Router IP address : from ISP
Cable or DSL Modem
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
Internet
2. In this case, if the Local Area Network (LAN) IP address of your Network Camera is
192.168.0.3, please forward the following ports for the Network Camera on the router.
■ HTTP port: default is 80
■ RTSP port: default is 554
■ RTP port for video: default is 5556
■ RTCP port for video: default is 5557
If you have changed the port numbers on the Network page, please open the ports
accordingly on your router. For information on how to forward ports on the router, please refer
to your router’s user’s manual.
3. Find out the public IP address of your router provided by your ISP (Internet Service Provider).
Use the public IP and the secondary HTTP port to access the Network Camera from the
Internet. Please refer to Network Type on page 76 for details.
Internet connection with static IP
Choose this connection type if you are required to use a static IP for the Network Camera.
Please refer to LAN setting on page 75 for details.
Internet connection via PPPoE (Point-to-Point over Ethernet)
Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to
PPPoE on page 76 for details.
VIVOTEK
User's Manual - 21
Congure the router, virtual server or rewall, so that the router can forward any data com-
ing into a precongured port number to a network camera on the private network, and
allow data from the camera to be transmitted to the outside of the network over the same
path.
From Forward to
122.146.57.120:8000 192.168.2.10:80
122.146.57.120:8001 192.168.2.11:80
... ...
When properly congured, you can access a camera behind the router using the HTTP
request such as follows: http://122.146.57.120:8000
If you change the port numbers on the Network conguration page, please open the ports
accordingly on your router. For example, you can open a management session with your
router to congure access through the router to the camera within your local network.
Please consult your network administrator for router conguration if you have troubles with
the conguration.
For more information with network conguration options (such as that of streaming ports),
please refer to Conguration > Network Settings. VIVOTEK also provides the automatic
port forwarding feature as an NAT traversal function with the precondition that your router
must support the UPnP port forwarding feature.
VIVOTEK
22 - User's Manual
Software Installation
Installation Wizard 2 (IW2), a software included in the product CD, helps you set up your
Network Camera on the LAN.
1. Install IW2 under the Software Utility directory from the software CD.
Double-click the IW2 shortcut on your desktop to launch the program.
2. The program will conduct an analysis of your network environment.
After your network environment is analyzed, please click Next to continue the program.
0002D1730202
00-02-D1-73-02-02 192.168.5.151 IB9371
Installation
Wizard 2
IW
2
Network Camera
Model No: IB9371
Made in Taiwan
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Pat. 6,930,709
MAC:0002D1730202
R o HS
3. The program will search for all VIVOTEK network devices on the same LAN.
4. After a brief search, the installer window will prompt. Click on the MAC and model name
that matches the one printed on the product label. You can then double-click on the address
to open a management session with the Network Camera.
VIVOTEK
User's Manual - 23
Ready to Use
1. A browser session with the Network Camera should prompt as shown below.
2. You should be able to see live video from your camera. You may also install the 32-channel
recording software from the software CD in a deployment consisting of multiple cameras. For
its installation details, please refer to its related documents.
•
The "E" models, e.g., IB9381-EHT, IB9371-EHT, are able to operate in low temperature
environments. However, when starting these cameras in a very low termperature condition,
e.g., -40ºC, the embedded heater may take half an hour to warm up the camera. When the
temperature within the canister reaches -10ºC, the camera automatically starts.
IMPORTANT:
VIVOTEK
24 - User's Manual
Accessing the Network Camera
This chapter explains how to access the Network Camera through web browsers, RTSP players,
3GPP-compatible mobile devices, and VIVOTEK recording software.
Using Web Browsers
Use Installation Wizard 2 (IW2) to access the Network Cameras on LAN.
If your network environment is not a LAN, follow these steps to access the Netwotk Camera:
1. Launch your web browser (e.g., Microsoft
®
Internet Explorer or Mozilla Firefox).
2. Enter the IP address of the Network Camera in the address eld. Press Enter.
3. Live video will be displayed in your web browser.
4. If it is the rst time installing the VIVOTEK network camera, an information bar will prompt as
shown below. Follow the instructions to install the required plug-in on your computer.
NOTE
► For Mozilla Firefox or Chrome users, your browser will use QuickTime to stream the live
video. If you don’t have QuickTime on your computer, please download it rst, then launch
the web browser.
NOTE:
VIVOTEK
User's Manual - 25
► By default, the Network Camera is not password-protected. To prevent unauthorized access,
it is highly recommended to set a password for the Network Camera.
For more information about how to enable password protection, please refer to Security on
page 93.
► If you see a dialog box indicating that your security settings prohibit running ActiveX
®
Controls, please enable the ActiveX
®
Controls for your browser.
1. Choose Tools > Internet Options > Security > Custom Level.
2. Look for Download signed ActiveX
®
controls; select Enable or Prompt. Click OK.
3. Refresh your web browser, then install the ActiveX
®
control. Follow the instructions to
complete installation.
VIVOTEK
26 - User's Manual
•
Currently the Network Camera utilizes a 32-bit ActiveX plugin. You CAN NOT open a
management/view session with the camera using a 64-bit IE browser.
•
If you encounter this problem, try execute the Iexplore.exe program from C:\Windows\
SysWOW64. A 32-bit version of IE browser will be installed.
•
On Windows 7, the 32-bit explorer browser can be accessed from here:
C:\Program Files (x86)\Internet Explorer\iexplore.exe
•
If you open a web session from the IW2 utility, a 32-bit IE browser will be opened.
IMPORTANT:
1. The onscreen Java control can malfunction under the following situations: A PC con-
nects to different cameras that are using the same IP address (or the same camera
running different rmware versions). Removing your browser cookies will solve this
problem.
2. If you encounter problems with displaying the conguration menus or UI items, try dis-
able the Compatibility View on IE8 or IE9.
You may also press the F12 key to open the developer tools utility, and then change the
Browser Mode to the genuine IE8 or IE9 mode.
Tips:
• In the event of plug-in compatibility issues, you may try to uninstall the plug-in that was
previously installed.
VIVOTEK
User's Manual - 27
Using RTSP Players
To view the streaming media using RTSP players, you can use one of the following players that
support RTSP streaming.
Quick Time Player
VLC media player
VLC media player
mpegable Player
pvPlayer
As most ISPs and players only allow RTSP streaming through port number 554, please set the
RTSP port to 554. For more information, please refer to RTSP Streaming on page 84.
For example:
4. The live video will be displayed in your player.
For more information on how to configure the RTSP access name, please refer to RTSP
Streaming on page 84 for details.
rtsp://192.168.5.151:554/live.sdp
1. Launch the RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.
3. The address format is rtsp://<ip address>:<rtsp port>/<RTSP streaming access name for
stream1 or stream2>
Video 16:38:01 2012/01/25
VIVOTEK
28 - User's Manual
Using 3GPP-compatible Mobile Devices
To view the streaming media through 3GPP-compatible mobile devices, make sure the Network
Camera can be accessed over the Internet. For more information on how to set up the Network
Camera over the Internet, please refer to Setup the Network Camera over the Internet on page
19.
To utilize this feature, please check the following settings on your Network Camera:
1. Because most players on 3GPP mobile phones do not support RTSP authentication, make
sure the authentication mode of RTSP streaming is set to disable.
For more information, please refer to RTSP Streaming on page 84.
2. As the the bandwidth on 3G networks is limited, you will not be able to use a large video size.
Please set the video streaming parameters as listed below.
For more information,
please refer to Stream settings on page 66.
Video Mode H.264
Frame size 176 x 144
Maximum frame rate 5 fps
Intra frame period 1S
Video quality (Constant bit rate) 40kbps
3. As most ISPs and players only allow RTSP streaming through port number 554, please set
the RTSP port to 554. For more information, please refer to RTSP Streaming on page 84.
4. Launch the player on the 3GPP-compatible mobile devices (e.g., QuickTime).
5. Type the following URL commands into the player.
The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming
access name for stream # with small frame size and frame rate>.
For example:
You can configure Stream #2 into the suggested stream settings as listed above for live
viewing on a mobile device.
VIVOTEK
User's Manual - 29
Using VIVOTEK Recording Software
The product software CD also contains an ST7501 recording software, allowing simultaneous
monitoring and video recording for multiple Network Cameras. Please install the recording
software; then launch the program to add the Network Camera to the Channel list. For detailed
information about how to use the recording software, please refer to the user’s manual of the
software or download it from
http://www.vivotek.com.
1. If you forget the root (administrator) password for the camera, you can restore the camera
defaults by pressing the reset button for longer than 5 seconds.
2. If DHCP is enabled in your network, and the camera cannot be accessed, run the IW2 utility
to search the network. If the camera has been congured with a xed IP that does not comply
with your local network, you may see its default IP 169.254.x.x. If you still cannot find the
camera, you can restore the camera to its factory defaults. The factory default is DHCP client.
3. If you change your network parameters, e.g., added a camera via a connection to a LAN
card, re-start the IW2 utility.
Tips:
VIVOTEK
30 - User's Manual
Main Page
This chapter explains the layout of the main page. It is composed of the following sections:
VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live
Video Window.
VIVOTEK INC. Logo
Click this logo to visit the VIVOTEK website.
Host Name
The host name can be customized to t your needs. The name can be changed especially there are many
cameras in your surveillance deployment. For more information, please refer to System on page 41.
Camera Control Area
Video Stream: This Network Camera supports multiple streams (streams 1 and 2) simultaneously. You
can select any of them for live viewing. For more information about multiple streams, please refer to page
66 for detailed information.
Manual Trigger: Click to enable/disable an event trigger manually. Please congure an event setting on
the Application page before you enable this function. A total of 3 event conguration can be congured.
For more information about event setting, please refer to page 109. If you want to hide this item on
the homepage, please go to Configuration> System > Homepage Layout > General settings >
Customized button to deselect the “show manual trigger button” checkbox.
VIVOTEK INC.
Logo
Live View Window
Camera Control
Area
Configuration
Area
Host Name
Resize Buttons
Hide Button
VIVOTEK
User's Manual - 31
Conguration Area
Client Settings: Click this button to access the client setting page. For more information, please refer to
Client Settings on page 35.
Conguration: Click this button to access the conguration page of the Network Camera. It is suggested
that a password be applied to the Network Camera so that only the administrator can configure the
Network Camera. For more information, please refer to Conguration on page 40.
Language: Click this button to choose a language for the user interface. Language options are available
in: English, Deutsch, Español, Français, Italiano,
日本語
, Português,
簡体中文
, and
繁體中文
. Please
note that you can also change a language on the Conguration page; please refer to page 40.
Hide Button
You can click the hide button to hide or display the control panel.
Resize Buttons
:
Click the Auto button, the video cell will resize automatically to t the monitor.
Click 100% is to display the original homepage size.
Click 50% is to resize the homepage to 50% of its original size.
Click 25% is to resize the homepage to 25% of its original size.
Live Video Window
■ The following window is displayed when the video mode is set to H.264 or H.265:
Video Title: The video title can be congured. For more information, please refer to Video Settings on
page 53.
H.264 or H. 265 Protocol and Media Options: The transmission protocol and media options for H.264 or
H.265 video streaming. For further conguration, please refer to Client Settings on page 35.
Time: Display the current time. For further conguration, please refer to Media > Image > Genral settings
on page 53.
Title and Time: The video title and time can be stamped on the streaming video. For further conguration,
please refer to Media > Image > General settings on page 58.
Video 17:08:56 2015/03/25
Title and Time
2015/03/25 17:08:56
Time
Video (TCP-V)
H.265/H.264 Protocol and Media Options
Video Title
x4.0
Zoom Indicator
Video Control Buttons
VIVOTEK
32 - User's Manual
Global View: Click on this item to display the Global View window. The Global View window contains a
full view image (the largest frame size of the captured video) and a oating frame (the viewing region of
the current video stream). The oating frame allows users to control the e-PTZ function (Electronic Pan/
Tilt/Zoom). For more information about e-PTZ operation, please refer to E-PTZ Operation on page 106.
For more information about how to set up the viewing region of the current video stream, please refer to
page 106.
The viewing region of
the curruent video
stream
The largest frame size
PTZ Panel: This Network Camera supports “digital“ (e-PTZ) pan/tilt/zoom control, which allows roaming
a smaller view frame within a large view frame. Please refer to PTZ settiings on page 106 for detailed
information.
Note that the PTZ buttons on the panel are not operational unless you are showing only a portion of the
full image. If the live view window is displaying the full view, the PTZ buttons are not functional.
VIVOTEK
User's Manual - 33
Video Control Buttons: Depending on the Network Camera model and Network Camera conguration,
some buttons may not be available.
Snapshot: Click this button to capture and save still images. The captured images will be displayed
in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP
(*.bmp) format.
Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation
screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To
move to a different area you want to magnify, drag the navigation screen.
Pause: Pause the transmission of the streaming media. The button becomes the Resume button
after clicking the Pause button.
Stop: Stop the transmission of the streaming media. Click the Resume button to continue
transmission.
Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.
Press the
Stop MP4 Recording button to end recording. When you exit the web browser, video
recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving
Options on page 36 for details.
Volume: When the Mute function is not activated, move the slider bar to adjust the volume on the
local computer.
Mute: Turn off the volume on the local computer. The button becomes the Audio On button after
clicking the Mute button.
Talk: Click this button to talk to people around the Network Camera. Audio will project from
the external speaker connected to the Network Camera. Click this button
again to end talking
transmission.
Mic Volume: When the Mute function is not activated, move the slider bar to adjust the
microphone volume on the local computer.
NOTE:
1. For a megapixel camera, it is recommended to use monitors of the 24" size or larger, and
are capable of 1600x1200 or better resolutions.
2. Below are the defaults for Audio settings:
For cameras with built-in microphone: Not Muted.
For cameras without built-in microphone: Muted.
To receive audio input from an external microphone, you may need to enable the audio input
from Media > Audio. Refer to page 74 for more information.
VIVOTEK
34 - User's Manual
Mute: Turn off the Mic volume on the local computer. The button becomes the Mic On button
after clicking the Mute button.
Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal
mode.
■ The following window is displayed when the video mode is set to MJPEG:
Video Title: The video title can be congured. For more information, please refer to Media > Image on
page 58.
Time: Display the current time. For more information, please refer to Media > Image on page 58.
Title and Time: Video title and time can be stamped on the streaming video. For more information, please
refer to Media > Image on page 58
.
Video Control Buttons: Depending on the Network Camera model and Network Camera conguration,
some buttons may not be available.
Snapshot: Click this button to capture and save still images. The captured images will be displayed
in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP
(*.bmp) format.
Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation
screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To
move to a different area you want to magnify, drag the navigation screen.
Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.
Press the
Stop MP4 Recording button to end recording. When you exit the web browser, video
recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving
Options on page 36 for details.
Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal
mode.
Video 17:08:56 2015/07/25
Title and Time
2015/07/25 17:08:56
Time
Video (HTTP-V)
Video Title
Video Control Buttons
VIVOTEK
User's Manual - 35
Client Settings
This chapter explains how to select the stream transmission mode and saving options on the
local computer. When completed with the settings on this page, click Save on the page bottom
to enable the settings.
H.265/H.264 Media Options
Select to stream video or audio data or both. This is enabled only when the video mode is set to H.264.
H.265/H.264 Protocol Options
Depending on your network environment, there are four transmission modes of H.264 streaming:
UDP unicast: This protocol allows for more real-time audio and video streams. However, network
packets may be lost due to network burst trafc and images may be broken. Activate UDP connection
when occasions require time-sensitive responses and the video quality is less important. Note that each
unicast client connecting to the server takes up additional bandwidth and the Network Camera allows up
to ten simultaneous accesses.
UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients
requesting streaming media. This helps to reduce the network transmission load of the Network Camera
while serving multiple clients at the same time. Note that to utilize this feature, the Network Camera must
be configured to enable multicast streaming at the same time. For more information, please refer to
RTSP Streaming on page 84.
TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video
quality. The downside of this protocol is that its real-time effect is not as good as that of the UDP protocol.
HTTP: This protocol allows the same quality as TCP protocol without needing to open specic ports for
streaming under some network environments. Users inside a firewall can utilize this protocol to allow
streaming data through.
H.264 Protocol Options
VIVOTEK
36 - User's Manual
MP4 Saving Options
Users can record live video as they are watching it by clicking Start MP4 Recording on the main
page. Here, you can specify the storage destination and le name.
Folder: Specify a storage destination on your PC for the recorded video files. The location can be
changed.
File name prex: Enter the text that will be appended to the front of the video le name. A specied folder
will be automatically created on your local hard disk.
Add date and time sufx to the le name: Select this option to append the date and time to the end of the
le name.
Local Streaming Buffer Time
In the case of encountering unsteady bandwidth, live streaming may lag and video streaming may not be
very smoothly. If you enable this option, the live streaming will be stored temporarily on your PC’s cache
memory for a few milli seconds before being played on the live viewing window. This will help you see
the streaming more smoothly. If you enter 3,000 Millisecond, the streaming will delay for 3 seconds.
CLIP_20150321-180853
Date and time suffix
The format is: YYYYMMDD_HHMMSS
File name prefix
Two way audio
Half duplex: Audio is transmitted from one direction at a time, e.g., from a PC holding a web console with
the camera.
Full duplex: Audio is transmitted in both directions simultaneously.
VIVOTEK
User's Manual - 37
Joystick settings
Enable Joystick
Connect a joystick to a USB port on your management computer. Supported by the plug-in
(Microsoft’s DirectX), once the plug-in for the web console is loaded, it will automatically detect if
there is any joystick on the computer. The joystick should work properly without installing any other
driver or software.
Then you can begin to configure the joystick settings of connected devices. Please follow the
instructions below to enable joystick settings.
1. Select a detected joystick, if there are multiple, from the Selected joystick menu. If your joystick
is not detected, if may be defective.
2. Click Calibrate or Congure buttons to congure the joystick-related settings.
• If you want to assign Preset actions to your joystick, the preset locations should be congured
in advance in the Conguration > PTZ page. In Windows, use the search function on the Start
menu to search for Game Controller.
• If your joystick is not working properly, it may need to be calibrated. Click the Calibrate button
to open the Game Controllers window located in Microsoft Windows control panel and follow the
instructions for trouble shooting.
NOTE:
• The joystick will appear in the Game Controllers list in the Windows Control panel. If you want to
check out for your devices, go to the following page: Start -> Control Panel -> Game Controllers.
VIVOTEK
38 - User's Manual
Buttons Conguration
In the Button Conguration window, the left column shows the actions you can assign, and the right
column shows the functional buttons and assigned actions. The number of buttons may differ from
different joysticks.
Please follow the steps below to congure your joystick buttons:
1. Choosing one of the actions and click Assign will pop up a dialog. Then you can assign this
action to a button by pressing the joystick button or select it from the drop-down list.
For example: Assign Home (move to home position) to Button 1.
2. Click OK to conrm the conguration.
VIVOTEK
User's Manual - 39
Buttons Conguration
Click the Congure Buttons button, a window will prompt as shown below. Please follow the steps
below to congure your joystick buttons:
1. Select a button number from the Button # pull-down menu.
2. Select a corresponding action, such as Patrol or Preset#.
If you are not sure of the locations of each
button, use the Properties window in the Game
Controllers utility.
Tips:
3.
Click the Assign button to assign an action to
the button. You can delete an association by
selecting a button number, and then click the
Delete button.
Repeat the process until you are done with the
conguration of all preferred actions.
The buttons you define should appear on the
button list accordingly.
4. Please remember to c
lick the Save button
on the Client settings page to preserver your
settings.
VIVOTEK
40 - User's Manual
Conguration
Click Configuration on the main page to enter the camera setting pages. Note that only
Administrators can access the conguration page.
VIVOTEK provides an easy-to-use user interface that helps you set up your network camera
with minimal effort. In order to simplify the user interface, detailed information will be hidden
unless you click on the function item. When you click on the first sub-item, the detailed
information for the rst sub-item will be displayed; when you click on the second sub-item, the
detailed information for the second sub-item will be displayed and that of the rst sub-item will
be hidden.
The following is the interface of the main page:
Configuration List
Firmware Version
Navigation Area
Each function on the conguration list will be explained in the following sections.
The Navigation Area provides access to all different views from the Home page (for live viewing),
Conguration page, and multi-language selection.
VIVOTEK
User's Manual - 41
System > General settings
This section explains how to congure the basic settings for the Network Camera, such as the
host name and system time. It is composed of the following two columns: System, and System
Time. When finished with the settings on this page, click Save at the bottom of the page to
enable the settings.
System
Host name: Enter a desired name for the Network Camera. The text will be displayed at the top of the
main page, and also on the view cells of the ST7501 and VAST management software.
Turn off the LED indicators: If you do not want others to notice the network camera is in operation, you
can select this option to turn off the LED indicators.
VIVOTEK
42 - User's Manual
System time
Keep current date and time: Select this option to preserve the current date and time of the Network
Camera. The Network Camera’s internal real-time clock maintains the date and time even when the
power of the system is turned off.
Synchronize with computer time: Select this option to synchronize the date and time of the Network
Camera with the local computer. The read-only date and time of the PC is displayed as updated.
Manual: The administrator can enter the date and time manually. Note that the date and time format are
[yyyy/mm/dd] and [hh:mm:ss].
Automatic: The Network Time Protocol is a protocol which synchronizes computer clocks by periodically
querying an NTP Server.
NTP server: Assign the IP address or domain name of the time-server. Leaving the text box blank
connects the Network Camera to the default time servers. The precondition is that the camera must
have the access to the Internet.
Update interval: Select to update the time using the NTP server on an hourly, daily, weekly, or monthly
basis.
Time zone : Select the appropriate time zone from the list. If you want to upload Daylight Savings Time
rules, please refer to System > Maintenance > Import/ Export les on page 50 for details.
VIVOTEK
User's Manual - 43
System > Homepage layout
This section explains how to set up your own customized homepage layout.
General settings
This column shows the settings of your hompage layout. You can manually select the background and
font colors in Theme Options (the second tab on this page). The settings will be displayed automatically
in this Preview eld. The following shows the homepage using the default settings:
Follow the steps below to upload a new logo:
1. Click Custom and the Browse eld will appear.
2. Select a logo from your les.
3. Click Upload to replace the existing logo with a new one.
4. Enter a website link if necessary.
5. Click Save to enable the settings.
Customized button
If you want to hide manual trigger buttons on the homepage, please uncheck this item. This item is
checked by default.
Logo graph
Here you can change the logo that is placed at the top of your homepage.
■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage.
VIVOTEK
44 - User's Manual
Theme Options
Here you can change the color of your homepage layout. There are three types of preset patterns for you
to choose from. The new layout will simultaneously appear in the Preview led. Click Save to enable the
settings.
Font Color of the
Video Title
Background Color of
the Video Area
Frame Color
Font Color
Background Color of the
Control Area
Font Color of
the Configuration Area
Background Color of the
Configuration Area
Preset patterns
VIVOTEK
User's Manual - 45
■ Follow the steps below to set up the customed homepage:
1. Click Custom on the left column.
2. Click the eld where you want to change the color on the right column.
3. The palette window will pop up as shown below.
4. Drag the slider bar and click on the left square to select a desired color.
5. The selected color will be displayed in the corresponding elds and in the Preview column.
6. Click Save to enable the settings.
1
2
3
4
Color Selector
Custom
Pattern
VIVOTEK
46 - User's Manual
System > Logs
This section explains how to congure the Network Camera to send the system log to a remote
server as backup.
Log server settings
Follow the steps below to set up the remote log:
1. Select Enable remote log.
2. In the IP address text box, enter the IP address of the remote server.
2. In the port text box, enter the port number of the remote server.
3. When completed, click Save to enable the setting.
You can congure the Network Camera to send the system log le to a remote server as a log backup.
Before utilizing this feature, it is suggested that the user install a log-recording tool to receive system log
messages from the Network Camera. An example is Kiwi Syslog Daemon. Visit
http://www.kiwisyslog.
com/kiwi-syslog-daemon-overview/
.
This column displays the system log in a chronological order. The system log is stored in the Network
Camera’s buffer area and will be overwritten when reaching a certain limit.
System log
VIVOTEK
User's Manual - 47
PC running
VAST Recording Software
Internet
VIVOTEK Network Cameras
3G cell phone
Cell phone
Short message
Email
GSM
Modem
HTTP
PTZ
Digital output
You can install the included VAST recording software, which provides an Event
Management function group for delivering event messages via emails, GSM short
messages, onscreen event panel, or to trigger an alarm, etc. For more information, refer to
the VAST User Manual.
VIVOTEK
48 - User's Manual
Access log
Access log displays the access time and IP address of all viewers (including operators and
administrators) in a chronological order. The access log is stored in the Network Camera’s buffer
area and will be overwritten when reaching a certain limit.
System > Parameters
The View Parameters page lists the entire system’s parameters. If you need technical
assistance, please provide the information listed on this page.
VIVOTEK
User's Manual - 49
System > Maintenance
This chapter explains how to restore the Network Camera to factory default, upgrade rmware
version, etc.
General settings > Upgrade rmware
This feature allows you to upgrade the firmware of your Network Camera. It takes a few minutes to
complete the process.
Note: Do not power off the Network Camera during the upgrade!
Follow the steps below to upgrade the rmware:
1. Download the latest rmware le from the VIVOTEK website. The le is in .pkg le format.
2. Click Browse… and locate the rmware le.
3. Click Upgrade. The Network Camera starts to upgrade and will reboot automatically when the upgrade
completes.
If the upgrade is successful, you will see “Reboot system now!! This connection will close”. After that, re-
access the Network Camera.
The following message is displayed when the upgrade has succeeded.
The following message is displayed when you have selected an incorrect rmware le.
General settings > Reboot
This feature allows you to reboot the Network Camera, which takes about one minute to complete. When
completed, the live video page will be displayed in your browser. The following message will be displayed
during the reboot process.
If the connection fails after rebooting, manually enter the IP address of the Network Camera in the
address eld to resume the connection.
Starting firmware upgrade...
Do not power down the server during the upgrade.
The server will restart automatically after the upgrade is
completed.
This will take about 1 - 5 minutes.
Wrong PKG file format
Unpack fail
Reboot system now!!
This connection will close.
VIVOTEK
50 - User's Manual
General settings > Restore
This feature allows you to restore the Network Camera to factory default settings.
Network: Select this option to retain the Network Type settings (please refer to Network Type on page
76).
Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to
Import/Export les below on this page).
Custom Language: Select this option to retain the Custom Language settings.
VADP: Retain the VADP modules (3rd-party software stored on the SD card) and related settings.
Focus position: Retain the lens focus position using the previously saved position parameters.
If none of the options is selected, all settings will be restored to factory default. The following message is
displayed during the restoring process.
Import/Export les
This feature allows you to Export / Update daylight saving time rules, custom language le, conguration
le, and server status report.
Export daylight saving time conguration le: Click to set the start and end time of DST (Daylight Saving).
Follow the steps below to export:
1. In the Export les column, click Export to export the daylight saving time conguration le from the
Network Camera.
2. A le download dialog will pop up as shown below. Click Open to review the XML le or click Save to
store the le for editing.
VIVOTEK
User's Manual - 51
3. Open the le with Microsoft
®
Notepad and locate your time zone; set the start and end time of DST.
When completed, save the le.
In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at
2:00 a.m. on the rst Sunday in November.
Update daylight saving time rules: Click Browse… and specify the XML le to update.
If the incorrect date and time are assigned, you will see the following warning message when uploading
the le to the Network Camera.
VIVOTEK
52 - User's Manual
The following message is displayed when attempting to upload an incorrect le format.
Export language file: Click to export language strings. VIVOTEK provides nine languages: English,
Deutsch, Español, Français, Italiano,
日本語,
Português,
簡体中文
, and
繁體中文
.
Update custom language le: Click Browse… and specify your own custom language le to upload.
Export conguration le: Click to export all parameters for the device and user-dened scripts.
Update conguration le: Click Browse… to update a conguration le. Please note that the model and
rmware version of the device should be the same as the conguration le. If you have set up a xed IP
or other special settings for your device, it is not suggested to update a conguration le.
Export server staus report: Click to export the current server status report, such as time, logs,
parameters, process status, memory status, le system status, network status, kernel message ... and so
on.
Tips:
• If a firmware upgrade is accidentally disrupted, say, by a power outage, you still have a last resort
method to restore normal operation. See the following for how to bring the camera back to work:
Applicable scenario:
(a) Power disconnected during rmware upgrade.
(b) Unknown reason causing abnormal LED status, and a Restore cannot recover normal working
condition.
You can use the following methods to activate the camera with its backup rmware:
(a) Press and hold down the reset button for at least one minute.
(b) Power on the camera until the Red LED blinks rapidly.
(c) After boot up, the rmware should return to the previous version before the camera hanged. (The
procedure should take 5 to 10 minutes, longer than the normal boot-up process). When tthis
process is completed, the LED status should return to normal.
VIVOTEK
User's Manual - 53
Media > Image
This section explains how to configure the image settings of the Network Camera. It is
composed of the following four columns: General settings, Picture settings, Exposure,
Focus, and Privacy mask. The Focus window is available only for models that come with
motorized lens.
General settings
Video title
Show_timestamp_and video_title_in_video_and_snapshots: Enter a name that will be displayed on
the title bar of the live video as the picture shown below. A zoom indicator will be displayed on the
Home page when you zoom in/out on the live viewing window as shown below. You may zoom in/
out on the image by scrolling the mouse wheel inside the live viewing window, and the maximum
zoom in will be up to 4 times.
Position of timestamp and video title on image: Select to display time stamp and video title on the
top or at the bottom of the video stream.
Timestamp and video title font size: Select the font size for the time stamp and title.
Video font (.ttf): You can select a True Type font le for the display of textual messages on video.
Color: Select to display color or black/white video streams.
Power line frequency: Set the power line frequency consistent with local utility settings to eliminate
image flickering associated with fluorescent lights. Note that after the power line frequency is
changed, you must disconnect and reconnect the power cord of the Network Camera in order for
the new setting to take effect.
Video Title
Title and Time
Video 17:08:56 2015/7/09
2015/7/09 17:08:56
X2.1
Zoom Factor
Zoom In
Zoom Out
VIVOTEK
54 - User's Manual
Day/Night Settings
Switch to B/W in night mode
Select this to enable the Network Camera to automatically switch to Black/White during night
mode.
Turn on external IR illuminator in night mode
Select this to turn on the external IR illuminator when the camera detects low light condition and
enters the night mode. A Digital Output connection to external IR is needed.
Turn on built-in IR illuminator in night mode
Select this to turn on the camera’s onboard IR illuminator when the camera detects low light
condition and enters the night mode.
Rotate -
MirrorNormal Flip Rotate 90°
clockwise
The camera may be installed on a vertical, side-facing, or tilted surface in order to accommodate
the interior or exterior design of a building. The interior of a building can be shaped as a narrow
rectangular space, such as a corridor. The conventional HD image, such as that of a 16:9 aspect
ratio, will be incongruous with its wide horizontal view. With video rotation, the camera can more
readily cover the eld of view on a tall and narrow scene.
The rotation here indicates clockwise
rotation. Rotation can be applied with
flip, mirror, and physical lens rotation
(see below) settings to adapt to different
mounting locations.
The gures in the illustration are shown in
a consecutive order.
Video orientation: Flip - vertically reect the display of the live video; Mirror - horizontally reect the
display of the live video. Select both options if the Network Camera is installed upside-down (e.g.,
on the ceiling) to correct the image orientation. Please note that if you have preset locations, those
locations will be cleared after ip/mirror setting.
VIVOTEK
User's Manual - 55
Smart IR disabled; distance: 5M
Smart IR enabled; distance: 5M
Smart IR disabled; distance: 3M
Smart IR enabled; distance: 3M
The Smart IR function is more benecial when the spot of intrusions or an object of your interest
is close to the lens and the IR lights. For example, if an intruder has a chance of getting near the
range of 3 meters, Smart IR can effectively reduce the over-exposure. For a surveillance area at a
greater distance, e.g., 5 meters or farther away, the Smart IR function may not bring as signicant
benets as in close range.
Smart IR
When enabled, the camera automatically adjusts the IR projection to adjacent objects in order to
avoid over-exposure in the night mode.
VIVOTEK
56 - User's Manual
IR cut lter
With a removable IR-cut lter, this Network Camera can automatically remove the lter to let IR
light enter the light sensor during low light conditions.
■ Auto mode
The Network Camera automatically removes the lter by judging the level of ambient light.
■ Day mode
In day mode, the Network Camera switches on the IR cut lter at all times to block infrared light
from reaching the sensor so that the colors will not be distorted.
■ Night mode
In night mode, the Network Camera switches off the IR cut lter at all times for the sensor to
accept infrared light, thus helping to improve low light sensitivity.
■ Synchronize with digital input
The Network Camera automatically removes the IR cut lter when a Digital Input is triggerred.
For example, an external IR light may come with its own detection circuits.
Exclude x
Tips:
If there is an object in close proximity, the IR lights
reflected back from it can mislead the Smart IR’s
calculation of light level. To solve this problem, you
can place an “Exposure Exclude” window on an
unavoidable object in the Exposure setting window.
See page 6159 for how to do it.
You can also configure the “Exposure Exclude”
window in a night mode “Prole” setting so that your
day time setting is not affected.
Exclude x
VIVOTEK
User's Manual - 57
■ Schedule mode
The Network Camera switches between day mode and night mode based on a specified
schedule. Enter the start and end time for the day mode. Note that the time format is [hh:mm]
and is expressed in 24-hour clock time. By default, the start and end time of day mode are set to
07:00 and 18:00.
Light sensor sensitivity
Tune the responsiveness of the IR lter to lighting conditions as Low, Normal, or High.
When completed with the settings on this page, click Save to enable the settings.
VIVOTEK
58 - User's Manual
Image settings
On this page, you can tune the White balance and Image adjustment.
White balance: Adjust the value for the best color temperature.
■ You may follow the steps below to adjust the white balance to the best color temperature.
1. Place a sheet of paper of white or cooler-color temperature color, such as blue, in front of the
lens, then allow the Network Camera to automatically adjust the color temperature.
2. Click the On button to Fix current value and conrm the setting while the white balance is being
measured.
■ You may also manually tune the color temperature by pulling the RGain and BGain slide bars.
Image Adjustment
■ Brightness: Adjust the image brightness level, which ranges from
0% to 100%
.
■ Contrast: Adjust the image contrast level, which ranges from 0% to 100%.
■ Saturation: Adjust the image saturation level, which ranges from 0% to 100%.
■ Sharpness:
Adjust the image sharpness level, which ranges from
0% to 100%
.
■ Gamma curve:
Adjust the image sharpness level, which ranges from
0 to 0.45
.
You may let firmware Optimize your display or select a value to change the preferred level of
Gamma correction towards higher contrast or towards the higher luminance for detailed expression
for both dark and lighted areas of an image.
Defog: Defog helps improve the visibility quality of captured image in poor weather conditions such
as smog, fog, or smoke.
Sensor Setting 2:
For special situations
Sensor Setting 1:
For normal situations
VIVOTEK
User's Manual - 59
Note that the Preview button has been cancelled, all changes made to image settings is directly
shown on screen. You can click Restore to recall the original settings without incorporating the
changes. When completed with the settings on this page, click Save to enable the setting. You
can also click on Prole mode to adjust all settings above in a tabbed window for special lighting
conditions.
Enable to apply these settings at:
Select the mode this prole to apply to: Day mode, Night mode,
or Schedule mode. Please manually enter a range of time if you choose the Schedule mode. Then
check Save to take effect.
Noise reduction
■ Enable noise reduction: Check to enable noise reduction in order to reduce noises and ickers
in image. This applies to the onboard 3D Noise Reduction feature. Use the pull-down menu to
adjust the reduction strength. Note that applying this function to the video channel will consume
system computing power.
3D Noise Reduction is mostly applied in low-light conditions. When enabled in a low-light
condition with fast moving objects, trails of after-images may occur. You may then select a lower
strength level or disable the function.
Enable digital image stabilizer (IB9381)
If you experience problems such as vibration on a pole mount, try enable the image stabilizer.
VIVOTEK
60 - User's Manual
Exposure
On this page, you can set the Exposure measurement window, Exposure level, Exposure mode,
Exposure time, Gain control, and Day/Night mode settings. You can congure two sets of Exposure
settings: one for normal situations, the other for special situations, such as the day/night/schedule
mode.
Measurement Window: This function allows users to set measurement window(s) for low light
compensation. For example, where low-light objects are posed against an extremely bright
background. You may want to exclude the bright sunlight shining through a building's corridor.
■ Full view: Calculate the full range of view and offer appropriate
light compensation.
■ Custom: This option allows you to manually add customized windows as inclusive or exclusive
regions. A total of 10 windows can be configured. Please refer to the next page for detailed
illustration.
Sensor Setting 1:
For normal situations
Sensor Setting 2:
For special situations
VIVOTEK
User's Manual - 61
Exposure control:
■
Exposure level: You can manually set the Exposure level, which ranges from -2.0 to +2.0 (dark
to bright). You can click and drag the semi-circular pointers on the Exposure time and Gain
control slide bars to specify a range of shutter time and Gain control values within which the
camera can automatically tune to an optimal imaging result. You may prefer a shorter shutter
time to better capture moving objects, while a faster shutter reduces light and needs to be
compensated by electrical brightness gains.
■
Exposure mode:
You can click and drag the semi-circular pointers on the Exposure time and Gain control slide
bars to specify a range of shutter time and Gain control values within which the camera can
automaticallly tune to an optimal imaging result. You can also configure the iris size to control
the amount of light. For example, you may prefer a shorter shutter time to better capture moving
objects, while a faster shutter reduces light and needs to be compensated by electrical brightness
gains.
The inclusive window refers to the “weighed window“; the exclusive window refers to “ignored
window“. It adopts the weighed averages method to calculate the value. The inclusive windows
have a higher priority. You can overlap these windows, and, if you place an exclusive window
within a larger inclusive window, the exclusive part of the overlapped windows will be deducted
from the inclusive window. An exposure value will then be calculated out of the remaining of the
inclusive window.
■ BLC (Back Light Compensation): This option will automatically add a “weighted region“ in the
middle of the window and give the necessary light compensation.
Include
Exclude
Weighted region
Ignored region
Include
Exclude
Auto: If you set Exposure mode as Auto, the Exposure time and Gain control will not be
congurable since the sensor library will automatically adjust the value according to the ambient
light. Then you can congure iris mode as “indoor” or “outdoor” to reach the best image quality.
■ Iris mode:
Select Indoor or Outdoor iris mode to adapt to the installation. The preset iris aperture
setting will apply.
VIVOTEK
62 - User's Manual
Please follow the steps below to set up a prole:
1. Select the Prole mode tab.
2. Select the applicable mode: Night mode or
Schedule mode. Please manually enter a range of
time if you choose the Schedule mode.
3. Congure Exposure control settings in the folowing
columns. Please refer to previous dicussions for
detailed information.
4. Click Save to enable the setting and click Close to
exit the page.
You can click Restore to recall the original settings without incorporating the changes. When
completed with the settings on this page, click Save to enable the settings.
If you want to congure another sensor setting for day/night/schedule mode, please click Prole to
open the Prole of exposure settings page as shown below.
Activated period:
Select the mode this profile to apply to: Day mode, Night mode, or Schedule
mode. Please manually enter a range of time if you choose Schedule mode. Then check Save to
take effect.
Enable WDR enhanced:
This function allows users to identify more image details with an extreme
contrast from an object of interest with one shadowed side against a bright background, e.g., an
entrance. You may select the Enable WDR enhanced checkbox, and then adjust the strength (low,
medium, high) to reach the best image quality.
■
WDR Pro:
This refers to the Wide Dynamic Range function that enables the camera to capture details in
a high contrast environment. Use the checkbox to enable the function, and use the slide bar
to select the strength of the WDR Pro functionality, depending on the lighting condition at the
installation site. You can select a higher effect when the contrast is high (between the shaded
area and the light behind the objects).
■
AE Speed Adjustment:
This function applies when you need to monitor fast changing lighting conditions. For example,
the camera may need to monitor a highway lane or entrance of a parking area at night where
cars passing by with their lights on can bring fast changes in light levels. The same applies if
the camera is installed on a vehicle, and when it needs to adapt to fast changes of light when
entering and leaving a tunnel.
VIVOTEK
User's Manual - 63
Focus
Focus here refers to the Remote Focus, applicable to Network Cameras that are equipped
with a stepping motor lens. The automated focus adjustment function eliminates the needs
to physically adjust camera focus. In an outdoor deployment consisting of a large number
of cameras, the auto focus function can be very helpful when these cameras become out
of focus after days or weeks of operation. And that can easily result from the effects of
natural forces, e.g., shrink and expand due to a wide range of operating temperatures and
the vibration caused by wind.
Below is the procedure to perform the automated Focus function:
1. Select from the bottom of the screen whether you want to perform focus adjustment on
the Full view or within a Custom focus window. You can create a custom window and
click and drag the window to a desired position on screen.
2. It is recommended to Reset to the default back focus position of the sensor board.
3. You can use the Fully-opened iris checkbox (default) to increase the iris size for a
better focus adjustment result.
4. Click to select the Fully-opened iris or the Full-range scan buttons. When a full-range
scan is selected, a full-range scan through the camera's entire focal length can take
about 30 to 80 seconds. If not, the auto focus scan will only go through the length where
optimal focus may occur, and that takes about 15 to 20 seconds. In theory, best results
of the auto scan can be acquired when the camera's iris is fully open.
Focus window
x
VIVOTEK
64 - User's Manual
The methodology of using the Resize Buttons at the upper left corner of the streaming window is
the same as that on the home page.
Focus window:
By default, the optimal focus is found on a full view window. You may designate a custom window
within your current eld of view to acquire the best focus out of it. However, you can not place a
focus window on a distant background, e.g., a hall way that stretches away for 3 meters or farther.
Doing so you will not benet from the Focus window function.
■
Full view: The focus tuning takes place by referring to the full view.
■
Custom: You can create a focus window and drag it to a place of interest in your view window.
Note that it is recommended to use this function only when you have a solid object in your view
window that is showing a consistent color or texture. This function will not take effect if you set
the focus window on a distant background.
5. Wait for the scan to complete. After a short while, the clearest image obtained should be
displayed and the optimal focus range achieved. Use the arrow marks on the sides to ne-tune
the focus if you are not satised with the results.
You may still need to use the arrow marks to
ne-tune the focus depending on the live image on your screen. “>” means moving from wide to
tele end; and “<” tele to wide.
VIVOTEK
User's Manual - 65
Privacy mask
Click Privacy Mask to open the settings page. On this page, you can block out sensitive zones to
address privacy concerns.
■ To congure privacy mask windows,
1. Click New to add a new window.
2. You can use 4 mouse clicks to create a new masking window, which is recommended to be at
least twice the size of the object (height and width) you want to cover.
3. Enter a Window Name and click Save to enable the setting.
4. Click on the Enable privacy mask checkbox to enable this function.
NOTE:
►
Up to 5 privacy mask windows can be congured on the same screen.
► If you want to delete the
privacy mask
window, please click the ‘x’ mark on the side of window
name.
VIVOTEK
66 - User's Manual
Media > Video
5MP IB9381
3MP IB9371
Stream settings
FOV (Field of View)
For a 5MP IB9381 model, the default resolution is 5 Megapixels, and if bandwidth or frame rate per
second is of the concern, you can select a lower resolution while enjoying a higher frame rate. The
other congurable options is 1080P (16:9) at 60fps.
This Network Camera supports multiple streams with frame sizes ranging from 176 x 144 to 2048 x
1536 pixels or 2560x1920 (5MP models).
The denition of multiple streams:
■ Stream 1: Users can dene the "Region of Interest" (viewing region) and the "Output Frame Size"
(size of the live view window).
■ Stream 2: The default frame size for Stream 2 is set to the 640 x 480 or 1600x1200.
■ Stream 3: The default frame size for Stream 3 is set to the 2048 x 1536 or 640 x480.
■ Stream 4: The 5MP model supports 4 video streams.
Click Viewing Window to open the viewing region settings page. On this page, you can congure
the Region of Interest and the Output Frame Size for a video stream. For example, you can crop
only a portion of the image that is of your interest, and thus save the bandwidth needed to transmit
the video stream. As the picture shown below, the area of your interest in a parking lot should be
the vehicles. The blue sky is of little value for the surveillance purpose.
VIVOTEK
User's Manual - 67
Media > Video
► All the items in the “Region of Interest” should not be larger than the “Output Frame Size“
(current maximum resolution).
■ The parameters of the multiple streams:
When completed with the settings in the Viewing Window, click Save to enable the settings and
click Close to exit the window. The selected Output Frame Size will immediately be applied to
the Frame size of each video stream. Then you can go back to the home page to test the e-PTZ
function. For more information about the e-PTZ function, please refer to page 106.
X2.1
Region of Interest
(Viewing Region)
Output Frame Size
(Size of the Live View Window)
Region of Interest Output frame size
Stream 1 2560x1920 or 2048x1536 ~ 176 x 144
(Selectable)
2560x1920 or 2048x1536 ~ 176x144 (Selectable)
Stream 2 2560x1920 or 2048x1536 ~ 176 x 144
(Selectable)
2560x1920 or 2048x1536 ~ 176 x 144 (Selectable)
Stream 3 2560x1920 or 2048x1536 ~ 176 x 144
(Selectable)
2560x1920 or 2048x1536 ~ 176 x 144 (Selectable)
Stream 4 Fixed Fixed
NOTE:
Please follow the steps below to set up those settings for a stream:
1. Select a stream for which you want to set up the viewing region.
2. Select a Region of Interest from the drop-down list. The oating frame, the same as the one
in the Gloabl View window on the home page, will resize accordingly. If you want to set up
a customized viewing region, you can also resize and drag the floating frame to a desired
position with your mouse.
3. Choose a proper Output Frame Size from the drop-down list according to the size of your
monitoring device.
VIVOTEK
68 - User's Manual
Click the stream item to display the detailed information. The maximum frame size will follow your
settings in the above Viewing Window sections.
This Network Camera offers real-time H.265, H.264 and MJPEG compression standards (Triple
Codec) for real-time viewing. If the H.265 or H.264 mode is selected, the video is streamed via
RTSP protocol. There are several parameters through which you can adjust the video performance:
■ Frame size
You can set up different video resolutions for different viewing devices. For example, set a
smaller frame size and lower bit rate for remote viewing on mobile phones and a larger video
size and a higher bit rate for live viewing on web browsers, or recording the stream to an NVR.
Note that a larger frame size takes up more bandwidth.
■ Maximum frame rate
This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother
video quality and for recognizing moving objects in the eld of view.
If the power line frequency is set to 50Hz , the frame rates are selectable at 1fps, 2fps, 3fps,
5fps, 8fps, 10fps, 12fps, 15fps, and up to 25fps. If the power line frequency is set to 60Hz, the
frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 12fps, 15fps, and up to 30fps.
You can also select Customize and manually enter a value.
VIVOTEK
User's Manual - 69
The frame rate will decrease if you select a higher resolution.
■ Intra frame period
Determine how often for rmware to plant an I frame. The shorter the duration, the more likely
you will get better video quality, but at the cost of higher network bandwidth consumption. Select
the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds,
3 seconds, and 4 seconds.
■ Dynamic Intra frame period
High quality motion codecs, such as H.265, utilize the redundancies between video frames to
deliver video streams at a balance of quality and bit rate.
The encoding parameters are summarized and illustrated below. The I-frames are completely
self-referential and they are largest in size. The P-frames are predicted frames. The encoder
refers to the previous I- or P-frames for redundant image information.
P I P P P P P P P P P P P P P P P P P P P I
P I P P P P P P P I P P P P P P P I
Static scene
Activities
P P P
P I P P P P P P P I P P P P P P P I
By dynamically prolonging the intervals for I-frames insertion to up to 10 seconds, the bit rates
required for streaming a video can be tremendously reduced. When streaming a video of a
static scene, the Dynamic Intra frame feature can save up to 53% of bandwidth. The amount of
bandwidth thus saved is also determined by the activities in the eld of view. If activities occur
in the scene, rmware automatically shortens the I-frame insertion intervals in order to maintain
image quality. In the low light or night conditions, the sizes of P-frames tend to be enlarged due
to the noises, and hence the bandwidth saving effect is also reduced.
Streaming a typical 2MP scene normally requires 3~4Mb/s of bandwidth. With the Dynamic Intra
frame function, the bandwidth for streaming a medium-trafc scene can be reduced to 2~3Mb/s,
and during the no-trafc period of time, down to 500kb/s.
H.264/265 Frame Types
Dynamic Intra Frame w/
static scenes
Dynamic Intra Frame w/
activities in scenes
■ Smart stream II
VIVOTEK
70 - User's Manual
With the H.265 codec in an optimal scenario and when Dynamic Intra frame is combined with
the Smart Stream function, an 80% of bandwidth saving can be achieved compared with using
H.264 without enabling these bandwidth-saving features.
• Smart codec: Smart codec effectively reduces the quality of the whole or the non-
interested areas on a screen and therefore reduces the bandwidth consumed.
You can manually specify the video quality for the foreground and the background areas.
Select an operation mode if Smart codec is preferred.
- Auto tracking: The Auto mode congures the whole screen into the non-interested area.
The video quality of part of the screen returns to normal when one or more objects
move in that area. The remainder of the screen where there are no moving objects
(no pixel changes) will still be transmitted in low-quality format.
- Manual: The Manual mode allows you to congure 3 ROI windows (Region of Interest,
with Foreground quality) on the screen. Areas not included in any ROI windows
will be considered as the non-interested areas. The details in the ROI areas will be
transmitted in a higher-quality video format.
As illustrated below, the upper screen may contain little details of your interest,
while the sidewalk on the lower screen is included in an ROI window.
X
ROI_0
X
ROI_0
ROI
non-interested
VIVOTEK
User's Manual - 71
ROI: higher-quality
non-ROI: lower-quality
As the result, the lower screen is constantly displayed in high details, while the
upper half is transmitted using a lower-quality format. Although the upper half is
transmitted using a lower quality format, you still have an awareness of what is
happening on the whole screen.
- Hybrid: The major difference between the “Manual” mode and the “Hybrid” mode is
that:
In the “Hybrid“ mode, any objects entering the non-interested area will restore
the video quality of the moving objects and the area around them. The video
quality of the associated non-interested area is immediately restored to normal
to cover the moving objects.
In the “Manual” mode, the non-interested area is always transmitted using a
low-quality format regardless of the activities inside.
You should also select the Maximum bit rate from the pull-down menu as the threshold
to contain the bandwidth consumption for both the high- and low-quality video sections
in a smart stream.
- Quality priority: Use the slide bar to tune the quality contrast between the ROI and
non-interested areas.
The farther the slide bar button is to the right, the higher the image quality of
the ROI areas. On the contrary, the farther the slide bar button to the left, the
higher the image quality of the non-interested area.
In this way, you may set up an ROI window as a privacy mask by covering a
protected area using an ROI window, while the remaining screen become the
non-interested area. You may then congure the non-interested area to have a
high image quality, or vice versa.
VIVOTEK
72 - User's Manual
■
Video quality
Constant bit rate:
• Constant bit rate: A complex scene generally produces a larger file size, meaning
that higher bandwidth will be needed for data transmission. The bandwidth
utilization is congurable to match a selected level, resulting in mutable video quality
performance. The bit rates are selectable at the following rates: 20Kbps, 30Kbps,
40Kbps, 50Kbps, 64Kbps, 128Kbps, 256Kbps, 512Kbps, 768Kbps, 1Mbps, 2Mbps,
3Mbps, 4Mbps, 6Mbps, 8Mbps, 10Mbps, 12Mbps, 14Mbps, ~ to 32Mbps. You can
also select Customize and manually enter a value up to 40Mbps.
- Target bit rate: select a bit rate from the pull-down menu. The bit rate ranges from
20kbps to a maximum of 16Mbps. The bit rate then becomes the Average or Upper
bound bit rate number. The Network Camera will strive to deliver video streams
around or within the bit rate limitation you impose.
- Policy: If Frame Rate Priority is selected, the Network Camera will try to maintain
the frame rate per second performance, while the image quality will be compromised.
If Image quality priority is selected, the Network Camera may drop some video
frames in order to maintain image quality.
• Fixed quality: On the other hand, if Fixed quality is selected, all frames are
transmitted with the same quality; bandwidth utilization is therefore unpredictable.
The video quality can be adjusted to the following settings: Medium, Standard, Good,
Detailed, and Excellent. You can also select Customize and manually enter a value.
Maximum bit rate: With the guaranteed image quality, you might still want to place
a bit rate limitation to control the size of video streams for bandwidth and storage
concerns. The congurable bit rate starts from 1Mbps to 40Mbps.
You may also manually enter a bit rate number by selecting the Customized option.
VIVOTEK
User's Manual - 73
If the JPEG mode is selected, the Network Camera sends consecutive JPEG images to the client,
producing a moving effect similar to a lmstrip. Every single JPEG image transmitted guarantees
the same image quality, which in turn comes at the expense of variable bandwidth usage. Because
the media contents are a combination of JPEG images, no audio data is transmitted to the client.
There are three parameters provided in MJPEG mode to control the video performance:
■ Frame size
You can set up different video resolution for different viewing devices. For example, set a smaller
frame size and lower bit rate for remote viewing on mobile phones and a larger video size and
a higher bit rate for live viewing on web browsers. Note that a larger frame size takes up more
bandwidth.
■ Maximum frame rate
This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother
video quality.
If the power line frequency is set to 50Hz (at the 5MP resolution), the frame rates are selectable
at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, and 15fps. If the power line frequency is set to 60Hz, the
frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, and 15fps. You can also select
Customize and manually enter a value. The frame rate will decrease if you select a higher
resolution.
■ Video quality
Refer to the previous page setting an average or upper bound threshold for controlling the
bandwidth consumed for transmitting motion jpegs. The conguration method is identical to that
for H.264.
For Constant Bit Rate and other settings, refer to the previous page for details.
►
Video quality and xed quality refers to the compression rate, so a lower value will produce higher
quality.
►
Converting high-quality video may signicantly increase the CPU loading, and you may encounter
streaming disconnection or video loss while capturing a complicated scene. In the event of
occurance, we suggest you customize a lower video resolution or reduce the frame rate to obtain
smooth video.
NOTE:
VIVOTEK
74 - User's Manual
Media > Audio
Audio Settings
Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note
that if muted, no audio data will be transmitted even if audio transmission is enabled on the Client
Settings page. In that case, the following message is displayed:
External microphone input: Select the gain of the external audio input according to ambient
conditions. Adjust the gain from 0% to 100%.
Audio type: Select audio codec and the sampling bit rate .
■ G.711 also provides good sound quality and requires about 64Kbps. Select pcmu (μ-Law) or
pcma (A-Law) mode.
■ G.726 is a speech codec standard covering voice transmission at rates of 16, 24, 32, and 40kbit/
s.
When completed with the settings on this page, click Save to enable the settings.
VIVOTEK
User's Manual - 75
Network > General settings
This section explains how to configure a wired network connection for the Network
Camera.
Network Type
LAN
Select this option when the Network Camera is deployed on a local area network (LAN) and is
intended to be accessed by local computers. The default setting for the Network Type is LAN.
Please rememer to click on the Save button when you complete the Network setting.
Get IP address automatically: Select this option to obtain an available dynamic IP address assigned
by the DHCP server each time the camera is connected to the LAN.
Use fixed IP address: Select this option to manually assign a static IP address to the Network
Camera.
1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the
Network Camera on LAN. Please refer to Software Installation on page 22 for details.
2. Enter the Static IP, Subnet mask, Default router, and Primary DNS provided by your ISP or
network administrator.
Subnet mask: This is used to determine if the destination is in the same subnet. The default value
is “255.255.255.0”.
Default router: This is the gateway used to forward frames to destinations in a different subnet.
Invalid router setting will disable the transmission to destinations across different subnets.
VIVOTEK
76 - User's Manual
Primary DNS: The primary domain name server that translates hostnames into IP addresses.
Secondary DNS: Secondary domain name server that backups the Primary DNS.
Primary WINS server: The primary WINS server that maintains the database of computer names
and IP addresses.
Secondary WINS server: The secondary WINS server that maintains the database of computer
names and IP addresses.
Enable UPnP presentation: Select this option to enable UPnP
TM
presentation for your Network
Camera so that whenever a Network Camera is presented to the LAN, the shortcuts to connected
Network Cameras will be listed in My Network Places. You can click the shortcut to link to the web
browser. Currently, UPnP
TM
is supported by Windows XP or later. Note that to utilize this feature,
please make sure the UPnP
TM
component is installed on your computer.
Enable UPnP port forwarding: To access the Network Camera from the Internet, select this option
to allow the Network Camera to open ports automatically on the router so that video streams can
be sent out from a LAN. To utilize of this feature, make sure that your router supports UPnP
TM
and
it is activated.
PPPoE (Point-to-point over Ethernet)
Select this option to congure your Network Camera to make it accessible from anywhere as long
as there is an Internet connection. Note that to utilize this feature, it requires an account provided
by your ISP.
Follow the steps below to acquire your Network Camera’s public IP address.
1. Set up the Network Camera on the LAN.
2. Go to Conguration > Event > Event settings > Add server (please refer to Add server on page
114) to add a new email or FTP server.
3. Go to Conguration > Event > Event settings > Add media (please refer to Add media on page
119).
Select System log so that you will receive the system log in TXT le format which contains the
Network Camera’s public IP address in your email or on the FTP server.
4. Go to Conguration > Network > General settings > Network type. Select PPPoE and enter the
user name and password provided by your ISP. Click Save to enable the setting.
5. The Network Camera will reboot.
6. Disconnect the power to the Network Camera; remove it from the LAN environment.
Mega-pixel Network Camera (192.168.5.151)
VIVOTEK
User's Manual - 77
► If the default ports are already used by other devices connected to the same router, the Network
Camera will select other ports for the Network Camera.
► If UPnP
TM
is not supported by your router, you will see the following message:
Error: Router does not support UPnP port forwarding.
► Steps to enable the UPnP
TM
user interface on your computer:
Note that you must log on to the computer as a system administrator to install the UPnP
TM
components.
1. Go to Start, click Control Panel, then click Add or Remove Programs.
2. In the Add or Remove Programs dialog box, click Add/Remove Windows Components.
3.
In the Windows Components Wizard dialog box, select Networking Services and click
Details.
NOTE:
VIVOTEK
78 - User's Manual
4. In the Networking Services dialog box, select Universal Plug and Play and click OK.
5. Click Next in the following window.
6. Click Finish. UPnP
TM
is enabled.
► How does UPnP
TM
work?
UPnP
TM
networking technology provides automatic IP configuration and dynamic discovery of
devices added to a network. Services and capabilities offered by networked devices, such as
printing and file sharing, are available among each other without the need for cumbersome
network conguration. In the case of Network Cameras, you will see Network Camera shortcuts
under My Network Places.
► Enabling UPnP port forwarding allows the Network Camera to open a secondary HTTP port on
the router-not HTTP port-meaning that you have to add the secondary HTTP port number to the
Network Camera’s public address in order to access the Network Camera from the Internet. For
example, when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to
the list below for the Network Camera’s IP address.
From the Internet In LAN
http://203.67.124.123:8080 http://192.168.4.160 or
http://192.168.4.160:8080
► If the PPPoE settings are incorrectly congured or the Internet access is not working, restore
the Network Camera to factory default; please refer to Restore on page 50 for details. After the
Network Camera is reset to factory default, it will be accessible on the LAN.
VIVOTEK
User's Manual - 79
Enable IPv6
Select this option and click Save to enable IPv6 settings.
Please note that this only works if your network environment and hardware equipment support
IPv6. The browser should be Microsoft
®
Internet Explorer 6.5, Mozilla Firefox 3.0 or above.
When IPv6 is enabled, by default, the network camera will listen to router advertisements and be
assigned with a link-local IPv6 address accordingly.
IPv6 Information: Click this button to obtain the IPv6 information as shown below.
If your IPv6 settings are successful, the IPv6 address list will be listed in the pop-up window. The
IPv6 address will be displayed as follows:
Link-global IPv6 address/network mask
Link-local IPv6 address/network mask
Refers to Ethernet
VIVOTEK
80 - User's Manual
Please follow the steps below to link to an IPv6 address:
1. Open your web browser.
2. Enter the link-global or link-local IPv6 address in the address bar of your web browser.
3. The format should be:
4. Press Enter on the keyboard or click Refresh button to refresh the webpage.
For example:
► If you have a Secondary HTTP port (the default value is 8080), you can also link to the webpage
using the following address format: (Please refer to HTTP streaming on page 83 for detailed
information.)
► If you choose PPPoE as the Network Type, the [
PPP0 address] will be displayed in the IPv6
information column as shown below.
Manually setup the IP address: Select this option to manually set up IPv6 settings if your network
environment does not have DHCPv6 server and router advertisements-enabled routers. If
you check this item, the following blanks will be displayed for you to enter the corresponding
information:
http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/
IPv6 address
http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/:8080
IPv6 address
Secondary HTTP port
NOTE:
VIVOTEK
User's Manual - 81
Port
HTTPS port: By default, the HTTPS port is set to 443. It can also be assigned to another port
number between 1025 and 65535.
Two way audio port: By default, the two way audio port is set to 5060. Also, it can also be assigned
to another port number between 1025 and 65535.
The Network Camera supports two way audio communication so that operators can transmit and
receive audio simultaneously. By using the Network Camera’s built-in or external microphone and
an external speaker, you can communicate with people around the Network Camera.
Note that as JPEG only transmits a series of JPEG images to the client, to enable the two-way
audio function, make sure the video mode is set to "H.264" on the Media > Video > Stream settings
page and the media option is set to “Media > Video > Stream settings” on the Client Settings page.
Please refer to Client Settings on page 35 and Stream settings on page 68.
Audio transmitted from operators
Audio transmitted to operators
America
Taiwan
VIVOTEK
82 - User's Manual
FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's
Installation Wizard 2 to upgrade the rmware via FTP server. By default, the FTP port is set to 21.
It also can be assigned to another port number between 1025 and 65535.
2011/03/09 17:08:56
Mute
Mic Volume
Talk Button
Video (TCP-AV)
Audio is being transmitted to the Network Camera
Click to enable audio transmission to the Network Camera; click to adjust the volume of
microphone; click
to turn off the audio. To stop talking, click again.
VIVOTEK
User's Manual - 83
Network > Streaming protocols
HTTP streaming
To utilize HTTP authentication, make sure that your have set a password for the Network Camera
rst; please refer to Security > User account on page 93 for details.
Authentication: Depending on your network security requirements, the Network Camera provides
two types of security settings for an HTTP transaction: basic and digest.
If
basic authentication is selected, the password is sent in plain text format and there can be
potential risks of being intercepted. If
digest authentication is selected, user credentials are
encrypted using MD5 algorithm and thus provide better protection against unauthorized accesses.
HTTP port / Secondary HTTP port: By default, the HTTP port is set to 80 and the secondary HTTP
port is set to 8080. They can also be assigned to another port number between 1025 and 65535. If
the ports are incorrectly assigned, the following warning messages will be displayed:
To access the Network Camera on the LAN, both the HTTP port and secondary HTTP port can
be used to access the Network Camera. For example, when the HTTP port is set to 80 and the
secondary HTTP port is set to 8080, refer to the list below for the Network Camera’s IP address.
Access name for stream 1 ~ 3: This Network camera supports multiple streams simultaneously.
The access name is used to identify different video streams. Users can click Media > Video >
Stream settings to set up the video quality of linked streams. For more information about how to
set up the video quality, please refer to Stream settings on page 66.
When using Mozilla Firefox to access the Network Camera and the video mode is set to JPEG,
users will receive video comprised of continuous JPEG images. This technology, known as “server
push”, allows the Network Camera to feed live pictures to Mozilla Firefox.
On the LAN
http://192.168.4.160 or
http://192.168.4.160:8080
VIVOTEK
84 - User's Manual
URL command -- http://<ip address>:<http port>/<access name for stream 1, 2, 3>
For example, when the Access name for stream 2 is set to video2.mjpg:
1. Launch Mozilla Firefox or Netscape.
2. Type the above URL command in the address bar. Press Enter.
3. The JPEG images will be displayed in your web browser.
NOTE
► Microsoft
®
Internet Explorer does not support server push technology; therefore, you will not be
able to access a video stream using
http://<ip address>:<http port>/<access name for stream 1,
2, 3>
.
RTSP Streaming
To utilize RTSP streaming authentication, make sure that you have set a password for controlling
the access to video stream rst. Please refer to Security > User account on page 93 for details.
http://192.168.5.151/video2.mjpg
NOTE:
VIVOTEK
User's Manual - 85
Authentication: Depending on your network security requirements, the Network Camera provides
three types of security settings for streaming via RTSP protocol: disable, basic, and digest.
If basic authentication is selected, the password is sent in plain text format, but there can be
potential risks of it being intercepted. If
digest authentication is selected, user credentials are
encrypted using MD5 algorithm, thus providing better protection against unauthorized access.
The availability of the RTSP streaming for the three authentication modes is listed below:
Access name for stream 1 ~ 3: This Network camera supports multiple streams simultaneously.
The access name is used to differentiate the streaming source.
If you want to use an
RTSP player to access the Network Camera, you have to set the video mode
to
H.264 or H.265 and use the following RTSP URL command to request transmission of the
streaming data.
rtsp://<ip address>:<rtsp port>/<access name for stream 1 to 3>
For example, when the access name for stream 1 is set to live.sdp:
1. Launch an RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.
3. Type the above URL command in the text box.
4. The live video will be displayed in your player as shown below.
rtsp://192.168.5.151:554/live.sdp
Quick Time player VLC
Disable O O
Basic O O
Digest O X
Video 16:38:01 2012/01/25
RTSP port /RTP port for video, audio/ RTCP port for video, audio
■ RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the
port number is set to 554.
■ The RTP (Real-time Transport Protocol) is used to deliver video and audio data to the clients. By
default, the RTP port for video is set to 5556.
■ The RTCP (Real-time Transport Control Protocol) allows the Network Camera to transmit the
data by monitoring the Internet trafc volume. By default, the RTCP port for video is set to 5557.
The ports can be changed to values between 1025 and 65535. The RTP port must be an even
number and the RTCP port is the RTP port number plus one, and thus is always an odd number.
When the RTP port changes, the RTCP port will change accordingly.
If the RTP ports are incorrectly assigned, the following warning message will be displayed:
VIVOTEK
86 - User's Manual
Multicast settings for streams: Click the items to display the detailed configuration information.
Select the Always multicast option to enable multicast for video streams.
Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the
other hand, sends a stream to the multicast group address and allows multiple clients to acquire
the stream at the same time by requesting a copy from the multicast group address. Therefore,
enabling multicast can effectively save Internet bandwith.
The ports can be changed to values between 1025 and 65535. The multicast RTP port must be an
even number and the multicast RTCP port number is the multicast RTP port number plus one, and
thus is always odd. When the multicast RTP port changes, the multicast RTCP port will change
accordingly.
If the multicast RTP video ports are incorrectly assigned, the following warning message will be
displayed:
Multicast TTL [1~255]: The multicast TTL (Time To Live) is the value that tells the router the range
a packet can be forwarded.
Initial TTL Scope
0 Restricted to the same host
1 Restricted to the same subnetwork
32 Restricted to the same site
64 Restricted to the same region
128 Restricted to the same continent
255 Unrestricted in scope
IMPORTANT:
The Multicast metadata port is utilized by VIVOTEK VADP modules to transfer video analytics
results, PTZ stream, textual data, and event messages between the camera and the client side
running and observing the video analysis. If your client side computer is located outside the local
network, you may need to open the associated TCP port on routers and rewall.
VIVOTEK
User's Manual - 87
Network > DDNS
This section explains how to congure the dynamic domain name service for the Network
Camera. DDNS is a service that allows your Network Camera, especially when assigned
with a dynamic IP address, to have a xed host and domain name.
Express link
Express Link is a free service provided by VIVOTEK server, which allows users to register
a domain name for a network device. One URL can only be mapped to one MAC address.
This service will examine if the host name is valid and automatically open a port on your
router. If using DDNS, the user has to manually congure UPnP port forwarding. Express
Link is more convenient and easier to set up.
Please follow the steps below to enable Express Link:
1. Make sure that your router supports UPnP port forwarding and it is activated.
2. Check Enable express link.
3. Enter a host name for the network device and click Save. If the host name has been used by
another device, a warning message will show up. If the host name is valid, it will display a
message as shown below.
https://0002D1123456.2bthere.net
VIVOTEK
88 - User's Manual
Manual setup
DDNS: Dynamic domain name service
Enable DDNS: Select this option to enable the DDNS setting.
Provider: Select a DDNS provider from the provider drop-down list.
VIVOTEK offers
Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It
is recommended that you register
Safe100.net to access VIVOTEK’s Network Cameras from the
Internet. Additionally, we offer other DDNS providers, such as Dyndns.org(Dynamic), Dyndns.
org(Custom), TZO.com, DHS.org, CustomSafe100, dyn-interfree.it.
Note that before utilizing this function, please apply for a dynamic domain account rst.
■
Safe100.net
1. In the DDNS column, select Safe100.net from the drop-down list. Click I accept after reviewing
the terms of the Service Agreement.
2. In the Register column, ll in the Host name (xxxx.safe100.net), Email, Key, and Conrm Key,
and click Register. After a host name has been successfully created, a success message will
be displayed in the DDNS Registration Result column.
3. Click Copy and all the registered information will automatically be uploaded to the corresponding
elds in the DDNS column at the top of the page as seen in the picture.
[Register] Successfully Your account information has
been mailed to registered e-mail address
VIVOTEK
User's Manual - 89
[Register] Successfully Your account information has
been mailed to registered e-mail address
4. Select Enable DDNS and click Save to enable the setting.
■
CustomSafe100
VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and
system integrators. You can use CustomSafe100 to register a dynamic domain name if your
distributor or system integrators offer such services.
1. In the DDNS column, select CustomSafe100 from the drop-down list.
2. In the Register column, ll in the Host name, Email, Key, and Conrm Key; then click Register.
After a host name has been successfully created, you will see a success message in the DDNS
Registration Result column.
3. Click Copy and all for the registered information will be uploaded to the corresponding elds in
the DDNS column.
4. Select Enable DDNS and click Save to enable the setting.
Forget key: Click this button if you have forgotten the key to Safe100.net or CustomSafe100. Your
account information will be sent to your email address.
Refer to the following links to apply for a dynamic domain account when selecting other
DDNS providers:
■
Dyndns.org(Dynamic) / Dyndns.org(Custom): visit http://www.dyndns.com/
VIVOTEK
90 - User's Manual
Network > QoS (Quality of Service)
Quality of Service refers to a resource reservation control mechanism, which guarantees a certain
quality to different services on the network. Quality of service guarantees are important if the
network capacity is insufcient, especially for real-time streaming multimedia applications. Quality
can be dened as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc.
The following are the main benets of a QoS-aware network:
■
The ability to prioritize trafc and guarantee a certain level of performance to the data ow.
■
The ability to control the amount of bandwidth each application may use, and thus provide higher
reliability and stability on the network.
Requirements for QoS
To utilize QoS in a network environment, the following requirements must be met:
■
All network switches and routers in the network must include support for QoS.
■
The network video devices used in the network must be QoS-enabled.
QoS models
CoS (the VLAN 802.1p model)
IEEE802.1p denes a QoS model at OSI Layer 2 (Data Link Layer), which is called CoS, Class of
Service. It adds a 3-bit value to the VLAN MAC header, which indicates the frame priority level from
0 (lowest) to 7 (highest). The priority is set up on the network switches, which then use different
queuing disciplines to forward the packets.
Below is the setting column for CoS. Enter the VLAN ID of your switch (0~4095) and choose the
priority for each application (0~7).
If you assign Video the highest level, the switch will handle video packets rst.
NOTE:
► A VLAN Switch (802.1p) is required. Web browsing may fail if the CoS setting is incorrect.
►The Class of Service technologies do not guarantee a level of service in terms of bandwidth
and delivery time; they offer a "best-effort." Users can think of CoS as "coarsely-grained" trafc
control and QoS as "nely-grained" trafc control.
► Although CoS is simple to manage, it lacks scalability and does not offer end-to-end guarantees
since it is based on L2 protocol.
VIVOTEK
User's Manual - 91
QoS/DSCP (the DiffServ model)
DSCP-ECN denes QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model
is based on packet marking and router queuing disciplines. The marking is done by adding a eld
to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that
provides 64 different class IDs. It gives an indication of how a given packet is to be forwarded,
known as the Per Hop Behavior (PHB). The PHB describes a particular service level in terms of
bandwidth, queueing theory, and dropping (discarding the packet) decisions. Routers at each
network node classify packets according to their DSCP value and give them a particular forwarding
treatment; for example, how much bandwidth to reserve for it.
Below are the setting options of DSCP (DiffServ Codepoint). Specify the DSCP value for each
application (0~63).
VIVOTEK
92 - User's Manual
Network > SNMP
(Simple Network Management Protocol)
This section explains how to use the SNMP on the network camera. The Simple Network
Management Protocol is an application layer protocol that facilitates the exchange of
management information between network devices. It helps network administrators to
remotely manage network devices and nd, solve network problems with ease.
■ The SNMP consists of the following three key components:
1. Manager: Network-management station (NMS), a server which executes applications that
monitor and control managed devices.
2. Agent: A network-management software module on a managed device which transfers the status
of managed devices to the NMS.
3. Managed device: A network node on a managed network. For example: routers, switches,
bridges, hubs, computer hosts, printers, IP telephones, network cameras, web server, and
database.
Before conguring SNMP settings on the this page, please enable your NMS rst.
SNMP Conguration
Enable SNMPv1, SNMPv2c
Select this option and enter the names of Read/Write community and Read Only community
according to your NMS settings.
Enable SNMPv3
This option contains cryptographic security, a higher security level, which allows you to set the
Authentication password and the Encryption password.
■ Security name: According to your NMS settings, choose Read/Write or Read Only and enter the
community name.
■ Authentication type: Select MD5 or SHA as the authentication method.
■ Authentication password: Enter the password for authentication (at least 8 characters).
■ Encryption password: Enter a password for encryption (at least 8 characters).
VIVOTEK
User's Manual - 93
Security > User accounts
This section explains how to enable password protection and create multiple accounts.
Root Password
The administrator account name is “root”, which is permanent and can not be deleted. If you
want to add more accounts in the Manage User column, please apply the password for the “root”
account rst.
1. Type the password identically in both text boxes, then click Save to enable password protection.
2. A window will be prompted for authentication; type the correct user’s name and password in their
respective elds to access the Network Camera.
Privilege Management
PTZ control: You can modify the management privilege for operators or viewers. Select or deselect
the checkboxes, then click Save to enable the settings. If you give Viewers the privilege, Operators
will also have the ability to control the Network Camera through the main page. (Please refer to
Conguration on page 40).
Allow anonymous viewing: If you check this item, any client can access the live stream without
entering a User ID and Password.
Account Management
Administrators can create up to 20 user accounts.
1. Input the new user’s name and password.
2. Select the privilege level for the new user account. Click Add to enable the setting.
Access rights are sorted by user privilege (Administrator, Operator, and Viewer). Only
administrators can access the Configuration page. Although operators cannot access the
Conguration page, they can use the URL Commands to get and set the value of parameters. For
more information, please refer to URL Commands of the Network Camera on page 143. Viewers
can only access the main page for live viewing.
Here you also can change a user’s access rights or delete user accounts.
1. Select an existing account to modify.
2. Make necessary changes and click Update or Delete to enable the setting.
VIVOTEK
94 - User's Manual
Security > HTTPS
(Hypertext Transfer Protocol over SSL)
This section explains how to enable authentication and encrypted communication over
SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet
on higher security level.
Create and Install Certicate Method
Before using HTTPS for communication with the Network Camera, a Certicate must be created
rst. There are three ways to create and install a certicate:
Create self-signed certificate
1. Select this option from a pull-down menu.
2. In the rst column, select Enable HTTPS secure connection, then select a connection option:
“HTTP & HTTPS” or “HTTPS only”.
3. Click Create certicate to generate a certicate.
4. The Certicate Information will automatically be displayed as shown below. You can click Certi-
cate properties to view detailed information about the certicate.
VIVOTEK
User's Manual - 95
5. Click Save to preserve your conguration, and your current session with the camera will change
to the encrypted connection.
6. If your web session does not automatically change to an encrypted HTTPS session, click Home
to return to the main page. Change the URL address from “
http://” to “https://“ in the address bar
and press Enter on your keyboard. Some Security Alert dialogs will pop up. Click OK or Yes to
enable HTTPS.
https://192.168.5.151/index.html
https://
VIVOTEK
96 - User's Manual
Create certificate request and install
1. Select the option from the Method pull-down menu.
2. Click Create certicate to proceed.
3. The following information will show up in a pop-up window after clicking Create. Then click Save
to generate the certicate request.
4. The Certicate request window will prompt.
If you see the following Information bar, click OK and click on the Information bar at the top of
the page to allow pop-ups.
VIVOTEK
User's Manual - 97
5. Look for a trusted certicate authority, such as Symantec’s VeriSign Authentication Services, that
issues digital certicates. Sign in and purchase the SSL certication service. Copy the certicate
request from your request prompt and paste it in the CA’s signing request window. Proceed with
the rest of the process as CA’s instructions on their webpage.
6. Once completed, your SSL certicate should be delivered to you via an email or other means.
Copy the contents of the certicate in the email and paste it in a text/HTML/hex editor/converter,
such as IDM Computer Solutions’ UltraEdit.
VIVOTEK
98 - User's Manual
7. Open a new edit, paste the certicate contents, and press ENTER at the end of the contents to
add an empty line.
8. Convert le format from DOS to UNIX. Open File menu > Conversions > DOS to Unix.
VIVOTEK
User's Manual - 99
9. Save the edit using the “.crt” extension, using a le name like “CAcert.crt.”
10. Return to the original rmware session, use the Browse button to locate the crt certicate le,
and click Upload to enable the certication.
VIVOTEK
100 - User's Manual
11. When the certifice file is successfully loaded, its status will be stated as Active.
Note that
a certicate must have been created and installed before you can click on the “Save"
button for the conguration to take effect.
12.To begin an encrypted HTTPS session, click Home to return to the main page. Change the URL
address from “
http://” to “https://“ in the address bar and press Enter on your keyboard. Some
Security Alert dialogs will pop up. Click OK or Yes to enable HTTPS.
VIVOTEK
User's Manual - 101
Security > Access List
This section explains how to control access permission by verifying the client PC’s IP
address.
General Settings
Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for
1~10 clients (including stream 1 to stream 3). The default value is 10. If you modify the value and
click Save, all current connections will be disconnected and automatically attempt to re-link (IE
Explorer or Quick Time Player).
View Information: Click this button to display the connection status window showing a list of the
current connections. For example:
Note that only consoles that are currently displaying live streaming will be listed in the View
Information list.
■ IP address: Current connections to the Network Camera.
■ Elapsed time: How much time the client has been at the webpage.
■ User ID: If the administrator has set a password for the webpage, the clients have to enter a
user name and password to access the live video. The user name will be displayed in the User
ID column. If the administrator allows clients to link to the webpage without a user name and
password, the User ID column will be empty.
There are some situations that allow clients access to the live video without a user name and
password:
1. The administrator does not set up a root password. For more information about how to set up
a root password and manage user accounts, please refer to Security > User account on page
93.
2. The administrator has set up a root password, but set RTSP Authentication to “disable“. For
more information about RTSP Authentication, please refer to RTSP Streaming on page 84.
3. The administrator has set up a root password, but allows anonymous viewing. For more
information about Allow Anonymous Viewing, please refer to page 93.
VIVOTEK
102 - User's Manual
■ Refresh: Click this button to refresh all current connections.
■ Add to deny list: You can select entries from the Connection Status list and add them to the
Deny List to deny access. Please note that those checked connections will only be disconnected
temporarily and will automatically try to re-link again (IE Explore or Quick Time Player). If you
want to enable the denied list, please check Enable access list ltering and click Save in the
rst column.
■ Disconnect: If you want to break off the current connections, please select them and click this
button. Please note that those checked connections will only be disconnected temporarily and
will automatically try to re-link again (IE Explore or Quick Time Player).
Filter
Enable access list ltering: Check this item and click Save if you want to enable the access list
ltering function.
Filter type: Select Allow or Deny as the lter type. If you choose Allow Type, only those clients
whose IP addresses are on the Access List below can access the Network Camera, and the others
cannot. On the contrary, if you choose Deny Type, those clients whose IP addresses are on the
Access List below will not be allowed to access the Network Camera, and the others can.
Then you can Add a rule to the following Access List. Please note that the IPv6 access list column
will not be displayed unless you enable IPv6 on the Network page. For more information about
IPv6 Settings, please refer to Network > General settings on page 75 for detailed information.
VIVOTEK
User's Manual - 103
Network: This rule allows the user to assign a network address and corresponding subnet mask to
the Allow/Deny List. The address and network mask are written in CIDR format.
For example:
Range: This rule allows the user to assign a range of IP addresses to the Allow/Deny List.
Note: This rule only applies to IPv4 addresses.
For example:
Administrator IP address
Always allow the IP address to access this device: You can check this item and add the
Administrator’s IP address in this eld to make sure the Administrator can always connect to the
device.
IP address range 192.168.2.x will be bolcked.
There are three types of rules:
Single: This rule allows the user to add an IP address to the Allowed/Denied list.
For example:
192.168.2.1
If IPv6 lter is preferred, you will be prompted by the following window. Enter the IPv6 address and
the two-digit prex length to specify the range of IP addresses in your conguration.
VIVOTEK
104 - User's Manual
Security > IEEE 802.1X
Enable this function if your network environment uses IEEE 802.1x, which is a port-based network
access control. The network devices, intermediary switch/access point/hub, and RADIUS server
must support and enable 802.1x settings.
The 802.1x standard is designed to enhance the security of local area networks, which provides
authentication to network devices (clients) attached to a network port (wired or wireless). If all
certicates between client and server are veried, a point-to-point connection will be enabled; if
authentication fails, access on that port will be prohibited. 802.1x utilizes an existing protocol, the
Extensible Authentication Protocol (EAP), to facilitate communication.
■
The components of a protected network with 802.1x authentication:
1.
Supplicant: A client end user (camera), which requests authentication.
2.
Authenticator (an access point or a switch): A “go between” which restricts unauthorized end
users from communicating with the authentication server.
3.
Authentication server (usually a RADIUS server): Checks the client certificate and decides
whether to accept the end user’s access request.
■
VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP-
PEAP and EAP-TLS.
Please follow the steps below to enable 802.1x settings:
1. Before connecting the Network Camera to the protected network with 802.1x, please apply
a digital certificate from a Certificate Authority (i.e., your network administrator) which can be
validated by a RADIUS server.
2. Connect the Network Camera to a PC or notebook outside of the protected LAN. Open the
conguration page of the Network Camera as shown below. Select EAP-PEAP or EAP-TLS as
the EAP method. In the following blanks, enter your ID and password issued by the CA, then
upload related certicate(s).
Supplicant
(Network Camera)
Authenticator
(Network Switch)
Authentication Server
(RADIUS Server)
VIVOTEK
User's Manual - 105
3. When all settings are complete, move the Network Camera to the protected LAN by connecting
it to an 802.1x enabled switch. The devices will then start the authentication automatically.
VIVOTEK
Network Camera
RADIUS Server
Certificate Authority
(CA)
Protected LAN
Certificate
1
1
2
3
4
Network Switch
Certificate
NOTE:
► The authentication process for 802.1x:
1. The Certicate Authority (CA) provides the required signed certicates to the Network Camera
(the supplicant) and the RADIUS Server (the authentication server).
2. A Network Camera requests access to the protected LAN using 802.1X via a switch (the
authenticator). The client offers its identity and client certicate, which is then forwarded by the
switch to the RADIUS Server, which uses an algorithm to authenticate the Network Camera and
returns an acceptance or rejection back to the switch.
3. The switch also forwards the RADIUS Server’s certicate to the Network Camera.
4. Assuming all certicates are validated, the switch then changes the Network Camera’s state to
authorized and is allowed access to the protected network via a pre-congured port.
VIVOTEK
106 - User's Manual
PTZ > PTZ settings
This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation.
Digital: Control the e-PTZ operation. Within a eld of view,it allows users to quickly move the
focus to a target area for close-up viewing without physically moving the camera.
Digital PTZ Operation (E-PTZ Operation)
The e-PTZ control settings section will be displayed as shown below:
For e-PTZ related details, please refer to page 108.
Auto pan/patrol speed: Select the speed from 1~5 (slow/fast) to set up the Auto pan/patrol speed control.
Zoom factor display
If you check this item, the zoom indicator will be displayed on the home page when you zoom in/out the
live viewing window as the picture shown on the next page.
When completed with the e-PTZ settings, click Save to enable the settings on this page.
x1.8
x1.8
2015/05/20 09:57:30
VIVOTEK
User's Manual - 107
Home page in the E-PTZ Mode
■ The e-Preset Positions will also be displayed on the home page. Select one from the drop-down
list, and the Network Camera will move to the selected position.
■ If you have set up different preset positions for different streams, you can select one of the video
streams to display its separate preset positions.
Global View
In addition to using the e-PTZ control panel, you can also use the mouse to drag or resize the
floating frame to pan/tilt/zoom the viewing region. The live view window will also move to the
viewing region accordingly.
Moving Instantly
If you check this item, the live view window will switch to the new viewing region instantly after you
move the oating frame. If not selected, the process of moving from one position to another will be
shown.
Click on Image
The e-PTZ function also supports “Click on Image“. When you click on any point of the Global View
Window or Live View Window, the viewing region will also move to that point.
Note that the”Click on Image” function only applies when you have congured a smaller “Region
of Interest” out of the maximum output frame! e.g., an 800 x 600 region from out of the camera’s
maximum frame size.
Patrol button: Click this button, then the Network Camera will patrol among the selected preset
positions continuously.
x3.3
VIVOTEK
108 - User's Manual
Patrol settings
You can select some preset positions for the Network Camera to patrol.
Please follow the steps below to set up a patrol schedule:
1. Select the preset locations on the list, and click
.
2. The selected preset locations will be displayed on the Patrol locations list.
3. Set the Dwelling time for the preset location during an auto patrol.
4. If you want to delete a preset location from the Patrol locations list, select it and click Remove.
5. Select a location and click
to rearrange the patrol order.
6. Select patrol locations you want to save in the list and click Save to enable the patrol settings.
7. To implement the patrol schedule, please go to homepage and click on the Patrol button.
x1.8
2015/3/20 09:57:30
1
2
6
54
3
VIVOTEK
User's Manual - 109
►
The Preset Positions will also be displayed on the Home page. Select one from the Go to menu, and
the Network Camera will move to the selected preset position.
►
Click Patrol: The Network Camera will patrol along the selected positions repeatedly.
NOTE:
VIVOTEK
110 - User's Manual
Event > Event settings
This section explains how to congure the Network Camera to respond to particular situations
(event). A typical application is that when a motion is detected, the Network Camera sends
buffered images to an FTP server or e-mail address as notifications. Click on Help, there is
an illustration shown in the pop-up window explaining that an event can be triggered by many
sources, such as motion detection or external digital input devices. When an event is triggered,
you can specify what type of action that will be performed. You can configure the Network
Camera to send snapshots or videos to your email address or FTP site.
Event
To congure an event with reactive measures such as recording video or snapshots, it is necessary to
congure the server and media settings so that the Network Camera will know what action to take (such
as which server to send the media les to) when a trigger is activated. An event is an action initiated by a
user-dened trigger source
.
In the Event column, click Add to open the event settings window. Here you
can arrange three elements -- Schedule, Trigger, and Action to set an event. A total of 3 event settings
can be congured.
VIVOTEK
User's Manual - 111
■ Event name: Enter a name for the event setting.
■ Enable this event: Select this checkbox to enable the event setting.
■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher
priority setting will be executed rst.
■ Detect next motion detection or digital input after
seconds: Enter the duration in seconds to pause
motion detection after a motion is detected. This can prevent event-related actions to take place too
frequently.
1.
Schedule
Specify the period of time during which the event trigger will take effect. Please select the days of the
week and the time in a day (in 24-hr time format) for the event triggering schedule. For example, you
may prefer an event to be triggered only during the off-ofce hours.
2. Trigger
This is the cause or stimulus which denes when to trigger the Network Camera. The trigger source can
be congured to use the Network Camera’s built-in motion detection mechanism or external digital input
devices.
There are several choices of trigger sources as shown on the next page.
Select the item to display the
detailed conguration options.
■ Video motion detection
This option makes use of the built-in motion detection mechanism as a trigger source. To enable this
function, you need to congure a Motion Detection Window rst. For more information, please refer to
Motion Detection on page 124 for details.
■ Periodically
This option allows the Network Camera to trigger periodically for every other dened minute. Up to 999
minutes are allowed.
■ Digital input
This option allows the Network Camera to use an external digital input device or sensor as a trigger
source. Depending on your application, there are many choices with digital input devices on the market
which help detect changes in temperature, vibration, sound, light, etc.
■ System boot
This option triggers the Network Camera when the power to the Network Camera is disconnected and
re-connected.
■ Recording notify
This option allows the Network Camera to trigger when the recording disk is full or when recording
starts to overwrite older data.
VIVOTEK
112 - User's Manual
■ Camera tampering detection
This option allows the Network Camera to trigger when the camera detects that is is being tampered
with. To enable this function, you need to congure the Tampering Detection option rst. Please refer
to page 128 for detailed information.
■ Manual Triggers
This option allows users to enable event triggers manually by clicking the on/off button on the
homepage. Please congure 1 to 3 associated events before using this function.
■ Audio detection
A preset threshold can be congured with an external microphone as the trigger to system event. The
triggering condition can be an input exceeding or falling below a threshold. Audio detection can take
place as a complement to motion detection or as a method to detect activities not covered by the
camera's view.
■ VADP
It is presumed that you already uploaded and enabled the VADP modules before you can associatee
VADP triggers with an Event setting.
Click on the Set VADP Trigger button to open the VADP setup menu. The triggering conditions
available with 3rd-party software modules known as VADP will be listed. Use the arrow buttons to
select these triggers. Users may implant these modules for different purposes such as triggering
motion detection, or applications related to video analysis, etc. Please refer to page 131 for the
conguration options with VADP modules.
VIVOTEK
User's Manual - 113
3. Action
Dene the actions to be performed by the Network Camera when a trigger is activated.
■ Trigger digital output for
seconds
Select this option to turn on the external digital output device when a trigger is activated. Specify
the length of the trigger interval in the text box.
■ Backup media if the network is disconnected
Select this option to backup media le on SD card if the network is disconnected. This function
will only be displayed after you set up a network storage (NAS). The media to back up can
include snapshot images, video, or system logs depending on your event settings.
Once the triggers are congured, they will be listed under the VADP option.
VIVOTEK
114 - User's Manual
Add server
It is necessary to congure the server and media settings so that the Network Camera will know what
action to take (such as which server to send the media les to) when a trigger is activated. Click
Add
server
to open the server setting window. You can specify where the notication messages are sent to
when a trigger is activated. A total of 5 server settings can be congured.
There are four choices of server types available: Email, FTP, HTTP, and Network storage.
Select the item
to display the detailed conguration options. You can congure either one or all of them.
Server type - Email
Select to send the media les via email when a trigger is activated.
■ Server name: Enter a name for the server setting.
■ Sender email address: Enter the email address of the sender.
■ Recipient email address: Enter the email address of the recipient.
■ Server address: Enter the domain name or IP address of the email server.
■ User name: Enter the user name of the email account if necessary.
■ Password: Enter the password of the email account if necessary.
■ Server port: The default mail server port is set to 25. You can also manually set another port.
If your SMTP server requires a secure connection (SSL), select This server requires a secure
connection (SSL).
VIVOTEK
User's Manual - 115
To verify if the email settings are correctly congured, click Test. The result will be shown in a pop-up
window. If successful, you will also receive an email indicating the result.
Click Save server to enable the settings.
Note that after you congure the rst event server, the new event server will automatically display on the
Server list. If you wish to add other server options, click Add server.
Server type - FTP
Select to send the media les to an FTP server when a trigger is activated.
■ Server name: Enter a name for the server setting.
■ Server address: Enter the domain name or IP address of the FTP server.
■ Server port: By default, the FTP server port is set to 21. It can also be assigned to another port number
between 1025 and 65535.
■ User name: Enter the login name of the FTP account.
■ Password: Enter the password of the FTP account.
■ FTP folder name
Enter the folder where the media les will be placed. If the folder name does not exist, the Network
Camera will automatically create one on the FTP server.
VIVOTEK
116 - User's Manual
■ Passive mode
Most firewalls do not accept new connections initiated from external requests. If the FTP server
supports passive mode, select this option to enable passive mode FTP and allow data transmission to
pass through the rewall. The rmware default has the Passive mode checkbox selected.
To verify if the FTP settings are correctly congured, click Test. The result will be shown in a pop-up
window as shown below. If successful, you will also receive a test.txt le on the FTP server.
Click Save server to enable the settings.
Server type - HTTP
Select to send the media les to an HTTP server when a trigger is activated.
■ Server name: Enter a name for the server setting.
■ URL: Enter the URL of the HTTP server.
■ User name: Enter the user name if necessary.
■ Password: Enter the password if necessary.
To verify if the HTTP settings are correctly congured, click Test. The result will be shown in a pop-up
window as shown below. If successful, you will receive a test.txt le on the HTTP server.
Click Save server to enable the settings.
VIVOTEK
User's Manual - 117
Network storage:
Select to send the media les to a networked storage when a trigger is activated. Please refer to NAS
server on page 137 for details. Note that only one NAS server can be congured.
Click Save server to enable the settings.
■ SD Test: Click to test your SD card. The system will display a message indicating the result as a
success or a failure. If you want to use your SD card for local storage, please format it before use.
Please refer to page 119 for detailed information.
■ View: Click this button to open a le list window. This function is only for SD card and Network Storage.
If you click the View button for an SD card, a Local storage page will prompt so that you can manage
the recorded les on SD card. For more information about Local storage, please refer to page 139.
If you click the View button for a Network storage, a le directory window will prompt for you to view
recorded data on Network storage. For detailed illustration, please refer to the next page.
■ Create folders by date, time, and hour automatically: If you select this item, the system will
automatically create folders by the date when video footages are stored onto the networked storage.
The following is an example of a le destination with video clips:
20150120
20150121
20150122
Click to delete selected items
Click to delete all recorded data
The format is: YYYYMMDD
Click to open the directory
VIVOTEK
118 - User's Manual
Click 20150120 to open the directory:
Click to delete
selected items
Click to delete all
recorded data
Click to go back to the previous
level of the directory
The format is: HH (24r)
Click to open the le list for that hour
The format is: File name prex + Minute (mm)
You can set up the le name prex on Add media page. Please
refer to
next page for detailed information.
2015/01/20
2015/01/20
2015/01/20
2015/01/20
VIVOTEK
User's Manual - 119
Add media
Click
Add media
to open the media setting window. You can specify the type of media that will be
sent when a trigger is activated. A total of 5 media settings can be congured. There are three choices
of media types available: Snapshot, Video Clip, and System log.
Select the item to display the detailed
conguration options. You can congure either one or all of them.
Media type - Snapshot
Select to send snapshots when a trigger is activated.
■ Media name: Enter a name for the media setting.
■ Source: Select to take snapshots from any of the video streams.
■ Send
pre-event images
The Network Camera has a buffer to temporarily hold data up to a certain limit. Enter a number to
decide how many images to capture before a trigger is activated. Up to 7 images can be generated.
■ Send
post-event images
Enter a number to decide how many images to capture after a trigger is activated. Up to 7 images can
be generated.
For example, if both the Send pre-event images and Send post-event images are set to 7, a total of 15
images can be generated after a trigger is activated.
■ File name prex
Enter the text that will be appended to the front of the le name.
1 pic. 2 pic. 3 pic. 4 pic. 5 pic. 6 pic. 7 pic. 8 pic. 9 pic.
10 pic. 11 pic. 10 pic. 12 pic. 13 pic. 14 pic. 15 pic.
Trigger Activation
VIVOTEK
120 - User's Manual
■ Add date and time sufx to the le name
Select this option to add a date/time sufx to the le name.
For example:
Click Save media to enable the settings.
Note that after you set up the rst media server, a new column for media server will automatically display
on the Media list. If you wish to add more media options, click Add media.
Media type -
Video clip
Select to send video clips when a trigger is activated.
■ Media name: Enter a name for the media setting.
■ Source: Select a video stream as the source of video clip.
■ Pre-event recording
The Network Camera has a buffer to temporarily hold data up to a certain limit. Enter a number to
decide the duration of recording before a trigger is activated. Up to 9 seconds can be set.
■ Maximum duration
Specify the maximum recording duration in seconds. The duration can be up to 10 seconds.
For example, if pre-event recording is set to five seconds and the maximum duration is set to ten
seconds, the Network Camera continues to record for another 4 seconds after a trigger is activated.
Snapshot_20150513_100341
Date and time suffix
The format is: YYYYMMDD_HHMMSS
File name prefix
1 sec. 2 sec. 3 sec. 4 sec. 5 sec. 6 sec. 7 sec. 8 sec. 9 sec. 10 sec.
Trigger Activation
VIVOTEK
User's Manual - 121
■ Maximum le size
Specify the maximum le size allowed. Some users may need to stitch the video clips together when
searching and packing up forensic evidence.
■ File name prex
Enter the text that will be appended to the front of the le name.
For example:
Click Save media to enable the settings.
Media type - System log
Select to send a system log when a trigger is activated.
Click Save media to enable the settings, then click Close to exit the page.
Video_20150513_100341
Date and time suffix
The format is: YYYYMMDD_HHMMSS
File name prefix
VIVOTEK
122 - User's Manual
In the Event settings column, the Servers and Medias you congured will be listed; please make sure the
Event -> Status is indicated as ON, in order to enable the event triggering action.
When completed, click the Save event button to enable the settings and click Close to exit Event
Settings page. The new Event / Server settings / Media will appear in the event drop-down list on the
Event setting page.
Please see the example of the Event setting page below:
When the Event Status is ON, the event configuration above is triggered by motion detection, the
Network Camera will automatically send snapshots via e-mail.
If you want to stop the event trigger, you can click on the
ON button to turn it to OFF status or click the
Delete button to remove the event setting.
To remove a server setting from the list, select a server name from the drop-down list and click Delete.
Note that you can only delete a server setting when it is not applied in an existing event setting.
To remove a media setting from the list, select a media name from the drop-down list and click Delete.
Note that you can only delete a media setting when it is not applied in an existing event setting.
VIVOTEK
User's Manual - 123
Customized Script
This function allows you to upload a sample script (.xml le) to the camera, which will save your time on
conguring the settings. Please note that there is a limited number of customized scripts you can upload;
if the current amount of customized scripts has reached the limit, an alert message will prompt. If you
need more information, please contact VIVOTEK technical support.
20150213
20150213
Click to upload a le
Click to modify the
script online
VIVOTEK
124 - User's Manual
Motion Detection Setting 2:
For special situations
Motion Detection Setting 1:
For normal situations
Applications > Motion detection
This section explains how to congure the Network Camera to enable motion detection. A total
of 5 motion detection windows can be congured.
Follow the steps below to enable motion detection:
1. Click New to add a new motion detection window.
2. In the Window Name text box, enter a name for the motion detection window.
■ Use 4 mouse clicks to designate a detection window. You can change the window shape by dragging
the corner marks to a preferred location.
■ Drag the item size tab to change the minimum size of item to trigger an alarm. An item size box will
appear in the center of screen for your reference (in semi-transparent red). An intruding object must
be larger than the Item size to trigger an alarm. Change the item size according to the live view.
■ To delete a window, click the X mark on the right of the window name.
3. Dene the sensitivity to moving objects by moving the Sensitivity slide bar. Note that a high sensitivity
is prone to produce false alarms such as the fast changes of light (such as day/night mode switch,
turning lights on/off). A movement must persist longer than 0.3 second for the motion to be detected.
4. Click Save to enable the settings.
5. Select Enable motion detection to enable this function.
For example:
The Percentage Indicator will rise or fall depending on the variation between sequential images. When
motions are detected by the Network Camera and are considered to exceed the preset threshold, the red
bar rises. Meanwhile, the motion detection window will be outlined in red.
VIVOTEK
User's Manual - 125
A green bar indicates that even though motions have been detected, the event has not been triggered
because the image variations still fall under the preset threshold.
If you want to congure other motion detection settings for day/night/schedule mode (e.g., for a different
lighting condition), please click Profile to open the Motion Detection Profile Settings page as shown
below. Another three motion detection windows can be congured on this page.
Larger than the
min. item size
Photos or videos can be captured instantly and congured to be sent to a remote server (via an Email or
FTP server). For more information on how to congure an event setting, please refer to Event settings on
page 110.
Please follow the steps beolw to set up a prole:
1. Create a new motion detection window.
2. Click the Prole mode tab.
3. Select the applicable Schedule mode. Please manually enter a time range.
4. Click Save to enable the settings and click Close to exit the page.
VIVOTEK
126 - User's Manual
This motion detection window will also be displayed on the Event Settings page. You can go to Event
> Event settings > Trigger to select it as a trigger source. Please refer to page 135 for detailed
information.
► How does motion detection work?
There are two motion detection parameters: Sensitivity and Min. Item Size. As illustrated above, frame
A and frame B are two sequential images. Pixel differences between the two frames are detected and
highlighted in gray in which the sensitivity setting will take effect. Sensitivity is a value that expresses
the sensitivity to moving objects. A higher sensitivity setting allows camera to detect slight movements
while a lower sensitivity setting will neglect them.
The minimum item size is a threshold value that determines how many “alerted pixels” can trigger an
event. When the size of an intruding object is larger than the minimum size, and its movement persist
for 0.3 second, the motion is judged to exceed the dened threshold; and the motion window will be
outlined in red. With a large minimum item size, the size of moving object in frame C is considered as
smaller than the minimum item size, no motion alarm is triggered. With a smaller minimum item size,
the same moving object in frame D triggers the alarm.
For applications that require a high level of security management, it is suggested to use higher
sensitivity settings. However, a higher sensitivity level can also produce false alarms due to fast light
changes when switching between the day and night modes, AE switch, turning the light on or off, etc.
A
B D
C
Min. item size
Alerted pixels < Min. item size
Alerted pixels > Min. item size
Min. item size
NOTE:
VIVOTEK
User's Manual - 127
Applications > DI and DO
Digital input: Select High or Low as the Normal status for the digital input connection. Connect
the digital input pin of the Network Camera to an external device to detect the current connection
status.
Digital output: Select Grounded or Open to dene the normal status for the digital output. Connect
the digital output pin of the Network Camera to an external device to determine the current status.
Set up the event source as DI on Event > Event settings > Trigger. Please refer to page 111 for
detailed information.
VIVOTEK
128 - User's Manual
Applications > Tampering detection
This section explains how to set up camera tamper detection. With tamper detection, the
camera is capable of detecting incidents such as redirection, blocking or defocusing, or
even spray paint.
Please follow the steps below to set up the camera tamper detection function:
1. Click to select the checkbox before tampering conditions: Tampering detection, Image
too dark, Image too bright, and Image too blurry. Enter the tamper trigger duration.
(10 sec. ~ 10 min.). The duraction specifies the set of time before the tampering is
considered as a real alarm. This helps avoid false alarms by short-lived changes.
The tamper alarm will be triggered only when the tampering factor (the difference
between current frame and pre-saved background) exceeds the trigger threshold.
Conditions such as image too dark, too bright, or too blurry (defocused) can also be
configured as tampering conditions. The Trigger threshold determines how sensitive
your is tamper detection setting. Lower the threshold number, easier to trigger.
Too bright: shining a flash light. The average lighting level of the scene is taken into
consideration.
Too dark: covering the objective or spraying paint.
Too blurry: blurry scene can be the result of strong interference on the device, such as
EMI interference.
2. You can configure Tampering Detection as a trigger element to the proactive event
congurations in Event -> Event settings -> Trigger. For example, when the camera is
tampered with, camera can be congured to send the pre- and post-event video clips to
a networked storage device. Please refer to page 112 for detailed information.
VIVOTEK
User's Manual - 129
Applications > Audio detection
Audio detection, along with video motion detection, is applicable in the following scenarios:
1. Detection of activities not covered by camera view, e.g., a loud input by gun shots or breaking a
door/window.
2. A usually noisy environment, such as a factory, suddenly becomes quiet due to a breakdown of
machines.
3. A PTZ camera can be directed to turn to a preset point by the occurrence of audio events.
4. Dark environments where video motion detection may not function well.
The red circles indicate where the audio alarms can be triggered when breaching or falling below
the preset threshold.
How to congure Audio detection:
1. Once the Audio detection window is opened, the current sound input will be interactively
indicated by a uctuating yellow wave diagram.
2. Use a mouse click to drag the Alarm level tab to a preferred location on the slide bar.
3. Select the “Enable audio detection“ checkbox and click Save to enable the feature.
1. Note that the volume numbers (0~100) on the side of wave diagram does not represent decibel
(dB). Sound intensity level has already been mapped to preset values. You can, however, use
the real-world inputs at your installation site that are shown on the wave diagram to congure
an alarm level.
2. To configure this feature, you must not mute the audio in Configuration > Media > Audio.
The default of the camera can be muted due to the lack of an internal microphone. An external
microphone is provided by users.
NOTE:
VIVOTEK
130 - User's Manual
IMPORTANT:
• If the Alarm level and the received volume are set within a range of 20% on the wave
diagram, frequent alarms will be triggered. It is recommended to set the Alarm level
farther apart from the detected sound level.
• To configure and enable this feature, you must not configure video stream #1 into
Motion JPEG. If an external microphone input is connected and recording of audio
stream is preferred, audio stream is transmitted between camera and viewer/recording
station along with stream #1.
• Refer to page 74 for Audio settings, and page 68 for video streaming settings.
You can use the Prole window to congure a different Audio detection setting. For example, a
place can be noisy in the day time and become very quiet in the night.
1. Click on the Enable this prole checkbox. Once the Audio detection window is opened, the
current sound input will be interactively indicated by a uctuating yellow wave diagram.
2. Use a mouse click to drag the Alarm level tab to a preferred location on the slide bar.
3. Select the Day, Night, or Schedule mode check circles. You may also manually congure a
period of time during which this prole will take effect.
4. Click Save and then click Close to complete your conguration.
VIVOTEK
User's Manual - 131
Applications > Package management - a.k.a., VADP (VIVOTEK
Application Development Platform)
Users can store and execute VIVOTEK's or 3rd-party software modules onto the camera's
flash memory or SD card. These software modules can apply in video analysis for
intelligent video applications such as license plate recognition, object counting, or as an
agent for edge recording, etc.
• Once the software package is successfully uploaded, the module conguration (vadp.
xml) information is displayed. When uploading a module, the camera will examine
whether the module fits the predefined VADP requirements. Please contact our
technical support or the vendor of your 3rd-party module for the parameters contained
within.
• Users can also run VIVOTEK's VADP packages as a means to access updated
functionality instead of replacing the entire rmware.
• Note that for some cameras the flash is too small to hold VADP packages. These
cameras will have its "Save to SD card" checkbox selected and grayed-out for all time.
• The le system of SD card (FAT32) does not support soft (symbolic) link. It will return
failure if your module tries to create soft links on SD card.
To utilize a software module, acquire the software package and click Browse and Upload
buttons. The screen message for a successful upload is shown below:
VIVOTEK
132 - User's Manual
To start a module, select the checkcircle in front, and click the Start button.
If you should need to remove a module, select the checkcircle in front and then click the
Stop button. By then the module status will become OFF, and the X button will appear at
the end of the row. Click on the X button to remove an existing module.
When prompted by a conrm message, Click Yes to proceed.
Yes
No
Note that the actual memory consumed while operating the module will be indicated on the
Memory status eld. This helps determine whether a running module has consumed too
much of system resources.
VIVOTEK
User's Manual - 133
On the License page, use the Manual or Automatic to register and activate the license for
using VIVOTEK's VADP modules. The Automatic method requires an Internet connection.
Without Internet connection, you should acquire the license key elsewhere, and manually
upload to the network camera.
Follow the onscreen instruction on VIVOTEK's website for the registration procedure.
user
You can proceed with the following link to download a license key: http://www.vivotek.
com/vadp_requestactivation.aspx?application=VCA or http://www.vivotek.com/
vca/#downloads.
When the license key is downloaded to your computer, upload the key to the camera.
VIVOTEK
134 - User's Manual
Recording > Recording settings
This section explains how to congure the recording settings for the Network Camera.
Recording Settings
► Please remember to format your SD card via the camera’s web console (in the Local storage .
SD card management page) when using it for the first time. Please refer to page 139 for detailed
information.
Insert your SD card and click here to test
Recording Settings
Click Add to open the recording setting window. On this page, you can dene the adaptive recording,
recording source, recording schedule, and recording capacity. A total of 2 recording settings can be
congured.
■ Recording name: Enter a name for the recording setting.
■ Enable this recording: Select this option to enable video recording.
■ With adaptive recording:
Select this option will activate the frame rate control according to alarm trigger.
The frame control means that when there is a triggered alarm, the frame rate will raise up to the value
you’ve congured on the Video quality page. Please refer to page 69 for more information.
NOTE:
VIVOTEK
User's Manual - 135
The alarm trigger includes: motion detection and DI detection. Please refer to Event Settings on page 110.
■ Pre-event recording and post-event recording
The Network Camera has a buffer that temporarily holds data for a period of time. Therefore, when an
event occurs, the camera can restrieve image frames taken several seconds ago. Enter a number to
dene the duration of recording before and after a trigger is activated.
■ Priority: Select the relative importance of this recording (High, Normal, or Low). Recording with a higher
priority setting will be executed rst.
■ Source: Select a video stream as the recording source.
► To enable recording notication please congure Event settings rst . Please refer to page 110.
If you enable adaptive recording on a camera, only when an event is triggered on Camera A will the
server record the full frame rate streaming data; otherwise, it will only request the I frame data during
normal monitoring, thus effectively saves bandwidths and storage space.
Time
Bandwidth
Bandwidth
Activity Adaptive Streaming
for Dynamic Frame Rate Control
I frame ---> Full frame rate ---> I frame
Continuous recording
► To enable adaptive recording, please make sure
you’ve set up the trigger source such as Motion
Detection, DI Device, or Manual Trigger.
► When there is no alarm trigger:
- JPEG mode: record 1 frame per second.
- H.264 mode: record the I frame only.
► When the I frame period is >1s on Video settings
page, firmware will force decrease the I frame
period to 1s when adaptive recording is enabled.
Please follow the steps below to set up the recording.
1. Trigger
Select a trigger source.
■ Schedule: The server will start to record les on the local storage or network storage (NAS).
■ Network fail: Since network fail, the server will start to record les on the local storage (SD card).
NOTE:
NOTE:
VIVOTEK
136 - User's Manual
2. Destination
You can select the SD card or network storage (NAS) for the recorded video files. If you have not
congured a NAS server, see details in the following.
NAS server
Click Add NAS server to open the server setting window and follow the steps below to set up:
1. Fill in the information for your server.
For example:
2. Click Test to check the setting. The result will be shown in the pop-up window.
1
2
3
4
Network storage path
(\\server name or IP address\folder name)
User name and password for your server
VIVOTEK
User's Manual - 137
If successful, you will receive a test.txt le on the network storage server.
3. Enter a server name.
4. Click Save to complete the settings and click Close to exit the page.
■ Capacity: You can choose either the entire free space available or limit the reserved space. The
recording size limit must be larger than the reserved amount for cyclic recording. The reserved space
is a small amount of space used only for the transaction stage when the capacity is about to be used
up or recycled.
■ Enable cyclic recording: If you check this item, when the maximum capacity is reached, the oldest le
will be overwritten by the latest one. The reserved amount is reserved for the transaction stage when
the storage space is about to be full and new data arrives. The minimum for the Reserved space must
be larger than 15 MegaBytes.
■ Recording file management: You can manually assign the Maximum duration and the Maximum
file size for each recording footage. You may need to stitch individual files together under some
circumstances. You may also designate a le name prex by lling in the responsive text eld.
■ File name prex: Enter the text that will be appended to the front of the le name.
VIVOTEK
138 - User's Manual
To remove a recording setting from the list, select a recording name from the drop-down list and
click Delete.
■ Click
recording (Name): Opens the Recording Settings page to modify.
■ Click
ON (Status): The Status will become OFF and stop recording.
■ Click
NAS (Destination): Opens the le list of recordings as shown below. For more information
about folder naming rules, please refer to page 117 for details.
20150210
20150211
20150212
f you want to enable recording notication, please click
Event
to congure event triggering settings.
Please refer to Event > Event settings on page 110 for more details.
When completed, select Enable this recording. Click Save to enable the setting and click Close
to exit this page. When the system begins recording, it will send the recorded les to the network
storage. The new recording name will appear in the drop-down list on the recording page as shown
below.
VIVOTEK
User's Manual - 139
Local storage > SD card management
SD card format
The Linux kernel EXT4 file system format applies to SD card larger than 32GB. However, if EXT4 is
applied, the computers running Windows will not be able to access the contents on the SD card unless
using some 3rd-party software .
This section explains how to manage the local storage on the Network Camera. Here you can
view SD card status, and implement SD card control.
SD card staus
This column shows the status and reserved space of your SD card. Please remember to format the SD
card when using for the rst time.
no SD card
NOTE:
• It is recommended to turn OFF the recording activity before you remove an SD card from the
camera.
• The lifespan of an SD card is limited. Regular replacement of the SD card can be necessary.
• Camera lesystem takes up several megabytes of memory space. The storage space cannot
be used for recording.
• Using an SD card that already contains data recorded by another device should not be used
in this camera.
• Please do not modify or change the folder names in the SD card. That may result in camera
malfunctions.
VIVOTEK
140 - User's Manual
SD card control
■ Enable cyclic storage: Check this item if you want to enable cyclic recording. When the maximum
capacity is reached, the oldest le will be overwritten by the latest one.
■ Enable automatic disk cleanup: Check this item and enter the number of days you wish to retain a le.
For example, if you enter “7 days”, the recorded les will be stored on the SD card for 7 days.
Click Save to enable your settings.
Local storage > Content management
This section explains how to manage the content of recorded videos on the Network Camera. Here you
can search and view the records and view the searched results.
Searching and Viewing the Records
This column allows the user to set up search criteria for recorded data. If you do not select any criteria
and click Search button, all recorded data will be listed in the Search Results column.
■ File attributes: Select one or more items as your search criteria.
■ Trigger time: Manually enter the time range you want to search for contents created at a specic point
in time.
Click Search and the recorded data corresponding to the search criteria will be listed in Search Results
window.
VIVOTEK
User's Manual - 141
Search Results
The following is an example of search results. There are four columns: Trigger time, Media type,
Trigger type, and Locked. Click
to sort the search results in either direction.
Numbers of entries displayed
on one page
Click to open a live view
■ Play: Click on a search result which will highlight the selected item. A Play window will appear on
top for immediate review of the selected le.
For example:
■ Download: Click on a search result to highlight the selected item in purple as shown above. Then
click the Download button and a le download window will pop up for you to save the le.
■ JPEGs to AVI: This functions only applies to “JPEG“ format files such as snapshots. You can
select several snapshots from the list, then click this button. Those snapshots will be converted
into an AVI le.
VIVOTEK
142 - User's Manual
■ Lock/Unlock: Select the checkbox in front of a desired search result, then click this button. The selected
items will become Locked, which will not be deleted during cyclic recording. You can click again to
unlock the selections.
For example:
■ Remove: Select the desired search results, then click this button to delete the les.
Click to switch
pages
VIVOTEK
User's Manual - 143
Appendix
URL Commands for the Network Camera
1. Overview
For some customers who already have their own web site or web control application, the Network
Camera/Video Server can be easily integrated through URL syntax. This section specifies the external
HTTP-based application programming interface. The HTTP-based camera interface provides the
functionality to request a single image, control camera functions (PTZ, output relay etc.), and get and set
internal parameter values. The image and CGI-requests are handled by the built-in Web server.
2. Style Convention
In URL syntax and in descriptions of CGI parameters, text within angle brackets denotes content that
is to be replaced with either a value or a string. When replacing the text string, the angle brackets
should also be replaced. An example of this is the description of the name for the server, denoted with
<servername> in the URL syntax description below, that is replaced with the string myserver in the URL
syntax example further down in the page.
URL syntax is denoted with the word "Syntax:" written in bold face followed by a box with the referenced
syntax as shown below. For example, name of the server is written as <servername> and is intended to
be replaced with the name of the actual server. This can either be a name, e.g., "mywebcam" or "thecam.
adomain.net" or the associated IP number for the server, e.g., 192.168.0.220.
Syntax:
http://<servername>/cgi-bin/viewer/video.jpg
Description of returned data is written with "Return:" in bold face followed by the returned data in a box. All data is
returned in HTTP format, i.e., each line is separated with a Carriage Return and Line Feed (CRLF) printed as \r\n.
Return:
HTTP/1.0 <HTTP code> <HTTP text>\r\n
URL syntax examples are written with "Example:" in bold face followed by a short description and a light grey box
with the example.
Example: request a single snapshot image
http://mywebserver/cgi-bin/viewer/video.jpg
VIVOTEK
144 - User's Manual
3. General CGI URL Syntax and Parameters
CGI parameters are written in lower-case and as one word without any underscores or other separators. When the
CGI request includes internal camera parameters, these parameters must be written exactly as they are named in
the camera or video server. The CGIs are organized in functionally-related directories under the cgi-bin directory.
The file extension .cgi is required.
Syntax:
http://<servername>/cgi-bin/<subdir>[/<subdir>...]/<cgi>.<ext>
[?<parameter>=<value>[&<parameter>=<value>...]]
Example: Set digital output #1 to active
http://mywebserver/cgi-bin/dido/setdo.cgi?do1=1
4. Security Level
SECURITY LEVEL SUB-DIRECTORY DESCRIPTION
0 anonymous Unprotected.
1 [view] anonymous, viewer,
dido, camctrl
1. Can view, listen, talk to camera.
2. Can control DI/DO, PTZ of the camera.
4 [operator] anonymous, viewer,
dido, camctrl, operator
Operator access rights can modify most of the camera’s
parameters except some privileges and network options.
6 [admin] anonymous, viewer,
dido, camctrl, operator,
admin
Administrator access rights can fully control the camera’s
operations.
7 N/A Internal parameters. Unable to be changed by any external
interfaces.
VIVOTEK
User's Manual - 145
5. Get Server Parameter Values
Note: The access right depends on the URL directory.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>]
[&<parameter>…]
http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>]
[&<parameter>…]
http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>]
[&<parameter>…]
http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>]
[&<parameter>…]
Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any
parameters, all the parameters on the server will be returned. If you specify only <group>, the parameters
oftherelated group will be returned.
When querying parameter values, the current parameter values are returned.
A successful control request returns parameter pairs as follows:
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>
where<parameter pair> is
<parameter>=<value>\r\n
[<parameter pair>]
<length> is the actual length of content.
Example: Request IP address and its response
Request:
VIVOTEK
146 - User's Manual
http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: 33\r\n
\r\n
network.ipaddress=192.168.0.123\r\n
6. Set Server Parameter Values
Note: The access right depends on the URL directory.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&update=<value>][&return=<return page>]
http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&update=<value>] [&return=<return page>]
http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&update=<value>] [&return=<return page>]
http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&update=<value>] [&return=<return page>]
PARAMETER VALUE DESCRIPTION
<group>_<name>
value to assigned Assign <value> to the parameter <group>_<name>.
update
<boolean> Set to 1 to update all fields (no need to update parameter in each
group).
return
<return page> Redirect to the page <return page>after the parameter is assigned.
The <return page>can be a full URL path or relative path according to
the current path. If you omit this parameter, it will redirect to an
empty page.
(Note: The return page can be a general HTML file(.htm, .html) or a
VIVOTEK server script executable (.vspx) file. It cannot be a CGI
commandor have any extra parameters.This parameter must be
VIVOTEK
User's Manual - 147
placed at the end of the parameter list
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>
where<parameter pair> is
<parameter>=<value>\r\n
[<parameter pair>]
Only the parameters that you set and are readable will be returned.
Example: Set the IP address of server to 192.168.0.123:
Request:
http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: 33\r\n
\r\n
network.ipaddress=192.168.0.123\r\n
VIVOTEK
148 - User's Manual
7. Available parameters on the server
Valid values:
VALID VALUES DESCRIPTION
string[<n>] Text strings shorter than ‘n’ characters. The characters “,’,<,>,& are invalid.
string[n~m] Text strings longer than `n’ characters and shorter than `m’ characters. The
characters “,’,<,>,& are invalid.
password[<n>] The same as string but displays‘*’ instead.
<integer> Any single integer number in 32-bits.
The range is -2147483648~2147483647.
<positive integer> Any single positive integer number in 32-bits.
The range is 1~ 4294967295.
<m> ~ <n> Any number between ‘m’ and ‘n’.
domain name[<n>] A string limited to a domain name shorter than ‘n’ characters (eg. www.ibm.com).
email address [<n>] A string limited to an email address shorter than ‘n’ characters (eg.
joe@www.ibm.com).
<ip address> A string limited to an IP address (eg. 192.168.1.1).
<mac address> A string limited to contain a MAC address without hyphens or colons.
<boolean> A boolean value of 1 or 0 represents [Yes or No], [True or False], [Enable or
Disable].
<value1>,
<value2>,
<value3>,
…
Enumeration. Only given values are valid.
blank A blank string.
everything inside <> A description
integer primary key SQLite data type. A 32-bit signed integer. The value is assigned a unique integer by
the server.
<text> SQLite data type. The value is a text string, stored using the database encoding
(UTF-8, UTF-16BE or UTF-16-LE).
<coordinate> x, y coordinate (eg. 0,0)
<window size> window width and height (eg. 800x600)
<W,H> The format for coordinate in 2D.
W is the pixel number of width.
H is the pixel number of height.
EX: (176,144)
<WxH> The format for resolution.
VIVOTEK
User's Manual - 149
W is the pixel number of width.
H is the pixel number of height.
Ex: 1920x1080, 2048x1536
NOTE: The camera should not be restarted when parameters are changed.
VIVOTEK
150 - User's Manual
7.1system
Group: system
NAME VALUE SECURITY
(get/set)
DESCRIPTION
hostname string[64] 1/6 Host name of server
(Network Camera,
Wireless Network Camera,
Video Server,
Wireless Video Server).
ledoff <boolean> 6/6 Turn on (0) or turn off (1) all led indicators.
date <YYYY/MM/DD>,
keep,
auto
6/6 Current date of system. Set to ‘keep’ to keep
date unchanged. Set to ‘auto’ to use NTP to
synchronize date.
time <hh:mm:ss>,
keep,
auto
6/6 Current time of the system. Set to ‘keep’ to
keep time unchanged. Set to ‘auto’ to use NTP
to synchronize time.
datetime <MMDDhhmmYYYY
.ss>
6/6 Another current time format of the system.
ntp <domain name>,
<ip address>,
<blank>
6/6 NTP server.
*Do not use “skip to invoke default server” for
default value.
timezoneindex -489 ~ 529 6/6 Indicate timezone and area.
-480: GMT-12:00 Eniwetok, Kwajalein
-440: GMT-11:00 Midway Island, Samoa
-400: GMT-10:00 Hawaii
-360: GMT-09:00 Alaska
-320: GMT-08:00 Las Vegas, San_Francisco,
Vancouver
-280: GMT-07:00 Mountain Time, Denver
-281: GMT-07:00 Arizona
-240: GMT-06:00 Central America, Central
Time, Mexico City, Saskatchewan
-200: GMT-05:00 Eastern Time, New York,
Toronto
-201: GMT-05:00 Bogota, Lima, Quito, Indiana
-180: GMT-04:30 Caracas
-160: GMT-04:00 Atlantic Time, Canada, La
Paz, Santiago
VIVOTEK
User's Manual - 151
-140: GMT-03:30 Newfoundland
-120: GMT-03:00 Brasilia, Buenos Aires,
Georgetown, Greenland
-80: GMT-02:00 Mid-Atlantic
-40: GMT-01:00 Azores, Cape_Verde_IS.
0: GMT Casablanca, Greenwich Mean Time:
Dublin,
Edinburgh, Lisbon, London
40: GMT 01:00 Amsterdam, Berlin, Rome,
Stockholm, Vienna, Madrid, Paris
41: GMT 01:00 Warsaw, Budapest, Bern
80: GMT 02:00 Athens, Helsinki, Istanbul, Riga
81: GMT 02:00 Cairo
82: GMT 02:00 Lebanon, Minsk
83: GMT 02:00 Israel
120: GMT 03:00 Baghdad, Kuwait, Riyadh,
Moscow, St. Petersburg, Nairobi
121: GMT 03:00 Iraq
140: GMT 03:30 Tehran
160: GMT 04:00 Abu Dhabi, Muscat, Baku,
Tbilisi, Yerevan
180: GMT 04:30 Kabul
200: GMT 05:00 Ekaterinburg, Islamabad,
Karachi, Tashkent
220: GMT 05:30 Calcutta, Chennai, Mumbai,
New Delhi
230: GMT 05:45 Kathmandu
240: GMT 06:00 Almaty, Novosibirsk, Astana,
Dhaka, Sri Jayawardenepura
260: GMT 06:30 Rangoon
280: GMT 07:00 Bangkok, Hanoi, Jakarta,
Krasnoyarsk
320: GMT 08:00 Beijing, Chongging, Hong
Kong, Kuala Lumpur, Singapore, Taipei
360: GMT 09:00 Osaka, Sapporo, Tokyo,
Seoul, Yakutsk
380: GMT 09:30 Adelaide, Darwin
400: GMT 10:00 Brisbane, Canberra,
Melbourne, Sydney, Guam, Vladivostok
440: GMT 11:00 Magadan, Solomon Is., New
VIVOTEK
152 - User's Manual
Caledonia
480: GMT 12:00 Aucklan, Wellington, Fiji,
Kamchatka, Marshall Is.
520: GMT 13:00 Nuku'Alofa
daylight_enable <boolean> 6/6 Enable automaticdaylight saving time in time
zone.
daylight_dstactualmode <positive integer> 6/7 Check if current time is under daylight saving
time.
(Used internally)
daylight_auto_begintime string[19] 6/7 Display the current daylight saving start time.
daylight_auto_endtime string[19] 6/7 Display the current daylight saving end time.
daylight_timezones string 6/6 List time zone index which support daylight
saving time.
updateinterval 0,
3600,
86400,
604800,
2592000
6/6 0 to Disable automatic time adjustment,
otherwise, it indicates the seconds between
NTP automatic update intervals.
restore 0,
<positive integer>
7/6 Restore the system parameters to default
values after <value> seconds.
reset 0,
<positive integer>
7/6 Restart the server after <value> seconds if
<value> is non-negative.
restoreexceptnet 0,
<positive integer>
7/6 Restore the system parameters to default
values except (ipaddress, subnet, router,
dns1, dns2, pppoe).
This command can cooperate with other
“restoreexceptXYZ” commands. When
cooperating with others, the system
parameters will be restored to the default
value except for a union of the combined
results.
restoreexceptdst 0,
<positive integer>
7/6 Restore the system parameters to default
values except all daylight saving time settings.
This command can cooperate with other
“restoreexceptXYZ” commands. When
cooperating with others, the system
parameters will be restored to default values
except for a union of combined results.
restoreexceptlang 0,
<positive integer>
7/6 Restore the system parameters to default
values except the custom language file the
VIVOTEK
User's Manual - 153
user has uploaded.
This command can cooperate with other
“restoreexceptXYZ” commands. When
cooperating with others, the system
parameters will be restored to the default
value except for a union of the combined
results.
restoreexceptvadp 0,
<positive integer>
7/6 Restore the system parameters to default
values except the vadp parameters and VADP
modules that stored in the system.
This command can cooperate with other
“restoreexceptXYZ” commands. When
cooperating with others, the system
parameters will be restored to the default
value except for a union of the combined
results.
restoreexceptfocusvalue 0,
<positive integer>
7/6 Restore the system parameters to default
values except zoom and focus value.
This command can cooperate with other
“restoreexceptXYZ” commands. When
cooperating with others, the system
parameters will be restored to the default
value except for a union of the combined
results.
* Only available when
"capability_image_c<n>_ remotefocus" is 1 or
"capability_image_c<n>_ backfocus" is 1.
7.1.1 system.info
Subgroup of system: info (The fields in this group are unchangeable.)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
modelname string[40] 0/7 Internal model name of the server
extendedmodelname string[40] 0/7 ODM specific model name of server (eg.
DCS-5610). If it is not an ODM model, this field
will be equal to “modelname”
serialnumber <mac address> 0/7 12 characters MAC address (without hyphens).
firmwareversion string[40] 0/7 Firmware version, including model, company,
and version number in the
VIVOTEK
154 - User's Manual
format:<MODEL-BRAND-VERSION>
language_count <positive integer> 0/7 Number of webpage languages available on
the server.
language_i<0~(count-1)> string[16]
language_i0 :
English
language_i1 :
Deutsch
language_i2 :
Español
language_i3 :
Français
language_i4 :
Italiano
language_i5 : 日本
語
language_i6 :
Português
language_i7 : 简体
中文
language_i8 : 繁體
中文
0/7 Available language lists.
customlanguage_maxcoun
t
0,<positive
integer>
0/6 Maximum number of custom languages
supported on the server.
customlanguage_count 0,<positive
integer>
0/6 Number of custom languages which have been
uploaded to the server.
customlanguage_i<0~(ma
xcount-1)>
string 0/6 Custom language name.
VIVOTEK
User's Manual - 155
7.2status
Group: status
NAME VALUE SECURITY
(get/set)
DESCRIPTION
di_i<0~(capability_ndi-1)>
<product dependent>
<boolean> 1/7 0 => Inactive, normal
1 => Active, triggered
(capability.ndi > 0)
do_i<0~(capability_ndo-1)>
<product dependent>
<boolean> 1/7 0 => Inactive, normal
1 => Active, triggered
(capability.ndo > 0)
onlinenum_rtsp 0,<positive
integer>
6/7 Current number of RTSP connections.
onlinenum_httppush 0,<positive
integer>
6/7 Current number of HTTP push server
connections.
onlinenum_sip 0,<positive
integer>
6/7 Current number of SIP connections.
eth_i0 <string> 1/7 Get network information from mii-tool.
vi_i<0~(capability_nvi-1)>
<product dependent>
<boolean> 1/7 Virtual input
0 => Inactive
1 => Active
(capability.nvi > 0)
7.3digital input behavior define
Group: di_i<0~(n-1)> for n is the value of "capability_ndi"
(capability.ndi > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
normalstate high,
low
1/1 Indicates open circuit or closed circuit
(inactive status)
7.4digital output behavior define
Group: do_i<0~(n-1)> for n is the value of "capability_ndo"
(capability.ndo > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
normalstate open,
grounded
1/1 Indicate open circuit or closed circuit (inactive
status)
VIVOTEK
156 - User's Manual
7.5security
Group: security
NAME VALUE SECURITY
(get/set)
DESCRIPTION
privilege_do view, operator,
admin
1/6 Indicate which privileges and above can
control digital output
(capability.ndo > 0)
privilege_camctrl view, operator,
admin
1/6 Indicate which privileges and above can
control PTZ
(capability.ptzenabled > 0 or capability.eptz >
0)
user_i0_name string[64] 6/7 User name of root
user_i<1~20>_name string[64] 6/7 User name
user_i0_pass password[64] 6/6 Root password
user_i<1~20>_pass password[64] 7/6 User password
user_i0_privilege view,
operator,
admin
6/7 Root privilege
user_i<1~20>_ privilege view,
operator,
admin
6/6 User privilege
7.6network
Group: network
NAME VALUE SECURITY
(get/set)
DESCRIPTION
preprocess <positive integer> 6/6 An 32-bit integer, each bit can be set
separately as follows:
Bit 0 => HTTP service;
Bit 1=> HTTPS service;
Bit 2=> FTP service;
Bit 3 => Two way audio and RTSP Streaming
service;
To stop service before changing its port
settings. It’s recommended to set this
parameter when change a service port to the
port occupied by another service currently.
VIVOTEK
User's Manual - 157
Otherwise, the service may fail.
Stopped service will auto-start after changing
port settings.
Ex:
Change HTTP port from 80 to 5556, and
change RTP port for video from 5556 to 20480.
Then, set preprocess=9 to stop both service
first.
”/cgi-bin/admin/setparam.cgi?
network_preprocess=9&network_http_port=
5556& network_rtp_videoport=20480”
type lan,
pppoe
6/6 Network connection type.
resetip <boolean> 6/6 1 => Get ipaddress, subnet, router, dns1,
dns2 from DHCP server at next reboot.
0 => Use preset ipaddress, subnet, rounter,
dns1, and dns2.
ipaddress <ip address> 6/6 IP address of server.
subnet <ip address> 6/6 Subnet mask.
router <ip address> 6/6 Default gateway.
dns1 <ip address> 6/6 Primary DNS server.
dns2 <ip address> 6/6 Secondary DNS server.
wins1 <ip address> 6/6 Primary WINS server.
wins2 <ip address> 6/6 Secondary WINS server.
7.6.1 802.1x
Subgroup of network: ieee8021x
(capability.protocol.ieee8021x > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable/disable IEEE 802.1x
eapmethod eap-peap, eap-tls 6/6 Selected EAP method
identity_peap string[64] 6/6 PEAP identity
identity_tls string[64] 6/6 TLS identity
password string[200] 6/6 Password for TLS
privatekeypassword string[200] 6/6 Password for PEAP
ca_exist <boolean> 6/6 CA installed flag
ca_time 0,<positive 6/7 CA installed time. Represented in EPOCH
VIVOTEK
158 - User's Manual
integer>
ca_size 0,<positive
integer>
6/7 CA file size (in bytes)
certificate_exist <boolean> 6/6 Certificate installed flag (for TLS)
certificate_time 0,<positive
integer>
6/7 Certificate installed time. Represented in
EPOCH
certificate_size 0,<positive
integer>
6/7 Certificate file size (in bytes)
privatekey_exist <boolean> 6/6 Private key installed flag (for TLS)
privatekey_time 0,<positive
integer>
6/7 Private key installed time. Represented in
EPOCH
privatekey_size 0,<positive
integer>
6/7 Private key file size (in bytes)
7.6.2 QOS
Subgroup of network: qos_cos
(capability.protocol.qos.cos > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable/disable CoS (IEEE 802.1p)
vlanid 1~4095 6/6 VLAN ID
video 0~7 6/6 Video channel for CoS
audio
<product dependent>
0~7 6/6 Audio channel for CoS
(capability.naudioin > 0)
eventalarm 0~7 6/6 Event/alarm channel for CoS
management 0~7 6/6 Management channel for CoS
eventtunnel 0~7 6/6 Event/Control channel for CoS
Subgroup of network: qos_dscp (capability.protocol.qos.dscp > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable/disable DSCP
video 0~63 6/6 Video channel for DSCP
audio 0~63 6/6 Audio channel for DSCP
(capability.naudioin > 0)
eventalarm 0~63 6/6 Event/alarm channel for DSCP
management 0~63 6/6 Management channel for DSCP
eventtunnel 0~63 6/6 Event/Control channel for DSCP
VIVOTEK
User's Manual - 159
7.6.3 IPV6
Subgroup of network: ipv6
(capability.protocol.ipv6 > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable IPv6.
addonipaddress <ip address> 6/6 IPv6 IP address.
addonprefixlen 0~128 6/6 IPv6 prefix length.
addonrouter <ip address> 6/6 IPv6 router address.
addondns <ip address> 6/6 IPv6 DNS address.
allowoptional <boolean> 6/6 Allow manually setup of IP address setting.
7.6.4 FTP
Subgroup of network: ftp
NAME VALUE SECURITY
(get/set)
DESCRIPTION
port 21, 1025~65535 6/6 Local ftp server port.
7.6.5 HTTP
Subgroup of network: http
NAME VALUE SECURITY
(get/set)
DESCRIPTION
port 80, 1025 ~ 65535 1/6 HTTP port.
alternateport 1025~65535 6/6 Alternate HTTP port.
authmode basic,
digest
1/6 HTTP authentication mode.
s<0~(capability_nmediast
ream-1)>_accessname
<product dependent>
string[32] 1/6 Http server push access name for stream N,
N= 1~ capability.nmediastream.
(capability.protocol.spush_mjpeg =1 and
capability.nmediastream > 0)
The value are shown as
video.mjpg = s0_accessname, (stream1)
video2.mjpg = s1_accessname, (stream2)
video3.mjpg = s2_accessname, (stream3)
video4.mjpg = s3_accessname, (stream4)
etc.
anonymousviewing <boolean> 1/6 Enable anonymous streaming viewing.
VIVOTEK
160 - User's Manual
7.6.6 HTTPS port
Subgroup of network: https
(capability.protocol.https > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
port 443, 1025 ~ 65535 1/6 HTTPS port.
7.6.7 RTSP
Subgroup of network: rtsp
(capability.protocol.rtsp > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
port 554, 1025 ~ 65535 1/6 RTSP port.
(capability.protocol.rtsp=1)
anonymousviewing <boolean> 1/6 Enable anoymous streaming viewing.
authmode disable,
basic,
digest
1/6 RTSP authentication mode.
(capability.protocol.rtsp=1)
s<0~(capability_nmediast
ream-1)>_accessname
<product dependent>
string[32] 1/6 RTSP access name for stream N, N= 1~
capability.nmediastream.
(capability.protocol.spush_mjpeg =1 and
capability.nmediastream > 0)
The value are shown as
live.sdp = s0_accessname, (stream1)
live2.sdp = s1_accessname, (stream2)
live3.sdp = s2_accessname, (stream3)
live4.sdp = s3_accessname, (stream4)
etc.
7.6.7.1 RTSP multicast
Subgroup of network_rtsp_s<0~(n-1)>: multicast n is stream count
NAME VALUE SECURITY
(get/set)
DESCRIPTION
alwaysmulticast <boolean> 4/4 Enable always multicast.
ipaddress <ip address> 4/4 Multicast IP address.
videoport 1025 ~ 65535 4/4 Multicast video port.
audioport
<product dependent>
1025 ~ 65535 4/4 Multicast audio port.
(capability.naudioin > 0)
VIVOTEK
User's Manual - 161
metadataport 1026~65534 4/4 Multicast metadata port.
ttl 1 ~ 255 4/4 Multicasttime to live value.
7.6.8 SIP port
Subgroup of network: sip
(capability.protocol.sip> 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
port 1025 ~ 65535 1/6 SIP port.
7.6.9 RTP port
Subgroup of network: rtp
NAME VALUE SECURITY
(get/set)
DESCRIPTION
videoport 1025 ~ 65535 6/6 Video channel port for RTP.
(capability.protocol.rtp_unicast=1)
audioport 1025 ~ 65535 6/6 Audio channel port for RTP.
(capability.protocol.rtp_unicast=1)
metadataport 1025 ~ 65535 6/6 Metadata channel port for RTP.
7.6.10 PPPoE
Subgroup of network: pppoe
(capability.protocol.pppoe > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
user string[128] 6/6 PPPoE account user name.
pass password[64] 6/6 PPPoE account password.
7.7IP Filter
Group: ipfilter
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable access list filtering.
admin_enable <boolean> 6/6 Enable administrator IP address.
admin_ip string[43] 6/6 Administrator IP address.
maxconnection 1~10 6/6 Maximum number of concurrent streaming
connection(s).
VIVOTEK
162 - User's Manual
type 0, 1 6/6 Ipfilter policy :
0 => allow
1 => deny
ipv4list_i<0~9> Single address: <ip
address>
Network address:
<ip address /
network mask>
Range
address:<start ip
address - end ip
address>
6/6 IPv4 address list.
ipv6list_i<0~9> string[43] 6/6 IPv6 address list.
7.8Video input
Group: videoin
NAME VALUE SECURITY
(get/set)
DESCRIPTION
cmosfreq 50, 60 4/4 CMOS frequency.
(capability.videoin.type=2)
whitebalance
<product dependent>
auto,
manual,
rbgain,
widerange,
outdoor,
indoor,
sodiumauto,
etc
(Available values are
listed in
"capability_image_c
<n>_wbmode")
4/4 Modes of white balance.
"auto": Auto white balance
"rbgain": Use rgain and bgain to set white
balance manually.
"manual": 2 cases:
a. if "rbgain" is not supported, this means
keep current white balance status.
b. if "rbgain" is supported, "rgain" and
"bgain" are updated to the current values
which is got from white balance module. Then,
act as rbgain mode
"widerange": Auto Tracing White balance
(2000K to 10000K).
"outdoor": auto white balance mode
specifically for outdoor.
"indoor": auto white balance mode
specifically for indoor.
"sodiumauto": sodium vapor lamps.
VIVOTEK
User's Manual - 163
* Only available when
"capability_image_c<n>_wbmode" !="-"
exposurelevel 0~12 4/4 Exposure level
"0,12": This range takes the concept from DC's
exposure tuning options. The definition is:
0: EV -2.0
1: EV -1.7
2: EV -1.3
3: EV -1.0
4: EV -0.7
5: EV -0.3
6: EV 0
7: EV +0.3
8: EV +0.7
9: EV +1.0
10: EV +1.3
11: EV +1.7
12: EV +2.0
irismode fixed, indoor,
outdoor
<product
independent>
4/4 Control DC-Iris mode.
"outdoor": Auto-setting DC-Iris to get best
quality, but easy to meet rolling or flicker effect
in indoor environment.
"indoor": Avoid rolling and flicker effect first.
"fixed": Open the iris to maximum.
* Only available when
"capability_image_c<n>_iristype"=dciris
enableblc
<Not support anymore>
<boolean> 4/4 Enable backlight compensation.
* Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301a.
* It's recommanded to use
"exposurewin_c<n>_mode" to switch on/off
BLC.
color 0, 1 4/4 0 =>monochrome
1 => color
flip <boolean> 4/4 Flip the image.
mirror <boolean> 4/4 Mirror the image.
rotate 0,90,180,270 1/4 The rotation angle of image.
Support only in Rotation mode
VIVOTEK
164 - User's Manual
(capability.videoin.c<n>.rotation=1)
ptzstatus 0,<positive
integer>
1/7 A 32-bit integer, each bit can be set separately
as follows:
Bit 0 => Support camera control function;
0(not support), 1(support)
Bit 1 =>Built-in or external camera; 0
(external), 1(built-in)
Bit 2 => Support pan operation; 0(not
support), 1(support)
Bit 3 => Support tilt operation; 0(not
support), 1(support)
Bit 4 => Support zoom operation; 0(not
support), 1(support)
Bit 5 => Support focus operation; 0(not
support), 1(support)(SD/PZ/IZ series only)
text string[64] 1/4 Enclose caption.
imprinttimestamp <boolean> 4/4 Overlay time stamp on video.
minexposure
<product dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
etc.
* Available value is
listed in
"capability_image_c
<n>_exposure_min
range"
4/4 Minimum exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
5~8000 => 1/5s ~ 1/8000s
etc.
* Only available when
"capability_image_c<n>_exposure_minrange
" != "-"
* Only valid when "piris_mode"=manual or
"irismode"=fixed
* Only available when
"capability_image_c<n>_exposure_rangetyp
e" is "twovalues".
maxexposure
<product dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
etc.
4/4 Maximum exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
5~8000 => 1/5s ~ 1/8000s
etc.
VIVOTEK
User's Manual - 165
* Available value is
listed in
"capability_image_c
<n>_exposure_ma
xrange"
* This parameter may also restrict image
frame rate from sensor due to sensor
generates a frame per exposure time. Ex: If
this is set to 1/5s ~ 1/8000s and camera takes
1/5s on the night, then sensor only outputs 5
frame/s.
* Only available when
"capability_image_c<n>_exposure_maxrang
e" != "-"
* Only valid when "piris_mode"=manual or
"irismode"=fixed
* Only available when
"capability_image_c<n>_exposure_rangetyp
e" is "twovalues".
enablepreview <boolean> 1/4 Usage for UI of exposure settings. Preview
settings of video profile.
7.8.1 Video input setting per channel
Group: videoin_c<0~(n-1)> for n channel products, and m is stream number
n denotes the value of "capability_nvideoin", m denotes the value of "capability_nmediastream"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
cmosfreq 50, 60 4/4 CMOS frequency.
(capability.videoin.type=2)
mode 0 ~
"capability_videoin_c<n>_nmode"-1
4/4 Indicate the video mode on use.
whitebalance
<product
dependent>
auto,
manual,
rbgain,
widerange,
outdoor,
indoor,
sodiumauto,
etc
(Available values are listed in
"capability_image_c<n>_wbmode")
4/4 Modes of white balance.
"auto": Auto white balance
"rbgain": Use rgain and bgain to set
white balance manually.
"manual": 2 cases:
a. if "rbgain" is not supported, this
means keep current white balance
status.
b. if "rbgain" is supported, "rgain"
and "bgain" are updated to the current
values which is got from white balance
VIVOTEK
166 - User's Manual
module. Then, act as rbgain mode
"widerange": Auto Tracing White
balance (2000K to 10000K).
"outdoor": auto white balance mode
specifically for outdoor.
"indoor": auto white balance mode
specifically for indoor.
"sodiumauto": sodium vapor lamps.
* Only available when
"capability_image_c<n>_wbmode" !=
"-"
rgain 0~100 4/4 Manual set rgain value of gain control
setting.
0: Weak <-> 100: Strong
* Only available when "rbgain" is listed
in "capability_image_c<n>_wbmode".
* Only valid when
"videoin_c<n>_whitebalance" != auto
* Normalized range.
bgain 0~100 4/4 Manual set bgain value of gain control
setting.
0: Weak <-> 100: Strong
* Only available when "rbgain" is listed
in "capability_image_c<n>_wbmode".
* Only valid when
"videoin_c<n>_whitebalance" != auto
* Normalized range.
exposurelevel 0~12 4/4 Exposure level
"0,12": This range takes the concept
from DC's exposure tuning options.
The definition is:
0: EV -2.0
1: EV -1.7
2: EV -1.3
3: EV -1.0
4: EV -0.7
5: EV -0.3
VIVOTEK
User's Manual - 167
6: EV 0
7: EV +0.3
8: EV +0.7
9: EV +1.0
10: EV +1.3
11: EV +1.7
12: EV +2.0
exposuremode
<product
dependent>
auto,
shutterpriority,
irispriority,
manual,
etc
(Available options are list in
"capability_image_c<n>_exposure_m
odetype")
4/4 Select exposure mode.
"auto": Iris, Gain and Shutter
Speed(Exposure time) can be set
automatically.
"shutterpriority": Adjust with
variable Shutter Speed, auto Iris and
Gain.
"irispriority": Adjust with variable
Iris, auto Gain and Shutter speed.
"manual": Adjust with variable
Shutter, Iris and Gain.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
irismode fixed, indoor, outdoor
<product dependent>
4/4 Control DC-Iris mode.
"outdoor": Auto-setting DC-Iris to
get best quality, but easy to meet
rolling or flicker effect in indoor
environment.
"indoor": Avoid rolling and flicker
effect first.
"fixed": Open the iris to maximum.
* Only available when
"capability_image_c<n>_iristype"=dc
iris
piris_mode
<product
dependent>
manual, indoor, outdoor,- 1/4 Control P-Iris mode.
"outdoor": Auto-setting P-Iris to get
best quality, but easy to meet rolling or
flicker effect in indoor environment.
"indoor": Avoid rolling and flicker
effect first.
VIVOTEK
168 - User's Manual
"manual": Manual set P-Iris by
"piris_position".
"-": not support. (only available when
"capability_image_c<0~(n-1)>_sens
ortype" is "smartsensor")
* Only available when
"capability_image_c<n>_iristype"=pi
ris
piris_position
<product
dependent>
1~100 1/4 Manual set P-Iris.
1: Open <-> 100: Close
* Only vaild when
"piris_mode"=manual or
"capability_image_c<0~(n-1)>_sens
ortype" is "smartsensor"
* Only available when
"capability_image_c<n>_iristype"=pi
ris
enableblc
<Not support
anymore>
<boolean> 4/4 Enable backlight compensation
* Not support this parameter anymore
when the version number
(httpversion) is equal or greater than
0301a.
* It's recommanded to use
"exposurewin_c<n>_mode" to switch
on/off BLC.
maxgain 0~100 4/4 Maximum gain value.
0: Low <-> 100: High
* Only available when
"capability_image_c<n>_agc_maxgai
n" != "-"
* Only valid when
"piris_mode"=manual or
"irismode"=fixed
* Normalized range.
* Only available when
"capability_image_c<n>_exposure_ra
ngetype" is "twovalues".
mingain 0~100 4/4 Minimum gain value.
VIVOTEK
User's Manual - 169
0: Low <-> 100: High
* Only available when
"capability_image_c<n>_agc_mingai
n" != "-"
* Only valid when
"piris_mode"=manual or
"irismode"=fixed
* Normalized range.
* Only available when
"capability_image_c<n>_exposure_ra
ngetype" is "twovalues".
gainvalue 0~100 4/4 Gain value.
0: Low <-> 100: High
* Only available when
"capability_image_c<n>_agc_maxgai
n" != "-" and
"capability_image_c<n>_exposure_ra
ngetype" is "onevalue".
* Normalized range.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
color 0, 1 4/4 0 =>monochrome
1 => color
flip <boolean> 4/4 Flip the image.
mirror <boolean> 4/4 Mirror the image.
rotate 0,90,180,270 1/4 The rotation angle of image.
Support only in Rotation mode
(capability.videoin.c<n>.rotation=1)
ptzstatus 0,<positive integer> 1/7 A 32-bit integer, each bit can be set
separately as follows:
Bit 0 => Support camera control
function; 0(not support), 1(support)
Bit 1 =>Built-in or external camera;
0 (external), 1(built-in)
Bit 2 => Support pan operation;
0(not support), 1(support)
VIVOTEK
170 - User's Manual
Bit 3 => Support tilt operation; 0(not
support), 1(support)
Bit 4 => Support zoom operation;
0(not support), 1(support)
Bit 5 => Support focus operation;
0(not support), 1(support)(SD/PZ/IZ
series only)
text string[64] 1/4 Enclose caption.
imprinttimesta
mp
<boolean> 4/4 Overlay time stamp on video.
textonvideo_po
sition
top, bottom 4/4 Text on video string position
textonvideo_siz
e
20~40 4/4 Text on video font size
textonvideo_fon
tpath
/usr/share/font/Default.ttf,
/mnt/flash2/upload.ttf
4/4 Choose camera default font file
(/usr/share/font/Default.ttf) or user
uploaded font
file(/mnt/flash2/upload.ttf).
textonvideo_upl
oadfilename
Depends on the font file name
uploaded by user
1/7 Show the uploaded font file name.
minexposure
<product
dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
etc.
* Available value is listed in
"capability_image_c<n>_exposure_m
inrange"
4/4 Minimum exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
5~8000 => 1/5s ~ 1/8000s
etc.
* Only available when
"capability_image_c<n>_exposure_m
inrange" != "-"
* Only valid when
"piris_mode"=manual or
"irismode"=fixed
* Only available when
"capability_image_c<n>_exposure_ra
ngetype" is "twovalues".
maxexposure
<product
dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
4/4 Maximum exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
VIVOTEK
User's Manual - 171
etc.
* Available value is listed in
"capability_image_c<n>_exposure_m
axrange"
5~8000 => 1/5s ~ 1/8000s
etc.
* This parameter may also restrict
image frame rate from sensor due to
sensor generates a frame per
exposure time. Ex: If this is set to 1/5s
~ 1/8000s and camera takes 1/5s on
the night, then sensor only outputs 5
frame/s.
* Only available when
"capability_image_c<n>_exposure_m
axrange" != "-"
* Only valid when
"piris_mode"=manual or
"irismode"=fixed
* Only available when
"capability_image_c<n>_exposure_ra
ngetype" is "twovalues".
shuttervalue
<product
dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
etc.
* Available value is listed in
"capability_image_c<n>_exposure_m
axrange"
4/4 Exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
5~8000 => 1/5s ~ 1/8000s
etc.
* This parameter may also restrict
image frame rate from sensor due to
sensor generates a frame per
exposure time. Ex: If this is set to 1/5s
~ 1/8000s and camera takes 1/5s on
the night, then sensor only outputs 5
frame/s.
* Only available when
"capability_image_c<n>_exposure_m
axrange" != "-" and
"capability_image_c<n>_exposure_ra
ngetype" is "onevalue".
VIVOTEK
172 - User's Manual
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
enablepreview <boolean> 1/4 Usage for UI of exposure settings.
Preview settings of video profile.
crop_position <coordinate>
(x,y)
1/7 Crop left-top corner coordinate.
crop_size <window size>
(WxH)
1/7 Crop width and height.
(width must be 16x or 32x and height
must be 8x)
zoomratiodispla
y
<boolean> 1/4 Indicates multiple of zoom in is
“on-screen display” or not.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
s<0~(m-1)>_e
nableeptz
<boolean> 4/4 Indicate whether stream supprts eptz
or not
s<0~(m-1)>_c
odectype
Listed at "capability_videoin_codec"
Possible values are: mjpeg, h264,h265
<product dependent>
1/4 Codec type for this stream
s<0~(m-1)>_re
solution
Available options are list in
"capability_videoin_c0_resolution".
1/4 Video resolution in pixels.
s<0~(m-1)>_h
264_dintraperio
d_enable
<boolean> 4/4 Enable "Dynamic intra frame period".
* Only available when
"capability_videoin_c<0~(n-1)>_dint
raperiod_support" is 1.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0301c.
s<0~(m-1)>_h
264_intraperiod
250, 500, 1000, 2000, 3000, 4000 4/4 The time interval between two
I-frames (Intra coded picture).
The unit is millisecond (ms).
s<0~(m-1)>_h
264_ratecontrol
mode
cbr, vbr, smart 4/4 cbr: Constant bit rate mode.
vbr: Fixed quality mode, all frames are
encoded in the same quality.
smart: Smart stream mode. (Only
VIVOTEK
User's Manual - 173
valid when
"capability_smartstream_support"=1
and "capability_smartstream_version"
is not equal "2.0")
s<0~(m-1)>_h
264_quant
1~5,
99, 100
4/4 Set the
pre-defined
quality level:
1: Medium
2: Standard
3: Good
4: Detailed
5: Excellent
100: Use the quality level in
"qpercent"
99: Use the quality level in "qvalue"
* Only valid when "ratecontrolmode"=
vbr.
s<0~(m-1)>_h
264_qvalue
0~51 4/4 Manual video
quality level
input. The Q
value which is
used by
encoded
library
directly.
* Only valid when "ratecontrolmode"=
vbr and s<0~(m-1)>_h264_quant =
99.
s<0~(m-1)>_h
264_qpercent
1~100 4/4 Select customized quality in a
normalized full range.
1: Worst quality
100: Best quality
* Only valid when "ratecontrolmode"=
vbr and "quant"= 100.
s<0~(m-1)>_h
264_maxvbrbitr
20000~"capability_videoin_c<n>_h2
64_maxbitrate
"
4/4
Themaximumallowedbitrateinfixed
qualitymode.
VIVOTEK
174 - User's Manual
ate
Whenthebitrateexceedsthisvalue,
frameswillbedroppedtorestrictthe
bitrate.
* Only valid when "ratecontrolmode"=
vbr
s<0~(m-1)>_h
264_cbr_quant
1~5, 100 4/4 Set the pre-defined quality level:
1: Medium
2: Standard
3: Good
4: Detailed
5: Excellent
100: Use the quality level in
"cbr_qpercent"
* Only
available
when
"ratecontrolm
ode"= cbr.
* Only
available
when
"capability_s
martstream_v
ersion"=2.0
s<0~(m-1)>_h
264_cbr_qperce
nt
1~100 4/4 Select customized quality in a
normalized full range.
1: Worst quality
100: Best quality
* Only valid when "ratecontrolmode"=
cbr and "quant"= 100.
* Only available when
"capability_smartstream_version"=2.
0
s<0~(m-1)>_h
264_bitrate
20000~"capability_videoin_c<n>_h2
64_maxbitrate"
4/4 The target bit rate in constant bit rate
mode.
*Only valid when "ratecontrolmode"=
VIVOTEK
User's Manual - 175
cbr
s<0~(m-1)>_h
264_prioritypoli
cy
framerate,imagequality 4/4 Set prioritypolicy
*Only valid when "ratecontrolmode"=
cbr
s<0~(m-1)>_h
264_maxframe
1~"capability_videoin_c<n>_h264_m
axframerate"
1/4 The maximum frame rates of a H264
stream at different
resolutions("capability_videoin_c0_re
solution ") are recorded in
"capability_videoin_c<n>_h264_maxf
ramerate"
s<0~(m-1)>_h
264_profile
0~2 1/4 Indicate H264 profiles
0: baseline
1: main profile
2: high profile
s
<
0
~
(
m
-
1
)
>
_
h
2
6
5
_
d
i
n
t
r
a
p
e
r
<boolean> 4/4 Enable "Dynamic intra frame period".
* Only available when
"capability_videoin_c<0~(n-1)>_dint
raperiod_support" is 1 and h265 is
listed in "capability_videoin_codec".
* We support this parameter when the
version number (httpversion) is equal
or greater than 0301c.
VIVOTEK
176 - User's Manual
i
o
d
_
e
n
a
b
l
e
s<0~(m-1)>_h
265_intraperiod
250, 500, 1000, 2000, 3000, 4000 4/4 The time interval between two
I-frames (Intra coded picture).
The unit is millisecond (ms).
* Only available when h265 is listed in
"capability_videoin_codec".
s<0~(m-1)>_h
265_ratecontrol
mode
cbr, vbr, smart 4/4 cbr: Constant bit rate mode.
vbr: Fixed quality mode, all frames are
encoded in the same quality.
smart: Smart stream mode. (Only
valid when
"capability_smartstream_support"=1
and "capability_smartstream_version"
is not equal "2.0")
* Only available when h265 is listed in
"capability_videoin_codec".
s<0~(m-1)>_h
265_quant
1~5,
99, 100
4/4 Set the
pre-defined
quality level:
1: Medium
2: Standard
3: Good
4: Detailed
5: Excellent
100: Use the quality level in
"qpercent"
99: Use the quality level in "qvalue"
* Only available when h265 is listed in
VIVOTEK
User's Manual - 177
"capability_videoin_codec" and
"ratecontrolmode"= vbr.
s<0~(m-1)>_h
265_qvalue
0~51 4/4 Manual video
quality level
input. The Q
value which is
used by
encoded
library
directly.
* Only available when h265 is listed in
"capability_videoin_codec".
* Only valid when "ratecontrolmode"=
vbr and s<0~(m-1)>_h265_quant =
99.
s<0~(m-1)>_h
265_qpercent
1~100 4/4 Select customized quality in a
normalized full range.
1: Worst quality
100: Best quality
* Only available when h265 is listed in
"capability_videoin_codec".
* Only valid when "ratecontrolmode"=
vbr and "quant"= 100.
s<0~(m-1)>_h
265_maxvbrbitr
ate
20000~"capability_videoin_c<n>_h2
65_maxbitrate
"
4/4 The maximum
allowed bit
rate in fixed
quality mode.
When the bit rate exceeds this value,
frames will be dropped to restrict the
bit rate.
* Only available when h265 is listed in
"capability_videoin_codec".
* Only valid when "ratecontrolmode"=
vbr
s<0~(m-1)>_h
265_cbr_quant
1~5, 100 4/4 Set the
pre-defined
VIVOTEK
178 - User's Manual
quality level:
1: Medium
2: Standard
3: Good
4: Detailed
5: Excellent
100: Use the quality level in
"cbr_qpercent"
* Only available when h265 is listed in
"capability_videoin_codec" and
"ratecontrolmode"= cbr.
* Only available when
"capability_smartstream_version"=2.
0
s<0~(m-1)>_h
265_cbr_qperce
nt
1~100 4/4 Select customized quality in a
normalized full range.
1: Worst quality
100: Best quality
* Only available when h265 is listed in
"capability_videoin_codec".
* Only valid when "ratecontrolmode"=
cbr and "quant"= 100.
* Only available when
"capability_smartstream_version"=2.
0
s<0~(m-1)>_h
265_bitrate
20000~"capability_videoin_c<n>_h2
65_maxbitrate"
4/4 The target bit rate in constant bit rate
mode.
* Only available when h265 is listed in
"capability_videoin_codec".
*Only valid when "ratecontrolmode"=
cbr
s<0~(m-1)>_h
265_prioritypoli
cy
framerate,imagequality 4/4 Set prioritypolicy
* Only available when h265 is listed in
"capability_videoin_codec".
* Only valid when "ratecontrolmode"=
cbr
VIVOTEK
User's Manual - 179
s<0~(m-1)>_h
265_maxframe
1~"capability_videoin_c<n>_h265_m
axframerate"
1/4 The maximum frame rates of a H265
stream at different
resolutions("capability_videoin_c0_re
solution ") are recorded in
"capability_videoin_c<n>_h265_maxf
ramerate"
* Only available when h265 is listed in
"capability_videoin_codec".
s<0~(m-1)>_h
265_profile
0~2 1/4 Indicate H265 profiles
0: baseline
1: main profile
2: high profile
* Only available when h265 is listed in
"capability_videoin_codec".
s<0~(m-1)>_m
jpeg_ratecontro
lmode
cbr, vbr 4/4 cbr: Constant bit rate mode.
vbr: Fixed quality mode, all frames are
encoded in the same quality.
s<0~(m-1)>_m
jpeg_quant
1~5,
99, 100
4/4 * Only valid when "ratecontrolmode"=
vbr.
Set the pre-defined quality level:
1: Medium
2: Standard
3: Good
4: Detailed
5: Excellent
100: Use the quality level in
"qpercent"
99: Use the quality level in "qvalue"
s<0~(m-1)>_m
jpeg_qvalue
10~200
(Only valid when
"capability_api_httpversion" format is
XXXXX_1,
ex: 0301a_1)
or 1~99
(Only valid when
"capability_api_httpversion" format is
XXXXX_2,
4/4 Manual video quality level input. The Q
value which is used by encoded library
directly.
* Only valid when "ratecontrolmode"=
vbr and s<0~(m-1)>_mjpeg_quant =
99
VIVOTEK
180 - User's Manual
ex: 0301a_2)
<product dependent>
s<0~(m-1)>_m
jpeg_qpercent
1~100 4/4 Select customized quality in a
normalized full range.
1: Worst quality
100: Best quality
* Only valid when "ratecontrolmode"=
vbr and s<0~(m-1)>_mjpeg_quant =
100.
s<0~(m-1)>_m
jpeg_maxvbrbit
rate
20000~"capability_videoin_c<n>_mj
peg_maxbitrate"
4/4 The maximum allowed bit rate in fixed
quality mode.
When the bit rate exceeds this value,
frames will be dropped to restrict the
bit rate.
* Only valid when "ratecontrolmode"=
vbr
s<0~(m-1)>_m
jpeg_cbr_quant
1~5, 100 4/4 Set the pre-defined quality level:
1: Medium
2: Standard
3: Good
4: Detailed
5: Excellent
100: Use the quality level in
"cbr_qpercent"
* Only available when
"ratecontrolmode"= cbr.
* Only available when
"capability_smartstream_version"=2.
0
s<0~(m-1)>_m
jpeg_cbr_qperc
ent
1~100 4/4 Select customized quality in a
normalized full range.
1: Worst quality
100: Best quality
* Only valid when "ratecontrolmode"=
cbr and "quant"= 100.
* Only available when
VIVOTEK
User's Manual - 181
"capability_smartstream_version"=2.
0
s<0~(m-1)>_m
jpeg_bitrate
20000~"capability_videoin_c<n>_mj
peg_maxbitrate"
4/4 The target bit rate in constant bit rate
mode.
* Only valid when "ratecontrolmode"=
cbr
s<0~(m-1)>_m
jpeg_prioritypoli
cy
framerate,imagequality 4/4 Set prioritypolicy
* Only valid when "ratecontrolmode"=
cbr
s<0~(m-1)>_m
jpeg_maxframe
1~"capability_videoin_c<n>_mjpeg_
maxframerate"
1/4 The maximum frame rates of a mjpeg
stream at different
resolutions("capability_videoin_c0_re
solution ") are recorded in
"capability_videoin_c<n>_mjpeg_ma
xframerate"
wdrpro_mode
<product
dependent>
<boolean> 4/4 Enable WDR pro
* Only available when
"capability_image_c<n>_wdrpro_mo
de" > 0
wdrpro_strengt
h
<product
dependent>
1~100 4/4 The strength of WDR Pro.
The bigger value means the stronger
strength of WDR Pro.
* Only available when
"capability_image_c<n>_wdrpro_stre
ngth" is 1
wdrc_mode
<product
dependent>
<boolean> 4/4 Enable WDR enhanced.
* Only available when
"capability_image_c<n>_wdrc_mode
" is 1
wdrc_strength
<product
dependent>
1~100 4/4 The strength of WDR enhanced.
The bigger value means the stronger
strength of WDR enhanced.
* Only available when
"capability_image_c<n>_wdrc_mode
" is 1
aespeed_mode
<product
<boolean> 4/4 Turning AE converge speed on or off.
0: off
VIVOTEK
182 - User's Manual
dependent> 1: on
* Only available when
"capability_image_c<n>_aespeed" is
1
aespeed_speedl
evel
<product
dependent>
1~100 4/4 The speed level of AE converge speed.
1~20: level 1
21~40: level 2
41~60: level 3
61~80: level 4
81~100: level 5
Level 1~4(low ~ high)
The higher speed level meas shorter
AE converged time during AE
executing.
* Only available when
"capability_image_c<n>_aespeed" is
1
aespeed_sensiti
vity
<product
dependent>
1~100 4/4 The sensitivity of AE converge speed.
1~20: level 1
21~40: level 2
41~60: level 3
61~80: level 4
81~100: level 5
Level 1~4(low ~ high)
The higher sensitivity level meas that
it is easy to be trigger while scene
changed.
* Only available when
"capability_image_c<n>_aespeed" is
1
flickerless
<product
dependent>
<boolean> 4/4 Turn on(1) or turn off(0) the flickerless
mode
* Only available when
"capability_image_c<n>_flickerless"
is 1
mounttype
<product
dependent>
ceiling, wall, floor 1/6 wall mount: 180° panoramic view
ceiling mount: 360° surround view
without blind spots
floor mount: 360° surround view
without blind spots
VIVOTEK
User's Manual - 183
* Only available when
"capability_fisheye" > 0
enablewatermar
k
<product
dependent>
0, 1 1/6 0: Not to add watermarks on images
1: Add watermarks on images
* Only available when
"capability_fisheye" > 0
s<0~(m-2)>_fi
sheyedewarpmo
de
<product
dependent>
‘1O, 1P, 2P, 1R, 4R’ for ceiling/floor
mount
‘1O, 1P, 1R, 4R’ for wall mount
<product dependent>
1/4 Local dewarp mode.
“1O” is original mode (disable).
Supported dewarp mode is different by
mount type.
(videoin_c<n>_mounttype)
Supported mode list could be
extracted from
(capability_videoin_c<n>_localdewar
p_typeceilingmount) and
(capability_videoin_c<n>_localdewar
p_typewallmount)
* Only available when
"capability_fisheyelocaldewarp_c<0~(
capability_nvideoin)-1>" > 0
Group: videoin_c<0~(n-1)>_s<0~(m-1)>_h264_smartstream (capability_smartstream_support=1)
Group: videoin_c<0~(n-1)>_s<0~(m-1)>_h265_smartstream (capability_smartstream_support=1 and
h265 is listed in "capability_videoin_codec")
n denotes the value of "capability_nvideoin",m denotes the value of " capability_nmediastream"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
mode autotracking,manual,hybrid 4/4 Set Smart stream mode
foreground_quant 0~5 4/4 Quality of foreground quality 0 =
worst quality, 5 = best quality.
background_quant 0~5 4/4 Quality of background quality 0 =
worst quality, 5 = best quality.
maxbitrate 20000~40000000 4/4 Maximum bitrate
Group: videoin_c<0~(n-1)>_s<0~(m-1)>_h264_smartstream_win_i<0~(k-1)>
(capability_smartstream_support=1 and capability_smartstream_mode_manual = 1)
VIVOTEK
184 - User's Manual
Group: videoin_c<0~(n-1)>_s<0~(m-1)>_h265_smartstream_win_i<0~(k-1)>
(capability_smartstream_support=1 and h265 is listed in "capability_videoin_codec" and
capability_smartstream_mode_manual = 1)
n denotes the value of "capability_nvideoin",m denotes the value of " capability_nmediastream",k denotes the
value of "capability_smartstream_nwindow_manual".
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable or disable the window.
home 0~320,0~240 4/4 Left-top corner coordinate of the window.
size 0~320x0~240 4/4 Width and height of the window
7.8.1.1 Alternative video input profiles per channel
In addition to the primary setting of video input, there can be alternative profile video input setting for each
channel which might be for different scene of light (daytime or nighttime).
Group: videoin_c<0~(n-1)>_profile_i<0~(m-1)> for n channel profucts and m profile
n denotes the value of "capability_nvideoin" and m denotes the value of "capability_nvideoinprofile"
(capability.nvideoinprofile> 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable/disable this profile setting
policy night,
schedule
4/4 The mode which the profile is applied to.
* Not support "policy=day" anymore when the
version number (httpversion) is equal or
greater than 0301a.
begintime hh:mm 4/4 Begin time of schedule mode.
endtime hh:mm 4/4 End time of schedule mode.
minexposure
<product dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
etc.
* Available value is
listed in
"capability_image_c
<n>_exposure_min
4/4 Minimum exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
5~8000 => 1/5s ~ 1/8000s
etc.
* Only available when
"capability_image_c<n>_exposure_minrange
" != "-"
VIVOTEK
User's Manual - 185
range" * Only valid when "piris_mode"=manual or
"irismode"=fixed
* Only available when
"capability_image_c<n>_exposure_rangetyp
e" is "twovalues".
maxexposure
<product dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
etc.
* Available value is
listed in
"capability_image_c
<n>_exposure_ma
xrange"
4/4 Maximum exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
5~8000 => 1/5s ~ 1/8000s
etc.
* This parameter may also restrict image
frame rate from sensor due to sensor
generates a frame per exposure time. Ex: If
this is set to 1/5s ~ 1/8000s and camera takes
1/5s on the night, then sensor only outputs 5
frame/s.
* Only available when
"capability_image_c<n>_exposure_maxrang
e" != "-"
* Only valid when "piris_mode"=manual or
"irismode"=fixed
* Only available when
"capability_image_c<n>_exposure_rangetyp
e" is "twovalues".
shuttervalue
<product dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
etc.
* Available value is
listed in
"capability_image_c
<n>_exposure_ma
xrange"
4/4 Exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
5~8000 => 1/5s ~ 1/8000s
etc.
* This parameter may also restrict image
frame rate from sensor due to sensor
generates a frame per exposure time. Ex: If
this is set to 1/5s ~ 1/8000s and camera takes
1/5s on the night, then sensor only outputs 5
frame/s.
VIVOTEK
186 - User's Manual
* Only available when
"capability_image_c<n>_exposure_maxrang
e" != "-" and
"capability_image_c<n>_exposure_rangetyp
e" is "onevalue".
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
enableblc
<Not support anymore>
<boolean> 4/4 Enable backlight compensation.
* Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301a.
* It's recommanded to use
"exposurewin_c<n>_mode" to switch on/off
BLC.
exposurelevel 0~12 4/4 Exposure level
"0,12": This range takes the concept from DC's
exposure tuning options. The definition is:
0: EV -2.0
1: EV -1.7
2: EV -1.3
3: EV -1.0
4: EV -0.7
5: EV -0.3
6: EV 0
7: EV +0.3
8: EV +0.7
9: EV +1.0
10: EV +1.3
11: EV +1.7
12: EV +2.0
exposuremode
<product dependent>
auto,
shutterpriority,
irispriority,
manual,
etc
(Available options
4/4 Select exposure mode.
"auto": Iris, Gain and Shutter
Speed(Exposure time) can be set
automatically.
"shutterpriority": Adjust with variable
Shutter Speed, auto Iris and Gain.
VIVOTEK
User's Manual - 187
are list in
"capability_image_c
<n>_exposure_mo
detype")
"irispriority": Adjust with variable Iris, auto
Gain and Shutter speed.
"manual": Adjust with variable Shutter, Iris
and Gain.
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
whitebalance
<product dependent>
auto,
manual,
rbgain,
widerange,
outdoor,
indoor,
sodiumauto,
etc
(Available values are
listed in
"capability_image_c
<n>_wbmode")
4/4 Modes of white balance.
"auto": Auto white balance
"rbgain": Use rgain and bgain to set white
balance manually.
"manual": 2 cases:
a. if "rbgain" is not supported, this means
keep current white balance status.
b. if "rbgain" is supported, "rgain" and
"bgain" are updated to the current values
which is got from white balance module. Then,
act as rbgain mode
"widerange": Auto Tracing White balance
(2000K to 10000K).
"outdoor": auto white balance mode
specifically for outdoor.
"indoor": auto white balance mode
specifically for indoor.
"sodiumauto": sodium vapor lamps.
* Only available when
"capability_image_c<n>_wbmode" !="-"
rgain 0~100 4/4 Manual set rgain value of gain control setting.
0: Weak <-> 100: Strong
* Only available when "rbgain" is listed in
"capability_image_c<n>_wbmode".
* Only valid when
"videoin_c<n>_whitebalance" != auto
* Normalized range.
bgain 0~100 4/4 Manual set bgain value of gain control setting.
0: Weak <-> 100: Strong
VIVOTEK
188 - User's Manual
* Only available when "rbgain" is listed in
"capability_image_c<n>_wbmode".
* Only valid when
"videoin_c<n>_whitebalance" != auto
* Normalized range.
maxgain 0~100 4/4 Maximum gain value.
0: Low <-> 100: High
* Only available when
"capability_image_c<n>_agc_maxgain" != "-"
* Only valid when "piris_mode"=manual or
"irismode"=fixed
* Normalized range.
* Only available when
"capability_image_c<n>_exposure_rangetyp
e" is "twovalues".
mingain 0~100 4/4 Minimum gain value.
0: Low <-> 100: High
* Only available when
"capability_image_c<n>_agc_mingain" != "-"
* Only valid when "piris_mode"=manual or
"irismode"=fixed
* Normalized range.
* Only available when
"capability_image_c<n>_exposure_rangetyp
e" is "twovalues".
gainvalue 0~100 4/4 Gain value.
0: Low <-> 100: High
* Only available when
"capability_image_c<n>_agc_maxgain" != "-"
and
"capability_image_c<n>_exposure_rangetyp
e" is "onevalue".
* Normalized range.
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
VIVOTEK
User's Manual - 189
piris_mode
<product dependent>
manual, indoor,
outdoor,-
1/4 Control P-Iris mode.
"outdoor": Auto-setting P-Iris to get best
quality, but easy to meet rolling or flicker effect
in indoor environment.
"indoor": Avoid rolling and flicker effect first.
"manual": Manual set P-Iris by
"piris_position".
"-": not support (only available when
"capability_image_c<0~(n-1)>_sensortype"
is "smartsensor")
* Only available when
"capability_image_c<n>_iristype"=piris
piris_position
<product dependent>
1~100 1/4 Manual set P-Iris.
1: Open <-> 100: Close
* Only vaild when "piris_mode"=manual or
"capability_image_c<0~(n-1)>_sensortype"
is "smartsensor"
* Only available when
"capability_image_c<n>_iristype"=piris
irismode fixed, indoor,
outdoor
<product
dependent>
4/4 Control DC-Iris mode.
"outdoor": Auto-setting DC-Iris to get best
quality, but easy to meet rolling or flicker effect
in indoor environment.
"indoor": Avoid rolling and flicker effect first.
"fixed": Open the iris to maximum.
* Only available when
"capability_image_c<n>_iristype"=dciris
wdrpro_mode
<product dependent>
<boolean> 4/4 Enable WDR pro
* Only available when
"capability_image_c<n>_wdrpro_mode" > 0
wdrpro_strength
<product dependent>
1~100 4/4 The strength of WDR Pro.
The bigger value means the stronger strength
of WDR Pro.
* Only available when
"capability_image_c<n>_wdrpro_strength" is
1
wdrc_mode
<product dependent>
<boolean> 4/4 Enable WDR enhanced.
* Only available when
VIVOTEK
190 - User's Manual
"capability_image_c<n>_wdrc_mode" is 1
wdrc_strength
<product dependent>
1~100 4/4 The strength of WDR enhanced.
The bigger value means the stronger strength
of WDR enhanced.
* Only available when
"capability_image_c<n>_wdrc_mode" is 1
aespeed_mode
<product dependent>
<boolean> 4/4 Turning AE converge speed on or off.
0: off
1: on
* Only available when
"capability_image_c<n>_aespeed" is 1
aespeed_speedlevel
<product dependent>
1~100 4/4 The speed level of AE converge speed.
1~20: level 1
21~40: level 2
41~60: level 3
61~80: level 4
81~100: level 5
Level 1~4(low ~ high)
The higher speed level meas shorter AE
converged time during AE executing.
* Only available when
"capability_image_c<n>_aespeed" is 1
aespeed_sensitivity
<product dependent>
1~100 4/4 The sensitivity of AE converge speed.
1~20: level 1
21~40: level 2
41~60: level 3
61~80: level 4
81~100: level 5
Level 1~4(low ~ high)
The higher sensitivity level meas that it is easy
to be trigger while scene changed.
* Only available when
"capability_image_c<n>_aespeed" is 1
flickerless
<product dependent>
<boolean> 4/4 Turn on(1) or turn off(0) the flickerless mode
* Only available when
"capability_image_c<n>_flickerless" is 1
VIVOTEK
User's Manual - 191
7.9Time Shift settings
Group: timeshift for n channel profucts and m stream
n denotes the value of "capability_nvideoin", m denotes the value of "capability_nmediastream"
(capability.timeshift > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable time shift streaming.
c<0~(n-1)>_s<0~(m-1)
>_allow
<boolean> 4/4 Enable time shift streaming for specific
stream.
7.10 IR cut control
Group: ircutcontrol
(capability.nvideoinprofile> 0 and capability_daynight_c<0~(n-1)>_ircutfilter=1)
n denotes the value of "capability_nvideoin"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
mode auto,
day,
night,
di,
schedule
<product
dependent>
6/6 Set IR cut control mode
sir
<product dependent>
<boolean> 6/6 Enable/disable Smart IR
* Only available when
"capability_daynight_c<0~"capability_nvideoi
n"-1>_smartir" is 1
daymodebegintime 00:00~23:59 6/6 Day mode begin time
daymodeendtime 00:00~23:59 6/6 Day mod end time
disableirled <boolean> 6/6 Enable/disable built-in IR led
(capability_daynight_c<0~"capability_nvideoi
n"-1>_buildinir > 0)
enableextled <boolean> 1/6 Enable/disable external IR led
(capability_daynight_c<0~"capability_nvideoi
n"-1>externalir > 0)
bwmode <boolean> 6/6 Switch to B/W in night mode if enabled
sensitivity low, normal, high 6/6 Sensitivity of day/night control.
VIVOTEK
192 - User's Manual
(if
capability_daynight
_c<n>_ircutsensitiv
ity_type=options)
1~100 (if
capability_daynight
_c<n>_ircutsensitiv
ity_type=normalize
)
There are two value format:
"low,normal,high": if
capability_daynight_c<n>_ircutsensitivity_ty
pe=options
"1~100": if
capability_daynight_c<n>_ircutsensitivity_ty
pe=normalize
7.11 Image setting per channel
Group: image_c<0~(n-1)> for n channel profucts and m profile
n denotes the value of "capability_nvideoin" and m denotes the value of "capability_nvideoinprofile"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
brightness
<Not recommended to use this>
-5~5,100 4/4 -5: Darker <-> 5: Bright
100: Use " image_c<n>_brightnesspercent"
* Only available when bit 0 of
"capability_image_c<n>_basicsetting" is 1
* We replace "brightness" with
"brightnesspercent".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
contrast
<Not recommended to use this>
-5~5,100 4/4 -5: Less contrast <-> 5: More contrast
100: Use " image_c<n>_contrastpercent"
* Only available when bit 1 of
"capability_image_c<n>_basicsetting" is 1.
* We replace "contrast" with "contrastpercent
".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
saturation -5~5,100 4/4 -5: Less saturation <-> 5: More saturation
VIVOTEK
User's Manual - 193
<Not recommended to use this> 100: Use " image_c<n>_saturationpercent"
* Only available when bit 2 of
"capability_image_c<n>_basicsetting" is 1.
* We replace "saturation" with
"saturationpercent".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
sharpness
<Not recommended to use this>
-3~3,100 4/4 -3: Softer <-> 3: Sharper
100: Use " image_c<n>_sharpnesspercent"
* Only available when bit 3 of
"capability_image_c<n>_basicsetting" is 1.
* We replace "sharpness" with
"sharpnesspercent".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
brightnesspercent 0~100 4/4 Set brightness in the normalized range.
0: Darker <-> 100: Bright
* Only available when bit 0 of
"capability_image_c<n>_basicsetting" is 1.
contrastpercent 0~100 4/4 Set contrast in the normalized range.
0: Less contrast <-> 100: More contrast
* Only available when bit 1 of
"capability_image_c<n>_basicsetting" is 1
saturationpercent 0~100 4/4 Set saturation in the normalized range.
0: Less saturation <-> 100: More saturation
* Only available when bit 2 of
"capability_image_c<n>_basicsetting" is 1.
sharpnesspercent 0~100 4/4 Set sharpness in the normalized range.
0: Softer <-> 100: Sharper
* Only available when bit 3 of
VIVOTEK
194 - User's Manual
"capability_image_c<n>_basicsetting" is 1
gammacurve 0~100 4/4 0: Fine-turned gamma curve by Vivotek.
1: Gamma value = 0.01
2: Gamma value = 0.02
3: Gamma value = 0.03
...
100: Gamma value = 1
* Note: Although we set gamma value to 100
level, but not all gamma values are valid.
Internal module will take the closest valid one.
For example, 1~45 may all be mapped to
gamma value = 0.45, etc.
lowlightmode
<product dependent>
<boolean> 4/4 Enable/disable low light mode.
* Only available when
"capability_image_c<n>_lowlightmode" is 1
dnr_mode
<product dependent>
<boolean> 4/4 3D noise reduction.
0:disable
1:enable
* Only available when
"capability_image_c<n>_dnr" is 1
dnr_strength
<product dependent>
1~100 4/4 Strength of 3DNR
* Only available when
"capability_image_c<n>_dnr" is 1
defog_mode
<product dependent>
<boolean> 4/4 Enable/disable defog mode.
0:disable
1:enable
* Only available when
"capability_image_c<n>_defog_mode" is 1
defog_strength
<product dependent>
1~100 4/4 Strength of defog
* Only available when
"capability_image_c<n>_defog_mode" is 1
eis_mode
<product dependent>
<boolean> 4/4 Electronic image stabilizer
0:disable
1:enable
* Only available when 'eis' is listed in
"capability_image_c<n>_is_mode".
eis_strength
<product dependent>
1~100 4/4 Strength of electronic image stabilizer
* Only available when 'eis' is listed in
"capability_image_c<n>_is_mode".
VIVOTEK
User's Manual - 195
dis_mode
<product dependent>
<boolean> 4/4 Digital image stabilizer
0:disable
1:enable
* Only available when 'dis' is listed in
"capability_image_c<n>_is_mode".
dis_strength
<product dependent>
1~100 4/4 Strength of digital image stabilizer
* Only available when 'dis' is listed in
"capability_image_c<n>_is_mode".
scene_enable
<product dependent>
<boolean> 4/4 Enable/disable scene mode
0: disable
1: enable
* Only available when
"capability_image_c<n>_scenemode_support
" is 1
scene_mode
<product dependent>
visibility,
noiseless,
lpcparkinglot,
lpcstreet
<product
dependent>
4/4 Value of scene mode
* Only available when
"capability_image_c<n>_scenemode_support
" is 1
* Available value is listed in
"capability_image_c<n>_scenemode_support
type"
restoreatwb
1~
4/4 Restore of adjusting white balance of image
according to mode settings
freeze
<product dependent>
<boolean> 4/4 Enable/disable Image freeze while patrolling.
0: disable
1: enable
* Only available when
"capability_image_c<n>_freeze" is 1
profile_i<0~(m-1)>_enable <boolean> 4/4 Enable/disable this profile setting
profile_i<0~(m-1)>_policy night,
schedule
4/4 The mode which the profile is applied to.
* Not support "policy=day" anymore when the
version number (httpversion) is equal or
greater than 0301a.
profile_i<0~(m-1)>_begintime hh:mm 4/4 Begin time of schedule mode.
profile_i<0~(m-1)>_endtime hh:mm 4/4 End time of schedule mode.
profile_i<0~(m-1)>_brightness
<Not recommended to use this>
-5~5,100 4/4 -5: Darker <-> 5: Bright
100: Use " image_c<n>_brightnesspercent"
* Only available when bit 0 of
VIVOTEK
196 - User's Manual
"capability_image_c<n>_basicsetting" is 1
* We replace "profile_i0_brightness" with
"profile_i0_brightnesspercent".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
profile_i<0~(m-1)>_contrast
<Not recommended to use this>
-5~5,100 4/4 -5: Less contrast <-> 5: More contrast
100: Use " image_c<n>_contrastpercent"
* Only available when bit 1 of
"capability_image_c<n>_basicsetting" is 1.
* We replace "profile_i0_contrast" with
"profile_i0_contrastpercent ".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
profile_i<0~(m-1)>_saturation
<Not recommended to use this>
-5~5,100 4/4 -5: Less saturation <-> 5: More saturation
100: Use " image_c<n>_saturationpercent"
* Only available when bit 2 of
"capability_image_c<n>_basicsetting" is 1.
* We replace "profile_i0_saturation" with
"profile_i0_saturationpercent".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
profile_i<0~(m-1)>_sharpness
<Not recommended to use this>
-3~3,100 4/4 -5: Less saturation <-> 5: More saturation
100: Use " image_c<n>_saturationpercent"
* Only available when bit 2 of
"capability_image_c<n>_basicsetting" is 1.
* We replace "profile_i0_saturation" with
"profile_i0_saturationpercent".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
VIVOTEK
User's Manual - 197
profile_i<0~(m-1)>_brightness
percent
0~100 4/4 Set brightness in the normalized range.
0: Darker <-> 100: Bright
* Only available when bit 0 of
"capability_image_c<n>_basicsetting" is 1.
profile_i<0~(m-1)>_contrastpe
rcent
0~100 4/4 Set contrast in the normalized range.
0: Less contrast <-> 100: More contrast
* Only available when bit 1 of
"capability_image_c<n>_basicsetting" is 1
profile_i<0~(m-1)>_saturation
percent
0~100 4/4 Set saturation in the normalized range.
0: Less saturation <-> 100: More saturation
* Only available when bit 2 of
"capability_image_c<n>_basicsetting" is 1.
profile_i<0~(m-1)>_sharpness
percent
0~100 4/4 Set sharpness in the normalized range.
0: Softer <-> 100: Sharper
* Only available when bit 3 of
"capability_image_c<n>_basicsetting" is 1
profile_i<0~(m-1)>_gammacur
ve
0~100 4/4 0: Fine-turned gamma curve by Vivotek.
1: Gamma value = 0.01
2: Gamma value = 0.02
3: Gamma value = 0.03
...
100: Gamma value = 1
* Note: Although we set gamma value to 100
level, but not all gamma values are valid.
Internal module will take the closest valid one.
For example, 1~45 may all be mapped to
gamma value = 0.45, etc.
profile_i<0~(m-1)>_lowlightm
ode
<product dependent>
<boolean> 4/4 Enable/disable low light mode.
* Only available when
"capability_image_c<n>_lowlightmode" is 1
profile_i<0~(m-1)>_dnr_mode
<product dependent>
<boolean> 4/4 3D noise reduction.
0:disable
1:enable
* Only available when
"capability_image_c<n>_dnr" is 1
VIVOTEK
198 - User's Manual
profile_i<0~(m-1)>_dnr_stren
gth
<product dependent>
1~100 4/4 Strength of 3DNR
* Only available when
"capability_image_c<n>_dnr" is 1
profile_i<0~(m-1)>_defog_mo
de
<product dependent>
<boolean> 4/4 Enable/disable defog mode.
0:disable
1:enable
* Only available when
"capability_image_c<n>_defog_mode" is 1
profile_i<0~(m-1)>_defog_str
ength
<product dependent>
1~100 4/4 Strength of defog
* Only available when
"capability_image_c<n>_defog_mode" is 1
profile_i<0~(m-1)>_eis
<product dependent>
<boolean> 4/4 Electronic image stabilizer
0:disable
1:enable
* Only available when
"capability_image_c<n>_eis" is 1
profile_i<0~(m-1)>_eis_mode
<product dependent>
<boolean> 4/4 Electronic image stabilizer
0:disable
1:enable
* Only available when 'eis' is listed in
"capability_image_c<n>_is_mode".
profile_i<0~(m-1)>_eis_streng
th
<product dependent>
1~100 4/4 Strength of electronic image stabilizer
* Only available when 'eis' is listed in
"capability_image_c<n>_is_mode".
profile_i<0~(m-1)>_dis_mode
<product dependent>
<boolean> 4/4 Digital image stabilizer
0:disable
1:enable
* Only available when 'dis' is listed in
"capability_image_c<n>_is_mode".
profile_i<0~(m-1)>_dis_streng
th
<product dependent>
1~100 4/4 Strength of digital image stabilizer
* Only available when 'dis' is listed in
"capability_image_c<n>_is_mode".
profile_i<0~(m-1)>_scene_ena
ble
<product dependent>
<boolean> 4/4 Enable/disable scene mode
0: disable
1: enable
* Only available when
"capability_image_c<n>_scenemode_support
" is 1
profile_i<0~(m-1)>_scene_mo
de
visibility,
noiseless,
4/4 Value of scene mode
* Only available when
VIVOTEK
User's Manual - 199
<product dependent> lpcparkinglot,
lpcstreet
<product
dependent>
"capability_image_c<n>_scenemode_support
" is 1
* Available value is listed in
"capability_image_c<n>_scenemode_support
type"
7.12 Exposure window setting per channel
Group: exposurewin_c<0~(n-1)> for n channel profucts
n denotes the value of "capability_nvideoin"
(Only available when "capability_image_c<n>_exposure_mode"=1)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
mode auto, custom,blc
* Available values are listed in
"capability_image_c<n>_exposu
re_winmode"
4/4 "auto": Use full image view as the only
exposure window.
"custom": Use custom windows.
"blc": Use BLC(Back Light Compensation),
and the only exposure window is located at the
center of view.
Group: exposurewin_c<0~(n-1)>_win_i<0~(k-1)>
n denotes the value of "capability_nvideoin", k denotes the value of "capability_image_c<n>_exposure_winnum".
(Only available when custom is listed in "capability_image_c<n>_exposure_winmode" and valid when
"exposurewin_c<n>_mode"=custom)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable or disable the window.
policy 0~1 4/4 0: Indicate exclusive.
1: Indicate inclusive.
* Only available when exclusive is listed in
"capability_image_c<n>_exposure_wintype".
home <0~320,0~240> 4/4 Left-top corner coordinate of the window.
* Only available when qvga is listed in
"capability_image_c<n>_exposure_windomai
n".
size <0~320x0~240> 4/4 Width and height of the window.
* Only available when qvga is listed in
"capability_image_c<n>_exposure_windomai
n".
VIVOTEK
200 - User's Manual
homepx <0~W,0~H>
W: 0~ The current image width -1
H: 0~ The current image height -1
4/4 Left-top corner coordinate of the window.
* Only available when px is listed in
"capability_image_c<n>_exposure_windomai
n".
sizepx <0~Wx0~ H>
W: 0~ The current image width -1
H: 0~ The current image height -1
4/4 Width and height of the window.
* Only available when px is listed in
"capability_image_c<n>_exposure_windomai
n".
homestd <0~9999,0~9999> 4/4 Left-top corner coordinate of the window.
* Only available when std is listed in
"capability_image_c<n>_exposure_windomai
n".
sizestd <0~9999x0~9999> 4/4 Width and height of the window.
* Only available when std is listed in
"capability_image_c<n>_exposure_windomai
n".
Group: exposurewin_c<0~(n-1)>_profile_i<0~(m-1)> for n channel profuct and m profile,
n denotes the value of "capability_nvideoin", m denotes the value of "capability_nvideoinprofile",
(Only valid when capability_image_c<n>_exposure_mode =1)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
mode auto, custom,blc
* Available values are listed in
"capability_image_c<n>_exposu
re_winmode"
4/4 The mode indicates how to decide the
exposure.
"auto": Use full view as the only one exposure
window.
"custom": Use inclusive and exclusive
window.
"blc": Use BLC(Back Light Compensation),
and the only exposure window is located at the
center of view.
Group: exposurewin_c<0~(n-1)>_profile_i<0~(m-1)>_win_i<0~(k-1)> for m profile and n channel
product,
n denotes the value of "capability_nvideoin", m denotes the value of "capability_nvideoinprofile",
k denotes the value of "capability_image_c<n>_exposure_winnum".
VIVOTEK
User's Manual - 201
(Only valid when exposurewin_c<n>_mode=custom)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable or disable the window.
policy 0~1 4/4 0: Indicate exclusive.
1: Indicate inclusive.
* Only available when exclusive is listed in
"capability_image_c<n>_exposure_wintype".
home <0~320,0~240> 4/4 Left-top corner coordinate of the window.
* Only available when qvga is listed in
"capability_image_c<n>_exposure_windomai
n".
size <0~320x0~240> 4/4 Width and height of the window.
* Only available when qvga is listed in
"capability_image_c<n>_exposure_windomai
n".
homepx <0~W,0~H>
W: 0~ The current image width -1
H: 0~ The current image height -1
4/4 Left-top corner coordinate of the window.
* Only available when px is listed in
"capability_image_c<n>_exposure_windomai
n".
sizepx <0~Wx0~ H>
W: 0~ The current image width -1
H: 0~ The current image height -1
4/4 Width and height of the window.
* Only available when px is listed in
"capability_image_c<n>_exposure_windomai
n".
homestd <0~9999,0~9999> 4/4 Left-top corner coordinate of the window.
* Only available when std is listed in
"capability_image_c<n>_exposure_windomai
n".
sizestd <0~9999x0~9999> 4/4 Width and height of the window.
* Only available when std is listed in
"capability_image_c<n>_exposure_windomai
n".
VIVOTEK
202 - User's Manual
7.13 Audio input per channel
Group: audioin_c<0~(n-1)> for n channel products
(capability.naudioin>0)
n denotes the value of "capability_nvideoin"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
source
<Not recommended to use
this>
micin, linein
<product
dependent>
4/4 micin => use built-in microphone input.
linein => use external microphone input.
* Reserved for compatibility, and suggest don't
use this since the version number
(httpversion) is equal or greater than 0301a.
* We replace "source" with "input". More
details, please refer the parameter description
of "input".
input intmic, extmic
<product
dependent>
4/4 intmic: Internal (built-in) microphone.
(Only available when capability_audio_intmic
= 1)
extmic: External microphone input.
(Only available when capability_audio_extmic
=1)
* Note: If physical microphone switch is
showed on product, this value is updated
during booting to fit switch status.
volume_internal 0~100 4/4 Volume when take internal microphone as
input source.
0: Minimum
100: Maximum
* Only available when the channel supports
internal microphone (The related bit of
"capability_audio_intmic" is equal to 1).
volume_external 0~100 4/4 Volume when take external microphone as
input source.
0: Minimum
100: Maximum
* Only available when the channel supports
external microphone (The related bit of
VIVOTEK
User's Manual - 203
"capability_audio_extmic" is equal to 1).
mute 0, 1 1/4 0: Mute off
1: Mute on
gain
<Not recommended to use
this>
0~100 4/4 Gain of input.
(audioin_c<0~(n-1)>_source = linein)
* Reserved for compatibility, and suggest don't
use this since the version number
(httpversion) is equal or greater than 0301a.
* We replace "gain" with "volume_internal"
and "volume_external". More details, please
refer the parameter description of
"volume_internal" and "volume_external".
boostmic
<Not recommended to use
this>
0~100 4/4 Enable microphone boost.
Gain of input.
(audioin_c<0~(n-1)>_source = micin)
* Reserved for compatibility, and suggest don't
use this since the version number
(httpversion) is equal or greater than 0301a.
* We replace "boostmic" with
"volume_internal" and "volume_external".
More details, please refer the parameter
description of "volume_internal" and
"volume_external".
s0_codectype aac4, gamr, g711,
g726
(Available codec are
listed in
"capability_audioin_
codec")
4/4 Set audio codec type for input.
aac4: Advanced Audio Coding (AAC)
gamr: Adaptive Multi-Rate (AMR)
g711: G.711
g726: G.726
s0_aac4_bitrate 16000,
32000,
48000,
64000,
96000,
128000
4/4 Set AAC4 bitrate in bps.
* Only available if AAC is supported.
s0_gamr_bitrate 4750,
5150,
4/4 AMR encoded bitrate in bps.
VIVOTEK
204 - User's Manual
5900,
6700,
7400,
7950,
10200,
12200
* Only available if AMR is supported.
s0_g711_mode pcmu,
pcma
4/4 Set G.711 companding algorithm.
pcmu: µ-law algorithm
pcma: A-law algorithm
* Only available if G.711 is supported.
s0_g726_bitrate 16000,
24000,
32000,
40000
4/4 Set G.726 encoded bitrate in bps.
* Only available if G.726 is supported
.
s0_g726_bitstreampackin
gmode
little, big 4/4 Set G.726 bit streaming packing mode.
little: Little-endian bitstream format.
big: Big-endian bitstream format.
* Only available if G.726 is supported.
s0_g726_vlcmode 0, 1 4/4 Enable vlcmode for G.726.
0: Standard mode.
1: Solve compatibility problem with VLC
player.
* Only available if G.726 is supported.
alarm_enable <boolean> 4/4 Enable audio detection
alarm_level 1~100 4/4 Audio detection alarm level
profile_i0_enable <boolean> 4/4 Enable/disable this profile setting
profile_i0_policy night,
schedule
4/4 The mode which the profile is applied to.
* Not support "policy=day" anymore when the
version number (httpversion) is equal or
greater than 0301a.
profile_i0_begintime hh:mm 4/4 Begin time of schedule mode.
profile_i0_endtime hh:mm 4/4 End time of schedule mode.
profile_i0_alarm_level 1~100 4/4 Audio detection alarm level
VIVOTEK
User's Manual - 205
7.14 Motion detection settings
Group: motion_c<0~(n-1)> for n channel products
n denotes the value of "capability_nvideoin"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable motion detection.
win_sensitivity 1 ~ 100 4/4 Sensitivity of all motion detection windows.
Group: motion_c<0~(n-1)>_win_i<0~(k-1)>
n denotes the value of "capability_nvideoin", k denotes the value of "capability_nmotion".
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable motion detection window.
name string[14] 4/4 Name of motion window.
polygonstd 0 ~ 9999,0 ~ 9999,
0 ~ 9999,0 ~ 9999,
0 ~ 9999,0 ~ 9999,
0 ~ 9999,0 ~ 9999
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_motion_wintype" = polygon.
* Only available when std is listed in
"capability_motion_windomain"
objsize 1 ~ 100 4/4 Percent of motion detection window.
sensitivity
<Not recommended to use
this>
1 ~ 100 4/4 Sensitivity of motion detection window.
* We replace "sensitivity" with
"win_sensitivity".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
polygonpx
<Not recommended to use
this>
0 ~ W,0 ~ H, 0 ~
W,0 ~ H, 0 ~ W,0 ~
H, 0 ~ W,0 ~ H
W: 0~ The current
image width -1
H: 0~ The current
image height -1
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_motion_wintype" = polygon.
* Only available when px is listed in
"capability_motion_windomain
VIVOTEK
206 - User's Manual
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
polygon
<Not recommended to use
this>
0 ~ 320,0 ~ 240, 0
~ 320,0 ~ 240, 0 ~
320,0 ~ 240, 0 ~
320,0 ~ 240
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_motion_wintype" = polygon.
* Only available when qvga is listed in
"capability_motion_windomain
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
left
<Not recommended to use
this>
0 ~ 320 4/4 Left coordinate of window position.
* Only available when
"capability_motion_wintype" = rectangle.
* Only available when qvga is listed in
"capability_motion_windomain".
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
top
<Not recommended to use
this>
0 ~ 240 4/4 Top coordinate of window position.
* Only available when
"capability_motion_wintype" = rectangle.
* Only available when qvga is listed in
"capability_motion_windomain".
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
width
<Not recommended to use
0 ~ 320 4/4 Width of motion detection window.
* Only available when
VIVOTEK
User's Manual - 207
this> "capability_motion_wintype" = rectangle.
* Only available when qvga is listed in
"capability_motion_windomain".
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
height
<Not recommended to use
this>
0 ~ 240 4/4 Height of motion detection window.
* Only available when
"capability_motion_wintype" = rectangle.
* Only available when qvga is listed in
"capability_motion_windomain".
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
Group: motion_c<0~(n-1)>_profile_i<0~(m-1)> for m profile and n channel product,
n denotes the value of "capability_nvideoin", m denotes the vaule of " capability_nmotionprofile ",
(capability_nmotionprofile > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable profile 1 ~ (m-1).
policy night,
schedule
4/4 The mode which the profile is applied to.
* Not support "policy=day" anymore when the
version number (httpversion) is equal or
greater than 0301a.
begintime hh:mm 4/4 Begin time of schedule mode.
endtime hh:mm 4/4 End time of schedule mode.
win_sensitivity 1 ~ 100 4/4 Sensitivity of all motion detection windows.
Group: motion_c<0~(n-1)>_profile_i<0~(m-1)>_win_i<0~(k-1)> for m profile and n channel product,
n denotes the value of "capability_nvideoin", m denotes the vaule of "capability_nmotionprofile",
k denotes the value of "capability_nmotion".
VIVOTEK
208 - User's Manual
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable motion detection window.
name string[14] 4/4 Name of motion window.
polygonstd 0 ~ 9999,0 ~ 9999,
0 ~ 9999,0 ~ 9999,
0 ~ 9999,0 ~ 9999,
0 ~ 9999,0 ~ 9999
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_motion_wintype" = polygon.
* Only available when std is listed in
"capability_motion_windomain
objsize 1 ~ 100 4/4 Percent of motion detection window.
sensitivity
<Not recommended to use
this>
1 ~ 100 4/4 Sensitivity of motion detection window.
* We replace "sensitivity" with
"win_sensitivity".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
polygonpx
<Not recommended to use
this>
0 ~ W,0 ~ H, 0 ~
W,0 ~ H, 0 ~ W,0 ~
H, 0 ~ W,0 ~ H
W: 0~ The current
image width -1
H: 0~ The current
image height -1
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_motion_wintype" = polygon.
* Only available when px is listed in
"capability_motion_windomain
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
polygon
<Not recommended to use
this>
0 ~ 320,0 ~ 240, 0
~ 320,0 ~ 240, 0 ~
320,0 ~ 240, 0 ~
320,0 ~ 240
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_motion_wintype" = polygon.
* Only available when qvga is listed in
"capability_motion_windomain
VIVOTEK
User's Manual - 209
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
left
<Not recommended to use
this>
0 ~ 320 4/4 Left coordinate of window position.
* Only available when
"capability_motion_wintype" = rectangle.
* Only available when qvga is listed in
"capability_motion_windomain".
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
top
<Not recommended to use
this>
0 ~ 240 4/4 Top coordinate of window position.
* Only available when
"capability_motion_wintype" = rectangle.
* Only available when qvga is listed in
"capability_motion_windomain".
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
width
<Not recommended to use
this>
0 ~ 320 4/4 Width of motion detection window.
* Only available when
"capability_motion_wintype" = rectangle.
* Only available when qvga is listed in
"capability_motion_windomain".
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
height
<Not recommended to use
this>
0 ~ 240 4/4 Height of motion detection window.
* Only available when
"capability_motion_wintype" = rectangle.
VIVOTEK
210 - User's Manual
* Only available when qvga is listed in
"capability_motion_windomain".
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
7.15 Tampering detection settings
Group: tampering_c<0~(n-1)> for n channel products
(capability.tampering > 0)
n denotes the value of "capability_nvideoin"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable or disable tamper detection.
threshold 0~100 4/4 Threshold of tamper detection.
duration 10~600 4/4 If tampering value exceeds the "threshold" for
more than "duration" second(s), then tamper
detection is triggered.
ignorewidth 0,<positive integer> 1/7 Indicate the width to offset to start to analysis
the image.
dark_enable <boolean> 4/4 Enable or disable image too dark detection
dark_threshold 0~100 4/4 Threshold of image too dark detection
dark_duration 1~10 4/4 If image too dark value exceeds the
"threshold" for more than "duration"
second(s), then image too dark detection is
triggered.
bright_enable <boolean> 4/4 Enable or disable image too bright detection
bright_threshold 0~100 4/4 Threshold of image too bright detection
bright_duration 1~10 4/4 If image too bright value exceeds the
"threshold" for more than "duration"
second(s), then image too bright detection is
triggered.
blurry_enable <boolean> 4/4 Enable or disable image too blurry detection
blurry_threshold 0~100 4/4 Threshold of image too blurry detection
blurry_duration 1~10 4/4 If image too blurry value exceeds the
"threshold" for more than "duration"
second(s), then image too blurry detection is
VIVOTEK
User's Manual - 211
triggered.
7.16 DDNS
Group: ddns
(capability.protocol.ddns > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable or disable the dynamic DNS.
provider CustomSafe100,
DyndnsDynamic,
DyndnsCustom,
Safe100
6/6 Safe100 => safe100.net
DyndnsDynamic => dyndns.org (dynamic)
DyndnsCustom => dyndns.org
CustomSafe100 =>
Custom server using safe100 method
<provider>_hostname string[128] 6/6 Your DDNS hostname.
<provider>_usernameem
ail
string[64] 6/6 Your user name or email to login to the DDNS
service provider
<provider>_passwordkey string[64] 6/6 Your password or key to login to the DDNS
service provider.
<provider>_servername string[128] 6/6 The server name for safe100.
(This field only exists if the provider is
customsafe100)
7.17 Express link
Group: expresslink
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable or disable express link.
state onlycheck,
onlyoffline,
checkonline,
badnetwork
6/6 Camera will check the status of network
environment and express link URL
url string[64] 6/6 The url user define to link to camera
VIVOTEK
212 - User's Manual
7.18 UPnP presentation
Group: upnppresentation
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable or disable the UPnP presentation
service.
7.19 UPnP port forwarding
Group: upnpportforwarding
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable or disable the UPnP port forwarding
service.
upnpnatstatus 0~3 6/7 The status of UPnP port forwarding, used
internally.
0 = OK, 1 = FAIL, 2 = no IGD router, 3 = no
need for port forwarding
7.20 System log
Group: syslog
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enableremotelog <boolean> 6/6 Enable remote log.
serverip <IP address> 6/6 Log server IP address.
serverport 514, 1025~65535 6/6 Server port used for log.
level 0~7 6/6 Levels used to distinguish the importance of
the information:
0: LOG_EMERG
1: LOG_ALERT
2: LOG_CRIT
3: LOG_ERR
4: LOG_WARNING
5: LOG_NOTICE
6: LOG_INFO
7: LOG_DEBUG
setparamlevel 0~2 6/6 Show log of parameter setting.
VIVOTEK
User's Manual - 213
0: disable
1: Show log of parameter setting set from
external.
2. Show log of parameter setting set from
external and internal.
7.21 SNMP
Group: snmp
(capability.protocol.snmp > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
v2 <boolean> 6/6 SNMP v2 enabled. 0 for disable, 1 for enable
v3 <boolean> 6/6 SNMP v3 enabled. 0 for disable, 1 for enable
secnamerw string[31] 6/6 Read/write security name
secnamero string[31] 6/6 Read only security name
authpwrw string[8~128] 6/6 Read/write authentication password
authpwro string[8~128] 6/6 Read only authentication password
authtyperw MD5,SHA 6/6 Read/write authentication type
authtypero MD5,SHA 6/6 Read only authentication type
encryptpwrw string[8~128] 6/6 Read/write passwrd
encryptpwro string[8~128] 6/6 Read only password
encrypttyperw DES 6/6 Read/write encryption type
encrypttypero DES 6/6 Read only encryption type
rwcommunity string[31] 6/6 Read/write community
rocommunity string[31] 6/6 Read only community
syslocation string[128] 6/6 System location
syscontact string[128] 6/6 System contact
VIVOTEK
214 - User's Manual
7.22 Layout configuration
Group: layout
NAME VALUE SECURITY
(get/set)
DESCRIPTION
logo_default <boolean> 1/6 0 => Custom logo
1 => Default logo
logo_link string[128]
http://www.vivotek.
com
1/6 Hyperlink of the logo
logo_powerbyvvtk_hidden <boolean> 1/6 0 => display the power by vivotek logo
1 => hide the power by vivotek logo
custombutton_manualtrig
ger_show
<boolean> 1/6 Show or hide manual trigger (VI) button in
homepage
0 -> Hidden
1 -> Visible
theme_option 1~4 1/6 1~3: One of the default themes.
4: Custom definition.
theme_color_font string[7] 1/6 Font color
theme_color_configfont string[7] 1/6 Font color of configuration area.
theme_color_titlefont string[7] 1/6 Font color of video title.
theme_color_controlback
ground
string[7] 1/6 Background color of control area.
theme_color_configbackg
round
string[7] 1/6 Background color of configuration area.
theme_color_videobackgr
ound
string[7] 1/6 Background color of video area.
theme_color_case string[7] 1/6 Frame color
VIVOTEK
User's Manual - 215
7.23 Privacy mask
Group: privacymask_c<0~(n-1)> for n channel products and m privacy mask window.
n denotes the value of "capability_nvideoin" and m denotes the value of
"capability_videoin_c<0~(n-1)>_nprivacymask"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable privacy mask.
win_i<0~(m-1)>_enable <boolean> 4/4 Enable privacy mask window.
win_i<0~(m-1)>_name string[14] 4/4 Name of the privacy mask window.
win_i<0~(m-1)>_left 0 ~ 320 4/4 Left coordinate of window position.
* Only available when
"capability_image_c<n>_privacymask_wintype"
= rectangle.
win_i<0~(m-1)>_top 0 ~ 240 4/4 Top coordinate of window position.
* Only available when
"capability_image_c<n>_privacymask_wintype"
= rectangle.
win_i<0~(m-1)>_width 0 ~ 320 4/4 Width of privacy mask window.
* Only available when
"capability_image_c<n>_privacymask_wintype"
= rectangle.
win_i<0~(m-1)>_height 0 ~ 240 4/4 Height of privacy mask window.
* Only available when
"capability_image_c<n>_privacymask_wintype"
= rectangle.
win_i<0~(m-1)>_polygon 0 ~ 320,0 ~
240, 0 ~
320,0 ~ 240,
0 ~ 320,0 ~
240, 0 ~
320,0 ~ 240
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_image_c<n>_privacymask_wintype"
= polygon.
* Only available when qvga is listed in
"capability_image_c<n>_privacymask_windomai
n
win_i<0~(m-1)>_polygonpx 0 ~ W,0 ~ H, 0
~ W,0 ~ H, 0
~ W,0 ~ H, 0
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
VIVOTEK
216 - User's Manual
~ W,0 ~ H
W: 0~ The
current image
width -1
H: 0~ The
current image
height -1
"capability_image_c<n>_privacymask_wintype"
= polygon.
* Only available when px is listed in
"capability_image_c<n>_privacymask_windomai
n
win_i<0~(m-1)>_polygonstd 0 ~ 9999,0 ~
9999, 0 ~
9999,0 ~
9999, 0 ~
9999,0 ~
9999, 0 ~
9999,0 ~
9999
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_image_c<n>_privacymask_wintype"
= polygon.
* Only available when std is listed in
"capability_image_c<n>_privacymask_windomai
n
7.24 3D Privacy mask
Group: privacymask3d_c<0~(n-1)> for n channel products and m privacy mask window.
(capability_image_c<0~(n-1)>_privacymask_wintype = 3Drectangle)
n denotes the value of "capability_nvideoin" and m denotes the value of
"capability_videoin_c<0~(n-1)>_nprivacymask"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable the 3D privacy mask
color 0~"
capability_image_c<0~(n-1)
>_privacymask_ncolor"
4/4 Privacy mask color
win_i<0~(m-1)>_name string[40] 4/4 Name of the privacy mask window.
win_i<0~(m-1)>_pan "capability_ptz_minpan" ~
"capability_ptz_maxpan"
4/4 Pan position of window position.
win_i<0~(m-1)>_tilt "capability_ptz_mintilt" ~
"capability_ptz_maxtilt"
4/4 Tilt position of window position.
win_i<0~(m-1)>_zoom "capability_ptz_minzoom" ~
"capability_ptz_maxzoom"
4/4 Zoom position of window position.
win_i<0~(m-1)>_fliped <boolean> 4/4 Flip side of window position.
0: Non-flip side
1: Flip side
VIVOTEK
User's Manual - 217
7.25 Capability
Group: capability
NAME VALUE SECURITY
(get/set)
DESCRIPTION
api_httpversion <string>
This number start
with 0301a.
0/7 The version of VIVOTEK WebAPI with 4
integers plus 1 alphabet, There are composed
by "major version", "minor version",
"revision","_platform". ex: 0301a_1
Major version
Increase the major version when change,
remove the old features/interfaces or the
firmware has substantially change in
architecture and not able to roll back to
previous version. This may cause
incompatibility with supporting software.
Minor version
Increase the minor version when add new
features/interfaces without change the old
features and interfaces.
Revision
Increase the revision when fix bugs without
change any features of the output.
_platform
This is a constant, it is used to distinguish
between different platforms
API version format:
MMmmr_k
Where "MM" is the major version, "mm" is the
minor version and "r" is the revision.
'M' and 'm' and 'k' are decimal digit from 0 to 9,
while 'r' is an alphabetic.
EX: 0302b_1 => Major version = 03, minor
version = 02, revision = b, platform = 1
The 4 integer numbers are WebAPI version, we
use short name: [httpversion] for it in this
VIVOTEK
218 - User's Manual
document.
The 5th character is model-based version for
API bug-fix and it's default to "a".
Ex: If some APIs in a model does not follow the
API definition of 0301a_1, we will fix them and
change this API value to 0301b_1.
bootuptime <positive integer> 0/7 Server bootup time.
nir
<Not support anymore>
0,
<positive integer>
0/7 Number of IR interfaces.
(Recommand to use
capability_daynight_c<0~"capability_nvideoi
n"-1>_builtinir for built-in IR and
capability_daynight_c<0~"capability_nvideoi
n"-1>_externalir for external IR)
* Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301a.
npir 0,
<positive integer>
0/7 Number of PIRs.
ndi 0,
<positive integer>
0/7 Number of digital inputs.
nvi 0,
<positive integer>
0/7 Number of virtual inputs (manual trigger)
ndo 0,
<positive integer>
0/7 Number of digital outputs.
naudioin 0,
<positive integer>
0/7 The number of audio input channel. 0 means
no audio input support.
naudioout 0,
<positive integer>
0/7 The number of audio output channel
nvideoin <positive integer> 0/7 Number of video inputs.
nvideoout 0, <Positive
Integer>
0/7 Number of video out interface.
nvideoinprofile <positive integer> 0/7 Number of video input profiles.
nmediastream <positive integer> 0/7 Number of media stream per channels.
naudiosetting
<Not support anymore>
<positive integer> 0/7 Number of audio settings per channel.
* Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301a.
* We replace "naudiosetting" with "naudioin".
VIVOTEK
User's Manual - 219
More details, please refer the parameter
description of "volume_internal" and
"volume_external".
nuart 0,
<positive integer>
0/7 Number of UART interfaces.
nmotion <positive integer> 0/7 The number of motion window.
nmotionprofile 0, <positive
integer>
0/7 Number of motion profiles.
ptzenabled 0, <positive
integer>
0/7 An 32-bit integer, each bit can be set
separately as follows:
Bit 0 => Support camera control function;
0(not support), 1(support)
Bit 1 => Built-in or external video source;
0(external), 1(built-in)
Bit 2 => Support pan operation;
0(not support), 1(support)
Bit 3 => Support tilt operation;
0(not support), 1(support)
Bit 4 => Support zoom operation;
0(not support), 1(support)
(only available when RS-485 interface is
supported or SD/PZ/PT/PD/video server
series)
Bit 5 => Support focus operation;
0(not support), 1(support)
(only available when RS-485 interface is
supported or SD/PZ/PT/PD/video server
series)
Bit 6 => Reserved bit; always 0.
Bit 7 => External or built-in PT;
0(built-in), 1(external)
windowless <boolean> 0/7 Indicate whether to support windowless
plug-in.
evctrlchannel <boolean> 0/7 Indicate whether to support HTTP tunnel for
event/control transfer.
joystick <boolean> 0/7 Indicate whether to support joystick control.
remotefocus
<Not recommended to use
this>
<boolean> 0/7 An 4-bit integer, which indicates the supportive
application of remotefocus.
If the value of this parameter is larger than 0,
VIVOTEK
220 - User's Manual
it means that the camera supports
remotefocus function.
bit 0 => Indicate whether to support both
zoom and focus function.
bit 1 => Only support zoom function.
bit 2 => Only support focus function.
bit 3 => Currently, this is a reserved bit, and
the default value is 0.
* It's strongly non-recommended to use this.
* This is kept for compatibility.
* You can check "
capability_image_c<0~nvideoin-1>_remotef
ocus" for support remotefocus function;
capability_image_c<0~nvideoin-1>_backfocu
s" for support backfocus function.
npreset 0, <positive
integer>
0/7 Number of preset locations
eptz 0, <positive
integer>
0/7 For "nvideoin" = 1, the definition is as
following:
A 32-bits integer, each bit can be set
separately as follows:
Bit 0 => 1st stream supports ePTZ or not.
Bit 1 => 2nd stream supports ePTZ or not, and
so on.
For nvideoin >= 2, the definition is different:
First all 32 bits are divided into groups for
channel.
Ex:
nvideoin = 2, bit 0~15 are the 1st group for 1st
channel, bit 16~31 are the 2nd group for 2nd
channel.
nvideoin = 3, bit 0~9 are the 1st group for 1st
channel, bit 10~19 are the 2nd group for 2nd
channel, bit 20~31 are the 3rd group for 3rd
channel.
Then, the 1st bit of the group indicates 1st
stream of a channel support ePTZ or not. The
VIVOTEK
User's Manual - 221
2nd bit of the group indicates 2nd stream of a
channel support ePTZ or not, and so on.
* For most products, the last stream of a
channel will not support ePTZ. It is reserved
for full view of the channel. For some
dual-stream products, both streams support
ePTZ.
nanystream 0, <positive
integer>
0/7 number of any media stream per channel
iva <boolean> 0/7 Indicate whether to support Intelligent Video
analysis
whitelight <boolean> 0/7 Indicate whether to support white light led.
iris <boolean> 0/7 Indicate whether to support iris control.
supportsd <boolean> 0/7 Indicate whether to support local storage.
fisheye <boolean> 0/7 The parameter is used to determine whether
the product is fisheye or not.
tampering <boolean> 0/7 Indicate whether to support tampering
detection.
tamperingmode tamper,toodark,toob
right,tooblurry
0/7 Available tampering mode list.
* Only available when "capability_tampering"
is 1.
adaptiverecording <boolean> 0/7 Indicate whether to support adaptive
recording.
adaptivestreaming <boolean> 0/7 Indicate whether to support adaptive
streaming.
supporttriggertypes seq,boot,motion,net
workfail,recnotify,ta
mpering,vi,vadp,di,
volalarm,temperatu
re,pir, visignal,
backup
<product
dependent>
0/7 list all the trigger types which are supported in
the camera:
"seq" = Periodic condition
"boot" = System boot
"motion" = Video motion detection
"networkfail" = network connection failure
"recnotify" = Recording notification.
"tampering" = Tamper detection.
"vi" = Virtual input (Manual trigger)
"vadp" = VADP trigger
"di"= Digital input
"volalarm" = Audio detection
"temperature" = Temperature detection
VIVOTEK
222 - User's Manual
"pir" = PIR detection
"visignal" = Video input signal loss.
"backup" = Backing up recorded files
* Only available when [httpversion] >= 0301a
storage_dbenabled <boolean> 0/7 Media files are indexed in database.
protocol_https < boolean > 0/7 Indicate whether to support HTTP over SSL.
protocol_rtsp < boolean > 0/7 Indicate whether to support RTSP.
protocol_sip <boolean> 0/7 Indicate whether to support SIP.
protocol_maxconnection <positive integer> 0/7 The maximum number of allowed
simultaneous connections.
protocol_maxgenconnecti
on
<positive integer> 0/7 The maximum general streaming connections .
protocol_rtp_multicast_sc
alable
<boolean> 0/7 Indicate whether to support scalable multicast.
protocol_rtp_multicast_ba
ckchannel
<boolean> 0/7 Indicate whether to support backchannel
multicast.
protocol_rtp_tcp <boolean> 0/7 Indicate whether to support RTP over TCP.
protocol_rtp_http <boolean> 0/7 Indicate whether to support RTP over HTTP.
protocol_spush_mjpeg <boolean> 0/7 Indicate whether to support server push
MJPEG.
protocol_snmp <boolean> 0/7 Indicate whether to support SNMP.
protocol_ipv6 <boolean> 0/7 Indicate whether to support IPv6.
protocol_pppoe <boolean> 0/7 Indicate whether to support PPPoE.
protocol_ieee8021x <boolean> 0/7 Indicate whether to support IEEE802.1x.
protocol_qos_cos <boolean> 0/7 Indicate whether to support CoS.
protocol_qos_dscp <boolean> 0/7 Indicate whether to support QoS/DSCP.
protocol_ddns <boolean> 0/7 Indicate whether to support DDNS.
videoin_type 0, 1, 2 0/7 0 => Interlaced CCD
1 => Progressive CCD
2 => CMOS
videoin_nresolution <positive integer> 0/7 This equals
"capability_videoin_c0_nresolution".
* This is kept for compatibility.
videoin_resolution A list of <WxH> 0/7 This equals
VIVOTEK
User's Manual - 223
<product
dependent>
"capability_videoin_c0_resolution".
* This is kept for compatibility.
videoin_maxframerate A list of <Integer> 0/7 This equals
"capability_videoin_c0_maxframerate".
* This is kept for compatibility.
videoin_mjpeg_maxframe
rate
A list of <Integer>
and "-"
0/7 This equals
"capability_videoin_c0_mjpeg_maxframerate
".
* This is kept for compatibility.
videoin_h264_maxframer
ate
A list of <Integer>
and "-"
0/7 This equals
"capability_videoin_c0_h264_maxframerate".
* This is kept for compatibility.
videoin_codec mjpeg, h264, h265
<product
dependent>
0/7 Available codec of a device, split by comma.
The sequence is not limited.
EX:
FD8183 supports H.264 and MJPEG, then this
is "mjpeg,h264".
IP9171 supports H.264, MJPEG and H.265,
then this is "mjpeg,h264,h265"
videoin_streamcodec A list of <Positive
Integer>
0/7 This equals
"capability_videoin_c0_streamcodec".
* This is kept for compatibility.
videoin_flexiblebitrate <boolean> 0/7 Indicate whether to support
flexible bit rate control.
videoout_codec -, ntsc, pal 0/7 Current output information about video out.
1st element for 1st video-out, 2nd element for
2nd video-out, and so on. The number of
element depends on "capability_nvideooout".
"-": Video-out is not available
ntsc: NTSC analog output
pal: PAL analog output
Ex:
"nvideoout"=0, "videoout_codec"=-
VIVOTEK
224 - User's Manual
"nvideoout"=1 with NTSC,
"videoout_codec"=ntsc
"nvideoout"=1 with PAL,
"videoout_codec"=pal
"nvideoout"=2 with both NTSC,
"videoout_codec"=ntsc,ntsc
* For camera, this feature is controlled by
physical jump on device. No WebAPI to control
it. This value is set only on camera power-on
and maintains the status.
* Only available when [httpversion] >= 0301a
timeshift <boolean> 0/7 Indicate whether to support time shift caching
stream.
audio_aec <boolean> 0/7 Indicate whether to support acoustic echo
cancellation.
audio_mic
<Not support anymore>
<boolean> 0/7 Indicate whether to support built-in
microphone input.
* Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301a.
* We replace "audio_mic" with "audio_intmic".
audio_intmic <0~Positive
Integer>
0/7 Internal (Built-in) Microphone.
0: Not support
1: Support
Bit 0 for CH0, bit 1 for CH1, and so on.
audio_extmic <0~Positive
Integer>
0/7 External Microphone.
0: Not support
1: Support
Bit 0 for CH0, bit 1 for CH1, and so on.
audio_alarm <0~Positive
Integer>
0/7 0: Not support audio alarm.
1: Support audio alarm.
Bit 0 for CH0, bit 1 for CH1, and so on.
audio_linein
<Not support anymore>
<boolean> 0/7 Indicate whether to support external line
input.
* Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301a.
* It will be replaced by audio_intmic and
VIVOTEK
User's Manual - 225
audio_extmic.
audio_lineout <boolean> 0/7 Indicate whether to support line output.
audio_michardwareswitch <boolean> 0/7 Indicate whether the hardware supports
built-in/external mic switch
audio_headphoneout
<Not support anymore>
<boolean> 0/7 Indicate whether to support headphone
output.
* Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301a.
audioin_codec aac4, gamr, g711,
g726, -
<product
dependent>
0/7 Available audio codec. We take comma to split
codec without any space.
aac4: Advanced Audio Coding (AAC)
gamr: Adaptive Multi-Rate (AMR)
g711: G.711
g726: G.726
-: Not supported.
audioout_codec g711, -
<product
dependent>
0/7 Available codec list for SIP.
-: Not supported.
motion_wintype rectangle, polygon 0/7 The supported motion window type.
polygon: The window is a 2D polygon shape.
rectangle: The window is a 2D rectangle
shape.
motion_windomain qvga, px, std, - 0/7 The domain to set an motion window.
qvga: a 320x240 range to represent the whole
image.
px: Locate a window in the image with pixels.
std: A normalized 0~9999 range.
-: Not supported.
smartstream_support <boolean> 0/7 Indicate whether smart stream is supported.
smartstream_nstream <positive integer> 0/7 Number of stream that support smart stream.
*only available when
"capability_smartstream_support" is 1
smartstream_windomain qvga, px, std, - 0/7 The domain to set an focus window.
qvga: a 320x240 range to represent the whole
image.
px: Locate a window in the image with pixels.
VIVOTEK
226 - User's Manual
std: A normalized 0~9999 range.
-: Not supported.
*only available when
"capability_smartstream_support" is 1
smartstream_mode_autot
racking
<boolean> 0/7 Indicate whether autotracking smart stream is
supported.
*only available when
"capability_smartstream_support" is 1
smartstream_mode_man
ual
<boolean> 0/7 Indicate whether manual smart stream is
supported.
*only available when
"capability_smartstream_support" is 1
smartstream_mode_hybri
d
<boolean> 0/7 Indicate whether hybrid(autotracking+
manual) smart stream is supported.
*only available when
"capability_smartstream_support" is 1
smartstream_nwindow_a
utotracking
<positive integer> 0/7 Maximum number of tracking window of
autotracking.
*only available when
"capability_smartstream_support" is 1
smartstream_nwindow_m
anual
<positive integer> 0/7 Maximum number of tracking window of
manual.
*only available when
"capability_smartstream_support" is 1
smartstream_nwindow_h
ybrid_autotracking
<positive integer> 0/7 Maximum number of tracking window of
autotracking in hybrid mode.
*only available when
"capability_smartstream_support" is 1
smartstream_nwindow_h
ybrid_manual
<positive integer> 0/7 Maximum number of tracking window of
manual in hybrid mode.
*only available when
"capability_smartstream_support" is 1
smartstream_supportqual
ity
excellent,detailed,g
ood,standard,mediu
m,low
0/7 Available quality of smart stream.
*only available when
"capability_smartstream_support" is 1
smartstream_supportmax
bitrate
1Mbps,2Mbps,4Mbp
s,6Mbps,8Mbps,10M
bps,20Mbps,30Mbps
,40Mbps
0/7 Available maxbitrate of smart stream.
*only available when
"capability_smartstream_support" is 1
VIVOTEK
User's Manual - 227
vadp_supportfeature <positive integer> 0/7 An 32-bit integer, each bit can be set
separately as follows:
Bit 0 => VADP interface
Bit 1 => Capture video raw data
Bit 2 => Support encode jpeg
Bit 3 => Capture audio raw data
Bit 4 => Support event trigger
Bit 5 => Support license registration
Bit 6 => Support shared memory API
Bit 7 => Support digital signature of package
Bit 8 => Support snapshot
vadp_npackage <positive integer> 0/7 Indicate the maximum number of VADP
package that can be uploaded to the device.
thermal_support <boolean> 0/7 Indicate whether to support thermal IC.
thermal_controlmode auto,
customheater
0/7 Indicate the thermal control mode.
"auto": control by camera automatically
"customheater": the threshold of heater can
be sepcified by user.
* only available when
"capability_thermal_support" is 1.
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
thermal_temperaturedete
ction
<boolean> 0/7 Indicate whether to support temperature
detection.
camctrl_httptunnel
<Not support anymore>
<boolean> 0/7 Indicate whether to support httptunnel.
* Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301b.
* It will be replaced by
capability_camctrl_ptztunnel.
camctrl_ptztunnel <boolean> 0/7 Indicate whether to support ptztunnel.
* We support this parameter when the version
number (httpversion) is equal or greater than
0301b.
camctrl_privilege <boolean> 0/7 Indicate whether to support “Manage
Privilege” of PTZ control in the Security page.
1: support both /cgi-bin/camctrl/camctrl.cgi
and /cgi-bin/viewer/camctrl.cgi
VIVOTEK
228 - User's Manual
0: support only /cgi-bin/viewer/camctrl.cgi
uart_httptunnel <boolean> 0/7 Indicate whether to support HTTP tunnel for
UART transfer.
transmission_mode Tx,
Rx,
Both
0/7 Indicate transmission mode of the machine:
TX = server, Rx = receiver box, Both = DVR.
network_wire <boolean> 0/7 Indicate whether to support Ethernet.
network_wireless <boolean> 0/7 Indicate whether to support wireless.
wireless_s802dot11b <boolean> 0/7 Indicate whether to support wireless
802.11b+.
wireless_s802dot11g <boolean> 0/7 Indicate whether to support wireless 802.11g.
wireless_s802dot11n <boolean> 0/7 Indicate whether to support wireless 802.11n.
wireless_beginchannel 1 ~ 14 0/7 Indicate the begin channel of wireless network
wireless_endchannel 1 ~ 14 0/7 Indicate the end channel of wireless network
wireless_encrypt_wep <boolean> 0/7 Indicate whether to support wireless WEP.
wireless_encrypt_wpa <boolean> 0/7 Indicate whether to support wireless WPA.
wireless_encrypt_wpa2 <boolean> 0/7 Indicate whether to support wireless WPA2.
derivative_brand <boolean> 0/7 Indicate whether to support the upgrade
function for the derivative brand. For example,
if the value is true, the VVTK product can be
upgraded to VVXX. (TCVV<->TCXX is
excepted)
test_ac <boolean> 0/7 Indicate whether to support test ac key.
version_onvifdaemon <string> 0/7 Indicate ONVIF daemon version
version_onviftesttool <string> 0/7 Indicate ONVIF test tool version
media_totalspace <positive integer> 0/7 Available memory space (KB) for media.
media_snapshot_maxpre
event
<positive integer> 0/7 Maximum snapshot number before event
occurred.
media_snapshot_maxpost
event
<positive integer> 0/7 Maximum snapshot number after event
occurred.
media_snapshot_maxsize <positive integer> 0/7 Maximum size (KB) of a snapshot.
media_videoclip_maxsize <positive integer> 0/7 Maximum size (KB) of a videoclip.
media_videoclip_maxleng
th
<positive integer> 0/7 Maximum length (second) of a videoclip.
VIVOTEK
User's Manual - 229
media_videoclip_maxpree
vent
<positive integer> 0/7 Maximum duration (second) after event
occurred in a videoclip.
image_iristype
<Not recommended to use
this>
<string> 0/7 Indicate iris type.
"piris": P-Iris
"dciris": DC-Iris
"-": No Iris control support
* When "capability_iris"=0, this value must be
"-".
* Note: For some box-type cameras, this value
may be varied depending on mounted lens.
* We replace "capability_image_iristype" with
" capability_image_c0_iristype ".
* Reserved for compatibility, and suggest don't
use this since [httpversion] > 0301a
image_focusassist
<Not recommended to use
this>
<boolean> 0/7 Indicate whether to support focus assist.
* We replace "capability_image_ focusassist "
with " capability_image_c0_ focusassist ".
* Reserved for compatibility, and suggest don't
use this since [httpversion] > 0301a
localstorage_manageable <boolean> 0/7 Indicate whether manageable local storage is
supported.
localstorage_seamless <boolean> 0/7 Indicate whether seamless recording is
supported.
localstorage_modnum 0,
<positive integer>
0/7 The maximum MOD connection numbers.
localstorage_modversion <string> 0/7 Indicate MOD daemon version
localstorage_stormgrversi
on
<string> 0/7 Indicate storage manager daemon version
localstorage_supportedge 0,
<positive integer>
0/7 An 32-bit integer, which indicates the
supportive application of edge storage.
If the value of this parameter is larger than 0,
it means that the camera supports edge
recording function.
bit 0 : It supports to record directly to an
on-board SD-Card.
bit 1~: Currently, they are reserved bit, and
the default value is 0.
VIVOTEK
230 - User's Manual
localstorage_slconnum 0,<positive integer> 0/7 The maximum seamless connection number.
localstorage_smartsd <boolean> 0/7 The "Lifetime and Log SD Card" feature allows
users to obtain the card's remaining lifetime
information.
0: Non-support this feature
1: Support this feature
* Only Sony SD card can support this function
now.
remotecamctrl_master 0, <positive
integer>
0/7 Indicate whether to support remote auxiliary
camera (master side), this value means
supporting max number of auxiliary camera.
remotecamctrl_slave <boolean> 0/7 Indicate whether to support remote camera
control (slave side).
fisheyelocaldewarp_c<0~
(capability_nvideoin)-1>
<product dependent>
0, <positive
integer>
0/7 Indicate the supported streams of local
dewarp. One bit represents one supported
stream. The LSB indicates stream 0.
Ex: “3” means stream 0 and stream 1 support
local dewarp.
* Only available when "capability_fisheye" > 0
Group: capability_daynight_c<0~(n-1)> n denotes the value of "capability_nvideoin"
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
support <boolean> 0/7 Indicate whether the camera supports day/night
mode switch
builtinir <boolean> 0/7 Indicate whether to support built-in IR led.
externalir <boolean> 0/7 Indicate whether to support external IR led.
smartir <boolean> 0/7 Indicate whether to support smart IR.
ircutfilter <boolean> 0/7 Indicate whether to support IR cut.
lightsensor <boolean> 0/7 Indicate whether to support light sensor.
blackwhitemode <boolean> 0/7 Indicate whether to support automatically
switch to Black & White display during the night
mode.
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
VIVOTEK
User's Manual - 231
ircutsensitivity_type <string> 0/7 Indicate the cgi interface of
"ircutcontrol_sensitivity".
"options": the value of
"ircutcontrol_sensitivity" parameter is "low,
normal,high".
"normalize": the value of
"ircutcontrol_sensitivity" parameter is "1~100"
* Only available when
"capability_daynight_c<n>_support" is 1.
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
ircutsensitivity_supportlevel 0,
<positive integer>
0/7 The value indicate the support strength level of
ircutsensitivity.
* Only available when
"capability_daynight_c<n>_support" is 1 and
"capability_daynight_c<n>
_ircutsensitivity_type" is normalize.
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
Group: capability_videoin_c<0~(n-1)> n denotes the value of "capability_nvideoin"
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
lens_type fisheye, fixed,
varifocal, changeable,
motor, -
<product dependent>
0/7
Thelenstypeofthischannel.
fisheye:Fisheyelens
fixed:Build‐infixed‐focuslens.
varifocal:Build‐invarifocallens.
changeable:changeablelens.Likebox‐type
camera,userscaninstallanyC‐Mountor
CS‐Mountlensastheywish.
motor:Lenswithmotortosupportzoom,focus,
etc.
‐:N/A
* Only available when [httpversion] >= 0301a
rotation <boolean> 0/7 Indicate current mode whether support video
rotation
VIVOTEK
232 - User's Manual
streamcodec <positive integer> 0/7 Represent supported codec types of each
stream.
This contains a list of positive integers, split by
comma. Each one stands for a stream, and the
definition is as following:
Bit 0: Support MPEG4.
Bit 1: Support MJPEG
Bit 2: Support H.264
Bit 3: Support H.265
mode 0,<positive integer> 0/7 Indicate current video mode.
nmode <positive integer> 0/7 Indicate how many video modes supported by
this channel.
maxsize <WxH> 0/7 The maximum resolution of all modes in this
channel, the unit is pixel.
nprivacymask 0, <positive integer> 0/7 Number of privacy mask per channel
nresolution <positive integer> 0/7 The maximum resolution options (listed in
"resolution") in current video mode.
resolution A list of <WxH>
<product dependent>
0/7 Resolution options in current video mode. These
options are the possible options for
"videoin_c<n>_s<m>_resolution".
The last one is the maximum resolution in
current mode.
maxresolution A list of <Integer> 0/7 Represent supported maximum resolution of
each stream in current video mode.
* The element number is defined as
"capability_nmediastream".
maxframerate A list of <Integer> 0/7 Indicate frame rate that the video source
outputs in current video mode.
Onetoonemappingtotheresolutionin
"resolution".
*Theelementnumberisdefinedas
"nresolution"inthisgroup.
*Thisparametermaybechangedwhen
"videoin_c<n>_cmosfreq"=50or
"videoin_c<n>_modulation"=pal.
Ex:30fpsischangedto25fps,60fpsischanged
to50fps,andsoon.
VIVOTEK
User's Manual - 233
mjpeg_maxframerate A list of <Positive
Integer> and "-"
0/7 Maximum fps that the device can encoded with
MJPEG on resolutions in current video mode.
"-" means not support.
* One to one mapping to the resolution in
"resolution".
* The element number is defined as
"nresolution" in this group.
* This parameter may be changed when
"videoin_c<n>_cmosfreq"=50 or
"videoin_c<n>_modulation"=pal.
Ex: 30 fps is changed to 25 fps, 60 fps is
changed to 50 fps, and so on.
* Only available when 'mjpeg' is listed in
"capability_videoin_codec".
mjpeg_maxbitrate <positive integer>, - 0/7 Maximum bitrates of MJPEG.
The unit is bps.
"-" means MJPEG does not support bit rate
control.
* Only available when 'mjpeg' is listed in
"capability_videoin_codec".
h264_maxframerate A list of <Positive
Integer> and "-"
0/7 Maximum fps that the device can encoded with
H.264 on resolutions in current video mode.
"-" means not support.
* One to one mapping to the resolution in
"resolution".
* The element number is defined as
"nresolution" in this group.
* This parameter may be changed when
"videoin_c<n>_cmosfreq"=50 or
"videoin_c<n>_modulation"=pal.
Ex: 30 fps is changed to 25 fps, 60 fps is
changed to 50 fps, and so on.
* Only available when 'h264' is listed in
"capability_videoin_codec".
VIVOTEK
234 - User's Manual
h264_maxbitrate <positive integer> 0/7 Maximum bitrates of H.264.
The unit is bps.
* Only available when 'h264' is listed in
"capability_videoin_codec".
h265_maxframerate A list of <Positive
Integer> and "-"
0/7 Maximum fps that the device can encoded with
H.265 on resolutions in current video mode.
"-" means not support.
* One to one mapping to the resolution in
"resolution".
* The element number is defined as
"nresolution" in this group.
* This parameter may be changed when
"videoin_c<n>_cmosfreq"=50 or
"videoin_c<n>_modulation"=pal.
Ex: 30 fps is changed to 25 fps, 60 fps is
changed to 50 fps, and so on.
* Only available when 'h265' is listed in
"capability_videoin_codec".
h265_maxbitrate <positive integer> 0/7 Maximum bitrates of H.265.
The unit is bps.
* Only available when 'h265' is listed in
"capability_videoin_codec".
fisheye_mounttype
<product dependent>
ceiling, wall, floor
<product dependent>
0/7 Indicate the supported type.
wall mount: 180° panoramic view
ceiling mount: 360° surround view without blind
spots
floor mount: 360° surround view without blind
spots
* Only available when "capability_fisheye" > 0
dintraperiod_support <boolean> 0/7 0: Non-support "Dynamic intra frame period"
1: Support "Dynamic intra frame period"
"Dynamic intra frame period" can be used to
reduce bitrate by reducing the number of
I-frame.
* We support this parameter when the version
number (httpversion) is equal or greater than
0301c.
VIVOTEK
User's Manual - 235
cameraunit_name CU8131,
CU8171,
CU8161-H,
CU8162-H,
CU8163-H,
CU8361-H,
...,
-
<
p
r
o
d
u
c
t
d
e
p
e
n
d
e
n
t
>
0/7 A "camera unit" name of a split-type camera
system, which the camera unit and the video
core are separated.
-: If the camera is not a split-type camera
system, the value of this parameter is "-".
* We support this parameter when the version
number (httpversion) is equal or greater than
0302b.
Group: capability_videoin_c<0~(n-1)>_localdewarp
(capability_fisheyelocaldewarp_c<0~(capability_nvideoin)-1> > 0)
n denotes the value of "capability_nvideoin"
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
typeceilingmount 1O, 1P, 2P, 1R, 4R 0/7 Available dewarp types of ceiling and floor
mount.
typewallmount 1O, 1P, 1R, 4R 0/7 Available dewarp types of wall mount.
resolutionC1P A list of <WxH> 0/7 Available resolutions of 1P mode of ceiling and
floor mount.
VIVOTEK
236 - User's Manual
resolutionC2P A list of <WxH> 0/7 Available resolutions of 2P mode of ceiling and
floor mount.
resolutionC1R A list of <WxH> 0/7 Available resolutions of 1R mode of ceiling and
floor mount.
resolutionC4R A list of <WxH> 0/7 Available resolutions of 4R mode of ceiling and
floor mount.
resolutionW1P A list of <WxH> 0/7 Available resolutions of 1P mode of wall mount.
resolutionW1R A list of <WxH> 0/7 Available resolutions of 1R mode of wall mount.
resolutionW4R A list of <WxH> 0/7 Available resolutions of 4R mode of wall mount.
Group: capability_videoin_c<0~(n-1)>_mode<0~(m-1)> n denotes the value of "capability_nvideoin", m
denotes the value of "capability_videoin_c<n>_nmode"
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
rotation <boolean> 0/7 Indicate this mode whether support video
rotation
effectivepixel <WxH> 0/7 The visible area of full scene in this video mode.
The unit is pixel in source.
* This value must <=
"capability_videoin_c<n>_maxsize"
* If
"effectivepixel"<"capability_videoin_c<n>_max
size", then the visible area is located at the
center of full scene.
outputsize <WxH> 0/7
T
he output size of source, equal to the captured
size by device, in this video mode. The unit is
pixel.
This value is used as a basic coordinate system
for many features, like ePTZ, privacy mask,
motion, etc.
* Source (most for image sensor) may perform
scale or binning, etc on image data, and output
data with smaller size. This parameter is
designed to represent this.
VIVOTEK
User's Manual - 237
binning 0, 1, 3 0/7 Indicate binning is used or not in this video
mode.
0: No binning
1: 2x2 binning
3: 3x3 binning
* Binning is a technology to increase light
sensitivity by combining multiple pixels to one.
The drawback is reduced resolution. We design
this parameter to disclose this information.
nresolution <positive integer> 0/7 How many resolution options in this video mode.
resolution A list of <WxH> 0/7 Resolution options in this video mode.
The last one is the maximum resolution in this
video mode.
* The element number is defined as
"nresolution" in this group.
maxresolution A list of <Integer> 0/7 Represent supported maximum resolution of
each stream in current video mode.
* The element number is defined as
"capability_nmediastream".
maxframerate A list of <Positive
Integer>
0/7 Indicates frame rate that the video source
outputs in this video mode.
* One to one mapping to the resolution in
"resolution".
* The element number is defined as
"nresolution" in this group.
* This parameter records the frame rate when
"videoin_c<n>_cmosfreq"=60 or
"videoin_c<n>_modulation"=ntsc
VIVOTEK
238 - User's Manual
maxfps_mjpeg A list of <Positive
Integer> and "-"
0/7 Maximum fps which the device can encoded with
MJPEG on resolutions in this video mode.
"-" means not support.
* One to one mapping to the resolution in
"resolution".
* The element number is defined as
"nresolution" in this group.
* This parameter records the frame rate when
"videoin_c<n>_cmosfreq"=60 or
"videoin_c<n>_modulation"=ntsc
* Only available when 'mjpeg' is listed in
"capability_videoin_codec".
maxfps_h264 A list of <Positive
Integer> and "-"
0/7 Maximum fps which the device can encoded with
H.264 on resolutions in this video mode.
"-" means not support.
* One to one mapping to the resolution in
"resolution".
* The element number is defined as
"nresolution" in this group.
* This parameter records the frame rate when
"videoin_c<n>_cmosfreq"=60 or
"videoin_c<n>_modulation"=ntsc
* Only available when 'h264' is listed in
"capability_videoin_codec".
maxfps_h265 A list of <Positive
Integer> and "-"
0/7 Maximum fps which the device can encoded with
H.265 on resolutions in this video mode.
"-" means not support.
* One to one mapping to the resolution in
"resolution".
* The element number is defined as
"nresolution" in this group.
* This parameter records the frame rate when
"videoin_c<n>_cmosfreq"=60 or
"videoin_c<n>_modulation"=ntsc
* Only available when 'h265' is listed in
"capability_videoin_codec".
description <string[128]> 0/7 Description about this mode.
VIVOTEK
User's Manual - 239
Group: capability_videoin_c<0~(n-1)>_mode<0~(m-1)>_defaultsetting_s<0~(j-1)>
n denotes the value of "capability_nvideoin", m denotes the value of "capability_videoin_c<n>_nmode", j
denotes the value of "capability_nmediastream"
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
resolution A list of <WxH> 0/7 Default setting of resolution options.
"-" means not support.
* The element number is defined as
"capability_nresolution".
mjpeg_framerate A list of <Positive
Integer> and "-"
0/7 Default setting of mjpeg framerate on
resolutions in this video mode.
"-" means not support.
* The element number is defined as
"capability_nresolution".
mjpeg_bitrate A list of <Positive
Integer> and "-"
0/7 Default setting of mjpeg bitrate on resolutions in
this video mode.
"-" means not support.
* The element number is defined as
"capability_nresolution".
h264_framerate A list of <Positive
Integer> and "-"
0/7 Default setting of h264 framerate on resolutions
in this video mode.
"-" means not support.
* The element number is defined as
"capability_nresolution".
h264_bitrate A list of <Positive
Integer> and "-"
0/7 Default setting of h264 bitrate on resolutions in
this video mode.
"-" means not support.
* The element number is defined as
"capability_nresolution".
h265_framerate A list of <Positive
Integer> and "-"
0/7 Default setting of h265 framerate on resolutions
in this video mode.
"-" means not support.
* The element number is defined as
VIVOTEK
240 - User's Manual
"capability_nresolution".
h265_bitrate A list of <Positive
Integer> and "-"
0/7 Default setting of h265 bitrate on resolutions in
this video mode.
"-" means not support.
* The element number is defined as
"capability_nresolution".
Group: capability_image_c<0~(n-1)> n denotes the value of "capability_nvideoin"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
basicsetting 0, <positive integer> 0/7 A 32-bits integer, each bit can be set
separately as follows:
Bit 0 => Supports Brightness or not.
Bit 1 => Supports Contrast or not.
Bit 2 => Supports Saturation or not.
Bit 3 => Supports Sharpness or not.
wdrpro_mode 0, 1, 2 0/7 0: Non-support WDR Pro
1: Support WDR Pro
2: Support WDR Pro and WDR Pro II
wdrpro_strength 0, 1 0/7 0: Non-support tuning strength of
WDR Pro
1: Support tuning strength of WDR Pro
* If
"capability_image_c<n>_wdrpro"=1,
this may be either 0 or 1.
wdrpro_supportlevel 0, <positive integer> 0/7 This contains a list of positive integers,
split by comma.
If "wdrpro_mode" =1, then the value
indicate the support strength level of
WDR Pro.
If "wdrpro_mode" =2, then the first
number indicate the support strength
level of WDR Pro, and the scecond
number indicate the support strength
level of WDR Pro II.
wdrpro_affect -,
exposurewin.mode:fixed:au
to,
0/7 When WDR Pro or WDR Enhanced is
enabled, some features may become
malfunction or be forced to a given
VIVOTEK
User's Manual - 241
exposurewin.mode.blc:disab
led:,
aespeed:disabled:,
exposurelevel:hidden:,
exposurelevel:fixed:<x>,
exposurelevel:ranged:<x>-
<x>,
exposuremode:fixed:auto
<x>: nonnegative integer
<product dependent>
value. The affected functions are list
here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* When "wdrpro"=0 and "wdrc"=0,
this must be "-"
wdrpro_description <string> 0/7 Description about WDR Pro mode.
* Only available when
"capability_image_c<0~(n-1)>_wdrp
ro_mode" > 0
wdrc_mode 0, 1 0/7 0: Non-support WDR Enhanced
1: Support WDR Enhanced
wdrc_supportlevel 0, <positive integer> 0/7 Indicate the support strength level of
VIVOTEK
242 - User's Manual
WDR Enhanced.
wdrc_affect -,
exposurewin.mode:fixed:au
to,
exposurewin.mode.blc:disab
led:,
aespeed:disabled:,
exposurelevel:hidden:,
exposurelevel:fixed:<x>,
exposurelevel:ranged:<x>-
<x>,
exposuremode:fixed:auto
<x>: nonnegative integer
<product dependent>
0/7 When WDR Pro or WDR Enhanced is
enabled, some features may become
malfunction or be forced to a given
value. The affected functions are list
here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* When "wdrpro"=0 and "wdrc"=0,
this must be "-"
dnr 0,1 0/7 0: Non-support 3D digital noise
reduction
1: Support 3D digital noise reduction
VIVOTEK
User's Manual - 243
eis 0,1 0/7 0: Non-support electronic image
stabilizer
1: Support electronic image stabilizer
is_mode eis,
dis,
-
0/7 Indicate the image stabilizer mode.
"eis": electronic image stabilizer
"dis": digital image stabilizer
"-": not support
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
is_strength <boolean> 0/7 0: Non-support tuning strength of
image stabilizer mode.
1: Support tuning strength of image
stabilizer mode.
* Only available when
"capability_image_c<n>_is_mode" is
not "-".
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
is_supportlevel 0, <positive integer> 0/7 Indicate the support strength level of
image stabilizer mode.
* Only available when
"capability_image_c<n>_is_mode" is
not "-".
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
is_affect -,
minexposure:hidden:,
mingain:hidden:,
wdrpro:unchanged:,
3dnr:unchanged:,
or others
<x>: nonnegative integer
0/7 When Is mode is not "-", some
features may become malfunction or
be forced to a given value. The
affected functions are list here.
The format is "Affect API
name":"Policy":"Value"
VIVOTEK
244 - User's Manual
<product dependent> "Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when
"capability_image_c<n>_is_mode" is
not "-".
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
scenemode_support 0,1 0/7 0: Non-support scene mode
1: Support scene mode
scenemode_supporttype
<product dependent>
visibility,
noiseless,
lpcparkinglot,
lpcstreet
<product dependent>
0/7 list all the scene mode which are
supported in the camera.
* Only available when
"capability_image_c<n>_
scenemode_support" is 1
VIVOTEK
User's Manual - 245
scenemode_visibility_affe
ct
<product dependent>
-,
minexposure:hidden:,
mingain:hidden:,
wdrpro:unchanged:,
3dnr:unchanged:,
or others
<x>: nonnegative integer
<product dependent>
0/7 When scene mode is enabled, some
features may become malfunction or
be forced to a given value. The
affected functions are list here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when visibility is listed
in "capability_image_c<n>_
scenemode_supporttype" and
"capability_image_c<n>_
scenemode_support" is 1
scenemode_noiseless_aff -, 0/7 When scene mode is enabled, some
VIVOTEK
246 - User's Manual
ect
<product dependent>
minexposure:hidden:,
mingain:hidden:,
wdrpro:unchanged:,
3dnr:unchanged:,
or others
<x>: nonnegative integer
<product dependent>
features may become malfunction or
be forced to a given value. The
affected functions are list here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when visibility is listed
in "capability_image_c<n>_
scenemode_supporttype " and
"capability_image_c<n>_
scenemode_support" is 1
scenemode_lpcparkinglot
_affect
-,
minexposure:hidden:,
0/7 When scene mode is enabled, some
features may become malfunction or
VIVOTEK
User's Manual - 247
<product dependent> mingain:hidden:,
wdrpro:unchanged:,
3dnr:unchanged:,
or others
<x>: nonnegative integer
<product dependent>
be forced to a given value. The
affected functions are list here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when visibility is listed
in "capability_image_c<n>_
scenemode_supporttype " and
"capability_image_c<n>_
scenemode_support" is 1
scenemode_lpcstreet_aff
ect
<product dependent>
-,
minexposure:hidden:,
mingain:hidden:,
0/7 When scene mode is enabled, some
features may become malfunction or
be forced to a given value. The
VIVOTEK
248 - User's Manual
wdrpro:unchanged:,
3dnr:unchanged:,or others
<x>: nonnegative integer
<product dependent>
affected functions are list here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when visibility is listed
in "capability_image_c<n>_
scenemode_supporttype " and
"capability_image_c<n>_
scenemode_support" is 1
wbmode auto,
manual,
rbgain,
widerange,
0/7 Available white balance mode.
"-" means white balance is not
supported.
VIVOTEK
User's Manual - 249
outdoor,indoor,
sodiumauto,
-
<product dependent>
iristype piris,
dciris,
-
0/7 Indicate iris type.
"piris": P-Iris
"dciris": DC-Iris
"-": No Iris control support
* Note: For some cameras, this value
may be varied depending on mounted
lens.
sensortype rawsensor,
smartsensor
0/7 Indicate sensor type.
"rawsensor": Raw sensor
"smartsensor": Smart sensor
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_mode 0,1 0/7 0: Non-support exposure control.
1: Support exposure control.
exposure_modetype auto,
shutterpriority,
irispriority,
manual
<product dependent>
0/7 Available mode of exposure setting.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_rangetype onevalue,
twovalues
0/7 Support interface of exposure range.
"onevalue": The parameter is a
constant value.
"twovalues": Need two parameters
to indicate the exposure range.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_shuttervaluetyp
e
fixed,
maximum,
-
0/7 * One to one mapping to the mode
type in "exposure_modetype".
"fixed": The shutter value is the
assigned value
(videoin_c<n>_shuttervalue).
"maximum": The shutter value can
VIVOTEK
250 - User's Manual
be up to the assigned value
(videoin_c<n>_shuttervalue).
"-": not support.
* Only available when
"capability_image_c<n>_exposure_ra
ngetype" is "onevalue".
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_gainvaluetype fixed,
maximum,
-
0/7 * One to one mapping to the mode
type in "exposure_modetype".
"fixed": The shutter value is the
assigned value
(videoin_c<n>_gainvalue).
"maximum": The shutter value can
be up to the assigned value
(videoin_c<n>_gainvalue)
"-": not support.
* Only available when
"capability_image_c<n>_exposure_ra
ngetype" is "onevalue".
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_automode_affe
ct
-,
exposurewin.mode.blc:hidd
en:,
defog:disabled:,
wdrpro:disabled:,
exposurelevel:hidden:,
or others
<x>: nonnegative integer
<product dependent>
0/7 When exposure mode is enabled,
some features may become
malfunction or be forced to a given
value. The affected functions are list
here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
VIVOTEK
User's Manual - 251
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when auto is listed in
"capability_image_c<n>_
exposure_modetype" and
"capability_image_c<n>_
exposure_mode" is 1.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_shutterpriority
mode_affect
-,
exposurewin.mode.blc:hidd
en:,
defog:disabled:,
wdrpro:disabled:,
exposurelevel:hidden:,
or others
<x>: nonnegative integer
<product dependent>
0/7 When exposure mode is enabled,
some features may become
malfunction or be forced to a given
value. The affected functions are list
here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
VIVOTEK
252 - User's Manual
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when shutterpriority is
listed in "capability_image_c<n>_
exposure_modetype" and
"capability_image_c<n>_
exposure_mode" is 1.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_irisprioritymod
e_affect
-,
exposurewin.mode.blc:hidd
en:,
defog:disabled:,
wdrpro:disabled:,
exposurelevel:hidden:,
or others
0/7 When exposure mode is enabled,
some features may become
malfunction or be forced to a given
value. The affected functions are list
here.
The format is "Affect API
name":"Policy":"Value"
VIVOTEK
User's Manual - 253
<x>: nonnegative integer
<product dependent> "Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when irispriority is
listed in "capability_image_c<n>_
exposure_modetype" and
"capability_image_c<n>_
exposure_mode" is 1.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_manualmode_a
ffect
-,
exposurewin.mode.blc:hidd
en:,
defog:disabled:,
wdrpro:disabled:,
0/7 When exposure mode is enabled,
some features may become
malfunction or be forced to a given
value. The affected functions are list
here.
VIVOTEK
254 - User's Manual
exposurelevel:hidden:,
or others
<x>: nonnegative integer
<product dependent>
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when manual is listed
in "capability_image_c<n>_
exposure_modetype" and
"capability_image_c<n>_
exposure_mode" is 1.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_levelrange -,
"0,12"
0/7 Available range for
"videoin_c<n>_exposurelevel"
VIVOTEK
User's Manual - 255
* When "exposure_mode"=0, this
must be set to "-".
exposure_winmode auto,
custom,
blc,
-
<product dependent>
0/7 Available options for
"exposurewin_c<n>_mode"
* "-" means group: exposurewin is not
supported.
* When exposure_mode="0", this
must be set to "-".
exposure_wintype inclusive,
exclusive,
-
0/7 The supported exposure window type.
inclusive: The image inside a window is
the target area of exposure control.
exclusive: The image inside a window
is omitted by exposure control.
-: Not supported.
exposure_windomain qvga, px, std, - 0/7 The domain to set an exposure
window.
qvga: a 320x240 range to represent
the whole image.
px: Locate a window in the image with
pixels.
std: A normalized 0~9999 range.
-: Not supported.
exposure_winnum 0, <Positive Integer> 0/7 Indicate the number of custom
exposure windows.
* If no " custom" is listed in
"exposure_winmode", this should be
0.
exposure_ntsc_totalrange
Alistof<PositiveInteger>
0/7 Available total range for NTSC analog
output
*Onlyavailablewhen[httpversion]>=
0301a
exposure_pal_totalrange
Alistof<PositiveInteger>
0/7 Available total range for PAL analog
output
*Onlyavailablewhen[httpversion]>=
0301a
exposure_maxrange "1,32000",
"1,8000",
0/7 Available range for
"videoin_c<n>_maxexposure"
VIVOTEK
256 - User's Manual
-,
or others
<product dependent>
"1,32000" => 1s ~ 1/32000s
"1,8000" => 1s ~ 1/8000s
etc.
"-" means maximum exposure time is
not available.
* When "exposure_mode"=0, this
must be set to "-".
exposure_minrange "1,32000",
"1,8000",
-,
or others
<product dependent>
0/7 Available range for
"videoin_c<n>_minexposure"
"1,32000" => 1s ~ 1/32000s
"1,8000" => 1s ~ 1/8000s
etc.
"-" means minimum exposure time is
not available.
* When "exposure_mode"=0, this
must be set to "-".
privacymask_wintype rectangle,
polygon,
3Drectangle
0/7 The supported mask window type.
polygon: The window is a 2D polygon
shape.
rectangle: The window is a 2D
rectangle shape.
3Drectangle: The window is a 3D
rectangle shape.
privacymask_windomain qvga, px, std, - 0/7 The domain to set an window.
qvga: a 320x240 range to represent
the whole image.
px: Locate a window in the image with
pixels.
std: A normalized 0~9999 range.
-: Not supported.
privacymask_ncolor
<PositiveInteger>
0/7 Available total color numbers of
privacy mask.
agc_maxgain "0,100",
"-"
0/7 Available range for
"videoin_c<n>_maxgain"
“0,100” => 0~100 percent
"-" means "videoin_c<n>_maxgain" is
not available.
agc_mingain "0,100", 0/7 Available range for
VIVOTEK
User's Manual - 257
"-" "videoin_c<n>_mingain"
“0,100” => 0~100 percent
"-" means "videoin_c<n>_mingain" is
not available.
flickerless 0,1 0/7 0: Non-support flickerless
1: Support flickerless
flickerlessaffect -,
minexposure:hidden:,
mingain:hidden:,
or others
<x>: nonnegative integer
<product dependent>
0/7 When flickerless is enabled, some
features may become malfunction or
be forced to a given value. The
affected functions are list here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
VIVOTEK
258 - User's Manual
* When "flickerless" = 0, this must be
"-"
defog_mode 0,1 0/7 0: Non-support defog
1: Support defog
defog_strength 0, 1 0/7 0: Non-support tuning strength of
defog
1: Support tuning strength of defog
* If
"capability_image_c<n>_defog_mode
"=1, this may be either 0 or 1.
defog_supportlevel 0, <positive integer> 0/7 The value indicate the support
strength level of defog.
defog_affect -,
wdrpro:unchanged:,
or others
<x>: nonnegative integer
<product dependent>
0/7 When defog is enabled, some features
may become malfunction or be forced
to a given value. The affected
functions are list here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
VIVOTEK
User's Manual - 259
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* When "defog" = 0, this must be "-"
aespeed 0,1 0/7 0: Non-support AE speed
1: Support AE speed
aespeedsupportlevel <positive integer> 0/7 The value indicate the support
strength level of aespeed.
* Only available when
"capability_image_c<n>_aespeed" is
1.
gammacurve 0,1 0/7 0: Non-support tuning Gamma curve
1: Support tuning Gamma curve
lowlightmode -,0,1 0/7
-: Internalparameter,mustnotopen
touser.
0: Non-support low light mode
1: Support low light mode
backfocus 0,1 0/7 0: Non-support back focus
1: Support back focus
focusassist 0,1 0/7 0: Non-support focus assist
1: Support focus assist
remotefocus 0,1 0/7 0: Non-support remote focus
1: Support remote focus
focuswindomain qvga, px, std, - 0/7 The domain to set an focus window.
qvga: a 320x240 range to represent
the whole image.
px: Locate a window in the image with
pixels.
std: A normalized 0~9999 range.
-: Not supported.
lensconfiguration_support 0,1 0/7 Indicate whether to support different
image library configuration files for
specific exchangeable lens.
freeze <boolean> 0/7 0: Non-support image freeze feature
1: Support image freeze feature
VIVOTEK
260 - User's Manual
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
autotrack_support <boolean> 0/7 0: Non-support auto tracking feature
1: Support auto tracking feature
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
Group: capability_smartsensor_c<0~(n-1)> n denotes the value of "capability_nvideoin"
("capability_image_c<0~(n-1)>_sensortype" is "smartsensor")
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
iristotalrange A list of iris value 0/7 Available total step for iris value.
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
Group: capability_peripheral_c<0~(n-1)> n denotes the value of "capability_nvideoin"
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
waterspray_support <boolean> 0/7 0: Non-support water spray feature
1: Support water spray feature
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
wiper_support <boolean> 0/7 0: Non-support wiper feature
1: Support wiper feature
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
VIVOTEK
User's Manual - 261
7.26 Customized event script
Group: event_customtaskfile_i<0~2>
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
name string[40] 6/6 Custom script identification of this entry.
date string[4~20] 6/6 Date of custom script.
time string[4~20] 6/6 Time of custom script.
7.27 Event setting
Group: event_i<0~2>
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
name string[40] 6/6 Identification of this entry.
enable 0, 1 6/6 Enable or disable this event.
priority 0, 1, 2 6/6 Indicate the priority of this event:
“0”= low priority
“1”= normal priority
“2”= high priority
delay 1~999 6/6 Delay in seconds before detecting the next
event.
trigger boot,
di,
p i r,
motion,
seq,
recnotify,
tampering,
vi,
volalarm,
visignal,
vadp,
smartsd
<product dependent>
6/6 Indicate the trigger condition:
“boot” = System boot
“di”= Digital input
“pir”= PIR detection
“motion” = Video motion detection
“seq” = Periodic condition
“visignal” = Video input signal loss.
“recnotify” = Recording notification.
“tampering” = Tamper detection.
“vi”= Virtual input (Manual trigger)
“volalarm”= Audio detection
“smartsd”= Lifetime detection of SD card
triggerstatus string[40] 6/6 The status for event trigger
VIVOTEK
262 - User's Manual
di 0,<positive integer> 6/6 Indicate the source id of di trigger.
This field is required when trigger condition is
“di”.
One bit represents one digital input. The LSB
indicates DI 0.
mdwin 0,<positive integer> 6/6 Indicate the source window id of motion
detection.
This field is required when trigger condition is
“md”.
One bit represents one window.
The LSB indicates the 1
st
window.
For example, to detect the 1
st
and 3
rd
windows,
set mdwin as 5.
mdwin0 0,<positive integer> 6/6 Similar to mdwin. The parameter takes effect
when profile 1 of motion detection is enabled.
vi 0,<positive integer> 6/6 Indicate the source id of vi trigger.
This field is required when trigger condition is
“vi”.
One bit represents one digital input. The LSB
indicates VI 0.
vadp
<product dependent>
0,<positive integer> 6/6 Indicate the source id of vadp event notification.
Each bit corresponds to one vadp source, and
the LSB indicates source id 0.
For example, to detect event from any one of
source id 0, 1 and 3, set vadp to 11.
* Only available when vadp is listed in
"capability_supporttriggertypes"
valevel 0,1 6/6 Select audio detection event.
0: not select
1: select
valevel0 0,1 6/6 Select audio detection profile event.
0: not select
1: select
inter 1~999 6/6 Interval of snapshots in minutes.
This field is used when trigger condition is “seq”.
VIVOTEK
User's Manual - 263
weekday 0~127 6/6 Indicate which weekday is scheduled.
One bit represents one weekday.
bit0 (LSB) = Saturday
bit1 = Friday
bit2 = Thursday
bit3 = Wednesday
bit4 = Tuesday
bit5 = Monday
bit6 = Sunday
For example, to detect events on Friday and
Sunday, set weekday as 66.
begintime hh:mm 6/6 Begin time of the weekly schedule.
endtime hh:mm 6/6 End time of the weekly schedule.
(00:00 ~ 24:00 sets schedule as always on)
lowlightcondition
<product dependent>
0, 1 6/6 Switch on white light LED in low light condition
0 => Do action at all times
1 => Do action in low-light conditions
action_do_i<0~(ndo-1)>_e
nable
<boolean> 6/6 Enable or disable trigger digital output.
* Only available when "capability_ndo" > 0
action_do_i<0~(ndo-1)>_
duration
1~999 6/6 Duration of the digital output trigger in seconds.
* Only available when "capability_ndo" > 0
action_cf_enable <Boolean> 6/6 Enable or disable sending media to SD card.
action_cf_folder string[128] 6/6 Path to store media.
action_cf_media NULL, 0~4,101 6/6 Index of the attached media.
101 means “Recording Notify”
action_cf_datefolder <boolean> 6/6 Enable this to create folders by date, time, and
hour automatically.
action_cf_backup <Boolean> 6/6 Enable or disable the function that send media to
SD card for backup if network is disconnected.
action_server_i<0~4>_ena
ble
<boolean> 6/6 Enable or disable this server action.
action_server_i<0~4>_me
dia
NULL, 0~4,101 6/6 Index of the attached media.
101 means “Recording Notify”
action_server_i<0~4>_dat
efolder
<boolean> 6/6 Enable this to create folders by date, time, and
hour automatically.
action_goto_enable
<product dependent>
<boolean> 6/6 Enable/disable ptz goto preset position on event
triggered.
* Only available when capability_ptzenabled >
0.
VIVOTEK
264 - User's Manual
action_goto_name
<product dependent>
string[40] 6/6 Specify the preset name that ptz goto on event
triggered.
* Only available when capability_ptzenabled >
0.
7.28 Server setting for event action
Group: server_i<0~4>
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
name string[40] 6/6 Identification of this entry
type email,
ftp,
http,
ns
6/6 Indicate the server type:
“email” = email server
“ftp” = FTP server
“http” = HTTP server
“ns” = network storage
http_url string[128] 6/6 URL of the HTTP server to upload.
http_username string[64] 6/6 Username to log in to the server.
http_passwd string[64] 6/6 Password of the user.
ftp_address string[128] 6/6 FTP server address.
ftp_username string[64] 6/6 Username to log in to the server.
ftp_passwd string[64] 6/6 Password of the user.
ftp_port 0~65535 6/6 Port to connect to the server.
ftp_location string[128] 6/6 Location to upload or store the media.
ftp_passive <boolean> 6/6 Enable or disable passive mode.
0 = disable passive mode
1 = enable passive mode
email_address string[128] 6/6 Email server address.
email_sslmode <boolean> 6/6 Enable support SSL.
email_port 0~65535 6/6 Port to connect to the server.
email_username string[64] 6/6 Username to log in to the server.
email_passwd string[64] 6/6 Password of the user.
email_senderemail string[128] 6/6 Email address of the sender.
email_recipientemail string[640] 6/6 Email address of the recipient.
ns_location string[128] 6/6 Location to upload or store the media.
VIVOTEK
User's Manual - 265
ns_username string[64] 6/6 Username to log in to the server.
ns_passwd string[64] 6/6 Password of the user.
ns_workgroup string[64] 6/6 Workgroup for network storage.
7.29 Media setting for event action
Group: media_i<0~4>
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
name string[40] 6/6 Identification of this entry
type snapshot,
systemlog,
videoclip,
recordmsg
6/6 Media type to send to the server or
store on the server.
snapshot_source 0~"capability_nmediastream -1" 6/6 Indicate the source of media stream.
0 means the first stream.
1 means the second stream and etc.
2 means the third stream and etc.
3 means the fourth stream and etc.
snapshot_prefix string[16] 6/6 Indicate the prefix of the filename.
media_i0=> Snapshot1_
media_i1=> Snapshot2_
media_i2=> Snapshot3_
media_i3=> Snapshot4_
media_i4=> Snapshot5_
snapshot_datesuffix 0, 1 6/6 Add date and time suffix to filename:
1 = Add date and time suffix.
0 = Do not add.
snapshot_preevent 0~"
capability_media_snapshot_maxpr
eevent"
6/6 Indicates the number of pre-event
images.
snapshot_postevent 0~"
capability_media_snapshot_maxpo
stevent"
6/6 Indicates the number of post-event
images.
videoclip_source 0~"capability_nmediastream -1" 6/6 Indicate the source of media stream.
0 means the first stream.
1 means the second stream and etc.
2 means the third stream and etc.
3 means the fourth stream and etc.
VIVOTEK
266 - User's Manual
videoclip_prefix string[16] 6/6 Indicate the prefix of the filename.
videoclip_preevent 0 ~ "
capability_media_videoclip_maxpre
event"
6/6 Indicates the time for pre-event
recording in seconds.
videoclip_maxduration 1 ~ "
capability_media_videoclip_maxlen
gth"
6/6 Maximum duration of one video clip in
seconds.
videoclip_maxsize 50 ~ "
capability_media_videoclip_maxsiz
e"
6/6 Maximum size of one video clip file in
Kbytes.
7.30 Recording
Group: recording_i<0~1>
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
name string[40] 6/6 Identification of this entry.
trigger schedule,
networkfail
6/6 The event trigger type
schedule: The event is triggered by schedule
networkfail: The event is triggered by the
failure of network connection.
enable <boolean> 6/6 Enable or disable this recording.
priority 0, 1, 2 6/6 Indicate the priority of this recording:
“0” indicates low priority.
“1” indicates normal priority.
“2” indicates high priority.
source 0~"capability_nmediastream-1" 6/6 Indicate the source of media stream.
0 means the first stream.
1 means the second stream and so on.
VIVOTEK
User's Manual - 267
maxretentiontime <string> 6/6
T
o specify the expired time for automatic clean
up, and it only takes effect for video clip
generated by recording_i <0~1>.
Format is
“‘P[Y]Y[MM]M[DDD]DT[hh]H[mm]M[ss]S’
, similar with ISO8601 with symbols P
Ex. P7D, it means 7 days. P1DT10H, it means
1 days and 10 hours.
The parameter takes effect when
autocleanup_
maxretentiontime_recording_enabled is
enabled.
limitsize <boolean> 6/6 0: Entire free space mechanism
1: Limit recording size mechanism
cyclic <boolean> 6/6 0: Disable cyclic recording
1: Enable cyclic recording
notify <boolean> 6/6 0: Disable recording notification
1: Enable recording notification
notifyserver 0~31 6/6 Indicate which notification server is
scheduled.
One bit represents one application server
(server_i0~i4).
bit0 (LSB) = server_i0.
bit1 = server_i1.
bit2 = server_i2.
bit3 = server_i3.
bit4 = server_i4.
For example, enable server_i0, server_i2, and
server_i4 as notification servers; the
notifyserver value is 21.
VIVOTEK
268 - User's Manual
weekday 0~127 6/6 Indicate which weekday is scheduled.
One bit represents one weekday.
bit0 (LSB) = Saturday
bit1 = Friday
bit2 = Thursday
bit3 = Wednesday
bit4 = Tuesday
bit5 = Monday
bit6 = Sunday
For example, to detect events on Friday and
Sunday, set weekday as 66.
begintime hh:mm 6/6 Start time of the weekly schedule.
endtime hh:mm 6/6 End time of the weekly schedule.
(00:00~24:00 indicates schedule always on)
prefix string[16] 6/6 Indicate the prefix of the filename.
cyclesize 100~ 6/6 The maximum size for cycle recording in
Kbytes when choosing to limit recording size.
reserveamount 0~15000000 6/6 The reserved amount in Mbytes when
choosing cyclic recording mechanism.
dest cf,
0~4
6/6 The destination to store the recorded data.
“cf” means local storage (CF or SD card).
“0” means the index of the network storage.
cffolder string[128] 6/6 Folder name.
maxsize 100~2000 6/6 Unit: Mega bytes.
When this condition is reached, recording file
is truncated.
maxduration 60~3600 6/6 Unit: Second
When this condition is reached, recording file
is truncated.
adaptive_enable <boolean> 6/6 Indicate whether the adaptive recording is
enabled
adaptive_preevent 0~9 6/6 Indicate when is the adaptive recording
started before the event trigger point
(seconds)
adaptive_postevent 0~10 6/6 Indicate when is the adaptive recording
stopped after the event trigger point
(seconds)
VIVOTEK
User's Manual - 269
7.31 HTTPS
Group: https
(capability.protocol.https > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 To enable or disable secure HTTP.
policy <Boolean> 6/6 If the value is 1, it will force HTTP connection
redirect to HTTPS connection
method auto,
manual,
install
6/6 auto =>Create self-signed certificate
automatically.
manual =>Create self-signed certificate
manually.
install =>Create certificate request and install.
status -3 ~ 1 6/6 Specify the https status.
-3= Certificate not installed
-2 = Invalid public key
-1 = Waiting for certificate
0= Not installed
1 = Active
countryname string[2] 6/6 Country name in the certificate information.
stateorprovincename string[128] 6/6 State or province name in the certificate
information.
localityname string[128] 6/6 The locality name in thecertificate information.
organizationname string[64]
VIVOTEK Inc.
6/6 Organization name in the certificate
information.
unit string[64]
VIVOTEK Inc.
6/6 Organizational unit name in thecertificate
information.
commonname string[64]
www.vivotek.com
6/6 Common name in the certificate information.
validdays 0 ~ 3650 6/6 Valid period for the certification.
VIVOTEK
270 - User's Manual
7.32 Storage management setting
Group: disk_i<0~(n-1)> n is the total number of storage devices.
(capability.storage.dbenabled > 0)
Currently it’s only for local storage (SD, CF card), so n is equal to 1.
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
cyclic_enabled <boolean> 6/6 Enable cyclic storage method.
autocleanup_enabled
<Not recommended to use
this>
<boolean> 6/6 Enable automatic clean up method.
Expired and not locked media files will be
deleted.
* For forward compatibility reservations, but
only group disk_i0_autocleanup is effective.
* Not recommended to use this. Please refers
"autocleanup" group.
* This parameter will not be used after the
version number (httpversion) is equal or greater
than 0400a.
autocleanup_maxage
<Not recommended to use
this>
<positive integer> 6/6 To specify the expired days for automatic clean
up.
* For forward compatibility reservations, but
only group disk_i0_autocleanup is effective.
* Not recommended to use this. Please refers
"autocleanup" group.
* This parameter will not be used after the
version number (httpversion) is equal or greater
than 0400a.
Group: autocleanup (capability.localstorage.supportedge > 0)
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
enabled <boolean> 6/6 Enable automatic clean up method.
Expired and not locked media files will be
deleted.
maxretentiontime_recordin
g_enabled
<boolean> 6/6 Enable automatic clean up method for video clip
generated by recording task.
The parameter takes effect when
autocleanup_enabled is enabled.
VIVOTEK
User's Manual - 271
maxretentiontime_recordin
g_i <0~1>_maxage
<string> 6/6 To specify the expired time for automatic clean
up, and it only takes effect for video clip
generated by recording_i <0~1>.
Format is
“‘P[Y]Y[MM]M[DDD]DT[hh]H[mm]M[ss]S’
, similar with ISO8601 with symbols P
Ex. P7D, it means 7 days. P1DT10H, it means 1
days and 10 hours.
The parameter takes effect when autocleanup_
maxretentiontime_recording_enabled is
enabled.
maxretentiontime_others_e
nabled
<boolean> 6/6 Enable automatic clean up method for all media
files except media files generated by recording
task.
The parameter takes effect when
autocleanup_enabled is enabled.
maxretentiontime_others_
maxage
<string> 6/6 To specify the expired time for automatic clean
up, and it takes effect for all media files except
media files generated by recording task.
Format is
“‘P[Y]Y[MM]M[DDD]DT[hh]H[mm]M[ss]S’
, similar with ISO8601 with symbols P
Ex. P7D, it means 7 days. P1DT10H, it means 1
days and 10 hours.
The parameter takes effect when
autocleanup_maxretentiontime_others_enabled
is enabled.
VIVOTEK
272 - User's Manual
7.33 Region of interest
Group: roi_c<0~(n-1)> for n channel product.
(capability.eptz > 0)
m denotes the value of "capability_nmediastream".
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
s<0~(m-2)>_home <W,H>
<product dependent>
1/6 ROI left-top corner coordinate.* If the minimal
window size is 64x64, then the
"win_i0_home"=(0~resolution_W-64,
0~resolution_H-64), which the resolution is the
value in current stream.
s<0~(m-2)>_size <WxH>
<product dependent>
1/6 ROI width and height. The width value must be
multiples of 16 and the height value must be
multiples of 8* The minimal window size is
64x64
s<m-1>_home <W,H>
<product dependent>
1/7 ROI left-top corner coordinate.* If the minimal
window size is 64x64, then the
"win_i0_home"=(0~resolution_W-64,
0~resolution_H-64), which the resolution is the
value in current stream.
s<m-1>_size <WxH>
<product dependent>
1/7 ROI width and height. The width value must be
multiples of 16 and the height value must be
multiples of 8* The minimal window size is
64x64
7.34 ePTZ setting
Group: eptz_c<0~(n-1)> for n channel product.
(capability.eptz > 0)
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
osdzoom
<Not recommended to use
this>
<boolean> 1/4 Indicates multiple of zoom in is “on-screen
display” or not.
* Reserved for compatibility, and suggest don't
use this since [httpversion] > 0302a
* We replace "eptz_c<0~(n-1)>_osdzoom" with
" videoin_c<0~(n-1)>_zoomratiodisplay".
smooth <boolean> 1/4 Enable the ePTZ "move smoothly" feature
VIVOTEK
User's Manual - 273
tiltspeed -5 ~ 5 1/7 Tilt speed
(It should be set by eCamCtrl.cgi rather than by
setparam.cgi.)
panspeed -5 ~ 5 1/7 Pan speed
(It should be set by eCamCtrl.cgi rather than by
setparam.cgi.)
zoomspeed -5 ~ 5 1/7 Zoom speed
(It should be set by eCamCtrl.cgi rather than by
setparam.cgi.)
autospeed 1 ~ 5 1/7 Auto pan/patrol speed
(It should be set by eCamCtrl.cgi rather than by
setparam.cgi.)
rotatespeed 1 ~ 5 1/7 Rotate speed (only for Fisheye series)
* Only available when "capability_fisheye" is 1
and "capability_fisheyelocaldewarp_c<n>" is 0
(It should be set by eCamCtrl.cgi rather than by
setparam.cgi.)
Group: eptz_c<0~(n-1)>_s<0~(m-1)> for n channel product and m is the number of streams which support
ePTZ. (capability.eptz > 0)
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
patrolseq string[120] 1/4 The patrol sequence of ePTZ. All the patrol
position indexes will be separated by ","
patroldwelling string[160] 1/4 The dwelling time (unit: second) of each patrol
point, separated by “,”.
preset_i<0~19>_name string[40] 1/7 Name of ePTZ preset.
(It should be set by ePreset.cgi rather than by
setparam.cgi.)
preset_i<0~19>_pos <W,H>
<product dependent>
1/7 Left-top corner coordinate of the preset.
(It should be set by ePreset.cgi rather than by
setparam.cgi.)
preset_i<0~19>_size <WxH>
<product dependent>
1/7 Width and height of the preset.
(It should be set by ePreset.cgi rather than by
setparam.cgi.)
VIVOTEK
274 - User's Manual
7.35 Focus Window setting
Group: focuswindow_c<0~(n-1)> for n channel products
n denotes the value of "capability_nvideoin".
(capability_image_c<0~(n-1)>_backfocus=1 or capability_image_c<0~(n-1)>_remotefocus=1)
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
win_i0_enable <boolean> 4/4 Enable or disable the window.
win_i0_home <W,H>
<product dependent>
4/4 Left-top corner coordinate of the window.
* If the minimal window size is 192x144, then
the "win_i0_home"=(0~resolution_W-192,
0~resolution_H-144), which the resolution is
the value in current stream.
win_i0_size <WxH>
<product dependent>
4/4 Width and height of the window.
* The minimal window size is 192x144
7.36 Seamless recording setting
Group: seamlessrecording
(capability.localstorage.seamless> 0)
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
diskmode seamless,
manageable
1/6 “seamless” indicates enable seamless recording.
“manageable” indicates disable seamless
recording.
maxconnection 3 1/7 Maximum number of connected seamless
streaming.
enable <boolean> 1/7 Indicate whether seamless recording is
recording to local storage or not at present.
(Read only)
guid<0~2>_id string[127] 1/7 The connected seamless streaming ID.
(Read only)
guid<0~2>_number 0~3 1/7 Number of connected seamless streaming with
guid<0~2>_id.
(Read only)
VIVOTEK
User's Manual - 275
7.37 VIVOTEK Application Development Platformsetting
Group: vadp
NAME VALUE SECURITY
(get/set)
DESCRIPTION
version <string> 6/7 Indicate the VADP version.
resource_total_memory 0,<positive integer> 6/7 Indicate total available memory size for VADP
modules.
resource_total_storage 0,<positive integer> 6/7 Indicate total size of the internal storage
space for storing VADP modules.
resource_free_memory 0,<positive integer> 6/7 Indicate free memory size for VADP modules.
resource_free_storage 0,<positive integer> 6/7 Indicate current free storage size for
uploading VADP modules.
module_number 0,<positive integer> 6/7 Record the total module number that already
stored in the system.
module_order string[40] 6/6 The execution order of the enabled modules.
module_save2sd <boolean> 6/6 Indicate if the module should be saved to SD
card when user want to upload it.
If the value is false, save module to the
internal storage space and it will occupy
storage size.
number string[128] 6/7 This number is used to register license key for
VADP application.
Group: vadp_module_i<0~(n-1)> for n VADP package number (capability_vadp_npackage > 0)
n denotes the value of "capability_vadp_npackage".
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Indicate if the module is enabled or not.
If yes, also add the index of this module to the
module_order.
name string[40] 6/6 Module name
extendedname string[40] 6/6 Extended module name. If this value is not
blank, it will be shown on the VADP UI first
instead of vadp_module_i<n>_name.
url string[120] 6/6 Define the URL string after the IP address if the
module provides it own web page.
vendor string[40] 6/6 The provider of the module.
VIVOTEK
276 - User's Manual
vendorurl string[120] 6/6 URL of the vendor.
version string[40] 6/6 Version of the module.
license string[40] 6/6 Indicate the license status of the module.
licmsg string[128] 6/6 Indicate the message that will be show on
license status when mouse over.
path string[40] 6/6 Record the storage path of the module.
initscr string[40] 6/6 The script that will handle operation
commands from the system.
status string[40] 6/6 Indicate the running status of the module.
statmsg string[128] 6/6 Indicate the message that will be show on the
running status when mouse over.
vvtklicensemec string[40] 6/7 Indicate the module use VIVOTEK license
mechanism
Group: vadp_schedule_i<0~(n-1)> for n VADP package number
n denotes the value of "capability_vadp_npackage".
(Only available when capability_vadp_npackage > 0 and the version number of "vadp_version" is equal or greater
than 1.3.2.0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable or disable the schedule mode to
control the execution of the VADP package
begintime hh:mm 6/6 Begin time of the schedule
endtime hh:mm 6/6 End time of the schedule
Group: vadp_event
NAME VALUE SECURITY
(get/set)
DESCRIPTION
ntrigger 0,<positive integer> 6/7 Indicate the number of topics to be transferred
to event manager for trigger.
triggerlist_i<0~(n-1)>_to
pic
string[256] 6/6 Indicate the event notification with this topic
will be transferred to event manager as trigger.
n is equal to ntrigger above.
VIVOTEK
User's Manual - 277
7.38 camera PTZ control
Group: camctrl
(capability.camctrl.ptztunnel > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enableptztunnel <boolean> 1/4 Enable PTZ tunnel for camera control.
Group: camctrl_c<0~(n-1)> for n channel products (capability.ptzenabled > 0)
n denotes the value of "capability_nvideoin"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
panspeed -5 ~ 5 1/4 Pan speed
tiltspeed -5 ~ 5 1/4 Tilt speed
zoomspeed -5 ~ 5 1/4 Zoom speed
focusspeed -5 ~ 5 1/4 Auto focus speed
patrolseq string[120] 1/4 (For external device)
The indexes of patrol points, separated by “,”
patroldwelling string[160] 1/4 (For external device)
The dwelling time of each patrol point,
separated by “,”
preset_i<0~(capability_n
preset -1)>_name
string[40] 1/4 Name of the preset location.
preset_i<0~(capability_n
preset -1)>_ dwelling
0 ~ 999 1/4 The dwelling time of each preset location
uart 0 ~
(capability_nuart -1)
1/4 Select corresponding uart
(capability.nuart>0).
cameraid 0~255 1/4 Camera ID controlling external PTZ camera.
isptz 0 ~ 2 1/4 0: disable PTZ commands.
1: enable PTZ commands with PTZ driver.
2: enable PTZ commands with UART tunnel.
* Only available when bit7 of
capability_ptzenabled is 1
disablemdonptz <boolean> 1/4 Disable motion detection on PTZ operation.
VIVOTEK
278 - User's Manual
7.39 camera PTZ control (SD series)
Group: camctrl
(the bit7 of capability_ptzenabled is 0 and the bit4 of capability_ptzenable is 1)
k denotes the value of "capability_npreset"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
ccdtype string[16] 6/7 (Internal used, read only)
motortype string[16] 6/7 (Internal used, read only)
cameraid 1 ~ 255 1/4 Camera ID controlling external PTZ
camera.
Note:
Please set your speed dome to the
appropriate baud rate, and Camera ID,
e.g. 2400bps, camera ID 1,2,3,,,,etc.
All Camera IDs on the same controlling
system (NVR or rs485 keyboard) have
to be distinct.
Therefore, once you send a controlling
signal, each camera will only accept the
inputs with the corresponding ID.
panspeed -5 ~ 5 1/4 Pan speed
tiltspeed -5 ~ 5 1/4 Tilt speed
zoomspeed -5 ~ 5 1/4 Zoom speed
autospeed -5 ~ 5 1/4 Auto pan speed
focusspeed -5 ~ 5 1/4 Auto focus speed
preset_i<0~(k-1)>_name string[40] 1/4 Name of the preset location.
preset_i<0~(k-1)>_pan capability_ptz_minpan ~
capability_ptz_maxpan
1/4 Pan position at each preset location.
preset_i<0~(k-1)>_tilt capability_ptz_mintilt ~
capability_ptz_maxtilt
1/4 Tilt position at each preset location.
preset_i<0~(k-1)>_zoom capability_ptz_minzoom ~
capability_ptz_maxzoom
1/4 Zoom position at each preset location.
preset_i<0~(k-1)>_focus capability_ptz_minfocus ~
capability_ptz_maxfocus
1/4 Focus position at each preset location.
preset_i<0~(k-1)>_fliped <boolean> 1/4 Flip side at each preset location.
patrol_i<0~39>_name string[40] 1/4 (For internal device)
The name of patrol location
patrol_i<0~39>_ dwelling 0 ~ 999 1/4 (For internal device)
VIVOTEK
User's Manual - 279
The dwelling time of each patrol location
disablemdonptz <boolean> 1/4 Disable motion detection on PTZ
operation.
defaulthome <boolean> 1/4 This field tells system to use default
home position or not.
axisx capability_ptz_minpan ~
capability_ptz_maxpan
1/4 Custom home pan position.
axisy capability_ptz_mintilt ~
capability_ptz_maxtilt
1/4 Custom home tilt position.
axisz capability_ptz_minzoom ~
capability_ptz_maxzoom
1/4 Custom home zoom position.
axisf capability_ptz_minfocus ~
capability_ptz_maxfocus
1/4 Custom home focus position.
axisflip <boolean> 1/4 Custom home flip side.
returnhome <boolean> 1/4 Enable/disable return home while idle.
returnhomeinterval 1~999 1/4 While idle over this time interval, idle
action will be taken.
digitalzoom <boolean> 1/4 Enable/disable digital zoom
idleaction_enable <boolean> 1/4 Enable/disable idle action while idle
idleaction_type pan,patrol,home,objtrack,
prev
1/4 This field tells what kind of action should
be taken while idle.
idleaction_interval 1~999 1/4 While idle over this time interval, idle
action will be taken.
horizontalalignment <boolean> 1/4 Once you enable this feature, a
reference line will be visible when the
camera tilt is under 0° or over 180° to
help verify that the camera is mounted
to a flat surface.
osdzoom <boolean> 1/4 Show zoom ratio text on video.
zoomenhance <boolean> 1/4 Enable / Disable zoom enhancement
tour_index -1, 0~19 1/4 Index of the enabled tour group, from 0
to 19.
Set -1 to disable all the tour groups.
tour_i<0~19>_name string[40] 1/4 Name of the tour.
tour_i<0~19>_type <boolean> 1/4 0 = Recorded tour
1 = Preset tour
tour_i<0~19>_speed -5 ~ 5 1/4 Preset tour: pan and tilt speed when
moving between presets.
Recorded tour: unnecessary.
VIVOTEK
280 - User's Manual
tour_i<0~19>_checklist string[512] 1/4 The indexes of preset positions,
separated by “,”
tour_i<0~19>_dwelltime string[512] 1/4 Preset tour: time to wait before moving
to the next preset position, separated by
“,”
Recorded tour: number of seconds to
wait
before continuing a loop tour.
7.40 UART control
Group: uart
(capability.nuart > 0 and capability.fisheye = 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
ptzdrivers_i<0~19,
127>_name
string[40] 1/4 Name of the PTZ driver.
ptzdrivers_i<0~19,
127>_location
string[128] 1/4 Full path of the PTZ driver.
enablehttptunnel <boolean> 1/4 Enable HTTP tunnel channel to control UART.
Group: uart_i<0~(n-1)> n is uart port count (capability.nuart > 0 and capability.fisheye = 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
baudrate 110,300,600,1200,
2400,3600,4800,72
00,9600,19200,384
00,57600,115200
4/4 Set baud rate of COM port.
databit 5,6,7,8 4/4 Data bits in a character frame.
paritybit none,
odd,
even
4/4 For error checking.
stopbit 1,2 4/4 1
2-1.5 , data bit is 5
2-2
uartmode rs485,
rs232
4/4 RS485 or RS232.
customdrvcmd_i<0~9> string[128] 1/4 PTZ command for custom camera.
VIVOTEK
User's Manual - 281
speedlink_i<0~4>_name string[40] 1/4 Additional PTZ command name.
speedlink_i<0~4>_cmd string[40] 1/4 Additional PTZ command list.
ptzdriver 0~19,
127 (custom),
128 (no driver)
1/4 The PTZ driver is used by this COM port.
7.41 UART control (SD series)
Group: uart
(capability.nuart > 0 and the bit7 of capability_ptzenabled is 0, the bit4 of capability_ptzenable is 1)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
cameraid 1~255 4/4 Camera ID controlling external PTZ camera.
Note:
Please set your speed dome to the appropriate
baud rate, and Camera ID, e.g. 2400bps,
camera ID 1,2,3,,,,etc.
All Camera IDs on the same controlling system
(NVR or rs485 keyboard) have to be distinct.
Therefore, once you send a controlling signal,
each camera will only accept the inputs with
the corresponding ID.
baudrate 110,300,600,1200,
2400,3600,4800,72
00,9600,19200,384
00,57600,115200
4/4 Set baud rate of COM port.
databit 5,6,7,8 4/4 Data bits in a character frame.
paritybit none,
odd,
even
4/4 For error checking.
stopbit 1,2 4/4 1
2-1.5 , data bit is 5
2-2
uartmode rs485 4/7 RS485 mode.
VIVOTEK
282 - User's Manual
7.42 Lens configuration
Group: lens for n channel products
n denotes the value of "capability_nvideoin"
(capability.image.c<0~(n-1)>.lensconfiguration.support = 1)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
selected <string> 6/7 Current selected lens profile.
e.g. lens_selected=lens_default_i0, it means
choosen lens configuration is i0 lens of default
group.
Group: lens_default
NAME VALUE SECURITY
(get/set)
DESCRIPTION
totalnumbers 0,<positive integer> 6/7 Totoal support number of the default lens
profiles
Group: lens_user
NAME VALUE SECURITY
(get/set)
DESCRIPTION
totalnumbers 0,<positive integer> 6/7 Totoal support number of the user lens profiles
Group: lens_default_i<0~(n-1)> n is lens_default_totalnumbers
NAME VALUE SECURITY
(get/set)
DESCRIPTION
name <string> 6/7 Default lens name
Group: lens_user_i<0~(n-1)> n is lens_user_totalnumbers
NAME VALUE SECURITY
(get/set)
DESCRIPTION
name <string> 6/7 User-defined lens name
VIVOTEK
User's Manual - 283
7.43 Fisheye info
Group: fisheyeinfo
(capability.fisheye > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
revisedcenteraxis <coordinate> 6/7 The actual center axis coordinate
radius 0, <positive
integer>
6/7 The actual center radius
7.44 Fisheye local dewarp setting
Group: fisheyedewarp_c<0~(n-1)>
(capability_fisheyelocaldewarp_c<0~(capability_nvideoin)-1> > 0)
n denotes the value of "capability_nvideoin", m denotes the value of "capability_nmediastream"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
panspeed -5 ~ 5
<integer>
1/4 Pan speed of regional view
tiltspeed -5 ~ 5
<integer>
1/4 Tilt speed of regional view
zoomspeed -5 ~ 5
<integer>
1/4 Zoom speed of regional
s<0~(m-2)>_panorama_
panstart
0~359
<integer>
1/4 Initial pan position of panorama view.
(only available for 1P and 2P mode at ceiling or
floor mount)
s<0~(m-2)>_region_pan -90~359
<integer>
1/4 Pan home angle of regional view
Pan range of ceiling/floor mount is [0~359].
Pan range of wall mount is [-90~90].
s<0~(m-2)>_region_tilt -90~90
<integer>
1/4 Tilt home angle of regional view
Tilt range of ceiling/floor mount is [0~90].
Tilt range of wall mount is [-90~90].
s<0~(m-2)>_region_zoo
m
100~300
<integer>
1/4 Zoom home ratio of regional view
7.45 PIR behavior define
Group: pir
(capability.npir > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 1/1 Enable/disable PIR
VIVOTEK
284 - User's Manual
7.46 Auto tracking setting
Group: autotrack
(capbility_image_c<0~(capability_nvideoin)-1>_autotrack_support > 0)
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
objsize_type -1~2 1/4 Type of object size.
-1 : customized width and height
0 : object size = 30 x 30
1 : object size = 10 x 20
2 : object size = 10 x 10
objsize_customized_width 10~320 1/4 The minimum width of tracking target.
objsize_customized_height 10~240 1/4 The minimum height of tracking target.
sensitivity 0~2 1/4 Tracking sensitivity.
0: Low
1: Medium
2: High
VIVOTEK
User's Manual - 285
8. Useful Functions
8.1 Drive the Digital Output
(capability.ndo > 0)
Note: This request requires Viewer privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>]
[&do3=<state>][&do4=<state>]
Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
PARAMETER VALUE DESCRIPTION
do<num> 0, 1 0 – Inactive, normal state
1 – Active, triggered state
Example: Drive the digital output 1 to triggered state and redirect to an empty page.
http://myserver/cgi-bin/dido/setdo.cgi?do1=1
8.2 Query Status of the Digital Input(capability.ndi > 0)
Note: This request requires Viewer privileges
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3]
If no parameter is specified, all of the digital input statuses will be returned.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <length>\r\n
\r\n
[di0=<state>]\r\n
[di1=<state>]\r\n
[di2=<state>]\r\n
[di3=<state>]\r\n
where <state> can be 0 or 1.
VIVOTEK
286 - User's Manual
Example: Query the status of digital input 1 .
Request:
http://myserver/cgi-bin/dido/getdi.cgi?di1
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: 7\r\n
\r\n
di1=1\r\n
8.3 Query Status of the Digital Output
(capability.ndo > 0)
Note: This request requires Viewer privileges
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]
If no parameter is specified, all the digital output statuses will be returned.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <length>\r\n
\r\n
[do0=<state>]\r\n
[do1=<state>]\r\n
[do2=<state>]\r\n
[do3=<state>]\r\n
where <state> can be 0 or 1.
Example: Query the status of digital output 1.
Request:
http://myserver/cgi-bin/dido/getdo.cgi?do1
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: 7\r\n
VIVOTEK
User's Manual - 287
\r\n
do1=1\r\n
8.4 Capture Single Snapshot
Note: This request requires Normal User privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>]
[&quality=<value>][&streamid=<value>]
If the user requests a size larger than all stream settings on the server, this request will fail.
PARAMETER VALUE DEFA
ULT
DESCRIPTION
channel 0~(n-1) 0 The channel number of the video source.
resolution IP8165:
(160~640, 120~360)
IP8155:
(160~1280, 120~1024)
0 The resolution of the image.
quality 1~5 3 The quality of the image.
streamid 0~(m-1) 2 The stream number.
The server will return the most up-to-date snapshot of the selected channel and stream in JPEG format. The size
and quality of the image will be set according to the video settings on the server.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: image/jpeg\r\n
[Content-Length: <image size>\r\n]
<binary JPEG image data>
VIVOTEK
288 - User's Manual
8.5 Account Management
Note: This request requires Administrator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/editaccount.cgi?
method=<value>&username=<name>[&userpass=<value>][&privilege=<value>]
[&privilege=<value>][…][&return=<return page>]
PARAMETER VALUE DESCRIPTION
method Add Add an account to the server. When using this method, the“username”
field is necessary. It will use the default value of other fields if not
specified.
Delete Remove an account from the server. When using this method, the
“username” field is necessary, and others are ignored.
edit Modify the account password and privilege. When using this method,
the“username” field is necessary, and other fields are optional. If not
specified, it will keep the original settings.
username <name> The name of the user to add, delete, or edit.
userpass <value> The password of the new user to add or that of the old user to modify.
The default value is an empty string.
Privilege <value> The privilege of the user to add or to modify.
viewer Viewer privilege.
operator Operator privilege.
admin Administrator privilege.
Return <return page> Redirect to the page <return page>after the parameter is assigned.
The <return page>can be a full URL path or relative path according to
the current path. If you omit this parameter, it will redirect to an
empty page.
VIVOTEK
User's Manual - 289
8.6 System Logs
Note: This request require Administrator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/syslog.cgi
Server will return the most up-to-date system log.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <syslog length>\r\n
\r\n
<system log information>\r\n
8.7 Upgrade Firmware
Note: This request requires Administrator privileges.
Method: POST
Syntax:
http://<servername>/cgi-bin/admin/upgrade.cgi
Post data:
fimage=<file name>[&return=<return page>]\r\n
\r\n
<multipart encoded form data>
Server will accept the file named <file name> to upgradethe firmware and return with <return page> if indicated.
VIVOTEK
290 - User's Manual
8.8 ePTZ Camera Control (capability.eptz > 0 and
capability_fisheye = 0)
Note: This request requires camctrl privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/camctrl/eCamCtrl.cgi?channel=<value>&stream=<value>
[&move=<value>] – Move home, up, down, left, right
[&auto=<value>] – Auto pan, patrol
[&zoom=<value>] –Zoom in, out
[&zooming=<value>&zs=<value>] –Zoom without stopping, used for joystick
[&x=<value>&y=<value>&w=<value>&h=<value>&resolution=<value>] - Zoom in, out on a specific area
[&vx=<value>&vy=<value>&vs=<value>] – Shift without stopping, used for joystick
[&x=<value>&y=<value>&videosize=<value>&resolution=<value>&stretch=<value>] –Click on image
(Move the center of image to the coordination (x,y) based on resolution or videosize.)
[ [&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>][&speedapp=<value>] ] – Set speeds
[&return=<return page>]
Example:
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=0&move=right
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=1&vx=2&vy=2&vz=2
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=1&x=100&y=100&
videosize=640x480&resolution=640x480&stretch=0
In zoom operation, there are two ways to control it, scale zoom and area zoom.
1. [Scale zoom]: contains two control method, relative movement and continuous movement
a. relative movement -
If you trigger a relative movement, it will only zoom certain ratio and stop by itself.
http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zoom=tele
http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zoom=wide
The zoom ratio to move by relative movement is according to the setting of speedzoom [-5~5].
http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&speedzoom=5
b. continuous movement -
If you trigger a continuous movement, you have to handle the stop time by yourself.
A continuous movement is convenient to integrate a joystick control.
http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zooming=tele&zs=1
VIVOTEK
User's Manual - 291
http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zooming=wide&zs=5
zooming is used to indicate the moving direction, and zs is used to indicate the speed.
To stop a continuous movement, you have to use the command as below:
http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zoom=stop&zs=0
2. [Area zoom]: it means to zoom in on a specific area, here is an example for a directly moving
[x, y] is the desired coordinate, and it will be the center after movement
[w, h] is the scaled area size
[resolution] is the base range of this coordinate system
The example shows [w, h] = [864, 488], which means to zoom in to ratio x2.2 based on [1920x1080].
Pay attention to that [x, y, w, h] are essential parameters in an area zoom case, and the stream index is counted
from 0 as the first stream.
http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=0&x=912&y=297&w=864&h=488&resolution=
1920x1080
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of video source.
stream <0~(m-1)> Stream.
move home Move to home ROI.
up Move up.
down Move down.
left Move left.
right Move right.
auto pan Auto pan.
patrol Auto patrol.
stop Stop auto pan/patrol.
zoom wide Zoom larger view with current speed.
tele Zoom further with current speed.
zooming wide or tele Zoom without stopping for larger view or further view with zs speed,
used for joystick control.
zs 0 ~ 6 Set the speed of zooming, “0” means stop.
x <integer> The desired coordinate, and it will be the center after movement
y <integer>
w <integer> The scaled area size
h <integer>
resolution <window size> The resolution of streaming.
VIVOTEK
292 - User's Manual
vx <integer> The direction of movement, used for joystick control.
vy <integer>
vs 0 ~ 7 Set the speed of movement, “0” means stop.
x <integer> x-coordinate clicked by user.
It will be the x-coordinate of center after movement.
y <integer> y-coordinate clicked by user.
It will be the y-coordinate of center after movement.
videosize <window size> The size of plug-in (ActiveX)window in web page
resolution <window size> The resolution of streaming.
stretch <boolean> 0 indicates that it usesresolution(streaming size) as the range of the
coordinate system.
1 indicates that it usesvideosize(plug-in size) as the range of the
coordinate system.
speedpan -5 ~ 5 Set the pan speed.
speedtilt -5 ~ 5 Set the tilt speed.
speedzoom -5 ~ 5 Set the zoom speed.
speedapp 1 ~ 5 Set the auto pan/patrol speed.
return <return page> Redirect to the page <return page>after the parameter is assigned.
The <return page>can be a full URL path or relative path according to
the current path.
8.9 ePTZ Recall (capability.eptz > 0 and capability_fisheye = 0)
Note: This request requires camctrl privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>&
recall=<value>[&return=<return page>]
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of the video source.
stream <0~(m-1)> Stream.
VIVOTEK
User's Manual - 293
recall Text string less than 40
characters
One of the present positions to recall.
return <return page> Redirect to the page <return page>after the parameter is assigned.
The <return page>can be a full URL path or relative path according to
the current path.
8.10 ePTZ Preset Locations(capability.eptz > 0 and
capability_fisheye = 0)
Note: This request requires Operator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/operator/ePreset.cgi?channel=<value>&stream=<value>
[&addpos=<value>][&delpos=<value>][&return=<return page>]
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of the video source.
stream <0~(m-1)> Stream.
addpos <Text string less than
40 characters>
Add one preset location to the preset list.
delpos <Text string less than
40 characters>
Delete preset location from the preset list.
return <return page> Redirect to the page <return page>after the parameter is assigned.
The <return page>can be a full URL path or relative path according to
the current path.
VIVOTEK
294 - User's Manual
8.11 IP Filtering
Note: This request requires Administrator access privileges.
Method: GET/POST
Syntax: <product dependent>
http://<servername>/cgi-bin/admin/ipfilter.cgi?type[=<value>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=add<v4/v6>&ip=<ipaddress>[&index=<value>][&ret
urn=<return page>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=del<v4/v6>&index=<value>[&return=<return page>]
PARAMETER VALUE DESCRIPTION
type NULL Get IP filter type
allow, deny Set IP filter type
method addv4 Add IPv4 address into access list.
addv6 Add IPv6 address into access list.
delv4 Delete IPv4 address from access list.
delv6 Delete IPv6 address from access list.
ip <IP address> Single address: <IP address>
Network address: <IP address / network mask>
Range address:<start IP address - end IP address>
index <value> The start position to add or to delete.
return <return page> Redirect to the page <return page>after the parameter is assigned.
The <return page>can be a full URL path or relative path according to
the current path. If you omit this parameter, it will redirect to an
empty page.
8.12 IP Filtering for ONVIF
Syntax:<product dependent>
http://<servername>/cgi-bin/admin/ipfilter.cgi?type[=<value>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=add<v4/v6>&ip=<ipaddress>[&index=<value>][&ret
urn=<return page>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=del<v4/v6>&index=<value>[&return=<return page>]
PARAMETER VALUE DESCRIPTION
type NULL Get IP filter type
allow, deny Set IP filter type
VIVOTEK
User's Manual - 295
method addv4 Add IPv4 address into access list.
addv6 Add IPv6 address into access list.
delv4 Delete IPv4 address from access list.
delv6 Delete IPv6 address from access list.
ip <IP address> Single address: <IP address>
Network address: <IP address / network mask>
Range address:<start IP address - end IP address>
index <value> The start position to add or to delete.
return <return page> Redirect to the page <return page>after the parameter is assigned.
The <return page>can be a full URL path or relative path according to
the current path. If you omit this parameter, it will redirect to an
empty page.
8.13 UART HTTP Tunnel Channel (capability.nuart > 0)
Note: This request requires Operator privileges.
Method: GET and POST
Syntax:
http://<servername>/cgi-bin/operator/uartchannel.cgi?[channel=<value>]
-------------------------------------------------------------------------
GET /cgi-bin/operator/uartchannel.cgi?[channel=<value>]
x-sessioncookie: string[22]
accept: application/x-vvtk-tunnelled
pragma: no-cache
cache-control: no-cache
-------------------------------------------------------------------------
POST /cgi-bin/operator/uartchannel.cgi
x-sessioncookie: string[22]
content-type: application/x-vvtk-tunnelled
pragma : no-cache
cache-control : no-cache
content-length: 32767
expires: Sun, 9 Jam 1972 00:00:00 GMT
User must use GET and POST to establish two channels for downstream and upstream. The x-sessioncookie in GET
and POST should be the same to be recognized as a pair for one session. The contents of upstream should be
base64 encoded to be able to pass through a proxy server.
VIVOTEK
296 - User's Manual
This channel will help to transfer the raw data of UART over the network.
Please see UART tunnel spec for detail information
PARAMETER VALUE DESCRIPTION
channel 0 ~ (n-1) The channel number of UART.
8.14 Event/Control HTTP Tunnel Channel (capability.
evctrlchannel > 0)
Note: This request requires Administrator privileges.
Method: GET and POST
Syntax:
http://<servername>/cgi-bin/admin/ctrlevent.cgi
-------------------------------------------------------------------------
GET /cgi-bin/admin/ctrlevent.cgi
x-sessioncookie: string[22]
accept: application/x-vvtk-tunnelled
pragma: no-cache
cache-control: no-cache
-------------------------------------------------------------------------
POST /cgi-bin/admin/ ctrlevent.cgi
x-sessioncookie: string[22]
content-type: application/x-vvtk-tunnelled
pragma : no-cache
cache-control : no-cache
content-length: 32767
expires: Sun, 9 Jam 1972 00:00:00 GMT
User must use GET and POST to establish two channels for downstream and upstream. The x-sessioncookie in GET
and POST should be the same to be recognized as a pair for one session. The contents of upstream should be
base64 encoded to be able to pass through the proxy server.
This channel will help perform real-time event subscription and notification as well as camera control more
efficiently. The event and control formats are described in another document.
See Event/control tunnel spec for detail information
VIVOTEK
User's Manual - 297
8.15 Get SDP of Streams
Note: This request requires Viewer access privileges.
Method: GET/POST
Syntax:
http://<servername>/<network_rtsp_s<0~m-1>_accessname>
“m” is the stream number.
“network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the
“subgroup of network: rtsp” for setting the accessname of SDP.
You can get the SDP by HTTP GET.
When using scalable multicast, Get SDP file which contains the multicast information via HTTP.
8.16 Open the Network Stream
Note: This request requires Viewer access privileges.
Syntax:
For HTTP push server (MJPEG):
http://<servername>/<network_http_s<0~m-1>_accessname>
For RTSP (MP4), the user needs to input theURL below into an RTSP compatible player.
rtsp://<servername>/<network_rtsp_s<0~m-1>_accessname>
“m” is the stream number.
For details on streaming protocol, please refer to the “control signaling” and “data format” documents.
VIVOTEK
298 - User's Manual
8.17 Senddata (capability.nuart > 0)
Note: This request requires Viewer privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/viewer/senddata.cgi?
[com=<value>][&data=<value>][&flush=<value>] [&wait=<value>] [&read=<value>]
PARAMETER VALUE DESCRIPTION
com 1 ~ <max. com port
number>
The target COM/RS485 port number.
data <hex decimal
data>[,<hex decimal
data>]
The <hex decimal data> is a series of digits from 0 ~ 9, A ~ F. Each
comma separates the commands by 200 milliseconds.
flush yes,no yes: Receive data buffer of the COM port will be cleared before read.
no: Do not clear the receive data buffer.
wait 1 ~ 65535 Wait time in milliseconds before read data.
read 1 ~ 128 The data length in bytes to read. The read data will be in the return
page.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <system information length>\r\n
\r\n
<hex decimal data>\r\n
Where hexadecimal data is digits from 0 ~ 9, A ~ F.
VIVOTEK
User's Manual - 299
8.18 Storage managements (capability.storage.dbenabled > 0)
Note: This request requires administrator privileges.
Method: GET and POST
Syntax:
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>…]
The commands usage and their input arguments are as follows.
PARAMETER VALUE DESCRIPTION
cmd_type <string> Required.
Command to be executed, including search, insert, delete, update,
and queryStatus.
Command: search
PARAMETER VALUE DESCRIPTION
label <integer primary key> Optional.
The integer primary key column will automatically be assigned a
unique integer.
triggerType <text> Optional.
Indicate the event trigger type.
Please embrace your input value with single quotes.
Ex. mediaType=’motion’
Support trigger types are product dependent.
mediaType <text> Optional.
Indicate the file media type.
Please embrace your input value with single quotes.
Ex. mediaType=’videoclip’
Support trigger types are product dependent.
destPath <text> Optional.
Indicate the file location in camera.
Please embrace your input value with single quotes.
Ex. destPath =’/mnt/auto/CF/NCMF/abc.mp4’
resolution <text> Optional.
Indicate the media file resolution.
Please embrace your input value with single quotes.
Ex. resolution=’800x600’
isLocked <boolean> Optional.
VIVOTEK
300 - User's Manual
Indicate if the file is locked or not.
0: file is not locked.
1: file is locked.
A locked file would not be removed from UI or cyclic storage.
triggerTime <text> Optional.
Indicate the event trigger time. (not the file created time)
Format is “YYYY-MM-DD HH:MM:SS”
Please embrace your input value with single quotes.
Ex. triggerTime=’2008-01-01 00:00:00’
If you want to search for a time period, please apply “TO”
operation.
Ex. triggerTime=’2008-01-01 00:00:00’+TO+’2008-01-01
23:59:59’ is to search for records from the start of Jan 1
st
2008to
the end of Jan 1
st
2008.
limit <positive integer> Optional.
Limit the maximum number of returned search records.
offset <positive integer> Optional.
Specifies how many rows to skip at the beginning of the matched
records.
Note that the offset keyword is used after limit keyword.
To increase the flexibility of search command, you may use “OR” connectors for logical “OR” search operations.
Moreover, to search for a specific time period, you can use “TO” connector.
Ex. To search records triggered by motion or di or sequential and also triggered between 2008-01-01 00:00:00 and
2008-01-01 23:59:59.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=search&triggerType=’motion’+OR+’di’+OR+’seq’&triggerTi
me=’2008-01-01 00:00:00’+TO+’2008-01-01 23:59:59’
Command: delete
PARAMETER VALUE DESCRIPTION
label <integer primary key> Required.
Identify the designated record.
Ex. label=1
Ex. Delete records whose key numbers are 1, 4, and 8.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=delete&label=1&label=4&label=8
VIVOTEK
User's Manual - 301
Command: update
PARAMETER VALUE DESCRIPTION
label <integer primary key> Required.
Identify the designated record.
Ex. label=1
isLocked <boolean> Required.
Indicate if the file is locked or not.
Ex. Update records whose key numbers are 1 and 5 to be locked status.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=1&label=1&label=5
Ex. Update records whose key numbers are 2 and 3 to be unlocked status.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=0&label=2&label=3
Command: queryStatus
PARAMETER VALUE DESCRIPTION
retType xml or javascript Optional.
Ex. retype=javascript
The default return message is in XML format.
Ex. Query local storage status and call for javascript format return message.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=queryStatus&retType=javascript
VIVOTEK
302 - User's Manual
8.19 Virtual input (capability.nvi > 0)
Note: Change virtual input (manual trigger) status.
Method: GET
Syntax:
http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>]
[&return=<return page>]
PARAMETER VALUE DESCRIPTION
vi<num> state[(duration)nstate]
Where "state" is 0, 1. “0”
means inactive or normal
state while “1” means
active or triggered state.
Where "nstate" is next
state after duration.
Ex: vi0=1
Setting virtual input 0 to trigger state
Ex: vi0=0(200)1
Setting virtual input 0 to normal state, waiting 200
milliseconds, setting it to trigger state.
Note that when the virtual input is waiting for next state, it
cannot accept new requests.
return <return page> Redirect to the page <return page>after the request is
completely assigned. The <return page>can be a full URL
path or relative path according the current path. If you omit
this parameter, it will redirect to an empty page.
Return Code Description
200 The request is successfully executed.
400 The request cannot be assigned, ex. incorrect parameters.
Examples:
setvi.cgi?vi0=0(10000)1(15000)0(20000)1
No multiple duration.
setvi.cgi?vi3=0
VI index is out of range.
setvi.cgi?vi=1
No VI index is specified.
503 The resource is unavailable, ex. Virtual input is waiting for next state.
Examples:
setvi.cgi?vi0=0(15000)1
setvi.cgi?
vi0=1
Request 2 will not be accepted during the execution time(15 seconds).
VIVOTEK
User's Manual - 303
8.20 Open Timeshift Stream (capability.timeshift > 0,
timeshift_enable=1, timeshift_c<n>_s<m>_allow=1)
Note: This request requires Viewer access privileges.
Syntax:
For HTTP push server (MJPEG):
http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<v
alue>&forcechk&minsft=<value>]
For RTSP (MP4 and H264), the user needs to input theURL below into an RTSP compatible player.
rtsp://<servername>/<network_rtsp_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<va
lue>&forcechk&minsft=<value>]
“n” is the channel index.
“m” is the timeshift stream index.
For details on timeshift stream, please refer to the “TimeshiftCaching” documents.
PARAMETER VALUE DEFAULT DESCRIPTION
maxsft <positive
integer>
0 Request cached stream at most how many seconds ago.
tsmode normal,
adaptive
normal Streaming mode:
normal => Full FPS all the time.
adaptive => Default send only I-frame for MP4 and H.264, and
send 1 FPS for MJPEG. If DI or motion window are triggered, the
streaming is changed to send full FPS for 10 seconds.
(*Note: this parameter also works on non-timeshift streams.)
reftime mm:ss The time
camera receives
the request.
Reference time for maxsft and minsft.
(This provides more precise time control to eliminate the
inaccuracy due to network latency.)
Ex: Request the streaming from 12:20
rtsp://10.0.0.1/live.sdp?maxsft=10&reftime=12:30
forcechk N/A N/A Check if the requested stream enables timeshift, feature and
if minsft is achievable.
If false, return “415 Unsupported Media Type”.
minsft <positive
integer>
0 How many seconds of cached stream client can accept at least.
(Used by forcechk)
VIVOTEK
304 - User's Manual
Return Code Description
400 Bad Request Request is rejected because some parameter values are illegal.
415 Unsupported Media Type Returned, if forcechk appears,when minsft is not achievable or the timeshift
feature of the target stream is not enabled.
8.21 Remote Focus
Note: This request requires Administrator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/remotefocus.cgi?function=<value>[&direction=<value>]
[&position=<value>][&steps=<value>][&iris]
PARAMETER VALUE DESCRIPTION
function focus,
auto,
scan,
stop,
positioning,
irisopen,
irisenable,
resetfocus,
getstatus
Function type
focus – Move focus motor
auto – Perform auto focus
scan – Perform focus scan
stop – Stop current operation
positioning – Position the motors
irisopen – Open iris. It will maintain this status until sending irisenable
cgi.
irisenable – Not open iris
resetfocus – reset focus motor to default valuegetstatus–Information
of motors, return value as below:
remote_focus_focus_motor_max: Maximum steps of focus motor
remote_focus_focus_motor_start: Start point of effective focal length
remote_focus_focus_motor_end: End point of effective focal length
remote_focus_focus_motor: Current position of focus motor
remote_focus_focus_enable: Current function of focus motor
remote_focus_value_mode: Source of focus value. 0: ISP, 1: Edge.
remote_focus_iris_open: The current status of iris. 0: irisenable, 1:
irisopen
direction direct,
forward,
backward
Motor’s moving direction.
It works only if function= focus.
VIVOTEK
User's Manual - 305
position 0~<motor_max> Motor’s position.
It works only if function=zoom | focus and direction=direct.
<motor_max> is refer to remote_focus_focus_motor_max which
replied from "function=getstatus"
steps 1 ~ <motor_max> Motor’s moving steps.
It works only if function= focus and direction=forward | backward.
<motor_max> is refer to remote_focus_focus_motor_max which
replied from "function=getstatus"
iris N/A Open iris or not.
It works only if function=auto | scan.
8.22 Export Files
Note: This request requires Administrator privileges.
Method: GET
Syntax:
For daylight saving time configuration file:
http://<servername>/cgi-bin/admin/exportDst.cgi
For language file:
http://<servername>/cgi-bin/admin/export_language.cgi?currentlanguage=<value>
PARAMETER VALUE DESCRIPTION
currentlanguage 0~20 Available language lists.
Please refer to:
system_info_language_i0 ~ system_info_language_i19
.
For setting backup file:
http://<servername>/cgi-bin/admin/export_backup.cgi?backup
VIVOTEK
306 - User's Manual
8.23 Upload Files
Note: This request requires Administrator privileges.
Method: POST
Syntax:
For daylight saving time configuration file:
http://<servername>/cgi-bin/admin/upload_dst.cgi
Post data:
filename =<file name>\r\n
\r\n
<multipart encoded form data>
For language file:
http://<servername>/cgi-bin/admin/upload_lan.cgi
Post data:
filename =<file name>\r\n
\r\n
<multipart encoded form data>
For setting backup file:
http://<servername>/cgi-bin/admin/upload_backup.cgi
Post data:
filename =<file name>\r\n
\r\n
<multipart encoded form data>
Server will accept the file named <file name> to upload this one to camera.
VIVOTEK
User's Manual - 307
8.24 Update Lens Configuration
Note: This request requires Administrator privileges.
Method: GET
Syntax:
For list all names of lens installed in camera:
http://<servername>/cgi-bin/admin/update_lens.cgi?list_lens
For choose selected lens configuration:
http://<servername>/cgi-bin/admin/update_lens.cgi?choose_lens=<value>
For delete selected lens configuration:
http://<servername>/cgi-bin/admin/update_lens.cgi?delete_lens=<value>
PARAMETER VALUE DESCRIPTION
value <string> Available lens name.
Please refer to:
lens_default_i<0~(n-1)>_name
lens_user_i<0~(n-1)>_name
n is a positive integer.
Method: POST
Syntax:
For upload user-defined lens configuration:
http://<servername>/cgi-bin/admin/update_lens.cgi?upload_lens
Post data:
upload_lens_profile_input = <file name>\r\n
\r\n
<multipart encoded form data>
Server will accept the file named <file name> to upload the lens profile to camera.
VIVOTEK
308 - User's Manual
8.25 Media on demand (capability.localstorage.modnum > 0)
Media on demand allows users to select and receive/watch/listen to metadata/video/audio contents on demand.
Note: This request requires Viewer access privileges.
Syntax:
rtsp://<servername>/mod.sdp?[&stime=<value>][&etime=<value>][&length =<value>][&loctime
=<value>][&file=<value>][&tsmode=<value>]
PARAMETER VALUE DEFAULT DESCRIPTION
stime <YYYYMMDD_HHMMSS.MMM> N/A Start time.
etime <YYYYMMDD_HHMMSS.MMM> N/A End time.
length <positive integer> N/A The length of media of interest.
The unit is second.
loctime <boolean> 0 Specify if start/end time is local time format.
1 for local time, 0 for UTC+0
file <string> N/A The media file to be played.
tsmode <positive integer> N/A Timeshift mode, the unit is second.
Ex.
stime etime length file Description
V
V X X
Play recordings between stime and etime
rtsp://10.10.1.2/mod.sdp?stime=20110312_040400.000&etime=2
011_0312_040510.000
V X V X
Play recordings for length seconds which start from stime
rtsp://10.10.1.2/mod.sdp?stime=20110312_040400.000&length=
120
X V V X
Play recordings for length seconds which ends at etime
rtsp://10.10.1.2/mod.sdp?etime=20110312_040400.000&length=
120
X X X V
Play file file
rtsp://10.10.1.2/mod.sdp?filename=/mnt/link0/
VIVOTEK
User's Manual - 309
8.26 Fisheye local dewarp camera control (capability.fisheye > 0
and capability.fisheyelocaldewarp.c0 > 0, only support in 1R
mode)
Note: This request requires camctrl privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/camctrl/fdCamCtrl.cgi?channel=<value>&stream=<value>
[&move=<value>] – Move home, up, down, left, right
[&zoom=<value>] – Zoom wide, tele
[[&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>]] – Set speeds
[&zooming=<value>&zs=<value>] – Zoom without stopping, used for joystick
[&vx=<value>&vy=<value>&vs=<value>] – Shift without stopping, used for joystick
[&x=<value>&y=<value>&videosize=<value>&resolution=<value>&stretch=<value>] – Click on image (Move
the center of image to the coordination (x,y) based on resolution or videosize of 1O mode.)
[&return=<return page>]
Example:
http://myserver/cgi-bin/camctrl/fdCamCtrl.cgi?channel=0&stream=0&move=right
http://myserver/cgi-bin/camctrl/fdCamCtrl.cgi?channel=0&stream=0&zoom=tele
http://myserver/cgi-bin/camctrl/fdCamCtrl.cgi?channel=0&stream=0&move=top&speedtilt=-1
http://myserver/cgi-bin/camctrl/fdCamCtrl.cgi?channel=0&stream=0&zooming=tele&zs=2
http://myserver/cgi-bin/camctrl/fdCamCtrl.cgi?channel=0&stream=0&vx=5&vy=3&vs=2
http://myserver/cgi-bin/camctrl/fdCamCtrl.cgi?channel=0&stream=0&x=700&y=700&videosize=1920x1920&r
esolution=1920x1920&stretch=1
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of video source.
stream <0~(m-1)> Stream.
move home Move to home position.
up Move up.
down Move down.
left Move left.
right Move right.
VIVOTEK
310 - User's Manual
zoom wide Zoom larger view with current speed.
tele Zoom further with current speed.
speedpan -5 ~ 5 Set the pan speed of current command.
speedtilt -5 ~ 5 Set the tilt speed of current command.
speedzoom -5 ~ 5 Set the zoom speed of current command.
zooming wide or tele Zoom without stopping for larger view or further view with zs speed,
used for joystick control.
zs 0 ~ 6 Set the speed of zooming, “0” means stop.
vx -6 ~ 6 The direction of movement, used for joystick control.
vy -6 ~ 6
vs 0 ~ 7 Set the speed of movement, “0” means stop.
x <integer> x-coordinate clicked by user.
It will be the x-coordinate of center after movement.
y <integer> y-coordinate clicked by user.
It will be the y-coordinate of center after movement.
videosize <window size> The size of plug-in (ActiveX) window in web page of 1O content.
resolution <window size> The resolution of streaming of 1O content.
stretch <boolean> 0 indicates that it uses resolution (streaming size) as the range of
the coordinate system.
1 indicates that it uses videosize (plug-in size) as the range of the
coordinate system.
return <return page> Redirect to the page <return page> after the parameter is assigned.
The <return page> can be a full URL path or relative path according to
the current path. If you omit this parameter, it will redirect to an
empty page.
VIVOTEK
User's Manual - 311
8.27 3D Privacy Mask
(capability_image_c<0~(n-1)>_privacymask_wintype =
3Drectangle) n denotes the value of "capability_nvideoin"
Note: This request requires admin user privilege
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/setpm3d.cgi?method=<value>&name=<value>&[maskheight=<value>&
maskwidth=<value>&videosize=<value>&return=<return page>]
PARAMETER VALUE DESCRIPTION
method add Add a 3D privacy mask at current location
delete Delete a 3D privacy mask
edit Edit a 3D privacy mask
maskname string[40] 3D privacy mask name
maskheight integer 3D privacy mask height
maskwidth integer 3D privacy mask width
videosize <window size> Optimal.
The size of plug-in (ActiveX) window in web page is the size of the
privacy window size. This field is not necessary, it will use the default
value if not specified. 320x180 for 16:9 resolution and 320x240 for
4:3 resolution.
return <return page> Redirect to page <return page> after the 3D privacy mask is
configured. The <return page> can be a full URL path or relative path
according to the current path. If you omit this parameter, it will
redirect to an empty page.
VIVOTEK
312 - User's Manual
8.28 Camera Control (capability.ptzenabled > 0)
Note: This request requires Viewer privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/camctrl/camctrl.cgi?[channel=<value>][&camid=<value>]
[&move=<value>] – Move home, up, down, left, right
[&focus=<value>] – Focus operation
[&auto=<value>] – Auto pan, patrol
[&zoom=<value>] – Zoom in, out
[&zooming=<value>&zs=<value>] – Zoom without stopping, used for joystick
[&vx=<value>&vy=<value>&vs=<value>] – Shift without stopping, used for joystick
[&x=<value>&y=<value>&videosize=<value>&resolution=<value>&stretch=<value>] – Click on image
(Move the center of image to the coordination (x,y) based on resolution or videosize.)
[ [&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>][&speedapp=<value>][&speedlink=<val
ue>] ] – Set speeds
[&return=<return page>]
Example:
http://myserver/cgi-bin/camctrl/camctrl.cgi?channel=0&camid=1&move=right
http://myserver/cgi-bin/camctrl/camctrl.cgi?channel=0&camid=1&zoom=tele
http://myserver/cgi-bin/camctrl/camctrl.cgi?channel=0&camid=1&x=300&y=200&resolution=704x480&videosi
ze=704x480&strech=1
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of video source.
camid 0,<positive integer> Camera ID.
move home Move to camera to home position.
up Move camera up.
down Move camera down.
left Move camera left.
right Move camera right.
speedpan -5 ~ 5 Set the pan speed.
speedtilt -5 ~ 5 Set the tilt speed.
speedzoom -5 ~ 5 Set the zoom speed.
speedfocus -5 ~ 5 Set the focus speed.
VIVOTEK
User's Manual - 313
speedapp -5 ~ 5 Set the auto pan/patrol speed.
auto pan Auto pan.
patrol Auto patrol.
stop Stop camera.
zoom wide Zoom larger view with current speed.
tele Zoom further with current speed.
stop Stop zoom.
zooming wide or tele Zoom without stopping for larger view or further view with zs speed,
used for joystick control.
zs 0 ~ 8 <SD8362> Set the speed of zooming, “0” means stop.
vx <integer , excluding 0> The slope of movement = vy/vx, used for joystick control.
vy <integer>
vs 0 ~ 127 Set the speed of movement, “0” means stop.
x <integer> x-coordinate clicked by user.
It will be the x-coordinate of center after movement.
y <integer> y-coordinate clicked by user.
It will be the y-coordinate of center after movement.
videosize <window size> The size of plug-in (ActiveX) window in web page
resolution <window size> The resolution of streaming.
stretch <boolean> 0 indicates that it uses resolution (streaming size) as the range of
the coordinate system.
1 indicates that it uses videosize (plug-in size) as the range of the
coordinate system.
focus auto Auto focus.
far Focus on further distance.
near Focus on closer distance.
return <return page> Redirect to the page <return page> after the parameter is assigned.
The <return page> can be a full URL path or relative path according to
the current path. If you omit this parameter, it will redirect to an
empty page.
VIVOTEK
314 - User's Manual
8.29 Recall (capability.ptzenabled > 0)
Note: This request requires Viewer privileges.
Method: GET
Syntax:
http://<servername>/cgi-bin/viewer/recall.cgi?
recall=<value>[&channel=<value>][&return=<return page>]
PARAMETER VALUE DESCRIPTION
recall string[30] One of the present positions to recall.
channel 0~(capability_nvideoin-1) Channel of the video source.
return <return page> Redirect to the page <return page> after the parameter is assigned.
The <return page> can be a full URL path or relative path according
to the current path. If you omit this parameter, it will redirect to an
empty page.
8.30 Preset Locations (capability.ptzenabled > 0)
Note: This request requires Operator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/operator/preset.cgi?[channel=<value>]
[&addpos=<value>][&delpos=<value>][&return=<return page>]
PARAMETER VALUE DESCRIPTION
addpos string[30] Add one preset location to the preset list.
channel 0~(capability_nvideoin-1) Channel of the video source.
delpos string[30] Delete preset location from preset list.
return <return page> Redirect to the page <return page> after the parameter is assigned.
VIVOTEK
User's Manual - 315
The <return page> can be a full URL path or relative path according
to the current path. If you omit this parameter, it will redirect to an
empty page.
<End of document>
VIVOTEK
316 - User's Manual
Technical Specications
Model
IB9371-HT: Remote Focus
IB9371-EHT: Remote Focus, Extreme Weather
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128 M B
RAM 512MB
Camera Features
Image Sensor 1/2.8" Progressive CMOS
Maximum Resolution 2048x1536 (3MP)
Lens Type Vari-Focal
Focal Length f = 3 ~ 9 mm
Aperture F1.2 ~ F2.3
Auto-iris P-iris
Field of View
39° ~ 82° (Horizontal)
29° ~ 60° (Vertical)
49° ~ 108 (Diagonal)
Shutter Time 1/5 sec. to 1/16,000 sec.
WDR Technology WDR Pro
Day/Night Removable IR-cut filter for day & night function
Minimum Illumination
0.01 Lux @ F1.2 (Color)
0.001 Lux @ F1.2 (B/W)
Pan/Tilt/Zoom Functionalities
ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in)
IR Illuminators 30 meters
On-board Storage
Slot type: SD/SDHC/SDXC card slot
Seamless Recording
Video
Compression H265 & H264 & MJPEG
Maximum Frame Rate
H.264 & H.265
30fps @ 2048x1536
MJPEG
15fps @ 2048x1536
Maximum Streams 3 simultaneous streams
S/N Ratio 60 dB
Dynamic Range 100 dB
Video Streaming
Adjustable resolution, quality and bitrate
Smart Stream II
Image Settings
Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white
balance, exposure control, gain, backlight compensation,
privacy masks
Scheduled profile settings, 3DNR, video rotation, defog, DIS
Audio
Audio Capability Two-Way Audio (full duplex)
Compression G711, G726
Interface
External microphone input
Audio output
Network
Users Live viewing for up to 10 clients
Protocols
IPv4, IPv6, TCP/IP, HT TP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP,
SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,
802.1X, UDP, ICMP, ARP, SSL, TLS
Interface
10 Base-T/100 BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6
cables which are compliant with the 3P/ETL standard.
ONVIF Supported, specifications available at www.onvif.org
Intelligent Video
Video Motion Detection Five-window video motion detection
VC A* Line crossing detection, field detection, loitering detection
Alarm and Event
Technical Specifications
Compatible Accessories
Alarm Triggers
Video motion detection, manual trigger, digital input, periodical
trigger, system boot, recording notification, camera tampering
detection, audio detection
Alarm Events
Event notification using digital output, HT TP, SMTP, FTP and
NAS server, SD Card
File upload via HTTP, SMTP, FTP, NAS server and SD card
General
Smart Focus System Remote Focus
Connectors
RJ-45 cable connector for Network/PoE connection
Audio input
Audio output
DC 12V power input
Digital input*1
Digital output*1
LED Indicator System power and status indicator
Power Input
12V DC
IB9371-HT: IEEE 802.3af/at PoE Class 0
IB9371-EHT: IEEE 802.3at PoE Class 4
Power Consumption
IB 937 1- HT:
Max. 11 W
IB 937 1- EHT:
Max. 23.6W (Heater on)
Dimensions Ø 88 x 293 mm
Weight
IB9371-HT: 1182 g
IB9371-EHT: 1193 g
Casing
Weather-proof IP66-rated housing
Vandal-proof IK10-rated metal housing (Metal Casing)
Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL
Operating Temperature
IB 937 1- HT:
Starting Temperature: -10°C ~ 50°C (14°F~ 122°F)
Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
IB 937 1- EHT:
Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
Humidity 90%
Warranty 36 months
System Requirements
Operating System Microsoft Windows 8/7/Vista/XP/2000
Web Browser
Mozilla Firefox 7~10 (streaming only)
Internet Explorer 7/8/9/10/11
Other Players
VLC: 1.1.11 or above
Quicktime: 7 or above
Included Accessories
CD
User's manual, quick installation guide, Installation Wizard 2,
VAST
Others
Quick installation guide, sun shield, wall mount bracket,
alignment sticker, desiccant bag, waterproof connector, screw
pack
Dimensions
88 mm
80 mm
293 mm
Mounting Kits
AM-714
Junction Box
6F, No.192, Lien-Cheng Rd., Chung-Ho,
New Taipei City, 235, Taiwan, R.O.C.
T: +886-2-82455282 F: +886-2-82455532
E: sales@vivotek.com
VIVOTEK INC.
2050 Ringwood Avenue,
San Jose, CA 95131
T: 408-773-8686 F: 408-773-8298
VIVOTEK USA
Ver. 13
All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved.
Randstad 22-133, 1316BW Almere,
The Netherlands
T: +31(0)36-5298- 434
E: saleseurope@vivotek.com
VIVOTEK Europe
602, Best sky Tower, Plot No. F-5,
Netaji Subhash Place, Pitam Pura, Delhi-110 034
T: +91-11-45137465
E: salesindia@vivotek.com
VIVOTEK India
* Available per project request.
VIVOTEK
User's Manual - 317
Model
IB9381- HT: Rem ote Focus
IB9381- EHT: Rem ot e Focus, Ex treme Weather
System Information
CPU Mult im edia SoC (Syst em - on- Chip)
Flash 128MB
RAM 512MB
Camera Features
Image Sensor 1/ 1.8" Progressive CMOS
Max im um Resolution 2560x1920 (5MP)
Lens Type Vari- Focal
Focal Lengt h f = 4 ~ 9 mm
Aperture F1.3 ~ F2.2
Auto- iris P- iris
Field of View
45° ~ 84° (Horizont al)
34° ~ 62° (Vert ical)
64° ~ 113° (Diagonal)
Shut t er Tim e 1/ 5 sec. to 1/ 32,000 sec.
WDR Technology WDR Pro
Day/ Night Removable IR- cut f ilter f or day & night f unction
Minimum Illum ination
0.0 4 Lux @ F1.3 (Color)
0.0 01 Lux @ F1.3 (B/ W)
Pan/ Tilt/ Zoom Functionalities
ePTZ:
48x digit al zoom (4x on IE plug- in, 12x built in)
IR Illuminators 30 m et ers
On- board Storage
Slot t ype: SD/ SDHC/ SDXC card slot
Seamless Recording
Video
Compression H.265 & H.264 & MJPEG
Max im um Frame Rate
H.265 & H.264:
30 f ps @ 2560x1920
60 fps @ 1920 x1080
MJPEG:
12 fps @ 2560x1920
30 f ps @ 1920x1080
Max im um Str eam s 4 simultaneous streams
S/ N Ratio 57 dB
Dynamic Range 100 dB
Video Streaming
Adjust able resolution, qualit y and b it r ate
Smart St r eam II
Image Settings
Time stamp, tex t overlay, flip & m irror
Conf igurable brightness, contrast, sat uration, sharpness, white
balance, exposure cont rol, gain , backlight compensation,
privacy masks
Scheduled profile settings, 3DNR, vid eo r ot at ion, defog, DIS
Audio
Audio Capabilit y Two- Way Audio (full duplex )
Compression G711, G726
Int er face
Ex ternal m icrophone input
Audio output
Network
Users Live viewing for up t o 10 cli ent s
Prot ocols
IPv4, IPv6, TCP/ IP, HTTP, HTTPS, UPnP, RTSP/ RTP/ RTCP, IGMP,
SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,
802.1X, UDP, ICMP, ARP, SSL, TLS
Int er face
10 Base- T/ 100 BaseTX Ethernet (RJ- 45)
*It is highly recom mended to use standard CAT5e & CAT6
cables which are compliant wi t h t he 3P/ ETL standard.
ONVIF Supported, specif ications available at www.onvif.or g
Intelligent Video
Video Motion Det ection Five- window vid eo m ot ion d et ection
VCA* Line crossing d et ection, f ield d et ection, loitering d et ection
Technical Specifications
Compatible Accessories
Alarm and Event
Alarm Triggers
Motion d et ection, m anual t rig ger, digital input, periodical
trigger, syst em boot , recording notif ication, camera tam p ering
detection, audio d et ection
Alarm Events
Event not ification using digital output , HTTP, SMTP, FTP and
NAS ser ver, SD Card
File upload via HTTP, SMTP, FTP, NAS server and SD card
General
Smart Focus System Remote Focus
Connect ors
RJ- 45 cable connector f or Networ k/ PoE connect ion
Audio input
Audio output
DC 12V power input
Digit al input *1
Digit al output*1
LED Indicator Syst em power and st at us indicator
Power Input
DC 12V
IB9381- HT: IEEE 802.3af/ at PoE Class 0
IB9381- EHT: IEEE 802.3at PoE Class 4
Power Consum ption
IB9381- HT: Max. 12.7 W
IB9381- EHT: Max. 25.5 W (Heater on)
Dimensions Ø 88 x 293 mm
Weight
IB9381- HT: 1182 g
IB9381- EHT: 1193 g
Casing
Weather- proof IP66- rated housing
Vandal- proof IK10 - rated m etal housing
Safet y Certifications CE, LVD, FCC Class A, VCCI, C- Tick, UL
Operat ing Temperat ure
IB9381- HT:
Starting Temp er ature: - 10°C ~ 50°C (14°F ~ 122°F)
Working Temp erature: - 20°C ~ 50°C (- 4°F ~ 122°F)
IB9381- EHT:
Starting Temp erature: - 40°C ~ 50°C (- 40°F ~ 122°F)
Working Temp erature: - 50°C ~ 50°C (- 58°F ~ 122°F)
Hum idit y 90%
Warranty 36 m ont hs
System Requirements
Operating System Microsof t Wind ows 8/ 7/ Vist a/ XP/ 2000
Web Browser
Mozilla Firefox 7~10 (stream ing only)
Int er net Explorer 7/ 8/ 9/ 10/ 11
Other Players
VLC: 1.1.11 or above
Quicktime: 7 or ab ove
Included Accessories
CD
User's manual, quick installation guide, Inst allation Wizard 2,
VAST
Others
Quick installation guid e, sun shield, alignm ent sticker, desiccant
bag, waterproof connect or, screw pack
Dimensions
88 m m
80 mm
293 m m
Mounting Kits
AM-714
Junction Box
* Available per project request.
Al l specif icat i ons are su bj ect t o chang e w it hout not ice. Cop yright © VIVOTEK INC. All right s r eser ved. Ver. 5
6 F, No.19 2 , Li en - Ch en g Rd., Ch u n g - Ho , New Tai p ei Ci t y, 235 , Tai w an , R.O.C. T: + 8 8 6 - 2- 8 2 45 5282 F: + 8 8 6 - 2 - 8 24 55 53 2 E: sal es@v i vo t ek .c o m W: www.v i vo t ek . co m
VIVOTEK INC.
VIVOTEK
318 - User's Manual
Technology License Notice
AMR-NB Standard
THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE AGREEMENT. WITH
RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING LICENSORS’ PATENTS MAY APPLY:
TELEFONAKIEBOLAGET ERICSSON AB: US PAT. 6192335; 6275798; 6029125; 6424938; 6058359. NOKIA
CORPORATION: US PAT. 5946651; 6199035. VOICEAGE CORPORATION: AT PAT. 0516621; BE PAT. 0516621;
CA PAT. 2010830; CH PAT. 0516621; DE PAT. 0516621; DK PAT. 0516621; ES PAT. 0516621; FR PAT. 0516621;
GB PAT. 0516621; GR PAT. 0516621; IT PAT. 0516621; LI PAT. 0516621; LU PAT. 0516621; NL PAT. 0516621;
SE PAT 0516621; US PAT 5444816; AT PAT. 819303/AT E 198805T1; AU PAT. 697256; BE PAT. 819303; BR PAT.
9604838-7; CA PAT. 2216315; CH PAT. 819303; CN PAT. ZL96193827.7; DE PAT. 819303/DE69611607T2; DK
PAT. 819303; ES PAT. 819303; EP PAT. 819303; FR PAT. 819303; GB PAT. 819303; IT PAT. 819303; JP PAT. APP.
8-529817; NL PAT. 819303; SE PAT. 819303; US PAT. 5664053. THE LIST MAY BE UPDATED FROM TIME TO
TIME BY LICENSORS AND A CURRENT VERSION OF WHICH IS AVAILABLE ON LICENSOR’S WEBSITE AT
HTTP://WWW.VOICEAGE.COM.
VIVOTEK
User's Manual - 319
Electromagnetic Compatibility (EMC)
FCC Statement
This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions.
■ This device may not cause harmful interference, and
■ This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a partial
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with emission limits.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference, in which
case the user may be required to take adequate measures.
VCCI Warning
この装置は、情報処理装置等電波障害自主規制協議会（ＶＣＣＩ）の基準にづくクラスＢ情報技術装置
です。この装置は、家庭環境で使用することを目的としていますが、この装置がラジオやテレビジョン
受信機に近接して使用されると、受信障害を引き起こすことがあります。
取扱説明書に従って正しい取り扱いをして下さい
Liability
VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right
to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty
of any kind with regard to the material contained within this document, including, but not limited to, the
implied warranties of merchantability and fitness for any particular purpose.
