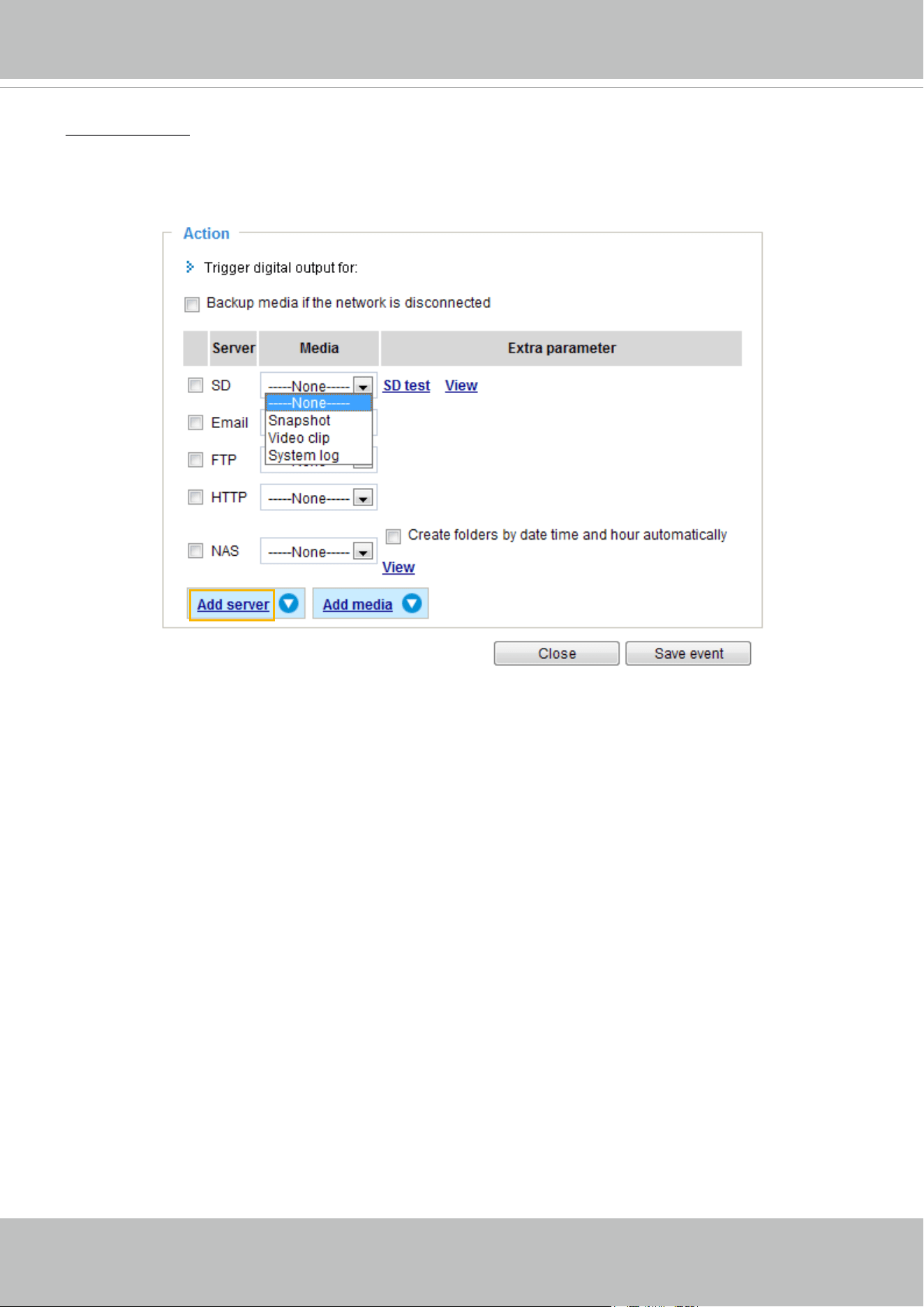

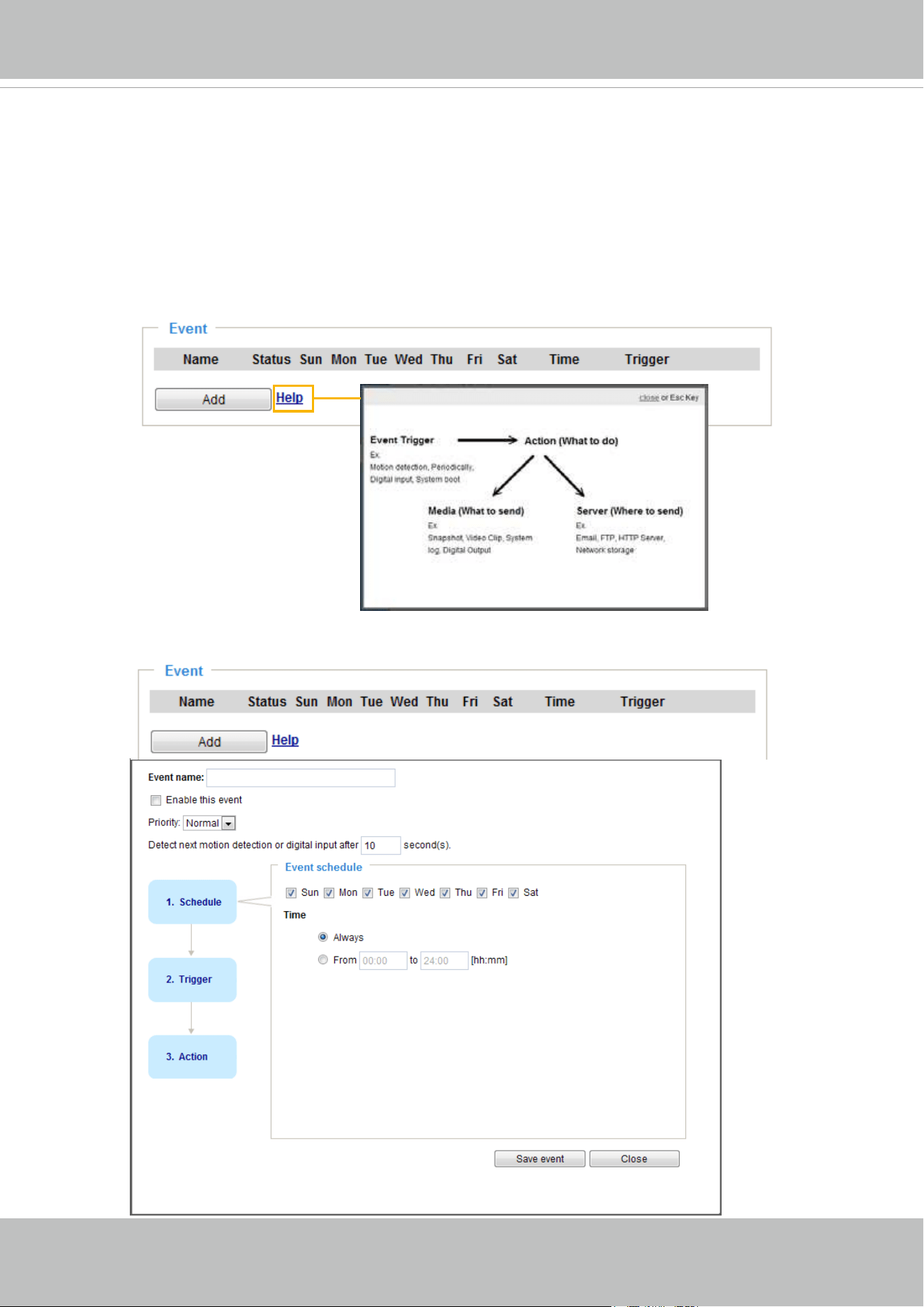

Event ..................................................................................................................................................................... 117

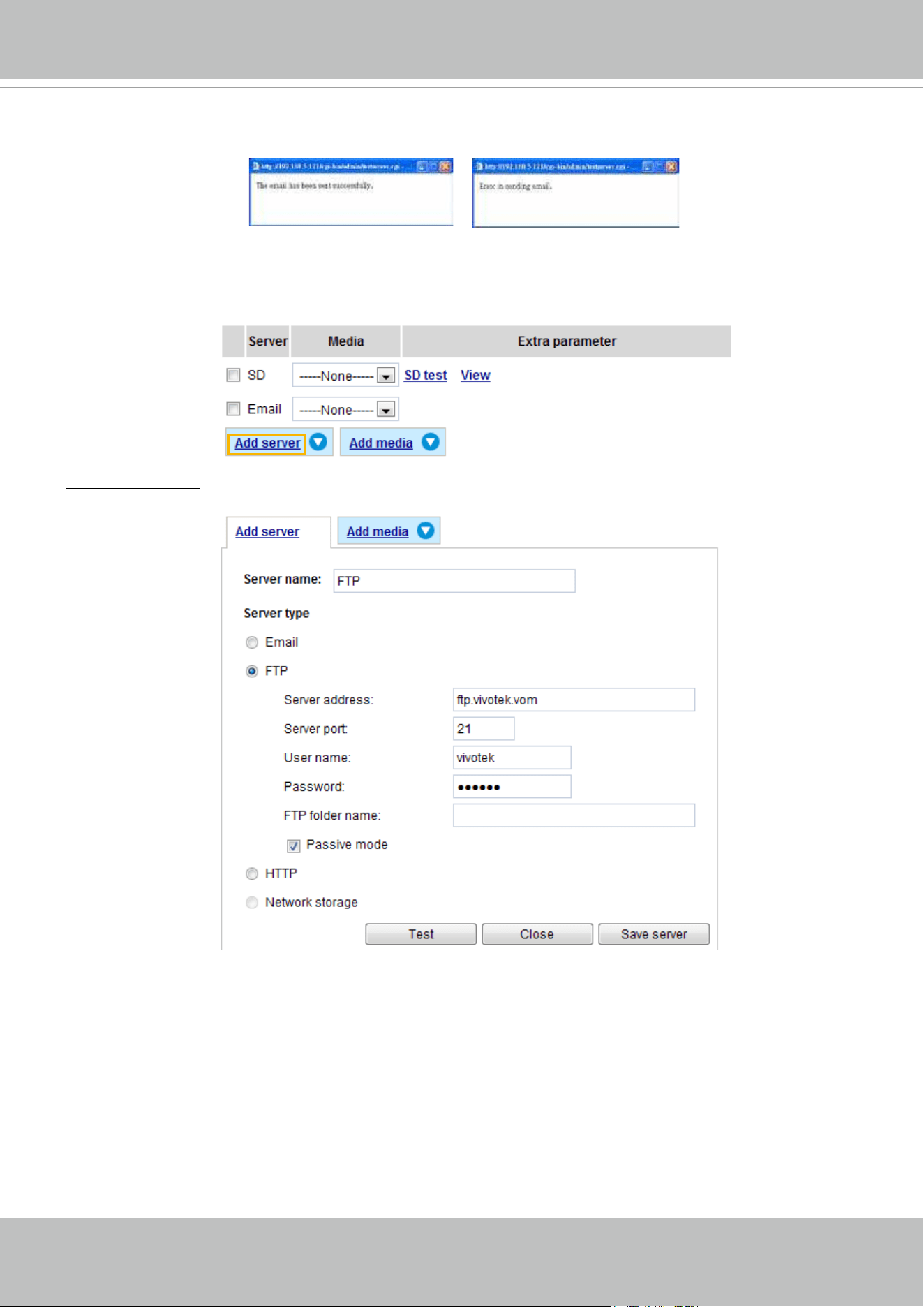

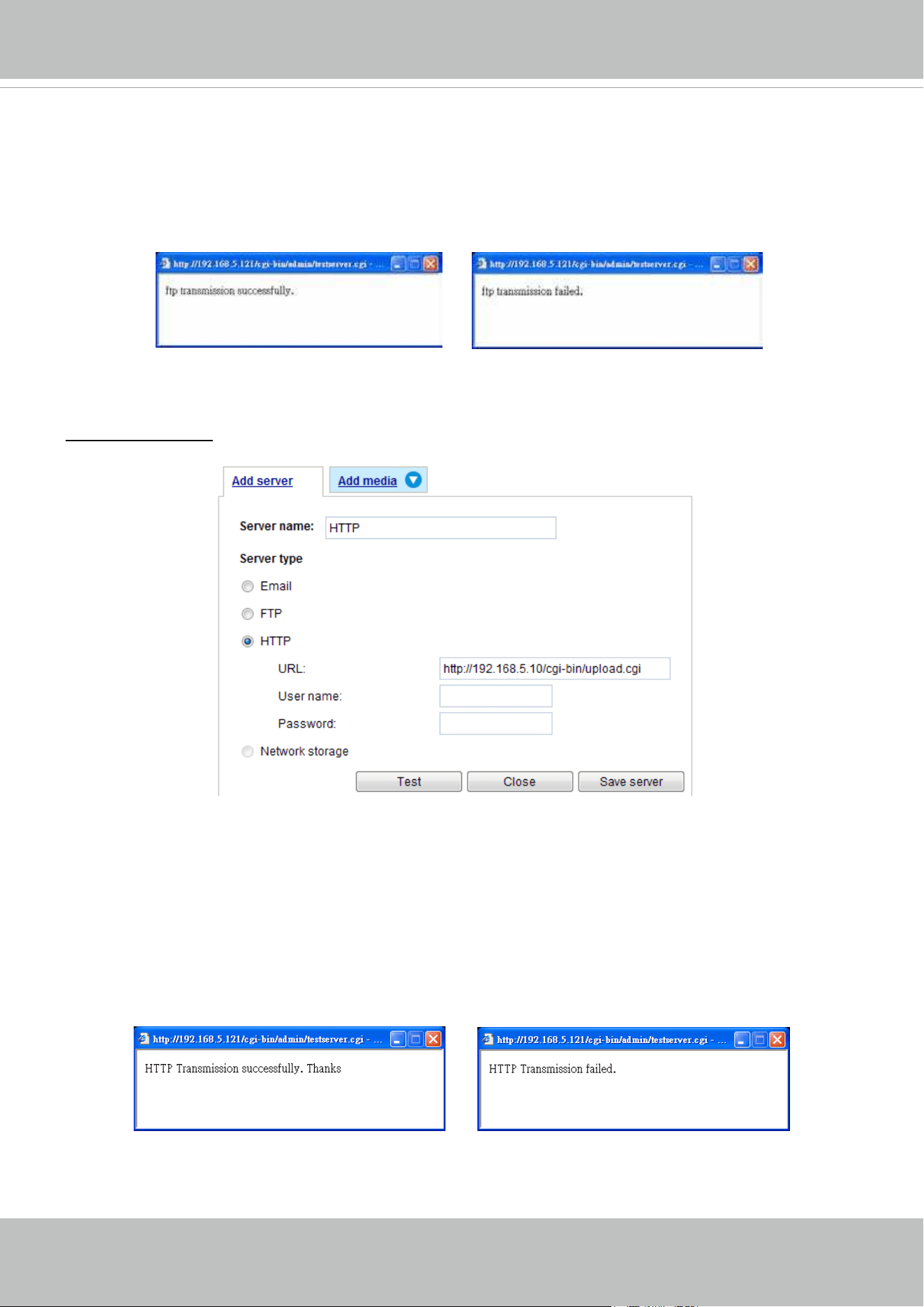

Add server ......................................................................................................................................................... 121

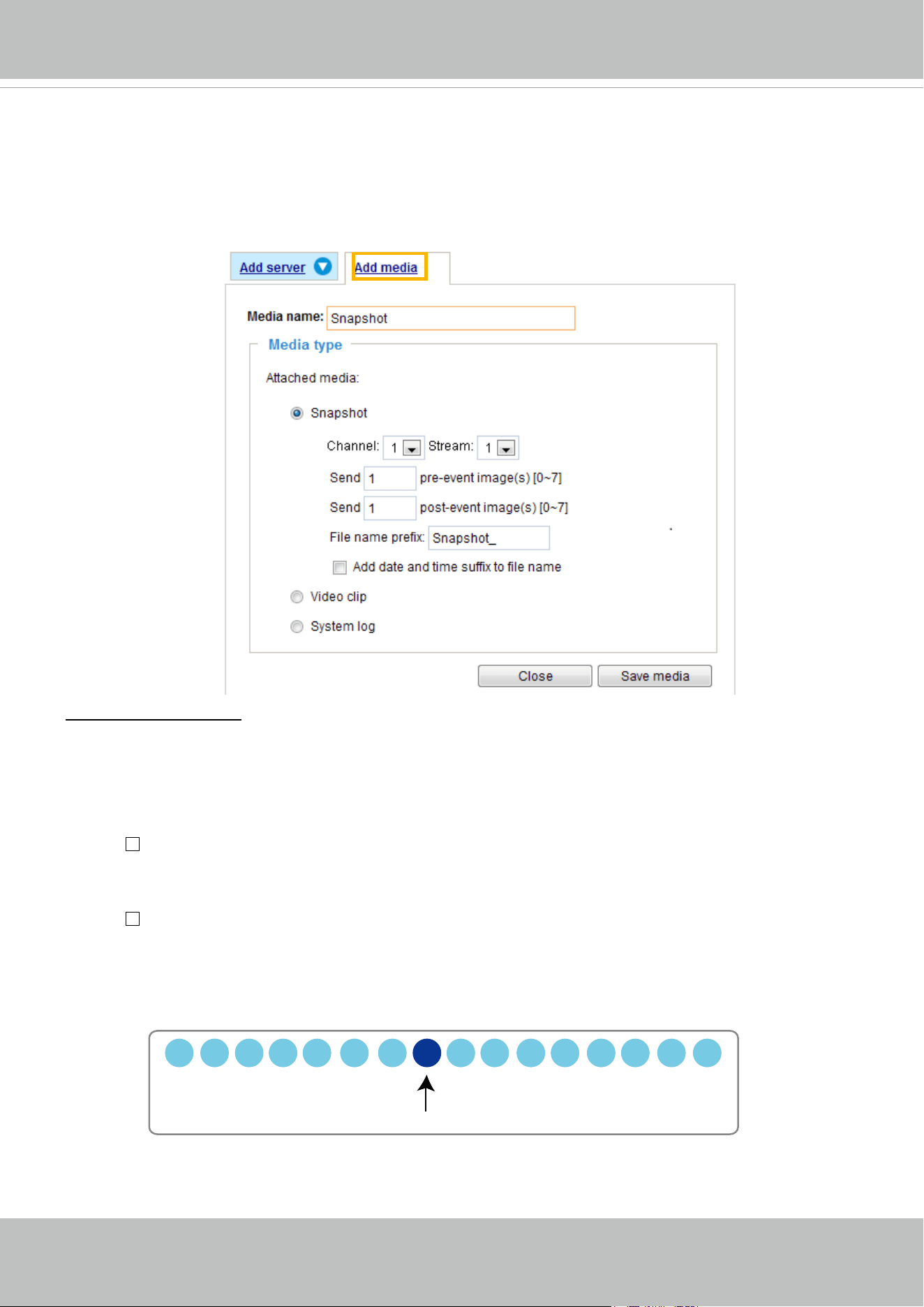

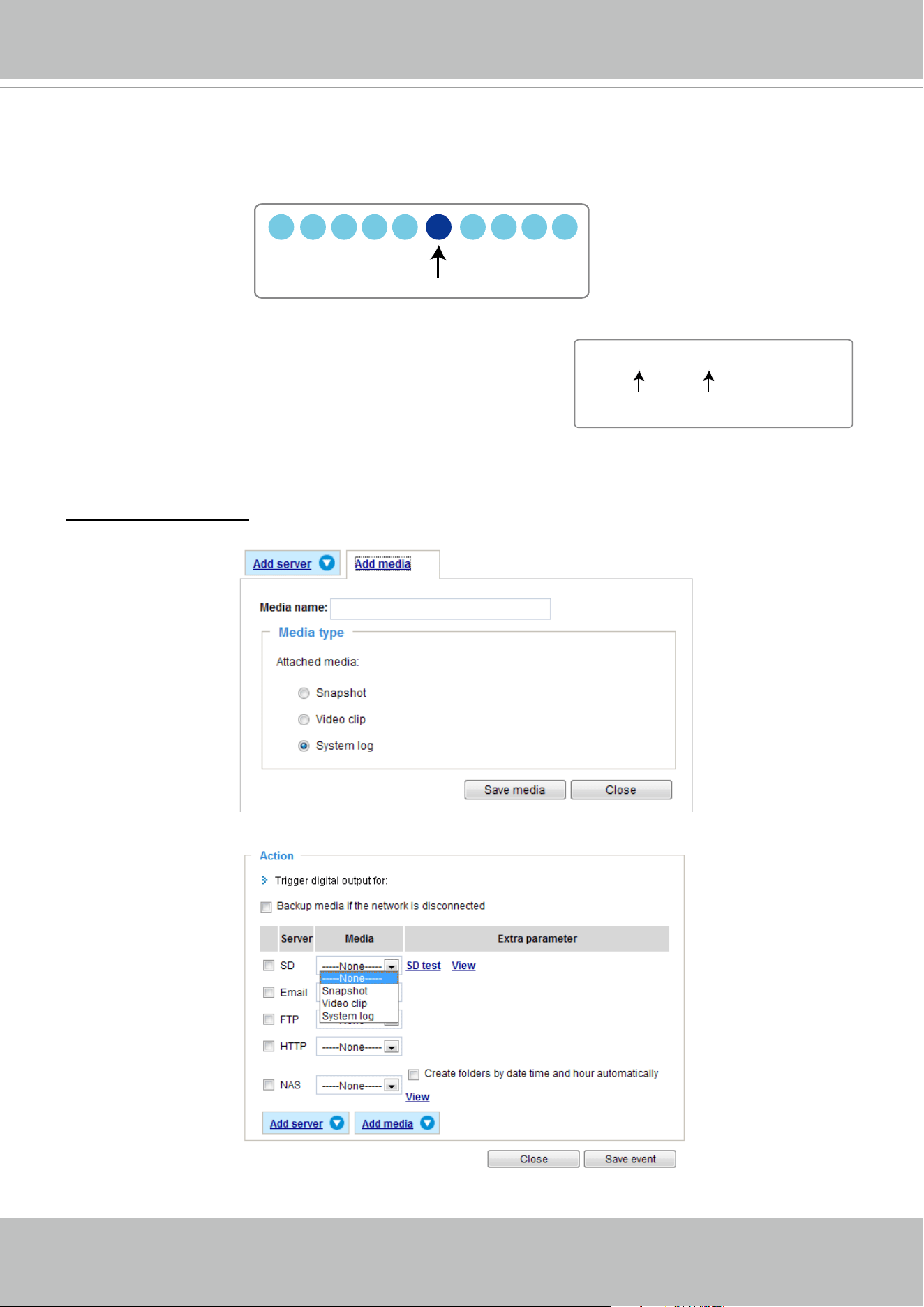

Add media ......................................................................................................................................................... 125
Applications > Motion detection.......................................................................................................................... 131
Applications > DI and DO ................................................................................................................................. 134

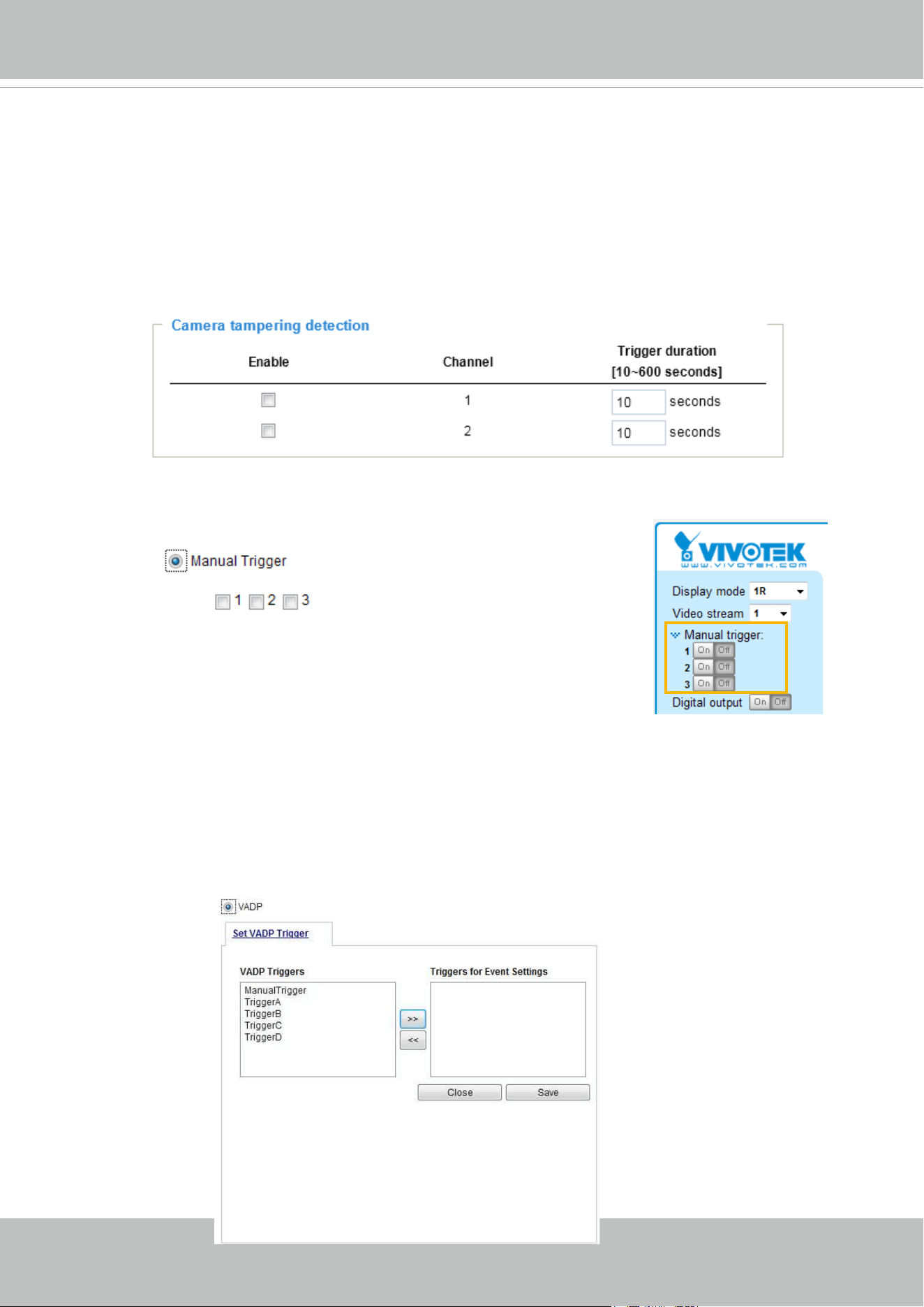

Applications > Tampering detection ................................................................................................................... 135
Applications > Audio detection ......................................................................................................................... 136

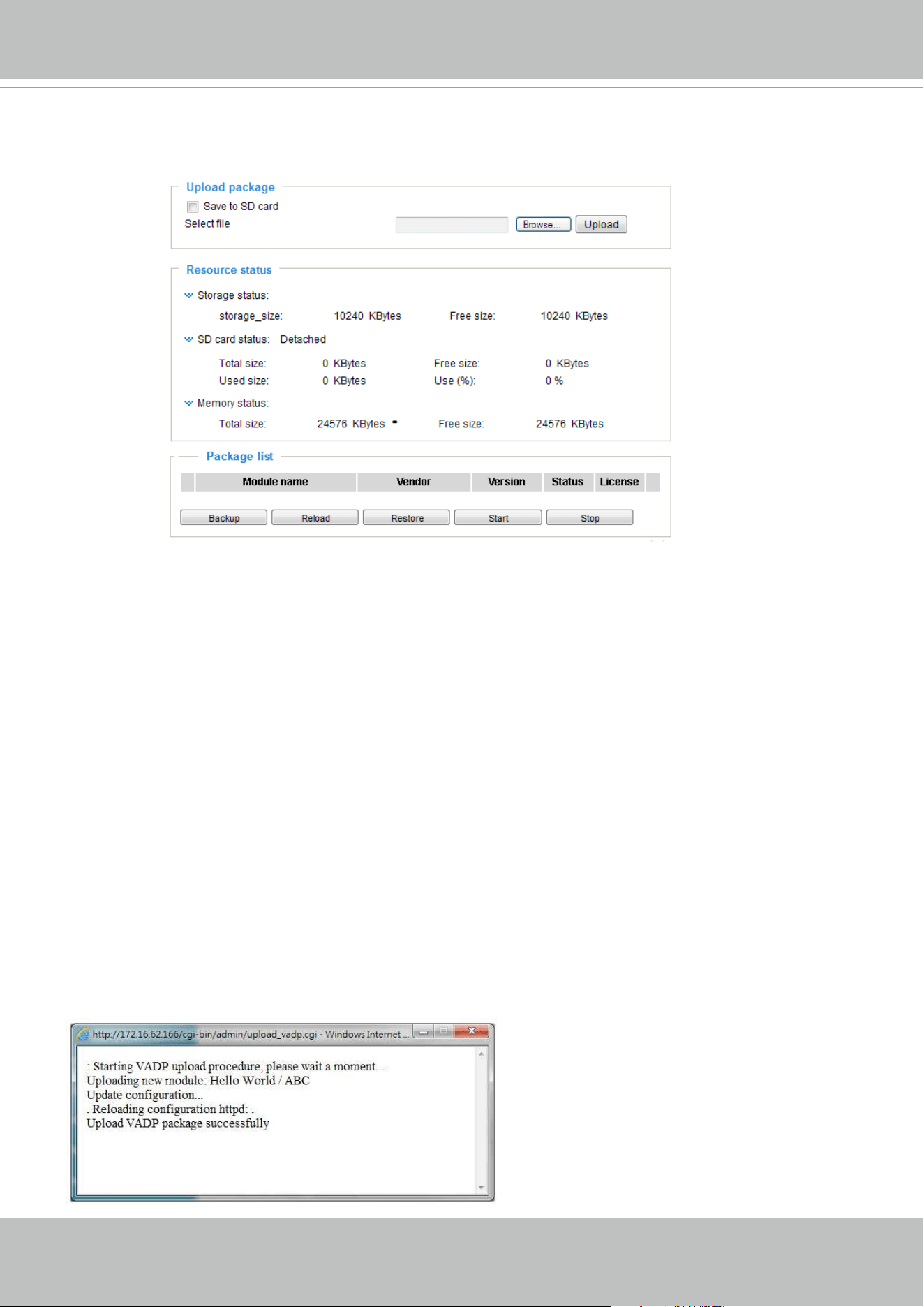

Applications > Package management - a.k.a., VADP (VIVOTEK Application Development Platform) ............. 138

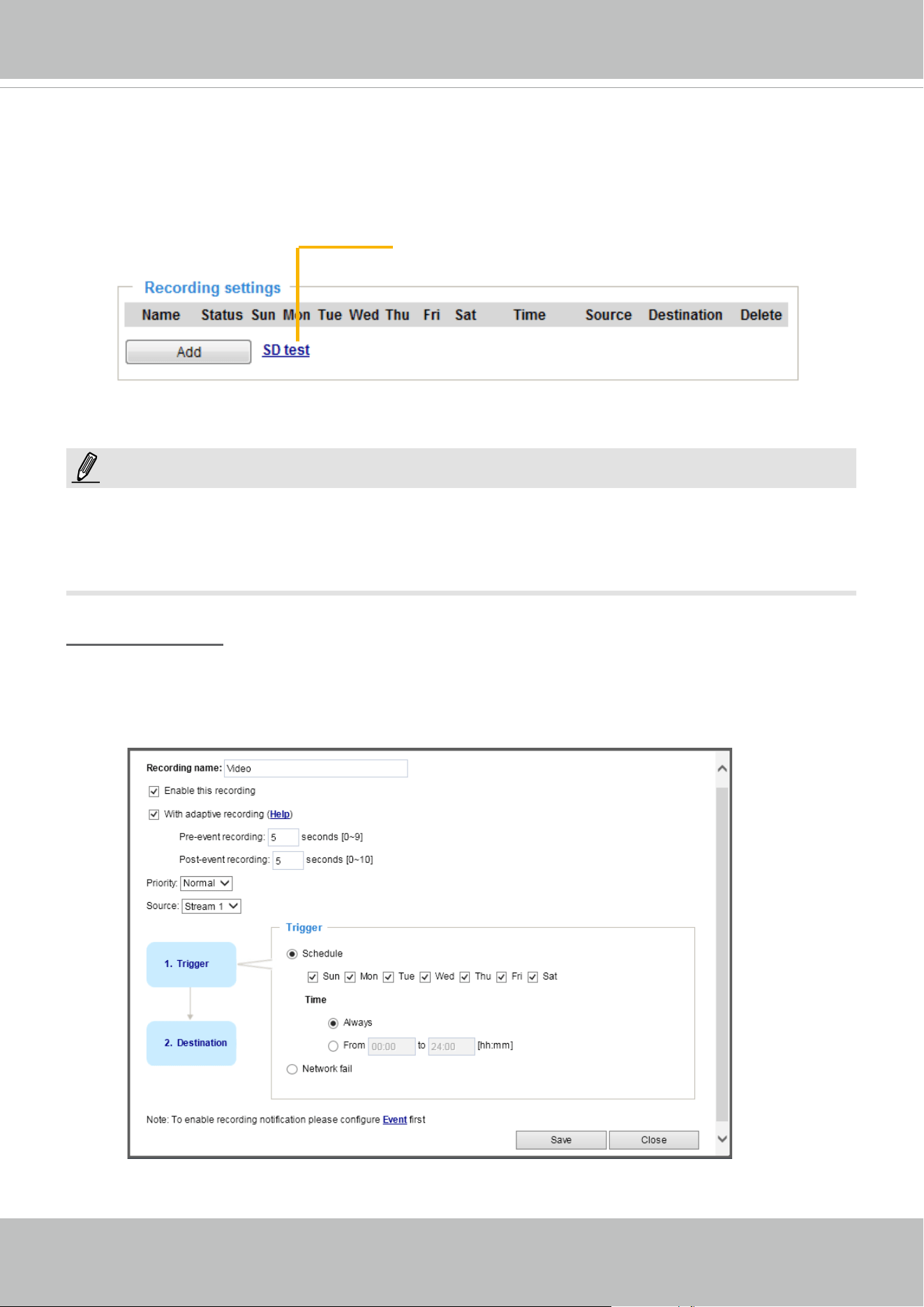

Recording > Recording settings ........................................................................................................................ 141

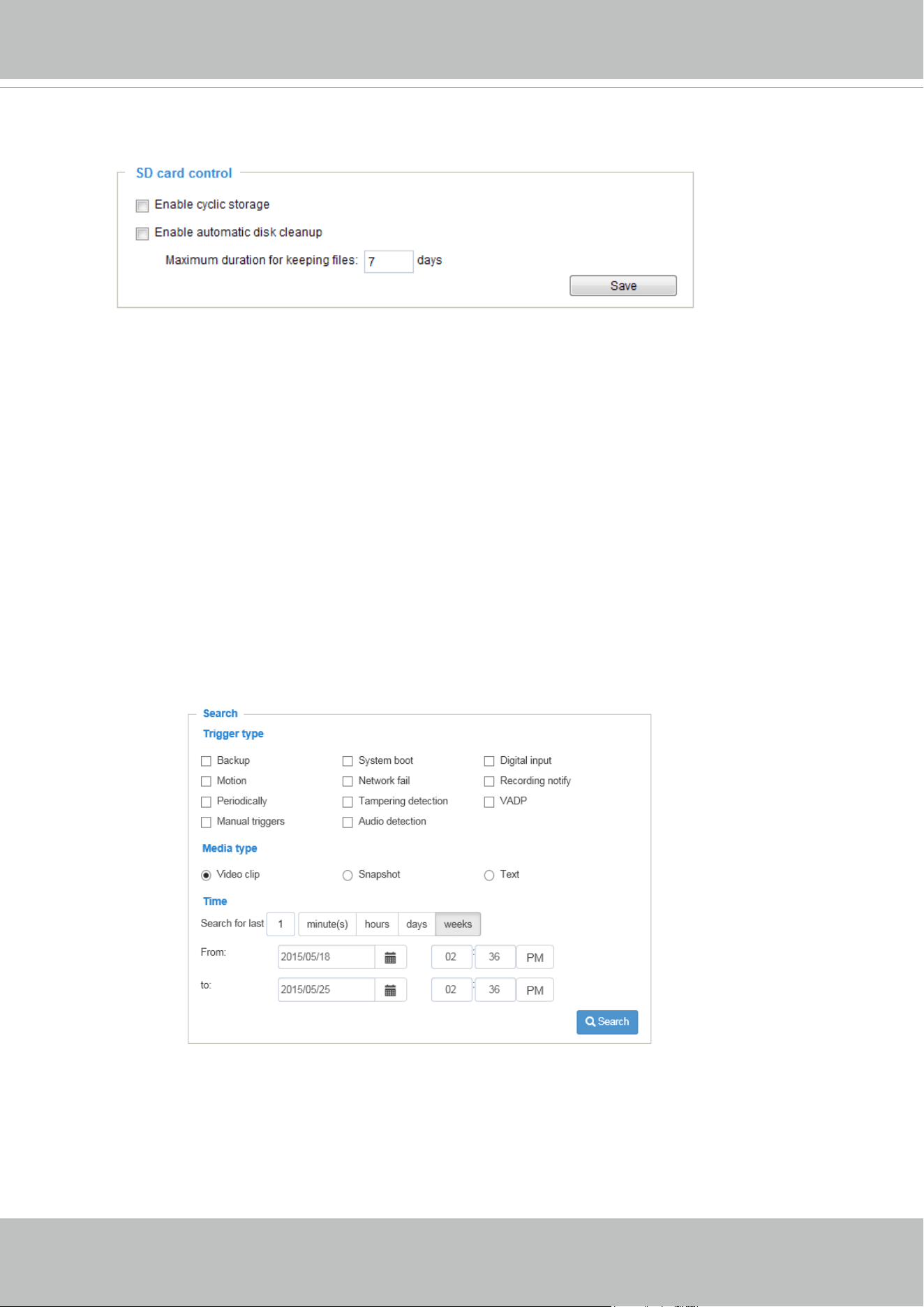

Local storage > SD card management ............................................................................................................... 146

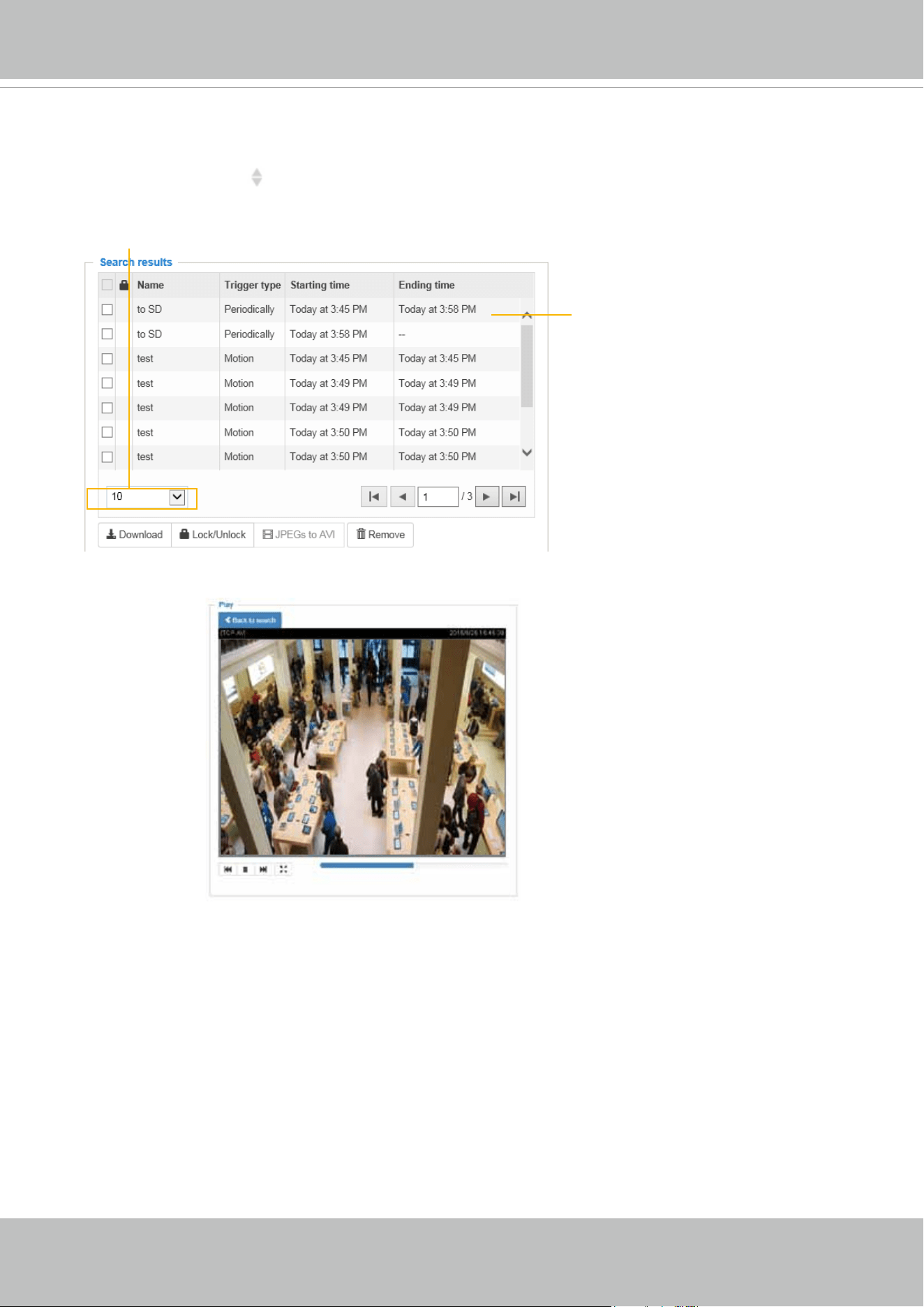

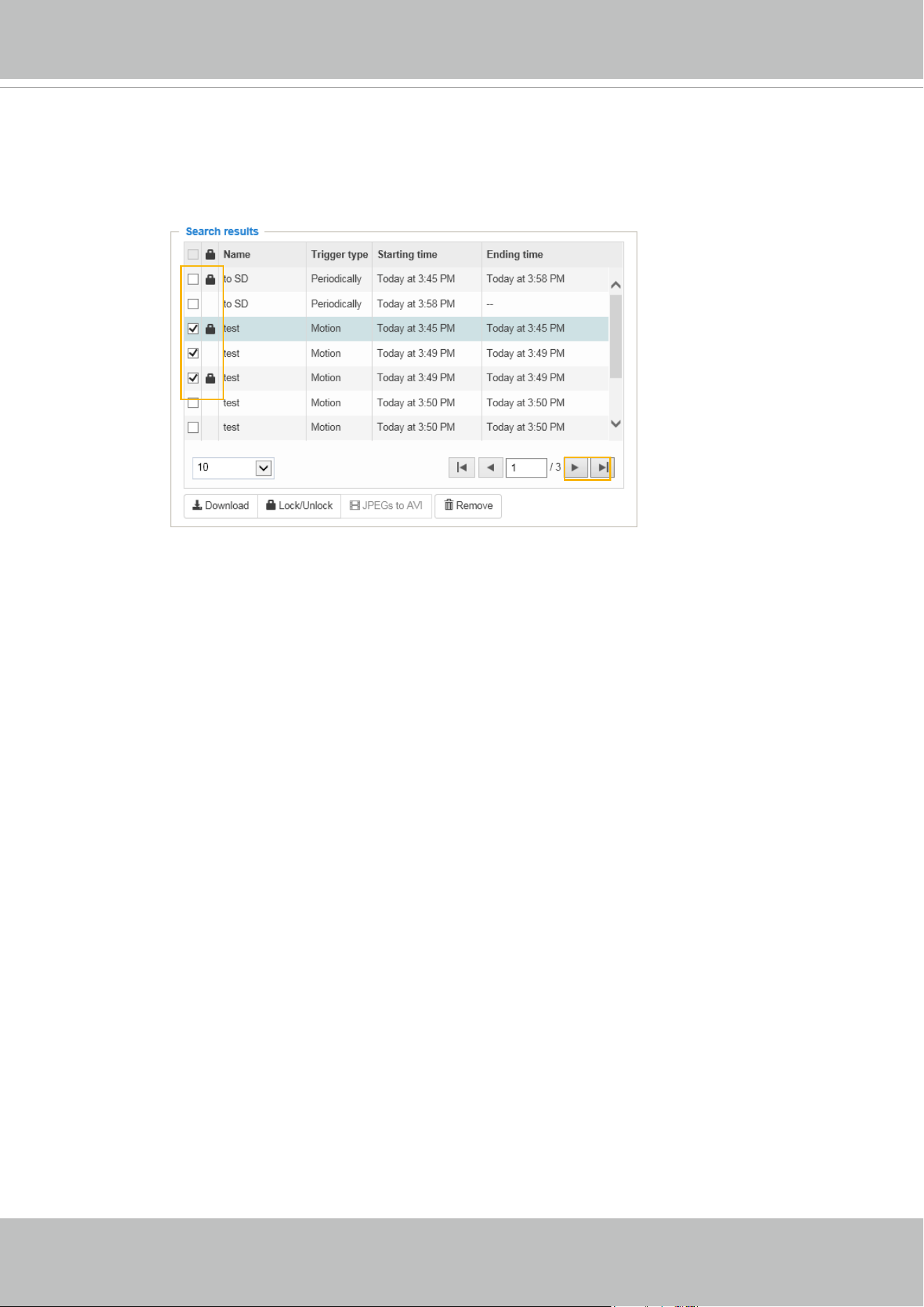

Local storage > Content management ............................................................................................................... 147
Appendix ................................................................................................................................................................. 150
URL Commands for the Network Camera .......................................................................................................... 150
1. Overview ....................................................................................................................................................... 150
2. Style Convention ........................................................................................................................................... 150
Technical Specications ..................................................................................................................................... 225
Technology License Notice ................................................................................................................................. 226
AMR-NB Standard ............................................................................................................................................. 226
Electromagnetic Compatibility (EMC) ................................................................................................................. 227
VIVOTEK
4 - User's Manual
Overview
VIVOTEK’s FE9181-H and FE9381-EHV are two unique H.265 sheye xed dome network
cameras, both featuring a detailed 5-Megapixel CMOS sensor that produces superb image clar-
ity. By employing H.265 compression technology and VIVOTEK’s Smart Stream II technology,
these cameras can reduce both bandwidth and storage consumption by up to 80%* while retain-
ing the highest standard of image quality.
Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view
(ceiling/floor mount) with zero blind spots, the cameras are able to provide coverage of wide,
open areas, such as airports, shopping malls, retail stores, offices and more.
The FE9181-H and the FE9381-EHV are both equipped with a removable IR-cut lter and WDR
Pro technology, empowering the cameras to maintain optimal image quality around the clock
and unparalleled visibility in high-contrast lighting environments. Moreover, the FE9381-EHV is
designed with full EN50155 compliance, vandal-proof IK10-rated, and weather-proof IP66-rated
housing, ensuring that the camera can withstand shock, vibration, humidity, dust, and tempera-
ture uctuations, and maintain stable and reliable video capture during vehicle movement.
* Depending on scene being monitored.
Revision History
Rev. 1.0: Initial release.
VIVOTEK
User's Manual - 5
Read Before Use
The use of surveillance devices may be prohibited by law in your country. The Network Camera is not
only a high-performance web-ready camera but can also be part of a exible surveillance system. It is
the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for
its intended use.
It is important to rst verify that all contents received are complete according to the Package Contents
listed below. Take note of the warnings in the Quick Installation Guide before the Network Camera is
installed; then carefully read and follow the instructions in the Installation chapter to avoid damage due to
faulty assembly and installation. This also ensures the product is used properly as intended.
The Network Camera is a network device and its use should be straightforward for those who have basic
networking knowledge. It is designed for various applications including video sharing, general security/
surveillance, etc. The Configuration chapter suggests ways to best utilize the Network Camera and
ensure proper operations. For creative and professional developers, the URL Commands of the Network
Camera section serves as a helpful reference to customizing existing homepages or integrating with the
current web server.
Package Contents
Symbols and Statements in this Document
i
INFORMATION: provides important messages or advices that might help prevent inconvenient
or problem situations.
NOTE: Notices provide guidance or advices that are related to the functional integrity of the
machine.
Tips: Tips are useful information that helps enhance or facilitae an installation, function, or
process.
WARNING: or IMPORTANT:: These statements indicate situations that can be dangerous or
hazardous to the machine or you.
Electrical Hazard: This statement appears when high voltage electrical hazards might occur
to an operator.
■ FE9381-EHV or FE9181
■ Mounting bracket
■ Screws / desiccant bag / double-side tape /
rubber seal plug / rubber washer (some only for
outdoor model)
■ Alignment stickers
■ Quick Installation Guide
■ Software CD
■ Mounting plate / star driver (ourdoor model)
■ Power & I/O combo cable (sold separately in US
and Canada)
VIVOTEK
6 - User's Manual
Physical Description - FE9181-H (Indoor)
Inner View
Header (J7)
Spring Contacts (A)
Lens
Contacts for Internal Microphone (B)
Header (J12)
Ethernet 10/100 RJ45 Socket
MicroSD/SDHC/SDXC Card Slot
Reset Button
Status LEDs
Cabling Cutout
VIVOTEK
User's Manual - 7
Outer View
IMPORTANT:
Record the MAC address under the
camera base before installing the camera.
Built-in Microphone
Dome Cover
083236
4
VIVOTEK
8 - User's Manual
Physical Description - FE9381-EHV (Outdoor)
Inner View
Header (J7)
Spring Contacts (A)
Lens
Contacts for Internal Microphone (B
)
Header (J12)
Ethernet 10/100 RJ45 Socket
i
Align (B) to (A) when attaching the
dome cover
MicroSD/SDHC/SDXC Card Slot
Reset Button
Status LEDs
VIVOTEK
User's Manual - 9
Outer View
IMPORTANT:
Record the MAC address under the
camera base before installing the camera.
Item LED Status Description
1 Steady Red Power on and system booting
Red LED off Powered off
2 Steady Red + blinking Green every 1 sec. (Green
LED on for 1 sec and off for another)
Network heartbeat
Steady Red + Green LED off Network disconnected
3 Blinking Red every 0.15 sec. + Blinking Green
every 1 sec. (Red LED on for 0.15 sec. and Green
LED on for 1 sec. and off for another)
Upgrading rmware
4 Blinking Red every 0.15 sec. + blinking Green
every 0.15 sec
Restoring defaults
Built-in Microphone
IP66-rated Vandal-proof
Dome Cover
083236
4
LED Denition - both models
VIVOTEK
10 - User's Manual
First, open the dome cover by pressing the release button. You may squeeze the opposite edge
of the dome cover if the dome cover does not come off easily. Then, follow the steps below to in-
stall the camera to either a ceiling or a wall.
Hardware Installation - FE9181-H
Opening Dome Cover
Release
button
If you plan to route cables from the side of camera,
remove the rubber slide cover from the dome cover.
Slide cover
Connect the supplied power & IO cables if your
switch does not support PoE. Connect the white
header connectors to J12 and J7 on the camera.
Connecting Ethernet Cable
& the Power and IO Cable
J12
J7
Power and IO
cables
VIVOTEK
User's Manual - 11
Connecting Cables
If you need to route cables through the side opening, proceed with the following:
1. Connect the Ethernet and the Power & IO cables. The Ethernet cable is user-supplied.
2. Use an included cable tie to secure the Ethernet and IO cable to the base plate. Insert the ca-
ble tie through the vertical mounting tab located on the edge of the cabling cutout.
3. Make a clearance between cables and the vertical mounting tab. Arrange the cables neatly to
avoid getting in the way when the dome cover is attached.
4. Cut the extra length from the cable tie.
If you route cables through a drill hole
on a wall/ceiling, simply route cables
through the cabling cutout.

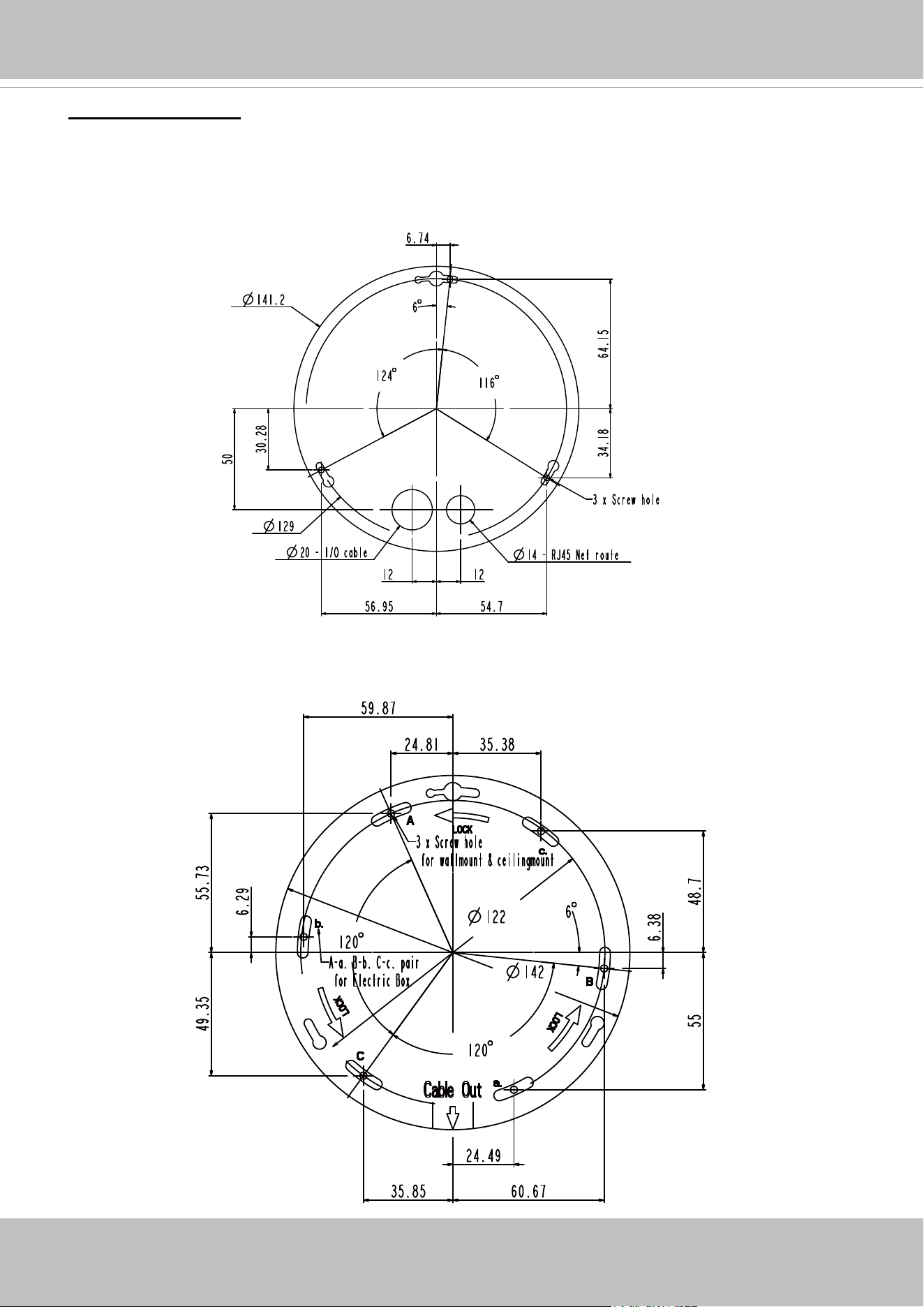

Mounting Positions
Refer to the diagram on the right for the
mounting hole positions and the dimen-
sions of the base plate.
Ethernet
Power & IO Cable
Make a clearance
between cables and
the vertical tab
VIVOTEK
12 - User's Manual
Ceiling or Wall Mount
1. Attach the supplied alignment sticker for the camera base to the a ceiling or wall.
2. Using the circles on the sticker, drill pilot holes into the ceiling. Then hammer the supplied
plastic anchors into the holes.
3. (Optional) Drill a cable hole on the ceiling/wall, and feed the cables through the hole.
4. Secure the camera base to the ceiling/wall with the supplied screws.
Arrange the cables neatly to avoid getting in the way
when the dome cover is attached.
IMPORTANT:
D
r
i
l
l
h
o
l
e
D
r
i
l
l
h
o
l
e
D
r
i
l
l
h
o
l
e
D
r
i
l
l
h
o
l
e
D
r
i
l
l
h
o
l
e
D
r
i
l
l
h
o
l
e
1
2
3
4
VIVOTEK
User's Manual - 13

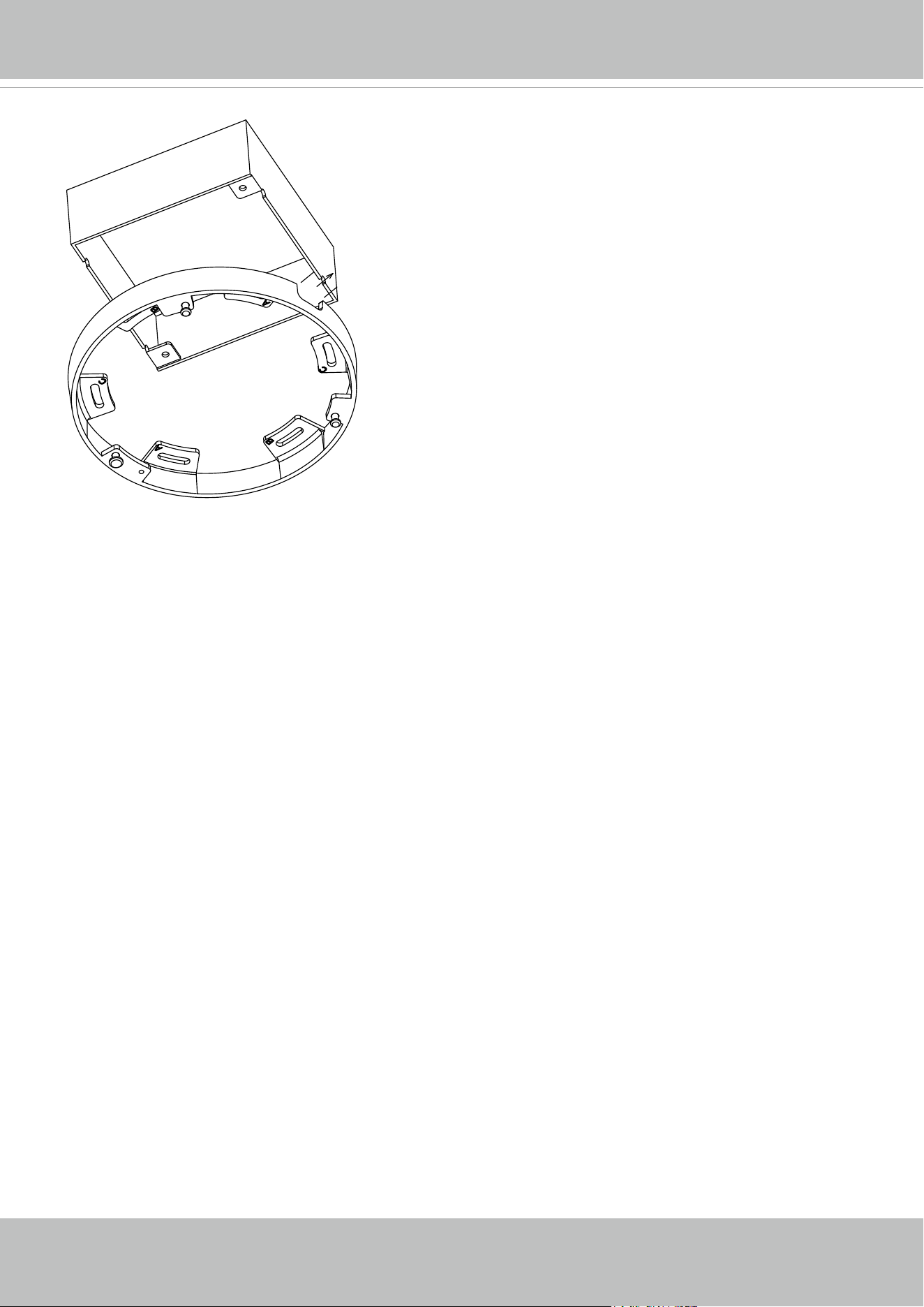

You may also install the camera to a U.S. standard 4 in. junction
box. You can align the camera’s curved slots with the mounting
holes on a junction box. Use diagonal mounting positions on the
camera to match those on a junction box.
Install the plastic dome cover by aligning the snap-
t tabs on the dome cover with the slotted tabs on the
camera base. Install the dome cover by pressing it even-
ly to the camera base.
Make sure the dome cover and the base plate are ush-
aligned before pressing down. The dome cover is se-
cured using a snap-t mechanism.
NOTE:
Attach the Dome Cover
Snap-t tabs
Slotted tabs
Dome cover
VIVOTEK
14 - User's Manual
Hardware Installation - FE9381-EHV
Opening Dome Cover
Rubber Stopper on the hole
for Power & IO Cables
Tamper-proof Screw
Rubber Seal Plug on the
hole for RJ45 Ethernet
Cable
Remove the stoppers and route cables through
the openings.
First, use the supplied screwdriver to loosen the four screws and detach the dome cover from the
camera base. Then, follow the steps below to install the camera to either a ceiling or a wall.
Hardware Reset
The reset button is used to reset the system or restore the factory default settings. Sometimes
resetting the system can return the camera to normal operation. If the system problems remain
after reset, press the reset button longer to restore the factory settings and install again.
Reset: Press and release the recessed reset button with a straightened paper clip. Wait for the
Network Camera to reboot.
Restore: Press and hold the recessed reset button for at least several seconds to restore. Note
that all settings will be restored to factory defaults.
Micro SD/SDHC/SDXC Card Capacity
This network camera is compliant with Micro SD/SDHC/SDXC 32GB, 64GB, and other
preceding standard SD cards preferrably with class 6 speed.
VIVOTEK
User's Manual - 15
RJ45 Cable Dimension (unit: mm)
Assembly Steps
1. Drill a hole on the rubber seal plug and
insert an Ethernet cable through the
opening.
2. Strip part of the sheath from the Ether-
net cable.
Recommended cable gauge: 5 to 8mm
Connecting RJ45 Ethernet Cable
Rubber Seal Plug
1
2
Connecting DC Power Cable
1. Add the supplied rubber washer to the cable
as shown in the picture.
2. Feed the cable from the bottom of the cam-
era and tighten the plastic base for water-
proong.
1
2
3. You will need an RJ45 crimping tool to
attach the Ethernet wires to a connec-
tor. When done, connect the cable to
the camera’s Ethernet RJ45 socket.
o
O
g
B
b
G
br
BR
1
2
3
4
5
6
7
8
3
4
4. Feed the Ethernet cable from the bottom of the
camera and through the hole. Attach the rubber
seal plug for water proong.
o: white/orange stripe
O: orange solid
g: white/green stripe
B: blue solid
b: white/blue stripe
G: green solid
br: white/brown stripe
BR: brown solid
Connect the supplied power & IO cables if your
switch does not support PoE.
NOTE:
VIVOTEK
16 - User's Manual
Mounting Positions
Refer to the diagram on the right for the mounting hole positions and the dimensions of the base
plate.
Camera Base Plate Mounting
Positions
Camera Mounting Plate Mounting Positions
VIVOTEK
User's Manual - 17
Ceiling/Wall Mount without Mounting Plate
(Choose this mounting type if you want to feed the cables form the bottom of the camera)
Header (J7)
Header (J12)
1
2
3
8
9
4
5
6
1. Attach the supplied alignment sticker for camera base to the ceiling/wall.
2. Using the three circles on the sticker, drill three pilot holes into the ceiling. Then hammer the
three supplied plastic anchors into the holes.
3. Drill a cable hole on the ceiling/wall, and feed the cables through the hole.
4. Connect the Ethernet cable to the socket.
5. Connect the two white header connectors to the J12 and J7 connectors.
6. Secure the camera base to the ceiling/wall with three supplied screws.
7. You will nd a dessicant bag attached to the camera. Replace the dessicant bag included in
the camera with the one shipped within the accessory bag.
8. Attach the dome cover.
9. Secure the four screws with the supplied stardriver. Make sure all camera parts are securely
installed.
Arrange the cables neatly to avoid getting in the way
when the dome cover is attached.
IMPORTANT:
VIVOTEK
18 - User's Manual
Ceiling/Wall Mount with Mounting Plate
(Choose this mounting type if you would like to feed the cables form the side)
1
2
3
4
7
9
10
7-1
7-2
1. Attach the supplied alignment sticker for the supplied mounting plate to the ceiling/wall.
2. Using the three circles on the sticker, drill three holes into the ceiling. Then hammer the
three supplied plastic anchors into the holes.
3. Arrange and feed the cables through the side of the mounting plate.
4. Secure the mounting plate to the ceiling/wall with three supplied screws.
5. Connect the Ethernet cable to the socket.
6. Connect two white headers to the J12 and J7 connectors.
7. Attach the camera base to the mounting plate and turn counter-clockwise as shown below
(Figure 7-1). Then secure the supplied screws to x the camera base (Figure 7-2).
8. You will nd a dessicant bag attached to the camera. Replace the dessicant bag with the
one shipped within the accessory bag.
9. Attach the dome cover.
10. Secure the four screws with the supplied stardriver. Make sure all camera parts are se-
curely installed.
VIVOTEK
User's Manual - 19
You may also use the diagonal holes on the mounting plate,
marked as A, B, or C, to install the camera to a U.S. standard
4 in. junction box.
VIVOTEK
20 - User's Manual
0002D1730202
00-02-D1-73-02-02 192.168.5.151 FD8168
IW2
Browser
LAN
Install the "Installation Wizard 2" software utility from your software CD.
The program will search for VIVOTEK Video Receivers, Video Servers or Network Cameras on
the same LAN.
Double-click on the camera's MAC address to open a browser management session with the
camera.
With a live view is displayed on your laptop, adjust the zoom and focus to obtain an optimal
image. Check the live view to ensure the image is in focus.
VIVOTEK
User's Manual - 21
Item LED Status Description
1 Steady Red Power on and system booting
Red LED off Powered off
2 Steady Red + blinking Green every 1 sec. (Green
LED on for 1 sec and off for another)
Network heartbeat
Steady Red + Green LED off Network disconnected
3 Blinking Red every 0.15 sec. + Blinking Green
every 1 sec. (Red LED on for 0.15 sec. and Green
LED on for 1 sec. and off for another)
Upgrading rmware
4 Blinking Red every 0.15 sec. + blinking Green
every 0.15 sec
Restoring defaults
LED Denition
Hardware Reset
The reset button is used to reset the system or restore the factory default settings. Sometimes
resetting the system can return the camera to normal operation. If the system problems remain
after reset, press the reset button longer to restore the factory settings and install again.
Reset: Press and release the recessed reset button with a straightened paper clip. Wait for the
Network Camera to reboot.
Restore: Press and hold the recessed reset button for at least several seconds to restore. Note
that all settings will be restored to factory defaults.
SD/SDHC/SDXC Card Capacity
This network camera is compliant with SD/SDHC/SDXC 32GB, 64GB, and other preceding
standard SD cards.
VIVOTEK
22 - User's Manual
GND
+3.3V
DI+
DO-
External
power source
VDC
Switch
BJT transistor
Relay
AC
Source
NO NC
External
device
not used
GND
+3.3V
DI+
DO-
VDC
Switch
BJT transistor
Relay
AC
Source
NO NC
External
device
1. The DO+ pin (3.3V) provides 3.3V±10% output voltages, and the max. load is 50mA.
2. The max. voltage for the DO- pins is 80VDC (External power).
In order to control AC devices, the above diagram can be taken in consideration. The diagram
uses a relay to control the ON/OFF condition of the AC device.
3. An external relay can be triggered by using DO+ or by an external power source, depending
on the type of relay you use.
4. In case of using an individual relay (instead of using a relay module), for protection against
voltage or current spikes, a transient voltage suppression diode must be connected in parallel
with the inductive load.
DI/DO Diagram
VIVOTEK
User's Manual - 23
Network Deployment
Setting up the Network Camera over the Internet
There are several ways to set up the Network Camera over the Internet. The rst way is to set
up the Network Camera behind a router
. The second way is to utilize a static IP. The third way is
to use PPPoE
.
Internet connection via a router
Before enabling the access to the Network Camera over the Internet, make sure you have a
router and follow the steps below.
1. Connect your Network Camera behind a router, the Internet environment is illustrated below.
Regarding how to obtain your IP address, please refer to Software Installation on page 27 for
details.
2. In this case, if the Local Area Network (LAN) IP address of your Network Camera is
192.168.0.3, please forward the following ports for the Network Camera on the router.
■ Secondary HTTP port: 8080
■ RTSP port: 554
■ RTP port for audio: 5558
■ RTCP port for audio: 5559
■ RTP port for video: 5556
■ RTCP port for video: 5557
If you have changed the port numbers on the Network page, please open the ports
accordingly on your router. For information on how to forward ports on the router, please refer
to your router’s user’s manual.
3. Find out the public IP address of your router provided by your ISP (Internet Service Provider).
Use the public IP and the secondary HTTP port to access the Network Camera from the
Internet. Please refer to Network Type on page 82 for details.
IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
LAN (Local Area Network)
Router IP address : 192.168.0.1
WAN (Wide Area Network )
Router IP address : from ISP
Cable or DSL Modem
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
Internet
VIVOTEK
24 - User's Manual
For example, your router and IP settings may look like this:
Device IP Address: internal
port
IP Address: External Port (Mapped port on the
router)
Public IP of router 122.146.57.120
LAN IP of router 192.168.2.1
Camera 1 192.168.2.10:80 122.146.57.120:8000
Camera 2 192.168.2.11:80 122.146.57.120:8001
... ... ...
Congure the router, virtual server or rewall, so that the router can forward any data coming
into a precongured port number to a network camera on the private network, and allow data
from the camera to be transmitted to the outside of the network over the same path.
From Forward to
122.146.57.120:8000 192.168.2.10:80
122.146.57.120:8001 192.168.2.11:80
... ...
When properly congured, you can access a camera behind the router using the HTTP request
as follows: http://122.146.57.120:8000
If you change the port numbers on the Network conguration page, please open the ports ac-
cordingly on your router. For example, you can open a management session with your router to
congure access through the router to the camera within your local network. Please consult your
network administrator for router conguration if you have troubles with the conguration.
For more information with network conguration options (such as that of streaming ports),
please refer to Conguration > Network Settings. VIVOTEK also provides the automatic port for-
warding feature as an NAT traversal function with the precondition that your router must support
the UPnP port forwarding feature.
VIVOTEK
User's Manual - 25
Internet connection with static IP
Choose this connection type if you are required to use a static IP for the Network Camera.
Please refer to LAN conguration on page 82 for details.
Internet connection via PPPoE (Point-to-Point over Ethernet)
Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to
PPPoE on page 103 for details.
Set up the Network Camera through Power over Ethernet (PoE)
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data via a single
Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled
switch via an Ethernet cable.
When using a non-PoE switch
If your switch/router does not support PoE, use a PoE power injector (optional) to connect
between the Network Camera and a non-PoE switch.
NOTE:
1. The camera is only to be connected to PoE networks
without routing to outside plants.
2. For PoE connection, use only UL listed I.T.E. with PoE
output.
17 18
Non-PoE Switch
PoE Power Injector
(optional)
PoE Switch
Power + Data Transmission
VIVOTEK
26 - User's Manual
General Connection (without PoE)
1. If you have external DI devices, make the connection from the general I/O terminal block.
2. Ethernet, power and IO cables are user-supplied.
3. Connect DC power cord to a DC Adapter, and then to a power outlet.
+3V3
DO
D1
GND
17 18
1
2
3
General I/O Terminal Block
Power Cord Socket (Black)
Microphone In (Pink)
Audio Out (Green)
+3V3 : Power, 3.3V DC
DO : Digital Output
DI : Digital Input
GND : Ground
IMPORTANT:
If DC power is preferred, it should comply with: O/P: 12VDC, 2A min., L.P.S. per IEC 60950-1.
VIVOTEK
User's Manual - 27
Software Installation
Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up
your Network Camera on the LAN.
1. Install IW2 under the Software Utility directory from the software CD.
Double click the IW2 shortcut on your desktop to launch the program.
2. The program will conduct an analysis of your network environment.
After your network environment is analyzed, please click Next to continue the program.
3. The program will search for all VIVOTEK network devices on the same LAN.
4. After a brief search, the main installer window will pop up. Double-click on the MAC address
that matches the one printed on the camera label or the S/N number on the package box label
to open a browser management session with the Network Camera.
Installation
Wizard 2
IW
2
Network Camera
Model No: FE9381-EHV
MAC: 0002D1083236
Pat. 6,930,709
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Made in Taiwan
0002D1083236
00-02-D1-08-32-36 192.168.5.109 FE8391-EHV
VIVOTEK
28 - User's Manual
Ready to Use
1. A browser session with the Network Camera should prompt as shown below.
2. You should be able to see live video from your camera. You may also install the 32-channel
recording software from the software CD in a deployment consisting of multiple cameras. For
its installation details, please refer to its related documents.
NOTE:
1. If you encounter problems with displaying live view or the onscreen plug-in control, you may try
to remove the plug-ins that might have been installed on your computer. Remove the following
folder: C:\Program Files (x86)\Camera Stream Controller\.
2. If you forget the root (administrator) password for the camera, you can restore the camera
defaults by pressing the reset button for longer than 5 seconds.
3. If DHCP is enabled in your network, and the camera cannot be accessed, run the IW2 utility to
search the network. If the camera has been congured with xed IP that does not comply with
your local network, you may see its default IP 169.254.x.x. If you still cannot nd the camera,
you can restore the camera to its factory defaults.
4. If you change your network parameters, e.g., added a connection to a LAN card, re-start the
IW2 utility.
VIVOTEK
User's Manual - 29
Accessing the Network Camera
This chapter explains how to access the Network Camera through web browsers, RTSP players,
3GPP-compatible mobile devices, and VIVOTEK recording software.
Using Web Browsers
Use Installation Wizard 2 (IW2) to access the Network Cameras on the LAN.
If your network environment is not a LAN, follow these steps to access the Netwotk Camera:
1. Launch your web browser (e.g., Microsoft
®
Internet Explorer, Mozilla Firefox, or Netscape).
2. Enter the IP address of the Network Camera in the address eld. Press Enter.
3. The live video will be displayed in your web browser.
4. If it is the rst time installing the VIVOTEK network camera, an information bar will prompt as
shown below. Follow the instructions to install the required plug-in on your computer.
•
Currently the Network Camera utilizes 32-bit ActiveX plugin. You CAN NOT open a
management/view session with the camera using a 64-bit IE browser.
•
If you encounter this problem, try execute the Iexplore.exe program from C:\Windows\
SysWOW64. A 32-bit version of IE browser will be installed.
•
On Windows 7, the 32-bit explorer browser can be accessed from here: C:\Program Files
(x86)\Internet Explorer\iexplore.exe
IMPORTANT:
VIVOTEK
30 - User's Manual
NOTE:
For Mozilla Firefox users, your browser will use Quick Time to stream live video. If you do not
have QuickTime on your computer, please download QuickTime from Apple Inc's website, and
then launch your web browser.
• The onscreen Java control can malfunction under the following situations:
A PC connects to different cameras that are using the same IP address (or the same camera
running different rmware versions). Removing your browser cookies will solve this problem.
• In the event of plug-in compatibility issues, you may try to uninstall the plug-in that was previ-
ously installed.
Tips:
VIVOTEK
User's Manual - 31
To enable the ActiveX
®
Controls for your browser:
2-3. Refresh your web browser, then install the ActiveX
®
control. Follow the instructions to
complete installation.
2-1. Choose Tools > Internet Options >
Security > Custom Level.
2-2. Look for Download signed ActiveX
®
controls; select Enable or Prompt. Click OK.
NOTE:
1. By default, your Network Camera is not password-protected. To prevent unauthorized access,
it is highly recommended to congure a password for your camera later.
For more information
about how to enable password protection, please refer to Security on page 101.
2. If you see a dialogue box indicating that your security settings prohibit running ActiveX
Controls®, please enable ActiveX Controls for your browser.
VIVOTEK
32 - User's Manual
Using RTSP Players
To view the H.265 or H.264 streaming media using RTSP players, you can use one of the
following players that support RTSP streaming.
Quick Time Player
VLC Player
As most ISPs and players only allow RTSP streaming through port number 554, please set the
RTSP port to 554. For more information, please refer to RTSP Streaming on page 91.
For example:
4. The live video will be displayed in your player. For more information on how to congure the
RTSP access name, please refer to RTSP Streaming on page 91 for details.
The RTSP players will show the original circular-shape image. You can access the Regional
views via the ST7501 or VAST software. See page 92 for an example.
1. Launch the RTSP player.
2. Choose File > Open URL. A URL dialog box will prompt.
3. The address format is rtsp://<ip address>:<rtsp port>/<RTSP streaming access name for
stream1 to stream4>
rtsp://192.168.5.151:554/live.sdp
Video 16:38:01 2011/03/25
Quick Time player only supports playback of
H.265 or H.264 stream, and not the MJPEG
stream. In terms of audio codec, Quick Time
only supports AAC. Since this camera sup-
ports G.711 codec, audio is not available on
Quick Time.
VLC player supports H.265/H.264/MPEG-4/
MJPEG, and all audio codecs supported by
VIVOTEK’s cameras.
NOTE:
VIVOTEK
User's Manual - 33
Using 3GPP-compatible Mobile Devices
To view the streaming media through 3GPP-compatible mobile devices, make sure the Network
Camera can be accessed over the Internet. For more information on how to set up the Network
Camera over the Internet, please refer to Setup the Network Camera over the Internet on page
23.
To utilize this feature, please check the following settings on your Network Camera:
1. Because most players on 3GPP mobile phones do not support RTSP authentication, make
sure the authentication mode of RTSP streaming is set to disable.
For more information, please refer to RTSP Streaming on page 91.
2. As the the bandwidth on 3G networks is limited, you will not be able to use a large video size.
Please set the video and audio streaming parameters as listed below.
For more information, please refer to Stream settings on page 74.
Video Mode MPEG-4
Frame size 176 x 144
Maximum frame rate 5 fps
Intra frame period 1S
Video quality (Constant bit rate) 40kbps
Audio type (GSM-AMR) 12.2kbps
3. As most ISPs and players only allow RTSP streaming through port number 554, please set
the RTSP port to 554. For more information, please refer to RTSP Streaming on page 91.
4. Launch the player on the 3GPP-compatible mobile devices (e.g., Real Player).
5. Type the following URL commands in the URL eld.
The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming
access name for stream 3>.
For example:
rtsp://192.168.5.151:554/live.sdp
VIVOTEK
34 - User's Manual
1. The onscreen Java control can malfunction under the following situations: A PC connects to
different cameras that are using the same IP address (or the same camera running different
rmware versions). Removing your browser cookies will solve this problem.
2. If you encounter problems with displaying the conguration menus or UI items, try disable
the Compatibility View on IE8 or IE9.
You may also press the F12 key to open the developer tools utility, and then change the
Browser Mode to the genuine IE8 or IE9 mode.
Tips:
• In the event of plug-in compatibility issues, you may try to uninstall the plug-in that was previ-
ously installed.
VIVOTEK
User's Manual - 35

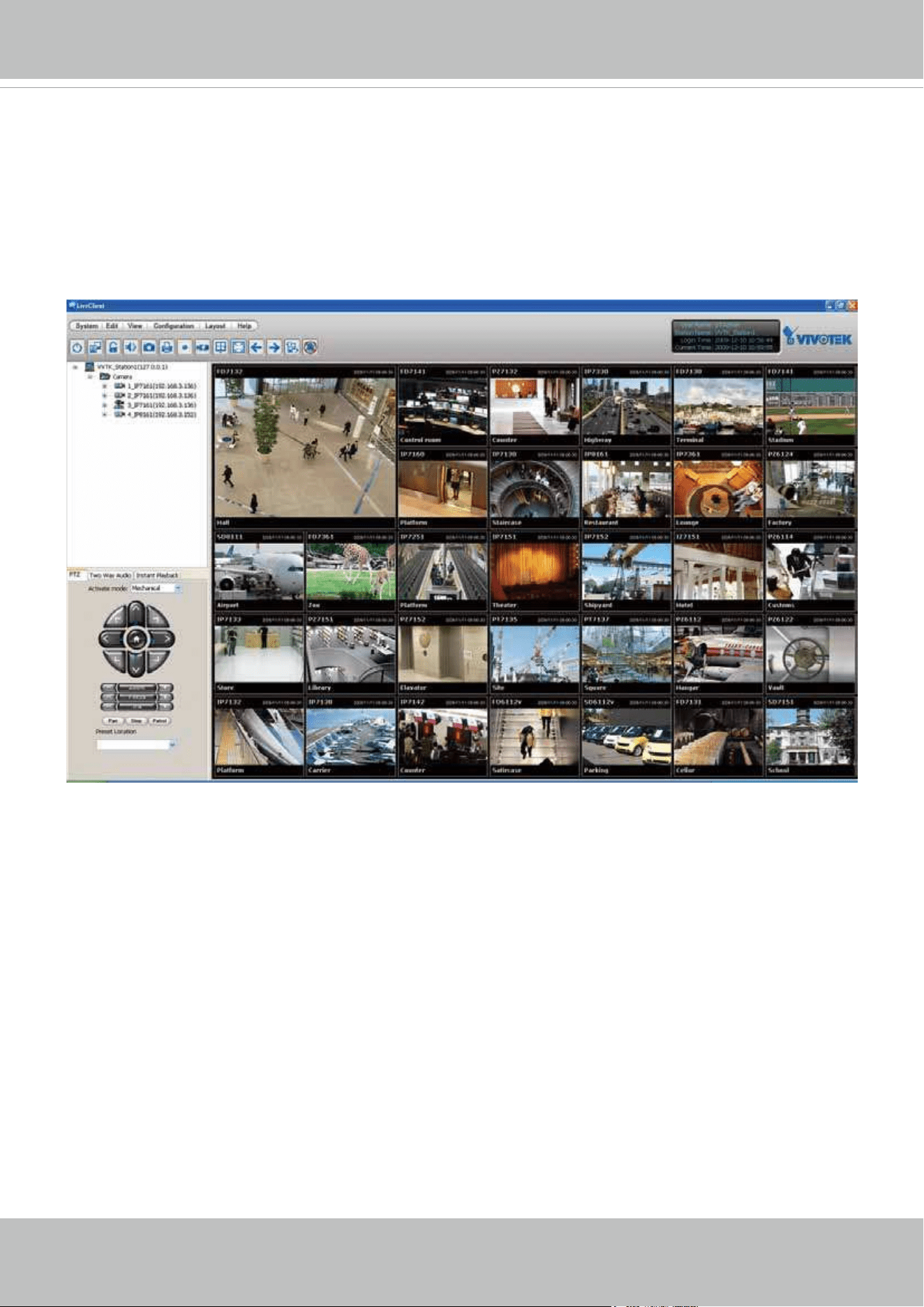

Using VIVOTEK Recording Software
The product software CD also contains recording software, allowing simultaneous monitoring
and video recording for multiple Network Cameras. Please install the recording software; then
launch the program to add the Network Camera to the Channel list. For detailed information
about how to use the recording software, please refer to the user’s manual of the software or
download it from
http://www.vivotek.com.
VIVOTEK
36 - User's Manual
Main Page
This chapter explains the screen elements on the main page. It is composed of the following
sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Conguration Area, and Live
Video Window.
VIVOTEK INC. Logo
Click this logo to visit the VIVOTEK website.
Host Name
The host name can be customized to t your needs. For more information, please refer to System > General
Settings on page 52.
Camera Control Area
Display mode:
This is a brand new conguration menu exclusively designed for Fisheye cameras. Due
to the sheye lens’ wide coverage of 180º hemispheric and 360º panoramic views and to manipulate the
details within, the following display modes are provided:
Host name
Resize Buttons
VIVOTEK logo
Configuration
Area
Live View window
Camera Control
Panel
1O - One Original sheye view.
1P - One Panoramic view
1R - One Regional view
1P2R - One Panoramic and two Regional views (Wall mount)
2P - Two Panoramic views
1P3R - One Panoramic and three Regional views (Wall mount)
1O3R - One Original and three Regional views
4R - Four Regional views
4R PRO - Four Regional views interactively displayed when the eld
of view changes in any of the views

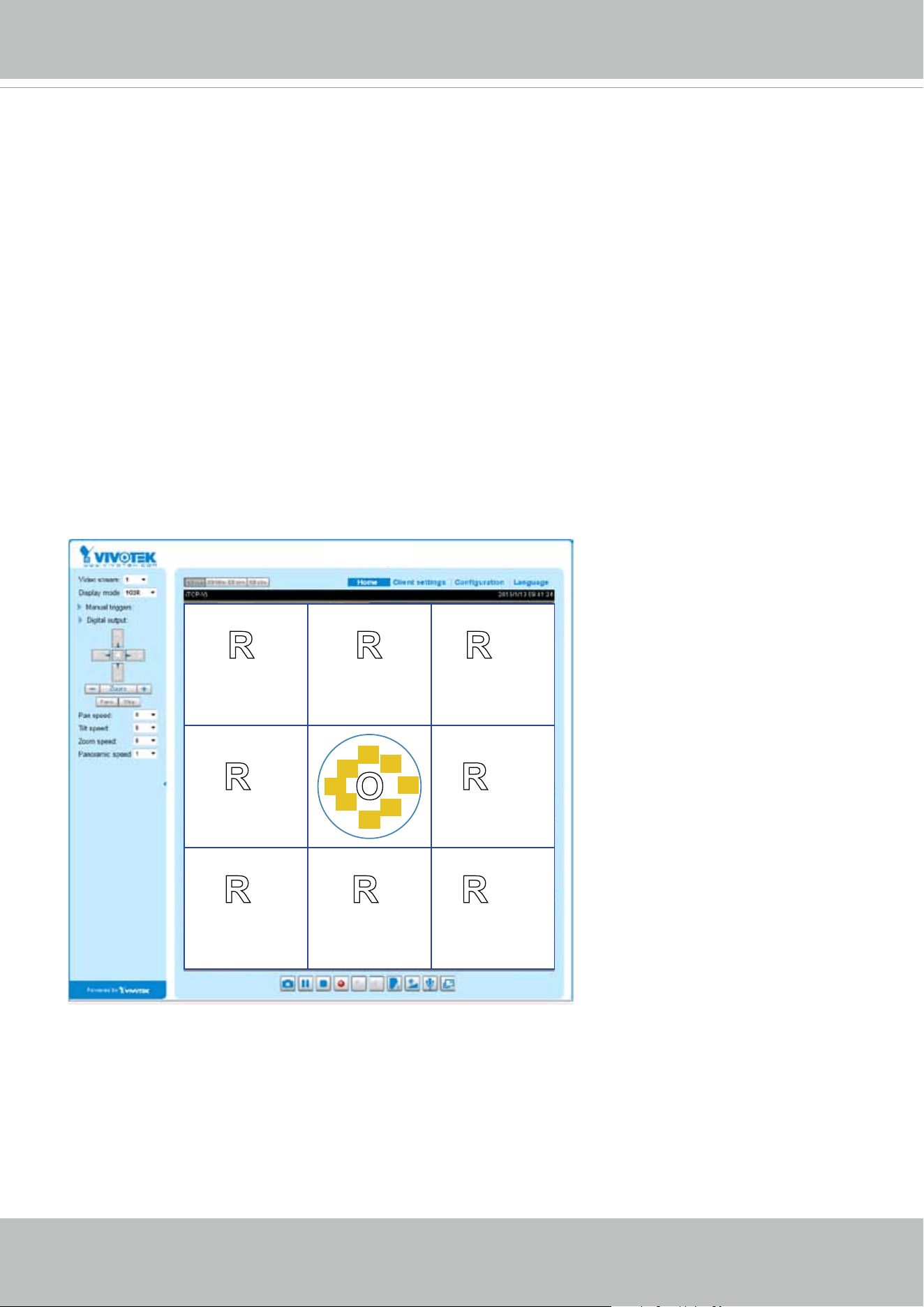

1O8R - One Original and eight Regional views
* Most display modes are available in the Ceiling mount type.
* See following discussions for detailed explanation of these modes. If
selected, the Wall mount type provides another two distinctive modes.
VIVOTEK
User's Manual - 37

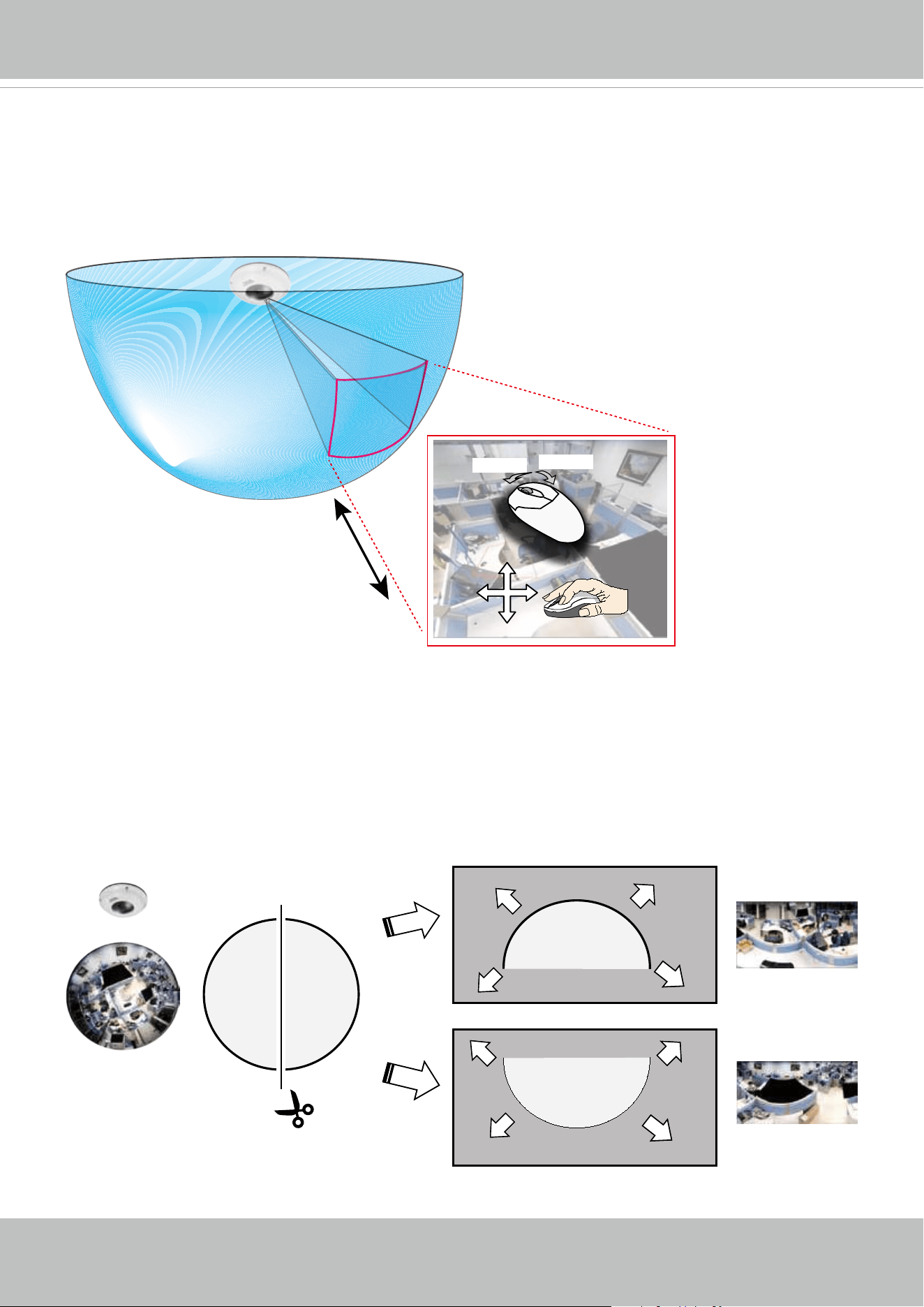

1O (Original) Display mode:
When mounted on a ceiling, the sheye camera can
cover an approximate of 64 m² surveillance area (installed
at a height of approximately 3 meters), while still keeping
details in videos with recognizable facial features of
people trafcking through the area.
The 1O view is especially adequate for taking an over-
view glimpse of the surveillance area when mounted on the
ceiling.
1O View (Original View)
180° Hemispheric
Swipe to scroll horizontally
1P (Single Panoramic) Display mode:
With image correction algorithms in rmware, the hemispheric image is transformed into a rectilinear
stripe in the 1P display mode. Viewers can use the PTZ panel or simply use mouse swipe to quickly
move through the 360º panoramic view. (Mouse control on the Panoramic view is available with the
Ceiling mount type.)
When mounted on a wall, this mode can cover a 180º overview from side to side, e.g., on the entrance of
a building or a corridor.
Note that the 1P view is apt for an overview, the Zoom in/out function does not apply in this mode.
VIVOTEK
38 - User's Manual
1R (Single Regional) Display mode:
The 1R mode provides access to one image section within the hemisphere. You can zoom in or out
(using the mouse wheel or PTZ panel) or travel to other areas in the hemisphere using mouse clicks and
swipes. A single click on a particular object can bring the object to the center of your view window. Click
and hold down the left mouse button, and you can swipe the view in all directions.
1R View (Single Regional View)
Zoom in/out
&
all-directional
navigation control
Zoom In
Zoom Out
2P (Dual Panoramic View) Display mode:
Similar to 1P, the 2P display mode provides simultaneous access to both the left and right sections of a
hemisphere. Both panoramic views are corrected into a more viewable dewarped image. Viewers can
use a mouse click and swipe to quickly scroll horizontally through the surveillance area.
* Note that the dividing line falls approximately on the center of the VIVOTEK logo on camera.
2P View (Panoramic View)
Right hemiLeft hemi
Converted to rectilinear view (Dewarp)
VIVOTEK
User's Manual - 39
1O3R (One Original & Three Regional) Display mode:
The 1O3R mode provides access to multiple live view sections within the hemisphere and the reference
to their relative positions on an Original circular view. The FOV indicators (#1 ~ #3) interact with your
current operation as you may zoom in/out or move the live view window to a different place.
You can zoom in or out or travel to other areas within the hemisphere using identical methods as
previously described in the 1R mode.
You can also change the locations of Regional views by dragging the FOV indicators on the "Original"
circular view.
1O3R (Original & Regional) Mode Screen Control
Current screen selection
Zoom In
Zoom Out
1
2
3
Interactive
regional FOV indicators
Click to bring into
center of view
Pan or tilt
O
R
R
R
Tips:
In a Regional view displaying 100% of video feed (via the Resize buttons - see page 42), your
mouse wheel can be used to scroll the view window vertically before you click on a live image.
After you click on the live image, the mouse wheel becomes the zoom in/out tool.
VIVOTEK
40 - User's Manual
1O8R (One Original and Eight Regional) Display mode:
The view control and look and feel are identical to that as described in the 1O3R mode.
Note that if you change the position of a view in hemisphere, e.g., #3 window, you may lose the
conguration change by switching to another display mode. The live view window does not automatically
save your view section layout.
123
4
5
6
7
8
1
2
3
4
5
6
7
8
O
RRR
RRR
RR
4R (Four Regional) Display mode:
The view control and look and feel are identical to that as described in the 1O3R mode except that the
Original circular view is absent from this mode.
4R PRO (Four Regional Proactive) Display mode:
The 4R PRO mode is similar to the 4R mode except that the quad view windows consecutively rotate in
correspondence to the change of view area in one window. Note that zoom in/out and tilt control is not
available in this mode.
VIVOTEK
User's Manual - 41
Video Stream: This Network Camera supports multiple streams (stream #1 ~ #4) simultaneously. You
can select any one of them for live viewing. For more information about multiple streams, please refer to
page 74 for detailed information.
Manual Trigger: Click to manually enable or disable an event trigger. Please congure an event setting
before enabling this function. A total of 3 or 4 event settings can be congured. For more information
about event setting, please refer to page 117. If you want to hide this item on the homepage, please go

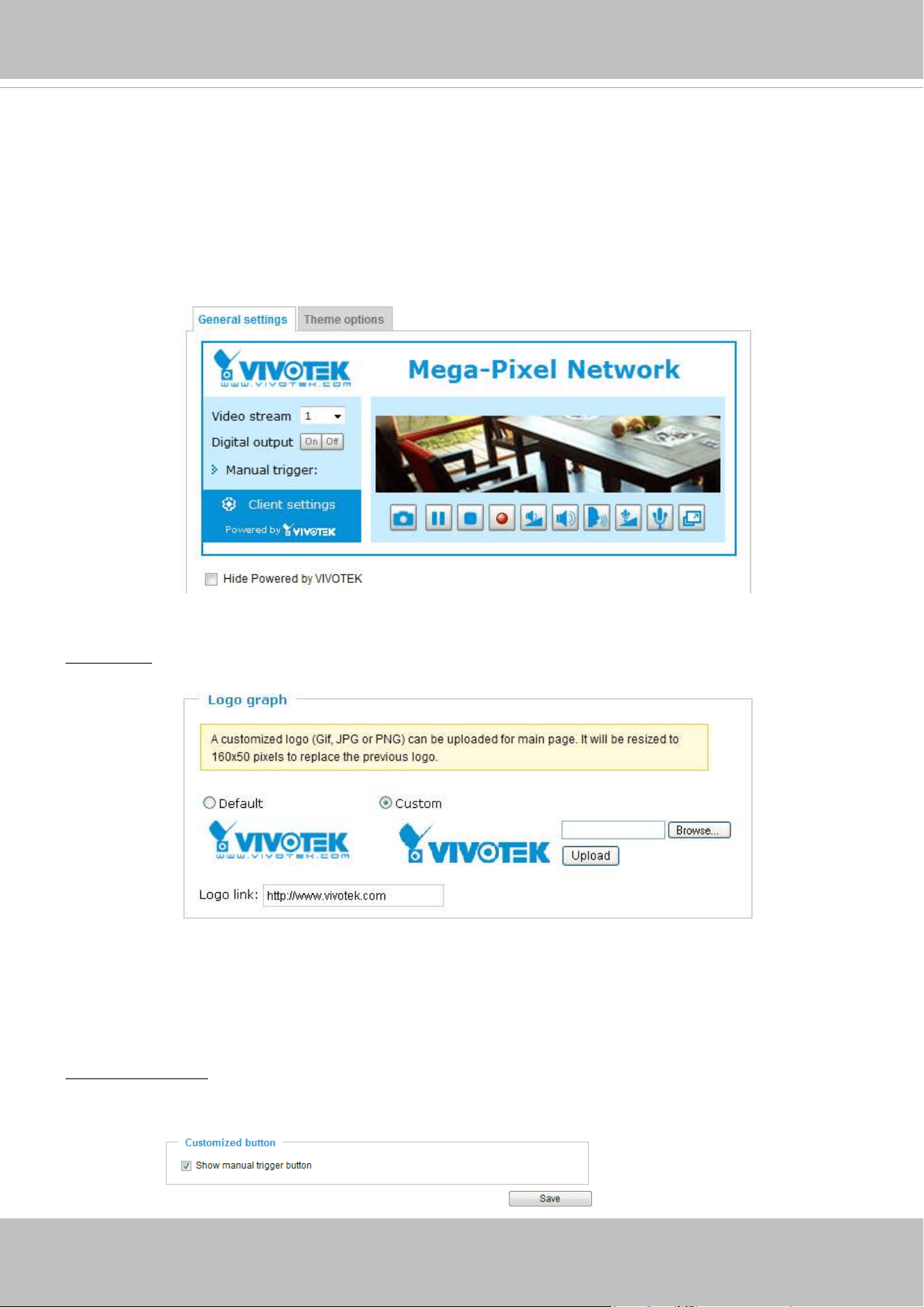

to the System > Homepage Layout > General settings > Customized button to deselect the “show
manual trigger button” checkbox.
Digital Output: Click to turn the digital output device on or off.
PTZ Control Panel:
Pano.: Click this button to start the automatic horizontal pan (360° continuous rotation).
Stop: Click this button to stop the Auto Pano and Auto Rotate functions.
Rotate: Once the Administrator has congured the list of preset positions (including the zoom-in action
on a particular position), click this button to command the camera to display the preset positions in a
consecutive order. The Network Camera will display those positions continuously. For more information,
please refer to PTZ control on page 114.
Left
Down
Zoom Out
Start the Panoramic
rotation
Stop Auto Pano or Rotate
Return to Home Position
Right
Up
Zoom In
Rotate
VIVOTEK
42 - User's Manual
Conguration Area
Client Settings: Click this button to access the client setting page. For more information, please refer to
Client Settings on page 47.
Conguration: Click this button to access more of the conguration options provided with the Network
Camera. It is suggested that a password is applied to the Network Camera so that only the administrator
can configure the Network Camera. For more information, please refer to the description for the
Conguration menus on page 51.
Language: Click this button to choose a language for the user interface. Language options are available
in: English, Deutsch, Español, Français, Italiano,
日本語
, Português,
簡体中文
, and
繁體中文
. You can
also change a language on the Conguration page; please refer to page 51.
Hide Button
You can click the hide button to hide the control panel or display the control panel.
Resize Buttons
:
Click the Auto button, the video cell will resize automatically to t the monitor.
Click 100% is to display the original homepage size.
Click 50% is to resize the homepage to 50% of its original size.
Click 25% is to resize the homepage to 25% of its original size.
Pan /Tilt /Zoom speed: Adjust the speed of these controls when exerted:
Pan speed Tilt speed Zoom speed Panoramic
speed
-5 -5 -5 - Slower
Faster
-4 -4 -4 -
-3 -3 -3 -
-2 -2 -2 -
-1 -1 -1 -
0 0 0 0
1 1 1 1
2 2 2 2
3 3 3 3
4 4 4 4
5 5 5 5
VIVOTEK
User's Manual - 43
■ The following window is displayed when the video mode is set to MJPEG:
Video Title: The video title can be congured. For more information, please refer to Media > Image on
page 63.
Time: Display the current time. For more information, please refer to Media > Image on page 63.
Title and Time: Video title and time can be stamped on the streaming video. For more information, please
refer to Media > Image on page 63
.
Video Control Buttons: Depending on the camera model and your current conguration, some buttons
may not be available.
Snapshot: Click this button to capture and save still images. The captured images will be displayed
in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP
(*.bmp) format.
Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.
Press the
Stop MP4 Recording button to end recording. When you exit the web browser, video
recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving
Options on page 48 for details.
Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal
mode.
Please refer to page 114 for PTZ settings.
2015/03/10 17:08:56
Time
Video Control Buttons
Video 17:08:56 2015/03/10
Title and Time
Video (HTTP-V)
Video Title
2.0x Title 2014/03/05 10:39:08
VIVOTEK
44 - User's Manual
Video Title: The video title can be congured. For more information, please refer to Video settings on
page 74.
H.264 Protocol and Media Options: The transmission protocol (TCP or UDP, etc.)and media options for
H.265 or H.264 video streaming. For further conguration, please refer to Client Settings on page 47.
Time: Display the current time. For further conguration, please refer to Media > Image > Genral settings
on page 63.
Title and Time: The video title and time can be stamped on the streaming video. For further conguration,
please refer to Media > Image > Genral settings on page 63.
Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera
conguration, some buttons may not be available.
Video 13:59:05 2012/07/04
Title and Time
Time
Video and Audio Control Buttons
Video (TPC-AV)
H.264/MPEG-4 Protocol and Media Options
Video Title
Video 13:59:05 2012/07/04
Live Video Window
■ The following window is displayed when the video mode is set to H.265 or H.264:
Snapshot: Click this button to capture and save still images. The captured images will be displayed
in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP
(*.bmp) format.
Pause: Pause the transmission of the streaming media. The button becomes the Resume button
after clicking the Pause button.
Stop: Stop the transmission of the streaming media. Click the Resume button to continue
transmission.
VIVOTEK
User's Manual - 45
Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.
Press the
Stop MP4 Recording button to end recording. When you exit the web browser, video
recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving
Options on page 48 for details.
Volume: When the Mute function is not activated, move the slider bar to adjust the volume on the
local computer.
Mute: Turn off the volume on the local computer. The button becomes the Audio On button after
clicking the Mute button.
Talk: Click this button to talk to people around the Network Camera. Audio will project from
the external speaker connected to the Network Camera. Click this button
again to end talking
transmission.
Mic Volume: When the Mute function is not activated, move the slider bar to adjust the
microphone volume on the local computer.
Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal
mode.
2015/01/14 13:59:05
VIVOTEK
46 - User's Manual
1. The onscreen Java control can malfunction under the following situations: A PC connects to
different cameras that are using the same IP address (or the same camera running different
rmware versions). Removing your browser cookies will solve this problem.
2. If you encounter problems with displaying the conguration menus or UI items, try disable
the Compatibility View on IE8 or IE9.
You may also press the F12 key to open the developer tools utility, and then change the
Browser Mode to the genuine IE8 or IE9 mode.
Tips:
VIVOTEK
User's Manual - 47
Client Settings
This chapter explains how to select the stream transmission mode and saving options on the
local computer. When completed with the settings on this page, click Save on the page bottom
to enable the settings.
H.265 / H.264 Media Options
Select to stream video or audio data or both. This is enabled only when the video mode is set to H.265 or
H.264.
H.265 / H.264 Protocol Options
Depending on your network environment, there are four options with the transmission protocols with the
H.265 or H.264 streaming:
UDP unicast: This protocol allows for more real-time audio and video streams. However, network
packets may be lost due to network burst trafc and images may be broken. Activate UDP connection
when occasions require time-sensitive responses and the video quality is less important. Note that each
unicast client connecting to the server takes up additional bandwidth and the Network Camera allows up
to ten simultaneous accesses.
UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients
requesting streaming media. This helps to reduce the network transmission load of the Network Camera
while serving multiple clients at the same time. Note that to utilize this feature, the Network Camera must
be configured to enable multicast streaming at the same time. For more information, please refer to
RTSP Streaming on page 91.
TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video
quality. The downside of this protocol is that its real-time effect is not as good as that of using the UDP
protocol.
HTTP: This protocol allows the same quality as TCP protocol without needing to open specic ports for
streaming under some network environments. Users behind a rewall can utilize this protocol to allow
camera’s streaming data to pass through.
VIVOTEK
48 - User's Manual
MP4 Saving Options
Users can record live video as they are watching it by clicking the “Start MP4 Recording” button on
the main page. Here, you can specify the storage destination and le name.
Folder: Specify a storage destination for the recorded video les.
File name prex: Enter the text that will be appended to the front of the video le name.
Add date and time sufx to the le name: Select this option to append the date and time to the end of the
le name.
Local streaming buffer time
Due to possible occurrences of unsteady network transmission, live streaming may lag and not be very
smoothly. If you enable this option, the live streaming will be stored on the client PC’s cache memory
for a few seconds before being played on the client computer’s live view window. This helps produce
a smoothlier live streaming. If you enter a vlue of 3,000 milliseconds, the streaming will delay for 3
seconds.
CLIP_20110328-180853
Date and time suffix
The format is: YYYYMMDD_HHMMSS
File name prefix
Two way audio
Half duplex: Audio is transmitted from one direction at a time, e.g., from a PC holding a web console with
the camera.
Full duplex: Audio is transmitted in both directions simultaneously.
VIVOTEK
User's Manual - 49
Joystick settings
Enable Joystick
Connect a joystick to a USB port on your management computer. Supported by the plug-in (Microsoft’s
DirectX), once the plug-in for the web console is loaded, it will automatically detect if there is any joystick
on the computer. The joystick should work properly without installing any other driver or software.
Then you can begin to congure the joystick settings of connected devices. Please follow the instructions
below to enable joystick settings.
1. Select a detected joystick, if there are multiple, from the Selected joystick menu. If your joystick is not
detected, if may be defective.
2. Click Calibrate or Congure buttons to congure the joystick-related settings.
• If you want to assign Preset actions to your joystick, the preset locations should be configured in
advance in the Conguration > PTZ page.
• If your joystick is not working properly, it may need to be calibrated. Click the Calibrate button to open
the Game Controllers window located in Microsoft Windows control panel and follow the instructions for
trouble shooting.
NOTE:
• The joystick will appear in the Game Controllers list in the Windows Control panel. If you want to check
out for your devices, go to the following page: Start -> Control Panel -> Game Controllers.
VIVOTEK
50 - User's Manual
Buttons Conguration
Click the Configure Buttons button, a window will prompt as shown below. Please follow the steps
below to congure your joystick buttons:
1. Select a button number from the Button # pull-down menu.
2. Select a corresponding action, such as Patrol or Preset#.
If you are not sure of the locations of each button, use
the Properties window in the Game Controllers utility.
Tips
3.
Click the Assign button to assign an
action to the button. You can delete an
association by selecting a button number,
and then click the Delete button.
Repeat the process until you are done
with the configuration of all preferred
actions.
The buttons you dene should appear on
the button list accordingly.
4. Please remember to c
lick the Save
button on the Client settings page to
preserve your settings.
VIVOTEK
User's Manual - 51
Conguration
Click Configuration on the main page to enter the camera setting pages. Note that only
Administrators can access the conguration page.
VIVOTEK provides an easy-to-use user interface that helps you set up your network camera
with minimal effort. In order to simplify the user interface, detailed information will be hidden
unless you click on the function item. When you click on the first sub-item, the detailed
information for the rst sub-item will be displayed; when you click on the second sub-item, the
detailed information for the second sub-item will be displayed and that of the rst sub-item will
be hidden.
The following is the interface of the main page:
Configuration List
Firmware Version
Navigation Area
Each function on the conguration list will be explained in the following sections.
The Navigation Area provides access to all different views from the Home page (for live viewing),
Conguration page, and multi-language selection.
VIVOTEK
52 - User's Manual
System > General settings
This section explains how to congure the basic settings for the Network Camera, such as the
host name and system time. It is composed of the following two columns: System and System
Time.
System
Host name: Enter a desired name for the Network Camera. The name will be displayed at the top center
of the main page.
Turn off the LED indicator: Click to disable the onboard LEDs.
System time
Time zone : Select the appropriate time zone from the list. If you want to upload Daylight Savings Time
rules, please refer to System > Maintenance > Import/ Export les on page 60 for details.
Keep current date and time: Select this option to preserve the current date and time of the Network
Camera. The Network Camera’s internal real-time clock maintains the date and time even when the
power of the system is turned off.
Synchronize with computer time: Select this option to synchronize the date and time of the Network
Camera with the local computer. The read-only date and time of the PC is displayed as updated.
Manual: The administrator can enter the date and time manually. Note that the date and time format are
[yyyy/mm/dd] and [hh:mm:ss].
Automatic: The Network Time Protocol is a protocol which synchronizes computer clocks by periodically
querying an NTP Server.
NTP server: Assign the IP address or domain name of the time-server. Leaving the text box blank
connects the Network Camera to the default time servers.
Update interval: Select to update the time using the NTP server on an hourly, daily, weekly, or monthly
basis.
When nished with the settings on this page, click Save at the bottom of the page to enable the settings.
VIVOTEK
User's Manual - 53
System > Homepage layout
This section explains how to set up your own customized homepage layout.
General settings
This column shows the settings of your hompage layout. You can manually select the background and
font colors in Theme Options (the second tab on this page). The settings will be displayed automatically
in this Preview eld. The following shows the homepage using the default settings:
■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage.
Logo graph
Here you can change the logo at the top of your homepage.
Follow the steps below to upload a new logo:
1. Click Custom and the Browse eld will appear.
2. Select a logo from your les.
3. Click Upload to replace the existing logo with a new one.
4. Enter a website link if necessary.
5. Click Save to enable the settings.
Customized button
If you want to hide the manual trigger buttons on the homepage, please uncheck this item. This item is
selected by default.
VIVOTEK
54 - User's Manual
Theme Options
Here you can change the color of your homepage layout. There are three types of preset patterns for you
to choose from. The new layout will simultaneously appear in the Preview led. Click Save to enable the
settings.
Font Color of the
Video Title
Background Color of
the Video Area
Frame Color
Font Color
Background Color of the
Control Area
Font Color of the
Configuration Area
Background Color of the
Configuration Area
Preset patterns
VIVOTEK
User's Manual - 55
■ Follow the steps below to set up a custom homepage:
1. Click Custom on the left column.
2. Click to select a color on on the right column.
3. The palette window will pop up as shown below.
4. Drag the slider bar and click on the left square to select a desired color.
5. The selected color will be displayed in the corresponding elds and in the Preview column.
6. Click Save to enable the settings.
1
2
3
4
Color Selector
Custom
Pattern
VIVOTEK
56 - User's Manual
System > Logs
This section explains how to congure the Network Camera to backup system log to a remote
server.
Log server settings
Follow the steps below to set up the remote log:
1. Select Enable remote log.
2. In the IP address text box, enter the IP address of the remote server.
2. In the port text box, enter the port number of the remote server.
3. When completed, click Save to enable the setting.
You can congure the Network Camera to send the system log le to a remote server as a log backup.
Before utilizing this feature, it is suggested that the user install a log-recording tool to receive system log
messages from the Network Camera. An example is Kiwi Syslog Daemon. Visit
http://www.kiwisyslog.
com/kiwi-syslog-daemon-overview/
.
System log
This column displays the system log in chronological order. The system log is stored in the Network
Camera’s buffer and dated events will be overwritten when the number of events reaches a limit.
VIVOTEK
User's Manual - 57
PC running
VAST Recording Software
Internet
VIVOTEK Network Cameras
3G Cell phone
Cell phone
Short message
Email
GSM
Modem
HTTP
PTZ
Digital output
You can install the included VAST recording software, which provides an Event Management
function group for delivering event messages via emails, GSM short messages, onscreen event
panel, or to trigger an alarm, etc. For more information, refer to the VAST User Manual.
VIVOTEK
58 - User's Manual
Access log
Access log displays the access time and IP address of all viewers (including operators and
administrators) in a chronological order. The access log is stored in the Network Camera’s buffer and
older events will be overwritten when the number of events reaches a limit.
System > Parameters
The View Parameters page lists the entire system’s parameters in an alphabetical order. If you
need technical assistance, use a text-editor program to copy and save the parameters listed on
this page. Send the parameter text le to VIVOTEK’s technical support.
VIVOTEK
User's Manual - 59
System > Maintenance
This chapter explains how to restore the Network Camera to factory default, upgrade rmware
version, etc.
General settings > Upgrade rmware
This feature allows you to upgrade the firmware of your Network Camera. It takes a few minutes to
complete the process.
Note: Do not power off the Network Camera during the upgrade!
Follow the steps below to upgrade the rmware:
1. Download the latest rmware le from the VIVOTEK website. The le is in .pkg le format.
2. Click Browse… and specify the rmware le.
3. Click Upgrade. The Network Camera starts to upgrade and will reboot automatically when the upgrade
completes.
If the upgrade is successful, you will see “Reboot system now!! This connection will close”. After that, re-
access the Network Camera.
The following message is displayed when the upgrade has succeeded.
The following message is displayed when you have selected an incorrect rmware le.
General settings > Reboot
This feature allows you to reboot the Network Camera, which takes about one minute to complete. When
completed, the live video page will be displayed in your browser. The following message will be displayed
during the reboot process.
If the connection fails after rebooting, manually enter the IP address of the Network Camera in the
address eld to resume the connection.
Starting firmware upgrade...
Do not power down the server during the upgrade.
The server will restart automatically after the upgrade is
completed.
This will take about 1 - 5 minutes.
Wrong PKG file format
Unpack fail
Reboot system now!!
This connection will close.
VIVOTEK
60 - User's Manual
General settings > Restore
This feature allows you to restore the Network Camera to factory default settings.
Network: Select this option to retain the Network Type settings (please refer to Network Type on page
82).
Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to
Import/Export les below on this page).
Custom Language: Select this option to retain the Custom Language settings.
VADP: Retain the VADP modules (3rd-party software stored on the SD card) and related settings.
If none of the options is selected, all settings will be restored to factory default. The following message is
displayed during the restoring process.
Import/Export les
This feature allows you to Export / Update daylight saving time rules, custom language file, and
conguration le.
Export daylight saving time conguration le: Click to set the start and end time of DST.
Follow the steps below to export:
1. In the Export les column, click Export to export the daylight saving time conguration le from the
Network Camera.
2. A le download dialog will pop up as shown below. Click Open to review the XML le or click Save to
store the le for editing.
VIVOTEK
User's Manual - 61
3. Open the le with Microsoft
®
Notepad and locate your time zone; set the start and end time of DST.
When completed, save the le.
In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at
2:00 a.m. on the rst Sunday in November.
Update daylight saving time rules: Click Browse… and specify the XML le to update.
If incorrect date and time are assigned, you will see the following warning message when uploading the
le to the Network Camera.
VIVOTEK
62 - User's Manual
The following message is displayed when attempting to upload an incorrect le format.
Export language file: Click to export language strings. VIVOTEK provides nine languages: English,
Deutsch, Español, Français, Italiano,
日本語,
Português,
簡体中文
, and
繁體中文
.
Update custom language le: Click Browse… and specify your own custom language le to upload.
Export conguration le: Click to export all parameters for the device and user-dened scripts.
Export daylight saving time configuration file: Click Browse… to update a configuration file. Please
note that the model and firmware version of the device should be the same as the configuration file.
If you have set up a xed IP or other special settings for your device, it is not suggested to update a
conguration le.
Export server staus report: Click to export the current server status report, such as time, logs,
parameters, process status, memory status, le system status, network status, kernel message..., and so
on.
Tips:
• If a firmware upgrade is accidentally disrupted, say, by a power outage, you still have a last resort
method to restore normal operation. See the following for how to bring the camera back to work:
Applicable scenario:
(1) Power disconnected during rmware upgrade.
(2) Unknown reason causing abnormal LED status, and a Restore cannot recover normal working
condition.
You can use the following methods to activate the camera with its backup rmware:
(1) Press and hold down the reset button for at least one minute.
(2) Power on the camera until the Red LED blinks rapidly.
(3) After boot up, the rmware should return to the previous version before the camera hanged. (The
procedure should take 5 to 10 minutes, longer than the normal boot-up process). When tthis
process is completed, the LED status should return to normal.
VIVOTEK
User's Manual - 63
Media > Image
This section explains how to configure the image settings of the Network Camera. It is
composed of the following tabbed windows: General settings, Image settings, Exposure, and
Privacy mask, and Pixel Calculator.
General settings
Video title: Enter a name that will be displayed on the title bar of the live video as well as the view cell on
the ST7501 and VAST recording software.
Show timestamp and video title in videos and snapshots: Enter a name that will be displayed on the title
bar of the live video as the picture shown below.
Position of timestamp and video title on image: Select to display time stamp and video title on the top or
at the bottom of the video stream.
Timestamp and video title font size: Select the font size for the time stamp and title.
Video font (.ttf): You can select a True Type font le for the display of textual messages on video.
Mount type: There are 3 Mount types - Ceiling, Wall, and Floor.
Ceiling: The Ceiling mount type automatically delivers upside-down images. The Ceiling mode
supports the following Display modes - 1O, 1P, 1R, 2P, 1O3R, 4R, 4R PRO, and 1O8R.
Wall: The Wall mount type applies to the monitoring of long, side-to-side surveillance areas, such
as when mounted on a wall facing a corridor. Different Mount types have different options with the
Display mode settings. For example, the 1P2R (1 Panoramic & 2 Regional) and 1P3R (1 Panoramic
& 3 Regional) display modes are only available when the “Wall“ Mount type is applied.
Floor: The Display modes with the Floor mount type are identical to those for the Ceiling mount
except that the images are not vertically ipped.
VIVOTEK
64 - User's Manual
Color: Select to display color or black/white video streams.
Power line frequency: Set the power line frequency consistent with local utility settings to eliminate image
ickering associated with uorescent lights.
Video orientation: Flip - vertically reflect the display of the live video; Mirror - horizontally reflect the
display of the live video. Select both options if the Network Camera is installed upside-down (e.g., on the
ceiling) to correct the image orientation. Please note that the preset locations will be cleared after you
congure the ip/mirror option.
Video orientation: Flip - vertically reflect the display of the live video; Mirror - horizontally reflect the
display of the live video. Select both options if the Network Camera is installed upside-down (e.g., on the
ceiling) to correct the image orientation. Please note that if you have preset locations, those locations will
be cleared after ip/mirror setting.
Day/Night settings
Switch to B/W in night mode
Select this checkbox to enable the Network Camera to automatically switch to Black & White display
during the night mode.
Turn on external IR illuminator in night mode
If your camera is installed with an IR illuminator and the digital output signals are connected to it, you can
let system rmware turn on the supplementary illuminator during low-light conditions.
IR cut lter
With a removable IR-cut lter, this Network Camera can automatically remove the lter to let Infrared
light pass into the sensor during low light conditions.
■ Auto mode (The Day/Night Exposure Prole will not be available if Auto mode is selected)
The Network Camera automatically removes the lter by judging the level of ambient light.
■ Day mode
In day mode, the Network Camera switches on the IR cut lter at all times to block infrared light from
reaching the sensor so that the colors will not be distorted.
■ Night mode
In night mode, the Network Camera switches off the IR cut lter at all times for the sensor to accept
infrared light, thus helping to improve low light sensitivity.
VIVOTEK
User's Manual - 65
■ Synchronize with digital input
The Network Camera automatically removes the IR cut filter when a digital input is triggered, for
example, when the camera is accompanied by an external IR light that comes with its own sensor and
provides a signal to the camera. Some camera housings come with such mechanism.
■ Schedule mode
The Network Camera switches between day mode and night mode based on a specied schedule.
Enter the start and end time for day mode. Note that the time format is [hh:mm] and is expressed in
24-hour clock time. By default, the start and end time of a day mode are set to 07:00 and 18:00.
Sensitivity
Tune the responsiveness of the IR lter to lighting conditions as Low, Normal, or High.
When completed with the settings on this page, click Save to enable the settings.
If you want to configure another sensor setting for a specific lighting condition in day/night/schedule
mode, please click Prole to open the Prole settings page as shown below.
Please follow the steps below to setup a prole:
1. Check Enable and apply this prole.
2. Select the applied mode: Day mode, Night mode, or Schedule mode. Please manually enter a range
of time through which you want the Schedule mode to apply.
3. Configure Exposure control settings in the folowing columns. Please refer to page 69 for detailed
information.
4. Click Save to enable the setting and click Close to exit the window.
VIVOTEK
66 - User's Manual
Image settings
On this page, you can tune the White balance, Image adjustment and related parameters. You can
congure two sets of preferred settings: one for normal situations, the other for special situations, such
as a schedule mode. Quality: select from the pull-down menu the image quality of the current live view.
White balance: Adjust the value for the best color temperature.
■ Auto: This will automatically adjust the color temperature of the light in response to different light
sources.
You may follow the steps below to adjust the white balance to the best color temperature.
1. Set the White balance to Auto.
2. Place a sheet of white paper (or a color of a cool color temperature, such as blue) in front of the lens,
then allow the Network Camera to automatically adjust the color temperature.
3. Check the Fix current value to confirm the setting when the camera automatically measured and
adjusted the white balance.
■ Manual: This item allows users to manually input the R gain & B gain ratios.
Image Adjustment
■ Brightness: Adjust the image brightness level, which ranges from 0% to 100%.
■ Contrast: Adjust the image contrast level, which ranges from 0% to 100%.
■ Saturation: Adjust the image saturation level, which ranges from 0% to 100%. You can also select
Customize and manually enter a value.
VIVOTEK
User's Manual - 67
■ Sharpness:
Adjust the image sharpness level, which ranges from 0% to 100%.
■ Gamma curve:
Adjust the image sharpness level, which ranges from 0.45 to
1, from Detailed to
Contrast
. You may let rmware Optimize your display or select the Manual mode, and pull the slide bar
pointer to change the preferred level of Gamma correction towards higher contrast or towards the higher
luminance for detailed expression for both dark and lighted areas of an image.
This option is disabled when the WDR feature is enabled.
Defog: Defog helps improve the visibility quality of captured image in poor weather conditions such as
smog, fog, or smoke.
■ Noise reduction
■ Enable noise reduction: Check to enable noise reduction in order to reduce noises and flickers in
image. This applies to the onboard 3D Noise Reduction feature. Use the pull-down menu to adjust
the reduction strength. Note that applying this function to the video channel will consume system
computing power.
3D Noise Reduction is mostly applied in low-light conditions. When enabled in a low-light condition
with fast moving objects, trails of after-images may occur. You may then select a lower strength level
or disable the function.
You can click Restore to recall the original settings without incorporating the changes. When completed
with the settings on this page, click Save to enable the setting. You can also click on the Prole mode to
adjust all settings above in a tabbed window for special lighting conditions at a specic period of time.
Enable to apply these settings at:
Select the mode this profile to apply to: Schedule mode. Please
manually enter a range of time if you choose Schedule mode. Then check Save to take effect.
VIVOTEK
68 - User's Manual
Exposure
On this page, you can congure the Exposure measurement window, Exposure level, Exposure mode,
Exposure time, Gain control, and Day/Night mode settings. Quality: select the pull-down menu to
congure the image quality of the current display.
M
easurement Window: This function allows users to set measurement window(s) for low light
compensation. For example, where low-light objects are posed against an extremely bright background.
You may want to exclude the bright sunlight shining through a building's corridor.
■ Full view: Calculate the full range of view and offer appropriate
light compensation.
■ Custom: This option allows you to manually add customized windows as inclusive or exclusive regions.
A total of 10 windows can be congured. Please refer to the next page for detailed illustration.
NOTE:
The Prole mode setting in the Exposure window will be disabled when the IR cut lter is set to the Auto
mode (Media > Image > General settings window).
VIVOTEK
User's Manual - 69
The inclusive window refers to the “weighed window“; the exclusive window refers to the “ignored
window.“ It adopts the weighed averages method to calculate the value. The inclusive windows have
a higher priority. You can overlap these windows, and, if you place an exclusive window within a larger
inclusive window, the exclusive part of the overlapped windows will be deducted from the inclusive
window. An exposure value will then be calculated out of the remaining of the inclusive window.
■ BLC (Back Light Compensation): This option will automatically add a “weighted region“ in the middle of
the window and give the necessary light compensation.
Exposure control:
■
Exposure level: You can manually set the Exposure level, which ranges from -2.0 to +2.0 (dark to
bright).
Include
Exclude
Weighted region
Ignored region
Include
Exclude
■
Exposure time: you can split the round pointers on the Exposure time and Gain control slide bars
into two halves and drag them on the bars to designate a range of values in which firmware can
automatically adapt to. Note that Firmware will then automatically tune the Gain, Exposure time, and
Iris opening within the ranges you specified. For example, in low-light condition, you may prefer a
longer exposure time and more electronic gains. However, the noises in the image will also increase.
■
Gain control: Tune the slide bar to set the Gain Control to the best image quality. Higher gain control
value will generate a certain amount of noises, and that the gain control, lighting levels, and picture
performance are closely related.
Click the Save button to preserve your conguration.
■
Flickerless: Under some circumstances when there is a difference between the video capture
frequency and local AC power frequency (NTSC or PAL), the mismatch causes color shifts or ickering
images. If the above mismatch occurs, select the Flickerless checkbox, and the range of Exposure
time (the shutter time) will be limited to a range in order to match the AC power frequency. When
selected, the exposure time will be forced to stay longer than 1/120 second. For cameras that come
with fixed iris lens, setting the exposure time to longer than 1/120 second may introduce too much
lights to the lens. Users can use this option to observe whether the result of long exposure time is
satisfactory.
You can click and drag the semi-circular pointers on the Exposure time and Gain control slide bars
to specify a range of shutter time and Gain control values within which the camera can automaticallly
tune to an optimal imaging result. For example, you may prefer a shorter shutter time to better capture
moving objects, while a faster shutter reduces light and needs to be compensated by electrical
brightness gains.
Note that when WDR is enabled, the exposure time and gain control are not available.
VIVOTEK
70 - User's Manual
Enable WDR enhanced:
This function allows users to identify more image details with an extreme
contrast from an object of interest with one shadowed side against a bright background, e.g., an entrance.
You may select the Enable WDR enhanced checkbox, and then adjust the strength (low, medium, high)
to reach the best image quality.
■
WDR:
Enable WDR Pro: This refers to the Wide Dynamic Range function that enables the camera to capture
details in a high contrast environment. Use the checkbox to enable the function, and use the slide bar
to select the strength of the WDR Pro functionality, depending on the lighting condition at the installation
site. You can select a higher effect when the contrast is high (between the shaded area and the light
behind the objects).
Please follow the steps below to congure a prole:
1. Select the Prole mode tab.
2. Select the applicable mode: Please manually enter
a range of time if you choose the Schedule mode.
3. Congure Exposure control settings in the folowing
columns. Please refer to previous dicussions for
detailed information.
4. Click Save to enable the setting and click Close to
exit the page.
You can click Restore to recall the original settings without incorporating the changes. When completed
with the settings on this page, click Save to enable the settings.
If you want to congure another sensor setting for a specic lighting condition for a specic period of time
in a day, please click Prole mode to open the Prole of exposure settings page as shown below.
Enable to apply these settings at: Manually enter
a range of time during which this prole will take effect,
and then check Save to take effect.
■
AE Speed Adjustment:
This function applies when you need to monitor fast changing lighting conditions. For example, the
camera may need to monitor a highway lane or entrance of a parking area at night where cars passing
by with their lights on can bring fast changes in light levels. The same applies if the camera is installed
on a vehicle, and when it needs to adapts to fast changes of light when entering and leaving a tunnel.
VIVOTEK
User's Manual - 71
Privacy mask
Click Privacy Mask to open the conguration page. On this page, you can block out certain sensitive
zones to address privacy concerns.
■ To congure the privacy mask windows, follow the steps below:
1. Click New to add a new window. A text box will appear allowing you to enter a name for the mask.
2. Use four mouse clicks to mark a square area, which is recommended to be at least twice the size of
the object (height and width) you want to cover.
3. Enter a Window Name and click Save to enable the setting.
4. Check Enable privacy mask to enable this function.
►
Up to 5 privacy mask windows can be congured on the same screen.
►
To delete a mask, use the red cross button and then click on the Save button.
4x
NOTE:
VIVOTEK
72 - User's Manual
Pixel Calculator
Click the Add button at the lower screen to create a pixel calculator window. Place your cursor on the
window to move it to an area of your interest, and change the size of window to t the area of interest.
Once they are drawn, the numbers of pixels on the sides of windows will appear. This allows you to
calculate if your current configuration fulfills a requirement, for instance, for recognizing the faces of
persons passing through a location. A facial recognition usually requires around 130 pixels per meter or
higher.
1
2
Pixel Calculator
Pixel Calculator
The pixels thus calculated are listed at
the lower screen on a per-stream basis
depending on the frame size you congured
for each video stream.
VIVOTEK
User's Manual - 73
Take the following into consideration when using this feature:
1. Operational requirement: Identify a human or a human face.
2. Why human face? There are less variances in the size of a face than that for limbs and body. Human
face is normally 16cm wide.
3. The recommended pixel number is, 40 to 80 for facial identication; or 100 pixels per foot (30.48cm)
3-1. One example is a human face in retail.
3-2. Another example is a doorway:
If the requirement is 100 pixels per foot, to detect a person passing through a door, the camera
will have to cover 700 pixels throughout the length of a doorway. This application aims to identify a
subject passing through a specic area.
4. Other factors may include that a person will move in your area of interest: The face may not always
face the camera.
5. Details can be affected by weak lighting or the view angle. Therefore, higher the pixels, higher the
chance you can identify the subject.
6. The pixel calculator visual tool looks like the following.
Pixel Calculator
Pixel Calculator
1
2
With the visual tool, you can estimate a coverage area, the distance from the subject, and place a ruler
or an object of known size. You can then draw a calculator frame to cover the subject of your interest.
The calculated numbers will be listed at the lower screen. You will then understand if the current
setting fullls your requests for the number of pixels.
VIVOTEK
74 - User's Manual
Media > Video
Stream settings
Please follow the steps below to set up those settings for an individual stream:
1. Select a stream to congure its viewing region.
2. Choose a proper Frame Size from the drop-down list according to the size of monitored device.
3. Select the Maximum frame rate.
■ The parameters of a xed-focal lens' multiple streams:
Region of Interest
Stream 1 1920 X 1920 ~ 192 x 192
Stream 2 1536 X 1536 (default) ~ 192 x 192
Stream 3 512 X 512 (default) ~ 192 x 192
Stream 4 1920 X 1920 ~ 192 x 192
To begin the conguration, rst select a video channel.
To change the frame size, frame rate, and other related settings, click on video settings for a video
stream to its individual conguration panel.
VIVOTEK
User's Manual - 75
Click the stream item to display the detailed information.
This Network Camera offers real-time H.265, H.264 and MJPEG compression standards (dual Codec)
for real-time viewing.
If the
H.265 or H.264 mode is selected, the video is streamed via RTSP protocol. There are several
parameters for you to adjust the video performance:
■ Frame size
You can set up different video resolutions for different viewing devices. For example, set a smaller
frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher
bit rate for live viewing on web browsers. Note that a larger frame size takes up more bandwidth.
■ Maximum frame rate
This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother video
quality and for recognizing moving objects in the eld of view.
If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps,
8fps, 10fps, 15fps, 20fps, and 25fps. If the power line frequency is set to 60Hz, the frame rates are
selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and 30fps. You can also select
Customize and manually enter a value.
VIVOTEK
76 - User's Manual
■ Intra frame period
Determine how often to plant an I frame. The shorter the duration, the more likely you will get better
video quality, but at the cost of higher network bandwidth consumption. Select the intra frame period
from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds.
■ Dynamic Intra frame period
High quality motion codecs, such as H.265 or H.264, utilize the redundancies between video frames to
deliver video streams at a balance of quality and bit rate.
The encoding parameters are summarized and illustrated below. The I-frames are completely self-
referential and they are largest in size. The P-frames are predicted frames. The encoder refers to the
previous I- or P-frames for redundant image information.
P I P P P P P P P P P P P P P P P P P P P I
P I P P P P P P P I P P P P P P P I
Static scene
Activities
P P P
P I P P P P P P P I P P P P P P P I
By dynamically prolonging the intervals for I-frames insertion to up to 10 seconds, the bit rates required
for streaming a video can be tremendously reduced. When streaming a video of a static scene,
the Dynamic Intra frame feature can save up to 53% of bandwidth. The amount of bandwidth thus
saved is also determined by the activities in the eld of view. If activities occur in the scene, rmware
automatically shortens the I-frame insertion intervals in order to maintain image quality. In the low light
or night conditions, the P-frames can have a larger size due to the noises, and hence the bandwidth
saving effect is also reduced.
Streaming a typical 2MP scene normally requires 3~4Mb/s of bandwidth. With the Dynamic Intra frame
function, the bandwidth for streaming a medium-trafc scene can be reduced to 2~3Mb/s, and during
the no-trafc period of time, down to 500kb/s.
H.264/265 Frame Types
Dynamic Intra Frame w/
static scenes
Dynamic Intra Frame w/
activities in scenes
Smart stream II
VIVOTEK
User's Manual - 77
■
Smart codec effectively reduces the quality of the whole or the non-interested areas on a
screen and therefore reduces the bandwidth consumed.
X
ROI_0
X
ROI_0
ROI
non-interested
You can manually specify the video quality for the foreground and the background areas.
Select an operation mode if Smart codec is preferred.
- Auto tracking: The Auto mode congures the whole screen into the non-interested area.
The video quality of part of the screen returns to normal when one or more objects
move in that area. The remainder of the screen where there are no moving objects
(no pixel changes) will still be transmitted in low-quality format.
- Manual: The Manual mode allows you to congure 3 ROI windows (Region of Interest,
with Foreground quality) on the screen. Areas not included in any ROI windows
will be considered as the non-interested areas. The details in the ROI areas will be
transmitted in a higher-quality video format.
As illustrated below, the upper screen may contain little details of your interest,
while the sidewalk on the lower screen is included in an ROI window.
With the H.265 codec in an optimal scenario and when Dynamic Intra frame is combined with the
Smart Stream function, an 80% of bandwidth saving can be achieved compared with using H.264
without enabling these bandwidth-saving features.
Slide bar to the right - higher quality in the ROI
areas
Slide bar to the left - higher quality in the non-ROI
areas.
VIVOTEK
78 - User's Manual
ROI: higher-quality
non-ROI: lower-quality
As the result, the lower screen is constantly displayed in high details,
while the upper half is transmitted using a lower-quality format. Although
the upper half is transmitted using a lower quality format, you still have an
awareness of what is happening on the whole screen.
- Hybrid: The major difference between the “Manual” mode and the “Hybrid”
mode is that:
In the “Hybrid“ mode, any objects entering the non-interested area will
restore the video quality of the moving objects and the area around
them. The video quality of the associated non-interested area is
immediately restored to normal to cover the moving objects.
In the “Manual” mode, the non-interested area is always transmitted
using a low-quality format regardless of the activities inside.
You should also select the Maximum bit rate from the pull-down menu as the
threshold to contain the bandwidth consumption for both the high- and low-
quality video sections in a smart stream.
- Quality priority: Use the slide bar to tune the quality contrast between the ROI
and non-interested areas.
The farther the slide bar button is to the right, the higher the image
quality of the ROI areas. On the contrary, the farther the slide bar button
to the left, the higher the image quality of the non-interested area.
In this way, you may set up an ROI window as a privacy mask by
covering a protected area using an ROI window, while the remaining
screen become the non-interested area. You may then configure the
non-interested area to have a high image quality, or vice versa.
VIVOTEK
User's Manual - 79
- Maximum bit rate: With the guaranteed image quality, you might still want to place a bit
rate limitation to control the size of video streams for bandwidth and storage concerns. The
congurable bit rate starts from 1Mbps to 40Mbps.
The Maximum bit rate setting in the Fixed quality conguration can ensure a reasonable
and limited use of network bandwidth. For example, in low light conditions where a Fixed
quality setting is applied, video packet sizes can tremendously increase when noises are
produced with electrical gain.
You may also manually enter a bit rate number by selecting the Customized option.
■ Video quality
• Constant bit rate: A complex scene generally produces a larger file size, meaning that
higher bandwidth will be needed for data transmission. The bandwidth utilization is
configurable to match a selected level, resulting in mutable video quality performance.
The bit rates are selectable at the following rates:
20Kbps, 30Kbps, 40Kbps, 50Kbps, 64Kbps,
128Kbps, 256Kbps, 512Kbps, 768Kbps, 1Mbps, 2Mbps, 3Mbps, 4Mbps, 6Mbps, 8Mbps, and
16Mbps
. You can also select Customize and manually enter a value up to 40Mbps.
- Target bit rate: select a bit rate from the pull-down menu. The bit rate ranges from 20kbps
to a maximum of 16Mbps. The bit rate then becomes the Average or Upper bound bit rate
number. The Network Camera will strive to deliver video streams around or within the bit
rate limitation you impose.
- Policy: If Frame Rate Priority is selected, the Network Camera will try to maintain
the frame rate per second performance, while the image quality will sometimes be
compromised. If Image quality priority is selected, the Network Camera might drop some
video frames in order to maintain image quality.
• Fixed quality: On the other hand, if Fixed quality is selected, all frames are transmitted
with the same quality; bandwidth utilization is therefore unpredictable. The video quality
can be adjusted to the following settings: Medium, Standard, Good, Detailed, and
Excellent. You can also select Customize and manually enter a value.
VIVOTEK
80 - User's Manual
If JPEG mode is selected, the Network Camera continuously sends JPEG images to the client, producing
a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same
image quality, which in turn comes at the expense of variable bandwidth usage. Because the media
contents are a combination of JPEG images, no audio data is transmitted to the client. There are three
parameters provided in MJPEG mode to control the video performance:
■ Frame size
You can set up different video resolution for different viewing devices. For example, set a smaller
frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher
bit rate for live viewing on web browsers. Note that a larger frame size takes up more bandwidth.
■ Maximum frame rate
This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother video
quality.
If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps,
8fps, 10fps, 15fps, 20fps, and 25fps. If the power line frequency is set to 60Hz, the frame rates are
selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and 30fps. You can also select
Customize and manually enter a value.
■ Video quality
Refer to the previous page setting an average or upper bound threshold for controlling the bandwidth
consumed for transmitting motion jpegs. The conguration method is identical to that for H.265/H.264.
NOTE:
• Video quality and fixed quality refer to the compression rate. If you select to enter a Customized
value in the Fixed quality menu, a lower value will produce higher quality.
• Converting high-quality video may significantly increase the CPU load, and you may encounter
streaming disconnection or video loss while capturing a complicated scene. In the event of
occurrence, we suggest you customize a lower video resolution or reduce the frame rate to obtain a
smooth video.
VIVOTEK
User's Manual - 81
Media > Audio
Audio Settings
Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that
if mute mode is turned on, no audio data will be transmitted even if audio transmission is enabled on the
Client Settings page. In that case, the following message is displayed:
Microphone source: Select to stream the video with either the audio input from the internal or an external
microphone.
Internal microphone input gain: Select the gain of the internal audio input according to ambient
conditions. Adjust the gain from 0% (least) to 100% (most).
Enternal microphone input gain: Select the gain of the internal audio input according to ambient
conditions. Adjust the gain from 0% (least) to 100% (most).
Audio type: Select audio codec as G.711 or G.726 and the bit rate.
■ G.711 provides good sound quality and requires about 64Kbps. Select pcmu (μ-Law) or pcma (A-Law)
mode.
■ G.726 is a speech codec standard covering voice transmission at rates of 16, 24, 32, and 40kbit/s.
When completed with the settings on this page, click Save to enable the settings.
VIVOTEK
82 - User's Manual
Network > General settings
This section explains how to congure a wired network connection for the Network Camera.
Network Type
LAN
Select this option when the Network Camera is deployed on a local area network (LAN) and is intended
to be accessed by local computers. The default setting for the Network Type is LAN. Rememer to click
Save when you complete the Network setting.
Get IP address automatically: Select this option to obtain an available dynamic IP address assigned by
the DHCP server each time the camera is connected to the LAN.
Use xed IP address: Select this option to manually assign a static IP address to the Network Camera.
1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network
Camera on LAN. Please refer to Software Installation on page 27 for details.
2. Enter the Static IP, Subnet mask, Default router, and Primary DNS provided by your ISP.
Subnet mask: This is used to determine if the destination is in the same subnet. The default value is
“255.255.255.0”.
Default router: This is the gateway used to forward frames to destinations in a different subnet. Invalid
router setting will fail the transmission to destinations in different subnet.
VIVOTEK
User's Manual - 83
Primary DNS: The primary domain name server that translates hostnames into IP addresses.
Secondary DNS: Secondary domain name server that backups the Primary DNS.
Primary WINS server: The primary WINS server that maintains the database of computer name and IP
address.
Secondary WINS server: The secondary WINS server that maintains the database of computer name
and IP address.
Enable UPnP presentation: Select this option to enable UPnP
TM
presentation for your Network Camera
so that whenever a Network Camera is presented to the LAN, shortcuts of connected Network Cameras
will be listed in My Network Places. You can click the shortcut to link to the web browser. Currently,
UPnP
TM
is supported by Windows XP or later. Note that to utilize this feature, please make sure the
UPnP
TM
component is installed on your computer.
Enable UPnP port forwarding: To access the Network Camera from the Internet, select this option to
allow the Network Camera to open ports on the router automatically so that video streams can be sent
out from a LAN. To utilize of this feature, make sure that your router supports UPnP
TM
and it is activated.
PPPoE (Point-to-point over Ethernet)
Select this option to congure your Network Camera to make it accessible from anywhere as long as
there is an Internet connection. Note that to utilize this feature, it requires an account provided by your
ISP.
Follow the steps below to acquire your Network Camera’s public IP address.
1. Set up the Network Camera on the LAN.
2. Go to Conguration > Event > Event settings > Add server (please refer to Add server on page 121) to
add a new email or FTP server.
3. Go to Conguration > Event > Event settings > Add media (please refer to Add media on page 125).
Select System log so that you will receive the system log in TXT le format which contains the
Network Camera’s public IP address in your email or on the FTP server.
4. Go to Conguration > Network > General settings > Network type. Select PPPoE and enter the user
name and password provided by your ISP. Click Save to enable the setting.
5. The Network Camera will reboot.
6. Disconnect the power to the Network Camera; remove it from the LAN environment.
Mega-pixel Network Camera (192.168.5.151)
VIVOTEK
84 - User's Manual
► If the default ports are already used by other devices connected to the same router, the Network
Camera will select other ports for the Network Camera.
► If UPnP
TM
is not supported by your router, you will see the following message:
Error: Router does not support UPnP port forwarding.
► Below are steps to enable the UPnP
TM
user interface on your computer:
Note that you must log on to the computer as a system administrator to install the UPnP
TM
components.
1. Go to Start, click Control Panel, then click Add or Remove Programs.
2. In the Add or Remove Programs dialog box, click Add/Remove Windows Components.
3.
In the Windows Components Wizard dialog box, select Networking Services and click Details.
NOTE:
VIVOTEK
User's Manual - 85
4. In the Networking Services dialog box, select Universal Plug and Play and click OK.
5. Click Next in the following window.
6. Click Finish. UPnP
TM
is enabled.
► How does UPnP
TM
work?
UPnP
TM
networking technology provides automatic IP conguration and dynamic discovery of devices
added to a network. Services and capabilities offered by networked devices, such as printing and le
sharing, are available among each other without the need for cumbersome network conguration. In
the case of Network Cameras, you will see Network Camera shortcuts under My Network Places.
► Enabling UPnP port forwarding allows the Network Camera to open a secondary HTTP port on the
router-not HTTP port-meaning that you have to add the secondary HTTP port number to the Network
Camera’s public address in order to access the Network Camera from the Internet. For example,
when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for
the Network Camera’s IP address.
From the Internet In LAN
http://203.67.124.123:8080 http://192.168.4.160 or
http://192.168.4.160:8080
► If the PPPoE settings are incorrectly configured or the Internet access is not working, restore the
Network Camera to factory default; please refer to Restore on page 60 for details. After the Network
Camera is reset to factory default, it will be accessible on the LAN.
VIVOTEK
86 - User's Manual
Enable IPv6
Select this option and click Save to enable IPv6 settings.
Please note that this only works if your network environment and hardware equipment support IPv6. The
browser should be Microsoft
®
Internet Explorer 6.5, Mozilla Firefox 3.0 or above.
When IPv6 is enabled, by default, the network camera will listen to router advertisements and be
assigned with a link-local IPv6 address accordingly.
IPv6 Information: Click this button to obtain the IPv6 information as shown below.
If your IPv6 settings are successful, the IPv6 address list will be listed in the pop-up window. The IPv6
address will be displayed as follows:
Link-global IPv6 address/network mask
Link-local IPv6 address/network mask
Refers to Ethernet
VIVOTEK
User's Manual - 87
Please follow the steps below to link to an IPv6 address:
1. Open your web browser.
2. Enter the link-global or link-local IPv6 address in the address bar of your web browser.
3. The format should be:
4. Press Enter on the keyboard or click Refresh button to refresh the webpage.
For example:
NOTE:
► If you have a Secondary HTTP port (the default value is 8080), you can also link to the webpage in
the following address format: (Please refer to HTTP streaming on page 90 for detailed information.)
► If you choose PPPoE as the Network Type, the [
PPP0 address] will be displayed in the IPv6
information column as shown below.
Manually setup the IP address: Select this option to manually set up IPv6 settings if your network
environment does not have DHCPv6 server and router advertisements-enabled routers.
If you check this item, the following blanks will be displayed for you to enter the corresponding
information:
http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/
IPv6 address
http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/:8080
IPv6 address
Secondary HTTP port
VIVOTEK
88 - User's Manual
Port
HTTPS port: By default, the HTTPS port is set to 443. It can also be assigned to another port number
between 1025 and 65535.
Two way audio port: By default, the two way audio port is set to 5060. Also, it can also be assigned to
another port number between 1025 and 65535.
The Network Camera supports two way audio communication so that operators can transmit and receive
audio simultaneously. By using the Network Camera’s built-in or external microphone and an external
speaker, you can communicate with people around the Network Camera.
Note that as JPEG only transmits a series of JPEG images to the client, to enable the two-way audio
function, make sure the video mode is set to H.265 or H.264 on the Media > Video > Stream settings
page and the media option is set to “Media > Video > Stream settings” on the Client Settings page.
Please refer to Client Settings on page 47 and Stream settings on page 74.
Audio transmitted from operators
Audio transmitted to operators
America
Taiwan
FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's
Installation Wizard 2 to upgrade the rmware via FTP server. By default, the FTP port is set to 21, or
assigned to another port number between 1025 and 65535.
VIVOTEK
User's Manual - 89
2011/03/09 17:08:56
Mute
Mic Volume
Talk Button
Video (TCP-AV)
Audio is being transmitted to the Network Camera
Click to enable audio transmission to the Network Camera; click to adjust the volume of
microphone; click
to turn off the audio. To stop talking, click again.
VIVOTEK
90 - User's Manual
Network > Streaming protocols
HTTP streaming
To utilize HTTP authentication, make sure that your have set a password for the Network Camera rst;
please refer to Security > User account on page 101 for details.
Authentication: Depending on your network security requirements, the Network Camera provides two
types of security settings for an HTTP transaction: basic and digest.
If
basic authentication is selected, the password is sent in plain text format and there can be potential
risks of being intercepted. If
digest authentication is selected, user credentials are encrypted using MD5
algorithm and thus provide better protection against unauthorized access.
HTTP port / Secondary HTTP port: By default, the HTTP port is set to 80 and the secondary HTTP port is
set to 8080. They can also be assigned to another port number between 1025 and 65535. If the ports are
incorrectly assigned, the following warning messages will be displayed:
To access the Network Camera on the LAN, both the HTTP port and secondary HTTP port can be used
to access the Network Camera. For example, when the HTTP port is set to 80 and the secondary HTTP
port is set to 8080, refer to the list below for the Network Camera’s IP address.
Access name for Channel # and stream #: This Network camera supports multiple streams
simultaneously. The access name is used to differentiate the streaming source. Users can click Media >
Video > Stream settings to set up the video quality of linked streams. For more information about how
to set up the video quality, please refer to Stream settings on page 74.
When using Mozilla Firefox or Netscape to access the Network Camera and the video mode is set to
JPEG, users will receive video comprised of continuous JPEG images. This technology, known as “server
push”, allows the Network Camera to feed live pictures to Mozilla Firefox and Netscape.
On the LAN
http://192.168.4.160 or
http://192.168.4.160:8080
VIVOTEK
User's Manual - 91
URL command -- http://<ip address>:<http port>/<access name for stream 1 ~ 4>
For example, when the Access name for stream 2 is set to video2.mjpg:
1. Launch Mozilla Firefox or Netscape.
2. Type the above URL command in the address bar. Press Enter.
3. The JPEG images will be displayed in your web browser.
IMPORTANT:
► Microsoft
®
Internet Explorer does not support server push technology; therefore, using http://<ip
address>:<http port>/<access name for stream 1 ~ 4>
will fail to access the Network Camera.
► Users can only use URL commands to request the stream 5. For more information about URL
commands, please refer to page 151.
RTSP Streaming
To utilize RTSP streaming authentication, make sure that you have set a password for the Network
Camera rst; please refer to Security > User account on page 101 for details.
http://192.168.5.151/video2.mjpg
VIVOTEK
92 - User's Manual
Authentication: Depending on your network security requirements, the Network Camera provides three
types of security settings for streaming via RTSP protocol: disable, basic, and digest.
If
basic authentication is selected, the password is sent in plain text format, but there can be potential
risks of it being intercepted. If
digest authentication is selected, user credentials are encrypted using
MD5 algorithm, thus providing better protection against unauthorized access.
The availability of the RTSP streaming for the three authentication modes is listed in the following table:
Access name for Channel # and stream #: This Network camera supports multiple streams
simultaneously. The access name is used to differentiate the streaming source.
If you want to use an
RTSP player to access the Network Camera, you HAVE TO set the video mode to
H.265 or 264 and use the following RTSP URL command to request transmission of the streaming data.
rtsp://<ip address>:<rtsp port>/<access name for stream1 ~ 4>
For example, when the access name for stream 1 is set to live.sdp:
1. Launch an RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.
3. Type the above URL command in the address eld.
4. The live video will be displayed in your player as shown
below.
rtsp://192.168.5.151:554/live.sdp
Quick Time player VLC Player
Disable O O
Basic O O
Digest O X
Video 16:38:01 2011/03/25
VIVOTEK
User's Manual - 93
RTSP port /RTP port for video, audio/ RTCP port for video, audio
■ RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the port
number is set to 554.
■ The RTP (Real-time Transport Protocol) is used to deliver video and audio data to the clients. By
default, the RTP port for video is set to 5556 and the RTP port for audio is set to 5558.
■ The RTCP (Real-time Transport Control Protocol) allows the Network Camera to transmit the data by
monitoring the Internet trafc volume. By default, the RTCP port for video is set to 5557 and the RTCP
port for audio is set to 5559.
The ports can be changed to values between 1025 and 65535. The RTP port must be an even number
and the RTCP port is the RTP port number plus one, and thus is always an odd number. When the RTP
port changes, the RTCP port will change accordingly.
If the RTP ports are incorrectly assigned, the following warning message will be displayed:
Multicast settings for stream #1 ~ #4: Click the items to display the detailed conguration information.
Select the Always multicast option to enable multicast for streams #1 ~ #4.
VIVOTEK
94 - User's Manual
Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other
hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at
the same time by requesting a copy from the multicast group address. Therefore, enabling multicast can
effectively save Internet bandwith.
The ports can be changed to values between 1025 and 65535. The multicast RTP port must be an even
number and the multicast RTCP port number is the multicast RTP port number plus one, and thus is
always odd. When the multicast RTP port changes, the multicast RTCP port will change accordingly.
If the multicast RTP video ports are incorrectly assigned, the following warning message will be
displayed:
Multicast TTL [1~255]: The multicast TTL (Time To Live) is the value that tells the router the range a
packet can be forwarded.
Initial TTL Scope
0 Restricted to the same host
1 Restricted to the same subnetwork
32 Restricted to the same site
64 Restricted to the same region
128 Restricted to the same continent
255 Unrestricted in scope
IMPORTANT:
The Multicast metadata port is utilized by VIVOTEK VADP modules to transfer video analytics results,
PTZ stream, textual data, and event messages between the camera and the client side running and
observing the video analysis. If your client side computer is located outside the local network, you may
need to open the associated TCP port on routers and rewall.
VIVOTEK
User's Manual - 95
Network > DDNS
This section explains how to configure the dynamic domain name service for the Network
Camera. DDNS is a service that allows your Network Camera, especially when assigned with a
dynamic IP address, to have a xed host and domain name.
Manual setup
DDNS: Dynamic domain name service
Enable DDNS: Select this option to enable the DDNS setting.
Provider: Select a DDNS provider from the provider drop-down list.
VIVOTEK offers
Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is
recommended that you register
Safe100.net to access VIVOTEK’s Network Cameras from the Internet.
Additionally, we offer other DDNS providers, such as Dyndns.org(Dynamic), Dyndns.org(Custom),
Safe100.net, and CustomSafe100.
Note that before utilizing this function, please apply for a dynamic domain account rst.
■
Safe100.net
1. In the DDNS column, select Safe100.net from the drop-down list. Click I accept after reviewing the
terms of the Service Agreement.
2. In the Register column, ll in the Host name (xxxx.safe100.net), Email, Key, and Conrm Key, and
click Register. After a host name has been successfully created, a success message will be displayed
in the DDNS Registration Result column.
[Register] Successfully Your account information has
been mailed to registered e-mail address
VIVOTEK
96 - User's Manual
3. Click Copy and all the registered information will automatically be uploaded to the corresponding elds
in the DDNS column at the top of the page as seen in the picture.
[Register] Successfully Your account information has
been mailed to registered e-mail address
4. Select Enable DDNS and click Save to enable the setting.
■
CustomSafe100
VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system
integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system
integrators offer such services.
1. In the DDNS column, select CustomSafe100 from the drop-down list.
2. In the Register column, ll in the Host name, Email, Key, and Conrm Key; then click Register. After a
host name has been successfully created, you will see a success message in the DDNS Registration
Result column.
3. Click Copy and all for the registered information will be uploaded to the corresponding elds in the
DDNS column.
4. Select Enable DDNS and click Save to enable the setting.
Forget key: Click this button if you have forgotten the key to Safe100.net or CustomSafe100. Your
account information will be sent to your email address.
Refer to the following links to apply for a dynamic domain account when selecting other DDNS
providers:
■ Dyndns.org(Dynamic) / Dyndns.org(Custom): visit http://www.dyndns.com/
VIVOTEK
User's Manual - 97
Please follow the steps below to enable Express Link:
1. Make sure that your router supports UPnP port forwarding and it is activated.
2. Check Enable express link.
3. Enter a host name for the network device and click Save. If the host name has been used by another
device, a warning message will show up. If the host name is valid, it will display a message as shown
below.
https://vivotek test3454.2bthere.net
Express link
Express Link is a free service provided by VIVOTEK server, which allows users to register a
domain name for a network device. One URL can only be mapped to one MAC address. This
service will examine if the host name is valid and automatically open a port on your router. If
using DDNS, the user has to manually congure UPnP port forwarding. Express Link is more
convenient and easier to set up.
VIVOTEK
98 - User's Manual
Network > QoS (Quality of Service)
Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality
to different services on the network. Quality of service guarantees are important if the network capacity
is insufcient, especially for real-time streaming multimedia applications. Quality can be dened as, for
instance, a maintained level of bit rate, low latency, no packet dropping, etc.
The following are the main benets of a QoS-aware network:
■
The ability to prioritize trafc and guarantee a certain level of performance to the data ow.
■
The ability to control the amount of bandwidth each application may use, and thus provide higher
reliability and stability on the network.
Requirements for QoS
To utilize QoS in a network environment, the following requirements must be met:
■
All network switches and routers in the network must include support for QoS.
■
The network video devices used in the network must be QoS-enabled.
QoS models
CoS (the VLAN 802.1p model)
IEEE802.1p defines a QoS model at OSI Layer 2 (Data Link Layer), which is called CoS, Class of
Service. It adds a 3-bit value to the VLAN MAC header, which indicates the frame priority level from 0
(lowest) to 7 (highest). The priority is set up on the network switches, which then use different queuing
disciplines to forward the packets.
Below is the setting column for CoS. Enter the VLAN ID of your switch (0~4095) and choose the priority
for each application (0~7).
If you assign Video the highest priority level, your network switch will handle video packets rst.
• A VLAN-capable switch (802.1p) is required. Web browsing may fail if the CoS setting is incorrect.
• Class of Service technologies do not guarantee a level of service in terms of bandwidth and delivery
time; they offer a “best-effort.” Users can think of CoS as a “coarsely-grained” trafc control and QoS
as a “nely-grained” trafc control.
• Although CoS is simple to manage, it lacks scalability and does not offer end-to-end guarantees
since it is based on L2 protocol.
NOTE:
VIVOTEK
User's Manual - 99
QoS/DSCP (the DiffServ model)
DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is
based on packet marking and router queuing disciplines. The marking is done by adding a eld to the
IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64
different class IDs. It gives an indication of how a given packet is to be forwarded, known as the Per Hop
Behavior (PHB). The PHB describes a particular service level in terms of bandwidth, queueing theory,
and dropping (discarding the packet) decisions. Routers at each network node classify packets according
to their DSCP value and give them a particular forwarding treatment; for example, how much bandwidth
to reserve for it.
Below are the setting options of DSCP (DiffServ Codepoint). Specify the DSCP value for each application
(0~63).
VIVOTEK
100 - User's Manual
Network > SNMP (Simple Network Management Protocol)
This section explains how to use the SNMP on the network camera. The Simple Network
Management Protocol is an application layer protocol that facilitates the exchange of
management information between network devices. It helps network administrators to remotely
manage network devices and nd, solve network problems with ease.
■ The SNMP consists of the following three key components:
1. Manager: Network-management station (NMS), a server which executes applications that monitor and
control managed devices.
2. Agent: A network-management software module on a managed device which transfers the status of
managed devices to the NMS.
3. Managed device: A network node on a managed network. For example: routers, switches, bridges,
hubs, computer hosts, printers, IP telephones, network cameras, web server, and database.
Before conguring SNMP settings on the this page, please enable your NMS rst.
SNMP Conguration
Enable SNMPv1, SNMPv2c
Select this option and enter the names of Read/Write community and Read Only community according to
your NMS settings.
Enable SNMPv3
This option contains cryptographic security, a higher security level, which allows you to set the
Authentication password and the Encryption password.
■ Security name: According to your NMS settings, choose Read/Write or Read Only and enter the
community name.
■ Authentication type: Select MD5 or SHA as the authentication method.
■ Authentication password: Enter the password for authentication (at least 8 characters).
■ Encryption password: Enter a password for encryption (at least 8 characters).
VIVOTEK
User's Manual - 101
Security > User Account
This section explains how to enable password protection and create multiple accounts.
Root Password
The administrator account name is “root”, which is permanent and can not be deleted. If you want to add
more accounts in the Manage User column, please apply the password for the “root” account rst.
1. Type the password identically in both text boxes, then click Save to enable password protection.
2. A window will prompt for authentication; type the correct user’s name and password in their respective
elds to access the Network Camera.
Privilege management
Digital Output & PTZ control: You can modify the management privilege as operators or viewers. Select
or de-select the checkboxes, and then click Save to enable the settings. If you give Viewers the privilege,
Operators will also have the ability to control the Network Camera through the main page. (Please refer
to Conguration on page 51).
Allow anonymous viewing: If you select this item, any client can access the live stream without entering a
User ID and Password.
Account management
Administrators can create up to 20 user accounts.
1. Input the new user’s name and password.
2. Select the privilege level for the new user account. Click Add to enable the setting.
Access rights are sorted by user privilege (Administrator, Operator, and Viewer). Only administrators can
access the Conguration page. Though operators cannot access the Conguration page, they can use
the URL Commands to get and set the value of parameters. For more information, please refer to URL
Commands of the Network Camera on page 150. Viewers access only the main page for live viewing.
Here you also can change a user’s access rights or delete user accounts.
1. Select an existing account to modify.
2. Make necessary changes and click Update or Delete to enable the setting.
VIVOTEK
102 - User's Manual
Security > HTTPS (Hypertext Transfer Protocol over SSL)
This section explains how to enable authentication and encrypted communication over SSL
(Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher
security level.
Create and Install Certicate Method
Before using HTTPS for communication with the Network Camera, a Certicate must be created rst.
There are three ways to create and install a certicate:
Create self-signed certificate
1. Select the rst option.
2. Check Enable HTTPS secure connection, then select a connection option: “HTTP & HTTPS” or
“HTTPS only”.
3. Click Create certicate to generate a certicate.
4. The Certicate Information will automatically be displayed in the lower screen as shown below. You
can click Certicate properties to view detailed information about the certicate.
VIVOTEK
User's Manual - 103
5. Click Save to preserve your conguration, and your current session with the camera will change to the
encrypted connection.
6. If your web session does not automatically change to an encrypted HTTPS session, click Home to re-
turn to the main page. Change the URL address from “
http://” to “https://“ in the address bar and press
Enter on your keyboard. Some Security Alert dialogs will pop up. Click OK or Yes to enable HTTPS.
https://
VIVOTEK
104 - User's Manual
Create certificate request and install
1. Select the option from the Method pull-down menu.
2. Click Create certicate to proceed.
3. The following information will show up in a pop-up window after clicking Create. Then click Save to
generate the certicate request.
4. The Certicate request window will prompt.
If you see the following Information bar, click OK and click on the Information bar at the top of the page
to allow pop-ups.
VIVOTEK
User's Manual - 105
5. Look for a trusted certificate authority, such as Symantec’s VeriSign Authentication Services, that
issues digital certificates. Sign in and purchase the SSL certification service. Copy the certificate
request from your request prompt and paste it in the CA’s signing request window. Proceed with the
rest of the process as CA’s instructions on their webpage.
6. Once completed, your SSL certicate should be delivered to you via an email or other means. Copy
the contents of the certicate in the email and paste it in a text/HTML/hex editor/converter, such as
IDM Computer Solutions’ UltraEdit.
VIVOTEK
106 - User's Manual
7. Open a new edit, paste the certicate contents, and press ENTER at the end of the contents to add an
empty line.
8. Convert le format from DOS to UNIX. Open File menu > Conversions > DOS to Unix.
VIVOTEK
User's Manual - 107
9. Save the edit using the “.crt” extension, using a le name like “CAcert.crt.”
10. Return to the original rmware session, use the Browse button to locate the crt certicate le, and
click Upload to enable the certication.
VIVOTEK
108 - User's Manual
11. When the certifice file is successfully loaded, its status will be stated as Active.
Note that a
certicate must have been created and installed before you can click on the “Save" button
for the conguration to take effect.
12.To begin an encrypted HTTPS session, click Home to return to the main page. Change the URL ad-
dress from “
http://” to “https://“ in the address bar and press Enter on your keyboard. Some Security
Alert dialogs will pop up. Click OK or Yes to enable HTTPS.
VIVOTEK
User's Manual - 109
Security > Access List
This section explains how to control access permission by verifying the client PC’s IP address.
General Settings
Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10
clients (including stream #1, #2, and #3). The default value is 10. If you modify the value and click Save,
all current connections will be disconnected and automatically attempt to re-link (IE Explorer or Quick
Time Player).
Connection management: Click this button to display the connection status window showing a list of the
current connections. For example:
■ IP address: Current connections to the Network Camera.
■ Elapsed time: How much time the client has been at the webpage.
■ User ID: If the administrator has set a password for the webpage, the clients have to enter a user name
and password to access the live video. The user name will be displayed in the User ID column. If the
administrator allows clients to link to the webpage without a user name and password, the User ID
column will be empty.
There are some situations which allow clients access to the live video without a user name and
password:
1. The administrator does not set up a root password. For more information about how to set up a root
password and manage user accounts, please refer to Security > User account on page 101.
2. The administrator has set up a root password, but set RTSP Authentication to “disable“. For more
information about RTSP Authentication, please refer to RTSP Streaming on page 91.
3. The administrator has set up a root password, but allows anonymous viewing. For more information
about Allow Anonymous Viewing, please refer to page 101.
■ Refresh: Click this button to refresh all current connections.
■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List
to deny access. Please note that those checked connections will only be disconnected temporarily
and will automatically try to re-link again (IE Explore or Quick Time Player). If you want to enable the
denied list, please check Enable access list ltering and click Save in the rst column.
192.168.3.25
61.22.15.3
192.168.1.147
IP address
45:00:34
00:10:09
12:20:34
Elapsed time
greg
anonymous
root
User ID
Add to Deny List DisconnectRefresh
VIVOTEK
110 - User's Manual
■ Disconnect: If you want to break off the current connections, please select them and click this
button. Please note that those checked connections will only be disconnected temporarily and will
automatically try to re-link again (IE Explorer or Quick Time Player).
Enable access list ltering: Check this item and click Save if you want to enable the access list ltering
function.
Filter
Filter type: Select Allow or Deny as the lter type. If you choose Allow Type, only those clients whose
IP addresses are on the Access List below can access the Network Camera, and the others cannot
access. On the contrary, if you choose Deny Type, those clients whose IP addresses are on the Access
List below will not be allowed to access the Network Camera, and the others can access.
Then you can Add a rule to the following Access List. Please note that the IPv6 access list column
will not be displayed unless you enable IPv6 on the Network page. For more information about IPv6
Settings, please refer to Network > Enable IPv6 on page 86 for detailed information.
There are three types of rules:
Single: This rule allows the user to add an IP address to the Allowed/Denied list.
For example:
VIVOTEK
User's Manual - 111
accesses from IP address 192.168.2.x will be bolcked.
If IPv6 lter is preferred, you will be prompted by the following window. Enter the IPv6 address and the
two-digit prex length to specify the range of IP addresses in your conguration.
For example:
• 192.168.100.14/24 represents the IPv4 address 192.168.100.14 and its associated routing prefix
192.168.100.0, or equivalently, its subnet mask 255.255.255.0 has 24 leading 1-bits.
• The IPv4 block 192.168.100.0/22 represents the 1024 IPv4 addresses from 192.168.100.0 to
192.168.103.255.
Network: This rule allows the user to assign a network address and corresponding subnet mask to the
Allow/Deny List. The routing prefix is written in CIDR (Classless Inter-Domain Routing) notation. For
example:
Range: This rule allows the user to assign a range of IP addresses to the Allow/Deny List.
Note: This rule is only applied to IPv4.
For example:
Administrator IP address
Always allow the IP address to access this device: You can check this item and add the Administrator’s
IP address in this eld to make sure the Administrator can always connect to the device.
VIVOTEK
112 - User's Manual
Security > IEEE 802.1x
Enable this function if your network environment uses IEEE 802.1x, which is a port-based network
access control. The network devices, intermediary switch/access point/hub, and RADIUS server must
support and enable 802.1x settings.
The 802.1x standard is designed to enhance the security of local area networks, which provides
authentication to network devices (clients) attached to a network port (wired or wireless). If all certicates
between client and server are veried, a point-to-point connection will be enabled; if authentication fails,
access on that port will be prohibited. 802.1x utilizes an existing protocol, the Extensible Authentication
Protocol (EAP), to facilitate communication.
■
The components of a protected network with 802.1x authentication:
1.
Supplicant: A client end user (camera), which requests authentication.
2.
Authenticator (an access point or a switch): A “go between” which restricts unauthorized end users
from communicating with the authentication server.
3.
Authentication server (usually a RADIUS server): Checks the client certicate and decides whether to
accept the end user’s access request.
■
VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP-PEAP
and EAP-TLS.
Please follow the steps below to enable 802.1x settings:
1. Before connecting the Network Camera to the protected network with 802.1x, please apply a digital
certicate from a Certicate Authority (i.e., MIS of your company) which can be validated by a RADIUS
server.
2. Connect the Network Camera to a PC or notebook outside of the protected LAN. Open the
conguration page of the Network Camera as shown below. Select EAP-PEAP or EAP-TLS as the
EAP method. In the following blanks, enter your ID and password issued by the CA, then upload
related certicate(s).
Supplicant
(Network Camera)
Authenticator
(Network Switch)
Authentication Server
(RADIUS Server)
IMPORTANT
The maximum length of password is 200
symbols.
VIVOTEK
User's Manual - 113
3. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an
802.1x enabled switch. The devices will then start the authentication automatically.
► The authentication process for 802.1x:
1. The Certicate Authority (CA) provides the required signed certicates to the Network Camera (the
supplicant) and the RADIUS Server (the authentication server).
2. A Network Camera requests access to the protected LAN using 802.1X via a switch (the authenticator).
The client offers its identity and client certicate, which is then forwarded by the switch to the RADIUS
Server, which uses an algorithm to authenticate the Network Camera and returns an acceptance or
rejection back to the switch.
3. The switch also forwards the RADIUS Server’s certicate to the Network Camera.
4. Assuming all certificates are validated, the switch then changes the Network Camera’s state to
authorized and is allowed access to the protected network via a pre-congured port.
VIVOTEK
Network Camera
RADIUS Server
Certificate Authority
(CA)
Protected LAN
Certificate
1
1
2
3
4
Network Switch
Certificate
NOTE:
VIVOTEK
114 - User's Manual
PTZ > PTZ settings
This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation.
The sheye PTZ function allows users to move among regional views for close-up viewing. The
PTZ view takes effect when the current eld of view is not the round-shape original view or the
panoramic view. Users can then move the view in different directions or zoom in or zoom out on
the screen.
P4
P3
P1
P5
P6
P7
P2
083236
4
Regional Views
VIVOTEK
User's Manual - 115
PTZ Settings
Preset positions and rotation settings
In the PTZ settings page, you can create preset positions in the hemisphere covered by the sheye lens.
A total of 20 preset positions can be congured.
Please follow the steps below to congure preset positions and arrange them in a rotational tour through
different positions.
1. First select a video stream on which the PTZ settings will take place.
1
1
1
1
Zoom In
Zoom Out
2
3
5
6
7
8
9
1
4
VIVOTEK
116 - User's Manual
2. Adjust the shooting area to the desired position using the PTZ keypad, the FOV indicators, or mouse
clicks on the live screen. To begin the mouse control, click on the two interactive windows. Due to the
highly-sensitive mouse control, the PTZ control buttons can help ne-tune to an optimal location.
3. After you selected an area of interest, enter a name for the new position, which can contain up to forty
alphabetic and numeric characters.
4. Click Add to enable the settings. The preset positions will be listed on the User preset locations. (To
add more positions you wish, please repeat steps 1~3.)
5. Select the preset positions by their checkboxes.
6. Click on the move button (>>)
to move positions to the Patrol locations window.
7. You may select some or all of the imported positions as the stop points during the tour.
8. Select a preset position when you need to move to a specic place on screen.
Select a preferred Rotate speed or move the preset positions for consecutively displaying views
of multiple positions. The speeds for rotating through each position on a Regional view window are
shown below:
9. Click on the Save button to preserve your conguration.
To remove a preset position from the list, select it and click Remove. You can re-arrange the order of
the position hop on the list using the
buttons.
VIVOTEK
User's Manual - 117
Event > Event settings
This section explains how to congure the Network Camera to respond to particular situations
(event). A typical application is that when a motion is detected, the Network Camera sends
buffered images to an FTP server or e-mail address as notifications. Click on Help, there is
an illustration shown in the pop-up window explaining that an event can be triggered by many
sources, such as motion detection or external digital input devices. When an event is triggered,
you can specify what type of action that will be performed.
Event
An event is an action initiated by a user-dened trigger source. In the Event column, click Add to open
the event settings window.
VIVOTEK
118 - User's Manual
■ Event name: Enter a name for the event setting.
■ Enable this event: Select this checkbox to enable the event setting.
■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher
priority setting will be executed rst.
■ Detect next motion detection or digital input after
seconds: Enter the duration in seconds to pause
motion detection after a motion is detected. This prevents too many events to be triggered within a
short time.
Follow the steps 1~3 to arrange the three elements -- Schedule, Trigger, and Action to set an event. A
total of 3 event settings can be congured.
1. Schedule
Specify the period for the event. Please select the days of the week and the time in a day (in 24-hr time
format) to specify when will the event-triggering conditions take effect.
2. Trigger
This is the cause or stimulus which denes what will trigger the event. The trigger source can be cong-
ured to use the Network Camera’s built-in motion detection mechanism or external digital inputs.
There are several choices of trigger sources as shown below.
Select each item to display its related
options.
■ Video motion detection
This option makes use of the built-in motion detection mechanism as a trigger source. To enable this
function, you need to congure a Motion Detection Window rst. For more information, please refer to
Motion Detection on page 131 for details.
■ Periodically
This option allows the Network Camera to trigger periodically for every other dened minute. Up to 999
minutes are allowed.
■ Digital input
This option allows the Network Camera to use an external digital input device or sensor as a trigger
source. Depending on your application, there are many choices with digital input devices on the market
which help detect changes in temperature, vibration, sound, light, etc.
■ System boot
This option triggers the Network Camera when the power to the Network Camera is disconnected.
■ Recording notify
This option allows the Network Camera to trigger when the recording disk is full or when recording
starts to overwrite older data.
VIVOTEK
User's Manual - 119
■ Camera tampering detection
This option allows the Network Camera to trigger when the camera detects that is is being tampered
with. To enable this function, you need to congure the Tampering Detection option rst. Please refer
to page 134 for detailed information.
■ Manual Trigger
This option allows user to enable event triggers manually by clicking the on/off button on the
homepage. Please congure 1 ~ 3 events before using this function.
■ Audio detection
A preset threshold can be congured with an external microphone as the trigger to system event. The
triggering condition can be an input exceeding or falling below a threshold. Audio detection can take
place as a complement to motion detection or as a method to detect activities not covered by the
camera's view.
■ VADP
It is presumed that you already uploaded and enabled the VADP modules before you can associatee
VADP triggers with an Event setting.
Click on the Set VADP Trigger button to open the VADP setup menu. The triggering conditions
available with 3rd-party software modules known as VADP will be listed. Use the arrow buttons to
select these triggers. Users may implant these modules for different purposes such as triggering
motion detection, or applications related to video analysis, etc. Please refer to page 138 for the
conguration options with VADP modules.
VIVOTEK
120 - User's Manual
3. Action
Dene the actions to be performed by the Network Camera when a trigger is activated.
■ Trigger digital output for
seconds
Select this option to turn on the digital output signals (via the DO connectors on the main assembly)
when a trigger is activated. Specify the length of the trigger interval in the text box.
■ Backup media if the network is disconnected
Select this option to backup media le on SD card if the network is disconnected. Please note that this
function will only apply after you set up the connection to network attched storage (NAS). For more
information about how to set up network storage, please refer to page 143.
To congure an event with video recording or snapshots, it is necessary to congure/provide servers and
storage media settings so that the Network Camera will know where to send the media les to when a
trigger is activated.
Once the triggers are congured, they will be listed under the VADP option.
VIVOTEK
User's Manual - 121
Add server
Click Add server to unfold the server setting window. You can specify how the notication messages are
delivered when a trigger is activated. A total of 5 server settings can be congured.
There are four choices of server types available: Email, FTP, HTTP, and Network storage.
Select the item
to display the detailed conguration options. You can congure either one or all of them.
Server type - Email
Select to send the media les via email when a trigger is activated.
■ Server name: Enter a name for the server setting.
■ Sender email address: Enter a valid email address as the sender address.
■ Recipient email address: Enter a valid email address as the recipient address.
■ Server address: Enter the domain name or IP address of the email server.
■ User name: Enter the user name of the email account if necessary.
■ Password: Enter the password of the email account if necessary.
■ Server port: The default mail server port is set to 25. You can also manually set another port.
If your SMTP server requires a secure connection (SSL), check This server requires a secure
connection (SSL).
VIVOTEK
122 - User's Manual
To verify if the email settings are correctly congured, click Test. The result will be shown in a pop-up
window. If successful, you will also receive an email indicating the result.
Click Save server to enable the settings, then click Close to exit the Add server page.
After you set up the rst event server, a new item for event server will automatically appear on the Server
list. If you wish to add more server options, click Add server.
Server type - FTP
Select to send the media les to an FTP server when a trigger is activated.
■ Server name: Enter a name for the server setting.
■ Server address: Enter the domain name or IP address of the FTP server.
■ Server port: By default, the FTP server port is set to 21. It can also be assigned to another port number
between 1025 and 65535.
■ User name: Enter the login name of the FTP account.
■ Password: Enter the password of the FTP account.
■ FTP folder name
Enter the folder where the media le will be placed. If the folder name does not exist, the Network
Camera will create one on the FTP server.
VIVOTEK
User's Manual - 123
■ Passive mode
Most firewalls do not accept new connections initiated from external requests. If the FTP server
supports passive mode, select this option to enable passive mode FTP and allow data transmission to
pass through the rewall.
To verify if the FTP settings are correctly congured, click Test. The result will be shown in a pop-up
window as shown below. If successful, you will also receive a test.txt le on the FTP server.
Click Save server to enable the settings, then click Close to exit the Add server page.
Server type - HTTP
Select to send the media les to an HTTP server when a trigger is activated.
■ Server name: Enter a name for the server setting.
■ URL: Enter the URL of the HTTP server.
■ User name: Enter the user name if necessary.
■ Password: Enter the password if necessary.
To verify if the HTTP settings are correctly congured, click Test. The result will be shown in a pop-up
window as below. If successful, you will receive a test.txt le on the HTTP server.
Click Save server to enable the settings and click Close to exit the Add server page.
VIVOTEK
124 - User's Manual
Network storage:
Select to send the media les to a network storage location when a trigger is activated. Please refer to
NAS server on page 143 for details.
Click Save server to enable the settings, then click Close to exit the Add server page.
■ SD Test: Click to test your SD card. The system will display a message indicating success or failure. If
you want to use your SD card for local storage, please format it before use. Please refer to page 146
for detailed information.
VIVOTEK
User's Manual - 125
Add media
Click
Add media
to open the media setting window. You can specify the type of media that will be
sent when a trigger is activated. A total of 5 media settings can be congured. There are three choices
of media types available: Snapshot, Video Clip, and System log.
Select the item to display the detailed
conguration options. You can congure either one or all of them.
Media type - Snapshot
Select to send snapshots when a trigger is activated.
■ Media name: Enter a name for the media setting.
■ Select the stream number from which the snapshots will be taken.
■ Send
pre-event images
The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number
to decide how many images to capture before a trigger is activated. Up to 7 images can be generated.
■ Send
post-event images
Enter a number to decide how many images to capture after a trigger is activated. Up to 7 images can
be generated.
For example, if both the Send pre-event images and Send post-event images are set to 7, a total of 15
images are generated after a trigger is activated.
■ File name prex
Enter the text that will be appended to the front of the le name.
1 pic. 2 pic. 3 pic. 4 pic. 5 pic. 6 pic. 7 pic. 8 pic. 9 pic.
10 pic. 11 pic. 10 pic. 12 pic. 13 pic. 14 pic. 15 pic.
Trigger Activation
VIVOTEK
126 - User's Manual
■ Add date and time sufx to the le name. Select this option to add a date/time sufx to the le name.
For example:
Click Save media to enable the settings, then click Close to exit the Add media page.
After you set up the rst media server, a new column for media server will automatically display on the
Media list. If you wish to add more media options, click Add media.
Media type -
Video clip
Select to send video clips when a trigger is activated.
■ Media name: Enter a name for the media setting.
■ Source: Select the source of video clip from the stream number.
■ Pre-event recording
The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number
to decide the duration of recording before a trigger is activated. Up to 9 seconds of video can be
recorded.
Snapshot_20140720_100341
Date and time suffix
The format is: YYYYMMDD_HHMMSS
File name prefix
VIVOTEK
User's Manual - 127
■ Maximum duration
Specify the maximum recording duration in seconds. Up to 10 seconds of video can be recorded.
For example, if pre-event recording is set to 5 seconds and the maximum duration is set to 10
seconds, the Network Camera continues to record for another 4 seconds after a trigger is activated.
■ Maximum le size
Specify the maximum le size allowed.
■ File name prex
Enter the text that will be appended to the front of the le name.
For example:
Click Save media to enable the settings, then click Close to exit the Add media page.
Media type - System log
Select to send a system log when a trigger is activated.
Click Save media to enable the settings, then click Close to exit the Add media page.
1 sec. 2 sec. 3 sec. 4 sec. 5 sec. 6 sec. 7 sec. 8 sec. 9 sec. 10 sec.
Trigger Activation
Video_20140720_100341
Date and time suffix
The format is: YYYYMMDD_HHMMSS
File name prefix
VIVOTEK
128 - User's Manual
■ View: Click this button to open a le list window. This function is only for SD card and Network Storage.
If you click View button of SD card, a Local storage page will pop up for you to manage recorded les
on SD card. For more information about Local storage, please refer to page 146. If you click View
button of Network storage, a le directory window will pop up for you to view recorded data on Network
storage.
■ Create folders by date, time, and hour automatically: If you check this item, the system will generate
folders automatically by date.
The following is an example of a le destination with video clips:
Click 20140320 to open the directory:
Video Clip_59.mp4
Video Clip_58.mp4
2014/03/20
2014/03/20
Click to delete
selected items
Click to delete all
recorded data
Click to go back to the previous
level of the directory
The format is: HH (24r)
Click to open the le list for that hour
Video Clip_59.mp4
Video Clip_58.mp4
2014/03/20
2014/03/20
The format is: File name prex + Minute (mm)
You can set up the le name prex on Add media page.
20140320
20140321
20140322
Click to delete selected items
Click to delete all recorded data
The format is: YYYYMMDD
Click to open the directory
VIVOTEK
User's Manual - 129
Here is an example of the Event setting:
When completed the settings with steps 1~3 to arrange Schedule, Trigger, and Action of an event, click
Save event to enable the settings and click Close to exit the page.
The following is an example of the Event setting page:
VIVOTEK
130 - User's Manual
When the Event Status is ON, once an event is triggered by motion detection, the Network Camera will
automatically send snapshots via e-mail.
If you want to stop the event trigger, you can click
ON to turn it to OFF status or click Delete to remove a
previously-congured event setting.
To remove a server setting from the list, select a server name and click Delete. Note that only when the
server setting is not being applied to an event setting can it be deleted.
To remove a media setting from the list, select a media name and click Delete. Note that only when the
media setting is not being applied to an event setting can it be deleted.
Customized Script
This function allows you to upload a sample script (.xml le) to the webpage, which will save your time on
conguring the settings. Please note that there is a limited number of customized scripts you can upload;
if the current amount of customized scripts has reached the limit, an alert message will prompt. If you
need more information, please contact VIVOTEK’s technical support.
Click to upload a le
Click to modify the
script online
VIVOTEK
User's Manual - 131
Applications > Motion detection
This section explains how to congure the Network Camera to enable motion detection. A total
of 5 motion detection windows can be congured.
Follow the steps below to enable motion detection:
Follow the steps below to enable motion detection:
1. Click New to add a new motion detection window.
2. In the Window Name text box, enter a name for the motion detection window.
■ Use 4 mouse clicks to designate a detection window. You can change the window shape by dragging
the corner marks to a preferred location.
■ Drag the item size tab to change the minimum size of item to trigger an alarm. An item size box will
appear in the center of screen for your reference (in semi-transparent red). An intruding object must
be larger than the Item size to trigger an alarm. Change the item size according to the live view.
■ To delete a window, click the X mark on the right of the window name.
3. Dene the sensitivity to moving objects by moving the Sensitivity slide bar. Note that a high sensitivity
is prone to produce false alarms such as the fast changes of light (such as day/night mode switch,
turning lights on/off). A movement must persist longer than 0.3 second for the motion to be detected.
4. Click Save to enable the settings.
5. Select Enable motion detection to enable this function.
For example:
The Percentage Indicator will rise or fall depending on the variation between sequential images. When
motions are detected by the Network Camera and are considered to exceed the preset threshold, the red
bar rises. Meanwhile, the motion detection window will be outlined in red.
Motion Detection Setting 2:
For special situations
Motion Detection Setting 1:
For normal situations
VIVOTEK
132 - User's Manual
A green bar indicates that even though motions have been detected, the event has not been triggered
because the image variations still fall under the preset threshold.
If you want to congure other motion detection settings for day/night/schedule mode (e.g., for a different
lighting condition during a specific period of time), please click Profile mode to open the Motion
Detection Profile Settings page as shown below. Another three motion detection windows can be
congured on this page.
Larger than the
min. item size
Photos or videos can be captured instantly and congured to be sent to a remote server (via an Email or
FTP server). For more information on how to congure an event setting, please refer to Event settings on
page 117.
Please follow the steps beolw to set up a prole:
1. Create a new motion detection window, and congure the minimum item size.
2. Click the Prole mode tab.
3. Select the applicable Schedule mode. Please manually enter a time range.
4. Click Save to enable the settings and click Close to exit the page.
VIVOTEK
User's Manual - 133
► How does motion detection work?
There are two motion detection parameters: Sensitivity and Min. Item Size. As illustrated above, frame
A and frame B are two sequential images. Pixel differences between the two frames are detected and
highlighted in gray in which the sensitivity setting will take effect. Sensitivity is a value that expresses
the sensitivity to moving objects. A higher sensitivity setting allows camera to detect slight movements
while a lower sensitivity setting will neglect them.
The minimum item size is a threshold value that determines how many “alerted pixels” can trigger an
event. When the size of an intruding object is larger than the minimum size, and its movement persist
for 0.3 second, the motion is judged to exceed the dened threshold; and the motion window will be
outlined in red. With a large minimum item size, the size of moving object in frame C is considered as
smaller than the minimum item size, no motion alarm is triggered. With a smaller minimum item size,
the same moving object in frame D triggers the alarm.
For applications that require a high level of security management, it is suggested to use higher
sensitivity settings. However, a higher sensitivity level can also produce false alarms due to fast light
changes when switching between the day and night modes, AE switch, turning the light on or off, etc.
A
B D
C
Min. item size
Alerted pixels < Min. item size
Alerted pixels > Min. item size
Min. item size
NOTE:
This motion detection window will also be displayed on the Event Settings page. You can go to Event
> Event settings > Trigger to select it as a trigger source. Please refer to page 117 for detailed
information.
VIVOTEK
134 - User's Manual
Applications > DI and DO
Digital input: Select High or Low as the Normal status for the digital input. Connect the digital input pin of
the Network Camera to an external device to detect the current connection status.
Digital output: Select Grounded or Open to dene the normal status for the digital output. Connect the
digital output pin of the Network Camera to an external device to determine the current status.
Set up the event source as DI on Event > Event settings > Trigger. Please refer to page 118 for
detailed information.
VIVOTEK
User's Manual - 135
Applications > Tampering detection
This section explains how to set up camera tamper detection. With tamper detection, the camera
is capable of detecting incidents such as redirection, blocking or defocusing, or even spray
paint.
Please follow the steps below to set up the camera tamper detection function:
1. Click to select the checkbox before tampering conditions: Tampering detection, Image too
dark, Image too bright, and Image too blurry. Enter the tamper trigger duration. (10 sec. ~ 10
min.). The duraction species the set of time before the tampering is considered as a real
alarm. This helps avoid false alarms by short-lived changes.
The tamper alarm will be triggered only when the tampering factor (the difference between
current frame and pre-saved background) exceeds the trigger threshold. Conditions such
as image too dark, too bright, or too blurry (defocused) can also be congured as tampering
conditions. The Trigger threshold determines how sensitive your is tamper detection setting.
Lower the threshold number, easier to trigger.
Too bright: shining a flash light. The average lighting level of the scene is taken into
consideration.
Too dark: covering the objective or spraying paint.
Too blurry: blurry scene can be the result of strong interference on the device, such as EMI
interference.
2. You can configure Tampering Detection as a trigger element to the proactive event
configurations in Event -> Event settings -> Trigger. For example, when the camera is
tampered with, camera can be congured to send the pre- and post-event video clips to a
networked storage device. Please refer to page 118 for detailed information.
VIVOTEK
136 - User's Manual
Applications > Audio detection
Audio detection, along with video motion detection, is applicable in the following scenarios:
1. Detection of activities not covered by camera view, e.g., a loud input by gun shots or breaking a door/
window.
2. A usually noisy environment, such as a factory, suddenly becomes quiet due to a breakdown of
machines.
3. A PTZ camera can be directed to turn to a preset point by the occurrence of audio events.
4. Dark environments where video motion detection may not function well.
The red circles indicate where the audio alarms can be triggered when breaching or falling below the
preset threshold.
How to congure Audio detection:
1. Once the Audio detection window is opened, the current sound input will be interactively indicated
by a uctuating yellow wave diagram.
2. Use a mouse click to drag the Alarm level tab to a preferred location on the slide bar.
3. Select the “Enable audio detection“ checkbox and click Save to enable the feature.
1. Note that the volume numbers (0~100) on the side of wave diagram does not represent decibel (dB).
Sound intensity level has already been mapped to preset values. You can, however, use the real-
world inputs at your installation site that are shown on the wave diagram to congure an alarm level.
2. To configure this feature, you must not mute the audio in Configuration > Media > Audio.
The default of the camera can be muted due to the lack of an internal microphone. An external
microphone is provided by users.
NOTE:
VIVOTEK
User's Manual - 137
IMPORTANT:
• If the Alarm level and the received volume are set within a range of 20% on the wave
diagram, frequent alarms will be triggered. It is recommended to set the Alarm level farther
apart from the detected sound level.
• To congure and enable this feature, you must not congure video stream #1 into Motion
JPEG. If an external microphone input is connected and recording of audio stream is
preferred, audio stream is transmitted between camera and viewer/recording station along
with stream #1.
• Refer to page 81 for Audio settings, and page 74 for video streaming settings.
You can use the Prole window to congure a different Audio detection setting. For example, a place
can be noisy in the day time and become very quiet in the night.
1. Click on the Enable this prole checkbox. Once the Audio detection window is opened, the current
sound input will be interactively indicated by a uctuating yellow wave diagram.
2. Use a mouse click to drag the Alarm level tab to a preferred location on the slide bar.
3. Select the Day, Night, or Schedule mode check circles. You may also manually congure a period
of time during which this prole will take effect.
4. Click Save and then click Close to complete your conguration.
VIVOTEK
138 - User's Manual
Applications > Package management - a.k.a., VADP (VIVOTEK
Application Development Platform)
Users can store and execute VIVOTEK's or 3rd-party software modules onto the camera's
flash memory or SD card. These software modules can apply in video analysis for intelligent
video applications such as license plate recognition, object counting, or as an agent for edge
recording, etc.
• Once the software package is successfully uploaded, the module conguration (vadp.xml)
information is displayed. When uploading a module, the camera will examine whether the
module ts the predened VADP requirements. Please contact our technical support or the
vendor of your 3rd-party module for the parameters contained within.
• Users can also run VIVOTEK's VADP packages as a means to access updated functionality
instead of replacing the entire rmware.
• Note that for some cameras the ash is too small to hold VADP packages. These cameras
will have its "Save to SD card" checkbox selected and grayed-out for all time.
• The le system of SD card (FAT32) does not support soft (symbolic) link. It will return failure
if your module tries to create soft links on SD card.
To utilize a software module, acquire the software package and click Browse and Upload
buttons. The screen message for a successful upload is shown below:
VIVOTEK
User's Manual - 139
To start a module, select the checkcircle in front, and click the Start button.
If you should need to remove a module, select the checkcircle in front and then click the Stop
button. By then the module status will become OFF, and the X button will appear at the end of
the row. Click on the X button to remove an existing module.
When prompted by a conrm message, Click Yes to proceed.
Yes
No
Note that the actual memory consumed while operating the module will be indicated on the
Memory status eld. This helps determine whether a running module has consumed too much
of system resources.
VIVOTEK
140 - User's Manual
On the License page, use the Manual or Automatic optionsto register and activate the license for
using VIVOTEK's VADP modules. The Automatic method requires an Internet connection.
Without Internet connection, you should acquire the license key elsewhere, and manually upload
to the network camera.
Follow the onscreen instruction on VIVOTEK's website for the registration procedure.
user
You can proced with the following link to download a license key: http://www.vivotek.com/vadp_
requestactivation.aspx?application=VCA or http://www.vivotek.com/vca/#downloads.
When the license key is downloaded to your computer, upload the key to the camera.
VIVOTEK
User's Manual - 141
Recording > Recording settings
This section explains how to congure the recording settings for the Network Camera.
Recording Settings
Insert your SD card and click here to test
Recording Settings
Click Add to open the recording setting window. On this page, you can dene the adaptive recording,
recording source, recording schedule, and recording capacity. A total of 2 recording settings can be
congured.
1. Each Recording setting records a video stream from one channel, i.e., from a single lens module.
2. Please remember to format your SD card when used for the rst time. Please refer to page 146 for
detailed information.
NOTE:
VIVOTEK
142 - User's Manual
If you enable adaptive recording on Camera A, only when an event is triggered on Camera A will the
server record the streaming data in full frame rate; otherwise, it will only request the I frame data during
normal monitoring, thus effectively save lots of bandwidths and storage.
The alarm trigger includes: motion detection and DI detection. Please refer to Event settings on page 117.
■ Pre-event recording and post-event recording
The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number
to decide the duration of recording before and after a trigger is activated.
■ Priority: Select the relative importance of this recording (High, Normal, or Low). Recording with a higher
priority setting will be executed rst.
■ Channel # Stream #: Select a channel and a stream under it as the recording source.
► To enable adaptive recording, please also enable time shift caching stream and select a caching
stream on Media > Video > Stream settings. Please refer to page 74 for detailed instruction.
► To enable recording notication please congure Event settings rst. Please refer to page 117.
Time
Bandwidth
Bandwidth
Activity Adaptive Streaming
for Dynamic Frame Rate Control
I frame ---> Full frame rate ---> I frame
Continuous recording
► To enable adaptive recording, please make sure
you’ve set up the triggering sources such as Motion
Detection, DI Device, or Manual Trigger.
► When there is no alarm trigger:
- JPEG mode: record 1 frame per second.
- H.265/H.264 mode: record the I frame only.
► When the Intra frame period has been set to larger
than >1s on Video settings page, the Intra frame
period will be forced into 1s when the adaptive
recording is activated.
NOTE:
NOTE:
■ Recording name: Enter a name for the recording setting.
■ Enable this recording: Select this option to enable video recording.
■ With adaptive recording:
Select this option will activate the frame rate control according to alarm trigger. The frame control
means that when there is a triggered alarm/event, the frame rate will raise up to the value you’ve set
on the Stream setting page. Please refer to page 74 for more information.
VIVOTEK
User's Manual - 143
2. Destination
You can select the SD card or network storage (NAS) for the recorded video les.
NAS server
Click Add NAS server
to open the server setting window and follow the steps below to set up:
1. Fill in the information for the access to the shared networked storage.
For example:
1
2
4
Network storage path
(\\server name or IP address\folder name)
User name and
password for your
server
3
1
2
3
4
Please follow steps 1~2 below to set up the recording:
1. Trigger
Select a trigger source.
■ Schedule: The server will start to record les on the local storage or network attached storage (NAS).
■ Network fail: Since network fail, the server will start to record les onto the local storage (SD card).
VIVOTEK
144 - User's Manual
If successful, you will receive a test.txt le on the networked storage server.
3. Enter a server name.
4. Click Save to complete the settings and click Close to exit the page.
■ Capacity: You can either choose the entire available space or impose a reserved space. The Reserved
space should be of the size of at least 15MBytes. The reserved space can be used as a safe buffer
especially when the cyclic recording function is enabled, during the transaction stage when a storage
space is full and the incoming streaming data is about to overwrite the previously saved videos.
■ File name prex: Enter the text that will be appended to the front of the le name.
2. Click Test to check the setting. The result will be shown in the pop-up window.
VIVOTEK
User's Manual - 145
■ Enable cyclic recording: If you check this item, when the maximum capacity is reached, the oldest le
will be overwritten by the latest one.
Recording le management
■ Maximum duration: This determines the length of each recorded video, applicable from 1 to 60
minutes.
■ Maximum file size: This determines the file size of each concluded recording. The applicable sizes
range from 100 to 2000 Megabytes.
■ File name prex: Enter a name for each recorded video.
If you want to enable recording notication, please click
Event
to set up. Please refer to Event > Event
settings on page 117 for more details.
When completed, select Enable this recording. Click Save to enable the setting and click Close to exit
this page. When the system begins recording, it will send the recorded les to the network storage or SD
card. The new recording name will appear on the recording page as shown below.
To remove an existing recording setting from the list, single-click to select it and click Delete.
■
Video (Name): Click to open the Recording settings page to modify.
■ ON (Status): Click to manually adjust the Status. (ON: start recording; OFF: stop recording)
■
NAS or SD (Destination): Click to open the le list of recordings as shown below. For more information
about folder naming rules, please refer to page 128 for details.
VIVOTEK
146 - User's Manual
Local storage > SD card management
SD card format
The Linux kernel EXT4 file system format applies to SD card larger than 32GB. However, if EXT4 is
applied, the computers running Windows will not be able to access the contents on the SD card unless
using some 3rd-party software .
This section explains how to manage the local storage on the Network Camera. Here you can
view SD card status, and implement SD card control.
SD card staus
This column shows the status and reserved space of your SD card. Please remember to format the SD
card when using for the rst time.
no SD card
NOTE:
• It is recommended to turn OFF the recording activity before you remove an SD card from the
camera.
• The lifespan of an SD card is limited. Regular replacement of the SD card can be necessary.
• Camera lesystem takes up several megabytes of memory space. The storage space cannot
be used for recording.
• Using an SD card that already contains data recorded by another device should not be used
in this camera.
• Please do not modify or change the folder names in the SD card. That may result in camera
malfunctions.
VIVOTEK
User's Manual - 147
SD card control
■ Enable cyclic storage: Check this item if you want to enable cyclic recording. When the maximum
capacity is reached, the oldest le will be overwritten by the latest one.
■ Enable automatic disk cleanup: Check this item and enter the number of days you wish to retain a le.
For example, if you enter “7 days”, the recorded les will be stored on the SD card for 7 days.
Click Save to enable your settings.
Local storage > Content management
This section explains how to manage the content of recorded videos on the Network Camera. Here you
can search and view the records and view the searched results.
Searching and Viewing the Records
This column allows the user to set up search criteria for recorded data. If you do not select any criteria
and click Search button, all recorded data will be listed in the Search Results column.
■ File attributes: Select one or more items as your search criteria.
■ Trigger time: Manually enter the time range you want to search for contents created at a specic point
in time.
Click Search and the recorded data corresponding to the search criteria will be listed in Search Results
window.
VIVOTEK
148 - User's Manual
Search Results
The following is an example of search results. There are four columns: Trigger time, Media type, Trigger
type, and Locked. Click
to sort the search results in either direction.
Numbers of entries displayed
on one page
Click to open a live view
■ Play: Click on a search result which will highlight the selected item. A Play window will appear on
top for immediate review of the selected le.
For example:
■ Download: Click on a search result to highlight the selected item in purple as shown above. Then click
the Download button and a le download window will pop up for you to save the le.
■ JPEGs to AVI: This functions only applies to “JPEG“ format les such as snapshots. You can select
several snapshots from the list, then click this button. Those snapshots will be converted into an AVI
le.
VIVOTEK
User's Manual - 149
■ Lock/Unlock: Select the checkbox in front of a desired search result, then click this button. The selected
items will become Locked, which will not be deleted during cyclic recording. You can click again to
unlock the selections.
For example:
■ Remove: Select the desired search results, then click this button to delete the les.
Click to switch
pages
VIVOTEK
150 - User's Manual
Appendix
URL Commands for the Network Camera
1. Overview
For some customers who already have their own web site or web control application, the Network
Camera/Video Server can be easily integrated through URL syntax. This section specifies the external
HTTP-based application programming interface. The HTTP-based camera interface provides the
functionality to request a single image, control camera functions (PTZ, output relay etc.), and get and set
internal parameter values. The image and CGI-requests are handled by the built-in Web server.
2. Style Convention
In URL syntax and in descriptions of CGI parameters, text within angle brackets denotes content that
is to be replaced with either a value or a string. When replacing the text string, the angle brackets
should also be replaced. An example of this is the description of the name for the server, denoted with
<servername> in the URL syntax description below, that is replaced with the string myserver in the URL
syntax example further down in the page.
URL syntax is denoted with the word "Syntax:" written in bold face followed by a box with the referenced
syntax as shown below. For example, name of the server is written as <servername> and is intended to
be replaced with the name of the actual server. This can either be a name, e.g., "mywebcam" or "thecam.
adomain.net" or the associated IP number for the server, e.g., 192.168.0.220.
Syntax:
http://<servername>/cgi-bin/viewer/video.jpg
Description of returned data is written with "Return:" in bold face followed by the returned data in a box. All data is
returned in HTTP format, i.e., each line is separated with a Carriage Return and Line Feed (CRLF) printed as \r\n.
Return:
HTTP/1.0 <HTTP code> <HTTP text>\r\n
URL syntax examples are written with "Example:" in bold face followed by a short description and a light grey box
with the example.
Example: request a single snapshot image
http://mywebserver/cgi-bin/viewer/video.jpg
VIVOTEK
User's Manual - 151
3. General CGI URL Syntax and Parameters
CGI parameters are written in lower-case and as one word without any underscores or other separators. When the
CGI request includes internal camera parameters, these parameters must be written exactly as they are named in
the camera or video server. The CGIs are organized in functionally-related directories under the cgi-bin directory.
The file extension .cgi is required.
Syntax:
http://<servername>/cgi-bin/<subdir>[/<subdir>...]/<cgi>.<ext>
[?<parameter>=<value>[&<parameter>=<value>...]]
Example: Set digital output #1 to active
http://mywebserver/cgi-bin/dido/setdo.cgi?do1=1
4. Security Level
SECURITY LEVEL SUB-DIRECTORY DESCRIPTION
0 anonymous Unprotected.
1 [view] anonymous, viewer,
dido, camctrl
1. Can view, listen, talk to camera.
2. Can control DI/DO, PTZ of the camera.
4 [operator] anonymous, viewer,
dido, camctrl, operator
Operator access rights can modify most of the camera’s
parameters except some privileges and network options.
6 [admin] anonymous, viewer,
dido, camctrl, operator,
admin
Administrator access rights can fully control the camera’s
operations.
7 N/A Internal parameters. Unable to be changed by any external
interfaces.
VIVOTEK
152 - User's Manual
5. Get Server Parameter Values
Note: The access right depends on the URL directory.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>]
[&<parameter>…]
http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>]
[&<parameter>…]
http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>]
[&<parameter>…]
http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>]
[&<parameter>…]
Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any
parameters, all the parameters on the server will be returned. If you specify only <group>, the parameters
oftherelated group will be returned.
When querying parameter values, the current parameter values are returned.
A successful control request returns parameter pairs as follows:
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>
where<parameter pair> is
<parameter>=<value>\r\n
[<parameter pair>]
<length> is the actual length of content.
VIVOTEK
User's Manual - 153
Example: Request IP address and its response
Request:
http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: 33\r\n
\r\n
network.ipaddress=192.168.0.123\r\n
6. Set Server Parameter Values
Note: The access right depends on the URL directory.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&update=<value>][&return=<return page>]
http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&update=<value>] [&return=<return page>]
http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&update=<value>] [&return=<return page>]
http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>…][&update=<value>] [&return=<return page>]
PARAMETER VALUE DESCRIPTION
<group>_<name>
value to assigned Assign <value> to the parameter <group>_<name>.
update
<boolean> Set to 1 to update all fields (no need to update parameter in each
group).
return
<return page> Redirect to the page <return page>after the parameter is assigned.
The <return page>can be a full URL path or relative path according to
the current path. If you omit this parameter, it will redirect to an
empty page.
VIVOTEK
154 - User's Manual
(Note: The return page can be a general HTML file(.htm, .html) or a
VIVOTEK server script executable (.vspx) file. It cannot be a CGI
commandor have any extra parameters.This parameter must be
placed at the end of the parameter list
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>
where<parameter pair> is
<parameter>=<value>\r\n
[<parameter pair>]
Only the parameters that you set and are readable will be returned.
Example: Set the IP address of server to 192.168.0.123:
Request:
http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: 33\r\n
\r\n
network.ipaddress=192.168.0.123\r\n
VIVOTEK
User's Manual - 155
7. Available parameters on the server
Valid values:
VALID VALUES DESCRIPTION
string[<n>] Text strings shorter than ‘n’ characters. The characters “,’,<,>,& are invalid.
string[n~m] Text strings longer than `n’ characters and shorter than `m’ characters. The
characters “,’,<,>,& are invalid.
password[<n>] The same as string but displays‘*’ instead.
<integer> Any single integer number in 32-bits.
The range is -2147483648~2147483647.
<positive integer> Any single positive integer number in 32-bits.
The range is 1~ 4294967295.
<m> ~ <n> Any number between ‘m’ and ‘n’.
domain name[<n>] A string limited to a domain name shorter than ‘n’ characters (eg. www.ibm.com).
email address [<n>] A string limited to an email address shorter than ‘n’ characters (eg.
joe@www.ibm.com).
<ip address> A string limited to an IP address (eg. 192.168.1.1).
<mac address> A string limited to contain a MAC address without hyphens or colons.
<boolean> A boolean value of 1 or 0 represents [Yes or No], [True or False], [Enable or
Disable].
<value1>,
<value2>,
<value3>,
…
Enumeration. Only given values are valid.
blank A blank string.
everything inside <> A description
integer primary key SQLite data type. A 32-bit signed integer. The value is assigned a unique integer by
the server.
<text> SQLite data type. The value is a text string, stored using the database encoding
(UTF-8, UTF-16BE or UTF-16-LE).
<coordinate> x, y coordinate (eg. 0,0)
<window size> window width and height (eg. 800x600)
<W,H> The format for coordinate in 2D.
W is the pixel number of width.
H is the pixel number of height.
EX: (176,144)
<WxH> The format for resolution.
VIVOTEK
156 - User's Manual
W is the pixel number of width.
H is the pixel number of height.
Ex: 1920x1080, 2048x1536
NOTE: The camera should not be restarted when parameters are changed.
VIVOTEK
User's Manual - 157
7.1system
Group: system
NAME VALUE SECURITY
(get/set)
DESCRIPTION
hostname string[64] 1/6 Host name of server
(Network Camera,
Wireless Network Camera,
Video Server,
Wireless Video Server).
ledoff <boolean> 6/6 Turn on (0) or turn off (1) all led indicators.
date <YYYY/MM/DD>,
keep,
auto
6/6 Current date of system. Set to ‘keep’ to keep
date unchanged. Set to ‘auto’ to use NTP to
synchronize date.
time <hh:mm:ss>,
keep,
auto
6/6 Current time of the system. Set to ‘keep’ to
keep time unchanged. Set to ‘auto’ to use NTP
to synchronize time.
datetime <MMDDhhmmYYYY
.ss>
6/6 Another current time format of the system.
ntp <domain name>,
<ip address>,
<blank>
6/6 NTP server.
*Do not use “skip to invoke default server” for
default value.
timezoneindex -489 ~ 529 6/6 Indicate timezone and area.
-480: GMT-12:00 Eniwetok, Kwajalein
-440: GMT-11:00 Midway Island, Samoa
-400: GMT-10:00 Hawaii
-360: GMT-09:00 Alaska
-320: GMT-08:00 Las Vegas, San_Francisco,
Vancouver
-280: GMT-07:00 Mountain Time, Denver
-281: GMT-07:00 Arizona
-240: GMT-06:00 Central America, Central
Time, Mexico City, Saskatchewan
-200: GMT-05:00 Eastern Time, New York,
Toronto
-201: GMT-05:00 Bogota, Lima, Quito, Indiana
-180: GMT-04:30 Caracas
-160: GMT-04:00 Atlantic Time, Canada, La
Paz, Santiago
VIVOTEK
158 - User's Manual
-140: GMT-03:30 Newfoundland
-120: GMT-03:00 Brasilia, Buenos Aires,
Georgetown, Greenland
-80: GMT-02:00 Mid-Atlantic
-40: GMT-01:00 Azores, Cape_Verde_IS.
0: GMT Casablanca, Greenwich Mean Time:
Dublin,
Edinburgh, Lisbon, London
40: GMT 01:00 Amsterdam, Berlin, Rome,
Stockholm, Vienna, Madrid, Paris
41: GMT 01:00 Warsaw, Budapest, Bern
80: GMT 02:00 Athens, Helsinki, Istanbul, Riga
81: GMT 02:00 Cairo
82: GMT 02:00 Lebanon, Minsk
83: GMT 02:00 Israel
120: GMT 03:00 Baghdad, Kuwait, Riyadh,
Moscow, St. Petersburg, Nairobi
121: GMT 03:00 Iraq
140: GMT 03:30 Tehran
160: GMT 04:00 Abu Dhabi, Muscat, Baku,
Tbilisi, Yerevan
180: GMT 04:30 Kabul
200: GMT 05:00 Ekaterinburg, Islamabad,
Karachi, Tashkent
220: GMT 05:30 Calcutta, Chennai, Mumbai,
New Delhi
230: GMT 05:45 Kathmandu
240: GMT 06:00 Almaty, Novosibirsk, Astana,
Dhaka, Sri Jayawardenepura
260: GMT 06:30 Rangoon
280: GMT 07:00 Bangkok, Hanoi, Jakarta,
Krasnoyarsk
320: GMT 08:00 Beijing, Chongging, Hong
Kong, Kuala Lumpur, Singapore, Taipei
360: GMT 09:00 Osaka, Sapporo, Tokyo,
Seoul, Yakutsk
380: GMT 09:30 Adelaide, Darwin
400: GMT 10:00 Brisbane, Canberra,
Melbourne, Sydney, Guam, Vladivostok
440: GMT 11:00 Magadan, Solomon Is., New
VIVOTEK
User's Manual - 159
Caledonia
480: GMT 12:00 Aucklan, Wellington, Fiji,
Kamchatka, Marshall Is.
520: GMT 13:00 Nuku'Alofa
daylight_enable <boolean> 6/6 Enable automaticdaylight saving time in time
zone.
daylight_dstactualmode <positive integer> 6/7 Check if current time is under daylight saving
time.
(Used internally)
daylight_auto_begintime string[19] 6/7 Display the current daylight saving start time.
daylight_auto_endtime string[19] 6/7 Display the current daylight saving end time.
daylight_timezones string 6/6 List time zone index which support daylight
saving time.
updateinterval 0,
3600,
86400,
604800,
2592000
6/6 0 to Disable automatic time adjustment,
otherwise, it indicates the seconds between
NTP automatic update intervals.
restore 0,
<positive integer>
7/6 Restore the system parameters to default
values after <value> seconds.
reset 0,
<positive integer>
7/6 Restart the server after <value> seconds if
<value> is non-negative.
restoreexceptnet 0,
<positive integer>
7/6 Restore the system parameters to default
values except (ipaddress, subnet, router,
dns1, dns2, pppoe).
This command can cooperate with other
“restoreexceptXYZ” commands. When
cooperating with others, the system
parameters will be restored to the default
value except for a union of the combined
results.
restoreexceptdst 0,
<positive integer>
7/6 Restore the system parameters to default
values except all daylight saving time settings.
This command can cooperate with other
“restoreexceptXYZ” commands. When
cooperating with others, the system
parameters will be restored to default values
except for a union of combined results.
restoreexceptlang 0,
<positive integer>
7/6 Restore the system parameters to default
values except the custom language file the
VIVOTEK
160 - User's Manual
user has uploaded.
This command can cooperate with other
“restoreexceptXYZ” commands. When
cooperating with others, the system
parameters will be restored to the default
value except for a union of the combined
results.
restoreexceptvadp 0,
<positive integer>
7/6 Restore the system parameters to default
values except the vadp parameters and VADP
modules that stored in the system.
This command can cooperate with other
“restoreexceptXYZ” commands. When
cooperating with others, the system
parameters will be restored to the default
value except for a union of the combined
results.
restoreexceptfocusvalue 0,
<positive integer>
7/6 Restore the system parameters to default
values except zoom and focus value.
This command can cooperate with other
“restoreexceptXYZ” commands. When
cooperating with others, the system
parameters will be restored to the default
value except for a union of the combined
results.
* Only available when
"capability_image_c<n>_remotefocus" != 0.
VIVOTEK
User's Manual - 161
7.1.1 system.info
Subgroup of system: info (The fields in this group are unchangeable.)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
modelname string[40] 0/7 Internal model name of the server
extendedmodelname string[40] 0/7 ODM specific model name of server (eg.
DCS-5610). If it is not an ODM model, this field
will be equal to “modelname”
serialnumber <mac address> 0/7 12 characters MAC address (without hyphens).
firmwareversion string[40] 0/7 Firmware version, including model, company,
and version number in the
format:<MODEL-BRAND-VERSION>
language_count <positive integer> 0/7 Number of webpage languages available on
the server.
language_i<0~(count-1)> string[16]
language_i0 :
English
language_i1 :
Deutsch
language_i2 :
Español
language_i3 :
Français
language_i4 :
Italiano
language_i5 : 日本
語
language_i6 :
Português
language_i7 : 简体
中文
language_i8 : 繁體
中文
0/7 Available language lists.
customlanguage_maxcoun
t
0,<positive
integer>
0/6 Maximum number of custom languages
supported on the server.
customlanguage_count 0,<positive
integer>
0/6 Number of custom languages which have been
uploaded to the server.
customlanguage_i<0~(ma string 0/6 Custom language name.
VIVOTEK
162 - User's Manual
xcount-1)>
7.2status
Group: status
NAME VALUE SECURITY
(get/set)
DESCRIPTION
di_i<0~(capability_ndi-1)>
<product dependent>
<boolean> 1/7 0 => Inactive, normal
1 => Active, triggered
(capability.ndi > 0)
do_i<0~(capability_ndo-1)>
<product dependent>
<boolean> 1/7 0 => Inactive, normal
1 => Active, triggered
(capability.ndo > 0)
onlinenum_rtsp 0,<positive
integer>
6/7 Current number of RTSP connections.
onlinenum_httppush 0,<positive
integer>
6/7 Current number of HTTP push server
connections.
onlinenum_sip 0,<positive
integer>
6/7 Current number of SIP connections.
eth_i0 <string> 1/7 Get network information from mii-tool.
vi_i<0~(capability_nvi-1)>
<product dependent>
<boolean> 1/7 Virtual input
0 => Inactive
1 => Active
(capability.nvi > 0)
7.3digital input behavior define
Group: di_i<0~(n-1)> for n is the value of "capability_ndi"
(capability.ndi > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
normalstate high,
low
1/1 Indicates open circuit or closed circuit
(inactive status)
7.4digital output behavior define
Group: do_i<0~(n-1)> for n is the value of "capability_ndo"
(capability.ndo > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
normalstate open,
grounded
1/1 Indicate open circuit or closed circuit (inactive
status)
VIVOTEK
User's Manual - 163
7.5security
Group: security
NAME VALUE SECURITY
(get/set)
DESCRIPTION
privilege_do view, operator,
admin
1/6 Indicate which privileges and above can
control digital output
(capability.ndo > 0)
privilege_camctrl view, operator,
admin
1/6 Indicate which privileges and above can
control PTZ
(capability.ptzenabled > 0 or capability.eptz >
0)
user_i0_name string[64] 6/7 User name of root
user_i<1~20>_name string[64] 6/7 User name
user_i0_pass password[64] 6/6 Root password
user_i<1~20>_pass password[64] 7/6 User password
user_i0_privilege view,
operator,
admin
6/7 Root privilege
user_i<1~20>_ privilege view,
operator,
admin
6/6 User privilege
VIVOTEK
164 - User's Manual
7.6network
Group: network
NAME VALUE SECURITY
(get/set)
DESCRIPTION
preprocess <positive integer> 6/6 An 32-bit integer, each bit can be set
separately as follows:
Bit 0 => HTTP service;
Bit 1=> HTTPS service;
Bit 2=> FTP service;
Bit 3 => Two way audio and RTSP Streaming
service;
To stop service before changing its port
settings. It’s recommended to set this
parameter when change a service port to the
port occupied by another service currently.
Otherwise, the service may fail.
Stopped service will auto-start after changing
port settings.
Ex:
Change HTTP port from 80 to 5556, and
change RTP port for video from 5556 to 20480.
Then, set preprocess=9 to stop both service
first.
”/cgi-bin/admin/setparam.cgi?
network_preprocess=9&network_http_port=
5556& network_rtp_videoport=20480”
type lan,
pppoe
6/6 Network connection type.
resetip <boolean> 6/6 1 => Get ipaddress, subnet, router, dns1,
dns2 from DHCP server at next reboot.
0 => Use preset ipaddress, subnet, rounter,
dns1, and dns2.
ipaddress <ip address> 6/6 IP address of server.
subnet <ip address> 6/6 Subnet mask.
router <ip address> 6/6 Default gateway.
dns1 <ip address> 6/6 Primary DNS server.
VIVOTEK
User's Manual - 165
dns2 <ip address> 6/6 Secondary DNS server.
wins1 <ip address> 6/6 Primary WINS server.
wins2 <ip address> 6/6 Secondary WINS server.
7.6.1 802.1x
Subgroup of network: ieee8021x (capability.protocol.ieee8021x > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable/disable IEEE 802.1x
eapmethod eap-peap, eap-tls 6/6 Selected EAP method
identity_peap string[64] 6/6 PEAP identity
identity_tls string[64] 6/6 TLS identity
password string[200] 6/6 Password for TLS
privatekeypassword string[200] 6/6 Password for PEAP
ca_exist <boolean> 6/6 CA installed flag
ca_time 0,<positive
integer>
6/7 CA installed time. Represented in EPOCH
ca_size 0,<positive
integer>
6/7 CA file size (in bytes)
certificate_exist <boolean> 6/6 Certificate installed flag (for TLS)
certificate_time 0,<positive
integer>
6/7 Certificate installed time. Represented in
EPOCH
certificate_size 0,<positive
integer>
6/7 Certificate file size (in bytes)
privatekey_exist <boolean> 6/6 Private key installed flag (for TLS)
privatekey_time 0,<positive
integer>
6/7 Private key installed time. Represented in
EPOCH
privatekey_size 0,<positive
integer>
6/7 Private key file size (in bytes)
VIVOTEK
166 - User's Manual
7.6.2 QOS
Subgroup of network: qos_cos (capability.protocol.qos.cos > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable/disable CoS (IEEE 802.1p)
vlanid 1~4095 6/6 VLAN ID
video 0~7 6/6 Video channel for CoS
audio
<product dependent>
0~7 6/6 Audio channel for CoS
(capability.naudioin > 0)
eventalarm 0~7 6/6 Event/alarm channel for CoS
management 0~7 6/6 Management channel for CoS
eventtunnel 0~7 6/6 Event/Control channel for CoS
Subgroup of network: qos_dscp (capability.protocol.qos.dscp > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable/disable DSCP
video 0~63 6/6 Video channel for DSCP
audio 0~63 6/6 Audio channel for DSCP
(capability.naudioin > 0)
eventalarm 0~63 6/6 Event/alarm channel for DSCP
management 0~63 6/6 Management channel for DSCP
eventtunnel 0~63 6/6 Event/Control channel for DSCP
7.6.3 IPV6
Subgroup of network: ipv6 (capability.protocol.ipv6 > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable IPv6.
addonipaddress <ip address> 6/6 IPv6 IP address.
addonprefixlen 0~128 6/6 IPv6 prefix length.
addonrouter <ip address> 6/6 IPv6 router address.
addondns <ip address> 6/6 IPv6 DNS address.
allowoptional <boolean> 6/6 Allow manually setup of IP address setting.
VIVOTEK
User's Manual - 167
7.6.4 FTP
Subgroup of network: ftp
NAME VALUE SECURITY
(get/set)
DESCRIPTION
port 21, 1025~65535 6/6 Local ftp server port.
7.6.5 HTTP
Subgroup of network: http
NAME VALUE SECURITY
(get/set)
DESCRIPTION
port 80, 1025 ~ 65535 1/6 HTTP port.
alternateport 1025~65535 6/6 Alternate HTTP port.
authmode basic,
digest
1/6 HTTP authentication mode.
s<0~(capability_nmediast
ream-1)>_accessname
<product dependent>
string[32] 1/6 Http server push access name for stream N,
N= 1~ capability.nmediastream.
(capability.protocol.spush_mjpeg =1 and
capability.nmediastream > 0)
The value are shown as
video.mjpg = s0_accessname, (stream1)
video2.mjpg = s1_accessname, (stream2)
video3.mjpg = s2_accessname, (stream3)
video4.mjpg = s3_accessname, (stream4)
etc.
anonymousviewing <boolean> 1/6 Enable anonymous streaming viewing.
7.6.6 HTTPS port
Subgroup of network: https (capability.protocol.https > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
port 443, 1025 ~ 65535 1/6 HTTPS port.
VIVOTEK
168 - User's Manual
7.6.7 RTSP
Subgroup of network: rtsp (capability.protocol.rtsp > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
port 554, 1025 ~ 65535 1/6 RTSP port.
(capability.protocol.rtsp=1)
anonymousviewing <boolean> 1/6 Enable anoymous streaming viewing.
authmode disable,
basic,
digest
1/6 RTSP authentication mode.
(capability.protocol.rtsp=1)
s<0~(capability_nmediast
ream-1)>_accessname
<product dependent>
string[32] 1/6 RTSP access name for stream N, N= 1~
capability.nmediastream.
(capability.protocol.spush_mjpeg =1 and
capability.nmediastream > 0)
The value are shown as
live.sdp = s0_accessname, (stream1)
live2.sdp = s1_accessname, (stream2)
live3.sdp = s2_accessname, (stream3)
live4.sdp = s3_accessname, (stream4)
etc.
7.6.7.1 RTSP multicast
Subgroup of network_rtsp_s<0~(n-1)>: multicast n is stream count
NAME VALUE SECURITY
(get/set)
DESCRIPTION
alwaysmulticast <boolean> 4/4 Enable always multicast.
ipaddress <ip address> 4/4 Multicast IP address.
videoport 1025 ~ 65535 4/4 Multicast video port.
audioport
<product dependent>
1025 ~ 65535 4/4 Multicast audio port.
(capability.naudioin > 0)
metadataport 1026~65534 4/4 Multicast metadata port.
ttl 1 ~ 255 4/4 Multicasttime to live value.
VIVOTEK
User's Manual - 169
7.6.8 SIP port
Subgroup of network: sip (capability.protocol.sip> 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
port 1025 ~ 65535 1/6 SIP port.
7.6.9 RTP port
Subgroup of network: rtp
NAME VALUE SECURITY
(get/set)
DESCRIPTION
videoport 1025 ~ 65535 6/6 Video channel port for RTP.
(capability.protocol.rtp_unicast=1)
audioport 1025 ~ 65535 6/6 Audio channel port for RTP.
(capability.protocol.rtp_unicast=1)
metadataport 1025 ~ 65535 6/6 Metadata channel port for RTP.
7.6.10 PPPoE
Subgroup of network: pppoe (capability.protocol.pppoe > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
user string[128] 6/6 PPPoE account user name.
pass password[64] 6/6 PPPoE account password.
VIVOTEK
170 - User's Manual
7.7IP Filter
Group: ipfilter
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable access list filtering.
admin_enable <boolean> 6/6 Enable administrator IP address.
admin_ip string[43] 6/6 Administrator IP address.
maxconnection 1~10 6/6 Maximum number of concurrent streaming
connection(s).
type 0, 1 6/6 Ipfilter policy :
0 => allow
1 => deny
ipv4list_i<0~9> Single address: <ip
address>
Network address:
<ip address /
network mask>
Range
address:<start ip
address - end ip
address>
6/6 IPv4 address list.
ipv6list_i<0~9> string[43] 6/6 IPv6 address list.
VIVOTEK
User's Manual - 171
7.8Video input
Group: videoin
NAME VALUE SECURITY
(get/set)
DESCRIPTION
cmosfreq 50, 60 4/4 CMOS frequency.
(capability.videoin.type=2)
whitebalance
<product dependent>
auto,
manual,
rbgain,
widerange,
outdoor,
indoor,
sodiumauto,
etc
(Available values are
listed in
"capability_image_c
<n>_wbmode")
4/4 Modes of white balance.
"auto": Auto white balance
"rbgain": Use rgain and bgain to set white
balance manually.
"manual": 2 cases:
a. if "rbgain" is not supported, this means
keep current white balance status.
b. if "rbgain" is supported, "rgain" and
"bgain" are updated to the current values
which is got from white balance module. Then,
act as rbgain mode
"widerange": Auto Tracing White balance
(2000K to 10000K).
"outdoor": auto white balance mode
specifically for outdoor.
"indoor": auto white balance mode
specifically for indoor.
"sodiumauto": sodium vapor lamps.
* Only available when
"capability_image_c<n>_wbmode" !="-"
exposurelevel 0~12 4/4 Exposure level
"0,12": This range takes the concept from DC's
exposure tuning options. The definition is:
0: EV -2.0
1: EV -1.7
2: EV -1.3
3: EV -1.0
4: EV -0.7
5: EV -0.3
6: EV 0
7: EV +0.3
VIVOTEK
172 - User's Manual
8: EV +0.7
9: EV +1.0
10: EV +1.3
11: EV +1.7
12: EV +2.0
irismode fixed, indoor,
outdoor
<product
independent>
4/4 Control DC-Iris mode.
"outdoor": Auto-setting DC-Iris to get best
quality, but easy to meet rolling or flicker effect
in indoor environment.
"indoor": Avoid rolling and flicker effect first.
"fixed": Open the iris to maximum.
* Only available when
"capability_image_c<n>_iristype"=dciris
enableblc
<Not support anymore>
<boolean> 4/4 Enable backlight compensation.
* Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301a.
* It's recommanded to use
"exposurewin_c<n>_mode" to switch on/off
BLC.
color 0, 1 4/4 0 =>monochrome
1 => color
flip <boolean> 4/4 Flip the image.
mirror <boolean> 4/4 Mirror the image.
rotate 0,90,180,270 1/4 The rotation angle of image.
Support only in Rotation mode
(capability.videoin.c<n>.rotation=1)
ptzstatus 0,<positive
integer>
1/7 A 32-bit integer, each bit can be set separately
as follows:
Bit 0 => Support camera control function;
0(not support), 1(support)
Bit 1 =>Built-in or external camera; 0
(external), 1(built-in)
Bit 2 => Support pan operation; 0(not
support), 1(support)
Bit 3 => Support tilt operation; 0(not
support), 1(support)
Bit 4 => Support zoom operation; 0(not
support), 1(support)
VIVOTEK
User's Manual - 173
Bit 5 => Support focus operation; 0(not
support), 1(support)(SD/PZ/IZ series only)
text string[64] 1/4 Enclose caption.
imprinttimestamp <boolean> 4/4 Overlay time stamp on video.
minexposure
<product dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
etc.
* Available value is
listed in
"capability_image_c
<n>_exposure_min
range"
4/4 Minimum exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
5~8000 => 1/5s ~ 1/8000s
etc.
* Only available when
"capability_image_c<n>_exposure_minrange
" != "-"
* Only valid when "piris_mode"=manual or
"irismode"=fixed
* Only available when
"capability_image_c<n>_exposure_rangetyp
e" is "twovalues".
maxexposure
<product dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
etc.
* Available value is
listed in
"capability_image_c
<n>_exposure_ma
xrange"
4/4 Maximum exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
5~8000 => 1/5s ~ 1/8000s
etc.
* This parameter may also restrict image
frame rate from sensor due to sensor
generates a frame per exposure time. Ex: If
this is set to 1/5s ~ 1/8000s and camera takes
1/5s on the night, then sensor only outputs 5
frame/s.
* Only available when
"capability_image_c<n>_exposure_maxrang
e" != "-"
* Only valid when "piris_mode"=manual or
"irismode"=fixed
* Only available when
VIVOTEK
174 - User's Manual
"capability_image_c<n>_exposure_rangetyp
e" is "twovalues".
enablepreview <boolean> 1/4 Usage for UI of exposure settings. Preview
settings of video profile.
7.8.1 Video input setting per channel
Group: videoin_c<0~(n-1)> for n channel products, and m is stream number
n denotes the value of "capability_nvideoin", m denotes the value of "capability_nmediastream"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
cmosfreq 50, 60 4/4 CMOS frequency.
(capability.videoin.type=2)
mode 0 ~
"capability_videoin_c<n>_nmode"-1
4/4 Indicate the video mode on use.
whitebalance
<product
dependent>
auto,
manual,
rbgain,
widerange,
outdoor,
indoor,
sodiumauto,
etc
(Available values are listed in
"capability_image_c<n>_wbmode")
4/4 Modes of white balance.
"auto": Auto white balance
"rbgain": Use rgain and bgain to set
white balance manually.
"manual": 2 cases:
a. if "rbgain" is not supported, this
means keep current white balance
status.
b. if "rbgain" is supported, "rgain"
and "bgain" are updated to the current
values which is got from white balance
module. Then, act as rbgain mode
"widerange": Auto Tracing White
balance (2000K to 10000K).
"outdoor": auto white balance mode
specifically for outdoor.
"indoor": auto white balance mode
specifically for indoor.
"sodiumauto": sodium vapor lamps.
* Only available when
"capability_image_c<n>_wbmode" !=
"-"
rgain 0~100 4/4 Manual set rgain value of gain control
setting.
VIVOTEK
User's Manual - 175
0: Weak <-> 100: Strong
* Only available when "rbgain" is listed
in "capability_image_c<n>_wbmode".
* Only valid when
"videoin_c<n>_whitebalance" != auto
* Normalized range.
bgain 0~100 4/4 Manual set bgain value of gain control
setting.
0: Weak <-> 100: Strong
* Only available when "rbgain" is listed
in "capability_image_c<n>_wbmode".
* Only valid when
"videoin_c<n>_whitebalance" != auto
* Normalized range.
exposurelevel 0~12 4/4 Exposure level
"0,12": This range takes the concept
from DC's exposure tuning options.
The definition is:
0: EV -2.0
1: EV -1.7
2: EV -1.3
3: EV -1.0
4: EV -0.7
5: EV -0.3
6: EV 0
7: EV +0.3
8: EV +0.7
9: EV +1.0
10: EV +1.3
11: EV +1.7
12: EV +2.0
exposuremode
<product
dependent>
auto,
shutterpriority,
irispriority,
manual,
etc
(Available options are list in
4/4 Select exposure mode.
"auto": Iris, Gain and Shutter
Speed(Exposure time) can be set
automatically.
"shutterpriority": Adjust with
variable Shutter Speed, auto Iris and
VIVOTEK
176 - User's Manual
"capability_image_c<n>_exposure_m
odetype")
Gain.
"irispriority": Adjust with variable
Iris, auto Gain and Shutter speed.
"manual": Adjust with variable
Shutter, Iris and Gain.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
irismode fixed, indoor, outdoor
<product dependent>
4/4 Control DC-Iris mode.
"outdoor": Auto-setting DC-Iris to
get best quality, but easy to meet
rolling or flicker effect in indoor
environment.
"indoor": Avoid rolling and flicker
effect first.
"fixed": Open the iris to maximum.
* Only available when
"capability_image_c<n>_iristype"=dc
iris
piris_mode
<product
dependent>
manual, indoor, outdoor,- 1/4 Control P-Iris mode.
"outdoor": Auto-setting P-Iris to get
best quality, but easy to meet rolling or
flicker effect in indoor environment.
"indoor": Avoid rolling and flicker
effect first.
"manual": Manual set P-Iris by
"piris_position".
"-": not support. (only available when
"capability_image_c<0~(n-1)>_sens
ortype" is "smartsensor")
* Only available when
"capability_image_c<n>_iristype"=pi
ris
piris_position
<product
dependent>
1~100 1/4 Manual set P-Iris.
1: Open <-> 100: Close
* Only vaild when
"piris_mode"=manual or
"capability_image_c<0~(n-1)>_sens
VIVOTEK
User's Manual - 177
ortype" is "smartsensor"
* Only available when
"capability_image_c<n>_iristype"=pi
ris
enableblc
<Not support
anymore>
<boolean> 4/4 Enable backlight compensation
* Not support this parameter anymore
when the version number
(httpversion) is equal or greater than
0301a.
* It's recommanded to use
"exposurewin_c<n>_mode" to switch
on/off BLC.
maxgain 0~100 4/4 Maximum gain value.
0: Low <-> 100: High
* Only available when
"capability_image_c<n>_agc_maxgai
n" != "-"
* Only valid when
"piris_mode"=manual or
"irismode"=fixed
* Normalized range.
* Only available when
"capability_image_c<n>_exposure_ra
ngetype" is "twovalues".
mingain 0~100 4/4 Minimum gain value.
0: Low <-> 100: High
* Only available when
"capability_image_c<n>_agc_mingai
n" != "-"
* Only valid when
"piris_mode"=manual or
"irismode"=fixed
* Normalized range.
* Only available when
"capability_image_c<n>_exposure_ra
ngetype" is "twovalues".
gainvalue 0~100 4/4 Gain value.
0: Low <-> 100: High
VIVOTEK
178 - User's Manual
* Only available when
"capability_image_c<n>_agc_maxgai
n" != "-" and
"capability_image_c<n>_exposure_ra
ngetype" is "onevalue".
* Normalized range.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
color 0, 1 4/4 0 =>monochrome
1 => color
flip <boolean> 4/4 Flip the image.
mirror <boolean> 4/4 Mirror the image.
rotate 0,90,180,270 1/4 The rotation angle of image.
Support only in Rotation mode
(capability.videoin.c<n>.rotation=1)
ptzstatus 0,<positive integer> 1/7 A 32-bit integer, each bit can be set
separately as follows:
Bit 0 => Support camera control
function; 0(not support), 1(support)
Bit 1 =>Built-in or external camera;
0 (external), 1(built-in)
Bit 2 => Support pan operation;
0(not support), 1(support)
Bit 3 => Support tilt operation; 0(not
support), 1(support)
Bit 4 => Support zoom operation;
0(not support), 1(support)
Bit 5 => Support focus operation;
0(not support), 1(support)(SD/PZ/IZ
series only)
text string[64] 1/4 Enclose caption.
imprinttimesta
mp
<boolean> 4/4 Overlay time stamp on video.
textonvideo_po
sition
top, bottom 4/4 Text on video string position
textonvideo_siz
e
20~40 4/4 Text on video font size
VIVOTEK
User's Manual - 179
textonvideo_fon
tpath
/usr/share/font/Default.ttf,
/mnt/flash2/upload.ttf
4/4 Choose camera default font file
(/usr/share/font/Default.ttf) or user
uploaded font
file(/mnt/flash2/upload.ttf).
textonvideo_upl
oadfilename
Depends on the font file name
uploaded by user
1/7 Show the uploaded font file name.
minexposure
<product
dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
etc.
* Available value is listed in
"capability_image_c<n>_exposure_m
inrange"
4/4 Minimum exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
5~8000 => 1/5s ~ 1/8000s
etc.
* Only available when
"capability_image_c<n>_exposure_m
inrange" != "-"
* Only valid when
"piris_mode"=manual or
"irismode"=fixed
* Only available when
"capability_image_c<n>_exposure_ra
ngetype" is "twovalues".
maxexposure
<product
dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
etc.
* Available value is listed in
"capability_image_c<n>_exposure_m
axrange"
4/4 Maximum exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
5~8000 => 1/5s ~ 1/8000s
etc.
* This parameter may also restrict
image frame rate from sensor due to
sensor generates a frame per
exposure time. Ex: If this is set to 1/5s
~ 1/8000s and camera takes 1/5s on
the night, then sensor only outputs 5
frame/s.
* Only available when
"capability_image_c<n>_exposure_m
axrange" != "-"
VIVOTEK
180 - User's Manual
* Only valid when
"piris_mode"=manual or
"irismode"=fixed
* Only available when
"capability_image_c<n>_exposure_ra
ngetype" is "twovalues".
shuttervalue
<product
dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
etc.
* Available value is listed in
"capability_image_c<n>_exposure_m
axrange"
4/4 Exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
5~8000 => 1/5s ~ 1/8000s
etc.
* This parameter may also restrict
image frame rate from sensor due to
sensor generates a frame per
exposure time. Ex: If this is set to 1/5s
~ 1/8000s and camera takes 1/5s on
the night, then sensor only outputs 5
frame/s.
* Only available when
"capability_image_c<n>_exposure_m
axrange" != "-" and
"capability_image_c<n>_exposure_ra
ngetype" is "onevalue".
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
enablepreview <boolean> 1/4 Usage for UI of exposure settings.
Preview settings of video profile.
crop_position <coordinate>
(x,y)
1/7 Crop left-top corner coordinate.
crop_size <window size>
(WxH)
1/7 Crop width and height.
(width must be 16x or 32x and height
must be 8x)
zoomratiodispla
y
<boolean> 1/4 Indicates multiple of zoom in is
“on-screen display” or not.
VIVOTEK
User's Manual - 181
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
s<0~(m-1)>_e
nableeptz
<boolean> 4/4 Indicate whether stream supprts eptz
or not
s<0~(m-1)>_c
odectype
Listed at "capability_videoin_codec"
Possible values are: mjpeg, h264,h265
<product dependent>
1/4 Codec type for this stream
s<0~(m-1)>_re
solution
Available options are list in
"capability_videoin_c0_resolution".
1/4 Video resolution in pixels.
s<0~(m-1)>_h
264_dintraperio
d_enable
<boolean> 4/4 Enable "Dynamic intra frame period".
* Only available when
"capability_videoin_c<0~(n-1)>_dint
raperiod_support" is 1.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0301c.
s<0~(m-1)>_h
264_intraperiod
250, 500, 1000, 2000, 3000, 4000 4/4 The time interval between two
I-frames (Intra coded picture).
The unit is millisecond (ms).
s<0~(m-1)>_h
264_ratecontrol
mode
cbr, vbr 4/4 cbr: Constant bit rate mode.
vbr: Fixed quality mode, all frames are
encoded in the same quality.
s<0~(m-1)>_h
264_quant
1~5,
99, 100
4/4 Set the pre-defined quality level:
1: Medium
2: Standard
3: Good
4: Detailed
5: Excellent
100: Use the quality level in
"qpercent"
99: Use the quality level in "qvalue"
* Only valid when "ratecontrolmode"=
vbr.
s<0~(m-1)>_h
264_qvalue
0~51 4/4 Manual video quality level input. The Q
value which is used by encoded library
VIVOTEK
182 - User's Manual
directly.
* Only valid when "ratecontrolmode"=
vbr and s<0~(m-1)>_h264_quant =
99.
s<0~(m-1)>_h
264_qpercent
1~100 4/4 Select customized quality in a
normalized full range.
1: Worst quality
100: Best quality
* Only valid when "ratecontrolmode"=
vbr and "quant"= 100.
s<0~(m-1)>_h
264_maxvbrbitr
ate
20000~"capability_videoin_c<n>_h2
64_maxbitrate
"
4/4
Themaximumallowedbitrateinfixed
qualitymode.
Whenthebitrateexceedsthisvalue,
frameswillbedroppedtorestrictthe
bitrate.
* Only valid when "ratecontrolmode"=
vbr
s<0~(m-1)>_h
264_cbr_quant
1~5, 100 4/4 Set the pre-defined quality level:
1: Medium
2: Standard
3: Good
4: Detailed
5: Excellent
100: Use the quality level in
"cbr_qpercent"
* Only available when
"ratecontrolmode"= cbr.
* Only available when
"capability_smartstream_version"=2.
0
s<0~(m-1)>_h
264_cbr_qperce
nt
1~100 4/4 Select customized quality in a
normalized full range.
1: Worst quality
100: Best quality
* Only valid when "ratecontrolmode"=
VIVOTEK
User's Manual - 183
cbr and "quant"= 100.
* Only available when
"capability_smartstream_version"=2.
0
s<0~(m-1)>_h
264_bitrate
20000~"capability_videoin_c<n>_h2
64_maxbitrate"
4/4 The target bit rate in constant bit rate
mode.
*Only valid when "ratecontrolmode"=
cbr
s<0~(m-1)>_h
264_prioritypoli
cy
framerate,imagequality 4/4 Set prioritypolicy
*Only valid when "ratecontrolmode"=
cbr
s<0~(m-1)>_h
264_maxframe
1~"capability_videoin_c<n>_h264_m
axframerate"
1/4 The maximum frame rates of a H264
stream at different
resolutions("capability_videoin_c0_re
solution ") are recorded in
"capability_videoin_c<n>_h264_maxf
ramerate"
s<0~(m-1)>_h
264_profile
0~2 1/4 Indicate H264 profiles
0: baseline
1: main profile
2: high profile
s<0~(m-1)>_h
265_dintraperio
d_enable
<boolean> 4/4 Enable "Dynamic intra frame period".
* Only available when
"capability_videoin_c<0~(n-1)>_dint
raperiod_support" is 1 and h265 is
listed in "capability_videoin_codec".
* We support this parameter when the
version number (httpversion) is equal
or greater than 0301c.
s<0~(m-1)>_h
265_intraperiod
250, 500, 1000, 2000, 3000, 4000 4/4 The time interval between two
I-frames (Intra coded picture).
The unit is millisecond (ms).
* Only available when h265 is listed in
"capability_videoin_codec".
s<0~(m-1)>_h
265_ratecontrol
mode
cbr, vbr 4/4 cbr: Constant bit rate mode.
vbr: Fixed quality mode, all frames are
encoded in the same quality.
VIVOTEK
184 - User's Manual
* Only available when h265 is listed in
"capability_videoin_codec".
s<0~(m-1)>_h
265_quant
1~5,
99, 100
4/4 Set the pre-defined quality level:
1: Medium
2: Standard
3: Good
4: Detailed
5: Excellent
100: Use the quality level in
"qpercent"
99: Use the quality level in "qvalue"
* Only available when h265 is listed in
"capability_videoin_codec" and
"ratecontrolmode"= vbr.
s<0~(m-1)>_h
265_qvalue
0~51 4/4 Manual video quality level input. The Q
value which is used by encoded library
directly.
* Only available when h265 is listed in
"capability_videoin_codec".
* Only valid when "ratecontrolmode"=
vbr and s<0~(m-1)>_h265_quant =
99.
s<0~(m-1)>_h
265_qpercent
1~100 4/4 Select customized quality in a
normalized full range.
1: Worst quality
100: Best quality
* Only available when h265 is listed in
"capability_videoin_codec".
* Only valid when "ratecontrolmode"=
vbr and "quant"= 100.
s<0~(m-1)>_h
265_maxvbrbitr
ate
20000~"capability_videoin_c<n>_h2
65_maxbitrate
"
4/4 The maximum allowed bit rate in fixed
quality mode.
When the bit rate exceeds this value,
frames will be dropped to restrict the
bit rate.
VIVOTEK
User's Manual - 185
* Only available when h265 is listed in
"capability_videoin_codec".
* Only valid when "ratecontrolmode"=
vbr
s<0~(m-1)>_h
265_cbr_quant
1~5, 100 4/4 Set the pre-defined quality level:
1: Medium
2: Standard
3: Good
4: Detailed
5: Excellent
100: Use the quality level in
"cbr_qpercent"
* Only available when h265 is listed in
"capability_videoin_codec" and
"ratecontrolmode"= cbr.
* Only available when
"capability_smartstream_version"="2
.0"
s<0~(m-1)>_h
265_cbr_qperce
nt
1~100 4/4 Select customized quality in a
normalized full range.
1: Worst quality
100: Best quality
* Only available when h265 is listed in
"capability_videoin_codec".
* Only valid when "ratecontrolmode"=
cbr and "quant"= 100.
* Only available when
"capability_smartstream_version"="2
.0"
s<0~(m-1)>_h
265_bitrate
20000~"capability_videoin_c<n>_h2
65_maxbitrate"
4/4 The target bit rate in constant bit rate
mode.
* Only available when h265 is listed in
"capability_videoin_codec".
*Only valid when "ratecontrolmode"=
cbr
s<0~(m-1)>_h framerate,imagequality 4/4 Set prioritypolicy
VIVOTEK
186 - User's Manual
265_prioritypoli
cy * Only available when h265 is listed in
"capability_videoin_codec".
* Only valid when "ratecontrolmode"=
cbr
s<0~(m-1)>_h
265_maxframe
1~"capability_videoin_c<n>_h265_m
axframerate"
1/4 The maximum frame rates of a H265
stream at different
resolutions("capability_videoin_c0_re
solution ") are recorded in
"capability_videoin_c<n>_h265_maxf
ramerate"
* Only available when h265 is listed in
"capability_videoin_codec".
s<0~(m-1)>_h
265_profile
0~2 1/4 Indicate H265 profiles
0: baseline
1: main profile
2: high profile
* Only available when h265 is listed in
"capability_videoin_codec".
s<0~(m-1)>_m
jpeg_ratecontro
lmode
cbr, vbr 4/4 cbr: Constant bit rate mode.
vbr: Fixed quality mode, all frames are
encoded in the same quality.
s<0~(m-1)>_m
jpeg_quant
1~5,
99, 100
4/4 * Only valid when "ratecontrolmode"=
vbr.
Set the pre-defined quality level:
1: Medium
2: Standard
3: Good
4: Detailed
5: Excellent
100: Use the quality level in
"qpercent"
99: Use the quality level in "qvalue"
s<0~(m-1)>_m
jpeg_qvalue
10~200
(Only valid when
"capability_api_httpversion" format is
XXXXX_1,
4/4 Manual video quality level input. The Q
value which is used by encoded library
directly.
VIVOTEK
User's Manual - 187
ex: 0301a_1)
or 1~99
(Only valid when
"capability_api_httpversion" format is
XXXXX_2,
ex: 0301a_2)
<product dependent>
* Only valid when "ratecontrolmode"=
vbr and s<0~(m-1)>_mjpeg_quant =
99
s<0~(m-1)>_m
jpeg_qpercent
1~100 4/4 Select customized quality in a
normalized full range.
1: Worst quality
100: Best quality
* Only valid when "ratecontrolmode"=
vbr and s<0~(m-1)>_mjpeg_quant =
100.
s<0~(m-1)>_m
jpeg_maxvbrbit
rate
20000~"capability_videoin_c<n>_mj
peg_maxbitrate"
4/4 The maximum allowed bit rate in fixed
quality mode.
When the bit rate exceeds this value,
frames will be dropped to restrict the
bit rate.
* Only valid when "ratecontrolmode"=
vbr
s<0~(m-1)>_m
jpeg_cbr_quant
1~5, 100 4/4 Set the pre-defined quality level:
1: Medium
2: Standard
3: Good
4: Detailed
5: Excellent
100: Use the quality level in
"cbr_qpercent"
* Only available when
"ratecontrolmode"= cbr.
* Only available when
"capability_smartstream_version"="2
.0"
s<0~(m-1)>_m
jpeg_cbr_qperc
ent
1~100 4/4 Select customized quality in a
normalized full range.
1: Worst quality
VIVOTEK
188 - User's Manual
100: Best quality
* Only valid when "ratecontrolmode"=
cbr and "quant"= 100.
* Only available when
"capability_smartstream_version"="2
.0"
s<0~(m-1)>_m
jpeg_bitrate
20000~"capability_videoin_c<n>_mj
peg_maxbitrate"
4/4 The target bit rate in constant bit rate
mode.
* Only valid when "ratecontrolmode"=
cbr
s<0~(m-1)>_m
jpeg_prioritypoli
cy
framerate,imagequality 4/4 Set prioritypolicy
* Only valid when "ratecontrolmode"=
cbr
s<0~(m-1)>_m
jpeg_maxframe
1~"capability_videoin_c<n>_mjpeg_
maxframerate"
1/4 The maximum frame rates of a mjpeg
stream at different
resolutions("capability_videoin_c0_re
solution ") are recorded in
"capability_videoin_c<n>_mjpeg_ma
xframerate"
wdrpro_mode
<product
dependent>
<boolean> 4/4 Enable WDR pro
* Only available when
"capability_image_c<n>_wdrpro_mo
de" > 0
wdrpro_strengt
h
<product
dependent>
1~100 4/4 The strength of WDR Pro.
The bigger value means the stronger
strength of WDR Pro.
* Only available when
"capability_image_c<n>_wdrpro_stre
ngth" is 1
wdrc_mode
<product
dependent>
<boolean> 4/4 Enable WDR enhanced.
* Only available when
"capability_image_c<n>_wdrc_mode
" is 1
wdrc_strength
<product
dependent>
1~100 4/4 The strength of WDR enhanced.
The bigger value means the stronger
strength of WDR enhanced.
VIVOTEK
User's Manual - 189
* Only available when
"capability_image_c<n>_wdrc_mode
" is 1
aespeed_mode
<product
dependent>
<boolean> 4/4 Turning AE converge speed on or off.
0: off
1: on
* Only available when
"capability_image_c<n>_aespeed" is
1
aespeed_speedl
evel
<product
dependent>
1~100 4/4 The speed level of AE converge speed.
1~20: level 1
21~40: level 2
41~60: level 3
61~80: level 4
81~100: level 5
Level 1~4(low ~ high)
The higher speed level meas shorter
AE converged time during AE
executing.
* Only available when
"capability_image_c<n>_aespeed" is
1
aespeed_sensiti
vity
<product
dependent>
1~100 4/4 The sensitivity of AE converge speed.
1~20: level 1
21~40: level 2
41~60: level 3
61~80: level 4
81~100: level 5
Level 1~4(low ~ high)
The higher sensitivity level meas that
it is easy to be trigger while scene
changed.
* Only available when
"capability_image_c<n>_aespeed" is
1
flickerless
<product
dependent>
<boolean> 4/4 Turn on(1) or turn off(0) the flickerless
mode
* Only available when
"capability_image_c<n>_flickerless"
is 1
VIVOTEK
190 - User's Manual
mounttype
<product
dependent>
ceiling, wall, floor 1/6 wall mount: 180° panoramic view
ceiling mount: 360° surround view
without blind spots
floor mount: 360° surround view
without blind spots
* Only available when
"capability_fisheye" > 0
enablewatermar
k
<product
dependent>
0, 1 1/6 0: Not to add watermarks on images
1: Add watermarks on images
* Only available when
"capability_fisheye" > 0
s<0~(m-2)>_fi
sheyedewarpmo
de
<product
dependent>
‘1O, 1P, 2P, 1R, 4R’ for ceiling/floor
mount
‘1O, 1P, 1R, 4R’ for wall mount
<product dependent>
1/4 Local dewarp mode.
“1O” is original mode (disable).
Supported dewarp mode is different by
mount type.
(videoin_c<n>_mounttype)
Supported mode list could be
extracted from
(capability_videoin_c<n>_localdewar
p_typeceilingmount) and
(capability_videoin_c<n>_localdewar
p_typewallmount)
* Only available when
"capability_fisheyelocaldewarp_c<0~(
capability_nvideoin)-1>" > 0
Group: videoin_c<0~(n-1)>_s<0~(m-1)>_h264_smartstream2 (capability_smartstream_support=1 and
capability_smartstream_version=2.0)
Group: videoin_c<0~(n-1)>_s<0~(m-1)>_h265_smartstream2 (capability_smartstream_support=1,
capability_smartstream_version=2.0 and h265 is listed in "capability_videoin_codec")
n denotes the value of "capability_nvideoin",m denotes the value of " capability_nmediastream"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable or Disable smart codec function
mode autotracking,manual,hybrid 4/4 Set Smart stream mode
qualitypriority -5,-4,-3,-2,-1,1,2,3,4,5 4/4 The differential value of Q between the
regions of interest (ROI) and the areas
VIVOTEK
User's Manual - 191
of non-interest (non-ROI) of the
display image.
If the value is a positive number, the
video quality of ROI is better than the
non-ROI areas. The level is from 1 to
5. Level 5 is the maximum level of the
quality difference between the ROI and
non-ROI areas.
If the value is a negative number, the
video quality of non-ROI areas is
better than the ROI. The level is from
-1 to -5. Level -5 is the maximum level
of the quality difference between the
ROI and non-ROI areas.
Group: videoin_c<0~(n-1)>_s<0~(m-1)>_h264_smartstream2_win_i<0~(k-1)>
(capability_smartstream_support=1, capability_smartstream_version=2.0 and
capability_smartstream_mode_manual = 1)
Group: videoin_c<0~(n-1)>_s<0~(m-1)>_h265_smartstream2_win_i<0~(k-1)>
(capability_smartstream_support=1, capability_smartstream_version=2.0 and h265 is listed in
"capability_videoin_codec" and capability_smartstream_mode_manual = 1)
n denotes the value of "capability_nvideoin",m denotes the value of " capability_nmediastream",k denotes the
value of "capability_smartstream_nwindow_manual".
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable or disable the window.
home 0~320,0~240 4/4 Left-top corner coordinate of the window.
size 0~320x0~240 4/4 Width and height of the window
VIVOTEK
192 - User's Manual
7.8.1.1 Alternative video input profiles per channel
In addition to the primary setting of video input, there can be alternative profile video input setting for each
channel which might be for different scene of light (daytime or nighttime).
Group: videoin_c<0~(n-1)>_profile_i<0~(m-1)> for n channel profucts and m profile
n denotes the value of "capability_nvideoin" and m denotes the value of "capability_nvideoinprofile"
(capability.nvideoinprofile> 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable/disable this profile setting
policy night,
schedule
4/4 The mode which the profile is applied to.
* Not support "policy=day" anymore when the
version number (httpversion) is equal or
greater than 0301a.
begintime hh:mm 4/4 Begin time of schedule mode.
endtime hh:mm 4/4 End time of schedule mode.
minexposure
<product dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
etc.
* Available value is
listed in
"capability_image_c
<n>_exposure_min
range"
4/4 Minimum exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
5~8000 => 1/5s ~ 1/8000s
etc.
* Only available when
"capability_image_c<n>_exposure_minrange
" != "-"
* Only valid when "piris_mode"=manual or
"irismode"=fixed
* Only available when
"capability_image_c<n>_exposure_rangetyp
e" is "twovalues".
maxexposure
<product dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
etc.
4/4 Maximum exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
5~8000 => 1/5s ~ 1/8000s
etc.
VIVOTEK
User's Manual - 193
* Available value is
listed in
"capability_image_c
<n>_exposure_ma
xrange"
* This parameter may also restrict image
frame rate from sensor due to sensor
generates a frame per exposure time. Ex: If
this is set to 1/5s ~ 1/8000s and camera takes
1/5s on the night, then sensor only outputs 5
frame/s.
* Only available when
"capability_image_c<n>_exposure_maxrang
e" != "-"
* Only valid when "piris_mode"=manual or
"irismode"=fixed
* Only available when
"capability_image_c<n>_exposure_rangetyp
e" is "twovalues".
shuttervalue
<product dependent>
<1~32000>,
<5~32000>,
<1~8000>,
<5~8000>,
etc.
* Available value is
listed in
"capability_image_c
<n>_exposure_ma
xrange"
4/4 Exposure time
1~32000 => 1s ~ 1/32000s
5~32000 => 1/5s ~ 1/32000s
1~8000 => 1s ~ 1/8000s
5~8000 => 1/5s ~ 1/8000s
etc.
* This parameter may also restrict image
frame rate from sensor due to sensor
generates a frame per exposure time. Ex: If
this is set to 1/5s ~ 1/8000s and camera takes
1/5s on the night, then sensor only outputs 5
frame/s.
* Only available when
"capability_image_c<n>_exposure_maxrang
e" != "-" and
"capability_image_c<n>_exposure_rangetyp
e" is "onevalue".
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
enableblc <boolean> 4/4 Enable backlight compensation.
VIVOTEK
194 - User's Manual
<Not support anymore> * Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301a.
* It's recommanded to use
"exposurewin_c<n>_mode" to switch on/off
BLC.
exposurelevel 0~12 4/4 Exposure level
"0,12": This range takes the concept from DC's
exposure tuning options. The definition is:
0: EV -2.0
1: EV -1.7
2: EV -1.3
3: EV -1.0
4: EV -0.7
5: EV -0.3
6: EV 0
7: EV +0.3
8: EV +0.7
9: EV +1.0
10: EV +1.3
11: EV +1.7
12: EV +2.0
exposuremode
<product dependent>
auto,
shutterpriority,
irispriority,
manual,
etc
(Available options
are list in
"capability_image_c
<n>_exposure_mo
detype")
4/4 Select exposure mode.
"auto": Iris, Gain and Shutter
Speed(Exposure time) can be set
automatically.
"shutterpriority": Adjust with variable
Shutter Speed, auto Iris and Gain.
"irispriority": Adjust with variable Iris, auto
Gain and Shutter speed.
"manual": Adjust with variable Shutter, Iris
and Gain.
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
whitebalance
<product dependent>
auto,
manual,
rbgain,
4/4 Modes of white balance.
"auto": Auto white balance
"rbgain": Use rgain and bgain to set white
VIVOTEK
User's Manual - 195
widerange,
outdoor,
indoor,
sodiumauto,
etc
(Available values are
listed in
"capability_image_c
<n>_wbmode")
balance manually.
"manual": 2 cases:
a. if "rbgain" is not supported, this means
keep current white balance status.
b. if "rbgain" is supported, "rgain" and
"bgain" are updated to the current values
which is got from white balance module. Then,
act as rbgain mode
"widerange": Auto Tracing White balance
(2000K to 10000K).
"outdoor": auto white balance mode
specifically for outdoor.
"indoor": auto white balance mode
specifically for indoor.
"sodiumauto": sodium vapor lamps.
* Only available when
"capability_image_c<n>_wbmode" !="-"
rgain 0~100 4/4 Manual set rgain value of gain control setting.
0: Weak <-> 100: Strong
* Only available when "rbgain" is listed in
"capability_image_c<n>_wbmode".
* Only valid when
"videoin_c<n>_whitebalance" != auto
* Normalized range.
bgain 0~100 4/4 Manual set bgain value of gain control setting.
0: Weak <-> 100: Strong
* Only available when "rbgain" is listed in
"capability_image_c<n>_wbmode".
* Only valid when
"videoin_c<n>_whitebalance" != auto
* Normalized range.
maxgain 0~100 4/4 Maximum gain value.
0: Low <-> 100: High
* Only available when
"capability_image_c<n>_agc_maxgain" != "-"
* Only valid when "piris_mode"=manual or
VIVOTEK
196 - User's Manual
"irismode"=fixed
* Normalized range.
* Only available when
"capability_image_c<n>_exposure_rangetyp
e" is "twovalues".
mingain 0~100 4/4 Minimum gain value.
0: Low <-> 100: High
* Only available when
"capability_image_c<n>_agc_mingain" != "-"
* Only valid when "piris_mode"=manual or
"irismode"=fixed
* Normalized range.
* Only available when
"capability_image_c<n>_exposure_rangetyp
e" is "twovalues".
gainvalue 0~100 4/4 Gain value.
0: Low <-> 100: High
* Only available when
"capability_image_c<n>_agc_maxgain" != "-"
and
"capability_image_c<n>_exposure_rangetyp
e" is "onevalue".
* Normalized range.
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
piris_mode
<product dependent>
manual, indoor,
outdoor,-
1/4 Control P-Iris mode.
"outdoor": Auto-setting P-Iris to get best
quality, but easy to meet rolling or flicker effect
in indoor environment.
"indoor": Avoid rolling and flicker effect first.
"manual": Manual set P-Iris by
"piris_position".
"-": not support (only available when
"capability_image_c<0~(n-1)>_sensortype"
is "smartsensor")
* Only available when
VIVOTEK
User's Manual - 197
"capability_image_c<n>_iristype"=piris
piris_position
<product dependent>
1~100 1/4 Manual set P-Iris.
1: Open <-> 100: Close
* Only vaild when "piris_mode"=manual or
"capability_image_c<0~(n-1)>_sensortype"
is "smartsensor"
* Only available when
"capability_image_c<n>_iristype"=piris
irismode fixed, indoor,
outdoor
<product
dependent>
4/4 Control DC-Iris mode.
"outdoor": Auto-setting DC-Iris to get best
quality, but easy to meet rolling or flicker effect
in indoor environment.
"indoor": Avoid rolling and flicker effect first.
"fixed": Open the iris to maximum.
* Only available when
"capability_image_c<n>_iristype"=dciris
wdrpro_mode
<product dependent>
<boolean> 4/4 Enable WDR pro
* Only available when
"capability_image_c<n>_wdrpro_mode" > 0
wdrpro_strength
<product dependent>
1~100 4/4 The strength of WDR Pro.
The bigger value means the stronger strength
of WDR Pro.
* Only available when
"capability_image_c<n>_wdrpro_strength" is
1
wdrc_mode
<product dependent>
<boolean> 4/4 Enable WDR enhanced.
* Only available when
"capability_image_c<n>_wdrc_mode" is 1
wdrc_strength
<product dependent>
1~100 4/4 The strength of WDR enhanced.
The bigger value means the stronger strength
of WDR enhanced.
* Only available when
"capability_image_c<n>_wdrc_mode" is 1
aespeed_mode
<product dependent>
<boolean> 4/4 Turning AE converge speed on or off.
0: off
1: on
* Only available when
VIVOTEK
198 - User's Manual
"capability_image_c<n>_aespeed" is 1
aespeed_speedlevel
<product dependent>
1~100 4/4 The speed level of AE converge speed.
1~20: level 1
21~40: level 2
41~60: level 3
61~80: level 4
81~100: level 5
Level 1~4(low ~ high)
The higher speed level meas shorter AE
converged time during AE executing.
* Only available when
"capability_image_c<n>_aespeed" is 1
aespeed_sensitivity
<product dependent>
1~100 4/4 The sensitivity of AE converge speed.
1~20: level 1
21~40: level 2
41~60: level 3
61~80: level 4
81~100: level 5
Level 1~4(low ~ high)
The higher sensitivity level meas that it is easy
to be trigger while scene changed.
* Only available when
"capability_image_c<n>_aespeed" is 1
flickerless
<product dependent>
<boolean> 4/4 Turn on(1) or turn off(0) the flickerless mode
* Only available when
"capability_image_c<n>_flickerless" is 1
7.9Time Shift settings
Group: timeshift for n channel profucts and m stream
n denotes the value of "capability_nvideoin", m denotes the value of "capability_nmediastream"
(capability.timeshift > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable time shift streaming.
c<0~(n-1)>_s<0~(m-1)
>_allow
<boolean> 4/4 Enable time shift streaming for specific
stream.
VIVOTEK
User's Manual - 199
7.10 IR cut control
Group: ircutcontrol (capability.nvideoinprofile> 0 and capability_daynight_c<0~(n-1)>_ircutfilter=1)
n denotes the value of "capability_nvideoin"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
mode auto,
day,
night,
di,
schedule
<product
dependent>
6/6 Set IR cut control mode
sir
<product dependent>
<boolean> 6/6 Enable/disable Smart IR
* Only available when
"capability_daynight_c<0~"capability_nvideoi
n"-1>_smartir" is 1
daymodebegintime 00:00~23:59 6/6 Day mode begin time
daymodeendtime 00:00~23:59 6/6 Day mod end time
disableirled <boolean> 6/6 Enable/disable built-in IR led
(capability_daynight_c<0~"capability_nvideoi
n"-1>_buildinir > 0)
enableextled <boolean> 1/6 Enable/disable external IR led
(capability_daynight_c<0~"capability_nvideoi
n"-1>externalir > 0)
bwmode <boolean> 6/6 Switch to B/W in night mode if enabled
sensitivity low, normal, high
(if
capability_daynight
_c<n>_ircutsensitiv
ity_type=options)
1~100 (if
capability_daynight
_c<n>_ircutsensitiv
ity_type=normalize
)
6/6 Sensitivity of day/night control.
There are two value format:
"low,normal,high": if
capability_daynight_c<n>_ircutsensitivity_ty
pe=options
"1~100": if
capability_daynight_c<n>_ircutsensitivity_ty
pe=normalize
VIVOTEK
200 - User's Manual
7.11 Image setting per channel
Group: image_c<0~(n-1)> for n channel profucts and m profile
n denotes the value of "capability_nvideoin" and m denotes the value of "capability_nvideoinprofile"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
brightness
<Not recommended to use this>
-5~5,100 4/4 -5: Darker <-> 5: Bright
100: Use " image_c<n>_brightnesspercent"
* Only available when bit 0 of
"capability_image_c<n>_basicsetting" is 1
* We replace "brightness" with
"brightnesspercent".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
contrast
<Not recommended to use this>
-5~5,100 4/4 -5: Less contrast <-> 5: More contrast
100: Use " image_c<n>_contrastpercent"
* Only available when bit 1 of
"capability_image_c<n>_basicsetting" is 1.
* We replace "contrast" with "contrastpercent
".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
saturation
<Not recommended to use this>
-5~5,100 4/4 -5: Less saturation <-> 5: More saturation
100: Use " image_c<n>_saturationpercent"
* Only available when bit 2 of
"capability_image_c<n>_basicsetting" is 1.
* We replace "saturation" with
"saturationpercent".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
VIVOTEK
User's Manual - 201
sharpness
<Not recommended to use this>
-3~3,100 4/4 -3: Softer <-> 3: Sharper
100: Use " image_c<n>_sharpnesspercent"
* Only available when bit 3 of
"capability_image_c<n>_basicsetting" is 1.
* We replace "sharpness" with
"sharpnesspercent".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
brightnesspercent 0~100 4/4 Set brightness in the normalized range.
0: Darker <-> 100: Bright
* Only available when bit 0 of
"capability_image_c<n>_basicsetting" is 1.
contrastpercent 0~100 4/4 Set contrast in the normalized range.
0: Less contrast <-> 100: More contrast
* Only available when bit 1 of
"capability_image_c<n>_basicsetting" is 1
saturationpercent 0~100 4/4 Set saturation in the normalized range.
0: Less saturation <-> 100: More saturation
* Only available when bit 2 of
"capability_image_c<n>_basicsetting" is 1.
sharpnesspercent 0~100 4/4 Set sharpness in the normalized range.
0: Softer <-> 100: Sharper
* Only available when bit 3 of
"capability_image_c<n>_basicsetting" is 1
gammacurve 0~100 4/4 0: Fine-turned gamma curve by Vivotek.
1: Gamma value = 0.01
2: Gamma value = 0.02
3: Gamma value = 0.03
...
100: Gamma value = 1
* Note: Although we set gamma value to 100
level, but not all gamma values are valid.
VIVOTEK
202 - User's Manual
Internal module will take the closest valid one.
For example, 1~45 may all be mapped to
gamma value = 0.45, etc.
lowlightmode
<product dependent>
<boolean> 4/4 Enable/disable low light mode.
* Only available when
"capability_image_c<n>_lowlightmode" is 1
dnr_mode
<product dependent>
<boolean> 4/4 3D noise reduction.
0:disable
1:enable
* Only available when
"capability_image_c<n>_dnr" is 1
dnr_strength
<product dependent>
1~100 4/4 Strength of 3DNR
* Only available when
"capability_image_c<n>_dnr" is 1
defog_mode
<product dependent>
<boolean> 4/4 Enable/disable defog mode.
0:disable
1:enable
* Only available when
"capability_image_c<n>_defog_mode" is 1
defog_strength
<product dependent>
1~100 4/4 Strength of defog
* Only available when
"capability_image_c<n>_defog_mode" is 1
eis_mode
<product dependent>
<boolean> 4/4 Electronic image stabilizer
0:disable
1:enable
* Only available when 'eis' is listed in
"capability_image_c<n>_is_mode".
eis_strength
<product dependent>
1~100 4/4 Strength of electronic image stabilizer
* Only available when 'eis' is listed in
"capability_image_c<n>_is_mode".
dis_mode
<product dependent>
<boolean> 4/4 Digital image stabilizer
0:disable
1:enable
* Only available when 'dis' is listed in
"capability_image_c<n>_is_mode".
dis_strength
<product dependent>
1~100 4/4 Strength of digital image stabilizer
* Only available when 'dis' is listed in
"capability_image_c<n>_is_mode".
scene_enable
<product dependent>
<boolean> 4/4 Enable/disable scene mode
0: disable
VIVOTEK
User's Manual - 203
1: enable
* Only available when
"capability_image_c<n>_scenemode_support
" is 1
scene_mode
<product dependent>
visibility,
noiseless,
lpcparkinglot,
lpcstreet
<product
dependent>
4/4 Value of scene mode
* Only available when
"capability_image_c<n>_scenemode_support
" is 1
* Available value is listed in
"capability_image_c<n>_scenemode_support
type"
restoreatwb
1~
4/4 Restore of adjusting white balance of image
according to mode settings
freeze
<product dependent>
<boolean> 4/4 Enable/disable Image freeze while patrolling.
0: disable
1: enable
* Only available when
"capability_image_c<n>_freeze" is 1
profile_i<0~(m-1)>_enable <boolean> 4/4 Enable/disable this profile setting
profile_i<0~(m-1)>_policy night,
schedule
4/4 The mode which the profile is applied to.
* Not support "policy=day" anymore when the
version number (httpversion) is equal or
greater than 0301a.
profile_i<0~(m-1)>_begintime hh:mm 4/4 Begin time of schedule mode.
profile_i<0~(m-1)>_endtime hh:mm 4/4 End time of schedule mode.
profile_i<0~(m-1)>_brightness
<Not recommended to use this>
-5~5,100 4/4 -5: Darker <-> 5: Bright
100: Use " image_c<n>_brightnesspercent"
* Only available when bit 0 of
"capability_image_c<n>_basicsetting" is 1
* We replace "profile_i0_brightness" with
"profile_i0_brightnesspercent".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
profile_i<0~(m-1)>_contrast
<Not recommended to use this>
-5~5,100 4/4 -5: Less contrast <-> 5: More contrast
100: Use " image_c<n>_contrastpercent"
VIVOTEK
204 - User's Manual
* Only available when bit 1 of
"capability_image_c<n>_basicsetting" is 1.
* We replace "profile_i0_contrast" with
"profile_i0_contrastpercent ".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
profile_i<0~(m-1)>_saturation
<Not recommended to use this>
-5~5,100 4/4 -5: Less saturation <-> 5: More saturation
100: Use " image_c<n>_saturationpercent"
* Only available when bit 2 of
"capability_image_c<n>_basicsetting" is 1.
* We replace "profile_i0_saturation" with
"profile_i0_saturationpercent".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
profile_i<0~(m-1)>_sharpness
<Not recommended to use this>
-3~3,100 4/4 -5: Less saturation <-> 5: More saturation
100: Use " image_c<n>_saturationpercent"
* Only available when bit 2 of
"capability_image_c<n>_basicsetting" is 1.
* We replace "profile_i0_saturation" with
"profile_i0_saturationpercent".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
profile_i<0~(m-1)>_brightness
percent
0~100 4/4 Set brightness in the normalized range.
0: Darker <-> 100: Bright
* Only available when bit 0 of
"capability_image_c<n>_basicsetting" is 1.
profile_i<0~(m-1)>_contrastpe
rcent
0~100 4/4 Set contrast in the normalized range.
0: Less contrast <-> 100: More contrast
* Only available when bit 1 of
"capability_image_c<n>_basicsetting" is 1
VIVOTEK
User's Manual - 205
profile_i<0~(m-1)>_saturation
percent
0~100 4/4 Set saturation in the normalized range.
0: Less saturation <-> 100: More saturation
* Only available when bit 2 of
"capability_image_c<n>_basicsetting" is 1.
profile_i<0~(m-1)>_sharpness
percent
0~100 4/4 Set sharpness in the normalized range.
0: Softer <-> 100: Sharper
* Only available when bit 3 of
"capability_image_c<n>_basicsetting" is 1
profile_i<0~(m-1)>_gammacur
ve
0~100 4/4 0: Fine-turned gamma curve by Vivotek.
1: Gamma value = 0.01
2: Gamma value = 0.02
3: Gamma value = 0.03
...
100: Gamma value = 1
* Note: Although we set gamma value to 100
level, but not all gamma values are valid.
Internal module will take the closest valid one.
For example, 1~45 may all be mapped to
gamma value = 0.45, etc.
profile_i<0~(m-1)>_lowlightm
ode
<product dependent>
<boolean> 4/4 Enable/disable low light mode.
* Only available when
"capability_image_c<n>_lowlightmode" is 1
profile_i<0~(m-1)>_dnr_mode
<product dependent>
<boolean> 4/4 3D noise reduction.
0:disable
1:enable
* Only available when
"capability_image_c<n>_dnr" is 1
profile_i<0~(m-1)>_dnr_stren
gth
<product dependent>
1~100 4/4 Strength of 3DNR
* Only available when
"capability_image_c<n>_dnr" is 1
profile_i<0~(m-1)>_defog_mo
de
<product dependent>
<boolean> 4/4 Enable/disable defog mode.
0:disable
1:enable
* Only available when
"capability_image_c<n>_defog_mode" is 1
profile_i<0~(m-1)>_defog_str
ength
1~100 4/4 Strength of defog
* Only available when
VIVOTEK
206 - User's Manual
<product dependent> "capability_image_c<n>_defog_mode" is 1
profile_i<0~(m-1)>_eis_mode
<product dependent>
<boolean> 4/4 Electronic image stabilizer
0:disable
1:enable
* Only available when 'eis' is listed in
"capability_image_c<n>_is_mode".
profile_i<0~(m-1)>_eis_streng
th
<product dependent>
1~100 4/4 Strength of electronic image stabilizer
* Only available when 'eis' is listed in
"capability_image_c<n>_is_mode".
profile_i<0~(m-1)>_dis_mode
<product dependent>
<boolean> 4/4 Digital image stabilizer
0:disable
1:enable
* Only available when 'dis' is listed in
"capability_image_c<n>_is_mode".
profile_i<0~(m-1)>_dis_streng
th
<product dependent>
1~100 4/4 Strength of digital image stabilizer
* Only available when 'dis' is listed in
"capability_image_c<n>_is_mode".
profile_i<0~(m-1)>_scene_ena
ble
<product dependent>
<boolean> 4/4 Enable/disable scene mode
0: disable
1: enable
* Only available when
"capability_image_c<n>_scenemode_support
" is 1
profile_i<0~(m-1)>_scene_mo
de
<product dependent>
visibility,
noiseless,
lpcparkinglot,
lpcstreet
<product
dependent>
4/4 Value of scene mode
* Only available when
"capability_image_c<n>_scenemode_support
" is 1
* Available value is listed in
"capability_image_c<n>_scenemode_support
type"
VIVOTEK
User's Manual - 207
7.12 Exposure window setting per channel
Group: exposurewin_c<0~(n-1)> for n channel profucts
n denotes the value of "capability_nvideoin" (Only available when "capability_image_c<n>_exposure_mode"=1)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
mode auto, custom,blc
* Available values are listed in
"capability_image_c<n>_exposu
re_winmode"
4/4 "auto": Use full image view as the only
exposure window.
"custom": Use custom windows.
"blc": Use BLC(Back Light Compensation),
and the only exposure window is located at the
center of view.
Group: exposurewin_c<0~(n-1)>_win_i<0~(k-1)>
n denotes the value of "capability_nvideoin", k denotes the value of "capability_image_c<n>_exposure_winnum".
(Only available when custom is listed in "capability_image_c<n>_exposure_winmode" and valid when
"exposurewin_c<n>_mode"=custom)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable or disable the window.
policy 0~1 4/4 0: Indicate exclusive.
1: Indicate inclusive.
* Only available when exclusive is listed in
"capability_image_c<n>_exposure_wintype".
home <0~320,0~240> 4/4 Left-top corner coordinate of the window.
* Only available when qvga is listed in
"capability_image_c<n>_exposure_windomai
n".
size <0~320x0~240> 4/4 Width and height of the window.
* Only available when qvga is listed in
"capability_image_c<n>_exposure_windomai
n".
homepx <0~W,0~H>
W: 0~ The current image width -1
H: 0~ The current image height -1
4/4 Left-top corner coordinate of the window.
* Only available when px is listed in
"capability_image_c<n>_exposure_windomai
n".
VIVOTEK
208 - User's Manual
sizepx <0~Wx0~ H>
W: 0~ The current image width -1
H: 0~ The current image height -1
4/4 Width and height of the window.
* Only available when px is listed in
"capability_image_c<n>_exposure_windomai
n".
homestd <0~9999,0~9999> 4/4 Left-top corner coordinate of the window.
* Only available when std is listed in
"capability_image_c<n>_exposure_windomai
n".
sizestd <0~9999x0~9999> 4/4 Width and height of the window.
* Only available when std is listed in
"capability_image_c<n>_exposure_windomai
n".
Group: exposurewin_c<0~(n-1)>_profile_i<0~(m-1)> for n channel profuct and m profile,
n denotes the value of "capability_nvideoin", m denotes the value of "capability_nvideoinprofile",
(Only valid when capability_image_c<n>_exposure_mode =1)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
mode auto, custom,blc
* Available values are listed in
"capability_image_c<n>_exposu
re_winmode"
4/4 The mode indicates how to decide the
exposure.
"auto": Use full view as the only one exposure
window.
"custom": Use inclusive and exclusive
window.
"blc": Use BLC(Back Light Compensation),
and the only exposure window is located at the
center of view.
Group: exposurewin_c<0~(n-1)>_profile_i<0~(m-1)>_win_i<0~(k-1)> for m profile and n channel product,
n denotes the value of "capability_nvideoin", m denotes the value of "capability_nvideoinprofile",
k denotes the value of "capability_image_c<n>_exposure_winnum".
(Only valid when exposurewin_c<n>_mode=custom)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable or disable the window.
policy 0~1 4/4 0: Indicate exclusive.
1: Indicate inclusive.
VIVOTEK
User's Manual - 209
* Only available when exclusive is listed in
"capability_image_c<n>_exposure_wintype".
home <0~320,0~240> 4/4 Left-top corner coordinate of the window.
* Only available when qvga is listed in
"capability_image_c<n>_exposure_windomai
n".
size <0~320x0~240> 4/4 Width and height of the window.
* Only available when qvga is listed in
"capability_image_c<n>_exposure_windomai
n".
homepx <0~W,0~H>
W: 0~ The current image width -1
H: 0~ The current image height -1
4/4 Left-top corner coordinate of the window.
* Only available when px is listed in
"capability_image_c<n>_exposure_windomai
n".
sizepx <0~Wx0~ H>
W: 0~ The current image width -1
H: 0~ The current image height -1
4/4 Width and height of the window.
* Only available when px is listed in
"capability_image_c<n>_exposure_windomai
n".
homestd <0~9999,0~9999> 4/4 Left-top corner coordinate of the window.
* Only available when std is listed in
"capability_image_c<n>_exposure_windomai
n".
sizestd <0~9999x0~9999> 4/4 Width and height of the window.
* Only available when std is listed in
"capability_image_c<n>_exposure_windomai
n".
VIVOTEK
210 - User's Manual
7.13 Audio input per channel
Group: audioin_c<0~(n-1)> for n channel products
(capability.naudioin>0)
n denotes the value of "capability_nvideoin"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
source
<Not recommended to use
this>
micin, linein
<product
dependent>
4/4 micin => use built-in microphone input.
linein => use external microphone input.
* Reserved for compatibility, and suggest don't
use this since the version number
(httpversion) is equal or greater than 0301a.
* We replace "source" with "input". More
details, please refer the parameter description
of "input".
input intmic, extmic
<product
dependent>
4/4 intmic: Internal (built-in) microphone.
(Only available when capability_audio_intmic
= 1)
extmic: External microphone input.
(Only available when capability_audio_extmic
=1)
* Note: If physical microphone switch is
showed on product, this value is updated
during booting to fit switch status.
volume_internal 0~100 4/4 Volume when take internal microphone as
input source.
0: Minimum
100: Maximum
* Only available when the channel supports
internal microphone (The related bit of
"capability_audio_intmic" is equal to 1).
volume_external 0~100 4/4 Volume when take external microphone as
input source.
0: Minimum
100: Maximum
* Only available when the channel supports
VIVOTEK
User's Manual - 211
external microphone (The related bit of
"capability_audio_extmic" is equal to 1).
mute 0, 1 1/4 0: Mute off
1: Mute on
gain
<Not recommended to use
this>
0~100 4/4 Gain of input.
(audioin_c<0~(n-1)>_source = linein)
* Reserved for compatibility, and suggest don't
use this since the version number
(httpversion) is equal or greater than 0301a.
* We replace "gain" with "volume_internal"
and "volume_external". More details, please
refer the parameter description of
"volume_internal" and "volume_external".
boostmic
<Not recommended to use
this>
0~100 4/4 Enable microphone boost.
Gain of input.
(audioin_c<0~(n-1)>_source = micin)
* Reserved for compatibility, and suggest don't
use this since the version number
(httpversion) is equal or greater than 0301a.
* We replace "boostmic" with
"volume_internal" and "volume_external".
More details, please refer the parameter
description of "volume_internal" and
"volume_external".
s0_codectype aac4, gamr, g711,
g726
(Available codec are
listed in
"capability_audioin_
codec")
4/4 Set audio codec type for input.
aac4: Advanced Audio Coding (AAC)
gamr: Adaptive Multi-Rate (AMR)
g711: G.711
g726: G.726
s0_aac4_bitrate 16000,
32000,
48000,
64000,
96000,
128000
4/4 Set AAC4 bitrate in bps.
* Only available if AAC is supported.
s0_gamr_bitrate 4750, 4/4 AMR encoded bitrate in bps.
VIVOTEK
212 - User's Manual
5150,
5900,
6700,
7400,
7950,
10200,
12200
* Only available if AMR is supported.
s0_g711_mode pcmu,
pcma
4/4 Set G.711 companding algorithm.
pcmu: µ-law algorithm
pcma: A-law algorithm
* Only available if G.711 is supported.
s0_g726_bitrate 16000,
24000,
32000,
40000
4/4 Set G.726 encoded bitrate in bps.
* Only available if G.726 is supported
.
s0_g726_bitstreampackin
gmode
little, big 4/4 Set G.726 bit streaming packing mode.
little: Little-endian bitstream format.
big: Big-endian bitstream format.
* Only available if G.726 is supported.
s0_g726_vlcmode 0, 1 4/4 Enable vlcmode for G.726.
0: Standard mode.
1: Solve compatibility problem with VLC
player.
* Only available if G.726 is supported.
alarm_enable <boolean> 4/4 Enable audio detection
alarm_level 1~100 4/4 Audio detection alarm level
profile_i0_enable <boolean> 4/4 Enable/disable this profile setting
profile_i0_policy night,
schedule
4/4 The mode which the profile is applied to.
* Not support "policy=day" anymore when the
version number (httpversion) is equal or
greater than 0301a.
profile_i0_begintime hh:mm 4/4 Begin time of schedule mode.
profile_i0_endtime hh:mm 4/4 End time of schedule mode.
VIVOTEK
User's Manual - 213
profile_i0_alarm_level 1~100 4/4 Audio detection alarm level
7.14 Motion detection settings
Group: motion_c<0~(n-1)> for n channel products
n denotes the value of "capability_nvideoin"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable motion detection.
win_sensitivity 0 ~ 100 4/4 Sensitivity of all motion detection windows.
* The value "0" is reserved for compatibility
and will not be used after the version number
(httpversion) is equal or greater than 0400a.
Group: motion_c<0~(n-1)>_win_i<0~(k-1)>
n denotes the value of "capability_nvideoin", k denotes the value of "capability_nmotion".
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable motion detection window.
name string[14] 4/4 Name of motion window.
polygonstd 0 ~ 9999,0 ~ 9999,
0 ~ 9999,0 ~ 9999,
0 ~ 9999,0 ~ 9999,
0 ~ 9999,0 ~ 9999
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_motion_wintype" = polygon.
* Only available when std is listed in
"capability_motion_windomain"
objsize 1 ~ 100 4/4 Percent of motion detection window.
sensitivity
<Not recommended to use
this>
0 ~ 100 4/4 Sensitivity of motion detection window.
* We replace "sensitivity" with
"win_sensitivity".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
polygonpx
<Not recommended to use
this>
0 ~ W,0 ~ H, 0 ~
W,0 ~ H, 0 ~ W,0 ~
H, 0 ~ W,0 ~ H
W: 0~ The current
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_motion_wintype" = polygon.
VIVOTEK
214 - User's Manual
image width -1
H: 0~ The current
image height -1
* Only available when px is listed in
"capability_motion_windomain
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
polygon
<Not recommended to use
this>
0 ~ 320,0 ~ 240, 0
~ 320,0 ~ 240, 0 ~
320,0 ~ 240, 0 ~
320,0 ~ 240
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_motion_wintype" = polygon.
* Only available when qvga is listed in
"capability_motion_windomain
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
left
<Not recommended to use
this>
0 ~ 320 4/4 Left coordinate of window position.
* Only available when
"capability_motion_wintype" = rectangle.
* Only available when qvga is listed in
"capability_motion_windomain".
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
top
<Not recommended to use
this>
0 ~ 240 4/4 Top coordinate of window position.
* Only available when
"capability_motion_wintype" = rectangle.
* Only available when qvga is listed in
"capability_motion_windomain".
* It's recommended to use polygonsd
* This parameter will not be used after the
VIVOTEK
User's Manual - 215
version number (httpversion) is equal or
greater than 0400a.
width
<Not recommended to use
this>
0 ~ 320 4/4 Width of motion detection window.
* Only available when
"capability_motion_wintype" = rectangle.
* Only available when qvga is listed in
"capability_motion_windomain".
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
height
<Not recommended to use
this>
0 ~ 240 4/4 Height of motion detection window.
* Only available when
"capability_motion_wintype" = rectangle.
* Only available when qvga is listed in
"capability_motion_windomain".
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
Group: motion_c<0~(n-1)>_profile_i<0~(m-1)> for m profile and n channel product,
n denotes the value of "capability_nvideoin", m denotes the vaule of " capability_nmotionprofile ",
(capability_nmotionprofile > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable profile 1 ~ (m-1).
policy night,
schedule
4/4 The mode which the profile is applied to.
* Not support "policy=day" anymore when the
version number (httpversion) is equal or
greater than 0301a.
begintime hh:mm 4/4 Begin time of schedule mode.
endtime hh:mm 4/4 End time of schedule mode.
win_sensitivity 0 ~ 100 4/4 Sensitivity of all motion detection windows.
VIVOTEK
216 - User's Manual
* The value "0" is reserved for compatibility
and will not be used after the version number
(httpversion) is equal or greater than 0400a.
Group: motion_c<0~(n-1)>_profile_i<0~(m-1)>_win_i<0~(k-1)> for m profile and n channel product,
n denotes the value of "capability_nvideoin", m denotes the vaule of "capability_nmotionprofile",
k denotes the value of "capability_nmotion".
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable motion detection window.
name string[14] 4/4 Name of motion window.
polygonstd 0 ~ 9999,0 ~ 9999,
0 ~ 9999,0 ~ 9999,
0 ~ 9999,0 ~ 9999,
0 ~ 9999,0 ~ 9999
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_motion_wintype" = polygon.
* Only available when std is listed in
"capability_motion_windomain
objsize 1 ~ 100 4/4 Percent of motion detection window.
sensitivity
<Not recommended to use
this>
0 ~ 100 4/4 Sensitivity of motion detection window.
* We replace "sensitivity" with
"win_sensitivity".
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
polygonpx
<Not recommended to use
this>
0 ~ W,0 ~ H, 0 ~
W,0 ~ H, 0 ~ W,0 ~
H, 0 ~ W,0 ~ H
W: 0~ The current
image width -1
H: 0~ The current
image height -1
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_motion_wintype" = polygon.
* Only available when px is listed in
"capability_motion_windomain
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
VIVOTEK
User's Manual - 217
polygon
<Not recommended to use
this>
0 ~ 320,0 ~ 240, 0
~ 320,0 ~ 240, 0 ~
320,0 ~ 240, 0 ~
320,0 ~ 240
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_motion_wintype" = polygon.
* Only available when qvga is listed in
"capability_motion_windomain
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
left
<Not recommended to use
this>
0 ~ 320 4/4 Left coordinate of window position.
* Only available when
"capability_motion_wintype" = rectangle.
* Only available when qvga is listed in
"capability_motion_windomain".
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
top
<Not recommended to use
this>
0 ~ 240 4/4 Top coordinate of window position.
* Only available when
"capability_motion_wintype" = rectangle.
* Only available when qvga is listed in
"capability_motion_windomain".
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
width
<Not recommended to use
this>
0 ~ 320 4/4 Width of motion detection window.
* Only available when
"capability_motion_wintype" = rectangle.
* Only available when qvga is listed in
"capability_motion_windomain".
VIVOTEK
218 - User's Manual
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
height
<Not recommended to use
this>
0 ~ 240 4/4 Height of motion detection window.
* Only available when
"capability_motion_wintype" = rectangle.
* Only available when qvga is listed in
"capability_motion_windomain".
* It's recommended to use polygonsd
* This parameter will not be used after the
version number (httpversion) is equal or
greater than 0400a.
VIVOTEK
User's Manual - 219
7.15 Tampering detection settings
Group: tampering_c<0~(n-1)> for n channel products
(capability.tampering > 0)
n denotes the value of "capability_nvideoin"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable or disable tamper detection.
threshold 0~100 4/4 Threshold of tamper detection.
duration 10~600 4/4 If tampering value exceeds the "threshold" for
more than "duration" second(s), then tamper
detection is triggered.
ignorewidth 0,<positive integer> 1/7 Indicate the width to offset to start to analysis
the image.
dark_enable <boolean> 4/4 Enable or disable image too dark detection
dark_threshold 0~100 4/4 Threshold of image too dark detection
dark_duration 1~10 4/4 If image too dark value exceeds the
"threshold" for more than "duration"
second(s), then image too dark detection is
triggered.
bright_enable <boolean> 4/4 Enable or disable image too bright detection
bright_threshold 0~100 4/4 Threshold of image too bright detection
bright_duration 1~10 4/4 If image too bright value exceeds the
"threshold" for more than "duration"
second(s), then image too bright detection is
triggered.
blurry_enable <boolean> 4/4 Enable or disable image too blurry detection
blurry_threshold 0~100 4/4 Threshold of image too blurry detection
blurry_duration 1~10 4/4 If image too blurry value exceeds the
"threshold" for more than "duration"
second(s), then image too blurry detection is
triggered.
VIVOTEK
220 - User's Manual
7.16 DDNS
Group: ddns (capability.protocol.ddns > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable or disable the dynamic DNS.
provider CustomSafe100,
DyndnsDynamic,
DyndnsCustom,
Safe100
6/6 Safe100 => safe100.net
DyndnsDynamic => dyndns.org (dynamic)
DyndnsCustom => dyndns.org
CustomSafe100 =>
Custom server using safe100 method
<provider>_hostname string[128] 6/6 Your DDNS hostname.
<provider>_usernameem
ail
string[64] 6/6 Your user name or email to login to the DDNS
service provider
<provider>_passwordkey string[64] 6/6 Your password or key to login to the DDNS
service provider.
<provider>_servername string[128] 6/6 The server name for safe100.
(This field only exists if the provider is
customsafe100)
7.17 Express link
Group: expresslink
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable or disable express link.
state onlycheck,
onlyoffline,
checkonline,
badnetwork
6/6 Camera will check the status of network
environment and express link URL
url string[64] 6/6 The url user define to link to camera
VIVOTEK
User's Manual - 221
7.18 UPnP presentation
Group: upnppresentation
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable or disable the UPnP presentation
service.
7.19 UPnP port forwarding
Group: upnpportforwarding
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable or disable the UPnP port forwarding
service.
upnpnatstatus 0~3 6/7 The status of UPnP port forwarding, used
internally.
0 = OK, 1 = FAIL, 2 = no IGD router, 3 = no
need for port forwarding
7.20 System log
Group: syslog
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enableremotelog <boolean> 6/6 Enable remote log.
serverip <IP address> 6/6 Log server IP address.
serverport 514, 1025~65535 6/6 Server port used for log.
level 0~7 6/6 Levels used to distinguish the importance of
the information:
0: LOG_EMERG
1: LOG_ALERT
2: LOG_CRIT
3: LOG_ERR
4: LOG_WARNING
5: LOG_NOTICE
6: LOG_INFO
7: LOG_DEBUG
setparamlevel 0~2 6/6 Show log of parameter setting.
VIVOTEK
222 - User's Manual
0: disable
1: Show log of parameter setting set from
external.
2. Show log of parameter setting set from
external and internal.
7.21 SNMP
Group: snmp (capability.protocol.snmp > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
v2 <boolean> 6/6 SNMP v2 enabled. 0 for disable, 1 for enable
v3 <boolean> 6/6 SNMP v3 enabled. 0 for disable, 1 for enable
secnamerw string[31] 6/6 Read/write security name
secnamero string[31] 6/6 Read only security name
authpwrw string[8~128] 6/6 Read/write authentication password
authpwro string[8~128] 6/6 Read only authentication password
authtyperw MD5,SHA 6/6 Read/write authentication type
authtypero MD5,SHA 6/6 Read only authentication type
encryptpwrw string[8~128] 6/6 Read/write passwrd
encryptpwro string[8~128] 6/6 Read only password
encrypttyperw DES 6/6 Read/write encryption type
encrypttypero DES 6/6 Read only encryption type
rwcommunity string[31] 6/6 Read/write community
rocommunity string[31] 6/6 Read only community
syslocation string[128] 6/6 System location
syscontact string[128] 6/6 System contact
VIVOTEK
User's Manual - 223
7.22 Layout configuration
Group: layout
NAME VALUE SECURITY
(get/set)
DESCRIPTION
logo_default <boolean> 1/6 0 => Custom logo
1 => Default logo
logo_link string[128]
http://www.vivotek.
com
1/6 Hyperlink of the logo
logo_powerbyvvtk_hidden <boolean> 1/6 0 => display the power by vivotek logo
1 => hide the power by vivotek logo
custombutton_manualtrig
ger_show
<boolean> 1/6 Show or hide manual trigger (VI) button in
homepage
0 -> Hidden
1 -> Visible
theme_option 1~4 1/6 1~3: One of the default themes.
4: Custom definition.
theme_color_font string[7] 1/6 Font color
theme_color_configfont string[7] 1/6 Font color of configuration area.
theme_color_titlefont string[7] 1/6 Font color of video title.
theme_color_controlback
ground
string[7] 1/6 Background color of control area.
theme_color_configbackg
round
string[7] 1/6 Background color of configuration area.
theme_color_videobackgr
ound
string[7] 1/6 Background color of video area.
theme_color_case string[7] 1/6 Frame color
VIVOTEK
224 - User's Manual
7.23 Privacy mask
Group: privacymask_c<0~(n-1)> for n channel products and m privacy mask window.
n denotes the value of "capability_nvideoin" and m denotes the value of
"capability_videoin_c<0~(n-1)>_nprivacymask"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable privacy mask.
win_i<0~(m-1)>_enable <boolean> 4/4 Enable privacy mask window.
win_i<0~(m-1)>_name string[14] 4/4 Name of the privacy mask window.
win_i<0~(m-1)>_left 0 ~ 320 4/4 Left coordinate of window position.
* Only available when
"capability_image_c<n>_privacymask_wintype"
= rectangle.
win_i<0~(m-1)>_top 0 ~ 240 4/4 Top coordinate of window position.
* Only available when
"capability_image_c<n>_privacymask_wintype"
= rectangle.
win_i<0~(m-1)>_width 0 ~ 320 4/4 Width of privacy mask window.
* Only available when
"capability_image_c<n>_privacymask_wintype"
= rectangle.
win_i<0~(m-1)>_height 0 ~ 240 4/4 Height of privacy mask window.
* Only available when
"capability_image_c<n>_privacymask_wintype"
= rectangle.
win_i<0~(m-1)>_polygon 0 ~ 320,0 ~
240, 0 ~
320,0 ~ 240,
0 ~ 320,0 ~
240, 0 ~
320,0 ~ 240
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_image_c<n>_privacymask_wintype"
= polygon.
* Only available when qvga is listed in
"capability_image_c<n>_privacymask_windomai
n
win_i<0~(m-1)>_polygonpx 0 ~ W,0 ~ H, 0
~ W,0 ~ H, 0
~ W,0 ~ H, 0
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
VIVOTEK
User's Manual - 225
~ W,0 ~ H
W: 0~ The
current image
width -1
H: 0~ The
current image
height -1
"capability_image_c<n>_privacymask_wintype"
= polygon.
* Only available when px is listed in
"capability_image_c<n>_privacymask_windomai
n
win_i<0~(m-1)>_polygonstd 0 ~ 9999,0 ~
9999, 0 ~
9999,0 ~
9999, 0 ~
9999,0 ~
9999, 0 ~
9999,0 ~
9999
4/4 Coordinate of polygon window position.
(4 points: x0,y0,x1,y1,x2,y2,x3,y3)
* Only available when
"capability_image_c<n>_privacymask_wintype"
= polygon.
* Only available when std is listed in
"capability_image_c<n>_privacymask_windomai
n
7.24 3D Privacy mask
Group: privacymask3d_c<0~(n-1)> for n channel products and m privacy mask window.
(capability_image_c<0~(n-1)>_privacymask_wintype = 3Drectangle)
n denotes the value of "capability_nvideoin" and m denotes the value of
"capability_videoin_c<0~(n-1)>_nprivacymask"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 4/4 Enable the 3D privacy mask
color 0~"
capability_image_c<0~(n-1)
>_privacymask_ncolor"-1
4/4 Privacy mask color
win_i<0~(m-1)>_name string[40] 4/4 Name of the privacy mask window.
win_i<0~(m-1)>_pan "capability_ptz_c<0~(n-1)>
_minpan" ~
"capability_ptz_c<0~(n-1)>
_maxpan"
4/4 Pan position of window position.
win_i<0~(m-1)>_tilt "capability_ptz_c<0~(n-1)>
_mintilt" ~
"capability_ptz_c<0~(n-1)>
_maxtilt"
4/4 Tilt position of window position.
win_i<0~(m-1)>_zoom "capability_ptz_c<0~(n-1)> 4/4 Zoom position of window position.
VIVOTEK
226 - User's Manual
_minzoom" ~
"capability_ptz_c<0~(n-1)>
_maxzoom"
win_i<0~(m-1)>_fliped <boolean> 4/4 Flip side of window position.
0: Non-flip side
1: Flip side
VIVOTEK
User's Manual - 227
7.25 Capability
Group: capability
NAME VALUE SECURITY
(get/set)
DESCRIPTION
api_httpversion <string>
This number start
with 0301a.
0/7 The version of VIVOTEK WebAPI with 4
integers plus 1 alphabet, There are composed
by "major version", "minor version",
"revision","_platform". ex: 0301a_1
Major version
Increase the major version when change,
remove the old features/interfaces or the
firmware has substantially change in
architecture and not able to roll back to
previous version. This may cause
incompatibility with supporting software.
Minor version
Increase the minor version when add new
features/interfaces without change the old
features and interfaces.
Revision
Increase the revision when fix bugs without
change any features of the output.
_platform
This is a constant, it is used to distinguish
between different platforms
API version format:
MMmmr_k
Where "MM" is the major version, "mm" is the
minor version and "r" is the revision.
'M' and 'm' and 'k' are decimal digit from 0 to 9,
while 'r' is an alphabetic.
EX: 0302b_1 => Major version = 03, minor
version = 02, revision = b, platform = 1
The 4 integer numbers are WebAPI version, we
use short name: [httpversion] for it in this
VIVOTEK
228 - User's Manual
document.
The 5th character is model-based version for
API bug-fix and it's default to "a".
Ex: If some APIs in a model does not follow the
API definition of 0301a_1, we will fix them and
change this API value to 0301b_1.
bootuptime <positive integer> 0/7 Server bootup time.
nir
<Not support anymore>
0,
<positive integer>
0/7 Number of IR interfaces.
(Recommand to use
capability_daynight_c<0~"capability_nvideoi
n"-1>_builtinir for built-in IR and
capability_daynight_c<0~"capability_nvideoi
n"-1>_externalir for external IR)
* Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301a.
npir 0,
<positive integer>
0/7 Number of PIRs.
ndi 0,
<positive integer>
0/7 Number of digital inputs.
nvi 0,
<positive integer>
0/7 Number of virtual inputs (manual trigger)
ndo 0,
<positive integer>
0/7 Number of digital outputs.
naudioin 0,
<positive integer>
0/7 The number of audio input channel. 0 means
no audio input support.
naudioout 0,
<positive integer>
0/7 The number of audio output channel
nvideoin <positive integer> 0/7 Number of video inputs.
nvideoout 0, <Positive
Integer>
0/7 Number of video out interface.
nvideoinprofile <positive integer> 0/7 Number of video input profiles.
nmediastream <positive integer> 0/7 Number of media stream per channels.
naudiosetting
<Not support anymore>
<positive integer> 0/7 Number of audio settings per channel.
* Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301a.
* We replace "naudiosetting" with "naudioin".
VIVOTEK
User's Manual - 229
More details, please refer the parameter
description of "volume_internal" and
"volume_external".
nuart 0,
<positive integer>
0/7 Number of UART interfaces.
nmotion <positive integer> 0/7 The number of motion window.
nmotionprofile 0, <positive
integer>
0/7 Number of motion profiles.
ptzenabled 0, <positive
integer>
0/7 An 32-bit integer, each bit can be set
separately as follows:
Bit 0 => Support camera control function;
0(not support), 1(support)
Bit 1 => Built-in or external video source;
0(external), 1(built-in)
Bit 2 => Support pan operation;
0(not support), 1(support)
Bit 3 => Support tilt operation;
0(not support), 1(support)
Bit 4 => Support zoom operation;
0(not support), 1(support)
(only available when RS-485 interface is
supported or SD/PZ/PT/PD/video server
series)
Bit 5 => Support focus operation;
0(not support), 1(support)
(only available when RS-485 interface is
supported or SD/PZ/PT/PD/video server
series)
Bit 6 => Reserved bit; always 0.
Bit 7 => External or built-in PT;
0(built-in), 1(external)
windowless <boolean> 0/7 Indicate whether to support windowless
plug-in.
evctrlchannel <boolean> 0/7 Indicate whether to support HTTP tunnel for
event/control transfer.
joystick <boolean> 0/7 Indicate whether to support joystick control.
remotefocus
<Not recommended to use
this>
0,<positive integer> 0/7 An 4-bit integer, which indicates the supportive
application of remotefocus.
If the value of this parameter is larger than 0,
VIVOTEK
230 - User's Manual
it means that the camera supports
remotefocus function.
bit 0 => Indicate whether to support both
zoom and focus function.
bit 1 => Only support zoom function.
bit 2 => Only support focus function.
bit 3 => Currently, this is a reserved bit, and
the default value is 0.
* It's strongly non-recommended to use this.
* This is reserved for compatibility and will not
be used after the version number (httpversion)
is equal or greater than 0400a.
* We replace "capability_remotefocus" with "
capability_image_c0_remotefocus".
npreset 0, <positive
integer>
0/7 Number of preset locations
eptz 0, <positive
integer>
0/7 For "nvideoin" = 1, the definition is as
following:
A 32-bits integer, each bit can be set
separately as follows:
Bit 0 => 1st stream supports ePTZ or not.
Bit 1 => 2nd stream supports ePTZ or not, and
so on.
For nvideoin >= 2, the definition is different:
First all 32 bits are divided into groups for
channel.
Ex:
nvideoin = 2, bit 0~15 are the 1st group for 1st
channel, bit 16~31 are the 2nd group for 2nd
channel.
nvideoin = 3, bit 0~9 are the 1st group for 1st
channel, bit 10~19 are the 2nd group for 2nd
channel, bit 20~31 are the 3rd group for 3rd
channel.
Then, the 1st bit of the group indicates 1st
stream of a channel support ePTZ or not. The
2nd bit of the group indicates 2nd stream of a
VIVOTEK
User's Manual - 231
channel support ePTZ or not, and so on.
* For most products, the last stream of a
channel will not support ePTZ. It is reserved
for full view of the channel. For some
dual-stream products, both streams support
ePTZ.
nanystream 0, <positive
integer>
0/7 number of any media stream per channel
iva <boolean> 0/7 Indicate whether to support Intelligent Video
analysis
whitelight <boolean> 0/7 Indicate whether to support white light led.
iris <boolean> 0/7 Indicate whether to support iris control.
supportsd <boolean> 0/7 Indicate whether to support local storage.
fisheye <boolean> 0/7 The parameter is used to determine whether
the product is fisheye or not.
tampering <boolean> 0/7 Indicate whether to support tampering
detection.
tamperingmode tamper,toodark,toob
right,tooblurry
0/7 Available tampering mode list.
* Only available when "capability_tampering"
is 1.
adaptiverecording <boolean> 0/7 Indicate whether to support adaptive
recording.
adaptivestreaming <boolean> 0/7 Indicate whether to support adaptive
streaming.
supporttriggertypes seq,boot,motion,net
workfail,recnotify,ta
mpering,vi,vadp,di,
volalarm,temperatu
re,pir, visignal,
backup
<product
dependent>
0/7 list all the trigger types which are supported in
the camera:
"seq" = Periodic condition
"boot" = System boot
"motion" = Video motion detection
"networkfail" = network connection failure
"recnotify" = Recording notification.
"tampering" = Tamper detection.
"vi" = Virtual input (Manual trigger)
"vadp" = VADP trigger
"di"= Digital input
"volalarm" = Audio detection
"temperature" = Temperature detection
"pir" = PIR detection
VIVOTEK
232 - User's Manual
"visignal" = Video input signal loss.
"backup" = Backing up recorded files
* Only available when [httpversion] >= 0301a
storage_dbenabled <boolean> 0/7 Media files are indexed in database.
protocol_https < boolean > 0/7 Indicate whether to support HTTP over SSL.
protocol_rtsp < boolean > 0/7 Indicate whether to support RTSP.
protocol_sip <boolean> 0/7 Indicate whether to support SIP.
protocol_maxconnection <positive integer> 0/7 The maximum number of allowed
simultaneous connections.
protocol_maxgenconnecti
on
<positive integer> 0/7 The maximum general streaming connections .
protocol_rtp_multicast_sc
alable
<boolean> 0/7 Indicate whether to support scalable multicast.
protocol_rtp_multicast_ba
ckchannel
<boolean> 0/7 Indicate whether to support backchannel
multicast.
protocol_rtp_tcp <boolean> 0/7 Indicate whether to support RTP over TCP.
protocol_rtp_http <boolean> 0/7 Indicate whether to support RTP over HTTP.
protocol_spush_mjpeg <boolean> 0/7 Indicate whether to support server push
MJPEG.
protocol_snmp <boolean> 0/7 Indicate whether to support SNMP.
protocol_ipv6 <boolean> 0/7 Indicate whether to support IPv6.
protocol_pppoe <boolean> 0/7 Indicate whether to support PPPoE.
protocol_ieee8021x <boolean> 0/7 Indicate whether to support IEEE802.1x.
protocol_qos_cos <boolean> 0/7 Indicate whether to support CoS.
protocol_qos_dscp <boolean> 0/7 Indicate whether to support QoS/DSCP.
protocol_ddns <boolean> 0/7 Indicate whether to support DDNS.
videoin_type 0, 1, 2 0/7 0 => Interlaced CCD
1 => Progressive CCD
2 => CMOS
videoin_nresolution <positive integer> 0/7 This equals
"capability_videoin_c0_nresolution".
* This is kept for compatibility.
videoin_resolution A list of <WxH>
<product
0/7 This equals
"capability_videoin_c0_resolution".
VIVOTEK
User's Manual - 233
dependent>
* This is kept for compatibility.
videoin_maxframerate A list of <Integer> 0/7 This equals
"capability_videoin_c0_maxframerate".
* This is kept for compatibility.
videoin_mjpeg_maxframe
rate
A list of <Integer>
and "-"
0/7 This equals
"capability_videoin_c0_mjpeg_maxframerate
".
* This is kept for compatibility.
videoin_h264_maxframer
ate
A list of <Integer>
and "-"
0/7 This equals
"capability_videoin_c0_h264_maxframerate".
* This is kept for compatibility.
videoin_codec mjpeg, h264, h265
<product
dependent>
0/7 Available codec of a device, split by comma.
The sequence is not limited.
EX:
FD8183 supports H.264 and MJPEG, then this
is "mjpeg,h264".
IP9171 supports H.264, MJPEG and H.265,
then this is "mjpeg,h264,h265"
videoin_streamcodec A list of <Positive
Integer>
0/7 This equals
"capability_videoin_c0_streamcodec".
* This is kept for compatibility.
videoin_flexiblebitrate <boolean> 0/7 Indicate whether to support
flexible bit rate control.
videoout_codec -, ntsc, pal 0/7 Current output information about video out.
1st element for 1st video-out, 2nd element for
2nd video-out, and so on. The number of
element depends on "capability_nvideooout".
"-": Video-out is not available
ntsc: NTSC analog output
pal: PAL analog output
Ex:
"nvideoout"=0, "videoout_codec"=-
"nvideoout"=1 with NTSC,
VIVOTEK
234 - User's Manual
"videoout_codec"=ntsc
"nvideoout"=1 with PAL,
"videoout_codec"=pal
"nvideoout"=2 with both NTSC,
"videoout_codec"=ntsc,ntsc
* For camera, this feature is controlled by
physical jump on device. No WebAPI to control
it. This value is set only on camera power-on
and maintains the status.
* Only available when [httpversion] >= 0301a
timeshift <boolean> 0/7 Indicate whether to support time shift caching
stream.
audio_aec <boolean> 0/7 Indicate whether to support acoustic echo
cancellation.
audio_mic
<Not support anymore>
<boolean> 0/7 Indicate whether to support built-in
microphone input.
* Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301a.
* We replace "audio_mic" with "audio_intmic".
audio_intmic <0~Positive
Integer>
0/7 Internal (Built-in) Microphone.
0: Not support
1: Support
Bit 0 for CH0, bit 1 for CH1, and so on.
audio_extmic <0~Positive
Integer>
0/7 External Microphone.
0: Not support
1: Support
Bit 0 for CH0, bit 1 for CH1, and so on.
audio_alarm <0~Positive
Integer>
0/7 0: Not support audio alarm.
1: Support audio alarm.
Bit 0 for CH0, bit 1 for CH1, and so on.
audio_linein
<Not support anymore>
<boolean> 0/7 Indicate whether to support external line
input.
* Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301a.
* It will be replaced by audio_intmic and
audio_extmic.
VIVOTEK
User's Manual - 235
audio_lineout <boolean> 0/7 Indicate whether to support line output.
audio_michardwareswitch <boolean> 0/7 Indicate whether the hardware supports
built-in/external mic switch
audio_headphoneout
<Not support anymore>
<boolean> 0/7 Indicate whether to support headphone
output.
* Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301a.
audioin_codec aac4, gamr, g711,
g726, -
<product
dependent>
0/7 Available audio codec. We take comma to split
codec without any space.
aac4: Advanced Audio Coding (AAC)
gamr: Adaptive Multi-Rate (AMR)
g711: G.711
g726: G.726
-: Not supported.
audioout_codec g711, -
<product
dependent>
0/7 Available codec list for SIP.
-: Not supported.
motion_wintype rectangle, polygon 0/7 The supported motion window type.
polygon: The window is a 2D polygon shape.
rectangle: The window is a 2D rectangle
shape.
motion_windomain qvga, px, std, - 0/7 The domain to set an motion window.
qvga: a 320x240 range to represent the whole
image.
px: Locate a window in the image with pixels.
std: A normalized 0~9999 range.
-: Not supported.
smartstream_support <boolean> 0/7 Indicate whether smart stream is supported.
smartstream_version <integer> 0/7 Number of smart stream version
smartstream_nstream <positive integer> 0/7 Number of stream that support smart stream.
*only available when
"capability_smartstream_support" is 1
smartstream_windomain qvga, px, std, - 0/7 The domain to set an focus window.
qvga: a 320x240 range to represent the whole
image.
px: Locate a window in the image with pixels.
VIVOTEK
236 - User's Manual
std: A normalized 0~9999 range.
-: Not supported.
*only available when
"capability_smartstream_support" is 1
smartstream_mode_autot
racking
<boolean> 0/7 Indicate whether autotracking smart stream is
supported.
*only available when
"capability_smartstream_support" is 1
smartstream_mode_man
ual
<boolean> 0/7 Indicate whether manual smart stream is
supported.
*only available when
"capability_smartstream_support" is 1
smartstream_mode_hybri
d
<boolean> 0/7 Indicate whether hybrid(autotracking+
manual) smart stream is supported.
*only available when
"capability_smartstream_support" is 1
smartstream_nwindow_a
utotracking
<positive integer> 0/7 Maximum number of tracking window of
autotracking.
*only available when
"capability_smartstream_support" is 1
smartstream_nwindow_m
anual
<positive integer> 0/7 Maximum number of tracking window of
manual.
*only available when
"capability_smartstream_support" is 1
smartstream_nwindow_h
ybrid_autotracking
<positive integer> 0/7 Maximum number of tracking window of
autotracking in hybrid mode.
*only available when
"capability_smartstream_support" is 1
smartstream_nwindow_h
ybrid_manual
<positive integer> 0/7 Maximum number of tracking window of
manual in hybrid mode.
*only available when
"capability_smartstream_support" is 1
vadp_supportfeature <positive integer> 0/7 An 32-bit integer, each bit can be set
separately as follows:
Bit 0 => VADP interface
Bit 1 => Capture video raw data
Bit 2 => Support encode jpeg
Bit 3 => Capture audio raw data
Bit 4 => Support event trigger
Bit 5 => Support license registration
VIVOTEK
User's Manual - 237
Bit 6 => Support shared memory API
Bit 7 => Support digital signature of package
Bit 8 => Support snapshot
vadp_npackage <positive integer> 0/7 Indicate the maximum number of VADP
package that can be uploaded to the device.
thermal_support <boolean> 0/7 Indicate whether to support thermal IC.
thermal_controlmode auto,
customheater
0/7 Indicate the thermal control mode.
"auto": control by camera automatically
"customheater": the threshold of heater can
be sepcified by user.
* only available when
"capability_thermal_support" is 1.
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
thermal_temperaturedete
ction
<boolean> 0/7 Indicate whether to support temperature
detection.
camctrl_httptunnel
<Not support anymore>
<boolean> 0/7 Indicate whether to support httptunnel.
* Not support this parameter anymore when
the version number (httpversion) is equal or
greater than 0301b.
* It will be replaced by
capability_camctrl_ptztunnel.
camctrl_ptztunnel <boolean> 0/7 Indicate whether to support ptztunnel.
* We support this parameter when the version
number (httpversion) is equal or greater than
0301b.
This equals
"capability_camctrl_c0_ptztunnel".
* This is kept for compatibility.
camctrl_privilege <boolean> 0/7 Indicate whether to support “Manage
Privilege” of PTZ control in the security page.
1: support both /cgi-bin/camctrl/camctrl.cgi
and /cgi-bin/viewer/camctrl.cgi
0: support only /cgi-bin/viewer/camctrl.cgi
This is equivalent
to"capability_camctrl_c0_privilege".
VIVOTEK
238 - User's Manual
* This is kept for compatibility.
uart_httptunnel <boolean> 0/7 Indicate whether to support HTTP tunnel for
UART transfer.
transmission_mode Tx,
Rx,
Both
0/7 Indicate transmission mode of the machine:
TX = server, Rx = receiver box, Both = DVR.
network_wire <boolean> 0/7 Indicate whether to support Ethernet.
network_wireless <boolean> 0/7 Indicate whether to support wireless.
wireless_s802dot11b <boolean> 0/7 Indicate whether to support wireless
802.11b+.
wireless_s802dot11g <boolean> 0/7 Indicate whether to support wireless 802.11g.
wireless_s802dot11n <boolean> 0/7 Indicate whether to support wireless 802.11n.
wireless_beginchannel 1 ~ 14 0/7 Indicate the begin channel of wireless network
wireless_endchannel 1 ~ 14 0/7 Indicate the end channel of wireless network
wireless_encrypt_wep <boolean> 0/7 Indicate whether to support wireless WEP.
wireless_encrypt_wpa <boolean> 0/7 Indicate whether to support wireless WPA.
wireless_encrypt_wpa2 <boolean> 0/7 Indicate whether to support wireless WPA2.
derivative_brand <boolean> 0/7 Indicate whether to support the upgrade
function for the derivative brand. For example,
if the value is true, the VVTK product can be
upgraded to VVXX. (TCVV<->TCXX is
excepted)
test_ac <boolean> 0/7 Indicate whether to support test ac key.
version_onvifdaemon <string> 0/7 Indicate ONVIF daemon version
version_onviftesttool <string> 0/7 Indicate ONVIF test tool version
media_totalspace <positive integer> 0/7 Available memory space (KB) for media.
media_snapshot_maxpre
event
<positive integer> 0/7 Maximum snapshot number before event
occurred.
media_snapshot_maxpost
event
<positive integer> 0/7 Maximum snapshot number after event
occurred.
media_snapshot_maxsize <positive integer> 0/7 Maximum size (KB) of a snapshot.
media_videoclip_maxsize <positive integer> 0/7 Maximum size (KB) of a videoclip.
media_videoclip_maxleng
th
<positive integer> 0/7 Maximum length (second) of a videoclip.
VIVOTEK
User's Manual - 239
media_videoclip_maxpree
vent
<positive integer> 0/7 Maximum duration (second) after event
occurred in a videoclip.
image_iristype
<Not recommended to use
this>
<string> 0/7 Indicate iris type.
"piris": P-Iris
"dciris": DC-Iris
"-": No Iris control support
* When "capability_iris"=0, this value must be
"-".
* Note: For some box-type cameras, this value
may be varied depending on mounted lens.
* We replace "capability_image_iristype" with
" capability_image_c0_iristype ".
* Reserved for compatibility, and suggest don't
use this since [httpversion] > 0301a
image_focusassist
<Not recommended to use
this>
<boolean> 0/7 Indicate whether to support focus assist.
* We replace "capability_image_ focusassist "
with " capability_image_c0_ focusassist ".
* Reserved for compatibility, and suggest don't
use this since [httpversion] > 0301a
localstorage_manageable <boolean> 0/7 Indicate whether manageable local storage is
supported.
localstorage_seamless <boolean> 0/7 Indicate whether seamless recording is
supported.
localstorage_modnum 0,
<positive integer>
0/7 The maximum MOD connection numbers.
localstorage_modversion <string> 0/7 Indicate MOD daemon version
localstorage_stormgrversi
on
<string> 0/7 Indicate storage manager daemon version
localstorage_supportedge 0,
<positive integer>
0/7 An 32-bit integer, which indicates the
supportive application of edge storage.
If the value of this parameter is larger than 0,
it means that the camera supports edge
recording function.
bit 0 : It supports to record directly to an
on-board SD-Card.
bit 1~: Currently, they are reserved bit, and
the default value is 0.
VIVOTEK
240 - User's Manual
localstorage_slconnum 0,<positive integer> 0/7 The maximum seamless connection number.
localstorage_smartsd <boolean> 0/7 The "Lifetime and Log SD Card" feature allows
users to obtain the card's remaining lifetime
information.
0: Non-support this feature
1: Support this feature
* Only Sony SD card can support this function
now.
remotecamctrl_master 0, <positive
integer>
0/7 Indicate whether to support remote auxiliary
camera (master side), this value means
supporting max number of auxiliary camera.
remotecamctrl_slave <boolean> 0/7 Indicate whether to support remote camera
control (slave side).
fisheyelocaldewarp_c<0~
(capability_nvideoin)-1>
<product dependent>
0, <positive
integer>
0/7 Indicate the supported streams of local
dewarp. One bit represents one supported
stream. The LSB indicates stream 0.
Ex: “3” means stream 0 and stream 1 support
local dewarp.
* Only available when "capability_fisheye" > 0
Group: capability_camctrl_c<0~(n-1)> n denotes the value of "capability_nvideoin"
(capability_ptzenabled > 0)
* We support this group when the version number (httpversion) is equal or greater than 0303b.
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
ptztunnel <boolean> 0/7 Indicate whether to support ptztunnel in this
video input.
privilege <boolean> 0/7 Indicate whether to support “Manage Privilege”
of PTZ control in the security page in this video
input.
1: support both /cgi-bin/camctrl/camctrl.cgi and
/cgi-bin/viewer/camctrl.cgi
0: support only /cgi-bin/viewer/camctrl.cgi
rs485 <boolean> 0/7 An 32-bit integer, each bit can be set separately
as follows:
Bit 0 => support rs485-in
Bit 1 => support rs485-out
VIVOTEK
User's Manual - 241
buildinpt <boolean> 0/7 An 32-bit integer, each bit can be set separately
as follows:
Bit 0 => support build-in pan
Bit 1 => support build-in tilt
zoommodule <boolean> 0/7 Indicate whether to support zoom lens. In our
product, only SD series and IZ series use the
zoom lens.
* Both varifocal and zoom lenses are built with
movable elements that permit changing the
effective focal length. And the key difference
between a varifocal and a zoom lens can be
explained by thinking about a lens that has been
focused on an object at any focal length. A
varifocal will need to be refocused whenever the
focal length is adjusted; the zoom will stay in
focus when the focal length is adjusted.
Group: capability_ptz_c<0~(n-1)> n denotes the value of "capability_nvideoin"
(capability_ptzenabled > 0 and capability_camctrl_c<0~(n-1)>_zoommodule !=0)
* We support this group when the version number (httpversion) is equal or greater than 0303b.
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
panspeedlv 0, <positive integer> 0/7 The maximum speed level of pan motion.
*Only available when bit0 of
"capability_camctrl_c<0~(n-1)>_buildinpt" is
"1"
minpan 0, <positive integer> 0/7 The lower limit for pan position.
*Only available when bit0 of
"capability_camctrl_c<0~(n-1)>_buildinpt" is
"1"
maxpan 0, <positive integer> 0/7 The upper limit for pan position.
*Only available when bit0 of
"capability_camctrl_c<0~(n-1)>_buildinpt" is
"1"
minpanangle <integer> 0/7 The lower limit for pan angle.
*Only available when bit0 of
"capability_camctrl_c<0~(n-1)>_buildinpt" is
"1"
VIVOTEK
242 - User's Manual
maxpanangle <integer> 0/7 The upper limit for pan angle.
*Only available when bit0 of
"capability_camctrl_c<0~(n-1)>_buildinpt" is
"1"
tiltspeedlv 0, <positive integer> 0/7 The maximum speed level of tilt motion.
*Only available when bit1 of
"capability_camctrl_c<0~(n-1)>_buildinpt" is
"1"
mintilt 0, <positive integer> 0/7 The lower limit for tilt position.
*Only available when bit1 of
"capability_camctrl_c<0~(n-1)>_buildinpt" is
"1"
maxtilt 0, <positive integer> 0/7 The upper limit for tilt position.
*Only available when bit1 of
"capability_camctrl_c<0~(n-1)>_buildinpt" is
"1"
mintiltangle <integer> 0/7 The lower limit for tilt angle.
*Only available when bit1 of
"capability_camctrl_c<0~(n-1)>_buildinpt" is
"1"
maxtiltangle <integer> 0/7 The upper limit for tilt angle.
*Only available when bit1 of
"capability_camctrl_c<0~(n-1)>_buildinpt" is
"1"
zoomspeedlv 0, <positive integer> 0/7 The maximum speed level of zoom motion.
*Only available when the value of
"capability_camctrl_c<0~(n-1)>_zoommodule"
is "1"
minzoom 0, <positive integer> 0/7 The lower limit for zoom position.
*Only available when the value of
"capability_camctrl_c<0~(n-1)>_zoommodule"
is "1"
maxzoom 0, <positive integer> 0/7 The upper limit for zoom position.
*Only available when the value of
"capability_camctrl_c<0~(n-1)>_zoommodule"
is "1"
maxdzoom 0, <positive integer> 0/7 The upper limit for digital zoom position.
*Only available when the value of
"capability_camctrl_c<0~(n-1)>_zoommodule"
is "1"
VIVOTEK
User's Manual - 243
focusspeedlv 0, <positive integer> 0/7 The maximum speed level of focus motion.
*Only available when the value of
"capability_camctrl_c<0~(n-1)>_zoommodule"
is "1"
minfocus 0, <positive integer> 0/7 The lower limit for focus position.
*Only available when the value of
"capability_camctrl_c<0~(n-1)>_zoommodule"
is "1"
maxfocus 0, <positive integer> 0/7 The upper limit for focus position.
*Only available when the value of
"capability_camctrl_c<0~(n-1)>_zoommodule"
is "1"
Group: capability_daynight_c<0~(n-1)> n denotes the value of "capability_nvideoin"
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
support <boolean> 0/7 Indicate whether the camera supports day/night
mode switch
builtinir <boolean> 0/7 Indicate whether to support built-in IR led.
externalir <boolean> 0/7 Indicate whether to support external IR led.
smartir <boolean> 0/7 Indicate whether to support smart IR.
ircutfilter <boolean> 0/7 Indicate whether to support IR cut.
lightsensor <boolean> 0/7 Indicate whether to support light sensor.
blackwhitemode <boolean> 0/7 Indicate whether to support automatically
switch to Black & White display during the night
mode.
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
VIVOTEK
244 - User's Manual
ircutsensitivity_type <string> 0/7 Indicate the cgi interface of
"ircutcontrol_sensitivity".
"options": the value of
"ircutcontrol_sensitivity" parameter is "low,
normal,high".
"normalize": the value of
"ircutcontrol_sensitivity" parameter is "1~100"
* Only available when
"capability_daynight_c<n>_support" is 1.
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
ircutsensitivity_supportlevel 0,
<positive integer>
0/7 The value indicate the support strength level of
ircutsensitivity.
* Only available when
"capability_daynight_c<n>_support" is 1 and
"capability_daynight_c<n>
_ircutsensitivity_type" is normalize.
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
Group: capability_videoin_c<0~(n-1)> n denotes the value of "capability_nvideoin"
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
lens_type fisheye, fixed,
varifocal, changeable,
motor, -
<product dependent>
0/7
Thelenstypeofthischannel.
fisheye:Fisheyelens
fixed:Build‐infixed‐focuslens.
varifocal:Build‐invarifocallens.
changeable:changeablelens.Likebox‐type
camera,userscaninstallanyC‐Mountor
CS‐Mountlensastheywish.
motor:Lenswithmotortosupportzoom,focus,
etc.
‐:N/A
* Only available when [httpversion] >= 0301a
rotation <boolean> 0/7 Indicate current mode whether support video
rotation
VIVOTEK
User's Manual - 245
streamcodec <positive integer> 0/7 Represent supported codec types of each
stream.
This contains a list of positive integers, split by
comma. Each one stands for a stream, and the
definition is as following:
Bit 0: Support MPEG4.
Bit 1: Support MJPEG
Bit 2: Support H.264
Bit 3: Support H.265
mode 0,<positive integer> 0/7 Indicate current video mode.
nmode <positive integer> 0/7 Indicate how many video modes supported by
this channel.
maxsize <WxH> 0/7 The maximum resolution of all modes in this
channel, the unit is pixel.
nprivacymask 0, <positive integer> 0/7 Number of privacy mask per channel
nresolution <positive integer> 0/7 The maximum resolution options (listed in
"resolution") in current video mode.
resolution A list of <WxH>
<product dependent>
0/7 Resolution options in current video mode. These
options are the possible options for
"videoin_c<n>_s<m>_resolution".
The last one is the maximum resolution in
current mode.
maxresolution A list of <Integer> 0/7 Represent supported maximum resolution of
each stream in current video mode.
* The element number is defined as
"capability_nmediastream".
maxframerate A list of <Integer> 0/7 Indicate frame rate that the video source
outputs in current video mode.
Onetoonemappingtotheresolutionin
"resolution".
*Theelementnumberisdefinedas
"nresolution"inthisgroup.
*Thisparametermaybechangedwhen
"videoin_c<n>_cmosfreq"=50or
"videoin_c<n>_modulation"=pal.
Ex: 30 fps is changed to 25 fps, 60 fps is
changed to 50 fps, and so on.
VIVOTEK
246 - User's Manual
mjpeg_maxframerate A list of <Positive
Integer> and "-"
0/7 Maximum fps that the device can encoded with
MJPEG on resolutions in current video mode.
"-" means not support.
* One to one mapping to the resolution in
"resolution".
* The element number is defined as
"nresolution" in this group.
* This parameter may be changed when
"videoin_c<n>_cmosfreq"=50 or
"videoin_c<n>_modulation"=pal.
Ex: 30 fps is changed to 25 fps, 60 fps is
changed to 50 fps, and so on.
* Only available when 'mjpeg' is listed in
"capability_videoin_codec".
mjpeg_maxbitrate <positive integer>, - 0/7 Maximum bitrates of MJPEG.
The unit is bps.
"-" means MJPEG does not support bit rate
control.
* Only available when 'mjpeg' is listed in
"capability_videoin_codec".
h264_maxframerate A list of <Positive
Integer> and "-"
0/7 Maximum fps that the device can encoded with
H.264 on resolutions in current video mode.
"-" means not support.
* One to one mapping to the resolution in
"resolution".
* The element number is defined as
"nresolution" in this group.
* This parameter may be changed when
"videoin_c<n>_cmosfreq"=50 or
"videoin_c<n>_modulation"=pal.
Ex: 30 fps is changed to 25 fps, 60 fps is
changed to 50 fps, and so on.
* Only available when 'h264' is listed in
"capability_videoin_codec".
VIVOTEK
User's Manual - 247
h264_maxbitrate <positive integer> 0/7 Maximum bitrates of H.264.
The unit is bps.
* Only available when 'h264' is listed in
"capability_videoin_codec".
h265_maxframerate A list of <Positive
Integer> and "-"
0/7 Maximum fps that the device can encoded with
H.265 on resolutions in current video mode.
"-" means not support.
* One to one mapping to the resolution in
"resolution".
* The element number is defined as
"nresolution" in this group.
* This parameter may be changed when
"videoin_c<n>_cmosfreq"=50 or
"videoin_c<n>_modulation"=pal.
Ex: 30 fps is changed to 25 fps, 60 fps is
changed to 50 fps, and so on.
* Only available when 'h265' is listed in
"capability_videoin_codec".
h265_maxbitrate <positive integer> 0/7 Maximum bitrates of H.265.
The unit is bps.
* Only available when 'h265' is listed in
"capability_videoin_codec".
fisheye_mounttype
<product dependent>
ceiling, wall, floor
<product dependent>
0/7 Indicate the supported type.
wall mount: 180° panoramic view
ceiling mount: 360° surround view without blind
spots
floor mount: 360° surround view without blind
spots
* Only available when "capability_fisheye" > 0
dintraperiod_support <boolean> 0/7 0: Non-support "Dynamic intra frame period"
1: Support "Dynamic intra frame period"
"Dynamic intra frame period" can be used to
reduce bitrate by reducing the number of
I-frame.
* We support this parameter when the version
number (httpversion) is equal or greater than
0301c.
VIVOTEK
248 - User's Manual
cameraunit_name CU8131,
CU8171,
CU8161-H,
CU8162-H,
CU8163-H,
CU8361-H,
...,
-
<product dependent>
0/7 A "camera unit" name of a split-type camera
system, which the camera unit and the video
core are separated.
-: If the camera is not a split-type camera
system, the value of this parameter is "-".
* We support this parameter when the version
number (httpversion) is equal or greater than
0302b.
Group: capability_videoin_c<0~(n-1)>_localdewarp
(capability_fisheyelocaldewarp_c<0~(capability_nvideoin)-1> > 0)
n denotes the value of "capability_nvideoin"
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
typeceilingmount 1O, 1P, 2P, 1R, 4R 0/7 Available dewarp types of ceiling and floor
mount.
typewallmount 1O, 1P, 1R, 4R 0/7 Available dewarp types of wall mount.
resolutionC1P A list of <WxH> 0/7 Available resolutions of 1P mode of ceiling and
floor mount.
resolutionC2P A list of <WxH> 0/7 Available resolutions of 2P mode of ceiling and
floor mount.
resolutionC1R A list of <WxH> 0/7 Available resolutions of 1R mode of ceiling and
floor mount.
resolutionC4R A list of <WxH> 0/7 Available resolutions of 4R mode of ceiling and
floor mount.
resolutionW1P A list of <WxH> 0/7 Available resolutions of 1P mode of wall mount.
resolutionW1R A list of <WxH> 0/7 Available resolutions of 1R mode of wall mount.
resolutionW4R A list of <WxH> 0/7 Available resolutions of 4R mode of wall mount.
Group: capability_videoin_c<0~(n-1)>_mode<0~(m-1)> n denotes the value of "capability_nvideoin", m
denotes the value of "capability_videoin_c<n>_nmode"
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
rotation <boolean> 0/7 Indicate this mode whether support video
rotation
VIVOTEK
User's Manual - 249
effectivepixel <WxH> 0/7 The visible area of full scene in this video mode.
The unit is pixel in source.
* If
"effectivepixel"<"capability_videoin_c<n>_max
size", then the visible area is located at the
center of full scene.
outputsize <WxH> 0/7
T
he output size of source, equal to the captured
size by device, in this video mode. The unit is
pixel.
This value is used as a basic coordinate system
for many features, like ePTZ, privacy mask,
motion, etc.
* Source (most for image sensor) may perform
scale or binning, etc on image data, and output
data with smaller size. This parameter is
designed to represent this.
binning 0, 1, 3 0/7 Indicate binning is used or not in this video
mode.
0: No binning
1: 2x2 binning
3: 3x3 binning
* Binning is a technology to increase light
sensitivity by combining multiple pixels to one.
The drawback is reduced resolution. We design
this parameter to disclose this information.
nresolution <positive integer> 0/7 How many resolution options in this video mode.
resolution A list of <WxH> 0/7 Resolution options in this video mode.
The last one is the maximum resolution in this
video mode.
* The element number is defined as
"nresolution" in this group.
maxresolution A list of <Integer> 0/7 Represent supported maximum resolution of
each stream in current video mode.
* The element number is defined as
"capability_nmediastream".
VIVOTEK
250 - User's Manual
maxframerate A list of <Positive
Integer>
0/7 Indicates frame rate that the video source
outputs in this video mode.
* One to one mapping to the resolution in
"resolution".
* The element number is defined as
"nresolution" in this group.
* This parameter records the frame rate when
"videoin_c<n>_cmosfreq"=60 or
"videoin_c<n>_modulation"=ntsc
maxfps_mjpeg A list of <Positive
Integer> and "-"
0/7 Maximum fps which the device can encoded with
MJPEG on resolutions in this video mode.
"-" means not support.
* One to one mapping to the resolution in
"resolution".
* The element number is defined as
"nresolution" in this group.
* This parameter records the frame rate when
"videoin_c<n>_cmosfreq"=60 or
"videoin_c<n>_modulation"=ntsc
* Only available when 'mjpeg' is listed in
"capability_videoin_codec".
maxfps_h264 A list of <Positive
Integer> and "-"
0/7 Maximum fps which the device can encoded with
H.264 on resolutions in this video mode.
"-" means not support.
* One to one mapping to the resolution in
"resolution".
* The element number is defined as
"nresolution" in this group.
* This parameter records the frame rate when
"videoin_c<n>_cmosfreq"=60 or
"videoin_c<n>_modulation"=ntsc
* Only available when 'h264' is listed in
"capability_videoin_codec".
VIVOTEK
User's Manual - 251
maxfps_h265 A list of <Positive
Integer> and "-"
0/7 Maximum fps which the device can encoded with
H.265 on resolutions in this video mode.
"-" means not support.
* One to one mapping to the resolution in
"resolution".
* The element number is defined as
"nresolution" in this group.
* This parameter records the frame rate when
"videoin_c<n>_cmosfreq"=60 or
"videoin_c<n>_modulation"=ntsc
* Only available when 'h265' is listed in
"capability_videoin_codec".
description <string[128]> 0/7 Description about this mode.
Group: capability_image_c<0~(n-1)> n denotes the value of "capability_nvideoin"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
basicsetting 0, <positive integer> 0/7 A 32-bits integer, each bit can be set
separately as follows:
Bit 0 => Supports Brightness or not.
Bit 1 => Supports Contrast or not.
Bit 2 => Supports Saturation or not.
Bit 3 => Supports Sharpness or not.
wdrpro_mode 0, 1, 2 0/7 0: Non-support WDR Pro
1: Support WDR Pro
2: Support WDR Pro and WDR Pro II
wdrpro_strength 0, 1 0/7 0: Non-support tuning strength of
WDR Pro
1: Support tuning strength of WDR Pro
* If
"capability_image_c<n>_wdrpro"=1,
this may be either 0 or 1.
wdrpro_supportlevel 0, <positive integer> 0/7 This contains a list of positive integers,
split by comma.
If "wdrpro_mode" =1, then the value
indicate the support strength level of
WDR Pro.
If "wdrpro_mode" =2, then the first
VIVOTEK
252 - User's Manual
number indicate the support strength
level of WDR Pro, and the scecond
number indicate the support strength
level of WDR Pro II.
wdrpro_affect -,
exposurewin.mode:fixed:au
to,
exposurewin.mode.blc:disab
led:,
aespeed:disabled:,
exposurelevel:hidden:,
exposurelevel:fixed:<x>,
exposurelevel:ranged:<x>-
<x>,
exposuremode:fixed:auto
<x>: nonnegative integer
<product dependent>
0/7 When WDR Pro or WDR Enhanced is
enabled, some features may become
malfunction or be forced to a given
value. The affected functions are list
here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* When "wdrpro"=0 and "wdrc"=0,
this must be "-"
VIVOTEK
User's Manual - 253
wdrpro_description <string> 0/7 Description about WDR Pro mode.
* Only available when
"capability_image_c<0~(n-1)>_wdrp
ro_mode" > 0
wdrc_mode 0, 1 0/7 0: Non-support WDR Enhanced
1: Support WDR Enhanced
wdrc_supportlevel 0, <positive integer> 0/7 Indicate the support strength level of
WDR Enhanced.
wdrc_affect -,
exposurewin.mode:fixed:au
to,
exposurewin.mode.blc:disab
led:,
aespeed:disabled:,
exposurelevel:hidden:,
exposurelevel:fixed:<x>,
exposurelevel:ranged:<x>-
<x>,
exposuremode:fixed:auto
<x>: nonnegative integer
<product dependent>
0/7 When WDR Pro or WDR Enhanced is
enabled, some features may become
malfunction or be forced to a given
value. The affected functions are list
here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
VIVOTEK
254 - User's Manual
"-" means no feature is affected.
* When "wdrpro"=0 and "wdrc"=0,
this must be "-"
dnr 0,1 0/7 0: Non-support 3D digital noise
reduction
1: Support 3D digital noise reduction
eis 0,1 0/7 0: Non-support electronic image
stabilizer
1: Support electronic image stabilizer
is_mode eis,
dis,
-
0/7 Indicate the image stabilizer mode.
"eis": electronic image stabilizer
"dis": digital image stabilizer
"-": not support
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
is_strength <boolean> 0/7 0: Non-support tuning strength of
image stabilizer mode.
1: Support tuning strength of image
stabilizer mode.
* Only available when
"capability_image_c<n>_is_mode" is
not "-".
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
is_supportlevel 0, <positive integer> 0/7 Indicate the support strength level of
image stabilizer mode.
* Only available when
"capability_image_c<n>_is_mode" is
not "-".
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
is_affect -, 0/7 When Is mode is not "-", some
VIVOTEK
User's Manual - 255
minexposure:hidden:,
mingain:hidden:,
wdrpro:unchanged:,
3dnr:unchanged:,
or others
<x>: nonnegative integer
<product dependent>
features may become malfunction or
be forced to a given value. The
affected functions are list here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when
"capability_image_c<n>_is_mode" is
not "-".
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
scenemode_support 0,1 0/7 0: Non-support scene mode
VIVOTEK
256 - User's Manual
1: Support scene mode
scenemode_supporttype
<product dependent>
visibility,
noiseless,
lpcparkinglot,
lpcstreet
<product dependent>
0/7 list all the scene mode which are
supported in the camera.
* Only available when
"capability_image_c<n>_
scenemode_support" is 1
scenemode_visibility_affe
ct
<product dependent>
-,
minexposure:hidden:,
mingain:hidden:,
wdrpro:unchanged:,
3dnr:unchanged:,
or others
<x>: nonnegative integer
<product dependent>
0/7 When scene mode is enabled, some
features may become malfunction or
be forced to a given value. The
affected functions are list here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
VIVOTEK
User's Manual - 257
"-" means no feature is affected.
* Only available when visibility is listed
in "capability_image_c<n>_
scenemode_supporttype" and
"capability_image_c<n>_
scenemode_support" is 1
scenemode_noiseless_aff
ect
<product dependent>
-,
minexposure:hidden:,
mingain:hidden:,
wdrpro:unchanged:,
3dnr:unchanged:,
or others
<x>: nonnegative integer
<product dependent>
0/7 When scene mode is enabled, some
features may become malfunction or
be forced to a given value. The
affected functions are list here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
VIVOTEK
258 - User's Manual
* Only available when visibility is listed
in "capability_image_c<n>_
scenemode_supporttype " and
"capability_image_c<n>_
scenemode_support" is 1
scenemode_lpcparkinglot
_affect
<product dependent>
-,
minexposure:hidden:,
mingain:hidden:,
wdrpro:unchanged:,
3dnr:unchanged:,
or others
<x>: nonnegative integer
<product dependent>
0/7 When scene mode is enabled, some
features may become malfunction or
be forced to a given value. The
affected functions are list here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when visibility is listed
VIVOTEK
User's Manual - 259
in "capability_image_c<n>_
scenemode_supporttype " and
"capability_image_c<n>_
scenemode_support" is 1
scenemode_lpcstreet_aff
ect
<product dependent>
-,
minexposure:hidden:,
mingain:hidden:,
wdrpro:unchanged:,
3dnr:unchanged:,or others
<x>: nonnegative integer
<product dependent>
0/7 When scene mode is enabled, some
features may become malfunction or
be forced to a given value. The
affected functions are list here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when visibility is listed
in "capability_image_c<n>_
VIVOTEK
260 - User's Manual
scenemode_supporttype " and
"capability_image_c<n>_
scenemode_support" is 1
wbmode auto,
manual,
rbgain,
widerange,
outdoor,indoor,
sodiumauto,
-
<product dependent>
0/7 Available white balance mode.
"-" means white balance is not
supported.
iristype piris,
dciris,
-
0/7 Indicate iris type.
"piris": P-Iris
"dciris": DC-Iris
"-": No Iris control support
* Note: For some cameras, this value
may be varied depending on mounted
lens.
sensortype rawsensor,
smartsensor
0/7 Indicate sensor type.
"rawsensor": Raw sensor
"smartsensor": Smart sensor
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_mode 0,1 0/7 0: Non-support exposure control.
1: Support exposure control.
exposure_modetype auto,
shutterpriority,
irispriority,
manual
<product dependent>
0/7 Available mode of exposure setting.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_rangetype onevalue,
twovalues
0/7 Support interface of exposure range.
"onevalue": The parameter is a
constant value.
"twovalues": Need two parameters
to indicate the exposure range.
* We support this parameter when the
version number (httpversion) is equal
VIVOTEK
User's Manual - 261
or greater than 0302a.
exposure_shuttervaluetyp
e
fixed,
maximum,
-
0/7 * One to one mapping to the mode
type in "exposure_modetype".
"fixed": The shutter value is the
assigned value
(videoin_c<n>_shuttervalue).
"maximum": The shutter value can
be up to the assigned value
(videoin_c<n>_shuttervalue).
"-": not support.
* Only available when
"capability_image_c<n>_exposure_ra
ngetype" is "onevalue".
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_gainvaluetype fixed,
maximum,
-
0/7 * One to one mapping to the mode
type in "exposure_modetype".
"fixed": The shutter value is the
assigned value
(videoin_c<n>_gainvalue).
"maximum": The shutter value can
be up to the assigned value
(videoin_c<n>_gainvalue)
"-": not support.
* Only available when
"capability_image_c<n>_exposure_ra
ngetype" is "onevalue".
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_automode_affe
ct
-,
exposurewin.mode.blc:hidd
en:,
defog:disabled:,
wdrpro:disabled:,
exposurelevel:hidden:,
or others
0/7 When exposure mode is enabled,
some features may become
malfunction or be forced to a given
value. The affected functions are list
here.
The format is "Affect API
VIVOTEK
262 - User's Manual
<x>: nonnegative integer
<product dependent>
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when auto is listed in
"capability_image_c<n>_
exposure_modetype" and
"capability_image_c<n>_
exposure_mode" is 1.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_shutterpriority
mode_affect
-,
exposurewin.mode.blc:hidd
en:,
defog:disabled:,
0/7 When exposure mode is enabled,
some features may become
malfunction or be forced to a given
value. The affected functions are list
VIVOTEK
User's Manual - 263
wdrpro:disabled:,
exposurelevel:hidden:,
or others
<x>: nonnegative integer
<product dependent>
here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when shutterpriority is
listed in "capability_image_c<n>_
exposure_modetype" and
"capability_image_c<n>_
exposure_mode" is 1.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_irisprioritymod -, 0/7 When exposure mode is enabled,
VIVOTEK
264 - User's Manual
e_affect exposurewin.mode.blc:hidd
en:,
defog:disabled:,
wdrpro:disabled:,
exposurelevel:hidden:,
or others
<x>: nonnegative integer
<product dependent>
some features may become
malfunction or be forced to a given
value. The affected functions are list
here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when irispriority is
listed in "capability_image_c<n>_
exposure_modetype" and
"capability_image_c<n>_
exposure_mode" is 1.
* We support this parameter when the
VIVOTEK
User's Manual - 265
version number (httpversion) is equal
or greater than 0302a.
exposure_manualmode_a
ffect
-,
exposurewin.mode.blc:hidd
en:,
defog:disabled:,
wdrpro:disabled:,
exposurelevel:hidden:,
or others
<x>: nonnegative integer
<product dependent>
0/7 When exposure mode is enabled,
some features may become
malfunction or be forced to a given
value. The affected functions are list
here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* Only available when manual is listed
in "capability_image_c<n>_
exposure_modetype" and
VIVOTEK
266 - User's Manual
"capability_image_c<n>_
exposure_mode" is 1.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
exposure_levelrange -,
"0,12"
0/7 Available range for
"videoin_c<n>_exposurelevel"
* When "exposure_mode"=0, this
must be set to "-".
exposure_winmode auto,
custom,
blc,
-
<product dependent>
0/7 Available options for
"exposurewin_c<n>_mode"
* "-" means group: exposurewin is not
supported.
* When exposure_mode="0", this
must be set to "-".
exposure_wintype inclusive,
exclusive,
-
0/7 The supported exposure window type.
inclusive: The image inside a window is
the target area of exposure control.
exclusive: The image inside a window
is omitted by exposure control.
-: Not supported.
exposure_windomain qvga, px, std, - 0/7 The domain to set an exposure
window.
qvga: a 320x240 range to represent
the whole image.
px: Locate a window in the image with
pixels.
std: A normalized 0~9999 range.
-: Not supported.
exposure_winnum 0, <Positive Integer> 0/7 Indicate the number of custom
exposure windows.
* If no " custom" is listed in
"exposure_winmode", this should be
0.
exposure_ntsc_totalrange
Alistof<PositiveInteger>
0/7 Available total range for NTSC analog
output
*Onlyavailablewhen[httpversion]>=
VIVOTEK
User's Manual - 267
0301a
exposure_pal_totalrange
Alistof<PositiveInteger>
0/7 Available total range for PAL analog
output
*Onlyavailablewhen[httpversion]>=
0301a
exposure_maxrange "1,32000",
"1,8000",
-,
or others
<product dependent>
0/7 Available range for
"videoin_c<n>_maxexposure"
"1,32000" => 1s ~ 1/32000s
"1,8000" => 1s ~ 1/8000s
etc.
"-" means maximum exposure time is
not available.
* When "exposure_mode"=0, this
must be set to "-".
exposure_minrange "1,32000",
"1,8000",
-,
or others
<product dependent>
0/7 Available range for
"videoin_c<n>_minexposure"
"1,32000" => 1s ~ 1/32000s
"1,8000" => 1s ~ 1/8000s
etc.
"-" means minimum exposure time is
not available.
* When "exposure_mode"=0, this
must be set to "-".
privacymask_wintype rectangle,
polygon,
3Drectangle
0/7 The supported mask window type.
polygon: The window is a 2D polygon
shape.
rectangle: The window is a 2D
rectangle shape.
3Drectangle: The window is a 3D
rectangle shape.
privacymask_windomain qvga, px, std, - 0/7 The domain to set an window.
qvga: a 320x240 range to represent
the whole image.
px: Locate a window in the image with
pixels.
std: A normalized 0~9999 range.
-: Not supported.
privacymask_ncolor
<PositiveInteger>
0/7 Available total color numbers of
VIVOTEK
268 - User's Manual
privacy mask.
agc_maxgain "0,100",
"-"
0/7 Available range for
"videoin_c<n>_maxgain"
“0,100” => 0~100 percent
"-" means "videoin_c<n>_maxgain" is
not available.
agc_mingain "0,100",
"-"
0/7 Available range for
"videoin_c<n>_mingain"
“0,100” => 0~100 percent
"-" means "videoin_c<n>_mingain" is
not available.
flickerless 0,1 0/7 0: Non-support flickerless
1: Support flickerless
flickerlessaffect -,
minexposure:hidden:,
mingain:hidden:,
or others
<x>: nonnegative integer
<product dependent>
0/7 When flickerless is enabled, some
features may become malfunction or
be forced to a given value. The
affected functions are list here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
VIVOTEK
User's Manual - 269
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* When "flickerless" = 0, this must be
"-"
defog_mode 0,1 0/7 0: Non-support defog
1: Support defog
defog_strength 0, 1 0/7 0: Non-support tuning strength of
defog
1: Support tuning strength of defog
* If
"capability_image_c<n>_defog_mode
"=1, this may be either 0 or 1.
defog_supportlevel 0, <positive integer> 0/7 The value indicate the support
strength level of defog.
defog_affect -,
wdrpro:unchanged:,
or others
<x>: nonnegative integer
<product dependent>
0/7 When defog is enabled, some features
may become malfunction or be forced
to a given value. The affected
functions are list here.
The format is "Affect API
name":"Policy":"Value"
"Policy" can be categorized into
following groups:
- (disabled) : UI turns grey and users
can't select it.
- (unchanged) : UI keeps the status as
before and
user can't change it.
- (hidden) : UI is hidden.
- (fixed) : UI is fixed to one selection or
value.
- (ranged) : UI is fixed to multiple
VIVOTEK
270 - User's Manual
selections or values.
"Affect API name" can be described in
hierarchy, such as
"exposurewin.mode.blc:disabled:"
which means blc exposure window is
disabled. API name can be one word as
well, such as "exposurelevel:fixed:6"
which means exposurelevel is fixed to
level 6.
"Value" can be a nonnegative integer
or NULL.
"-" means no feature is affected.
* When "defog" = 0, this must be "-"
aespeed 0,1 0/7 0: Non-support AE speed
1: Support AE speed
aespeedsupportlevel <positive integer> 0/7 The value indicate the support
strength level of aespeed.
* Only available when
"capability_image_c<n>_aespeed" is
1.
gammacurve 0,1 0/7 0: Non-support tuning Gamma curve
1: Support tuning Gamma curve
lowlightmode -,0,1 0/7
-: Internalparameter,mustnotopen
touser.
0: Non-support low light mode
1: Support low light mode
focusassist 0,1 0/7 0: Non-support focus assist
1: Support focus assist
remotefocus 0,<positive integer> 0/7 An 4-bit integer, which indicates the
supportive application of remotefocus
in this channel.
If the value of this parameter is larger
than 0, it means that the camera
supports remotefocus function in this
channel.
bit 0 => Indicate whether to support
VIVOTEK
User's Manual - 271
both zoom and focus function.
bit 1 => Only support zoom
function.
bit 2 => Only support focus
function.
bit 3 => Currently, this is a reserved
bit, and the default value is 0.
focuswindomain qvga, px, std, - 0/7 The domain to set an focus window.
qvga: a 320x240 range to represent
the whole image.
px: Locate a window in the image with
pixels.
std: A normalized 0~9999 range.
-: Not supported.
lensconfiguration_support 0,1 0/7 Indicate whether to support different
image library configuration files for
specific exchangeable lens.
freeze <boolean> 0/7 0: Non-support image freeze feature
1: Support image freeze feature
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
autotrack_support <boolean> 0/7 0: Non-support auto tracking feature
1: Support auto tracking feature
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
smartsensor_iristotalrang
e
A list of iris value 0/7 Available total step for iris value.
* We support this parameter when the
version number (httpversion) is equal
or greater than 0302a.
* Only available when
"capability_image_c<0~(n-1)>_sens
ortype" is "smartsensor"
VIVOTEK
272 - User's Manual
Group: capability_peripheral_c<0~(n-1)> n denotes the value of "capability_nvideoin"
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
waterspray_support <boolean> 0/7 0: Non-support water spray feature
1: Support water spray feature
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
wiper_support <boolean> 0/7 0: Non-support wiper feature
1: Support wiper feature
* We support this parameter when the version
number (httpversion) is equal or greater than
0302a.
7.26 Customized event script
Group: event_customtaskfile_i<0~2>
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
name string[40] 6/6 Custom script identification of this entry.
date string[4~20] 6/6 Date of custom script.
time string[4~20] 6/6 Time of custom script.
VIVOTEK
User's Manual - 273
7.27 Event setting
Group: event_i<0~2>
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
name string[40] 6/6 Identification of this entry.
enable 0, 1 6/6 Enable or disable this event.
priority 0, 1, 2 6/6 Indicate the priority of this event:
“0”= low priority
“1”= normal priority
“2”= high priority
delay 1~999 6/6 Delay in seconds before detecting the next
event.
trigger boot,
di,
p i r,
motion,
seq,
recnotify,
tampering,
vi,
volalarm,
visignal,
vadp,
smartsd
<product dependent>
6/6 Indicate the trigger condition:
“boot” = System boot
“di”= Digital input
“pir”= PIR detection
“motion” = Video motion detection
“seq” = Periodic condition
“visignal” = Video input signal loss.
“recnotify” = Recording notification.
“tampering” = Tamper detection.
“vi”= Virtual input (Manual trigger)
“volalarm”= Audio detection
“smartsd”= Lifetime detection of SD card
triggerstatus string[40] 6/6 The status for event trigger
di 0,<positive integer> 6/6 Indicate the source id of di trigger.
This field is required when trigger condition is
“di”.
One bit represents one digital input. The LSB
indicates DI 0.
VIVOTEK
274 - User's Manual
mdwin 0,<positive integer> 6/6 Indicate the source window id of motion
detection.
This field is required when trigger condition is
“md”.
One bit represents one window.
The LSB indicates the 1
st
window.
For example, to detect the 1
st
and 3
rd
windows,
set mdwin as 5.
mdwin0 0,<positive integer> 6/6 Similar to mdwin. The parameter takes effect
when profile 1 of motion detection is enabled.
vi 0,<positive integer> 6/6 Indicate the source id of vi trigger.
This field is required when trigger condition is
“vi”.
One bit represents one digital input. The LSB
indicates VI 0.
vadp
<product dependent>
0,<positive integer> 6/6 Indicate the source id of vadp event notification.
Each bit corresponds to one vadp source, and
the LSB indicates source id 0.
For example, to detect event from any one of
source id 0, 1 and 3, set vadp to 11.
* Only available when vadp is listed in
"capability_supporttriggertypes"
valevel 0,1 6/6 Select audio detection event.
0: not select
1: select
valevel0 0,1 6/6 Select audio detection profile event.
0: not select
1: select
inter 1~999 6/6 Interval of snapshots in minutes.
This field is used when trigger condition is “seq”.
VIVOTEK
User's Manual - 275
weekday 0~127 6/6 Indicate which weekday is scheduled.
One bit represents one weekday.
bit0 (LSB) = Saturday
bit1 = Friday
bit2 = Thursday
bit3 = Wednesday
bit4 = Tuesday
bit5 = Monday
bit6 = Sunday
For example, to detect events on Friday and
Sunday, set weekday as 66.
begintime hh:mm 6/6 Begin time of the weekly schedule.
endtime hh:mm 6/6 End time of the weekly schedule.
(00:00 ~ 24:00 sets schedule as always on)
lowlightcondition
<product dependent>
0, 1 6/6 Switch on white light LED in low light condition
0 => Do action at all times
1 => Do action in low-light conditions
action_do_i<0~(ndo-1)>_e
nable
<boolean> 6/6 Enable or disable trigger digital output.
* Only available when "capability_ndo" > 0
action_do_i<0~(ndo-1)>_
duration
1~999 6/6 Duration of the digital output trigger in seconds.
* Only available when "capability_ndo" > 0
action_cf_enable <Boolean> 6/6 Enable or disable sending media to SD card.
action_cf_folder string[128] 6/6 Path to store media.
action_cf_media NULL, 0~4,101 6/6 Index of the attached media.
101 means “Recording Notify”
action_cf_datefolder <boolean> 6/6 Enable this to create folders by date, time, and
hour automatically.
action_cf_backup <Boolean> 6/6 Enable or disable the function that send media to
SD card for backup if network is disconnected.
action_server_i<0~4>_ena
ble
<boolean> 6/6 Enable or disable this server action.
action_server_i<0~4>_me
dia
NULL, 0~4,101 6/6 Index of the attached media.
101 means “Recording Notify”
action_server_i<0~4>_dat
efolder
<boolean> 6/6 Enable this to create folders by date, time, and
hour automatically.
action_goto_enable
<product dependent>
<boolean> 6/6 Enable/disable ptz goto preset position on event
triggered.
* Only available when capability_ptzenabled >
0.
VIVOTEK
276 - User's Manual
action_goto_name
<product dependent>
string[40] 6/6 Specify the preset name that ptz goto on event
triggered.
* Only available when capability_ptzenabled >
0.
action_goto_sync
<product dependent>
<boolean> 6/6 Capture media after moving to the location.
* Only avaliable when the bit4 of
capability_ptzenable is 1 and the bit7 of
capability_ptzenable is 0
action_autotrack_enable
<product dependent>
<boolean> 6/6 Enable/disable auto tracking on event triggerd.
* Only avaliable when the bit4 of
capability_ptzenable is 1 and the bit7 of
capability_ptzenable is 0
7.28 Server setting for event action
Group: server_i<0~4>
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
name string[40] 6/6 Identification of this entry
type email,
ftp,
http,
ns
6/6 Indicate the server type:
“email” = email server
“ftp” = FTP server
“http” = HTTP server
“ns” = network storage
http_url string[128] 6/6 URL of the HTTP server to upload.
http_username string[64] 6/6 Username to log in to the server.
http_passwd string[64] 6/6 Password of the user.
ftp_address string[128] 6/6 FTP server address.
ftp_username string[64] 6/6 Username to log in to the server.
ftp_passwd string[64] 6/6 Password of the user.
ftp_port 0~65535 6/6 Port to connect to the server.
ftp_location string[128] 6/6 Location to upload or store the media.
ftp_passive <boolean> 6/6 Enable or disable passive mode.
0 = disable passive mode
1 = enable passive mode
email_address string[128] 6/6 Email server address.
email_sslmode <boolean> 6/6 Enable support SSL.
VIVOTEK
User's Manual - 277
email_port 0~65535 6/6 Port to connect to the server.
email_username string[64] 6/6 Username to log in to the server.
email_passwd string[64] 6/6 Password of the user.
email_senderemail string[128] 6/6 Email address of the sender.
email_recipientemail string[640] 6/6 Email address of the recipient.
ns_location string[128] 6/6 Location to upload or store the media.
ns_username string[64] 6/6 Username to log in to the server.
ns_passwd string[64] 6/6 Password of the user.
ns_workgroup string[64] 6/6 Workgroup for network storage.
7.29 Media setting for event action
Group: media_i<0~4>
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
name string[40] 6/6 Identification of this entry
type snapshot,
systemlog,
videoclip,
recordmsg
6/6 Media type to send to the server or
store on the server.
snapshot_source 0~"capability_nmediastream -1" 6/6 Indicate the source of media stream.
0 means the first stream.
1 means the second stream and etc.
2 means the third stream and etc.
3 means the fourth stream and etc.
snapshot_prefix string[16] 6/6 Indicate the prefix of the filename.
media_i0=> Snapshot1_
media_i1=> Snapshot2_
media_i2=> Snapshot3_
media_i3=> Snapshot4_
media_i4=> Snapshot5_
snapshot_datesuffix 0, 1 6/6 Add date and time suffix to filename:
1 = Add date and time suffix.
0 = Do not add.
snapshot_preevent 0~"
capability_media_snapshot_maxpr
eevent"
6/6 Indicates the number of pre-event
images.
VIVOTEK
278 - User's Manual
snapshot_postevent 0~"
capability_media_snapshot_maxpo
stevent"
6/6 Indicates the number of post-event
images.
videoclip_source 0~"capability_nmediastream -1" 6/6 Indicate the source of media stream.
0 means the first stream.
1 means the second stream and etc.
2 means the third stream and etc.
3 means the fourth stream and etc.
videoclip_prefix string[16] 6/6 Indicate the prefix of the filename.
videoclip_preevent 0 ~ "
capability_media_videoclip_maxpre
event"
6/6 Indicates the time for pre-event
recording in seconds.
videoclip_maxduration 1 ~ "
capability_media_videoclip_maxlen
gth"
6/6 Maximum duration of one video clip in
seconds.
videoclip_maxsize 50 ~ "
capability_media_videoclip_maxsiz
e"
6/6 Maximum size of one video clip file in
Kbytes.
VIVOTEK
User's Manual - 279
7.30 Recording
Group: recording_i<0~1>
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
name string[40] 6/6 Identification of this entry.
trigger schedule,
networkfail
6/6 The event trigger type
schedule: The event is triggered by schedule
networkfail: The event is triggered by the
failure of network connection.
enable <boolean> 6/6 Enable or disable this recording.
priority 0, 1, 2 6/6 Indicate the priority of this recording:
“0” indicates low priority.
“1” indicates normal priority.
“2” indicates high priority.
source 0~"capability_nmediastream-1" 6/6 Indicate the source of media stream.
0 means the first stream.
1 means the second stream and so on.
maxretentiontime <string> 6/6
T
o specify the expired time for automatic clean
up, and it only takes effect for video clip
generated by recording_i <0~1>.
Format is
“‘P[Y]Y[MM]M[DDD]DT[hh]H[mm]M[ss]S’
, similar with ISO8601 with symbols P
Ex. P7D, it means 7 days. P1DT10H, it means
1 days and 10 hours.
The parameter takes effect when
autocleanup_
maxretentiontime_recording_enabled is
enabled.
limitsize <boolean> 6/6 0: Entire free space mechanism
1: Limit recording size mechanism
cyclic <boolean> 6/6 0: Disable cyclic recording
1: Enable cyclic recording
notify <boolean> 6/6 0: Disable recording notification
1: Enable recording notification
VIVOTEK
280 - User's Manual
notifyserver 0~31 6/6 Indicate which notification server is
scheduled.
One bit represents one application server
(server_i0~i4).
bit0 (LSB) = server_i0.
bit1 = server_i1.
bit2 = server_i2.
bit3 = server_i3.
bit4 = server_i4.
For example, enable server_i0, server_i2, and
server_i4 as notification servers; the
notifyserver value is 21.
weekday 0~127 6/6 Indicate which weekday is scheduled.
One bit represents one weekday.
bit0 (LSB) = Saturday
bit1 = Friday
bit2 = Thursday
bit3 = Wednesday
bit4 = Tuesday
bit5 = Monday
bit6 = Sunday
For example, to detect events on Friday and
Sunday, set weekday as 66.
begintime hh:mm 6/6 Start time of the weekly schedule.
endtime hh:mm 6/6 End time of the weekly schedule.
(00:00~24:00 indicates schedule always on)
prefix string[16] 6/6 Indicate the prefix of the filename.
cyclesize 100~ 6/6 The maximum size for cycle recording in
Kbytes when choosing to limit recording size.
reserveamount 0~15000000 6/6 The reserved amount in Mbytes when
choosing cyclic recording mechanism.
dest cf,
0~4
6/6 The destination to store the recorded data.
“cf” means local storage (CF or SD card).
“0” means the index of the network storage.
cffolder string[128] 6/6 Folder name.
maxsize 100~2000 6/6 Unit: Mega bytes.
When this condition is reached, recording file
is truncated.
VIVOTEK
User's Manual - 281
maxduration 60~3600 6/6 Unit: Second
When this condition is reached, recording file
is truncated.
adaptive_enable <boolean> 6/6 Indicate whether the adaptive recording is
enabled
adaptive_preevent 0~9 6/6 Indicate when is the adaptive recording
started before the event trigger point
(seconds)
adaptive_postevent 0~10 6/6 Indicate when is the adaptive recording
stopped after the event trigger point
(seconds)
7.31 HTTPS
Group: https (capability.protocol.https > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 To enable or disable secure HTTP.
policy <Boolean> 6/6 If the value is 1, it will force HTTP connection
redirect to HTTPS connection
method auto,
manual,
install
6/6 auto =>Create self-signed certificate
automatically.
manual =>Create self-signed certificate
manually.
install =>Create certificate request and install.
status -3 ~ 1 6/6 Specify the https status.
-3= Certificate not installed
-2 = Invalid public key
-1 = Waiting for certificate
0= Not installed
1 = Active
countryname string[2] 6/6 Country name in the certificate information.
stateorprovincename string[128] 6/6 State or province name in the certificate
information.
localityname string[128] 6/6 The locality name in thecertificate information.
organizationname string[64]
VIVOTEK Inc.
6/6 Organization name in the certificate
information.
unit string[64]
VIVOTEK Inc.
6/6 Organizational unit name in thecertificate
information.
VIVOTEK
282 - User's Manual
commonname string[64]
www.vivotek.com
6/6 Common name in the certificate information.
validdays 0 ~ 3650 6/6 Valid period for the certification.
7.32 Storage management setting
Group: disk_i<0~(n-1)> n is the total number of storage devices.
(capability.storage.dbenabled > 0)
Currently it’s only for local storage (SD, CF card), so n is equal to 1.
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
cyclic_enabled <boolean> 6/6 Enable cyclic storage method.
autocleanup_enabled
<Not recommended to use
this>
<boolean> 6/6 Enable automatic clean up method.
Expired and not locked media files will be
deleted.
* For forward compatibility reservations, but
only group disk_i0_autocleanup is effective.
* Not recommended to use this. Please refers
"autocleanup" group.
* This parameter will not be used after the
version number (httpversion) is equal or greater
than 0400a.
autocleanup_maxage
<Not recommended to use
this>
<positive integer> 6/6 To specify the expired days for automatic clean
up.
* For forward compatibility reservations, but
only group disk_i0_autocleanup is effective.
* Not recommended to use this. Please refers
"autocleanup" group.
* This parameter will not be used after the
version number (httpversion) is equal or greater
than 0400a.
Group: autocleanup (capability.localstorage.supportedge > 0)
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
enabled <boolean> 6/6 Enable automatic clean up method.
Expired and not locked media files will be
deleted.
VIVOTEK
User's Manual - 283
maxretentiontime_recordin
g_enabled
<boolean> 6/6 Enable automatic clean up method for video clip
generated by recording task.
The parameter takes effect when
autocleanup_enabled is enabled.
maxretentiontime_recordin
g_i <0~1>_maxage
<string> 6/6 To specify the expired time for automatic clean
up, and it only takes effect for video clip
generated by recording_i <0~1>.
Format is
“‘P[Y]Y[MM]M[DDD]DT[hh]H[mm]M[ss]S’
, similar with ISO8601 with symbols P
Ex. P7D, it means 7 days. P1DT10H, it means 1
days and 10 hours.
The parameter takes effect when autocleanup_
maxretentiontime_recording_enabled is
enabled.
maxretentiontime_others_e
nabled
<boolean> 6/6 Enable automatic clean up method for all media
files except media files generated by recording
task.
The parameter takes effect when
autocleanup_enabled is enabled.
maxretentiontime_others_
maxage
<string> 6/6 To specify the expired time for automatic clean
up, and it takes effect for all media files except
media files generated by recording task.
Format is
“‘P[Y]Y[MM]M[DDD]DT[hh]H[mm]M[ss]S’
, similar with ISO8601 with symbols P
Ex. P7D, it means 7 days. P1DT10H, it means 1
days and 10 hours.
The parameter takes effect when
autocleanup_maxretentiontime_others_enabled
is enabled.
VIVOTEK
284 - User's Manual
7.33 Region of interest
Group: roi_c<0~(n-1)> for n channel product.
(capability.eptz > 0)
m denotes the value of "capability_nmediastream".
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
s<0~(m-2)>_home <W,H>
<product dependent>
1/6 ROI left-top corner coordinate.* If the minimal
window size is 64x64, then the
"win_i0_home"=(0~resolution_W-64,
0~resolution_H-64), which the resolution is the
value in current stream.
s<0~(m-2)>_size <WxH>
<product dependent>
1/6 ROI width and height. The width value must be
multiples of 16 and the height value must be
multiples of 8* The minimal window size is
64x64
s<m-1>_home <W,H>
<product dependent>
1/7 ROI left-top corner coordinate.* If the minimal
window size is 64x64, then the
"win_i0_home"=(0~resolution_W-64,
0~resolution_H-64), which the resolution is the
value in current stream.
s<m-1>_size <WxH>
<product dependent>
1/7 ROI width and height. The width value must be
multiples of 16 and the height value must be
multiples of 8* The minimal window size is
64x64
VIVOTEK
User's Manual - 285
7.34 ePTZ setting
Group: eptz_c<0~(n-1)> for n channel product.
(capability.eptz > 0)
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
osdzoom
<Not recommended to use
this>
<boolean> 1/4 Indicates multiple of zoom in is “on-screen
display” or not.
* Reserved for compatibility, and suggest don't
use this since [httpversion] > 0302a
* We replace "eptz_c<0~(n-1)>_osdzoom" with
" videoin_c<0~(n-1)>_zoomratiodisplay".
smooth <boolean> 1/4 Enable the ePTZ "move smoothly" feature
tiltspeed -5 ~ 5 1/4 Tilt speed
* Only available when "capability_fisheye" is 1
1/7 Tilt speed
(It should be set by eCamCtrl.cgi rather than by
setparam.cgi.)
panspeed -5 ~ 5 1/4 Pan speed
* Only available when "capability_fisheye" is 1
1/7 Pan speed
(It should be set by eCamCtrl.cgi rather than by
setparam.cgi.)
zoomspeed -5 ~ 5 1/4 Zoom speed
* Only available when "capability_fisheye" is 1
1/7 Zoom speed
(It should be set by eCamCtrl.cgi rather than by
setparam.cgi.)
autospeed 1 ~ 5 1/4 Auto pan/patrol speed
* Only available when "capability_fisheye" is 1
1/7 Auto pan/patrol speed
(It should be set by eCamCtrl.cgi rather than by
setparam.cgi.)
rotatespeed 1 ~ 5 1/4 Rotate speed (only for Fisheye series)
* Only available when "capability_fisheye" is 1
and "capability_fisheyelocaldewarp_c<n>" is 0
Group: eptz_c<0~(n-1)>_s<0~(m-1)> for n channel product and m is the number of streams which support
ePTZ. (capability.eptz > 0)
VIVOTEK
286 - User's Manual
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
patrolseq string[120] 1/4 The patrol sequence of ePTZ. All the patrol
position indexes will be separated by ","
patroldwelling string[160] 1/4 The dwelling time (unit: second) of each patrol
point, separated by “,”.
preset_i<0~19>_name string[40] 1/4 Name of ePTZ preset.
* Only available when "capability_fisheye" is 1
1/7 Name of ePTZ preset.
(It should be set by ePreset.cgi rather than by
setparam.cgi.)
preset_i<0~19>_pos <W,H>
<product dependent>
1/4 Left-top corner coordinate of the preset.
* Only available when "capability_fisheye" is 1
1/7 Left-top corner coordinate of the preset.
(It should be set by ePreset.cgi rather than by
setparam.cgi.)
preset_i<0~19>_size <WxH>
<product dependent>
1/4 Width and height of the preset.
* Only available when "capability_fisheye" is 1
1/7 Width and height of the preset.
(It should be set by ePreset.cgi rather than by
setparam.cgi.)
7.35 Focus Window setting
Group: focuswindow_c<0~(n-1)> for n channel products
n denotes the value of "capability_nvideoin".
(capability_image_c<0~(n-1)>_remotefocus=1 or capability_image_c<0~(n-1)>_remotefocus=4)
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
win_i0_enable <boolean> 4/4 Enable or disable the window.
win_i0_home <W,H>
<product dependent>
4/4 Left-top corner coordinate of the window.
* If the minimal window size is 192x144, then
the "win_i0_home"=(0~resolution_W-192,
0~resolution_H-144), which the resolution is
the value in current stream.
win_i0_size <WxH>
<product dependent>
4/4 Width and height of the window.
* The minimal window size is 192x144
VIVOTEK
User's Manual - 287
7.36 Seamless recording setting
Group: seamlessrecording (capability.localstorage.seamless> 0)
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
diskmode seamless,
manageable
1/6 “seamless” indicates enable seamless recording.
“manageable” indicates disable seamless
recording.
maxconnection 3 1/7 Maximum number of connected seamless
streaming.
enable <boolean> 1/7 Indicate whether seamless recording is
recording to local storage or not at present.
(Read only)
guid<0~2>_id string[127] 1/7 The connected seamless streaming ID.
(Read only)
guid<0~2>_number 0~3 1/7 Number of connected seamless streaming with
guid<0~2>_id.
(Read only)
VIVOTEK
288 - User's Manual
7.37 VIVOTEK Application Development Platformsetting
Group: vadp
NAME VALUE SECURITY
(get/set)
DESCRIPTION
version <string> 6/7 Indicate the VADP version.
resource_total_memory 0,<positive integer> 6/7 Indicate total available memory size for VADP
modules.
resource_total_storage 0,<positive integer> 6/7 Indicate total size of the internal storage
space for storing VADP modules.
resource_free_memory 0,<positive integer> 6/7 Indicate free memory size for VADP modules.
resource_free_storage 0,<positive integer> 6/7 Indicate current free storage size for
uploading VADP modules.
module_number 0,<positive integer> 6/7 Record the total module number that already
stored in the system.
module_order string[40] 6/6 The execution order of the enabled modules.
module_save2sd <boolean> 6/6 Indicate if the module should be saved to SD
card when user want to upload it.
If the value is false, save module to the
internal storage space and it will occupy
storage size.
number string[128] 6/7 This number is used to register license key for
VADP application.
Group: vadp_module_i<0~(n-1)> for n VADP package number (capability_vadp_npackage > 0)
n denotes the value of "capability_vadp_npackage".
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Indicate if the module is enabled or not.
If yes, also add the index of this module to the
module_order.
name string[40] 6/6 Module name
extendedname string[40] 6/6 Extended module name. If this value is not
blank, it will be shown on the VADP UI first
instead of vadp_module_i<n>_name.
url string[120] 6/6 Define the URL string after the IP address if the
module provides it own web page.
vendor string[40] 6/6 The provider of the module.
VIVOTEK
User's Manual - 289
vendorurl string[120] 6/6 URL of the vendor.
version string[40] 6/6 Version of the module.
license string[40] 6/6 Indicate the license status of the module.
licmsg string[128] 6/6 Indicate the message that will be show on
license status when mouse over.
path string[40] 6/6 Record the storage path of the module.
initscr string[40] 6/6 The script that will handle operation
commands from the system.
status string[40] 6/6 Indicate the running status of the module.
statmsg string[128] 6/6 Indicate the message that will be show on the
running status when mouse over.
vvtklicensemec string[40] 6/7 Indicate the module use VIVOTEK license
mechanism
Group: vadp_schedule_i<0~(n-1)> for n VADP package number
n denotes the value of "capability_vadp_npackage".
(Only available when capability_vadp_npackage > 0 and the version number of "vadp_version" is equal or greater
than 1.3.2.0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 6/6 Enable or disable the schedule mode to
control the execution of the VADP package
begintime hh:mm 6/6 Begin time of the schedule
endtime hh:mm 6/6 End time of the schedule
Group: vadp_event
NAME VALUE SECURITY
(get/set)
DESCRIPTION
ntrigger 0,<positive integer> 6/7 Indicate the number of topics to be transferred
to event manager for trigger.
triggerlist_i<0~(n-1)>_to
pic
string[256] 6/6 Indicate the event notification with this topic
will be transferred to event manager as trigger.
n is equal to ntrigger above.
VIVOTEK
290 - User's Manual
7.38 camera PTZ control
Group: camctrl (capability.camctrl.ptztunnel > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enableptztunnel <boolean> 1/4 Enable PTZ tunnel for camera control.
Group: camctrl_c<0~(n-1)> for n channel products (capability.ptzenabled > 0)
n denotes the value of "capability_nvideoin"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
panspeed -5 ~ 5 1/4 Pan speed
tiltspeed -5 ~ 5 1/4 Tilt speed
zoomspeed -5 ~ 5 1/4 Zoom speed
focusspeed -5 ~ 5 1/4 Auto focus speed
patrolseq string[120] 1/4 (For external device)
The indexes of patrol points, separated by “,”
patroldwelling string[160] 1/4 (For external device)
The dwelling time of each patrol point,
separated by “,”
preset_i<0~(capability_n
preset -1)>_name
string[40] 1/4 Name of the preset location.
preset_i<0~(capability_n
preset -1)>_ dwelling
0 ~ 999 1/4 The dwelling time of each preset location
uart 0 ~
(capability_nuart -1)
1/4 Select corresponding uart
(capability.nuart>0).
cameraid 0~255 1/4 Camera ID controlling external PTZ camera.
isptz 0 ~ 2 1/4 0: disable PTZ commands.
1: enable PTZ commands with PTZ driver.
2: enable PTZ commands with UART tunnel.
* Only available when bit7 of
capability_ptzenabled is 1
disablemdonptz <boolean> 1/4 Disable motion detection on PTZ operation.
VIVOTEK
User's Manual - 291
7.39 camera PTZ control (SD series)
Group: camctrl_c<0~(n-1)> for n channel products (the bit7 of capability_ptzenabled is 0 and the bit4 of
capability_ptzenabled is 1)
n denotes the value of "capability_nvideoin" and k denotes the value of "capability_npreset"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
ccdtype string[16] 6/7 (Internal used, read only)
motortype string[16] 6/7 (Internal used, read only)
cameraid 1 ~ 255 1/4 Camera ID controlling external PTZ
camera.
Note:
Please set your speed dome to the
appropriate baud rate, and Camera ID,
e.g. 2400bps, camera ID 1,2,3,,,,etc.
All Camera IDs on the same controlling
system (NVR or rs485 keyboard) have
to be distinct.
Therefore, once you send a controlling
signal, each camera will only accept the
inputs with the corresponding ID.
panspeed -5 ~ 5 1/4 Pan speed
tiltspeed -5 ~ 5 1/4 Tilt speed
zoomspeed -5 ~ 5 1/4 Zoom speed
autospeed -5 ~ 5 1/4 Auto pan speed
focusspeed -5 ~ 5 1/4 Auto focus speed
preset_i<0~(k-1)>_name string[40] 1/4 Name of the preset location.
preset_i<0~(k-1)>_pan capability_ptz_c<0~(n-1)
>_minpan ~
capability_ptz_c<0~(n-1)
>_maxpan
1/4 Pan position at each preset location.
preset_i<0~(k-1)>_tilt capability_ptz_c<0~(n-1)
>_mintilt ~
capability_ptz_c<0~(n-1)
>_maxtilt
1/4 Tilt position at each preset location.
preset_i<0~(k-1)>_zoom capability_ptz_c<0~(n-1)
>_minzoom ~
capability_ptz_c<0~(n-1)
>_maxzoom
1/4 Zoom position at each preset location.
VIVOTEK
292 - User's Manual
preset_i<0~(k-1)>_focus capability_ptz_c<0~(n-1)
>_minfocus ~
capability_ptz_c<0~(n-1)
>_maxfocus
1/4 Focus position at each preset location.
preset_i<0~(k-1)>_fliped <boolean> 1/4 Flip side at each preset location.
patrol_i<0~39>_name string[40] 1/4 (For internal device)
The name of patrol location
patrol_i<0~39>_ dwelling 0 ~ 999 1/4 (For internal device)
The dwelling time of each patrol location
disablemdonptz <boolean> 1/4 Disable motion detection on PTZ
operation.
defaulthome <boolean> 1/4 This field tells system to use default
home position or not.
axisx capability_ptz_c<0~(n-1)
>_minpan ~
capability_ptz_c<0~(n-1)
>_maxpan
1/4 Custom home pan position.
axisy capability_ptz_c<0~(n-1)
>_mintilt ~
capability_ptz_c<0~(n-1)
>_maxtilt
1/4 Custom home tilt position.
axisz capability_ptz_c<0~(n-1)
>_minzoom ~
capability_ptz_c<0~(n-1)
>_maxzoom
1/4 Custom home zoom position.
axisf capability_ptz_c<0~(n-1)
>_minfocus ~
capability_ptz_c<0~(n-1)
>_maxfocus
1/4 Custom home focus position.
axisflip <boolean> 1/4 Custom home flip side.
returnhome <boolean> 1/4 Enable/disable return home while idle.
returnhomeinterval 1~999 1/4 While idle over this time interval, idle
action will be taken.
digitalzoom <boolean> 1/4 Enable/disable digital zoom
idleaction_enable <boolean> 1/4 Enable/disable idle action while idle
idleaction_type pan,patrol,home,objtrack,
prev
1/4 This field tells what kind of action should
be taken while idle.
idleaction_interval 1~999 1/4 While idle over this time interval, idle
action will be taken.
VIVOTEK
User's Manual - 293
zoomenhance <boolean> 1/4 Enable / Disable zoom enhancement
tour_index -1, 0~19 1/4 Index of the enabled tour group, from 0
to 19.
Set -1 to disable all the tour groups.
tour_i<0~19>_name string[40] 1/4 Name of the tour.
tour_i<0~19>_type <boolean> 1/4 0 = Recorded tour
1 = Preset tour
tour_i<0~19>_speed -5 ~ 5 1/4 Preset tour: pan and tilt speed when
moving between presets.
Recorded tour: unnecessary.
tour_i<0~19>_checklist string[512] 1/4 The indexes of preset positions,
separated by “,”
tour_i<0~19>_dwelltime string[512] 1/4 Preset tour: time to wait before moving
to the next preset position, separated by
“,”
Recorded tour: number of seconds to
wait
before continuing a loop tour.
7.40 UART control
Group: uart (capability.nuart > 0 and capability.fisheye = 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
ptzdrivers_i<0~19,
127>_name
string[40] 1/4 Name of the PTZ driver.
ptzdrivers_i<0~19,
127>_location
string[128] 1/4 Full path of the PTZ driver.
enablehttptunnel <boolean> 1/4 Enable HTTP tunnel channel to control UART.
Group: uart_i<0~(n-1)> n is uart port count (capability.nuart > 0 and capability.fisheye = 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
baudrate 110,300,600,1200,
2400,3600,4800,72
00,9600,19200,384
00,57600,115200
4/4 Set baud rate of COM port.
databit 5,6,7,8 4/4 Data bits in a character frame.
VIVOTEK
294 - User's Manual
paritybit none,
odd,
even
4/4 For error checking.
stopbit 1,2 4/4 1
2-1.5 , data bit is 5
2-2
uartmode rs485,
rs232
4/4 RS485 or RS232.
customdrvcmd_i<0~9> string[128] 1/4 PTZ command for custom camera.
speedlink_i<0~4>_name string[40] 1/4 Additional PTZ command name.
speedlink_i<0~4>_cmd string[40] 1/4 Additional PTZ command list.
ptzdriver 0~19,
127 (custom),
128 (no driver)
1/4 The PTZ driver is used by this COM port.
7.41 UART control (SD series)
Group: uart_i<0~(n-1)> n is uart port count (capability.nuart > 0 and the bit7 of capability_ptzenabled is 0, the
bit4 of capability_ptzenabled is 1)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
cameraid 1~255 4/4 Camera ID controlling external PTZ camera.
Note:
Please set your speed dome to the appropriate
baud rate, and Camera ID, e.g. 2400bps,
camera ID 1,2,3,,,,etc.
All Camera IDs on the same controlling system
(NVR or rs485 keyboard) have to be distinct.
Therefore, once you send a controlling signal,
each camera will only accept the inputs with
the corresponding ID.
baudrate 2400,4800,9600,19
200,38400,57600,1
15200
4/4 Set baud rate of COM port.
databit 5,6,7,8 4/4 Data bits in a character frame.
paritybit none,
odd,
even
4/4 For error checking.
VIVOTEK
User's Manual - 295
stopbit 1,2 4/4 1
2-1.5 , data bit is 5
2-2
uartmode rs485 4/7 RS485 mode.
7.42 Lens configuration
Group: lens for n channel products
n denotes the value of "capability_nvideoin"
(capability.image.c<0~(n-1)>.lensconfiguration.support = 1)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
selected <string> 6/7 Current selected lens profile.
e.g. lens_selected=lens_default_i0, it means
choosen lens configuration is i0 lens of default
group.
Group: lens_default
NAME VALUE SECURITY
(get/set)
DESCRIPTION
totalnumbers 0,<positive integer> 6/7 Totoal support number of the default lens
profiles
Group: lens_user
NAME VALUE SECURITY
(get/set)
DESCRIPTION
totalnumbers 0,<positive integer> 6/7 Totoal support number of the user lens profiles
Group: lens_default_i<0~(n-1)> n is lens_default_totalnumbers
NAME VALUE SECURITY
(get/set)
DESCRIPTION
name <string> 6/7 Default lens name
Group: lens_user_i<0~(n-1)> n is lens_user_totalnumbers
NAME VALUE SECURITY
(get/set)
DESCRIPTION
name <string> 6/7 User-defined lens name
VIVOTEK
296 - User's Manual
7.43 Fisheye info
Group: fisheyeinfo (capability.fisheye > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
revisedcenteraxis <coordinate> 6/7 The actual center axis coordinate
radius 0, <positive
integer>
6/7 The actual center radius
7.44 Fisheye local dewarp setting
Group: fisheyedewarp_c<0~(n-1)> (capability_fisheyelocaldewarp_c<0~(capability_nvideoin)-1> > 0)
n denotes the value of "capability_nvideoin", m denotes the value of "capability_nmediastream"
NAME VALUE SECURITY
(get/set)
DESCRIPTION
panspeed -5 ~ 5
<integer>
1/4 Pan speed of regional view
tiltspeed -5 ~ 5
<integer>
1/4 Tilt speed of regional view
zoomspeed -5 ~ 5
<integer>
1/4 Zoom speed of regional
s<0~(m-2)>_panorama_
panstart
0~359
<integer>
1/4 Initial pan position of panorama view.
(only available for 1P and 2P mode at ceiling or
floor mount)
s<0~(m-2)>_region_pan -90~359
<integer>
1/4 Pan home angle of regional view
Pan range of ceiling/floor mount is [0~359].
Pan range of wall mount is [-90~90].
s<0~(m-2)>_region_tilt -90~90
<integer>
1/4 Tilt home angle of regional view
Tilt range of ceiling/floor mount is [0~90].
Tilt range of wall mount is [-90~90].
s<0~(m-2)>_region_zoo
m
100~300
<integer>
1/4 Zoom home ratio of regional view
7.45 PIR behavior define
Group: pir (capability.npir > 0)
NAME VALUE SECURITY
(get/set)
DESCRIPTION
enable <boolean> 1/1 Enable/disable PIR
7.46 Auto tracking setting
Group: autotrack (capbility_image_c<0~(capability_nvideoin)-1>_autotrack_support > 0)
VIVOTEK
User's Manual - 297
PARAMETER VALUE SECURITY
(get/set)
DESCRIPTION
objsize_type -1~2 1/4 Type of object size.
-1 : customized width and height
0 : object size = 30 x 30
1 : object size = 10 x 20
2 : object size = 10 x 10
objsize_customized_width 10~320 1/4 The minimum width of tracking target.
objsize_customized_height 10~240 1/4 The minimum height of tracking target.
sensitivity 0~2 1/4 Tracking sensitivity.
0: Low
1: Medium
2: High
VIVOTEK
298 - User's Manual
8. Useful Functions
8.1 Drive the Digital Output
(capability.ndo > 0)
Note: This request requires Viewer privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>]
[&do3=<state>][&do4=<state>]
Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
PARAMETER VALUE DESCRIPTION
do<num> 0, 1 0 – Inactive, normal state
1 – Active, triggered state
Example: Drive the digital output 1 to triggered state and redirect to an empty page.
http://myserver/cgi-bin/dido/setdo.cgi?do1=1
VIVOTEK
User's Manual - 299
8.2 Query Status of the Digital Input(capability.ndi > 0)
Note: This request requires Viewer privileges
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3]
If no parameter is specified, all of the digital input statuses will be returned.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <length>\r\n
\r\n
[di0=<state>]\r\n
[di1=<state>]\r\n
[di2=<state>]\r\n
[di3=<state>]\r\n
where <state> can be 0 or 1.
Example: Query the status of digital input 1 .
Request:
http://myserver/cgi-bin/dido/getdi.cgi?di1
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: 7\r\n
\r\n
di1=1\r\n
VIVOTEK
300 - User's Manual
8.3 Query Status of the Digital Output (capability.ndo > 0)
Note: This request requires Viewer privileges
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]
If no parameter is specified, all the digital output statuses will be returned.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <length>\r\n
\r\n
[do0=<state>]\r\n
[do1=<state>]\r\n
[do2=<state>]\r\n
[do3=<state>]\r\n
where <state> can be 0 or 1.
Example: Query the status of digital output 1.
Request:
http://myserver/cgi-bin/dido/getdo.cgi?do1
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: 7\r\n
\r\n
do1=1\r\n
VIVOTEK
User's Manual - 301
8.4 Capture Single Snapshot
Note: This request requires Normal User privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>]
[&quality=<value>][&streamid=<value>]
If the user requests a size larger than all stream settings on the server, this request will fail.
PARAMETER VALUE DEFA
ULT
DESCRIPTION
channel 0~(n-1) 0 The channel number of the video source.
resolution IP8165:
(160~640, 120~360)
IP8155:
(160~1280, 120~1024)
0 The resolution of the image.
quality 1~5 3 The quality of the image.
streamid 0~(m-1) 2 The stream number.
The server will return the most up-to-date snapshot of the selected channel and stream in JPEG format. The size
and quality of the image will be set according to the video settings on the server.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: image/jpeg\r\n
[Content-Length: <image size>\r\n]
<binary JPEG image data>
VIVOTEK
302 - User's Manual
8.5 Account Management
Note: This request requires Administrator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/editaccount.cgi?
method=<value>&username=<name>[&userpass=<value>][&privilege=<value>]
[&privilege=<value>][…][&return=<return page>]
PARAMETER VALUE DESCRIPTION
method Add Add an account to the server. When using this method, the“username”
field is necessary. It will use the default value of other fields if not
specified.
Delete Remove an account from the server. When using this method, the
“username” field is necessary, and others are ignored.
edit Modify the account password and privilege. When using this method,
the“username” field is necessary, and other fields are optional. If not
specified, it will keep the original settings.
username <name> The name of the user to add, delete, or edit.
userpass <value> The password of the new user to add or that of the old user to modify.
The default value is an empty string.
Privilege <value> The privilege of the user to add or to modify.
viewer Viewer privilege.
operator Operator privilege.
admin Administrator privilege.
Return <return page> Redirect to the page <return page>after the parameter is assigned.
The <return page>can be a full URL path or relative path according to
the current path. If you omit this parameter, it will redirect to an
empty page.
VIVOTEK
User's Manual - 303
8.6 System Logs
Note: This request require Administrator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/syslog.cgi
Server will return the most up-to-date system log.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <syslog length>\r\n
\r\n
<system log information>\r\n
8.7 Upgrade Firmware
Note: This request requires Administrator privileges.
Method: POST
Syntax:
http://<servername>/cgi-bin/admin/upgrade.cgi
Post data:
fimage=<file name>[&return=<return page>]\r\n
\r\n
<multipart encoded form data>
Server will accept the file named <file name> to upgradethe firmware and return with <return page> if indicated.
VIVOTEK
304 - User's Manual
8.8 ePTZ Camera Control (capability.eptz > 0 and
capability_fisheye = 0)
Note: This request requires camctrl privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/camctrl/eCamCtrl.cgi?channel=<value>&stream=<value>
[&move=<value>] – Move home, up, down, left, right
[&auto=<value>] – Auto pan, patrol
[&zoom=<value>]
–Zoom in, out
[&zooming=<value>&zs=<value>] –Zoom without stopping, used for joystick
[&x=<value>&y=<value>&w=<value>&h=<value>&resolution=<value>] - Zoom in, out on a specific area
[&vx=<value>&vy=<value>&vs=<value>] – Shift without stopping, used for joystick
[&x=<value>&y=<value>&videosize=<value>&resolution=<value>&stretch=<value>] –Click on image
(Move the center of image to the coordination (x,y) based on resolution or videosize.)
[ [&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>][&speedapp=<value>] ] – Set speeds
[&return=<return page>]
Example:
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=0&move=right
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=1&vx=2&vy=2&vz=2
http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=1&x=100&y=100&
videosize=640x480&resolution=640x480&stretch=0
In zoom operation, there are two ways to control it, scale zoom and area zoom.
1. [Scale zoom]: contains two control method, relative movement and continuous movement
a. relative movement -
If you trigger a relative movement, it will only zoom certain ratio and stop by itself.
http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zoom=tele
http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zoom=wide
The zoom ratio to move by relative movement is according to the setting of speedzoom [-5~5].
http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&speedzoom=5
b. continuous movement -
If you trigger a continuous movement, you have to handle the stop time by yourself.
A continuous movement is convenient to integrate a joystick control.
http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zooming=tele&zs=1
VIVOTEK
User's Manual - 305
http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zooming=wide&zs=5
zooming is used to indicate the moving direction, and zs is used to indicate the speed.
To stop a continuous movement, you have to use the command as below:
http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zoom=stop&zs=0
2. [Area zoom]: it means to zoom in on a specific area, here is an example for a directly moving
[x, y] is the desired coordinate, and it will be the center after movement
[w, h] is the scaled area size
[resolution] is the base range of this coordinate system
The example shows [w, h] = [864, 488], which means to zoom in to ratio x2.2 based on [1920x1080].
Pay attention to that [x, y, w, h] are essential parameters in an area zoom case, and the stream index is counted
from 0 as the first stream.
http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=0&x=912&y=297&w=864&h=488&resolution=
1920x1080
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of video source.
stream <0~(m-1)> Stream.
move home Move to home ROI.
up Move up.
down Move down.
left Move left.
right Move right.
auto pan Auto pan.
patrol Auto patrol.
stop Stop auto pan/patrol.
zoom wide Zoom larger view with current speed.
tele Zoom further with current speed.
zooming wide or tele Zoom without stopping for larger view or further view with zs speed,
used for joystick control.
zs 0 ~ 6 Set the speed of zooming, “0” means stop.
x <integer> The desired coordinate, and it will be the center after movement
y <integer>
w <integer> The scaled area size
h <integer>
resolution <window size> The resolution of streaming.
VIVOTEK
306 - User's Manual
vx <integer> The direction of movement, used for joystick control.
vy <integer>
vs 0 ~ 7 Set the speed of movement, “0” means stop.
x <integer> x-coordinate clicked by user.
It will be the x-coordinate of center after movement.
y <integer> y-coordinate clicked by user.
It will be the y-coordinate of center after movement.
videosize <window size> The size of plug-in (ActiveX)window in web page
resolution <window size> The resolution of streaming.
stretch <boolean> 0 indicates that it usesresolution(streaming size) as the range of the
coordinate system.
1 indicates that it usesvideosize(plug-in size) as the range of the
coordinate system.
speedpan -5 ~ 5 Set the pan speed.
speedtilt -5 ~ 5 Set the tilt speed.
speedzoom -5 ~ 5 Set the zoom speed.
speedapp 1 ~ 5 Set the auto pan/patrol speed.
return <return page> Redirect to the page <return page>after the parameter is assigned.
The <return page>can be a full URL path or relative path according to
the current path.
VIVOTEK
User's Manual - 307
8.9 ePTZ Recall (capability.eptz > 0 and capability_fisheye = 0)
Note: This request requires camctrl privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>&
recall=<value>[&return=<return page>]
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of the video source.
stream <0~(m-1)> Stream.
recall Text string less than 40
characters
One of the present positions to recall.
return <return page> Redirect to the page <return page>after the parameter is assigned.
The <return page>can be a full URL path or relative path according to
the current path.
VIVOTEK
308 - User's Manual
8.10 ePTZ Preset Locations(capability.eptz > 0 and
capability_fisheye = 0)
Note: This request requires Operator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/operator/ePreset.cgi?channel=<value>&stream=<value>
[&addpos=<value>][&delpos=<value>][&return=<return page>]
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of the video source.
stream <0~(m-1)> Stream.
addpos <Text string less than
40 characters>
Add one preset location to the preset list.
delpos <Text string less than
40 characters>
Delete preset location from the preset list.
return <return page> Redirect to the page <return page>after the parameter is assigned.
The <return page>can be a full URL path or relative path according to
the current path.
VIVOTEK
User's Manual - 309
8.11 IP Filtering
Note: This request requires Administrator access privileges.
Method: GET/POST
Syntax: <product dependent>
http://<servername>/cgi-bin/admin/ipfilter.cgi?type[=<value>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=add<v4/v6>&ip=<ipaddress>[&index=<value>][&ret
urn=<return page>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=del<v4/v6>&index=<value>[&return=<return page>]
PARAMETER VALUE DESCRIPTION
type NULL Get IP filter type
allow, deny Set IP filter type
method addv4 Add IPv4 address into access list.
addv6 Add IPv6 address into access list.
delv4 Delete IPv4 address from access list.
delv6 Delete IPv6 address from access list.
ip <IP address> Single address: <IP address>
Network address: <IP address / network mask>
Range address:<start IP address - end IP address>
index <value> The start position to add or to delete.
return <return page> Redirect to the page <return page>after the parameter is assigned.
The <return page>can be a full URL path or relative path according to
the current path. If you omit this parameter, it will redirect to an
empty page.
VIVOTEK
310 - User's Manual
8.12 IP Filtering for ONVIF
Syntax:<product dependent>
http://<servername>/cgi-bin/admin/ipfilter.cgi?type[=<value>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=add<v4/v6>&ip=<ipaddress>[&index=<value>][&ret
urn=<return page>]
http://<servername>/cgi-bin/admin/ipfilter.cgi?method=del<v4/v6>&index=<value>[&return=<return page>]
PARAMETER VALUE DESCRIPTION
type NULL Get IP filter type
allow, deny Set IP filter type
method addv4 Add IPv4 address into access list.
addv6 Add IPv6 address into access list.
delv4 Delete IPv4 address from access list.
delv6 Delete IPv6 address from access list.
ip <IP address> Single address: <IP address>
Network address: <IP address / network mask>
Range address:<start IP address - end IP address>
index <value> The start position to add or to delete.
return <return page> Redirect to the page <return page>after the parameter is assigned.
The <return page>can be a full URL path or relative path according to
the current path. If you omit this parameter, it will redirect to an
empty page.
VIVOTEK
User's Manual - 311
8.13 UART HTTP Tunnel Channel (capability.nuart > 0)
Note: This request requires Operator privileges.
Method: GET and POST
Syntax:
http://<servername>/cgi-bin/operator/uartchannel.cgi?[channel=<value>]
-------------------------------------------------------------------------
GET /cgi-bin/operator/uartchannel.cgi?[channel=<value>]
x-sessioncookie: string[22]
accept: application/x-vvtk-tunnelled
pragma: no-cache
cache-control: no-cache
-------------------------------------------------------------------------
POST /cgi-bin/operator/uartchannel.cgi
x-sessioncookie: string[22]
content-type: application/x-vvtk-tunnelled
pragma : no-cache
cache-control : no-cache
content-length: 32767
expires: Sun, 9 Jam 1972 00:00:00 GMT
User must use GET and POST to establish two channels for downstream and upstream. The x-sessioncookie in GET
and POST should be the same to be recognized as a pair for one session. The contents of upstream should be
base64 encoded to be able to pass through a proxy server.
This channel will help to transfer the raw data of UART over the network.
Please see UART tunnel spec for detail information
PARAMETER VALUE DESCRIPTION
channel 0 ~ (n-1) The channel number of UART.
VIVOTEK
312 - User's Manual
8.14 Event/Control HTTP Tunnel Channel (capability.
evctrlchannel > 0)
Note: This request requires Administrator privileges.
Method: GET and POST
Syntax:
http://<servername>/cgi-bin/admin/ctrlevent.cgi
-------------------------------------------------------------------------
GET /cgi-bin/admin/ctrlevent.cgi
x-sessioncookie: string[22]
accept: application/x-vvtk-tunnelled
pragma: no-cache
cache-control: no-cache
-------------------------------------------------------------------------
POST /cgi-bin/admin/ ctrlevent.cgi
x-sessioncookie: string[22]
content-type: application/x-vvtk-tunnelled
pragma : no-cache
cache-control : no-cache
content-length: 32767
expires: Sun, 9 Jam 1972 00:00:00 GMT
User must use GET and POST to establish two channels for downstream and upstream. The x-sessioncookie in GET
and POST should be the same to be recognized as a pair for one session. The contents of upstream should be
base64 encoded to be able to pass through the proxy server.
This channel will help perform real-time event subscription and notification as well as camera control more
efficiently. The event and control formats are described in another document.
See Event/control tunnel spec for detail information
VIVOTEK
User's Manual - 313
8.15 Get SDP of Streams
Note: This request requires Viewer access privileges.
Method: GET/POST
Syntax:
http://<servername>/<network_rtsp_s<0~m-1>_accessname>
“m” is the stream number.
“network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the
“subgroup of network: rtsp” for setting the accessname of SDP.
You can get the SDP by HTTP GET.
When using scalable multicast, Get SDP file which contains the multicast information via HTTP.
8.16 Open the Network Stream
Note: This request requires Viewer access privileges.
Syntax:
For HTTP push server (MJPEG):
http://<servername>/<network_http_s<0~m-1>_accessname>
For RTSP (MP4), the user needs to input theURL below into an RTSP compatible player.
rtsp://<servername>/<network_rtsp_s<0~m-1>_accessname>
“m” is the stream number.
For details on streaming protocol, please refer to the “control signaling” and “data format” documents.
VIVOTEK
314 - User's Manual
8.17 Senddata (capability.nuart > 0)
Note: This request requires Viewer privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/viewer/senddata.cgi?
[com=<value>][&data=<value>][&flush=<value>] [&wait=<value>] [&read=<value>]
PARAMETER VALUE DESCRIPTION
com 1 ~ <max. com port
number>
The target COM/RS485 port number.
data <hex decimal
data>[,<hex decimal
data>]
The <hex decimal data> is a series of digits from 0 ~ 9, A ~ F. Each
comma separates the commands by 200 milliseconds.
flush yes,no yes: Receive data buffer of the COM port will be cleared before read.
no: Do not clear the receive data buffer.
wait 1 ~ 65535 Wait time in milliseconds before read data.
read 1 ~ 128 The data length in bytes to read. The read data will be in the return
page.
Return:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <system information length>\r\n
\r\n
<hex decimal data>\r\n
Where hexadecimal data is digits from 0 ~ 9, A ~ F.
VIVOTEK
User's Manual - 315
8.18 Storage managements (capability.storage.dbenabled > 0)
Note: This request requires
administrator privileges.
Method: GET and POST
Syntax:
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>…]
The commands usage and their input arguments are as follows.
PARAMETER VALUE DESCRIPTION
cmd_type <string> Required.
Command to be executed, including search, insert, delete, update,
and queryStatus.
Command: search
PARAMETER VALUE DESCRIPTION
label <integer primary key> Optional.
The integer primary key column will automatically be assigned a
unique integer.
triggerType <text> Optional.
Indicate the event trigger type.
Please embrace your input value with single quotes.
Ex. mediaType=’motion’
Support trigger types are product dependent.
mediaType <text> Optional.
Indicate the file media type.
Please embrace your input value with single quotes.
Ex. mediaType=’videoclip’
Support trigger types are product dependent.
destPath <text> Optional.
Indicate the file location in camera.
Please embrace your input value with single quotes.
Ex. destPath =’/mnt/auto/CF/NCMF/abc.mp4’
resolution <text> Optional.
Indicate the media file resolution.
Please embrace your input value with single quotes.
Ex. resolution=’800x600’
isLocked <boolean> Optional.
VIVOTEK
316 - User's Manual
Indicate if the file is locked or not.
0: file is not locked.
1: file is locked.
A locked file would not be removed from UI or cyclic storage.
triggerTime <text> Optional.
Indicate the event trigger time. (not the file created time)
Format is “YYYY-MM-DD HH:MM:SS”
Please embrace your input value with single quotes.
Ex. triggerTime=’2008-01-01 00:00:00’
If you want to search for a time period, please apply “TO”
operation.
Ex. triggerTime=’2008-01-01 00:00:00’+TO+’2008-01-01
23:59:59’ is to search for records from the start of Jan 1
st
2008to
the end of Jan 1
st
2008.
limit <positive integer> Optional.
Limit the maximum number of returned search records.
offset <positive integer> Optional.
Specifies how many rows to skip at the beginning of the matched
records.
Note that the offset keyword is used after limit keyword.
To increase the flexibility of search command, you may use “OR” connectors for logical “OR” search operations.
Moreover, to search for a specific time period, you can use “TO” connector.
Ex. To search records triggered by motion or di or sequential and also triggered between 2008-01-01 00:00:00 and
2008-01-01 23:59:59.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=search&triggerType=’motion’+OR+’di’+OR+’seq’&triggerTi
me=’2008-01-01 00:00:00’+TO+’2008-01-01 23:59:59’
Command: delete
PARAMETER VALUE DESCRIPTION
label <integer primary key> Required.
Identify the designated record.
Ex. label=1
Ex. Delete records whose key numbers are 1, 4, and 8.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=delete&label=1&label=4&label=8
Command: update
PARAMETER VALUE DESCRIPTION
VIVOTEK
User's Manual - 317
label <integer primary key> Required.
Identify the designated record.
Ex. label=1
isLocked <boolean> Required.
Indicate if the file is locked or not.
Ex. Update records whose key numbers are 1 and 5 to be locked status.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=1&label=1&label=5
Ex. Update records whose key numbers are 2 and 3 to be unlocked status.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=0&label=2&label=3
Command: queryStatus
PARAMETER VALUE DESCRIPTION
retType xml or javascript Optional.
Ex. retype=javascript
The default return message is in XML format.
Ex. Query local storage status and call for javascript format return message.
http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=queryStatus&retType=javascript
VIVOTEK
318 - User's Manual
8.19 Virtual input (capability.nvi > 0)
Note: Change virtual input (manual trigger) status.
Method: GET
Syntax:
http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>]
[&return=<return page>]
PARAMETER VALUE DESCRIPTION
vi<num> state[(duration)nstate]
Where "state" is 0, 1. “0”
means inactive or normal
state while “1” means
active or triggered state.
Where "nstate" is next
state after duration.
Ex: vi0=1
Setting virtual input 0 to trigger state
Ex: vi0=0(200)1
Setting virtual input 0 to normal state, waiting 200
milliseconds, setting it to trigger state.
Note that when the virtual input is waiting for next state, it
cannot accept new requests.
return <return page> Redirect to the page <return page>after the request is
completely assigned. The <return page>can be a full URL
path or relative path according the current path. If you omit
this parameter, it will redirect to an empty page.
Return Code Description
200 The request is successfully executed.
400 The request cannot be assigned, ex. incorrect parameters.
Examples:
setvi.cgi?vi0=0(10000)1(15000)0(20000)1
No multiple duration.
setvi.cgi?vi3=0
VI index is out of range.
setvi.cgi?vi=1
No VI index is specified.
503 The resource is unavailable, ex. Virtual input is waiting for next state.
Examples:
setvi.cgi?vi0=0(15000)1
setvi.cgi?
vi0=1
Request 2 will not be accepted during the execution time(15 seconds).
VIVOTEK
User's Manual - 319
8.20 Open Timeshift Stream (capability.timeshift > 0,
timeshift_enable=1, timeshift_c<n>_s<m>_allow=1)
Note: This request requires Viewer access privileges.
Syntax:
For HTTP push server (MJPEG):
http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<v
alue>&forcechk&minsft=<value>]
For RTSP (MP4 and H264), the user needs to input theURL below into an RTSP compatible player.
rtsp://<servername>/<network_rtsp_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<va
lue>&forcechk&minsft=<value>]
“n” is the channel index.
“m” is the timeshift stream index.
For details on timeshift stream, please refer to the “TimeshiftCaching” documents.
PARAMETER VALUE DEFAULT DESCRIPTION
maxsft <positive
integer>
0 Request cached stream at most how many seconds ago.
tsmode normal,
adaptive
normal Streaming mode:
normal => Full FPS all the time.
adaptive => Default send only I-frame for MP4 and H.264, and
send 1 FPS for MJPEG. If DI or motion window are triggered, the
streaming is changed to send full FPS for 10 seconds.
(*Note: this parameter also works on non-timeshift streams.)
reftime mm:ss The time
camera receives
the request.
Reference time for maxsft and minsft.
(This provides more precise time control to eliminate the
inaccuracy due to network latency.)
Ex: Request the streaming from 12:20
rtsp://10.0.0.1/live.sdp?maxsft=10&reftime=12:30
forcechk N/A N/A Check if the requested stream enables timeshift, feature and
if minsft is achievable.
If false, return “415 Unsupported Media Type”.
minsft <positive
integer>
0 How many seconds of cached stream client can accept at least.
(Used by forcechk)
Return Code Description
VIVOTEK
320 - User's Manual
400 Bad Request Request is rejected because some parameter values are illegal.
415 Unsupported Media Type Returned, if forcechk appears,when minsft is not achievable or the timeshift
feature of the target stream is not enabled.
VIVOTEK
User's Manual - 321
8.21 RemoteFocus
(capability_image_c<0~(n-1)>_remotefocus=1)
Note: This request requires Administrator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/remotefocus.cgi?function=<value>[&direction=<value>]
[&position=<value>][&steps=<value>][&iris]
PARAMETER VALUE DESCRIPTION
VIVOTEK
322 - User's Manual
function zoom,
focus,
auto,
scan,
stop,
positioning,
getstatus
Function type
zoom - Move focus motor
focus – Move focus motor
auto – Perform auto focus
scan – Perform focus scan
stop – Stop current operation
positioning – Position the motors
getstatus–Information of motors, return value as below:
remote_focus_zoom_motor_max: Maximum steps of zoom motor
remote_focus_focus_motor_max: Maximum steps of focus motor
remote_focus_zoom_motor_start: Start point of zoom motor
remote_focus_zoom_motor_end: End point of zoom motor
remote_focus_focus_motor_start: Start point of effective focal
length
remote_focus_focus_motor_end: End point of effective focal
length
remote_focus_zoom_motor: Current position of zoom motor
remote_focus_focus_motor: Current position of focus motor
remote_focus_zoom_enable: Current function of zoom motor
remote_focus_focus_enable: Current function of focus motor
remote_focus_iris_open: The current status of iris. 0: irisenable, 1:
irisopen
Current function of zoom/focus motor, return value as below:
0: no service
1: zooming
2. focusing
3: auto focus
4: focus scan
5: positioning (both zoom motor and focus motor)
12: reset focus
VIVOTEK
User's Manual - 323
direction direct,
forward,
backward
Motor’s moving direction.
It works only if function= zoom | focus.
position 0~<motor_max> Motor’s position.
It works only if function=zoom | focus and direction=direct.
<motor_max> is refer to remote_focus_focus_motor_max or
remote_focus_zoom_motor_max which replied from
"function=getstatus"
steps 1 ~ <motor_max> Motor’s moving steps.
It works only if function=zoom | focus and direction=forward |
backward.
<motor_max> is refer to remote_focus_focus_motor_max or
remote_focus_zoom_motor_max which replied from
"function=getstatus"
iris N/A Open iris or not.
It works only if function=auto | scan.
VIVOTEK
324 - User's Manual
8.22 BackFocus (capability_image_c<0~(n-1)>_remotefocus=4)
Note: This request requires Administrator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/remotefocus.cgi?function=<value>[&direction=<value>]
[&position=<value>][&steps=<value>][&iris]
PARAMETER VALUE DESCRIPTION
VIVOTEK
User's Manual - 325
function focus,
auto,
scan,
stop,
positioning,
irisopen,
irisenable,
resetfocus,
getstatus
Function type
focus – Move focus motor
auto – Perform auto focus
scan – Perform focus scan
stop – Stop current operation
positioning – Position the motors
resetfocus – reset focus position to default
irisopen – Fully open iris. It will maintain this status until sending
irisenable cgi.
irisenable – leave fully open iris and return back to previous
status
getstatus–Information of motors, return value as below:
remote_focus_focus_motor_max: Maximum steps of focus
motor
remote_focus_focus_motor_start: Start point of effective
focal length
remote_focus_focus_motor_end: End point of effective focal
length
remote_focus_focus_motor: Current position of focus motor
remote_focus_focus_enable: Current function of focus motor
remote_focus_iris_open: The current status of iris. 0:
irisenable, 1: irisopen
Current function of zoom/focus motor, return value as below:
0: no service
1: zooming
2. focusing
3: auto focus
4: focus scan
5: positioning (both zoom motor and focus motor)
12: reset focus
direction direct,
forward,
backward
Motor’s moving direction.
It works only if function= focus.
position 0~<motor_max> Motor’s position.
It works only if function=focus and direction=direct.
<motor_max> is refer to remote_focus_focus_motor_max which
replied from "function=getstatus"
VIVOTEK
326 - User's Manual
steps 1 ~ <motor_max> Motor’s moving steps.
It works only if function=focus and direction=forward |
backward.
<motor_max> is refer to remote_focus_focus_motor_max which
replied from "function=getstatus"
iris N/A Open iris or not.
It works only if function=auto | scan.
8.23 Export Files
Note: This request requires Administrator privileges.
Method: GET
Syntax:
For daylight saving time configuration file:
http://<servername>/cgi-bin/admin/exportDst.cgi
For language file:
http://<servername>/cgi-bin/admin/export_language.cgi?currentlanguage=<value>
PARAMETER VALUE DESCRIPTION
currentlanguage 0~20 Available language lists.
Please refer to:
system_info_language_i0 ~ system_info_language_i19
.
For setting backup file:
http://<servername>/cgi-bin/admin/export_backup.cgi?backup
VIVOTEK
User's Manual - 327
8.24 Upload Files
Note: This request requires Administrator privileges.
Method: POST
Syntax:
For daylight saving time configuration file:
http://<servername>/cgi-bin/admin/upload_dst.cgi
Post data:
filename =<file name>\r\n
\r\n
<multipart encoded form data>
For language file:
http://<servername>/cgi-bin/admin/upload_lan.cgi
Post data:
filename =<file name>\r\n
\r\n
<multipart encoded form data>
For setting backup file:
http://<servername>/cgi-bin/admin/upload_backup.cgi
Post data:
filename =<file name>\r\n
\r\n
<multipart encoded form data>
Server will accept the file named <file name> to upload this one to camera.
VIVOTEK
328 - User's Manual
8.25 Update Lens Configuration
Note: This request requires Administrator privileges.
Method: GET
Syntax:
For list a name of lens currently used:
http://<servername>/cgi-bin/admin/update_lens.cgi?get_currentlens
For list all names of lens installed in camera:
http://<servername>/cgi-bin/admin/update_lens.cgi?list_lens
For choose selected lens configuration:
http://<servername>/cgi-bin/admin/update_lens.cgi?choose_lens=<value>
You need to reboot manually after you choose another lens configuration.
For choose selected lens configuration and reboot camera:
http://<servername>/cgi-bin/admin/update_lens.cgi?choose_reboot_lens=<value>
The camera will reboot after using this cgi.
For delete selected lens configuration:
http://<servername>/cgi-bin/admin/update_lens.cgi?delete_lens=<value>
PARAMETER VALUE DESCRIPTION
value <string> Available lens name.
Please refer to:
lens_default_i<0~(n-1)>_name
lens_user_i<0~(n-1)>_name
n is a positive integer.
Method: POST
Syntax:
For upload user-defined lens configuration:
http://<servername>/cgi-bin/admin/update_lens.cgi?upload_lens
Post data:
upload_lens_profile_input = <file name>\r\n
\r\n
VIVOTEK
User's Manual - 329
<multipart encoded form data>
Server will accept the file named <file name> to upload the lens profile to camera.
8.26 Media on demand (capability.localstorage.modnum > 0)
Media on demand allows users to select and receive/watch/listen to metadata/video/audio contents on demand.
Note: This request requires Viewer access privileges.
Syntax:
rtsp://<servername>/mod.sdp?[&stime=<value>][&etime=<value>][&length =<value>][&loctime
=<value>][&file=<value>][&tsmode=<value>]
PARAMETER VALUE DEFAULT DESCRIPTION
stime <YYYYMMDD_HHMMSS.MMM> N/A Start time.
etime <YYYYMMDD_HHMMSS.MMM> N/A End time.
length <positive integer> N/A The length of media of interest.
The unit is second.
loctime <boolean> 0 Specify if start/end time is local time format.
1 for local time, 0 for UTC+0
file <string> N/A The media file to be played.
tsmode <positive integer> N/A Timeshift mode, the unit is second.
Ex.
stime etime length file Description
V V X X
Play recordings between stime and etime
rtsp://10.10.1.2/mod.sdp?stime=20110312_040400.000&et
ime=2011_0312_040510.000
V X V X
Play recordings for length seconds which start from stime
rtsp://10.10.1.2/mod.sdp?stime=20110312_040400.000&le
ngth=120
X V V X
Play recordings for length seconds which ends at etime
rtsp://10.10.1.2/mod.sdp?etime=20110312_040400.000&le
ngth=120
X X X V
Play file file
rtsp://10.10.1.2/mod.sdp?filename=/mnt/link0/
VIVOTEK
330 - User's Manual
8.27 Fisheye local dewarp camera control (capability.fisheye > 0
and capability.fisheyelocaldewarp.c0 > 0, only support in 1R
mode)
Note: This request requires camctrl privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/camctrl/fdCamCtrl.cgi?channel=<value>&stream=<value>
[&move=<value>] – Move home, up, down, left, right
[&zoom=<value>] – Zoom wide, tele
[[&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>]]
– Set speeds
[&zooming=<value>&zs=<value>] – Zoom without stopping, used for joystick
[&vx=<value>&vy=<value>&vs=<value>] – Shift without stopping, used for joystick
[&x=<value>&y=<value>&videosize=<value>&resolution=<value>&stretch=<value>] – Click on image (Move
the center of image to the coordination (x,y) based on resolution or videosize of 1O mode.)
[&return=<return page>]
Example:
http://myserver/cgi-bin/camctrl/fdCamCtrl.cgi?channel=0&stream=0&move=right
http://myserver/cgi-bin/camctrl/fdCamCtrl.cgi?channel=0&stream=0&zoom=tele
http://myserver/cgi-bin/camctrl/fdCamCtrl.cgi?channel=0&stream=0&move=top&speedtilt=-1
http://myserver/cgi-bin/camctrl/fdCamCtrl.cgi?channel=0&stream=0&zooming=tele&zs=2
http://myserver/cgi-bin/camctrl/fdCamCtrl.cgi?channel=0&stream=0&vx=5&vy=3&vs=2
http://myserver/cgi-bin/camctrl/fdCamCtrl.cgi?channel=0&stream=0&x=700&y=700&videosize=1920x1920&r
esolution=1920x1920&stretch=1
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of video source.
stream <0~(m-1)> Stream.
move home Move to home position.
up Move up.
down Move down.
left Move left.
right Move right.
VIVOTEK
User's Manual - 331
zoom wide Zoom larger view with current speed.
tele Zoom further with current speed.
speedpan -5 ~ 5 Set the pan speed of current command.
speedtilt -5 ~ 5 Set the tilt speed of current command.
speedzoom -5 ~ 5 Set the zoom speed of current command.
zooming wide or tele Zoom without stopping for larger view or further view with zs speed,
used for joystick control.
zs 0 ~ 6 Set the speed of zooming, “0” means stop.
vx -6 ~ 6 The direction of movement, used for joystick control.
vy -6 ~ 6
vs 0 ~ 7 Set the speed of movement, “0” means stop.
x <integer> x-coordinate clicked by user.
It will be the x-coordinate of center after movement.
y <integer> y-coordinate clicked by user.
It will be the y-coordinate of center after movement.
videosize <window size> The size of plug-in (ActiveX) window in web page of 1O content.
resolution <window size> The resolution of streaming of 1O content.
stretch <boolean> 0 indicates that it uses resolution (streaming size) as the range of
the coordinate system.
1 indicates that it uses videosize (plug-in size) as the range of the
coordinate system.
return <return page> Redirect to the page <return page> after the parameter is assigned.
The <return page> can be a full URL path or relative path according to
the current path. If you omit this parameter, it will redirect to an
empty page.
VIVOTEK
332 - User's Manual
8.28 3D Privacy Mask
(capability_image_c<0~(n-1)>_privacymask_wintype =
3Drectangle) n denotes the value of "capability_nvideoin"
Note: This request requires admin user privilege
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/setpm3d.cgi?method=<value>&name=<value>&[maskheight=<value>&
maskwidth=<value>&videosize=<value>&return=<return page>]
PARAMETER VALUE DESCRIPTION
method add Add a 3D privacy mask at current location
delete Delete a 3D privacy mask
edit Edit a 3D privacy mask
maskname string[40] 3D privacy mask name
maskheight integer 3D privacy mask height
maskwidth integer 3D privacy mask width
videosize <window size> Optimal.
The size of plug-in (ActiveX) window in web page is the size of the
privacy window size. This field is not necessary, it will use the default
value if not specified. 320x180 for 16:9 resolution and 320x240 for
4:3 resolution.
return <return page> Redirect to page <return page> after the 3D privacy mask is
configured. The <return page> can be a full URL path or relative path
according to the current path. If you omit this parameter, it will
redirect to an empty page.
VIVOTEK
User's Manual - 333
8.29 Camera Control
(capability_camctrl_c<0~(n-1)>_zoommodule = 1)
Note: This request requires Viewer privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/camctrl/camctrl.cgi?[channel=<value>][&camid=<value>]
[&move=<value>] – Move home, up, down, left, right
[&focus=<value>]
– Focus operation
[&auto=<value>] – Auto pan, patrol
[&zoom=<value>] – Zoom in, out
[&zooming=<value>&zs=<value>] – Zoom without stopping, used for joystick
[&vx=<value>&vy=<value>&vs=<value>] – Shift without stopping, used for joystick
[&x=<value>&y=<value>&videosize=<value>&resolution=<value>&stretch=<value>] – Click on image
(Move the center of image to the coordination (x,y) based on resolution or videosize.)
[ [&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>][&speedapp=<value>][&speedlink=<val
ue>] ] – Set speeds
[&return=<return page>]
Example:
http://myserver/cgi-bin/camctrl/camctrl.cgi?channel=0&camid=1&move=right
http://myserver/cgi-bin/camctrl/camctrl.cgi?channel=0&camid=1&zoom=tele
http://myserver/cgi-bin/camctrl/camctrl.cgi?channel=0&camid=1&x=300&y=200&resolution=704x480&videosi
ze=704x480&strech=1
PARAMETER VALUE DESCRIPTION
channel <0~(n-1)> Channel of video source.
camid 0,<positive integer> Camera ID.
move home Move to camera to home position.
up Move camera up.
down Move camera down.
left Move camera left.
right Move camera right.
speedpan -5 ~ 5 Set the pan speed.
speedtilt -5 ~ 5 Set the tilt speed.
VIVOTEK
334 - User's Manual
speedzoom -5 ~ 5 Set the zoom speed.
speedfocus -5 ~ 5 Set the focus speed.
speedapp -5 ~ 5 Set the auto pan/patrol speed.
auto pan Auto pan.
patrol Auto patrol.
stop Stop camera.
zoom wide Zoom larger view with current speed.
tele Zoom further with current speed.
stop Stop zoom.
zooming wide or tele Zoom without stopping for larger view or further view with zs speed,
used for joystick control.
zs 0 ~ 8 <SD8362> Set the speed of zooming, “0” means stop.
vx <integer , excluding 0> The slope of movement = vy/vx, used for joystick control.
vy <integer>
vs 0 ~ 127 Set the speed of movement, “0” means stop.
x <integer> x-coordinate clicked by user.
It will be the x-coordinate of center after movement.
y <integer> y-coordinate clicked by user.
It will be the y-coordinate of center after movement.
videosize <window size> The size of plug-in (ActiveX) window in web page
resolution <window size> The resolution of streaming.
stretch <boolean> 0 indicates that it uses resolution (streaming size) as the range of
the coordinate system.
1 indicates that it uses videosize (plug-in size) as the range of the
coordinate system.
focus auto Auto focus.
far Focus on further distance.
near Focus on closer distance.
return <return page> Redirect to the page <return page> after the parameter is assigned.
The <return page> can be a full URL path or relative path according to
the current path. If you omit this parameter, it will redirect to an
empty page.
VIVOTEK
User's Manual - 335
8.30 Recall (capability_camctrl_c<0~(n-1)>_zoommodule = 1)
Note: This request requires Viewer privileges.
Method: GET
Syntax:
http://<servername>/cgi-bin/viewer/recall.cgi?
recall=<value>[&channel=<value>][&return=<return page>]
PARAMETER VALUE DESCRIPTION
recall string[30] One of the present positions to recall.
channel 0~(capability_nvideoin-1) Channel of the video source.
return <return page> Redirect to the page <return page> after the parameter is assigned.
The <return page> can be a full URL path or relative path according
to the current path. If you omit this parameter, it will redirect to an
empty page.
8.31 Preset Locations
(capability_camctrl_c<0~(n-1)>_zoommodule = 1)
Note: This request requires Operator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/operator/preset.cgi?[channel=<value>]
[&addpos=<value>][&delpos=<value>][&return=<return page>]
PARAMETER VALUE DESCRIPTION
addpos string[30] Add one preset location to the preset list.
channel 0~(capability_nvideoin-1) Channel of the video source.
delpos string[30] Delete preset location from preset list.
VIVOTEK
336 - User's Manual
return <return page> Redirect to the page <return page> after the parameter is assigned.
The <return page> can be a full URL path or relative path according
to the current path. If you omit this parameter, it will redirect to an
empty page.
VIVOTEK
User's Manual - 337
8.32 SmartSD (capability_localstorage_smartsd > 0)
Note: This request requires Administrator privileges.
Method: GET/POST
Syntax:
http://<servername>/cgi-bin/admin/smartsd.cgi?function=<value>
PARAMETER VALUE DESCRIPTION
VIVOTEK
338 - User's Manual
function getstatus Function type
getstauts : Information of smartSD internal status return value as below:
smartsd_lifetime_num:
Accumulated amount of data that has been written
smartsd_lifetime_den:
Card-guaranteed amount of data that can be written
smartsd_lifetime_rate:
The ratio of smartsd_lifetime_num to smartsd_lifetime_den.
It means the accumulated percentage amount of flash block has been written.
The range is from 0 to 100 (unit : %). The SD card is recommended to be
replaced if the percentage reaches above 90%.
smartsd_spare_block_rate:
Usage rate of spare blocks.
It means the usage percentage of total spare block. The range is from 0 to 100
(unit : %). The SD card is recommended to be replaced if the percentage
reaches above 90%.
smartsd_data_size_per_unit:
Size (in sectors) of data to be written when Life Information1 is updated.
smartsd_num_of_sudden_power_failure:
Indicates how many times power disconnection occurred during write/erase
operations
smartsd_operation_mode:
Enables/disables power-off detection and write error notification
smartsd_attached:
Indicate the smartSD is attached or not.
<End of document>
VIVOTEK
User's Manual - 339
Technical Specications
Model
FE9181-H: WDR Pro
FE9381-EHV: WDR Pro, IP66, IK10, EN50155, Extreme
Weather
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128MB
RAM 512M B
Camera Features
Image Sensor 1/1.8" Progressive CMOS in 3096x2094
Maximum Resolution 1920x1920
Lens Type Fixed-focal
Focal Length f = 1.47 mm
Aperture F2.2
Field of View
180° (Horizontal)
180° (Vertical)
180° (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR Pro
Day/Night Removable IR-cut filter for day & night function
Minimum Illumination
0.18 Lux @ F2.2 (Color)
0.001 Lux @ F2.2 (B/W)
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-
in)
On-board Storage
Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
Compression H.265, H.264, MJPEG
Maximum Frame Rate
H.265 & H.264:
30 fps @ 1920x1920
MJPEG:
12 fps @ 1920x1920
Maximum Streams 4 simultaneous streams
S/N Ratio 42.3 dB
Dynamic Range 100 dB
Video Streaming
Adjustable resolution, quality and bitrate
Smart Stream II
Image Settings
Time stamp, text overlay, flip & mirror; Configurable
brightness, contrast, saturation, sharpness,
white balance, exposure control, gain, backlight
compensation, privacy masks; Scheduled profile
settings, 3D noise reduction; Adjustable image size,
quality and bit rate, defog; Pixel counter
Audio
Audio Capability Two-way audio (full duplex)
Compression G.711, G.726
Interface
Built-in microphone
External microphone input
External line output
Effective Range 5 meters
Network
Users Live viewing for up to 10 clients
Protocols
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/
RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS,
PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL,
TLS, NTCIP
Interface
10 Base-T/100 BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e
& CAT6 cables which are compliant with the 3P/ETL
standard.
ONVIF Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection Five-window video motion detection
Technical Specifications
Compatible Accessories
Alarm and Event
Alarm Triggers
Motion detection, manual trigger, digital input,
periodical trigger, system boot, recording
notification, camera tampering detection, audio
detection
Alarm Events
Event notification using digital output, HTTP, SMTP,
FTP, NAS server and SD Card
File upload via HTTP, SMTP, FTP, NAS server and SD
Card
General
Connectors
RJ-45 cable connector for Network/PoE connection
Audio input*1
Audio output*1
DC 12V power input*1
Digital input*1
Digital output*1
LED Indicator System power and status indicator
Power Input
DC 12V
IEEE 802.3af PoE Class 0
Power Consumption
FE9181-H: Max. 5.5 W
FE9381-EHV: Max. 13 W
Dimensions
FE9181-H: Ø 139 x 38 mm
FE9381-EHV: Ø 145 x 50 mm
Weight
FE9181-H: 345 g
FE9381-EHV: 548 g
Casing
FE9381-EHV:
Weather-proof IP66-rated housing
Vandal-proof IK10-rated metal housing
Safety Certifications
CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50155
(FE9381-EHV )
Operating Temperature
FE 9181- H:
Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
FE9381-EHV:
Starting Temperature: -25°C ~ 55°C (-13°F ~ 131°F)
Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F)
Humidity 90%
Warranty 36 months
System Requirements
Operating System Microsoft Windows 8/7/Vista/XP/2000
Web Browser
Mozilla Firefox 7~10 (Streaming only)
Internet Explorer 7/8/9/10/11
Other Players
VLC: 1.1.11 or above
Quicktime: 7 or above
Included Accessories
CD
User's manual, quick installation guide, Installation
Wizard 2, VAST
Others
Quick installation guide, warranty card, alignment
sticker, desiccant bag, screw driver, screws pack,
I/O cable, mounting bracket, software CD
Dimensions
Ø139 mm 38 mm
Ø145 mm 50 mm
• FE9381-EHV• FE9181-H
Mounting Kits
AM-514
Adapter Ring for
FE9181- H
AM-520
Mounting Adapter
All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved. Ver. 2
6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C. T: +886-2-82455282 F: +886-2-82455532 E: sales@vivotek.com W: www.vivotek.com
VIVOTEK INC.
VIVOTEK
340 - User's Manual
Technology License Notice
AMR-NB Standard
THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE AGREEMENT. WITH
RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING LICENSORS’ PATENTS MAY APPLY:
TELEFONAKIEBOLAGET ERICSSON AB: US PAT. 6192335; 6275798; 6029125; 6424938; 6058359. NOKIA
CORPORATION: US PAT. 5946651; 6199035. VOICEAGE CORPORATION: AT PAT. 0516621; BE PAT. 0516621;
CA PAT. 2010830; CH PAT. 0516621; DE PAT. 0516621; DK PAT. 0516621; ES PAT. 0516621; FR PAT. 0516621;
GB PAT. 0516621; GR PAT. 0516621; IT PAT. 0516621; LI PAT. 0516621; LU PAT. 0516621; NL PAT. 0516621;
SE PAT 0516621; US PAT 5444816; AT PAT. 819303/AT E 198805T1; AU PAT. 697256; BE PAT. 819303; BR PAT.
9604838-7; CA PAT. 2216315; CH PAT. 819303; CN PAT. ZL96193827.7; DE PAT. 819303/DE69611607T2; DK
PAT. 819303; ES PAT. 819303; EP PAT. 819303; FR PAT. 819303; GB PAT. 819303; IT PAT. 819303; JP PAT. APP.
8-529817; NL PAT. 819303; SE PAT. 819303; US PAT. 5664053. THE LIST MAY BE UPDATED FROM TIME TO
TIME BY LICENSORS AND A CURRENT VERSION OF WHICH IS AVAILABLE ON LICENSOR’S WEBSITE AT
HTTP://WWW.VOICEAGE.COM.
VIVOTEK
User's Manual - 341
Electromagnetic Compatibility (EMC)
FCC Statement
This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions.
■ This device may not cause harmful interference, and
■ This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the installation manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which
case the user may be required to take adequate measures.
VCCI Warning
この装置は、情報処理装置等電波障害自主規制協議会（ＶＣＣＩ）の基準にづくクラスＢ情報技術装置です。この
装置は、家庭環境で使用することを目的としていますが、この装置がラジオやテレビジョン受信機に近接して使
用されると、受信障害を引き起こすことがあります。
取扱説明書に従って正しい取り扱いをして下さい
Liability
VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right
to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty
of any kind with regard to the material contained within this document, including, but not limited to, the
implied warranties of merchantability and fitness for any particular purpose.
