TRX1200_OwnersManual_112084_20240409
TRX
1200
Treadmill
OWNER’S MANUAL
2
Table of Contents
Product Registration .........................................................3
Warning / Safety Instructions
Product Labels .....................................................................4
Safety Instructions .............................................................5
Electrical Safety .................................................................. 6
Grounding & Location Requirements ........................... 7
Parts and Assembly
Parts Included ..................................................................... 8
Assembly ............................................................................. 10
Setting Up Your Unit ........................................................14
Safety Key ............................................................................ 16
Technology and Features
About Your Machine ........................................................ 17
Features ...............................................................................18
Using the XTERRA+ App ...............................................20
Quick Start .......................................................................... 21
Programs
Programs ............................................................................ 22
Heart Rate Exertion ........................................................ 23
Maintenance
Maintenance & Care ........................................................ 25
Deck Lubrication .............................................................. 29
Belt & Deck Cleaning & Calibration ............................30
Exploded View Diagram .................................................31
Parts List ............................................................................. 32
Warranty & Troubleshooting
Warranty ............................................................................ 35
Troubleshooting ............................................................... 38
3
PRODUCT REGISTRATION
WARRANTY REGISTRATION
Use your smartphone to scan the QR code
above to quickly and easily register your
new XTERRA Fitness machine.
You can also go to xterratness.com/
warranty under the Support tab to
register online.
Congratulations on your new Treadmill, and welcome to the XTERRA
Fitness family!
Thank you for your purchase of this quality unit from XTERRA
Fitness. Your new unit was manufactured by one of the leading
tness manufacturers in the world and is backed by one of the most
comprehensive warranties available. XTERRA Fitness will do all we can
to make your ownership experience as pleasant as possible for many
years to come.
If you have questions, or if parts are missing or damaged, or you require
customer service, call (870) 336-4286. Please have your model number
and serial number handy when you call.
Please take a moment at this time to record the name of the dealer,
their telephone number, and the date of purchase below to make any
future, needed contact easy. We appreciate your support and we will
always remember that you are the reason that we are in business.
Serial
Number
Date of
Purchase
Dealer /
Place of
Purchase
Version: 1.0
Revision: 04/09/24
4
SERIAL NUMBER
(870) 336-4286

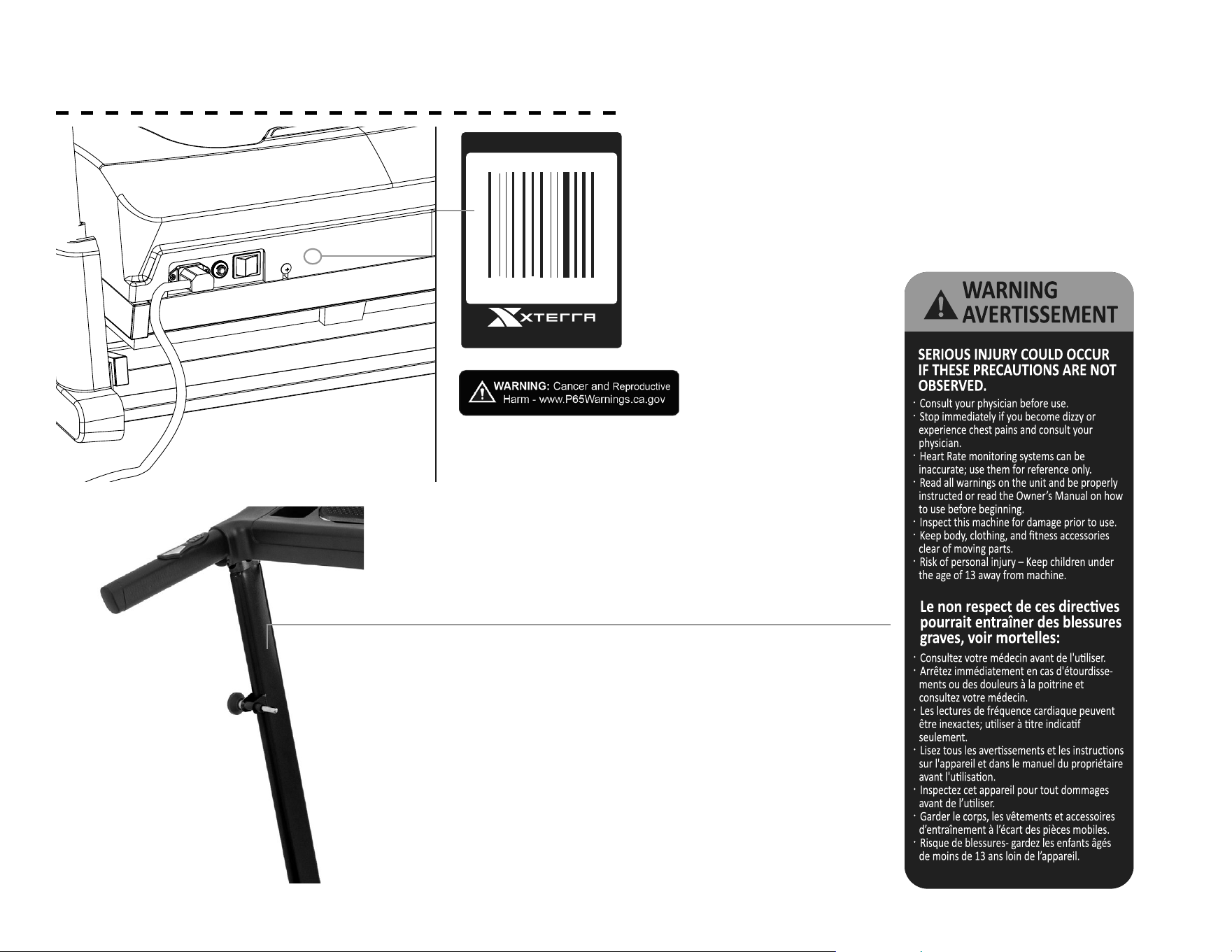

PRODUCT LABELS
SERIAL NUMBER STICKER
This sticker will be found on the frame near the power switch.
Please record the number below the barcode for the purpose
of registering your Treadmill’s warranty.
PROPOSITION 65 WARNING
This sticker will be found on the frame near
the power switch. The State of California
requires us to inform you that this unit was
manufactured using chemicals that could cause
harm with improper use.
SAFETY WARNING STICKER
This sticker will be found on the interior side
of your Treadmill’s upright. The same warning
can be found in this manual. Please read and be
aware of the precautions before operating your
unit.
xxxxxxxxxxxxxxxx
5
SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following:
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after
using and before cleaning.
WARNING - To reduce the risk of burns, re electric shock, or
injury to persons:
1. An appliance should never be left unattended when plugged in. Un-
plug from outlet when not in use, and before putting on or taking o
parts.
2. Do not operate under blanket or pillow. Excessive heating can occur
and cause re, electric shock, or injury to persons.
3. This exercise equipment is not intended for use by persons with re-
duced physical, sensory or mental capabilities, or lack of experience
and knowledge.
4. Use this appliance only for its intended use as described in this manu-
al. Do not use attachments not recommended by the manufacturer.
5. Never operate this appliance if it has a damaged cord or plug, if it is
not working properly, if it has been dropped or damaged, or dropped
into water. Return the appliance to a service center for examination
and repair.
6. Do not carry this appliance by supply cord or use cord as a handle.
7. Keep the cord away from heated surfaces.
8. Never operate the appliance with the air openings blocked. Keep the
air openings free of lint, hair, and the like.
9. Never drop or insert any object into any opening.
10. Do not use outdoors.
11. Do not operate where aerosol (spray) products are being use or where oxy-
gen is being administered.
12. Connect this appliance to a properly grounded outlet only. See Grounding
Instructions.
13. The appliance is intended for household use.
14. To disconnect, turn all controls to the o position, then remove the plug
from the outlet.
15. Do not operate equipment on deeply padded, plush or shag carpet. Damage
to both carpet and equipment may result.
16. Before beginning this or any exercise program, consult a physician. This is
especially important for persons over the age of 35 or persons with pre-ex-
isting health conditions.
17. Keep hands away from all moving parts.
18. The pulse sensors are not medical devices. Various factors, including the
user’s movement, may aect the accuracy of heart rate readings. The pulse
sensors are intended only as exercise aids in determining heart rate trends in
general.
19. Do not attempt to use your equipment for any purpose other than for the
purpose it is intended.
20. Do not operate tablet or laptop when you are running, walking or climbing at
high speed.
21. Wear proper shoes. High heels, dress shoes, sandals or bare feet are not
suitable for use on your equipment. Quality athletic shoes are recommended
to avoid leg fatigue.
22. User Weight Limit: 250 lbs.
!
!
Please ensure that you review and adhere to the user
weight restrictions and power requirements of your
new machine. Failure to do so may result in serious
injury or damage to your machine.
!
6
ELECTRICAL SAFETY
WARNING!
Route the power cord away from any moving part of the unit
including the elevation mechanism and transport wheels.
NEVER remove any cover without rst disconnecting AC
power. If voltage varies by ten percent (10%) or more, the
performance of your unit may be aected. Such conditions
are not covered under your warranty. If you suspect the
voltage is low, contact your local power company or a
licensed electrician for proper testing.
NEVER expose this unit to rain or moisture. This product
is NOT designed for use outdoors, near a pool or spa, or
in any other high humidity environment. The temperature
specication is 40 degrees C, and humidity is 95%, non-
condensing (no water drops forming on surfaces).
Circuit breakers: Avoid AFCI/GFCI circuit breakers if
possible. These breakers may trip occasionally during
exercise because of the high inrush currents of the unit drive
electronics and motor. This is an issue that aects all unit
brands. New laws in your area may require these breakers.
If you do have these breakers and outlets in your home,
and are experiencing nuisance tripping, you should check if
there are any other devices plugged into the same circuit.
Some examples of devices that may also cause tripping are
uorescent lights with electronic ballasts, coee maker,
space heater, hair drier.
Optimally the unit should be the only device plugged into the
circuit. Our units have surge suppressors built in to help avoid
nuisance tripping. We have tested several AFCI/GFCI breakers
and outlets with our products. Brands we have tested are: Eaton
(Cutler Hammer Series), Leviton (Smart lock pro) and Schneider
Electric (Canadian home series). These breakers do not trip in our
testing, when connected to our units, as long as no other devices
are plugged into the same circuit.
NEVER operate this unit without reading and completely
understanding the results of any operational change you
request from the computer.
Understand that changes in speed and incline do not occur
immediately. Set your desired work level on the computer
console and release the adjustment key. The computer will obey
the command gradually.
NEVER use your unit during an electrical storm. Surges may
occur in your household power supply that could damage unit
components. Unplug the unit during an
electrical storm as a precaution.
Use caution while participating in other activities while walking
on your unit; such as watching television, reading, etc. These
distractions may cause you to lose balance which may result in
serious injury.
Do not use excessive pressure on console control keys. They are
precision set to function properly with little nger pressure.
!
7

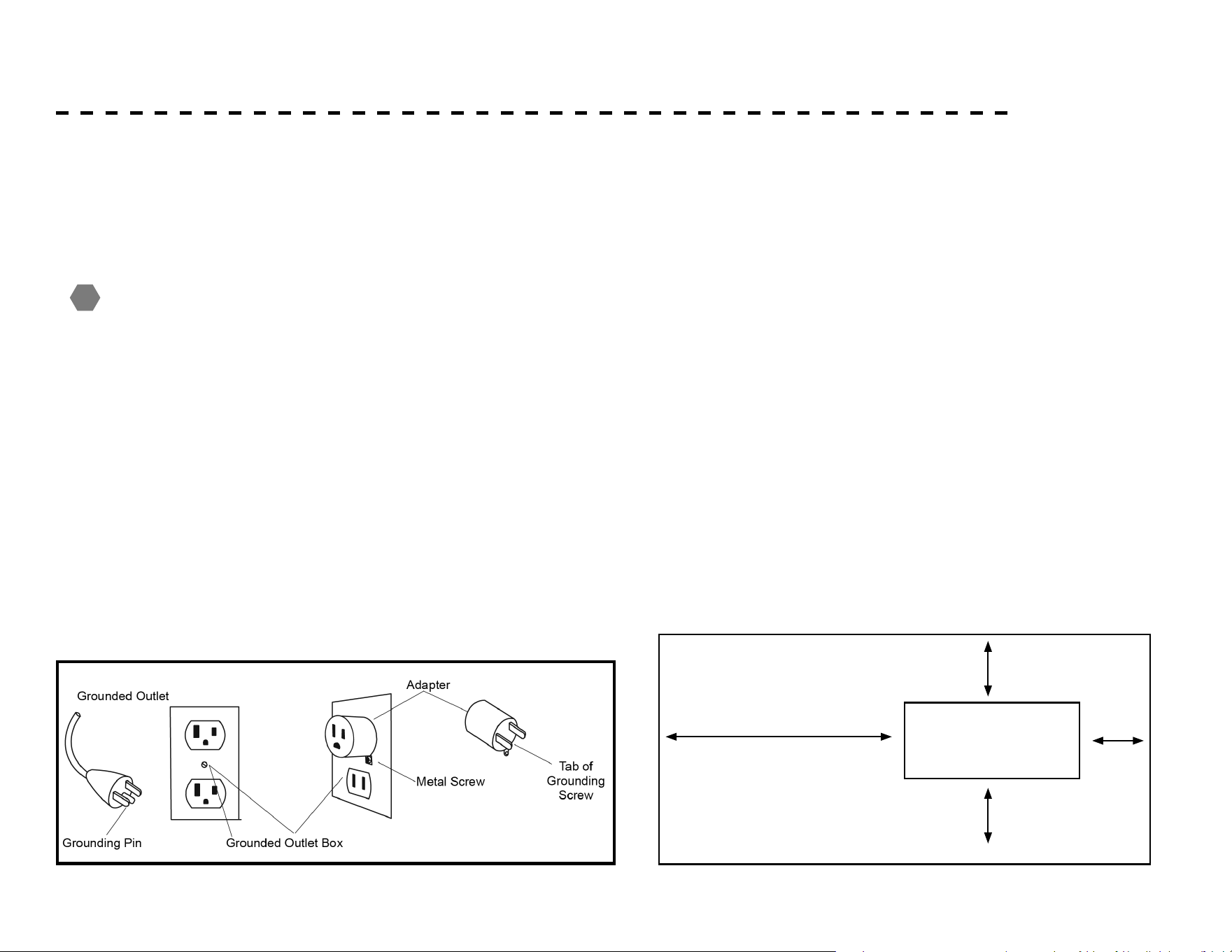

GROUNDING & LOCATION REQUIREMENTS
This product must be grounded. If the unit should malfunction or
breakdown, grounding provides a path of least resistance for electric
current, reducing the risk of electric shock. This product is equipped with a
cord having an equipment-grounding plug. The plug must be plugged into
an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check with a qualied
electrician or serviceman if you are in doubt as to whether the product is
properly grounded. Do not modify the plug provided with the product if it
will not t the outlet; have a proper outlet installed by a qualied electrician.
This product is for use on a nominal 120-volt ~ 60 Hertz circuit, and has
a grounding plug that looks like the plug illustrated below. A temporary
adapter that looks like the adapter illustrated below may be used to
connect this plug to a 2-pole receptacle as shown below if a properly
grounded outlet is not available. The temporary adapter should be used
only until a properly grounded outlet, (shown below) can be installed by a
qualied electrician. The green colored rigid ear-lug, or the like, extending
from the adapter, must be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is used, it must
be held in place by a metal screw.
!
After assembling your Treadmill, you’ll need to make sure you’ve
installed it in a safe area.
• We recommend that you leave an area of at least 20in on the
front, and sides of your machine. The front of the unit is where
the motor is located.
• We recommend that you leave an area of at least 6ft behind the
Treadmill.
• Install your Treadmill in an area where children and pets cannot
access it.
• Always keep the area around your Treadmill clear of furniture,
exercise equipment and other debris.
• Do not install your Treadmill on deeply padded, plush, or shag
carpet.
20in
20in
20in
6ft
Location Requirements
8
PARTS OF YOUR UNIT
A
B
J
C
I
D
E
F
G
H

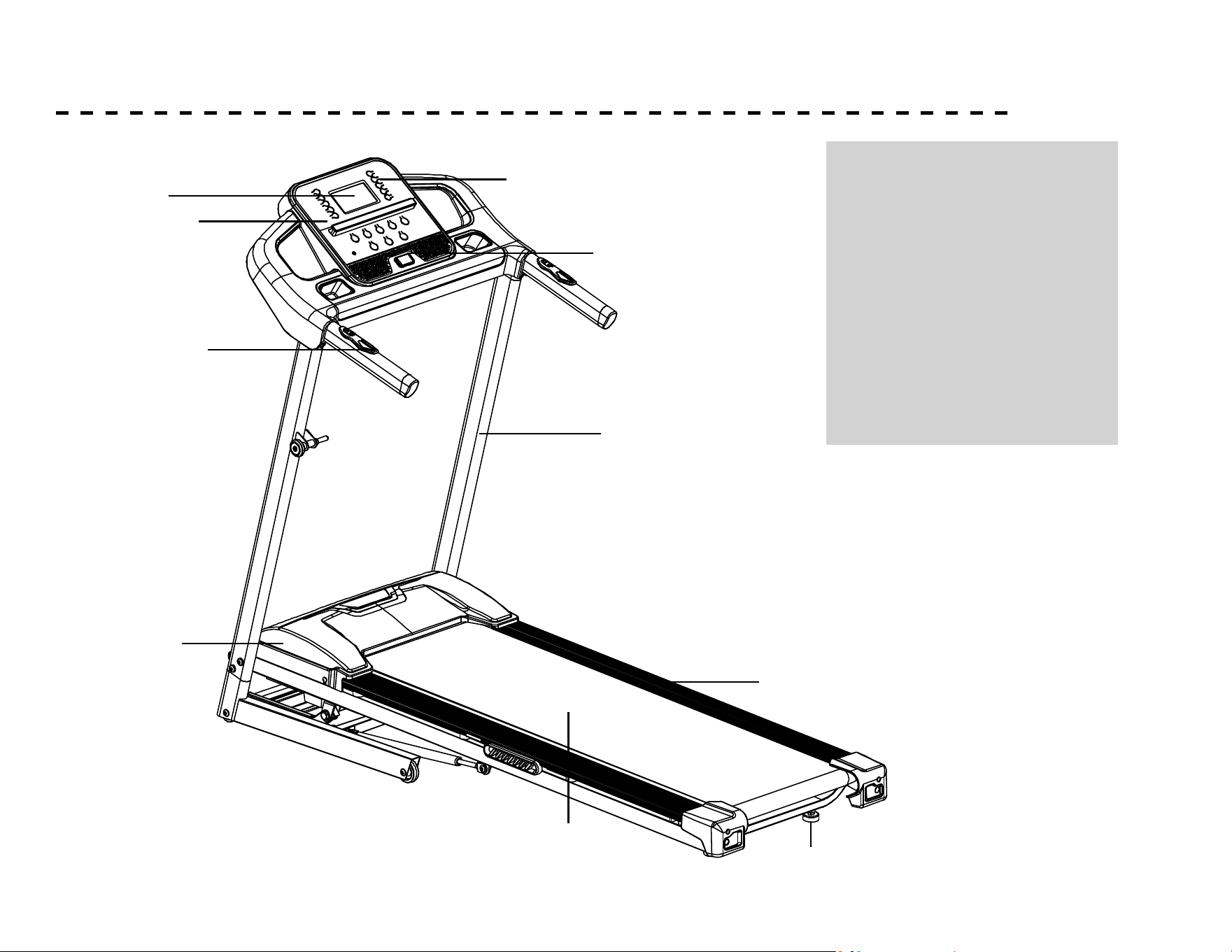

A. LCD Window
B. Hand Pulse Grips
C. Safety Key
D. Upright
E. Side Rails
F. Belt
G. Leveler
H. Motor
I. Remote Speed Buttons
J. Remote Incline Buttons
TRX
1200
Treadmill
OWNER’S MANUAL
9
PARTS INCLUDED
-6-
•

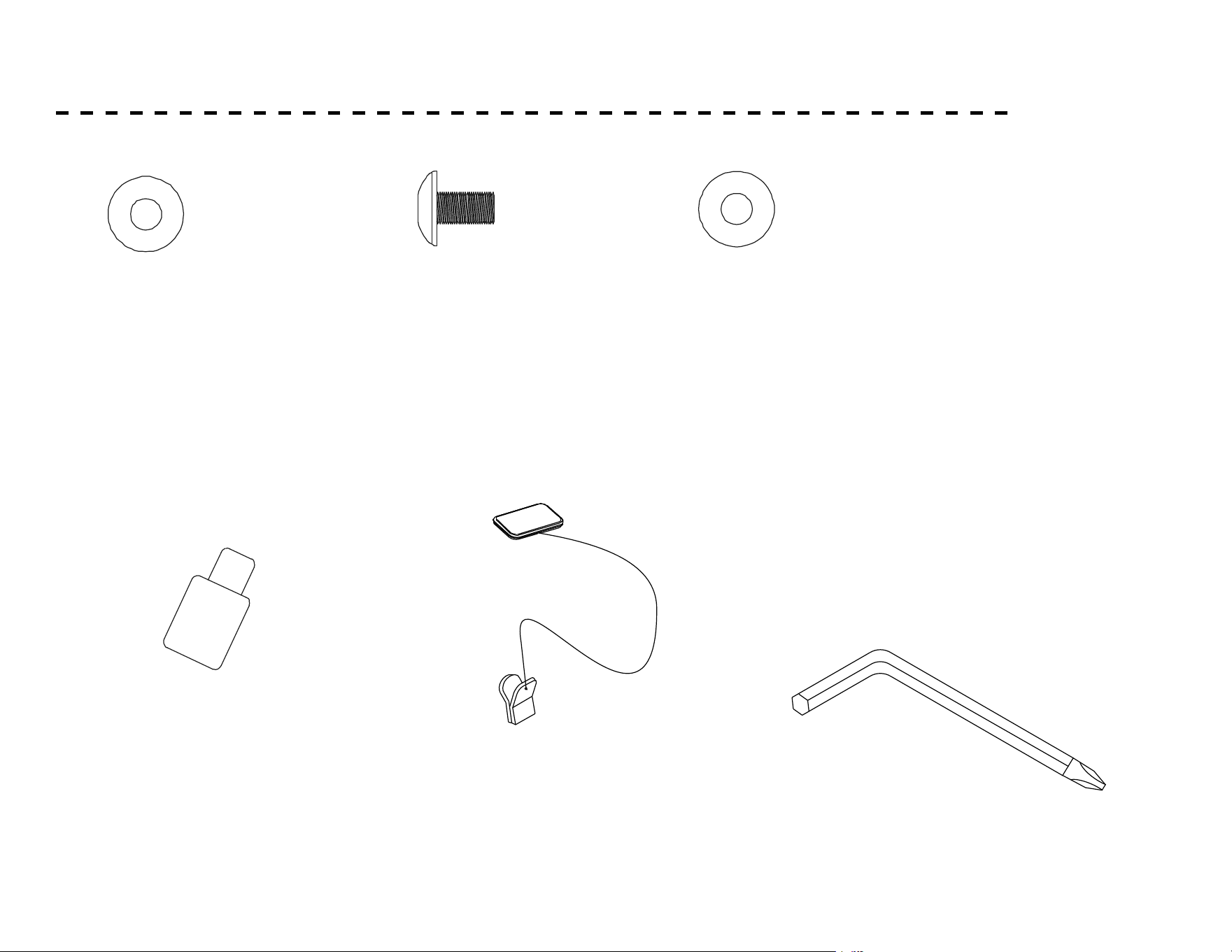

Assembly Pack Check List
#104. Combination M5 Allen
Wrench & Phillips Head
Screw Driver (1pc)
#88. Ø8 × Ø23 × 1.5T
Curved Washer (6pcs)
#87. 5/16" × UNC18 × 1/2"
Button Head Socket Bolt (12pcs)
#40. Safety Key
(1pc)
#105. Lubricant
(1pc)
#79. Ø8 × Ø18 × 1.5T
Flat Washer(6pcs)
-6-
•
Assembly Pack Check List
#104. Combination M5 Allen
Wrench & Phillips Head
Screw Driver (1pc)
#88. Ø8 × Ø23 × 1.5T
Curved Washer (6pcs)
#87. 5/16" × UNC18 × 1/2"
Button Head Socket Bolt (12pcs)
#40. Safety Key
(1pc)
#105. Lubricant
(1pc)
#79. Ø8 × Ø18 × 1.5T
Flat Washer(6pcs)
10
ASSEMBLY

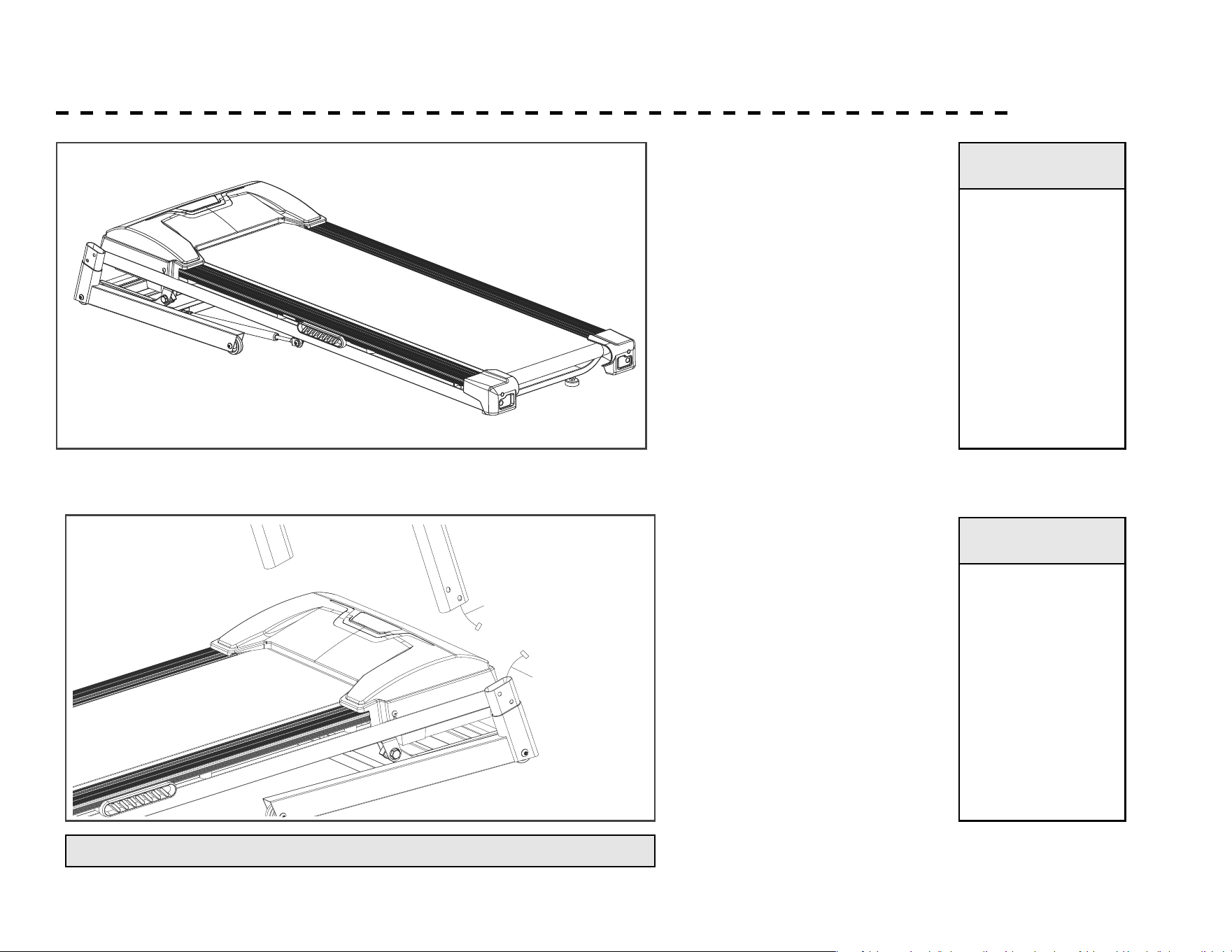

1. Remove the UNIT from the
box and put it on a at and
level oor.
HARDWARE
No Hardware
required for
this step
GT75A-NT050
組組立立步步驟驟
■步步驟驟 1.
將機台由紙箱中取出，並放置於平坦之地面上。
Remove the unit from the box and put it on a flat and level floor.
■步步驟驟 2.
連接控制線中段 (38) 與控制線下段 (39)。
Connect the Computer Cable (Middle)(38) with the Computer Cable
(Lower)(39).
38
39
2. Connect the MIDDLE
COMPUTER CABLE
(38) with the LOWER
COMPUTER CABLE (39).
HARDWARE
No Hardware
required for
this step
NOTE: this step may work better with a second person assisting.
GT75A-NT050
組組立立步步驟驟
■步步驟驟 1.
將機台由紙箱中取出，並放置於平坦之地面上。
Remove the unit from the box and put it on a flat and level floor.
■步步驟驟 2.
連接控制線中段 (38) 與控制線下段 (39)。
Connect the Computer Cable (Middle)(38) with the Computer Cable
(Lower)(39).
38
39
11
ASSEMBLY - CONTINUED

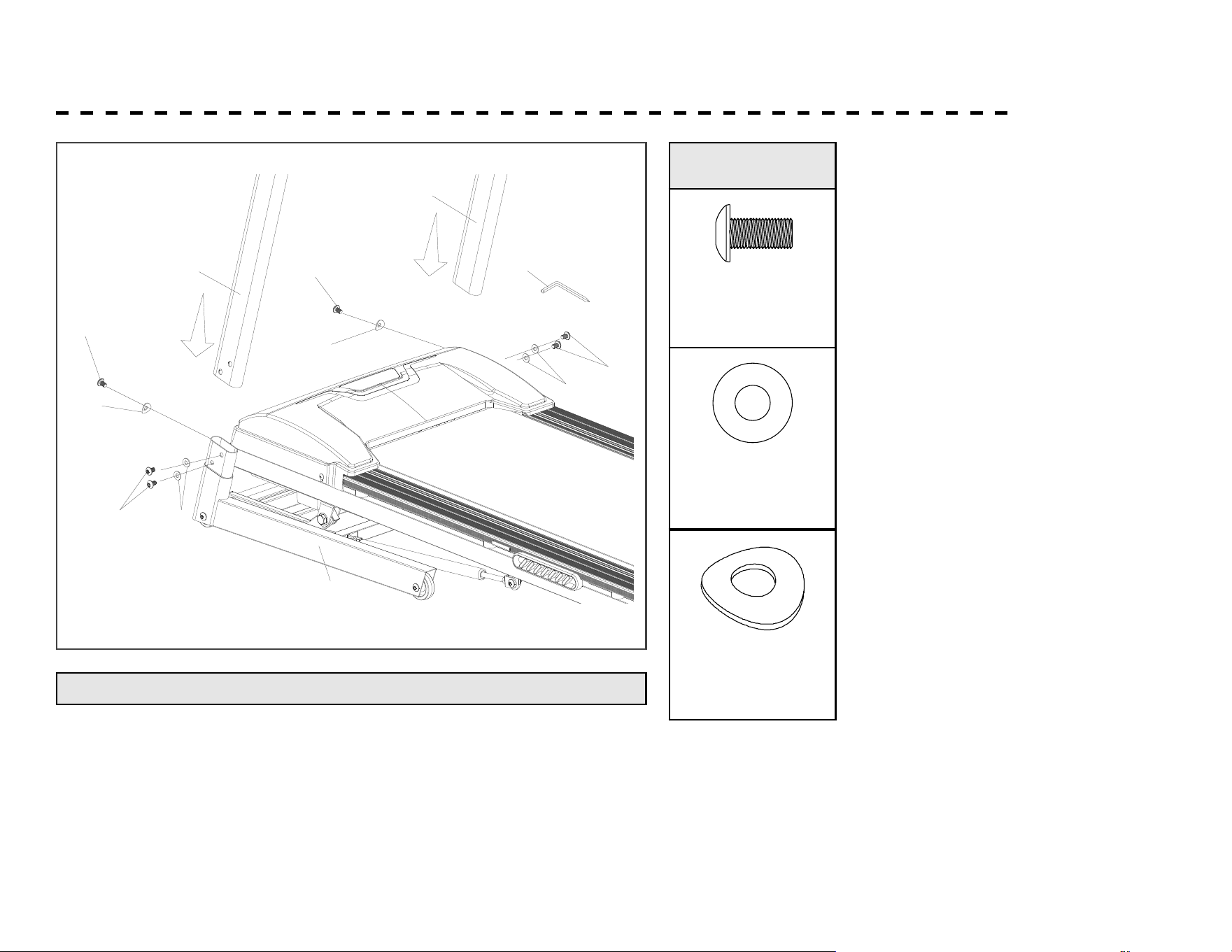

3. Insert the UPRIGHTS (L, R)(3,4) into the FRAME BASE (2) with the
6 BUTTON HEAD SOCKET BOLTS (87),4 FLAT WASHERS (79),
and 2 CURVED WASHERS (88) on the rounded side of the upright
by using the ALLEN WRENCH. (Please secure the screw without
tightening it.)
HARDWARE
Bolt (87)
Qty: 6
Flat Washer (79)
Qty: 4
NOTE: this step may work better with a second person assisting.
■步步驟驟 3.
將左右立管 (3,4)插入底架組 (2) 後，使用 M5_L 型六角十字板手(104)把
5/16" × 1/2"傘頭內六角螺絲 (87)6pcs，平華司 Ø8 × Ø18 × 1.5T (79)4pcs，弧
形華司 Ø8 × Ø23 × 1.5T (88)2pcs 鎖入 底架組(2)。
(請先將螺絲固定,不要鎖緊)
Insert the Uprights (L, R)(3,4) into the Frame Base (2) with the 6pcs of 5/16" ×
1/2" Button Head Socket Bolts (87), 4pcs of Ø8 × Ø18 × 1.5T Flat Washers (79)
and 2pcs of Ø8 × Ø23 × 1.5T Curved Washers (88)by using the M5_Allen
Wrench Head Screw Wrench (104). (Please fix the screw without tightening it.)
3
4
87
88
87
88
87
79
2
87
79
104
■ 步步驟驟 4
連接控制線上段(37)與控制線中段(38)。
Connecting the Computer Cable (Upper) (37) with the Computer Cable
(Middle)(38).
Curved
Washer (88)
Qty: 2
12
ASSEMBLY - CONTINUED
4. Connect the UPPER COMPUTER CABLE (37) with the MIDDLE
COMPUTER CABLE (38).
HARDWARE
No Hardware
required for
this step
NOTE: this step may work better with a second person assisting.
37
38

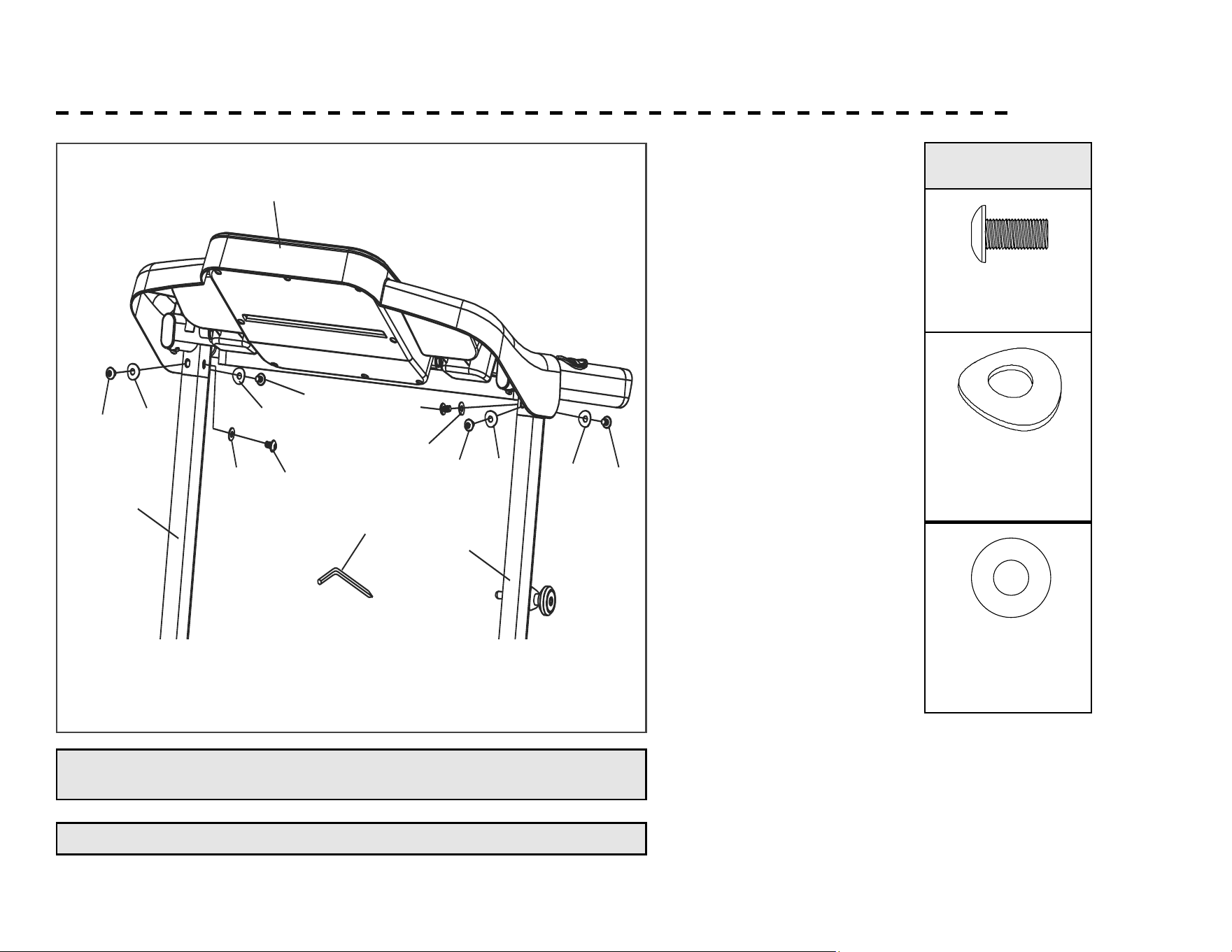

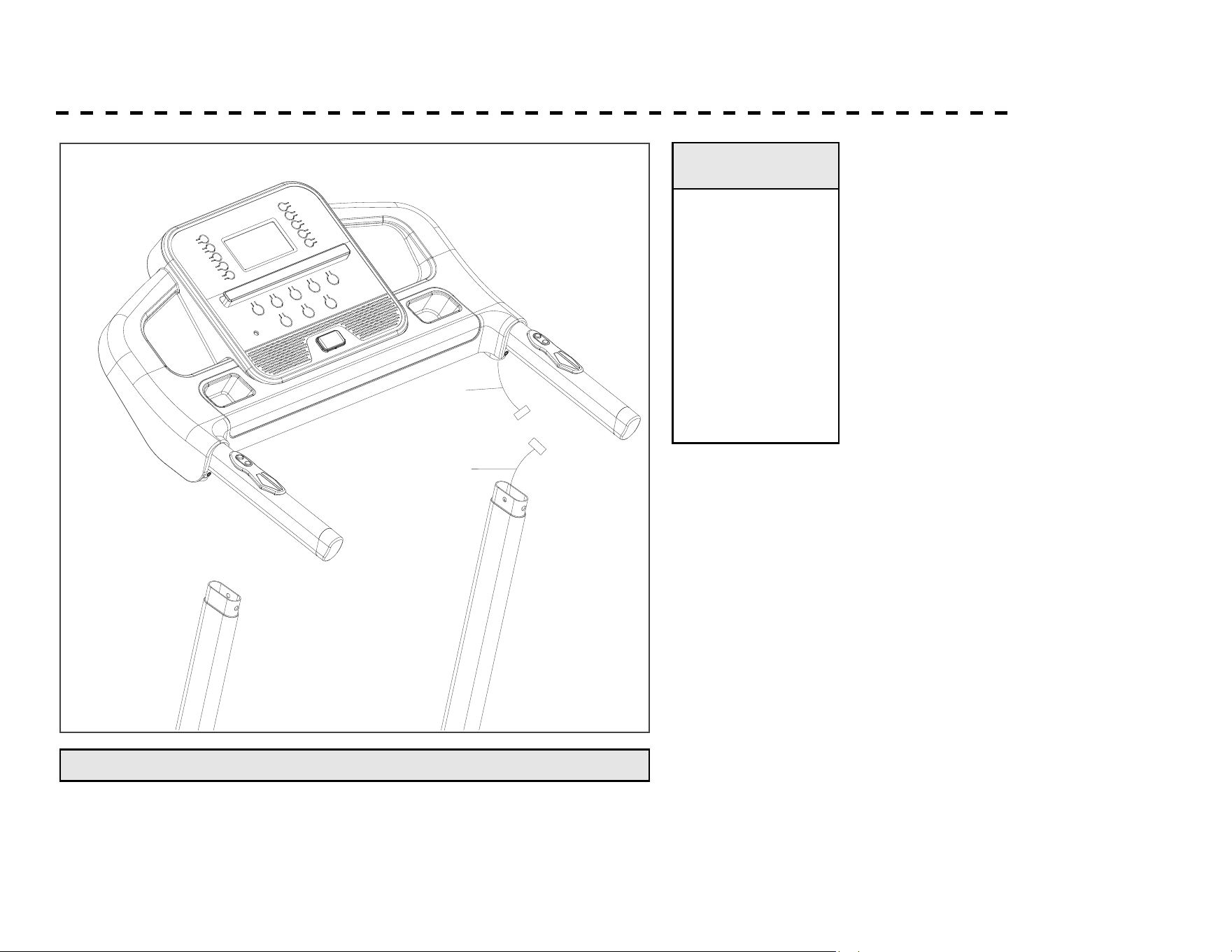

■ 步步驟驟 5
將錶架組(5) 插入左右立管(3,4)後，使用 M5 L 型六角十字板手(104) ，
把 5/16" × 1/2" 6pcs 傘頭內六角螺絲(87) ，平華司 Ø8 × Ø18 × 1.5T
(79)2pcs、弧形華司 Ø8 × Ø23 × 1.5T (88)4pcs 鎖入並固定。
Install the Console Support (5) into the Uprights (L,R)(3,4) with the 6pcs of
5/16" × 1/2" Button Head Socket Bolts (87), 2pcs of Ø8 × Ø18 × 1.5T Flat
Washers (79) and 4pcs of Ø8 × Ø23 × 1.5T Curved Washers (88)by using
the M5_Allen Wrench Head Screw Wrench (104).
13
ASSEMBLY - CONTINUED
5. Install the CONSOLE
SUPPORT (5) onto the
UPRIGHTS (L,R)(4,3)
with the 6 BUTTON
HEAD SOCKET BOLTS
(87) and 4 CURVED
WASHERS (88), and 2
FLAT WASHERS (79)
on the at interior side
by using the ALLEN
WRENCH AND PHILLIPS
HEAD SCREW DRIVER.
HARDWARE
HARDWARE
Bolt (87)
Qty: 6
Curved
Washer (88)
Qty: 4
NOTE: Be careful not to pinch the computer cables when attaching
the console.
NOTE: Please tighten all screws after assembly is complete.
87
87
87
87
88
88
88
88
87
79
87
79
5
104
3
4
注注意意: 請在所有零件組裝完成後，請鎖緊全部的螺絲。
NOTE: Please Tighten All Screws After All Components Assembly Complete.
Flat
Washer (79)
Qty: 2
14
SETTING UP YOUR TREADMILL

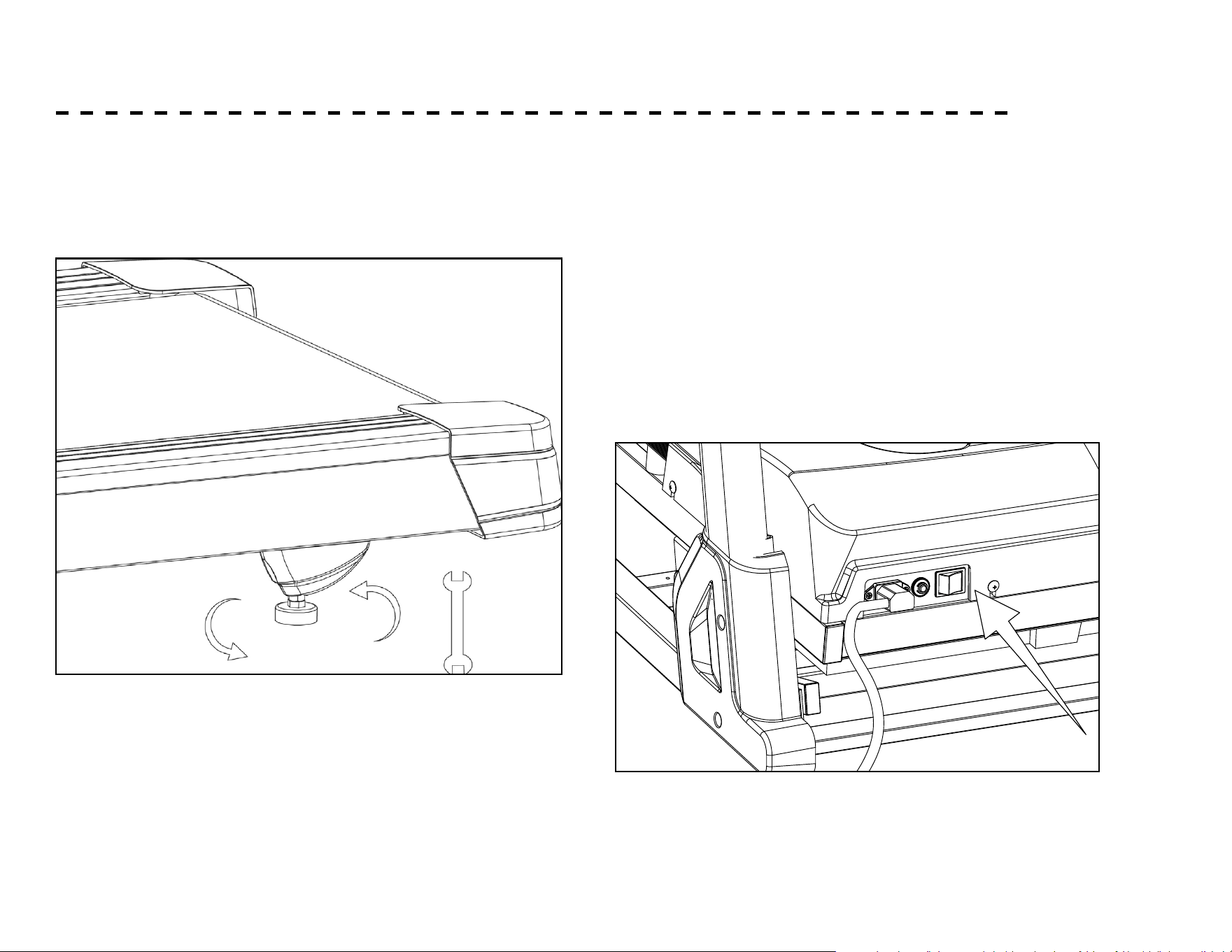

Leveling
Use a M14 Wrench to adjust the height of the Leveling Feet.
Plugging in and Powering On
Power the unit on by plugging it into an appropriate wall
outlet, then turn on the power switch located at the front of
the treadmill below the motor hood, Ensure that the Safety
Key is installed, as the treadmill will not power on without it.
When the power is turned on, all the lights on the display
will light up for a short time and the console will show the
software version.
The treadmill will then enter idle mode, which is the starting
point for operation.
15
SETTING UP YOUR TREADMILL

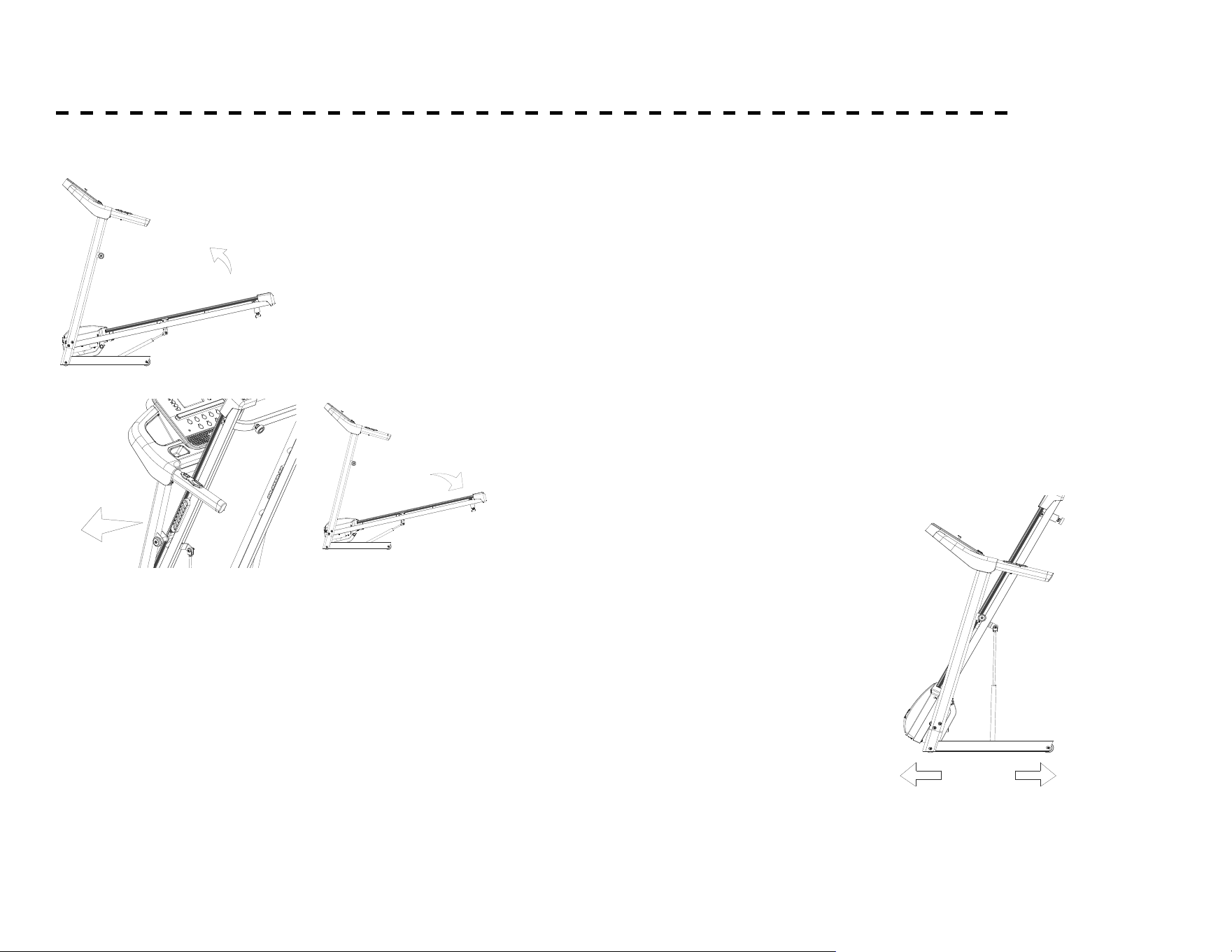

FOLDING INSTRUCTIONS
TO FOLD THE TREADMILL
Lift the treadmill running deck until it is secured by the locking
mechanism on the left upright tube. You will hear it pop into place
when secure.
WARNING: Before unfolding the treadmill, hold the deck with one
hand to prevent it from falling and release the knob with your other
hand.
TO UNFOLD THE TREADMILL

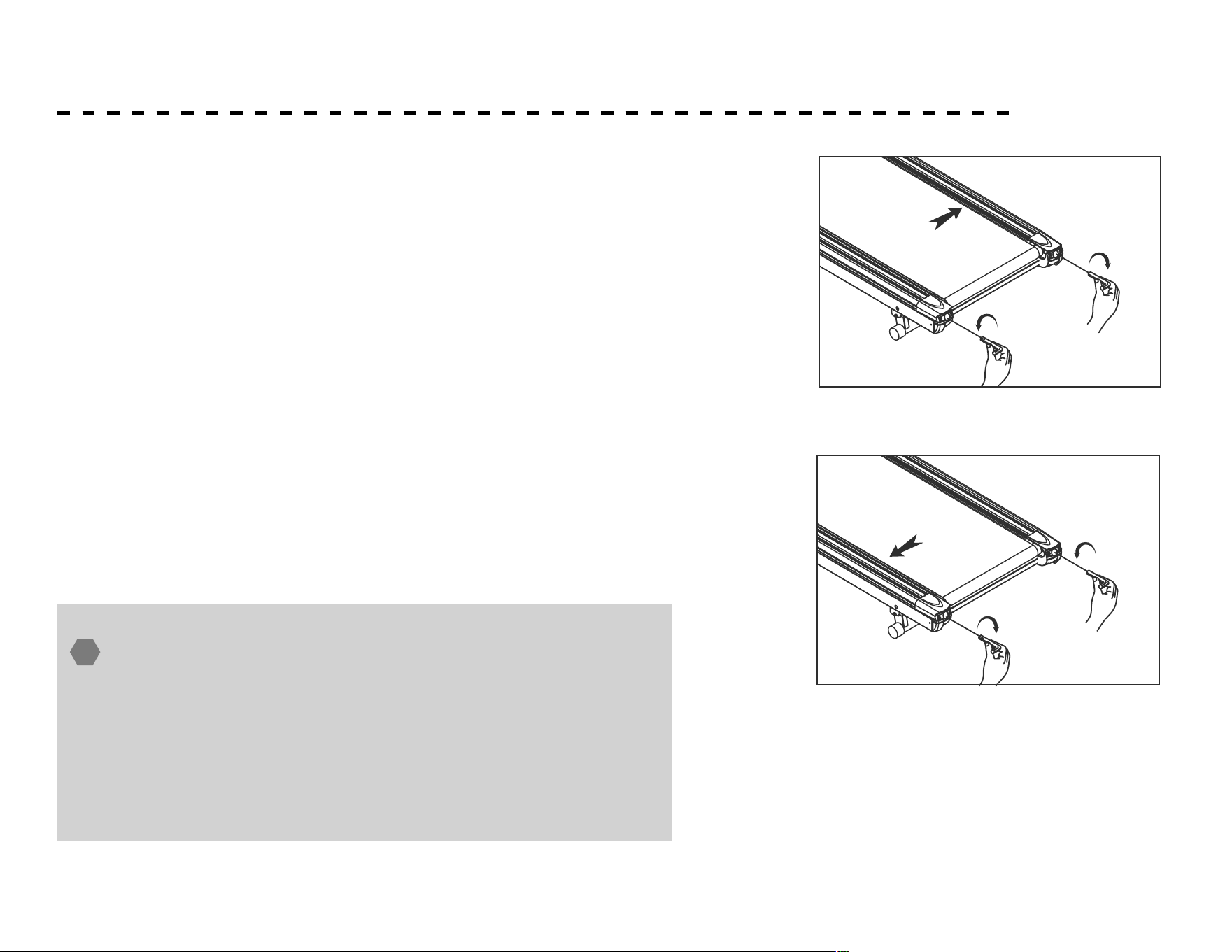

Apply slight forward pressure on the tread-
mill running deck with your right hand. Pull
out on the round knob and slowly lower the
running deck to the oor.
TRANSPORTATION INSTRUCTIONS
The treadmill is equipped with two transport wheels. Fold your Treadmill before moving. Lean the
Treadmill back so that the transport wheels touch the oor. You are then free to move the unit.
GGTT7755AA ––NNTT005500 展展開開收收折折使使用用說說明明
收收折折 FFoollddiinngg
步步驟驟: 將將跑跑床床向向上上拉拉升升至至定定位位，，將將拉拉鈕鈕向向外外拉拉，，讓讓拉拉鈕鈕軸軸心心彈彈入入跑跑床床側側邊邊
的的 L 型型固固定定片片，，固固定定跑跑床床。。
Step: Pull up the deck until reaching a fix position then pull out the knob outward to let the shaft goes into the
L-Plate at the side of the deck and secure the deck.
展展開開 UUnnffoollddiinngg
步步驟驟:一一手手扶扶住住跑跑床床，，一一手手將將拉拉鈕鈕向向外外拉拉，，使使拉拉鈕鈕軸軸心心與與跑跑床床分分離離，，將將跑跑
床床慢慢慢慢放放下下至至地地面面。。
GGTT7755AA ––NNTT005500 展展開開收收折折使使用用說說明明
收收折折 FFoollddiinngg
步步驟驟: 將將跑跑床床向向上上拉拉升升至至定定位位，，將將拉拉鈕鈕向向外外拉拉，，讓讓拉拉鈕鈕軸軸心心彈彈入入跑跑床床側側邊邊
的的 L 型型固固定定片片，，固固定定跑跑床床。。
Step: Pull up the deck until reaching a fix position then pull out the knob outward to let the shaft goes into the
L-Plate at the side of the deck and secure the deck.
展展開開 UUnnffoollddiinngg
步步驟驟:一一手手扶扶住住跑跑床床，，一一手手將將拉拉鈕鈕向向外外拉拉，，使使拉拉鈕鈕軸軸心心與與跑跑床床分分離離，，將將跑跑
床床慢慢慢慢放放下下至至地地面面。。
Step: Hold the deck with one hand and pull the knob outward with the other to let the shaft go out of the deck
and let the deck go down slowly to the floor.
移移動動 Relocation
將將機機台台收收折折固固定定後後即即可可移移動動。。
Let the transport wheels touch the floor and roll to move.
16

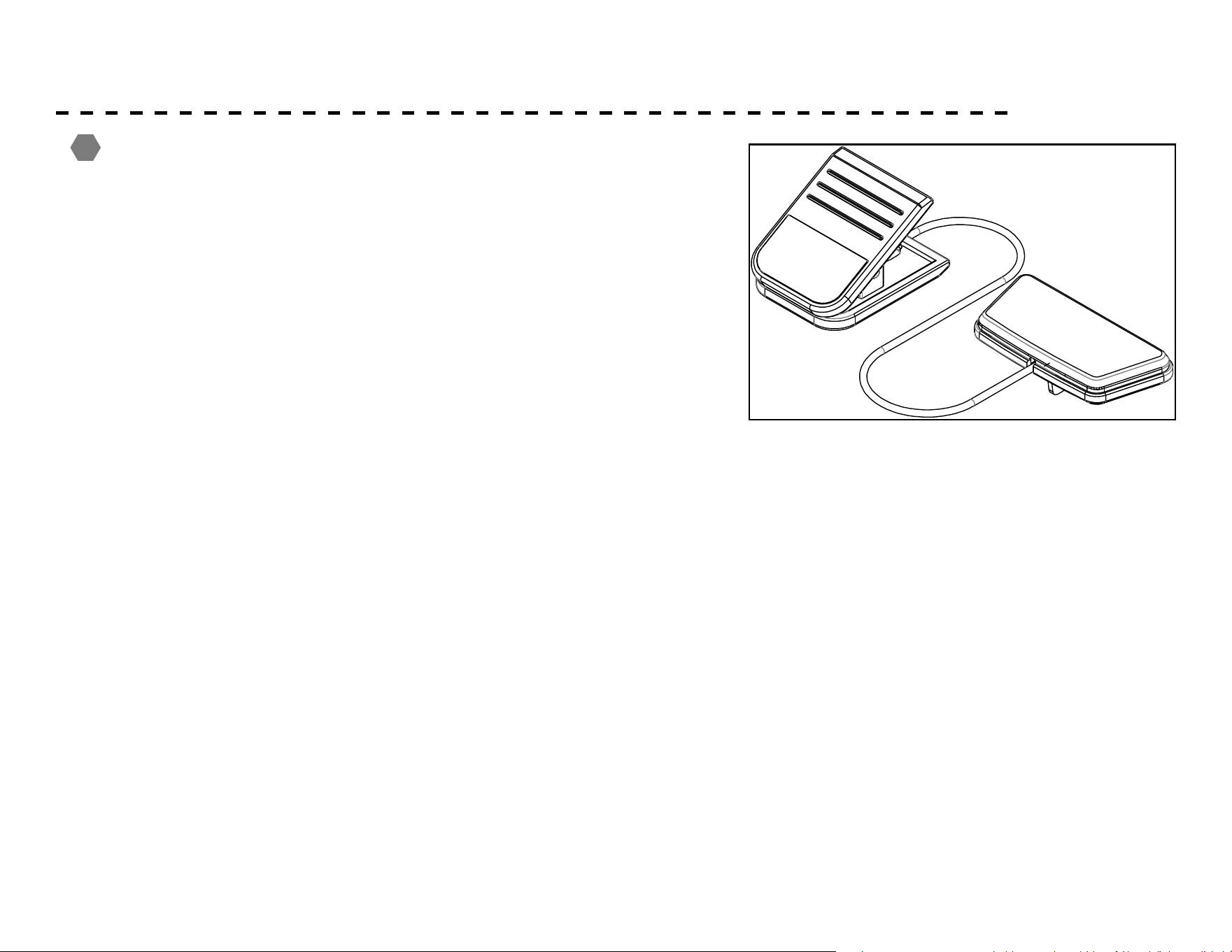

SAFETY KEY
A safety tether cord is provided with this unit.
It is a simple magnetic design that should be used at all times.
It is for your safety should you fall or move too far back on the
tread-belt.
Pulling this safety tether cord will stop tread-belt movement.
To Use:
1. Place the magnet into position on the round metal portion of
the console control head. Your unit will not start and operate
without this. Removing the magnet also secures the unit from
unauthorized use.
2. Fasten the plastic clip onto your clothing securely to ensure
good holding power. Note: The magnet has strong enough
power to minimize accidental, unexpected stopping. The clip
should be attached securely to make certain it does not come
o. Be familiar with its function and limitations. The unit
will stop, depending on speed, with a one to two step coast
anytime the magnet is pulled o the console. Use the Stop /
Pause switch in normal operation.
!
17
ABOUT YOUR MACHINE
Always use care and caution when operating your
machine. Follow instruction in this manual to ensure safe
operation and maintenance of your treadmill
Your new XTERRA Fitness treadmill has Bluetooth
connectivity to give you access to the most advanced
workout experiences available. Follow the instructions on
page 20 to learn more about using the Bluetooth capabilities
to their fullest potential.
Downloading the XTERRA+ app will help unlock more fea-
tures - such as tracking workouts and sharing data via Goo-
gle Fit and Apple Fitness. Simply search for “XTERRA+” in
the app store on your smartphone or tablet, or scan the QR
code on the right
!
The XTERRA Fitness app is
available on Google Play and
the Apple App Store. Scan
the QR Code below, and
quickly and easily sign up to
start taking your workout
experience to a whole new
level.
Be sure to follow XTERRA Fitness on your favorite social
media platforms to view and share the latest tness videos,
images, and news.
ANALYZE YOUR PERFORMANCE
BASED ON TRAINING PROGRESS
FITNESS TRACKERS CONNECTIVITY
Google Fit
TRX5500
Xterra Fitness App data can be exported to the 3rd party App
3rd party App data can be imported to the Xterra Fitness App
iHealth
Garmin
Connect
facebook.com/XterraFitness
www.instagram.com/XterraFitness
youtube.com/user/XterraFitnessOnline
XTERRA+ App offers a new exercise tracking experience
for everyone. The App features intuitive navigation, an
informative dashboard, and a goal-setting program -
everything to stay motivated during the fitness journey.
XTERRA+
XTERRA+ App offers a new exercise tracking experience
for everyone. The App features intuitive navigation, an
informative dashboard, and a goal-setting program -
everything to stay motivated during the fitness journey.
XTERRA+
18

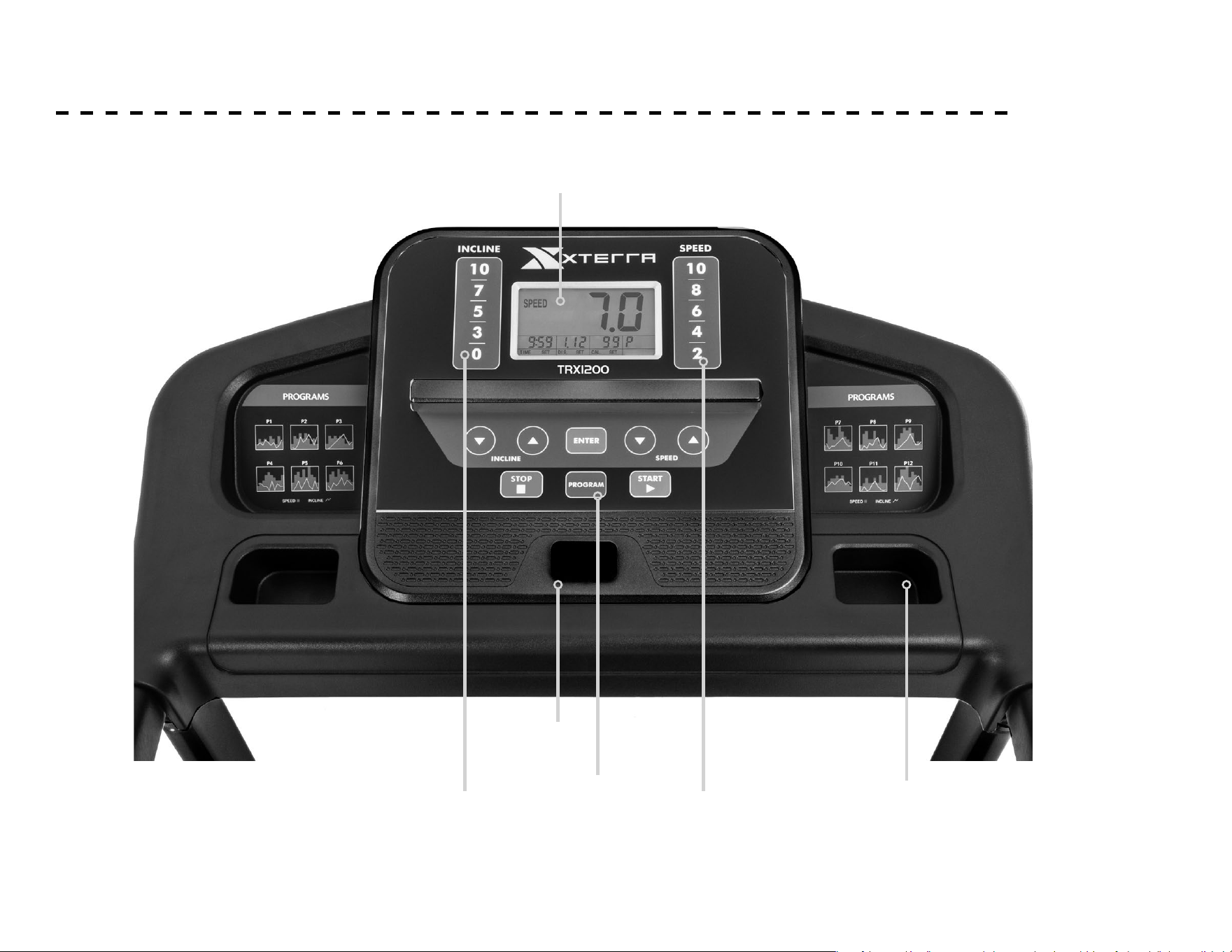

FEATURES
The treadmill allows you to make speed and incline changes
on the side handrails.
In the standby state, press the speed deceleration key and
the program key at the same time, and the buzzer will sound
twice to switch successfully.
1. Display will automatically turn o (go to sleep) after
30 minutes (no key operations).The treadmill will draw
very little current in sleep mode (about as much as your
television when it is turned o).
2. Remove safety key.
3. Turn o the main switch on the front of the treadmill,
below the motor cover
The Pulse (Heart Rate) window will display your current
heart rate in beats per minute during the workout. You must
use both stainless steel sensors on the stationary grips or
the heart rate transmitter chest strap (sold separately) to
display your pulse. Pulse value displays anytime the upper
display is receiving a Pulse signal. You may not use the Pulse
Grip feature while in Heart Rate Programs.
Displays the cumulative calories burned at any given time
during your workout.
Note: This is only a rough guide used for comparison of
dierent exercise sessions, and is not to be used for medical
purposes.
Handlebar Speed and Incline Controls
Kilometer and Mile Switching Function
To Turn Treadmill O
Pulse Grip Feature
Calorie Display
Pause / Stop / Reset
1. When the treadmill is running the pause feature may be
utilized by pressing the red Stop key once. This will slowly
decelerate the tread-belt to a stop. The Time, Distance
and Calorie readings will hold while the unit is in the pause
mode. After ve minutes the display will reset and return to
the start up screen.
2. To resume your exercise, when in Pause mode, press the
Start key. The speed will return to the previous settings.
3. Pause is executed when the Stop key is pressed once. If the
Stop key is pressed a second time, the console will reset and
return to the idle mode (start up) screen.
19
CONSOLE SCREEN - OVERVIEW
LCD Window
Accessory
Holder
Direct Speed
Buttons
Direct Incline
Buttons
Safety
Key
Program
Button
20
USING THE XTERRA+ APP
In order to help you achieve your exercise goals, your new exercise machine
comes equipped with a Bluetooth® transceiver that will allow it to interact
with selected phones or tablet computers via the XTERRA+ App. Just
download the free XTERRA+ App from the Apple Store or Google Play, and
then follow the instructions in the App to sync with your exercise machine.
Press the “DISPLAY” button from the APP to view the display of the current
workout data. When your exercise is complete, choose “END & SAVE
WORKOUT” to store the workout data.
1. Download the App by scanning the QR code on the right.
2. Open the App on your device (phone or tablet) and make sure Bluetooth® is
enabled on your device (phone or tablet).
3. In the App click the Bluetooth® icon to search for your XTERRA + equipment.
4. Under the Bluetooth® scan result list, select the machine for connect. When the
App and equipment are synced, the Bluetooth® icon on the equipment’s console
display will light up. Click “DISPLAY”, you may now start using your XTERRA +
App.
5. When your exercise is complete, choose “END & SAVE WORKOUT” to
store the workout data. You will be prompted to sync your data with each
available tness cloud site. Please note, you will have to download the
applicable compatible tness App, such as Apple Health, Google Fit, Strava,
MapMyFitness, Fitbit, etc., in order for the icon to be active and available.
Note: Your device will need to be running on a minimum operating system of IOS
13.1 or Android 8.0 for the XTERRA + App to operate properly.
The exercise equipment’s Bluetooth device (BLE 5.0) can also be connected
to the Bluetooth wireless heart rate chest strap transmitter (BLE 5.0).
The chest strap transmitter can receive signals even when the App is already
in use. You can wear the Bluetooth wireless heart rate chest strap (sold
separately) rst then commence connection. While in connection, the
console will show heart rate value via Bluetooth.
FITNESS TRACKERS CONNECTIVITY
Google Fit
TRX5500
Xterra Fitness App data can be exported to the 3rd party App
3rd party App data can be imported to the Xterra Fitness App
iHealth
Garmin
Connect
XTERRA+ App offers a new exercise tracking experience
for everyone. The App features intuitive navigation, an
informative dashboard, and a goal-setting program -
everything to stay motivated during the fitness journey.
XTERRA+
XTERRA+ App offers a new exercise tracking experience
for everyone. The App features intuitive navigation, an
informative dashboard, and a goal-setting program -
everything to stay motivated during the fitness journey.
XTERRA+
21
QUICK START / MANUAL
1. Insert the Safety key. The display will appear in ready
mode. (If the safety key is not inserted, error E0 will
appear on the display speed window.).
2. Press the Start key to begin belt movement. Adjust to the
desired speed using the Speed ▲ and ▼ keys. You may
also use the direct SPEED buttons 2, 4, 6, 8, 10 to adjust
the speed.
3. To incline the tread-belt press and the Incline ▲ /▼ key
to the desired incline level. You may also press the direct
INCLINE buttons 0, 3, 5, 7, 10 to adjust.
4. To stop the tread-belt press the Stop key or pull away
Safety key.
In standby mode, you can start immediately or press ENTER to set
the countdown parameters (time, distance, calories). Press SPEED
up and down in order to adjust the time, distance, calories. Press
the ENTER key to switch between time, distance, calories and to
conrm your selection. The system will only accept the last number
of parameters. For example, if the last input is a distance, the
previous parameter will be invalid and only the distance setting will
be accepted.
Time preset value: 30:00 (5:00 - 99:00). For each increase, the
reduced value is 1:00.
Distance default value: 5.00 miles (1.00 - 99). 0.1 increments at a
time. The reduced value is 0.1.
Calories preset value: 500 (10-990), 10 increments each time.
The reduced value is 10. The starting speed is 0.5 miles and the
number of ascending segments is zero.
Quick Start Manual
22

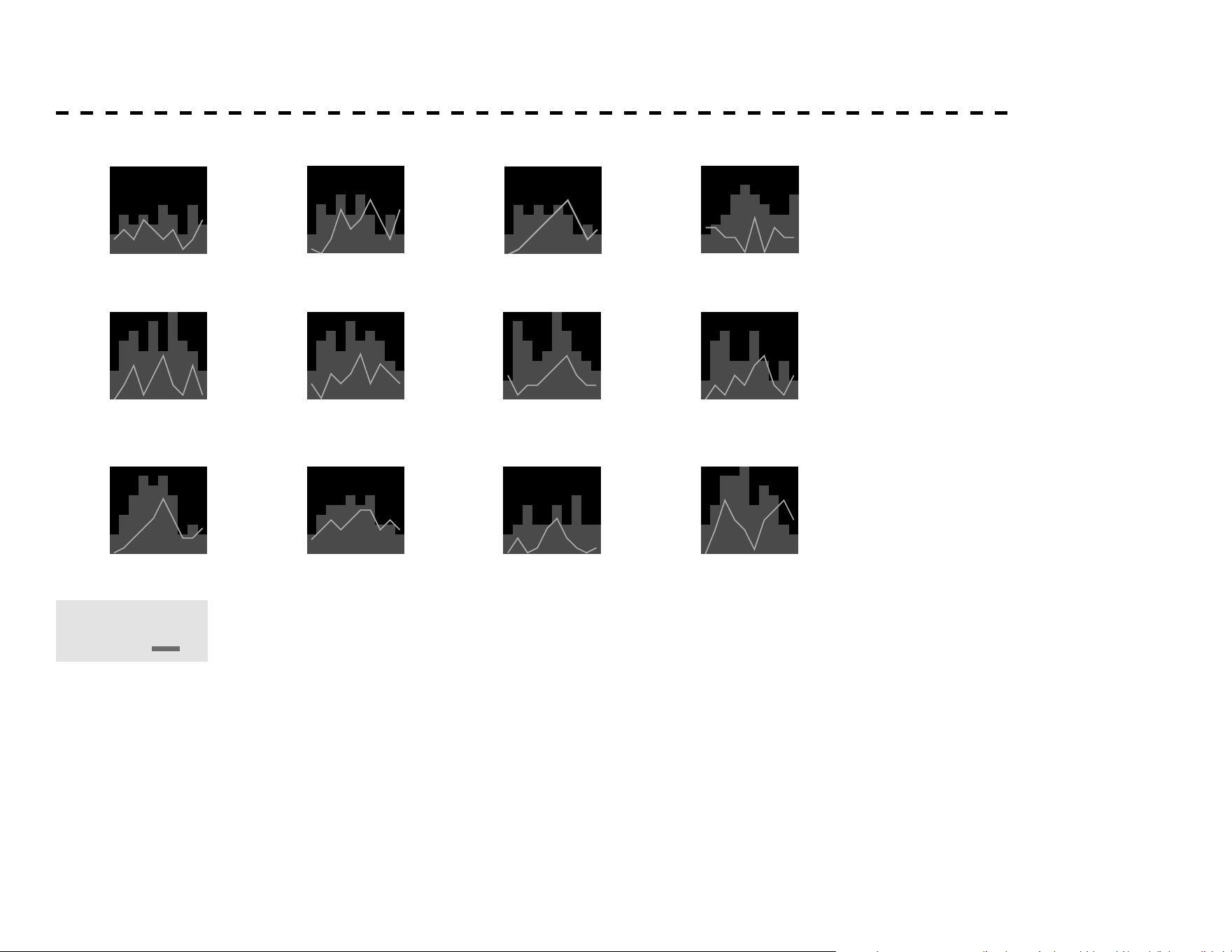

PRESET PROGRAMS
Key:
Incline
P1
P9
P5
P2
P10
P6
P3
P11
P7
P4
P12
P8
The TRX1200 Treadmill provides 12 programs (P1,P2,P3……P12). Each program has its specic speed variations.
To Select and Start a Preset Program
1. Make sure the machine is in the stop position, single press Stop to enter into resetting state. Press Program
to choose desired program (P1,P2, …..P12), then press and release Start to begin the program with default
values.
2. Each program will continue 30 minutes. This is the preset value. After every one minute during the program,
the Speed will be adjusted automatically. The Speed setting can also be adjusted manually at any time during
the program. 3 Seconds before the ending of a program a buzzer will sound three times, then the running belt
will come to a stop.
23
HEART RATE EXERTION

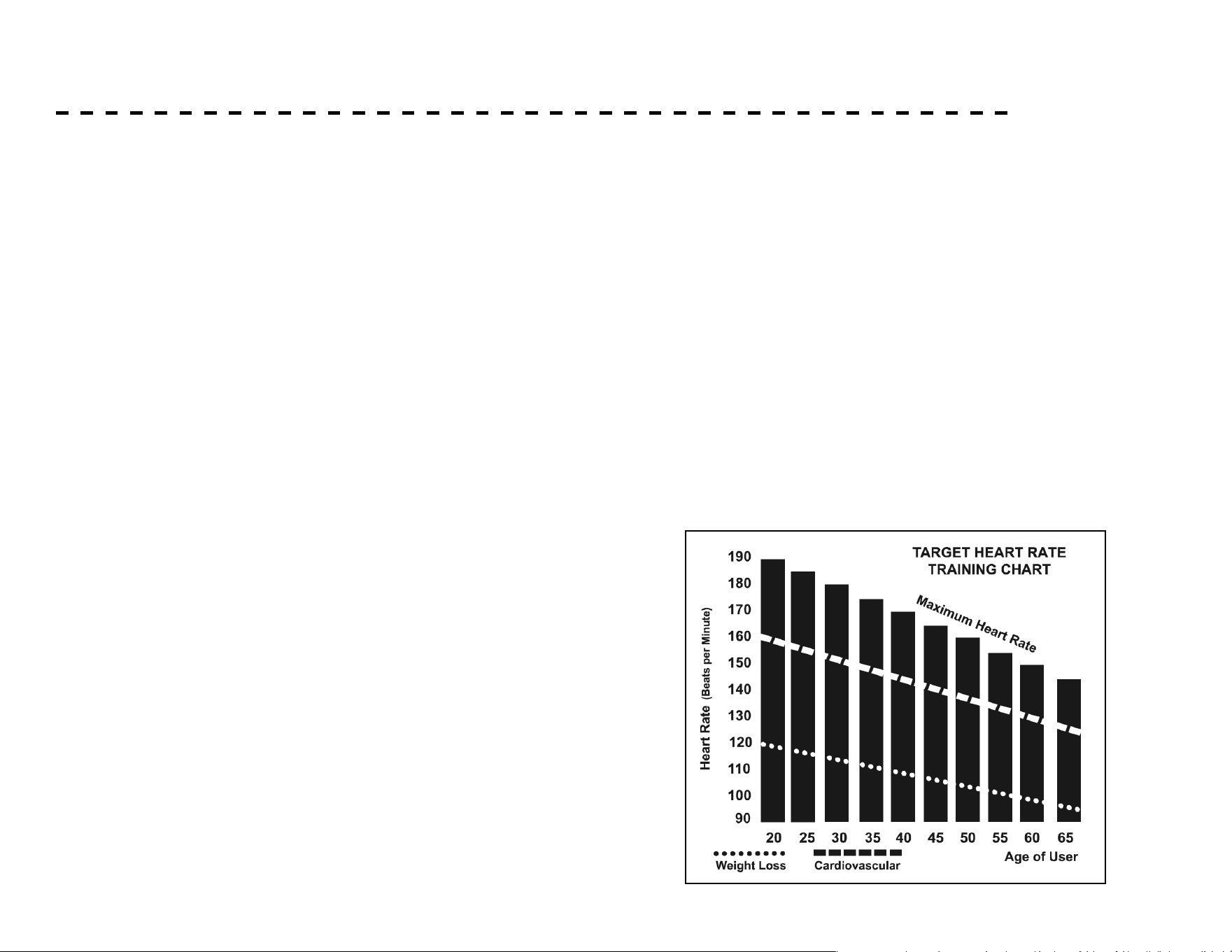

The two most popular reasons for, or goals, of exercise are cardiovascular
tness (training for the heart and lungs) and weight control. The black
columns on the chart represent the MHR for a person whose age is
listed at the bottom of each column. The training heart rate, for either
cardiovascular tness or weight loss, is represented by two dierent lines
that cut diagonally through the chart. A denition of the lines’ goal is in
the bottom left-hand corner of the chart. If your goal is cardiovascular
tness or if it is weight loss, it can be achieved by training at 80% or 60%,
respectively, of your MHR on a schedule approved by your physician.
Consult your physician before participating in any exercise program.
With this Spirit Fitness unit you may use the heart rate monitor feature
without using the Heart Rate program. However, when using the heart
rate monitor feature in conjunction with the Heart Rate programs, the
machine will automatically adjust speed or incline to maintain the desired
heart rate.
The old motto, “no pain, no gain”, is a myth that has been
overpowered by the benets of exercising comfortably. A great deal
of this success has been promoted by the use of heart rate monitors.
With the proper use of a heart rate monitor, many people nd that
their usual choice of exercise intensity was either too high or too low
and exercise is much more enjoyable by maintaining their heart rate in
the desired benet range.
To determine the benet range in which you wish to train, you must
rst determine your Maximum Heart Rate. This can be accomplished
by using the following formula: 220 minus your age. This will give
you the Maximum Heart Rate (MHR)for someone of your age. To
determine the eective heart rate range for specic goals you simply
calculate a percentage of your MHR. Your Heart rate training zone
is 50% to 90% of your maximum heart rate. 60% of your MHR is
the recommended for burning fat while 80% is recommended for
strengthening the cardio vascular system. This 60% to 80% is the
zone to stay in for maximum benet.
For someone who is 40 years old their
target heart rate zone is calculated:
220 – 40 = 180 (maximum heart rate)
180 x .6 = 108 beats per minute (60% of maximum)
180 X .8 = 144 beats per minute (80% of maximum)
So for a 40 year old the training zone would
be 108 to 144 beats per minute.
If you enter your age during programming the console will perform
this calculation automatically. Entering your age is used for the Heart
Rate programs. After calculating your MHR you can decide upon
which goal you would like to pursue.
24
HEART RATE - PERCEIVED EXERTION
Heart rate is important but listening to your body also has a lot
of advantages. There are more variables involved in how hard
you should workout than just heart rate. Your stress level, phys-
ical health, emotional health, temperature, humidity, the time of
day, the last time you ate and what you ate all contribute to the
intensity at which you should workout. If you listen to your body
it will tell you all of these things.
The rate of perceived exertion (RPE), also known as the Borg
scale, was developed by Swedish physiologist G.A.V. Borg.
This scale rates exercise intensity from 6 to 20 depending upon
how you feel or the perception of your eort.
The scale is as follows:
Rating Perception of Eort
You can get an approximate heart rate level for each rating by
simply adding a zero to each rating. For example a rating of 12 will
result in an approximate heart rate of 120 beats per minute. Your
RPE will vary depending on the factors discussed earlier. If your
body is strong and rested, you will feel strong and your pace will
feel comfortable. When your body is in this condition, you are able
to train harder and the RPE will support this. If you are feeling tired
and sluggish, it is because your body needs a break. In this
condition, your pace will feel dicult. Again, this will show up in
your RPE and you will train at the proper level for that day.
6 Minimal
7 Very, Very Light
8 Very, Very Light +
9 Very Light
10 Very Light +
11 Fairly Light
12 Comfortable
13 Somewhat Hard
14 Somewhat Hard +
15 Hard
16 Hard +
17 Very Hard
18 Very Hard +
19 Very, Very Hard
20 Maximal
25
1. Use a slightly damp cloth to clean areas where sweat or
oil made contact with the machine.
2. Use a microber cloth to clean the display and remove
unwanted oils and other things that may damage the
screen.
3. Avoid leaving paper or other small debris in the
cupholders.
MAINTENANCE & CARE
General Cleaning
Post-Workout Machine Care
Dirt, dust, and hair can block air inlets and accumulate on
the running belt. Please vacuum underneath your unit on a
monthly basis to prevent excess build-up of dirt that can
get sucked up and get into the inner workings under the
motor cover. Every other month, you should remove the
motor cover and carefully vacuum out dirt and hair that may
accumulate.
UNPLUG THE POWER CORD BEFORE THIS TASK.
Sanitizing Your XTERRA Fitness Equipment
• Unupholstered high-contact surfaces (hard plastics) can be
sanitized using a 75% isopropyl alcohol solution and a clean, dry
cloth.Spray surfaces to be sanitized, and use the dry cloth to
wipe clean. Allow surfaces to dry before using.
• For upholstered or soft-plastic surfaces, use a conditioner
after sanitizing.Be sure to follow the instructions provided
by the conditioner manufacturer to ensure proper use of the
conditioner.
• Alternatively, you can make your own spray by mixing the
proper ratio of isopropyl alcohol and distilled water to reach a
75% solution.
!
26
MAINTENANCE & CARE - CONTINUED
Aligning the Running Belt
Ensure the running belt is centered on your treadmill at all times . Running
style and Non-level surface are two instances which may cause the belt to
drift o center .
Minor adjustments to the two bolts at the rear of the treadmill are
necessary when the belt has drifted o center . See g . A & B .
1. Press the Power Switch (located at the front of the treadmill) to ON
position and ensure Safety Key is properly placed onto the computer
console, press the START button to begin running, then increase the
treadmill’s speed to 2 MPH .
2. Stand right behind the treadmill and to determine which side the belt
is drifting .
3. If the belt drifts to the right, turn the right adjustment bolt one-
quarter of a turn clockwise and the left adjustment bolt one-quarter
counter clockwise (See Fig . A) .
4. If the belt drifts to the left, turn the left adjustment bolt one-quarter
of a turn clockwise and turn the right adjustment bolt one-quarter
turn counter-clockwise (See Fig . B) .
5. Observe the tracking of the belt for about two minutes . Repeat Steps
3, 4, and 5 as needed .
DO NOT OVERTIGHTEN – Over tightening will cause belt
damage and premature bearing failure. If you tighten the belt
a lot and it still slips, the problem could actually be the drive
belt - located under the motor cover - that connects the
motor to the front roller. If that belt is loose it feels similar
to the walking belt being loose. Tightening the motor belt
should be done by a trained service person.
!
drifts to the left
FIGURE B
drifts to the right
FIGURE A
ALIGNING THE RUNNING BELT
Ensure the running belt is centered on your treadmill at all times .
Running style and Non-level surface are two instances which may
cause the belt to drift off center .
Minor adjustments to the two bolts at the rear of the treadmill are
necessary when the belt has drifted off center . See fig . A & B .
1 . Press the Master Power Switch (located at the front of the treadmill)
to ON position and ensure Safety Key is properly placed onto the
computer console, press the START button to begin running, then
increase the treadmill's speed to 3 kph .
2 . Stand right behind the treadmill and to determine which side the belt
is drifting .
3 . If the belt drifts to the right, turn the right adjustment bolt
one-quarter of a turn clockwise and the left adjustment bolt
one-quarter counter clockwise (See Fig . A) .
4 . If the belt drifts to the left, turn the left adjustment bolt
one-quarter of a turn clockwise and turn the right adjustment bolt one-quarter
turn counter-clockwise (See Fig . B) .
5 . Observe the tracking of the belt for about two minutes . Repeat Steps 3, 4, and 5 as needed .
ADJUSTING THE RUNNING BELT TENSION
Adjust the belt tension if it begins to slip on the rollers . This is important as it increased the longevity of
the treadmills components .
Before adjusting belt tension, keep the belt loose
1 . Turn the MASTER POWER SWITCH to the ON position and make sure safety key is pressed in.
2 . Press START button to start running the belt, then increase speed to 3KPH .
3 . Turn both adjustment screws an equal amount, approximately one-quarter turn clockwise .
4 . Slow the belt by holding onto the handrails and applying more weights as you walk, (as if you are
walking downhill) . Then stepping heavily on the belt to see if the belt slips .
5 . If the belt slips, adjust one-quarter turn clockwise and repeat STEP 4 if necessary .
ALWAYS BE CAREFUL NOT TO OVERTIGHTEN THE RUNNING BELT.
CLEANING AND INSPECTING THE RUNNING BELT
Turn off power and unplug from electrical outlet .
Carefully position the treadmill on its side .
Use a damp cloth to wipe off the inside of the running belt . Carefully rotate the running belt by hand to
clean the entire inside face . Return treadmill to its
upright position.
If running belt edges are frayed, check the running belt adjustment .
If seams are splitting, call your retailer or nearest authorized service center .
24
27
MAINTENANCE & CARE - CONTINUED
Aligning the Running Belt Tension
Adjust the belt tension if it begins to slip on the rollers . This
is important as it increased the longevity of the treadmills
components .
Before adjusting belt tension, keep the belt loose
1. Turn the MASTER POWER SWITCH to the ON position and
make sure safety key is pressed in.
2. Press START button to start running the belt, then increase
speed to 2 MPH .
3. Turn both adjustment screws an equal amount,
approximately one-quarter turn clockwise .
4. Slow the belt by holding onto the handrails and applying
more weights as you walk, (as if you are walking downhill) .
Then stepping heavily on the belt to see if the belt slips .
5. If the belt slips, adjust one-quarter turn clockwise and
repeat STEP 4 if necessary .
ALWAYS BE CAREFUL NOT TO OVERTIGHTEN THE
RUNNING BELT.
28
MAINTENANCE & CARE - CONTINUED
Item Daily (Before Use) Daily (After Use) Weekly Monthly 3 Months 6 Months
Entire Machine
Examine if the frame is
stable for exercise.
Adjust balancer to make it
stably positioned on the
ground.
Use dry cloth to wipe and
clear sweat and dust on the
surface of machine.
Use damp cloth to clean. (Do
not use Solubility Cleaners.)
Use water for plastic parts. Use
silicone oil or wax for metal
parts.
Location
Assure enough safe space
around the machine, and
make sure no dangerous
objects around.
Use wet cloth to clean the
ground.
Do not put wax on
the ground.
Vacuum dust at
the bottom and around
the machine.
Power Cable
Assure power cable
is well-plugged and not
pressed by the machine.
Turn o the power
or unplug power cable.
Running Belt
Assure no objects on the
belt, and run the machine at
2-3 MPH to see if the belt
drifts.
Use dry cloth to wipe and
clear the surface of running
belt.
Use damp cloth to clean (Do not
use Solubility Cleaners).
Running Belt Tension
Adjustment
Check if running belt is
slipping.
Lubrication of Running Belt
Use a silicone lubricant to
lubricate whenever reaching
112 miles.
Side Panel
Check if they are well-xed and
make sure no breakdown on the
panel.
Bolt
Check if all bolts are rmly
fastened and no rusting.
The Inside of Motor Cover
Open motor cover and
vacuum all dust.
Safety Key
Turn the power on and
remove safety key to check
if it is in normal function.
Make sure safety key is re-
placed on the console.
29
DECK LUBRICATION
To lubricate your Treadmill belt:
1. Turn the power switch o and unplug the power cord from the
wall outlet.
2. Measure 18” from the edge of the motor cover; kneel down and
reach under the belt approximately 4-6” from one edge. Squirt
a line of lubricant about 1/8” wide x 15” long in an “S” pattern
perpendicular to the motor cover.
3. Repeat the process on the opposite side.
4. Plug the electrical cord back into the outlet and turn the power
switch on.
5. Walk on the belt at a moderate speed for ve minutes to evenly
distribute the silicone lube.
To ensure the longevity and proper function of your
Treadmill, proper belt maintenance is required. You should
regularly check between the Treadmill belt and the top of the
Treadmill base for proper lubrication, and to ensure that no
dirt or debris has become trapped. Keeping the deck clean
and lubricated at the recommended intervals ensures the
longest life possible for your unit. Should lubrication dry out,
or dirt become trapped, the friction between the belt and
deck increases. Increased friction places undue stress on the
drive motor, drive belt, and electronic motor control board
which could result in catastrophic failure of these essential,
expensive components.
Failure to clean and lubricate the deck at regular intervals
may void the warranty.
As a part of your routine maintenance schedule, belt
lubrication and cleaning should be performed every 90 days,
after 90 hours of use, or earlier if you notice that the deck
is dry or dirty. Please also be sure to check belt lubrication
before rst use.
Do not lubricate with anything other than XTERRA Fitness
1. Ensure that your machine is o, and that the power cord is
unplugged to minimize risk of injury.
2. Reach between the running belt and the top of the Treadmill
base to verify that lubrication is present.
1. The word of ‘LUBE’ will ash in every 3 seconds on the
console once accumulated running time reaches 10 hour
to remind user to do the maintenance. ‘LUBE’ will appear
again every 40 hour
2. Press any button to jump out of the alert mode. Word of
'LUBE will show up again whenever the machine re-starts
if the user doesn't eliminate the word by taking action of
No. 3 as below.
3. In standby mode, hold the PROGRAM key for 3 seconds
to reset the message.
approved lubricant. Your Treadmill comes with one tube of
Treadmill belt lubricant.
Extra tubes can be ordered directly from: www.Xterratness.com,
or by calling our customer service department at (800)258-8511.
Regularly check belt lubrication by completing the following steps:
30
BELT AND DECK CLEANING
To clean your Treadmill belt:
1. Ensure that your machine is o, and that the power cord
is unplugged to minimize risk of injury.
2. Grab one edge of the Treadmill belt, and lift slightly to
expose the area between the top of the Treadmill base
and the running belt.
3. Do a visual check for any dirt or debris accumulation.
4. Should dirt and debris be present, slide a towel or
cleaning cloth between the Treadmill belt and top of the
Treadmill base until you can grasp one end on each side.
(The cleaning cloth should be longer than the running
belt is wide to achieve this.)
5. Using both hands, drag the cleaning cloth up and down
the length of the Treadmill base 1-2 times.
6. For excessive dirt accumulation, rotate the belt halfway,
and repeat step 5. Continue until your cleaning cloth is no
longer picking up any dirt.
7. Remove cleaning cloth from Treadmill before plugging
back in.
Belt & Deck Cleaning
31

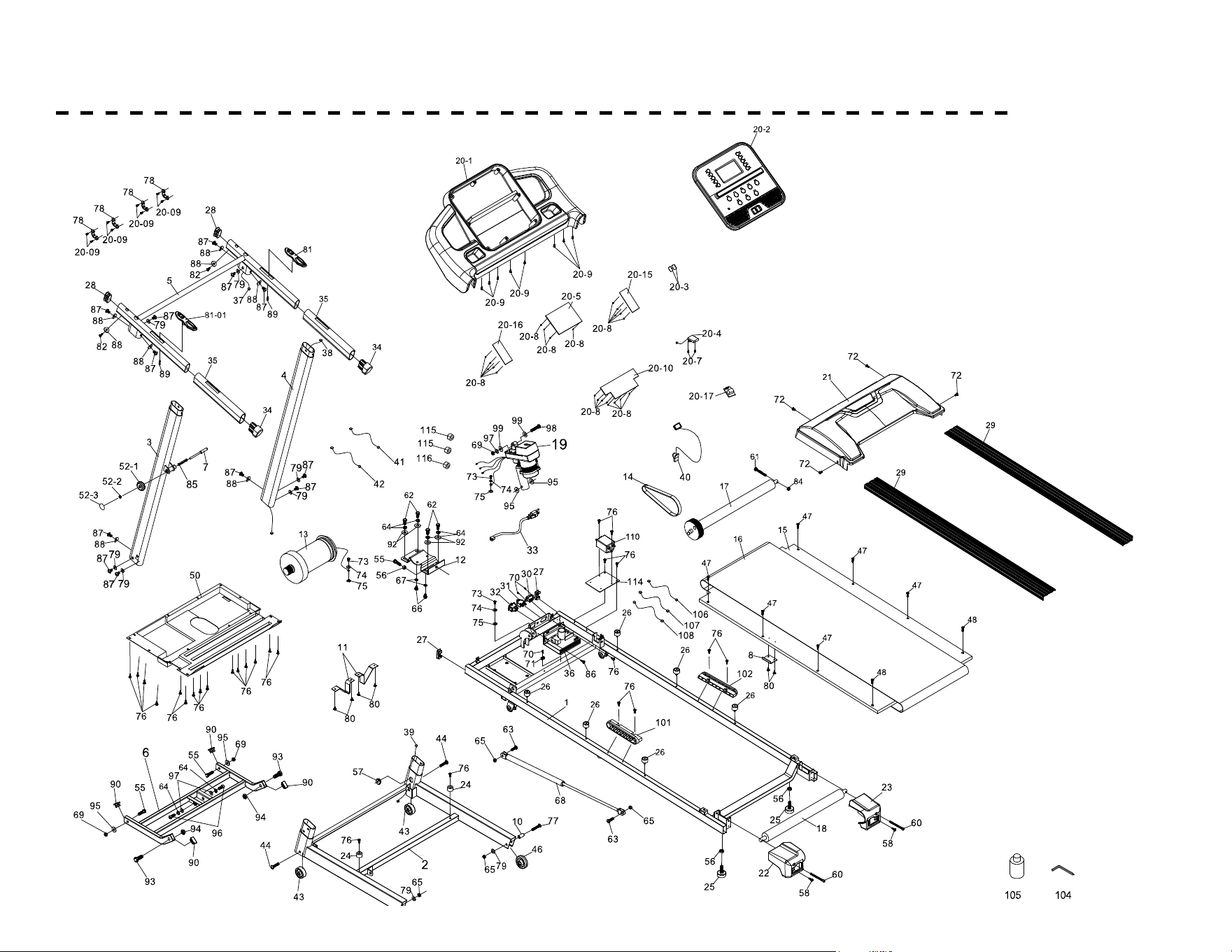

EXPLODED VIEW DIAGRAM
-17-
P
U
L
L
EXPLODED VIEW DIAGRAM
32
PARTS LIST
001 Main Frame 1
002 Frame Base 1
003 Left Upright 1
004 Right Upright 1
005 Console Support 1
006 Incline Bracket 1
007 Folding Release Pin 1
008 L-Plate 1
010 Wheel Sleeve 2
011 Belt Guide 2
012 Motor Bracket 1
013 Drive Motor 1
014 Drive Belt 1
015 Running Deck 1
016 Running Belt 1
017 Front Roller W/Pulley 1
018 Rear Roller 1
019 Incline Motor 1
020-01 Console Outer Cover 1
020-02 Console Top Cover 1
020-03 Square Magnet Stop Plate 2
020-04 400m/m_Safety Switch Module W/ Cable 1
020-05 Console Display Board 1
020-07 3 × 10m/m_Sheet Metal Screw 2
020-08 2.3 × 6m/m_Sheet Metal Screw 22
020-09 3.5 × 12m/m_Sheet Metal Screw 16
020-10 Key Board 1
020-15 Key Board(incline) 1
020-16 Key Board(speed) 1
020-17 Bluetooth 1
021 Motor Top Cover 1
022 Rear Adjustment Base (L) 1
023 Rear Adjustment Base (R) 1
024 Rubber Foot Pad 2
025 Adjustment Foot Pad 2
026 Rubber Foot 6
027 20m/m × 40m/m_Square End Cap 2
028 Oval End Cap 2
029 Foot Rail 2
030 Power Socket 1
031 Breaker 1
032 AC Electronic Module 1
033 Power Cord 1
034 End Cap 2
035 Handgrip Foam 2
036 Motor Controller 1
037 1000m/m_Computer Cable (Upper) 1
038 1150m/m_Computer Cable (Middle) 1
039 1000m/m_Computer Cable (Lower) 1
040 Square Safety Key 1
041 100m/m_Connecting Wire (Black) 1
042 300m/m_Connecting Wire (White) 1
33
029 Foot Rail 2
030 Power Socket 1
031 Breaker 1
032 AC Electronic Module 1
033 Power Cord 1
034 End Cap 2
035 Handgrip Foam 2
036 Motor Controller 1
037 1000m/m_Computer Cable (Upper) 1
038 1150m/m_Computer Cable (Middle) 1
039 1000m/m_Computer Cable (Lower) 1
040 Square Safety Key 1
041 100m/m_Connecting Wire (Black) 1
042 300m/m_Connecting Wire (White) 1
043 Frame Base Front Wheel 2
044 5/16" × 1-1/2"_Button Head Socket Bolt 2
046 Transportation Wheel 2
047 M6 × 20m/m_Flat Head Socket Screw 6
048 M6 × 25m/m_Flat Head Socket Screw 2
050 Frame Cover 1
052-01 Locking Knob 1
052-02 M6 × 6T_Nylon Nut 1
052-03 Label 1
055 3/8" × 1-1/4"_Hex Head Bolt 3
056 3/8" × 7T_Nut 3
057 Wire Protective Rubber 1
058 5 × 19m/m_Tapping Screw 2
060 1/4" × 80m/m_Socket Head Cap Bolt 2
061 1/4" × UNC20 × 2-1/4"_Hex Head Bolt 1
062 3/8" × 3/4"_Hex Head Bolt 4
063 5/16" × 1"_Button Head Socket Bolt 2
064 Ø10 × 2.0T_Split Washer 6
065 5/16" × 7T_Nylon Nut 4
066 M8 × P1.25 × 12m/m_Hex Head Bolt 2
067 Ø8 × 1.5T_Split Washer 2
068 Cylinder 1
069 3/8" × 7T_Nylon Nut 3
070 3.5 × 16m/m_Tapping Screw 3
071 Wire Tie Mount 1
PARTS LIST
072 M5 × 15m/m_Phillips Head Screw 4
073 M5 × 10m/m_Phillips Head Screw 3
074 Ø5 × 1.5T_Split Washer 3
075 M5_Star Washer 3
076 Ø5 × 16m/m_Tapping Screw 26
077 5/16” × 42mm_Button Head Socket Bolt 2
078 Console Bracket Anchor 4
079 Ø5/16" × Ø18 × 1.5T_Flat Washer 8
080 4 × 12m/m_Sheet Metal Screw 6
081 1200m/m_Speed/Hand Pulse Complex 1
081-01 1200m/m_Incline/Hand Pulse Complex 1
082 5 × 16m/m_Tapping Screw 2
084 1/4" × 5T_Nylon Nut 1
085 Ø9.1 × 53m/m_Constrict Spring 1
086 5 × 25m/m_Tapping Screw 1
087 5/16" × 1/2"_Button Head Socket Bolt 12
088 Ø8 × 23 × 1.5T_Curved Washer 8
089 Ø3 × 50m/m_Flat Head Socket Bolt 2
090 15 × 30m/m_Square End Cap 4
092 Ø3/8" × Ø25 × 2.0T_Flat Washer 4
093 1/2" × UNC12 × 1-1/4"_Hex Head Bolt 2
094 1/2" × 8T_Nylon Nut 2
095 Ø24 × Ø10 × 3T_Nylon Washer (A) 4
096 3/8" × 22m/m_Socket Head Cap Bolt 2
097 Ø3/8" × Ø19 × 1.5T_Flat Washer 3
34
PARTS LIST
098 3/8" × 1-3/4"_Hex Head Bolt 1
099 Ø10 × Ø25 × 0.8T_Nylon Washer 2
101 Cushion Spacer (L) 1
102 Cushion Spacer (R) 1
104 M5_Allen Wrench Head Screw Wrench 1
105 Lubricant 1
106 300m/m_Connecting Wire (Black) 1
107 200m/m_Connecting Wire (White) 1
108 200m/m_Connecting Wire (Black) 1
110 Filter 1
114 Fixing Plate 1
115 Ferrite Core 2
116 Ferrite Core 1
35
WARRANTY - RESIDENTIAL
Eective April 09, 2024- TRX1200 Treadmill LIMITED WARRANTY
Home Use Limited Warranty
XTERRA Fitness Inc. warrants all its home use Treadmill parts for a period of time listed below, from the date of retail sale, as deter-
mined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA
Fitness’s responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our in-
dependent dealers and servicing organizations. In the absence of a dealer or service organization, these warranties will be administered
by XTERRA Fitness directly to a consumer. The warranty period applies to the following components:
Warranty
Residential
Frame
Lifetime
Motor
1 Year
Deck & Parts
90 Days
Labor
90 Days
RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household use, and the consumer/facility is responsible for the items listed below:
1. Proper use of the Treadmill in accordance with the instructions provided in this manual
2. Proper installation in accordance with instructions provided with the Treadmill and with all local electric codes.
3. Expenses for making the Treadmill accessible for servicing, including any item that was not part of the Treadmill at the time it was
shipped from the factory.
4. Damages to the Treadmill nish during shipping, installation or following installation.
5. Routine maintenance of this unit as specied in this manual.
36
WARRANTY - CONTINUED
What is not covered?
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion
may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction or defects
in workmanship or material, for units that are beyond the warranty period, for units that are beyond the service call reimbursement
period, for Treadmill not requiring component replacement, or Treadmill not in ordinary household or light commercial use.
3. Damages caused by services performed by persons other than authorized XTERRA Fitness service companies; use of parts other
than original XTERRA Fitness parts; or external causes such as corrosion, discoloration of paint or plastic, alterations, modica-
tions, abuse, misuse, accident, improper maintenance, inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
6. XTERRA Fitness reserves the right to request proof of purchase if no warranty record exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE WARRAN-
TIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product use in any environment other than a residential setting or non-dues paying facility with 5 hours use or less per day.
9. Warranties outside of the United States may vary. Please contact your local dealer for details.
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by XTERRA Fitness, Inc. This warranty
applies only in the 48 contiguous United States. NOTE: This does not include Alaska or Hawaii.
37
Responsibilities of the Owner
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as
determined by the serial number establishes the labor warranty period should service be required. If service is performed, it is in your
best interest to obtain and keep all receipts. This written warranty gives you specic legal rights. You may also have other rights that
vary from state to state. Service under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized XTERRA Fitness dealer. OR
2. Contact your local authorized XTERRA Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107.
4. XTERRA Fitness’ obligation under this warranty is limited to repairing or replacing, at XTERRA Fitness’ option, the product through
one of our authorized service centers. All repairs must be preauthorized by XTERRA Fitness. If the product is shipped to a service
center freight charges to and from the service center will be the customer’s responsibility. For replacement parts shipped while the
product is under warranty, the customer will be responsible for shipping and handling charges. For in-home service, the customer
will be responsible for a trip charge. There will be an additional trip charge if the customer is located over 100 miles from the
nearest service center.
5. The owner is responsible for adequate packaging upon return to XTERRA Fitness. XTERRA Fitness is not responsible for damages
in shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT TO OUR FACTORY
WITHOUT A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused.
For any further information, or to contact our service department by mail, send your correspondence to:
XTERRA Fitness, Inc.
P.O. Box 2037
Jonesboro, AR 72402-2037
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by XTERRA
Fitness, Inc. This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
WARRANTY - CONTINUED
38
TROUBLESHOOTING
1. Does the motor run after “Start” button is pressed?
2. Connector could be loose.
3. Check the cable connecting the console and controller for proper connection.
1. If safety key switch is placed properly?
2. Is safety harness I the console connected properly? Any connector damaged?
3. Is safety switch defective?
1. Check for proper walking belt alignment. Make sure to lubricate belt
periodically to minimize resistance.
2. Is there any bearing damage?
3. Has the motor overheated?
1. Motor is not connected properly or not connected to the controller.
1. Check lubrication under walking belt.
Reference belt deck lubrication procedure on page 29.
2. Hold PROGRAM button for 3 seconds to reset
1. Check for proper connection between the console and controller.
1. Controller component failure
1. Check for proper voltage input for treadmill.
Console
Showing E1
Console
Showing
LUBE
Console
Showing E0
Console
Showing E2
Console
Showing E4
Console
Showing E5
Console
Showing E6
Console
Showing E7
Console shows E1 8~10 seconds
after pressing “Start” button.
Reminder to check lubrication under
walking deck
Safety Switch Malfunction
Over Current Protection
Treadmill over loaded, controller
protection is activated.
Improper Motor input voltage.
Motor is not connected properly.
Communication disconnected
between the console and the
controller or communication error
Controller Malfunction
Abnormal Power
Input
Problem Meaning Solution/Cause
39
www.xterrafitness.com
©2023 All Rights Reserved. TRX1200 Owner’s Manual
3000 Nestle Road Jonesboro, AR 72401 | Phone: 800-258-8511 | Fax: 870-935-7611
