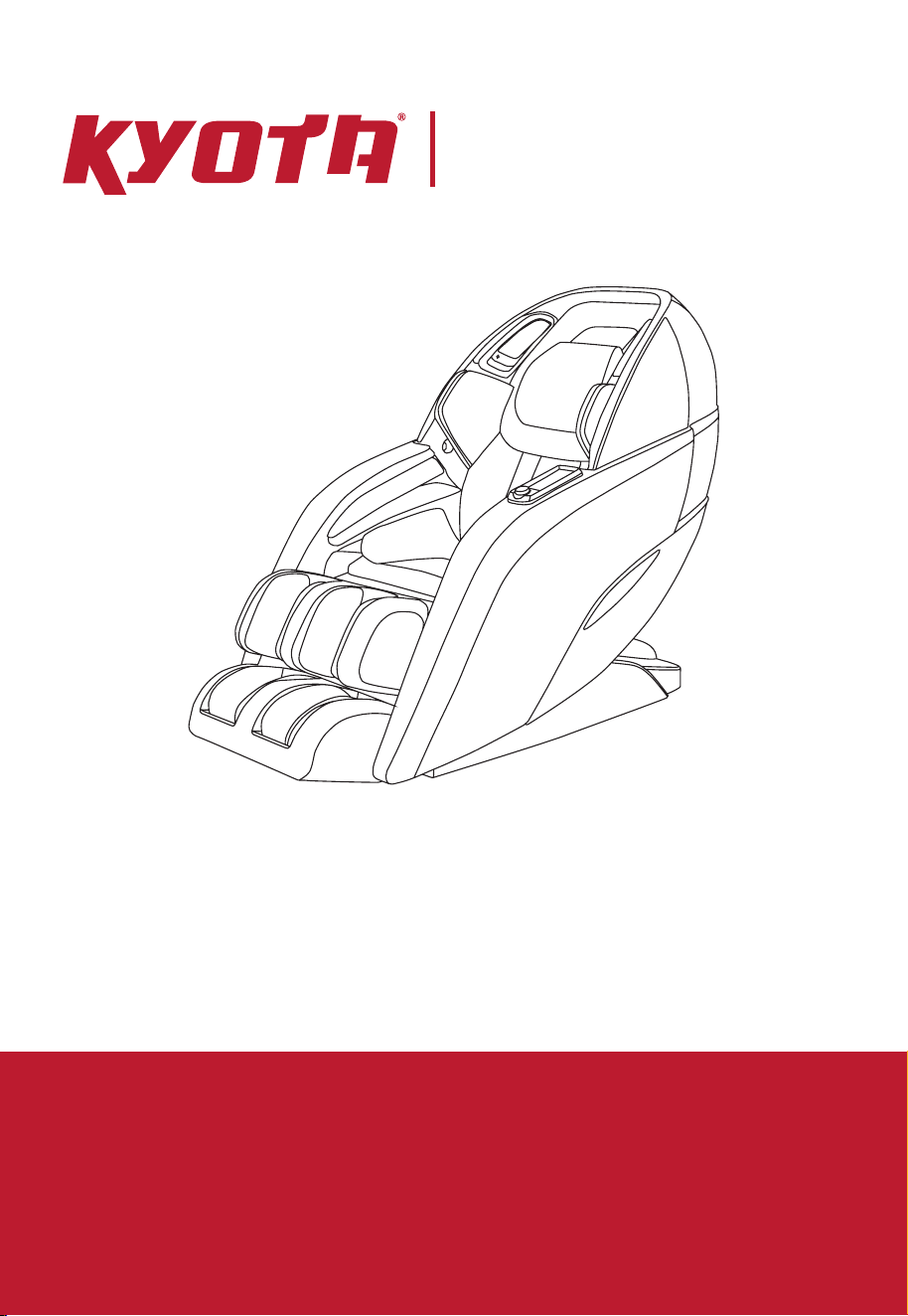

Yutaka M898
4D Massage Chair
User Manual
The World’s Most
Advanced Massage Chairs
®
External Structure
Remote Control
Your Chair
Speaker
Back cover
Arm panel
Pillow
Back cushion
Seat cushion
Footrest
Directional
Button
4D
Seat Back
Position
Auto
Pause
Back
Adjustment
Zero Gravity
OK
Home
Power
Footrest
Leg Length
Foot Roller
Multi-Functional Screen
Welcome to
Thank you, and congratulations on purchasing your very own Kyota Massage Chair
product - you’ve made a great buying decision. Welcome to the Kyota family.
Inside this manual, you will nd everything you need to setup and safely enjoy your
chair. Please review the entire manual before assembling or using your chair. If you
are assembling the chair yourself, please see the Assembly Guide next and reference
the online assembly video.
For convenience, we’ve also created a Quick Start Guide.We suggest you keep it in
the remote pocket as a tool to get to know all the features of your new chair.
Sit back, relax, and enjoy your new Kyota massage chair!
Register your product at www.kyotamassagechairs.com/
warranty/registration to ensure it is in our system. This will
simplify the warranty process should you ever need it.
Alternatively, scan the QR code to go directly to the URL above.
SCAN CODE
Before assembling your chair, watch an assembly video at:
www.kyotamassagechairs.com/assembly-tutorials
Alternatively, scan the QR code to go directly to the URL above.
SCAN CODE
Warranty Registration
Assembly Video
Chair Features
- 49” L-Track
- Zero Gravity
- Zero Wall Space-saving Technology
- Calf Rollers & Oscillation
- 4D Massage Technology
- USB Charging Station
- Bluetooth Technology
- iOS & Android App Functionality
- Decompression Stretch
- Reflexology
- Automatic Footrest Extension
- Lumbar Heat
- Body Scanning
- Four Wheel Massage Mechanism
- Airbag Compression Therapy
- Chromotherapy Lights
- Wireless Charging
- Air Ionizer
- Intelligent Voice Control
Table of Contents
Preparation
Chair Setup
Getting Started
Installation Site
Clearance Space for the Chair
Floor Protection
Move Methods
Connect to Power
6
6
6
7
7
Main Power Switch
Adjust Pillow
Body Scanning
Reduce the Intensity of your
Massage - Manually
Getting out of the Chair
8
8
9
9
9
Auto Programs
Airbag Massage
Airbag Region
Airbag Intensity
Back Heat
Foot Rollers
Intelligent Voice Control
Quick Access Controller
App Download & Installation
10
12
12
12
13
13
14
15
15
Bluetooth Audio
Sounds
Volume
Remote Control Beep
Demo Voice
Chromotherapy Lights
Light Themes
Light Colors
Light Brightness
Timer
Air Ionizer
Language
Voice Control
Remote Control Screen Brightness
Button Lights
Remote Control Beep
Bluetooth
Sleep Mode
16
16
16
17
17
18
18
18
18
19
19
20
20
20
21
21
21
21
Troubleshooting
Specications
Frequently Asked Questions
26
26
27
Staying Safe
Settings
Fixing Issues
24
Personalize Experience
Manual Programs
Massage Mode
Massage Part (Region)
Massage Width
Massage Speed
Foot Rollers
Remote Control Screen Idle
22
22
22
22
23
23
23
Create a Massage
6
- 4” clearance for the recline of the backrest; 24” clearance for the extension of footrest and
sliding forward of the chair.
- Keep it 3 feet away from the TV, radio or other audio & video appliance to avoid signal
interference.
Clearance Space for the Chair
Installation Site
Preparation
We recommend to place a piece of thin carpet or soft mat underneath it to avoid damaging the
oor.
Floor Protection
Massage chair
Floor
Carpet
24” 4”
- Do not use the massage chair in high moisture environment such as near swimming pool or bathroom to prevent
electric shock accident.
- Please keep the massage chair away from heated surfaces to prevent re hazard or damage to the product.
WARNING
- Keep the distance between the power socket and power switch within 60” to avoid damage of power cord while
massage chair sliding forward.
- Straighten the power cord while in use to avoid tangle or damage.
- When the massage chair sliding forwards or back, please check to make sure there is no children, pets or other
obstacles around to avoid accident.
CAUTION
7
Apply pressure to the back of the massage chair from behind to pivot on the Castors. Have a
second person up front to guide the Footrest until in the correct position. Maintain clearances
as mentioned above. Gently lower into place. Do not pull on the side arms.
Move Methods
Connect to Power
Plug into a 110V grounded outlet.
- Do not move the chair when there is a user inside.
- To carry this product, do not lift by the footrest or armrest, hold the chassis and steady the backrest (have 4 or more
people to carry the product).
CAUTION
- Ensure there is no damage to the supply
cord before switching on the massage chair.
- Ensure that the main power switch is turned
o before connecting to power
CAUTION
DANGER – Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check with a qualied
electrician or serviceman if you are in doubt as to whether the product
is properly grounded. Do not modify the plug provided with the product
– if it will not t the outlet, have a proper outlet installed by a qualied
electrician.
This product is for use on a nominal 120-V circuit and has a grounding
plug that looks like the plug illustrated. Make sure that the product is
connected to an outlet having the same conguration as the plug. No
adapter should be used with this product.
Earthing
This massage chair belongs to Level One electrical appliance, make sure
to use three-core power supply socket and to guarantee the ground
wire connected to the power supply socket has obtained good ground
connection to avoid electric leakage, electric shock and some other
negative eect during use.
Grounded
outlet
Grounding pin
Grounding Instructions
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances .
8
To power up the chair, ick the main power switch located on the side of the base of the chair
to ON.
Main Power Switch
Getting Comfortable
Chair Setup
CAUTION
- Children should be supervised to ensure that they do not play with the chair or touch the power box.
- Always unplug the massage chair from the electrical outlet immediately after use.
- Unplug from outlet during thunder or lightening storms, and before putting on or taking o parts.
- Turn o the power switch and unplug the massage chair from the electrical outlet while not in use to avoid children
power on the massage chair accidentally.
- When not in use for a long period of time,we recommend that the chair be covered, the power cord be coiled and that
the unit be placed in an environment free of dust and moisture.
Take a seat in the chair and take note of where the neck pillow rests on your neck. Adjust the
pillow so that it rests comfortably in the arch of your neck. Do this by removing it from the
velcro, aligning it, and then reattaching to the velcro once it is in the desired position.
Adjust Pillow
Main power switch
9
Select any auto program and press the OK
button. The chair will automatically begin
scanning your body, mapping your back,
shoulders, and neck. During this process it is
important to remain seated back into the chair
without lifting your head.
The scan can be viewed on the remote control
screen. If ne tuning is needed just after your
body scan, wait for the shoulder adjust prompt
to appear and then use the Back Adjustment
buttons to move the massage rollers up or down
for the perfect shoulder kneading position.
Body Scanning
To easily exit the chair, press the power button on the remote control to restore the chair to
the upright position.
To make the massage less intense, you can add the back pad to the seat back of your chair,
or you can also fold down the neck rest to provide more cushioning between you and the
massage mechanism in the seat back. To make the foot rollers less intense, insert the foot
pads that came with your chair into the foot bed of the footrest.
Getting out of the Chair
Reduce the Intensity of your Massage - Manually
HOMEHOM
E
9
Shoulder Adjust
Prompt
Body Scanning
10
Auto Programs
Getting Started
When massage chair is
operating, press the AUTO
button on the remote control
to enter Auto Program Menu.
Choose from Sports Refresh,
Extension, Rest & Sleep,
Working Relief, Neck &
Shoulder, Waist & Spine, Deep
Shiatsu, Healthy Breath,
Massage Extend, Relaxation,
All Air and Demo. Press OK to
enter the program you desire.
Selected program will show on
the home screen.
Sports Refresh
Programs Icon
Neck & Shoulder
Extension
Waist & Spine
Deep Shiatsu
Healthy Breath
Massage Extend
Relaxation
All Air
Demo
Rest & Sleep
Working Relief
Navigating the remote
To show the Auto Programs list: Use the directional
buttons to highlight AUTO from Home display, press
OK button to select. Press up or down button to
navigate amongst the 12 auto programs.
To select an auto program: Use the up and down
directional buttons to highlight the program you wish
to run. Press OK button to select and begin program.
11
Relaxes muscles and speeds up recovery time after intense
exercise by promoting circulation.
Inspired by Thai massage. The strong kneading and stretching
functions effectively decompress the entire body.
Kneads the entire body with a gradual lightening of intensity
massage to relieve tired muscles.
Performs a strong massage to ease muscles and recuperate
the body.
A sequence of neck, shoulder, and upper back massage
techniques.
Focuses on the lumbar vertebra with targeted massage to
relieve tension in this area.
Deep shiatsu on the back for 10 minutes.
Rhythmic five-minute massage to aid with deep breathing.
Designed for morning or midday relaxing, it helps to boost the
viability of muscles.
Assists in relieving lower and upper back pain through a series of
massage techniques.
Full-body airbag-only massage without any kneading and
tapping.
Soothe muscles after sports activities and
exercise.
This program is the best choice to relax tired
muscles and increase physical vigor.
Try this program as you prepare your body
to rest for the night.
This is a great program for people who work
at a desk or travel a lot.
Soothing pain and tension in the neck and
shoulders.
Helps to relax and recover the main back
muscles along your spine.
This program is recommended to relieve
lower back pain.
Designed for morning or midday relaxing.
Reduce built up tension carried in the body
from everyday stress.
Best for winding down and re-energizing
yourself after a long day.
Many find this program beneficial
to relax and ease stress when winding down.
A quick way to feel all the massage
techniques and chair movements in a brief 8
minute session.
A quick show of massage chair’s features and functions. That
can be accompanied by an explanatory voice over. The voice
can be turned off and on in SOUNDS.
What for? Description
12
Airbag Region
Getting Started
Select AIRBAG from Home display, press up or down button to navigate
among: PART and FORCE.
Airbag Massage
Navigate to PART, press right button, then use the up or down button to
select your desired airbag region: Full Body, Upper Body, or Lower Body.
Press OK button to select the airbag region.
Airbag Intensity
Navigate to FORCE, press right button, then use the up or down button
to select your desired intensity: 1 = light, 2, 3, 4, 5 = rm, or O. Press
OK button to select the airbag intensity.
13
Select MANUAL from Home display, press right
button, then use the up or down button to
navigate to ROLLER. Press right button, then use
the up or down button to select your desired
foot roller speed: 1 = slow, 2, 3 = fast, or O
(deactivate foot roller). Press OK button to select
the speed level you desire.
Alternatively, press the Foot Roller button on
your remote control. If the foot rollers are on,
pressing this button will turn the foot rollers o.
Press again to turn on. Your current foot roller
speed is displayed in the in-use screen in the top
left corner.
Foot Rollers
Select HEAT from Home display, press right
button, then press up or down button to navigate
to desired heat level: 1 = low, 2, 3 = high, or O.
Press OK button to select the heat level.
Back Heat
14
Getting Started
Your chair comes with built in intelligent voice
control. This feature allows you to control your
chair and massage experience completely hands-
free by using one of the many voice commands.
To activate the intelligent voice control function,
simply say ‘Switch to Voice Mode’, or touch the
button on the left speaker. You may now give
your chair any of the commands below within 5
seconds. Make sure to speak clearly and slowly.
After 5 seconds the Intelligent Voice Command
function will turn o automatically and must be
awakened again.
Intelligent Voice Control
Commands
Turn O Listening
You can turn o intelligent voice control
listening by using the remote control. Select
SETTING from Home display, press up or
down button to navigate to VOICE, press right
button, then press up or down button to select
O. Press OK button to select the setting.
Intelligent voice control will now no longer
activate until turned back on.
Alternatively, simply press and hold the Voice
Command button for 4 seconds then release.
Turn back on by pressing the Voice Command
button again.
15
As well as having a corded remote control, your chair also comes with a built in quick access
controller which is located on the top of the left arm panel. The quick access controller allows
you to turn the chair on and o, select from all of the auto program’s, adjust the recline angle
of the seat back, and wirelessly charge your mobile device.
Button: Press and hold to turn chair ON. Press again to cycle through each auto program. The
program name is announced through the speakers and starts immediately. Press and hold to
turn chair OFF.
Dial: Use dial to recline and upright the M898 Yutaka massage chair.
Wireless Charging Pad: Place any wireless charging-enabled phone directly on to pad to
charge.
Quick Access Controller
Button
Dial
USB Charging Port
Wireless Charging
Android System Software (Android System V2.2 or later)
- Download the Android app from the Kyota Massage Chairs Google Play store.
- Install M898 Yutaka APK, then press Settings button on your computer or Android device >
press Wireless and Web Setting > Bluetooth > Scan Bluetooth device > M898 Yutaka, then pair.
- Start the APK, press Settings menu > Bluetooth > and pair with the M898 Yutaka to link the APK
Apple iOS: (iPhone or iPad devices)
- Open the App Store. At the top right corner, search for ‘Kyota Massage Chair M898 Yutaka’ to
nd the Apple app. Click “Get” at the top right corner to download and install the software.
- In your device settings, open Bluetooth and connect it to the massage chair.
- Please note: Only Apple equipment compatible with Bluetooth 4.0 can connect to the chair’s
Bluetooth.
Bluetooth Connection Method
- This product has Bluetooth compatibility to connect with Bluetooth enabled audio devices.
Open Bluetooth from audio device and pair with M898 Yutaka to play music.
App Download & Installation
16
Personalize Experience
Press SOUNDS from Home display, press
right button then press up or down button
to navigate among: SOUND, VOLUME, BEEP,
and DEMO VOICE. Press OK button to enter
the sounds setting you desire to control.
Note: Bluetooth must be turned on in
settings for Sounds to work.
Sounds
Your massage chair includes Bluetooth
compatibility so you can play and enjoy
your favorite music. To turn on your chair’s
Bluetooth, select SETTING from Home display,
then press up or down button to navigate to
BLUETOOTH. Press right button, then press up
or down button to select your desired Bluetooth
setting: On or O. Press OK to select setting.
Open Bluetooth from audio device and pair with
M898 Yutaka to play music.
Bluetooth Audio
Navigate to VOLUME, press right button, then press up or down button
to select your desired volume setting: 1 = lowest, 2, 3, 4, 5 = highest.
Press OK button to select the volume setting.
Volume
17
Navigate to BEEP, press right button, then press up or down button to
select your desired remote control beep setting: 1 = lowest, 2, 3, 4, 5 =
highest. Press OK button to select the volume setting.
Navigate to DEMO VOICE, press right button, then press up or down
button to select your desired setting: On, or O. Press OK button to
select the setting. Voice demo only works in the Demo program.
Remote Control Beep
Demo Voice
White Noise
Sounds What is it?
Nature
Ocean Surf
Air Plane
Crickets
Thunderstorm
Car Ride
Rain
Windy Night
Fireplace
A constant, even loop of pure white noise to mask out distractions.
Soothing ocean waves rolling onto the shore.
Night time in the suburbs. Churping Crickets, water trickling from a pond, and faint
traffic noises.
Quiet, light, refreshing rain falling to the ground.
Refreshing sounds of small birds peacefully singing along a tranquil stream.
A Cessna propeller airplane motor idling.
Calming inner-city traffic featuring cars, trucks, and motorcycles.
Crackling of fire in a fireplace.
Heavy rainstorm with thunder.
Heard from inside a cabin, a howling wind blows constantly outside.
Note: Bluetooth must be ON for sounds to work.
18
Personalize Experience
n
n
Your massage chair has chromotherapy lights located on the outside
of the chair body and on the speakers near your head. Select LIGHTS
from Home display, then press up or down button to navigate among:
THEMES, COLORS, and BRIGHTNESS. Press OK button to enter the lights
setting you desire to control.
To turn lights o: select the LIGHTS menu, navigate to THEMES and then
scroll down to hover over the active light setting. Press OK button to
deselect and turn lights o.
Chromotherapy Lights
Light Themes
Light Colors
Navigate to THEMES, press right button, then use the up or down button
to select your desired light theme: Solid, Breathe, Wake Up, Wind Down,
Multi-Wave, or Multi-Rotate. Press OK button to select the setting.
Solid: Single color light.
Breathe: Single color that dims and brightens on a loop.
Wake Up: Blue enriched lights - gradually increasing brightness.
Wind Down: Colors of sunset - gradually decreasing brightness.
Multi-wave: All the colors of the rainbow morphing into each other.
Multi-rotate: Colors rotate from one to another.
Navigate to COLORS, press right button, then use the up or down button
to select your desired light color: Ice Blue, Red, Yellow, Lime, Green,
Cyan, Blue, or Purple. Press OK button to select the setting. You may only
choose colors in Solid and Breathe themes.
19
Light Brightness
Navigate to BRIGHTNESS, press right button, then use the up or down
button to select your desired light brightness: 1 = dim, 2, 3, 4, 5 = bright.
Press OK button to select the setting.
Select AIR IONIZER from Home display, press
right button, then press up or down button to
select your desired air ionizer setting: On, or O.
Press OK button to select the setting.
Air Ionizer
Select TIME from Home display, press right
button, then press up or down button to select
your desired timer: 10 minutes, 20 minutes,
or 30 minutes. Press OK to select your desired
massage timer length. 20 minutes is the default
setting.
Timer
20
Settings
Navigate to VOICE, press right button, then press up or down button to
select your desired voice control setting: On, or O. Press OK button to
select the setting.
To activate voice control function without going into settings, touch the
button on the left speaker or say “Switch to voice mode”.
Navigate to BRIGHTNESS, press right button, then press up or down
button to select your desired remote control screen brightness setting:
High, Medium, or Low. Press OK button to select the setting.
Voice Control
Remote Control Screen Brightness
Language
Navigate to LANGUAGE, press right button, then use the up or down
button to select your desired language: English, Chinese, Japanese, or
Korean. Press OK button to select language.
Select SETTING from Home display, then use the up or down button to
navigate among: LANGUAGE, VOICE, BRIGHTNESS, BUTTONS, BEEP,
BLUETOOTH, and SLEEP MODE. Press OK button to enter the setting
you desire to control.
Settings
21
Remote Control Sound
Bluetooth Audio
Sleep Mode
Navigate to BEEP, press right button, then use the up or down button
to select your desired remote control beep setting: On or O. Press
OK button to select setting.
To turn on your chair’s Bluetooth, Navigate to BLUETOOTH, press
right button, then use the up or down button to select your desired
Bluetooth setting: On or O. Press OK button to select setting.
In order to to use the chair app, play in-built sounds from your
chair, or to play music from your Bluetooth enabled audio device,
Bluetooth must rst be turned on in settings.
Navigate to SLEEP MODE, press right button, then use the up or
down button to select your desired sleep mode setting: On or O.
Press OK button to select beep function.
When sleep mode is on the chair will stop in the reclined position
after Auto Programs, when sleep mode is o the chair will return to a
fully upright position after each Auto Program.
Navigate to BUTTONS, press right button, then press up or down
button to select your desired remote key back-light setting: On, or
O. Press OK button to select the setting.
Button Lights
22
Press MANUAL from Home display, press up or down button to
navigate among: MODE, PART, WIDTH, SPEED, and ROLLER.
Navigate to MODE, press right button, then use the up or down button
to select your desired mode: Kneading, Tapping, Knocking, Shiatsu,
Sync, or 4D Shiatsu. Press OK button to select mode.
Navigate to PART, press right button, then use the up or down button to
select your desired region: Whole, Partial, and Point massage. Press OK
button to select region.
Whole travels the entire length of the track, Partial travels a short
distance and reverses direction for focused relief, Point stops on the
track for targeted relief. Partial and Point location can be ne tuned
using the arrow up or arrow down buttons.
Navigate to WIDTH, press right button, then use the up or down button
to select your desired width: Wide, Medium, and Narrow roller width.
Press OK button to select mode. (Massage Width can’t be adjusted
when in Kneading, or Sync Manual modes).
Massage Mode
Massage Part (Region)
Massage Width
Create a Massage
Manual Programs
23
Massage Speed
Navigate to SPEED, press right button, then use the up or down button
to select your desired speed: 1 = slow, 6 = fast. Press OK button to select
the speed. (Massage Speed can’t be adjusted when in Shiatsu).
Foot Rollers
Navigate to ROLLER, press right button, then use the up or down button
to select your desired foot roller speed: 1 = slow, 2, 3 = fast, or OFF
(deactivate foot roller). Press OK button to select the setting.
Remote Control Screen Idle
Whilst running an Auto Program or Manual
mode, the remote control screen will return to
the in-use screen (as shown below) after 10
seconds of being idle.
Manual
In-use screen
Auto Program
In-use screen
CAUTION
- Please do not spill water or other liquids in order to avoid key malfunctions and error codes.
- Please do not place heavy objects on the controller or power cord.
24
Staying Safe
To ensure safe use of the massage chair and avoid injury or unsafe conditions, please
read and follow all instructions before using product.
Safety Information
USE NOT RECOMMENDED FOR CERTAIN PERSONS
Use of massage chair may not be safe or suitable for persons with certain medical
conditions and could cause serious injury or death in some circumstances. If you have any
of the following conditions, please consult a physician before using the massage chair:
WARNING
- Use of implanted electronic medical devices
(such as a cardiac pacemaker)
- Pregnancy
- Cancer, malignant tumors, or other growths
- Osteoporosis or spinal fracture
- Other fractures or musculoskeletal injuries
- Loss of or reduced sensitivity to heat
- Implanted medical xation devices such as
rods, pins, etc.
- Recent surgery or sutures
- Skin diseases or skin injury
- High fever
- Certain pulmonary or breathing
conditions
- Impaired circulation
To avoid possible death or serious injury to user or others, please read and follow these
instructions:
WARNING
- The areas under the footrest and behind the back rest are potentially dangerous for a child
or pet. The chair back is heavy and reclines with force. A small child or pet located behind
the chair could be crushed as chair is reclined resulting in serious injury or death. When chair
is reclined, small children or pets who have crawled under the leg rest may not be visible to
the user and could be crushed when leg rest is lowered or when chair is returned to upright
position. To avoid serious injury or death, check these areas carefully before reclining,
lowering leg rest, or returning chair to upright position.
- Chair should not be used by children under age 14. Small children could be trapped or injured
by airbags, heating mechanism, or moving parts. When chair is not in use, unplug unit and secure
chair so that children cannot accidentally power on and operate chair.
- Children over age 14, persons with reduced physical, sensory, or mental capabilities, and elderly or
frail persons should exercise caution and use massage chair only when supervised or assisted by a
person over 16 years of age.
- Chair has a heated surface and could cause burns, particularly in persons with reduced sensitivity
to heat. Such persons should use the chair only after consulting with a physician and should use
extreme caution during any physician-approved use.
25
To avoid the risk of minor injury or discomfort, or damage to the massage chair or other
property, please read and follow these instructions for safe use of massage chair:
CAUTION
- Do not stand or stack heavy objects on footrest.
- Do not operate heating features of chair while under a blanket or pillow. Excessive heating can occur
and cause re, electric shock, or injury to persons.
- To avoid pinching or crushing, please do not place body parts, especially ngers and toes, between
parts of chair and keep clear of moving parts.
- To avoid overheating, injury or discomfort from overuse, do not fall asleep while using massage chair
and do not use for extended periods of time (longer than 20 minutes).
- Avoid use while under the inuence of alcohol, medications or other substances that my cause
drowsiness, disorientation, or impairment of judgment or motor skills.
- Do not use the massage chair right after a meal, as it may cause discomfort.
- If you feel any abnormal discomfort during the operation of the massage chair, turn o the power
immediately and discontinue use.
- Do not use this appliance when ambient temperature is over 40 C (104 F).
- Do not use this appliance in humid or dusty environment, or when any part of the body is in contact
with plumbing or any similar ground.
- Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair,
dust and the like.
- Do not use outdoors.
- Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
- Place the product on a at, level oor to reduce risk of tipping or overturning.
- Do not use or store near heat or open ame.
- Intended only for users who weigh below 300 lbs.
- Use this product only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
- Massage chair intended only for use by one person. Do not use by two or more persons at the same
time to avoid damage to the product.
- Do not allow children to stand, jump, or play on or around massage chair, even when it is not
powered on or in use.
- Remove personal accessories from arms and empty pockets while using the massage features of the
chair.
- Check the upholstery under the cushions and other spots for damage or loose objects that may
cause injury or damage chair while operating. If any damage is present, do not use the massage
chair and refer to a qualied service professional for servicing.
- To avoid damage to chair, walls, or other objects, make sure there are no obstacles behind the chair
and there is enough clearance before adjusting the backrest or leg rest angle.
- Please be seated properly while using the product.
26
Staying Safe
WARNING
- To avoid risk of electric shock, connect this unit to a properly grounded outlet only. See Grounding
Instructions on pg. 7.
- Always unplug massage chair from the electrical outlet immediately after use and before cleaning.
An appliance should never be left unattended when plugged in. To disconnect, turn all controls to
the o position, then remove plug from outlet.
- Do not use massage chair and unplug from outlet during thunder or lightning storms, and before
putting on or taking o parts.
- To ensure safe operation, power must be supplied only at standard 110 voltage, to the
specications of the appliance. Conrm that the power voltage stated on the rating label
corresponds to your local electricity supply.
- The massage chair should be used only with the power supply unit provided. Do not use with any
other power source
- Do not use a wet or damp hand to unplug the cord to avoid electric shock.
- Do not pull on the power cord to unplug. Grip by plastic end nearest outlet to unplug power cord.
- Do not squeeze, over bend, pull hard, or twist the power cord. - Keep the power cord away from
heated surfaces.
- Do not carry or drag the chair by power cord or use cord as a handle.
- If there is any smoke or unusual smell while using massage chair, stop using immediately and
unplug the power cord.
- Never operate the chair if it has a damaged power cord or plug. If the power cord is damaged, it
must be replaced by the manufacturer or its service agent or a similarly qualied person to avoid a
hazard.
Do not disassemble, dismantle or attempt to repair massage chair. Such actions, as
well as misuse of product, may cause damage to or failure of massage chair and may
void the manufacturer’s warranty. For repairs, please contact an authorized dealer or
repair agent at 1-603-910-5333. For additional details concerning terms, conditions and
limitations of warranty, see https://innitymassagechairs.com/warranty-info.
- To avoid damage to chair or oors, do not drag or push the chair or roll its casters on wood oor
or carpet. See instructions on p.6 for safely moving chair.
- If massage chair is not working properly, has been dropped or damaged, or has been dropped into
water or exposed to ooding, return the appliance to a service center for examination and repair
before attempting to use.
- Do not drop or insert any object into any openings in chair.
27
Fixing Issues
Trouble Shooting
Specifications
.
These noises are normal and arise
from friction between the massage
rollers and the leather cover
No need to take any measuresNoise is heard
while in use
Massage Chair
does not start
No music comes
from the speaker
Not switched ON
The fuse is blown
The power cord is not secured
into the socket
Insert the power plug properly into the
power socket
Turn on the switch found on chair side.
Then push power button on remote
Replace only with a fuse of same type and
rating
Adjust the speaker volume from the
mobile device. Make sure Bluetooth setting
on chair and phone are both ON
Replace the load and try again
Straight the air hose and clear out the
blockage
The air hose is blocked
The volume is turned to the
lowest setting
Excessive load has been pressed
on the backrest or legrest
Airbag malfunction
Backrest or footrest
can not raise or recline
Symptoms Possible SolutionPossible Causes
Nature sounds are
not playing
Bluetooth is OFF Make sure Bluetooth is
set to ON
Pause and Chair
Adjustment Buttons
are disabled
Exit the Demo by selecting another program,
or by hitting the power button.
Chair is in the Demo Program
Model
Frequency
Rated Current
Dimension of Main Body (in)
N
ecessary Clearance to Wall (in)
Net Weight (lbs)
Shipping Weight (lbs)
Max. User Weight (lbs)
Voltage
67 x 35 x 49 (L x W X H
)
Yutaka M898 4D
303.6
110-120V~
60Hz
1.5A
300
367
4”
28
Fixing Issues
Frequently Asked Questions
Q: I nd the chair is too intense to be comfortable. What can I do?
Q: I’m not a foot massage person, what should I do?
Q: My chair is not performing as expected. What should I do?
Q: Nature sounds are not working on my chair
A: Your body needs to become acclimated to therapeutic massage. To be eective, the
massage techniques must compress the tissue in your body. We recommend the following
steps to help get started. Then over time as your body acclimates you can increase the
intensity by reducing the layers between you and the chair.
1. Use body the Pillow and Pillow pad to reduce upper body intensity
2. Use the back pad that came with your chair to reduce back intensity
3. Use the foot bed pads that came with your chair
4. Go into Airbag on the main menu, select air intensity setting 1
- If a specic airbag is too intense, turn o Full and turn only the airbags you want
5. Press the foot roller button until you feel the foot rollers turn o
6. Adjust the recline on the remote. More upright will be less intense. Zero Gravity will be
more intense
A: Turn o foot rollers, press the Foot Roller button on your remote control until the rollers
stop. You may also want to turn o the Foot/Calf airbags or reduce the air intensity to level 1.
A: Your Kyota massage chair is an amazing combination of programming and robotics. On
occasion the chair just may need to be rebooted. To do this power down the chair and unplug
from the wall for 5 minutes then plug back in and power back up to see if it self-healed. If you
are still having an issue, give Kyota a call at 1-603-910-5333.
A: Go to Bluetooth under Settings and make sure it is set to On. Then go to Volume under
Sounds and make sure it is not set on O, 1 or 2.
For more information and access to further questions, and resources, visit our website at
www.kyotamassagechairs.com.
29
Warranty
This Kyota Massage Chairs is protected by Kyota’s 4 Year U.S/Canada Residential Limited
Warranty. For more information, scan the QR code below and click on the Kyota Promise tab.
SCAN CODE
72 Stard Road, Seabrook, NH 03874
1-603-910-5333
www.kyotamassagechairs.com
Version 1.11
The World’s Most
Advanced Massage Chairs
®
