Pet Grooming Vacuum
Model No. FLR00162
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Pet Grooming Vacuum
Model No. FLR00162
User Manual
Contents
Page No.
2 Contents
3 Reading and Storing the User Manual
3 Important Safety Instructions for Proper Use
6 Explanation of Symbols
7 Description of Parts
7 Description of Accessories
8 Description of Accessories Control Panel & Flexible Hose
8 Before First use of Your Pet Vacuum
8 About Your Pet Vacuum
8 Assembling Your Pet Vacuum
9 Selecting the Speed/Suction Level Required
10 Fitting and Using the Shaving Tool
11 Removing the Cover on the Shaving Tool
12 Care and Maintenance of the Shaving Tool
13 Fitting and Using the Grooming Brush
14 Fitting and Using the De-Shedding Tool
15 Fitting and Using the Upholstery/Paw Cleaner Brush
16 Using the Crevice Tool
16 Emptying Your Pet Vacuum
17 Care and Maintenance of Your Pet Vacuum
17 Cleaning the Steel Filter
18 Cleaning the Carbon Sponge and Cotton Filters
19 Cleaning the Hepa Filter
20 Recommended Filter Cleaning Intervals
20 Storing Your Pet Vacuum
21 Storing the Flexible Hose
21 Troubleshooting Guide
22 Technical Specification
22 Plug Wiring Information
22 Recycling Information

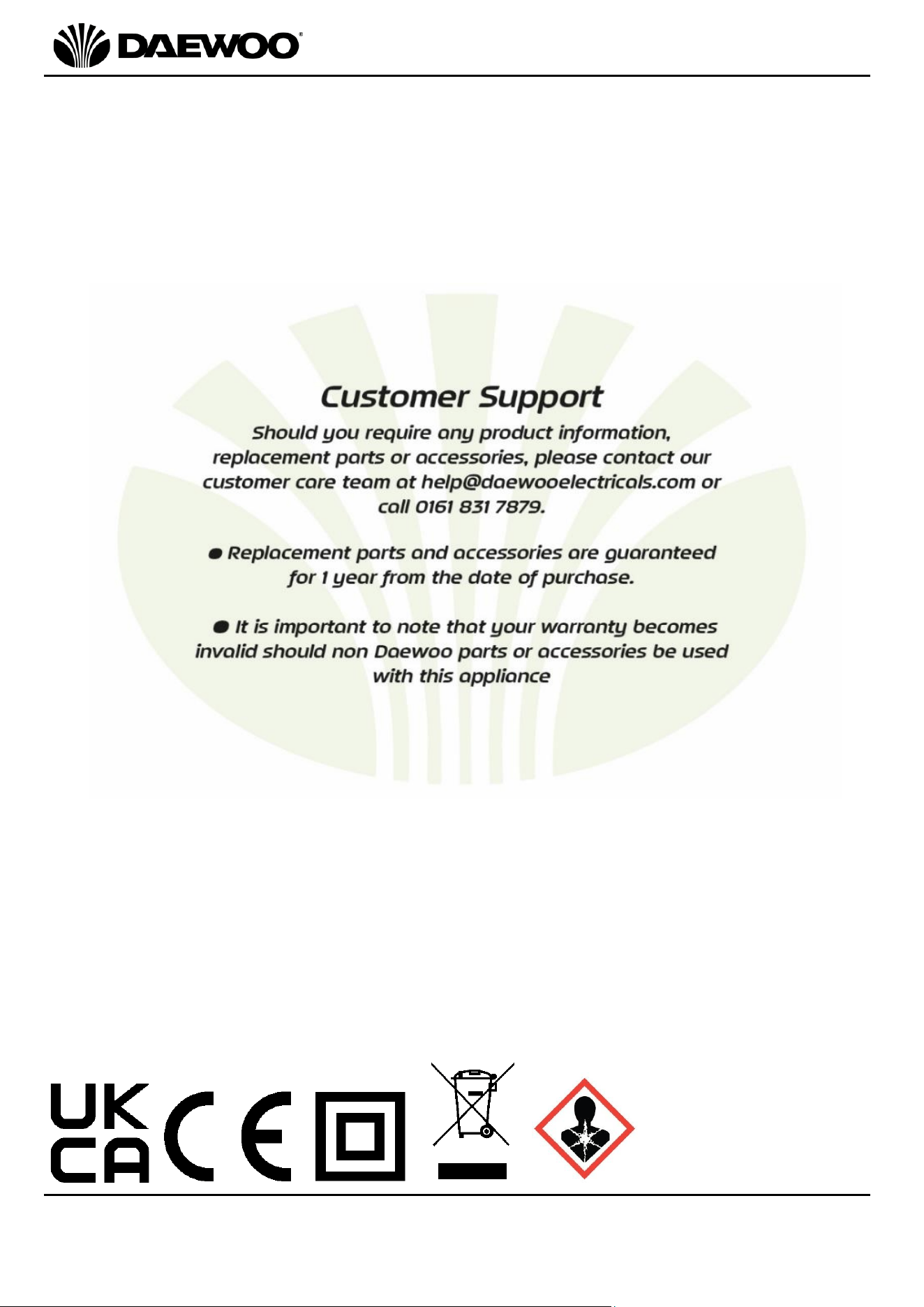

23 Customer Support
Back Page Warranty Information
3
Pet Grooming Vacuum
Model No. FLR00162
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions should
always be followed.
Only use the product as described in this user manual. Any other use is
considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury
incurred through improper or incorrect use.
• Read and familiarise yourself with all operating
instructions before using this Pet Vacuum.
• Before plugging your unit into the mains, visually check
that the unit is intact and has not suffered any transit
damage.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
• This appliance can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Keep the appliance and its cord out of reach of children
less than 8 years when it is energised or cooling down.
• DO NOT immerse the appliance or its cord in water or any
other liquids.
• DO NOT leave the appliance unattended during use.
• DO NOT leave the appliance unattended whilst connected
to the mains supply.
• DO NOT use this appliance outdoors.
4
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Pet Grooming Vacuum
Model No. FLR00162
User Manual
• It is imperative to unplug the power cord after the
appliance has been used, before it is cleaned and whilst
being repaired.
• Repairs to electrical appliances should only be performed
by qualified personnel. Improper repairs may place user at
serious risk.
• DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
• Regular, periodic checks should be carried out on the
mains cable to ensure no damage is evident. Should there
be any signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced
by qualified personnel in order to avoid a hazard.
• DO NOT allow the mains cable to hang over sharp edges
or come in contact with hot surfaces.
• DO NOT run the mains cable under carpets, rugs, etc.
• The appliance is not to be used if it has been dropped, if
there are visible signs of damage or it is leaking.
• The plug must be removed from the socket outlet before
the reservoir is filled with water or the waste water tank
emptied.
• The filling aperture must not be opened during use.
• Allow the unit to cool before storage.
• Before cleaning, disconnect the appliance from the mains
supply and allow to cool.
• This appliance is intended for household use only and
should not be used for industrial purposes.
• DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
supplier.
• DO NOT use this appliance for anything other than its
intended use.
• DO NOT push objects into any openings as damage to the
appliance and/or electric shock may occur.
• Unplug after each use. Grasp the plug, not the cord.
5
Pet Grooming Vacuum
Model No. FLR00162
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
• DO NOT pull or carry the appliance by the electrical cord.
• Caution: Always wear suitable shoes when using the Spot
Washer and when changing accessories, do not wear
slippers or open toed footwear.
• Ensure fingers and other objects are never placed in any
part of the Pet Vacuum. Clothing or hair may become
trapped if the Pet Vacuum is used improperly.
• Keep hair, loose clothing, jewellery, fingers and all parts of
the body away from openings and moving parts.
• Keep all air vents clear and free of dust, lint, hair and
anything else that may reduce airflow.
• Avoid directing the appliance towards naked flames as the
air discharged may extinguish gas fires or pilot lights and
may disturb ashes in open fires.
• Never operate the appliance without water.
• Never fill the water tanks past the maximum level mark.
• DO NOT run the Pet Vacuum over hot ashes or lit
cigarettes, etc.
• Do not use the Pet Vacuum without the dust
compartment fitted.
• DO NOT run the Pet Vacuum over any large or broken
objects such as glass.
• DO NOT run the Pet Vacuum over anything that is burning
or smoking such as cigarettes, matches or hot ashes.
6
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Pet Grooming Vacuum
Model No. FLR00162
User Manual
Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable provisions
of the European Economic Area.
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken
to a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk, enter
your postcode to find out your nearest recycling site.
This symbol provides useful additional information on the use of
this product.
This symbol indicates that the supply uses an alternating current
mains supply.
This symbol indicates that the appliance is electrically double
insulated and therefore does not require an earth connection.
WARNING! This designates a hazard with moderate risk, which may result
in severe injury or damage to the product if not adhered to.
This symbol warns not to swallow the lubrication Oil supplied.
7
Pet Grooming Vacuum
Model No. FLR00162
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Description of Parts
Description of Accessories
1. Control Panel.
2. Motor Unit.
3. Filter Assembly.
4. Mains Cable.
5. Dust Compartment.
6. Base.
7. Hose Connection.
8. De-Shedding Tool.
9. 16mm/⅝ Shaving Guard.
10. 3mm/⅛ Shaving Guard.
11. 24mm/1” Shaving Guard.
12. 9mm/⅜ Shaving Guard.
13. Shaving Tool.
14. Grooming Brush.
15. Lubrication Oil (x 3 bottles)
16. Crevice Tool.
17. Upholstery/Paw Cleaner Brush.
18. Nail Clippers.
1
2
6
7
8
9
3
5
11
4
13
12
10
16
17
14
18
15
8
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Pet Grooming Vacuum
Model No. FLR00162
User Manual
Description of Parts – Control Panel & Flexible Hose
Before First use of Your Pet Vacuum
• Remove all packing materials and discard responsibly.
• Take care whilst opening the carton as a sharp blade may damage the product.
• Ensure that all parts are present – see ‘Description of Parts’ above:
About Your Pet Vacuum
• This Pet vacuum is designed to groom and trim your pet whilst removing all the
hair and debris accumulated neatly into the vacuum.
• Do not use on damp or wet hair.
Assembling Your Pet Vacuum
Left: Attach the Flexible Hose (22)
to the Pet Vacuum by pushing the
end of the hose into the Hose
Connection (7) until it clicks
home.
Right: To disconnect the Flexible
Hose (22) from the vacuum, press
the button (arrowed) and pull the
hose to remove.
19
20
21
22
19. On/Off Button.
20. Speed Indicators.
21. Speed Control.
22. Flexible Hose.
9
Pet Grooming Vacuum
Model No. FLR00162
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Selecting the Speed/Suction Level Required
The Pet Vacuum has three speeds available low (quiet mode), medium and high
speed, each increase in the speed setting will increase the suction level.
To select the desired speed, press the Speed Control (21) button repeatedly as
shown below:
The Speed Indicators (20) will illuminate to show the speed selected as shown
above.
c. Low Speed/quiet mode
b. Medium Speed
a. High Speed
10
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Pet Grooming Vacuum
Model No. FLR00162
User Manual
Fitting and Using the Shaving Tool (13)
The Shaving Tool (13) is powered through the Flexible Hose (22) and requires
no external power.
1. Ensure that the mains plug in not inserted into the
socket.
2. Push the Shaving Tool (13) onto the end of
the Flexible Hose (22) until the catch clicks
home:
NOTE Press the button on the end of the
Flexible Hose (22) and then pull the Shaving
Tool (13) to remove it.
3. If required, fit one of the four Shaving Guards (9, 10, 11 or 12) to the Shaving
Tool (13) according to the length of trim desired. The Shaving Guards (9-12)
allow the Shaving Tool (13) to trim to a minimum length as shown below:
Shaving Guard No.
Minimum length of trim
9
16mm/⅝”
10
3mm/⅛”
11
24mm/1”
12
9mm/⅜
4. Fit the desired guard as follows:
b. Hook the Shaving
Guard (9-12) onto the
Shaving Tool (13)
a. Press the clip to secure the
Shaving Guard (9-12) in
place.
11
Pet Grooming Vacuum
Model No. FLR00162
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
5. Insert the mains plug into the nearest socket.
6. Press the On/Off (19) button to power up the Pet Vacuum,
select the desired speed using the Speed Control (21)
button according to the density of the fur to be trimmed
using the Speed Indicators (20).
NOTE Select the lowest speed to enable the quiet mode of
trimming.
7. Take care whilst shaving your pet not to
catch soft parts of the skin – shave the
pet gently, allow the tool to cut the fur
without using excessive force. Any
excess fur will be removed by the Pet
vacuum.
Removing the cover on the Shaving Tool (13)
For increased visibility, the clear cover on the Shaving Tool (13) can simply be
removed as shown below:
12
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Pet Grooming Vacuum
Model No. FLR00162
User Manual
Care and Maintenance of the Shaving Tool (13)
1. After each use of the Shaving Tool (13)
carefully remove the blade by pulling the
blade forward as shown right:
2. Use the vacuum to remove hair, dirt, etc. from the blade and shaving tool as
below:
3. Finally, once cleaned, add a drop or two of the Lubricating Oil (15) to the
blade to keep the blade in good operating condition as shown below:
13
Pet Grooming Vacuum
Model No. FLR00162
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Fitting and Using the Grooming Brush (14)
1. Ensure that the mains plug in not inserted into the
socket.
2. Push the Grooming Brush (14) onto the
end of the Flexible Hose (22) until the
catch clicks home:
NOTE Press the button (arrowed left) on
the end of the Flexible Hose (22) and then
pull the Grooming Brush (14) to remove it.
3. Insert the mains plug into the nearest socket.
4. Press the On/Off (19) button to power up the Pet
Vacuum, select the desired speed using the Speed
Control (21) button according to the density of the fur
to be combed using the Speed Indicators (20).
NOTE Select the lowest speed to enable the quiet mode
of grooming.
5. Right: Comb your pet as you would with
an ordinary brush. Once the brush is full
of hair, press the button on the top of the
Grooming Brush (14) to remove the hair
which will then be removed by the
vacuum.
14
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Pet Grooming Vacuum
Model No. FLR00162
User Manual
Fitting and Using the De-Shedding Tool (8)
1. Ensure that the mains plug in not inserted into the
socket.
The De-Shedding Tool (8) can be used on most animals that shed their coat,
including dogs, cats, and other pets with an undercoat. The De-Shedding Tool (8)
should not be used on non-shedding breeds or on pets with particularly sensitive
skin.
2. Push the De-Shedding Tool (8) onto the
end of the Flexible Hose (22) until the
catch clicks home:
NOTE: Press the button on the end of the
Flexible Hose (22) and then pull the De-
Shedding Tool (8) to remove it.
3. Insert the mains plug into the nearest socket.
4. Press the On/Off (19) button to power up the Pet
Vacuum, select the desired speed using the Speed
Control (21) button according to the density of the fur
to be combed using the Speed Indicators (20).
NOTE Select the lowest speed to enable the quiet
mode of combing.
5. Right: Comb your pet as you would with an
ordinary comb. Once the comb is full of hair,
press the button on the top of the De-
Shedding Tool (8) to remove the hair which
will then be removed by the vacuum.
15
Pet Grooming Vacuum
Model No. FLR00162
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Fitting and Using the Upholstery/Paw Cleaner Brush (17)
1. Ensure that the mains plug in not inserted into the
socket.
The Upholstery/Paw Cleaner Brush (17) can be used for removing pet hair
from Upholstery and also for cleaning your pets paws.
2. Push the Upholstery/Paw Cleaner Brush
(17) onto the end of the Flexible Hose (22)
until the catch clicks home:
NOTE: Press the button on the end of the
Flexible Hose (22) and then pull the
Upholstery/Paw Cleaner Brush (17) to
remove it.
3. Insert the mains plug into the nearest socket.
4. Press the On/Off (19) button to power up the Pet
Vacuum, select the desired speed using the Speed
Control (21) button according to the density of the fur
to be combed using the Speed Indicators (20).
NOTE Select the lowest speed to enable the quiet mode
of cleaning.
Using the brush for Paw Cleaning
5. Right: Place your pets paw onto the
underside of the Upholstery/Paw Cleaner
Brush (17) any dirt, hairs, fluff etc. will then
be removed by the vacuum.
16
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Pet Grooming Vacuum
Model No. FLR00162
User Manual
Using the brush for Cleaning up Pet Hair
6. Right: The Upholstery/Paw Cleaner Brush
(17) can also be used to clean furniture,
staircases and carpets of pet hair.
Using the Crevice Tool (16)
1. Left: Attach the Crevice Tool (16) to the
Flexible Hose (22). The tool can be use for
removing pet hairs from hard to reach
areas.
Emptying Your Pet Vacuum
1. Right: Pull the Dust Compartment (5)
up at front and remove it from the Pet
vacuum.
17
Pet Grooming Vacuum
Model No. FLR00162
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2. Hold the Dust Compartment (5) over a Waste Bin.
Lift the catch at the back of the compartment, open the door to allow the waste
to fall into the bin.
• Empty the Dust Compartment (5) as soon as it is full.*
* WARNING! DO NOT continue to use your pet vacuum once the Dust
Compartment (5) is full as permanent damage may occur to the appliance which
may invalidate your warranty.
Care and Maintenance of Your Pet Vacuum
• Always disconnect the vacuum from the mains power supply
before cleaning your pet vacuum.
• Clean outside of the cleaner with a clean damp cloth.
Never clean with harsh or abrasive cleaners.
• Do not submerge the cleaner or its mains cable in water or any other liquids.
• Wash the Filter Assembly (3) regularly – see below.
• Allow the filters to thoroughly dry out for 24 hours before reassembly and use.
Cleaning the Steel Filter
1. Remove the Dust Compartment (5) as
described above.
2. Use a dry brush to ensure the Steel
Filter in the Dust Compartment door
(arrowed below) is free of dust, hairs,
fluff, etc.
18
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Pet Grooming Vacuum
Model No. FLR00162
User Manual
Cleaning the Carbon Sponge & Cotton Filters
1. Remove the Dust
Compartment (5) as
described above.
2. Remove the Carbon
Sponge and Cotton Filters
from the Steel Filter in
the back of Dust
Compartment (5).
3. Wash the Carbon Sponge
and the Cotton Filter in
warm running water until
the filters are clean, wring
out any excess water.
4. Allow the filters to dry for 24
hours before re-fitting.
1. Once dry, refit the Carbon
Sponge and Cotton Filters back
onto the Steel Filter in the door
on the back of the Dust
Compartment (5) as shown
right:
NOTE: DO NOT refit the filters
whilst they are still wet or damp.
Carbon
Sponge Filter
Cotton Filter
Door
19
Pet Grooming Vacuum
Model No. FLR00162
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cleaning the Hepa Filter
2. Remove the Hepa Filter
from the Motor Unit (2).
3. Wash the Hepa Filter in warm
running water until the filter is clean.
4. Allow the Hepa filter to dry for
24 hours before re-fitting it
back into the Motor Unit (2).
5. Once dry, refit the Hepa
Filter back into the Motor
Unit (2).
NOTE: DO NOT refit the Hepa
Filter whilst it is still wet or
damp.
1. Remove the Dust Compartment
(5) as described above.
20
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Pet Grooming Vacuum
Model No. FLR00162
User Manual
Recommended Filter Cleaning Intervals
Filter Type
Recommended Cleaning Period
•
Occasionally
r
emove
any
dust/debris
as
necessary
.
• The filter should
also
be
rinsed
under
warm
water once a month.
• Allow to dry thoroughly for 24 hours before
reuse.
•
Occasionally
r
emove
any
dust/debris
as
necessary
.
• The filter should
also
be
rinsed
under
warm
water once a month.
•
Allow to dry thoroughly for 24 hours before
reuse.
•
Brush Dust, Hairs and Fluff etc. after each
use.
WARNING! Ensure the filters are cleaned periodically according to the table
above, failure to clean the filters regularly will severely impair the performance
and permanent damage may occur to the appliance and may invalidate your
warranty.
Storing Your Pet Vacuum
Store the Pet Vacuum in a cool, dry place away from direct sunlight.
• Shake
out
debris
when
you
empty
the
dust container.
•
Rinse
under
war
m
water
once
a
month.
• Allow to dry thoroughly for 24 hours
before reuse.
Hepa Filter
Carbon
Sponge Filter
Cotton Filter
Steel Filter
21
Pet Grooming Vacuum
Model No. FLR00162
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Storing the Flexible Hose (22)
Wrap the Flexible Hose (22) clockwise around the Pet Vacuum and hook the end
of the hose into the clip on the side of the unit as shown above.
Troubleshooting Guide
Problem
Possible Cause
Solution
Unit fails to turn on.
The unit may not be
properly plugged in.
Ensure the plug is fully
inserted into the socket and
the socket is switched on.
The fuse may have blown.
Check the fuse by
substitution.
The motor has overheated
Switch off and allow the unit
to cool before reuse.
The power is not switched
on.
Press the On/Off Switch
Low suction during cleaning.
The Dust Compartment is
full.
Empty the Dust
Compartment.
The Dust Compartment is
not installed properly.
Check the Dust Compartment
is installed properly.
The vacuum hose is dirty,
clogged
Clean the vacuum hose
The filters are blocked
Clean the Filters
22
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Pet Grooming Vacuum
Model No. FLR00162
User Manual
Technical Specification
Rated Voltage
220-240V AC ~ 50Hz
Rated Power
300W
Protection Class
II
Model Number
FLR00162
Flexible Hose Length
1.6m
Mains Cable Length
2.3m
Dust Compartment Capacity
2.3L
Suction Level
10KpA
IP Rating
IPX4
Weight (without accessories)
1.7kg
Dimensions
343mm (h) x 135mm (w) x 205mm (d)
Non-Rewireable Mains Plug
If your appliance is supplied with a non-rewireable plug fitted to the mains lead
and should the fuse need replacing, you must use an ASTA approved one
(conforming to BS 1362 of the same rating). Never use a plug with the fuse cover
missing. If in doubt, consult a qualified electrician.
If you need to remove the plug – DISCONNECT FROM THE MAINS – and then cut
it off the mains lead and immediately dispose of it safely. Never attempt to reuse
the plug or insert it into a socket outlet as there is a danger of electric shock.
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit, enter
your postcode to find out your nearest recycling site.
23
Pet Grooming Vacuum
Model No. FLR00162
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
24
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Pet Grooming Vacuum
Model No. FLR00162
User Manual
WARRANTY
Thank you for purchasing your Daewoo Vacuum.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase,
with proof of purchase or receipt. If any defect should occur due to faulty workmanship or
material, your faulty vacuum should be returned to the place of purchase, replacement or refund is
at the discretion of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the
requirements contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of the
original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28
days of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
