WDR Covert Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Model
DS-2CS54C8T-PH
DS-2CS54D8T-PH
This manual may contain technical incorrect places or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.
.
0100001070725
Regulatory Information
FCC Information
Please take attention that changes or modification not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
FCC compliance: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
EU Conformity Statement
This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the
applicable harmonized European
standards listed under the Low Voltage Directive
2014/35/EU, the EMC Directive 2014/30/EU.
2012/19/EU (WEEE directive): Products
marked with this symbol cannot be
disposed of as unsorted municipal waste in
the European Union. For proper recycling,
return this product to your local supplier
upon the purchase of equivalent new
equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a
battery that cannot be disposed of as
unsorted municipal waste in the European
Union. See the product documentation for
specific battery information. The battery is
marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery
to your supplier or to a designated collection point. For
more information see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.
Warning
This is a class A product. In a domestic environment this
product may cause radio interference in which case the
user may be required to take adequate measures.
Safety Instruction
These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and
“Cautions”.
Warnings: Serious injury or death may occur if any of
the warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.
Warnings
In the use of the device, you must be in strict
compliance with the electrical safety regulations of
the nation and region.
Input voltage should meet both the SELV (Safety Extra
Low Voltage) and the Limited Power Source with 12
VDC according to the IEC60950-1 standard. Refer to
technical specifications for detailed information.
Do not connect multiple devices to one power
adapter to avoid over-heating or a fire hazard caused
by overload.
Make sure that the plug is firmly connected to the
power socket.
Make sure that the device is firmly fixed if wall
mounting or ceiling mounting is adopted.
If smoke, odor or noise rise from the device, turn off
the power at once and unplug the power cord, and
then contact the service center.
Never attempt to disassemble the camera by
unprofessional personal.
Cautions
Do not drop the camera or subject it to physical
shock.
Do not place the camera in extremely hot, cold (the
operating temperature shall be -40°C to 60°C), dusty
or damp locations, and do not expose it to high
electromagnetic radiation.
Do not touch senor modules with fingers.
If cleaning is necessary, use clean cloth with a bit of
ethanol and wipe it gently.
Do not aim the camera at the sun or extra bright
places.
The sensor may be burned out by a laser beam, so
when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.
Do not expose the device to high electromagnetic
radiation or extremely hot, cold, dusty or damp
environment.
To avoid heat accumulation, good ventilation is
required for the operating environment.
Warnings Follow
these safeguards to
prevent serious injury
or death.
Cautions Follow these
precautions to prevent
potential injury or
material damage.
Keep the camera away from liquid while in use for
non-water-proof device.
While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
Mark Description
Table 0-1 Mark Description
Mark
Description
DC Voltage
.
1 Introduction
1.1 Product Features
The camera is applicable for indoor conditions, and the
application scenarios include ATM machine, VTM
machine, etc.
The main features are as follows:
High performance CMOS sensor
Low illumination: 0.005 Lux @ (F1.2, AGC ON)
Automatic gain control
120 dB true WDR
OSD menu
Internal synchronization
1.2 Overview of the Covert Camera
4
7
6
5
8
1
2
DC12VIN
3
Figure 1-1 Covert Camera’s Overview
Note:
Press and hold the switch button for 3 seconds to
switch the video output. Two kinds of video outputs are
available: TVI and CVBS.
Table 1-1 Covert Camera Description
No.
Description
No.
Description
1
Switch Button
2
12 VDC Power Cord
3
Video Cable
4
Adjustment Screw
5
Lens
6.
Power & Video
Interface
7
Mounting Bracket
8
Cable Hole
2 Installation
2.1 Installation Preparation
Before you start:
Make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is power-off
during the installation.
Check the specification of the products for the
installation environment.
Check whether the power supply is matched with
your required output to avoid damage.
Make sure the wall is strong enough to withstand
three times the weight of the camera and the
bracket.
If the wall is cement, insert expansion screws before
installing the camera. If the wall is wooden, use
self-tapping screw to secure the camera.
If the product does not work properly, contact your
dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance by
yourself.
2.2 Installing the Covert Camera
Both wall mounting and ceiling mounting are suitable
for the covert camera.
Wall Mounting
Ceiling Mounting

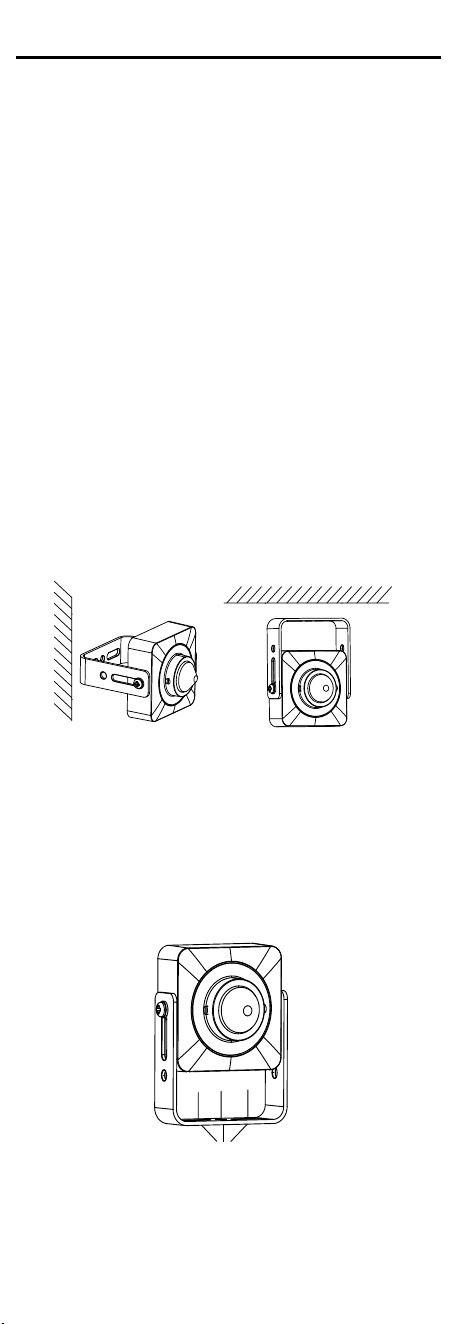

Figure 2-1 Wall Mounting and Ceiling Mounting
Note:
Secure the camera with screw 1 to rotate the camera
on the panning direction.
Secure the camera with screws 2 to move the camera
left and right.
2 1 2
Mounting Screws
Figure 2-2 Mounting Screws
Steps:
1. Use the PA2 screw to fix the bracket to the place
where you want to install the camera.

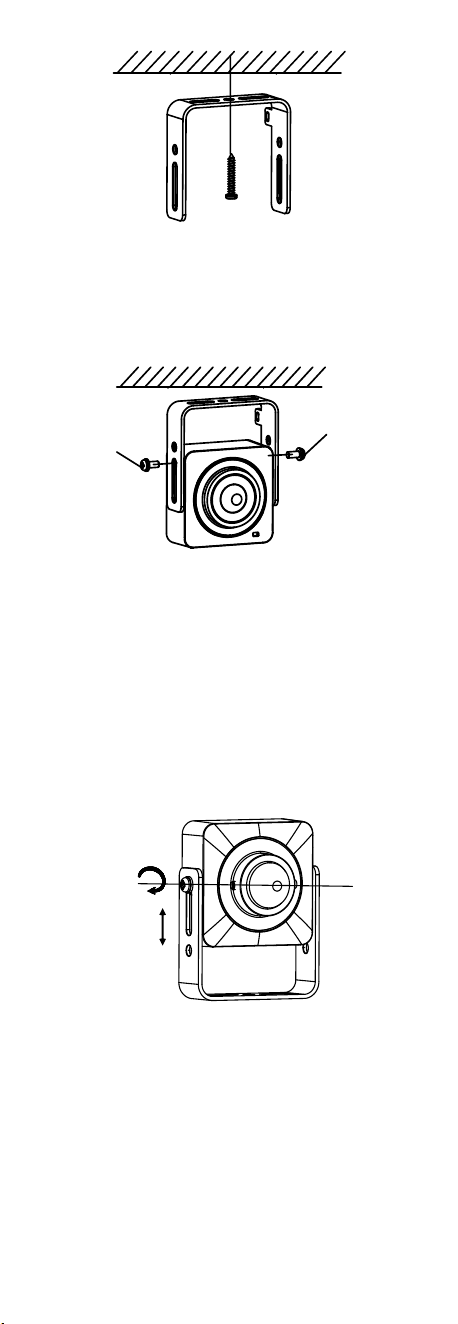

Figure 2-3 Install the Bracket
2. Fix the covert camera to the bracket with M2
adjustment screws.
Adjustment
Screw
Adjustment
Screw
Figure 2-4 Loosen the Adjustment Screw
3. Connect the corresponding power cord, and video
cable.
4. Power on the camera to check whether the image on
the monitor is gotten from the optimum angle. If not,
adjust the surveillance angle.
(1) Loosen the adjustment screw.
(2) Move the camera up and down, and rotate the
camera on the tilting direction [0º to 180º] to get
an optimum angle.
Tilt Direction
(0° to 180° )
UP
Down
Figure 2-5 Adjust the Angle
5. Tighten the adjustment screw to complete the
installation.
3 Menu Description
Purpose:
Call the menu by clicking icon on the PTZ Control
interface, or call preset No.95.
Steps:
1. Connect the camera with the TVI DVR, and the
monitor, shown as the figure 3-1.
Camera
DVR/TVI DVR
Monitor
Figure 3-1 Connection
2. Power on the analog camera, TVI DVR, and the
monitor to view the image on the monitor.
3. Click PTZ Control to enter the PTZ Control interface.
4. Call the camera menu by clicking icon, or call
preset No. 95.
AE
WB
BRIGHTNESS
MAIN MENU
FORMAT
LANGUAGE
DAY NIGHT
VIDEO
SETTINGS
FUNC
RESET
SAVE & EXIT
PRIVACY
EXPOSURE MODE
AGC
SENSE UP
MODE
RETURN
MODE
RETURN
CONTRAST
SHARPNESS
COLOR GAIN
3D DNR
MIRROR
RETURN
MOTION
CAM ID
RETURN
Figure 3-2 Main Menu Overview
5. Click the direction arrow to control the camera.
(1) Click up/down direction button to select the
item.
(2) Click Iris + to confirm the selection.
(3) Click left/right direction button to adjust the
value of the selected item.
3.1 FORMAT
PAL (Phase Alternating Lines)
PAL is a color encoding system for analog television
used in broadcast television systems in most countries.
NTSC: (National Television System Committee)
NTSC is the analog television system that is used in
most of North America, parts of South America,
Myanmar, South Korea, etc.
3.2 LANGUAGE
Supports English, and Chinese.
3.3 MAIN MENU
3.3.1 AE (AUTO EXPOSURE)
Auto Exposure describes the brightness-related
parameters, which can be adjusted by BRIGHTNESS,
EXPOSURE MODE, AGC, and SENSE UP.
EXPOSURE
BRIGHTNESS
EXPOSURE MODE
AGC
SENSE UP
RETURN
5
GLOBAL
MIDDLE
0
Figure 3-3 AE
BRIGHTNESS
Brightness refers to the brightness of the image.
You can set the brightness value from 1 to 10 to darken
or brighten the image. The higher the value, the
brighter the image is.
EXPOSURE MODE
You can set the EXPOSURE MODE as GLOBAL, BLC, and
WDR.
GLOBAL
GLOBAL refers to the normal exposure mode which
adjusts lighting distribution, variations, and
non-standard processing.
BLC (Backlight Compensation)
BLC (Backlight Compensation) compensates light to the
object in the front to make it clear, but this may cause
the over-exposure of the background where the light is
strong.
When BLC is selected as the exposure mode, the BLC
level can be adjusted from 0 to 8.
WDR (Wide Dynamic Range)
The wide dynamic range helps the camera provide clear
images even under backlight circumstances. WDR
balances the brightness level of the whole image and
provides clear images with details.
AGC (Auto Gain Control)
It optimizes the clarity of the image in poor light
conditions. The GAIN level can be set as HIGH, MIDDLE,
or LOW. Select OFF to disable the GAIN function.
Note:
The noise will be amplified when the GAIN is on.
SENSE UP
Sense up increases the exposure on a signal frame,
which makes a camera more sensitive to light, so it can
produce images even in low lux conditions. You can set
the SENS-UP as OFF or AUTO according to different light
conditions.
The SENS-UP function will atomically adjust itself to x2,
x4, x6, x8, x10, x12, x14, and x16 according to the
different light conditions.
3.3.2 WB (White Balance)
White balance, the white rendition function of the
camera, is to adjust the color temperature according to
the environment. It can remove unrealistic color casts in
the image. You can set WB mode as ATW, or MWB.
ATW (Aoto Tracking White Balance)
Under ATW mode, white balance is being adjusted
automatically according to the color temperature of the
scene illumination.
MWB (Manual White Balance)
You can set the R GAIN/B GAIN value from 1 to 255 to
adjust the shades of red/blue color of the image.
WB
MODE
R GAIN
B GAIN
RETURN
MWB
5
5
Figure 3-4 MWB MODE
3.3.3 DAY NIGHT
Color, BW (Black White), and AUTO are selectable for
DAY and NIGHT switches.
DAY NIGHT
MODE
RETURN
AUTO
Figure 3-5 DAY NIGHT
COLOR
The image is colorized in day mode all the time.
B/W
The image is black and white all the time.
AUTO
Automatically switch Color or BW (Black and White)
according to actual scene brightness.
3.3.4 VIDEO SETTING
Move the cursor to VIDEO SETTING and click Iris+ to
enter the submenu. CONTRAST, SHARPNESS, COLOR
GAIN, 3D DNR, and MIRROR are adjustable.
VIDEO SETTING
CONTRAST
SHARPNESS
COLOR GAIN
3D DNR
MIRROR
RETURN
5
5
5
5
DEFAULT
Figure 3-6 VIDEO SETTING
CONTRAST
This feature enhances the difference in color and light
between parts of an image. You can set the CONTRAST
value from 1 to 10.
SHARPNESS
Sharpness determines the amount of detail an imaging
system can reproduce. You can set the SHARPNESS
value from 1 to 10.
COLOR GAIN
Adjust this feature to change the saturation of the color.
The value ranges from 1 to 10.
3D DNR (Digital Noise Reduction)
The 3D DNR function can decrease the noise effect,
especially when capturing moving images in poor light
conditions and delivering more accurate and sharp
image quality. You can set the DNR value from 1 to 10.
MIRROR
DEFAULT, H, V, and HV are selectable for mirror.
DEFAULT: The mirror function is disabled.
H: The image flips 180° horizontally.
V: The image flips 180° vertically.
HV: The image flips 180° both horizontally and
vertically.
3.3.5 FUNC (Functions)
In the FUNC sub-menu, you can set the privacy mask,
the motion detection, camera ID, and DPC of the
camera.
PRIVACY
The privacy mask allows you to cover certain areas
which you don’t want to be viewed or recorded. Up to 4
privacy areas are configurable.
PRIVACY
MODE
AREA 0
AREA 1
AREA 2
AREA 3
COLOR
TRANSPARENCY
RETURN
ON
RED
OFF
Figure 3-7 PRIVACY
Select a PRIVACY area. Set the DISPLAY status as ON.
Click up/down/left/down button to define the position
and size of the area.
MOTION
In the user-defined motion detection surveillance area,
the moving object can be detected and the alarm will
be triggered. Up to 4 motion detection areas can be
configured.
MOTION
MODE
AREA 0
AREA 1
AREA 2
AREA 3
SENSITIVITY
COLOR
TRANSPARENCY
RETURN
OFF
50
RED
OFF
Figure 3-8 MOTION
Select a MOTION area. Set the DISPLAY status as ON.
Click the up/down/left/right button to define the
position and size of the area. Set the SENSITIVITY from
0 to 100.
CAMERA ID
Edit the camera ID on this section.
CAM ID SETTING
MODE
CAM ID
X POSITION
Y POSITION
RETURN
ON
75
36
16
Figure 3-9 CAM ID SETTING
Set the MODE as ON. Click up/don left/right button to
choose the camera ID and the position.
DPC (Defective Pixel Correction)
Defective pixels are pixels in a CMOS image sensor fail
to sense light levels correctly. This series of camera
supports defective pixel correction.
Set the mode as ON to enable this function, and OFF to
disable the function.
3.3.6 RESET
Reset all the settings to the default.
3.3.7 SAVE & EXIT
Move the cursor to SAVE & EXIT and click Iris+ to save
the setting and exit the menu.
UD06680B
