Vevor 5KVA User Manual
User Manual Vevor 5KVA 48V Pure Sine Wave Power Solar Charger Off-grid Inverter Dc Ac Output With Utility Charger
Documents for Vevor 5KVA
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Specification
Spec Sheet (web) - (English)
Read Online
Photos
Photos:
View Photos
User Manual
For 5KVA. Also, The document are for others Vevor models: 1KVA, 2KVA, 3KVA, 4KVA
Page 1/35
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35

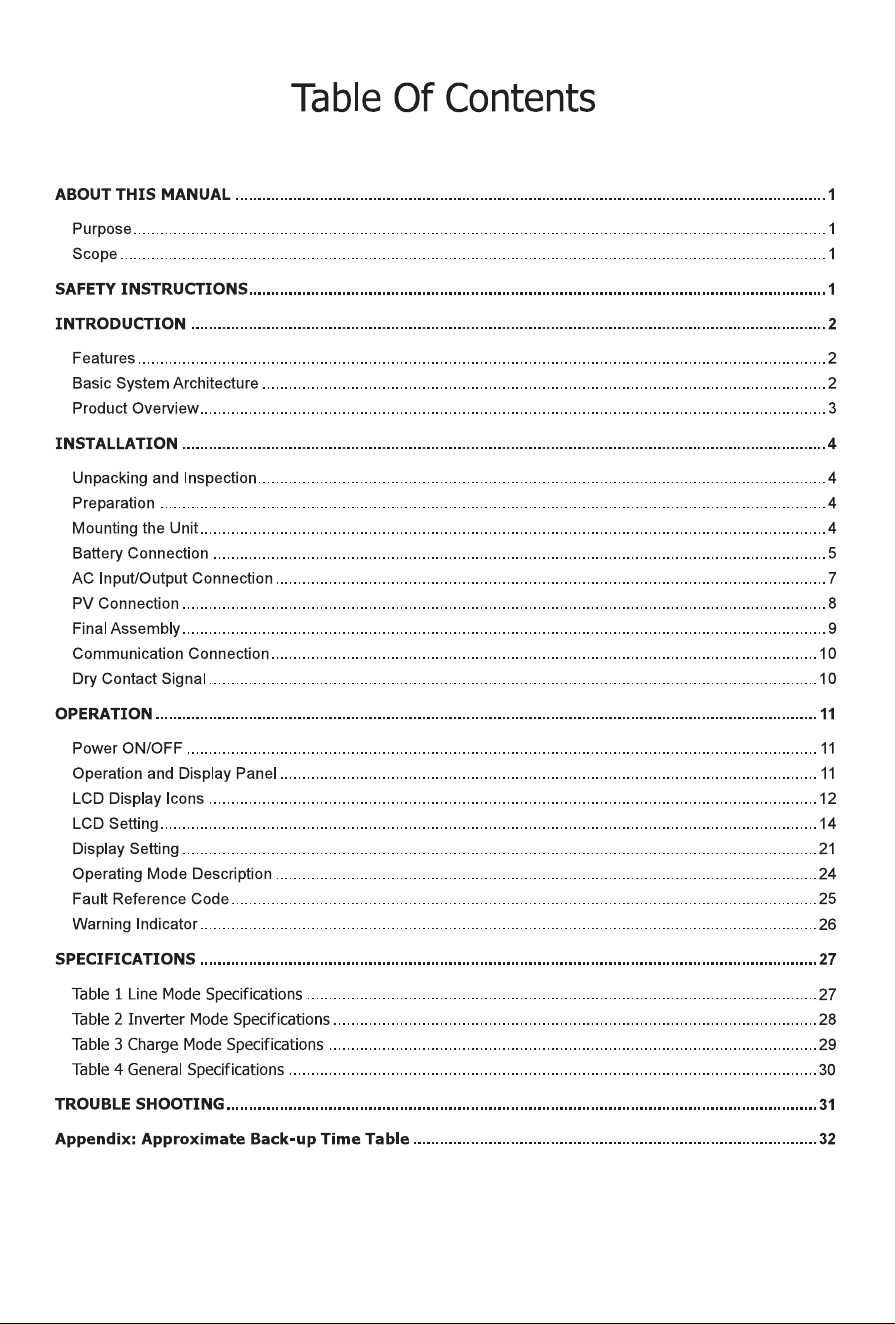

Contents
Table of Contents
Search
Previous
Next
Troubleshooting
Bookmarks
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Vevor 5KVA:

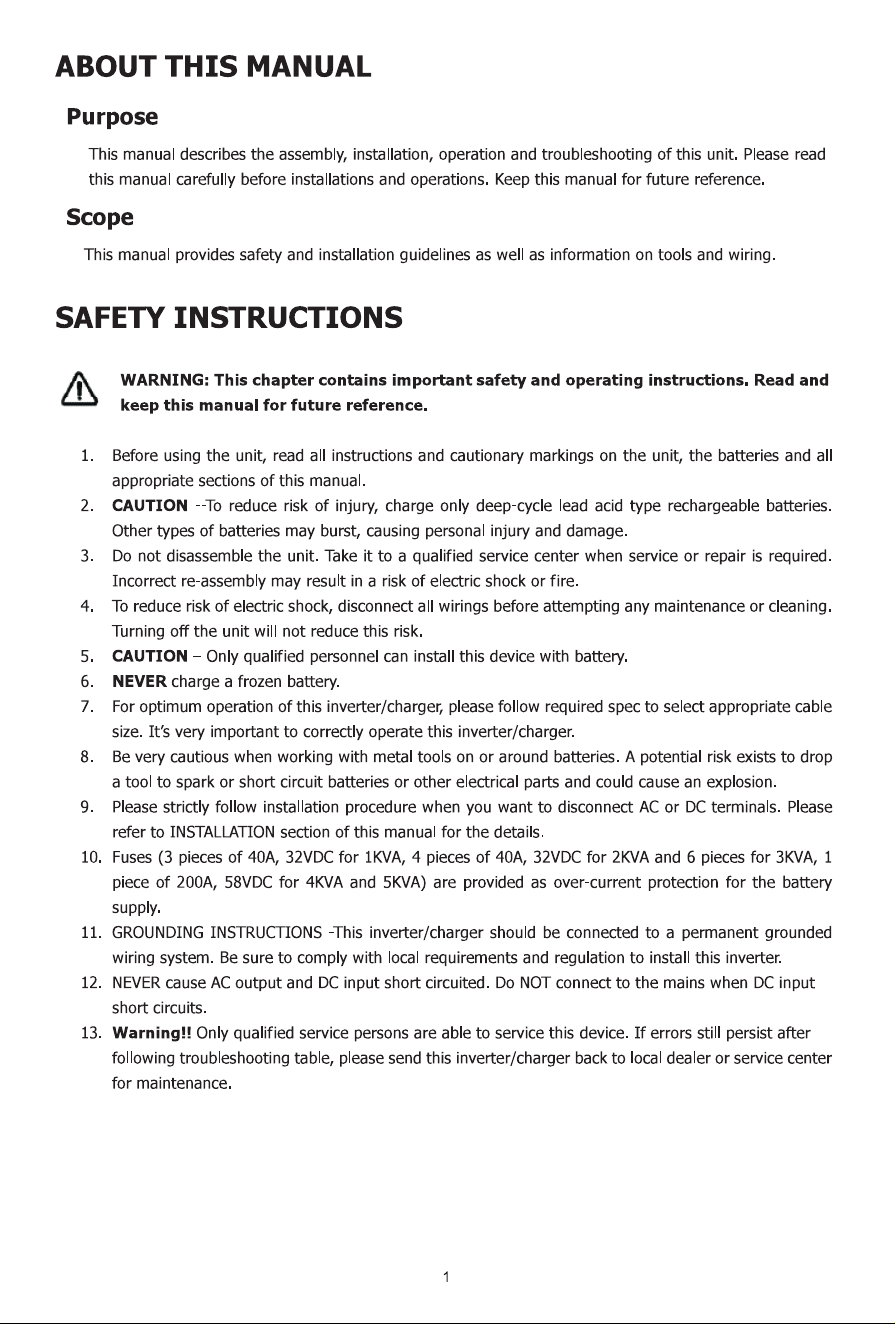

ABOUT THIS MANUAL
3
Purpose
3
Scope
3
SAFETY INSTRUCTIONS
3

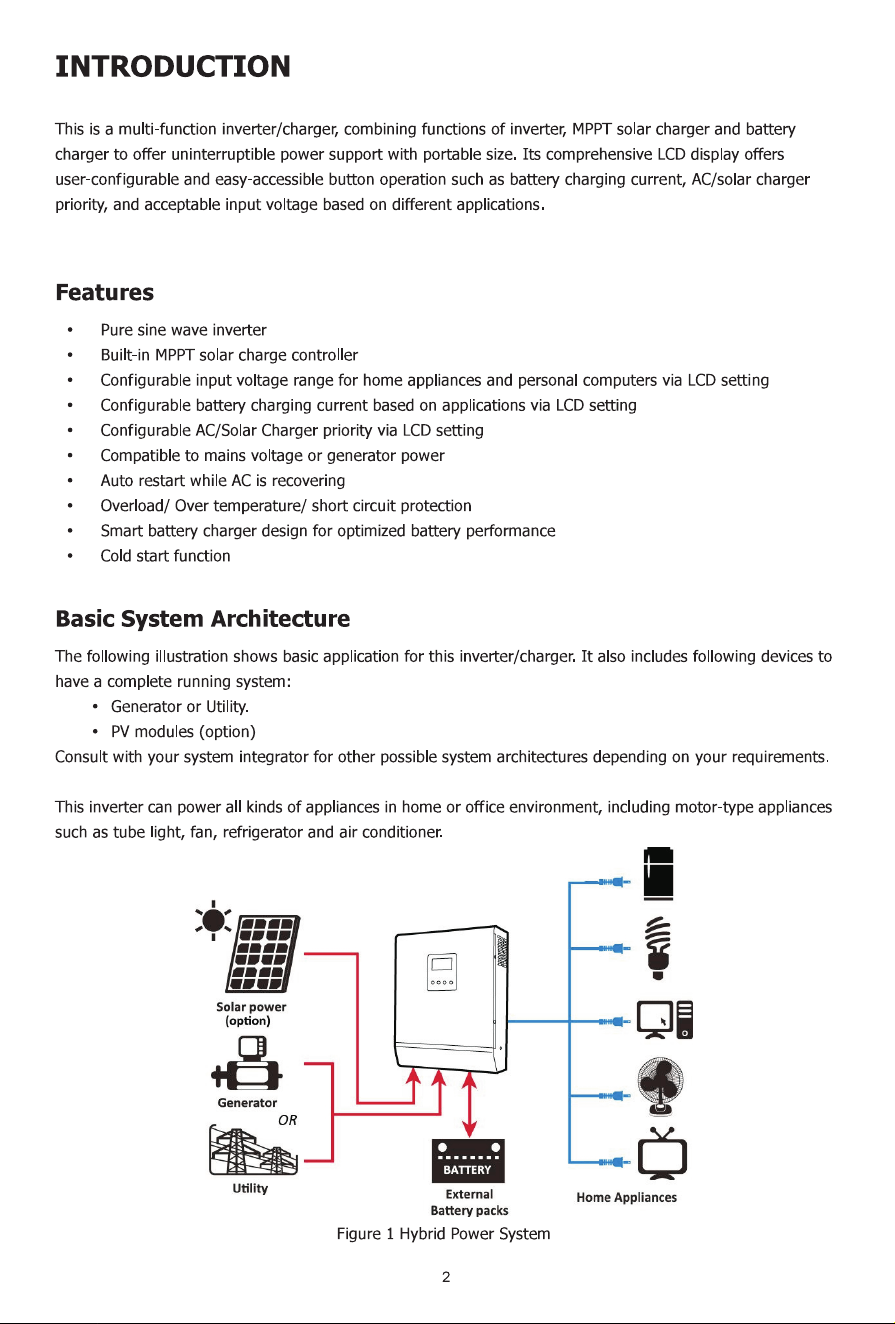

INTRODUCTION
4
Features
4
Basic System Architecture
4
Product Overview
5

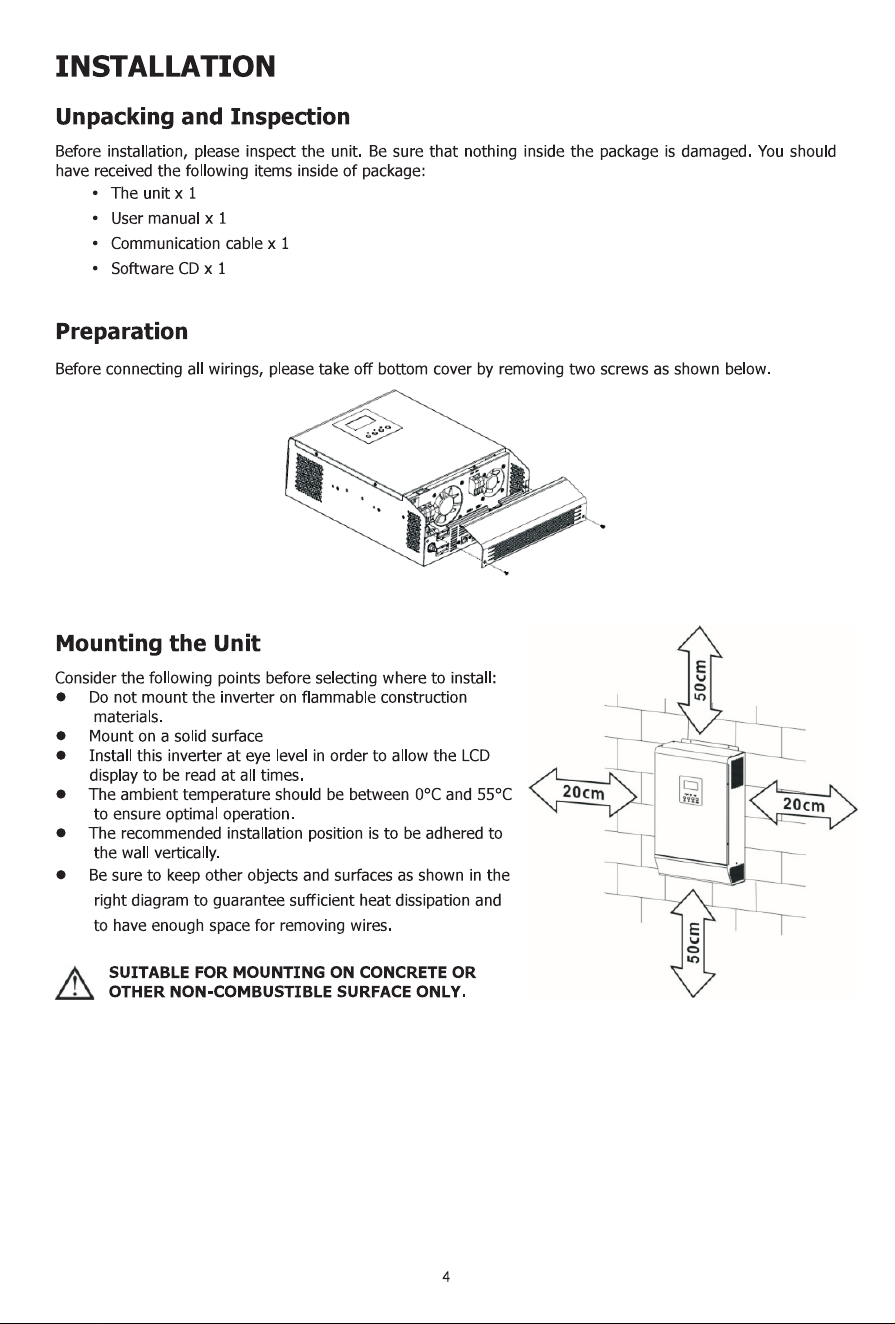

INSTALLATION
6
Unpacking And Inspection
6
Preparation
6
Mounting The Unit
6

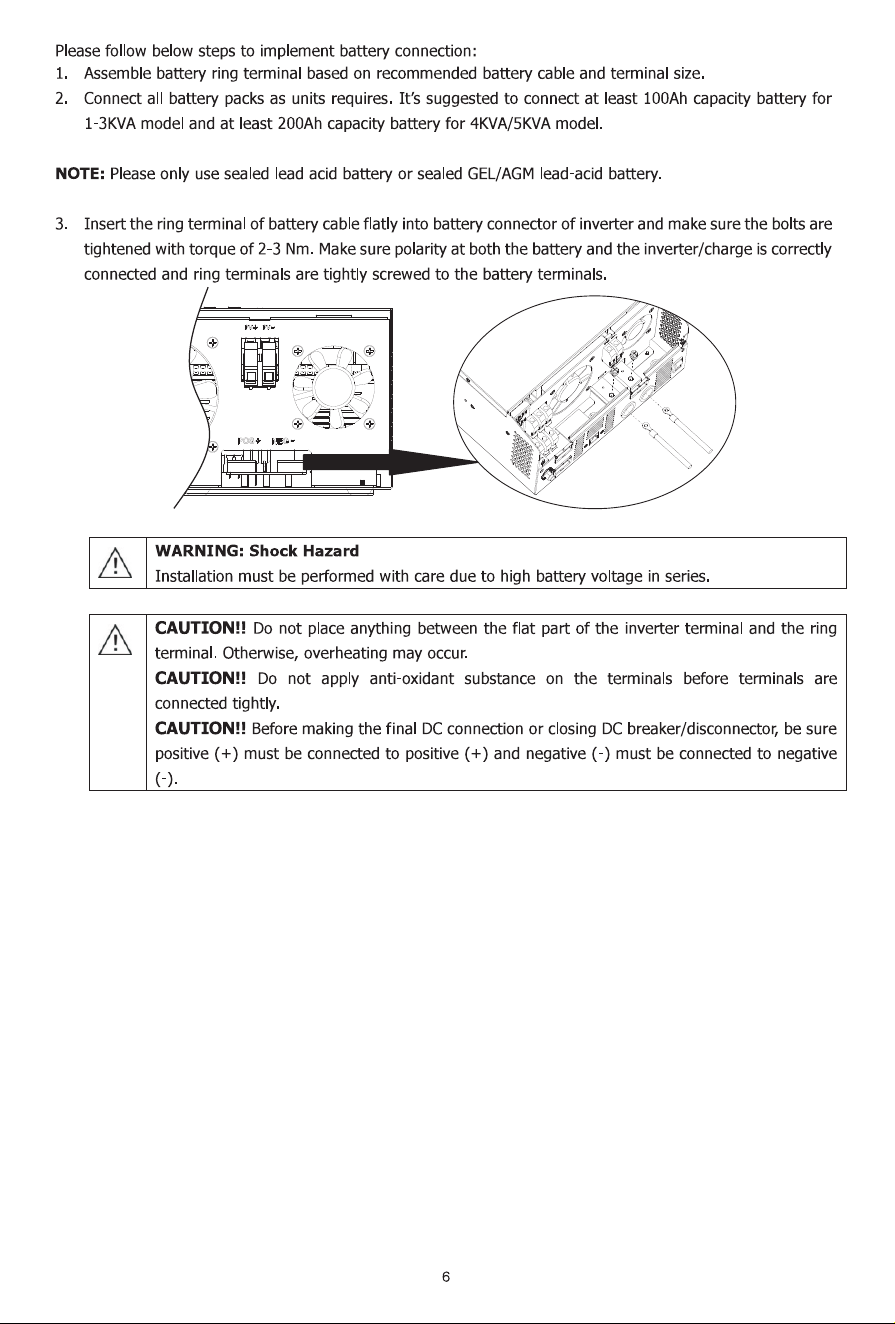

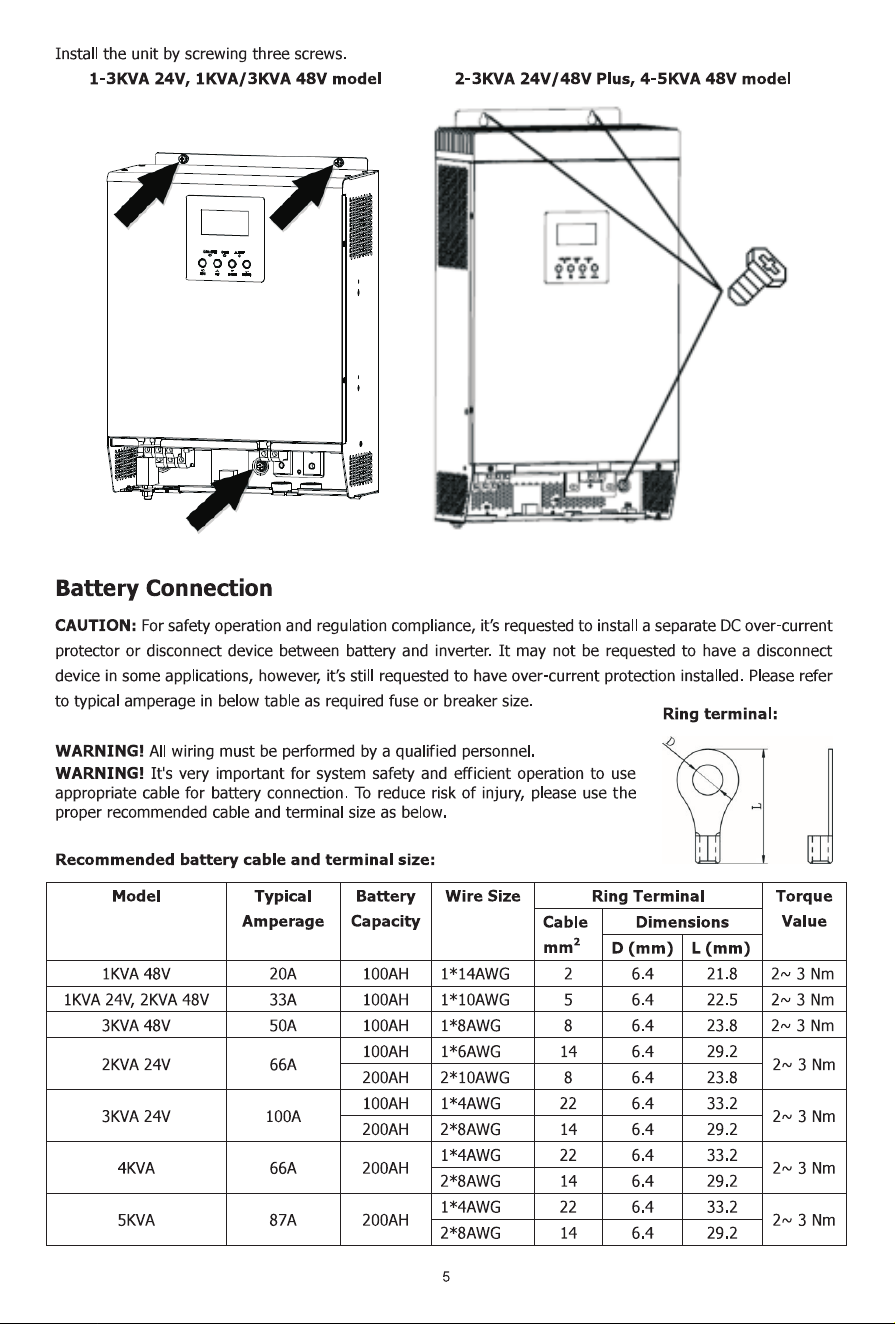

Battery Connection
7

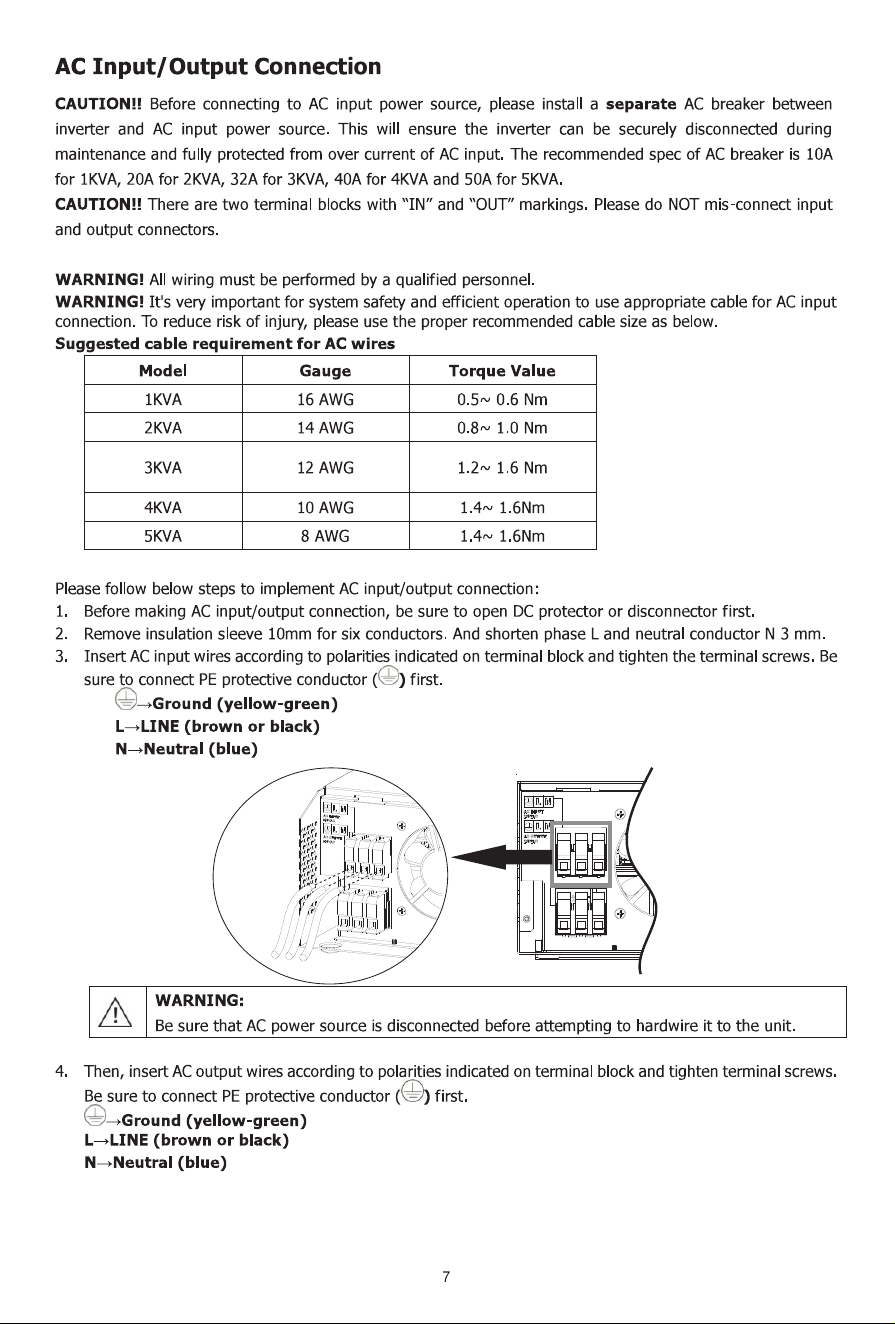

AC Input/Output Connection
9
PV Connection
10
Final Assembly
11

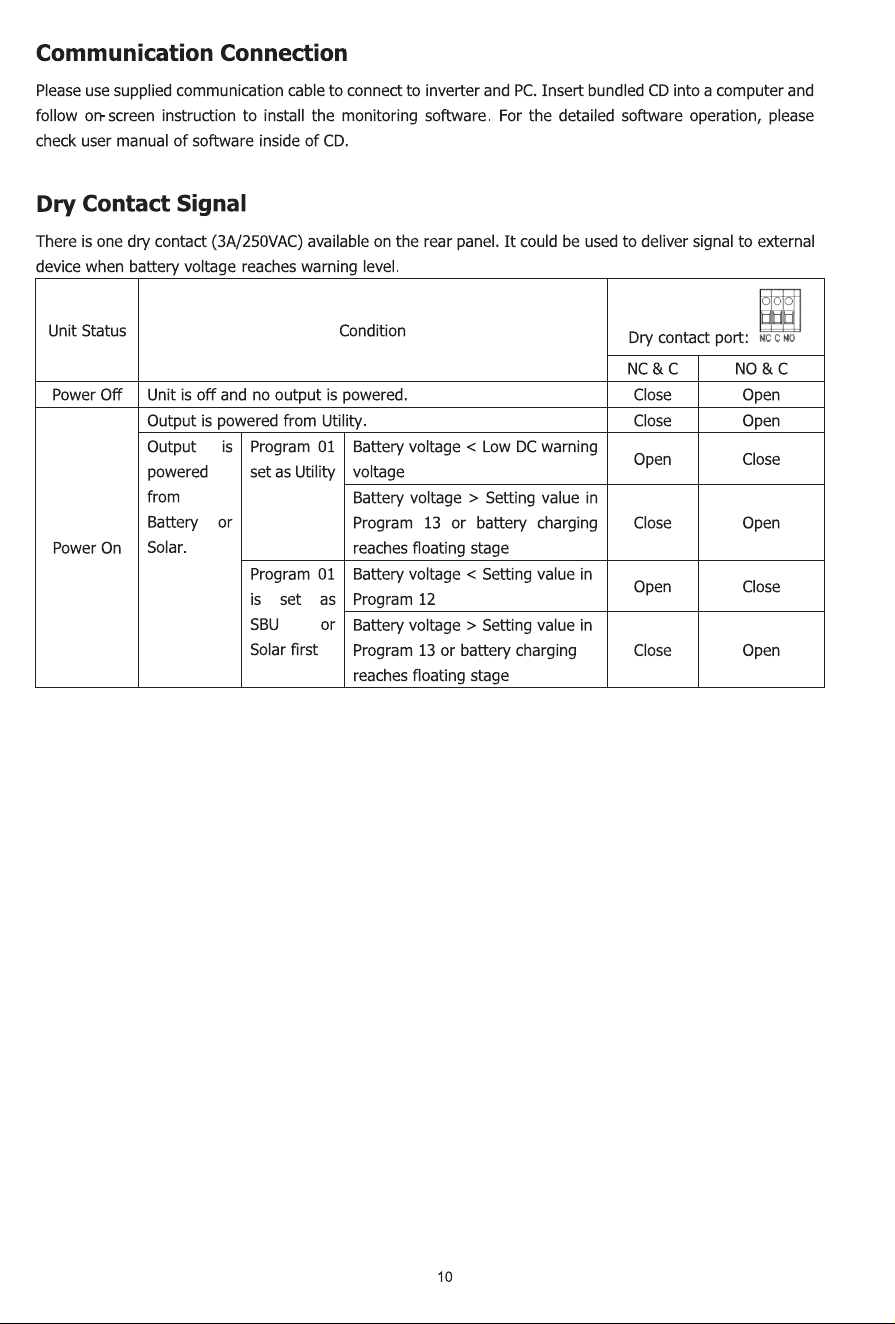

Communication Connection
12
Dry Contact Signal
12
OPERATION
13
Power ON/OFF
13
Operation And Display Pane
13

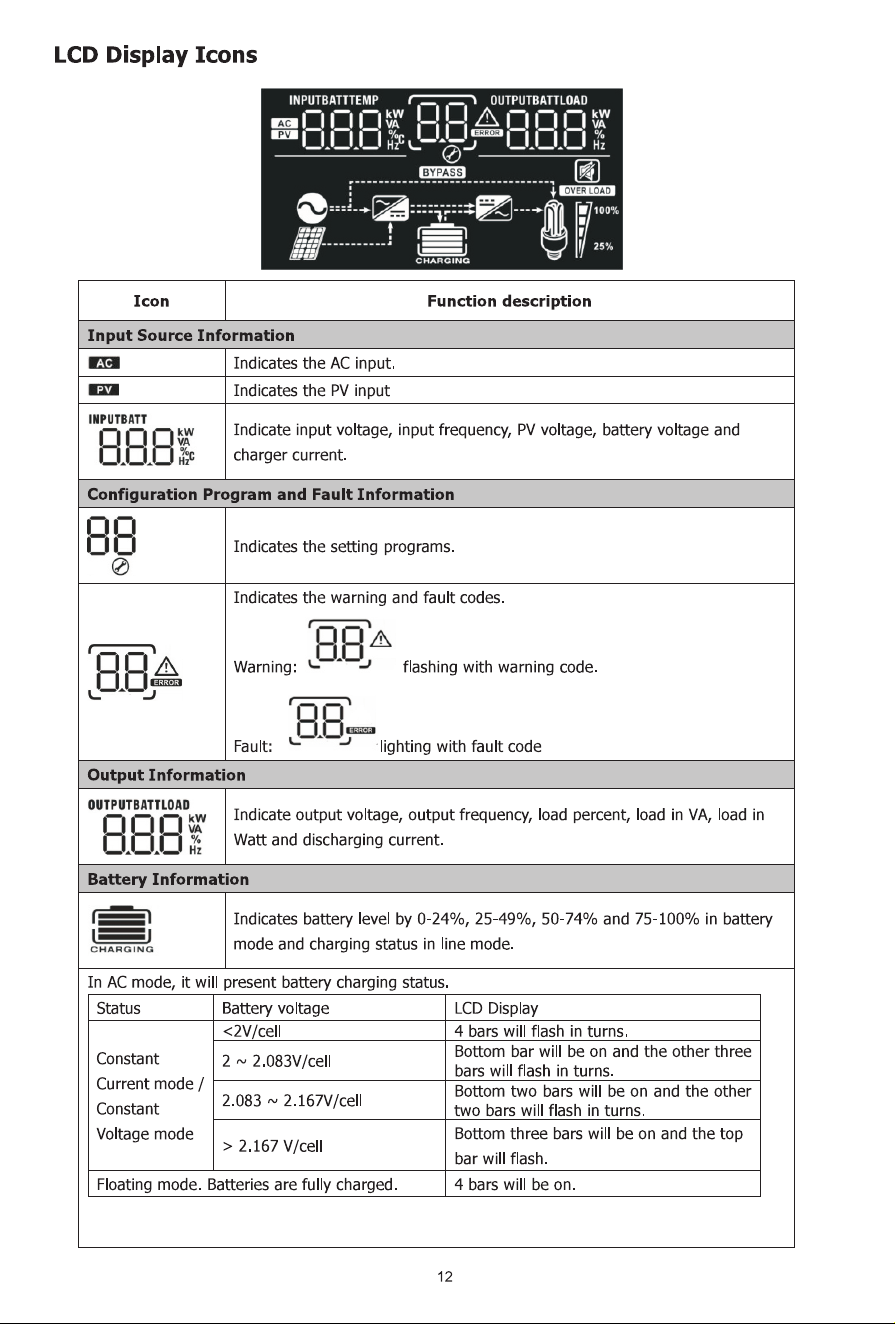

LCD Display Icons
14

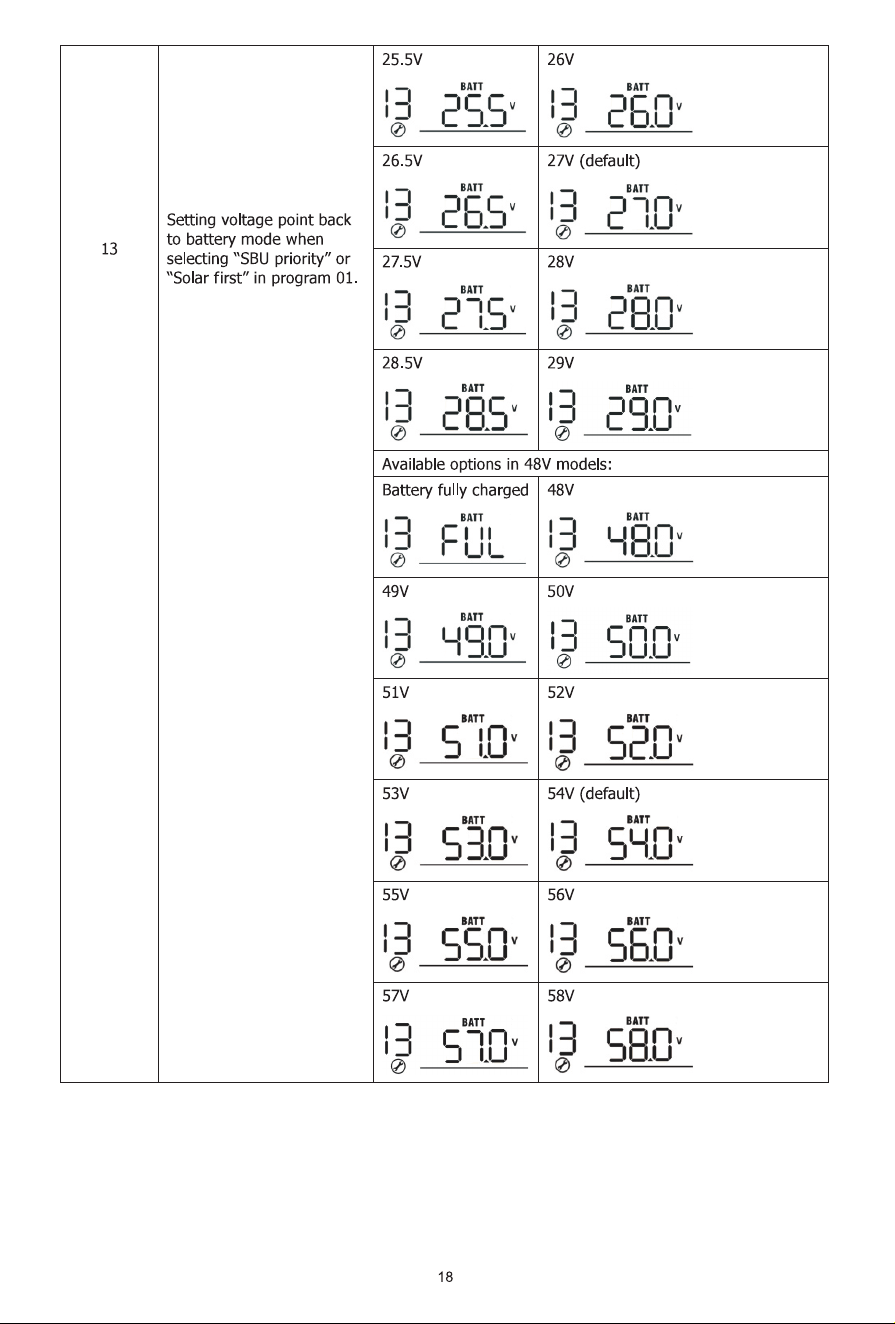

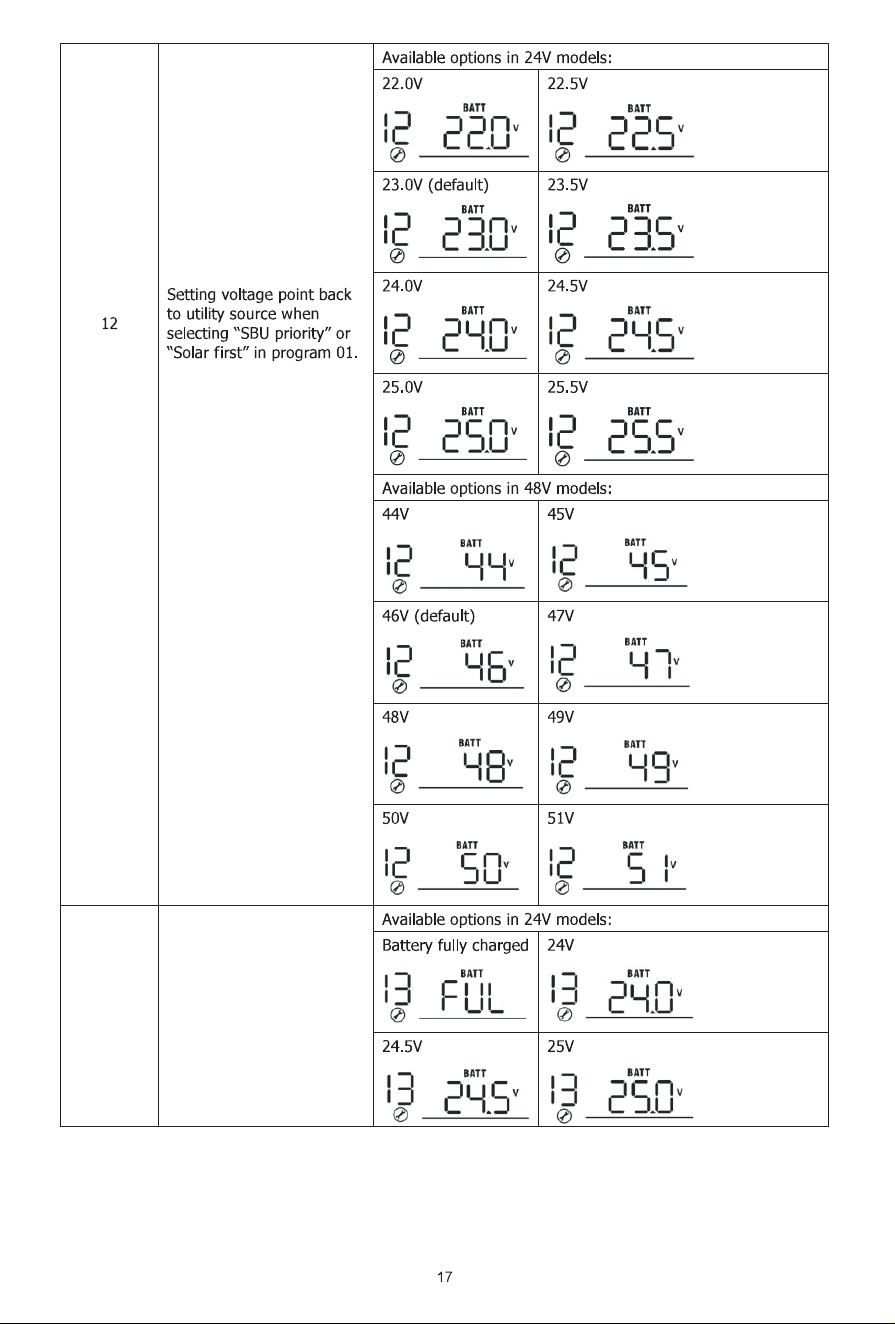

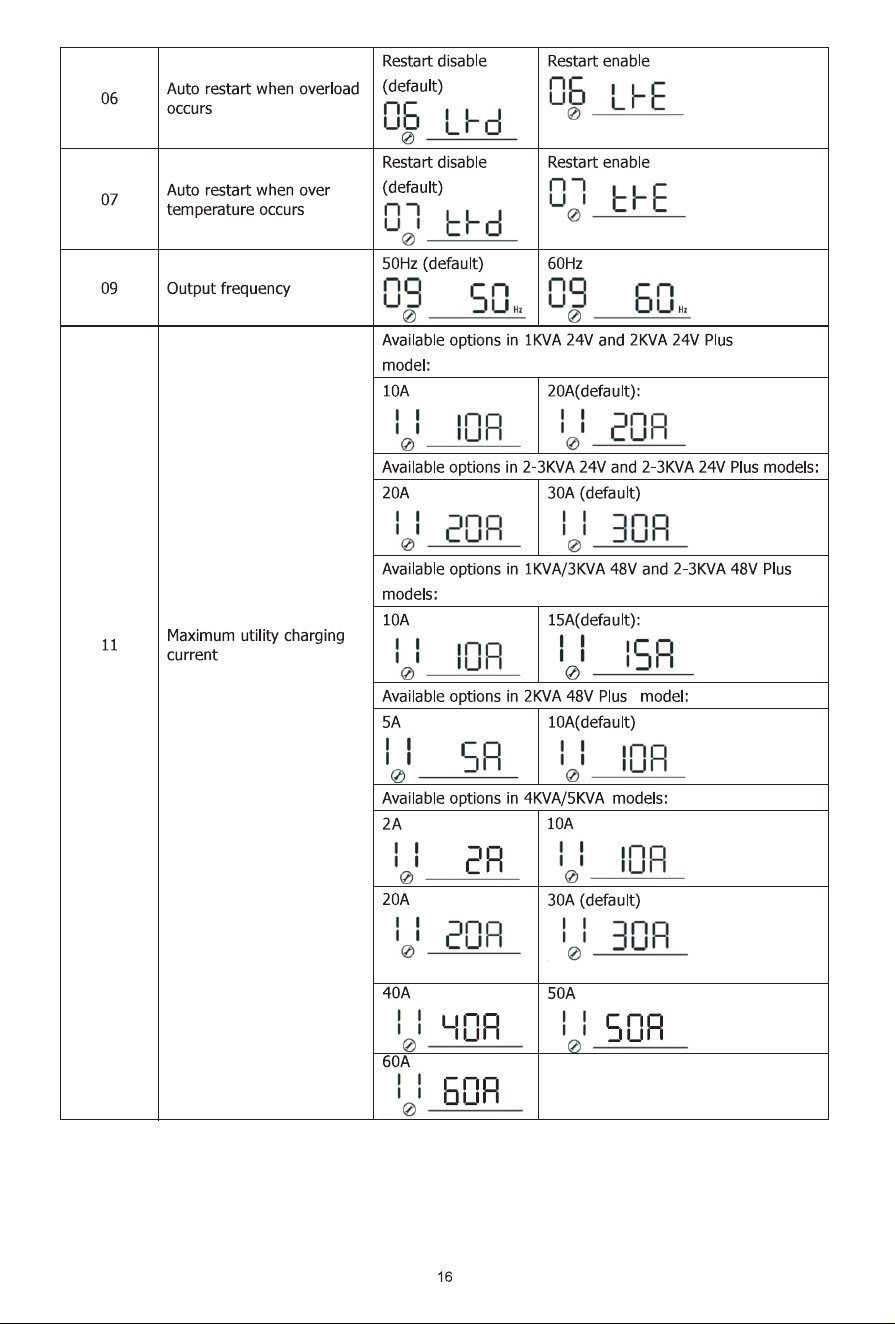

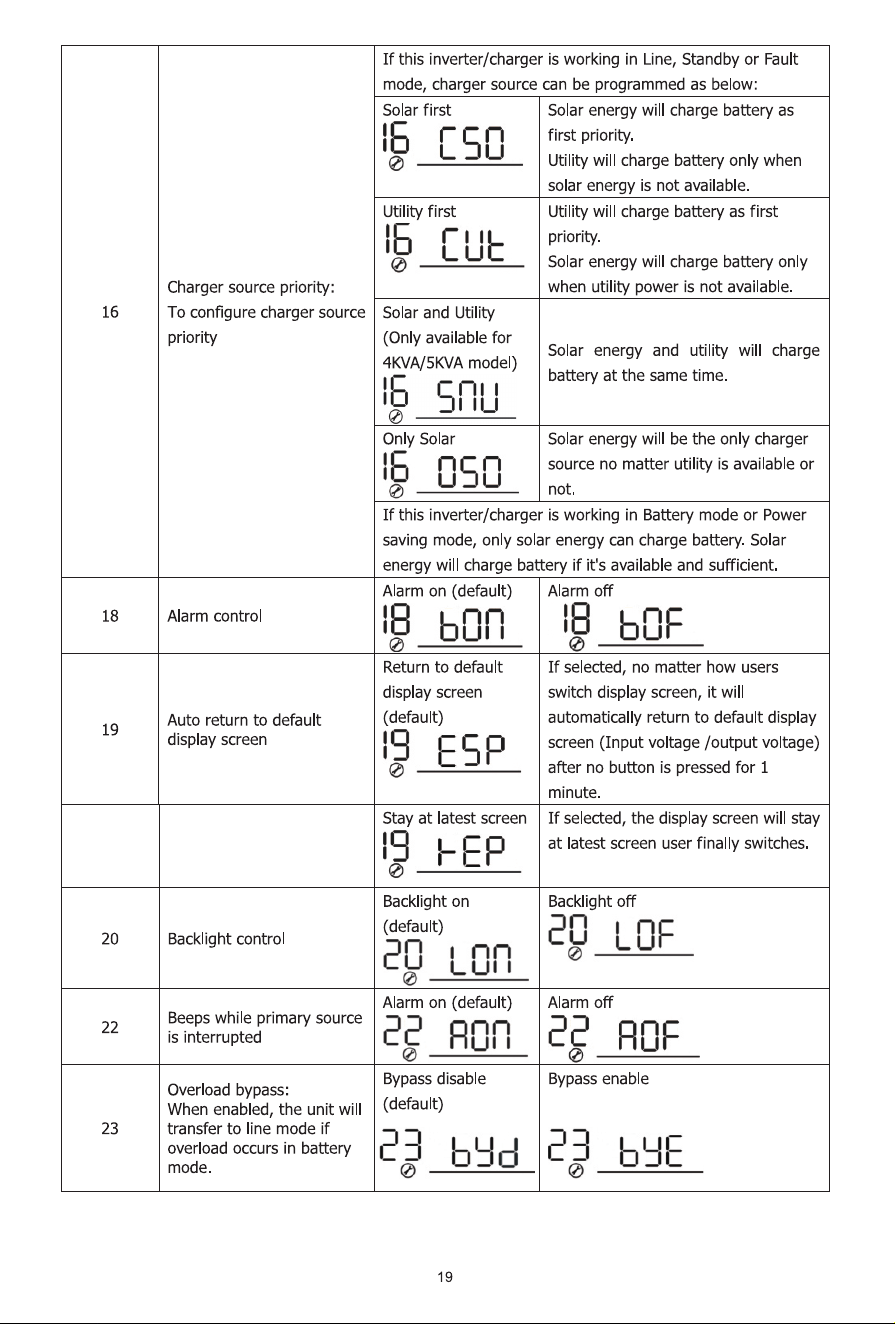

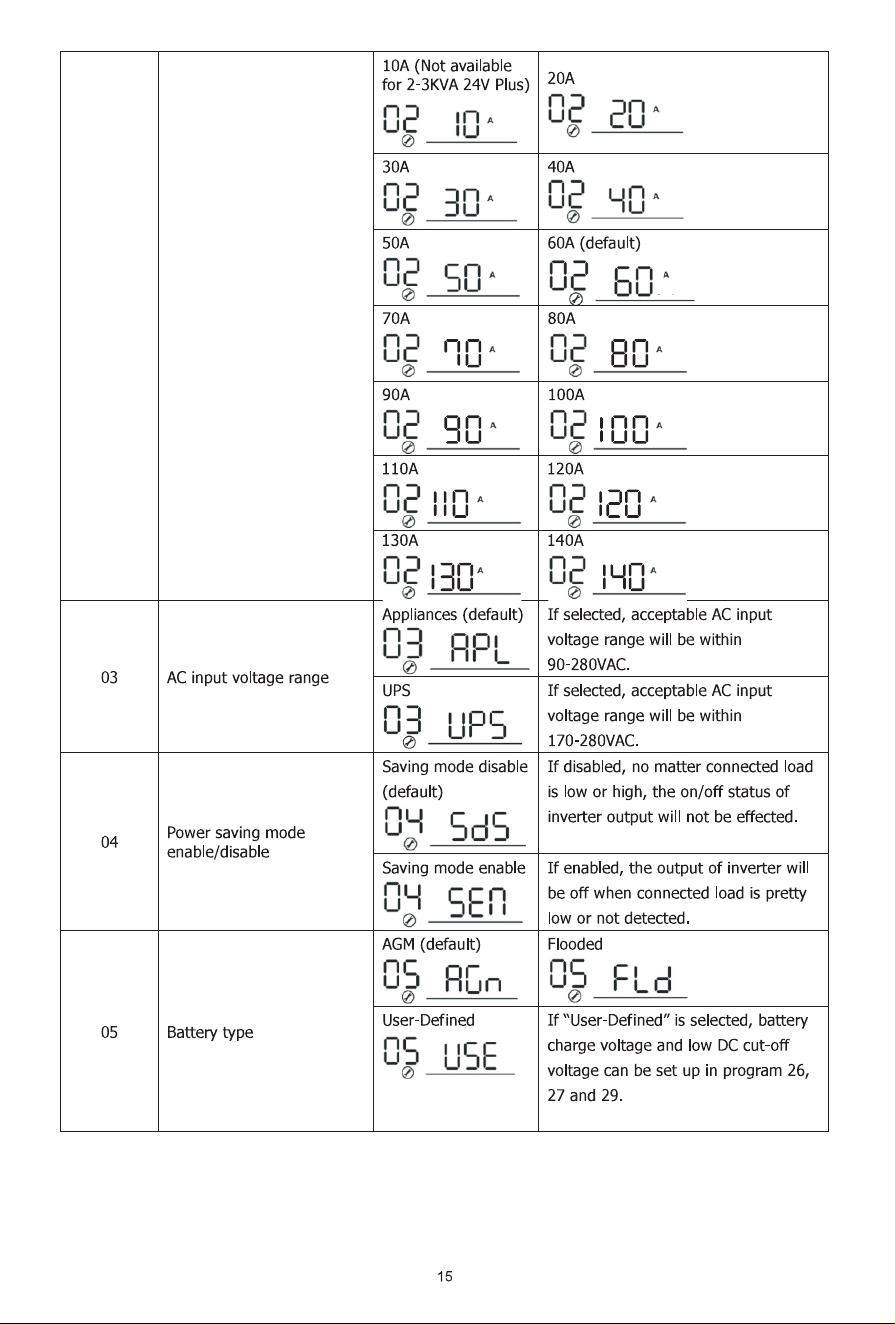

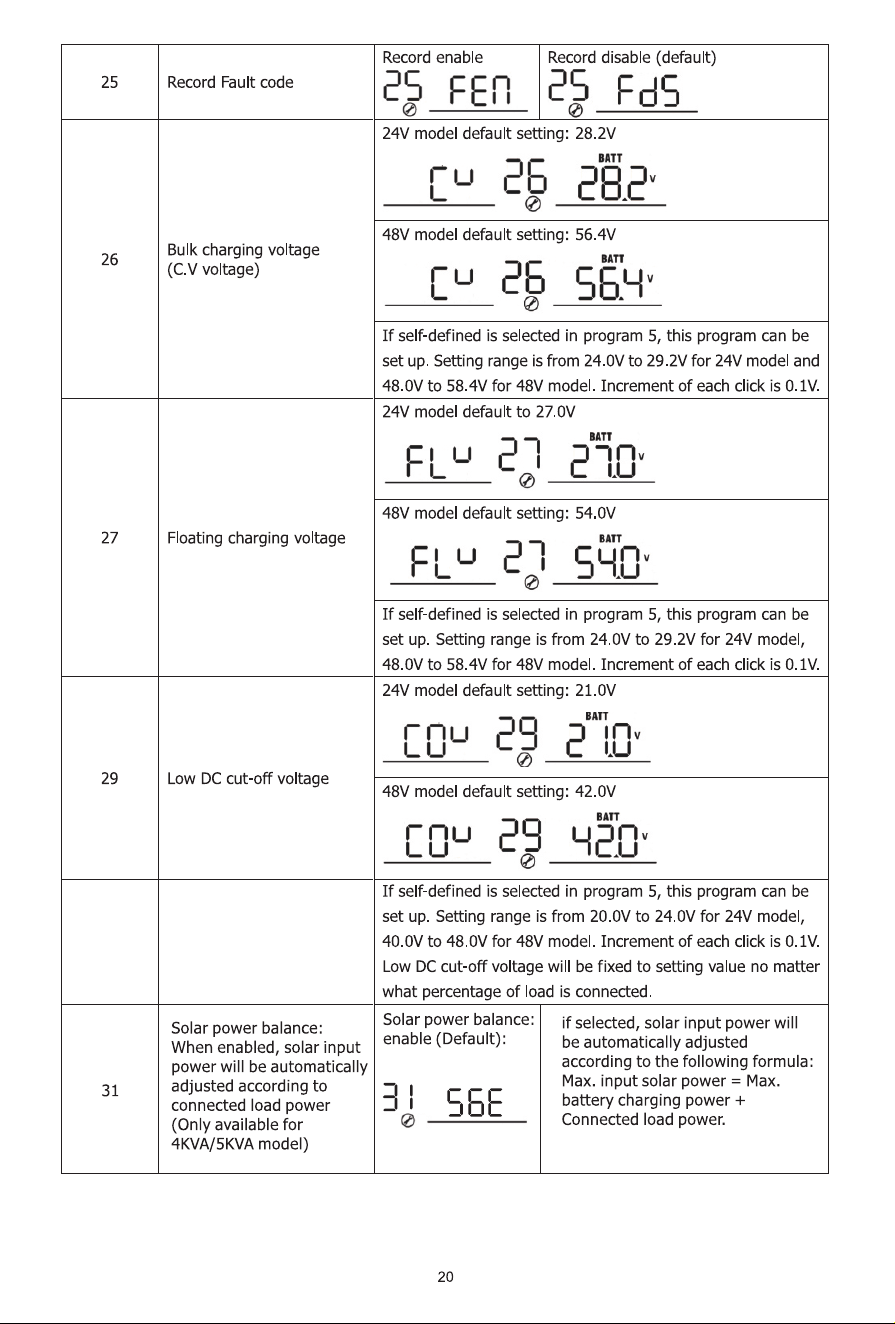

LCD Setting
16

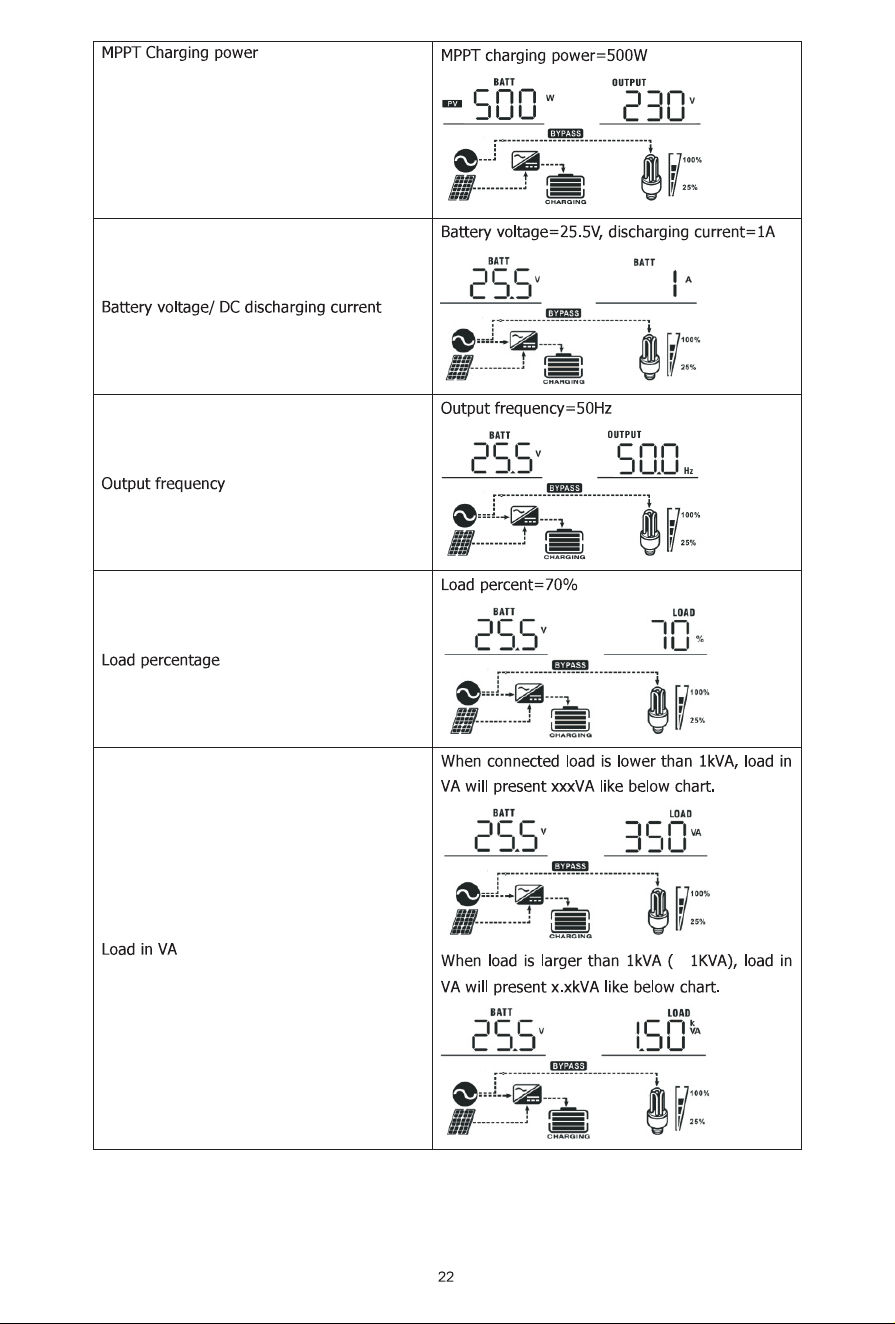

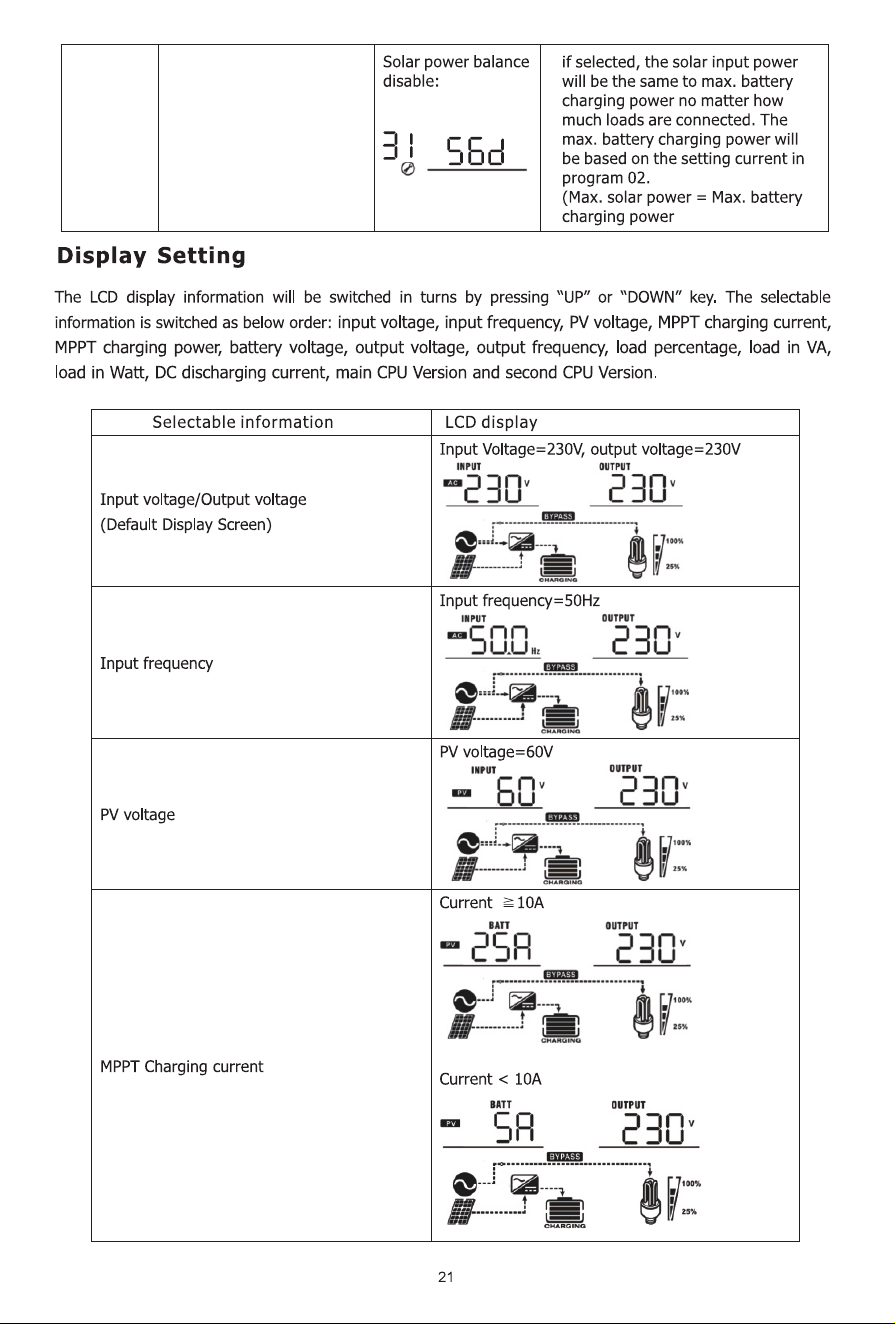

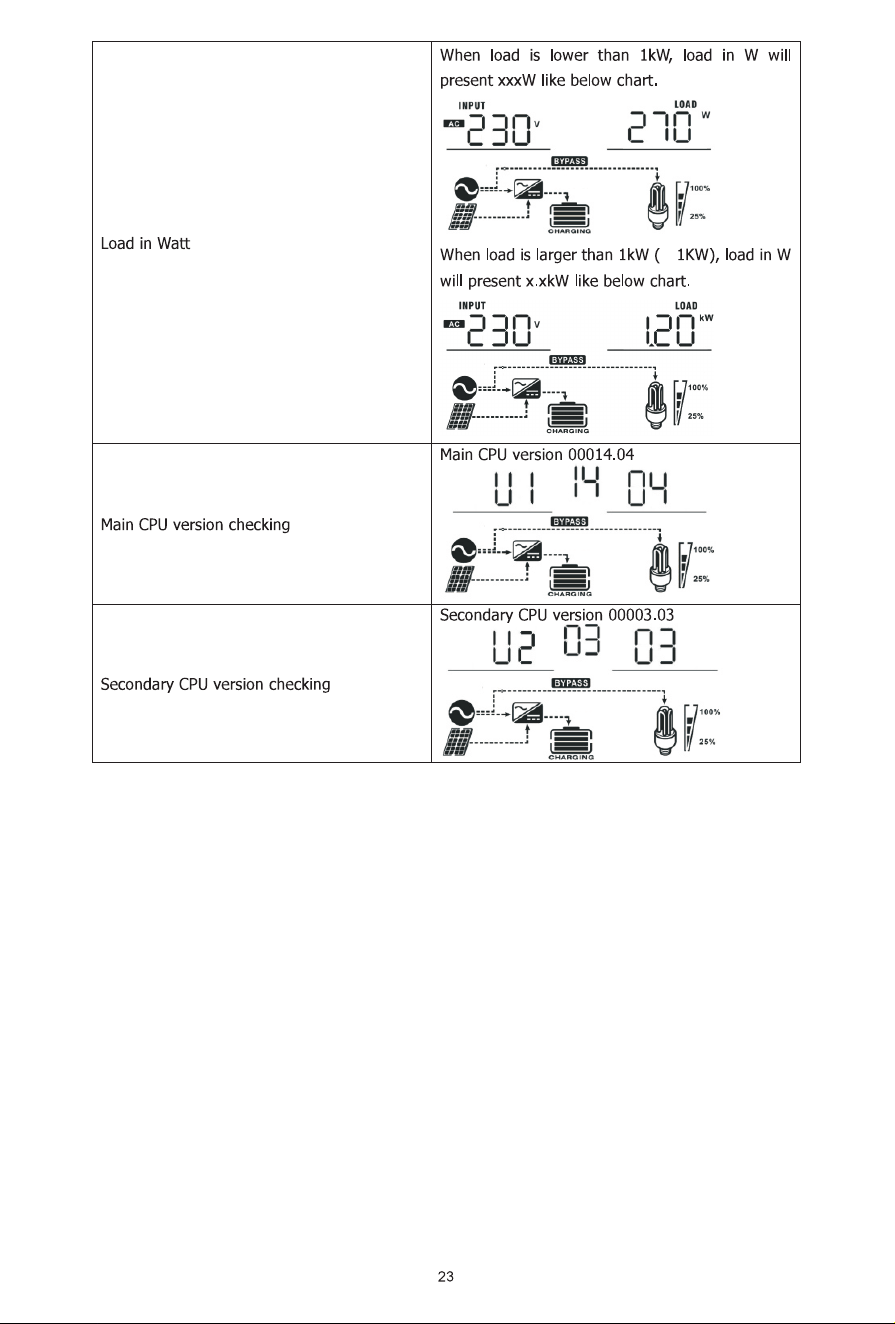

Display Setting
23
Operating Mode Description
26
Fault Reference Code
27

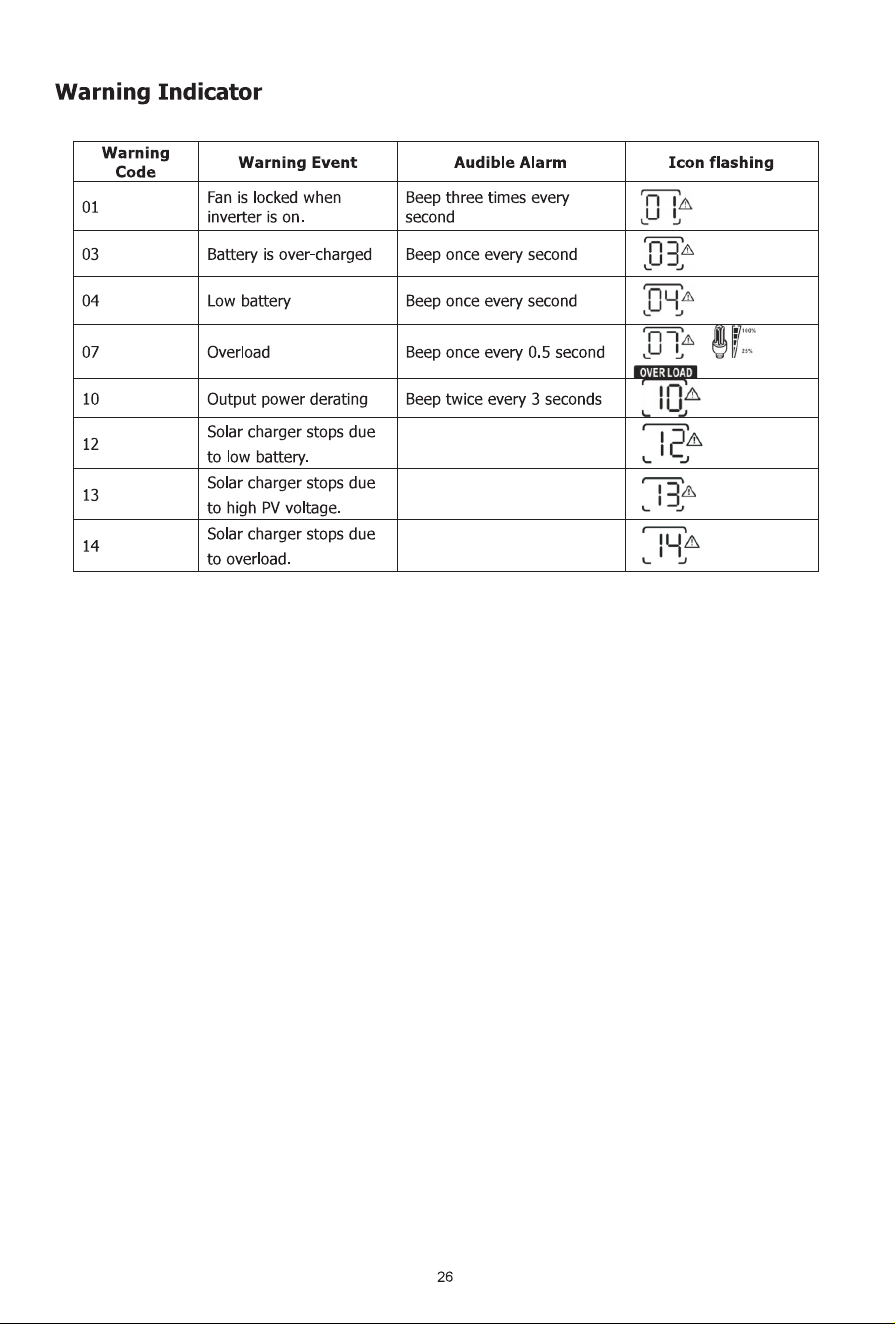

Warning Indicator
28
SPECIFICATIONS
29

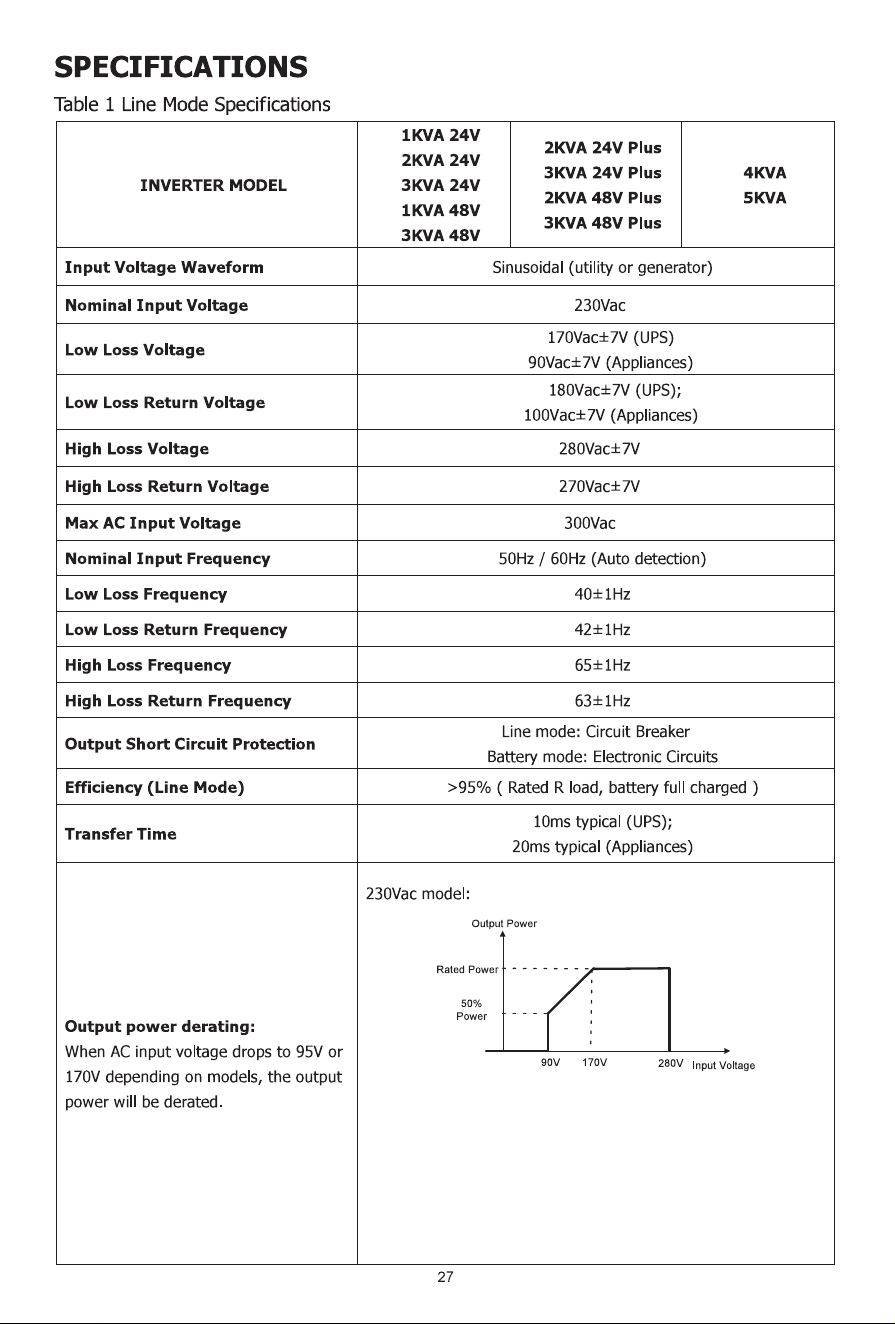

Table 1 Line Mode Specifications
29

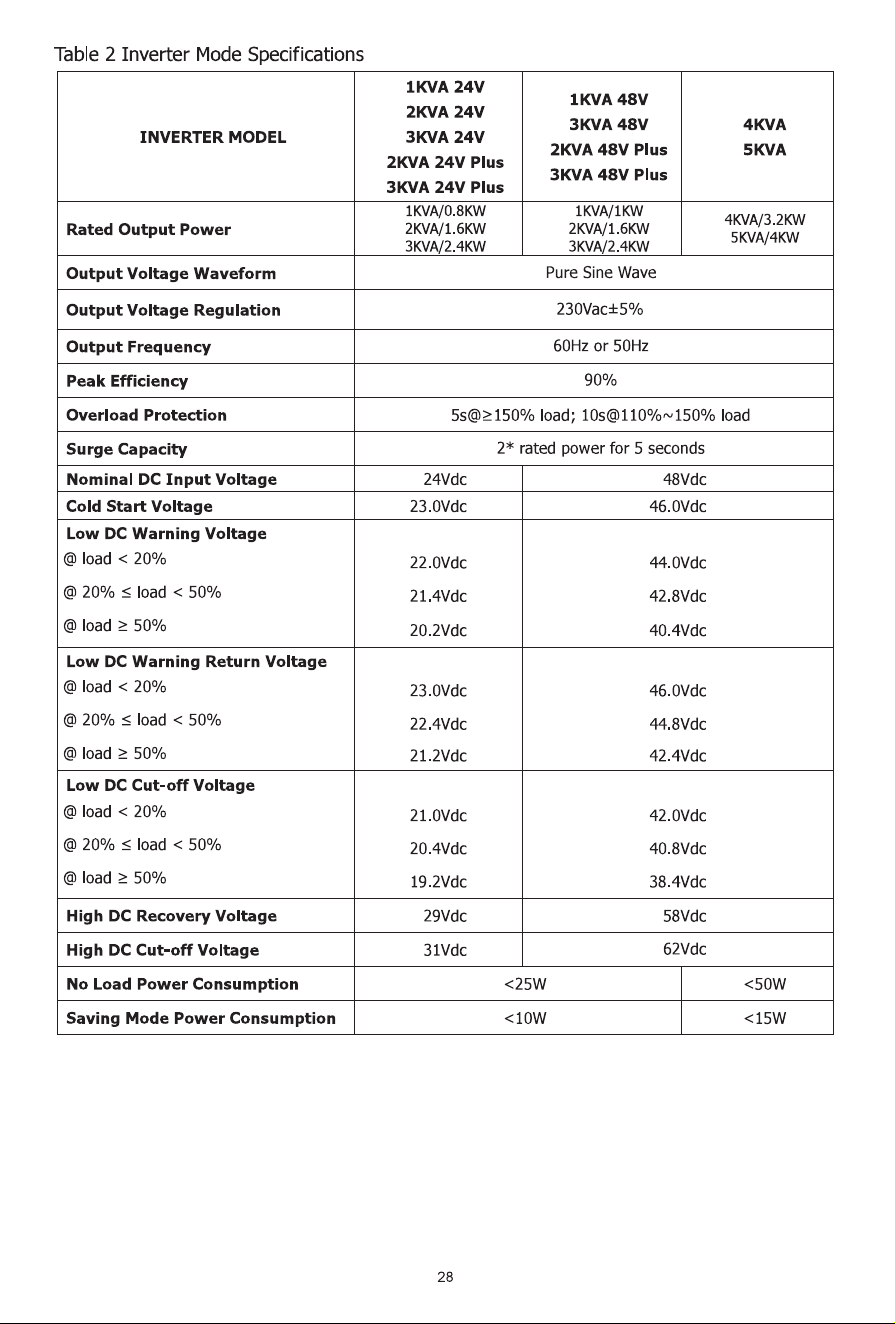

Table 2 Inverter Mode Specifications
30

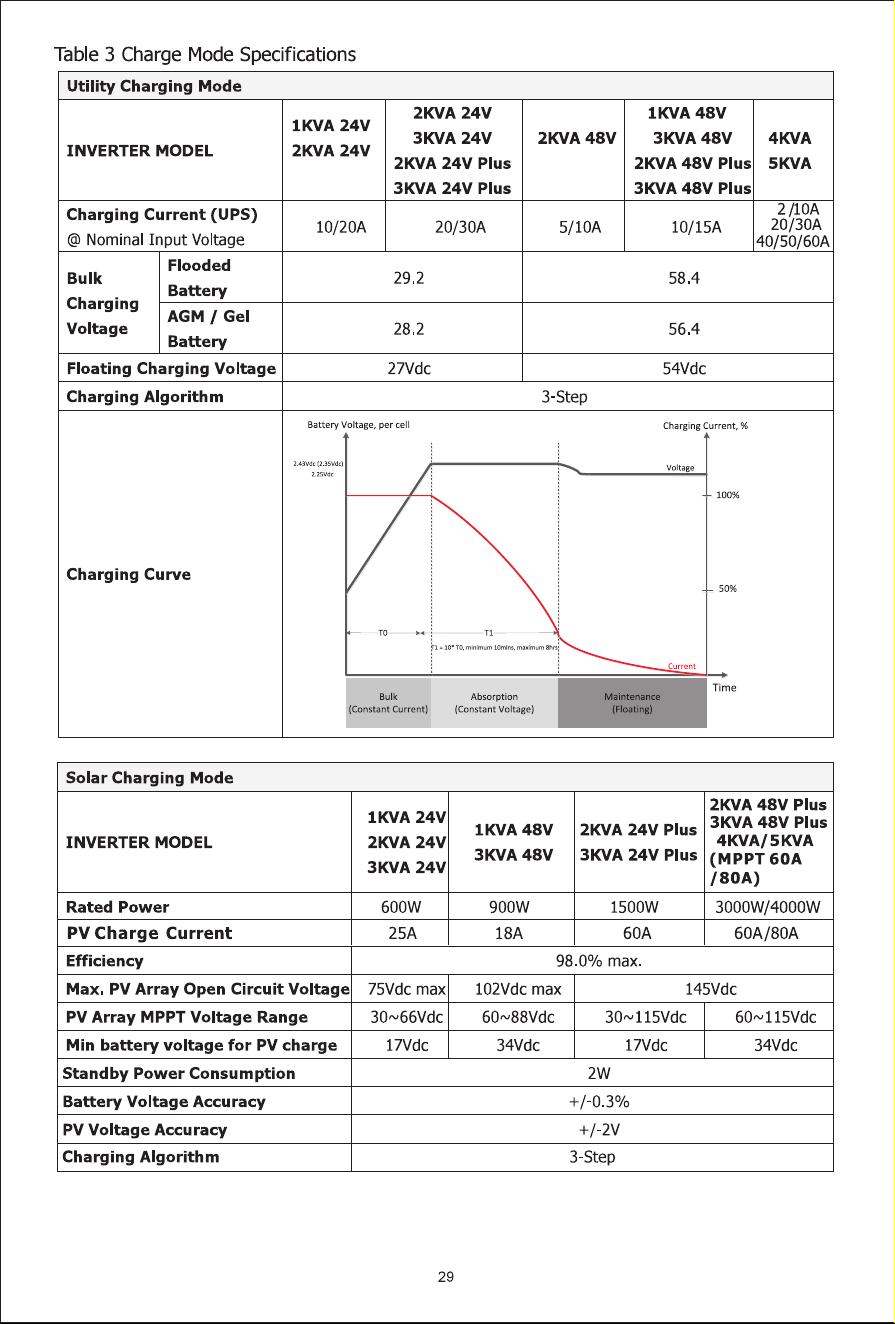

Table 3 Charge Mode Specifications
31

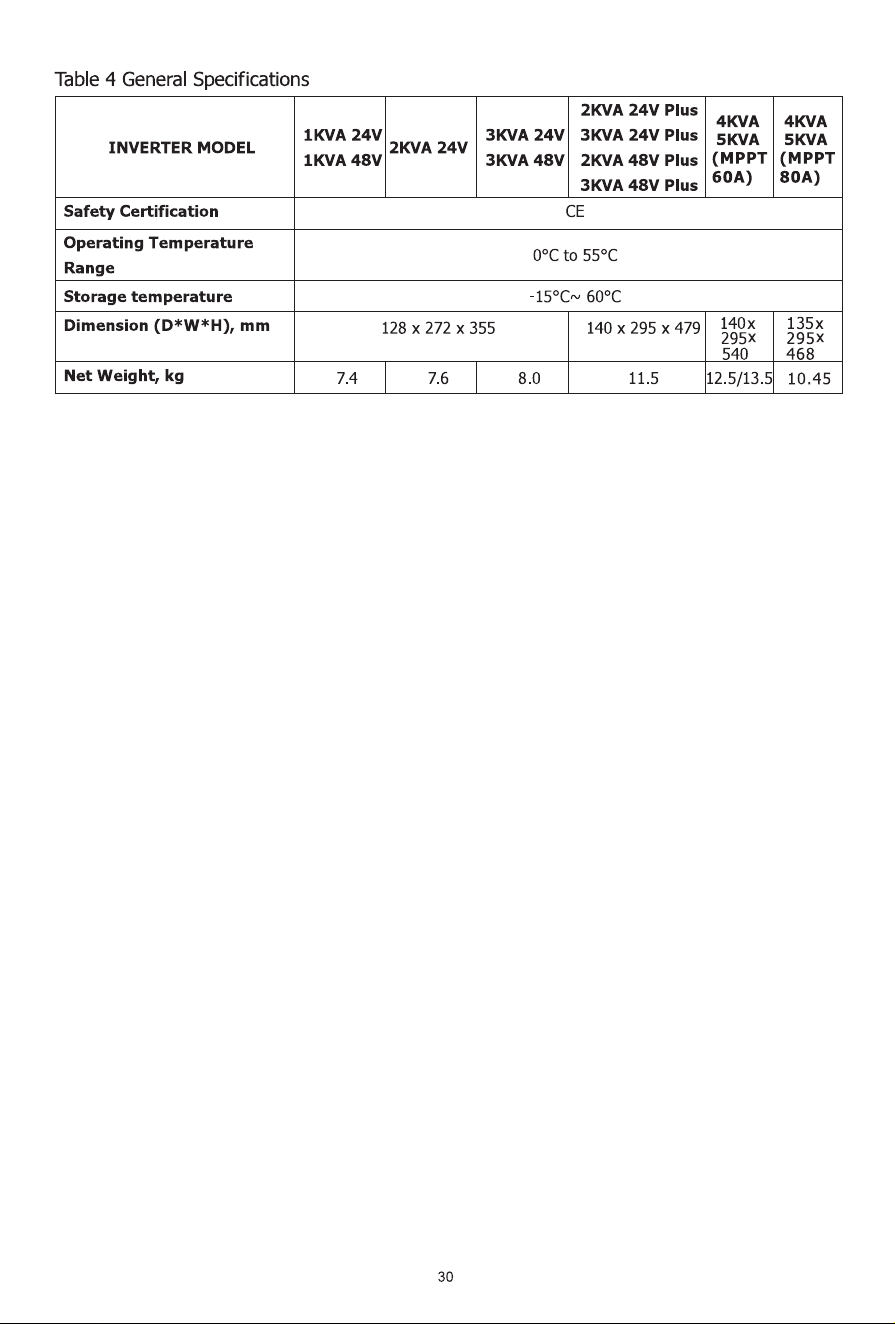

Table 4 General Specifications
32
TROUBLE SHOOTING
33

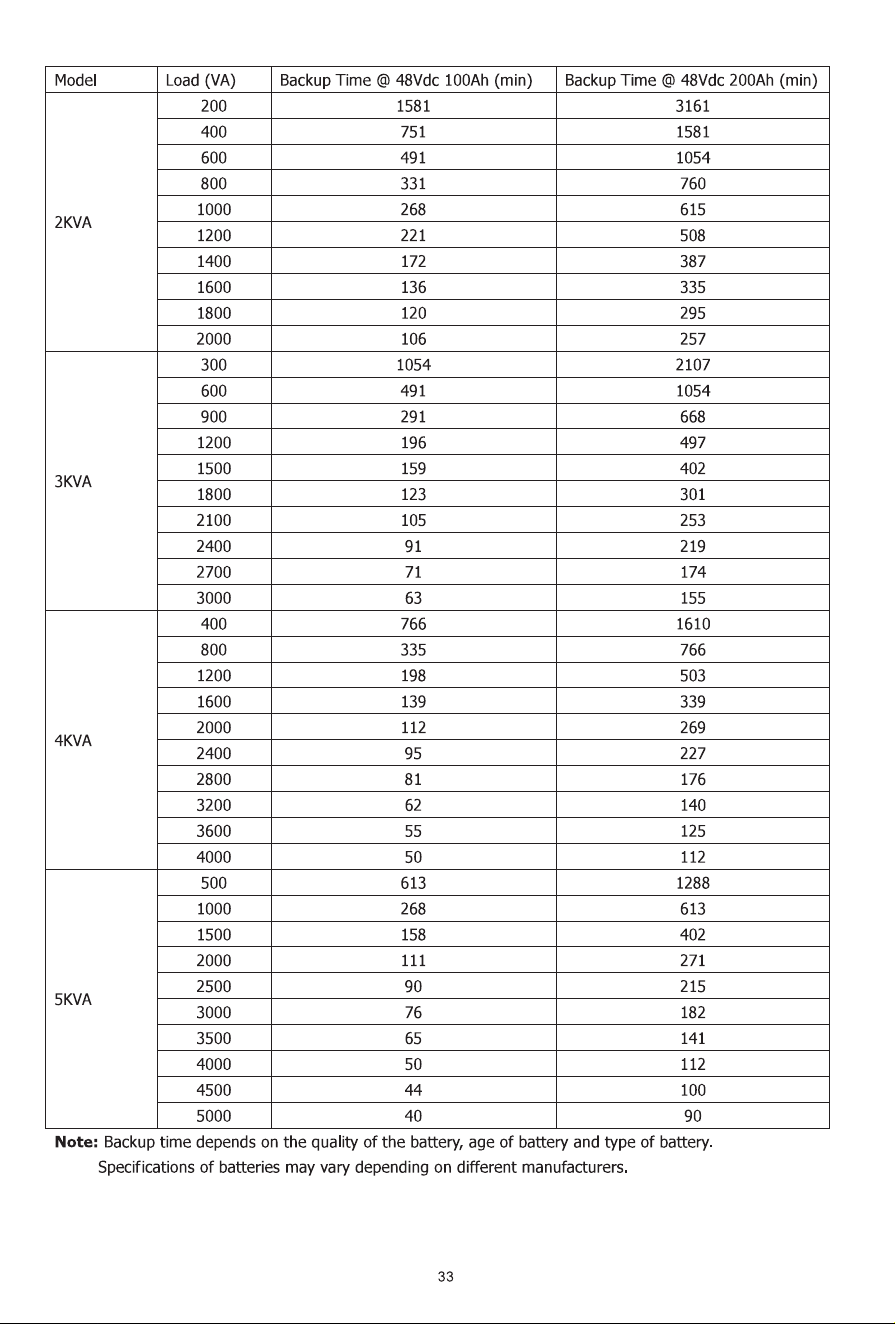

Appendix: Approximate Backup Time Table
34
File type: PDF
File name: 35353902_5kva.pdf
File size: 12.91 MB
File Language: English
Pages: 35
Author: Vevor
File created: 2022-06-16
Published: 2024-03-15
Updated: 2024-03-15
Verified by
Clementina Bode
on 2024-03-15
Download File
Specifications
Brand:
Vevor
Model: 5KVA
Category:
Charger & Adapter
Operating Temperature Range: 0-55℃
Rated Power: 4000W
AC Output Voltage: 230V, 50Hz, 22A
System Voltage: 48VDC
Max. Solar Voltage(VDC): 145VDC
DC Input : 48V DC, 60A
DC Output : 54V DC, 10-60A
Input: 230VAC, 50Hz, 36A
View in the file:
Full Specifications
Vevor 5KVA Questions and Answers
#1
In my region we have 60Hz electricity, will this inverter still work
Yes, it will still work, just set item 09 to 60HZ. Output 230V60HZ.
#2
Why is AC input and output 50 Hertz not 60 Hz? Is this for North American use?
The factory default of the machine is 50 Hertz. You can set it to 60HertZ according to your needs.
#3
Do you have any units that can be used in parallel 120/240 volts 5kwv plus without a step-down transformer?
It is 230V input and output. 120V is not currently supported.
#4
What is the weight of the 5kva and the dimensions?
The weight is about 14.5kg, and the dimensions are 21"*11.5" *5.3".
#5
Will this inverter work with LiFePO4 batteries and is there a temperature sensor terminal
Yes, it will work with LiFePO4 batteries, and the temperature sensor only detects the temperature inside the machine.
#6
Can I use my split air conditioner 3-1/2 ton with a 20amp circuit?
No, the maximum power of the machine is 4000W, and the air conditioner is overloaded.
