1 of 2
ECO1-7538 FORM: 8212
Industrial Air Circulator Instructions
For All High Velocity Fans
READ AND SAVE THESE IMPORTANT INSTRUCTIONS
It is important that the following safety precautions be followed when using this product:
• DO NOT place foreign objects through guards into blades.
• DO NOT allow unit to become wet or damp.
• DO NOT use this fan with any solid state speed control device.
“NOT SUITABLE FOR USE WITH SOLID-STATE SPEED CONTROLS”
“AVERTISSEMENT; NE CONVIENT PAS A DES REGULATEURS DE VITESSE A SEMI-CONDUCTEURS”
• WARNING: To reduce the risk of re, electrical shock, or injury to persons, observe the following: Use this
unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer
.
• Before servicing or cleaning unit, switch power o at service panel and lock service panel to prevent
power from being switched on accidentally. When the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as a tag to the service panel.
• Installation work and electrical wiring must be done by qualied person(s) in accordance with all
applicable codes and standards,including re-rated construction.
• When cutting into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Avertissement: Pour reduire les risques d’incendie ou de choc electrique, ou de blessures, respectez les
consignes suivantes:
Utiliser cette unite uniquement de lamaniere prevue par le fabricant. Si vous avez des questions, contactez le
fabricant.
Avant de reparer ou nettoyer l’appareil, couper le courant au panneau de service et verrouiller a
pevent sa remise en marche accidentelle.
lorsque la moyenne de la deconnexion n’est pas bloque,
fixez solidement un avertissement bien en evidence, comme une etquette sur le panneau de service.
Les travaux d’installation et decablage electrique doivent etre eectues par des personnes qualiees
conformement a tous les codes et normes applicables, y compris la construction par incendie.
Lorsque vous
coupez dans le mur ou le plafond, n’endommagez pas le cablage electrique et d’autres utilitaires caches.
ECO1-7538 FORM: 8212
2 of 2
BLACK
BLACK
WHITE
MOTOR
2
L
GROUND
or NEUTRAL
GROUND
LEADS
1
L
WHITE
GREEN
MOTOR JUNCTION BOX
WIRING DIAGRAM
INSTALLATION INSTRUCTIONS
For installation on wood structures, use a 1/2" lag screw of appropriate length for the application.
For installation on steel structures, use a 1/2" bolt of the appropriate length for the application, in combina-
tion with a at washer, a lock washer and a 1/2" nut.
For installation on masonry structures, use a 1/2" lag screw, in combination with a lag shield, of appropriate
length for the application.
In all cases, it is recommended that a at washer be placed on both sides of the fan yoke to assist in smooth
rotation.
OPERATING INSTRUCTIONS
This unit is single speed fan and swivel bracket, which allows you to move the position to a desired air delivery.
During normal operation it is not uncommon for the motor to be warm to the touch. The motor is equipped
with a thermo-protector, and will automatically d-energize the fan if it were to over heat for any reason. If this
should happen immediately disconnect unit from power.
CLEANING/MAINTENANCE INSTRUCTIONS
All maintenance should be done by either TPI Corporation or a qualied electrician. The motor bearings are lubricated
at the factory and should not require any additional lubrication. However, if bearing lubrication is required, apply a small
amount of a synthetic oil to the motor bearing.
Remove six retaining screws and the six grille clips on the outer ring. Remove front guard out and o to separate from
the housing. Use mild detergent to clean the blade and guards. Avoid allowing cleanser to come in contact with the
motor windings or bearing. Then replace front guard in reverse order of disassembly. Allow fan to dry completely before
next use.
Save these important instructions. Your TPI Air Circulator carries a one year warranty. For additional information on TPI
Products or replacement parts, call TPI Customer Service Department at 1-800-251-0382 or write the address below.
PO. Box 4973 • Johnson City, Tennessee 37602-4973 • 423-477-4131 • FAX 423-477-0683

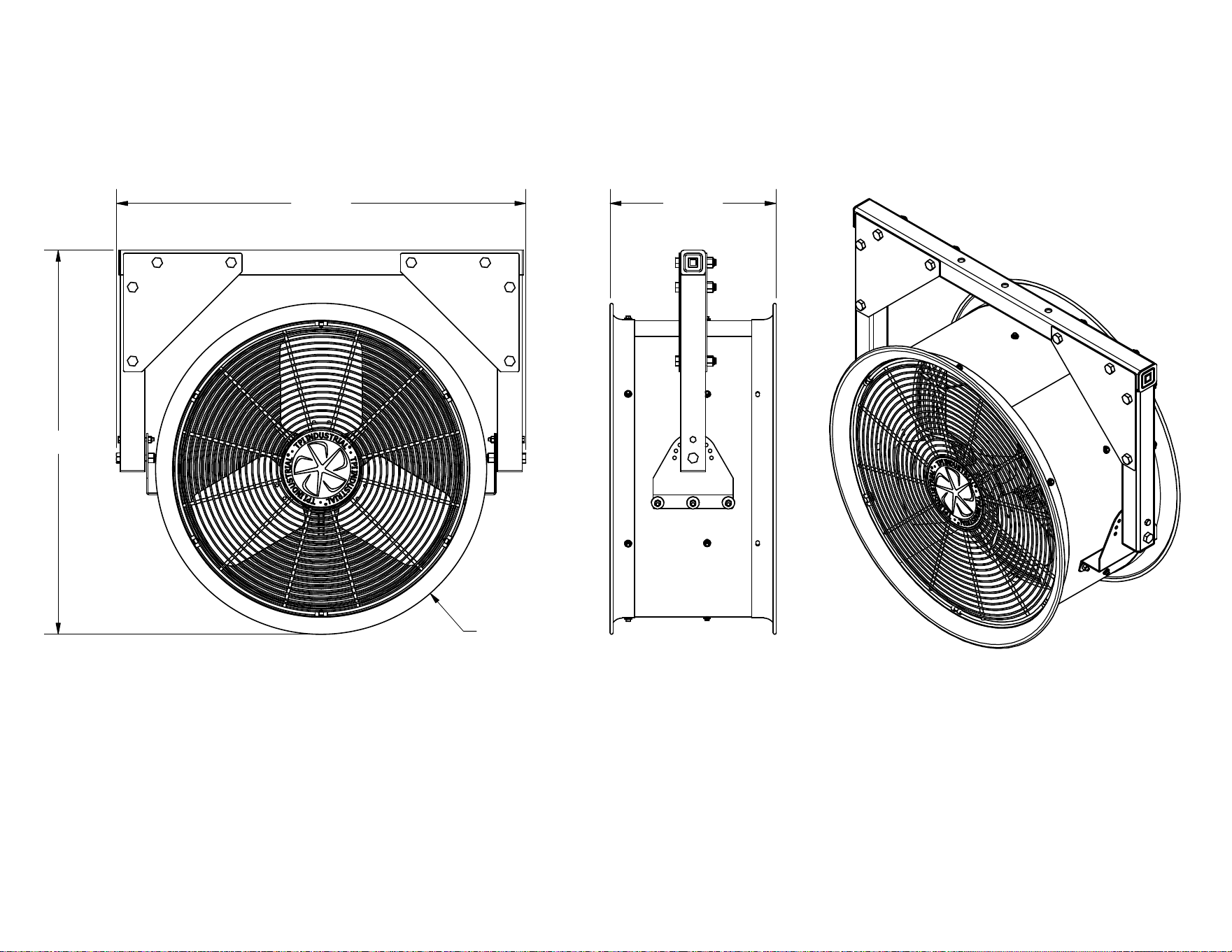

27 3/8 13 1/2
25 7/8
�20 7/8
HV18

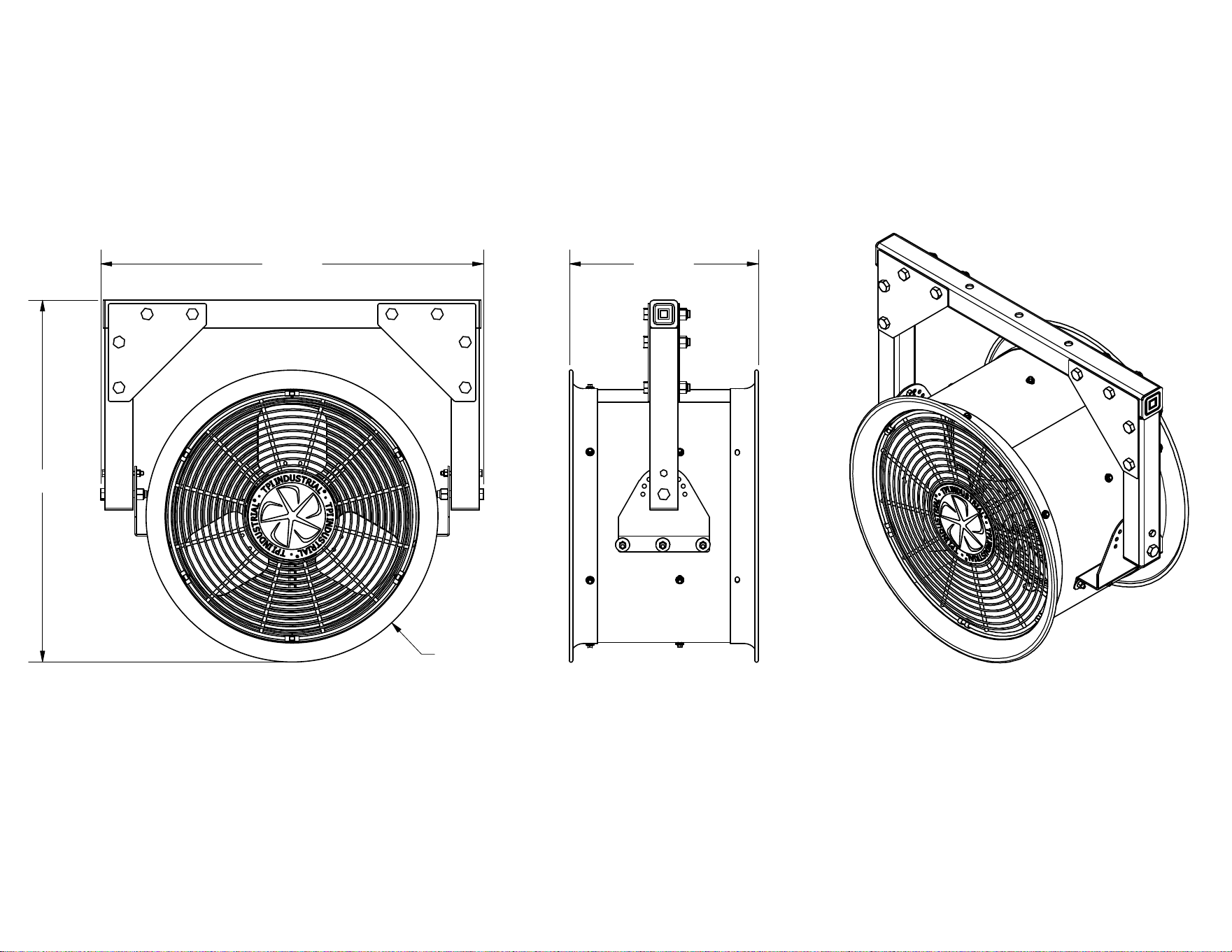

33 1/4 13 1/2
31 1/4
�26 7/8
HV24

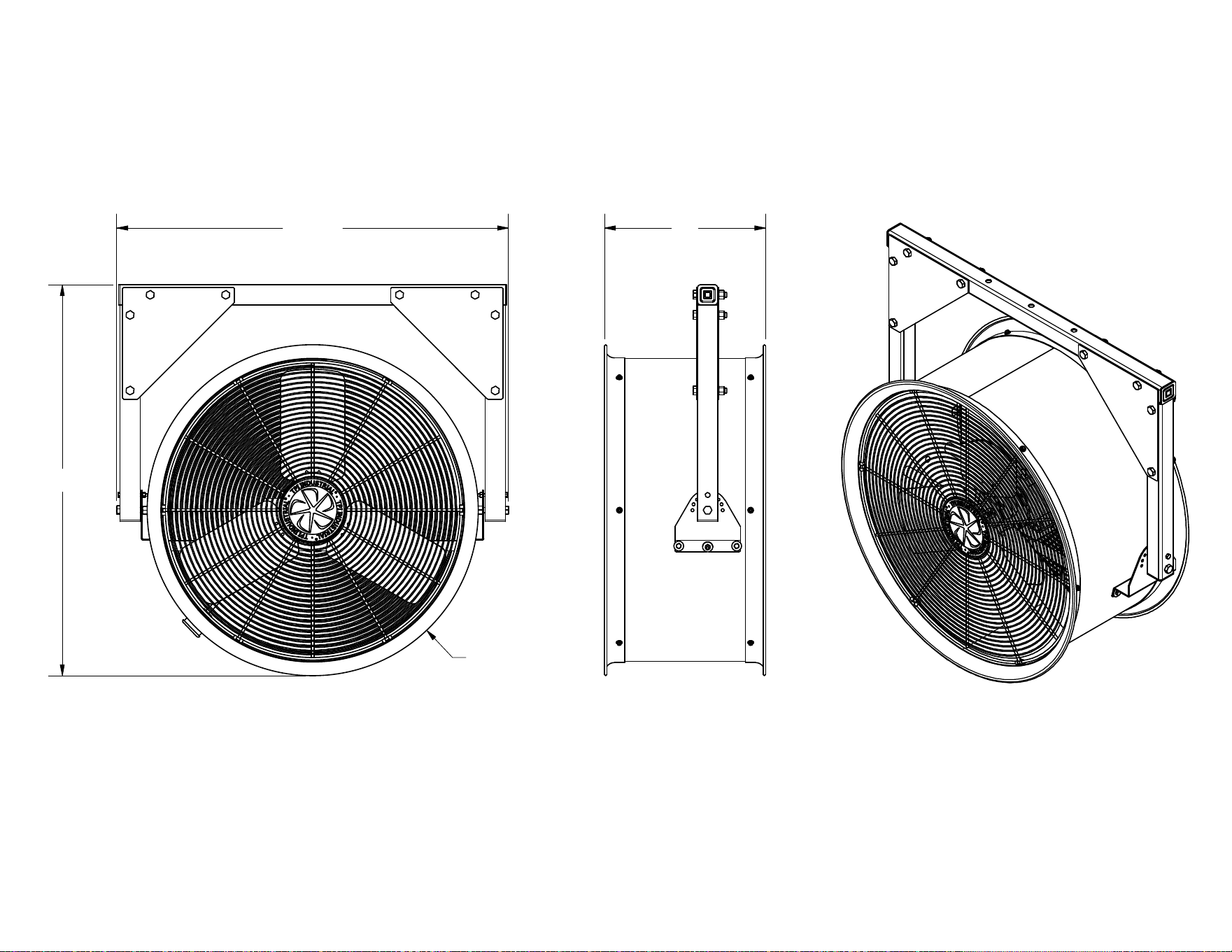

38 7/8
16
38 7/8
�32 7/8
HV30
