LFX50942B
EN User Manual | Washing Machine
aeg.com\register
Welcome to AEG! Thank you for choosing our appliance.
Get usage advice, brochures, trouble shooter, service and repair information:
www.aeg.com/support
Subject to change without notice.
CONTENTS
1. SAFETY INFORMATION................................................................................ 2
2. SAFETY INSTRUCTIONS.............................................................................. 4
3. PRODUCT DESCRIPTION............................................................................. 6
4. TECHNICAL DATA......................................................................................... 7
5. INSTALLATION...............................................................................................7
6. ACCESSORIES............................................................................................ 11
7. CONTROL PANEL........................................................................................ 12
8. DIAL AND BUTTONS....................................................................................13
9. PROGRAMMES ........................................................................................... 15
10. SETTINGS.................................................................................................. 18
11. BEFORE FIRST USE..................................................................................19
12. DAILY USE..................................................................................................20
13. HINTS AND TIPS........................................................................................ 24
14. CARE AND CLEANING.............................................................................. 26
15. CONSUMPTION VALUES.......................................................................... 31
16. TROUBLESHOOTING................................................................................ 32
17. QUICK GUIDE............................................................................................ 35
18. ENVIRONMENTAL CONCERNS................................................................36
1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions.
The manufacturer is not responsible for any injuries or
damage that are the result of incorrect installation or usage.
Always keep the instructions in a safe and accessible location
for future reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
2 ENGLISH
the use of the appliance in a safe way and understand the
hazards involved.
• Children between 3 and 8 years of age and persons with
very extensive and complex disabilities shall be kept away
from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away
from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not
play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the
door is open.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
• This appliance is for washing domestic-type, machine-
washable laundry only.
• This appliance is designed for single household domestic
use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
similar accommodation where such use does not exceed
(average) domestic usage levels.
• Do not change the specification of this appliance.
• The appliance maximum load is 9 kg. Do not exceed the
maximum load of each programme (refer to the
“Programmes” chapter).
• The operating water pressure at the water entry point from
the outlet connection must be between 0.5 bar (0.05 MPa)
and 10 bar (1.0 MPa).
ENGLISH 3
• The ventilation opening in the base must not be covered by
a carpet, mat, or any floor covering.
• The appliance must be connected to the water mains using
the new supplied hose sets, or other new hose sets
supplied by the Authorised Service Centre.
• Old hose sets must not be reused.
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
• Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to
clean the appliance.
• Clean the appliance with a moist cloth. Use only neutral
detergents. Do not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
• If a tumble dryer is stacked on the top of the washing
machine, make sure to use the correct stacking kit
approved by AEG (see more details in chapter "Accessories
- Stacking kit").
2. SAFETY INSTRUCTIONS
2.1 Installation
The installation must comply with
relevant national regulations.
• Remove all the packaging and the transit
bolts including rubber bush with plastic
spacer.
• Keep the transit bolts in a safe place. If the
appliance is to be moved in the future they
must be reattached to lock the drum to
prevent an internal damage.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
• Follow the installation instructions supplied
with the appliance.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance where
the temperature can be less than 0°C or
where it is exposed to the weather.
• The floor area on which the appliance is to
be installed must be flat, stable, heat
resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• When the appliance is in its permanent
position, check if it is levelled correctly
with the aid of a spirit level. If it is not,
adjust the feet accordingly.
• Do not install the appliance directly above
a floor drain.
• Do not spray water on the appliance and
do not expose it to excessive humidity.
• Do not install the appliance where the
appliance door cannot be fully opened.
• Do not put a closed container to collect
possible water leakage under the
4 ENGLISH
appliance. Contact the Authorised Service
Centre to ensure which accessories can
be used.
2.2 Electrical connection
WARNING!
Risk of fire and electric shock.
• WARNING: This appliance is designed to
be installed / connected to a grounding
connection in the building.
• Always use a correctly installed
shockproof socket.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Should
the mains cable need to be replaced, this
must be carried out by our Authorised
Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not touch the mains cable or the mains
plug with wet hands.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• This appliance is fitted with a 13 A mains
plug. If it is necessary to change the mains
plug fuse, use only a 13 A ASTA (BS
1362) fuse (UK and Ireland only).
2.3 Water connection
• The inlet water shall not exceed 25 °C.
• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not
used for a long time, where repair work
has been carried out or new devices fitted
(water meters, etc.), let the water flow until
it is clean and clear.
• Ensure that there are no visible water
leaks during and after the first use of the
appliance.
• Do not use an extension hose if the inlet
hose is too short. Contact the Authorised
Service Centre for the replacement of the
inlet hose.
• When unpacking the appliance, It is
possible to see water flowing from the
drain hose. This is due to the testing of the
appliance with the use of water in the
factory.
• You can extend the drain hose to
maximum 400 cm. Contact the Authorised
Service Centre for the other drain hose
and the extension.
• Make sure that there is access to the tap
after the installation.
2.4 Use
WARNING!
Risk of injury, electric shock, fire, burns
or damage to the appliance.
• Follow the safety instructions on the
detergent packaging.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not wash fabrics which are heavily
soiled with oil, grease or other greasy
substances. It can damage rubber parts of
the washing machine. Prewash such
fabrics by hand before loading them into
the washing machine.
• Do not touch the glass door while a
programme operates. The glass can get
hot.
• Make sure that all metal objects are
removed from the laundry.
2.5 Service
• To repair the appliance contact the
Authorised Service Centre. Use original
spare parts only.
• Please note that self-repair or non-
professional repair can have safety
consequences and might void the
guarantee.
• The following spare parts are available for
at least 10 years after the model has been
discontinued: motor and motor brushes,
transmission between motor and drum,
pumps, shock absorbers and springs,
washing drum, drum spider and related
ball bearings, heaters and heating
elements, including heat pumps, piping
and related equipment including hoses,
valves, filters and aquastops, printed
ENGLISH 5
circuit boards, electronic displays,
pressure switches, thermostats and
sensors, software and firmware including
reset software, door, door hinge and
seals, other seals, door locking assembly,
plastic peripherals such as detergent
dispensers. The duration may be longer in
your country. For further information,
please visit our website.
• Please note that some of these spare
parts are only available to professional
repairers, and that not all spare parts are
relevant for all models.
• Concerning the lamp(s) inside this product
and spare part lamps sold separately:
These lamps are intended to withstand
extreme physical conditions in household
appliances, such as temperature,
vibration, humidity, or are intended to
signal information about the operational
status of the appliance. They are not
intended to be used in other applications
and are not suitable for household room
illumination.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains
electrical and water supplies.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
• Remove the door catch to prevent children
or pets from becoming trapped in the
drum.
• Dispose of the appliance in accordance
with local requirements for the disposal of
Waste Electrical and Electronic Equipment
(WEEE).
3. PRODUCT DESCRIPTION
3.1 Appliance overview
1 2 3
9
5
6
7
4
10
8
11 12
1
Worktop
2
Detergent dispenser
3
Control panel
4
Door handle
5
Rating plate
6

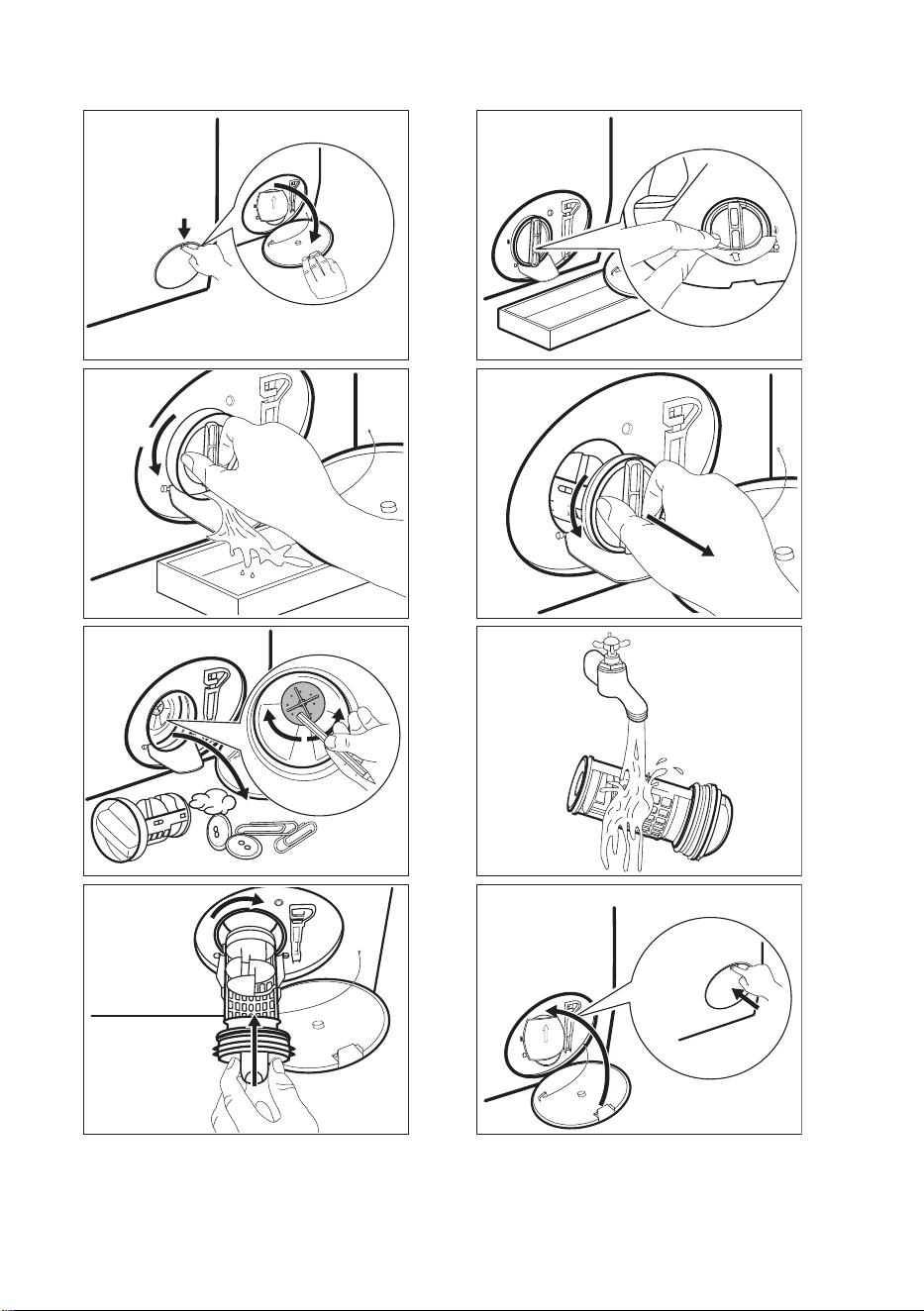

Drain pump filter
7
Feet for levelling the appliance
8
Drain hose
6 ENGLISH
9
Inlet hose connection
10
Mains cable
11
Transit bolts
12
Hose support
00000000
00A
Mod.
xxxxxxxxx
000V ~ 00Hz 0000 W
910000000
00
Prod.No.
B C D EA
The rating plate reports:
A. QR code
B. Model name
C. Product number
D. Electrical ratings
E. Serial number
Scan the QR code with the built-in camera app to register the appliance and for more additional
information.
4. TECHNICAL DATA
Dimension Width/ Height/ Total depth 59,7 cm /84,7 cm /65,8 cm
Electrical connection Voltage
Overall power
Fuse
Frequency
230-240 V
2100 W
13 A
50 Hz
Level of protection against ingress of solid particles and moisture ensured
by the protective cover, except where the low voltage equipment has no
protection against moisture
IPX4
Water supply pressure
1)
Minimum
Maximum
0.5 bar (0.05 MPa)
10 bar (1.0 MPa)
Water supply
2)
Cold water
Maximum Load Cotton 9 kg
Spin Speed Maximum spin speed 1351 rpm
1)
The appliance works correctly if the water pressure is not lower than 0.05 MPa (0.5 bar). If you cannot connect
the water inlet hose to the cold water tap of the primary hydraulic system, connect it to your domestic cold water
storage system. Make sure not to exceed a distance of 5.02 m (16.5 ft) between the appliance inlet hose and the
bottom of the water storage tank.
2)
Connect the water inlet hose to a water tap with a 3/4'' thread.
5. INSTALLATION
WARNING!
Refer to Safety chapters.
ENGLISH 7
5.1 Unpacking
1. Open the door. Remove all the items from
the drum.
Accessories delivered with the
appliance may vary depending on the
model.
2. Put the packaging element on the floor
behind the appliance and carefully put it
down onto its rear side. Remove the
polystyrene protection from the bottom.
1
2
CAUTION!
Do not lay washing machine on its
front.
3. Put the appliance back into an upright
position. Remove the power supply cable
and the drain hose from the hose holders.
WARNING!
It is possible to see water flowing
from the drain hose. This is because
the washing machine has been
tested at the factory.
4. Remove the three transit bolts and pull
out the plastic spacers.
We recommend that you keep the
packaging and the transit bolts for
any transport of the appliance.
5. Put the plastic caps, that you find in the
user manual bag, in the holes.
5.2 Information for installation
Positioning and levelling
Adjust the appliance correctly to prevent
vibration, noise and movement of the
appliance when it operates.
1. Install the appliance on a flat hard floor.
The appliance must be levelled and stable.
Make sure that the appliance does not touch
the wall or other units and there is air
circulation below the appliance.
2. Loosen or tighten the feet to adjust the
level. All feet must rest firmly on the floor.
8 ENGLISH
WARNING!
Do not put cardboard, wood or equivalent
materials below the appliance feet to
adjust the level.
The inlet hose
CAUTION!
Make sure there is no damage to hoses
and there are no leaks from the
couplings. Do not use an extension hose
if the inlet hose is too short. Contact the
service centre for information on inlet
hose replacement.
1. Connect the water inlet hose to the back
of the appliance if needs. Usually, it is
already installed at the factory.
20º20º
45º45º
2. Position it toward left or right depending
on the positon of the water tap. Make
sure that the inlet hose is not in vertical
position.
3. If necessary, loosen the ring nut to set it
in the correct position.
4. Some model can contain inlet hose with
water stop device. It prevents any leaks in
the hose because of its natural ageing.
The sector in the window shows this fault
A. If this occurs, close the water tap and
contact the authorized service center for
information to replace the hose.
3/4”
3/4”
A
A
A
5. Connect the other end of the COLD water
inlet hose to the cold water tap with 3/4"
thread.
WARNING!
The inlet water shall not exceed 25 °C.
Water drainage
The drain hose should stay at a height of no
less than 60 cm and not more than 100 cm.
You can extend the drain hose to
maximum 400 cm. Contact the
authorised service centre to buy the other
drain hose and the extension.
ENGLISH 9
It is possible to connect the drain hose in different ways:
min.600 mm
max.1000 mm
(
*
)
(
*
)
(
*
)
* Subject to change spare parts without notice.
Make sure that the drain hose makes a loop
to prevent particles going into the appliance
from the sink.
Connect the drain hose to the spigot and
tighten it with a clamp. Make sure that the
drain hose makes a loop to prevent particles
going into the appliance from the sink.
Position the hose directly to a built-in drain
pipe in the room wall and tighten it with a
clamp.
Without the plastic hose guide, to a sink
spigot- Put the drain hose in the spigot and
tighten it with a clamp.
The drain hose can be bent into U shape and
put around the plastic guide. On the edge of a
sink - Fasten the guide to the water tap or to
the wall.
Make sure that the plastic guide cannot
move when the appliance drains and the
drain hose end is not immersed in the
water. There may be a return of dirty
water into the appliance. Buy accessories
from authorised supplier.
To a stand pipe with vent hole - Insert the
drain hose directly into a drain pipe or stand
pipe
The end of the drain hose must always
be ventilated , i.e. the inner diameter of
the drain pipe (min. 38 mm - min. 1.5")
must be larger than the external diameter
of the drain hose.
5.3 Installation on suspended
flooring
Suspended wooden floors are particularly
susceptible to vibration.
To limit vibration we recommend placing a
waterproof wooden panel, at least 15 mm
thick, under the appliance. It should be
screwed to at least 2 floor beams and should
extend beyond the front feet.
If possible, install the appliance where the
floor is more stable.
5.4 Electrical connection
At the end of installation you can connect the
mains plug to the mains socket.
10 ENGLISH
The rating plate and the 'Technical Data'
chapter indicate the necessary electrical
ratings. Make sure that they are compatible
with the mains power supply.
Check that your domestic electrical
installation can take the maximum load
required, also taking into account any other
appliances may also be in use.
Connect the appliance to an earthed
socket.
The power supply cable must be easily
accessible after installing the appliance.
For any electrical work required to install this
appliance, contact our Authorised Service
Centre.
The manufacturer does not accept any
responsibility for damage or injury through
failure to comply with the above safety
precaution.
6. ACCESSORIES
6.1 Available in www.aeg.com/shop
or from authorised dealer
Read carefully the instructions supplied with
the accessory.
Only appropriate accessories approved
by AEG ensure the safety standards of
the appliance. If unapproved parts are
used, any claims will be invalidated.
6.2 Fixing plate kit
If you install the appliance on a plinth that is
not an accessory supplied by AEG, secure
the appliance in the fixing plates.
Read carefully the instructions supplied with
the accessory.
6.3 Stacking kit
The tumble dryer can be stacked on the top
of the washing machine only by using the
correct stacking kit.
WARNING!
Do not put the tumble dryer under the
washing machine. Verify the compatible
stacking kit by checking the depth of your
appliances.
ENGLISH 11
7. CONTROL PANEL
7.1 Special features
Your new washing machine meets all modern
requirements for an effective treatment of
laundry with low water, energy and detergent
consumption and will care for fabrics.
• The AutoSense System detects the
laundry load weight defining the
programme duration in 30 seconds. The
washing programme is tailored to the
laundry load and the type of fabric without
consuming more time, energy and water
than necessary. Read the paragraph "The
AutoSense load detection " for more
details.
7.2 Control panel description
2
3 4 5
11 10 7
1
6
89
1
Programme dial
2
Display
3
Delay Start touch button
4
Time Save touch button
5
Start/Pause touch button
6
Easy Iron touch button
7
Extra Rinse touch button
8
Prewash touch button
9
Spin reduction options touch button
• No Spin option
• Rinse Hold option
• Night option
10
Temp. touch button
11
On/Off push button
12 ENGLISH
7.3 Display
A B C D
E
FG
A. Door locked indicator.
B. Delay start indicator.
C. The digital indicator can show:
• Programme duration (e. g. ).
• Delay time (e. g. ).
• Cycle end ( ).
• Warning code (e.g. ).
• Indication of total operating hours of
the appliance. Refer to the "Operating
hours counter" section in the
"Settings" paragraph for more details.
D. Time Save bars level indicator.
E. Drum clean indicator.
F. Child safety lock indicator.
G. Add garments indicator. Illuminates at the
beginning of the Wash phase, while the
user can still pause the appliance and
add more laundry.
8. DIAL AND BUTTONS
8.1 Introduction
The options/functions are not available
with all washing programmes. Check the
compatibility between options/functions
and washing programmes in the
"Programme Chart". An option/function
can exclude another one, in this case the
appliance doesn't allow you to set
incompatible options/functions.
8.2 On/Off
Press this button for a few seconds to
activate or deactivate the appliance. Two
different tunes sound while switching the
appliance on or off.
As the Stand-by function automatically
deactivates the appliance after several
minutes to reduce the energy consumption,
you may need to activate the appliance
again.
For more details, refer to Stand-by paragraph
in Daily Use chapter.
8.3 Temp.
When you select a washing programme, the
appliance automatically proposes a default
temperature.
The indicator Cold = cold water.
The indicator of the set temperature comes
on.
ENGLISH 13
8.4 Spin
When you set a programme, the appliance
automatically sets the default spin speed
allowed.
Additional spin options:
• No Spin . The related indicator comes
on.
Set this option to deactivate all spin
phases. The appliance performs only the
draining phase of the selected washing
programme. Set this option for very
delicate fabrics. The rinse phase uses
more water for some washing
programmes
• Rinse Hold . The related indicator
comes on.
The final spin is not performed. The water
of the last rinse is not drained out to
prevent the fabrics from creasing. The
washing programme ends with water in
the drum.
The door stays locked and the drum turns
regularly to reduce creasing. You must
drain the water to unlock the door.
If you touch the Start/Pause
button, the
appliance performs the spinning phase
and drains the water.
• Night . The related indicator comes
on.
The intermediate and the final spinning
phases are suppressed and the
programme ends with water in the drum.
This helps to reduce creasing. The door
stays locked. The drum turns regularly to
reduce creasing. You must drain the water
to unlock the door.
As the programme is very quiet, it is
suitable for use at night time when
cheaper electricity tariffs are available. In
some programmes the rinses are
performed with more water.
If you touch the Start/Pause button, the
appliance performs only the draining
phase.
The appliance empties the water out
automatically after approximately 18
hours.
8.5 Prewash
With this option you can add a prewash
phase to a washing programme.
The relevant indicator illuminates.
• Use this option to add a pre-wash phase
at 30 °C before the washing phase.
This option is recommended for heavily
soiled laundry, especially if containing
sand, dust, mud and other solid particles.
These options can increase the
programme duration.
8.6 Permanent Extra Rinse
With this option you can add a few rinses
according to the selected washing
programme.
Use this option for people with allergies to
detergent residues and with sensitive skin.
This option increases the programme
duration.
The corresponding indicator above the touch
button illuminates and also stays permanently
on during next cycles until this option is
deactivated.
8.7 Easy Iron
The appliance carefully washes and spins the
laundry to prevent the creases.
The appliance decreases the spin speed,
uses more water and adapts the programme
duration to the type of laundry.
The related indicator comes on.
8.8 Delay Start
With this option you can delay the start of a
programme to a more convenient time.
Touch the button repeatedly to set the
required delay. The time increases in steps of
1 hour up to 20 hours.
The display shows the indicator and the
selected delay time. After touching the Start/
14 ENGLISH
Pause button, the appliance begins the
countdown and the door is locked.
8.9 Time Save
With this option you can reduce the
programme duration depending on the load
size and the degree of soiling. This
adjustment should be made after the setting
of Temp. and Spin .
When you set a washing programme, the
display shows the default duration and
dashes.
Touch Time Save
button to reduce the
programme duration according to your needs.
The display shows the new programme
duration and a number of dashes will
decrease accordingly:
suitable for a full load of normally
soiled garments.
a quick cycle for a smaller lightly soiled
garments (max. half load recommended).
the shortest cycle to freshen up a small
amount of laundry.
The Time Save is available only with the
programmes in the table.
indicator
Cottons
Synthetics
Dark Clothes
1)
■ ■ ■
■ ■ ■
■ ■ ■
1)
Defaullt duration for all programmes.
8.10 Start/Pause
Touch the Start/Pause button to start,
pause the appliance or interrupt a running
programme.
9. PROGRAMMES
9.1 Programme Chart
Programme
Default tempera‐
ture
Temperature
range
Reference
spin speed
Spin speed
range
Maximum
load
Programme description
(Type of load and level of soiling)
Eco 40-60
40 °C
1)
1400 rpm
(1400- 800 rpm)
9 kg White cotton and fast-coloured cotton. Normally
soiled items. The energy consumption decreases
and the time of the washing programme is extended,
ensuring good washing results.
Cottons
40°C
90°C - Cold
1400 rpm
(1400- 800 rpm)
9 kg White cotton and coloured cotton. Normally,
heavily and lightly soiled items.
Synthetics
40°C
60°C - Cold
1200 rpm
(1200- 800 rpm)
4 kg Synthetic items or mixed fabric items. Normally
soiled items.
ENGLISH 15
Programme
Default tempera‐
ture
Temperature
range
Reference
spin speed
Spin speed
range
Maximum
load
Programme description
(Type of load and level of soiling)
Delicates
30°C
40°C - Cold
1200 rpm
(1200- 800 rpm)
2 kg Delicate fabrics such as acrylics, viscose and
mixed fabrics requiring gentler washing. Normal‐
ly and lightly soiled items.
Wool
40 °C
40°C - Cold
1200 rpm
(1200- 800 rpm)
1,5 kg Machine washable wool, hand washable wool
and other fabrics with «hand washing» care sym‐
bol
2)
.
Denim
30 °C
40 °C - Cold
800 rpm
(1200 - 800 rpm)
3 kg Special programme for Denim clothing with deli‐
cate washing phase to minimize colour fading
and marks. For better care a reduced load size is
recommended.
Sportswear
30 °C
40°C - Cold
1200 rpm
(1200- 800 rpm)
4 kg Synthetic and delicate items. Lightly soiled items
or items to refresh.
Spin/Drain
3)
1400 rpm
(1400 -800 rpm)
9 kg All fabrics, except woollens and delicate fabrics.
To spin the laundry and to drain the water in the
drum.
Rinse 1400 rpm
(1400- 800 rpm)
9 kg To rinse and spin the laundry. All fabrics, except
woollens and very delicate fabrics. Reduce the spin
speed accordingly to the type of laundry.
Dark Clothes
40°C
60°C - Cold
1200 rpm
(1200- 800 rpm)
9 kg Cotton items or mixed fabric items in dark col‐
ours. Normally soiled items.
Anti-Allergy
60 °C
1400 rpm
(1400- 800 rpm)
9 kg White cotton items. This programme removes mi‐
cro-organisms thanks to a washing phase with the
temperature maintained above 60°C for several mi‐
nutes. This helps remove germs, bacteria, micro-or‐
ganism and particles. An additional rinsing phase
ensures a proper removal of detergent residues and
pollens/allergenic items. In this way the wash is
more effective.
14min Refresh
30 °C
800 rpm
(800- 800 rpm)
1,5 kg Synthetic and mixed fabric items. Very light soil‐
ing and items to freshen up.
30min Wash
40°C
40°C - 30°C
1200 rpm
(1200- 800 rpm)
3 kg Synthetic and mixed fabric items. Lightly soiled
items.
16 ENGLISH
Programme
Default tempera‐
ture
Temperature
range
Reference
spin speed
Spin speed
range
Maximum
load
Programme description
(Type of load and level of soiling)
60min Wash
30°C
60°C - 30°C
1400 rpm
(1400- 800 rpm)
5 kg Cotton and fast-coloured synthetic items. Complete
washing programme that, in only 60 minutes,
washes the daily soiled laundry intensively and en‐
sures a good washing performance in a short time.
1)
According to UK Ecodesign for Energy-Related Products and Energy Information Regulations, this programme
at 40 °C is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the
same cycle.
For the reached temperature in the laundry, the programme duration and other data, please refer to 'Con‐
sumption Values' chapter.
The most efficient programmes in terms of energy consumption are generally those that perform at lower tem‐
peratures and longer duration.
2)
During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or
doesn't rotate properly, but this is normal for this programme.
3)
Set the spin speed. Make sure it is suitable for the type of fabric being washed. If you set the No Spin option
then only the drain phase is available.
Programme options compatibility
Programme
OPTIONS
Spin
Prewash
Extra Rinse
Easy Iron
Time Save
Delay Start
Eco 40-60 ■ ■ ■
Cottons
■ ■ ■ ■ ■ ■ ■ ■ ■
Synthetics
■ ■ ■ ■ ■ ■ ■ ■ ■
Delicates
■ ■ ■ ■ ■ ■
Wool
■ ■ ■ ■
Denim
■ ■ ■ ■ ■ ■ ■
Sportswear
■ ■ ■ ■ ■ ■ ■
Spin/Drain
■ ■ ■
Rinse
■ ■ ■ ■ ■
Dark Clothes
■ ■ ■ ■ ■ ■ ■
Anti-Allergy
■ ■ ■ ■ ■ ■
ENGLISH 17
Programme
OPTIONS
Spin
Prewash
Extra Rinse
Easy Iron
Time Save
Delay Start
14min Refresh
■ ■ ■
30min Wash
■ ■ ■
60min Wash
■ ■ ■ ■ ■
Suitable detergents for washing programmes
Programme Universal pow‐
der
1)
Liquid Uni‐
versal
Liquid for
coloureds
Delicates
woollens
Special
Eco 40-60 ▲ ▲ ▲ -- --
Cottons
▲ ▲ ▲ -- --
Synthetics
▲ ▲ ▲ -- --
Delicates
-- -- -- ▲ ▲
Wool
-- -- -- ▲ ▲
Denim
-- -- ▲ ▲ ▲
Sportswear
-- ▲ ▲ -- ▲
Dark Clothes
-- -- ▲ ▲ ▲
Anti-Allergy
▲ ▲ ▲ -- --
14min Refresh
-- ▲ ▲ -- --
30min Wash
-- ▲ ▲ -- --
60min Wash
▲ ▲ ▲ -- --
1)
At temperature higher than 60 °C the use of powder detergent is recommended.
▲ = Recommended -- = Not recommended
10. SETTINGS
10.1 Acoustic signals
This appliance has different acoustic signals,
that operate when:
• You activate the appliance (special short
tune).
• You deactivate the appliance (special
short tune).
• You touch the buttons (click sound).
• You make an invalid selection (3 short
sounds).
18 ENGLISH
• The programme is completed (sequence
of sounds for about 1 minute).
• The appliance has a malfunction
(sequence of short sounds for about 5
minutes).
To deactivate/activate the acoustic signals
set a one of the programme, touch the Temp.
and the Spin buttons simultaneously for about
2 seconds. The display shows On/Off
If you deactivate the acoustic signals,
they continue to operate when the
appliance has a malfunction.
10.2 Child Lock
With this option you can prevent children from
playing with the control panel.
To activate/deactivate this option, hold down
the Easy Iron button until comes on/goes
off on the display.
The appliance will default to this option after
you switch it off.
The Child Lock function may not be available
for a few seconds after switching the
appliance on.
10.3 Operating Hours Counter
It is possible to visualise the total operating
time of the appliance in hours, starting from
the first switching on. This value will count
operating time of the cycles (does not include
pauses, delayed start time). To visualise this
value, proceed as follows:
1. Switch the appliance on by pressing
On/Off button.
2. Turn the programme knob to the Eco
40-60 programme (1st position
clockwise).
3. Press and hold the Spin and Temp.
buttons for some seconds (within 10
seconds after the switching on. After
these 10 seconds, the key combination
activates and deactivates the acoustic
signals).
4. After 3 seconds the total hours operated
by the appliance are shown in the display:
e.g. 1276 hours, the display shows the
text Hr for 2 seconds, 12 (thousands and
hundreds) for 2 seconds and 76 (tens and
units).
If the procedure does not work (due to
timeout, wrong programme dial position
or wrong keys combination), switch the
appliance off and repeat sequence from
the beginning.
10.4 Factory Reset
This function allows to restore the factory
default options. To activate this option follow
steps below:
1. Switch the appliance on by pressing
On/Off button.
2. Turn the programme knob to the
Synthetics programme (3rd position
clockwise).
3. Press and hold the Spin and Temp.
buttons for some seconds (within 10
seconds after the switching on. After
these 10 seconds, the key combination
activates and deactivates the acoustic
signals).
4. The display will show
for about 5
seconds.
If the procedure does not work (due to
timeout, wrong programme dial position
or wrong keys combination), switch the
appliance off and repeat sequence from
the beginning.
11. BEFORE FIRST USE
1. Make sure that the electrical power is
available and the water tap is open.
2. Pour a small quantity of detergent into the
compartment marked by .
3. Set and start a programme for cotton at
the highest temperature without any
laundry in the drum.
This removes all possible dirt from the drum
and the tub.
ENGLISH 19
12. DAILY USE
WARNING!
Refer to Safety chapters.
12.1 Activating the appliance
1. Connect the mains plug to the mains
socket.
2. Open the water tap.
3. Press the On/Off button for a few
seconds to activate the appliance.
A short tune sounds.
12.2 Loading the laundry
1. Open the appliance door.
2. Empty the pockets and unfold the items
before you put them in the appliance.
3. Put the laundry in the drum, one item at a
time.
Do not put too much laundry in the drum.
4. Close the door firmly.
CAUTION!
Make sure that no laundry gets caught
between the seal and the door to avoid
risk of water leakage and damage to the
laundry.
Washing heavily oiled, greasy stains
could cause damage to rubber parts of
the washing machine.
12.3 Detergent compartments. Using and additives
1. Measure out specified detergents and the
fabric conditioner.
2. Put the detergent and the fabric conditioner
into the proper compartments.
3. Carefully close the detergent drawer.
Compartment for prewash phase, soak programme or stain remover.
Compartment for washing phase.
20 ENGLISH
Compartment for liquid additives (fabric conditioner, starch).
Maximum level for quantity of liquid additives.
Flap for powder or liquid detergent.
Always follow the instructions that you
find on the packaging of the detergent
products, but we recommend that you do
not exceed the maximum indicated level.
This quantity will however guarantee the
best washing results.
After a washing cycle, if necessary,
remove any detergent residue from the
detergent dispenser.
12.4 Position of the detergent flap
1. Pull out the detergent dispenser until it
stops.
2. Remove the drawer. Press the place with
the (PUSH) to remove the drawer easily.
1
2
3. To use liquid detergent, adjust the flap in
right position, turn the flap down.
With the flap in the position DOWN:
• Do not use gelatinous or thick liquid
detergents.
• Do not exceed to liquid detergent dose
indicated on the flap.
• Do not set the prewash phase.
• Do not set the delay start function.
4. Measure out the detergent and the fabric
conditioner.
5. Put back the drawer in the recess.
6. To use powder detergent again turn flap
in the position UP
Make sure that the flap does not cause a
blockage when you close the drawer.
12.5 Setting a programme
1. Turn the programme dial to select the
desired washing programme.
The indicator of the Start/Pause button
flashes.
The display shows an indicative programme
duration.
2. To change the temperature and/or the
spin speed, touch the related buttons.
3. If desired, set one or more options by
touching the related buttons. The related
indicators illuminate on the display and
the given information changes
accordingly.
ENGLISH 21
If a selection is not possible an acoustic
signal sounds.
12.6 Starting a programme
Touch the Start/Pause button to start the
programme. It is not possible to start the
programme when the indicator of the button
is off and doesn't flash (e.g. programme dial
on a wrong position).
The related indicator stops flashing and stays
on.
The programme starts, the door is locked.
The display shows the indicator .
The drain pump can operate shortly
before the appliance fills water.
12.7 Starting a programme with the
delay start
1. Touch the Delay Start button repeatedly
until the display shows the desired delay
time. On the display the indicator shows
2. Touch the Start/Pause button. The
appliance door locks and starts the
countdown of the delay start. The display
shows the indicator .
When the countdown is completed, the
programme starts automatically.
Cancelling the delay start after the
countdown has started
To cancel the delay start:
1. Touch the Start/Pause button to
pause the appliance. The related
indicator flashes.
2. Touch the Delay Start button repeatedly
until the display shows
and the
indicator goes off.
3. Touch the Start/Pause button again to
start the programme immediately.
Changing the delay start after the
countdown has started
To change the delay start:
1. Touch the Start/Pause button to
pause the appliance. The related
indicator flashes.
2. Touch the Delay Start button repeatedly
until the display shows the desired delay
time.
3. Touch the Start/Pause button again to
start the new countdown.
12.8 The AutoSense System load
detection
The programme duration in the display is
referred to a medium/high load.
After touching the Start/Pause button, the
AutoSense System starts the laundry load
detection:
1. The appliance detects the load in the first
30 seconds. In the programmes where
Time Save
is available, during this
phase the two dots separating hours from
minutes are blinking and the drum rotates
shortly.
2. The programme duration could be
adjusted accordingly and could increase
or decrease. After further 30 seconds, the
water filling starts.
About 20 minutes after the programme
start, the programme duration could be
adjusted again depending on the
capacity of water absorption of the
fabrics.
The AutoSense detection is carried out
with complete washing programmes only
and if the programme duration has not
been reduced.
22 ENGLISH
The AutoSense System is not available
with all programmes such as :Wool,
Rinse, and programmes with short
cycles.
12.9 Interrupting a programme and
changing the options
When the programme is running, you can
change only some options:
1. Touch the Start/Pause button.
The related indicator flashes.
2. Change the options. The given
information in the display changes
accordingly.
3. Touch the button Start/Pause again.
The washing programme continues.
12.10 Cancelling a running
programme
1. Press the button On/Off to cancel the
programme and to deactivate the
appliance.
2. Press the button On/Off again to activate
the appliance.
If the AutoSense System has completed
and the water filling has already started,
the new programme starts without
repeating the AutoSense System. The
water and the detergent are not drained
out in order to avoid waste. The display
shows the maximum duration of the
programme, updating it about 20 minutes
after the starting of the new programme.
There is also an alternative way of cancelling:
1. Rotate the selector knob to the "Reset"
position .
2. Wait for 1 second. The display shows
.
Now, you can set a new washing programme.
12.11 Opening the door - Adding
garments
If the temperature and level of the water
in the drum are too high and/or the drum
is still rotating you should not open the
door.
While a programme or the delay start
operates, the appliance door is locked. The
display shows the indicator .
1. Touch the Start/Pause
button.
In the display the related door lock indicator
goes off.
2. Open the appliance door. If necessary,
add or remove the items. Close the door
and touch the Start/Pause
button.
The programme or the delay start continues.
12.12 End of the programme
When the programme has finished, the
appliance stops automatically. The acoustic
signals operate (if they are active). The
display shows
The indicator of the Start/Pause button
goes off.
The door unlocks and the indicator goes
off.
1. Press button On/Off to deactivate the
appliance.
After five minutes from the end of the
programme, the energy saving function
automatically deactivates the appliance.
ENGLISH 23
When you activate the appliance again,
the display shows the end of the previous
programme. Turn the programme dial to
set a new cycle.
2. Remove the laundry from the appliance.
3. Make sure that the drum is empty.
4. Keep the door and the detergent
dispenser slightly ajar to prevent mildew
and odours.
5. Close the water tap.
12.13 Draining water out after end
of cycle
If you have chosen a programme or an option
that does not empty out the water of the last
rinse, the programme is completed, but:
• The time area shows and the
display shows the door locked .
• The drum still turns at regular intervals to
prevent creases in the laundry.
• The door stays locked.
• You must drain the water to open the
door:
1. If necessary, touch the Spin button to
decrease the spin speed proposed by the
appliance.
2. Press theStart/Pause
button:
• If you have set Rinse Hold the
appliance drains the water and spins.
• If you have set Night the appliance
only drains the water
The option indicator Rinse Hold
disappears.
3. When the programme is completed and
the door locked indicator goes off,
you can open the door.
4. Press the On/Off
button for a few
seconds to deactivate the appliance.
12.14 Stand-by option
The Stand-by function automatically
deactivates the appliance to reduce the
energy consumption when:
• You do not use the appliance for 5
minutes .
Press the button On/Off to activate the
appliance again.
• 5 minutes after the end of the washing
programme
Press the On/Off button to activate the
appliance again.
The display shows the end of the last
programme.
Turn the programme dial to set a new
cycle.
If the dial is rotated to the "Reset" position ,
the appliance automatically turns off in 30
seconds.
If you set a programme or an option that
ends with water in the drum, the Stand-
by function doesn't deactivate the
appliance to remind you to drain the
water.
13. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
13.1 The laundry load
• Divide the laundry into: white, coloured,
synthetics, delicates and wool.
• Follow the washing instructions on the
laundry care labels.
• Do not wash white and coloured items
together.
• Some coloured items can discolour with
the first wash. We recommend that you
wash them separately for the first couple
of times.
• Turn multilayered fabrics, wool and items
with printed illustrations inside out.
• Pre-treat stubborn stains.
• Wash stubborn stains with a special
detergent.
• Be careful with curtains. Remove the
hooks and put the curtains in a washing
bag or pillowcase.
24 ENGLISH
• A very small load can cause balance
problems with the spin phase leading to
excessive vibration. If this occurs:
a. interrupt the programme and open the
door (refer to "Daily Use" chapter);
b. manually redistribute the load so that
the items are spaced evenly around
the tub;
c. press the Start/Pause button. The
spin phase continues.
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts, cords,
shoelaces, ribbons and any other loose
elements.
• Do not wash laundry without hems or with
cuts. Use a washing bag to wash small
and/or delicate items (e.g. underwired
bras, belts, tights, shoelaces, ribbons,
etc. ).
• Empty pockets and unfold the items.
13.2 Stubborn stains
For some stains, water and detergent is not
sufficient.
We recommend that you pre-treat these
stains before you put the items in the
appliance.
Special stain removers are available. Use the
special stain remover that is applicable to the
type of stain and fabric.
13.3 Detergent type and quantity
The choice of detergent and use of correct
quantities not only affects your wash
performance, but also helps to avoid waste
and protect the environment:
• Use only detergents and other treatments
specially made for washing machines.
First, follow these generic rules:
– powder detergents for all types of
fabric, excluding delicate. Prefer
powder detergents containing bleach
for whites and laundry sanitization,
– liquid detergents, preferably for low
temperature wash programmes (60 °C
max) for all types of fabric, or special
ones for woollens only.
• The choice and quantity of detergent will
depend on: type of fabric (delicates,
woollens, cottons, etc), the colour of
clothes, size of the load, degree of soiling,
wash temperature and hardness of the
water used.
• Follow the instructions that you find on
packaging of the detergents or other
treatments without exceeding the
indicated maximum level ( ).
• Do not mix different types of detergents.
• Use less detergent if:
– you are washing a small load,
– the laundry is lightly soiled,
– there is large amounts of foam during
washing.
• When using detergent tabs or pods,
always put them inside the drum, not in
the detergent dispenser.
Insufficient detergent may cause:
• unsatisfactory washing results,
• the wash load to turn grey,
• greasy clothes,
• mould in the appliance.
Excessive detergent may cause:
• sudsing,
• reduced washing effect,
• inadequate rinsing,
• a greater impact for the environment.
13.4 Ecological hints
To save water, energy and to help protect the
environment, we recommend that you follow
these tips:
ENGLISH 25
• Normally soiled laundry may be washed
without prewash in order to save
detergent, water and time (the
environment is protected too!).
• Loading the appliance to the maximum
capacity indicated for each
programmes helps to reduce energy
and water consumption.
• With adequate pre-treatment, stains and
limited soiling can be removed; the
laundry can then be washed at a lower
temperature.
• To use the correct quantity of detergent,
refer to the quantity suggested by the
detergent producer and check the water
hardness of you domestic system. Refer
to 'Water hardness'.
• Set the maximum possible spin speed
for the selected washing programme
before drying your laundry in a tumble
dryer. This will save energy during drying!
13.5 Water hardness
If the water hardness in your area is high or
moderate, we recommend that you use a
water softener for washing machines. In
areas where the water hardness is soft it is
not necessary to use a water softener.
To find out the water hardness in your area,
contact your local water authority.
Use the correct quantity of water softener.
Follow the instructions that you find on the
packaging of the product.
14. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
14.1 Periodic cleaning schedule
Periodic cleaning helps to extend the life
of your appliance.
After each cycle, keep the door and the
detergent dispenser slightly ajar to get air
circulation and dry the humidity inside the
appliance: this will prevent mildew and
odours.
If the appliance is not used for a long time:
close the water tap and unplug the appliance.
Indicative periodic cleaning schedule:
Descaling Twice a year
Maintenance wash Once a month
Clean door seal Every two months
Clean drum Every two months
Clean detergent dispens‐
er
Every two months
Clean drain pump filter Twice a year
Clean the inlet hose and
the valve filter
Twice a year
The following paragraphs explain how you
should clean each part.
14.2 Removing foreign objects
Make sure that pockets are empty and all
loose elements are tied up before
running your cycle. Refer to "The laundry
load" in "Hints and tips".
Remove any foreign objects (such as metal
clip, buttons, coins, etc) that you may find in
the door seal, the filters and the drum. Refer
to "Door seal with double lip trap", "Cleaning
the drum", "Cleaning the drain pump" and
"Cleaning the inlet hose and the valve filter"
paragraphs. If necessary, please contact the
Authorised Service Centre.
14.3 External cleaning
Clean the appliance with mild soap and warm
water only. Fully dry all the surfaces. Do not
use a scouring pads or any scratching
material.
CAUTION!
Do not use alcohol, solvents or chemical
products.
26 ENGLISH
CAUTION!
Do not clean the metal surfaces with
chlorine-based detergent.
14.4 Descaling
If the water hardness in your area is high
or moderate, we recommend that you
use a water descaling product for
washing machines.
Regularly examine the drum to check for
limescale.
Regular detergents already contain water
softening agents, but we recommend to run a
cycle with an empty drum and a descaling
product occasionally.
Always follow the instructions that you
find on the packaging of the product.
14.5 Maintenance wash
The repeated and prolonged use of low
temperature programmes can cause
detergent deposits, fluff residues, bacterial
growth inside the drum and the tub. This
could generate bad odours and mildew. To
eliminate these deposits and clean the inner
part of the appliance, run a maintenance
wash regularly (at least once a month).
Refer to "Cleaning the drum" paragraph.
14.6 Cleaning the drum
Regularly examine the drum to prevent
unwanted deposits.
Rust deposits in the drum may occur due to
rusting foreign body in the washing or tap
water containing iron
Clean the drum with special products for
stainless steel.
Always follow the instructions that you
find on the packaging of the product.
Do not clean the drum with acidic
descaling products, scouring products
containing chlorine or iron or steel wool.
For a thorough clean:
1. Remove all laundry from the drum.
2. Run a Cottons programme with the
highest temperature.
3. Add a small quantity of powder detergent
into the empty drum, in order to rinse out
any left residues.
Door seal with double lip trap
This appliance is designed with a self
cleaning draining system, allowing light fluff
fibers that fall off the clothes to be drained out
with the water. Regularly examine the seal.
Coins, buttons, other small items can be
recovered at the end of the cycle.
Clean it when needed, using ammonia cream
cleanser agent without scratching the seal
surface.
Always obey the instructions that you find
on the packaging of the product.
ENGLISH 27
14.7 Cleaning the detergent
dispenser
1.
1
2
2.
3.
4.
14.8 Cleaning the drain pump
Regularly check the drain pump filter and make sure that it is clean.
Clean the drain pump if:
• The appliance does not drain the water.
• The drum does not turn.
• The appliance makes an unusual noise because of the blockage of the drain pump.
• The display shows the alarm code
WARNING!
• Disconnect the mains plug from the mains socket.
• Do not remove the filter while the appliance operates.
• Do not clean the pump if the water in the appliance is hot. Wait until the water cools
down .
• Repeat Step 3 several times by closing and opening the valve until the water stops
flowing out.
Always keep a rag nearby to dry up any water spillages when removing the filter.
28 ENGLISH
Proceed as follows to clean the pump:
1.
1
2
2.
3.
180˚
4.
2
1
5. 6.
7.
2
1
8.
2
1
1
ENGLISH 29
WARNING!
Make sure that the impeller of the pump can rotate. If it does not rotate, contact the
Authorised Service Centre. Make sure also that you tighten the filter correctly to prevent
leakages.
14.9 Cleaning the inlet hose and the valve filter
1
2
3
45°
20°
14.10 Emergency drain
If the appliance cannot drain the water, carry
out the same procedure, described in
'Cleaning the drain pump' paragraph. If
necessary, clean the pump.
14.11 Frost precautions
If the appliance is installed in an area where
the temperature can reach values around 0°
C or drop below, remove the remaining water
from the inlet hose and the drain pump.
1. Disconnect the mains plug from the
mains socket.
2. Close the water tap.
3. Put the two ends of the inlet hose in a
container and let the water flow out of the
hose.
4. Empty the drain pump. Refer to the
emergency drain procedure.
5. When the drain pump is empty, install the
inlet hose again.
WARNING!
Make sure that the temperature is higher
than 0 °C before you use the appliance
again.
The manufacturer is not responsible for
damages caused by low temperatures.
30 ENGLISH
15. CONSUMPTION VALUES
15.1 Introduction
See the web link www.theenergylabel.eu for detailed information
about Energy Label.
The QR code on the energy label supplied with the appliance
provides a web link to the product information sheet. Keep the
energy label for reference together with the user manual and all
other documents provided with this appliance.
15.2 Legend
kg Laundry load. hh:mm Programme duration.
kWh Energy consumption. °C Temperature in the laundry.
Litres Water consumption. rpm Spin speed.
% Remaining moisture at the end of spinning phase. The higher is the spin speed, the higher is the
noise and the lower is the remaining moisture.
Values and programme duration may differ depending on different conditions (e.g. room
temperature, water temperature and pressure, load size and type of laundry, supply
voltage) and also if you change the default setting of a programme.
15.3 According to UK Ecodesign for
Energy-Related Products and
Energy Information Regulations
Eco 40-60 pro‐
gramme
kg kWh Litres hh:mm % °C
rpm
1)
Full load 9 0.760 64.0 3:40 53.00 33 1351
Half load 4,5 0.440 47.0 2:45 53.00 27 1351
Quarter load 2,5 0.300 39.0 2:35 54.00 26 1351
1)
Maximum spin speed.
ENGLISH 31
Power consumption in different modes
Off (W) Stand-by (W) Delay start (W)
0.50 0.50 4.00
Time to Off/Standby mode is 15 minutes maximum.
15.4 Common programmes
These values are indicative only.
Programme
kg kWh Litres hh:mm % °C
rpm
1)
Cottons
2)
90°C
9 2.75 85.0 4:00 52.00 85 1400
Cottons
60°C
9 1.65 80.0 3:30 52.00 55 1400
Cottons
3)
20°C
9 0.35 80.0 3:00 52.00 20 1400
Synthetics
40°C
4 0.85 75.0 2:30 35.00 40 1200
Delicates
4)
30°C
2 0.35 60.0 1:25 35.00 30 1200
Wool
30°C
1,5 0.30 70.0 1:05 30.00 30 1200
1)
Reference indicator of the spin speed.
2)
Suitable for washing heavily soiled textiles.
3)
Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.
4)
It also performs as quick washing cycle for lightly soiled laundry.
16. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
16.1 Alarm Codes and Possible failures
The appliance does not start or it stops during operation. First try to find a solution to the problem
(refer to the tables).
WARNING!
Deactivate the appliance before carrying out any check.
32 ENGLISH
With some problems, the display shows an alarm code and the Start/
Pause button may flash continuously:
Problem Possible solution
The appliance does not fill
with water properly.
• Make sure that the water tap is open.
• Make sure that the pressure of the water supply is not too low. For this infor‐
mation, contact your local water authority.
• Make sure that the water tap is not clogged.
• Make sure that the inlet hose has no kinks, damages or bends.
• Make sure that the connection of the water inlet hose is correct.
• Make sure that the filter of the inlet hose and the filter of the valve are not clog‐
ged. Refer to 'Care and cleaning'.
The appliance does not
drain the water.
• Make sure that the sink spigot is not clogged.
• Make sure that the drain hose has no kinks or bends.
• Make sure that the drain filter is not clogged. Clean the filter, if necessary. Re‐
fer to "Care and cleaning".
• Make sure that the connection of the drain hose is correct.
• Set the drain programme if you set a programme without drain phase.
• Set the drain programme if you set an option which ends with water in the tub.
The appliance door is open
or not closed correctly.
• Make sure that the door is properly closed.
Internal fail. No communica‐
tion between electronic ele‐
ments of the appliance.
• The programme was not finished properly or the appliance stopped too early.
Switch the appliance off and on again.
• If the alarm code appears again, contact the Authorised Service Centre.
The mains supply is unsta‐
ble.
• Wait until mains supply is stable.
If the display shows other alarm codes, deactivate and activate the
appliance. If the problem continues, contact the Authorised Service Centre.
In case of different problem with the washing machine check the table
below for possible solutions.
Problem Possible solution
The programme does not
start.
• Make sure that the mains plug is connected to the mains socket.
• Make sure that the appliance door is closed.
• Make sure that there is no damaged fuse in the fuse box.
• Make sure that the Start/Pause has been touched.
• If the delay start is set, cancel the setting or wait for the end of countdown.
• Deactivate the Child Lock function if it is on.
• Check the position of the knob on the selected programme.
The appliance fills with water
and drains immediately.
• Make sure that the drain hose is in the correct position. The hose may be posi‐
tioned too low. Refer to "Installation instruction".
ENGLISH 33
Problem Possible solution
The spin phase does not op‐
erate or the washing cycle
lasts longer than usual.
• Set the spin programme.
• Make sure that the drain filter is not clogged. Clean the filter, if necessary. Re‐
fer to "Care and cleaning".
• Adjust manually the items in the tub and start the spin phase again. This prob‐
lem may be caused by balance problems.
There is water on the floor.
• Make sure that the couplings of the water hoses are tight and there is not wa‐
ter leakages.
• Make sure that the water inlet hose and the drain hose have no damages.
• Make sure you use the correct detergent and the correct quantity of it.
You cannot open the appli‐
ance door.
• Make sure that a washing programme that ends with water in tub, has not
been selected.
• Make sure that the washing programme is finished.
• Set the drain or the spin programme if there is water in the drum.
• Make sure that the appliance receives electrical power.
• This problem may be caused by a failure of the appliance. Contact the Author‐
ised Service Centre.
The appliance makes an un‐
usual noise and vibrates.
• Make sure the levelling of the appliance is correct. Refer to "Installation in‐
struction".
• Make sure that the packaging and/or the transit bolts are removed. Refer to
"Installation instruction".
• Add more laundry in the drum. The load may be too small.
The programme duration in‐
creases or decreases during
programme execution.
• The AutoSense System is able to adjust the programme duration according to
the type and the laundry load size. Refer to "The AutoSense System load de‐
tection" in "Daily Use" chapter.
The washing results are not
satisfactory.
• Increase the detergent quantity or use a different detergent.
• Use special products to remove the stubborn stains before you wash the laun‐
dry.
• Make sure that you set the correct temperature.
• Decrease the laundry load.
Too much foam in the drum
during the washing cycle.
• Reduce the quantity of detergent.
After the washing cycle,
there are some detergent
residues in the dispenser
drawer.
• Make sure that the flap is in the correct position (UP for powder detergent -
DOWN for liquid detergent).
• Make sure you have used the detergent dispenser according the indications
given in this user manual.
After the check, activate the appliance. The programme continues from the
point of interruption.
If the problem occurs again, contact the Authorised Service Centre.
The necessary data for the service centre are on the rating plate.
34 ENGLISH
17. QUICK GUIDE
17.1 Daily use
1
2
1
2
3
Connect the mains plug to the mains socket.
Open the water tap.
Load the laundry.
Pour the detergent and other treatment in the
proper compartment of the detergent
dispenser.
1. Push the On/Off button to turn the
appliance on. Turn the programme dial to
set the desired programme.
2. Set the desired options (1) by means of
the corresponding touch buttons. To start
the programme, touch the Start/Pause
(2) button.
3. The appliance starts.
At the end of the programme, remove the
laundry.
Push the On/Off button to turn the
appliance off.
17.2 Cleaning the drain pump filter
1 32
180˚
2
1
Clean the filter regularly and, especially, if the
alarm code appears on the display.
17.3 Programmes
Programmes Load Product description
Eco 40-60 9 kg White and coloured cottons. Normally soiled garments.
Cottons 9 kg White cotton and coloured cotton.
Synthetics 4 kg Synthetic items or mixed fabric items.
ENGLISH 35
Programmes Load Product description
Delicates 2 kg Delicate fabrics such as acrylics, viscose, polyester items.
Wool
1,5 kg Machine washable wool, hand washable wool and delicates.
Denim 3 kg Denim clothing.
Sportswear
4 kg Sportswear.
Spin/Drain 9 kg
All fabrics, except woollens and very delicate fabrics. Programme for
spinning and draining the water.
Rinse 9 kg
All fabrics, except woollens and very delicate fabrics. Programme for
rinsing and spinning.
Dark Clothes
9 kg Cotton items or mixed fabric items in dark colours.
Anti-Allergy
9 kg
White cotton items. This programme helps to remove germs and bacte‐
ria.
14min Refresh
1,5 kg Cotton and synthetic lightly soiled items or once worn items.
30min Wash
3 kg Synthetic and mixed fabric items. Lightly soiled items.
60min Wash
5 kg
Cotton and synthetic items. This programme ensures a good washing
performance in a short time.
18. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put the
packaging in relevant containers to recycle it.
Help protect the environment and human
health by recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol with
the household waste. Return the product to
your local recycling facility or contact your
municipal office.
36 ENGLISH
*
135958750-A-032024
