Welcome to AEG! Thank you for choosing our appliance.
Get usage advice, brochures, trouble shooter, service and repair information:
www.aeg.com/support
Subject to change without notice.
CONTENTS
1. SAFETY INFORMATION................................................................................ 2
2. SAFETY INSTRUCTIONS.............................................................................. 5
3. PRODUCT DESCRIPTION............................................................................. 7
4. CONTROL PANEL.......................................................................................... 8
5. PROGRAMME TABLE.................................................................................... 9
6. OPTIONS...................................................................................................... 10
7. SETTINGS.................................................................................................... 11
8. BEFORE FIRST USE....................................................................................13
9. DAILY USE....................................................................................................14
10. HINTS AND TIPS........................................................................................ 16
11. CARE AND CLEANING.............................................................................. 16
12. TROUBLESHOOTING................................................................................ 20
13. TECHNICAL DATA..................................................................................... 21
14. PRODUCT INFORMATION SHEET ACCORDING TO UK ECODESIGN..23
15. ENVIRONMENTAL CONCERNS................................................................24
1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions.
The manufacturer is not responsible for any injuries or
damage that are the result of incorrect installation or usage.
Always keep the instructions in a safe and accessible location
for future reference.
Warning: Risk of fire / Flammable materials.
The appliance contains flammable gas, propane (R290), a
gas with a high level of environmental compatibility. Keep fire
and ignition sources away from the appliance. Be careful not
to cause damage to the refrigerant circuit containing propane.
2 ENGLISH
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
• Children between 3 and 8 years of age and persons with
very extensive and complex disabilities shall be kept away
from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away
from the appliance unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the
door is open.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
• This appliance is for drying domestic-type, machine-dryable
laundry only.
• Do not use the dryer function if laundry has been soiled with
industrial chemicals.
• This appliance is designed for single household domestic
use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
ENGLISH 3
similar accommodation where such use does not exceed
(average) domestic usage levels.
• Do not change the specification of this appliance.
• If the tumble dryer is put on top of a washing machine, use
the stacking kit. The stacking kit, available from your
authorized vendor, can be used only with the appliance
specified in the instructions supplied with the accessory.
Read it carefully before installation (refer to the Installation
leaflet).
• The appliance can be installed as freestanding or below a
kitchen counter with correct space (refer to the Installation
leaflet).
• Do not install the appliance behind a lockable door, a sliding
door or a door with a hinge on the opposite side, that would
prevent the appliance door from being fully open.
• The ventilation opening in the base must not be covered by
a carpet, mat, or any floor covering.
• WARNING: The appliance must not be supplied through an
external switching device, such as a timer, or connected to
a circuit that is regularly switched on and off by a utility.
• Connect the mains plug to the mains socket only at the end
of the installation process. Make sure that the mains plug is
accessible after installation.
• Ensure good air ventilation in the room where the appliance
is installed to avoid the backflow of unwanted gases into the
room from appliances burning gas or other fuels, including
open fires.
• WARNING: Do not install the appliance in an environment
with no air exchange.
The appliance contains flammable gas, propane (R290), a
gas with a high level of environmental compatibility. Keep
fire and ignition sources away from the appliance. Be
careful not to cause damage to the refrigerant circuit
containing propane.
• WARNING: In the appliance enclosure or in the built -in
structure, keep ventilation opening clear of obstruction.
4 ENGLISH
• WARNING: Do not damage the refrigerant circuit.
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
• Do not exceed the maximum load of 8 kg (refer to the
"Programme chart" chapter).
• Wipe away lint or packaging debris that has accumulated
around the appliance.
• Do not run the appliance without a filter. Clean the lint filter
before or after each use.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should be
washed in hot water with an extra amount of detergent
before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried in
the tumble dryer.
• Fabric softeners, or similar products, should only be used
as specified by the product manufacturer’s instructions.
• Remove all objects from items that could be a source of fire
ignition such as lighters or matches.
• WARNING: Never stop a tumble dryer before the end of the
drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
• Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
Warning: Risk of fire / Flammable
materials.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions supplied
with the appliance.
• Do not install the appliance in an
environment with no air exchange
ENGLISH 5
The appliance contains flammable gas,
propane (R290), a gas with a high level of
environmental compatibility. Keep fire and
ignition sources away from the appliance.
Be careful not to cause damage to the
refrigerant circuit containing propane.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
• Do not install or use the appliance where
the temperature can be lower than 5°C or
higher than 35°C.
• The floor area on which the appliance is to
be installed must be flat, stable, heat
resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical when it
is being moved.
• The rear surface of the appliance must be
put against a wall.
• When the appliance is in its permanent
position, check if it is levelled correctly
with the aid of a spirit level. If it is not,
adjust the feet accordingly.
2.2 Electrical connection
WARNING!
Risk of fire and electric shock.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• WARNING: This appliance is designed to
be installed / connected to a grounding
connection in the building.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Do not touch the mains cable or the mains
plug with wet hands.
• This appliance is fitted with a 13 A mains
plug. If it is necessary to change the mains
plug fuse, use only a 13 A ASTA (BS
1362) fuse (UK and Ireland only).
2.3 Use
WARNING!
Risk of injury, electric shock, fire, burns
or damage to the appliance.
Warning: Risk of fire / Flammable
materials. The appliance contains flammable
gas, propane (R290), a gas with a high level
of environmental compatibility. Keep fire and
ignition sources away from the appliance. Be
careful not to cause damage to the refrigerant
circuit containing propane.
• This appliance is for household (indoors)
use only.
• Do not dry damaged (torn, frayed) items
that contain padding or fillings.
• If laundry has been washed with a stain
remover, carry out an additional rinse
cycle before starting a drying cycle.
• Dry only fabrics that are suitable to dry in
the appliance. Follow the cleaning
instruction on the item label.
• Do not drink or prepare food with the
condensed water/distilled water. It can
cause health problems to people and pets.
• Do not sit or stand on the open door of the
appliance.
• Do not dry dripping wet clothes in the
appliance.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to the appliance.
Warning: Risk of fire / Flammable
materials. The appliance contains flammable
gas, propane (R290), a gas with a high level
of environmental compatibility. Keep fire and
ignition sources away from the appliance. Be
careful not to cause damage to the refrigerant
circuit containing propane.
• Do not use water spray and steam to
clean the appliance.
6 ENGLISH
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do not
use abrasive products, abrasive cleaning
pads, solvents or metal objects.
• Be careful when you clean the appliance
to prevent damage to the cooling system.
2.5 Compressor
WARNING!
Risk of damage to the appliance.
• The compressor and its system in the
tumble dryer is filled with a special agent
which is free from fluoro-chloro-
hydrocarbons. This system must stay
tight. The damage of the system can
cause a leakage.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
• Concerning the lamp(s) inside this product
and spare part lamps sold separately:
These lamps are intended to withstand
extreme physical conditions in household
appliances, such as temperature,
vibration, humidity, or are intended to
signal information about the operational
status of the appliance. They are not
intended to be used in other applications
and are not suitable for household room
illumination.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
Warning: Risk of fire / Risk of material
damage and damage to the appliance.
• Disconnect the appliance from the mains
electrical and water supplies.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
• The appliance contains flammable gas
(R290). Contact your municipal authority
for information on how to discard the
appliance correctly.
• Remove the door catch to prevent children
or pets from becoming trapped in the
drum.
• Dispose of the appliance in accordance
with local requirements for the disposal of
Waste Electrical and Electronic Equipment
(WEEE).

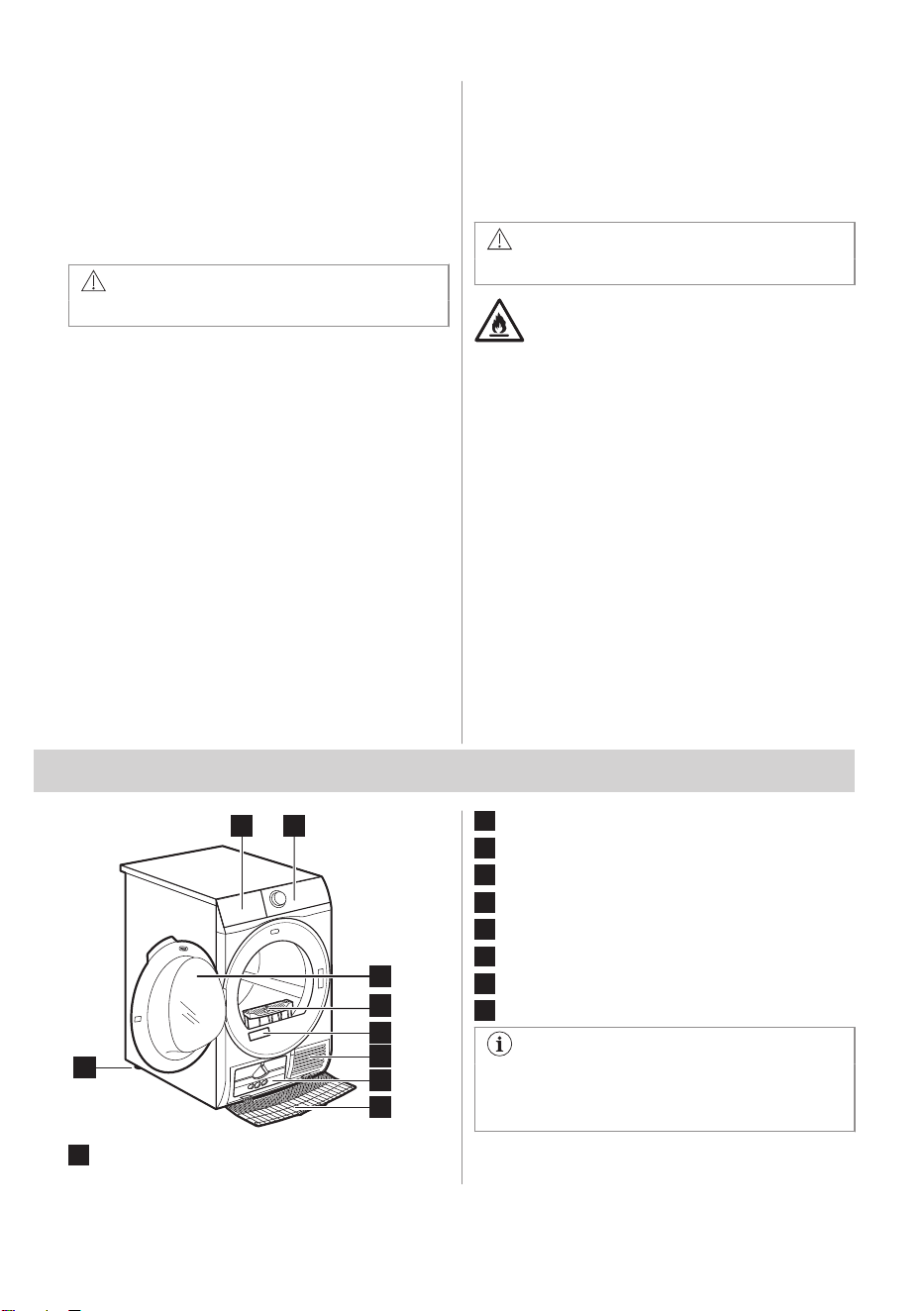

3. PRODUCT DESCRIPTION
1 2
5
3
4
6
7
8
9
1
Water container
2
Control panel
3
Appliance door
4
Filter
5
Rating plate
6
Airflow slots
7
Heat Exchanger lid
8
Heat Exchanger cover
9
Adjustable feet
For ease of loading laundry or ease of
installation the door is reversible (see the
separate leaflet).
ENGLISH 7
00000000
00A
Mod.
xxxxxxxxx
000V ~ 00Hz 0000 W
910000000
00
Prod.No.
B C D EA
The rating plate reports:
A. model name
B. product number
C. electrical ratings
D. serial number

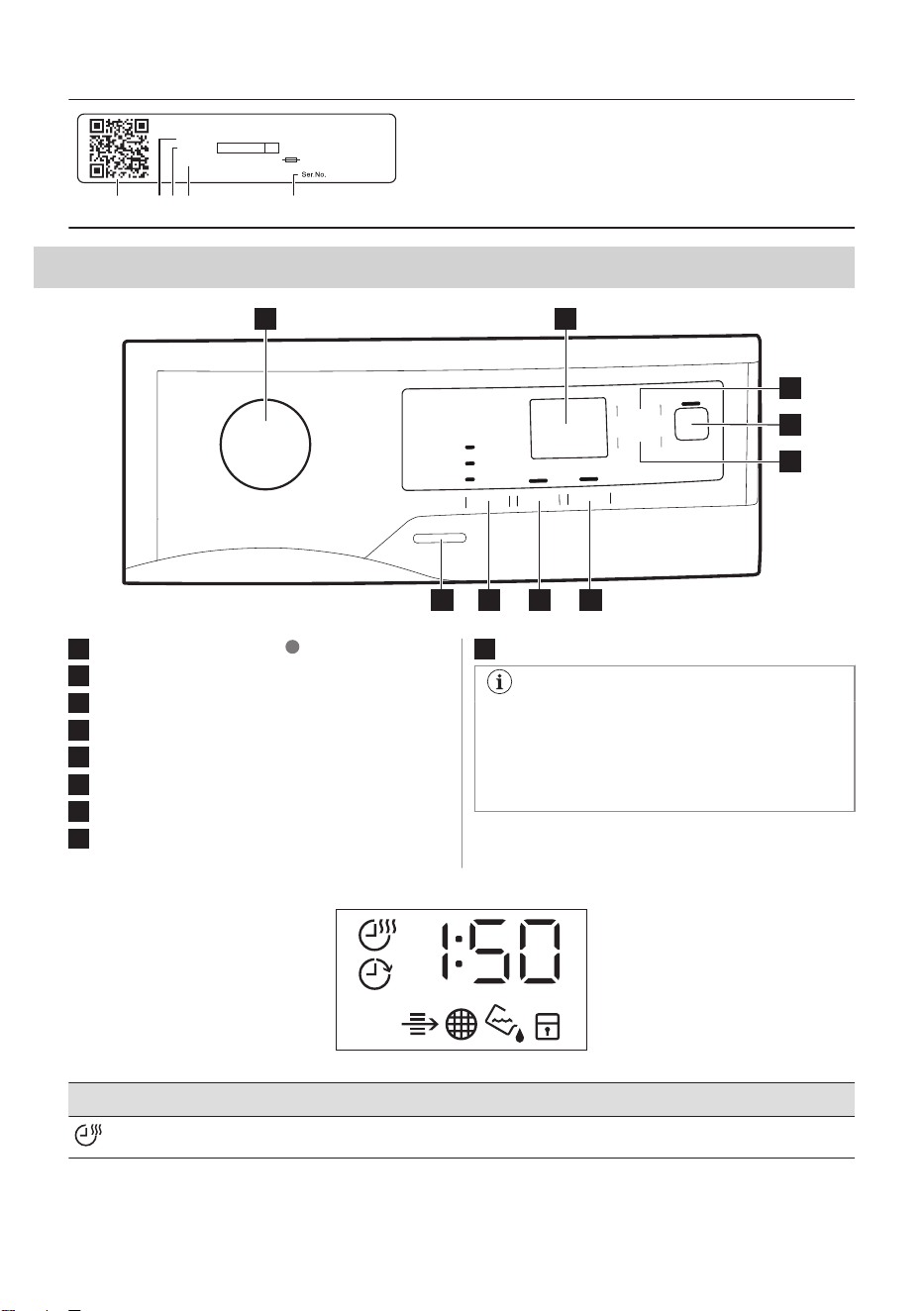

4. CONTROL PANEL
1
89 7 6
3
5
4
2
1
Programme knob and RESET switch
2
Display
3
Time Dry touch button
4
Start/Pause touch button
5
Delay Start touch button
6
Anticrease touch button
7
Reverse Plus touch button
8
Dryness Level touch button
9
On/Off button
Press the touch buttons with your finger
in the area with the symbol or name of
the option. Do not wear gloves when you
operate the control panel. Make sure that
the control panel is always clean and dry.
4.1 Display
Symbol on the display Symbol description
time drying option on
8 ENGLISH
Symbol on the display Symbol description
delay start option on
indicator:
check Heat Exchanger
indicator:
clean filter
indicator:
drain the water container
child lock on
wrong selection or knob is in the "Reset" position
programme duration
-
time Drying duration
-
delay start duration
5. PROGRAMME TABLE
Programme
Load
1)
Properties / Fabric type
2)
3)
Cottons Eco
8 kg
Cotton fabrics programme designed for
maximum energy saving.
/
Cottons 8 kg
Cycle defined to dry cottons items of differ‐
ent size / different weaving altogether.
/
Synthetics 3,5 kg
Blended garments containing mostly syn‐
thetic fibres like polyester, polyamide, etc.
/
Delicates 4 kg
Recommended for generic delicate fabrics
such as viscose, rayon, acrylic and their
blends.
/
Wool 1 kg
Woollen fabrics. Gentle drying of washable woollens. Re‐
move items immediately when the programme is completed.
Time Dry 5 kg
With this programme you can use the Time
Dry option and set the programme duration.
Drying time should be adequate to the load,
e.g. 2h for 5 kg of cotton.
/
Refresh 1kg
Short low temperature cycle that helps in removing odours
from a small amount of garments. Indicated also for dry
clothes that were in storage for long time.
Easy Iron
1 kg (or 5
shirts)
Limits creases on small loads of cotton,
synthetic and mixed-fabric garments for
easy ironing. Features two drying levels:
Iron leaves garments slightly damp for iron‐
ing or hanging; Cupboard fully dries items.
/
ENGLISH 9
Programme
Load
1)
Properties / Fabric type
2)
Sportwear 2 kg
Dries generic sportswear made with syn‐
thetic fibres including polyester, elastane
blends, and polyamide.
/
Denim 4 kg
Deeply dries jeans and other denim gar‐
ments, even in thick parts like pockets,
seams, and cuffs reducing entanglement.
/
Bed Linen 3kg
Bed linen such as single and double sheets,
pillowcases, duvet cover.
/
Mixed 3kg
Cotton and synthetic fabrics. Low tempera‐
ture programme. Delicate programme with
warm air.
/
1)
The maximum weight refers to dry items.
2)
For fabric mark meaning see chapter
HINTS AND TIPS: Preparing the laundry.
3)
The Cottons Cupboard Dry ECO programme is the “Standard cotton programme” according to UK Eco‐
design for Energy-Related Products and Energy Information Regulations. It is suitable for drying normal wet cotton
laundry and it is the most efficient programme in terms of energy consumption for drying wet cotton laundry.
6. OPTIONS
6.1 Dryness Level
This function helps to increase dryness of the
laundry. There are 3 options:
• Extra Dry
• Cupboard Dry
• Iron Dry
6.2 Reverse Plus
Increase drum reversing frequency to reduce
items twisting and entanglement. To increase
uniformity of drying result and help reduce
creases. Recommended for large or long
items (e.g. sheets, trousers, long dresses)"
6.3 Anticrease
Extends the anti-crease phase by 60 minutes
at the end of the drying cycle. This function
reduces creases. The laundry can be
removed during the anti-crease phase.
6.4 Time Dry
You can set the programme duration, from a
minimum of 10 minutes to a maximum of 2
hours. The required duration is related to the
quantity of laundry in the appliance.
We recommend that you set a short
duration for small quantities of laundry or
for only one item.
TIME DRYING RECOMMENDATION
10 - 20 min
action of cool air on‐
ly (no heater).
20 - 40 min
additional drying to
improve dryness af‐
ter previous drying
cycle.
>40 min
full drying of the
small laundry loads
up to 4 kg, well
spun (>1200 rpm).
6.5 Time Dry on Wool programme
Option suitable for Wool programme to adjust
final dryness level.
10 ENGLISH
6.6 Options table
Programmes
1)
Dryness Level Reverse Plus Anticrease Time Dry
Cottons Eco
■ ■
Cottons ■ ■ ■ ■ ■
Synthetics ■ ■ ■ ■ ■
Delicates ■ ■
Wool
■
2)
Time Dry ■ ■
Refresh ■
Easy Iron ■ ■
Sportwear ■ ■
Denim ■ ■ ■ ■
Bed Linen ■ ■
Mixed ■ ■
1)
Together with the programme you can set 1 or more options. To activate or deactivate them, press the related
touch button.
2)
See chapter OPTIONS: Time Drying on Wool programme
7. SETTINGS
A B C
E
DF
A. Time Dry touch button
B. Start/Pause touch button
C. Delay Start touch button
D. Anticrease touch button
E. Reverse Plus touch button
F. Dryness Level touch button
7.1 Child lock function
This option prevents children playing with the
appliance while a programme is operating.
The touch buttons are locked.
Only the on/off button is unlocked.
Activating the child lock option:
1. Press the on/off button to activate the
appliance.
2. Press and hold touch button (D) for a few
seconds.
The child lock indicator comes on.
ENGLISH 11
It is possible to deactivate the child lock
option while a programme operates.
Press and hold the same touch buttons
until the child lock indicator goes off. The
Child Lock function isn't available for 8 s
after switching on the appliance.
7.2 Adjustment of remaining
laundry moisture
Every time you enter in the "Adjustment
of remaining laundry moisture" mode,
previously set degree of remaining
moisture will change into next value ( e.g
previously set will change into
).
To change the default degree of remaining
moisture:
1. Press the on/off button to activate the
appliance.
2. Use the programme knob to set any
programme.
3. Wait approximately 8 seconds.
4. Press and hold buttons (F) and (E) at the
same time.
One of these indicators comes on:
•
the maximum dryness
•
the more dry laundry
•
the standard dry laundry
5. Press and hold buttons (F) and (E) again
until the indicator of the correct level
comes on.
If the display returns to the normal
mode (the time of the selected
programme from step 2. will be
displayed), while setting the degree
of remaining moisture, press and hold
buttons (F) and (E) once again to
enter to the "Adjustment of remaining
laundry moisture" mode (previously
set degree of remaining moisture will
change into next value).
6. After 5 s the display returns to normal
mode.
7.3 Water container indicator
By default, the water container indicator is on.
It comes on when the programme is
completed or when it is necessary to empty
the water container.
If a draining kit is installed (additional
accessory), the appliance automatically
drains the water from the water
container. In this case we recommend
that you deactivate the indicator of the
water container.
Deactivating the water container
indicator:
1. Press the on/off button to activate the
appliance.
2. Wait approximately 8 seconds.
3. Press and hold touch buttons (E) and (D)
at the same time.
The display shows one of these 2
configurations:
• The display shows "Off". After 5 s the
display returns to normal mode.
• The display shows "On". After 5 s the
display returns to normal mode.
7.4 Buzzer on/off
To deactivate or activate the acoustic signals,
press and hold for approximately 2 seconds
touch buttons (A) and (C) at the same time.
12 ENGLISH
8. BEFORE FIRST USE
Rear drum locks are removed
automatically when dryer is activated for
the first time. Possible to hear some
noise.
It is highly recommended to start any
programme for the first time without
the load for a few seconds to ensure
that the rear drum locks are removed
properly.

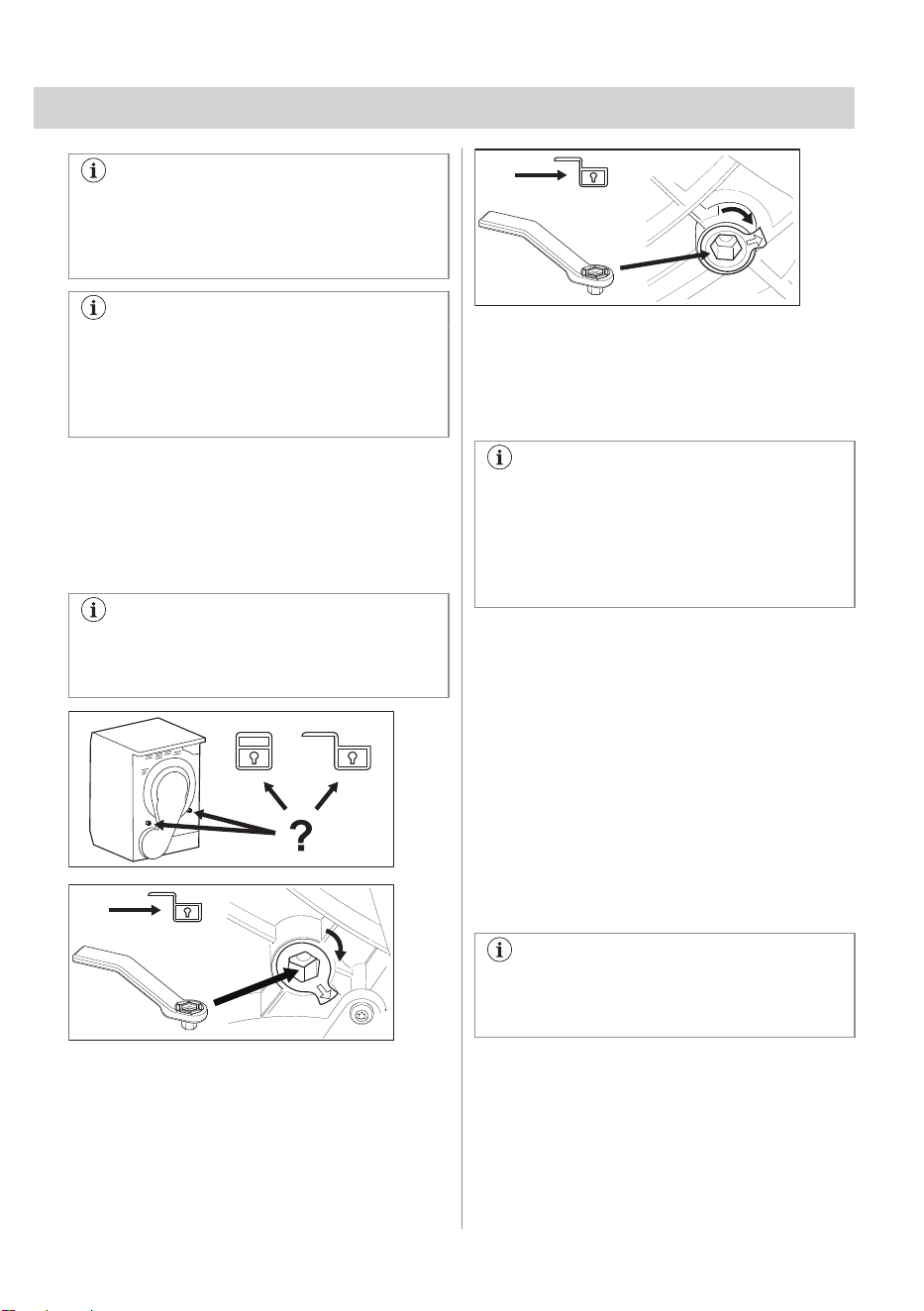

To unlock the rear drum locks:
1. Switch on the appliance.
2. Set any programme.
3. Press the Start/Pause button.
Drum starts to rotate. Rear drum locks are
automatically deactivated.
If the drum still does not rotate, please
release the rear drum locks manually (to
do that, please use provided key).
A
B
A
B
Before you use the appliance to dry items:
• Clean the tumble dryer drum with a moist
cloth.
• Start a 1 hour programme with moist
laundry.
At the beginning of the drying cycle (first
3-5 min) there could be a slightly higher
sound level. This is due to the
compressor starting up. This is normal for
compressor powered appliances such as
refrigerators and freezers.
8.1 Unusual smell
The appliance is tightly packed.
After product unpacking you can feel an
unusual smell. This is normal for brand new
products.
Appliance is built of several different types of
material which all together can generate
unusual smell.
Over usage time, after few drying cycles
unusual smell gradually disappears.

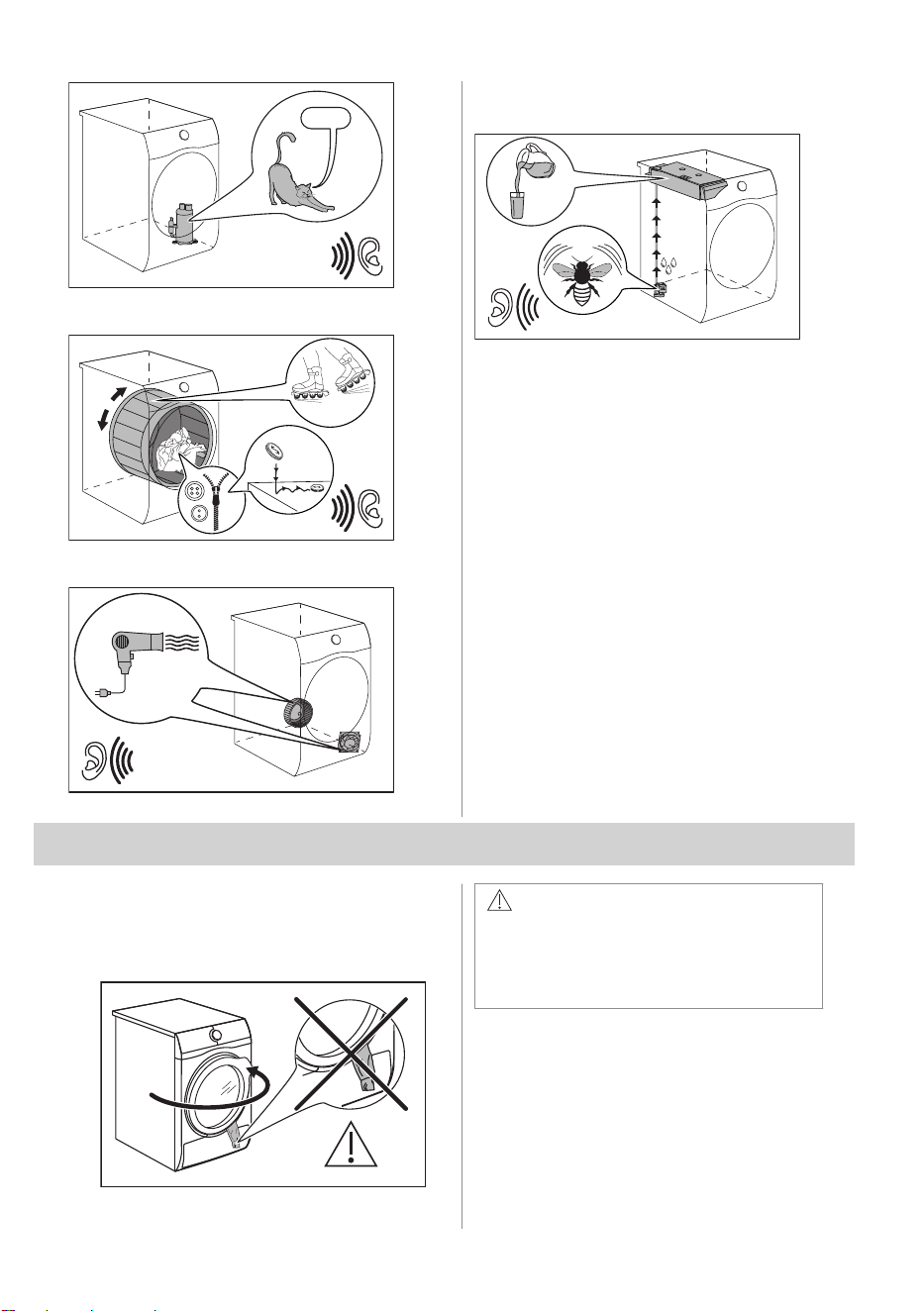

8.2 Noises
Different noises may be heard at different
times during the drying cycle. They are
perfectly normal operating sounds.
Working compressor.
ENGLISH 13
Brrrr
Rotating drum.
Working fans.
Working pump and transferring
condensation to the tank.
9. DAILY USE
9.1 Start a programme without delay
start
1. Prepare the laundry and load the
appliance.
CAUTION!
Make sure that when you close the
door, the laundry does not get caught
between the appliance door and the
rubber seal.
2. Press the on/off button to activate the
appliance.
3. Set the correct programme and options
for the type of load.
The display shows the programme duration.
14 ENGLISH
Real drying time will depend on type of
the load (quantity and composition), the
room temperature and the humidity of
your laundry after spin drying phase.
4. Press the Start/Pause touch button.
The programme starts.
9.2 Starting the programme with
delay start
1. Set the correct programme and options
for the type of load.
2. Press the delay start button again and
again until the display shows the delay
time you want to set.
You can delay the start of a
programme from a minimum of 1
hour to a maximum of 20 hours.
3. Press the Start/Pause touch button.
The display shows the countdown of the
delay start.
When the countdown is completed, the
programme starts.
9.3 Change a programme
1. Press the on/off button to deactivate
appliance
2. Press the on/off button to activate the
appliance.
3. Set the programme.
Alternatively:
1. Rotate the selector knob to the "Reset"
position.
2. Wait for 1 second. The display shows
.
3. Set the programme.
9.4 At the end of the programme
When the programme is completed:
• An intermittent acoustic signal operates.
• The display shows
• The indicators Filter and Tank
comes on.
• The Start/Pause indicator is on.
The appliance continues to operate with the
anti-crease phase for approximately 30
minutes or more if Anticrease option was set
(see chapter
Option - Anticrease
).
The anti-crease phase reduces creasing.
You can remove the laundry before the anti-
crease phase is completed. We recommend,
for better results, that you remove the laundry
when the phase is almost completed or
completed.
When the anti-crease phase is completed:
• The display still shows
• The indicators Filter and Tank
comes on.
• Start/Pause indicator goes off.
1. Press the on/off button to deactivate the
appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
Possible causes of unsatisfactory drying
results:
• Inadequate default dryness level settings.
See chapter
Adjustment of default dryness
level
• Room temperature is too low or too high.
Optimal room temperature is between
18°-25°C.
Always clean the filter and empty the
water container when a programme is
completed.
9.5 Stand-by function
To reduce energy consumption, this function
automatically deactivates the appliance:
• After 5 minutes if you do not start the
programme.
• After 5 minutes from the end of the
programme.
The time is reduced to 30 seconds if the
selector knob is pointing to "Reset"
position.
ENGLISH 15
10. HINTS AND TIPS
10.1 Preparing the laundry
Very often the clothes after washing
cycle are kneaded and tangled
altogether.
Drying kneaded and tangled clothes is
inefficient.
To assure proper air flow and even
drying it is recommended to shake and
load one by one the clothes to the tumble
dryer.
To assure proper drying process:
• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you start
a programme.
• Remove all items from pockets.
• Turn items with the internal layer made of
cotton inside out. Cotton layer must be
faced outwards.
• Always set the programme suitable for the
type of laundry.
• Do not put light and dark colours together.
• Use suitable programme for cottons,
jersey and knitwear to reduce shrinkage.
• Do not exceed the maximum load stated
in the programmes chapter or shown on
the display.
• Dry only the laundry that is suitable for
tumble drying. Refer to the fabric label on
the items.
• Do not dry large and small items together.
Small items can be trapped inside the
large items and remain wet.
• Shake the large clothes, fabrics before
placing in the tumble dryer. It is to avoid
moist places inside the fabric after the
drying cycle.
Fabric label Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.

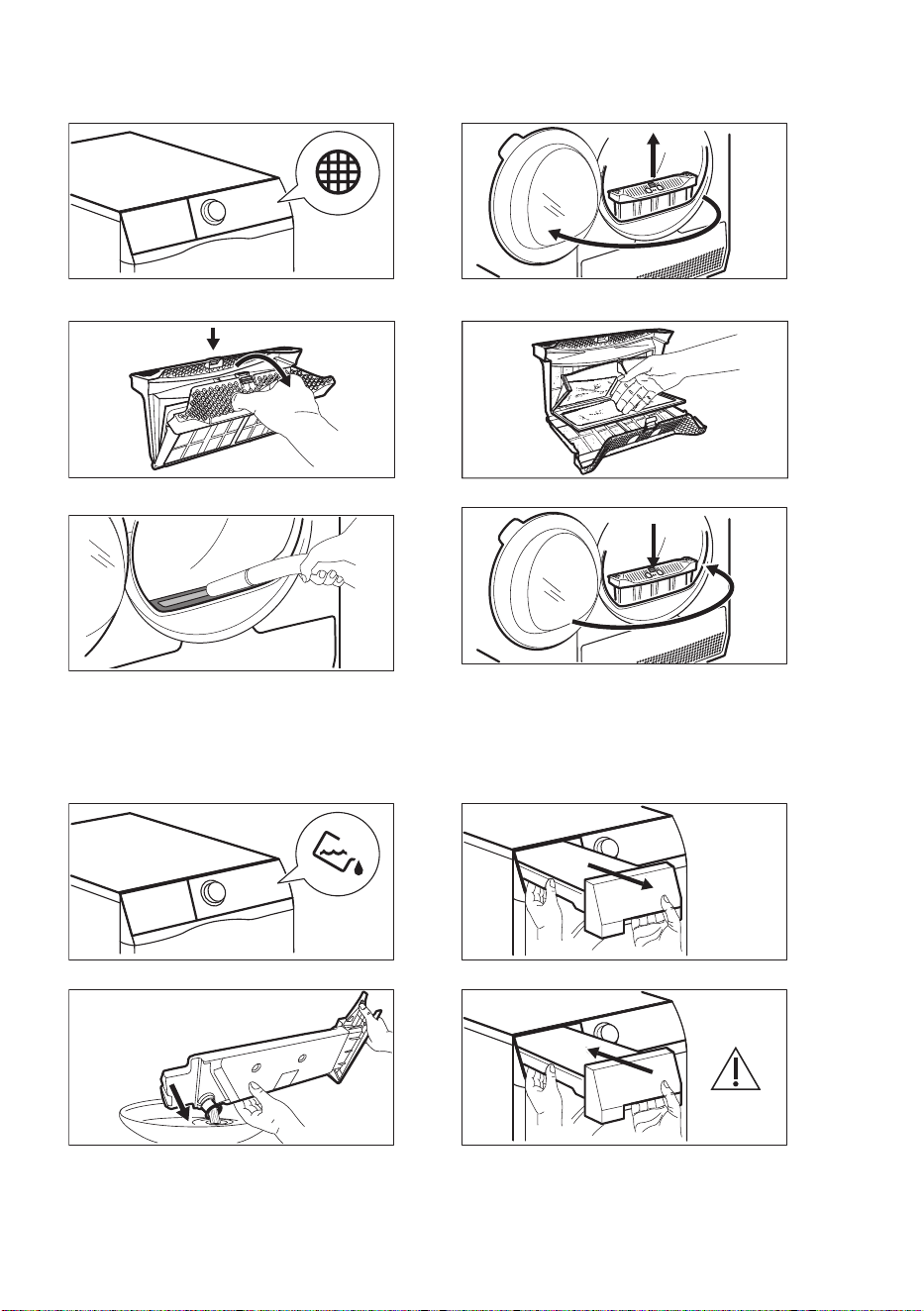

11. CARE AND CLEANING
11.1 Cleaning the filter
CAUTION!
Do not use the water to clean the filter.
Manually gather lint and throw it away
into the dustbin (avoid throwing the
plastic fibres into the water environment).
To achieve the best drying performance
clean the filter regularly. The clogged
filter causes the longer drying cycle and
as a consequence the energy
consumption increase.
Clean the filter by hand. Use a vacuum
cleaner if necessary.
16 ENGLISH
1. 2.
1
2
3.
1
2
4.
5.
1)
6.
2
1
1)
If necessary remove fluff from the filter socket and gasket. You can use a vacuum cleaner.
11.2 Emptying the water container
1. 2.
3. 4.
ENGLISH 17
You can use the water from the water
container as an alternative to distilled
water (e.g. for steam ironing). Before you
use the water, remove dirt residues with
a filter.

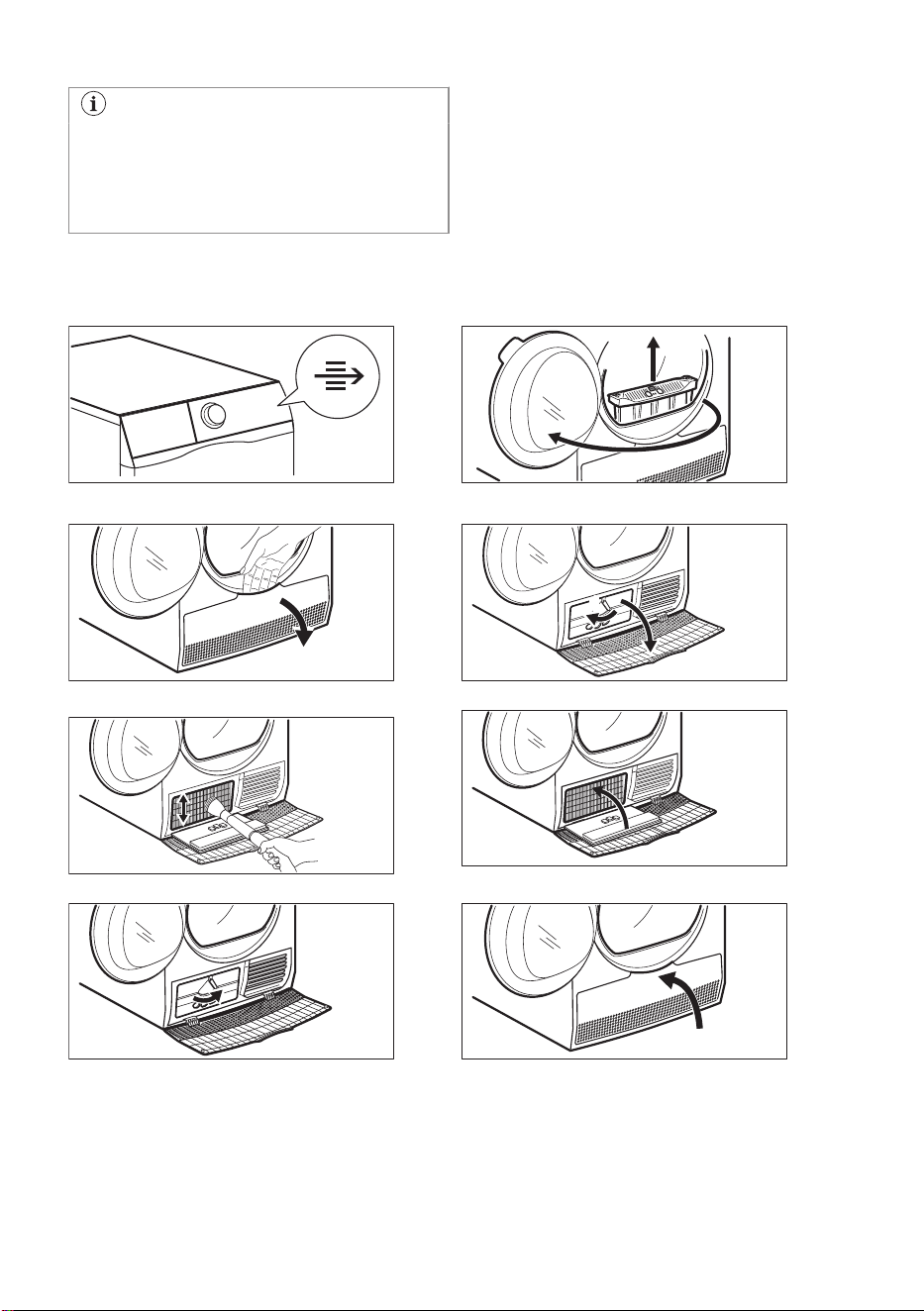

11.3 Cleaning the Heat Exchanger
1. 2.
1
2
3. 4.
11
22
5.
1)
6.
7. 8.
18 ENGLISH
9.
2
1
1)
If necessary remove fluff from the filter socket and gasket. You can use a vacuum cleaner.
CAUTION!
Do not touch the metal surface with bare
hands. Risk of injury. Wear protective
gloves. Clean carefully to avoid
damaging the metal surface.

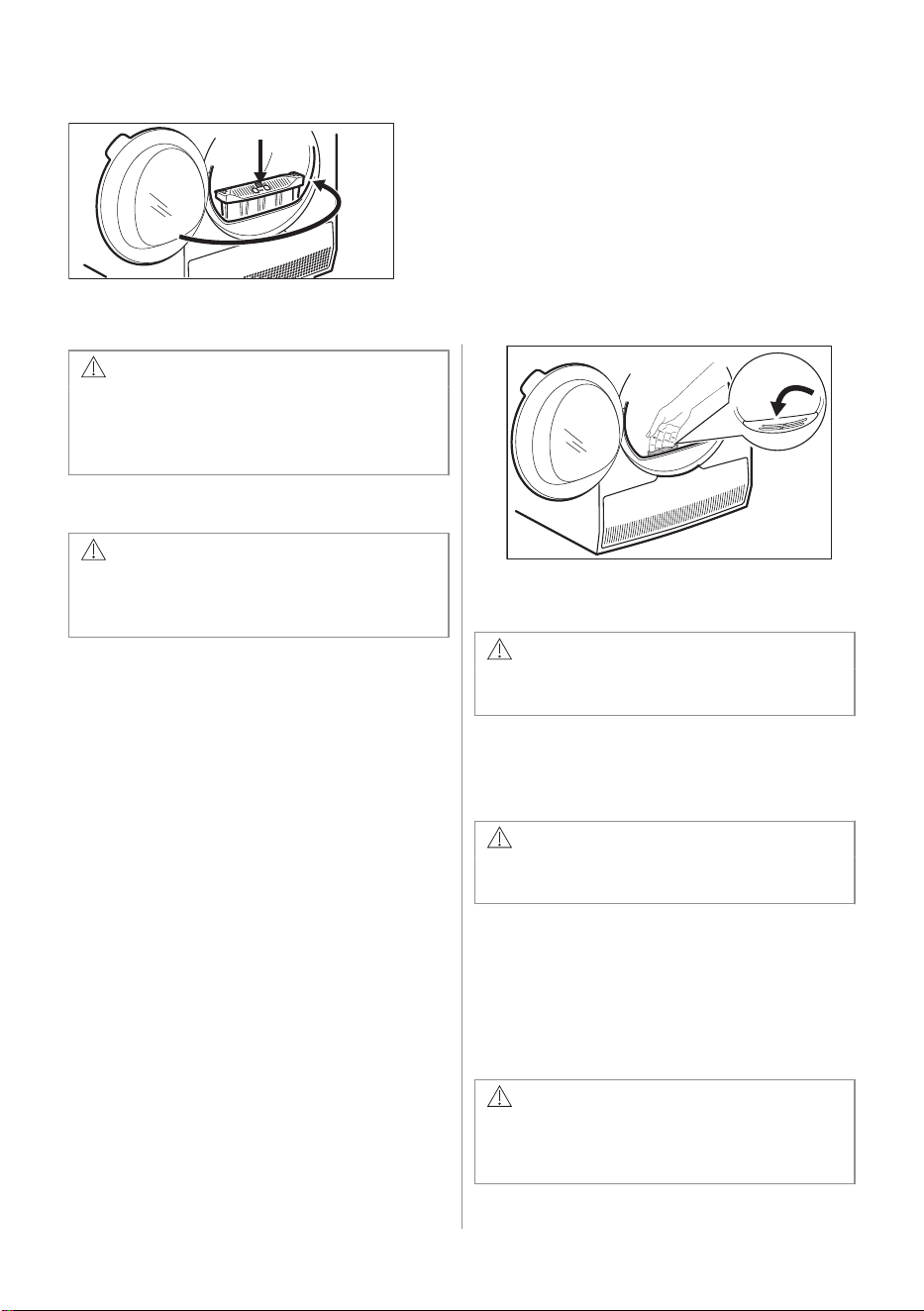

11.4 Cleaning the humidity sensor
CAUTION!
Risk of humidity sensor damage. Do not
use abrasive materials or steel wool to
clean the sensor.
To assure best drying results the appliance is
equipped with metal humidity sensor. It is
placed on the inner side of the door area.
Over usage time the surface of the sensor
may get dirty which deteriorates the drying
performance.
We recommend to clean the sensor at least 3
or 4 times a year or if you observe the drop of
drying performance.
To clean you can use harder side of dish-
washing sponge and bit of vinegar or dish
soap.
To clean the sensor:
1. Open the loading door.
2. Clean the surfaces of the humidity sensor
wiping off the metal surface several
times.
11.5 Cleaning the drum
WARNING!
Disconnect the appliance before you
clean it.
Use a standard neutral soap detergent to
clean the inner surface of the drum and drum
lifters. Dry the cleaned surfaces with a soft
cloth.
CAUTION!
Do not use abrasive materials or steel
wool to clean the drum.
11.6 Cleaning the control panel and
housing
Use a standard neutral soap detergent to
clean the control panel and housing.
Use a moist cloth to clean. Dry the cleaned
surfaces with a soft cloth.
CAUTION!
Do not use furniture cleaning agents or
cleaning agents which can cause
corrosion.
ENGLISH 19
11.7 Cleaning the airflow slots
Use a vacuum cleaner to remove fluff from
the airflow slots.
12. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
12.1 Error Codes
The appliance does not start or it stops during operation.
First try to find a solution to the problem (refer to the table). If the problem persists, contact the
Authorised Service Centre.
WARNING!
Deactivate the appliance before carrying out any check.
In case of major problems, the acoustic signals operate, the display shows an error
code and the Start/Pause button may flash continuously:
Error code Possible cause Remedy
E50
Appliance motor overloaded.
Too much laundry or entrap in the drum.
The programme was not completed. Re‐
move the laundry from the drum, set the
programme and restart the cycle.
E90 or E91
Internal fail. No communication between
electronic elements of the appliance.
The programme was not finished properly
or the appliance stoped too early. Switch
the appliance off and on again.
If the error code appears again, contact the
Authorised Service Centre.
EH0
The mains supply is unstable. When the appliance is showing EH0, please
wait until main supply is stable than press
start. If the appliance pause the cycle with‐
out any indication then press the cycle start.
If the warning will occur check the power
cord / socket integrity or main supply.
If the display shows other error codes, deactivate and activate the appliance. If the problem
continues, contact the Authorised Service Centre.
In case of different problem with the tumble dryer check the table below for possible solutions.
12.2 Troubleshooting
Problem Possible solution
You cannot activate the appliance. Make sure that the mains plug is connected to the
mains socket.
Check fuse in fuse box (domestic installation).
20 ENGLISH
Problem Possible solution
The drum does not rotate. Release the rear drum locks manually (see chapter
Be‐
fore First Use
).
The programme does not start. Press Start/Pause.
Make sure that the appliance door is closed.
The appliance door does not close. Make sure that the installation of the filter is correct.
Make sure that the laundry is not caught between the
appliance door and the rubber seal.
The appliance stops during operation. Make sure that the water container is empty. Press
Start/Pause to start the programme again.
Load is too small, increase the load or use the Time
Dry programme.
The cycle time is too long or unsatisfactory drying re‐
sult.
1)
Make sure that the weight of the laundry is suitable for
the duration of the programme.
Make sure that the filter is clean.
The laundry is too wet. Spin the laundry in the washing
machine again.
Ensure that the room temperature is higher than +5°C
and lower than +35°C. Optimal room temperature is
18°C to 25°C.
Set the Time Dry or the Extra Dry programme.
2)
The display shows .
If you want to set a new programme, deactivate and ac‐
tivate the appliance.
Make sure that the options are suitable for the pro‐
gramme.
1)
After maximum 5 hours, the programme ends automatically.
2)
It can happen that some area remains humid when drying big items (e.g. bed sheets ).
If the drying results are not satisfactory
• The set programme was incorrect.
• The filter is clogged.
• The Heat Exchanger is clogged.
• There was too much laundry in the
appliance.
• The drum is dirty.
• Incorrect setting of the conductivity sensor
( See chapter "
Settings - Adjustment of the
remaining laundry moisture degree
" for
better setting).
• The airflow slots are clogged.
• Room temperature is too low or too high
( optimal room temperature 18°C to 25°C )
13. TECHNICAL DATA
Height x Width x Depth 850 x 596 x 638 mm (maximal 662 mm)
Max. depth with the appliance door open 1107 mm
ENGLISH 21
Max. width with the appliance door open 958 mm
Adjustable height 850 mm (+ 15 mm - feet regulation)
Drum volume 118 l
Maximum load volume 8 kg
Voltage 230-240 V
Frequency 50 Hz
Sound power level 66 dB
Necessary fuse 13 A
Total power 800 W
Energy efficiency class A++
Energy consumption on the standard cotton pro‐
gramme with the full load.
1)
1,93 kWh
Energy consumption on the standard cotton pro‐
gramme with the partial load.
2)
1,08 kWh
Annual energy consumption
3)
234,7 kWh
Left-on mode power absorption
4)
0,50 W
Off mode power absorption
4)
0,50 W
Type of use Household
Allowed ambient temperature + 5°C to + 35°C
Level of protection against ingress of solid particles and
moisture ensured by the protective cover, except where
the low voltage equipment has no protection against
moisture
IPX4
Gas designation R290
Weight 0,140 kg
1)
With reference to BS EN 61121. 8 kg of cotton centrifuged at 1000 rpm.
2)
With reference to BS EN 61121. 4 kg of cotton centrifuged at 1000 rpm.
3)
Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme at full and
partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on
how the appliance is used (according to UK Ecodesign for Energy-Related Products and Energy Information Regu‐
lations).
4)
With reference to BS EN 61121.
The information given in the chart above is compliant with the UK Ecodesign for Energy-Related
Products and Energy Information Regulations.
22 ENGLISH
14. PRODUCT INFORMATION SHEET ACCORDING TO UK
ECODESIGN
PRODUCT INFORMATION SHEET
ACCORDING TO UK ECODESIGN FOR
ENERGY-RELATED PRODUCTS AND
ENERGY INFORMATION
REGULATIONS
Product Information Sheet
Trade Mark AEG
Model TXH508A4R PNC916099856
Rated capacity in kg 8
Air vented or condenser tumble dryer Condenser
Energy efficiency class A++
Energy consumption in kWh per year, based on 160 drying cycles of the standard
cotton programme at full and partial load, and the consumption of the low-power
modes. Actual energy consumption per cycle will depend on how the appliance is
used.
234,7
Automatic tumble drier or non-automatic tumble drier Automatic
Energy consumption of the standard cotton programme at full load in kWh 1,93
Energy consumption of the standard cotton programme at partial load in kWh 1,08
Power consumption of the off-mode in W 0,50
Power consumption in left-on mode in W 0,50
Duration of the left on mode in minutes 10
The 'standard cotton programme' used at full and partial load is the standard dry‐
ing programme to which the information in the label and the fiche relates, this
programme is suitable for drying normal wet cotton laundry and it is the most effi‐
cient programme in terms of energy consumption for cotton.
Weighted programme time of the 'standard cotton programme at full and partial
load' in minutes
136
Programme time of the 'standard cotton programme at full load' in minutes 178
Programme time of the 'standard cotton programme at partial load' in minutes 104
Condensation efficiency class on a scale from G (least efficient) to A (most effi‐
cient)
B
Average condensation efficiency of the standard cotton programme at full load as
a percentage
81
Average condensation efficiency of the standard cotton programme at partial load
as a percentage
81
ENGLISH 23
Weighted condensation efficiency for the 'standard cotton programme at full and
partial load'
81
Sound power level in dB 66
Built in appliance Y/N No
The information given in the chart above is compliant with the UK Ecodesign for Energy-Related
Products and Energy Information Regulations.
15. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put the
packaging in relevant containers to recycle it.
Help protect the environment and human
health by recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol with
the household waste. Return the product to
your local recycling facility or contact your
municipal office.
24 ENGLISH
*
136204460-A-462023
