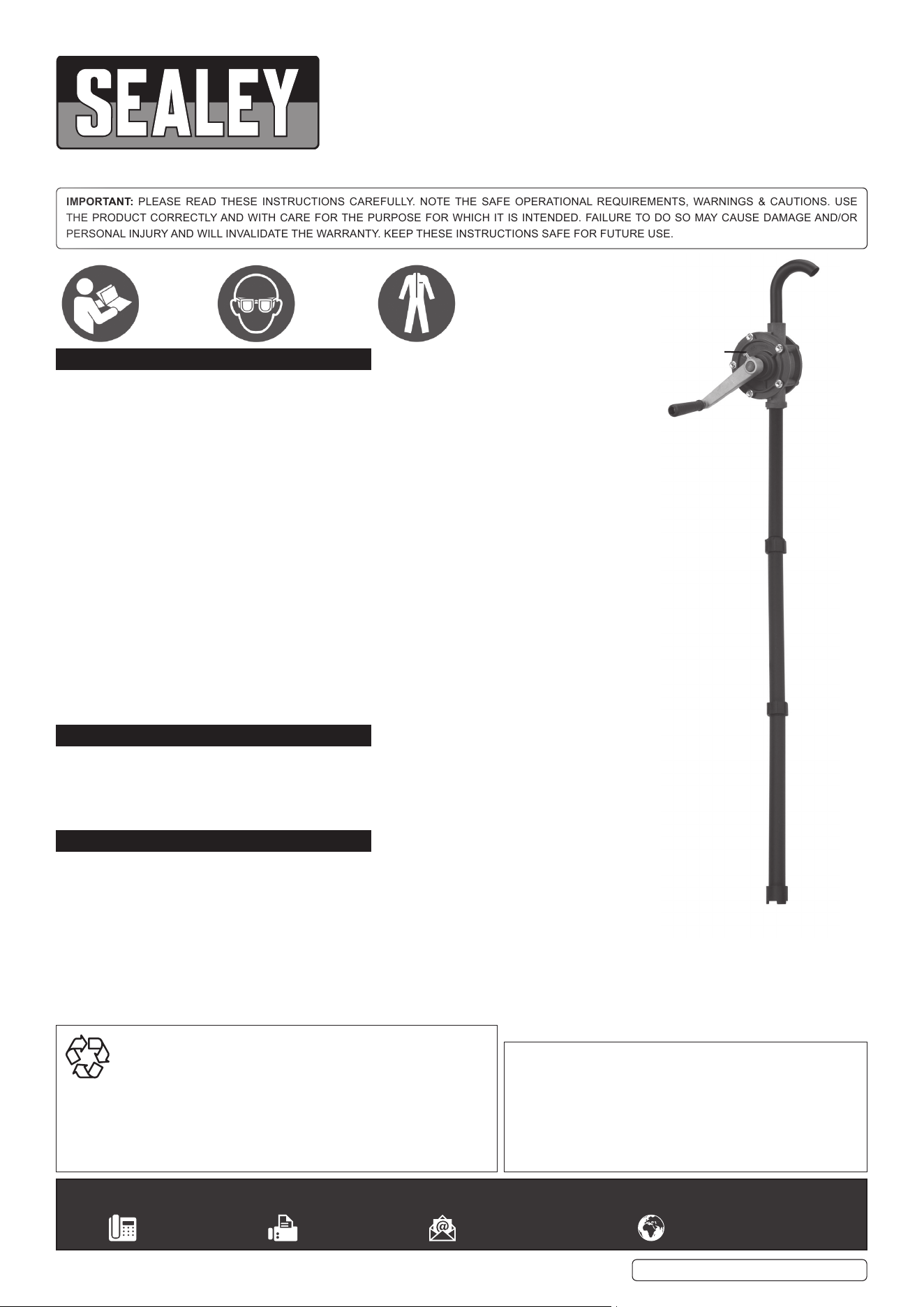

ADBLUE® HEAVY-DUTY ROTARY PUMP
MODEL NO: TP57
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure health & safety, local authority, and general workshop practice regulations
are strictly adhered to when using this equipment.
9 Familiariseyourselfwithproductapplicationandlimitations,aswellasthespecicpotential
hazards peculiar to this product.
9 Maintain the pump in good condition (use an authorised service agent).
9 Replace or repair damaged parts. Use genuine parts only. Non authorised parts will
invalidate the warranty.
9 Ensure safety eye protection and protective clothing are worn when using this product.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Maintaincorrectbalanceandfooting.Ensuretheoorisnotslipperyandwear
non slip shoes.
9 Keep children and unauthorised persons away from the working area.
9 Dispose of waste liquids in accordance with local authority regulations.
8 DO NOT dismantle, tamper with or adapt the pump for any purpose other than for which it is
designed.
8 DO NOT use the unit if it has been dropped or mishandled, check the unit to ensure there is
no damage.
8 DO NOTusethepumpasahandletomovetheuiddrum.
9 Keep the pump clean and store in a safe, dry, childproof location.
WARNING! DO NOT allow uncontrolled discharge of fluids thus polluting the
environment.
2. INTRODUCTION
Polypropylene rotary pump, specially fitted with Bakelite vanes for transferring AdBlue® as well as
acids, alkalis, oils and other fluids of similar viscosity. Supplied with 1300mm polyethylene
extension hose. Features 2”BSP connector suitable for use on 205L drums.
Delivers approximately 0.35L/revolution.
3. OPERATION
3.1. Screw the spout (fig.1A) into the pump body (fig.1B).
3.2. Slide handle (fig.1D) over the handle shaft. Secure by screwing bolt (fig.1C) into the
recess in the shaft.
3.3. Connect the three extension tubes (fig.1E) together using the couplings (fig.1F).
Then screw into bottom of the pump.
3.4. Slide the 2” BSP connector (not shown) over the extension tubes, then screw the filter (fig.1G) to the bottom of the extension tubes.
3.5. Insert the pump assembly into a 205L drum and screw in the 2” BSP connector, tighten the thumb screw in the connector to secure
the pump.
3.6. TP57 is now ready for use, ensure that the handle is tight before using the pump.
Refer to
instruction
manual
Wear eye
protection
Wear protective
clothing
TP57 Issue:2 (H,F) 24/11/20
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such
we reserve the right to alter data, specifications and component
parts without prior notice.
Important: No Liability is accepted for incorrect use of this
product.
Warranty: Guarantee is 12 months from purchase date, proof of
which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste.
All tools, accessories and packaging should be sorted, taken to a
recycling centre and disposed of in a manner which is compatible
with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable)
into approved containers and dispose of the product and fluids
according to local regulations.
A
B
C
D
E
F
E
F
E
G
