Owner's Manual

This is the main product document for model EAPC8RSC1.

The file format is pdf, 32 pages, you can download this manual here .

页 1
- 书签2FE1DC91　　　　　　　　　　811306759
- 书签816D8253　　　　　　　　　　EAPC8RD1\(US\).01-SMS
- 书签92BBC41B　　　　　　　　　　20181024
- 书签5E4DC0A3　　　　　　　　　　张文
页 2
页 3
页 4
页 5

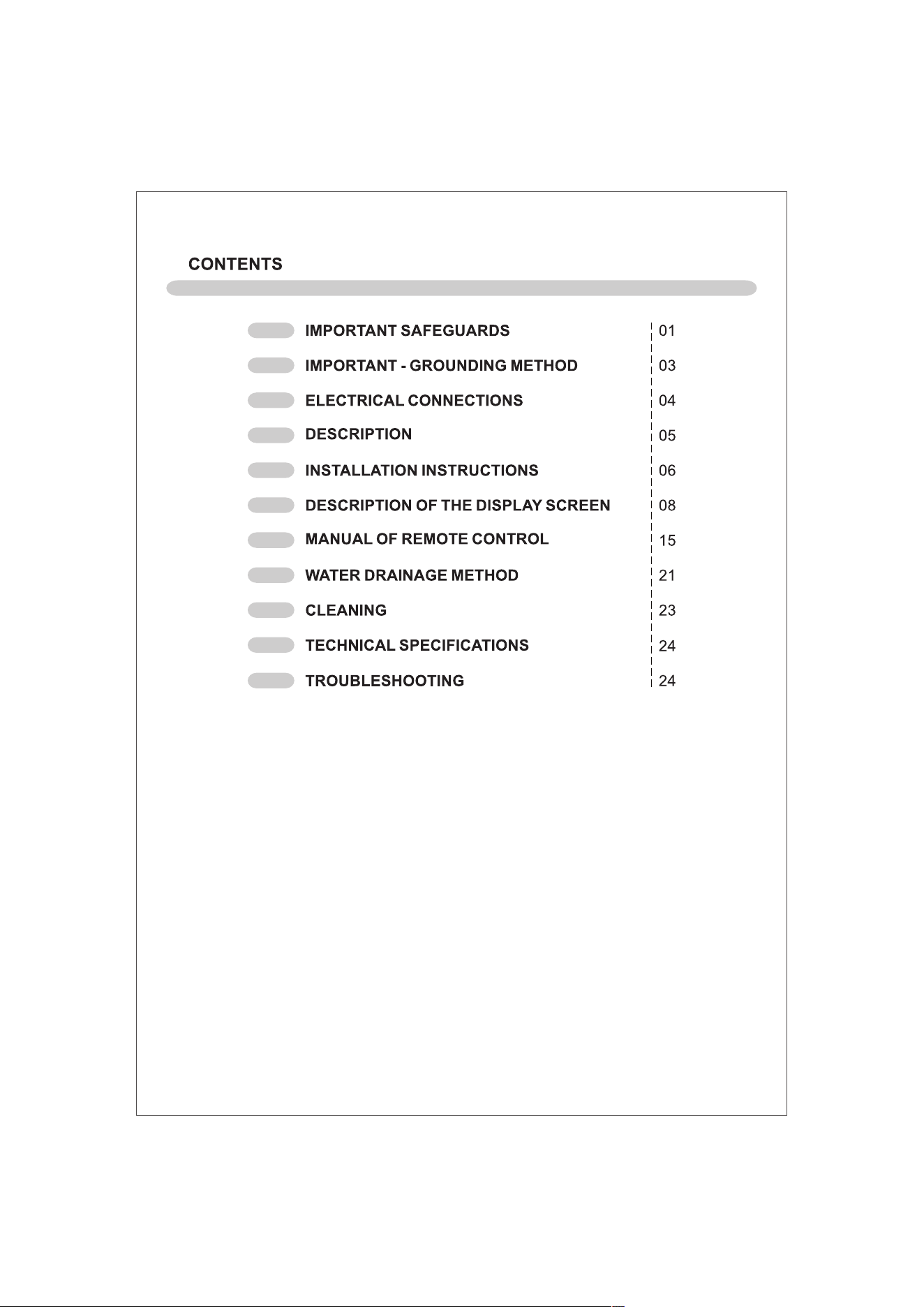

- 书签D434A393　　　　　　　　　　CONTENTS
- 书签A5157A1B　　　　　　　　　　IMPORTANT SAFEGUARDS
- 书签367DDF04　　　　　　　　　　IMPORTANT - GROUNDING METHOD
- 书签3F4C8A05　　　　　　　　　　ELECTRICAL CONNECTIONS
- 书签3820EA7F　　　　　　　　　　DESCRIPTION
- 书签AA8776EE　　　　　　　　　　INSTALLATION INSTRUCTIONS
- 书签1E2666C9　　　　　　　　　　DESCRIPTION OF THE DISPLAY SCREEN
- 书签8509A0EF　　　　　　　　　　MANUAL OF REMOTE CONTROL
- 书签3BAD31E4　　　　　　　　　　WATER DRAINAGE METHOD
- 书签C1F89D41　　　　　　　　　　CLEANING
- 书签3E754CE5　　　　　　　　　　 TECHNICAL SPECIFICATIONS
- 书签D070A5B5　　　　　　　　　　 TROUBLESHOOTING
- 书签24A886C8　　　　　　　　　　01
- 书签22A3304E　　　　　　　　　　03
- 书签6C4CE325　　　　　　　　　　04
- 书签90A88887　　　　　　　　　　05
- 书签22B9B82A　　　　　　　　　　06
- 书签EB4C8C5D　　　　　　　　　　08
- 书签F5BB0FB4　　　　　　　　　　15
- 书签EB00EE4F　　　　　　　　　　21
- 书签FE1F6DEF　　　　　　　　　　23
- 书签AE437609　　　　　　　　　　24
- 书签D0D214F3　　　　　　　　　　24
页 6
- 书签100BEAFF　　　　　　　　　　● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. ● Children shall not play with the appliance. ● Cleaning and user maintenance shall not be made by children without supervision. ● Disconnect the appliance from its power source during service and when replacing parts. ● Warning: before obtaining access to terminals, all supply circuits must be disconnected. ● If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard. ● Disconnect the power supply before cleaning and maintenance. ● The appliance shall not be installed in the laundry. ● Please note: Check the nameplate for the type of refrigerant gas used in your appliance. ● Specific information regarding appliances with refrigerant gas. R410A, R134a, R290 is a refrigerant that complies with European ecological standards; nevertheless, it is recommended not to pierce the cooling circuit of the machine. At the end of its useful life, deliver the appliance to a special waste collection centre for disposal. ● This hermetically sealed system contains fluorinated greenhouse gases. ● ENVIRONMENTAL INFORMATION: This unit contains fluorinated greenhouse gases covered by the Kyoto Protocol. ● The maintenance and disposal operations must be carried out by qualified personnel only. \(For more details on the refrigerant, see back cover\). GWP\(Global Warming Potential\): R410A: 2088, R134a: 1430, R290: 3. ● Do not use this unit for functions other than those described in this instruction manual. ● If the power cord becomes worn or damaged, the cord should only be replaced by a qualified service technician using genuine replacement parts. ● Make sure the plug is plugged firmly and completely into the outlet. It can result in the risk of electric shock or fire. ● Do not plug other appliances into the same outlet, it can result in the risk of electric shock. ● Do not disassemble or modify the appliance or the power cord, it can result in the risk of electric shock or fire. All other services should be referred to a qualified technician. ● Do not place the power cord or appliance near a heater, radiator, or other heat source. It can result in the risk of electric shock or fire.

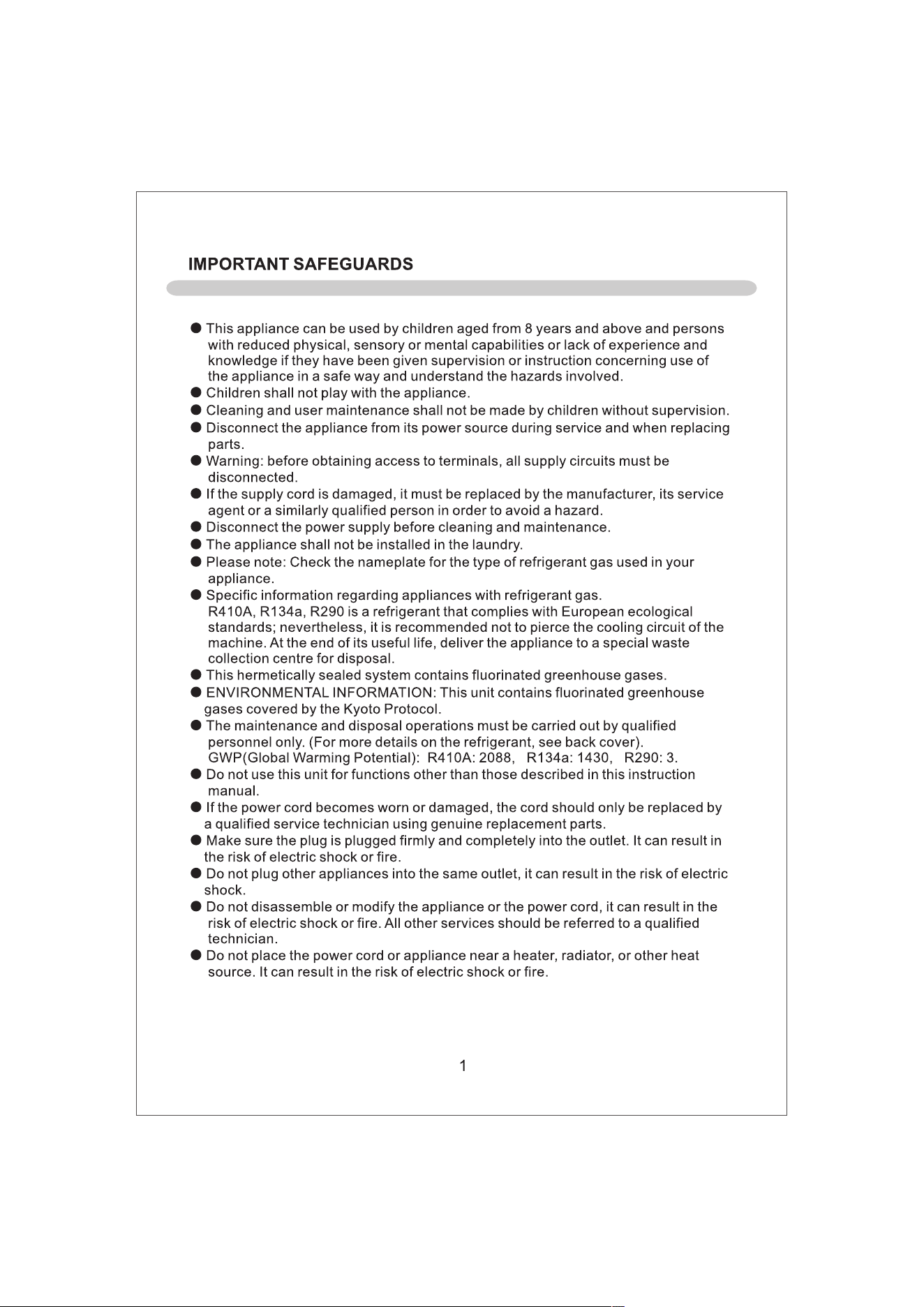

- 书签021E420A　　　　　　　　　　IMPORTANT SAFEGUARDS
- 书签5A5F7053　　　　　　　　　　1
页 7
- 书签C5C033F2　　　　　　　　　　● This unit is equipped with a cord that has a earthed wire connected to an earthed pin or grounding tab. The plug must be plugged into a socket that is properly installed and earthed. Do not under any circumstances cut or remove the earthed pin or grounding tab from this plug. ● The unit should be used or store in such a way that it is protected from moisture e.g. condensation, splashed water, etc. Unplug unit immediately if this occurs. ● Always transport your appliance in a vertical position and place on a stable, level surface during use. If the unit is transported laying on its side it should be stood up and left unplugged for 6 hours. ● Always use the switch on the control panel to turn the unit o r remote control off, and do not start or stop operation by plugging in or unplugging the power cord. It can result in the risk of electric shock. ● Do not press the buttons on the control panel with anything other than your wet or damp fingers. ● Do not use hazardous chemicals to clean or come into contact with the unit. To prevent damage to the surface finish, use only a soft cloth to clean the appliance. Do not use wax, thinner, or a strong detergent. Do not use the unit in the presence of inflammable substance or vapour such as alcohol, insecticides, gasoline, etc. ● Young children should be supervised to ensure that they do not play with, operate or climb on the appliance. ● If the appliance is making unusual sounds or is emitting smoke or an unusual odor, unplug it immediately. ● Do not clean the unit with water. Water can enter the unit and damage the insulation, creating a shock hazard. If water enters the unit, unplug it immediately and contact Customer Service. ● Utilize two or more people to lift and install the unit. ● Be sure all accessories are removed from the packing before use. ● To avoid possible cuts, avoid contacting the metal parts of the appliance when removing or re-installing the filter. It can result in the risk of personal injury. ● Do not block the air inlet or outlet of the appliance. Reduced air flow will result in poor performance and could damage the unit. ● Always grasp the plug when plugging in or unplugging the appliance. Never unplug by pulling on the cord. It can result in the risk of electrical shock and damage. ● Install the appliance on a sturdy, level floor capable of supporting up to 110lbs\(50kg\). Installation on a weak or unlevel floor can result in the risk of property damage and personal injury. ● Close all doors and windows to the room for most efficient operation.
- 书签2E514E91　　　　　　　　　　IMPORTANT SAFEGUARDS
- 书签11A9C9C0　　　　　　　　　　2
页 8

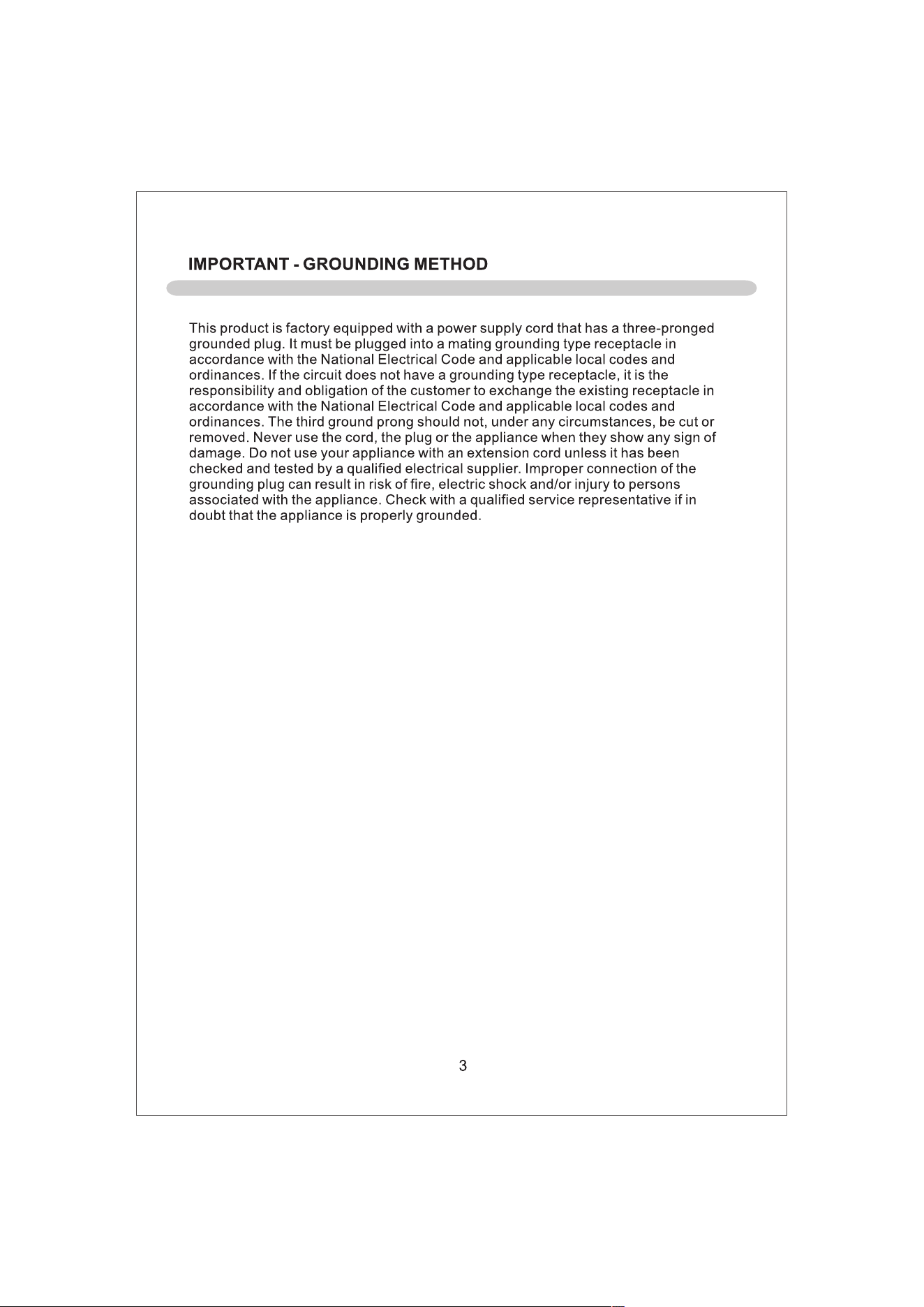

- 书签67188E0B　　　　　　　　　　This product is factory equipped with a power supply cord that has a three-pronged grounded plug. It must be plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances. If the circuit does not have a grounding type receptacle, it is the responsibility and obligation of the customer to exchange the existing receptacle in accordance with the National Electrical Code and applicable local codes and ordinances. The third ground prong should not, under any circumstances, be cut or removed. Never use the cord, the plug or the appliance when they show any sign of damage. Do not use your appliance with an extension cord unless it has been checked and tested by a qualified electrical supplier. Improper connection of the grounding plug can result in risk of fire, electric shock and/or injury to persons associated with the appliance. Check with a qualified service representative if in doubt that the appliance is properly grounded.
- 书签D466556D　　　　　　　　　　IMPORTANT - GROUNDING METHOD
- 书签761FB511　　　　　　　　　　3
页 9

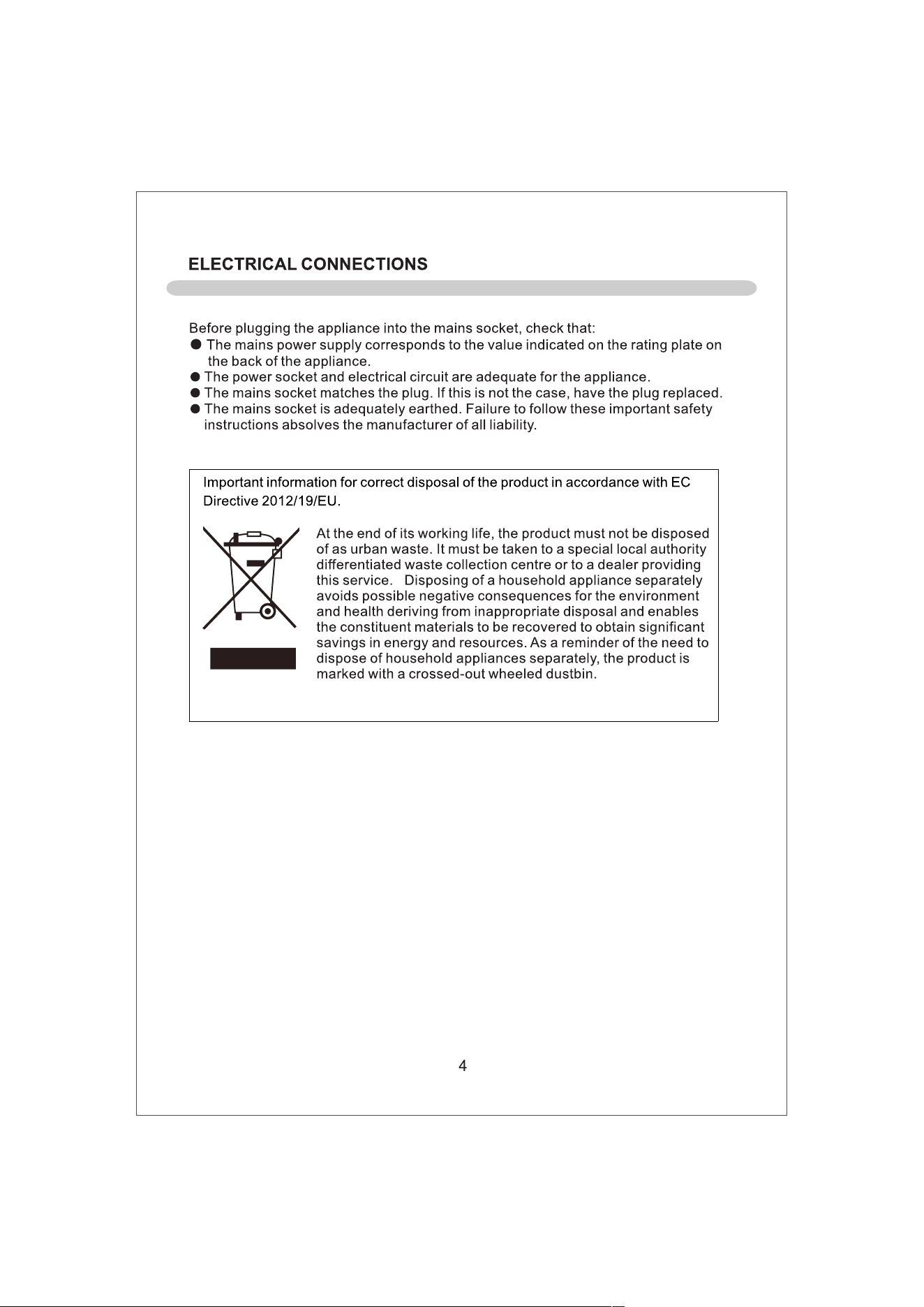

- 书签5B81004F　　　　　　　　　　 Before plugging the appliance into the mains socket, check that: ● The mains power supply corresponds to the value indicated on the rating plate on the back of the appliance. ● The power socket and electrical circuit are adequate for the appliance. ● The mains socket matches the plug. If this is not the case, have the plug replaced. ● The mains socket is adequately earthed. Failure to follow these important safety instructions absolves the manufacturer of all liability.
- 书签40760EEE　　　　　　　　　　ELECTRICAL CONNECTIONS
- 书签A6744202　　　　　　　　　　4
- 书签63CB78AF　　　　　　　　　　 Important information for correct disposal of the product in accordance with EC Directive 2012/19/EU.
- 书签CDF633A6　　　　　　　　　　 At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
页 10
- 书签7F1906D5　　　　　　　　　　Note: All the illustrations in this manual are for explanatory purposes only. Your appliance may be slightly different.
- 书签9344D4C2　　　　　　　　　　 Exhaust hose Hose outlet Hose inlet
- 书签B6100BF9　　　　　　　　　　 Window slider kit
- 书签6157E927　　　　　　　　　　 Remote Control
- 书签CBDC2F4B　　　　　　　　　　Battery
- 书签A60676C3　　　　　　　　　　1 set \(for appearance of A\)
- 书签BDF306A3　　　　　　　　　　1 set
- 书签228E8A0B　　　　　　　　　　1 set
- 书签A28C8503　　　　　　　　　　ACCESSORIES
- 书签82F27E6E　　　　　　　　　　PARTS
- 书签DE747D68　　　　　　　　　　PARTS NAME
- 书签20D4769F　　　　　　　　　　QUANTITY
- 书签D7E8C8E8　　　　　　　　　　 Exhaust hose Hose outlet Hose inlet
- 书签0F029705　　　　　　　　　　1 set \(for appearance of B\)
- 书签747774AF　　　　　　　　　　 Appearance of A:
- 书签06C76DA9　　　　　　　　　　1. Deflector 2. Control panel 3. Handle \(both sides\) 4. Castors 5. Power cable 6. Intake grille 7. Air outlet grille 8. Intake grille 9. Condenser drain 10.Continuous drain outlet
- 书签3677683B　　　　　　　　　　 Appearance of B:

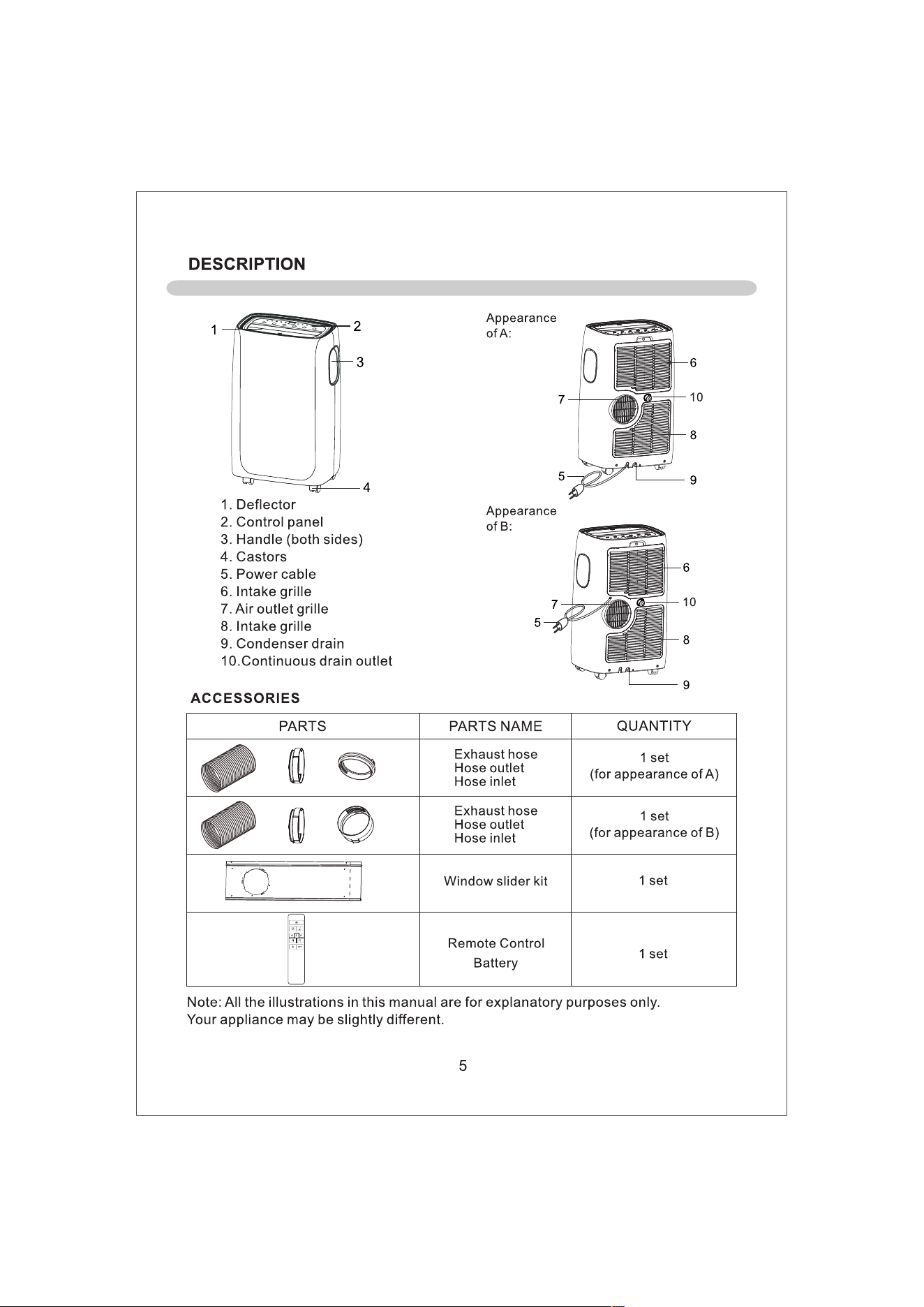

- 书签19755CB9　　　　　　　　　　DESCRIPTION
- 书签9B7B318B　　　　　　　　　　5
- 书签77070C1F　　　　　　　　　　10
- 书签BCEA1839　　　　　　　　　　10
页 11
- 书签4F81630E　　　　　　　　　　INSTALLATION INSTRUCTIONS
- 书签5AB5599F　　　　　　　　　　6
- 书签5A065129　　　　　　　　　　A or B
- 书签004D7298　　　　　　　　　　Fig.4 \(A\)
- 书签9DFAE817　　　　　　　　　　Fig.4 \(B\)

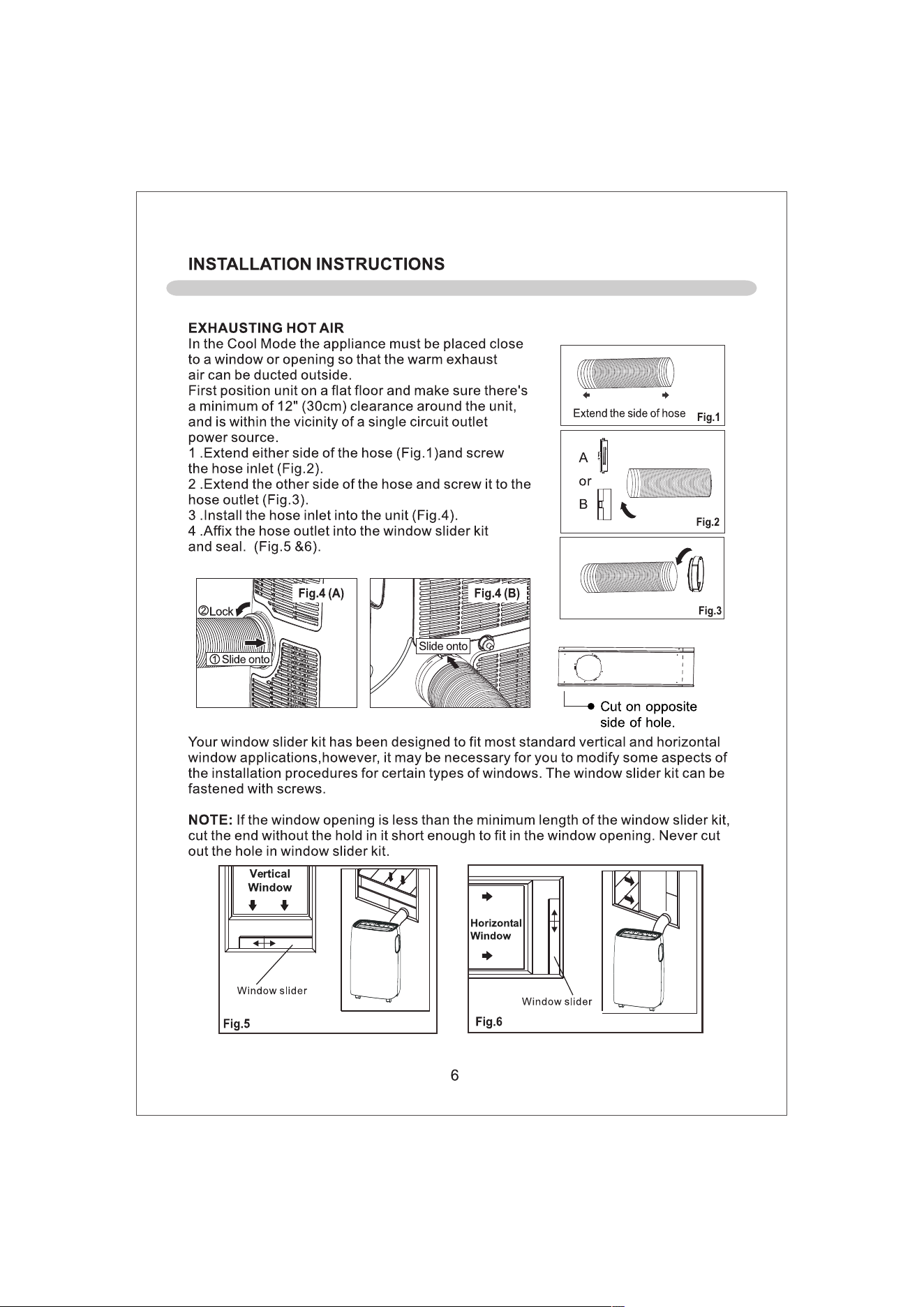

- 书签450EB23F　　　　　　　　　　 EXHAUSTING HOT AIR In the Cool Mode the appliance must be placed close to a window or opening so that the warm exhaust air can be ducted outside. First position unit on a flat floor and make sure there's a minimum of 12" \(30cm\) clearance around the unit, and is within the vicinity of a single circuit outlet power source. 1 .Extend either side of the hose \(Fig.1\)and screw the hose inlet \(Fig.2\). 2 .Extend the other side of the hose and screw it to the hose outlet \(Fig.3\). 3 .Install the hose inlet into the unit \(Fig.4\). 4 .Affix the hose outlet into the window slider kit and seal. \(Fig.5 &6\).
- 书签92EE2299　　　　　　　　　　 Your window slider kit has been designed to fit most standard vertical and horizontal window applications,however, it may be necessary for you to modify some aspects of the installation procedures for certain types of windows. The window slider kit can be fastened with screws. NOTE: If the window opening is less than the minimum length of the window slider kit, cut the end without the hold in it short enough to fit in the window opening. Never cut out the hole in window slider kit.
页 12
- 书签F7BF129F　　　　　　　　　　INSTALLATION INSTRUCTIONS
- 书签7E370A0F　　　　　　　　　　7

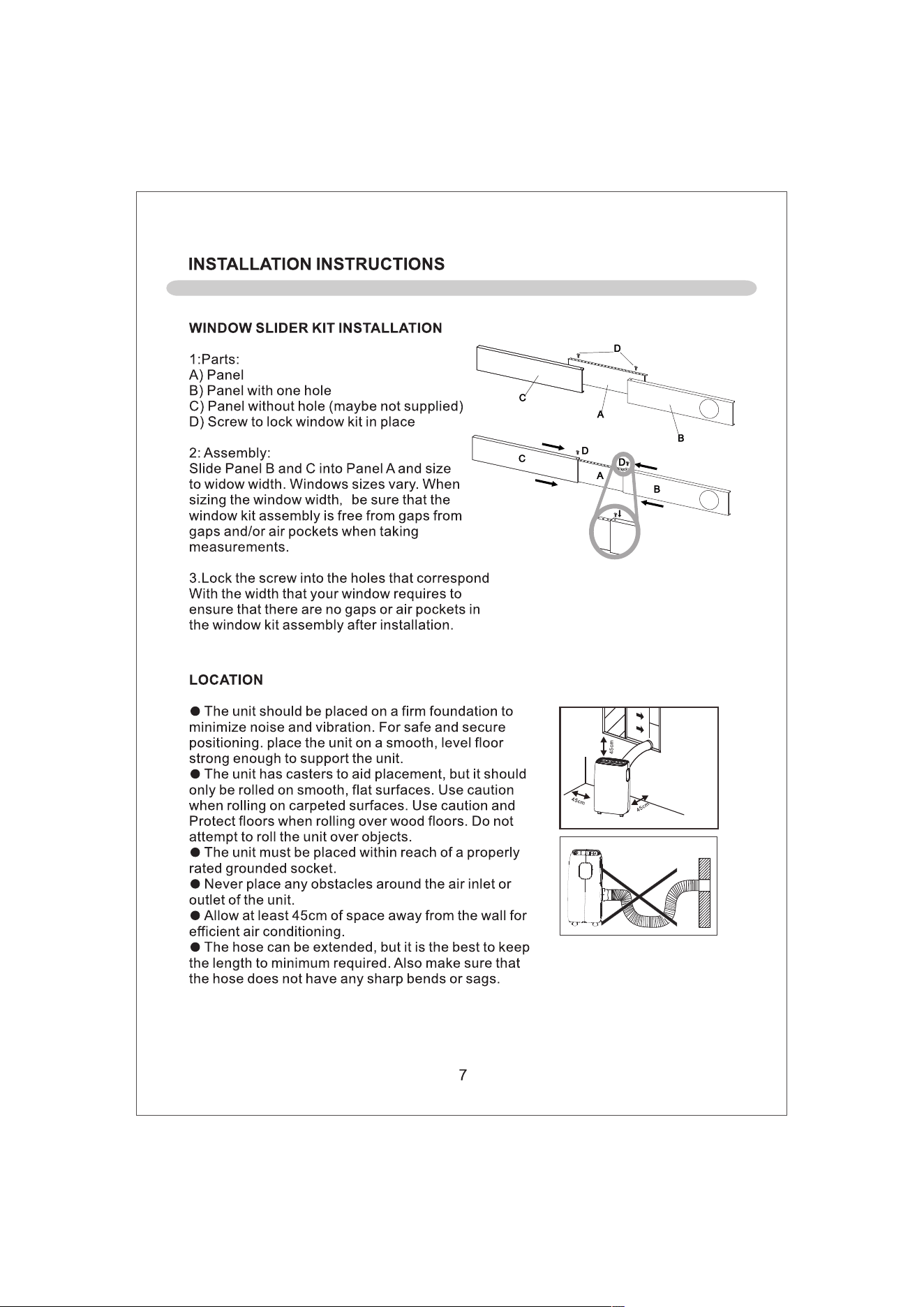

- 书签46393304　　　　　　　　　　WINDOW SLIDER KIT INSTALLATION 1:Parts: A\) Panel B\) Panel with one hole C\) Panel without hole \(maybe not supplied\) D\) Screw to lock window kit in place 2: Assembly: Slide Panel B and C into Panel A and size to widow width. Windows sizes vary. When sizing the window width，be sure that the window kit assembly is free from gaps from gaps and/or air pockets when taking measurements. 3.Lock the screw into the holes that correspond With the width that your window requires to ensure that there are no gaps or air pockets in the window kit assembly after installation.
- 书签1E6FDAA6　　　　　　　　　　LOCATION ● The unit should be placed on a firm foundation to minimize noise and vibration. For safe and secure positioning. place the unit on a smooth, level floor strong enough to support the unit. ● The unit has casters to aid placement, but it should only be rolled on smooth, flat surfaces. Use caution when rolling on carpeted surfaces. Use caution and Protect floors when rolling over wood floors. Do not attempt to roll the unit over objects. ● The unit must be placed within reach of a properly rated grounded socket. ● Never place any obstacles around the air inlet or outlet of the unit. ● Allow at least 45cm of space away from the wall for efficient air conditioning. ● The hose can be extended, but it is the best to keep the length to minimum required. Also make sure that the hose does not have any sharp bends or sags.
页 13

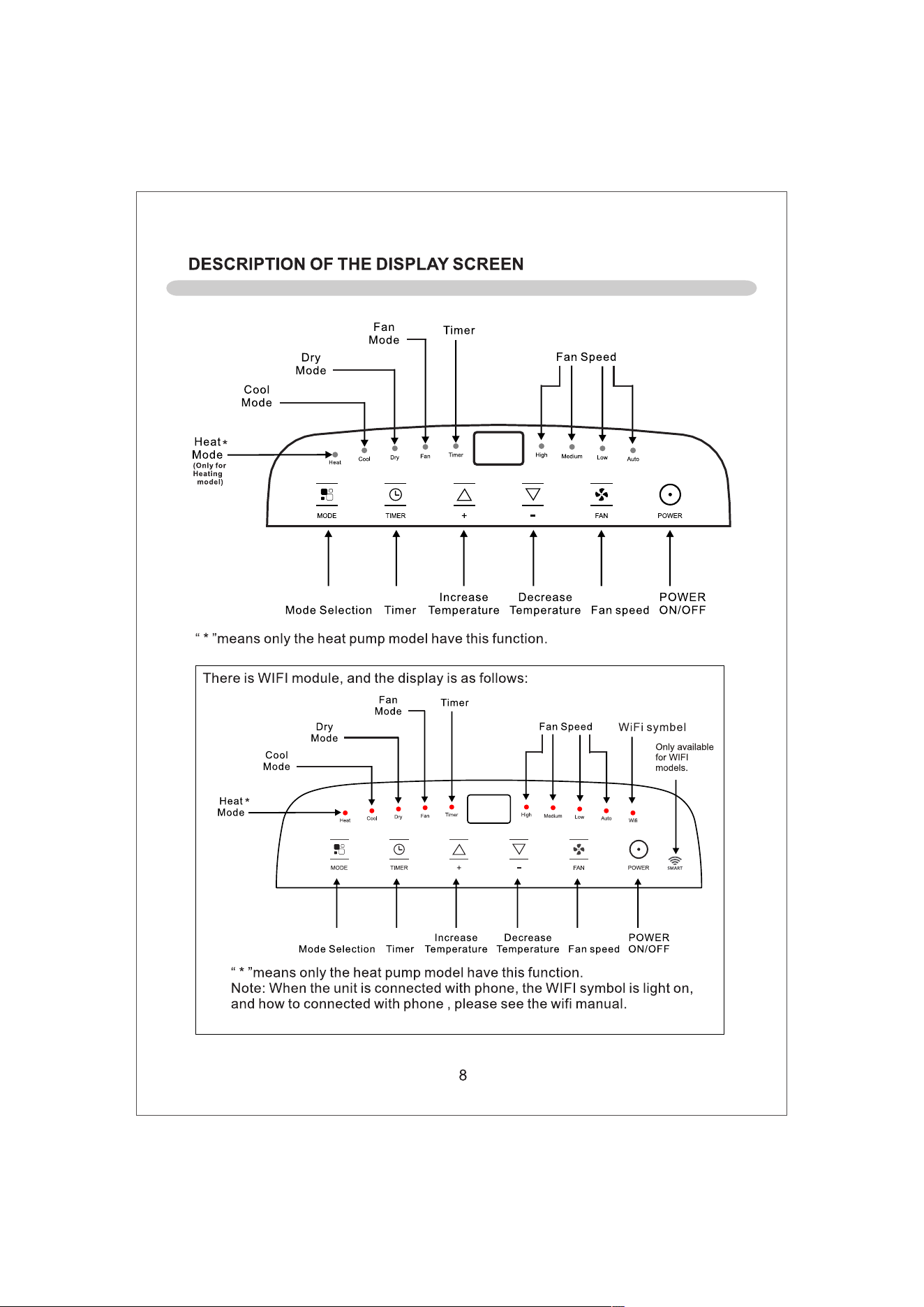

- 书签6D47058B　　　　　　　　　　DESCRIPTION OF THE DISPLAY SCREEN
- 书签A46EDB6C　　　　　　　　　　8
- 书签F6EAE460　　　　　　　　　　“ * ”means only the heat pump model have this function.
- 书签C873D222　　　　　　　　　　“ * ”means only the heat pump model have this function. Note: When the unit is connected with phone, the WIFI symbol is light on, and how to connected with phone , please see the wifi manual.
- 书签38EC9511　　　　　　　　　　There is WIFI module, and the display is as follows:
- 书签6BF1E20D　　　　　　　　　　WiFi symbel
页 14
- 书签22DE9E7B　　　　　　　　　　DESCRIPTION OF THE DISPLAY SCREEN
- 书签FE568AB5　　　　　　　　　　9

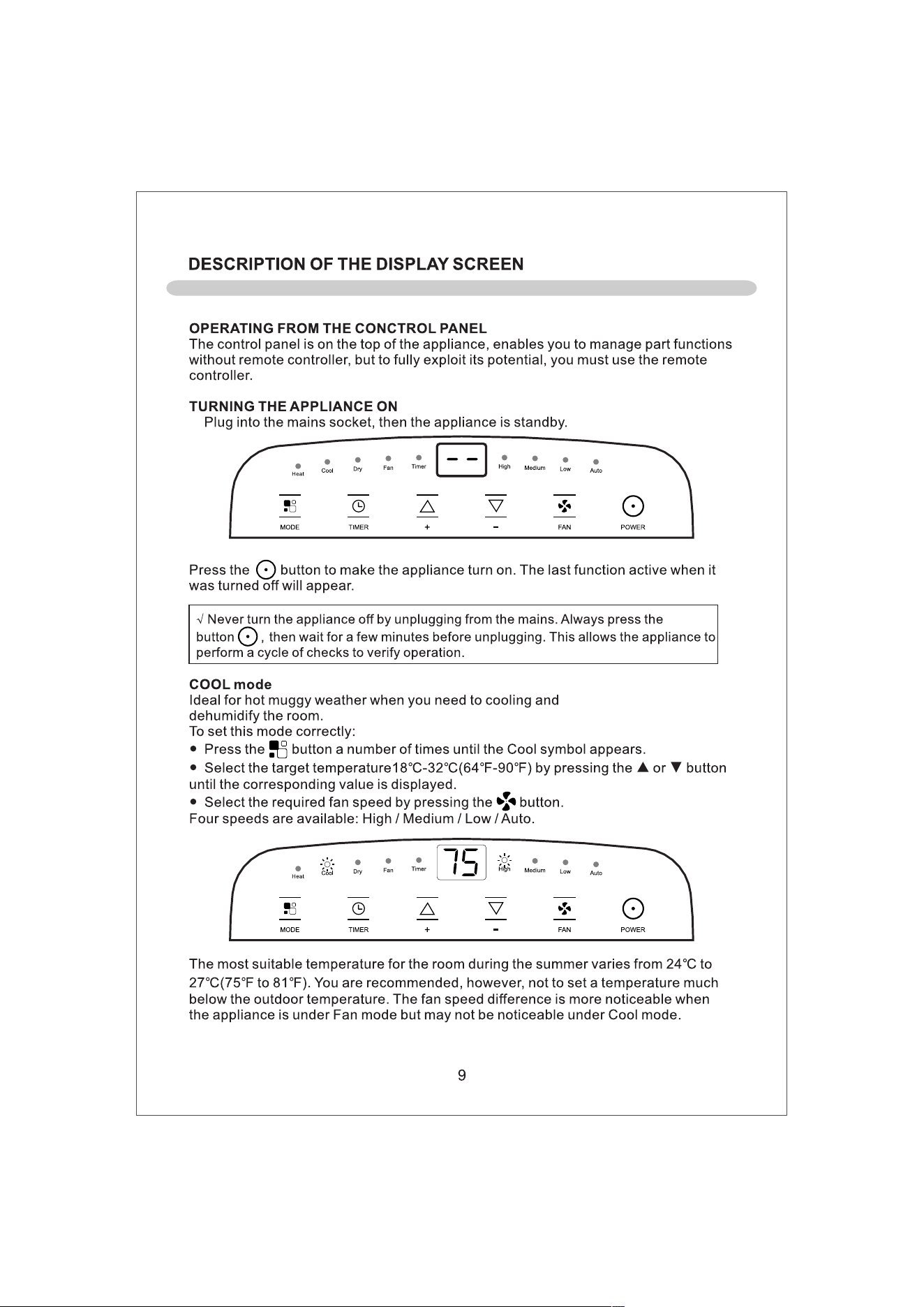

- 书签6667661B　　　　　　　　　　OPERATING FROM THE CONCTROL PANEL The control panel is on the top of the appliance, enables you to manage part functions without remote controller, but to fully exploit its potential, you must use the remote controller. TURNING THE APPLIANCE ON Plug into the mains socket, then the appliance is standby.
- 书签ED18BCB6　　　　　　　　　　Press the button to make the appliance turn on. The last function active when it was turned off will appear.
- 书签28BA8A6F　　　　　　　　　　 √ Never turn the appliance off by unplugging from the mains. Always press the button ，then wait for a few minutes before unplugging. This allows the appliance to perform a cycle of checks to verify operation.
- 书签86AE1A6B　　　　　　　　　　 COOL mode Ideal for hot muggy weather when you need to cooling and dehumidify the room. To set this mode correctly: ● Press the button a number of times until the Cool symbol appears. ● Select the target temperature18℃-32℃\(64℉-90℉\) by pressing the ▲ or ▼ button until the corresponding value is displayed. ● Select the required fan speed by pressing the button. Four speeds are available: High / Medium / Low / Auto.
- 书签AB37ABBA　　　　　　　　　　 The most suitable temperature for the room during the summer varies from 24℃ to 27℃\(75℉ to 81℉\). You are recommended, however, not to set a temperature much below the outdoor temperature. The fan speed difference is more noticeable when the appliance is under Fan mode but may not be noticeable under Cool mode.
页 15
- 书签BED9DD9D　　　　　　　　　　DESCRIPTION OF THE DISPLAY SCREEN
- 书签C5CC4F1B　　　　　　　　　　10

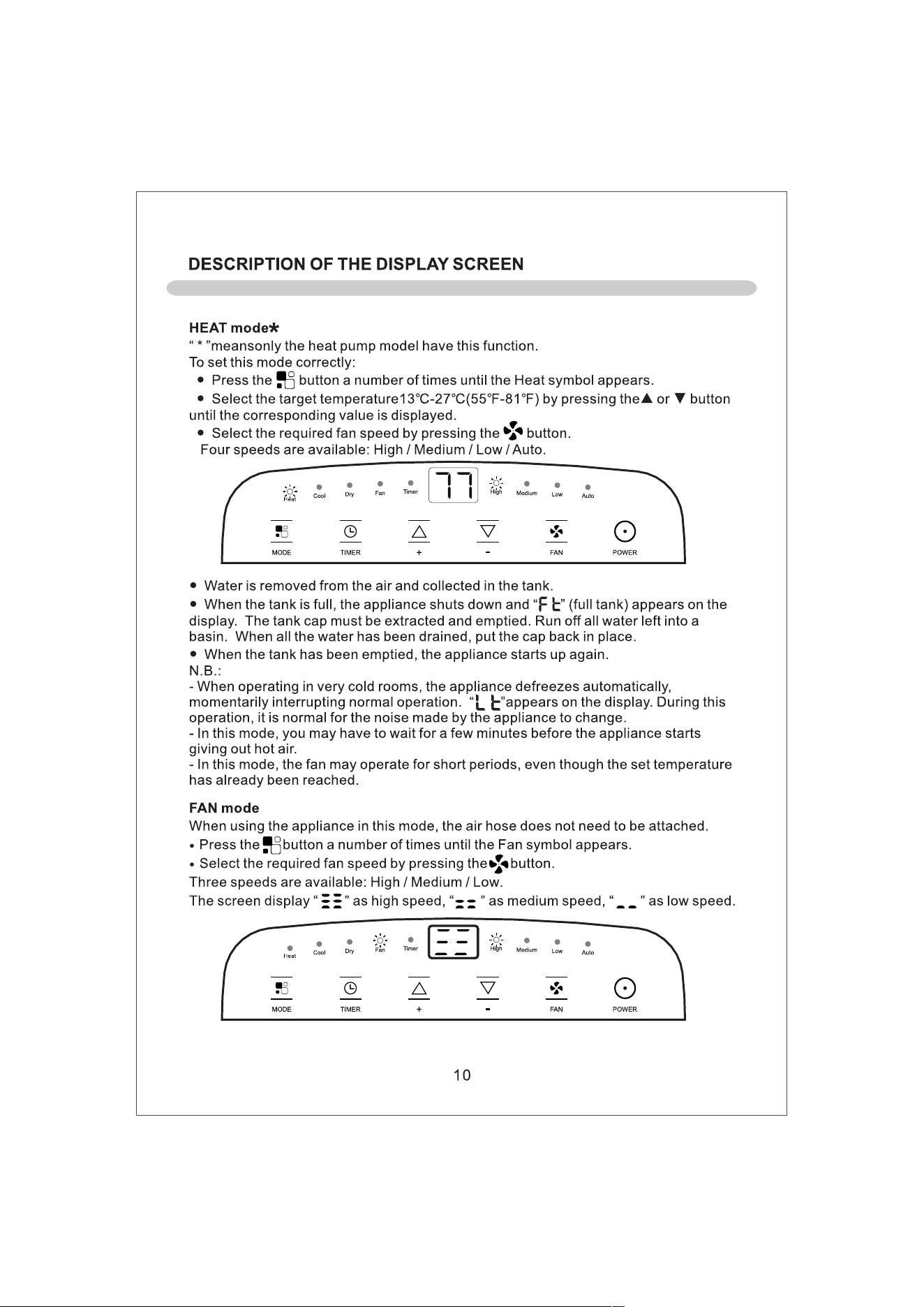

- 书签1C9DADDF　　　　　　　　　　 HEAT mode “ * ”meansonly the heat pump model have this function. To set this mode correctly: ● Press the button a number of times until the Heat symbol appears. ● Select the target temperature13℃-27℃\(55℉-81℉\) by pressing the▲ or ▼ button until the corresponding value is displayed. ● Select the required fan speed by pressing the button. Four speeds are available: High / Medium / Low / Auto.
- 书签EE33AD27　　　　　　　　　　 ● Water is removed from the air and collected in the tank. ● When the tank is full, the appliance shuts down and “ ” \(full tank\) appears on the display. The tank cap must be extracted and emptied. Run off all water left into a basin. When all the water has been drained, put the cap back in place. ● When the tank has been emptied, the appliance starts up again. N.B.: - When operating in very cold rooms, the appliance defreezes automatically, momentarily interrupting normal operation. “ ”appears on the display. During this operation, it is normal for the noise made by the appliance to change. - In this mode, you may have to wait for a few minutes before the appliance starts giving out hot air. - In this mode, the fan may operate for short periods, even though the set temperature has already been reached.
- 书签9121213E　　　　　　　　　　 FAN mode When using the appliance in this mode, the air hose does not need to be attached. ● Press the button a number of times until the Fan symbol appears. ● Select the required fan speed by pressing the button. Three speeds are available: High / Medium / Low. The screen display “ ” as high speed, “ ” as medium speed, “ ” as low speed.
页 16
- 书签36AC96B3　　　　　　　　　　DESCRIPTION OF THE DISPLAY SCREEN
- 书签A3D6B7ED　　　　　　　　　　11

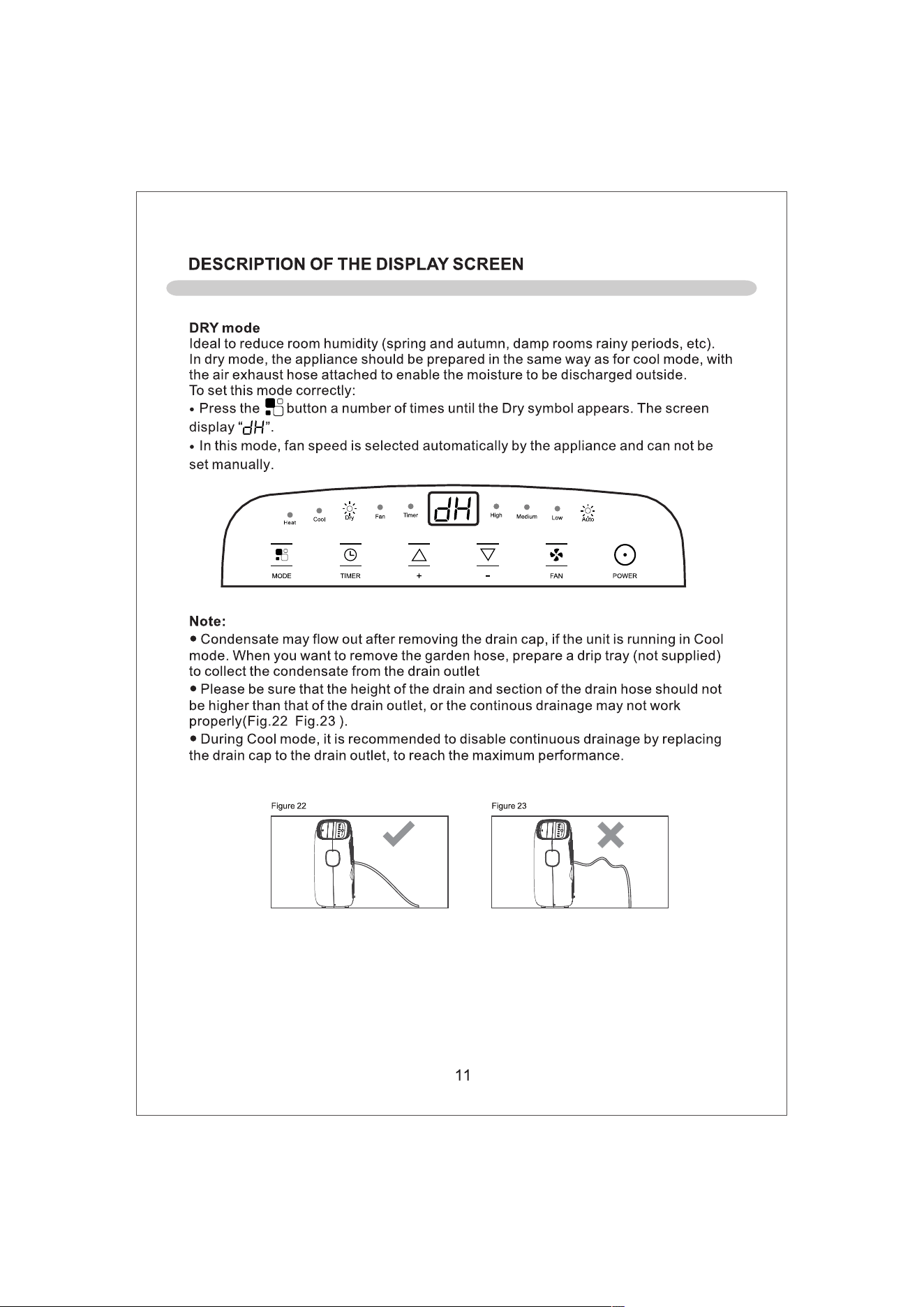

- 书签DF5DF3D8　　　　　　　　　　 DRY mode Ideal to reduce room humidity \(spring and autumn, damp rooms rainy periods, etc\). In dry mode, the appliance should be prepared in the same way as for cool mode, with the air exhaust hose attached to enable the moisture to be discharged outside. To set this mode correctly: ● Press the button a number of times until the Dry symbol appears. The screen display “ ”. ● In this mode, fan speed is selected automatically by the appliance and can not be set manually.
- 书签FF6B66F1　　　　　　　　　　 Note: ● Condensate may flow out after removing the drain cap, if the unit is running in Cool mode. When you want to remove the garden hose, prepare a drip tray \(not supplied\) to collect the condensate from the drain outlet ● Please be sure that the height of the drain and section of the drain hose should not be higher than that of the drain outlet, or the continous drainage may not work properly\(Fig.22 Fig.23 \). ● During Cool mode, it is recommended to disable continuous drainage by replacing the drain cap to the drain outlet, to reach the maximum performance.
页 17
- 书签190B9DA1　　　　　　　　　　DESCRIPTION OF THE DISPLAY SCREEN

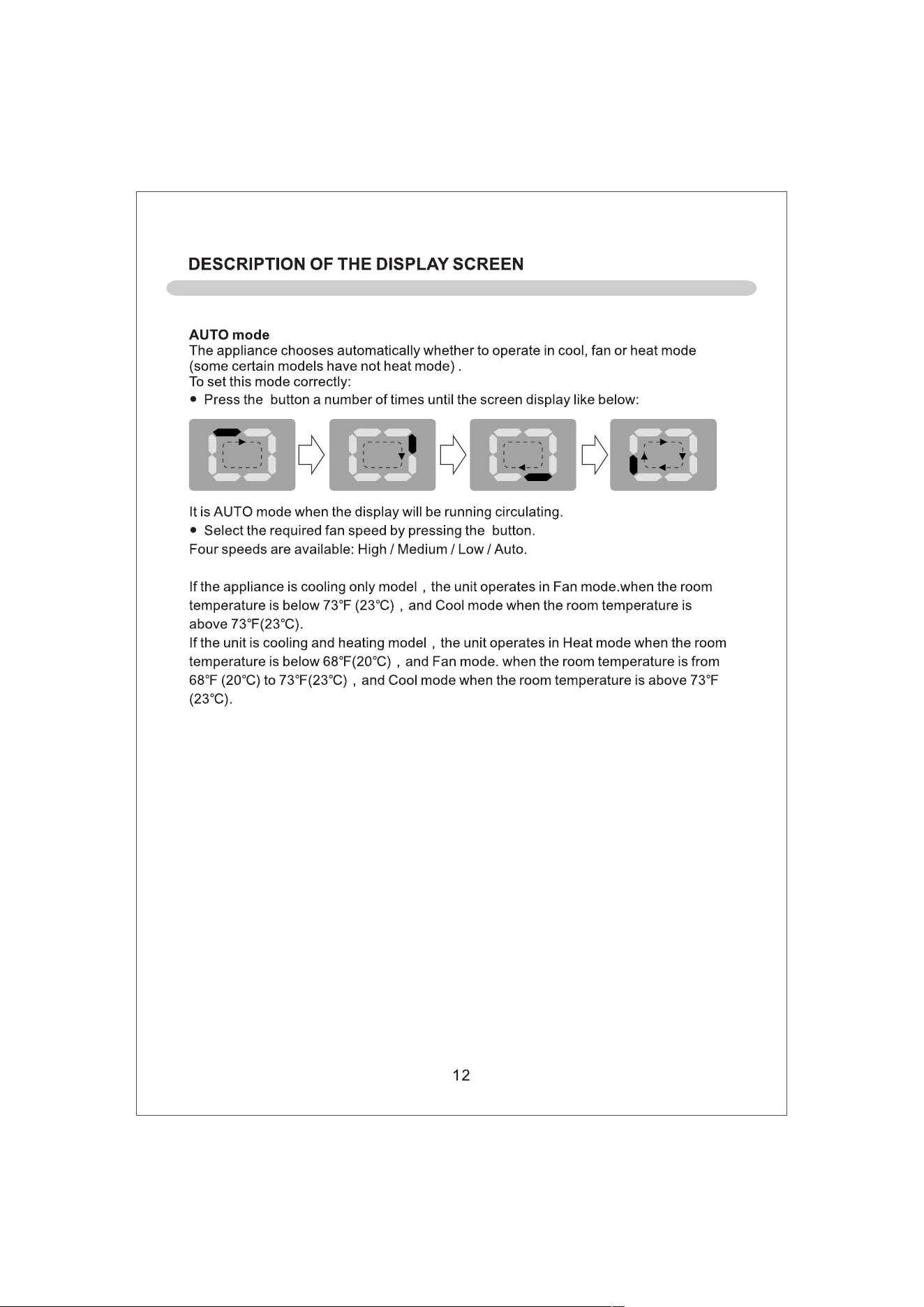

- 书签FEDD2BE2　　　　　　　　　　AUTO mode The appliance chooses automatically whether to operate in cool, fan or heat mode \(some certain models have not heat mode\) . To set this mode correctly: ● Press the button a number of times until the screen display like below: It is AUTO mode when the display will be running circulating. ● Select the required fan speed by pressing the button. Four speeds are available: High / Medium / Low / Auto. If the appliance is cooling only model，the unit operates in Fan mode.when the room temperature is below 73℉ \(23℃\)，and Cool mode when the room temperature is above 73℉\(23℃\). If the unit is cooling and heating model，the unit operates in Heat mode when the room temperature is below 68℉\(20℃\)，and Fan mode. when the room temperature is from 68℉ \(20℃\) to 73℉\(23℃\)，and Cool mode when the room temperature is above 73℉ \(23℃\).
- 书签7D2F23F0　　　　　　　　　　12
页 18
- 书签E7A3B8B6　　　　　　　　　　DESCRIPTION OF THE DISPLAY SCREEN
- 书签595EFD6E　　　　　　　　　　13

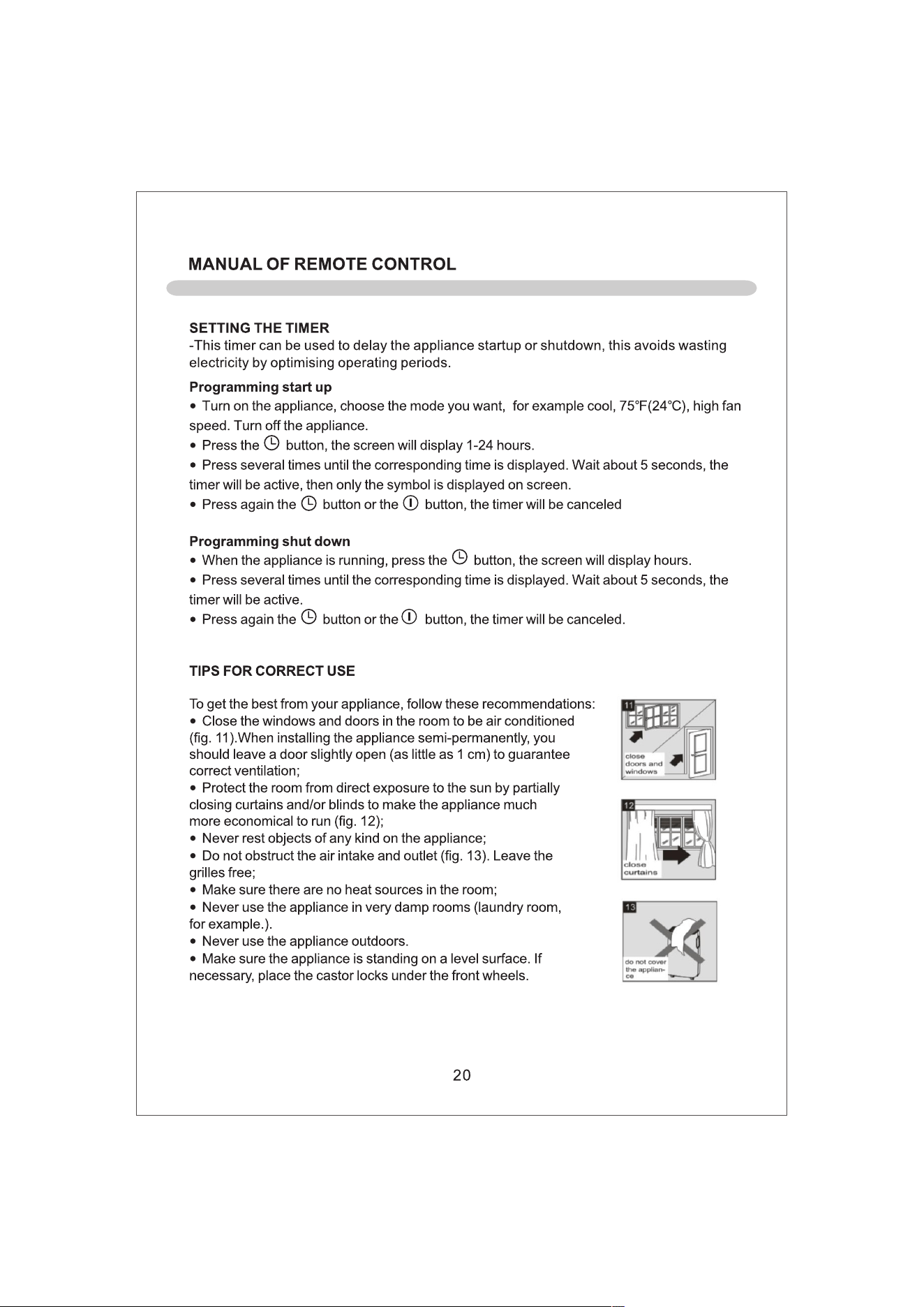

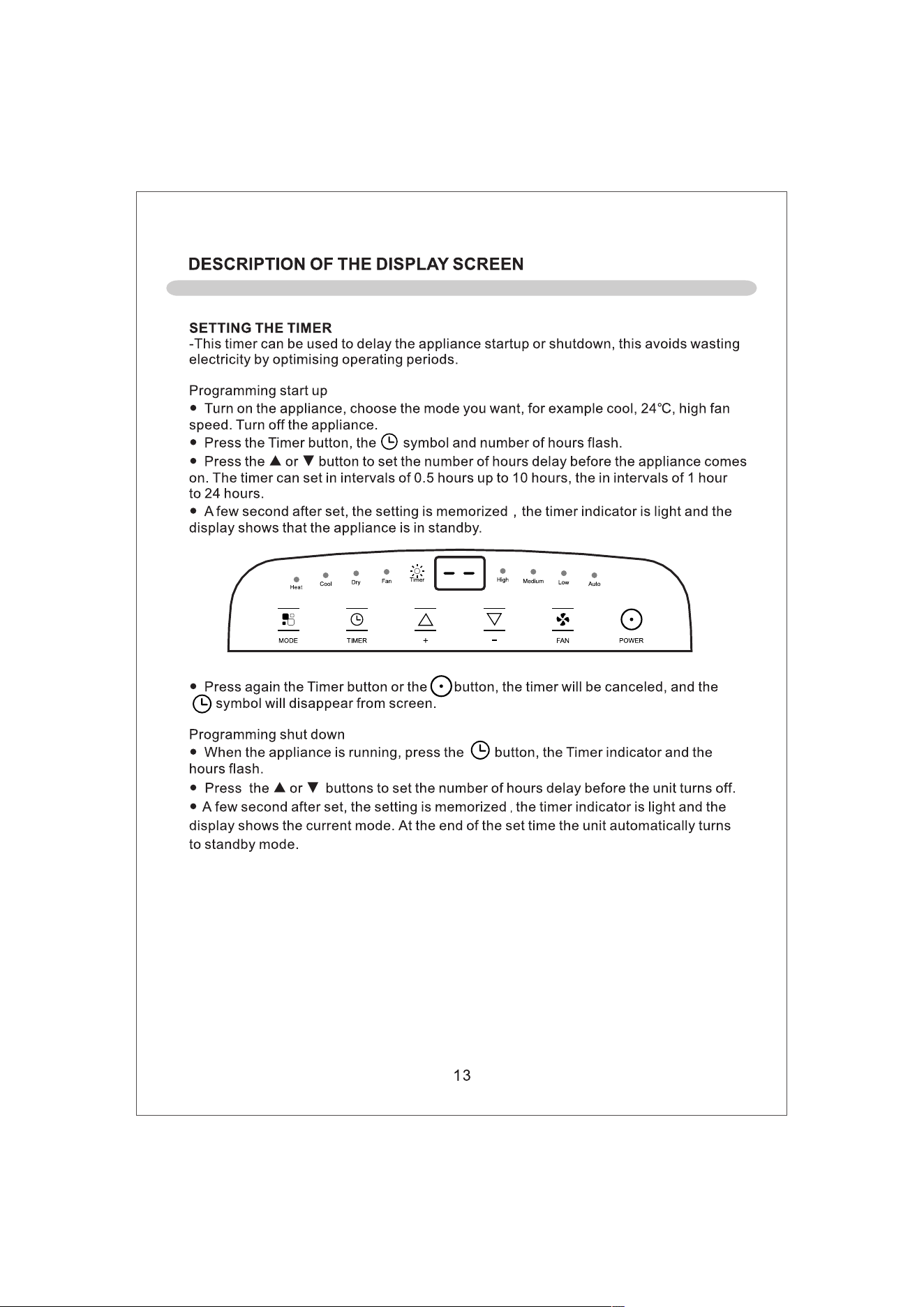

- 书签D13093EF　　　　　　　　　　 SETTING THE TIMER -This timer can be used to delay the appliance startup or shutdown, this avoids wasting electricity by optimising operating periods. Programming start up ● Turn on the appliance, choose the mode you want, for example cool, 24℃, high fan speed. Turn off the appliance. ● Press the Timer button, the symbol and number of hours flash. ● Press the ▲ or ▼ button to set the number of hours delay before the appliance comes on. The timer can set in intervals of 0.5 hours up to 10 hours, the in intervals of 1 hour to 24 hours. ● A few second after set, the setting is memorized，the timer indicator is light and the display shows that the appliance is in standby.
- 书签2B20AEDD　　　　　　　　　　● Press again the Timer button or the button, the timer will be canceled, and the symbol will disappear from screen. Programming shut down ● When the appliance is running, press the button, the Timer indicator and the hours flash.
- 书签71BED417　　　　　　　　　　 ● Press the ▲ or ▼ buttons to set the number of hours delay before the unit turns off. ● A few second after set, the setting is memorized，the timer indicator is light and the display shows the current mode. At the end of the set time the unit automatically turns to standby mode.
页 19
- 书签0212BEC8　　　　　　　　　　DESCRIPTION OF THE DISPLAY SCREEN
- 书签2E243B3A　　　　　　　　　　14

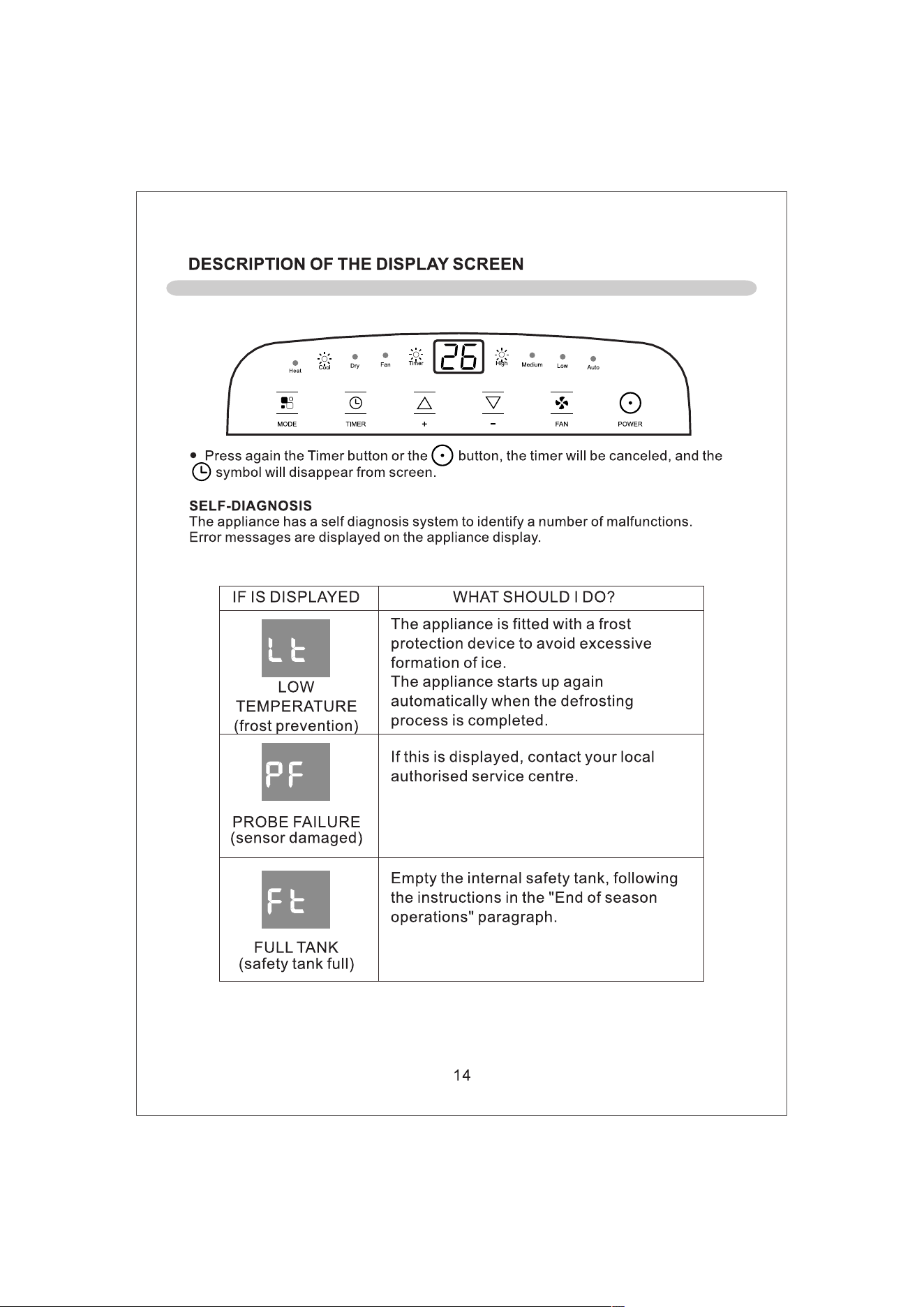

- 书签CC30F3A7　　　　　　　　　　 SELF-DIAGNOSIS The appliance has a self diagnosis system to identify a number of malfunctions. Error messages are displayed on the appliance display.
- 书签4DBACC1B　　　　　　　　　　 ● Press again the Timer button or the button, the timer will be canceled, and the symbol will disappear from screen.
- 书签5739BA09　　　　　　　　　　IF IS DISPLAYED
- 书签F9D35194　　　　　　　　　　WHAT SHOULD I DO?
- 书签8181683D　　　　　　　　　　LOW
- 书签9FE0619A　　　　　　　　　　TEMPERATURE
- 书签810B09CA　　　　　　　　　　\(frost prevention\)
- 书签B587A5B1　　　　　　　　　　The appliance is fitted with a frost protection device to avoid excessive formation of ice.
- 书签69FACA18　　　　　　　　　　The appliance starts up again automatically when the defrosting process is completed.
- 书签73CB0DEF　　　　　　　　　　PROBE FAILURE
- 书签AB456FE4　　　　　　　　　　\(sensor damaged\)
- 书签E9F0FD41　　　　　　　　　　If this is displayed, contact your local authorised service centre.
- 书签6473A1F2　　　　　　　　　　FULL TANK
- 书签23A565ED　　　　　　　　　　\(safety tank full\)
- 书签0AB98834　　　　　　　　　　Empty the internal safety tank, following the instructions in the "End of season operations" paragraph.
页 20

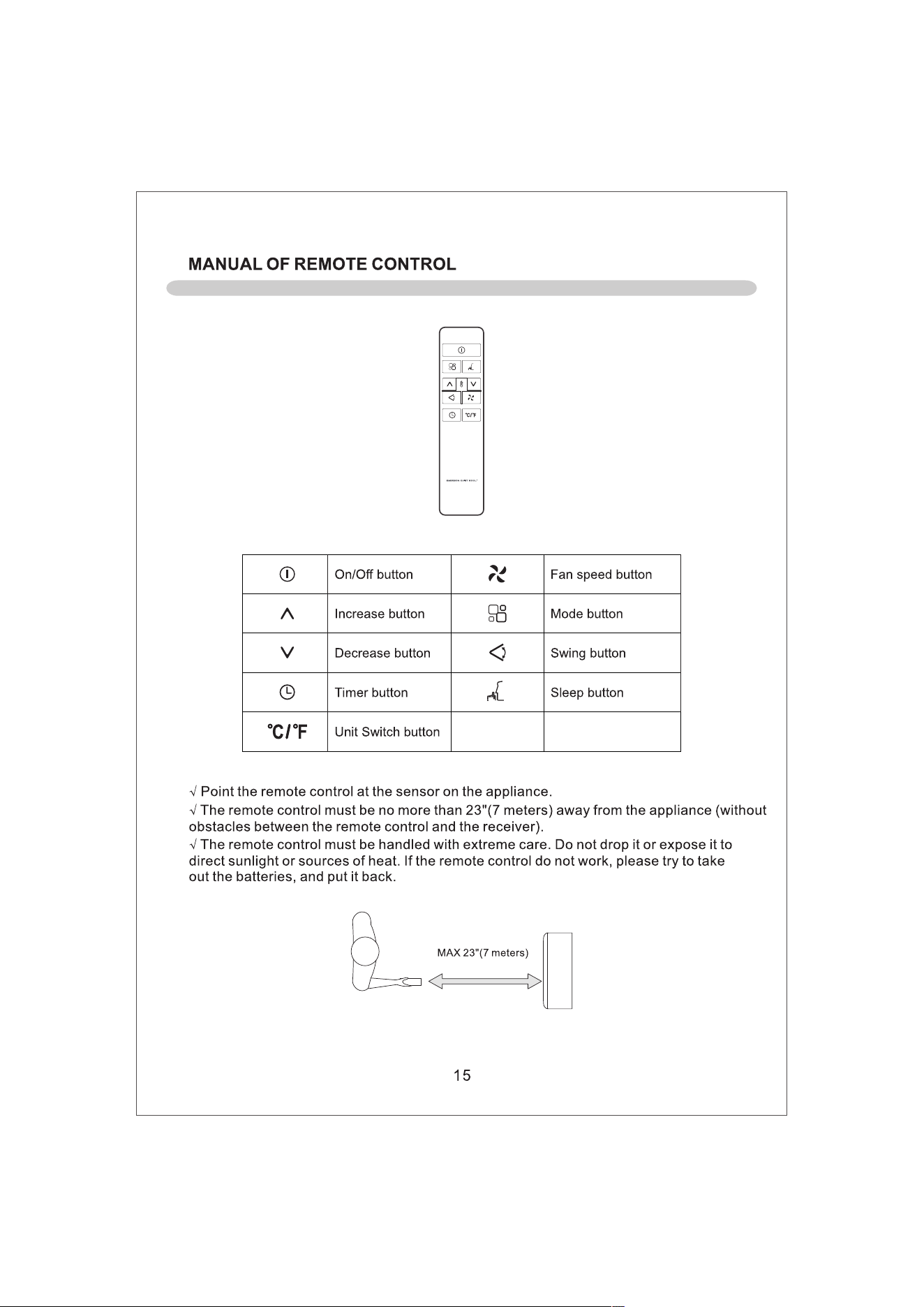

- 书签C8BFFE94　　　　　　　　　　 √ Point the remote control at the sensor on the appliance. √ The remote control must be no more than 23"\(7 meters\) away from the appliance \(without obstacles between the remote control and the receiver\). √ The remote control must be handled with extreme care. Do not drop it or expose it to direct sunlight or sources of heat. If the remote control do not work, please try to take out the batteries, and put it back.
- 书签374B5101　　　　　　　　　　On/Off button
- 书签DB6F640D　　　　　　　　　　Fan speed button
- 书签E87AD1E1　　　　　　　　　　Increase button
- 书签8E3837B4　　　　　　　　　　Mode button
- 书签6AFE7194　　　　　　　　　　Decrease button
- 书签705DBB1B　　　　　　　　　　Swing button
- 书签98B1A303　　　　　　　　　　Timer button
- 书签6BE5797F　　　　　　　　　　Sleep button
- 书签3A11BCF6　　　　　　　　　　Unit Switch button
- 书签48387055　　　　　　　　　　MAX 23"\(7 meters\)
- 书签155B6EE1　　　　　　　　　　MANUAL OF REMOTE CONTROL
- 书签EFFABC81　　　　　　　　　　15
页 21

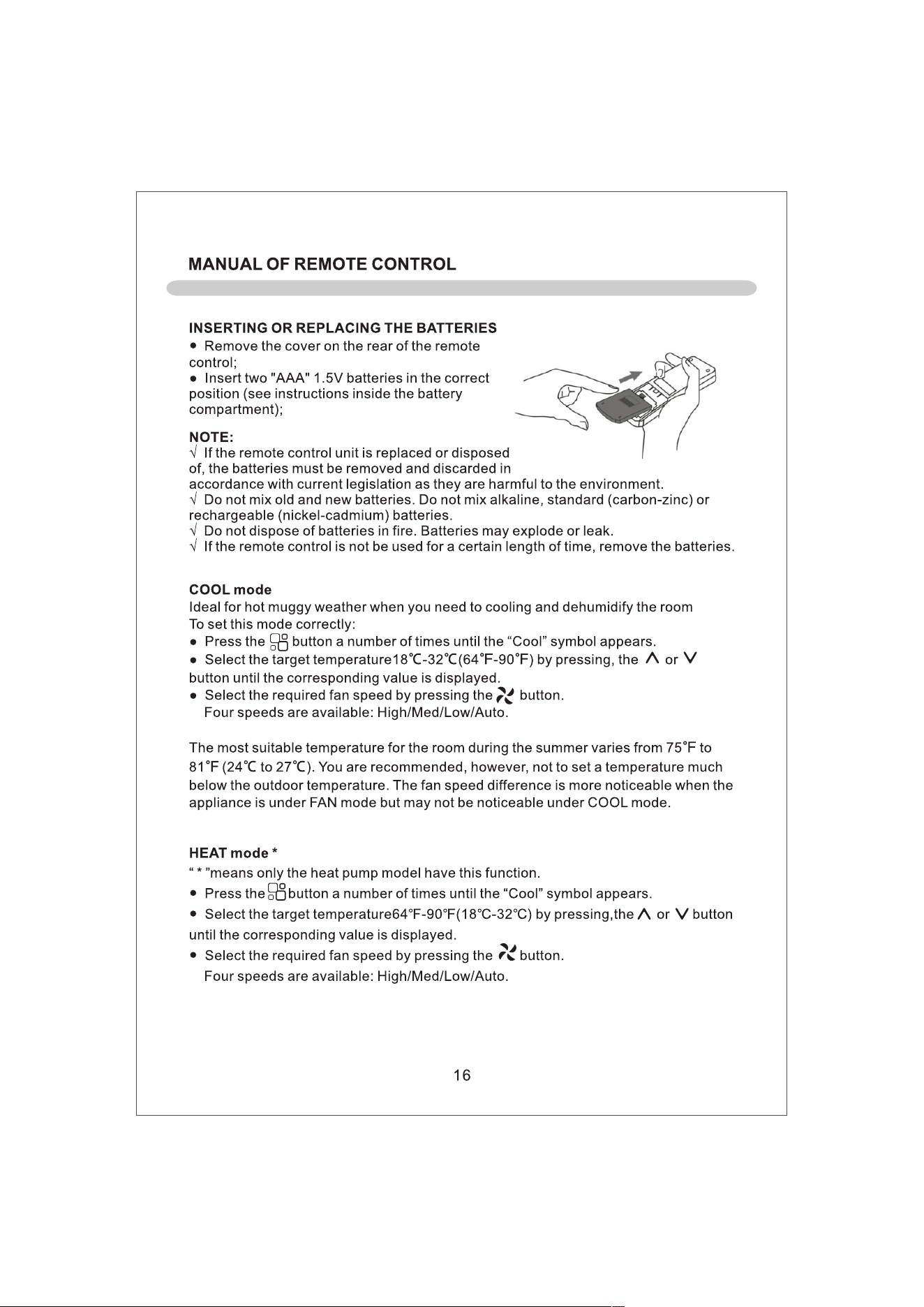

- 书签5C922876　　　　　　　　　　 INSERTING OR REPLACING THE BATTERIES ● Remove the cover on the rear of the remote control; ● Insert two "AAA" 1.5V batteries in the correct position \(see instructions inside the battery compartment\);
- 书签AED9B3C1　　　　　　　　　　 NOTE: √ If the remote control unit is replaced or disposed of, the batteries must be removed and discarded in accordance with current legislation as they are harmful to the environment. √ Do not mix old and new batteries. Do not mix alkaline, standard \(carbon-zinc\) or rechargeable \(nickel-cadmium\) batteries. √ Do not dispose of batteries in fire. Batteries may explode or leak. √ If the remote control is not be used for a certain length of time, remove the batteries.
- 书签43BB0350　　　　　　　　　　COOL mode Ideal for hot muggy weather when you need to cooling and dehumidify the room To set this mode correctly: ● Press the button a number of times until the “Cool” symbol appears. ● Select the target temperature18℃-32℃\(64℉-90℉\) by pressing, the or button until the corresponding value is displayed. ● Select the required fan speed by pressing the button. Four speeds are available: High/Med/Low/Auto. The most suitable temperature for the room during the summer varies from 75℉ to 81℉ \(24℃ to 27℃\). You are recommended, however, not to set a temperature much below the outdoor temperature. The fan speed difference is more noticeable when the appliance is under FAN mode but may not be noticeable under COOL mode.
- 书签09BFD4A4　　　　　　　　　　HEAT mode * “ * ”means only the heat pump model have this function. ● Press the button a number of times until the “Cool” symbol appears. ● Select the target temperature64℉-90℉\(18℃-32℃\) by pressing,the or button until the corresponding value is displayed. ● Select the required fan speed by pressing the button. Four speeds are available: High/Med/Low/Auto.
- 书签F9A2F4AD　　　　　　　　　　MANUAL OF REMOTE CONTROL
- 书签11628821　　　　　　　　　　16
页 22

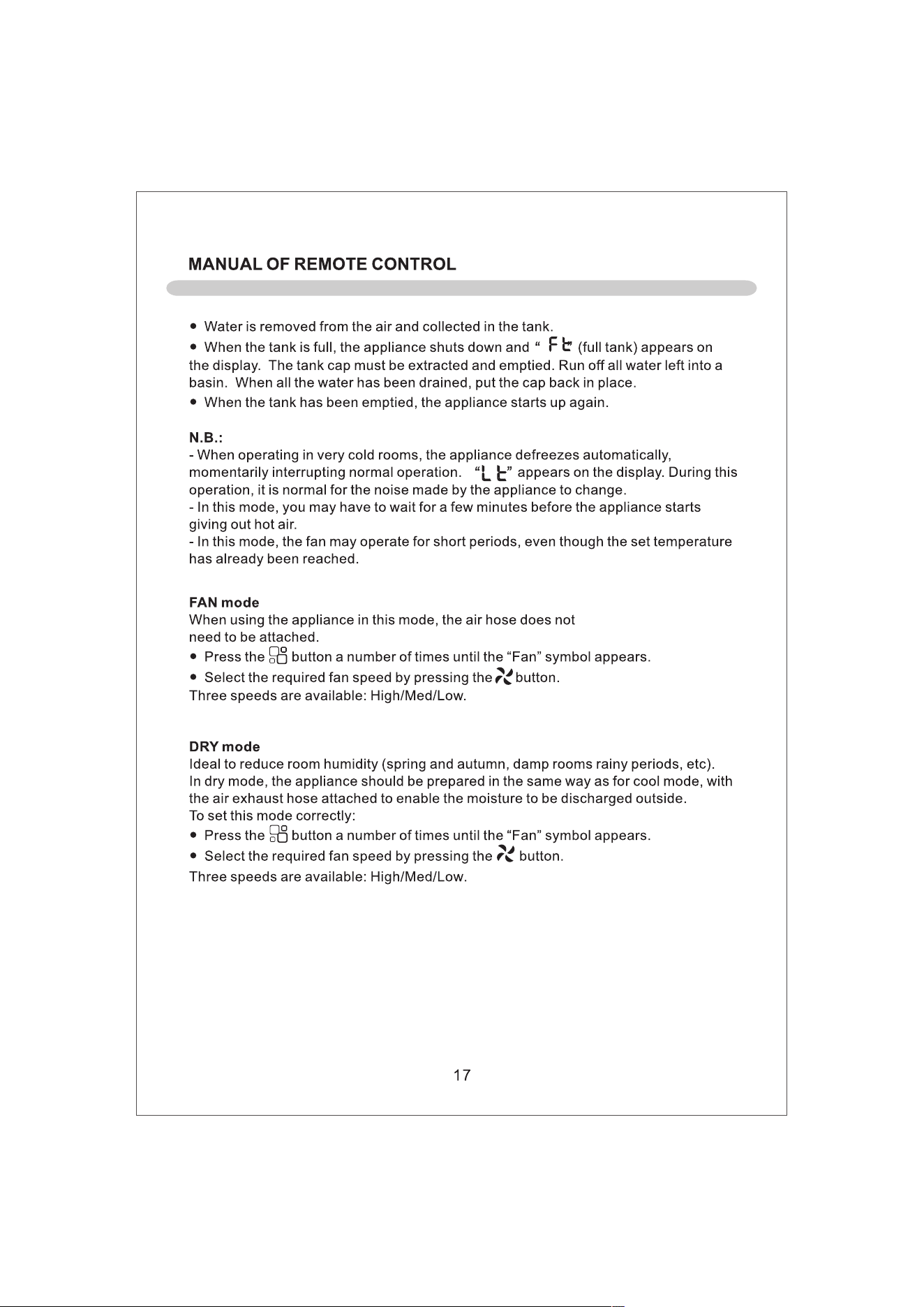

- 书签AE7BC632　　　　　　　　　　● Water is removed from the air and collected in the tank. ● When the tank is full, the appliance shuts down and“ ”\(full tank\) appears on the display. The tank cap must be extracted and emptied. Run off all water left into a basin. When all the water has been drained, put the cap back in place. ● When the tank has been emptied, the appliance starts up again. N.B.: - When operating in very cold rooms, the appliance defreezes automatically, momentarily interrupting normal operation. “ ”appears on the display. During this operation, it is normal for the noise made by the appliance to change. - In this mode, you may have to wait for a few minutes before the appliance starts giving out hot air. - In this mode, the fan may operate for short periods, even though the set temperature has already been reached.
- 书签2B5C4D38　　　　　　　　　　FAN mode When using the appliance in this mode, the air hose does not need to be attached. ● Press the button a number of times until the “Fan” symbol appears. ● Select the required fan speed by pressing the button. Three speeds are available: High/Med/Low.
- 书签74360D6A　　　　　　　　　　DRY mode Ideal to reduce room humidity \(spring and autumn, damp rooms rainy periods, etc\). In dry mode, the appliance should be prepared in the same way as for cool mode, with the air exhaust hose attached to enable the moisture to be discharged outside. To set this mode correctly: ● Press the button a number of times until the “Fan” symbol appears. ● Select the required fan speed by pressing the button. Three speeds are available: High/Med/Low.
- 书签263179A1　　　　　　　　　　MANUAL OF REMOTE CONTROL
- 书签96CE25A9　　　　　　　　　　17
页 23

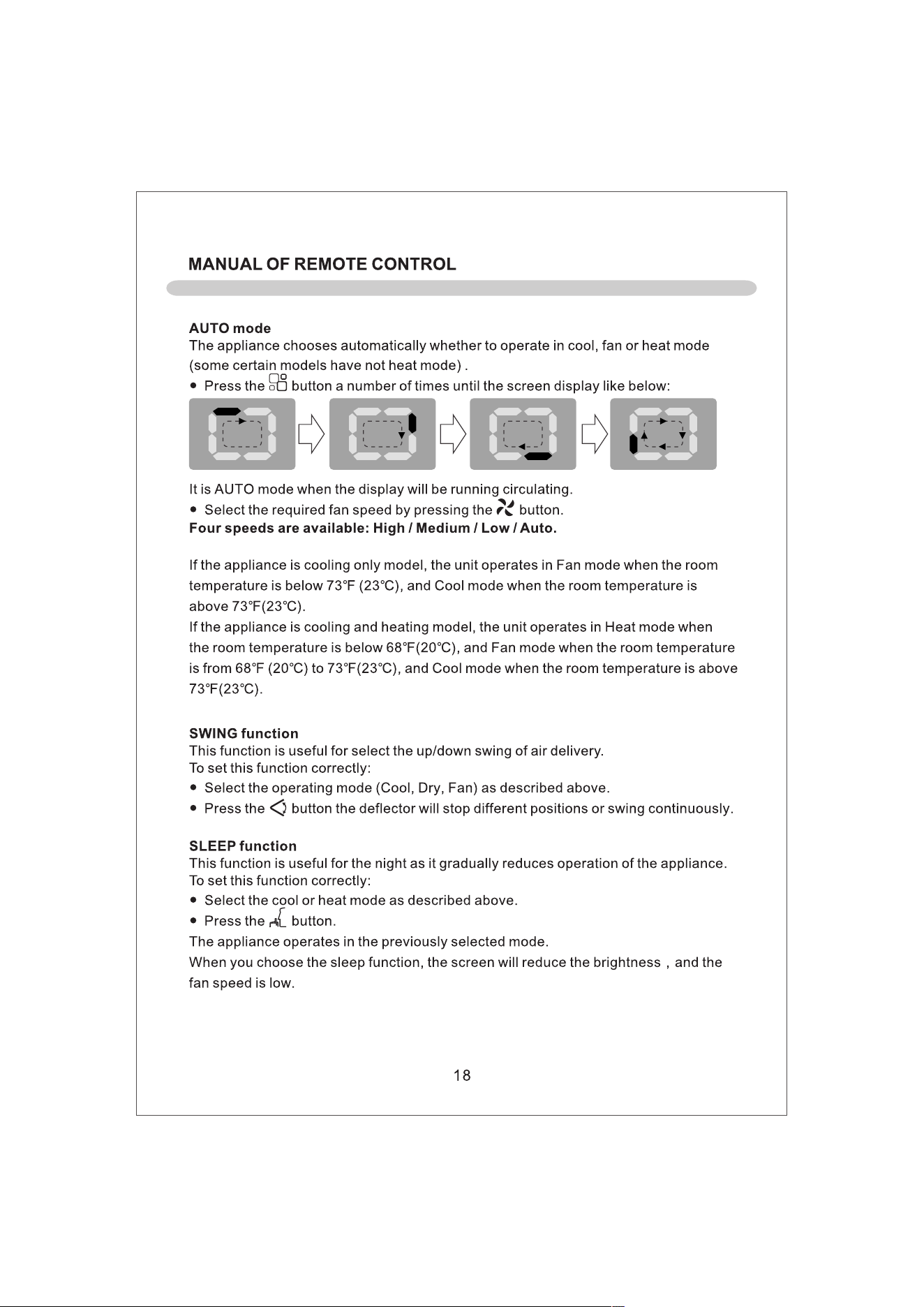

- 书签5680DBA4　　　　　　　　　　SWING function This function is useful for select the up/down swing of air delivery. To set this function correctly: ● Select the operating mode \(Cool, Dry, Fan\) as described above. ● Press the button the deflector will stop different positions or swing continuously.
- 书签35CA6758　　　　　　　　　　● Press the button a number of times until the screen display like below: It is AUTO mode when the display will be running circulating. ● Select the required fan speed by pressing the button. Four speeds are available: High / Medium / Low / Auto. If the appliance is cooling only model, the unit operates in Fan mode when the room temperature is below 73℉ \(23℃\), and Cool mode when the room temperature is above 73℉\(23℃\). If the appliance is cooling and heating model, the unit operates in Heat mode when the room temperature is below 68℉\(20℃\), and Fan mode when the room temperature is from 68℉ \(20℃\) to 73℉\(23℃\), and Cool mode when the room temperature is above 73℉\(23℃\).
- 书签E3DBF1AC　　　　　　　　　　SLEEP function This function is useful for the night as it gradually reduces operation of the appliance. To set this function correctly: ● Select the cool or heat mode as described above. ● Press the button. The appliance operates in the previously selected mode. When you choose the sleep function, the screen will reduce the brightness，and the fan speed is low.
- 书签2EC9991E　　　　　　　　　　AUTO mode The appliance chooses automatically whether to operate in cool, fan or heat mode \(some certain models have not heat mode\) .
- 书签D5584472　　　　　　　　　　MANUAL OF REMOTE CONTROL
- 书签6CF7E70E　　　　　　　　　　18
页 24
- 书签EFE376F2　　　　　　　　　　The SLEEP function maintains the room at optimum temperature without excessive fluctuations in either temperature or humidity with silent operation. Fan speed is always at Low, while room temperature and humidity vary gradually to ensure the most comfortable. When in COOL mode, the selected temperature will increase by 1℃\(19℉\) per hour in a 2 hour period. This new temperature will be maintained for the next 6 hours. Then the appliance turn it off. When in HEAT mode, the selected temperature will decrease by 1℃\(19℉\) per hour in a 3 hour period. This new temperature will be maintained for the next 5 hours. Then the appliance turn it off. The SLEEP function can be canceled at any time during operation by pressing the "Sleep", "Mode" or "fan speed" button. In FAN or DRY mode, SLEEP function cannot be set.

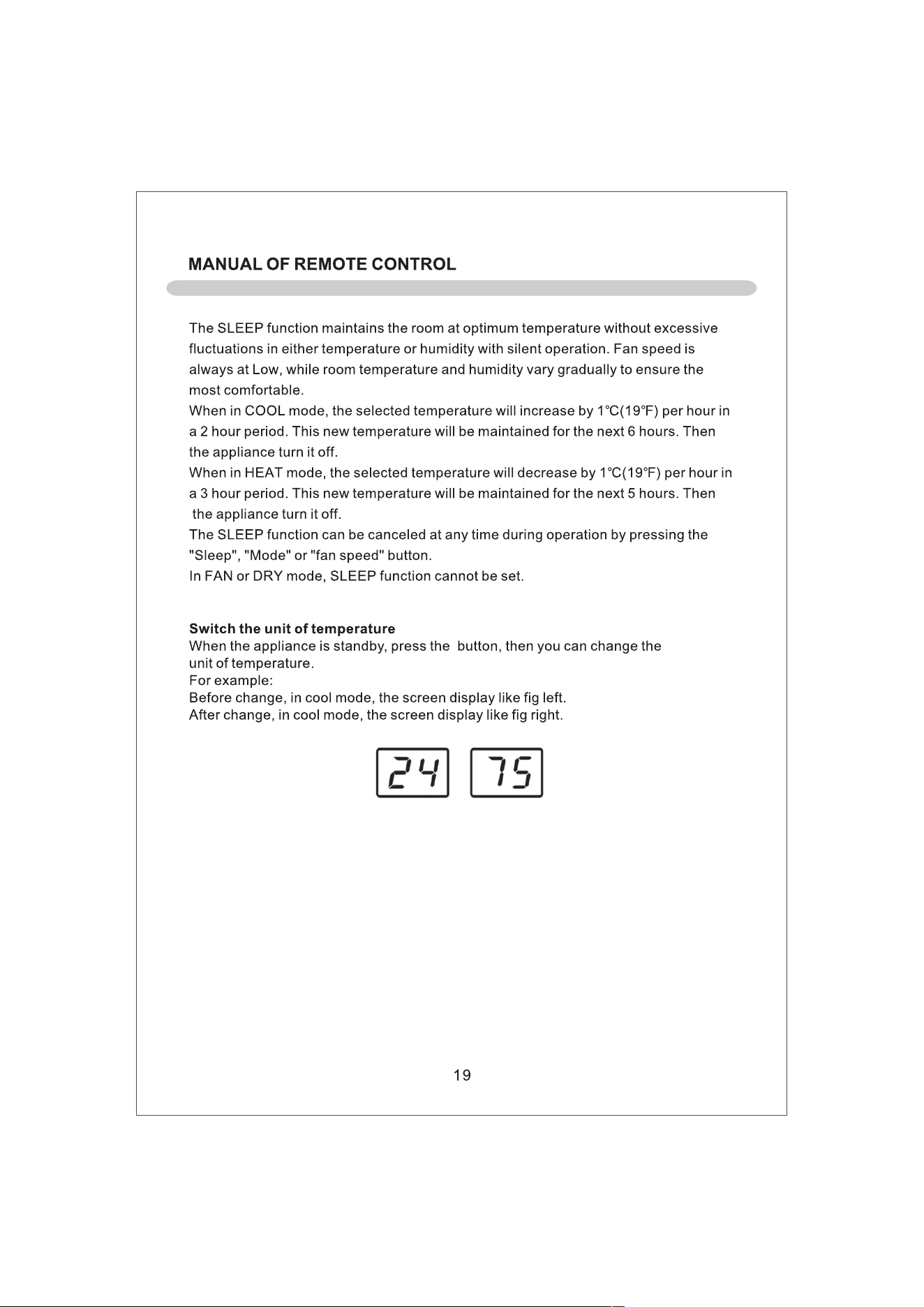

- 书签C8DAE564　　　　　　　　　　Switch the unit of temperature When the appliance is standby, press the button, then you can change the unit of temperature. For example: Before change, in cool mode, the screen display like fig left. After change, in cool mode, the screen display like fig right.
- 书签40313F14　　　　　　　　　　MANUAL OF REMOTE CONTROL
- 书签D33EE2EA　　　　　　　　　　19
页 25
- 书签29FD76B3　　　　　　　　　　Programming start up ● Turn on the appliance, choose the mode you want, for example cool, 75℉\(24℃\), high fan speed. Turn off the appliance. ● Press the button, the screen will display 1-24 hours. ● Press several times until the corresponding time is displayed. Wait about 5 seconds, the timer will be active, then only the symbol is displayed on screen. ● Press again the button or the button, the timer will be canceled Programming shut down ● When the appliance is running, press the button, the screen will display hours. ● Press several times until the corresponding time is displayed. Wait about 5 seconds, the timer will be active. ● Press again the button or the button, the timer will be canceled.
- 书签A3C53F43　　　　　　　　　　 TIPS FOR CORRECT USE To get the best from your appliance, follow these recommendations: ● Close the windows and doors in the room to be air conditioned \(fig. 11\).When installing the appliance semi-permanently, you should leave a door slightly open \(as little as 1 cm\) to guarantee correct ventilation; ● Protect the room from direct exposure to the sun by partially closing curtains and/or blinds to make the appliance much more economical to run \(fig. 12\); ● Never rest objects of any kind on the appliance; ● Do not obstruct the air intake and outlet \(fig. 13\). Leave the grilles free; ● Make sure there are no heat sources in the room; ● Never use the appliance in very damp rooms \(laundry room, for example.\). ● Never use the appliance outdoors. ● Make sure the appliance is standing on a level surface. If necessary, place the castor locks under the front wheels.
- 书签83E291A7　　　　　　　　　　SETTING THE TIMER -This timer can be used to delay the appliance startup or shutdown, this avoids wasting electricity by optimising operating periods.
- 书签FD173789　　　　　　　　　　MANUAL OF REMOTE CONTROL
- 书签F0AE06C8　　　　　　　　　　20
页 26

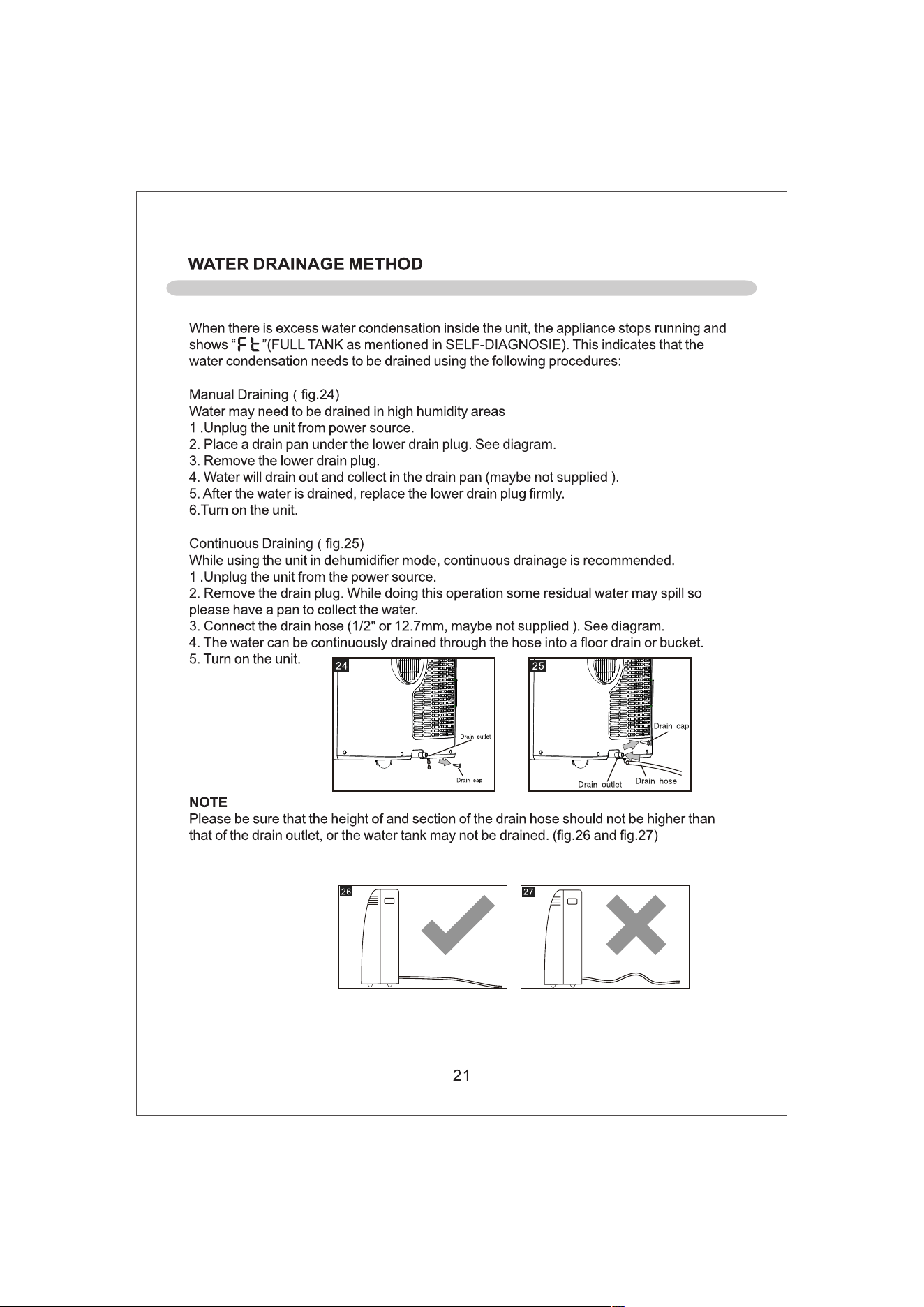

- 书签300D0C75　　　　　　　　　　WATER DRAINAGE METHOD
- 书签325F93DD　　　　　　　　　　21
- 书签CE97B447　　　　　　　　　　 When there is excess water condensation inside the unit, the appliance stops running and shows “ ”\(FULL TANK as mentioned in SELF-DIAGNOSIE\). This indicates that the water condensation needs to be drained using the following procedures: Manual Draining（fig.24\) Water may need to be drained in high humidity areas 1 .Unplug the unit from power source. 2. Place a drain pan under the lower drain plug. See diagram. 3. Remove the lower drain plug. 4. Water will drain out and collect in the drain pan \(maybe not supplied \). 5. After the water is drained, replace the lower drain plug firmly. 6.Turn on the unit. Continuous Draining（fig.25\) While using the unit in dehumidifier mode, continuous drainage is recommended. 1 .Unplug the unit from the power source. 2. Remove the drain plug. While doing this operation some residual water may spill so please have a pan to collect the water. 3. Connect the drain hose \(1/2" or 12.7mm, maybe not supplied \). See diagram. 4. The water can be continuously drained through the hose into a floor drain or bucket. 5. Turn on the unit.
- 书签4F9414B7　　　　　　　　　　 NOTE Please be sure that the height of and section of the drain hose should not be higher than that of the drain outlet, or the water tank may not be drained. \(fig.26 and fig.27\)
页 27
- 书签1679EC1C　　　　　　　　　　WATER DRAINAGE METHOD
- 书签6CBE9D8D　　　　　　　　　　22

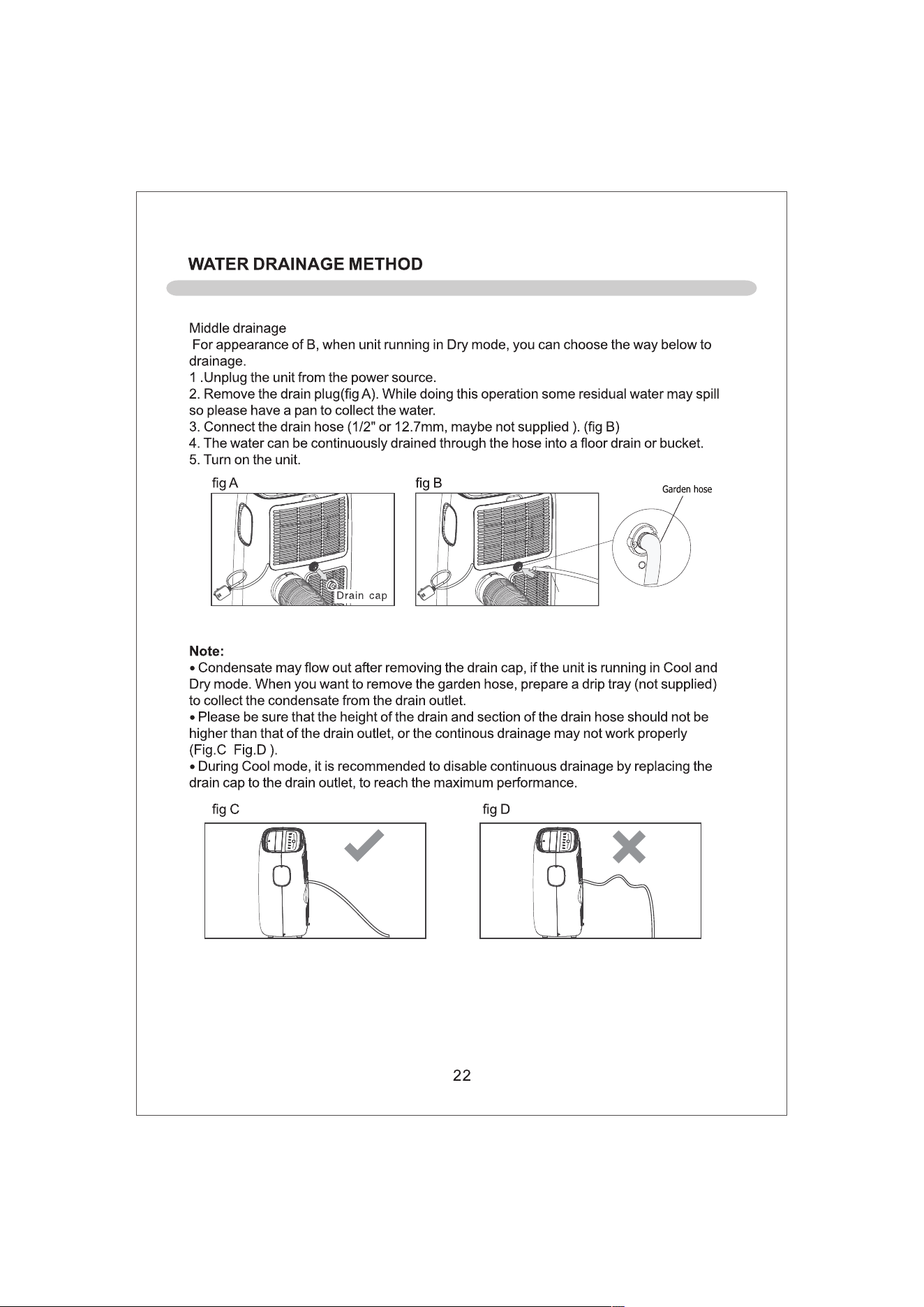

- 书签2230B563　　　　　　　　　　Middle drainage For appearance of B, when unit running in Dry mode, you can choose the way below to drainage. 1 .Unplug the unit from the power source. 2. Remove the drain plug\(fig A\). While doing this operation some residual water may spill so please have a pan to collect the water. 3. Connect the drain hose \(1/2" or 12.7mm, maybe not supplied \). \(fig B\) 4. The water can be continuously drained through the hose into a floor drain or bucket. 5. Turn on the unit.
- 书签B1486338　　　　　　　　　　 Note: ● Condensate may flow out after removing the drain cap, if the unit is running in Cool and Dry mode. When you want to remove the garden hose, prepare a drip tray \(not supplied\) to collect the condensate from the drain outlet. ● Please be sure that the height of the drain and section of the drain hose should not be higher than that of the drain outlet, or the continous drainage may not work properly \(Fig.C Fig.D \). ● During Cool mode, it is recommended to disable continuous drainage by replacing the drain cap to the drain outlet, to reach the maximum performance.
- 书签2F27E5FB　　　　　　　　　　fig A
- 书签1BC30AC9　　　　　　　　　　fig B
- 书签2C563DBA　　　　　　　　　　fig C
- 书签7039649E　　　　　　　　　　fig D
页 28

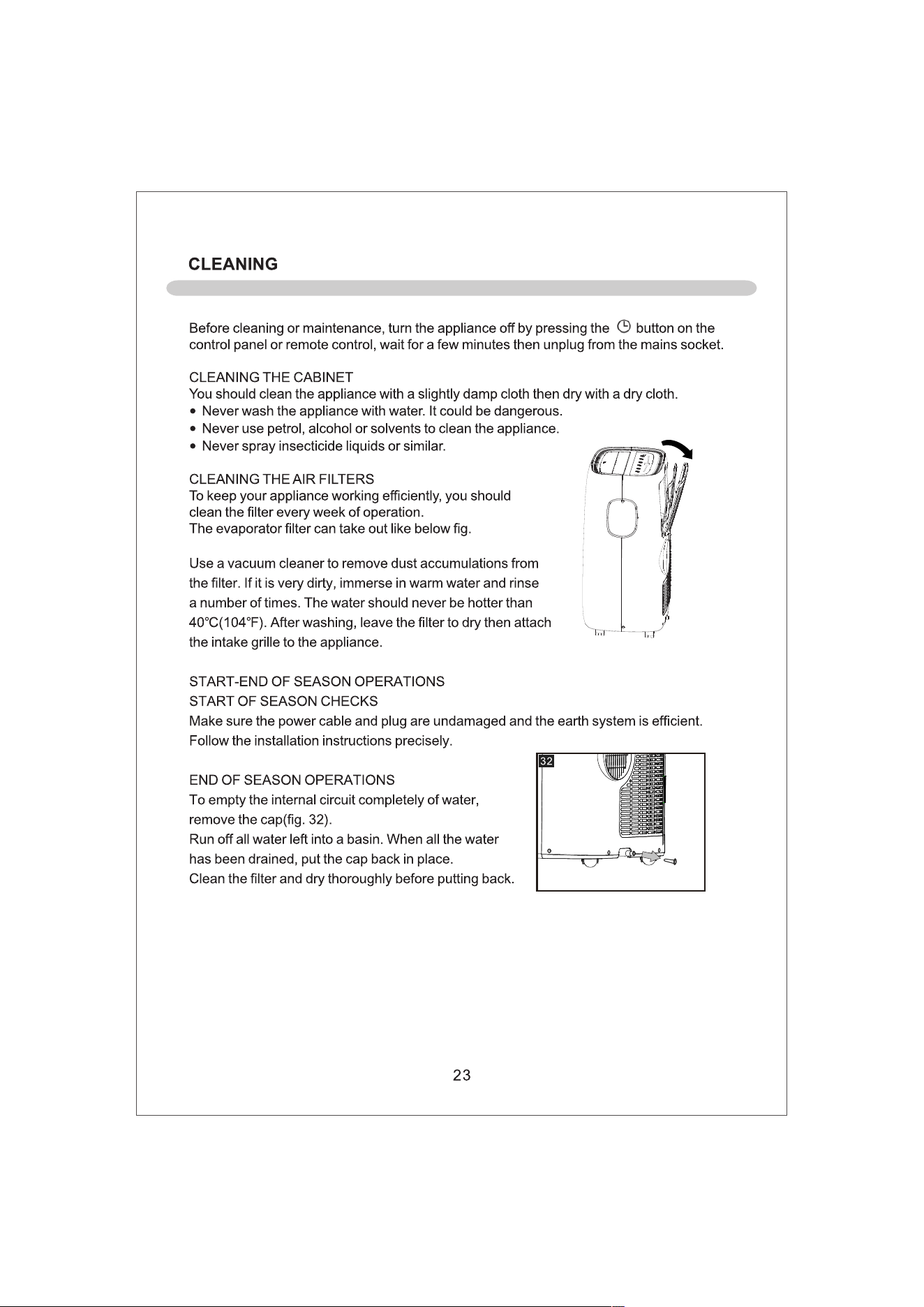

- 书签CF9A1B8C　　　　　　　　　　CLEANING
- 书签F8017938　　　　　　　　　　23
- 书签64AA2818　　　　　　　　　　 Before cleaning or maintenance, turn the appliance off by pressing the button on the control panel or remote control, wait for a few minutes then unplug from the mains socket. CLEANING THE CABINET You should clean the appliance with a slightly damp cloth then dry with a dry cloth. ● Never wash the appliance with water. It could be dangerous. ● Never use petrol, alcohol or solvents to clean the appliance. ● Never spray insecticide liquids or similar. CLEANING THE AIR FILTERS To keep your appliance working efficiently, you should clean the filter every week of operation. The evaporator filter can take out like below fig.
- 书签47C87872　　　　　　　　　　 Use a vacuum cleaner to remove dust accumulations from the filter. If it is very dirty, immerse in warm water and rinse a number of times. The water should never be hotter than 40℃\(104℉\). After washing, leave the filter to dry then attach the intake grille to the appliance. START-END OF SEASON OPERATIONS START OF SEASON CHECKS Make sure the power cable and plug are undamaged and the earth system is efficient. Follow the installation instructions precisely. END OF SEASON OPERATIONS To empty the internal circuit completely of water, remove the cap\(fig. 32\). Run off all water left into a basin. When all the water has been drained, put the cap back in place. Clean the filter and dry thoroughly before putting back.
页 29

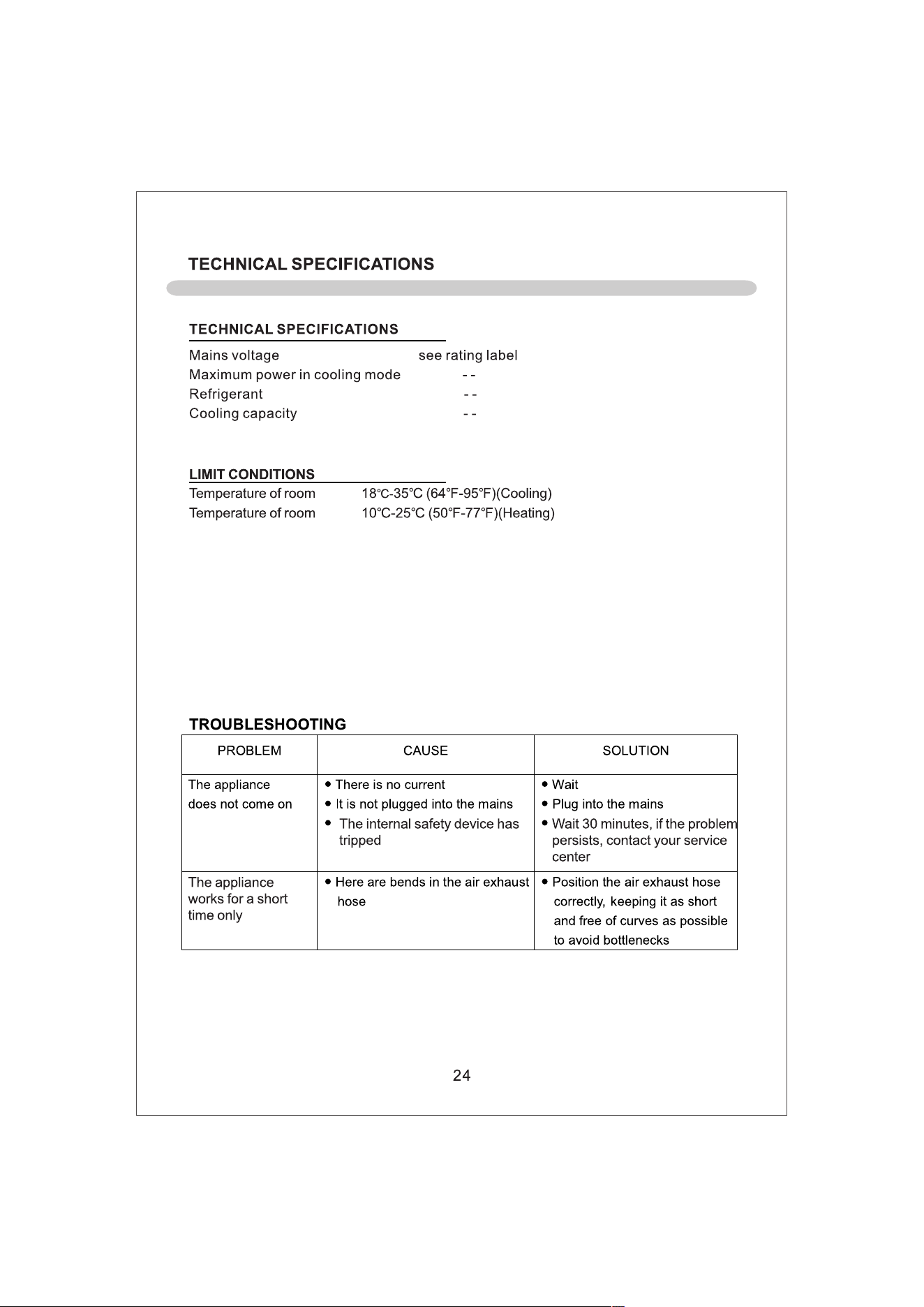

- 书签A111326B　　　　　　　　　　 TECHNICAL SPECIFICATIONS
- 书签9C69CF8D　　　　　　　　　　24
- 书签9B153F23　　　　　　　　　　 LIMIT CONDITIONS Temperature of room 18℃-35℃ \(64℉-95℉\)\(Cooling\) Temperature of room 10℃-25℃ \(50℉-77℉\)\(Heating\)
- 书签72BAB735　　　　　　　　　　TROUBLESHOOTING
- 书签81F0F424　　　　　　　　　　PROBLEM
- 书签3C6966AF　　　　　　　　　　CAUSE
- 书签636CC0B5　　　　　　　　　　SOLUTION
- 书签44EC4D7B　　　　　　　　　　The
- 书签D51C6D06　　　　　　　　　　appliance
- 书签DC23E31D　　　　　　　　　　does not come on
- 书签D4780BD3　　　　　　　　　　●
- 书签7CDD96A8　　　　　　　　　　T
- 书签FA82BEBD　　　　　　　　　　here is no current
- 书签FF1C3A0B　　　　　　　　　　●
- 书签76E021A9　　　　　　　　　　I
- 书签513BE44E　　　　　　　　　　t is not plugged into the mains
- 书签C6283ECB　　　　　　　　　　●
- 书签501253C5　　　　　　　　　　●
- 书签314E756F　　　　　　　　　　W
- 书签BAD27AD3　　　　　　　　　　ait
- 书签D4E16052　　　　　　　　　　●
- 书签1F51547C　　　　　　　　　　P
- 书签E44134C2　　　　　　　　　　lug into the mains
- 书签2DD89E64　　　　　　　　　　●
- 书签2F309934　　　　　　　　　　●
- 书签2A1E4DB6　　　　　　　　　　H
- 书签3FD1E8A8　　　　　　　　　　ere are bends in the air exhaust
- 书签1BD9014F　　　　　　　　　　hose
- 书签67B96276　　　　　　　　　　●
- 书签41911A89　　　　　　　　　　P
- 书签9A4E71B2　　　　　　　　　　osition the air exhaust hose
- 书签AA915867　　　　　　　　　　correctly, keeping it as short
- 书签3D3E211B　　　　　　　　　　and free of curves as possible
- 书签DB0B6AC8　　　　　　　　　　to avoid bottlenecks
- 书签1274902C　　　　　　　　　　The internal safety device has tripped
- 书签1F855E97　　　　　　　　　　 Wait 30 minutes, if the problem persists, contact your service center
- 书签35D94960　　　　　　　　　　 The appliance works for a short time only
- 书签A779C7A9　　　　　　　　　　TECHNICAL SPECIFICATIONS
- 书签1B8839F8　　　　　　　　　　Mains voltage see rating label
- 书签3CBBB8D5　　　　　　　　　　Maximum power in cooling mode - -
- 书签CD82970D　　　　　　　　　　Refrigerant - -
- 书签81E7564E　　　　　　　　　　Cooling capacity - -
页 30

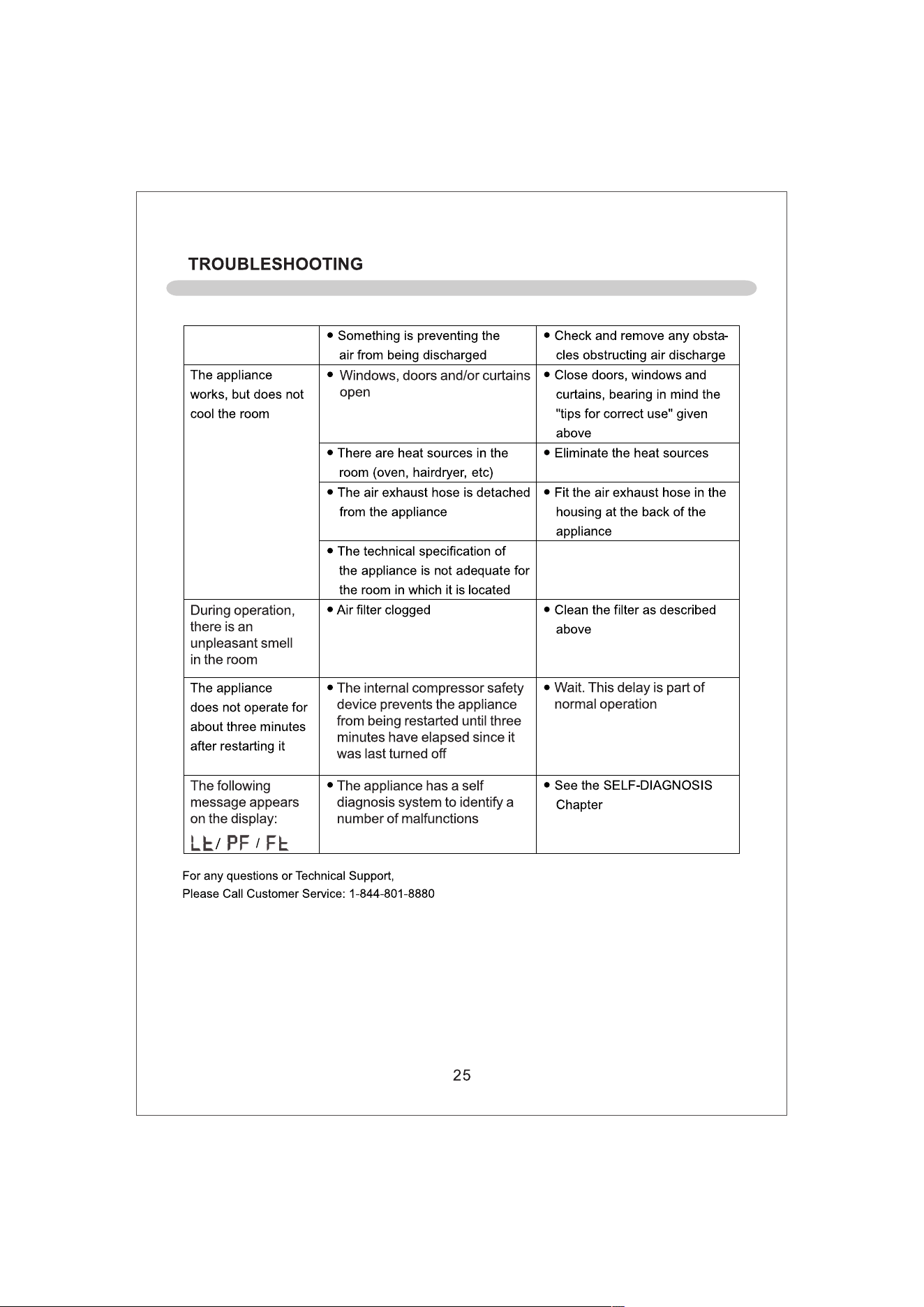

- 书签46217BC7　　　　　　　　　　 TROUBLESHOOTING
- 书签A3E4CDF5　　　　　　　　　　25
- 书签BEE503E9　　　　　　　　　　 Windows, doors and/or curtains open
- 书签5C5034A9　　　　　　　　　　 During operation, there is an unpleasant smell in the room
- 书签C4231281　　　　　　　　　　 The internal compressor safety device prevents the appliance from being restarted until three minutes have elapsed since it was last turned off
- 书签5E1C5493　　　　　　　　　　 Wait. This delay is part of normal operation
- 书签175010A1　　　　　　　　　　 The appliance has a self diagnosis system to identify a number of malfunctions
- 书签48C01871　　　　　　　　　　The following message appears on the display:
- 书签88433F62　　　　　　　　　　●
- 书签B462BB1D　　　　　　　　　　S
- 书签55F31140　　　　　　　　　　omething is preventing the
- 书签93087F44　　　　　　　　　　air from being discharged
- 书签FDB630A0　　　　　　　　　　●
- 书签D9BC2FF9　　　　　　　　　　C
- 书签D7C4F806　　　　　　　　　　heck and remove any obsta
- 书签2C08DEF4　　　　　　　　　　-
- 书签798D51F1　　　　　　　　　　cles obstructing air discharge
- 书签52A51F8A　　　　　　　　　　The
- 书签16F41E5D　　　　　　　　　　appliance
- 书签B4A6E0D3　　　　　　　　　　works, but does not
- 书签0B43319D　　　　　　　　　　cool the room
- 书签92462BE2　　　　　　　　　　●
- 书签F93DE82F　　　　　　　　　　●
- 书签D94D398D　　　　　　　　　　C
- 书签CC7AEBF4　　　　　　　　　　lose doors, windows
- 书签BD8BC528　　　　　　　　　　and
- 书签531DBFB6　　　　　　　　　　curtains, bearing in mind the
- 书签B8B18D6C　　　　　　　　　　"tips for correct use" given
- 书签7DDAFBF6　　　　　　　　　　above
- 书签9B4B897A　　　　　　　　　　●
- 书签B7DF85D9　　　　　　　　　　T
- 书签407580F9　　　　　　　　　　here are heat sources in the
- 书签F8D31EB9　　　　　　　　　　room \(oven, hairdryer, etc\)
- 书签3915E278　　　　　　　　　　●
- 书签DDAB5B50　　　　　　　　　　E
- 书签655494A3　　　　　　　　　　liminate the heat sources
- 书签FB5AB91A　　　　　　　　　　●
- 书签FA9CFD5A　　　　　　　　　　T
- 书签B2A46073　　　　　　　　　　he air exhaust hose is detached
- 书签80083428　　　　　　　　　　from the appliance
- 书签DD04B2E3　　　　　　　　　　●
- 书签A6E318F7　　　　　　　　　　F
- 书签3D2BFDDD　　　　　　　　　　it the air exhaust hose in the
- 书签BC0C071B　　　　　　　　　　housing at the back of the
- 书签D755668D　　　　　　　　　　appliance
- 书签E57D9DAF　　　　　　　　　　●
- 书签5A9E4F37　　　　　　　　　　T
- 书签525B6533　　　　　　　　　　he technical specification of
- 书签458A2649　　　　　　　　　　the appliance is not adequat
- 书签A250873E　　　　　　　　　　e
- 书签C8A91676　　　　　　　　　　for
- 书签FA0DE6E1　　　　　　　　　　the room in which it is
- 书签83FFEE17　　　　　　　　　　located
- 书签AD6BDCF8　　　　　　　　　　●
- 书签7F625595　　　　　　　　　　A
- 书签E8CE9BA5　　　　　　　　　　ir
- 书签37750B65　　　　　　　　　　filter clogged
- 书签12C8AC88　　　　　　　　　　●
- 书签A5035593　　　　　　　　　　C
- 书签0C9BD678　　　　　　　　　　lean the filter as
- 书签57D1BEA3　　　　　　　　　　described
- 书签CF129C4B　　　　　　　　　　a
- 书签95CD1F0A　　　　　　　　　　bove
- 书签4BA1A4DF　　　　　　　　　　The
- 书签48F6B6F5　　　　　　　　　　appliance
- 书签2EBA4C21　　　　　　　　　　does not operate for
- 书签7A7739C5　　　　　　　　　　about three minutes
- 书签62D0940D　　　　　　　　　　after restarting it
- 书签9C563F7B　　　　　　　　　　●
- 书签B2071788　　　　　　　　　　●
- 书签664A5A88　　　　　　　　　　/
- 书签AD249DCD　　　　　　　　　　/
- 书签95C0912D　　　　　　　　　　●
- 书签7029F929　　　　　　　　　　●
- 书签8265C9A8　　　　　　　　　　S
- 书签A10CA07D　　　　　　　　　　ee the SELF
- 书签40A5FDCF　　　　　　　　　　-
- 书签EF716C0F　　　　　　　　　　DIAGNOSIS
- 书签3F8E4268　　　　　　　　　　Chapter
页 31
页 32
页 33

background

EMERSON QUIET KOOL

®

OWNER'S MANUAL

Portable Air Conditioner

MODEL:

5,000 BTU

6,000 BTU

8,000 BTU

10,000 BTU

EMERSON QUIET KOOL•

Thank you very much for purchasing our air conditioner.Please read this owner's manual carefully before

using your air conditioner.

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

background

File type: PDF

File name: 93259024_eapc8rsc1.pdf

File size: 9.2 MB

File Language: English

Pages: 32

Author: Emerson Quiet Kool

Published: 2024-09-05

Updated: 2025-06-11

Verified by Clementina Bode on 2025-06-11

Source: Directly manufacturer

Download: Save file

Specifications

Brand: Emerson Quiet Kool

Model: EAPC8RSC1

Width: 17 1/2 Inch

Depth: 14 45/64 Inch

Height: 28 13/32 Inch

Heating Capacity BTU: 6,400 BTU

Energy Efficiency Rating: 9.6

Sleep Mode: Yes

Control Type: Digital

WiFi Connected: Yes

Voltage: 115 Volts

Read in file: Specifications in the file
