1. SAFETY
9 Keep the extractor clean and maintain it in good condition (use an authorised service agent).
9 Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and
will invalidate the warranty.
9 Keep all non-essential persons away from the work area.
9 Check extractor connections and fittings before use.
9 Ensure that the tank capacity exceeds the amount of fluid to be collected.
8 DO NOT use the extractor for any purpose other than that for which it is designed.
8 DO NOT operate the extractor if any parts are damaged or missing as this may cause failure and/or
personal injury.
8 DO NOT leave the extractor operating unattended.
WARNING! Engine oil will be hot when extracting.
IMPORTANT! Ensure that you wear protective clothing, gloves, goggles, face mask as appropriate for
the fluid being extracted.
WARNING! DO NOT allow uncontrolled discharge of fluids thus polluting the environment.
8 DO NOT use the unit to extract dangerous chemicals, poisons, acids, alkalines or solvents.
8 The container is not designed for long term storage.
8 DO NOT store the unit under extreme conditions.
8 DO NOT turn the container upside-down when it is holding fluids.
8 DO NOT adapt the unit for any other purpose.
9 Dispose of waste fluids in accordance with local authority regulations.
WARNING! DO NOT use with gasoline or other flammable liquids.
9 When not in use, disconnect from the air supply and store in a safe, dry, childproof area.
2. INTRODUCTION
Constructed from composite materials and suitable for the extraction of engine oils from cars, motorcycles, marine engines, stationary
engines and industrial machinery. Also suitable for low viscosity uids such as water. Supplied with 2.1m suction probe, easy-pour
spout and cover cap. Use probe to remove engine oil through the dipstick tube.
3. SPECIFICATION
MODEL NO: TP696
Capacity: 5.5L
Nett Weight: 1.27kg
Suction Probes: 2.1m
4. ASSEMBLY
NOTE: The black section of the probe is permanently joined to the clear
section and cannot be separated.
4.1. Screw handle (F) onto pump shaft (B).
4.2. Replace red cap on container (G) with tube cap (D) and x rmly.
4.3. Before attaching pump (B), make sure the black rubber collar (E) on
container(A) is rmly seated.
TP696 Issue 3 (H, F) 15/05/24
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear protective
gloves
Wear eye
protection
Wear protective
clothing

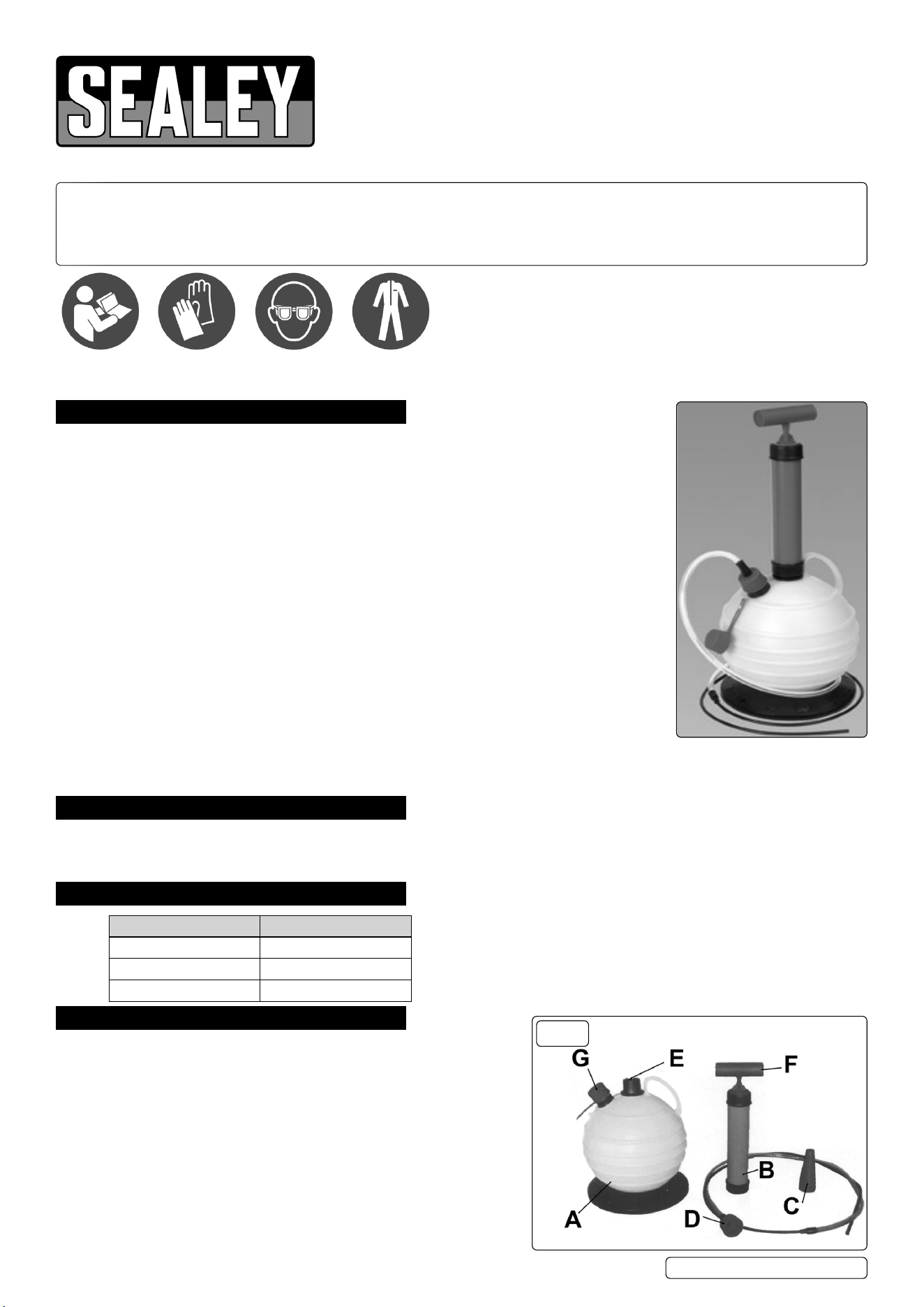

5.5L MANUAL VACUUM OIL & FLUID
EXTRACTOR PUMP
MODEL NO: TP696
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &
CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO
SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE
FOR FUTURE USE.
FIG.1
5. OPERATION
5.1. Pre-run engine for 10 minutes, to warm the oil and to allow any sludge or contaminants within the oil to mix and to suspend.
5.2. Switch engine o and remove dipstick from vehicle.
5.3. Insert black part of suction probe into vehicle dipstick pipe until it reaches the bottom of the oil pan.
5.4. With two hands pump handle (F) 10 to 20 times. Oil will ow out automatically.
8 DO NOT PUMP CONTINUOUSLY- DO NOT FORCE THE PUMP HANDLE.
5.5. After extracting, remove tube cap (D) from container with a twisting action.
5.6. Remove pump (B) from container (A), attach pour spout (C) and empty oil (uid) into a suitable receptacle for safe disposal. DO NOT
hold the container upside-down.
6. MAINTENANCE
6.1. Keep the unit clean, wipe o any uid spillage. Keep the suction tubes clean and clear of blockages. Check that all tubes, hoses and
connections are in good condition.
TP696 Issue 3 (H, F) 15/05/24
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.
