Heavy duty mobile tool & parts trolley
witH 4 drawers & lockable top - black
Model no: ap850mb
thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. safety
warNiNG! ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this trolley.
9 Always load evenly with the centre of gravity of the load as near centre of the trolley as possible.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Keep the trolley clean and tidy in accordance with good workshop practice.
9 Use the wheel locks to prevent the trolley from inadvertently moving.
9 Keep children and unauthorised persons away from the work area.
9 open one drawer at a time - unit may become unstable if multiple loaded drawers are open
.
9 Store out of reach of children and untrained people.
9 Maintain a safe working environment. Make sure there is adequate surrounding workspace.
8 do Not overload the trolley. Max Capacity 260kg. overloading can damage the drawers and/or castors and could result in tipping and
personal injury. Beware of dynamic loading. dropping or bouncing a load may briefly create excess load causing damage, personal
injury and/or death.
8 do Not use the trolley for any purpose other than that for which it is designed.
8 do Not stand on the trolley, use it as a ladder or allow others to ride on the trolley.
8 do Not leave unattended, especially when loaded, unless the wheels are locked, chocked or the trolley otherwise secured. Keep the
lid and drawers closed and locked when not in use.
8 do Not use trolley on uneven ground not capable of withstanding its weight. do Not run over curbs or steps - use a ramp.
8 do Not use trolley if any part is significantly damaged, paying particular attention to the wheels.
8 do Not wear loose clothing and contain long hair.
8 do Not use in a wet or damp location.
Note! the assembly will require assistance.
2. iNtroductioN
Garage and workshop trolley with an overall capacity of 260kg. lined upper shelf features a perforated hand tool storage section on each side,
further hand tool storage slots are situated externally on both sides of the trolley. lined lower shelf is ideal for larger parts or tool storage. Four
drawers with non-slip liners and ball bearing slides feature a rear locking mechanism which engages once the lockable top lid is closed, adding
extra security. Fitted with a side handle and four swivel castors, two with brakes, to aid manoeuvrability.
3. specificatioN
model No:..............................................................ap850mb
Total load Capacity: .................................................... 260kg
specication (W x D x H):
overall Size: ...........................................855 x 450 x 950mm
lower Tray: ...............................................760 x 405 x 80mm
Upper Tray: .............................................685 x 405 x 105mm
Small Split drawer (x2): ............................315 x 355 x 50mm
Medium drawer (x1):.................................660 x 355 x 80mm
large drawer (x1): .................................. 660 x 355 x 100mm
nett Weight: ................................................................ 37.4kg
4. coNteNts
part description Qty. part description Qty.
1 right leg post 2 8 Coach bolts M8 x 16 2
2 Coach bolts M8 x 12 34 9 Support frame 2
3 (intentionally omitted) 10 locking caster 2
4 nut 52 11 Bottom tray 1
5 Upper tray/drawer unit 1 12 Swivel caster 2
6 left leg post 2 13 Bolts M8 x 12 16
7 Push handle 1 14 Cap 2
AP850MB Issue 3 (3F) 22/03/19
Original Language Version
© Jack Sealey limited
refer to
instructions
Wear protective
gloves
5. assembly

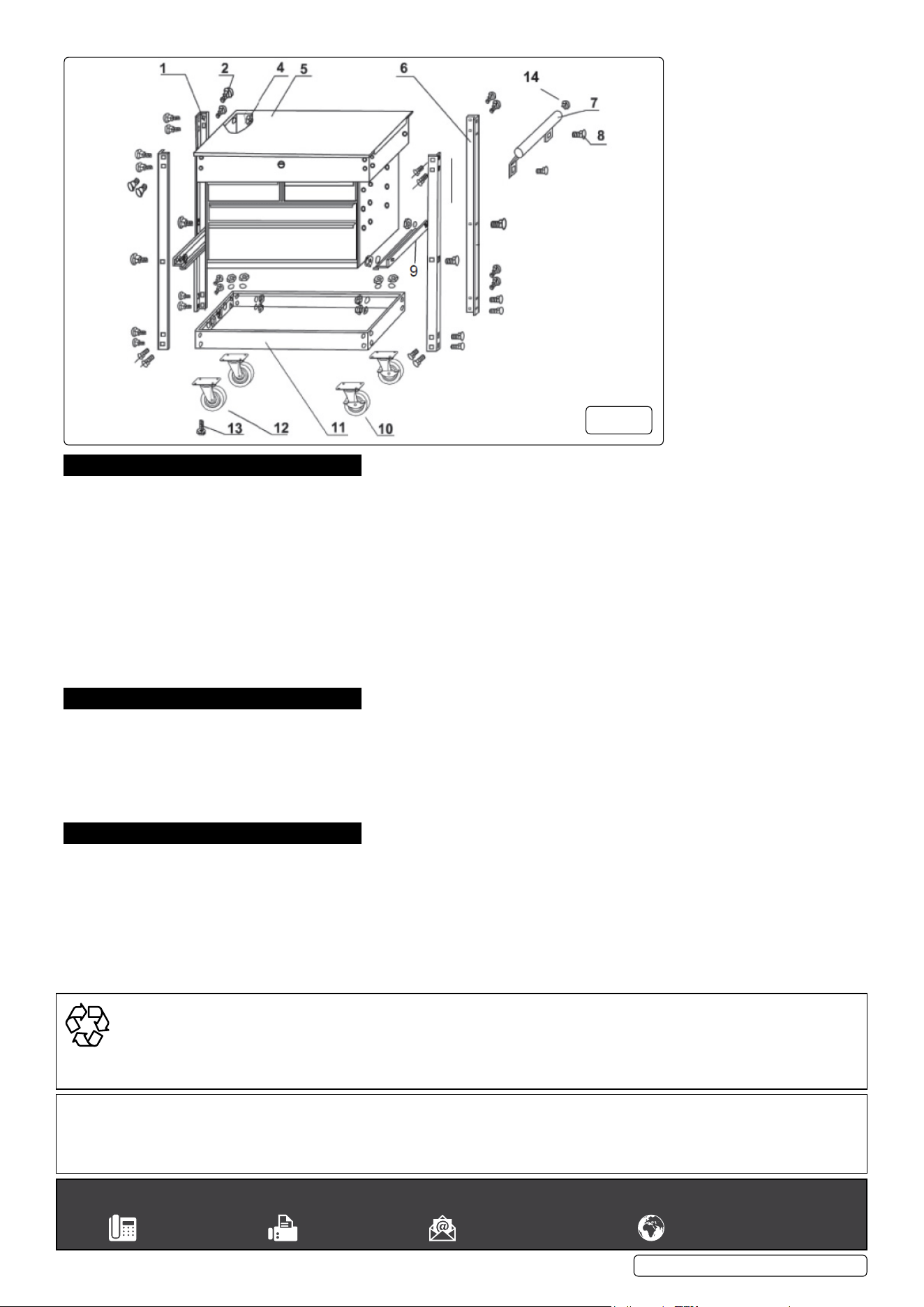

Refer to contents diagram (g.1).
5.1. Attach two locking Casters (10) and two Swivel Casters (12) to the Bottom Tray (11). Use four Bolts (13) and four nuts (4) per
caster.
5.2. Connect both right leg Posts (1) to each other with one Support Frame (9) attached at the centre with two Coach Bolts (2), two
nuts (4). repeat same assembly for both left leg Posts (6).
5.3. Attach the Bottom Tray (11) to both left leg Posts (6) using eight Coach Bolts (2) and eight nuts (4).
5.4. Attach the bottom of the right leg Posts (1) to the Bottom Tray (11) using eight Coach Bolts (2) and eight nuts (4).
5.5. Attach both right leg Posts (1) to the Upper Tray/drawer Unit (5) using eight Coach Bolts (2) and eight nuts (4).
5.6. Attach both left leg Posts (6) to the Upper Tray/drawer Unit (5) using six Coach Bolts (2) and six nuts (4).
5.7. Attach the Push Handle (7) to the two left leg Posts (6) and the Upper Tray/drawer Unit (5) using two Coach Bolts (8), and two
nuts.
5.8. Tightenallxings.
6. operatioN
6.1. Set the Trolley up in the desired location.
6.2. Make certain to set both locking Casters (10) once the Trolley is in place. To set the brake, pull up on the tab located on each
locking Caster (10).
6.3. Fill each of the drawers and trays as desired. do Not exceed the maximum weight capacity of 260kg for the Trolley and the
maximum weight capacity for each drawer and tray as follows: Top Tray: 90kg, 2 Small drawers: 13kg each, Medium drawer: 22kg
Bottom drawer: 31kg and Bottom Tray: 90kg.
7. maiNteNaNce
7.1. Clean the Trolley with a damp cloth. do Not use abrasives, harsh chemicals or detergents as these will scratch and damage the
surface.
7.2. Before each use inspect the general condition of the Trolley. Check for loose screws, misalignment or binding of moving parts,
crackedorbrokenpartsandanyotherconditionthatmayaectitssafeoperation.do Not use damaged equipment.
g.1
AP850MB Issue 3 (3F) 22/03/19
Original Language Version
© Jack Sealey limited
sealey Group, kempson way, suffolk business park, bury st edmunds, suffolk. ip32 7ar
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
eNviroNmeNt protectioN
recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
important: no liability is accepted for incorrect use of this product.
warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
