Sealey PCT1 Plasma Cutting Table/Workbench User Manual

PLASMA CUTTING TABLE/WORKBENCH

MODEL NO: PCT1

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these

instructions, and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY

 WARNING! Ensure Health & Safety, and local authority regulations are adhered to when assembling and using the workbench.

9 Locate workbench in a suitable area where it will not be an obstruction.

9 Keep the general area clean, uncluttered and ensure there is adequate lighting.

 WARNING! Erect unit on a level and solid surface such as concrete.

9 Keep children and unauthorised persons away from the work area.

8 DO NOT use the unit for any purpose other than that for which it is designed.

8 DO NOT clean the unit with any solvents which may damage the surfaces.

9 Ensure that the unit is properly and securely assembled before use.

2. INTRODUCTION

Mild steel plasma cutting table/workbench. 32 Replaceable cutting slats, order Model No. PCT1RS for a pack of 10 replacements.

 Removablesidehandles/cabletidyhanginghooks.Suppliedatpackedforeasyselfassemblyusinghandtools(notprovided). 

Supports weight capacity of 113kg.

3. SPECIFICATION

Model no.: ..................................................................... PCT1

Assembleddimensions(WxDxH) .... 1065x600x812mm

Bench dimensions ............................................920x600mm

Replacementparts:Slats(packof10) ..................... PCT1RS

4. CONTENTS

PCT1Issue2(1)21/05/21

Original Language Version

Refer to

instructions

Wearprotective

gloves

Wearsafety

footwear

Weareye

protection

5. ASSEMBLY

NOTE: It is recommended that two people are used to assemble this item.

NOTE: DO NOTfullytightenxingsuntilallareinplace.

5.1. Assemblemainbeams(g1.3,g.1.4)tothetablelegs(g1.5)usingxings(g1.11,1.12,1.13).Notepositioningofmain

 beams(seeg1).

5.2. Assemblesupportbeams(g1.6,g.1.7)tothetablelegs(g1.5)usingxings(g1.11,1.12,1.13).Notepositioningofsupport

 beams(seeg1).

5.3. Fixsidehandles(g1.2)usingxings(g1.8,1.9,1.10).

5.4.  Loadslats(g1.1)intotopframe.

5.5. Tightenallxingsandensurethestructureissound,stableandcapableofsafelycarryingaloadofupto113kg.

6. MAINTENANCE

6.1. Clean regularly using non-abrasive cleaner and a damp cloth.

6.2. Before each use check all parts and the integrity of the structure. If damaged or suspect, remove from service and take necessary

action to correct.

Original Language Version

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to

arecyclingcentreanddisposedofinamannerwhichiscompatiblewiththeenvironment.Whentheproductbecomescompletely

unserviceableandrequiresdisposal,drainanyfluids(ifapplicable)intoapprovedcontainersanddisposeoftheproductandfluids

according to local regulations.

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior

notice.

Important: No Liability is accepted for incorrect use of this product.

Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.

Item Part no. Description

1 PCT1RS Replacementslats(Packof10)

2 PCT1.02 Removable side handle

3 PCT1.03 Main beam, short

4 PCT1.04 Main beam, long

5 PCT1.05 Table leg

6 PCT1.06 Support beam, short

7 PCT1.07 Support beam, long

8 SS1025.S HxHdSetScrewM10x25mm

9 SWM10.S Spring washer M10

10 SN10.S Steel nut M10

11 SS825.S HxHdSetScrewM8x25mm

12 SWM8.S SpringwasherM8

13 SN8.S SteelnutM8

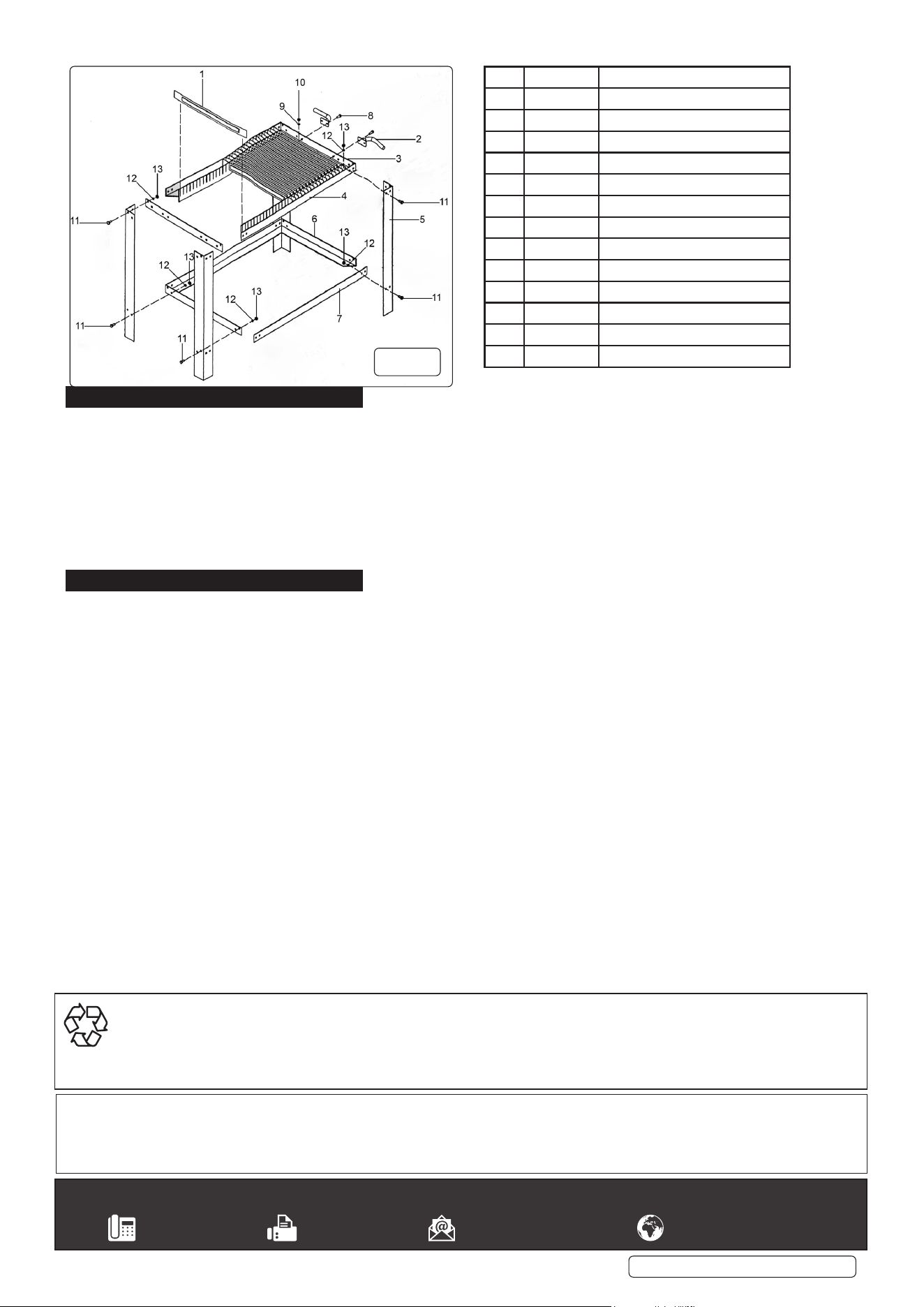

g.1

PCT1Issue2(1)21/05/21
